1.1 Contributions and Thesis Outline

This thesis focuses only on a subset of the Goal-Oriented Chatbots, modeled as Partially Observable Markov Decision Processes (POMDP)

[Young et al., 2013], where the rich set of Reinforcement Learning (RL) algorithms [Sutton and Barto, 1998] can be used to train them, for instance the Deep Q-Nets (DQN) [Mnih et al., 2015]. The lack of in-domain dialogue data is a key problem for training high quality RL-based Goal-Oriented Chatbots. We need in-domain labeled dialogues for two reasons: to warm-start the Chatbot, which is a standard widely used technique and to train the chatbot by simulating a considerable number of different conversations.

In this thesis we argue that the domain similarity can be leveraged in a clever way to build efficient GO Chatbots with less data, using the so-called Transfer Learning technique. We use the similarity between a source and a target domain, as many domains, such as restaurant and movie booking, share to a large extent some common information. For example, in the restaurant booking scenario, the user might ask the question “Which restaurant I can book a table for 3 people for tomorrow?”, while in the movie booking domain the question could be “Which theater I can book 3 tickets for tomorrow?”. In both domains, the user includes information for number of people and time. We believe this information need not be learnt twice and that a transfer is possible.

We successfully combine Transfer Learning and RL-based Goal-Oriented Chatbots and to the best of our knowledge we are the first ones doing that. As a result of the research over the course of this thesis, we published a paper [Ilievski et al., 2018], which is submitted for a review at the 27th International Joint Conference on Artificial Intelligence (IJCAI). The contributions of this thesis are following:

  • Training GO Chatbots with less data: In data constrained environments, models trained with Transfer Learning achieve better training and testing performances than ones trained independently.

  • Better GO Chatbot performance: Using Transfer Learning has a significant positive effect on performance even when all the data from the target domain is available.

  • Intuitions on further improvements: We show the gains obtained with Transfer Learning are complementary to the ones due to warm-starting and the two can be successfully combined.

  • New published datasets: We publish new datasets for training Goal-Oriented Dialogue Systems, for restaurant booking and tourist info domains222The datasets will be published in the camera-ready version. They are derived from the third Dialogue State Tracking Challenge [Henderson et al., 2013].

After the Related Work Chapter (Chapter 2), we first make a general overview of the Dialogue Systems in Chapter 3. Then, in Chapter 4, we describe the model of the RL-based GO Chatbots, which performance relies on a robust dialogue state tracking and an efficient learnt policy, as described in Chapter 5. We conduct our experiments and show the results in Chapter 6. Finally in Chapter 7 we conclude our work and present the possible future work.

2.1 Goal-Oriented (GO) Dialogue Systems

The Goal-Oriented (GO) Dialogue Systems have been under development in the past two decades, starting from the basic, handcrafted Dialogue Systems. For instance, [Larsson and Traum, 2000] introduced a framework for dialogue management development, based on hand-crafted rules. In the same direction, [Zue et al., 2000] built a weather information, hand-crafted Goal-Oriented Chatbot. The recent efforts to build such systems are generally divided in three lines of research.

2.1.1 Fully-Supervised Models

The first way is to treat them in an end-to-end, fully supervised sequence-to-sequence manner [Sutskever et al., 2014]

. Thus, we can use the power of the deep neural networks based on the encoder-decoder principle to infer the latent representation of the dialogue state. However, it is worth noting that these models require considerable amount of data.

The authors in [Vinyals and Le, 2015]

used standard Recurrent Neural Networks (RNNs) and trained a Goal-Oriented Chatbot in a straightforward sequence-to sequence fashion. They benchmarked their findings in IT helpdesk troubleshooting domain, where costumers face computer related issues, and a specialist help them by conversing and walking through a solution. Due to the incapability of the recurrent nets to compress very long dependencies, this chatbot is not having a strong reasoning power.

To overcome the RNN memory limitations, in their work [Bordes and Weston, 2016] used LSTM cells in combination with explicit memory, known as Memory Networks [Sukhbaatar et al., 2015], to build a Goal-Oriented Chatbot, using the bAbI111 tasks for restaurant reservation. The chatbot demonstrated better reasoning power, thus remembering and updating the past user preferences. For this reason, this work represents a testbed for testing the shortcomings and strengths of fully-supervised end-to-end Goal-Oriented Dialogue Systems.

2.1.2 Reinforcement Learning-based Models

Another branch of research had emerged, focusing on the Deep Reinforcement Learning because the fully-supervised approach is data-intensive. These models have a quite complex structure, since they include many submodules, such as Natural Language Understanding (NLU) [Hakkani-Tür et al., 2016]

and Natural Language Generation (NLG)

[Wen et al., 2015] units, as well as a Dialogue State Tracker (DST).

Aligned in this direction, [Cuayáhuitl, 2017] created a simple Dialogue System for a restaurant reservation domain. The system’s actions solely depend on the RL-based agent, by performing action selection directly from raw text of the last user and system responses instead of manual feature engineering. Therefore, this system does not include any language understanding and state tracking units, which in turn is quite constraining. Another simple Question-Answering Chatbot (Q&A bot) is presented in [Dhingra et al., 2016]. It is an end-to-end Reinforcement Learning Chatbot, which helps users search Knowledge Bases (KBs) for movies, without composing complicated queries.

As an extension of all the previous work, [Li et al., 2017] went one step further and built a comprehensive Movie Booking Chatbot. It includes a User Simulator [Li et al., 2016], which simulates the user in the training process, Natural Language Understanding (NLU) and Natural Language Generation (NLG) units, as well as a basic Dialogue State Tracker and a Policy Learning module. It is trained in an end-to-end fashion, by leveraging the Deep Q-Nets (DQN) [Mnih et al., 2015] for the policy learning.

2.1.3 Hybrid Models

This line of research combines both, the Fully-Supervised and Reinforcement Learning-based approaches, in order to escape the limitations, characteristic for both of them.

In their work  [Su et al., 2016] described a two-step approach to train a policy for Goal-Oriented Chatbot. In the first step, the algorithm is trained on a fixed corpus data in a supervised way. In the second step, the policy is fine-tuned using RL-based policy gradient [Williams, 1992] technique, in order to explore the dialogue space more efficiently.

Similarly, [Williams et al., 2017], proposed a solution to train a Goal-Oriented Dialogue System in two modes: off-line and on-line mode. In the off-line mode, the system is trained in a fully-supervise manner, combining an LSTM network with hand-crafted templates, to mitigate the data requirements. Afterwards, in the on-line mode, the system learns autonomously by incorporating RL-based policy gradient approach.

2.2 Data-Constrained Dialogue Systems

One desired property of the Goal-Oriented Chatbots is the ability to switch to new domains and at the same time not to lose any knowledge learned from training on the previous ones. This property is enforced due to the lack of in-domain data required to train high-quality Goal-Oriented Chatbots.

In this direction, the authors in [Gašić et al., 2015] proposed a Gaussian Process-based technique to learn generic dialogue polices, which are organized in a class hierarchy. These policies with a modest amount of data can be furthermore adjusted according to the use case of the dialogue system.

On the other hand, [Wang et al., 2015] learned domain-independent dialogue policies, such that they parametrized the ontology of the domains. In this way, they show that the policy optimized for a restaurant search domain can be successfully deployed to a lap-top sale domain.

Last but not the least,  [Lee, 2017] utilized a continual learning technique, to smoothly add new knowledge in the neural networks that specialized a dialogue policy in an end-to-end fully-supervised manner.

Nevertheless, none of the previously mentioned papers tackles the problem of transferring the domain knowledge in case when the dialogue policy is optimized using a Deep Reinforcement Learning. In this thesis, we propose such method, based on the standard Transfer Learning technique [Pan and Yang, 2010]. Therefore, using this method we surpass the limitations to transfer the in-domain knowledge in Goal-Oriented Dialogue Systems based on Deep Reinforcement Learning.

3.1 Spoken Dialogue Systems

The Spoken Dialogue Systems are specially designed for environments which does not include user interfaces such as big screens and keyboards, they rather use microphone and speakers. [Henderson, 2015c] shows a typical composition of the Spoken Dialogue Systems as well as the information flow. For this reason, the input and output is continuous speech signal, which requires special modules and techniques to handle (see Figure 3.1), which includes:

  • The Automatic Speech Recognition (ASR) unit [Zhang et al., 2017]

    assigns probabilities to the words in the user utterance.

  • The Spoken Language Understanding (SLU) unit [Yao et al., 2014] infers the semantics of the user input.

  • The Speech Synthesis (SS) unit [Zen et al., 2009], will convert the system’s response into speech.

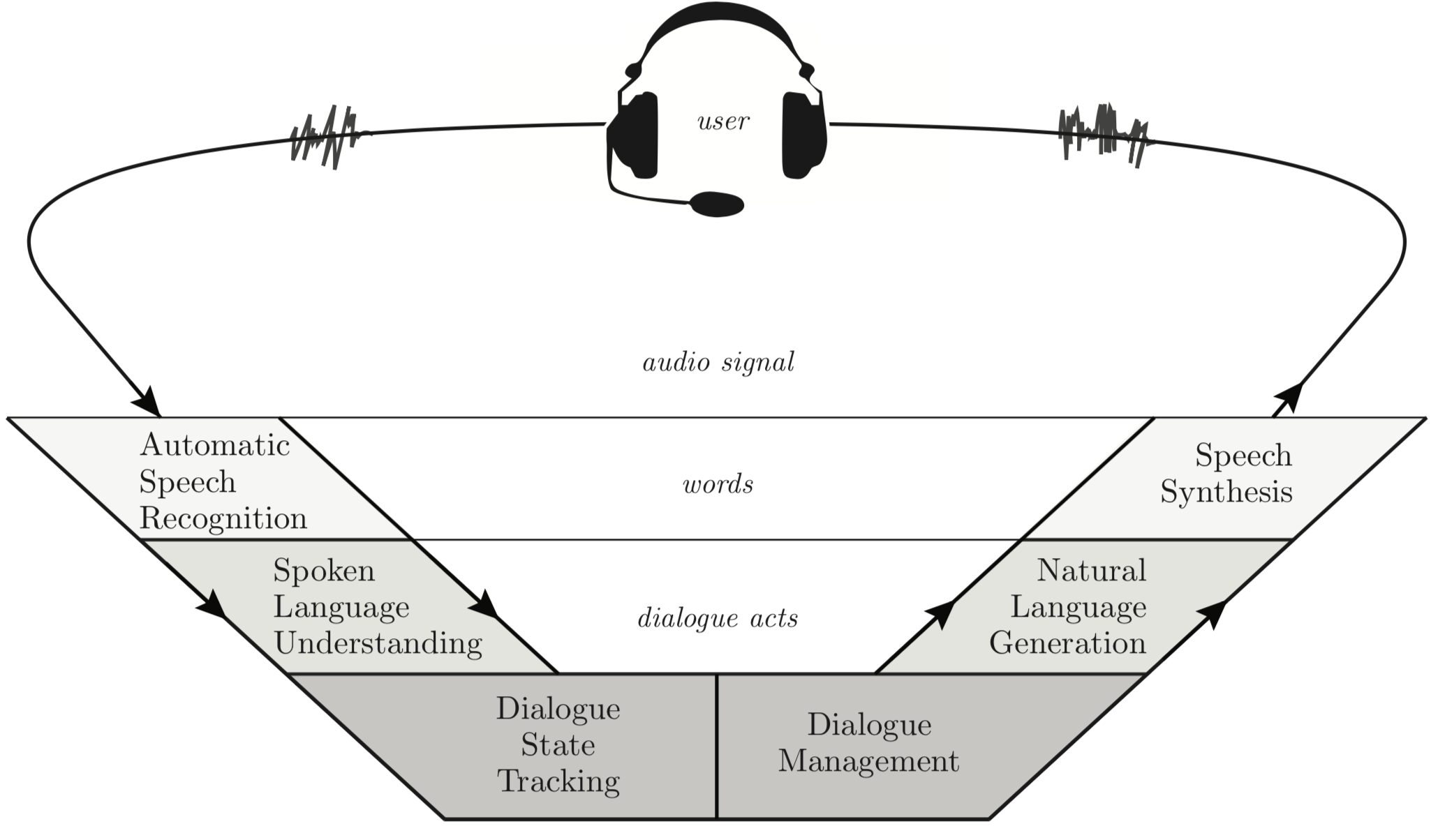

Figure 3.1: The architecture of a Spoken Dialogue System from [Henderson, 2015c]

3.2 Text-Based Dialogue Systems (Chatbots)

Contrary to the Spoken Dialogue Systems, the Text-Based Systems (known as Chatbots) only focus on the interfaces which include screens and keyboards, meaning the input and output is text. Consequently, they include appropriate units and algorithms to handle text. Depending on the nature of the conversation, the Chatbots are divided in Open-Domain and Closed-Domain Chatbots known as Goal-Oriented (GO) Chatbots.

In the open-domain setting, the conversation can go in any direction, usually in the form of chit-chatting, without any purpose. Because of their nature to cover every possible case, it is almost impossible to create a perfect open-domain Chatbot, as shown in [Serban et al., 2016]. Thus, most of the chatbot research is on the closed-domain Chatbots, which is a case in this thesis.

3.3 Goal-Oriented (GO) Chatbots

The Goal-Oriented (GO) Dialogue Systems are more useful and practical and are easier to implement. This is due to the fact that their domain of expertise is much narrower, focusing only on few key points of the dialogue. In general there are two dominant paradigms in GO Dialogue Systems implementations: Fully-Supervised and Reinforcement Learning (RL) based.

3.3.1 Fully-Supervised GO Chatbots

In case of fully supervised implementation, we apply the recurrent neural networks (RNNs) encoder-decoder principles, mainly applied in the machine translation. An example of this kind of models is presented in [Bordes and Weston, 2016, Wen et al., 2016b]. These models are trained in a sequence-to-sequence fashion [Sutskever et al., 2014], that encode the user request and its context and decode the bot answer directly.

The fully supervised GO chatbots require a considerable amount of annotated human-human or human-machine dialogues since the system is trying to mimic the knowledge of the expert. Moreover, we don’t have a control over the internal state, which means we can not model the dialogue as we wish.

3.3.2 Reinforcement Learning (RL) based GO Chatbots

On the other hand, we can model the GO Chatbots as a Partially Observable Markov Decision Process (POMDP)[Young et al., 2013]. The Reinforcement Learning (RL) [Sutton and Barto, 1998] algorithms are one rich subset of powerful and promising algorithms that can be applied in this case.

Figure 3.2:

Text-Based Dialogue System modeled as a Partially Observable Markov Decision Process. The user utterance is parsed by the NLU unit producing a dialogue act understandable for the system. In the Dialogue Manager, the state tracker is estimating the state such that the RL agent could take the ideal action. This action is further passed to the NLG unit and finally presented to the user in a human readable form.

Figure 3.2 shows a typical composition of an RL-based GO Chatbot, as well as the information flow. Following the pipeline, there are three separate components, each having a specific role in the process:

  1. First of all the Natural Language Understanding unit [Hakkani-Tür et al., 2016] will infer the semantics of the user input. This includes understanding the user intent and the slots (i.e. the relevant information).

  2. In the second step, the Dialogue Manager (DM) will take care of the dialogue. Based on the context, previous user and system actions it will produce the next system action. Usually it includes two other subcomponents: Dialogue State Tracker (DST) [Henderson, 2015a], which purpose is to build reliable state of the dialogue and a Policy Learning module which reads the dialogue states and takes the next system action.

  3. Finally, the Natural Language Generation unit [Wen et al., 2015], based on the DM output, will generate a natural sentence, understandable for the end user.

RL-based Chatbots require less annotated dialogues than their sequence-to-sequence counterparts, due to their ability to simulate the conversation, thus exploring the unknown dialogue space more efficiently. The data requirements are however not trivial and obtaining the dialogue data is still the biggest obstacle their creators face. In the following chapters we dive deeper in the RL-based GO Chatbots and show how this obstacles can be surpassed using Transfer Learning.

4.1 User Simulator

The User Simulator creates a user - bot conversation, given the semantic frames. Because the model is based on Reinforcement Learning, a dialogue simulation is necessary to successfully train the model [Li et al., 2016].

From the dataset of available user goals the User Simulator randomly picks one, which is unknown for the Dialogue Manager. The user goal consists of two different sets of slots: inform slots and request slots.

  • Inform slots are the slots for which the user knows the value, i.e. they represent the user constraints (e.g. {movie_name: “avengers”, number_of_people: “3”, date: “tomorrow”}).

  • Request slots are ones for which the user is looking for an answer (e.g. { city, theater, start_time } ).

Having the user goal as an anchor, the user simulator generates the user utterances . The initial user utterance, similar to the user goal, consists of the initial inform and request sets of slots. Additionally, it includes a user intent, like open dialogue or request additional info.

The user utterances generated over the course of the conversation follow an agenda-based model [Schatzmann and Young, 2009]. According to this model, the user is having an internal state , which consists a goal and an agenda . The goal furthermore is split in user constraints and user requests . In every consecutive time step , the user simulator creates the user utterance , using its current state and the last system action . In the end, using the newly generated user utterance , it updates the internal state .

4.2 Natural Language Understanding Unit

The NLU unit is responsible for transforming the user utterance to a predefined semantic frame according to the system’s conventions, i.e. to a format understandable for the system. This includes a task of slot filling and intent detection.

For example, the intent, could be a greeting, like Hello, Hi, Hey, or it could have an inform nature, for example I like Indian food, where the user is giving some additional information. Depending on the interests, the slots could be very diverse, like the actor name, price, start time, destination city etc. As we can see, the intents and the slots are defining the closed-domain nature of the Chatbot.

The task of slot filling and intent detection is seen as a sequence tagging problem. For this reason, the NLU component is usually implemented as an LSTM-based recurrent neural network with a Conditional Random Field (CRF) layer on top of it. The model presented in [Hakkani-Tür et al., 2016], is a sequence-to-sequence model using bidirectional LSTM net, which fills the slots and predicts the intent in the same time. On the other hand, the model in [Liu and Lane, 2016] is doing the same using an attention-based RNN.

To achieve such a task, the dataset labels consist of: concatenated B–I–O (Begin, Inside, Outside) slot tags, the intent tag and an additional end-of-string (EOS) tag. As an example, in a restaurant reservation scenario, given the sentence Are there any French restaurants in Toronto downtown?, the task is to correctly output, or fill, the following slots: {cuisine: French} and {location: Toronto downtown}. The table below shows how we would correctly tag the previous example. One very effective technique to build better NLU units with less data (based on the Active Learning methodologies) is presented in [Dimovski et al., 2018].

Are there any French restaurants in Toronto downtown?
O O O B-Cuisine O O B-Location I-Location
Table 4.1: An example of tagging a sentence in B–I–O (Begin, Inside, Outside) format

4.3 Natural Language Generator Unit

The NLG unit, on the other hand is the glue between the system and the user. Given the system response as a semantic frame, it maps back to a natural language sentence, understandable for the end user. The NLG component can be rule-based or model-based. In some scenarios it can be a hybrid model, i.e. combination of both.

The rule-based NLG outputs some predefined template sentences for a given semantic frame, thus they are very limited without any generalization power. For this reason, they are only used in special occasions.

On the other hand, the model-based NLG units, are having learnable parameters and are usually trained in a sequence-to-sequence fashion. The models presented in [Wen et al., 2016a, Wen et al., 2015], use an LSTM-decoder with a given semantic frame, to generate template-like sentences with slot placeholders. Afterwards, a beam searched is applied, to replace the placeholders with actual values.

4.4 Dialogue Manager

At the core of the GO Dialogue Systems lies the Dialogue Manager (DM), supported by the NLU and NLG units. Additionally, the DM could be connected to some external Knowledge Base (KB) or Data Base (DB), such that it can produce more meaningful answers.

The Dialogue Manager consists the following two components: the Dialogue State Tracker (DST) and the Policy Learning which is the RL agent.

The Dialogue State Tracker (DST) is a complex and essential component that should correctly infer the belief about the state of the dialogue, given all the history up to that turn. The Policy Learning is responsible for selecting the best action, i.e. the system response to the user utterance, that should lead the user towards achieving the goal in a minimal number of dialogue turns.

4.4.1 Dialogue State Tracker

The Dialogue State Tracker (DST) is producing a meaningful state of the dialogue up to time in the time. The state is a data structure, that should depict the state of the conversation to a level of detail that provides all necessary information in order an intelligent agent to easily and reliably select the next action.

The tracker, takes all possibly observable input up to time which includes: all the user utterances and system actions taken so far, all the results from the NLU unit. Additionally, it might include all external knowledge provided in a knowledge base or a data base. For example in a restaurant search scenario, the state might indicate the user price range and cuisine preferences, what information they are seeking, like a telephone number or address.

Therefore, given all of this information, a robust dialogue state tracker outputs a distribution over all possible dialogue states. This is due to the fact that the true state is not fully observable from the raw input. Several factors contribute for that: ambiguous or not clearly specified user utterances, the noise and the error from the NLU, changes in user goal etc.

In order to tackle these challenges, in the literature there are three types of state trackers: rule-based, generative models and discriminative models. Very recently, the series of the Dialogue State Tracking Challenge (DSTC) have started [Williams et al., 2016, Henderson, 2015b], a competition aiming to boost the state trackers to the next level. Many state-of-the-art dialogue state trackers emerged from this competitions.

Hand-Crafted DST models

The hand-crafted dialogue state trackers are the most basic ones and they were used in the early dialogue systems. They infer the state of the dialogue by a manually designed and tuned parameters, such that the new state is derived from the last state using the last user utterance. An example of such system is the weather information system developed at MIT, called JUPITER [Zue et al., 2000]. Moreover, in [Larsson and Traum, 2000] a hand-crafted rules are used to build a complex dialogue management system.

One strong advantage of this kind of state trackers is that they do not require any training data. However, due to the lack of flexibility and inability to adapt and generalize over many possible states, a data-driven approach is required and obvious.

Generative DST models

For this reason, the generative models

emerged, modeling the dialogue as a dynamic Bayesian network considering the state

, and the user action

as an unobservable random variables. In general, given the input vector

for some , and the label

, the generative models are trying to estimate the joint distribution of

and , i.e. . Thus, the rest of the probabilities can be derived using the Bayesian rules. The Bayesian net for inferring the new state is shown in Figure 4.1. The new state , depends on the previous state , and the current machine action , which on the other side depends on the noisy user action u.

Figure 4.1: Dynamic Bayesian Net for inferring the state of the dialogue. The state depends on the previous state and the system action . This leads to a new user utterance (depending both on the state and system action), which becomes noisy afterwards.
Discriminative DST models

Finally, the discriminative models for state tracking are the most powerful ones. They are directly estimating the conditional probability , where is the label and is the underlying data. One example and very successful discriminative model is the model described in [Henderson et al., 2014a, Henderson et al., 2014b]. Using a word-based approach, the authors successfully scaled the model to work on unseen slots and values. This is done by using the n-gram technique on top of the slot-value pairs. Moreover, in order to make the system slot invariant, delexicalized features are used, which means introducing generic symbols. Afterwards, a Recurrent Neural Network is used to discriminate between the dialogue states.

4.4.2 Policy Learning

The Policy Learning module selects the next system actions to drive the user towards the goal in the smallest number of steps. It does that by using the Reinforcement Learning theory.

The theory of Reinforcement Learning is motivated by the neuroscientific perspectives of the animal and human behavior, deeply and well rooted in the nature. Therefore, by mathematically modeling the nature, we have an intelligent agent acting in an environment and perceiving a state . Upon taking an action , based on the policy learned from the past experiences, it is receiving a reward and it changes the state of the environment.

Therefore, the role of the dialogue agent is to learn an optimal policy for conducting efficient and successful dialogue with the user. This is done by following the reinforcement way of learning, defining final, and immediate reward, such that the agent should maximize the cumulative future reward. One way to do so, is by applying on off-policy method, such as Q-learning [Watkins and Dayan, 1992]. The Q-function is the utility of taking an action , when the agent is perceiving the state , by following a policy . The utility measure is defined as the problem of maximizing the cumulative future reward that the agent will receive.

The optimal action , in a given state , in a given time point , according to the Q-learning is defined as:


where are the rewards at each time step, is the discount factor, i.e. the relevance of the future rewards, and is the agent’s policy. The optimal action-value (or Q) function obeys an important identity known as the Bellman equation, which states:


Obviously, this agent would follow a greedy strategy, and will always exploit the same set of actions in order to reach the goal. In practice, we want the agent to generalize well over the state space. For this reason, the agents incorporate different exploitation-exploration strategies. The most popular and quite effective one is the - greedy strategy, for . That means with a probability of the agent will select a random action, while with a probability of it will follow a greedy approach.

However, by following the Bellman Equation 4.2, the objective function for learning the Q-function would be:


Therefore, in order to find a function approximation of the Q-function, we have to minimize the equation 4.3.

The recently developed method, by a group of researches at Deep Mind, successfully applies a deep feed-forward neural network as a function approximator of the Q-function. Detailed information about the Deep Q-learning (DQN) technique and how to build more efficient policies using them will be provided in Chapter


5.1 Deep Q-Learning (DQN)

There are two types of DQN algorithms: standard DQN and Double DQN (DDQN) which is an extension and more robust version of the standard DQN algorithm.

5.1.1 Standard DQN

The agents should be able to generalize well, over a high-dimensional, partially observable and complex input. Exactly this was the difficulty that most of the RL algorithms were facing, so their applicability was mainly in domains of fully observable, finite and low-dimensional states. However, all of this changed after introducing the Deep Q-Network, by a group of researchers at Deep Mind [Mnih et al., 2015]. It is a standard deep feed-forward neural network, which approximately calculates , where are the parameters, (i.e. weights) of the Q-Network.

As we already explained, the goal in the reinforcement learning is to minimize the equation 4.3. However, in the RL community it is widely known that a nonlinear approximator of the Q-function, such as a neural network, causes instability and divergence. This is due to the following two reasons:

  1. The correlation between the sequence of observations, i.e. every next state depends on the previous states and actions, and

  2. The targets (labels), depend on the network weights. More precisely, to calculate the target

    , used as a correction, we used the same weights which are changing through the time. This is in total contrast with the supervised learning, where the targets are fixed before the learning starts.

The first problem is solved by using a biologically inspired mechanism, called experience replay, i.e. to learn from experiences from an arbitrary point in the past. In order to perform such a mechanism, we store the agent’s experiences in a dataset of tuples. Therefore, at training time, we randomly sample experiences from the dataset

, following some probability distribution, which in the simplest case is a uniform distribution. Using this technique, we overcome the first problem, but we are still not able to perform learning in the network, due to the second issue, the targets still depend on the network weights.

For this reason, we introduce another Q-Network, called target network, with fixed parameters . As its name suggests, this network is only used to calculate the targets , independently from the primary Q-Network. The target network parameters are only updated with the primary Q-Network parameters every steps and are held fixed between individual updates.

Thus, with the randomly drawn mini-batch of experiences and the target Q-Network we perform learning using the following loss function:


The full algorithm for the Deep Q-Learning with experience reply is described in more details in Appendix A.1.

To evaluate the performances of the DQN algorithm, the researchers at Deep Mind took advantage of the Atari 2600 platform, offering 49 challenging games. The DQN algorithm outperformed the best existing reinforcement learning methods on 43 games without incorporating any prior knowledge about the Atari 2600 games. These outstanding results confirmed the superiority of the DQN algorithm and established it as a state-of-the-art technique in the Reinforcement Learning community.

5.1.2 Double DQN (DDQN)

The standard DQN algorithm is based on the Bellman equation, thus it includes maximization step as shown in Equation 5.1. For this reason, it learns unrealistically high action values, which tends to prefer overestimated to underestimated values.

In their paper [Van Hasselt et al., 2016], theoretically prove that the overestimations occur non-uniformly and negatively affect the performance of the DQN algorithm. Therefore, they proposed an extension of the standard DQN algorithm, called Double DQN (DDQN), in order to overcome these issues.

In the standard DQN algorithm, the decision for the next action is taken according to the following identity: . For this reason, the same neural network is used to evaluate the Q-function and then to select the best action.

In Double DQN, this process is decoupled. One neural network is used to evaluate the Q-function and a second neural network is used to select the best action. In mathematical notation, the next action is taken according to the following identity: .

5.2 DQN for GO Chatbots

The applications of the DQN algorithm are not only limited to the Atari 2600 games. Very recently the researchers started applying the Deep Q-Learning to various tasks, including the Goal-Oriented Dialogue Systems.

In the case of Goal-Oriented Chatbots, the agent is getting the new state from the Dialogue State Tracker (DST) and then it takes a new action , based on the -greedy policy. It means, with a probability it will take a random action, while with a probability it will take the action resulting with a maximal Q-value. We thus trade between the exploration and exploitation of the dialogue space. For each slot that might appear in the dialogue, the agent can take two actions: either to ask the user for a constraining value or to suggest to the user a value for that slot. Additionally, there is a fixed size of slot-independent actions, to open and close the conversation.

The agent receives positive and negative rewards accordingly, in order to force the agent to successfully conduct the dialogue. It is successful if the number of totally required dialogue turns to reach the goal is less than a predefined maximal threshold . For every additional dialogue turn, the agent receives a predefined negative reward . In the end, if the dialogue fails, it will receive a negative reward equal to the negative of the predefined maximal allowed dialogue turns. If the dialogue is successful, it will receive a positive reward , two times the maximal allowed dialogue turns.

An important addition is the warm-starting technique that fills the experience replay buffer with experiences coming from a successfully finished dialogues i.e. with positive experiences. This dramatically boosts the agent’s performances before the actual training starts, as will be shown in Section 6.2.3

. The training process continues with running a fixed number of independent training epochs

. In each epoch we simulate a predefined number of dialogues , thus filling the experience memory buffer. The result consists of mini-batches to train the underlying Deep Q-Net.

During the training process, when the agent reaches for the first time a success rate greater or equal to the success rate of a rule-based agent , we flush the experience replay buffer, as described in detail in [Li et al., 2017]. We do this because the DQN-based agent cannot produce valuable experiences in the beginning, which are all stored in the experience buffer.

5.3 Transfer Learning

The main goal of this work is to study the impact of a widely used technique - Transfer Learning on goal oriented bots. As the name suggests, transfer learning transfers knowledge from one neural network to another. The former is known as the source, while the latter is the target [Pan and Yang, 2010]. The goal of the transfer is to achieve better performance on the target domain with limited amount of training data, while benefiting from additional information from the source domain. In the case of dialogue systems, the input space for both source and target nets are their respective dialogue spaces.

Figure 5.1: Comparison of the Goal-Oriented Dialogue System training process, without transfer learning (left side) and with transfer learning (right side).

The training process without transfer learning, shown in Figure 5.0(a), processes the two dialogue domains independently, starting from randomly initialized weights. The results are dialogue states from separate distributions. Additionally, the sets of actions the agents might take in each domain are also independent.

On the other hand, as depicted in Figure 5.0(b) if we want to benefit from transfer learning, we must model the dialogue state in both domains, as if they were coming from the same distribution. The sets of actions have to be shared too. The bots specialized in the source domain must be aware of the actions in the second domain, even if these actions are never used, and vice versa. This requirement stems from the impossibility of reusing the neural weights if the input and output spaces differ. Consequently, when we train the model on the source domain, the state of the dialogue depends not only on the slots that are specific to the source, but also on those that only appear in the target one. This insight can be generalized to a plurality of source and target domains. The same holds for the set of actions.

1:procedure InitializeWeights(sourceWeights, commonSlotIndices, commonActionIndices)
3:     for  in commonSlotIndices do
5:     for  in commonActionIndices do
7:     return targetWeigths
Algorithm 1 Transfer Learning Pseudocode

When training the target domain model, we no longer randomly initializing all weights. The weights related to the source domain - both for slots and actions - are copied from the source model. The pseudocode for this weight initialization is portrayed in the Algorithm 1.

6.1 Baseline Experiments

(a) Learning curve on a semantic level
(b) Learning curve on a natural language level
Figure 6.1:

Baseline experimental results for 100 runs with a 95% confidence interval

In all baseline experiments, the Chatbot is trained on the Movie Booking domain. The type of slots for this domain are given in Figure 6.2. The size of the training set is 128 user goals. The maximal number of allowed dialogue turns is set to , thus the negative reward for a failed dialogue is , while the positive reward for a successful dialogue is . In all experiments we use a warm-starting and train for epochs, each simulating dialogues. This is a bit huge number of epochs to run and we believe that the chatbot is overfitting. However, our intention was to reproduce the results from the baseline paper.

We present the results for both levels: semantic level and natural-language level. In Figure 6.0(a) the learning curve for the training on semantic level is shown, while in Figure 6.0(b) the learning curve for the training on natural language level is shown. The same experiment is repeated 100 times, thus the results are reported with a 95% confidence interval. Due to the noise introduced by the NLU and NLG unit, the Chatbot performance on natural language level is considerably lower than the performance on the semantic level.

6.2 Transfer Learning Experiments

In this set of experiments, we operate on the semantic level, removing the noise introduced by the NLU and NLG units. We want to focus exclusively on the impact of transfer learning techniques on dialog management. The details of the system implementation111Link to the GitHub repository: are presented in Appendix A.2.

6.2.1 Setup of Experiments

All experiments are executed using a setup template. Firstly, we train a model on the source domain and reuse the common knowledge to boost the training and testing performance of the model trained on a different, but similar target domain. Secondly, we train a model exclusively on the target domain, without any prior knowledge. This serves as a baseline. Finally, we compare the results of these two models. We thus have two different cases:

  1. Domain Overlap - the source and target domains are different, but share a fraction of the slots.

  2. Domain Extension - the source domain, now , is extended to Tourist Information, that contains all the slots from the source domain along with some additional ones.

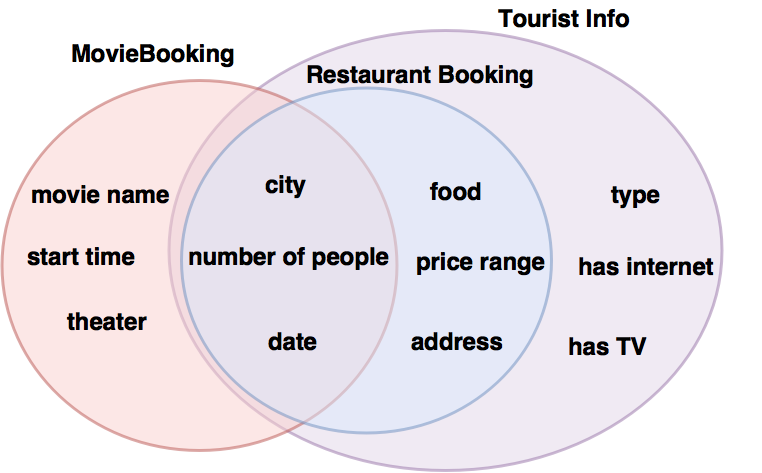

Figure 6.2: Slot types in the three different domains

The reason for the choice of source domain in the domain overlap case is designed to enable a direct comparison to the results of  [Li et al., 2017], who built a GO bot for movie booking. For the domain extension case, the only combination available was . The type of slots in each domain are given in Figure 6.2. For each domain, we have a training set of 120 user goals, and a testing set of 32 user goals.

Following the above mentioned setup template, we conduct two sets of experiments for each of the two cases. The first set shows the overall performance of the models leveraging the transfer learning approach. The second set shows the effects of the warm-starting jointly used with the transfer learning technique.

In all experiments, when we use a warm-starting, the criterion is to fill agent’s buffer, such that 30 percent of the buffer is filled with positive experiences (coming from a successful dialogue). After that, we train for epochs, each simulating dialogues. We flush the agent’s buffer when the agent reaches, for a first time, a success rate of . We set the maximal number of allowed dialogue turns to 20, thus the negative reward for a failed dialogue is , while the positive reward for a successful dialogue is . In the consecutive dialogue turns over the course of the conversation, the agent receives a negative reward of . In all cases we set

to leave a space for exploration. By using this hyperparameters, we prevent the system to overfit and to generalize very well over the dialogue space. Finally, we report the success rate as a performance measure.

6.2.2 Training with Less Data

Due to labeling costs, the availability of in-domain data is the bottleneck for training successful and high performing Goal-Oriented chatbots. We thus study the effect of transfer learning on training bots in data-constrained environments.

From the available 120 user goals for each domain’s training set, we randomly select subsets of 5, 10, 20, 30, 50 and all 120. We then warm-start and train both the independent and transfer learning models on these sets. We test the performance on both the training set (training performance) and the full set of 32 test user goals (testing performance). We repeat the same experiment 100 times, in order to reduce the uncertainty introduced by the random selection. Finally, we report the success rate over the user goal portions with a 95% confidence interval.

(a) Restaurant Booking with pre-training on Movie Booking domain
(b) Tourist Info with pre-training on Restaurant Booking domain
Figure 6.3: Average training and testing success rates with 95% confidence, for 100 runs over a randomly selected user goal portions of size 5, 10, 20, 30, 50 and 120, for both models: with and without transfer learning.

The training and testing results, in the first case of domain overlapping, are shown in Figure 6.2(a). The success rate of the model obtained with transfer learning is 65% higher than that of the model trained without any external prior knowledge. In absolute terms the success rate climbs on average from 30% to 50%. For the test dataset, transfer learning improves the success rate from 25% to 30%, for a still noteworthy 20% relative improvement.

In the case of domain extension, the difference between the success rates of the two models is even larger (Figure 6.2(b)). This was expected, as the extended target domain contains all slots from the source domain, therefore not losing any source domain information. The overall relative success rate boost for all user goal portions is on average 112%, i.e. a move from 40% to 85% in absolute terms. For the test set, this difference is even larger, from 22 to 80% absolute success rate, resulting in 263% relative boost.

These results show that transferring the knowledge from the source domain, we boost the target domain performance in data constrained regimes.

6.2.3 Faster Learning

In a second round of experiments, we study the effects of the transfer learning in the absence and in combination with the warm-starting phase. As warm starting requires additional labeled data, removing it further reduces the amount of labeled data needed. We also show that the two methods are compatible, leading to very good joint results.

(a) Restaurant Booking with pre-training on Movie Booking domain
(b) Tourist Info with pre-training on Restaurant Booking domain
Figure 6.4: Average training and testing success rates with 95% confidence, for 100 runs over the number of epochs, for both models: with and without transfer learning. The model with transfer learning is not warm-started.

We report the training and testing learning curves (success rate over the number of training epochs), such that we use the full dataset of 120 training user goals and the test set of 32 user goals. We repeat the same process 100 times and report the results with a 95% confidence interval. The performances in the first case of domain overlapping are shown in Figure 6.3(a), while for the other case of domain extension, in Figure 6.3(b). The bot using transfer learning, but no warm-starting, shows better learning performances than the warm-started model without transfer learning. Transfer learning is thus a viable alternative to warm starting.

(a) Restaurant Booking with pre-training on Movie Booking domain
(b) Tourist Info with pre-training on Restaurant Booking domain
Figure 6.5: Success rates for all model combinations - with and without Transfer Learning (TF), with and without Warm Starting (WS).

However, models based on transfer learning have a significant variance, as the learning is progressing. This happens because in many experiment runs the success rate over all epochs is 0. In those cases, the agent does not find an optimal way to learn the policy in the early stages of the training process. This results with filling its experience replay buffer mostly with negative experiences. Consequently, in the later stages, the agent is not able to recover. This makes a combination with warm starting desirable.

For convenience reasons, in Figure 6.5 we show all possible cases of using and combining the transfer learning and warm-starting techniques. We can see that the model combines the two techniques performs the best by a wide margin. This leads to a conclusion that the transfer learning is complimentary to the warm-starting, such that their joint application brings the best outcomes.

Appendix A Appendix

a.1 Standard DQN algorithm

1:procedure DQN(N, M, T, , )
2:     Initialize replay memory to capacity
3:     Initialize action-value function with random weights
4:     for  in  do
5:         Initialize sequence and preprocessed sequence
6:         for  in  do
7:              With probability take a random action ,
8:              otherwise select
9:              Execute action and observe a reward and a new state
10:              Set and preprocess
11:              Store transition in
12:              Sample random minibatch of transitions from
13:              Set
14:              Perform a gradient descent step on (Eq. 5.1)
Algorithm 2 Deep Q-Learning with Experience Replay [Mnih et al., 2015]

a.2 System Implementation

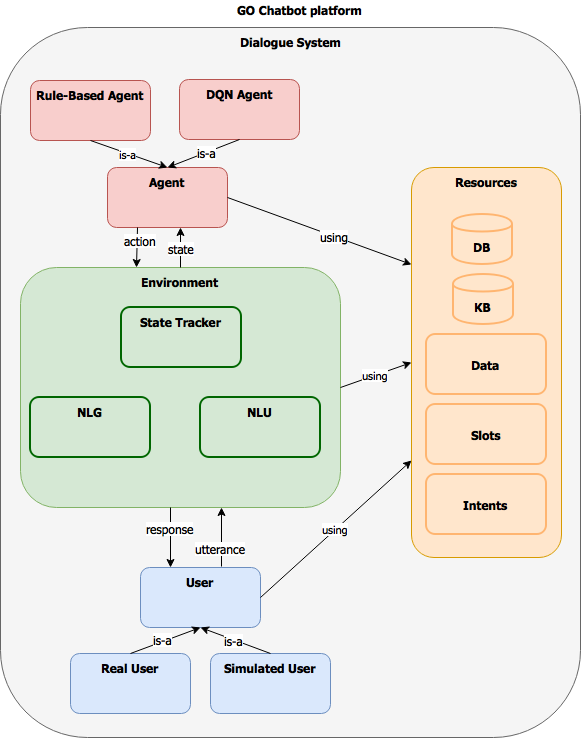

Figure A.1: High-level overview of the system for training Goal-Oriented Chatbots

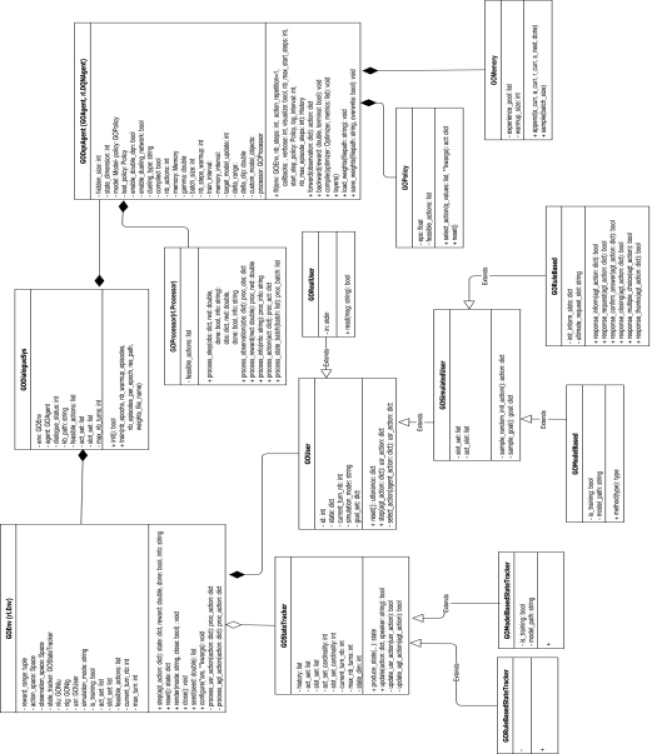

Figure A.2: UML Diagram of the system for training Goal-Oriented Chatbots

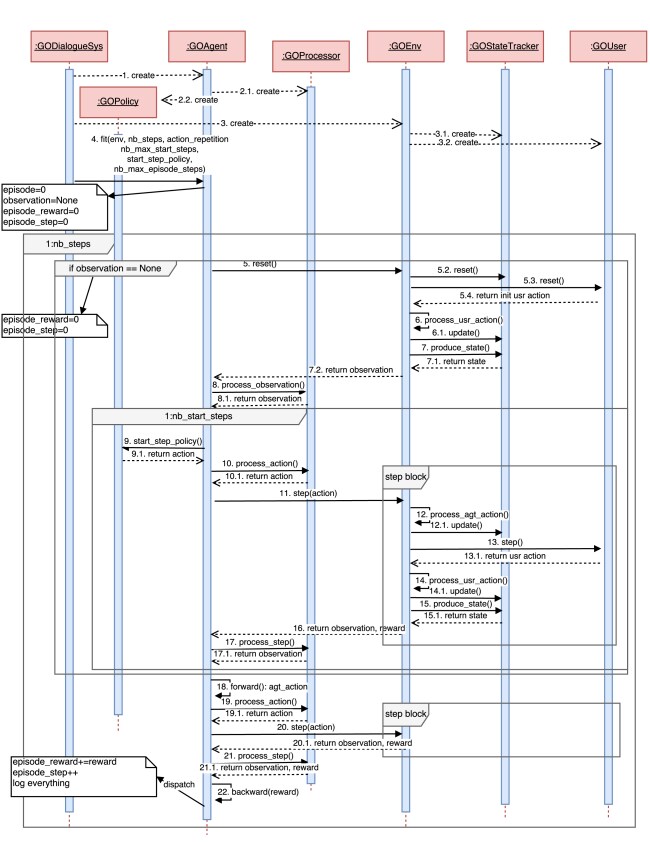

Figure A.3: Sequence Diagram of the system for training Goal-Oriented Chatbots

a.1 Standard DQN algorithm

1:procedure DQN(N, M, T, , )
2:     Initialize replay memory to capacity
3:     Initialize action-value function with random weights
4:     for  in  do
5:         Initialize sequence and preprocessed sequence
6:         for  in  do
7:              With probability take a random action ,
8:              otherwise select
9:              Execute action and observe a reward and a new state
10:              Set and preprocess
11:              Store transition in
12:              Sample random minibatch of transitions from
13:              Set
14:              Perform a gradient descent step on (Eq. 5.1)
Algorithm 2 Deep Q-Learning with Experience Replay [Mnih et al., 2015]

a.2 System Implementation

Figure A.1: High-level overview of the system for training Goal-Oriented Chatbots
Figure A.2: UML Diagram of the system for training Goal-Oriented Chatbots
Figure A.3: Sequence Diagram of the system for training Goal-Oriented Chatbots
