Bridging the Gap: Attending to Discontinuity in Identification of Multiword Expressions

02/27/2019 ∙ by Omid Rohanian, et al. ∙ University of Oxford University of Wolverhampton 0

We introduce a new method to tag Multiword Expressions (MWEs) using a linguistically interpretable language-independent deep learning architecture. We specifically target discontinuity, an under-explored aspect that poses a significant challenge to computational treatment of MWEs. Two neural architectures are explored: Graph Convolutional Network (GCN) and multi-head self-attention. GCN leverages dependency parse information, and self-attention attends to long-range relations. We finally propose a combined model that integrates complementary information from both through a gating mechanism. The experiments on a standard multilingual dataset for verbal MWEs show that our model outperforms the baselines not only in the case of discontinuous MWEs but also in overall F-score.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Multiword expressions (MWEs) are linguistic units composed of more than one word whose meanings cannot be fully determined by the semantics of their components Sag et al. (2002); Baldwin and Kim (2010). As they are fraught with syntactic and semantic idiosyncrasies, their automatic identification remains a major challenge Constant et al. (2017). Occurrences of discontinuous MWEs are particularly elusive as they involve relationships between non-adjacent tokens (e.g. put one of the blue masks on).

While some previous studies disregard discontinuous MWEs Legrand and Collobert (2016), others stress the importance of factoring them in Schneider et al. (2014). Using a CRF-based and a transition-based approach respectively, Moreau et al. (2018) and Al Saied et al. (2017) try to capture discontinuous occurrences with help from dependency parse information. Previously explored neural MWE identification models Gharbieh et al. (2017) suffer from limitations in dealing with discontinuity, which can be attributed to their inherently sequential nature. More sophisticated architectures are yet to be investigated Constant et al. (2017).

Graph convolutional neural networks (GCNs)

Kipf and Welling (2017) and attention-based neural sequence labeling Tan et al. (2018) are methodologies suited for modeling non-adjacent relations and are hence adapted to MWE identification in this study. Conventional GCN Kipf and Welling (2017) uses a global graph for the entire input. We modify it such that GCN filters convolve nodes of dependency parse tree on a per-sentence basis. Self-attention, on the other hand, learns representations by relating different parts of the same sequence. Each position in a sequence is linked to any other position with operations, minimising maximum path (compared to RNN’s ) which facilitates gradient flow and makes it theoretically well-suited for learning long-range dependencies Vaswani et al. (2017).

The difference in the two approaches motivates our attempt to incorporate them into a hybrid model with an eye to exploiting their individual strengths. Other studies that used related methods in sequence labeling include Marcheggiani and Titov (2017) (GCN), and Strubell et al. (2018) (self-attention) where similar approaches were applied to SRL in multi-task settings. Our contribution in this study, is to show for the first time, how GCNs can be successfully applied to MWE identification, especially to tackle discontinuous ones. Furthermore, we propose a novel architecture that integrates GCN with self-attention outperforming state-of-the-art results. 111The code is available on

2 Methodology

To specifically target discontinuity, we explore two mechanisms both preceding a Bi-LSTM: 1) a GCN layer to act as a syntactic ngram detector, 2) an attention mechanism to learn long-range dependencies.

2.1 Graph Convolution as Feature Extraction

Standard convolutional filters act as sequential ngram detectors Kim (2014). Such filters might prove inadequate in modeling complex language units like discontinuous MWEs. One way to overcome this problem is to consider non-sequential relations by attending to syntactic information in parse trees through the application of GCNs.

GCN is defined as a directed multi-node graph where and

are entities (words) and edges (relations) respectively. By defining a vector

as the feature representation for the word

, the convolution equation in GCN can be defined as a non-linear activation function

and a filter with a bias term as:


where shows all words in relation with the given word in a sentence, and represents the output of the convolution. Following kipf2017semi and schlichtkrull2017, we represent graph relations using adjacency matrices as mask filters for inputs. We derive associated words from the dependency parse tree of the target sentence. Since we are dealing with a sequence labelling task, there is an adjacency matrix representing relations among words (as nodes of the dependency graph) for each sentence. We define the sentence-level convolution operation with filter and bias as follows:


where , , and are representation of words, adjacency matrix, and the convolution output, all at the level of sentence. The above formalism considers only one relation type, while depending on the application, multiple relations can be defined.

Kipf and Welling (2017) construct separate adjacency matrices corresponding to each relation type and direction. Given the variety of dependency relations in a parse tree, and per-sentence adjacency matrices, we would end up with an over-parametrised model in a sequence labeling task. In this work, we simply treat all relations equally, but consider only three types of relations: 1) the head to the dependents, 2) the dependents to the head, and 3) each word to itself (self-loops). The final output is obtained by aggregating the outputs from the three relations.

2.2 Self-Attention

Attention Bahdanau et al. (2014) helps a model address the most relevant parts of a sequence through weighting. As attention is designed to capture dependencies in a sequence regardless of distance, it is complementary to RNN or CNN where longer distances pose a challenge. In this work we employ multi-head self-attention with a weighting function based on scaled dot product.

Based on the formulation of Transformer by Vaswani et al. (2017), in the encoding module an input vector is mapped to three equally sized matrices , , and (representing key, query and value) and the output weight matrix is then computed as follows:


The timing signal required for the self-attention to work is already contained in the preceding CNN layers alleviating the need for position encoding.

2.3 Model Architecture

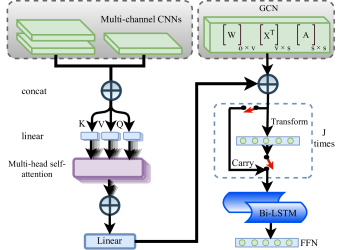

The overall scheme of the proposed model, composed of two parallel branches, is depicted in Figure 1. We employ multi-channel CNNs as the step preceding self-attention. One channel is comprised of two stacked 1D CNNs and the other is a single 1D CNN. After concatenation and batch normalisation, a multi-head self attention mechanism is applied (Section 2.2).

Figure 1: A hybrid sequence labeling approach integrating GCN (o: output dimension; v: word vectors dimension; s: sentence length) and Self-Attention.

Parallel to the self-attention branch, GCN learns a separate representation (Section 2.1). Since the GCN layer retains important structural information and is sensitive to positional data from the syntax tree, we consider it as a position-based approach. On the other hand, the self-attention layer is intended to capture long-range dependencies in a sentence. It relates elements of the same input through a similarity measure irrespective of their distance. We therefore regard it as a content-based approach. As these layers represent different methodologies, we seek to introduce a model that combines their complementary traits in our particular task.

Gating Mechanism. Due to the considerable overlap between the GCN and self-attention layers, a naive concatenation introduces redundancy which significantly lowers the learning power of the model. To effectively integrate the information, we design a simple gating mechanism using feed-forward highway layers (Srivastava et al., 2015)

which learn to regulate information flow in consecutive training epochs. Each highway layer consists of a Carry (

) and a Transform () gate which decide how much information should pass or be modified. For simplicity is defined as . We apply a block of stacked highway layers. Each layer regulates its input using the two gates and a feedforward layer as follows:


where denotes the Hadamard product and is defined as . We set to a negative number to reinforce carry behavior which helps the model learn temporal dependencies early in the training.

3 Experiments

Data. We experiment with datasets from the shared task on automatic identification of verbal MWEs Ramisch et al. (2018). We focus on annotated corpora of four languages: French (FR), German (DE), English (EN), and Persian (FA) due to their variety in size and proportion of discontinuous MWEs. Tags in the datasets are converted to a variation of IOB which includes B (beginning of MWEs), I (other components of MWEs), and O (tokens outside MWEs), with the addition of G for arbitrary tokens in between the MWE components e.g. .

ELMo. In our experiments, we make use of ELMo embeddings Peters et al. (2018) which are contextualised and token-based as opposed to type-based word representations like word2vec or GLoVe where each word type is assigned a single vector.

Validation. In the validation phase, we start with a strong baseline which is a CNN + Bi-LSTM model based on the top performing system in the VMWE shared task Taslimipoor and Rohanian (2018). Our implemented baseline differs in that we employ ELMo rather than word2vec resulting in a significant improvement. We perform hyper-parameter optimisation and make comparisons among our systems, including GCN + Bi-LSTM (GCN-based), CNN + attention + Bi-LSTM (Att-based), and their combination using a highway layer (H-combined) in Table 1.

4 Evaluation and Results

Systems are evaluated using two types of precision, recall and F-score measures: strict MWE-based scores (every component of an MWE should be correctly tagged to be considered as true positive), and token-based scores (a partial match between a predicted and a gold MWE would be considered as true positive). We report results for all MWEs as well as discontinuous ones specifically.

All Discontinuous
Token- MWE-
based based MWE-based
L model F F % P R F
EN baseline 41.37 35.38 32 24.44 10.48 14.67
GCN-based 39.78 39.11 39.53 16.19 22.97
Att-based 33.33 31.79 46.88 14.29 21.90
H-combined 41.63 40.76 63.33 18.10 28.15
DE baseline 62.27 57.17 43 69.50 45.37 54.90
GCN-based 65.48 61.17 65.19 47.69 55.08
Att-based 61.20 58.19 67.86 43.98 53.37
H-combined 63.80 60.71 68.59 49.54 57.53
FR baseline 76.62 72.16 43 75.27 52.04 61.54
GCN-based 79.59 75.15 79.58 56.51 66.09
Att-based 78.21 74.23 71.49 60.59 65.59
H-combined 80.25 76.56 77.94 59.11 67.23
FA baseline 88.45 86.50 14 67.76 55.88 61.29
GCN-based 87.78 86.42 78.72 54.41 64.35
Att-based 87.55 84.20 62.32 63.24 62.77
H-combined 88.76 87.15 75.44 63.24 68.80
Table 1: Model performance (P, R and F) for development sets for all MWE and only discontinuous ones (%: proportion of discontinuous MWES)
All Discontinuous
baseline 33.01 16.53 54.12 53.94 67.66 58.70 81.62 61.73
GCN-based 36.27 24.15 56.96 54.87 70.79 59.95 81.00 62.35
H-combined 41.91 22.73 59.29 55.00 70.97 63.90 80.04 61.90
ATILF-LLF 31.58 09.91 54.43 40.34 58.60 51.96 77.48 53.85
SHOMA 26.42 01.90 48.71 40.12 62.00 51.43 78.35 56.10
Table 2: Comparing the performance of the systems on test data in terms of MWE-based F-score

According to Table 1, GCN-based outperforms Att-based and they both outperform the strong baseline in terms of MWE-based F-score in three out of four languages. Combining GCN with attention using highway networks results in further improvements for EN, FR and FA. The H-combined model consistently exceeds the baseline for all languages. As can be seen in Table 1, GCN and H-combined models each show significant improvement with regard to discontinuous MWEs, regardless of the proportion of such expressions.

In Table 2 we show the superior performance (in terms of MWE-based F-score) of our top systems on the test data compared to the baseline and state-of-the-art systems, namely, ATILF-LLF Al Saied et al. (2017) and SHOMA Taslimipoor and Rohanian (2018). GCN works the best for discontinuous MWEs in EN and FA, while H-combined outperforms based on results for all MWEs except for FA.

Analysis. The overall results confirm our assumption that a hybrid architecture can mitigate errors of individual models and bolster their strengths. To demonstrate the effectiveness of the models in detecting discontinuous MWEs, in Figure 2 we plot their performance for FR and EN given a range of different gap sizes. As an ablation study, we show the results for the baseline, GCN-based, Att-based only, as well as H-combined models. GCN and Att-based models each individually outperform the baseline, and the combined model clearly improves the results further.

Figure 2: Model performance given different gap sizes

The example in Figure 3 taken from the English dataset demonstrates the way GCN considers relations between non-adjacent tokens in the sentence. Our baseline is prone to disregarding these links. Similar cases captured by both GCN and H-combined (but not the baseline) are take a final look, picked one up, and cut yourself off.

Figure 3: Sample sentence with a discontinuous occurrence of an English MWE, make an effort.
Figure 4: Example sentence with a discontinuous occurrence of a French MWE, prononcer un discours ‘to make a speech’. The intensity of the colouring corresponds to the attention weights assigned to each token.

In more complicated constructs where syntactic dependencies might not directly link all constituents, GCN alone is not always conducive to optimal performance. In Figure 4, the French sentence is in the passive form and MWE parts are separated by 5 tokens. This is an MWE skipped by GCN but entirely identified by H-combined model.

It is important to note that model performance is sensitive to factors such as percentage of seen expressions and variability of MWEs (Pasquer et al., 2018). In FA, 67% of the MWEs in the test set are seen at training time making them easy to be captured by the baseline. Furthermore, 21% of MWEs in FA and 15% in EN are discontinuous as opposed to 44% in FR and 38% in DE. Also in DE, a sizable portion of MWEs are verbal idioms (VIDs) which are known for their lexico-syntactic fixedness and prevalence of tokens that lack a standalone meaning and occur only in a limited number of contexts (also known as cranberry words). For such MWEs, our models compete with strong sequential baselines.

5 Conclusion and Future Work

In this paper, we introduced the application of GCN and attention mechanism to identification of verbal MWEs and finally proposed and tested a hybrid approach integrating both models. Our particular point of interest is discontinuity in MWEs which is an under-explored area. All the individual and combined models outperform state-of-the-art in all considered criteria. In future, we will further develop our system using structured attention (Kim et al., 2017) and try to improve the accuracy of parsers in multi-tasking scenarios.
