Breaking the Data Barrier: Towards Robust Speech Translation via Adversarial Stability Training

by   Qiao Cheng, et al.
NetEase, Inc.

In a pipeline speech translation system, automatic speech recognition (ASR) system will transmit errors in recognition to the downstream machine translation (MT) system. A standard machine translation system is usually trained on parallel corpus composed of clean text and will perform poorly on text with recognition noise, a gap well known in speech translation community. In this paper, we propose a training architecture which aims at making a neural machine translation model more robust against speech recognition errors. Our approach addresses the encoder and the decoder simultaneously using adversarial learning and data augmentation, respectively. Experimental results on IWSLT2018 speech translation task show that our approach can bridge the gap between the ASR output and the MT input, outperforms the baseline by up to 2.83 BLEU on noisy ASR output, while maintaining close performance on clean text.


page 1

page 2

page 3

page 4


Robust Neural Machine Translation for Clean and Noisy Speech Transcripts

Neural machine translation models have shown to achieve high quality whe...

The USTC-NEL Speech Translation system at IWSLT 2018

This paper describes the USTC-NEL system to the speech translation task ...

Improving the Robustness of Speech Translation

Although neural machine translation (NMT) has achieved impressive progre...

WERd: Using Social Text Spelling Variants for Evaluating Dialectal Speech Recognition

We study the problem of evaluating automatic speech recognition (ASR) sy...

Assessing the Tolerance of Neural Machine Translation Systems Against Speech Recognition Errors

Machine translation systems are conventionally trained on textual resour...

Towards Fluent Translations from Disfluent Speech

When translating from speech, special consideration for conversational s...

CTC Alignments Improve Autoregressive Translation

Connectionist Temporal Classification (CTC) is a widely used approach fo...

1 Introduction

A pipeline spoken language translation (SLT) system integrates two main modules: source language speech recognition (ASR) and source-to-target text translation (MT). The ASR system transforms the input audios into automatic transcriptions which the MT system translates into texts in the target language. However, since the two systems are trained separately using different parallel corpora, there is a mismatch between the output of ASR and the expected input of MT system. The former does not provide punctuation or case information, and contains recognition errors such as omission, repetition, homophones errors, etc. In contrast, a standard MT system is usually trained on written text which is much cleaner.

Although an end-to-end speech translation model [26, 4] seems to be a promising solution to alleviate the problem of error propagation, due to the scarcity of training data in the form of speech aligned with text and translation, currently the pipeline system is still the best performing model so far.

Prior works attempting to enhance the robustness of speech translation suffer from two main limitations: they either require training data in the form of speech aligned with either translation or both transcription and translation, or use artificially generated noise. The first problem is faced by end-to-end models [26, 4] and [15, 20]. Such speech-to-transcription-to-translation data is extremely costly to acquire since it requires two human (even expert) labeling processes for each sentence. We are only aware of two such corpora that are publicly available: Fisher and Callhome Spanish–English Speech Translation Corpus [16] and Speech translation TED corpus [9]. The former contains about 130K sentences while the latter 170K. Both are far less than what is necessary for training even a single ASR or MT model. The works relying on artificial noise include [11, 21] etc. They only achieve minor improvements on noisy input but harm the translation quality on clean text.

On the other hand, we observe that, when examined separately, in either ASR or MT, there exist many large parallel corpora, some to the scale of billions of sentences pairs. Yet they cannot be linked together to form the speech-to-translation pairs that the end-to-end models need, or the speech-to-transcription-to-translation triplets that robust pipeline speech translation systems need.

In this paper, we introduce a training architecture that breaks the data barrier, allowing us to use both ASR and MT corpora simultaneously without having to explicitly linking the two. The main idea is to force both the encoder and decoder of a neural machine translation (NMT) model to behave consistently in face of ASR-induced noise. The speech-to-transcription data is introduced into NMT’s training process to provide additional supervise signals for both the encoder and decoder. Those additional supervise signals do not rely on the existence of translation so they are decoupled from NMT’s usual objective. Therefore the two types of data can be used independently. Our work has the following advantages compared with previous works:

  • Actual ASR Adaptation. Instead of simulated noise, our architecture can incorporate real ASR output, significantly improving the MT system’s performance on actual speech translation tasks.

  • Easy Data Acquisition. Ours is the first unified training framework that utilizes both actual ASR and NMT corpora but does not require speech-to-transcription-to-translation alignments. Instead, datasets for ASR and NMT can be collected independently and our network combines them in a single training process. This is a huge advantage since parallel corpora for both ASR and NMT are relatively easy to obtain separately but it is very costly to bridge the gap between the two to produce a sufficiently large audio-to-text-to-translation dataset.

  • Robustness. Due to its ability to use both ASR and NMT corpora simultaneously, our approach improves the performance on noisy input without sacrificing the translation quality on clean data.

The paper is organized as follows. In the next section, we give a brief overview of related work. In Section 3, we describe our MT architecture. Finally, we discuss the experimental results in Section 4, followed by a conclusion.

2 Related work

Recently some researchers have attempted to address the problem of speech translation using an end-to-end approach [26, 4, 3, 19]. While this is definitely a very promising direction, however, due to the scarcity of speech-to-translation data, these works either use synthetic speech corpora which are generated by a text-to-speech (TTS) system [26, 4] or do not directly predict the translation [7, 1]. In [7] seq2seq model was used to align speech with translated text, and [1] can only generate bags of words. As demonstrated by the results of IWSLT2018 Speech Translation Task [9], at present, the most effective way to do spoken language translation is still a pipeline system.

Sequence-to-sequence models are known to be sensitive to noise [2]. As the translation model has not been trained to cope with ASR errors, they tend to work poorly when stacked with an ASR system [2, 10, 17]. There are a couple of problems. Firstly, the ASR output is devoid of punctuation and case information, which is very important for downstream translation systems. This issue has been addressed by some works such as [6, 23]. Secondly, ASR also introduces other errors such as missing words, repetition, homophones, etc.

In order to solve the homophone noise produced by ASR systems, [22] uses a source language pronunciation dictionary and a language model to simulate possible misidentification errors in ASR and use them to augment the phrase table of an SMT system. [12]

combined textual and phonetic information in the embedding layer of neural networks. Their approach relies on additional resources and addresses only one type of speech recognition error.

Data augmentation is an important method to improve the performance of neural networks. [11] simulates the noise existing in the real output of the ASR system and inject them into the clean parallel data so that NMT can work under similar word distributions during training and testing. [21] shows that with a simple generative noise model, moderate gains can be achieved in translating erroneous speech transcripts, provided that type and amount of noise are properly calibrated. [5] uses generic Gaussian noise to perturb the inputs to the NMT training and robustify the model through adversarial training. All the above work with simulated noise, which, as will be demonstrated in Section 4, does not realistically reflect the ASR output and causes suboptimal speech translation quality.

Using real ASR output as training input to the translation model is a natural idea. Some work with ASR’s final output directly [15] while some use its internal representations such as word lattices to explicitly model uncertainty of the upstream system [20]. They all require speech-to-transcript-to-translation data which is very rare.

3 Approach

Figure 1: The training architecture. Manual transcription and automatic transcription are aligned before input to the encoder. The encoder output is sent to the discriminator and decoder module. The discriminator forces the encoder to produce similar representations for both clean and noisy versions of the same sentence. The decoder output of manual transcription serves as the reference of automatic transcription. The final training objective is the sum of , , together with the normal objective .

The proposed training scheme takes two kinds of parallel corpora as input. The first corpus, also called ASR data, consists of speech-transcription pairs. The second corpus is the NMT’s training data, in the form of source-translation pairs. Our approach consists of two phases: the ASR data processing and the adversarial NMT training. At the first step, we process the ASR data which provides audios and manual transcriptions. A trained ASR model is utilized to recognize the audios, after which a re-segmentation algorithm is used to align the automatic transcriptions with its corresponding manual transcriptions in a sentence-wise manner. The aligned sentence-wise transcription pairs are then sent to the next stage of the proposed training scheme. In the second stage, we treat the manual transcription as a supervised signal for the automatic transcription which is combined with the NMT’s usual objectives to co-train the model.

3.1 Processing the ASR data

A trained ASR model is used to automatically generate the transcriptions given the audios. Obviously, the proposed approach is highly dependent on the accuracy of the ASR model, and it would be more beneficial to use in-domain data of the given ASR model as well. But to make the work reproducible and consistent among a wide range of ASR data, we use an open source ASR model without limiting the domain of the ASR data.

In general, the automatic transcriptions generated by an ASR system are not accompanied by their sentence-wise segmentation. However, training an NMT system works with parallel corpora of sentences. Therefore the next step is to align the automatic transcription with the manual transcription and segmentation to generate sentence pairs. We exploit the automatic re-segmentation algorithm described in [13] for this purpose.

The re-segmentation algorithm calculates the Levenshtein ratio between automatic and manual transcriptions. By backtracking the decision of the distance algorithm, the alignment of the given word sequence with the existing sentence segmentation and manual transcription can be found for reference. In this way, sentence segmentation is transformed into the recognition of reference. Dynamic programming is used to solve the re-segmentation problem.

3.2 NMT training architecture

The conventional NMT model consists of two procedures for projecting a source sentence x to its target sentence y: the encoder Enc() is responsible for encoding x as a sequence of representations , while the decoder Dec() produces y with as input. The model is optimized by minimizing the negative log-likelihood of the target translation y given source sentence x. Denoting the parameters of encoder and decoder as and

, respectively, the loss function

can be written as


Our adversarial training architecture is illustrated in Figure 1. As described in the previous subsection, the automatic transcriptions are aligned to the manual transcriptions in sentence level. We denote the automatic transcription sentence as and the manual transcription sentence as . Note that our main concern is to make the encoder extract similar feature representations from and , and hence obtain similar results on final translation. Since the translation process can be viewed as y = Dec(Enc(x)), we introduce two intermediate objectives: forces the encoder to produce similar representations for and ; and forces the decoder to produce similar results for = Enc() and = Enc().

Identical to the work of [5], is treated as the training objective of an adversarial learning framework [8] . In an adversarial learning framework, there are two networks which we called the generator network and the discriminator network. The output of the generator needs to imitate the real samples in the training set as much as possible. The input of the discriminator is the real sample or the output of the generator and the target of discriminator network is to distinguish the output of the generated network from the real sample while the generator network should cheat the discriminator network as much as possible. The two networks oppose each other and adjust the parameters constantly, so as to make the discriminator network unable to judge whether the output of the generated network is true or not. In this work, the encoder serves as the generator

, which defines a policy for generating a sequence of hidden representations of

given the input sentence x. An additional discriminator is introduced into the training architecture which distinguishes the encoder output of the automatic transcription from the encoder output of the manual transcription . The goal of the generator, in this case, the encoder is to produce similar output for and which could fool the discriminator, while the discriminator tries to correctly distinguish the two outputs.

Formally, the adversarial learning objective can be written as



denotes the set of transcription sentences after alignment. Specifically, when backpropagated, the gradients of

are replaced by their additive inverse while other gradients remain unchanged, so that all parameters including encoder parameters and the discriminator parameters can be updated in tandem. In such manner, high efficiency in training is attained.

A common idea to handle is using the adversarial learning framework[27]. Here we introduce a simpler but effective method. We first decode and obtain the translation with regard to . We argue that is the best quality translation of the current NMT could ever produce thus can serve as the reference for . is then calculated by Eq 1 as one training objective.

Of course, the two loss functions above must be combined with the usual MT loss computed on the translation corpus, where and denote the parallel translation corpus. is also calculated by Eq 1.

Finally, our training objective is the sum of the three:


where the two hyper-parameters , balance the weights of different loss functions. The impact of the two hyper-parameters will be discussed further in Section 4.2.

The proposed method only alters the NMT’s training process, remaining the inference procedure unchanged.

4 Experiments

4.1 Setup

We conducted experiments on the dataset provided by IWSLT2018 Speech Translation Task, which addresses the problem of translating English audio to German text. The provided training data consists of five parts: TED corpus, Speech-translation TED corpus, TED LIUM corpus, WMT18 data and OpenSubtitles0218. Among them, TED corpus, Speech-translation TED corpus, WMT18 data and OpenSubtitles2018 contain parallel sentence pairs, which are then used to train our baseline NMT model. The statistics of the raw training data set are listed in Table 1. Dev2010 and tst2010 are used as the development set and test set in this experiment respectively. The quality of speech translation is measured by the 4-gram BLEU scores [14].

Corpus #Sentences
WMT18 41M
OpenSubtitles2018 22M
Speech-translation TED 0.17M
Table 1: Statistics of the Training Data

For our baseline model, we followed the normal data preprocessing steps: norm-punc, tokenized and lowercased source and target sides using Moses scripts and we cleaned data by removing sentences whose number of tokens are over 100 and the length ratio of source/target is less than 1/2 or larger than 2. We follow [18] to split words into subword units. The numbers of merge operations in byte pair encoding (BPE) are set to 64K. Our model uses the Transformer architecture [25] which is solely based on attention mechanisms and dominates most of the sequence-to-sequence task. Our hyper-parameters of the Transformer models follow the transformer_big configuration of tensor2tensor [24], an open-source implementation of the Transformer model. Both encoder and decoder have 6 layers. The dimension for hidden layers is 1024 while the inner size of the feed-forward network is 4096. The head number of multi-head attention layer is set to 16. Label smoothing and dropout are adopted in the model training.

Speech-translation TED corpus and TED LIUM corpus provide both audio data and transcriptions. However, since the transcriptions provided in TED LIUM2 are neither human-generated nor human-annotated, we only use the Speech-translation TED corpus in the adversarial training phase.

IWSLT2018 provides a trained ASR so we can focus on the NMT part of the pipeline. We use the provided ASR system to get the automatic transcriptions from the input audio, and then align these transcriptions with the manual transcriptions following the method presented in Section 3.1. The transcription sentences are sorted by Word Error Rate (WER) and the top 1 bad sentences are excluded from the subsequent training process.

Our adversarial stability training initializes the model parameters with the baseline model. And the discriminator module optimized by is composed of two sub-layers. The sentence embedding which is the average of source representations is fed to the discriminator. The first sub-layer of the discrimiantor is a multi-head self-attention over the output of the encoder stack and the second is a feed-forward network. We tested the effects of and on neural machine translation and speech translation respectively. Finally, we applied and to our system at the same time and obtained the optimal results.}

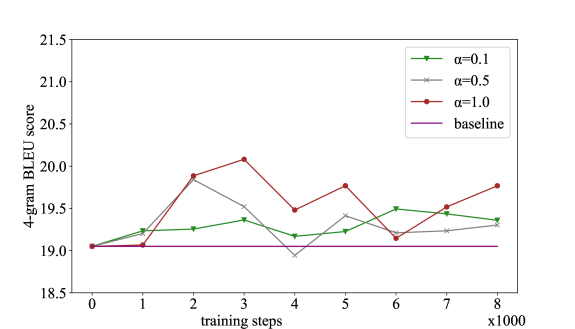

Figure 2: BLEU scores on tst2010, using ASR transcripts as inputs, varying

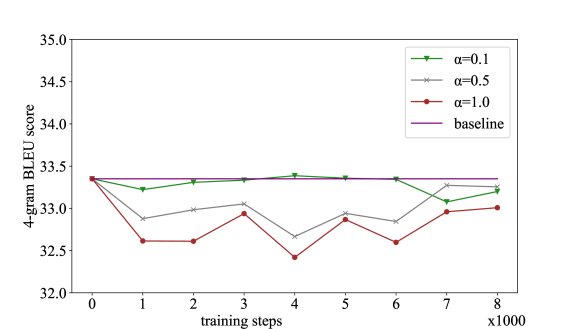

Figure 3: BLEU scores on tst2010, using clean reference transcripts as inputs, varying
Figure 4: BLEU scores on tst2010, using ASR transcripts as inputs, varying

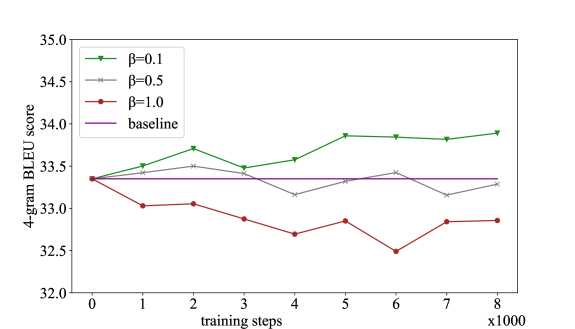

Figure 5: BLEU scores on tst2010, using clean reference transcripts as inputs, varying

4.2 Results

Firstly, experiments on and are performed individually. For , we set to 0.0 and varied in this part. Figure 5 reports the BLEU scores of speech translation on tst2010 set at different training steps. The training starts from the baseline model with the BLEU score of 19.05. Performance on are all better than the baseline system, showing that is effective in improving translation performance. We found that the larger achieved better scores than the smaller ones, though this improvement is not significant. Meanwhile, the curve shows that a larger will make the training more unstable. Figure 5 shows the BLEU scores on tst2010 set with manual transcriptions as input. It is meant to test how adversarial stability training affects the model performance on the clean text. The figure shows that introducing has some negative impact on the translation of the clean text at the start of the training phrase, but this negative impact will gradually decrease as the training progress goes on. If we choose a proper , say , we can improve the quality of speech translation while maintaining close performance on the clean text.

For , we set to 0.0 and varied in this part. Like the previous two figures, Figure 5 and Figure 5 report the BLEU scores of speech translation on tst2010 with the automatic transcription and manual transcription as inputs, respectively. Figure 5 indicates that the data augmentation method we applied is advantageous to speech translation. It makes a huge improvement from the baseline model. Larger has better performance on speech translation. However, as Figure 5 shows, larger may harm the model’s performance when fed with clean text. With set to 0.1 or 0.5, we get fair results.

We then incorporated both and in the training phase. Table 2 shows the results. The best performance is obtained with and , achieving 2.83 BLEU improvement compared with the baseline system.

System BLEU score
dev2010 tst2010
Baseline System 19.00 19.05
[5] 19.42 +0.42 19.23 +0.18
Our work 20.75 +1.75 20.67 +1.62
21.14 +2.14 21.66 +2.61
20.89 +1.89 20.75 +1.70
21.25 +2.25 21.88 +2.83
Table 2: BLEU score on tst2010 for speech translation system

We also carefully implemented the work of [5]

, adding Gaussian noise with standard variance equals to 0.01 to the input word embedding, and then trying to enforce consistent outputs with their original counterpart using adversarial stability training. We reported its BLEU score on tst2010 for speech translation task in Table

2. It is clear that training with generic artificial noise only brings minor improvement.

5 Conclusions

In this paper, we propose a training architecture that uses speech-to-transcription data to robustify an NMT model in a speech translation scenario. As an intermediate objective, we make the encoder produce a similar output through adversarial stability training. We treat the translation of the manual transcription as the reference of automatic transcription to enforce the decoder consistency. This approach allows for easy incorporation of ASR data into an NMT’s training process. Experiments on IWSLT2018 speech translation task demonstrate the effectiveness and robustness of the proposed approach.
