I Introduction

The knowledge and understanding of functional properties of plants make possible to develop advances in several areas like medicine to cure diseases, produce and improve species to feed people and animals Camargo2009 . Involving this last topic, the analysis of consumption by animals is very important because the animal production can be improved from grazed pastures. Specifically, ruminants have their amount of feeding directly linked with the processes of particle-size reduction during the feeding. Due to the physical strength of grasses, ruminant animals consume larger quantities of forages with lower resistance to breakdown Herrero2001 . Since the grass is extremely important for animal food, it becomes the object of study here being one of the main forms of ruminant feeding is through grazing Brachiaria.

The genus Brachiaria consists of herbaceous, perennial or annual, erect or decumbent. Belonging to the grass family, it presents approximately one hundred species, and therefore their correct classification is of great importance for the genetic improvement of forage species and purity of the species in the field of seed production P72 ; WCMRN00 ; ATTBP13 . Grouping plants into genus is a way of facilitating the understanding of the diversity of the grasses, according to the particularities of each species P72 .

The classification of grasses is mainly based on the characters of the spikelet structure and its arrangement. The main taxonomic feature of the genus Brachiaria, despite not being present in many species, is the reversed or adaxial position of the spikelet and of ligule. This spikelet is relatively large, oval or oblong and it is arranged regularly in a row along one side of the rachis. However, the taxonomy of this genus is not satisfactory, both in terms of species composition and in their inter-relationship with other genus. Problems related to incorrect classifications often occur among Brachiaria species commonly used in pastures, as well as among accessions of germplasm collections.

Since there is a great variability among natural species of Brachiaria, to identify really discriminant characters becomes a difficult task so that seeking for techniques that improve the identification will contribute to studies within this theme, as well as provide a reasonable system of classification, since there is no such system for the genus Brachiaria

. Thus, the objective of this study was to take the volumetric Bouligand-Minkowski and Probability fractal descriptors associated with the Principal Component Analysis transform to classify samples from five species of

Brachiaria cultivars. This methodology provides a set of coefficients for each image that will characterize it. The tests were performed in a large database with almost ten thousand of samples including the superior and inferior face of leaves obtaining 92.84% of correctness rate in the classification (of all leaves).

The text in this paper is organized as follows. In Sections II, III and IV the theory of the methods is explained. In Section V the description of the method Bouligand-Minkowski with probability dimension applyed to texture characterization. Section VI shows the experiments in a database of Brachiaria leaves and in Section VII the results are analysed. The paper is concluded in Section VIII.

Ii Fractal Geometry

Fractal geometry M68 is the area of Mathematics which deals with fractal objects. These are gometrical structures characterized by two main properties: the infinite self-similarity and infinite complexity. In other words, these elements are recursively composed by similar structures. In addition, they exhibit a high level of detail on arbitrarily small scales.

In the same way as in the Euclidean geometry, fractal objects are described by numerical measures. The most widespread of such measures is the fractal dimension. Given a geometrical set (set of points in the -dimensional space), the fractal dimension of is expressed in the following equation:

where is a fractality measure and is the scale parameter. The literature presents various definitions for the fractality measure T95 ; R94 . The following sections describe two of such approaches.

ii.1 Bouligand-Minkowski

One of the best-known methods for estimating the fractal dimension of an object is the Bouligand-Minkowski approach

T95 . In this solution, the grayscale image is mapped onto a surface , using the following relation:

Then, each point having co-ordinates is dilated by a sphere with variable radius . Therefore, the dilation volume may be computed by the following expression:

where are points in the surface ,

is the characteristic function and

refers to the following set:

in which . In practice, the Euclidean Distance Transform FCTB08 is used to determine the value of .

Finally, the fractal dimension itself is given by:

The limit in the above expression is calculated by plotting the values of against , in scale, and the limit is the slope of a straight line fitting the curve. The Figure 1 exemplify the process.

Figure 1: Bouligand-Minkowski dilation process. a) Gray-level image. b) Surface with radius 1. c) Surface with radius 2. d) Surface with radius 3.

Iii Probability Dimension

Also refered to as Voss dimension, this method obtains the fractal dimension from the statistical distribution of pixel intensities within the image V86 .

Like in the Bouligand-Minkowski method, the image analyzed is converted into a three-dimensional surface . Hence, the surface is surrounded by a grid of cubes with side . By varying the value of , the information function is provided through:

where is the maximum possible number of points within a single cube and is the probability of points in belonging to the same cube.

Finally, the fractal dimension is estimated by the following relation:


As with the Bouligand-Minkowski approach, the limit is computed by a least squares fit.

Iv Fractal Descriptors

Fractal descriptors are a methodology that extracts meaningful information of an object of interest by means of an extension of the fractal dimension definition BPFC08 ; FB12b ; FCB11 . Instead of using the dimension for describing the object, the fractal descriptors use the entire set of values in the fractality curve:


The values of can be used directly to compose the feature vector FB12b or after some sort of transform FCB11 . In the present work, we use the raw data of .

The fractal descriptors extract significant information from the object at different scales. The values of the fractality for larger radii measure the global aspect of the structure. In the case of plant leaves like those analyzed here, these data concern important information regarding the general aspect of the nervure distribution. On the other hand, the smallest radii provide essential information on the variability of the pixel intensities inside a local neighborhood. Biologically, these micro-patterns are tightly related to the constitution of the plant tissue.

V Proposed Method

The proposed methodology combines the previously described approaches to compose a precise and robust tool to identify plant species from an image of the leaf of Brachiaria. The feature vector is obtained by concatenating the Bouligand-Minkowski and Probability descriptors and then applying a dimensionality reduction procedure to the merged descriptors.

Let the Bouligand-Minkowski descriptors be represented by the vector :

and the Probaility features expressed through :

Then, in a problem of species discrimination over a database of leaf images, we can define two feature matrices, and , one for each descriptor, where the rows correspond to the descriptor vectors for each image to be analyzed. After that, the matrices are concatenated horizontally, giving rise to the matrix . Next, this matrix is transformed into one matrix :


where and are, respectively, the inter and intra-class matrix. The intra-class matrix is defined by:


where is the class in , is the total number of classes, expresses the row (sample) of and is a row vector representing the average descriptors of each class . On its turn, the inter-class matrix is provided by the following expression:


in which is the number of samples of the class.

The concatenation process ensures that the resulting descriptors emphasize the best discriminative properties of each fractal approach. In this case, both descriptors provide a different perspective of the object. While the Bouligand-Minkowski capture a multiscale mapping of the texture morphology, the Probability method gives a detailed description of the statistical distribution of the pixels along the gray-level image. The sum of these viewpoints makes possible a detailed description of the patterns within the image, at different scales.

In the present study, the cancatenated descriptors are obtained from the windows extracted from the scanned image of the analyzed grass. The Figure 2 illustrates the process involved in computing the descriptors, since the original image until the descriptors themselves.

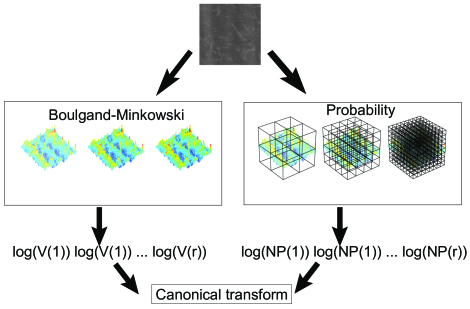

Figure 2: A diagram illustrating the steps to obtain the proposed descriptors.

Vi Experiments

The leaf samples were collected in the agrostologic field at the Faculdade de Zootecnia e Engenharia de Alimentos (FZEA-USP), which is located in Pirassununga city at state of São Paulo, Brazil. The leaf images were collected manually, directly from live plants, with extreme carefulness in not damaging the leaf surface. All plants grew with ideal conditions of nutrients and lighting. In this study, five species were took: Brachiaria decumbens Stapf. cv. Ipean Brachiaria ruziziensis Germain Evrard, Brachiaria brizantha (Hochst. ex. A. Rich.) Stapf., Brachiaria arrecta (Hack.) Stent. and Brachiaria spp..

After collecting the leaves, they were submitted to a scanning procedure, where the superior and inferior face of the leaf was scanned in 1200 dpi (dots-per-inch) resolution and saved in a lossless image format with no compression. It was obtained 5 sheets with 10 different tillers, totalling 100 samples (50 images from the superior faces of the leaves and 50 images from the inferior faces).

As the leaves were scanned manually, they were not properly aligned. Therefore, the images were vetically aligned according to the central axis using the Radon transform Deans1993 . Subsequently, for mounting the database, it were randomly obtained about 20 sub-images of 200 200 pixels without overlapping and considering all the leaf surface, avoiding stains margins and allowing the central vein (Figure 3). At Figure 3 it can also be seen the preparation of the signature for each sample. The method is applied to each sub-image from the sample (superior and inferior face of the leaf) to obtain a feature vector with features {} where is the number of features. Afterward, the signature from the superior face of the image is concatenaded with the signature from the inferior face to generate the final signature of the sample. Therefore, the final database is composed by 9832 images, 4916 images from superior face and 4916 from inferior face of leaves. Figure 4 shows some samples for each class of the database.

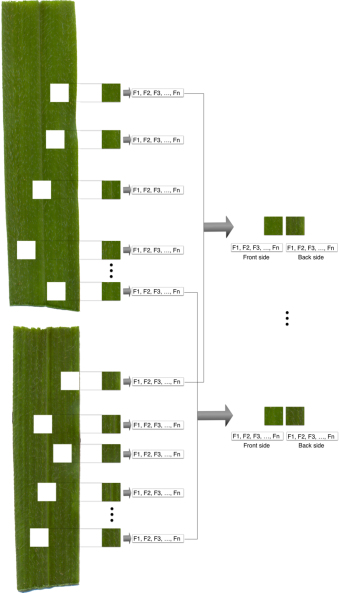

Figure 3: Samples acquisition. Sub-images of 200 200 pixels size obtained from samples. A signature } is extracted for each sub-image and, afterward, the signature from the superior and inferior face of the leaf are concatenated to obtain the final signature.
Figure 4: Samples of final database. Each row represents samples of the same specie, from top to bottom: Brachiaria decumbens, Brachiaria ruziziensis, Brachiaria brizantha, Brachiaria arrecta and Brachiaria spp.. (a) Face superior and (b) face inferior of leaf.

The proposed method is applied to compute descriptors from the images of the analyzed grass species. Therefore, the obtained descriptors are used as the input of a classifier, in this case, the Suport Vector Machine method V99 . The classification is carried out in a 10-fold cross-validation scheme V99 .

Vii Results

The graph in the Figure 5 shows the success rate of each compared texture descriptors when the number of descriptors is varied. We notice that even with only 4 elements, the proposed method achieves a correctness rate close to 90%. Gabor and Fourier have a close behavior, while the fractal descriptors presents an outstanding performance for any number of elements greater than 3.

Figure 5: Graph of the success rate as function of the number of descriptors.

The Table 1 shows the best success rate achieved by each method by using an optimal number of descriptors. The success rate is accompanied by other important measures related to the performance of each approach applied to discriminate the grass species. In this table, is the number of descriptors, is the correctness rate, is the index and and are the type 1 and 2 errors. The number of descriptors ranges from 1 to 30, as after this point the performance tends to stabilise. The greatest success rate and smallest errors were obtained by the combined fractal descriptors. Such outcome confirms the effectiveness of the proposed methodology in this classification task, providing an excellent categorization of the plant species.

Method ND CR (%) AE1 AE2
Fourier 30 89.79 0.88 0.10 0.10
Gabor 21 88.02 0.86 0.12 0.12
Proposed method 30 92.84 0.91 0.07 0.07
Table 1: Success rate for different approaches.

The tables 2, 3 and 4 exhibit the confusion matrices for each compared descriptor. These tables are helpful to describe either the correctly classified samples as well as the false negatives and false positives, outside the main diagonal. We observe that, despite some minor differences among the methods, the methodology developed in the present study demonstrated to be the most reliable solution to identify the grass samples. Reinforcing the values on the Table 1, the type 1 and 2 errors are very similar, expressing the homogeneity of the distinguished classes.

913 7 20 6 14
12 888 19 8 73
25 15 925 6 5
3 14 2 952 9
20 80 4 10 886
Table 2: Confusion matrix for the proposed method.
882 21 22 2 33
20 884 22 16 58
22 24 877 34 19
14 20 21 919 6
52 74 12 10 852
Table 3: Confusion matrix for the Fourier method.
891 35 2 9 23
33 829 13 59 66
0 2 958 15 1
40 55 19 813 53
37 102 5 20 836
Table 4: Confusion matrix for the Gabor method.

The great performance achieved by the proposed fractal descriptors is due to the nature of the fractal modeling, as mathematical fractals and natural objects have a great deal in common. The similarities are related to the high complexity usually found in the nature as well as the self-similarity property, which also appears often in parts of plants, like leaves, flowers, etc. Actually, the fractal descriptors are tightly related to important physical attributes of the leaf, such as roughness, reflectance and distribution of colors and brightness levels. In turn, this set of properties is capable of identify plant species faithfully, using their digital image representation, as demonstrated in BPFC08 . The present study confirms such reliability and robustness of fractal descriptors and shows that this is a powerful tool for the species categorization of the grasses analyzed here.

Viii Conclusions

The present study proposed a combination of fractal descriptor approaches to discriminate among species of Brachiaria grass, based on the digital images from their leaves. The proposed solution achieved a high success rate even using a low number of features. Such result confirms the effectiveness and reliability of fractal descriptors in this kind of task.

This result is also remarkable from a biological perspective, as Brachiaria grasses are one of the most important foods for animals that are used for the labor and human consumption. The precise discrimination of species makes possible to better understand the distribution of species in a region and, as a consequence, to optimize the necessary attention for that region.

Despite the importance of this study, the literature shows very few works on Brachiaria classification and the present is the first to obtain such a great effectiveness. Such so good results suggest the use of fractal descriptors as a powerfull method to identify these species and markedly help the taxonomy specialist.


O. M. Bruno gratefully acknowledges the financial support of CNPq (National Council for Scientific and Technological Development, Brazil) (Grant Nos. 308449/2010-0 and 473893/2010-0) and FAPESP (Grant No. 2011/01523-1). N. R. da Silva acknowledges support from FAPESP (The State of São Paulo Research Foundation). J. F. Batista acknowledges support from FAPESP (The State of São Paulo Research Foundation).


  • (1) A. Camargo, J. Smith, Image pattern classification for the identification of disease causing agents in plants, Computers and Electronics in Agriculture 66 (2) (2009) 121 – 125.
  • (2) M. Herrero, C. do Valle, N. Hughes, V. O. Sabatel, N. Jessop, Measurements of physical strength and their relationship to the chemical composition of four species of brachiaria, Animal Feed Science and Technology 92 (3-4) (2001) 149 – 158.
  • (3) J. J. Parsons, Spread of african pasture grasses to the american tropics, Journal of Range Management 25 (1) (1972) pp. 12–17.
  • (4) P. Wenzl, A. L. Chaves, J. E. Mayer, I. M. Rao, M. G. Nair, Roots of nutrient-deprived brachiaria species accumulate 1,3-di-o-trans-feruloylquinic acid, Phytochemistry 55 (5) (2000) 389 – 395.
  • (5) C. Arroyave, R. Tolrà , T. Thuy, J. Barceló, C. Poschenrieder, Differential aluminum resistance in brachiaria species, Environmental and Experimental Botany 89 (0) (2013) 11 – 18.
  • (6) B. B. Mandelbrot, The Fractal Geometry of Nature, Freeman, 1968.
  • (7) C. Tricot, Curves and Fractal Dimension, Springer-Verlag, 1995.
  • (8) J. C. Russ, Fractal Surfaces, Plenum Press, New York, 1994.
  • (9) R. Fabbri, L. D. F. Costa, J. C. Torelli, O. M. Bruno, 2d euclidean distance transform algorithms: A comparative survey, ACM Comput. Surv. 40 (1) (2008) 1–44.
  • (10) R. F. Voss, Characterization and measurement of random fractals, Physica Scripta 1986 (T13) (1986) 27.
  • (11) O. M. Bruno, R. de Oliveira Plotze, M. Falvo, M. de Castro, Fractal dimension applied to plant identification, Inf. Sci 178 (12) (2008) 2722–2733.
  • (12) J. B. Florindo, O. M. Bruno, Fractal descriptors based on fourier spectrum applied to texture analysis, Physica A 391 (20) (2012) 4909–4922.
  • (13) J. B. Florindo, M. De Castro, O. M. Bruno, Enhancing volumetric bouligand-minkowski fractal descriptors by using functional data analysis, International Journal of Modern Physics C 22 (9) (2011) 929–952.
  • (14) S. R. Deans, The Radon Transform and Some of Its Applications, Krieger Publishing Company, 1993.
  • (15)

    V. Vapnik, The Nature of Statistical Learning Theory (Information Science and Statistics), 2nd Edition, Springer, 1999.
