I Introduction

Electronic medical records (EMRs) are often highly sensitive private information for clinical diagnosis and treatment in healthcare. EMRs sharing is considered to be a promising approach to improve the quality of healthcare services, accelerate biomedical discoveries, and reduce medical costs [1, 2]. However, most of private clinics and institutions usually use internal network to keep track of their patients but don’t implement data sharing with other healthcare institutions, which leads to the difficulty and expense of medical service and the phenomenon of information island. To handle these issues of existing healthcare system, a secure data sharing infrastructure is necessary to be constructed.

However, in healthcare domain, three factors are particularly important: privacy, security, and interoperability. First, EMRs often have high privacy-sensitive, thus the leakage of these data could hurt patients’ reputation and finances. Second, the existing healthcare systems are based on a centralized architecture, which has security and robustness vulnerabilities such as single-point-of-failure and arbitrary modification attacks. Moreover, the interoperability between healthcare institutions still remains a severe challenge. Fortunately, an emerging technology named blockchain provides a brand-new approach to solve these issues with decentralized architecture.

Blockchain technology is the underlying technology of Bitcoin [3] that invented by mysterious Satoshi Nakamoto in 2008. Due to the attractive features, such as transparent, anonymous, autonomous, and tamper-proof, blockchain technology has been widely used in voting, supply chain, healthcare, IoT, and other applications [4]. In the blockchain, all transactions are validated through consensus mechanism in the untrusted environment and no participants can modify the data arbitrarily. Blockchain is implemented in a decentralized network of computing nodes, which makes it robust against failures and attacks. Moreover, blockchain together with the smart contracts can enhance the interoperability of health data. Therefore, blockchain has a strong potential application in healthcare [5]. Aiming at data security and patients’ privacy issues in healthcare, we adopt consortium blockchain that is managed by several preselected medical institutions to construct a secure EMRs sharing system, because, compared with public blockchain, it can control user nodes in or out of the network through flexible access mechanisms with better privacy preservation. Besides, it has advantages of lower cost, higher performance and scalability.

So far, there have been lots of studies on the security and privacy issues in different application scenarios [6, 7, 8, 9, 10, 11, 12]. Recently, many companies and research institutions, such as Philips, Gem Health, Google, and IBM are actively exploring the medical applications based on blockchain technology. We summarize some research efforts in healthcare [13, 14, 15, 16] as follows. Yue et al. proposed a healthcare data gateway (HDG) based on the blockchain storage platform, which allows patients to process their own data without violating privacy [13]. In [14], Azaria et al. presented a decentralized record management system, called MedRec, which can handle EMRs using blockchain technology. In [15], Guo et al. proposed an attribute-based signature scheme with multiple authorities. However, most studies only considered privacy preservation for access control mechanisms instead of the sensitive data itself. In fact, protecting data privacy from the perspective of data itself is simpler and more effective than the access control mechanism.

In certain scenarios, the sensitive information (eg. patients’ name or ID number) in EMRs do not need to provide for further analysis and research. So we creatively adopt the content extraction signature (CES) to protect patients’ privacy in terms of data itself, rather than just depending on access control mechanisms. CES allows patients to selectively share the signed medical data that can be verified by any others. In this paper, we propose a blockchain based privacy-preserving data sharing for EMRs, named BPDS. In BPDS, the original EMRs are stored in cloud and only the indexes are reserved in a tamper-proof blockchain. We design an improved delegated proof of stake consensus to provide the suitable and reasonable transaction verification. Secure data sharing can be accomplished through the smart contracts in blockchain. By implementing the proposed BPDS, patients can completely control their own EMRs and users or medical institutions can use data conveniently without leaking the patients’ privacy.

The remainder of this paper is organized as follows. In section II, we briefly introduce some preliminaries. In section III, we describe system architecture and the implementation of BPDS in detail. Section IV analyzes the security of BPDS. Finally, we conclude the paper in section V.

Ii Preliminaries

In this section, some preliminaries used in our blockchain-based data sharing scheme are introduced.

Ii-a Blockchain

A blockchain is a type of distributed database or public ledger in which validated transactions and digital events are conserved and connected together chronologically in data blocks [17], as shown in Fig. 1. The so-called data block is composed of the data submitted by the transaction initiator and the new records produced by the transaction verifier. Moreover, each block is marked with a timestamp and the hash of the previous block, which makes the data in blockchain immutable and traceable. After reaching consensus by 51% of the participants in the distributed network, valid blocks will be added to the blockchain. Moreover, each node in this distributed P2P network reserves the same copy of transaction records, which provides the robustness against single-point-of-failure and attacks. Therefore, blockchain has drawn a lot of attention in various fields.

Ii-B Improved DPoS

Delegated proof of stake (DPoS) is the backbone of BitShares. All nodes on the blockchain need to select 101 delegates. The selected 101 delegates are responsible for in turn creating validate blocks as assigned. Compared to proof of work (PoW) and proof of stake (PoS), DPoS is known as faster, more decentralized and power-saving consensus mechanism. In this paper, we use DPoS to reach consensus for each transaction in the blockchain network.

However, the original election method of DPoS cannot guarantee that the selected medical institutions are reliable. Therefore, we improve its initialization manner and elect nodes according to the rank of the medical institutions’ credit scores. The top 30 institutions are designated as the representative nodes (), in turn, to create blocks. The next 20 institutions are designated as the audit nodes () to audit these blocks. Any node that contributes to the healthcare data sharing system will obtain the corresponding reward with credit scores. If the misses signing the assigned block or the makes a incorrect audit, their credit scores will be reduced. Once the total scores fall below the threshold, this node will be replaced by the other node with higher scores.

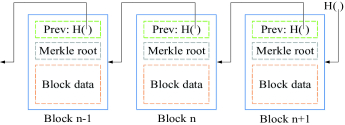

Fig. 1: A Chain of Blocks

Ii-C Smart Contracts

Smart contracts are event-driven computer programs running on the public ledger. It can handle and transfer assets of considerable value. A famous application of smart contracts is Ethereum that is an open source blockchain platform [18]. Specifically, smart contracts are some scripts or codes that are deployed in blockchain. Once the predefined conditions are activated, the scripts on the contract content could be executed without the help of an external trusted authority. The entire process is automated and the executed transactions are recorded in the public ledge for auditing. The asset owner has the right to revoke the access permissions to the user who violates the contract. In the proposed BPDS, patients are allowed to predefine access permissions, access actions (read, write, or copy) and duration in the smart contracts to finely control the data sharing of EMRs.

Ii-D Content Extraction Signature

The content extraction signature (CES) first proposed by Steinfeld et al. in [19] allows the users to remove sensitive portions from the original signed message and regenerate valid extraction signatures by themselves without extra interactions. In addition, it has the merits of low communication overhead, high efficiency and privacy preservation. So, different CES schemes have been widely used in e-commerce, e-governance, smart grid, healthcare and so on.

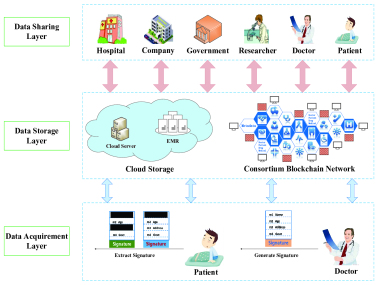

Fig. 2: System architecture of BPDS

Iii BPDS: Blockchain based privacy-preserving Data sharing for EMRs

In this section, we propose a privacy-preserving data sharing based on blockchian, called BPDS.

Iii-a System Architecture

BPDS is devised in a three-layer architecture, consisting of data acquirement layer, data storage layer and data sharing layer, as shown in Fig. 2. The function of each layer is described as follows.

  • Data Acquirement Layer. In this layer, EMRs are created by data providers such as doctors. Doctors sign patients’ EMRs using a CES scheme and send them to the patients. Patients are the owners of EMRs and can completely control them. In order to avoid privacy information is leaked in the process of data sharing, patients can remove sensitive information of EMRs and generate valid extraction signatures.

  • Data Storage Layer. The function of this layer is to store the original EMRs and its indexes. Components of data storage layer include:

    • Cloud Storage. The cloud stores patients’ encrypted EMRs and the extraction signature, meanwhile, outputs the storage location and a timestamp. Data access records also should be preserved to track the malicious entity when data leakage takes place.

    • Consortium Blockchain Network. We use consortium blockchain to reserve indexes of EMRs and achieve data sharing. The patient predefined access permissions in the smart contracts to ensure data sharing securely. Besides, each access request and access activity should be recorded in the blockchain network for future auditing or investigation.

  • Data Sharing Layer. In this layer, the authorized patients, medical workers and healthcare institutions can request patients’ EMRs and utilize them for making personal health plans, getting better clinic treatment or carrying out medical research.

Iii-B Design Objectives

Because blockchain can manage medical data transparently and securely, it has attracted a lot of attention in the healthcare. The proposed BPDS aims to achieve secure storage and sharing for EMRs through the joint-design of the consortium blockchain, the cloud storage, and the context extraction signature. Meanwhile, it provides the following privacy:

  • Patients participate in the EMRs sharing transactions voluntarily and anonymously;

  • Patients and data users register unique and non-identity accounts in the cloud database;

  • The indexes of EMRs reserved in the consortium blockchain cannot be changed by any opponents;

  • Malicious entities can be tracked when data leakage is detected;

  • Patients can define (add/remove) who are allowed to access medical data through smart contracts. Only the authorized users can access the specified data.

Iii-C Implementation of BPDS

In this section, we describe the workflow of the BPDS system in detail. A patient goes to visit his/her doctor and the doctor integrates related medical data as the EMRs for the patient . Upon receiving the EMRs, stores them to the cloud and submits the indexes of the EMRs to the consortium blockchain with the list of authorized data users . BPDS allows patients to manage their own EMRs as their wish. Based on the blockchain, it achieves privacy-preserving EMRs sharing through the following phases.

Notations Description Notations Description
Patient Medical data/the extracted subdata
Doctor The indexes of EMRs
Data user Content extraction access structure
The representative node The extraction subset
The auditing node A tag of CES
’s key pair for CES Access Control Policy of CP-ABE
’s encryption key A timestamp
Key pairs of nodes A hash function
TABLE I: Notations

Iii-C1 System Setup

To implement BPDS, users should register unique accounts and create their keys at the first. Each doctor uses a pair of keys () to generate the content extraction signature on EMRs for authentication. also needs a symmetric key to encrypt EMRs for confidentiality. In cloud storage, the cloud server publishes keys based on CP-ABE for secure storage. All participants in the blockchain have key pairs () to complete data sharing transactions. The notations used in this paper are given in TABLE I.

Iii-C2 Data Acquiring

In BPDS, we use the CES scheme in [20] that can remove sensitive information from the original message to protect s’ privacy. divides EMRs into seven parts (Name, Gender, Age, ID number, medical history, physical examination or laboratory test, medical prescription) that are denoted as . Then, defines the content extraction access structure to prevent malicious extraction. selects a CES-Tag randomly with a fixed length of 80 bits, defined as . The process of CES is as follows:

  • Key Generation : The certification authority chooses a a large prime , a generator in , and a hash function: : . Then, selects a random number and calculates . publishes as the public key and keeps as the private key.

  • Signature Generation : After generating all the keys, signs the original medical data by the Algorithm 1 as follows.

Input: ’s private key, ; ’s EMRs, ; the content extraction access structure, .
Output: The full signature result.

Select a random , compute ;
for each  do
end for
for each  do
end for
return ;
Algorithm 1

When the signature algorithm is completed, encrypts message with and encrypts his/her symmetric encryption key with ’s public key . Then, sends both two encrypted information to :


Iii-C3 Data Storing

After receiving the encrypted information from , decrypts and further obtains . Next, verifies the correctness of the full signature with two steps:

  • For each subdata of data , compute , where ;

  • Extract from the full signature , verify is hold or not, that is, .

If the signature is valid, perform the following step; Otherwise, it returns failure.

Signature Extraction: can extract the signature according to and his/her wishes, as shown in Algorithm 2.

Input: ’s public key, ; ’s EMRs, ; the content extraction access structure, ; the full signature, .
Output: The extraction signature result.

Construct extraction subset based on and generate subdata ;
for each  do
     Extract from ;
end for
for each  do
     , where ;
end for
return ;
Algorithm 2

After generating the extraction signature, encrypts the extraction signature and the corresponding EMRs. Then, stores them in the cloud through CP-ABE based cryptographic access control (CCAC) [21] as shown in Algorithm 3.


1:Data object, ; The public parameters, ; The access control policy, .
2:Data storage location, .
3:Generate a random document key, ;
4:Run the symmetric encryption algorithm to encrypt with and obtain the cipher-text , where ;
5:Run the encrypt algorithm of CP-ABE to encrypt with and obtain the cipher-text ;
6:Upload the triples {, , } to the cloud storage and return the storage location ;
Algorithm 3 Data Storing Process in

Thus, the original data stored in the cloud is:


Iii-C4 Data Release

In this phase, participates EMRs sharing transactions voluntarily and anonymously. signs the indexes of EMRs and obtains the signature . Then, a transaction request () is submitted to the consortium blockchain, where and is a timestamp:


After receiving the transaction request, the representative node is responsible for creating the assigned block. The specific consensus process using improved DPoS is described as follows:

  • Step 1: verifies each transaction and integrates all valid data collected during the period into a data set (expressed as ). The data set, ’s digital signature and the hash of the data set compose a new data block. Then, broadcasts the transaction record () to the auditing nodes for approval:

  • Step 2: verify the validity of the data block and return a reply () to that contains its audit result () and signature:

  • Step 3: If 51% approve, it means that the new block is successfully created. broadcasts the data block together with ’ public keys and signatures, as shown in equation (8). All nodes on the consortium blockchain must update their data. It takes 10s for each to create a block. A full cycle takes about 300s (), about 5 minutes. At the end of each cycle, the top 30 have to readjust once.


Iii-C5 Data Sharing

For secure EMRs sharing, pre-sets access permissions in the smart contracts, such as access rights, access actions (eg. read, write or copy), duration, etc. Once meeting the access condition, the smart contract is triggered automatically to execute the corresponding operation, which can ensure the legality and fairness of data sharing. EMRs sharing is completed by the following two parts:

a) Blockchain Access Authentication

  • Step 1: Data Access Request: The data user initiates a EMRs sharing request transaction () to the blockchain network. The request should include information such as the access target (), the access object () and access content. receives the transaction request and checks the identity of . Only is legal, the transaction data will be recorded in the blockchain.


    Annotation: Here indicates the index of the medical data content that the user wants to access.

  • Step 2: Smart Contract Execution: If meets access conditions, the smart contract is triggered to decrypt the indexes of EMRs with and return the cipher-text message of the indexes to ; Otherwise, the sharing request is denied.

  • Step 3: Data Storage Location Extraction: decrypts the cipher-text message and obtains that contains the storage location .

b) Cloud Storage EMR Sharing

With , the user can retrieve the data object in the cloud, as shown in Algorithm 4.

Input: The data storage location in the cloud, ; User private key, .
Output: Data object, .

1:Retrieve , by ;
2:if the attribute set corresponding to SK does not satisfy implicit access control policy  then
3:     return failure
4:end if
5:Run the Decrypt Algorithm of CP-ABE to decrypt with and obtain ;
6:Run the symmetric algorithm to decrypt with and obtain ;
Algorithm 4 Data Retrieval Process in

Then, should verify the signature to ensure the validity and integrity of through the following two steps:

Signature Verification:

  • Verify if . If it does, perform the following step. Otherwise, it aborts.

  • For each , compute and verify holds or not.

If the extraction signature is correct, the user can perform his/her access action. Otherwise, the user can inform the cloud storage manager that the data might has been modified.

Iv Security Analysis

In this part, we analyze the security of the proposed BPDS in terms of tamper-proof, privacy preservation, data secure storage and sharing.

Iv-a Tamper-Proof

In BPDS, EMRs are immutable and cannot be modified arbitrarily. Since each data block contains a current timestamp and a hash of the previous block, chronologically nested blocks guarantee transactions cannot be changed unless someone can take over 51% of the whole network computational power simultaneously. Moreover, each access request and access activity is recorded in the blockchain, any change to the data can be audited and tracked. So, the proposed BPDS can ensure tamper-proof property.

Iv-B Privacy Preservation

As EMRs are highly sensitive private data of patients, they do not want to be disclosed without permission. In BPDS, the privacy property is ensured thanks to the following festures:

Anonymity. Each participant generates a unique account with a random public key. Therefore, each transaction on the blockchain is anonymous. In addition, users use different public keys for different transactions, which makes multiple transactions requested by the same user cannot be linked.

Cloud Storage. The original EMRs are encrypted and stored in the cloud storage. In this way, not only the problem of limited storage capacity of blockcahin is solved, but also the risk of the original medical data leakage is greatly reduced.

Content Extraction Signature. The proposed scheme employs CES scheme when the doctors sign the EMRs. The patients can remove any sensitive portions in the original data to obtain the valid extraction signatures with minimal risk of data privacy leakage. Moreover, any entities cannot forge extraction signatures without the signer’s private key.

Improved DPoS. BPDS uses the improved DPoS consensus to realize the trust between a certain number of preselected nodes in the consortium blockchain. In the improved DPoS, the selected medical organizations are reputable and reliable, which guarantees the reliability of data sharing.

Iv-C Data Secure Storing and Sharing

The security of data storing and sharing is an important feature of BPDS. In this scheme, patients can have complete control over their own EMRs. The processes from data acquiring to data sharing are all secure.

Data Acquiring. The use of symmetric encryption technology guarantees the confidentiality and integrity of EMRs generated by doctors.

Data Storing. The patient encrypts the original EMRs and stores them in the cloud. The use of the distributed storage and CP-ABE-based access control scheme in cloud ensures the security of the medical data.

Data Release. First, the indexes of EMRs are reserved in a tamper-proof blockchain, which cannot be modified arbitrarily. Second, blockchain is a distributed database without single-point-of-failure and each node has a copy of transaction records. Besides, the digital signature provides authentication, integrity, and non-repudiation for each transaction.

Data Sharing. In BPDS, the data access permissions are preset in the smart contracts. Only authorized users or institutions can use the EMRs. The executed access records are stored in the blockchain to trace the behaviours of data. Once someone violates the access rules or permissions, the data owner has the right to revoke his/her access permission.

V Conclusion

In this paper, a blockchain-based privacy-preserving data sharing system for EMRs is proposed, named BPDS. In BPDS, EMRs are stored in the cloud and the indexes are recorded in a tamper-proof consortium blockchain, which solves the potential security risks of data centralized storage. The joint-design of the CP-ABE-based access control mechanism and the content extraction signature scheme provides strong privacy preservation in data sharing. Moreover, the use of smart contracts for presetting access permissions ensures data access securely. By implementing the proposed BPDS, patients can have complete control over their own EMRs and the users or institutions can use data conveniently without any risk on patients’ privacy.


This work is supported by the Key Program of NSFC-Tongyong Union Foundation under Grant U1636209, the 111 Project (B08038) and Collaborative Innovation Center of Information Sensing and Understanding at Xidian University.


  • [1] L. A. Tawalbeh, R. Mehmood, E. Benkhlifa, and H. Song, “Mobile cloud computing model and big data analysis for healthcare applications,” IEEE Access, vol. 4, pp. 6171–6180, 2016.
  • [2] Q. Xia, E. B. Sifah, K. O. Asamoah, J. Gao, X. Du, and M. Guizani, “Medshare: Trust-less medical data sharing among cloud service providers via blockchain,” IEEE Access, vol. 5, pp. 14 757–14 767, 2017.
  • [3] S. Nakamoto, “Bitcoin: A peer-to-peer electronic cash system,” 2008.
  • [4] B. A. Tama, B. J. Kweka, Y. Park, and K. H. Rhee, “A critical review of blockchain and its current applications,” in Proc. of 2017 International Conference on Electrical Engineering and Computer Science (ICECOS), 2017, pp. 109–113.
  • [5] K. Rabah, “Challenges & opportunities for blockchain powered healthcare systems: A review,” Mara Research Journal of Medicine and Health Sciences, vol. 1, no. 1, pp. 45–52, 2017.
  • [6] X. Du and H. H. Chen, “Security in wireless sensor networks,” IEEE Wireless Communications Magazine, vol. 15, no. 4, pp. 60–66, 2008.
  • [7] Z. Zhou, H. Zhang, X. Du, P. Li, and X. Yu, “Prometheus: Privacy-aware data retrieval on hybrid cloud,” in Proc. of IEEE INFOCOM’13, 2013, pp. 2643–2651.
  • [8] H. Zhang, S. Chen, X. Li, H. Ji, and X. Du, “Interference management for heterogeneous networks with spectral efficiency improvement,” IEEE Wireless Communications Magazine, vol. 22, no. 2, pp. 101–107, 2015.
  • [9] X. Hei, X. Du, S. Lin, and I. Lee, “Pipac: Patient infusion pattern based access control scheme for wireless insulin pump system,” in Proc. of IEEE INFOCOM’13, 2013, pp. 3030–3038.
  • [10] X. Du, M. Guizani, Y. Xiao, and H. H. Chen, “A routing-driven elliptic curve cryptography based key management scheme for heterogeneous sensor networks,” IEEE Transactions on Wireless Communications, vol. 8, no. 3, pp. 1223–1229, 2009.
  • [11] L. Wu, X. Du, and J. Wu, “Effective defense schemes for phishing attacks on mobile computing platforms,” IEEE Transactions on Vehicular Technology, vol. 65, no. 8, pp. 6678–6691, 2016.
  • [12] H. Zhang, Q. Zhang, and X. Du, “Toward vehicle-assisted cloud computing for smartphones,” IEEE Transactions on Vehicular Technology, vol. 64, no. 12, pp. 5610–5618, 2015.
  • [13] X. Yue, H. Wang, D. Jin, M. Li, and W. Jiang, “Healthcare data gateways: found healthcare intelligence on blockchain with novel privacy risk control,” Journal of Medical Systems, vol. 40, no. 10, p. 218, 2016.
  • [14] A. Azaria, A. Ekblaw, T. Vieira, and A. Lippman, “Medrec: Using blockchain for medical data access and permission management,” in Proc. of International Conference on Open and Big Data (OBD), 2016, pp. 25–30.
  • [15] R. Guo, H. Shi, Q. Zhao, and D. Zheng, “Secure attribute-based signature scheme with multiple authorities for blockchain in electronic health records systems,” IEEE Access, vol. 6, pp. 11 676–11 686, 2018.
  • [16] S. Biswas, Anisuzzaman, T. Akhter, M. S. Kaiser, and S. A. Mamun, “Cloud based healthcare application architecture and electronic medical record mining: An integrated approach to improve healthcare system,” in Proc. of 17th International Conference on Computer and Information Technology (ICCIT), 2014, pp. 286–291.
  • [17] Z. Zheng, S. Xie, H. Dai, X. Chen, and H. Wang, “An overview of blockchain technology: Architecture, consensus, and future trends,” in Proc. of 2017 IEEE International Congress on Big Data, 2017, pp. 557–564.
  • [18] G. Wood, “Ethereum: A secure decentralised generalised transaction ledger,” Ethereum Project Yellow Paper, vol. 151, pp. 1–32, 2014.
  • [19] R. Steinfeld, L. Bull, and Y. Zheng, “Content extraction signatures,” in Proc. of International Conference on Information Security and Cryptology, 2001, pp. 285–304.
  • [20] C. Wang, T. Xu, Y. Zhang, and X. Yang, “An access control scheme in cloud storage based on content extraction signature and attribute encryption,” Computer Engineering & Science, vol. 37, no. 2, pp. 238–244, 2015.
  • [21] Y. Cheng, J. Ren, Z. Wang, S. Mei, and J. Zhou, “Attributes union in cp-abe algorithm for large universe cryptographic access control,” in Proc. of 2012 Second International Conference on Cloud and Green Computing (CGC), 2012, pp. 180–186.
