Box-driven Class-wise Region Masking and Filling Rate Guided Loss for Weakly Supervised Semantic Segmentation

04/26/2019
by   Chunfeng Song, et al.
The University of Sydney
2

Semantic segmentation has achieved huge progress via adopting deep Fully Convolutional Networks (FCN). However, the performance of FCN based models severely rely on the amounts of pixel-level annotations which are expensive and time-consuming. To address this problem, it is a good choice to learn to segment with weak supervision from bounding boxes. How to make full use of the class-level and region-level supervisions from bounding boxes is the critical challenge for the weakly supervised learning task. In this paper, we first introduce a box-driven class-wise masking model (BCM) to remove irrelevant regions of each class. Moreover, based on the pixel-level segment proposal generated from the bounding box supervision, we could calculate the mean filling rates of each class to serve as an important prior cue, then we propose a filling rate guided adaptive loss (FR-Loss) to help the model ignore the wrongly labeled pixels in proposals. Unlike previous methods directly training models with the fixed individual segment proposals, our method can adjust the model learning with global statistical information. Thus it can help reduce the negative impacts from wrongly labeled proposals. We evaluate the proposed method on the challenging PASCAL VOC 2012 benchmark and compare with other methods. Extensive experimental results show that the proposed method is effective and achieves the state-of-the-art results.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 3

page 5

page 6

page 7

page 8

12/01/2020

3D Guided Weakly Supervised Semantic Segmentation

Pixel-wise clean annotation is necessary for fully-supervised semantic s...
03/05/2015

BoxSup: Exploiting Bounding Boxes to Supervise Convolutional Networks for Semantic Segmentation

Recent leading approaches to semantic segmentation rely on deep convolut...
09/17/2019

Learn to Segment Organs with a Few Bounding Boxes

Semantic segmentation is an import task in the medical field to identify...
04/02/2021

Background-Aware Pooling and Noise-Aware Loss for Weakly-Supervised Semantic Segmentation

We address the problem of weakly-supervised semantic segmentation (WSSS)...
05/29/2021

Automatic CT Segmentation from Bounding Box Annotations using Convolutional Neural Networks

Accurate segmentation for medical images is important for clinical diagn...
08/25/2021

Layer-wise Customized Weak Segmentation Block and AIoU Loss for Accurate Object Detection

The anchor-based detectors handle the problem of scale variation by buil...
09/13/2021

Weakly Supervised Person Search with Region Siamese Networks

Supervised learning is dominant in person search, but it requires elabor...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

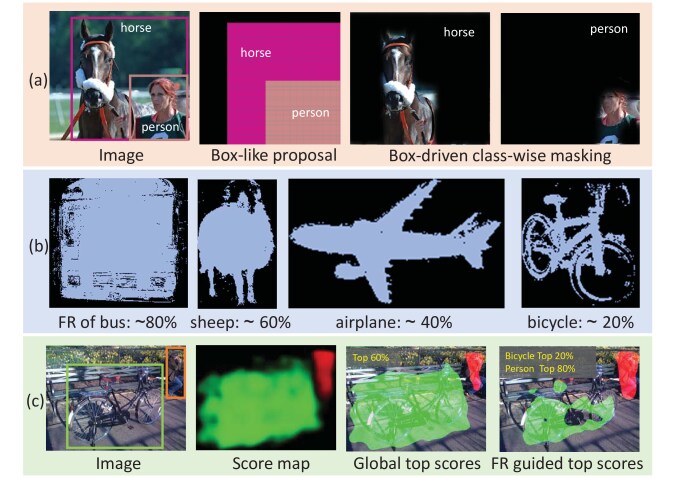

Figure 1: Weakly supervised segmentation with the box-level annotations. (a) The box-driven class-wise masking (BCM) model can learn specific masks for each class in region-level, and help remove the irrelevant regions of each class softly. (b) Based on the pixel-level segment proposals and the bounding boxes, we could calculate the mean pixel filling rates of each class, e.g., the sheep fills roughly 60 pixels of the box. (c) Via ranking the values of the score map, we can select the most confident locations for back propagation and ignore the weak ones. As shown in the picture, filling rate guided top scores selection is better than the global one.

Semantic image segmentation refers to classifying each pixel in an image. Recently, semantic segmentation has achieved a series of progress

[27, 38, 43, 8, 25, 30, 48, 17], among which [27] is the first to introduce Fully Convolutional Networks (FCN) structure into segmentation field. Following this work, there are some improvements through redesigning or adjusting the FCN structures [44, 18, 5, 31, 47, 7]. However, these works are designed for fully supervised mode, which has to be trained with large amounts of fully labeled data. Unlike other classic visual tasks such as classification and object detection, labeling semantic segmentation is rather expensive. For example, the cost of labeling a pixel-level segmentation annotation is about 15 times larger than labeling a bounding box, and 60 times than labeling an image class [26]. Considering bounding boxes also contain abundant semantic and objective information, a straightforward idea is to learn segmentation weakly with the bounding box supervision.

Recently, several weakly supervised segmentation methods [9, 29, 21, 2, 33] have been proposed to learn semantic masks with bounding box supervision. These methods mainly focus on generating high-quality pixel-level proposals. For example, in [29], the unsupervised dense CRF [22] was applied to eliminate the background within the bounding box. SDI [21] tried to produce segment proposals via combining MCG [32] and GarbCut [34] methods. BoxSup [9] updated the candidate masks generated by MCG in an iterative way. Then taking these enhanced segmentation proposals as pixel-level supervision, the deep FCN model can be trained for weakly supervised segmentation. Therefore, it is a core problem how to guide the FCN model to focus on the correct object regions and ignore the wrongly labeled regions from the segment proposals. Most previous approaches train the models with fixed proposals or simple iterative training. In this case, the gap between the ground-truth annotations and generated proposals limits their performance. We address this problem from two aspects.

First, considering that bounding boxes contain strong semantic and objective information, they should help us to remove the irrelevant regions and focus on the foreground regions. A straightforward idea is to learn a global mask to help remove the backgrounds in the images. However, the global mask can not learn multiple accurate shape templates for each class at the same time. To this end, we explore to adopt a box-driven class-wise masking (BCM) model to filter the feature maps of each class with boxes supervision, as shown in Figure 1 (a). The learned class-wise masks can provide obvious shape and location hints for each object, which is useful for the following segmentation learning.

Second, filling rate is a useful guidance for obtaining pseudo labels. It is well known that the score map in well trained model has different response values, indicating the confidence of prediction. A natural idea is to select the locations with the most active scores for backward learning, whereas ignore the less confident ones, as shown in Figure 1 (c). However, it is difficult to determine the threshold in a weakly supervised task, especially that different classes may need different thresholds. As shown in Figure 1 (b), different classes usually has different shapes, e.g., bus has 80 foreground pixels within its box while bicycle only fills 20 pixels of the box. This phenomenon inspires us to compute the mean filling rates of each class. Taking the pixel-level segment proposals generated through unsupervised methods as pseudo labels, we could calculate the mean pixel filling rates of each class. We find that the percentage of foreground pixels within the bounding box should be similar for the same class. Whereas the pixel filling ratios of two classes are usually different. Since the segment proposal for single sample is usually not accurate, the mean filling rate for samples of the same class can provide a more stable guidance. Rethinking the discussion above for the mean pixel filling rates, it will be a good choice to guide the top score selection with the filling rate. Based on this motivation, we propose a filling rate guided adaptive loss (FR-loss) to adjust the pseudo labels. Considering the situation that two objects from the same class may have different filling rates due to the shape and pose varieties, we try to refine the filling rates via clustering each class into several sub-classes.

Based on the analysis above, we propose the box-driven class-wise region masking (BCM) model and filling rate guided loss (FR-loss) for weakly supervised semantic segmentation. Firstly, we implement the BCM via segmentation guided learning with a box-like supervision. The proposed BCM can help remove the irrelevant regions of each class softly. It also provides an obvious hint of the foreground region, which could greatly contribute to the segmentation learning. Secondly, we calculate the mean filling rates of each class with the given bounding boxes and the generated pixel-level pseudo proposals. Thus we propose a filling rate loss to help select the most confident locations in the score map for back propagation and ignore the wrongly labeled pixels in proposals. With BCM and FR-loss working together, we could achieve the best performance with weak box supervision. We evaluate the proposed method on the challenging PASCAL VOC2012 dataset [12] and compare with previous methods. Extensive experimental results demonstrate that the our method is effective and achieves the state-of-the-art results. The performance of proposed method is even comparable with the fully supervised model. We summarize our contributions as follows:

  • We introduce the box-driven class-wise masking (BCM) model to help remove the irrelevant regions of each class. It also provides an obvious hint of the foreground region, which could directly contribute to the segmentation learning.

  • Filling rate guided adaptive loss (FR-Loss) is proposed to help select the most confident locations in the score map for back propagation and ignore the wrongly labeled pixels in the proposals.

  • Extensive experiments on PASCAL VOC 2012 benchmark demonstrate that the proposed method is effective and achieves the state-of-the-art results.

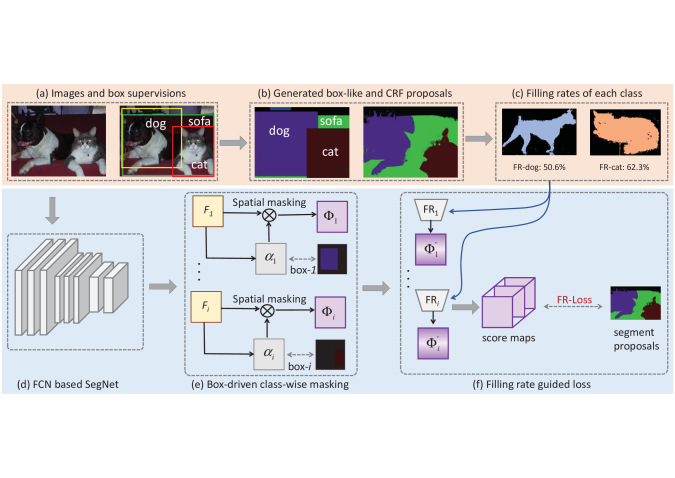

Figure 2: Pipeline of the proposed method. For a given image and its corresponding bounding boxes (a), we first generate the rectangle annotations (Box-like) and apply the unsupervised CRF [22] to generate segment proposals (b). We then calculate the mean filling rates of each class (c) with the CRF proposals and their corresponding boxes. With the images and segment proposals, we train the FCN based model (d), e.g., the DeepLab-LargeFOV network [5]. We add a box-driven class-wise masking (BCM) model (e) to generate class-aware masks via segmentation learning with box-like labels. The learned masks can implement spatial masking on the features of each class, separately. For each forward step, we rank the scores of each class in the prediction layer and adopt the filling rate guided loss (FR-loss) (f) to select the most confident locations for back propagation and ignore the weak ones. FR-loss could reduce the negative effects caused by the wrongly labeled pixels in the proposals.

2 Related Work

In this section, we briefly introduce the fully and weakly supervised semantic segmentation methods which are related to our work.

2.1 Fully Supervised Semantic Segmentation

Fully supervised semantic segmentation has achieved a series of progress [27, 38, 43, 8, 25, 30, 48, 17], among which [27]

is the first to introduce the Fully Convolutional Neural Networks (FCN) structure into segmentation field. Following this work, a large number of improvements

[44, 18, 5, 31, 47, 7, 14, 11, 37, 3, 10, 45] through redesigning or adjusting the network structures have been proposed. Chen et al. [5] introduce the atrous convolution for dense prediction and enlarge the receptive field of view. Zhen et al. [5] propose to adopt the dense CRF [22]

with Gaussian pairwise potentials as a Recurrent Neural Network (RNN) to refine coarse outputs from a traditional CNN. Recently, an encoder-decoder based atrous separable convolution model

[7] has achieved the state-of-the-art performance for fully supervised semantic image segregation.

2.2 Weakly Supervised Semantic Segmentation

Recently, a large number of weakly supervised methods explore to learn semantic segmentation with supervision of image labels [41, 19, 42, 1, 13], points [2], scribbles [39, 24, 28], and bounding boxes [9, 29, 21, 23]. The bounding boxes based methods are the most related works to this paper. BoxSup [9] introduces the recursive training procedure with the supervision of segment proposals. WSSL [29]

proposes an expectation-maximization algorithm with segment proposals generated by the dense CRF

[22]. Whereas SDI [21] tries to produce segment proposals via combining MCG [32] and GarbCut [34] methods. Li et al. [23]

explore to segment the instance with both the bounding box supervision and the image tags. Different from these methods, we propose a box-driven class-wise masking (BCM) model to help remove the backgrounds before predicting the final segmentation. Unlike the global spatial attention model adopted in previous works

[4, 6, 46, 15], the proposed BCM can learn specific attention maps for each class. To our knowledge, we are the first one to introduce the mean filling rate (FR) as a stable guidance through selecting the most confident locations in the score map for back propagation. The proposed FR-loss can adaptively select the reliable pixels and ignore the wrongly labeled pixels in the pseudo proposals.

3 Our Method

3.1 Overview

We present the proposed weakly supervised semantic segmentation framework with only bounding box supervision in this section. This framework can learn semantic masks from weakly box-level annotations via the box-driven class-wise masking (BCM) model and the filling rate guided loss (FR-Loss). In the following paragraph, we first describe the general pipeline, then introduce the details of each components.

There are mainly two steps for the proposed method, as shown in Figure 2. First, we generate the pixel-level proposals with the bounding box annotations and calculate the mean filling rates of each class. Then, we train the Fully Convolutional Network (FCN) based model with the proposed box-driven class-wise masking (BCM) model and filling rate guided loss (FR-loss).

Proposals Generating and Filling Rates Computing. The first step for weakly supervised semantic segmentation is to generate proper supervision labels from given bounding boxes, as shown in Figure 2 (b). The simplest yet widely used method is to convert the bounding boxes into rectangle segments directly, named as box-like proposals. Considering that the rectangle segments contain lots of wrongly labeled background regions within the bounding box, it is necessary to be further refined. There are several popular methods to generate high-quality segment proposals with bounding box labels, among which dense CRF [29], MCG [32] and GrabCut [34] are the mostly used approaches. For fair comparison with the baseline model [29], we choose the same unsupervised dense CRF as the default option to generate proposals. With the CRF proposals and their corresponding boxes, we can calculate the mean filling rates of each class, as shown in Figure 2 (c).

Model Training with BCM and FR-loss. As shown in Figure 2 (d), the backbone model in this paper is DeepLab-LargeFOV model [5]. Similar with the original FCN [27] training procedure, we also initialize this model with a VGG-16 model [36]

pre-trained on ImageNet

[35]. This backbone model is comparable with the ones used in the compared methods [9, 29, 21]. The FCN model takes the images as its inputs and the segment proposals as the supervision. To this end, the FCN model can be trained in an end-to-end manner. Note that in our case the quality of the supervision information in weakly supervised task is not guaranteed, so we add a box-driven class-wise masking (BCM) model to generate class-aware masks via segmentation learning with the box-like labels. The learned masks can implement spatial masking on the features of each class, separately. For each forward step, we rank the scores of each class in the prediction layer and adopt the filling rate guided loss (FR-loss) to select the most confident locations for back propagation and ignore the weak ones. FR-loss could reduce the negative effects caused by the wrongly labeled pixels in proposals. Details of them will be described in the next two sub-sections.

3.2 Box-driven Class-wise Masking

To remove the irrelevant regions in the feature maps, we need to learn specific masking maps for each class. Thus we design a box-driven class-wise masking (BCM) model to guide the learning of the segmentation model. We apply the masking on the FC-7 layer (note: implemented by convolution) of VGG-16 model [36] to mask the irrelevant regions. As shown in Figure 2 (e), the output features of FCN based SegNet are evenly sliced into branches, corresponding to the classes. For each branch, we add an binary attention model to produce a weights map for masking. To give a clear hint, we introduce the box-like mask to guide the attention map via adding a Mean Squared Error (MSE) loss on pixels of the attention map and its corresponding mask of class-

(1)

where has a size of . In the similar way, the binary segmentation models can be trained separately. Then the attention maps could carry out spatial-wise masking across their corresponding feature branches. We denote and as the learnt attention map and feature branch of class-, respectively. Therefore, the weighted feature of class- can be denoted as

(2)

where means the spatial-wise masking operation. Then we combine the output features of branches to produce the score map for final segmentation.

Unlike the global spatial attention model adopted in previous works [4, 6], the proposed class-wise masking model can learn specific attention maps for each class. It contributes to the segmentation models in three respects: 1) It can remove the irrelevant regions in the feature maps, such as the backgrounds. 2) It can learn specific masking maps to fit each class, which may differ greatly from each other in shapes and sizes. 3) As the mask is learnt under the supervision of bounding box, thus it could provide a clear object hint for the segmentation learning.

3.3 Filling Rate Guided Adaptive Loss

Above box-driven class-wise masking model can guide the FCN to learn foreground features softly, we further explore to improve the segmentation learning in this subsection. Note that the wrongly labeled regions of the pixel-level proposals have negative effects on model training, recognizing the negative regions will be helpful. A possible solution is to ignore the pixels with small confident values in the score map, which may be the wrongly labeled pixels. In the weakly supervised mode, there are no guaranteed pixel-level annotations like the fully supervised mode, thus it is hard to determine how much percentage of pixels to be ignored. To address this problem, we introduce the filling rate guided adaptive loss (FR-loss). We intuitively find that the percentage of foreground pixels within the bounding box should be similar for the same class. Whereas the pixel filling ratios of two classes are usually different. Therefore, we first calculate the mean pixel filling rates of each class with pixel-level proposals and their corresponding boxes. For a given class-, we denote the number of foreground pixels in the - proposal and box as and , respectively. Then the mean filling rate of class- can be defined as

(3)

where means the number of bounding boxes in class-. Therefore, the mean filling rate of each class can be used to determine how much percent of the most confident pixels can be left for training or being ignored. In this way, the segmentation loss could be adjusted by the filling rates of each class. The FR-loss for one sample can be denoted as

(4)

where means the loss of the - pixel with class-, and the super-parameter is determined by the mean filling rate of each class. This loss guides the score map to learn the most confident regions adaptively.

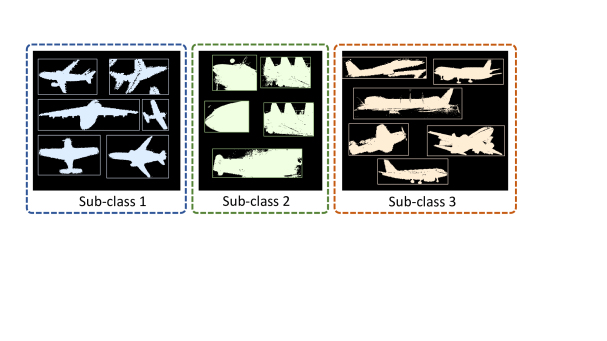

Figure 3: Examples of three sub-classes from airplane class. It is obvious that the middle sub-class has a larger filling rate than the right and left sub-classes. The mean filling rates of each sub-class could better represent different kinds of sample in one class.

Refine the Filling Rates with Sub-class Clustering. Considering the situation that two objects from the same class may have different filling rates due to the shape and pose varieties, we try to refine the filling rates via k-meas clustering method [40] to classify each class into several sub-classes. As shown in Figure 3, we show the examples of three clustered sub-classes of airplane. Visually, three sub-classes are reasonable which can better represent three groups of boxes. Thus we take the mean filling rates of each sub-class to refine the FR-loss. In this situation, the FR-loss for one sample can be denoted as

(5)

where means the loss of the - pixel with class- and sub-class-. Note that is 0 when this pixel does not belong to this sub-class.

In retrospect, the class-wise masking model introduced in last subsection and the FR-loss can work together to guide the segmentation learning in a ‘soft’ manner, achieving comparable performance with the full-supervised model. The overall loss for one sample can be denoted as

(6)

where is the hypermeter which is set to 0.01 in our experiments, is the number of classes. We will evaluate the proposed methods in experiments.

4 Experiments

In the experiments, we first evaluate the effectiveness of our method on the Pascal VOC 2012 semantic segmentation dataset [12], then compare the proposed method with three state-of-the-art methods under weakly supervision and semi-supervision conditions separately.

Methods Units mIoU
Baseline [29] - 60.6
Ours CM 63.4
BGM 64.9
BCM 65.6
Global-loss 64.1
FR-loss 65.8
FR-loss(Refine) 66.3
BCM + FR-loss(Refine) 66.8
Table 1: Evaluate the effectivenesses of BCM and FR-loss on VOC2012 validation set. All models are based on the same Deeplab VGG16-LargeFOV backbones. The performance is evaluated in terms of mean IoU (). CM: class-wise masking without box supervision, BGM: box-driven global masking, Global-loss: all boxes adopt the same global filling rate of 0.6.

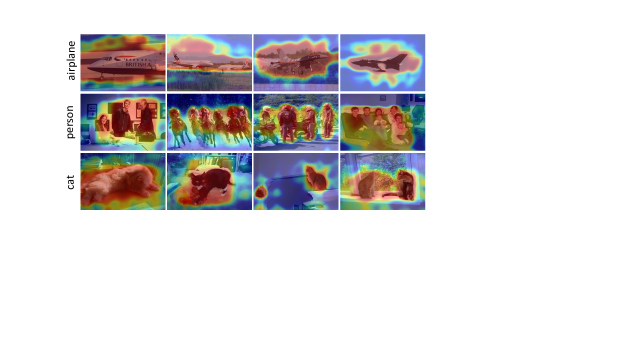

Figure 4: Visualization of the BCM learnt masking maps. It shows that most of the backgrounds are removed.

4.1 Experimental Setup

Dataset. We evaluate the proposed framework on the widely used Pascal VOC2012 segmentation benchmark [12]. It contains 21 classes with pixel-level annotations. There are 1,464 images in the training set and 1,449 in the validation set, and the left 1,456 images are for testing. Following the same setting in the compared methods [9, 29, 21], we augment the training set with the data from SBD [16]. Consequently, there are 10,582 images in the training set and 1,449 images in the validation set. We train our model with the augmented training set and test it on the validation set to compare with other methods.

Implementation Details. We adopt the publicly released and widely used DeepLab-LargeFOV [5] model as the backbone network. It is based on a VGG-16 [36] network which has been pre-trained on ImageNet [35]. We train the proposed model under several different supervision settings. We first train the Deeplab-largeFOV model with the rectangle-box supervision. Further, we change the segments supervision into CRF-Box segments for finetuning, and regard it as the baseline model. Based on above model, we train the models with the proposed Box-driven Class-wise Masking (BCM) model and the Filling Rate guided Loss (FR-loss). We train the baseline model with roughly 20k iterations, and further fine-tune them with/without the BCM and FR-loss for 5k more iterations. In addition, we also evaluate the performance in the semi-supervised condition through adding 1,449 samples with ground-truth labels. The initial learning rates of the above models are 0.001 and decreased by 10 times after every 3k iterations, with a mini-batch size of 16/20 for the model with/without BCM. We take SGD as the default optimizer. For all the training phases, only flipping and cropping are adopted for data augmentation. With the well-trained FCN models, we can predict the semantic masks for the given images. Note the forward-passes of masking layers in BCM are parallel, the forward-passing time are very close to the baseline model, i.e., 42.7ms vs. 39.3ms per image. We also implement the dense-CRF [22] for post-processing on the masks. We adopt the same parameters of the dense-CRF with the compared work [29]

. All experiments are implemented on a Nvidia TitanX GPU platform with the Caffe

[20] framework.

Evaluation Metrics and Compared Methods. We adopt the “comp6” protocol to evaluate the performance. The accuracy is reported in terms of mean pixel Intersection-over-Union (mean IoU). We compare with three start-of-the-art methods (i.e., BoxSup [9], WSSL [29] and SDI [21]) on VOC 2012 dataset under both weakly supervised and semi-supervised conditions with bounding box annotations.

Modes GT Box Methods mIoU
Weak - 10,582 BoxSup [9] 52.3
WSSL [29] 52.5
SDI [21] 61.2
Ours 54.9
BoxSup [9] 62.0
WSSL [29] 60.6
SDI [21] 65.7
Ours 66.8
Semi 1,464 9,118 WSSL [29] 62.1
BoxSup [9] 63.5
WSSL 65.1
SDI [21] 65.8
Ours 67.5
Full 10,582 - DeepLab-LargeFOV [5] 69.8
Table 2: Weakly and Semi-supervised results on VOC2012 validation set. With only 1/10 labeled segments, our method can achieve comparable performance with the fully supervised model. Box: directly using rectangle proposals, M+G: using the combined labels with both MCG and GrabCut.
Modes GT Box Methods mIoU
Weak - 10,582 SDI [21] 69.4
Ours 70.2
Semi 1,464 9,118 Ours 71.6
Full 10,582 - DeepLab-ResNet-101 [5] 74.5
Table 3: Results of ResNet-101 backbone on VOC2012 validation set. Our method outperforms the compared SDI [21] method, achieving comparable performance with the fully supervised one.

4.2 Effectiveness of BCM and FR-Loss

We first evaluate the proposed framework with BCM and FR-loss, the results are shown in Table 1. Based on the Deeplab-LargeFOV model and CRF-box proposals, finetuning with the BCM model or the FR-loss can achieve 65.6 or 65.8 mean IoU accuracy, respectively. Both of them outperform the baseline model with obvious margins. When the BCM and FR-loss work together, we achieve 66.8 accuracy. The results show that the proposed BCM and FR-loss are effective and jointly combing the two modules can further enhance the performance. We also evaluate several variants of the proposed BCM and FR-loss. Experimental results show that the box-driven class-wise masking model performs better than the global one (BGM). We show the BCM learnt masks in Figure 4. Without the influence of the cluttered backgrounds, the segmentation learning could be more stable. It demonstrates that the class-wise attention model can guide the FCN model to learn more effective features, and the filling rate guided adaptive loss can help reduce the negative effects from the wrongly labeled proposals.

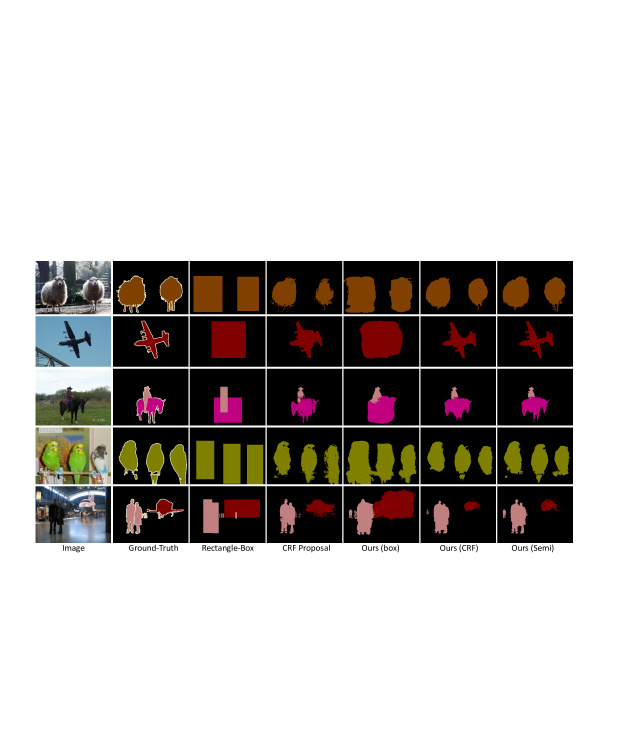

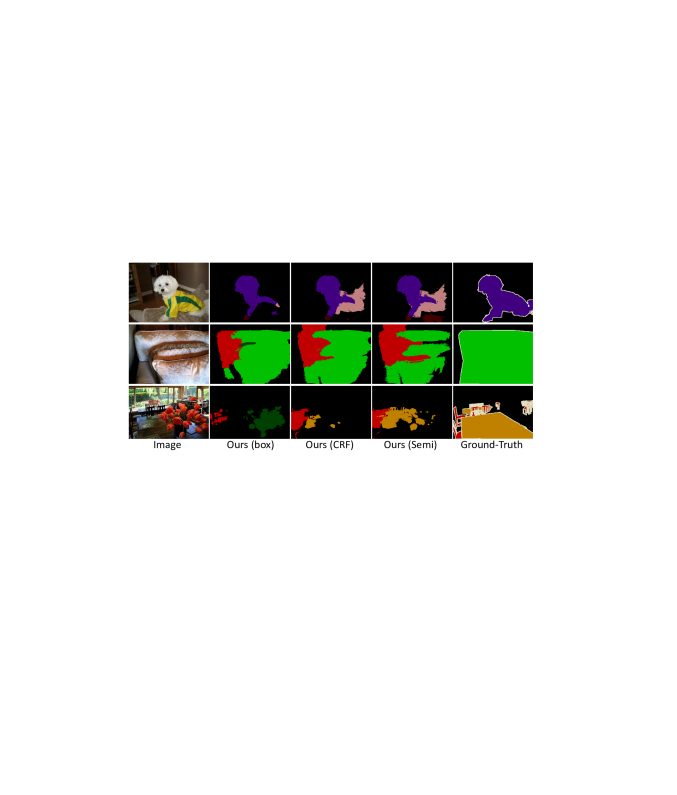

Figure 5: Examples of the segmentation results with proposed method. Original images are in the first column. The second column is the ground-truth segmentations. The 3-rd and 4-th columns are rectangle-box and CRF proposals. The following two columns show the results trained with rectangle-box and CRF proposals, respectively. The last column shows the results of semi-supervised model.
Methods bkg aero bike bird boat bottle bus car cat chair cow table dog horse moto person plant sheep sofa train tv mean
Weak(box) 78.3 37.4 20.6 46.6 44.9 64.5 80.7 68.1 59.8 32.5 65.7 58.4 61.6 51.2 53.2 60.5 47.5 60.0 49.3 64.2 49.4 54.9
Weak(CRF) 89.8 68.3 27.1 73.7 56.4 72.6 84.2 75.6 79.9 35.2 78.3 53.2 77.6 66.4 68.1 73.1 56.8 80.1 45.1 74.7 54.6 66.8
Semi 90.4 72.3 27.5 76.1 57.8 72.4 85.6 76.6 81.3 35.9 80.2 53.0 78.4 68.2 69.7 73.9 58.1 82.1 45.3 76.5 57.0 67.5
Table 4: Per class results of our method on VOC2012 validation set. The performance is evaluated in terms of mean IoU ().

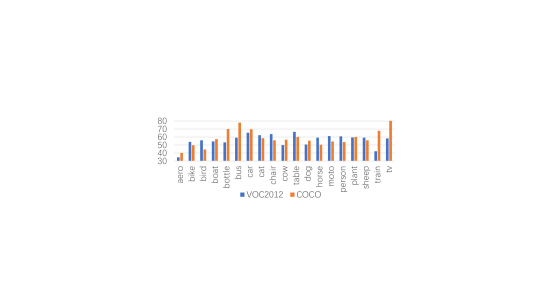

Figure 6: Filling rates of each class on VOC2012 and COCO. The filling rates are calculated with the generated pixel-level proposals. It is obvious that the filling rate can serve as an important cue for adjusting the pseudo labels.
