BoWFire: Detection of Fire in Still Images by Integrating Pixel Color and Texture Analysis

by   Daniel Y. T. Chino, et al.
Universidade de São Paulo

Emergency events involving fire are potentially harmful, demanding a fast and precise decision making. The use of crowdsourcing image and videos on crisis management systems can aid in these situations by providing more information than verbal/textual descriptions. Due to the usual high volume of data, automatic solutions need to discard non-relevant content without losing relevant information. There are several methods for fire detection on video using color-based models. However, they are not adequate for still image processing, because they can suffer on high false-positive results. These methods also suffer from parameters with little physical meaning, which makes fine tuning a difficult task. In this context, we propose a novel fire detection method for still images that uses classification based on color features combined with texture classification on superpixel regions. Our method uses a reduced number of parameters if compared to previous works, easing the process of fine tuning the method. Results show the effectiveness of our method of reducing false-positives while its precision remains compatible with the state-of-the-art methods.


page 3

page 4

page 6

page 7

page 8


Saliency Based Fire Detection Using Texture and Color Features

Due to industry deployment and extension of urban areas, early warning s...

Image Demoireing with Learnable Bandpass Filters

Image demoireing is a multi-faceted image restoration task involving bot...

Texture-Aware Superpixel Segmentation

Most superpixel methods are based on spatial and color measures at the p...

Plug-and-Play Few-shot Object Detection with Meta Strategy and Explicit Localization Inference

Aiming at recognizing and localizing the object of novel categories by a...

Single-view 2D CNNs with Fully Automatic Non-nodule Categorization for False Positive Reduction in Pulmonary Nodule Detection

Background and Objective: In pulmonary nodule detection, the first stage...

Visualizing Image Content to Explain Novel Image Discovery

The initial analysis of any large data set can be divided into two phase...

I Introduction

Emergency situations can cause economic losses, environmental disasters or serious damage to human life. In particular, accidents involving fire and explosion, have attracted interest to the development of automatic fire detection systems. Existing solutions are based on ultraviolet and infrared sensors, and usually explore the chemical properties of fire and smoke in particle samplings [1]. However, the main constraint of these solutions is that sensors must be set near to the fire source, which brings complexity and cost of installation and maintenance, especially in large open areas.

Alternative to sensors, cameras can provide visual information of wider spaces, and have been increasingly embedded in a variety of portable devices such as smartphones. To take advantage of this, the RESCUER111Project FP7-ICT-2013-EU-Brazil - ”RESCUER - Reliable and Smart Crowdsourcing Solution for Emergency and Crisis Management” Project is developing an emergency system to support Crisis Control Committees (CCC) during a crisis situation. The system under development in the RESCUER Project allows witnesses, victims or rescue staff, present at the emergency location, to send images and videos of the incident to a crowdsourcing mobile framework. However, this approach might lead to a volume of information flowing at a rate higher than what human specialists are able to analyze. For this reason, as part of the RESCUER Project, an automated data analysis solution is under investigation aimed at identifying the most relevant pieces of information, filtering out irrelevant data. Relevance here refers to images that actually contain fire elements, and that can effectively assist in the decision making of a given crisis.

Several methods regarding to fire detection on videos have been proposed in the last years. These methods use two steps to detect fire. First, they explore the visual features extracted from the video frames (images); second, they take advantage of the motion and other temporal features of the videos

[3]. In the first step, the general approach is to create a mathematical/rule-based model, defining a sub-space on the color space that represents all the fire-colored pixels in the image. There are several empirical models using different color spaces as RGB [1], YCbCr [4], CIE Lab [5] and HSV [6]. In these cases, the limitation is the lack of correspondence of these models to fire properties beyond color. The problem is that high illumination value or reddish-yellowish objects lead to a higher false-positive rate. These false-positives are usually eliminated on the second step through temporal analysis.

In contrast to such methods, our proposal is to detect fire in still images, without any further (temporal) information, using only visual features extracted from the images. To overcome the problems aforementioned, we propose a new method to detect fire in still images that is based on the combination of two approaches: pixel-color classification and texture classification. The use of color is a traditional approach to the problem; whilst, the use of texture is promising, because fire traces present particular textures that permit to distinguish between actual fire and fire-like regions. We show that, even with just the information present in the images, it is possible to achieve a high accuracy level in such detection.

The main contribution of this research is the proposal of BoWFire (Best of both Worlds Fire detection), a novel method to detect fire in still images. By merging color and texture information, our method showed to be effective in detecting true-positive regions of fire in real-scenario images, while discarding a considerable quantity of false-positives. Our method uses fewer parameters than former works, what leads to a more intuitive process of fine tuning the automated detection. Regarding these claims, in the experiments, we systematically compare BoWFire with four works that currently define the state-of-the-art, that is, the works of Celik et al. [4], Chen et al. [1], Rossi et al. [7], and Rudz et al. [8]. The remaining of this manuscript is organized as follows: Section II briefly surveys previous approaches related to fire detection methods; Section IV presents the proposed method using color and texture segmentation; Section V describes the experimentation; Section VI presents the discussion about the results and, finally, Section VII concludes this study.

Ii Related Works

A fire detection method based on rules was proposed in the work of Chen et al. [1]. They define a set of three rules using a combination of the RGB and the HSI color spaces; the user, in turn, must set two threshold parameters to detect fire pixels. Another method based on color was proposed by Celik et al. [4], who conducted a wide-ranging study regarding the color of fire pixels to define a model. This method defines a set of five mathematical rules to compare the intensity of the channels in the YCbCr color space; this was because the YCbCr has a better discrimination regarding fire [4][8]. Also in this work, the user must set a threshold for one of the rules.

Rossi et al. [7] proposed a method to extract geometric fire characteristics using stereoscope videos. One of the steps is a segmentation based on a clustering algorithm, in which the image is divided into two clusters based on the channel V of the YUV color space. The cluster with the highest value of V corresponds to fire. Thereafter, Rossi et al.

used a 3D-Gaussian model to classify pixels as fire. In this method, the accuracy of the classification depends on a parameter provided by the user. This method presents limitations, since the authors assume that the fire is registered in a controlled environment.

Rudz et al. [8] proposed another method based on clustering. Instead of using the YUV color space, Rudz et al. computes four clusters using the channel Cb of the YCbCr color space. The cluster with the lowest value of Cb refers to a fire region. A second step eliminates false-positive pixels using a reference dataset. The method treats small and large regions with different approaches; small regions are compared with the mean value of a reference region, while large regions are compared to the reference histogram. This comparison is made for each RGB color channel. The user must set three constants for the small regions, and three thresholds for the large regions, resulting in a total of six parameters.

In comparison to the previous works, our method improves the state-of-the-art by using texture, beyond color, to reduce false-positives; and by using a smaller set of parameters, an important characteristic to fine tune the detection process. Besides, the parameters of former methods do not carry physical significance, therefore, they are less intuitive to adjust.

Iii Basic Concepts and Notations

In this section we present important concepts related to the problem under analysis. An image can be defined as a set of pixels , where is the total number of pixels in the image. Each pixel is a tuple , where the values of and represents the intensity of each channel of the RGB color space. Global or local information can be extracted from images. A feature extraction is a function that for a given image

, generates a feature vector

, of size .

Let a set of tuples of size and a set of possible labels . Given a training set in which every has a label assigned by an expert, where ; a supervised classifier must build a model capable to predict the label of a new data item. Given a tuple , a classifier can be defined as the function , where . Among the most used classifiers are the Naïve-Bayes [9] and -Nearest Neighbors (KNN[10]. We refer to the above definitions in the rest of this work.

Iii-a Feature Extraction

Images are processed by means of extracted features. The features extracted from a given image correspond to numerical measurements that describe visual properties. Such properties are able to discover and represent connections between pixels of the whole image (global) [11], or of small regions of the image (local) [12]. Low-level descriptors [13], as those base on color, shape and texture, are frequently used.

Usually, color-feature extraction methods have a low computing cost. Color Layout [14]

is an example of color extraction, it describes the space distribution of the colors. The color histogram also allows to compute the color moments


to describe the probability distribution of the image colors. Shape information, in turn, is considered the closest approximation to the human perception of an object’s image

[16]. Feature extractors of this depend on a pre-processing step that segments and detects the border of the objects. There are various methods to extract shape features, as the Zernike moments [17] and the Fourier descriptors [18]. Texture is also a common feature in image processing. It is important because, together with color, it describes the surface of naturally-occurring phenomena, as fire, smoke, and water. Classical feature extractors of texture are LBP [19] and Haralick [20].

The Local Binary Pattern (LBP) is a texture feature extractor that considers the neighborhood of a pixel [19]. The LBP can be used in several applications, as helmet detection on motorcyclists [21]

, MR image retrieval systems

[22], and image segmentation [23]. The LPB can be performed in gray scale, in a region of 33 pixels. For each pixel from the neighborhood of the central pixel , a binary code is created by assigning the value if , or , otherwise. Then, the histogram of codes is used as a feature vector.

In order to make the LBP rotation invariant, a variation of the original algorithm shifts the code until it reaches its minimum value [24]. Another variation is defined as uniform patterns [25]. A code is called uniform if the binary pattern contains at most two bitwise transitions from 0 to 1 (or vice versa). The histogram is obtained by taking one bin for each uniform pattern and a single bin for the non-uniform patterns.

Iii-B Superpixel Generation

Superpixel algorithms group pixels into atomic regions with similar homogeneity. Doing so, superpixels can capture the image redundancy and reduce the complexity of subsequent image processing tasks. Superpixels can be used as building blocks of many computer vision algorithms

[26], in this paper, we will focus on image segmentation [27][28].

A superpixel is defined as a subset of the image that contains pixels from a continuous region of the image. A superpixel generation algorithm can be described as the process that takes the image and returns partitions. A superpixel generation algorithm must have a good adherence to image boundaries and should improve the performance of the segmentation algorithm. An empirical comparison between the state-of-the art superpixel algorithms was made by Achanta et al. [26]

. Their results showed that the algorithm with the best overall performance was the Simple Linear Iterative Clustering (SLIC) technique. The SLIC technique is an adaptation of K-Means for superpixel generation using a distance function based on the values of pixels using the Lab color space and their geometric position. The user gives as parameter the number of superpixels

and their compactness . The algorithm then positions the centroids on a regular grid, avoiding seeding a superpixel on an edge pixel.

Iv Our Proposal

We propose BoWFire (Best of Both Worlds Fire detection), a novel method for fire detection in emergency-situation images. We explore the fact that color combined with texture can improve the detection of fire, reducing the number of false-positives as compared to related works from the literature. We show that such combination can distinguish actual fire from fire-like regions (reddish/yellowish) of a given image. The goal is to provide a more effective automated detection of fire scenes in the context of the crisis situations, as those of the RESCUER Project. Figure 1 shows the basic architecture of our proposal. The BoWFire method consists of three basic steps: Color Classification, Texture Classification, and Region Merge. As shown in Figure 1, the two first steps occur in parallel to produce images in which fire-classified pixels are marked. Then, the output from both classifications is merged into a single output image by the Region Merge step.

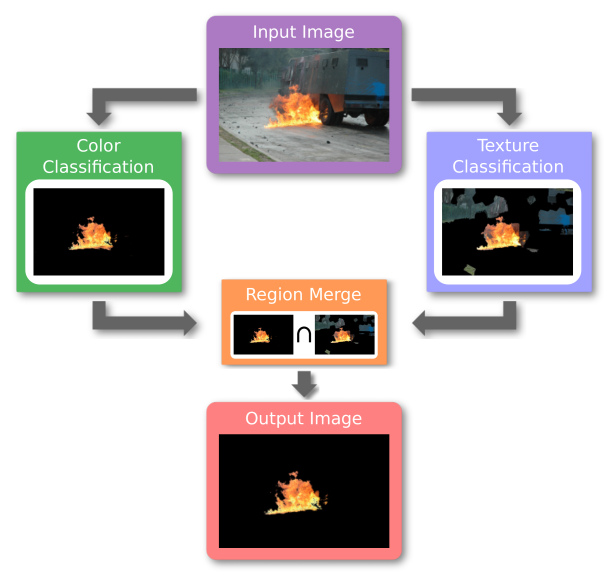

Fig. 1: Architecture of the BoWFire method.

Different from other methods, usually based on mathematical models, the use of a Color Classification

step avoids the need of a great number of parameters. Any machine learning classification algorithm could be used, specifically, in this work, we use Naïve-Bayes and

KNN, as detailed in Section V. By doing so, we also avoid the use of the global information of the image to classify only one pixel as opposed to other approaches; this is a desired feature because the semantics of the image may vary according to the emergency situation (small/large fire regions or day/night time). Figure 2 presents more details of the color-based classification. Given an image with pixels , . Each pixel of the image is converted to in the YCbCr color space, since this color space provides a better discrimination of fire regions. Then goes through a Pixel-Color Classification (), which consists of a Color Training Set and a Color Classifier. Then, if , is used to build the output image , otherwise is discarded.

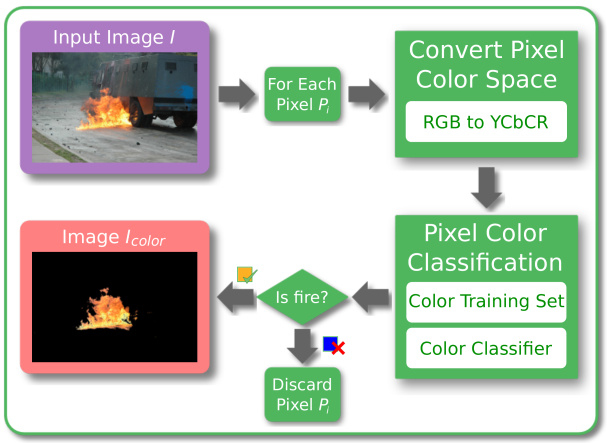

Fig. 2: Color-based classification step.

As mentioned earlier, the Texture Classification step allows for a more accurate detection; however, it brings a challenge. Since there may be a variety of fire images according to the emergency situation, it is not possible to extract global features of the image because the small fire regions would vanish in the global context. Therefore, we extract only local features from regular shaped regions with similar patterns automatically detected by superpixel methods. Figure 3 presents details of the Texture Classification step. Given the same image , we use a superpixel method to generate a set of superpixels , where . Next, each superpixel passes through a local Feature Extraction process, resulting in a feature vector of size . Then, is classified using a Feature Classification (), which consists of a Feature Training Set and a Feature Classifier. If , all pixels are used to build the output image , otherwise they are discarded. After this, the superpixel region is no longer necessary since the method is performed in pixel-level only.

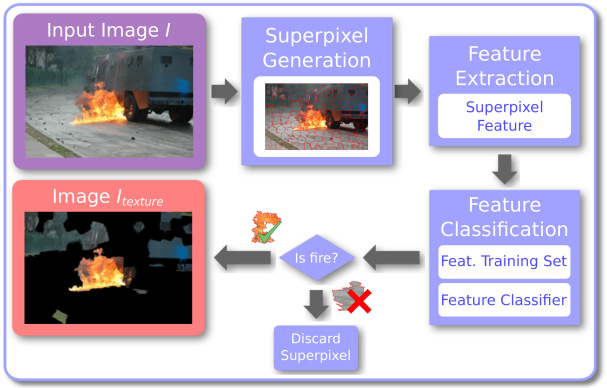

Fig. 3: Texture-based classification step.

With the outputs from the Color Classification (image ), and from the Texture Classification (image ), it is still necessary to join the results in an output image . We perform this task in the Region Merge step. According to our hypothesis, if a pixel is simultaneously classified as fire following color and texture classification, then there is a higher chance that this pixel is actual fire. Therefore, given an image and its color and texture classifications and , the final classified image is defined as . That is, a given pixel is added to the final output only if it was detected in both color and texture classifications, otherwise it is discarded. Consequently, we dismiss false-positives from both approaches, taking advantage of the best of both worlds.

The BoWFire method was developed in a modularized scheme, allowing an easy way to add and set different feature extraction algorithms, as well as different classifiers. We note that, since the BoWFire method is fully customizable, the number of parameters is dependent only on the algorithms used in the intermediate steps.

V Experiments

V-a Configuration

Following, we describe the configuration of our experiments.

Datasets: We performed experiments using a dataset of fire images. It consists of 226 images with various resolutions222Available at Also, it was divided in two categories: 119 images containing fire, and 107 images without fire. The fire images consist of emergency situations with different fire incidents, as buildings on fire, industrial fire, car accidents, and riots. These images were manually cropped by human experts. The remaining images consist of emergency situations with no visible fire and also images with fire-like regions, such as sunsets, and red or yellow objects. Figures 9, 10 and 11 show some samples of this dataset. Since we are using supervised machine learning, we also used a training dataset2. This second dataset consists of 240 images of 5050 pixels resolution; 80 images classified as fire, and 160 as non-fire. Figure 4 shows some samples of this dataset. It is important to note that the non-fire images also contain red or yellow objects.

Fig. 4: Sample images of the training dataset.

Intermediate Algorithms: Since the goal of our method is to have a fewer number of parameters, for the BoWFire intermediate steps, we used the following algorithms. The Pixel-Color Classification is done by a Naïve-Bayes classifier, using an automatic discretization method; the superpixel algorithm was the SLIC method with a modification. Instead of using the Lab color space, we used the YCbCr space due to its discriminative property. Since we wanted to add texture information, our implementation uses the uniform patterns LBP. Other feature extraction methods were evaluated, but were omitted due to space limitation. The features were classified using the KNN classification with the Manhattan Distance.

Parameters: Considering the configuration given by the choice of intermediate algorithms, the BoWFire method needs only 3 parameters: , and . For all experiments we empirically evaluated the best values for parameters and ; for parameter , we used the value . Regarding to parameter , we observed that a more compact superpixel generates a more regular region, which leads to a better representation of the texture feature. In this case, the best value was

. With these parameters, each method was executed on three different datasets: only fire images, only non-fire images, and a complete dataset with both fire and non-fire. For each execution, we computed the confusion matrix for the classification of all pixels and calculated four measures: Precision, Recall, F1-Score, and False-Positive Rate (FPR).

V-B Description of the experiments

In this section, we describe the experiments (i) on the impact of parameter , (ii) on the Color Classification Evaluation, and (iii) on the BoWFire Evaluation. Next, in Section VI, we report on the execution and results of these experiments.

Impact of : The first experiment evaluates the impact of the number of superpixels on the BoWFire performance. We vary the number of superpixels with the following values: 50, 100, 150, 200, 250 and 300.

Color Classification Evaluation: In this experiment, we aim at evaluating the capability of the Color Classification step proposed in this paper. Since BoWFire is based on a combination of two different approaches, it is important that the color-based method recovers as many fire pixels as possible. So, Recall is the measure that closely meets this need. Also, on this step FPR is not so important, since it will be handled on the Texture Classification step. We evaluated the behavior of our proposed Color Classification in comparison with the state-of-the-art, as in the works of Celik [4], Chen [1], Rossi [7] and Rudz [8].

BoWFire Evaluation: After evaluating only color, we evaluate the impact of considering texture together with color, as defined in our proposal. The most important aspect of this step is to reduce false-positives without affecting the overall performance. In this context, we analyze the BoWFire performance, which is the combination of the Color Classification step with the Texture Classification step. We also evaluated the performance of the state-of-the-art methods combined with the Texture Classification. We used the best value of as obtained in the experimentation.

Vi Results and Discussion

(a) Fire dataset
(b) Non-fire dataset
(c) Complete dataset
Fig. 5: Impact evaluation of the number of superPixel in three different datasets.
(a) Fire dataset (only color)
(b) Non-fire dataset (only color)
(c) Complete dataset (only color)
(d) Fire dataset (adding texture)
(e) Non-fire dataset (adding texture)
(f) Complete dataset (adding texture)
Fig. 6: Evaluation of the BoWFire method with the state-of-the-art methods.

Impact of : Figure 5 shows the results obtained while varying the number of superpixels. Figure 4(a) shows the results for the fire dataset. In this case, there was a slight increase of all measure until , then for greater values they had a similar behavior. The Precision obtained was around 0.8, Recall around 0.65 and F1-Score around 0.72. Figure 4(b) shows the results for the non-fire dataset. For this dataset we computed only the False-Positive Rate. There is a slight increasing of FPR as the number of superpixels increases, except for . It is important to notice that although FPR increases, the values remain around 0.045, that is, less than 5% of false-positives. And Figure 4(c) shows the results combining both datasets. Again, there is a similar behavior regarding , except for . The Precision obtained was around 0.5, Recall around 0.65 and F1-Score around 0.57. The FPR values were not shown on both Figures 4(a) and 4(c) due to their low values for all . There is also a slight increasing of FPR as increases, but with lower values. On the fire dataset, FPR went from 0.0169 to 0.0175, and on the complete dataset it varied from 0.0305 to 0.0323.

The main goal of the BoWFire is to decrease the FPR while maintaining a good performance. With that in mind, we evaluated that the best result is achieved when the number of superpixels . This number presented better results while dealing with just the fire and complete dataset (fire and non-fire), as showed by F1-score. Also, the value of FPR for this is close to the lowest FPR value.

Color Classification Evaluation: Figures 5(a), 5(b) and 5(c), show the results for the Color Classification step. Considering only color-based approaches, Color Classification, Celik and Rudz presented the best overall performance. Although Chen obtained the highest value of Precision, its Recall got the lowest value. As seen in Figures 9 and 10, Chen missed too many true-positive pixels and Rossi has the lowest overall performance. We observed that in outdoor emergency situations, fire was not in the cluster with the higher values of V, as shown in Figures 9 and 10. From now on, we will focus our analysis only on the methods with the best overall performance.

Regarding to Precision, Rudz achieved the best value, 0.84 on the fire dataset and 0.31 on the complete dataset, while Color Classification and Celik had similar behavior with values around 0.62 on the fire dataset and 0.24 on the complete. On the other hand, Color Classification achieved the highest value of Recall, 0.77 on both fire and complete dataset, followed by Celik, 0.63 on both fire and complete, and Rudz, 0.41 on both fire and complete. Analyzing the F1-Score, Color Classification and Celik methods outperformed Rudz by at most 23.6% on the fire dataset with values of 0.68 to Color Classification, 0.63 to Celik and 0.55 to Rudz. On the complete dataset, all methods achieved similar F1-Score with the value of 0.35.

On the fire dataset, Color Classification and Celik achieved similar values of FPR (0.05 and 0.04) and Rudz method achieved 0.01 FPR. On the non-fire dataset, Color Classification, Celik and Rudz achieved respectively 0.21, 0.15 and 0.08. And on the complete dataset, Color Classification, Celik and Rudz methods achieved respectively 0.13, 0.10 and 0.05. On all datasets, Rudz achieved the best FRP value, less than 9% of the pixels was incorrectly classified. However, while discarding more false-positives, Rudz also discarded true-positives, reducing its Recall capability. Except for FPR, Color Classification had a similar behavior of Celik, but had better values of Recall and F1-Score. Therefore, the Color Classification outperformed the other methods.

BoWFire Evaluation: Figures 5(d), 5(e) and 5(f) show the results when added texture information. It is possible to note that there was an overall improvement for all methods. Regarding Precision, with the exception of Rudz and Chen, all methods had a considerable improvement. Color Classification and Celik had a Precision improvement of up to 1.30 on the fire dataset and 2.28 on the complete dataset. Rossi had the greatest improvement, 4.43 on fire dataset and 5.65 on the complete dataset. This high improvement was due to the fact that Rossi, on outdoor images, detected other regions than fire, as shown on Figures 9 and 10. When adding texture information, these false-positive regions were discarded. For both Chen and Rudz, there was a slightly improvement on the fire dataset, but it is due to the fact that they already had low FPR. On the other hand, on the complete dataset, there was an improvement of 1.64 to Chen and 2.06 to Rudz.

There was a decreasing on the Recall value of up to 15% less for all methods, except Rudz. This is due to the fact that the combination of both approaches discarded a few true-positives. However, the considerable gain on the precision can justify this drawback. Analyzing the F1-Score, there was a slight increase of up to 7% for all methods, except Rossi, on the fire dataset, which had an improvement of 69%. On the complete dataset, all methods had a considerable improvement, up to 65%.

As one of the goals of BoWFire is to reduce the number of false-positives, it is important to analyze FPR. On the fire dataset, there was a reduction of up to 68% of FPR for Color Classification, using Celik and Chen methods. Rossi had 94% less false-positives. Rudz was the least affected by this step, reducing 5% false-positives, since they had already dismissed false-positives on a post processing step. On both the non-fire and complete dataset, all methods reduced FPR by up to 80%. This result confirms that the Texture Classification step is capable of discarding false-positives without compromising the overall performance.

We can now use the Receiver Operating Characteristic (ROC) space to analyze the performance behavior between all methods. The ROC Space shows the relation between FPR and the true-positive rate (Recall). Figures 7 and 8 show the ROC Space on, respectively, the fire and the complete datasets for all methods. On both ROC Spaces, it is possible to note that all methods move to the left, i.e., achieve less FPR when texture information is added. The Color Classification and the BoWFire method presented the best classification results among the other methods, followed by Celik. Also, the BoWFire achieved a similar Recall value as Celik without texture information, but with a smaller FPR.

Fig. 7: ROC Space using the fire dataset.

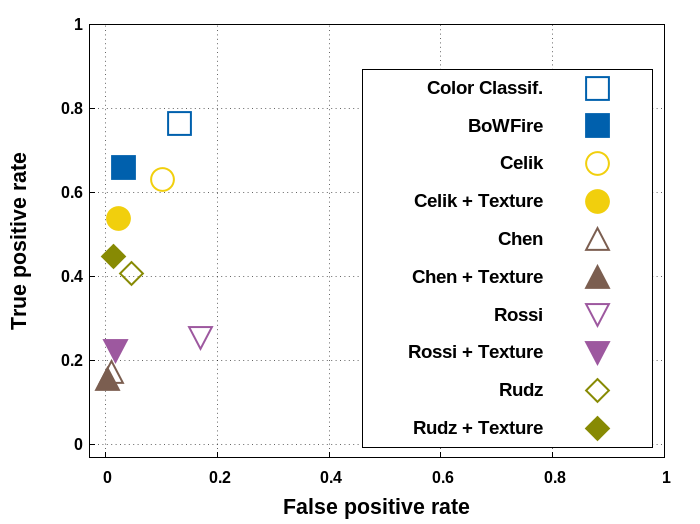

Fig. 8: ROC Space using the complete dataset.

Figures 9, 10 and 11 show visual samples of output images from three different situations. Figure 9 shows an emergency situation with fire and low percentage of possible false-positives. On this input image it is possible to note that Color Classification, Celik and Rudz methods had similar outputs. The BoWFire method was able to detect the same fire region as these methods but discarded the fire reflection on the ground. Rossi was not able to correctly detect fire regions, while Chen discarded more than half of the true-positives. Figure 10 also shows an emergency situation with fire with a higher percentage of false-positives. In this case, all methods detected false-positives, with the exception of BoWFire. It is also possible to note that in some cases, Rudz discards more fire pixels than necessary. This image also shows the problem with the Rossi method, since no fire region was detected as fire. Once again, Chen discarded almost every true-positive. Figure 11 shows a sunset skyline image. For this input image, both Color Classification and Rudz detected false-positives. Meanwhile, when adding texture information to the Color Classification, BoWFire was capable of discarding all false-positives for this image.

(a) Input image
(b) Ground truth
(c) BoWFire
(d) Color Classification
(e) Celik
(f) Chen
(g) Rossi
(h) Rudz
Fig. 9: Output from the methods with an input image with fire.
(a) Input image
(b) Ground truth
(c) BoWFire
(d) Color Classification
(e) Celik
(f) Chen
(g) Rossi
(h) Rudz
Fig. 10: Output from the methods with an input image with fire and possible false-positives pixels.
(a) Input image
(b) BoWFire
(c) Color Classification
(d) Rudz
Fig. 11: Output of a non-fire image.

Vii Conclusions

In this paper, we presented the BoWFire method, a novel approach for fire detection on images in emergency context. Our results showed that BoWFire was capable of detecting fire with a perfomance similar to what is observed in the works of the state-of-the-art, but with less false-positives. We systematically compared our work with four former works, demonstrating that we achieved consistent improvements.

The course of action of BoWFire was that, by simultaneously using color and texture information, it was able to dismiss false-positives relying solely on the information present in the images; as opposed to former methods that use temporal information. Furthermore, since BoWFire is based on classification methods, rather than on mathematical modeling, it was able to solve the problem with only three parameters. In addition, these parameters were more intuitive for tuning, unlike those of previous works, which are based on thresholds and color-based values. Given its performance, we conclude that BoWFire is suitable to integrate a crisis management system as the one that motivates this work.

As future work, we plan to investigate the combination of different features extraction methods. We also envision the extension of BoWFire to detect other types of incident, such as smoke and explosions.


This research is partially funded by FAPESP, CNPq, CAPES, STIC-AmSud and RESCUER Project, funded by the European Commission (Grant: 614154) and by the CNPq/MCTI (Grant: 490084/2013-3).
