1 Introduction

Video captioning is the task of describing the content in a video in natural language. With the explosion of sensors and the internet as a data carrier, automatic video understanding and captioning have become essential. It can be applied in many applications such as video surveillance, assisting visually challenged people, video retrieval, and many more. Despite having many applications, jointly modeling the spatial appearance and temporal dynamics makes it a difficult task.

Motivated by machine translation [4]

and image captioning

[5, 6], recently, the encoder-decoder architecture has been adapted for the video captioning task [7, 8, 2, 9, 1]

. With the limited amount of Spatio-temporal data, pre-trained convents have been successful at the encoder side. The decoder exploits a variant of recurrent neural networks (LSTM, GRU) to generate more relevant caption. Some recent approaches

[9] force the decoder to capture better semantics about the video by introducing reconstruction loss, while others have used multi-modal [29] features and memory-based modeling [2].

However, a potential drawback with these methods is the training signal does not align with the standard evaluation metrics such as BLEU [19], METEOR [30], ROUGE-L [31], CIDER [32]. As a result, even low training and validation loss can lead to poor metric scores and vice versa, as shown in Fig.1(b). Direct optimization over metric function is not possible due to the non-differentiable nature of the network. To this end, we propose a dynamic loss network (DLN), a transformer-based model that approximates metric function and pre-trained on external data using a self-supervised setup. Although the proposed DLN can be utilized to approximate any metric function, in our case, we approximate the BLEU score. Once trained, the DLN can be used with the video captioning model in an end-to-end manner, as shown in Fig.1(a).

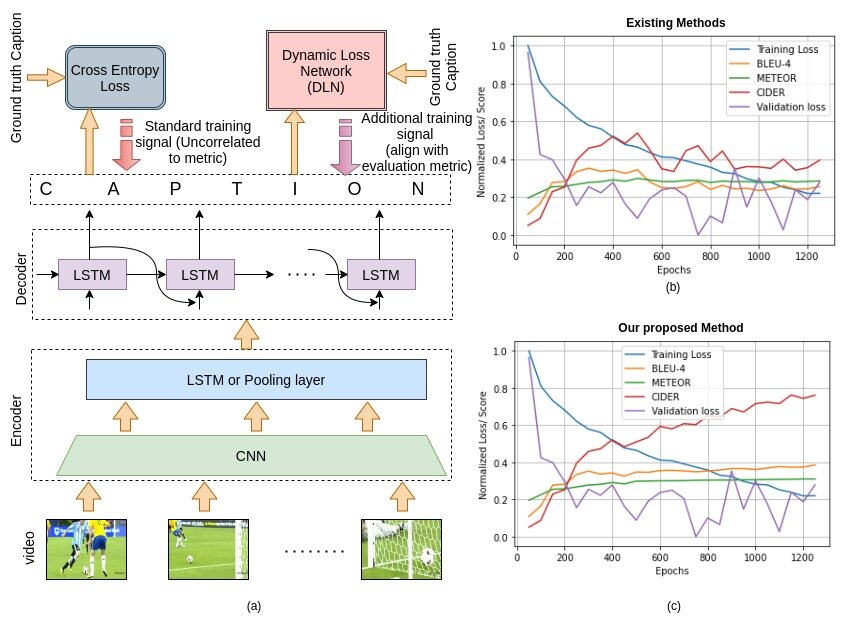

Figure 1: (a) The proposed Dynamic loss network (DLN) with an encoder-decoder architecture. The encoder-decoder relies on the standard cross-entropy training signal whereas the DLN introduces additional training signal aligned with the evaluation metrics. (b) Training signal and evaluation metric curve for a standard encoder-decoder architecture. (c) Training signal and evaluation metric curve for our proposed architecture.

Finally, we demonstrate that the feedback signals from our proposed model align with the evaluation metric, as shown in Fig.1(c).

2 Related Work

2.0.1 Video Captioning.

The main breakthrough in video captioning happened with the inception of encoder-decoder based seq2seq models. The encoder-decoder framework for video captioning was first introduced by MP-LSTM [7], which uses mean pooling over frame features and then decodes caption by LSTM. The temporal nature of video was first modeled by S2VT [1] and SA-LSTM [8]. The former shares a single LSTM for both the encoder and the decoder, while the later uses attention over frame features along with 3D HOG features. RecNet [9] uses backward flow and reconstruction loss to capture better semantics where MARN [2] uses memory to capture correspondence between a word and its various similar visual context. More recently, ORG-TRL [3] has modeled object interaction via Graph convolutional network (GCN). As these methods suffer from improper training signal, some effort has already been made to mitigate this issue.
Training on evaluation metric function. Ranzato et al. [10] use the REINFORCE algorithm [11] to train an image captioning model directly on BLEU score, where Rennie et al. [12] use the Actor-critic method [13]. Both methods use the reward signal, but these methods are not applicable for video captioning due to the sparse nature of the reward. Zhukov et al. [14] propose a differentiable lower bound of expected BLEU score where Casas et al. [15] reported poor training signal corresponding to their formulation of differentiable BLEU score [19]. Unlike previous works, we leverage successful Transformer based pre-trained models to approximate the evaluation metrics.

3 Method

Our proposed method follows a two-stage training process. At the first stage, the DLN is trained in a self-supervised setup, whereas at the second stage, the trained DLN is used along with the existing video captioning model. The entire process flow is in the Fig.2. During the second stage, the loss from the DLN back propagates through the encoder-decoder model and forces it to capture better representation. Moreover, the proposed loss network can combined with different encoder-decoder architectures for video captioning. In this paper, we have employed the DLN on top of MP-LSTM [7], SA-LSTM [8], S2VT [1], RecNet [9], and MARN [2].

3.1 Encoder-Decoder

The video captioning task aims at generating sentence that describes the content of a given video , where is a word in caption and is a frame in video V. Standard encoder-decoder architecture models conditional word distribution given previous tokens and video feature.

(1)

where is the learnable parameters and is the word in the sentence of length T.
Encoder.

To generate a proper caption, semantically rich visual features need to be extracted. An encoder is responsible for the video feature extraction, which will be fed to the downstream decoder. A typical encoding method is to extract video frame features using pre-trained 2D Convnets (Inception-v4

[25], ResNet [26], etc.) and fuse them to get a fixed-length video feature. In our implementation, we follow the same encoding strategy as MP-LSTM [7], SA-LSTM [8], RecNet [9], and MARN [2].
Decoder. The decoder generates the caption word by word based on the visual features obtained from the encoder. A recurrent neural network is utilized as the backbone of the decoder because of its superior temporal modeling capability. In the proposed system, the decoder is designed using LSTM [7] with attention over frame features [8].
The encoder-decoder model is jointly trained by maximizing the log-likelihood of the sentence given the video feature.

(2)

3.2 Dynamic Loss Network (DLN)

As shown in Fig.1(a), the proposed DLN is built on top of the encoder-decoder. The DLN provides an additional training signal aligned with the evaluation metric. The proposed DLN approximates the BLEU [19]

score, which involves mapping from a pair of sentences to a numerical value. Motivated by the tremendous success in vision and natural language processing (NLP), pre-trained transformer network

[28] is used as the backbone for the proposed DLN. In the following, we have included a brief description on the training of DLN and also, how video captioning is achieved with the trained DLN.

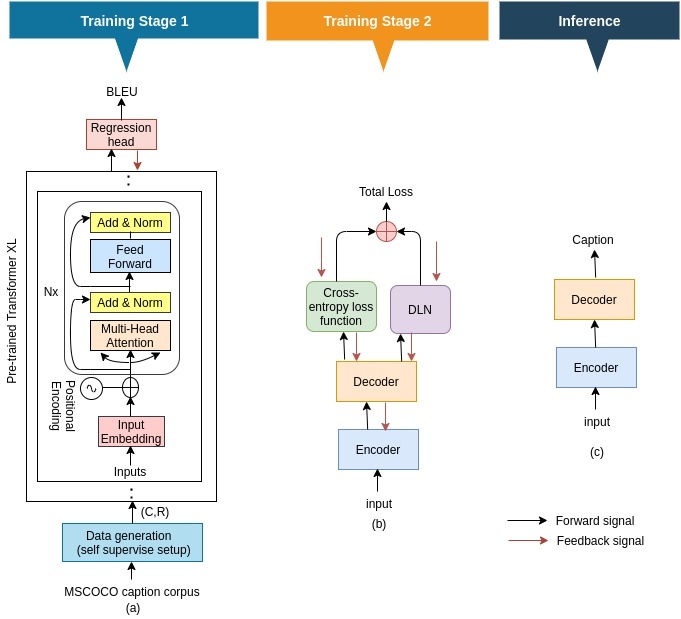

Figure 2: (a) Training of Dynamic Loss Network in self-supervised setup. (b) End-to-end training of video captioning model along with DLN. (c) Video captioning model at test time.

Training of Dynamic Loss Network. The training of the DLN is achieved in a self-supervised manner. As external data, the caption corpus of MSCOCO [18] is utilized for the training of DLN, specifically, for the modeling of to

score. The training data is generated following the two strategies: (i) we perturb each sentence randomly with a p% probability to generate (candidate, reference) pair. For the perturbation, deletion and swapping are done over the word(s). (ii) we use the predicted and ground truth caption as (candidate, reference) pair during training of an image captioning model on MSCOCO

[18] data. In both the cases, ground truth ( to ) is generated using the NLTK [21] library. It is to be noted that, the

score is computed based on the modified N-gram precision between candidate and reference sentence.

(3)

where is the modified precision between n-grams, is a scalar weight corresponding to the and, is the brevity penalty.
The self-attention layer in the transformer network (to be more specific, transformer network with word as input) calculates the attention score between words. This characteristic makes the transformer network [28] a natural choice to model the BLEU score function. Although BERT [22] and GPT [23] are the state-of-the-art pre-trained transformer architecture, they are not suitable to model BLEU score due to subword input tokenization. Instead, BLEU score is modeled using TransformerXL [24] architecture, which works with standard word input (similar to the LSTM decoder). A regression head has been added on top of the standard TransformerXL network and trained by maximizing the log-likelihood of BLEU scores given reference and candidate sentence.

(4)

where is the learnable parameters and R,C are reference and candidate sentence respectively.

Video Captioning with Dynamic Loss Network. Once trained, the DLN is combined with the standard encoder-decoder network at the second stage of training. The proposed DLN is applied only at the training stage, so there is no run-time overhead during inference. As shown in Fig.2(b) the DLN take inputs from the output of the decoder and ground truth caption. During the backward pass the output value of DLN is added to cross entropy loss and the model is trained on the combined loss function.

(5)

At the early phase of training, cross entropy acts as a better training signal so we rely more on cross entropy loss. On the other hand, we rely more on loss from the proposed loss network at the later phase of training. To this end, the hyper-parameter is introduced. and it’s value increases along with the iterations.

4 Experiments and Results

We have conducted experiments to evaluate the performance of the proposed DLN-based video captioning on two benchmark datasets: Microsoft Research-Video to Text (MSRVTT) [16] and Microsoft Research Video Description Corpus (MSVD) [17]. We have investigated the effect of DLN on the performance of the state-of-the-art methods for video captioning.

4.1 Datasets

MSVD. MSVD contains open domain 1970 Youtube videos with approximately 40 sentences per clip. Each clip contains a single activity in 10 seconds to 25 seconds. We have followed the standard split [7, 8, 2] of 1200 videos for training, 100 for validation, and 670 for testing.

MSRVTT. MSRVTT is the largest open domain video captioning dataset with 10k videos and 20 categories. Each video clip is annotated with 20 sentences, resulting in 200k video-sentence pairs. We have followed the public benchmark splits, i.e., 6513 for training, 497 for validation, and 2990 for testing.

4.2 Implementation Details

We have uniformly sampled 28 frames per video and extracted 1536 dimensional appearance features from InceptionV4 [25]

, pre-trained on ImageNet

[20]. At the decoder end, the hidden layer contains 512 units, and the size of the word embedding is considered 468. In the Attention-based Recurrent Decoder, the dimension of the attention module is set to 256. All the sentences longer than 30 words are truncated. Apart from these, we have followed the standard settings mentioned in the models [7, 1, 8, 9, 2] while adding DLN on top of them. For the DLN, we use 16 multi-head and 18 layers TransformerXL [24]

pre-trained on WikiText-103. A regression head composed of three fully connected (FC) layers are added on the top of the TransformerXL

[24]. to is modeled through the training of DLN. During both stages of training, the learning rate for DLN and the end-to-end video captioning model is set to 1e-4. Adam [27] is employed for optimization. The model selection is made using the validation set performance. At the test time, beam search with a beam length of 5 is used for the final caption generation.

4.3 Experimental Results

We have compared our proposed model with the existing video captioning models on MSVD and MSRVTT datasets, as shown in Table.1 and Table.2. All four popular evaluation metrics, including BLEU, METEOR, ROUGE, and CIDER are reported.

Model without DLN with DLN (Ours)
METEOR ROUGE-L CIDEr METEOR ROUGE-L CIDEr
MP-LSTM [7] 33.3 29.1 - - 43.6 32.5 69 79
S2VT [1] 39.6 31.2 67.5 66.7 42.3 32.7 68.1 73.7
SA-LSTM [8] 45.3 31.9 64.2 76.2 43.9 33.1 68.7 77.2
RecNet (global) [9] 51.1 34.0 69.4 79.7 50 34.1 71.1 78.5
RecNet (local) [9] 52.3 34.1 69.8 80.3 51.8 34.4 69.9 81
MARN [2] 48.6 35.1 71.9 92.2 52.3 35 72.3 89.7

Table 1: Performance of different video captioning models on MSVD dataset with and without DLN in terms of four metrics.

It is apparent that adding DLN provided significant gain to the captioning performance in all metrics. In our experiment, the training is performed with or without DLN under the same settings as described by the existing methods.

Model without DLN with DLN (Ours)
METEOR ROUGE-L CIDEr METEOR ROUGE-L CIDEr
MP-LSTM [7] 32.3 23.4 - - 35.3 26.0 57.9 37.7
SA-LSTM [8] 34.8 23.8 - - 35.1 26.3 58.1 38.1
RecNet (global) [9] 38.3 26.2 59.1 41.7 38.7 26.5 58.7 41.9
RecNet (local) [9] 39.1 26.6 59.3 42.7 38.9 26.7 58.9 42.7
MARN [2] 40.4 28.1 60.7 47.1 40.5 27.9 60.8 45.1

Table 2: Performance of different video captioning models on MSRVTT dataset with and without DLN in terms of four evaluation metrics.

Significance of BLEU as a prediction function for DLN. Among the different evaluation metrics, BLEU is the most uncorrelated metric with the training signal, as apparent from Fig.1(b). Moreover, significant similarity is noticed in the mechanism of the self-attention in the transformer network and the BLEU score in Eq.3. The efficacy of the DLN model has been demonstrated in Table.1 and Table.2.
Study on the training of the DLN. The training of the DLN is performed to predict to . The novel idea of the DLN is proposed in this paper, so no benchmark results are available for this task. Hence, the qualitative analysis is performed by comparing histograms of the ground truth and the predicted values on the test set, as shown in Fig.3.

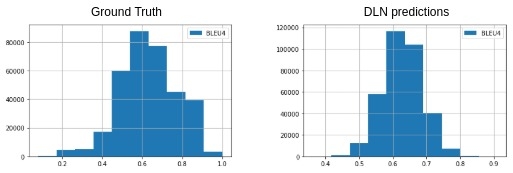

Figure 3: Comparison of BLEU-4 Histograms: ground truth vs model prediction.

Study on the Trade-off Parameter . It is indeed to state that the trade-off parameter plays a crucial role in controlling the combined loss (Eq.5) during training. Experimentally it is observed that the augmentation of DLN () has improved the performance of the majority of the state-of-the-art video captioning models. It is also observed that the quality of the captions deteriorates with the higher values of . We empirically set initial as 0.1 and increases up to 0.5 along with iterations.

5 Conclusion

This work addresses the training signal, evaluation metric alignment mismatch problem of existing video captioning models and proposed a dynamic loss network, which models the evaluation metric under consideration (BLEU is considered in our case). The training is performed in two stages, and the experimental results on the benchmark datasets support the superiority of the proposed DLN over the existing encoder-decoder based video captioning models.
