Semantic object segmentation from natural images is known to perform well with deep neural networks but these require a large quantity of pixel-level annotations. Obtaining a sufficient quantity of annotations is difficult and sometimes impractical; on the other hand, unlabeled or weakly categorized data is easier to obtain. This motivates the need for weakly or semi-supervised models, to leverage unlabeled or weakly labeled data.
Many works have explored the use of generative adversarial networks (GANs) to improve semantic segmentation of medical images. However, while these methods make better use of the training data by either improving the training objective [23, 9, 42, 30, 39, 47, 43, 35, 25] or performing data augmentation within the training set [14, 31, 20], they do not augment the training set to better cover the variations in the data population. On the other hand, some works have explored unsupervised anomaly localization using autoencoding  or GANs [37, 7] to learn a generative model of healthy cases. Another GAN based approach is to train an error model that could be used for updates on unlabeled data . These approaches are approximate and do not make full use of available weak labels (healthy and sick domain labels). Making better use of available data, some recent approaches relied on image-to-image translation between sick and healthy cases [4, 2] but these were unsupervised and either approximate or not validated against baselines or on multiple tasks.
We focus on the common scenario in medical imaging, where a large number of images lack segmentation labels but are known to be either healthy or sick cases. This knowledge can be considered as weak proxy labels that identify whether there is something to be segmented in an image. For example, when segmenting cancerous lesions, images marked ‘healthy’ do not contain cancer while images marked ‘sick’ do. We argue that the objective of translating from sick to healthy images is a good unsupervised surrogate for segmentation. Consequently, we develop a semi-supervised segmentation method 111Code for model and experiments: [hidden during review period] with image-to-image translation, trained on unpaired images from sick and healthy domains.
Considering the sick domain as a superset of the variations in the healthy domain, we encode images into two latent codes: variations that are common to both and variations that are unique to the sick domain. This allows us to split decoding into two parts: (1) a ‘healthy’ image decoder that interprets the common latent code and (2) a residual decoder that additionally considers the unique code in order to compute a residual change to the ‘healthy’ output image, making it ‘sick’.
Because the output of the residual decoder is highly correlated with the segmentation output we can re-use the decoder for segmentation. In doing so, we maximize the proportion of model parameters that receive updates even when there are no pixel-level annotations available to guide image segmentation during training. Examples of these mappings, including both decoders and the segmentation output, are shown in Figure 1. Furthermore, whereas image-to-image translation models do not use long skip connections from the encoder to the decoder, we propose a long skip connection variant in our method. Long skip connections are common with supervised encoder-decoder models , where they help preserve spatial detail in the decoder even when the encoding is very deep. Overall, we summarize our contributions as follows:

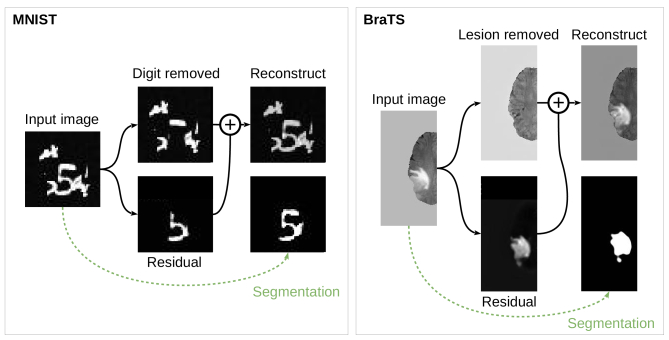

We propose a semi-supervised segmentation method leveraging image-to-image translation.
We propose the use of (new) long skip connections for image-to-image translation, from encoder to decoder.
We propose a dual-function decoder (translation, segmentation), thus maximizing the number of parameters updated in the absence of pixel-level annotations.
We validate our method on challenging synthetic data and real brain tumor MR images, significantly improving over well-tuned baselines.
2 Related works
Image-to-image translation. Image to image translation was most prominently done with the CycleGAN  which does bidirectional translation between two domains. UNIT  proposed a similar approach but with a common latent space, shared by both domains, from which latent codes could be sampled. Augmented CycleGAN  and Multimodal UNIT  respectively extended both methods from one-to-one mappings to many-to-many.
Disentangling domain-specific variations. Both  and  present methods that learn shared and domain-specific latent codes. These differ from the proposed method in that they do not segment and do not assume (and benefit from) an absence domain as a subset of a presence domain. In addition, the domain-specific ”style” codes are encoded with a shallow network which may bias the model to indeed learn domain-specific styles; whereas, the proposed method uses deep encodings for all codes. Explicit disentangling of variations between these codes has recently been proposed in  by way of a gradient reversal layer .
Data Augmentation. GANs are used to augment liver lesion examples for classification in .  synthesize data to cover uncommon cases such as peripheral nodules touching the lung boundary.  and  introduce a segmentation mask generator to augment small training datasets.
Anomaly localization. Generative models have been used to fit the distribution of healthy images in order to find anomalies. To localize lesions in brain MR images that are known to be either healthy or sick,  fit the healthy data distribution with an autoencoder. Given an image presenting a lesion, the lesion is localized via the residual of its reconstructed image which is likely to appear healthy. Similarly,  and  employ GAN to locate anomalies in retinal images and brain MR images, respectively. While these models require that weak ’sick’ or ’healthy’ labels are known, they are trained only on the latter. Furthermore, they allow only rough unsupervised localization.
Image-to-image translation for segmentation. By translating from sick to healthy images,  trains a network to localize Alzheimer’s derived brain morphological changes using the output residual.  further proposes a multi-modal variant of CycleGAN  to translate in both directions, applied to brain MR images with cancer. Sick images that are translated to healthy images are translated back to the original sick image via a residual inpainting of the lesions. Lesions are localized and segmented by predicting a minimal region to which to apply inpainting. Segmentation is unsupervised, with a prior that minimizes the inpainting region. This method has not been compared to other unsupervised methods, has been tested on a single dataset, and has not been extended to a weakly- or semi-supervised setting. Our work differs in that we develop a semi-supervised architecture that uses fewer parameters by reusing mappings, we skip information from the encoder to decoders, we propose a decoder that is trained with both translation and segmentation objectives, and we validate the method on multiple tasks.
Adversarial semi-supervised segmentation. A semi-supervised segmentation method for medical images was proposed by , where a discriminator learns a segmentation error signal on the annotated dataset which can be applied on unannotated data. This method may be limited in how well it could scale with the proportion of unannotated data since the discriminator’s behaviour may not generalize well beyond the annotated dataset on which it is trained. Because this method can be applied to the output of any segmentation model, we consider it complementary to our proposed method.
Segmentation labels are typically available for an insufficiently representative sample of data. We propose a semi-supervised method that extends supervised segmentation to weakly labeled data using a domain translation objective. In addition to a segmentation objective, the method attempts to translate between the distribution of images presenting the segmentation target (P) and the distribution of images where this target is absent (A).
3.1 Translation, segmentation, and autoencoding

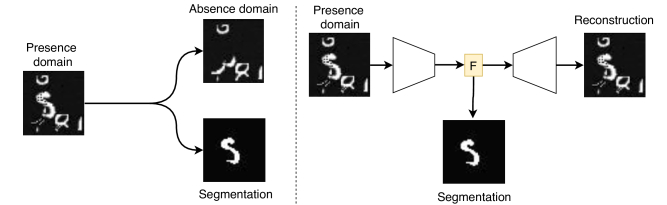

Translating between images where the segmentation target object is present or absent requires a model to localize the target. It follows then that in order to add, remove, or modify the target in an image, the variations caused by it should be disentangled from everything else (Figure 2, left). We conjecture that segmentation relies on the same disentangling and that this is the most difficult part of both objectives. Thus, we identify domain translation as an unsupervised surrogate loss for segmentation. We propose an encoder-decoder model that extends segmentation with image-to-image translation. In addition, we leverage the similarity between these two objectives to employ a decoder that is shared by both.
Although domain translation aligns well with segmentation, the canonical objective for unsupervised feature learning is autoencoding of the model input. A deep autoencoder may disentangle causal features of an image; that is, encoding the image may yield information about the features that produce it (Figure 2, right). When labels could be considered to cause the image, one would expect autoencoding to learn features that are useful for classification or segmentation . Indeed,  recently won the Brain Tumor Segmentation challenge (2018) by augmenting a fully convolutional segmentation network with an autoencoding objective. This objective is easy to set up and train for. Unlike with domain translation, no knowledge about the images’ domain is required. On the other hand, information about presence (P) or absence (A) of the segmentation target in the image may guide a domain translation objective to more specifically isolate the variations that are important for segmentation .
3.2 Our method
The proposed model builds on an encoder-decoder fully convolutional network (FCN) segmentation setup by introducing translation between a domain of images presenting the segmentation target (P) and a domain where it is absent (A), as in Figure 3. The encoder separates variations into those that are common to both A and P and those that are unique to P; essentially, P is a superset of the variations in A. For example, in the case of medical images of cancer, both A and P contain the same organs but P additionally contains cancerous lesions.

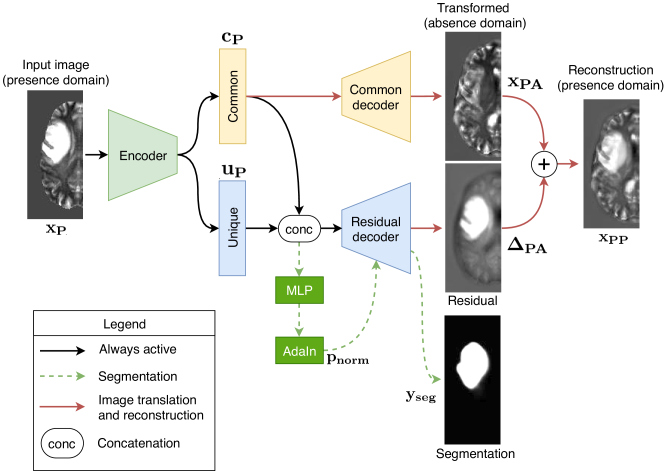

Latent code decomposition. Starting with images in domains A or P, the encoder () yields common () and unique () codes:
Presence to absence translation. Translation is achieved by selectively decoding from the latent codes and . A common decoder () uses only common variations, , to generate images in A:
where is essentially an autoencoding of , whereas is a translation of to the A domain where the segmentation target is removed. With this translation, the target variations can be recovered separately, by computing a residual change to that reconstructs as . This is done with a second residual decoder () which uses both common variations and those unique to P (see Figure 3):
The residual decoder requires all latent codes, , as its input because the manifestation of unique variations in the image space is dependent on the common variations. For example, the way cancer manifests in a brain scan depends on the location and structure of the brain in the scan. Note also that because the common decoder only uses the common latent code, the encoder must learn to disentangle common and unique variations.
Segmentation. The and codes or the residual contain sufficient information for segmentation. Indeed we reuse the residual decoder, used with , for segmentation. We parameterize a segmentation decoder in terms of the residual decoder , with segmentation specific per-layer instance normalization  parameters :
where is a pixelwise classification layer and is a subset of the
network that contains all but the last layer, using normalization parameters produced from the latent code by a multi-layer perceptron (MLP):

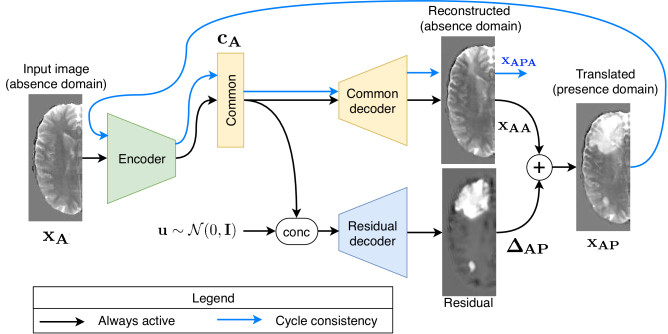

Absence to presence translation. Finally, we conclude the set of autoencoding and translation equations with and , where images in A are translated to images in P (Figure 4). We note that although these translations are not useful for segmentation, they are useful during training since they effectively augment the training updates that our encoders and decoders can receive. Since P contains additional variations to those found in A, we must either add these variations from an image in A or sample them from a prior distribution:
Here, requires a sample
from a zero-mean, unit variance prior over the unique variations,. Note that unlike in a variational autoencoder, the encoder does not parameterize a conditional distribution over the unique variations but rather encodes a sample directly. We ensure that the distribution of encoded samples matches the prior by making match , as detailed further in the description of our training objective. The translation of to completes a cycle as in . When must match , this ensures that the translations retain information about their source images, ensuring that the encoder and decoders do not learn trivial functions. As shall be seen below, this is already achieved by other objectives, making the cycle optional.
Total loss. The training objective consists of a segmentation loss combined with four translation losses, each weighted by some scalar :
Reconstruction losses. To ensure that the encoder and decoders can cover the distribution of images, we reconstruct input images:
Similarly, we reconstruct the latent codes so as to ensure that their distributions match across domains A and P, or in the case of unique codes, match the prior:
We define a cycle consistency loss for the APA cycle:
Note that there is no PAP cycle since in the proposed method this is equivalent to PP reconstruction, as can be seen in Figure 3. Because both images and the their latent codes are reconstructed, the cycle consistency loss is optional.
We use the distance for all reconstruction losses.
Adversarial loss. Finally, we use the hinge loss for the adversarial objective, together with spectral norm on the encoder and decoders as in :
where, for each domain , is the generator network for some generated image and is a discriminator network which discriminates between real data and generated data .
3.3 Baseline methods
The proposed method is compared against two baseline approaches: a fully supervised, fully convolutional network (FCN) and another one augmented with a reconstruction objective for semi-supervised training. To ease comparison, all models (baselines and proposed) share the same encoder and decoder architectures. The fully supervised method uses an encoder with a single decoder (“Segmentation only” in Table 1). This is equivalent to the proposed method with only the segmentation loss, using only the residual decoder. The semi-supervised method (“AE baseline” in Table 1), adds an additional decoder that reconstructs the input.
3.4 Compressed long skip connections
In all models, including baselines, every decoder accepts long skip connections from the encoder, as in . These connections skip features from each layer in the encoder to the corresponding layer in the decoder, except for the first and the last layers. Because long skip connections make autoencoding trivial, they are not used with the reconstruction decoder in the semi-supervised baseline method, however skip connections are used between the encoder and segmentation decoder.
Typically, feature maps from the encoder are either directly summed with  or concatenated to  those in the decoder. We proposed a modified variant of long skip connections where any stack of feature maps is first compressed (via convolution) to a single map before concatenation (see Figure 5). We note that concatenating all feature maps is costly computationally and appears to increase training time for image translation whereas summing feature maps makes the image translation task very difficult to learn. To further stabilize training, all features skipped from the encoder are normalized with instance normalization. We find that these long skip connections help train the model faster and help produce higher quality image outputs even with a deep encoder.
In this section, we evaluate our proposed semi-supervised segmentation method on both synthetic and real data. We confirm that this method outperforms the fully supervised and semi-supervised segmentation baselines. We present examples of image translation results to illustrate the correlation between segmentation and image translation tasks. We begin with a synthetic MNIST-based task that simulates the common situation, where some images are known to present the segmentation target (P), while in others it is known to be absent (A). With this data, we experiment with increasing the difficulty of the segmentation task. Then, we proceed to evaluate the proposed method on brain tumour segmentation on real MRI data (BraTS).
|4848 simple||4848 hard||128128||240120|
|Only segmentation||0.61 (0.01)||0.36 (0.01)||0.15 (0.01)||0.69 (0.04)|
|AE baseline||0.75 (0.01)||0.49 (0.02)||0.57 (0.02)||0.73 (0.02)|
|Proposed||0.79 (0.01)||0.57 (0.00)||0.65 (0.01)||0.79 (0.02)|
Segmentation Dice scores for synthetic MNIST and real BraTS segmentation tasks: mean (standard deviation).
4.1 Cluttered MNIST

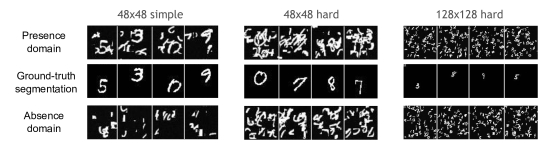

We construct a synthetic task for digit segmentation using MNIST digits, similar to the cluttered MNIST dataset in . Each image in P contains a complete randomly positioned digit placed on a background of clutter. The clutter is produced from randomly cropped digits within the same data fold (training, validation, or test set). In all experiments, we used crops of 10x10 pixels. We dither regions where MNIST digits or clutter components overlap, so as to prevent models from identifying these boundaries.
We tested the proposed model and the baseline methods on three variants of the cluttered MNIST task, at two resolutions: 4848 simple, with 8 pieces of clutter; 4848 hard, with 24 pieces of clutter; and 128128, with 80 pieces of clutter. Samples from these generated datasets are shown in Figure 6; all datasets were generated prior to training. In all experiments, we provided reference segmentations for 1% of the training examples. In addition, to mimic the issue of small training datasets where the training set fails to cover all modes of variation of the data population, we trained on reference segmentations only for the digit 9.
As shown in Table 1, the proposed model significantly outperforms both the semi-supervised and the fully supervised baselines. The improvement is greater for the harder variants of the task: 4848 hard and 128128. We suspect that the greater improvement on the 4848 hard task may be due to the greater difficulty in separating digits from clutter as compared to 4848 simple, in which case the translation objective that seeks to specifically disentangle digit variations from clutter variations should be particularly helpful.

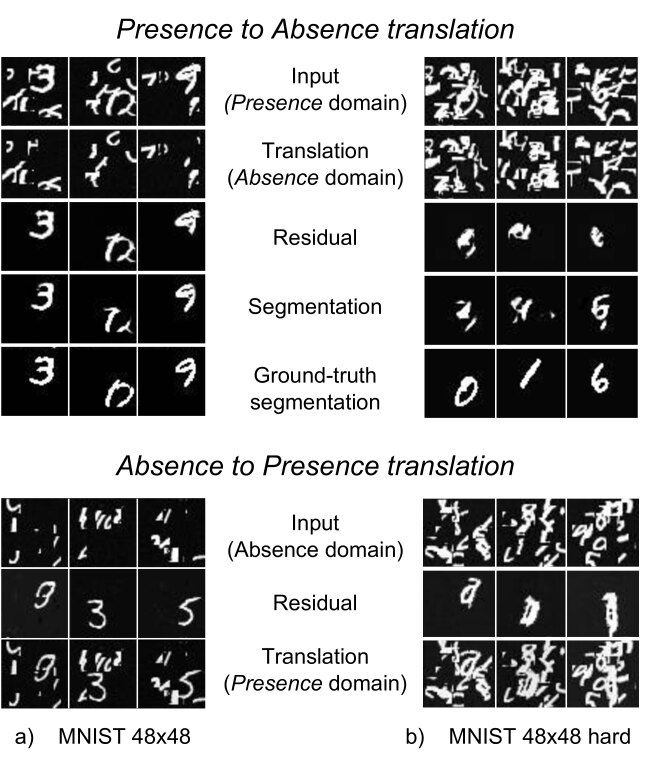

Examples of image translation and segmentation are shown in Fig. 7. We first discuss presence to absence translation. For the MNIST 4848 simple case, almost the entire digit is removed from the image during translation and the residual is similar to the segmentation result which supports our conjecture that translation is a good surrogate task for the segmentation task. The MNIST 4848 hard dataset has very challenging images, in which localizing the true digit is very difficult even for people. The model learned to partially remove the digit in order to fulfill the GAN objective. Therefore, the residual does not contain the entire digit, however it attends to the correct location in the image which may guide segmentation. We note that a digit does not need to be completely removed in order for the image to appear to contain only clutter because any remaining digit parts could appear as clutter. During absence to presence translation, the model learns the distribution of correct digits and is able to insert them into the image, as shown for MNIST 4848 simple. With more clutter (MNIST 4848 hard) it becomes challenging; generated residuals have less variety and many look like variations of the digit 0.
These experiments demonstrate that semi-supervised segmentation benefits from image-to-image translation. We observed significant improvements over supervised and semi-supervised segmentation baselines.
Moving beyond synthetic data, we evaluated the proposed method on brain tumour segmentation challenge 2017 data (BraTS). Because this dataset contains only magnetic resonance imaging (MRI) volumes presenting cancer, we artificially split the data along 2D axial slices into P and A domains as a proof of concept. Because lesions tend to be closer to the center of the brain than the top or bottom, slices from the center of the brain, containing more brain matter, tend to be over-represented in P as compared to A. We require that the P and A domains differ only in that P contains the segmentation target; therefore, in order to better balance the slice distributions between the two domains, we additionally split the brains into hemispheres and select only those half-slices that contain at least 25% brain pixels. In P, we also limit the minimal number of lesion pixels to 1% of brain pixels. We pre-process every volume by mean-centering the brain pixels (ignoring background) and dividing them by their standard deviation. Finally, we use half-slices extracted from the processed volumes as model inputs. Each input has four channels, corresponding to four registered MRI sequences: T1, T2, T1C, and FLAIR.
We trained the proposed model and baselines with reference labels available for 1% of the training data. As shown in Table 1, the proposed model achieves a Dice score, significantly outperforming both the segmentation baseline, , and the semi-supervised autoencoding baseline, . Image translation and segmentation examples are shown in Figure 8. As evident in the figure, lesions were well removed by image-to-image translation. Unlike with the cluttered MNIST data, some of the sequences (T1, T1c) result in fairly complicated residuals that are nonetheless correctly reinterpreted as segmentations via the residual decoder.
The first column in Figure 8 reveals an artifact of distribution imbalance where a rare truncated input slice is transformed into a common non-truncated slice. Artifacts of this sort are particularly common when there is an imbalance in the distribution of slice sizes between P and A (which we try to avoid). Ideally, entire brain volumes would be used as inputs instead of slices.
5 Extensions and applications
Although we present work on two domains, P and A, we note that the proposed method can be easily extended to any greater number of domains. For example, if different types of pathology are known to be present in a medical image dataset, a domain-specific code (with a corresponding residual decoder) could be encoded for each pathology in addition to a neutral code with any pathology absent. Most interestingly, our image-to-image translation approach would allow any number of pathologies to be present in an image at a time, unlike for example the StarGAN multi-domain image-to-image translation architecture .
Finally, we note that there are many different data outside of medical imaging that can be split into P and A domains. For example, any material fault analysis, such as rust detection, microchip defects, or the decay of building facades can be expressed that way. Another interesting application may be the surveying of flood damage by learning the difference between pre-flood and post-flood urban aerial images. Extending the proposed method to more than two domains, one could explore such multi-domain problems as shadow segmentation where different times of day constitute different domains (with noon in A).
We propose a semi-supervised segmentation method that makes use of image-to-image translation in order to leverage unsegmented training data with cases presenting the object (P) of interest and cases in which it is absent (A). We argue that this objective is a good unsupervised surrogate for segmentation because it should similarly rely on disentangling of object variations from other variations. Indeed, we validate our method on both synthetic cluttered MNIST segmentation tasks and brain tumour segmentation in MR images, where we achieve significant improvement over supervised segmentation and a semi-supervised baseline.
