1 The Binding Problem
Two important properties of good representations are that they are distributed and disentangled. Distributed representations (Hinton, 1984) are far more expressive than local ones, requiring exponentially fewer features to capture the same space. Complementary to that, disentangling (Barlow et al., 1989; Schmidhuber, 1992; Bengio et al., 2007) requires the factors of variation in the data to be separated into different independent features. This concept is closely related to invariance and eases further processing because many properties, that we might be interested in, are invariant under a wide variety of transformations (Bengio et al., 2013a). Unfortunately distributed representations can interfere and lead to ambiguities when multiple objects are to be represented at the same time.
The binding problem refers to these ambiguities that can arise from the superposition of multiple distributed representations. This problem has been debated quite extensively in the neuroscience and psychology communities perhaps starting with Milner (1974) and von der Malsburg (1981), but its existence can be traced back at least to a description by Rosenblatt (1961). It is classically demonstrated with a system required to identify an input as either square() or triangle() and to decide whether it is at the top() or at the bottom(). It represents every object as a distributed representation with two active disentangled features (see (b)). The binding problem arises when the system is presented with two objects at the same time: In this scenario, all four features become active and from the representation alone it cannot be determined whether the input contains a square on top and a triangle at the bottom or vice versa.
One way the system can circumvent this problem is through the use of a local representation, with one feature for each combination of shape and position: . Sadly the size of such a purely localrepresentation scales exponentially with the number of factors to represent. In contrast, distributed representations (Hinton, 1984) are much more expressive and can generalize better through the reuse of features. The former system could, for example, correctly represent the position for a new object such as a circle by the already available position features ().
Generalization of internal representations is a crucial capability of any intelligent system, and one that still sets humans apart from current machine learning systems. Consider (a), an example from studies in psychology: chances are this is the first time you see a Greeble (Gauthier & Tarr, 1997). Nevertheless, you are capable of describing its shape, texture, and color. Moreover, you can easily segment it and tell it apart from the background, without having seen any other Greeble before. It has long been argued that such generalization capabilities are a result of the use of distributed representations in the human brain.
Despite its importance to the neuroscience community, binding has received relatively little attention in representation learning. Two important reasons for this are:
Firstly, most pattern recognition tasks and benchmarks are set up to avoid the binding problem. Many popular visual pattern recognition datasets consist of images that contain only one object at a time. Similarly, speech recognition mostly considers recordings of just one speaker talking and little background noise. In these settings, a machine learning algorithm can assume that there is only a single prominent object of interest, reducing the binding problem to the problem of ignoring irrelevant details. When tackling more challenging problems such as image caption generation, scene parsing segmentation, or the cocktail party problem, the deficiencies of popular methods become more apparent and restrictive.
Secondly, the recent increase in processing power due to the use of Graphics Processing Units made it feasible to mitigate the binding problem using localized binding in the form of convolutions (Riesenhuber & Poggio, 1999). Convolutional Networks (Fukushima, 1979; Le Cun et al., 1990) use feature detectors with limited receptive fields (filters) replicated over the whole input to represent its inputs. Therefore the resulting features of spatially separated objects do not interact: they are invariant to changes outside their field of view. On the other hand, they do not disentangle the location from the detected pattern, which comes at the cost of having to compute the same feature replicated many times over the image. While this is reasonable for lowlevel features like edges, it seems wasteful to replicate specialized highlevel features such as dogfaces.
In this paper, we develop an unsupervised method that dynamically binds features of different objects together. This is in contrast to local representations which by nature statically bind several input features together (a feature for permanently binds the concepts and together). It explicitly models inputs as a composition of multiple entities and recovers these “objects” using the notion of mutual predictability. This is achieved through a clustering process which utilizes a denoising autoencoder (DAE; Behnke, 2001; Vincent et al., 2008) to iteratively reconstruct an input. In the future, such a mechanism could help to effectively use distributed representations in multiobject settings without being impaired by the ambiguities due to superposition. Alternative approaches to the binding problem proposed in the literature are discussed in Section 5.
2 Reconstruction Clustering
This section describes Reconstruction Clustering (RC), a formal framework for tackling the binding problem as a clustering problem. For ease of explanation we will refer to inputs as images and the individual dimensions of an input as pixels, though the framework is not restricted to visual inputs. It is based upon two insights: Firstly, if the image was segmented into its constituent objects, there would be no binding problem. Secondly, the intuitive notion of an object can be formalized as a group of mutually predictive pixels. The proposed method therefore iteratively clusters pixels based on how well they predict each other.
2.1 Images as Compositions
The first central idea behind RC is to model images as being composed of several independent objects with each pixel belonging to one of them. Unlike in classic segmentation where each pixel is assigned to a predefined class, the goal here is to simply segregate different objects. In doing so we avoid all ambiguities that might arise from a superposition of their representations. Of course, the information about which objects are present and which pixels they consist of is unknown in practical applications. So for each image, the aim is to infer both the object representations and the corresponding pixel assignments.
Formally, we introduce a binary latent vector
for each pixel that specifies which of the objects it belongs to. Therefore, with the constraint that . Let denote the number of pixels in the image . Then we define the prior over as:(1)
where the ’s are assumed to be independent given . The assumed probabilistic structure is shown in (a). We assume
to be uniformly distributed for simplicity, but its estimation can be incorporated into the algorithm if required (see Appendix).
2.2 Objects
So far, we have used the word object to describe a group of pixels that somehow “belong together”. The second central idea of RC is to concretize that notion using mutual predictability of the pixels. Intuitively, knowing about some pixel values that belong to an object helps in predicting the others. An example can be seen in (c) where the corrupted pixels in the bottom left corner of the square could be reconstructed from knowledge about the rest of the square, but not from any of the triangles. So we define an object as a group of pixels that help in predicting each other, but do not carry information about pixels outside of that group.
Predictability, as we use it here, is derived from the structure of the underlying datadistribution. Knowledge about this structure is also precisely what is needed in order to remove corruption from an image. Based on this insight, we propose to use a denoising autoencoder (DAE) to measure predictability.
2.3 Denoising Autoencoder
Let be the encoder and be the decoder of a DAE, such that is the encoded representation of input and is the decoded output. The DAE is trained to remove corruption from images of single objects and thus learns a local model of the data generating distribution (Vincent et al., 2008; Bengio et al., 2013b). After training the same DAE is used for each of the clusters to get predictions from cluster for pixel , where the object in cluster is represented by :
(2)
Here ’s are assumed to be independent given . Combining this with the latent variables we get:
(3)
2.4 Clustering
We can now outline a clustering algorithm that estimates the object identities and the corresponding pixel assignments. Formally, we seek to maximize the complete data loglikelihood:
(4)
This can be done in an iterative procedure where we start by randomly initializing the latent cluster assignments and then alternating between the following two steps:

Apply the autoencoder to the each of the images that are assigned to the clusters to get a new estimate of the object representations. (Rstep)

Reassign the pixels to the clusters according to their reconstruction accuracy. (Estep)
2.4.1 Reconstruction Step
The Rstep applies the encoder to generate a new object representation from each of the partial images that are assigned to each cluster. We call this representation of a partial image since the encoder only gets to see as much of each pixel of the original image as has been softassigned to the current cluster. The DAE then denoises the “corruption” caused by the cluster assignments. The RStep is thus given by the following formula, where denotes pointwise multiplication:
(5)
Unfortunately this step can not be guaranteed to increase the expected loglikelihood, because only in expectation does the DAE map from regions of low likelihood to regions of higher likelihood. Moreover, this property only holds for the whole image and not for all subsets of pixels. Thus, convergence can’t be proven and RC is not an Expectation Maximization algorithm (Dempster et al., 1977). Nevertheless, empirical results show that convergence does occur reliably (Section 4.2).
2.4.2 Estimation Step
In the Estep, for each pixel the posterior of , given the data and the predictions of the autoencoders based on the object representations, is
(6)
In this paper, we assume the pixels to be binary and the predictions of the network
to correspond to the mean of a binomial distribution. Then the following performs a softassignment of the pixels to the
different clusters:(7)
3 Experiments
We evaluated RC on a series of artificially generated datasets consisting of binary images of varying complexity. For each dataset, a DAE was trained to remove salt&pepper noise on images with single objects. The autoencoders used were fullyconnected feedforward neural networks with a single hidden layer and sigmoid output units. A random search was used to select appropriate hyperparameters (see Appendix for details). The best DAE obtained for each dataset was used for reconstruction clustering on 1000 test images containing multiple objects, and the binding performance was evaluated based on groudtruth object identities. All the code for this paper (including the creation of the datasets and figures) is available online on
GitHub.com/Qwlouse/Binding.3.1 Datasets

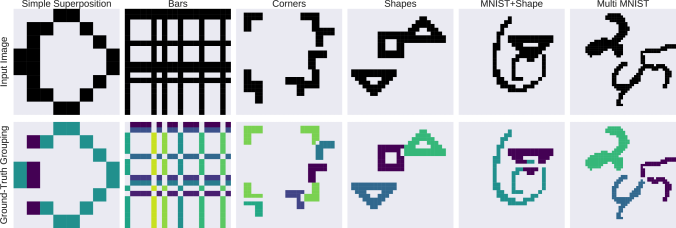

Representative examples from the datasets are shown in Figure 3.
 Simple Superposition

A collection of simple pixel patterns two of which are superimposed. Taken from Rao et al. (2008). This is a simple dataset with no translations, but significant overlap between patterns.
 Shapes

Taken from Reichert & Serre (2013). Three shapes are randomly placed in an image (possibly with overlap). This dataset tests binding of shapes under translation invariance and varying overlap.
 Bars

Introduced by Földiak (1990)
to demonstrate unsupervised learning of independent components of an image. We use the variant from
Reichert & Serre (2013) which employs 6 horizontal, and 6 vertical lines placed in random positions in the image.  Corners

This dataset consists of 8 corner shapes placed in random orientations and positions, such that 4 of them align to form a square. It was introduced by Reichert & Serre (2013) to demonstrate that spatial connectedness is not a requirement for binding.
 MNIST+Shape

Another dataset from Reichert & Serre (2013), which combines a random shape from the shapes dataset with a single MNIST digit. This dataset is useful to investigate binding multiple types of objects.
 MultiMNIST

Three random MNIST digits are randomly placed in a 4848 image. It provides a more challenging setup with multiple complex objects.
3.2 Evaluation
Since the data is generated, a groundtruth segmentation for each image is available. For the binding task, all pixels corresponding to the same object should be clustered together. We evaluated performance by measuring the Adjusted Mutual Information (AMI; Vinh et al., 2010) between the true segmentation and the result of the binding, to which we refer to as the score. This score measures how well two cluster assignments agree and takes a value of 1 when they are equivalent, and 0 when their agreement corresponds to that expected by chance. Only pixels that unambiguously belong to one object were counted, ignoring background pixels and regions where multiple objects overlap.
4 Results
4.1 Scores
dataset for different numbers of clusters, showing test set mean (line) and standard deviation (shaded) over the test set.

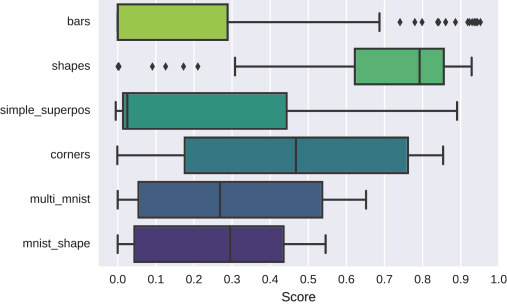

(a) shows the mean scores obtained using RC for each dataset averaged over 100 runs. Scores obtained with different choices of the number of clusters . Results are consistent across runs, hence the standard deviations are very low and barely visible. The optimal number of clusters is two for Simple Superposition and MNIST+Shape, three for Multi MNIST and Shapes, five for Corners, and 12 for Bars. Scores are higher than 0.5 for all datasets and higher than 0.8 for four out of the six datasets demonstrating the ability of RC to successfully bind objects together.
4.2 Convergence
(b) shows the convergence of the mean loglikelihood over RC iterations on the shapes dataset. Convergence is quick, typically within 510 iterations, depending on the chosen number of clusters and the dataset (not shown). As expected, the final likelihood is highest when the number of clusters equals the number of objects in the shapes dataset (3), matching the results from (a). The likelihood is much lower for than for and drops again slightly if we choose . The likelihood for is significantly lower. In some cases the correct choice of did not result in the highest likelihood, but in general this correspondence appeared to hold. If the number of objects is unknown, this trend can be used to determine the correct number of clusters.
4.3 Qualitative Analysis

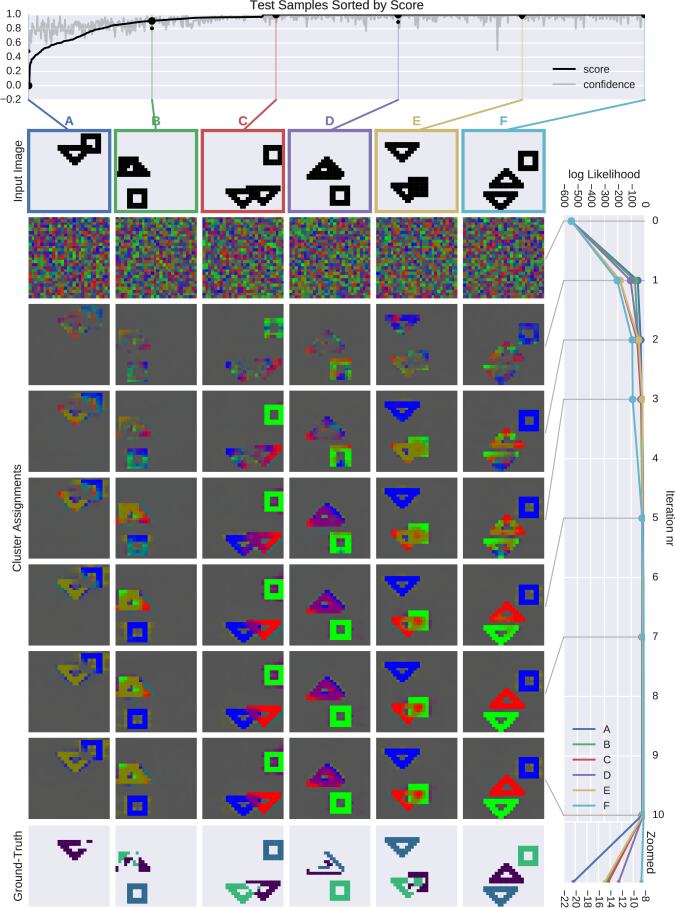

Figure 5 shows a few example RC runs of on the shapes dataset for qualitative evaluation. The initial cluster assignments are random, therefore all observed structure is due to the clustering process. The final clustering corresponds well to the ground truth even for cases with significant overlap. Again, it is notable that RC converges quickly (within 5 iterations).
4.4 Loss vs Score
RC utilizes autoencoders trained with the denoising objective for binding. Therefore, it is instructive to examine the relationship between denoising performance and the final RC binding score. For this purpose, we trained 100 DAEs with the same architecture on each dataset with random learning rates and initializations, and then performed RC using each of them. (a) shows the relationship between the denoising loss and binding score for each dataset. It can be observed that lower loss correlates positively with higher score for all datasets, indicating that denoising is a suitable surrogate training objective. We added a regression line to indicate that relation for each dataset, even though for MNIST+Shape and Multi MNIST it doesn’t look even remotely linear. Instead, the individual points are approximately arranged on a curve. This suggests that there is a direct but complex interplay between the denoising performance and the score.
4.5 Training on Multiple Objects
So far the DAEs were trained on singleobject images, then used to bind objects in multiobject images. In general it is desirable to not require singleobject images for training, and be able to directly use any image without this restriction. This would remove the last bit of supervision and make RC a truly unsupervised method.
Why should this work at all? On the surface it seems that RC would depend on the DAE to prefer single objects in order to work correctly. However, even if each cluster tries to reconstruct every object, there will be small asymmetries due to the difference in inputs they see. Since no object carries any information about the shape and position of another object in our datasets, this will lead to differences in prediction quality of the objects. The resulting difference in reconstruction quality will then be amplified by RC and can still lead to a segregation of the objects.
To test this scenario, we performed a new random search to tune DAE hyperparameters for the case of multiobject training. Similar to the singleobject case, we then used the best obtained DAEs to perform RC on test examples. We found that with softassignments to the clusters, the differences were too small and would even out over several iterations, leading to uniform cluster assignments. By changing the Estep to hard (KMeanslike) assignments, we were able to amplify these changes enough to make the whole procedure work.

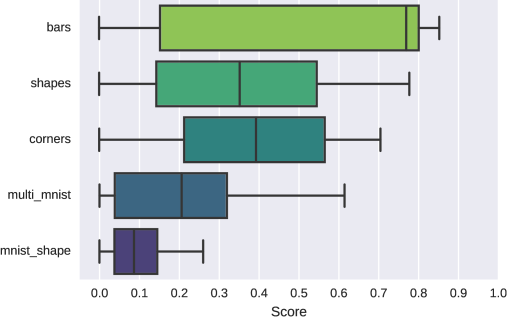

(b) shows that DAEs trained on multiobject images can indeed be used for binding via RC with hard assignments, although they lead to lower scores in comparison. Further discussion and examples for this case can be found in Appendix C.4.6 Generalization to a new domain
A central intuition behind our approach to binding is that the lowlevel structures learned by the model will generalize to new and unseen configurations. Evaluation on unseen test sets demonstrated this to be true, but we can take it one step further. We can test what happens when we confront our method with novel objects that the autoencoders have not been trained on.
We ran RC on several images with nondigits using a DAE trained on the MultiMNIST dataset. Figure 7 shows that RC “correctly” binds letters and circles together. We also show images for which the resulting binding differs from our expectation. It appears that the network has mainly learned to bind based on spatial proximity with a slight bias towards vertical proximity. This can be expected since that it has only seen digits of roughly the same size so far, and because the used autoencoder is very limited. Nevertheless, it is very interesting that a fullyconnected network which is permutation invariant learns the preference for spatial proximity entirely from data. It is reasonable to speculate that it in the future it may be possible to recover other Gestalt Principles such as continuity and similarity with a similar procedure.
5 Relationship to other Methods
The binding problem and its possible solutions are a long standing debate in the neuroscience literature (see e.g. Milner (1974); von der Malsburg (1981); Gray (1999); Treisman (1999); Di Lollo (2012)). A major thread of work on binding has been inspired by the temporal correlation theory (von der Malsburg, 1981)
, based on utilizing synchronous oscillations to bind neuronal activities together.
von der Malsburg (1995) provides an overview of these ideas. Recently, these ideas were implemented using complex valued activations in neural networks to jointly encode firing rate and phase (Rao et al., 2008; Reichert & Serre, 2013). Such binding mechanisms are close to their biological inspiration, clustering only implicitly through synchronization. In contrast, RC is based on a mathematical framework which explicitly incorporates binding.Mechanisms for tackling the binding problem which do not require temporal synchronization have also been proposed (e.g. O’Reilly et al., 2003). O’reilly & Busby (2002) argued that the intuitive explanation of the binding problem from (b) only applies if the distributed features themselves are local codes. They suggested that neural networks can avoid the binding problem using coarsecoded representations. Various feature representation types including coarsecoding and their limitations were described by Hinton (1984).
In principle, Recurrent Neural Networks (RNNs; e.g.
Robinson & Fallside, 1987; Werbos, 1988) can solve the binding problem by learning a mechanism to avoid it. Psychologists (Di Lollo, 2012) and machine learning researchers (Weng et al., 2006) alike have suggested feedback as a mechanism to do binding. An RNN may utilize an implicit or explicit attention mechanism to selectively process different parts of the input (Schmidhuber & Huber, 1991; Mnih et al., 2014; Bahdanau et al., 2014). In this context, explicit binding via RC can be seen as a technique of paying attention to multiple objects at once, instead of focusing on them sequentially.In some aspects, RC is similar to segmentation algorithms. The main difference is that RC learns the segmentation from the data in a largely unsupervised manner. In this sense, it is more similar to superpixel methods (see e.g. Achanta et al. (2012) for an overview). However, these methods impose a handcrafted similarity measure over pixels or pixel regions, whereas RC learns a nonlinear similarity measure from the data, parameterized by a DAE.
6 Conclusion and Future Work
We introduced the Reconstruction Clustering framework to explicitly model data as a composition of objects, where the notion of objectness is defined by mutual predictability. Compared to many previous solutions to the binding problem, this framework is mathematically rigorous, integrates well with current representation learning methods, and is effective for a variety of binary image datasets. While a typical representation learning method (such as a denoising autoencoder) learns a static binding of features, Reconstruction Clustering utilizes it to iteratively perform dynamic binding
for every input example by introducing interaction between the statically bound features extracted by the autoencoder. In particular, this interaction enables dynamic binding of feature combinations never seen before by the autoencoder.
This paper lays the groundwork for many concrete lines of future exploration. The treatment of realvalued inputs is an important next step to extension RC towards natural data. Also the use of more powerful autoencoders will be key. Integrating RC with the training of the DAE should help to deal with multiple objects in the training data. Since the method is general, we expect to apply it to other domains such as audio data (binding different speaker voices together) or medical data (binding various related symptoms of disease together). A particularly interesting direction for future work is to show that Gestalt principles are a natural result of such a representation learning approach.
Acknowledgments
We thank Jan Koutník, Sjoerd van Steenkiste, Boyan Beronov and Julian Zilly for helpful discussions and comments. This project was funded by the EU project NASCENCE (FP7ICT317662).
References
 Achanta et al. (2012) Achanta, Radhakrishna, Shaji, Appu, Smith, Kevin, Lucchi, Aurelien, Fua, Pascal, and Susstrunk, Sabine. SLIC superpixels compared to stateoftheart superpixel methods. Pattern Analysis and Machine Intelligence, IEEE Transactions on, 34(11):2274–2282, 2012. URL http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=6205760.
 Bahdanau et al. (2014) Bahdanau, Dzmitry, Cho, Kyunghyun, and Bengio, Yoshua. Neural machine translation by jointly learning to align and translate. arXiv preprint arXiv:1409.0473, 2014. URL http://arxiv.org/abs/1409.0473.
 Barlow et al. (1989) Barlow, Horace B., Kaushal, Tej P., and Mitchison, Graeme J. Finding minimum entropy codes. Neural Computation, 1(3):412–423, 1989. URL http://www.mitpressjournals.org/doi/abs/10.1162/neco.1989.1.3.412.
 Behnke (2001) Behnke, Sven. Learning iterative image reconstruction in the Neural Abstraction Pyramid. International Journal of Computational Intelligence and Applications, 1(04):427–438, 2001. URL http://www.worldscientific.com/doi/pdf/10.1142/S1469026801000342.
 Bengio et al. (2007) Bengio, Yoshua, LeCun, Yann, and others. Scaling learning algorithms towards AI. Largescale kernel machines, 34(5), 2007. URL http://www.iro.umontreal.ca/~lisa/bib/pub_subject/language/pointeurs/bengio+lecunchapter2007.pdf.
 Bengio et al. (2013a) Bengio, Yoshua, Courville, Aaron, and Vincent, Pierre. Representation learning: A review and new perspectives. Pattern Analysis and Machine Intelligence, IEEE Transactions on, 35(8):1798–1828, 2013a.
 Bengio et al. (2013b) Bengio, Yoshua, Yao, Li, Alain, Guillaume, and Vincent, Pascal. Generalized denoising autoencoders as generative models. In Advances in Neural Information Processing Systems, pp. 899–907, 2013b.
 Dempster et al. (1977) Dempster, Arthur P., Laird, Nan M., and Rubin, Donald B. Maximum likelihood from incomplete data via the EM algorithm. Journal of the royal statistical society. Series B (methodological), pp. 1–38, 1977.
 Di Lollo (2012) Di Lollo, Vincent. The featurebinding problem is an illposed problem. Trends in Cognitive Sciences, 16(6):317–321, 2012. URL http://www.sciencedirect.com/science/article/pii/S1364661312000988.
 Földiak (1990) Földiak, Peter. Forming sparse representations by local antiHebbian learning. Biological cybernetics, 64(2):165–170, 1990. URL http://link.springer.com/article/10.1007/BF02331346.
 Fukushima (1979) Fukushima, K. Neural network model for a mechanism of pattern recognition unaffected by shift in position  Neocognitron. Trans. IECE, J62A(10):658–665, 1979.

Gauthier & Tarr (1997)
Gauthier, Isabel and Tarr, Michael J.
Becoming a “Greeble” expert: Exploring mechanisms for face recognition.
Vision Research, 37(12):1673–1682, June 1997. ISSN 00426989. doi: 10.1016/S00426989(96)002866. URL http://www.sciencedirect.com/science/article/pii/S0042698996002866.  Gray (1999) Gray, Charles M. The temporal correlation hypothesis of visual feature integration: Still alive and well. Neuron, 24(1):31–47, September 1999. ISSN 08966273. doi: 10.1016/S08966273(00)80820X. URL http://www.sciencedirect.com/science/article/pii/S089662730080820X.
 Hinton (1984) Hinton, Geoffrey E. Distributed representations. 1984. URL http://repository.cmu.edu/cgi/viewcontent.cgi?article=2841&context=compsci.
 Le Cun et al. (1990) Le Cun, B. Boser, Denker, John S., Henderson, D., Howard, Richard E., Hubbard, W., and Jackel, Lawrence D. Handwritten digit recognition with a backpropagation network. In Advances in neural information processing systems. Citeseer, 1990. URL http://citeseerx.ist.psu.edu/viewdoc/summary?doi=10.1.1.32.5076.
 Milner (1974) Milner, Peter M. A model for visual shape recognition. Psychological review, 81(6):521, 1974. URL http://psycnet.apa.org/journals/rev/81/6/521/.
 Mnih et al. (2014) Mnih, Volodymyr, Heess, Nicolas, Graves, Alex, et al. Recurrent models of visual attention. In Advances in Neural Information Processing Systems, pp. 2204–2212, 2014. URL http://papers.nips.cc/paper/5542recurrentmodelsofvisualattention.
 O’reilly & Busby (2002) O’reilly, Randall C. and Busby, Richard S. Generalizable relational binding from coarsecoded distributed representations. Advances in neural information processing systems, 1:75–82, 2002. URL https://grey.colorado.edu/mediawiki/sites/CompCogNeuro/images/e/e6/OReillyBusby02.pdf.
 O’Reilly et al. (2003) O’Reilly, Randall C., Busby, Richard S., and Soto, Rodolfo. Three forms of binding and their neural substrates: Alternatives to temporal synchrony. The unity of consciousness: Binding, integration, and dissociation, pp. 168–192, 2003. URL http://chemistry47.com/PDFs/Cognition/Neuronal%20Synchrony/Three%20Forms%20of%20Binding%20and%20their%20Neural%20Substrates%20Alternatives%20to%20Temporal%20Synchrony.pdf.
 Rao et al. (2008) Rao, Ravishankar A., Cecchi, Guillermo, Peck, Charles C., and Kozloski, James R. Unsupervised segmentation with dynamical units. Neural Networks, IEEE Transactions on, 19(1):168–182, 2008. URL http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=4359215.
 Reichert & Serre (2013) Reichert, David P. and Serre, Thomas. Neuronal synchrony in ComplexValued deep networks. arXiv:1312.6115 [cs, qbio, stat], December 2013. URL http://arxiv.org/abs/1312.6115.
 Riesenhuber & Poggio (1999) Riesenhuber, Maximilian and Poggio, Tomaso. Hierarchical models of object recognition in cortex. Nature neuroscience, 2(11):1019–1025, 1999. URL http://www.nature.com/neuro/journal/v2/n11/abs/nn1199_1019.html.
 Robinson & Fallside (1987) Robinson, A. J. and Fallside, F. The utility driven dynamic error propagation network. Technical Report CUED/FINFENG/TR.1, Cambridge University Engineering Department, 1987.

Rosenblatt (1961)
Rosenblatt, Frank.
Principles of neurodynamics. perceptrons and the theory of brain mechanisms.
Technical report, DTIC Document, 1961.  Schmidhuber & Huber (1991) Schmidhuber, Juergen and Huber, Rudolf. Learning to generate artificial fovea trajectories for target detection. International Journal of Neural Systems, 2(01n02):125–134, 1991. URL http://www.worldscientific.com/doi/abs/10.1142/S012906579100011X.
 Schmidhuber (1992) Schmidhuber, Jürgen. Learning factorial codes by predictability minimization. Neural Computation, 4(6):863–879, 1992. URL http://www.mitpressjournals.org/doi/abs/10.1162/neco.1992.4.6.863.
 Treisman (1999) Treisman, Anne. Solutions to the binding problem: Progress through controversy and convergence. Neuron, 24(1):105–125, September 1999. ISSN 08966273. doi: 10.1016/S08966273(00)808260. URL http://www.sciencedirect.com/science/article/pii/S0896627300808260.
 Vincent et al. (2008) Vincent, Pascal, Larochelle, Hugo, Bengio, Yoshua, and Manzagol, PierreAntoine. Extracting and composing robust features with denoising autoencoders. In Proceedings of the 25th international conference on Machine learning, pp. 1096–1103. ACM, 2008. URL http://dl.acm.org/citation.cfm?id=1390294.
 Vinh et al. (2010) Vinh, Nguyen Xuan, Epps, Julien, and Bailey, James. Information theoretic measures for clusterings comparison: Variants, properties, normalization and correction for chance. The Journal of Machine Learning Research, 11:2837–2854, 2010. URL http://dl.acm.org/citation.cfm?id=1953024.
 von der Malsburg (1981) von der Malsburg, Christoph. The correlation theory of brain function. 1981.
 von der Malsburg (1995) von der Malsburg, Christoph. Binding in models of perception and brain function. Current opinion in neurobiology, 5(4):520–526, 1995. URL http://www.sciencedirect.com/science/article/pii/095943889580014X.
 Weng et al. (2006) Weng, Shijie, Steil, Jochen Jakob, and Ritter, Helge. Learning lateral interactions for feature binding and sensory segmentation from prototypic basis interactions. Neural Networks, IEEE Transactions on, 17(4):843–862, 2006. URL http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=1650242.

Werbos (1988)
Werbos, P. J.
Generalization of backpropagation with application to a recurrent gas market model.
Neural Networks, 1, 1988.
Appendix A Reconstruction Clustering Derivation
This section contains a more detailed derivation of Reconstruction Clustering (RC) for binary inputs. It follows the notation and derivation of an Expectation Maximization (EM) algorithm wherever possible. Only for the Mstep does RC deviate from EM.
Consider
binary random variables (one for each pixel) that are distributed according to a mixture of
Bernoulli distributions with means and mixing coefficients that sum to one . Under this model the data likelihood given the parameters is given by:(8)
By defining and and assuming independence of the ’s given and (but not identical distribution)^{1}^{1}1
This assumption means that we assume the hidden representation of the DAE to capture the structure in the image well.
we get the (incomplete) log likelihood function for this model:(9)
Let us now introduce an explicit binary latent variable with associated with each . Let the prior distribution be:
(10)
where we set and assume ’s to be independent given . With that we define the conditional distribution of given the latent variables as:
(11)
(12)
If we marginalize Equation 12 over all choices of we recover Equation 8:
(13)
(14)
(15)
The second line is obtained by realizing that the sums over exactly terms, each corresponding to a with one and all other entries equal to zero. So we can replace this sum by . The product over the entries of then vanishes except for the term corrsponding to the th entry.
Using the same conditional independence assumption from before we can thus write the data distribution given all the latent variables as follows:
(16)
And by using Bayes rule and assuming that is independent of :
(17)
(18)
If we set ^{2}^{2}2Here we deviate slightly from the notation in the paper. the completedata log likelihood becomes:
(19)
(20)
To maximize with respect to and we follow the same idea as the EM algorithm: Based on the observation that if we knew the values of either of these two, optimizing the other would be feasible. So we divide the optimization problem into two steps where we pretend to know either (Estep) or (Mstep).
In the EStep we assume to know
and calculate the posterior probability of
for each datapoint calling it : (We assume the to be independent of for )(21)
(22)
Next we calculate the value used in EM which is defined as the expectation of the complete data loglikelihood with respect to the posterior of given the data and the old parameters :
(23)
(24)
(25)
In the Mstep of EM we aim to maximize over all choices of :
(26)
Using a Lagrange multiplier to enforce we find:
(27)
But when maximizing wrt. we see that the maximum is trivially obtained by setting for all . This is due to the fact that the problem is actually illposed in the sense that we have parameters to fit for each datapoint. So there are infinitely many solutions which achieve the optimal log likelihood of the data of 0.
At this point we introduce an autoencoder with encoder and decoder to restrict the capacity of our model by forcing to be:
(28)
We use this reconstruction step (Equation 28) instead of an actual maximization step, thus deviating from the EM formulation.
Appendix B Training Details
All experiments have been performed with the brainstorm library and were organized and logged using sacred. The code for this paper can be found on GitHub.
b.1 Training Denoising Autoncoders

simple feed forward fully connected NNs

with sigmoid output layer

loss is Binomial Cross Entropy Error

trained with SGD

minibatch size 100

salt& pepper noise

early stopped when validation BinomialCEE doesn’t decrease for more than 10 epochs
b.2 Random Search
There are several hyperparameters to be chosen for the denoising autoencoders. To find good values we performed a random search with 100 runs for each dataset. For each run we randomly sampled from the following parameters:

learning rate loguniform from

Amount of Salt& Pepper Noise from

hidden layer size from

hidden layer activation function from [rel, sigmoid, tanh]
The best network configurations found by that search can be found in Table 1.
Dataset  learning rate  # hidden units  activation  salt&pepper  score

bars  0.768015  100  ReL  0.0  0.951809
corners  0.001920  100  ReL  0.0  0.853866
multi_mnist  0.011362  1000  ReL  0.6  0.651657
mnist_shape  0.031685  250  sigmoid  0.6  0.545559
shapes  0.083147  500  tanh  0.4  0.928792
simple_superpos  0.366627  100  ReL  0.1  0.890472
b.3 Random Search for Training with Multiple Objects
For training with multiple objects we do an equivalent random search for hyperparameters. The only difference is the training data and that for determining the final score we use Kmeanslike (hard) cluster assignments in RC. Note also that we didn’t include the Simple Superposition dataset, since we only have 120 images with multiple objects available, and no separate test set.
Dataset  learning rate  # hidden units  activation  salt&pepper  score

bars  0.012192  100  sigmoid  0.8  0.851777
corners  0.026035  100  ReL  0.7  0.704285
mnist_shape  0.033200  1000  ReL  0.6  0.259646
multi_mnist  0.001786  250  sigmoid  0.9  0.614277
shapes  0.049402  100  sigmoid  0.9  0.776656
Appendix C Multi Object Training
When training the DAEs on images with multiple objects, it is less obvious why running RC should lead to a segregation of the objects. It seems that the autoencoder should always try to reconstruct the whole image including all the objects. And if we run normal (soft) RC we in fact see that after a few iterations each pixel is equally represented by each cluster.
By switching to hard cluster assignments we eliminate this stable state, and force the clusters to compete more for the pixels. Together with the fact that in our datasets objects don’t carry any information about other objects this leads to a stronger amplification of the initial differences in reconstruction quality. In Figure 10 this process can be seen on the shapes dataset. Note that the hard RC converges even faster, but generally leads to worse performance.
