Bezier curves and surfaces based on modified Bernstein polynomials

11/20/2015
by   Khalid Khan, et al.
Universiti Putra Malaysia
0

In this paper, we use the blending functions of Bernstein polynomials with shifted knots for construction of Bezier curves and surfaces. We study the nature of degree elevation and degree reduction for Bezier Bernstein functions with shifted knots. Parametric curves are represented using these modified Bernstein basis and the concept of total positivity is applied to investigate the shape properties of the curve. We get Bezier curve defined on [0, 1] when we set the parameter α=β to the value 0. We also present a de Casteljau algorithm to compute Bernstein Bezier curves and surfaces with shifted knots. The new curves have some properties similar to Bezier curves. Furthermore, some fundamental properties for Bernstein Bezier curves and surfaces are discussed.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

07/15/2015

A de Casteljau Algorithm for Bernstein type Polynomials based on (p,q)-integers

In this paper, a de Casteljau algorithm to compute (p,q)-Bernstein Bezie...
04/10/2019

Curve and surface construction based on the generalized toric-Bernstein basis functions

The construction of parametric curve and surface plays important role in...
05/05/2022

Spectral Methods for capillary surfaces described by bounded generating curves

We consider capillary surfaces that are constructed by bounded generatin...
04/23/2019

Dynamic evaluation of exponential polynomial curves and surfaces via basis transformation

It is shown in "SIAM J. Sci. Comput. 39 (2017):B424-B441" that free-form...
01/29/2021

A note on synthesizing geodesic based contact curves

The paper focuses on synthesizing optimal contact curves that can be use...
06/14/2019

Bspline solids manipulation with Mathematica

Bspline solids are used for solid objects modeling in R3. Mathematica in...
10/10/2016

Inverse Diffusion Curves using Shape Optimization

The inverse diffusion curve problem focuses on automatic creation of dif...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

It was S.N. Bernstein [1] in 1912, who first introduced his famous operators defined for any and for any function where denote the set of all continuous functions on which is equipped with sup-norm

(1.1)

and named it Bernstein polynomials to prove the Weierstrass theorem [9].

Bernstein showed that if , then where represents the uniform convergence. One can find a detailed monograph about the Bernstein polynomials in [10].

Later it was found that Bernstein polynomials possess many remarkable properties and has various applications in areas such as approximation theory [9], numerical analysis, computer-aided geometric design, and solutions of differential equations due to its fine properties of approximation [18].

In computer aided geometric design (CAGD), Bernstein polynomials and its variants are used in order to preserve the shape of the curves or surfaces. One of the most important curve in CAGD [21] is the classical Bzier curve [2] constructed with the help of Bernstein basis functions. Other works related to different generalization of Bernstein polynomials and bezier curves and surfaces can be found in [3, 4, 5, 7, 8, 11, 12, 13, 14, 15, 16, 18, 19, 20]

In 1968 Stancu [22] showed that the polynomials

(1.2)

converge to continuous function uniformly in [0,1] for each real such that . The polynomials (1.2) are called as a Bernstein-Stancu polynomials.

In 2010, Gadjiev and Gorhanalizadeh [6] introduced the following construction of Bernstein-Stancu type polynomials with shifted knots:

(1.3)

where and are positive real numbers provided . It is clear that for , then polynomials (1.3) turn into the Bernstein-Stancu polynomials (1.2) and if then these polynomials turn into the classical Bernstein polynomials.

In recent years, generalization of the Bzier curve with shape parameters has received continuous attention. Several authors were concerned with the problem of changing the shape of curves and surfaces, while keeping the control polygon unchanged and thus they generalized the Bzier curves in [7, 8, 17, 18].

The outline of this paper is as follow: Section introduces a modified Bernstein functions with shifted knots and their Properties. Section introduces degree elevation and degree reduction properties for these modified Bernstein functions. Section introduces a de Casteljau algorithm for . In Section we define a tensor product patch based on algorithm and its geometric properties as well as a degree elevation technique are investigated. Furthermore tensor product of Bzier surfaces on for Bernstein polynomials with shifted knots are introduced and its properties that is inherited from the univariate case are being discussed.

In next section, we construct basis functions with shifted knots with the help of (1.3).

2 Bernstein functions with shifted knots

The Bernstein functions with shifted knots is defined as follows

(2.1)

where and are positive real numbers provided .

2.1 Properties of the Bernstein functions with shifted knots

Theorem 2.1

The Bernstein functions with shifted knots possess the following properties:

(1.) Non-negativity:

(2.)Partition of unity:


(3.) End-point interpolation property holds:


clearly both sided end point interpolation property holds.

(4.) Reducibility: when formula reduces to the classical Bernstein bases on .

Proof: All these property can be deduced easily from equation (2.1).

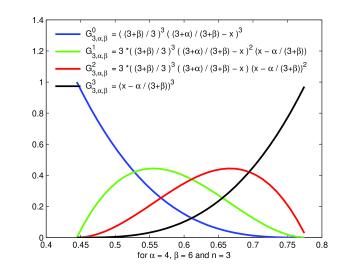

Figure 1: ‘Cubic Bezier blending functions with shifted knots’

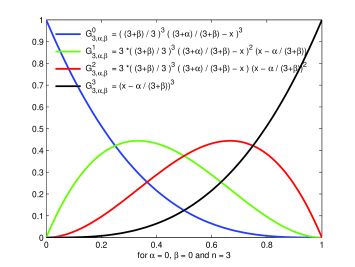

Figure 2: ‘Cubic Bezier blending functions’
