The problem of finding good representations of text data is a very actively studied area of research. Many models are able to learn representations directly by optimizing the end-to-end task in a supervised manner. This, however, often requires an enormous amount of labeled data which is not available in many practical applications and gathering such data can be very costly. A common solution that requires an order of magnitude less labeled examples is to reuse pre-trained embeddings.
A large body of work in this space is focused on training embeddings from pure text data. However, there are many types of relations and co-occurrences that are hard to grasp from pure text. Instead, they appear naturally in other modalities, such as images. In particular, from a similarity measure in the image space and pairs of images and sentences, a similarity measure for sentences can be induced, as illustrated in Figure 1.

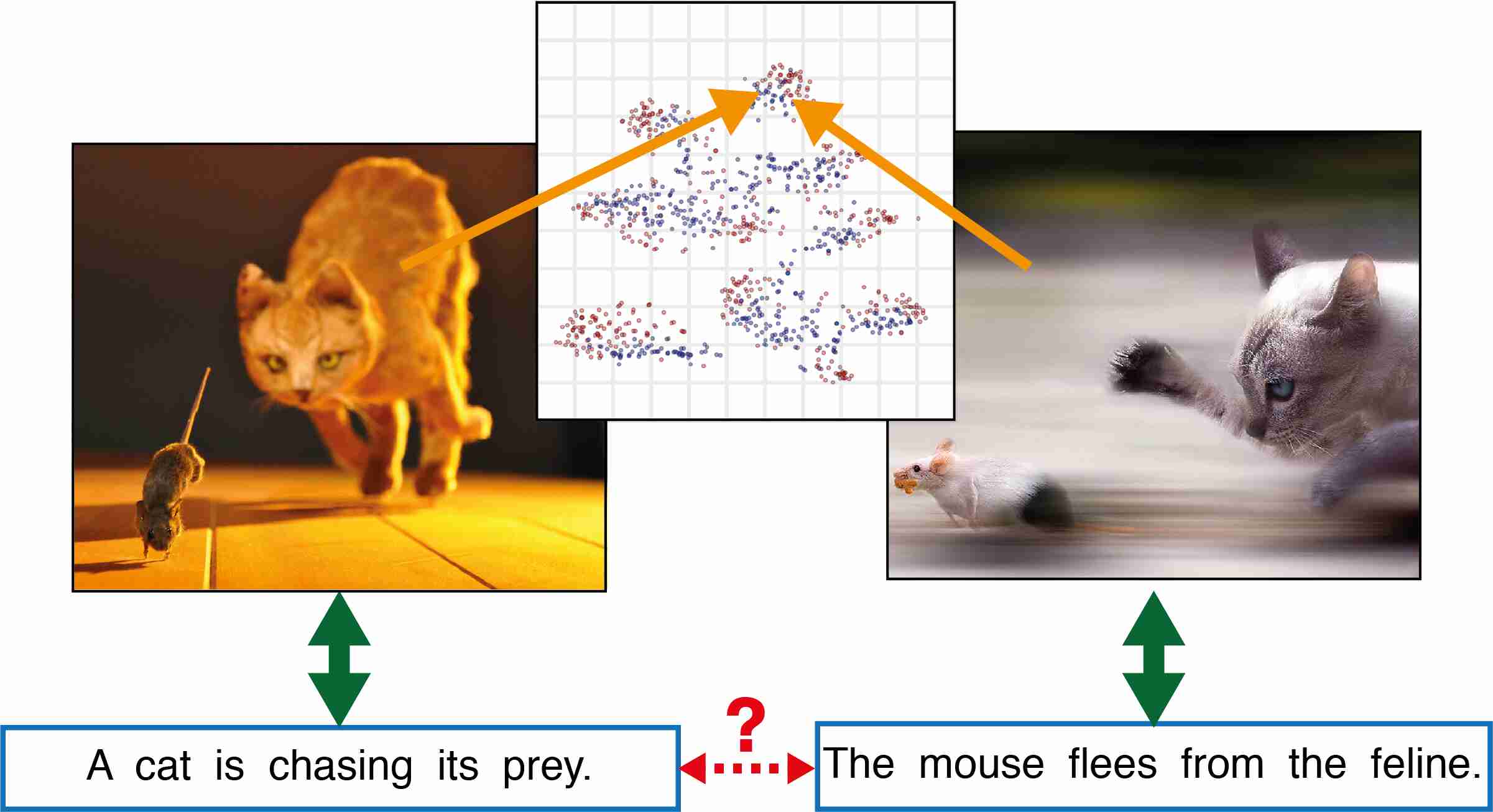

In this work, we study how to build sentence embeddings from text-image pairs that are good in terms of sentence similary metrics. This extends previous works, for example Lazaridou15 or MaoPinterest16 .
We propose a conceptually simple, but well performing model that we call Visually Enhanced Text Embeddings (VETE). It takes advantage of visual information from images in order to improve the quality of sentence embeddings. This model uses simple ingredients that already exist and combines them properly. Using a pre-trained Convolutional Neural Network (CNN) for the image embedding, the sentence embeddings are obtained as the normalized sum of the word embeddings. Those are trained end-to-end to be aligned with the corresponding image embeddings and not aligned with mismatching pairs, optimizing the Pearson correlation.
Despite its simplicity, the model significantly outperforms pure-text models and the best multimodal model from MaoPinterest16 on a set of well established text similarity benchmarks from the SemEval competition semeval . In particular, for image-related datasets, our model matches state-of-the-art results with substantially less training data. These results indicate that exploring image data can significantly improve the quality of text embeddings and that incorporating images as a source of information can result in text representations which effectively captures visual knowledge. We also conduct a detailed ablation study to quantify the effect of different factors on the embedding quality in the image-to-text transfer setup.
In summary, the contributions of this work are:
We propose a simple multimodal model that outperforms previous image-text approaches on a wide variety of text similarity tasks. Furthermore, the proposed model matches state-of-the-art results on image-related SemEval datasets, despite being trained with substantially less data.
We perform a comprehensive study of image-to-text transfer, comparing different model types, text encoders, loss types and datasets.
We provide evidence that the approach of learning sentence embeddings directly outperforms methods that learn word embeddings and then combine them.
2 Related Work
Many works study the use of multimodal data, in particular pairs of images and text. Most of them explore how these pairs of data can be leveraged for tasks that require knowledge of both modalities, like captioning or image retrievalbarnard2003matching ; jia2011learning ; kiros14 ; Lazaridou15 ; wang2016learning ; karpathy2015deep ; vendrov2015order .
While this line of work is very interesting as common embeddings can directly be applied to captioning or image retrieval tasks, the direct use of text embeddings for NLP tasks, using images only as auxiliary training data, is less explored.
Lazaridou15 propose to extend the skip-gram algorithm mikolov2013linguistic to incorporate image data. hill2014learning also took a similar approach before. In the original skip-gram algorithm, each word embedding is optimized to increase the likelihood of the neighboring words conditioned on the center word. In addition to predicting contextual words, Lazaridou15 ’s models maximize the similarity between image and word embeddings. More precisely:
where is given by a softmax formulation:
is the embedding vector of the wordand is the dot product between the vectors and . To inject visual information, Lazaridou15 add a max margin loss between the image embedding and the word embedding:
with being the average embedding of the images paired with the word .
They show that they can augment word embeddings learnt from large text sources with visual information and in addition to image labeling and retrieval, they show that those embeddings perform better on word similarity metrics.
kiros14 also use a max margin loss to co-embed images and corresponding text. For the text embeddings, they use different models depending on the task. For the image captioning or image retrieval task, they employ an LSTM encoder. To explore the resulting word embedding properties, in particular arithmetics, they use a simpler word embedding model. Some interesting arithmetical properties of the embeddings are demonstrated, like “image of a blue car” - “blue” + “red” leading to an image of a red car. However, there is no quantitative evaluation of the quality of the text embeddings in terms of text similarity.
Some more recent works investigate phrase embeddings trained with visual signals and their quality in terms of text similarity metrics. For example, MaoPinterest16
use an Recurrent Neural Network (RNN) as a language model in order to learn word embeddings which are then combined to create a phrase embedding. They propose three models. For their model A, they use a similar setup as the captioning model fromVinyals_2015_CVPR , with an RNN decoder conditioned on a pre-trained CNN embedding. The RNN (GRU in that case) reads the text, trying to predict the next token. The initial state is set to a transformation of the last internal layer of a pre-trained VGGNet simonyan2014very . Let that vector be . Model B tries to match the final RNN state with . Finally, model C develops the multimodal skip-gram Lazaridou15 by adding an additional loss measuring the distance between the word embeddings and . The authors’ experiments show that model A performs best and we use that model as a baseline in our experiments.
3 VETE Models

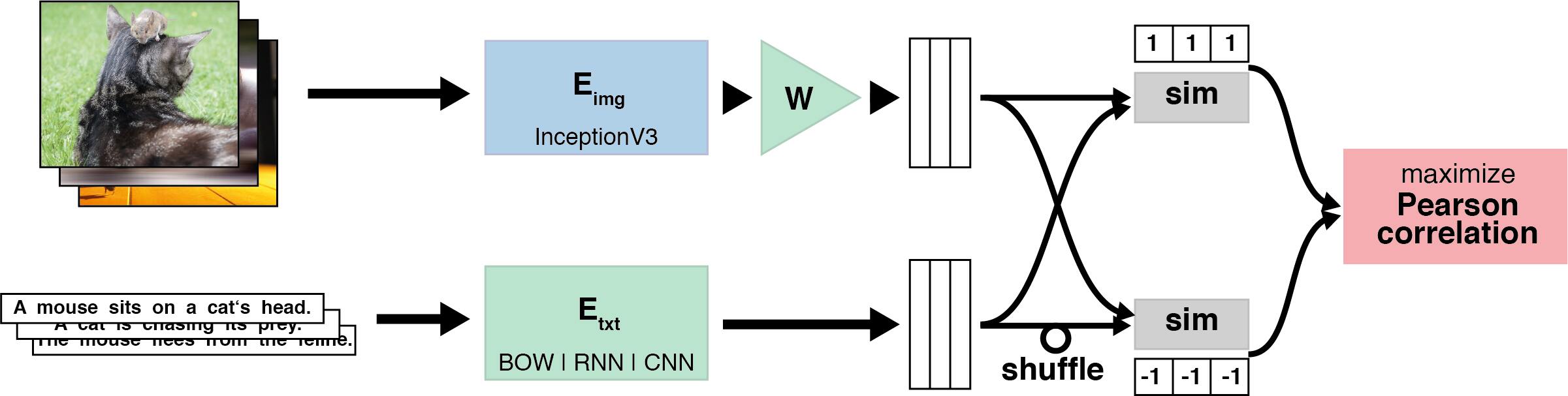

Our setup aims at directly transferring knowledge between image and text representations and the main goal is to find reusable sentence embeddings. We make direct use of paired data, consisting of pictures and text describing them. We propose a model consisting of two separate encoders - one for images and another one for text. An overview of the archiecture is presented in Figure 2.
For the text encoder, we consider three families of models which combine words into text representations. For the bag-of-words (BOW) model, the sentence embedding is simply a normalized sum of vectors corresponding to the individual words. For the RNN model, we create a stacked recurrent neural network encoder (LSTM or GRU based). Finally, for the CNN model, the encoder includes a convolutional layer followed by a fully connected layer, as described in kim2014cnn .
For encoding images, we use a pre-trained InceptionV3 network szegedy2016rethinking which provides a -dimensional feature vector for each image in the dataset (images are rescaled and cropped to x px).
Let denote the -dimensional embedding vector for an image and the -dimensional embedding for sentence produced by
. Throughout this paper, we will refer to the cosine similarity of two vectorsas . Informally speaking, our training goal is to maximize , when sentence is paired with (i.e. describes) image , and minimize this value otherwise.
Formally, let be the vocabulary, the embedding dimensionality and the text encoding model. Let’s define an affine transformation that transforms the 2048-dimensional image embeddings to dimensions. Our learnable parameters consist of a word embedding matrix , the internal parameters of the model (when is an or encoder), as well as the transformation matrix . For each batch of image-sentence pairs of the form , we randomly shuffle the sentences , and add the following "incorrect" pairs to the batch , with a random permutation of . If we denote
then our training goal is to maximize the Pearson correlation between the vectors
We will denote models trained this way VETE-BOW, VETE-RNN and VETE-CNN, respectively.
4.1 Training Datasets

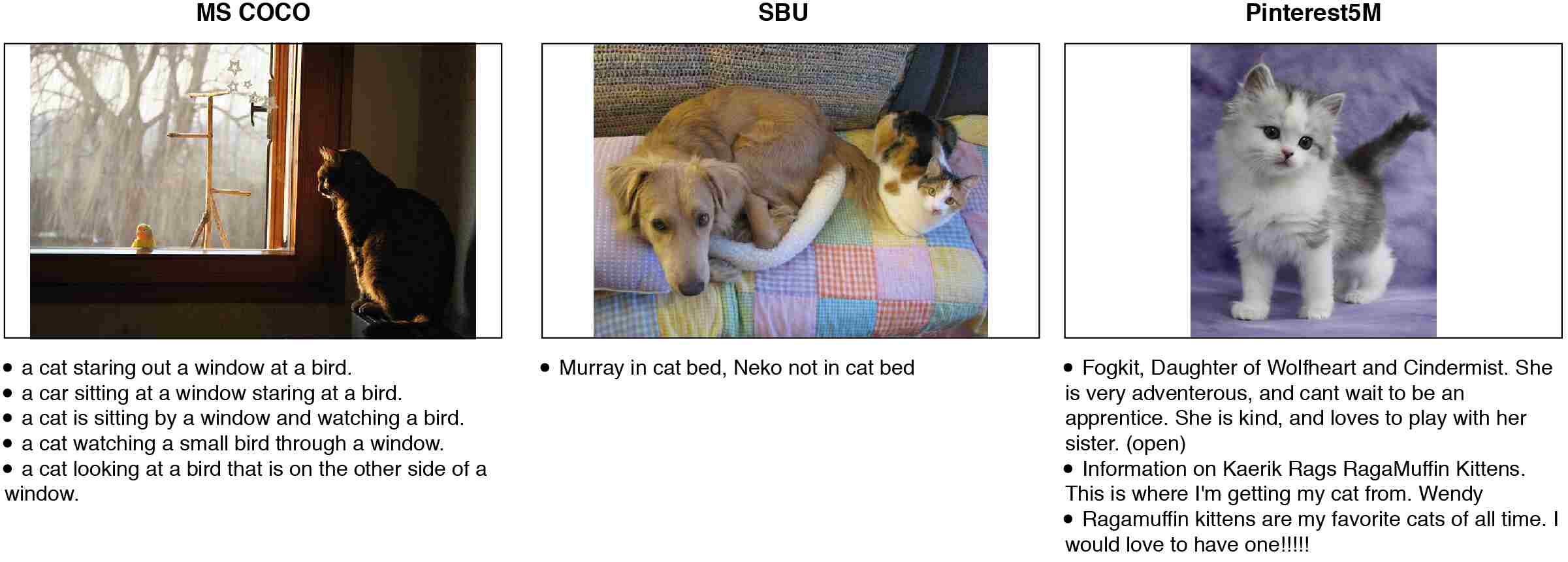

In our experiments we consider three training datasets: MS COCO, SBU and Pinterest5M. They are described in detail below. One important note is that we modify datasets that contain multiple captions per image (MS COCO and Pinterest5M) to keep only one caption. This was done to prevent the network from “cheating” by using the image feature vector only as a way of joining text pairs. To the best of our knowledge, we are the first to notice this issue in the evaluation of the quality of multimodal image-text models. It is known that training similarity models directly on text-text pairs yields good results wieting2015towards but here we want to investigate only the effect of knowledge transfer from images.
The MS COCO dataset coco2014 contains image categories. For each image five high-quality captions are provided. We use the MS COCO 2014 dataset using the same train/validation/test split as the im2txt im2txt_impl Tensorflow implementation of im2txt_paper . Initially, our train/validation/test sets contain 586k/10k/20k examples, respectively. Then, we filter the sets to keep only one caption per image, so the "text part" of our final datasets is five times smaller.
The Stony Brook University datasetOrdonez:2011:im2text consists of 1M image-caption pairs collected from Flickr, with only one caption per image. We randomly split this dataset into train/validation/test sets with sizes 900k/50k/50k, respectively.
The original Pinterest40M dataset MaoPinterest16 contains M images. However, only M image urls were released at the time of this submission. Unfortunately, some images are no longer available so we were able to collect approx. M images from this dataset. For every image we keep only one caption. Then, we randomly split the data into M/k/ train/validation/test sets, respectively.
The training data in all datasets is lowercased and tokenized using the Stanford Tokenizer stanfordtokenizer . We also wrap all sentences with "<S>" and "</S>" marking the beginning and the end of the sentence.
4.2 Hyperparameter selection and training
The performance of every machine learning model highly depends on the choice of its hyperparameters. In order to fairly compare our approach to previous works, we follow the same hyperparameter search protocol for all models. We choose the average score on the SemEval 2016 (c.f.Section 4.3) as the validation metric and refer to this as “avg2016”.
If a hyperparameter has a similar meaning in two models (e.g., learning rate, initialization scale, lr decay, etc.), the ranges searched were set to be the same. Additionally, we ensured that the parameters reported by the authors are included in the ranges.
In all models, we train using the Adam optimizerkingma2014adam , for (MS COCO, SBU) or epochs (Pinterest5M). The final embeddings have size of . For all VETE models we use the Pearson loss (see ablation study in Section 5.2).
Our goal is to create good text embeddings that encode knowledge from corresponding images. To evaluate the effect of this knowledge transfer from images to text, we use a set of textual semantic similarity datasets from the SemEval and competitionssemeval . Unfortunately, we could not compare our models directly on the Gold RP10K dataset introduced by MaoPinterest16 as it was not publicly released.
We also use two additional custom test sets: COCO-Test and Pin-Test. These were created from the MS COCO and Pinterest5M test datasets, respectively, by randomly sampling semantically related captions (from the same image) and non-related captions from different images. As opposed to the SemEval datasets, the similarity score is binary in this case. The goal was to check the performance on the same task as SemEval but with data from the same distribution of words as our training data.
For every model type we select the best model according to the average score on the SemEval datasets. Then, we report the results on all other test datasets.
Table 1 presents the scores obtained by models trained only on MS COCO datasets. This allows us to fairly compare only the algorithms, not the data used. In Section 5.3, we analyze the robustness of our methods on two additional datasets (SBU and Pinterest5M).
As a direct comparison, we implement as described in MaoPinterest16 , which we refer to as PinModelA
. Our implementation uses a pre-trained InceptionV3 network for visual feature extraction, as in the VETE models. To understand the impact of adding information from images to text data, we also evaluate two models trained purely on text:
All VETE models outperform pure-text baselines and PinModelA. Similarly to wieting2015towards , we observed that RNN-based encoders are outperformed by a simpler BOW model. We also show that this holds for CNN-based encoders. It is worth noting that it is mostly a domain adaptation issue, as both RNN and CNN encoders perform better than BOW on COCO-Test, where the data has the same distribution as the training data. We analyze the effect of changing the text encoder in Section 5.1.
To put our results in context, Table 2 compares them to other methods trained with much larger corpora. We used word embeddings obtained from three methods:
For all three approaches, we consider two versions that differ in the vocabulary allowed at inference time. One experiment was done with a vocabulary restricted to MS COCO (marked with “R”) and the non-restricted version (“NR”) where we use the whole vocabulary for given embeddings. The vocabulary size has a significant impact on the final score for the Pinterest-Test benchmark, where % of all tokens are not in the MS COCO vocabulary. That means that % of all sentences have at least one missing token.
Finally, we also include the best results from the SemEval competition, where available. Note that those were obtained from heavily tuned and more complex models, trained without any data restrictions. Still, our VETE model is able to match their results.
5 Ablation studies
To analyze the impact of different components of our architecture, we perform ablation studies on the employed text encoder, loss type and training dataset. We also investigate the effect of training on word or sentence level. In all cases, we follow a similar protocol as in Section 4.2:
We study the impact of the different text encoders on the VETE model. The results are summarized in Table 4. “RNN-GRU” and “RNN-LSTM” denote RNN encoders with GRU gru and LSTM lstm cells, respectively. For BOW, we try two options: either we use the sum or the mean of word embeddings. Both bag-of-words encoders perform better than RNN encoders, although RNNs are slightly better on the test data which has the same distribution as the training data.
5.2 Loss type
In this section, we describe various loss types that we trained our model with. Consider two paired variables (similarity score between two embeddings) and . Then, the sample sets and stand for corresponding realizations of and .
The Pearson correlation
: measures the linearity of the link between two variables, estimated on a sample; it is defined as.
Surrogate Kendall : The Pearson correlation takes into account only linear dependencies. To mitigate this, we experimented with the Kendall correlation which is only rank-dependent. Unfortunately, it is not differentiable. We therefore used its differentiable approximation: skt defined as for some .
Rank loss: Another cost function is the pairwise ranking loss. We follow closely the definition in kiros14 .
Table 4 compares the effects of the various losses.
We study the effect of the training dataset. The results of training the model on MS COCO, SBU and Pinterest5M dataset are presented in Table 5. Each cell of the table contains the average score of evaluation datasets (images2014, images2014, COCO-Test, Pin-Test). The quality of image captions varies significantly between the datasets, as can be seen in Figure 3. However, we conclude that the relation between the models is preserved, that is: regardless of the dataset used for training, PinModelA is always worse than VETE-RNN, which in turn is worse than VETE-BOW.
5.4 Sentence-level vs word-level embedding
Previous methods for transferring knowledge from images to text focused on improving the word-level embeddings. A sentence representation could then be created by combining them. In our work, we learn sentence embeddings as a whole, but the best performing text encoder turned out to be BOW. This raises the following question: could the model perform equally well if we train it on word-level, and then only combine word embeddings during inference? The comparison of these two approaches is presented in Table 6 which clearly shows the benefit of sentence-level training. This effect should be studied further, but while separately training word embeddings forces each of them to be close to the corresponding images, training at the sentence level gives the opportunity to have the word embeddings become complementary, each of them explaining a part of the image, and capturing co-occurences.
We studied how to improve text embeddings by leveraging multimodal datasets, using a pre-trained image model and paired text-image datasets. We showed that VETE, a simple approach which directly optimizes phrase embeddings to match corresponding image representations, outperforms previous multimodal approaches which are sometimes more complex and optimize word embeddings as opposed to sentence embeddings. We also showed that even for relatively complex similarity tasks at sentence levels, our proposed models can create very competitive embeddings, even compared to more sophisticated models trained on orders of magnitude more text data, especially when the vocabulary is related to visual concepts.
To our initial surprise, state-of-the-art encoder models, like LSTMs, performed significantly worse than much simpler encoders like bag-of-word models. While they achieve better results when evaluated on the same data distribution, their embeddings do not transfer well to other text distributions. General embeddings need to be robust to distribution shifts and applying such techniques can probably further improve the results.
Using a multimodal approach in order to improve general text embeddings is under-explored and we hope that our results motivate further developments. For example, the fact that the best models are very simple suggests that there is a large headroom in that direction.
