Best Vision Technologies Submission to ActivityNet Challenge 2018-Task: Dense-Captioning Events in Videos

06/25/2018 ∙ by Yuan Liu, et al. ∙ 0 ∙ share

This note describes the details of our solution to the dense-captioning events in videos task of ActivityNet Challenge 2018. Specifically, we solve this problem with a two-stage way, i.e., first temporal event proposal and then sentence generation. For temporal event proposal, we directly leverage the three-stage workflow in [13, 16]. For sentence generation, we capitalize on LSTM-based captioning framework with temporal attention mechanism (dubbed as LSTM-T). Moreover, the input visual sequence to the LSTM-based video captioning model is comprised of RGB and optical flow images. At inference, we adopt a late fusion scheme to fuse the two LSTM-based captioning models for sentence generation.

READ FULL TEXT VIEW PDF

1 Sentence Generation Model

Inspired from the recent successes of LSTM based sequence models leveraged in image/video captioning [1, 3, 5, 6, 7, 10, 11, 12, 14, 15]

, we formulate our sentence generation model in an end-to-end fashion based on LSTM which encodes the input frame/optical flow sequence into a fixed dimensional vector via temporal attention mechanism and then decodes it to each target output word. An overview of our sentence generation model is illustrated in Figure

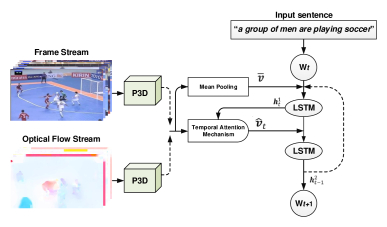

Figure 1: The sentence generation model in our system for dense-captioning events in videos task.

Model	B@1	B@2	B@3	B@4	M	R	C
LSTM-T $_{f r a m e}$	12.71	7.24	4.01	1.99	8.99	14.67	13.82
LSTM-T $_{o p t}$	12.46	7.08	3.96	1.97	8.72	14.55	13.60
LSTM-T	13.19	7.75	4.48	2.31	9.26	15.18	14.97

Table 1: Performance on ActivityNet captions validation set, where B@

N

, M, R and C are short for BLEU@

N

, METEOR, ROUGE-L and CIDEr-D scores. All values are reported as percentage (%).

In particular, given the input video with frame and optical flow sequences, each input frame/optical flow sequence ( ${v_{i}^{(1)}}_{i = 1}^{K}$ ) is fed into a two-layer LSTM with attention mechanism. At each time step $t$ , the attention LSTM decoder firstly collects the maximum contextual information by concatenating the input word $w_{t}$ with the previous output of the second-layer LSTM unit $h_{t - 1}^{2}$ and the mean-pooled video-level representation , which will be set as the input of the first-layer LSTM unit. Hence the updating procedure for the first-layer LSTM unit is as

h_{t}^{1} = f_{1} ([h_{t - 1}^{2}, W_{s} w_{t}, ¯ ¯ ¯ v]),

(1)

where $W_{s} \in R^{D_{s}^{1} \times D_{s}}$ is the transformation matric for input word $w_{t}$ , $h_{t}^{1} \in R^{D_{h}}$ is the output of the first-layer LSTM unit, and $f_{1}$ is the updating function within the first-layer LSTM unit. Next, depending on the output $h_{t}^{1}$ of the first-layer LSTM unit, a normalized attention distribution over all the frame/optical flow features is generated as:

\begin{matrix} a_{t, i} = W_{a} [tanh (W_{f} v_{i}^{(1)} + W_{h} h_{t}^{1})], λ_{t} = s o f t m a x (a_{t}), \end{matrix}

(2)

where $a_{t, i}$ is the $i$ -th element of $a_{t}$ , $W_{a} \in R^{1 \times D_{a}}$ , $W_{f} \in R^{D_{a} \times D_{v}}$ and $W_{h} \in R^{D_{a} \times D_{h}}$ are transformation matrices. $λ_{t} \in R^{K}$ denotes the normalized attention distribution and its $i$ -th element $λ_{t, i}$

is the attention probability of

v_{i}^{(1)}

. Based on the attention distribution, we calculate the attended video-level representation

{^v}_{t} = K \sum i = 1 λ_{t, i} v_{i}^{(1)}

by aggregating all the frame/optical flow features weighted with attention. We further concatenate the attended video-level feature

{^v}_{t}

with

h_{t}^{1}

and feed them into the second-layer LSTM unit, whose updating procedure is thus given as:

h_{t}^{2} = f_{2} ([{^v}_{t}, h_{t}^{1}]),

(3)

where $f_{2}$ is the updating function within the second-layer LSTM unit. The output of the second-layer LSTM unit $h_{t}^{2}$ is leveraged to predict the next word $w_{t + 1}$

through a softmax layer. Note that the policy gradient optimization method with reinforcement learning

[4, 9] is additionally leveraged to boost the sentence generation performances specific to METEOR metric.

2 Experiments

2.1 Features and Parameter Settings

Each word in the sentence is represented as “one-hot” vector (binary index vector in a vocabulary). For the input video representations, we take the output of 2048-way $p o o l 5$ layer from P3D ResNet [8] pre-trained on Kinetics dataset [2] as frame/optical flow representation. The dimension of the hidden layer in each LSTM $D_{h}$ is set as 1,000. The dimension of the hidden layer for measuring attention distribution $D_{a}$ is set as 512.

2.2 Results

Two slightly different settings of our LSTM-T are named as LSTM-T $_{f r a m e}$ and LSTM-T $_{o p t}$ which are trained with only frame and optical flow sequence, respectively. Table 1 shows the performances of our models on ActivityNet captions validation set. The results clearly indicate that by utilizing both frame and optical flow sequences in a late fusion manner, our LSTM-T boosts up the performances.

3 Conclusions

In this challenge, we mainly focus on the dense-captioning events in videos task and present a system by leveraging the three-stage workflow for temporal event proposal and LSTM-based captioning model with temporal attention mechanism for sentence generation. One possible future research direction would be how to end-to-end formulate the whole dense-captioning events in videos system.

References

[1] J. Donahue, L. Anne Hendricks, S. Guadarrama, M. Rohrbach, S. Venugopalan, K. Saenko, and T. Darrell. Long-term recurrent convolutional networks for visual recognition and description. In CVPR, 2015.
[2] W. Kay, J. Carreira, K. Simonyan, B. Zhang, C. Hillier, S. Vijayanarasimhan, F. Viola, T. Green, T. Back, P. Natsev, et al. The kinetics human action video dataset. arXiv preprint arXiv:1705.06950, 2017.
[3] Y. Li, T. Yao, Y. Pan, H. Chao, and T. Mei.
Jointly localizing and describing events for dense video captioning.
In CVPR, 2018.
[4] S. Liu, Z. Zhu, N. Ye, S. Guadarrama, and K. Murphy. Optimization of image description metrics using policy gradient methods. In ICCV, 2017.
[5] Y. Pan, T. Mei, T. Yao, H. Li, and Y. Rui. Jointly modeling embedding and translation to bridge video and language. In CVPR, 2016.
[6] Y. Pan, Z. Qiu, T. Yao, H. Li, and T. Mei. Seeing bot. In SIGIR, 2017.
[7] Y. Pan, T. Yao, H. Li, and T. Mei. Video captioning with transferred semantic attributes. In CVPR, 2017.
[8] Z. Qiu, T. Yao, and T. Mei. Learning spatio-temporal representation with pseudo-3d residual networks. In ICCV, 2017.
[9] S. J. Rennie, E. Marcheret, Y. Mroueh, J. Ross, and V. Goel. Self-critical sequence training for image captioning. arXiv preprint arXiv:1612.00563, 2016.
[10] S. Venugopalan, M. Rohrbach, J. Donahue, R. Mooney, T. Darrell, and K. Saenko. Sequence to sequence-video to text. In ICCV, 2015.
[11] K. Xu, J. Ba, R. Kiros, K. Cho, A. Courville, R. Salakhudinov, R. Zemel, and Y. Bengio. Show, attend and tell: Neural image caption generation with visual attention. In ICML, 2015.
[12] L. Yao, A. Torabi, K. Cho, N. Ballas, C. Pal, H. Larochelle, and A. Courville. Describing videos by exploiting temporal structure. In ICCV, 2015.
[13] T. Yao, Y. Li, Z. Qiu, F. Long, Y. Pan, D. Li, and T. Mei. Msr asia msm at activitynet challenge 2017: Trimmed action recognition, temporal action proposals and dense-captioning events in videos. In CVPR ActivityNet Challenge Workshop, 2017.
[14] T. Yao, Y. Pan, Y. Li, and T. Mei. Incorporating copying mechanism in image captioning for learning novel objects. In CVPR, 2017.
[15] T. Yao, Y. Pan, Y. Li, Z. Qiu, and T. Mei. Boosting image captioning with attributes. In ICCV, 2017.
[16] Y. Zhao, Y. Xiong, L. Wang, Z. Wu, D. Lin, and X. Tang. Temporal action detection with structured segment networks. arXiv preprint arXiv:1704.06228, 2017.
