BERT Rediscovers the Classical NLP Pipeline

by   Ian Tenney, et al.

Pre-trained text encoders have rapidly advanced the state of the art on many NLP tasks. We focus on one such model, BERT, and aim to quantify where linguistic information is captured within the network. We find that the model represents the steps of the traditional NLP pipeline in an interpretable and localizable way, and that the regions responsible for each step appear in the expected sequence: POS tagging, parsing, NER, semantic roles, then coreference. Qualitative analysis reveals that the model can and often does adjust this pipeline dynamically, revising lower-level decisions on the basis of disambiguating information from higher-level representations.


page 3

page 4

page 7

page 8


What's so special about BERT's layers? A closer look at the NLP pipeline in monolingual and multilingual models

Experiments with transfer learning on pre-trained language models such a...

How transfer learning impacts linguistic knowledge in deep NLP models?

Transfer learning from pre-trained neural language models towards downst...

Large-Scale News Classification using BERT Language Model: Spark NLP Approach

The rise of big data analytics on top of NLP increases the computational...

Improving Part-of-Speech Tagging for NLP Pipelines

This paper outlines the results of sentence level linguistics based rule...

VisBERT: Hidden-State Visualizations for Transformers

Explainability and interpretability are two important concepts, the abse...

Optimizing small BERTs trained for German NER

Currently, the most widespread neural network architecture for training ...

iSEA: An Interactive Pipeline for Semantic Error Analysis of NLP Models

Error analysis in NLP models is essential to successful model developmen...

1 Introduction

Pre-trained sentence encoders such as ELMo (Peters et al., 2018a) and BERT (Devlin et al., 2018) have rapidly improved the state of the art on many NLP tasks, and seem poised to displace both static word embeddings (Mikolov et al., 2013) and discrete pipelines (Manning et al., 2014)

as the basis for natural language processing systems. While this has been a boon for performance, it has come at the cost of interpretability, and it remains unclear whether such models are in fact learning the kind of abstractions that we intuitively believe are important for representing natural language, or simply modeling complex co-occurrence statistics.

A wave of recent work has begun to “probe” state-of-the-art models to understand whether they are representing language in a satisfying way. Much of this work is behavior-based, designing controlled test sets and analyzing errors in order to reverse-engineer the types of abstractions the model may or may not be representing (e.g. Conneau et al., 2018; Marvin and Linzen, 2018; Poliak et al., 2018). Parallel efforts inspect the structure of the network directly, to assess whether there exist localizable regions associated with distinct types of linguistic decisions. Such work has produced evidence that deep language models can encode a range of syntactic and semantic information (e.g. Shi et al., 2016; Belinkov, 2018; Tenney et al., 2019), and that more complex structures are developed hierarchically in the higher layers of the model (Peters et al., 2018b; Blevins et al., 2018).

We build on this latter line of work, focusing on the BERT model (Devlin et al., 2018), and use a suite of probing tasks (Tenney et al., 2019) derived from the traditional NLP pipeline to quantify where specific types of linguistic information are encoded. Building on observations (Peters et al., 2018b) that lower layers of a language model encode more local syntax while higher layers capture more complex semantics, we present two novel contributions. First, we present an analysis that spans the common components of a traditional NLP pipeline. We show that the order in which specific abstractions are encoded reflects the traditional hierarchy of these tasks. Second, we qualitatively analyze how individual sentences are processed by the BERT network, layer-by-layer. We show that while the pipeline order holds in aggregate, the model can allow individual decisions to depend on each other in arbitrary ways, deferring ambiguous decisions or revising incorrect ones based on higher-level information.

2 Model

Edge Probing.

Our experiments are based on the “edge probing” approach of Tenney et al. (2019)

, which aims to measure how well information about linguistic structure can be extracted from a pre-trained encoder. Edge probing decomposes structured-prediction tasks into a common format, where a probing classifier receives spans

and (optionally) and must predict a label such as a constituent or relation type.111For single-span tasks (POS, entities, and constituents), is not used. For POS, is a single token.

The probing classifier has access only to the per-token contextual vectors

within the target spans, and so must rely on the encoder to provide information about the relation between these spans and their role in the sentence.

We use eight labeling tasks from the edge probing suite: part-of-speech (POS), constituents (Consts.), dependencies (Deps.), entities, semantic role labeling (SRL), coreference (Coref.), semantic proto-roles (SPR; Reisinger et al., 2015), and relation classification (SemEval). These tasks are derived from standard benchmark datasets222We use the authors’ code from Dependencies is the English Web Treebank (Silveira et al., 2014), SPR is the SPR1 dataset of (Teichert et al., 2017), and relations is SemEval 2010 Task 8 (Hendrickx et al., 2009). All other tasks are from OntoNotes 5.0 (Weischedel et al., 2013). , and evaluated with a common metric–micro-averaged F1–to facilitate comparison across tasks.


The BERT model (Devlin et al., 2018) has shown state-of-the-art performance on many tasks, and its deep Transformer architecture (Vaswani et al., 2017) is typical of many recent models (e.g. Radford et al., 2018, 2019; Liu et al., 2019). We focus on the stock BERT models (base and large, uncased), which are trained with a multi-task objective (masked language modeling and next-sentence prediction) over a 3.3B word English corpus. Since we want to understand how the network is structured as a result of pretraining, we follow Tenney et al. (2019) (departing from standard BERT usage) and freeze the encoder weights. This prevents the encoder from re-arranging its internal representations to better suit the probing task.

Given input tokens , a deep encoder produces a set of layer activations , where are the activation vectors of the layer and corresponds to the non-contextual word(piece) embeddings. We use a weighted sum (§3.1) to pool these a single set of vectors , and train a probing classifier for each task using the architecture and procedure of Tenney et al. (2019).

3 Metrics

We define two. The first, scalar mixing weights (§3.1) tell us which layers, in combination, are most relevant when a probing classifier has access to the whole BERT model. The second, cumulative scoring (§3.2) tells us how much higher we can score on a probing task with the introduction of each layer. These metrics provide complementary views on what is happening inside the model. Mixing weights are learned solely from the training data–they tell us which layers the probing model finds most useful. In contrast, cumulative scoring is derived entirely from an evaluation set, and tell us how many layers are needed for a correct prediction.

3.1 Scalar Mixing Weights

To pool across layers, we use the scalar mixing technique introduced by the ELMo model. Following Peters et al. (2018a), for each task we introduce scalar parameters and , and let:


where . We learn these weights jointly with the probing classifier

, in order to allow it to extract information from the many layers of an encoder without adding a large number of parameters. After the probing model is trained, we extract the learned coefficients in order to estimate the contribution of different layers to that particular task. We interpret higher weights as evidence that the corresponding layer contains more information related to that particular task.


As a summary statistic, we define the mixing weight center of gravity as:


This reflects the average layer attended to for each task; intuitively, we can interpret a higher value to mean that the information needed for that task is captured by higher layers.

3.2 Cumulative Scoring

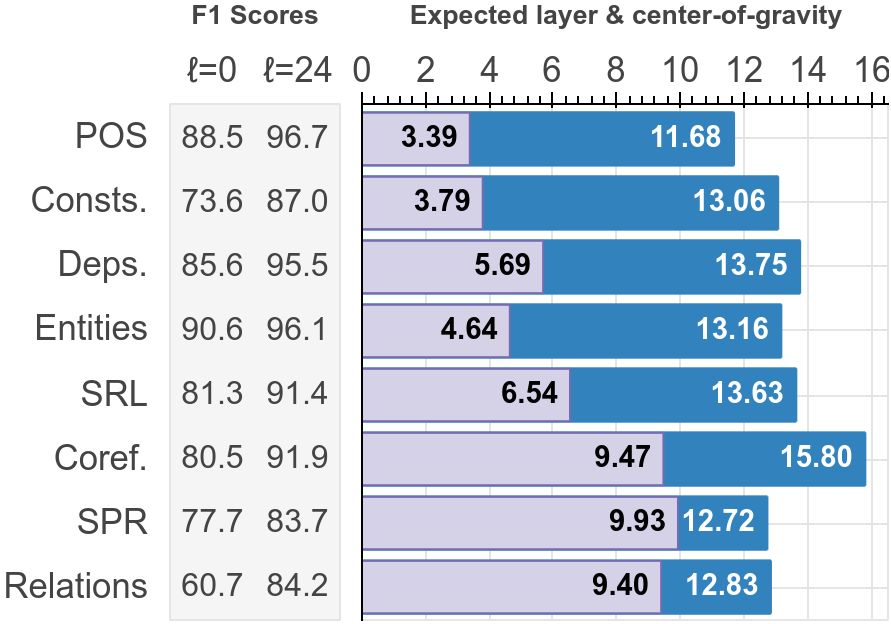

Figure 1: Summary statistics on BERT-large. Columns on left show F1 dev-set scores for the baseline () and full-model () probes. Dark (blue) are the mixing weight center of gravity (Eq. 2); light (purple) are the expected layer from the cumulative scores (Eq. 4).

We would like to estimate at which layer in the encoder a target can be correctly predicted. Mixing weights cannot tell us this directly, because they are learned as parameters and do not correspond to a distribution over data. A naive classifier at a single layer cannot either, because information about a particular span may be spread out across several layers, and as observed in Peters et al. (2018b) the encoder may choose to discard information at higher layers.

To address this, we train a series of classifiers which use scalar mixing (Eq. 1) to attend to layer as well as all previous layers. corresponds to a non-contextual baseline that uses only a bag of word(piece) embeddings, while corresponds to probing all layers of the BERT model.

These classifiers are cumulative, in the sense that has a similar number of parameters but with access to strictly more information than , and we see intuitively that performance (F1 score) generally increases as more layers are added.333Note that if a new layer provides distracting features, the probing model can overfit and performance can drop. We see this in particular in the last 1-2 layers (Figure 2). We can then compute a differential score, which measures how much better we do on the probing task if we observe one additional encoder layer :


Expected Layer.

Again, we compute a (pseudo) expectation over the differential scores as a summary statistic. To focus on non-trivial examples, we normalize over the contextual layers :


This can be thought of as, approximately, the expected layer at which an example can be correctly labeled, assuming that example could not be resolved by the non-contextual baseline .

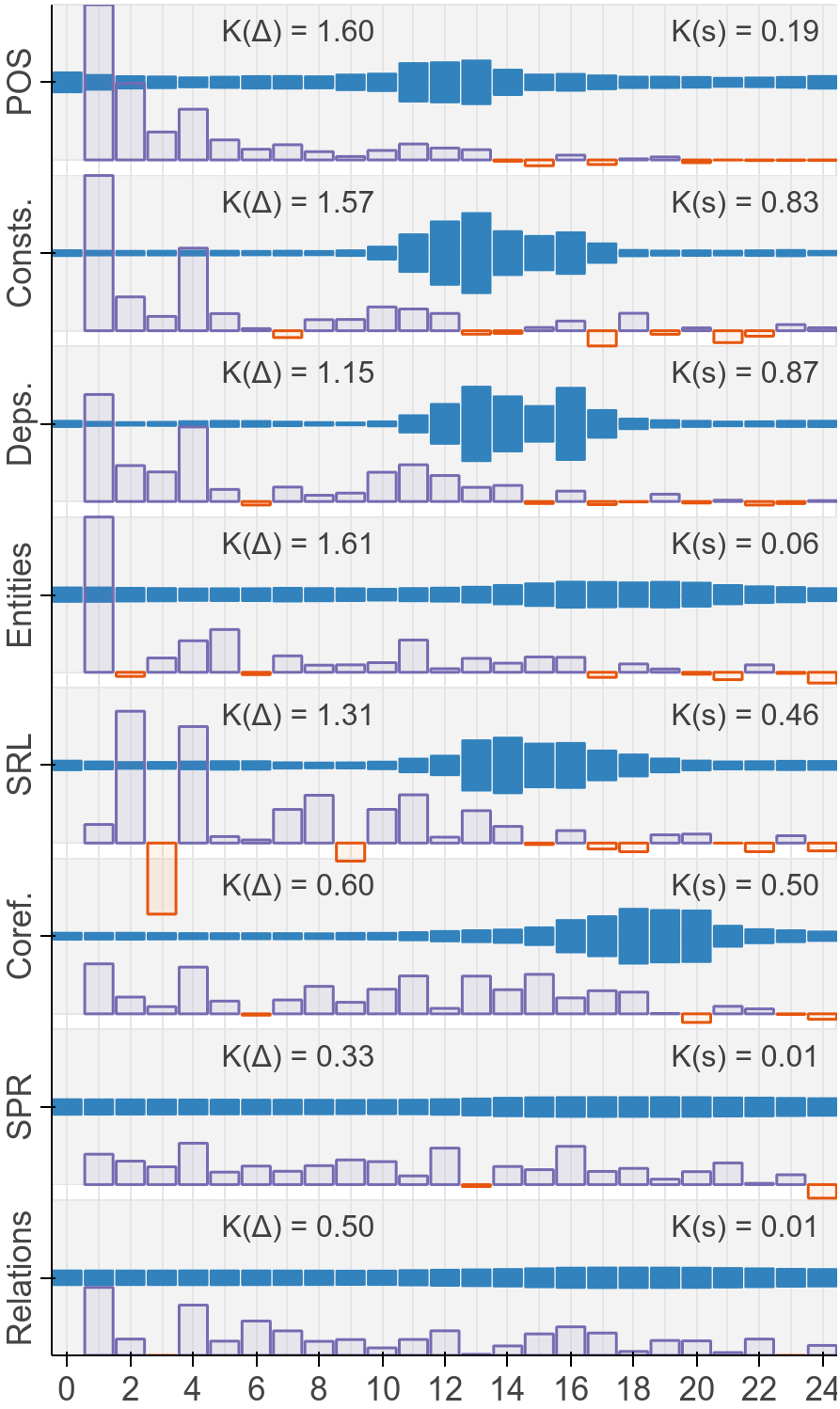

Figure 2: Layer-wise metrics on BERT-large. Solid (blue) are mixing weights (§3.1); outlined (purple) are differential scores 3.2), normalized for each task. Horizontal axis is encoder layer.

4 Results

Figure 1 reports summary statistics; Figure 2 reports per-layer metrics. We also report to estimate how non-uniform each statistic () is for each task.

Linguistic Patterns.

We observe a consistent trend across both of our metrics, with the tasks encoded in a natural progression: POS tags processed earliest, followed by constituents, dependencies, semantic roles, and coreference. That is, it appears that basic syntactic information appears earlier in the network, while high-level semantic information appears at higher layers. We note that this finding is consistent with initial observations by Peters et al. (2018b), which found that constituents are represented earlier than coreference. In addition, we observe that in general, syntactic information is more localizable, with weights related to syntactic tasks tending to be more “spiky” (high and ), while information related to semantic tasks is generally spread across the entire network. For example, we find that for semantic relations and proto-roles (SPR), the mixing weights are close to uniform, and that nontrivial examples for these tasks are resolved gradually across nearly all layers. For entity labeling many examples are resolved in layer 1, but with a long tail thereafter, and only a weak concentration of mixing weights in high layers. Further study is needed to determine whether this is because BERT has difficulty representing the correct abstraction for these tasks, or because semantic information is inherently harder to localize.

Comparison of Metrics.

For many tasks, we find that the differential scores are highest in the first few layers of the model (layers 1-7 for BERT-large), i.e. most examples can be correctly classified very early on. We attribute this to the availability of heuristic shortcuts: while challenging examples may not be resolved until much later, many cases can be guessed from shallow statistics. Conversely, we observe that the learned mixing weights are concentrated much later, layers 9-20 for BERT-large.

444We find that in the smaller BERT-base model, the weights are concentrated at roughly the same layers relative to the top of the model. See Supplementary Material. We observe–particularly when weights are highly concentrated–that the highest weights are found on or just after the highest layers which give an improvement in F1 score.

Per-Example Analysis.

(a) he smoked toronto in the playoffs with six hits, …
(b) china today blacked out a cnn interview that was …
Figure 3:

Probing classifier predictions across layers of BERT-base. Blue is the correct label; orange is the incorrect label with highest average score over layers. Bar heights are (normalized) probabilities

. Only select tasks shown for space.

We explore, qualitatively, how beliefs about the structure of individual sentences develop over the layers of the BERT network. For this, we compile the predictions of the per-layer classifiers for different annotations. Figure 3 shows examples selected from the OntoNotes development set, in which the same sentence is annotated for multiple tasks.

We find that while the pipeline order holds on average (Figure 2), for individual examples the model is free to, and often does, choose a different order. In the first example, the model originally (incorrectly) assumes that “Toronto” refers to the city, tagging it as a GPE. However, after determining that “Toronto” is the thing getting “smoked” (ARG1), this decision is revised and it is tagged as ORG (i.e. the sports team). In the second example, the model initially tags “today” as a common noun, date, and temporal modifier (ARGM-TMP). However, this phrase is ambiguous, and it later reinterprets “china today” as a proper noun (i.e. a TV network) and updates its beliefs about the entity type and the semantic role accordingly. See Supplementary Material for additional examples.

5 Conclusion

We employ the edge probing task suite to explore how the different layers of the BERT network can resolve syntactic and semantic structure within a sentence. We present two complementary measurements: scalar mixing weights, learned from a training corpus, and cumulative scoring, measured on a development set, and show that a consistent ordering emerges. We find that while this traditional pipeline order holds in the aggregate, on individual examples the network can resolve out-of-order, using high-level information like predicate-argument relations to help disambiguate low-level decisions like part-of-speech. This provides new evidence corroborating that deep language models can represent the types of syntactic and semantic abstractions traditionally believed necessary for language processing, and moreover that they can model complex interactions between different levels of hierarchical information.


  • Belinkov (2018) Yonatan Belinkov. 2018.

    On internal language representations in deep learning: An analysis of machine translation and speech recognition

    Ph.D. thesis, Massachusetts Institute of Technology.
  • Blevins et al. (2018) Terra Blevins, Omer Levy, and Luke Zettlemoyer. 2018. Deep RNNs encode soft hierarchical syntax. In Proceedings of ACL.
  • Conneau et al. (2018) Alexis Conneau, Germán Kruszewski, Guillaume Lample, Loïc Barrault, and Marco Baroni. 2018. What you can cram into a single $&#* vector: Probing sentence embeddings for linguistic properties. In Proceedings of ACL.
  • Devlin et al. (2018) Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. 2018. BERT: Pre-training of deep bidirectional transformers for language understanding. arXiv preprint 1810.04805.
  • Hendrickx et al. (2009)

    Iris Hendrickx, Su Nam Kim, Zornitsa Kozareva, Preslav Nakov, Diarmuid Ó Séaghdha, Sebastian Padó, Marco Pennacchiotti, Lorenza Romano, and Stan Szpakowicz. 2009.

    Semeval-2010 task 8: Multi-way classification of semantic relations between pairs of nominals. In Proceedings of the Workshop on Semantic Evaluations: Recent Achievements and Future Directions.
  • Liu et al. (2019) Xiaodong Liu, Pengcheng He, Weizhu Chen, and Jianfeng Gao. 2019. Multi-task deep neural networks for natural language understanding. arXiv preprint 1901.11504.
  • Manning et al. (2014) Christopher Manning, Mihai Surdeanu, John Bauer, Jenny Finkel, Steven Bethard, and David McClosky. 2014. The Stanford CoreNLP natural language processing toolkit. In Proceedings of ACL: System Demonstrations.
  • Marvin and Linzen (2018) Rebecca Marvin and Tal Linzen. 2018. Targeted syntactic evaluation of language models. In Proceedings of EMNLP.
  • Mikolov et al. (2013) Tomas Mikolov, Ilya Sutskever, Kai Chen, Greg S. Corrado, and Jeff Dean. 2013. Distributed representations of words and phrases and their compositionality. In Proceedings of NIPS.
  • Peters et al. (2018a) Matthew Peters, Mark Neumann, Mohit Iyyer, Matt Gardner, Christopher Clark, Kenton Lee, and Luke Zettlemoyer. 2018a. Deep contextualized word representations. In Proceedings of NAACL.
  • Peters et al. (2018b) Matthew Peters, Mark Neumann, Luke Zettlemoyer, and Wen-tau Yih. 2018b. Dissecting contextual word embeddings: Architecture and representation. In Proceedings of EMNLP.
  • Poliak et al. (2018) Adam Poliak, Aparajita Haldar, Rachel Rudinger, J. Edward Hu, Ellie Pavlick, Aaron Steven White, and Benjamin Van Durme. 2018. Collecting diverse natural language inference problems for sentence representation evaluation. In Proceedings of EMNLP.
  • Radford et al. (2018) Alec Radford, Karthik Narasimhan, Tim Salimans, and Ilya Sutskever. 2018. Improving language understanding by generative pre-training.
  • Radford et al. (2019) Alec Radford, Jeffrey Wu, Rewon Child, David Luan, Dario Amodei, and Ilya Sutskever. 2019. Language models are unsupervised multitask learners.
  • Reisinger et al. (2015) Drew Reisinger, Rachel Rudinger, Francis Ferraro, Craig Harman, Kyle Rawlins, and Benjamin Van Durme. 2015. Semantic proto-roles. Transactions of the Association of Computational Linguistics.
  • Shi et al. (2016) Xing Shi, Inkit Padhi, and Kevin Knight. 2016. Does string-based neural MT learn source syntax? In Proceedings of EMNLP.
  • Silveira et al. (2014) Natalia Silveira, Timothy Dozat, Marie-Catherine de Marneffe, Samuel Bowman, Miriam Connor, John Bauer, and Christopher D. Manning. 2014. A gold standard dependency corpus for English. In Proceedings of the Ninth International Conference on Language Resources and Evaluation.
  • Teichert et al. (2017) Adam Teichert, Adam Poliak, Benjamin Van Durme, and Matthew Gormley. 2017. Semantic proto-role labeling. In Proceedings of AAAI.
  • Tenney et al. (2019) Ian Tenney, Patrick Xia, Berlin Chen, Alex Wang, Adam Poliak, R Thomas McCoy, Najoung Kim, Benjamin Van Durme, Sam Bowman, Dipanjan Das, and Ellie Pavlick. 2019. What do you learn from context? probing for sentence structure in contextualized word representations. In International Conference on Learning Representations.
  • Vaswani et al. (2017) Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Łukasz Kaiser, and Illia Polosukhin. 2017. Attention is all you need. In Proceedings of NIPS.
  • Weischedel et al. (2013) Ralph Weischedel, Martha Palmer, Mitchell Marcus, Eduard Hovy, Sameer Pradhan, Lance Ramshaw, Nianwen Xue, Ann Taylor, Jeff Kaufman, Michelle Franchini, et al. 2013. OntoNotes release 5.0 LDC2013T19. Linguistic Data Consortium, Philadelphia, PA.

6 Supplemental Material

6.1 Comparison of Different Encoders

We reproduce Figure 1 and Figure 2 (which depict metrics on BERT-large) from the main paper below, and show analogous plots for the BERT-base models. We observe that the most important layers for a given task appear in roughly the same relative position on both the 24-layer BERT-large and 12-layer BERT-base models, and that tasks generally appear in the same order.

(a) BERT-base
(b) BERT-large
Figure S.1: Summary statistics on BERT-base (left) and BERT-large (right). Columns on left show F1 dev-set scores for the baseline () and full-model () probes. Dark (blue) are the mixing weight center of gravity; light (purple) are the expected layer from the cumulative scores.
(a) BERT-base
(b) BERT-large
Figure S.2: Layer-wise metrics on BERT-base (left) and BERT-large (right). Solid (blue) are mixing weights; outlined (purple) are differential scores , normalized for each task. Horizontal axis is encoder layer.

6.2 Additional Examples

We provide additional examples in the style of Figure 3, which illustrate sequential decisions in the layers of the BERT-base model.

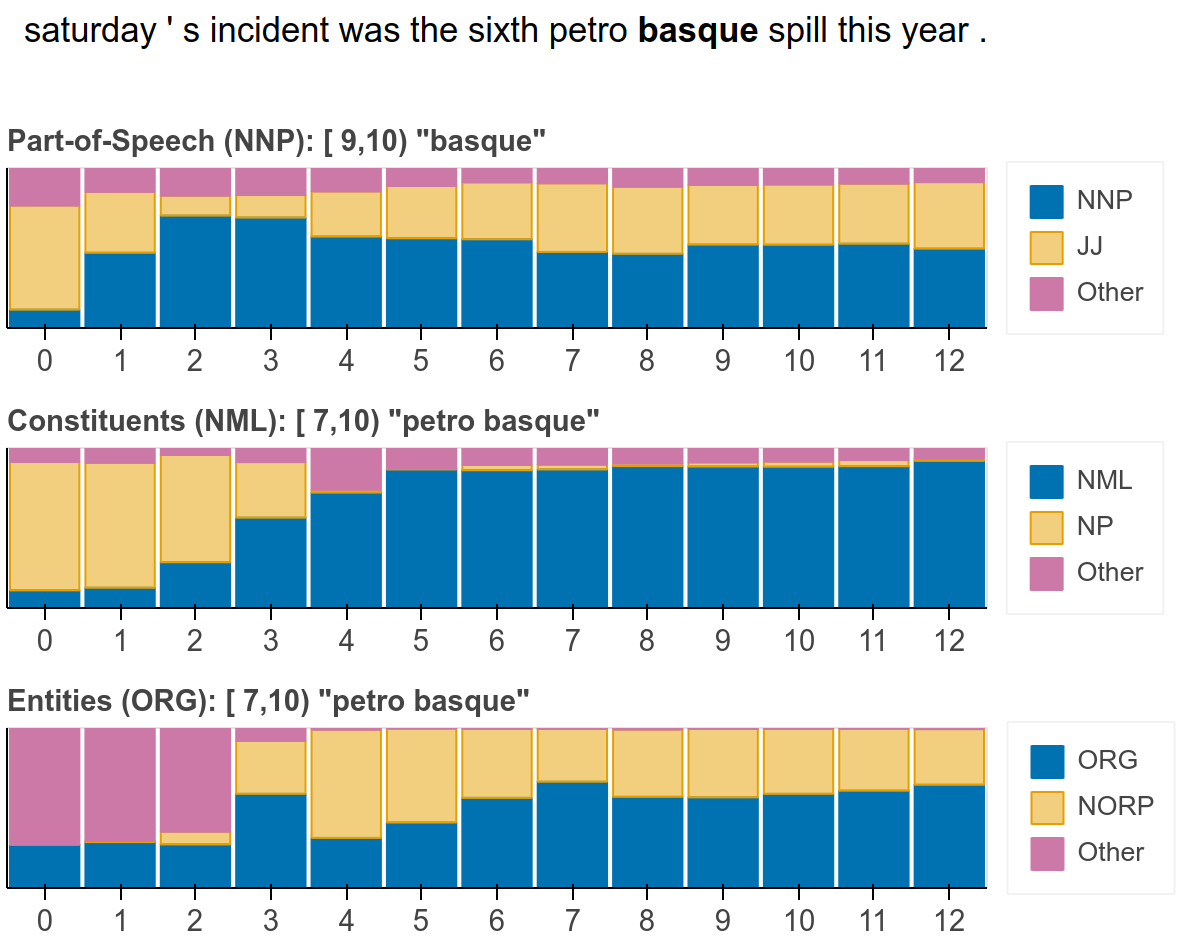

Figure S.3: Trace of selected annotations that intersect the token “basque” in the above sentence. We see the model recognize this as part of a proper noun (NNP) in layer 2, which leads it to revise its hypothesis about the constituent “petro basque” from an ordinary noun phrase (NP) to a nominal mention (NML) in layers 3-4. We also see that from layer 3 onwards, the model recognizes “petro basque” as either an organization (ORG) or a national or religious group (NORP), but does not strongly disambiguate between the two.

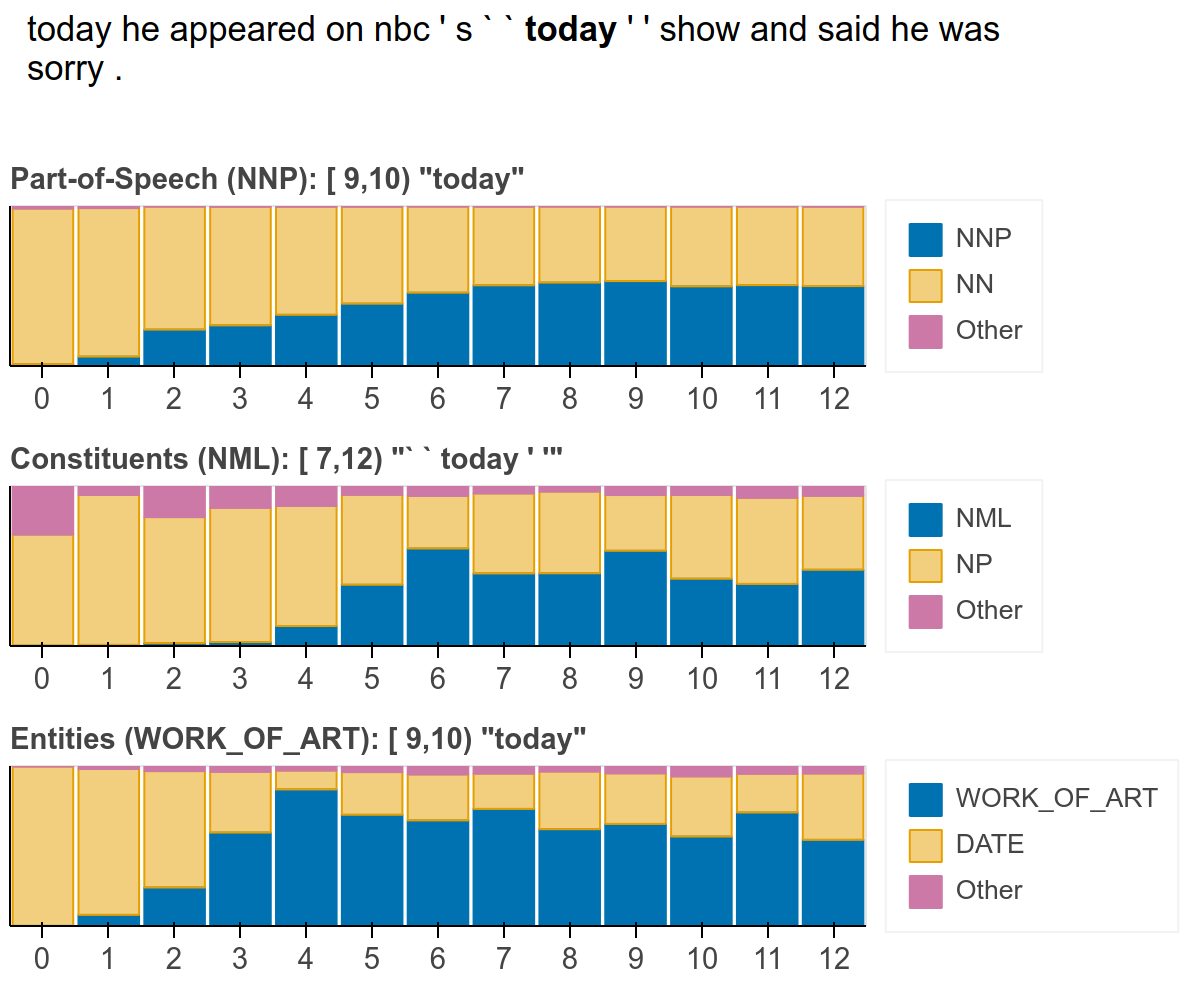

Figure S.4: Trace of selected annotations that intersect the second “today” in the above sentence. The odel initially believes this to be a date and a common noun, but by layer 4 realizes that this is the TV show (entity tag WORK_OF_ART) and subsequently revises its hypotheses about the constituent type and part-of-speech.

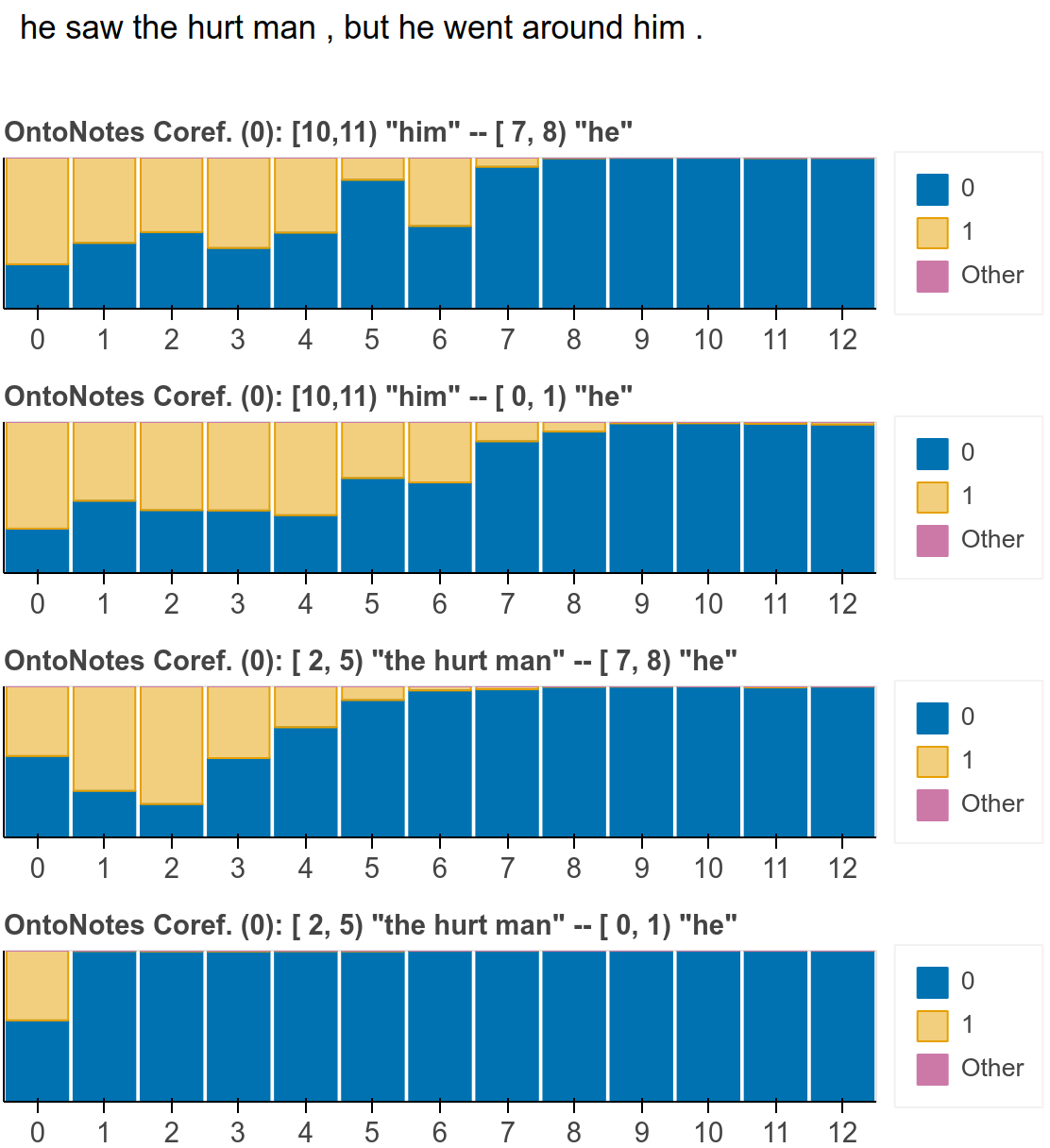

Figure S.5: Trace of selected coreference annotations on the above sentence. Not shown are two coreference edges that the model has correctly resolved at layer 0 (guessing from embeddings alone): “him” and “the hurt man” are coreferent, as are “he” and “he”. We see that the remaining edges, between non-coreferent mentions, are resolved in several stages.

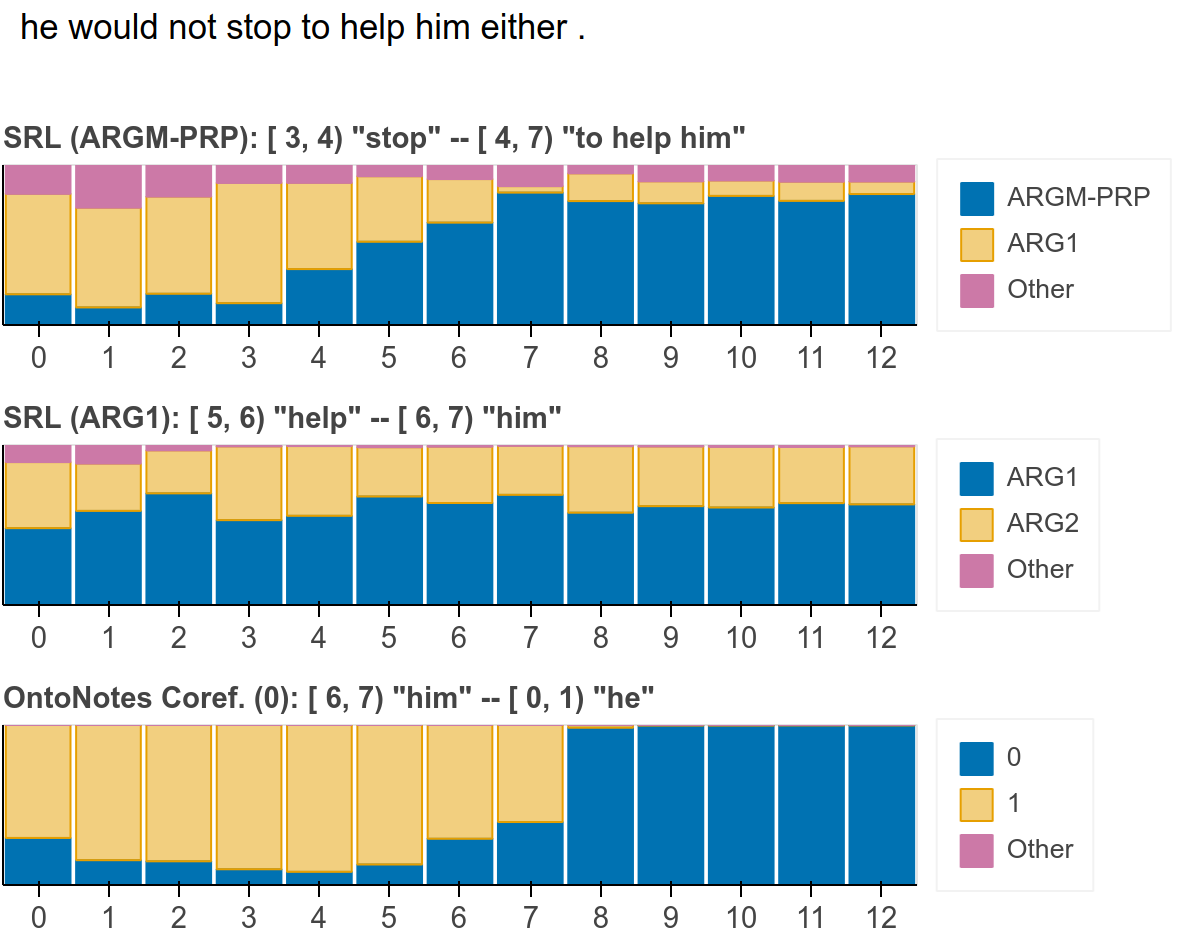

Figure S.6: Trace of selected coreference and SRL annotations on the above sentence. The model resolves the semantic role (purpose, ARGM-PRP) of the phrase “to help him” in layers 5-7, then quickly resolves at layer 8 that “him” and “he” (the agent of “stop”) are not coreferent. Also shown is the correct prediction that “him” is the recipient (ARG1, patient) of “help”.
