Bayesian optimization for automatic design of face stimuli

07/20/2020 ∙ by Pedro F. da Costa, et al. ∙ University of Cambridge King's College London Birkbeck, University of London UCL 0

Investigating the cognitive and neural mechanisms involved with face processing is a fundamental task in modern neuroscience and psychology. To date, the majority of such studies have focused on the use of pre-selected stimuli. The absence of personalized stimuli presents a serious limitation as it fails to account for how each individual face processing system is tuned to cultural embeddings or how it is disrupted in disease. In this work, we propose a novel framework which combines generative adversarial networks (GANs) with Bayesian optimization to identify individual response patterns to many different faces. Formally, we employ Bayesian optimization to efficiently search the latent space of state-of-the-art GAN models, with the aim to automatically generate novel faces, to maximize an individual subject's response. We present results from a web-based proof-of-principle study, where participants rated images of themselves generated via performing Bayesian optimization over the latent space of a GAN. We show how the algorithm can efficiently locate an individual's optimal face while mapping out their response across different semantic transformations of a face; inter-individual analyses suggest how the approach can provide rich information about individual differences in face processing.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 6

page 11

page 12

page 14

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Face perception and processing is fundamental for human survival. Within a fraction of seconds, faces reveal to us information about the emotions, gender, age, trustworthiness or intention of another human. Therefore, faces are among the most important visual stimuli in the natural world and, consequently, a large portion of neuroscience and psychology research has been dedicated to studying its mechanisms (Tsao and Livingstone, 2008; Eimer, 2012; Kanwisher et al., 1997; Kanwisher and Yovel, 2006). As a result, we now know humans have a specialized neural mechanism to process faces that is tuned by their individual experience (Pascalis et al., 2011). Furthermore, neuroimaging studies have shown that different face stimuli elicit different brain response patterns (Kriegeskorte et al., 2007). This heterogeneity in our neural response to faces presents a challenge to current methodology in the field, where the status quo consists of using the same set of pre-selected face stimuli for every individual and then drawing conclusions from group-level results. Besides not allowing to tailor face stimuli to specific research questions (e.g., what kind of face stimuli maximise response in a given brain region), this approach completely overlooks inter-individual differences in face processing. If we want to better understand the mechanisms underlying face processing, how it develops and how it is disrupted (e.g., Autism spectrum disorder or fronto-temporal dementia), we need an approach sensitive to individual responses.

To address this shortcoming, we present a framework that leverages auto-ML and generative neural networks to tailor face stimuli with the aim to maximise an individual subject’s response (e.g., neural, behavioural or subjective)

111Code access to the full framework is available at github.com/PedroFerreiradaCosta/FaceFitOpt. By requiring a small number of iterations, this approach bypasses the inherent limitation of participants’ attention and familiarity effects from repeated testing. Our closed-loop and automated approach measures how the manipulation of face stimuli alters evoked measures. For this, we created a continuous space, where each dimension manipulates a facial semantic attribute orthogonally from the other facial attributes. We automatically search through this ”face space” using Bayesian optimization that queries only the most informative points in that space in order to find the maximum of a target function. The target function can be neural, such as the participant’s brain signal while processing the face stimulus or a behavioural evaluation, such as similarity to a target face or aesthetic judgement. The face stimuli are generated by a generative adversarial network (GAN).

GANs are effective at image manipulation because they learn the implicit density functions of the data they are trained on and create an unsupervised separation of semantic features (such as gender, age, etc) (Goodfellow et al., 2014). When the network is trained on images of faces, the latent space is transformed by the generator into a point in the manifold of realistic faces (Goodfellow et al., 2014; Karras et al., 2019)

. By moving the point along a vector in the manifold, we can manipulate the image along certain facial attributes while maintaining face identity

(Pumarola et al., 2018), presenting a continuous mapping of these features, which would be impossible to obtain from any dataset.

In this initial proof of principle, we test whether the approach can identify an individual’s own face by manipulating the age and emotion of an original photograph and considering the ground truth to be the non-manipulated image in the space.

2 Methods

Our algorithm has four main components: 1) a pre-trained GAN to sample from the face manifold; 2) a face encoder that allows us to obtain the latent representation for any real face in order to find its position in the manifold; 3) learned features directions from the latent space to manipulate images; 4) a Bayesian optimization algorithm that efficiently samples the space.

2.1 GAN for object generation

GANs use an adversarial process to learn to generate realistic samples of the data it is trained on. After training a generator G and a discriminator D in a two-player minimax game with value function V(D, G), the generator is able to generate realistic samples from the original data distribution (Goodfellow et al., 2014).

(1)

Here, we used the StyleGAN (Karras et al., 2019), pre-trained on the Flickr-Faces-HQ dataset (FFHQ). Our input is set to the intermediate latent space of the network

  since it provides a more disentangled representation of the features, as it is not constrained to the probability distribution of the training data.

2.2 Latent Space encoder

In order to manipulate images that the generator network was not trained on (e.g., a photo of our participants’ faces taken by their webcam), we need to project the image from the manifold of face images, towards the network’s latent space. GANs consist of multiple layers of non-linear transformations, which makes it challenging to invert the network

(Creswell and Bharath, 2019; Abdal et al., 2019). Using the styleganencoder222github.com/Puzer/stylegan-encoder, we do so by projecting both the image we want to transform and the generated images into a common feature space of a perceptual model - conv3_2

of the VGG16 pre-trained on the ImageNet dataset

(Simonyan and Zisserman, 2015). Then, the latent values are optimized through Gradient Descent on the perceptual loss for 500 iterations, where F(I)  is the output of the feature space and I is the image input.

(2)

This process results in a latent representation that, when fed into the generative network, outputs an image that is near identical to the original one (Bojanowski et al., 2018) (see Figure 3).

2.3 Features across latent space

It has been previously demonstrated that the organisation of the latent vector can be exploited to control different features of the image (Radford et al., 2016; Pumarola et al., 2018)

. In order to manipulate specific features while maintaining facial identity, we generate a set of images from the GAN and label them according to a binary categorical feature (e.g., happy vs neutral). A logistic regression is then fitted to the image’s latent representations to predict a categorical feature. Furthermore, the coefficients (

c) from the fitted regression are added to the latent representation to shift the generated image towards the fitted features, with its degree of change controlled by a scalar magnitude multiplied by the whole vector. In our research, we explore a bounded magnitude, for each feature.

(3)

2.4 Bayesian optimization

Bayesian optimization is a powerful iterative method to efficiently obtain the extrema of target functions that are expensive to evaluate (Mockus, 1994)

. The approach employs a Bayesian statistical model to estimate the target function

f(x)

according to its posterior distribution, and an acquisition function that proposes the point in the face space to be sampled in the next iteration. The statistical model used is a Gaussian process and at each iteration, has its posterior distribution and variance updated based on the new sample. The acquisition function measures the mean and confidence interval of the distribution of the current posterior distribution. Based on this, it identifies the most informative point to be sampled in the next iteration in order to find

f’s global maxima. We chose as the acquisition function the upper confidence bound (UCB) (Cox and John, 1992). The level of exploration is controlled by the parameter . A high value of will privilege exploration of the space (Brochu et al., 2010)

, eventually resulting in active learning to map the whole space. A lower value of

will make the algorithm efficiently find the maxima of the space.

(4)

Bayesian optimization is ideally suited to perform optimal stimulus selection in the context of neuroscientific research (Lorenz et al., 2016, 2017, 2018) because a) evaluating all possible stimuli is not feasible with human participants, b) the target functions are unknown (e.g., structure, concavity, number of maxima or linearity), c) the sampled values are “derivative-free”, limiting the use of any gradient descent approaches, and d) the neural or behavioural samples will inherently be affected by stochastic noise.

Our set , the face space, is a hyper-rectangle , where each dimension d manipulates one disentangled facial feature across its axis. The choice of features is flexible and should be adapted depending on the specific research question. This is the space that the Bayesian optimization will navigate, where a point in the space represents an image generated by the generator network with the latents ().

2.5 The framework

Our proposed framework is a combination of these four algorithms to automatically explore the face space and find the maximum of a target function that varies across the chosen feature manipulations. It can use as input any real face, which is automatically encoded into its latent representation by minimizing the differences of the generated image and the real face in a perceptual space. The target function is first evaluated after 5 burn-in samples, uniformly chosen at random to fill the space. Each point is converted to an image through the generator network, displayed to the participant and the response is measured and fed back to the algorithm. After the initial five iterations, the loop is closed by the Bayesian optimization algorithm automatically choosing the points to sample for the next 20 iterations, with each point sample following the same steps as before (see Algorithm 1).

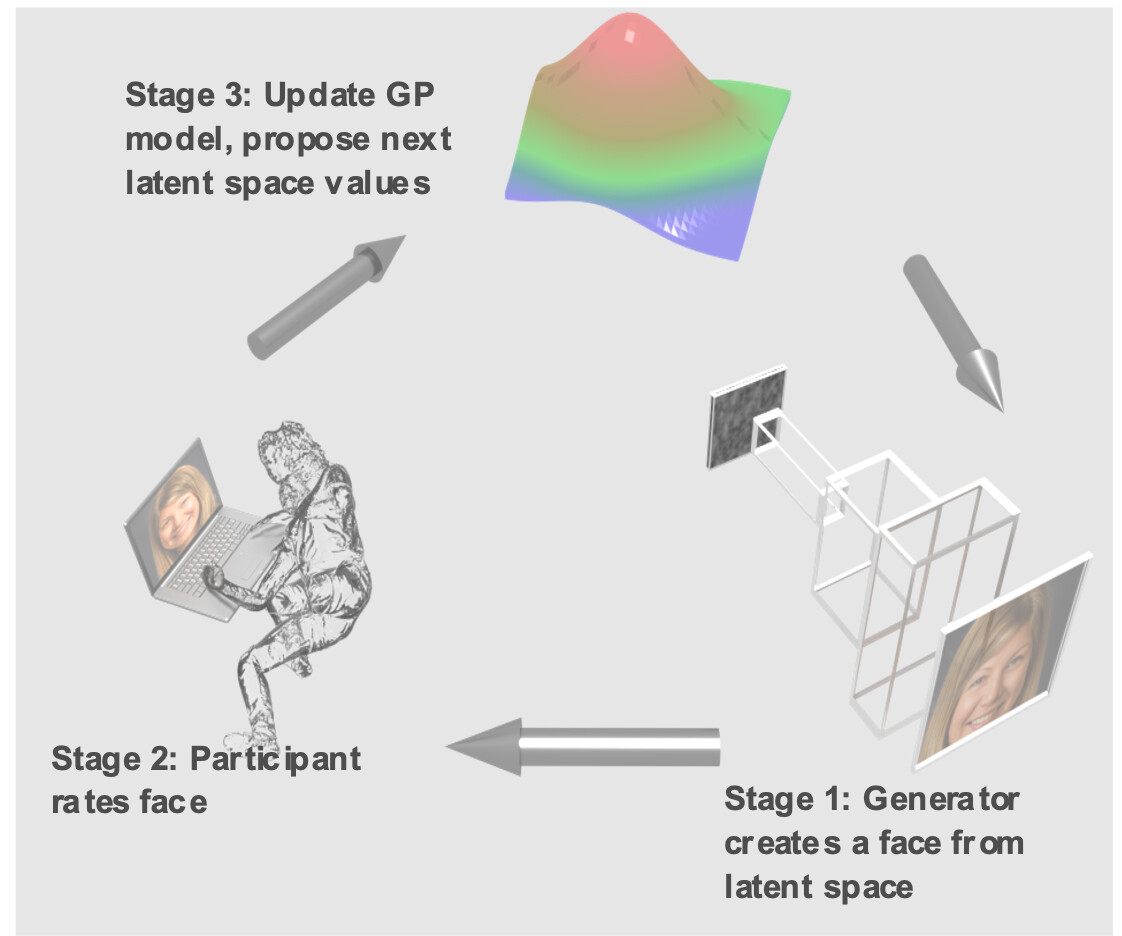

Figure 1: Schematic representation of the framework.

We use a combination of a Matérn 5/2 kernel and a white noise kernel to allow for noisy inputs

(Rasmussen, 2004). The algorithm is wrapped around a GUI that is run with Google Colab to take advantage of Google hardware to run the generator network. Its automated and flexible process allows any user with an internet connection to run the software from end-to-end.

3 Proof of concept study

To demonstrate the framework, we conducted a web-based, behavioural study with 30 participants (14 female, mean sd age: 31.33 13.94 years) in which they had to rate manipulated photos of themselves. The aim was to quickly identify the face stimuli that maximally resembled their original, non-manipulated photo.For this, we defined a face space composed of two dimensions, age and emotion, where each axis is a linear variation of these features across the latent vector. A negative value corresponded to an older version in the age axis and to an angrier version in the emotion axis. Each participant took a photo that was encoded into the latent space. At each of the 25 iterations, participants were shown a manipulated image of their original photo and were instructed to rate the similarity between them (0 being nothing alike and 10 being exactly like their original photo). Each manipulated image corresponded to the transformation associated with the point sampled in the space. This study design allowed us to benchmark the algorithm’s performance against a known ground-truth (the non-manipulated image in the space). In addition, for six participants, we conducted further runs to assess the algorithm’s test-retest reliability (first and second run) and compare the algorithm’s performance against random search (third run).

The results showed that the maximum is more dispersed on the age axis than on the emotion axis, although the median response tends to be near the origin of the space (median sd for emotion: -0.04 0.15; age: -0.06 0.30). The test-retest reliability analysis showed a high intra-subject spatial correlation (mean Pearson correlation coefficient across participants sd: 0.76 0.14); higher than the mean inter-subject correlation between participants’ response patterns (0.64 0.19). For further analysis see Appendix B.

Figure 2: (a) Images displaying the extremes of the space (1-8) and the origin point (O). (b) Mean response of the 30 participants. Each individual maximum response is marked with a cross. (c) Individual response of each participant across the space.

4 Discussion

This paper proposes a new tool to automatically generate and manipulate face stimuli across several semantic directions in a well-controlled manner. We showed that after only a few iterations we can identify the optimal face stimulus to maximise a target response and can accurately predict the individual’s response across the entire face space. Importantly, we showed that response patterns are more stable within individuals than across participants. This suggests that there might be indeed inter-individual response patterns. Further, high intra-subject reliability is a critical prerequisite for bringing this method out of the lab.

This approach is relevant for a wide range of disciplines interested in an individual’s response to faces (e.g., neuroscience, psychology, psychiatry, marketing). In a clinical setting, altered response patterns to faces could be used to guide diagnosis or patient stratification for neuropsychiatric conditions known to affect face processing (e.g., Autism spectrum disorder (Golarai et al., 2006), fronto-temporal dementia). In experimental neuroscience, it allows to identify a set of face stimuli that evoke similar brain responses but bypass effects of habituation. For psychology, it could be used to investigate how different emotions or personality traits might result in different response patterns.

The space is not limited to be 2-dimensional and there is no limitation on the types of images that can be presented. GANs have been used to learn different manifolds (e.g., houses, animal faces), which could be used to create a navigable space following the same framework. Equally, sounds could also be optimized in the same way. Regarding limitations of the stimuli, the extremes of the space will sometimes display distorted images. One reason is that we are interpolating linearly between categories in the latent space, where a non-linear transformation would be able to better capture the transition across the axis.

In conclusion, our framework offers an interesting tool for human-centred research.

This work was supported by SAPIENS Marie Curie Slowdowska Actions ITN N. 814302, the Wellcome Trust (209139/Z/17/Z), the AIMS-2-TRIALS programme funded by the Innovative Medicines Initiative (IMI) Grant No. 777394, European Union’s Horizon 2020), the Medical Research Council (Ref: MR/R005370/1) and the Wellcome/EPSRC Centre for Medical Engineering (Ref: WT 203148/Z/16/Z) and would like to acknowledge support from the Data to Early Diagnosis and Precision Medicine Industrial Strategy Challenge Fund, UK Research and Innovation (UKRI).


References

  • R. Abdal, Y. Qin, and P. Wonka (2019) Image2StyleGAN: How to embed images into the StyleGAN latent space?. In Proc. IEEE Int. Conf. Comput. Vis., External Links: Document, 1904.03189, ISBN 9781728148038, ISSN 15505499 Cited by: §2.2.
  • P. Bojanowski, A. Joulin, D. L. Paz, and A. Szlam (2018) Optimizing the latent space of generative networks. In 35th Int. Conf. Mach. Learn. ICML 2018, External Links: 1707.05776, ISBN 9781510867963 Cited by: §2.2.
  • E. Brochu, V. M. Cora, and N. de Freitas (2010)

    A Tutorial on Bayesian Optimization of Expensive Cost Functions, with Application to Active User Modeling and Hierarchical Reinforcement Learning

    .
    External Links: 1012.2599, Link Cited by: §2.4.
  • D. D. Cox and S. John (1992) A statistical method for global optimization. In Conf. Proc. - IEEE Int. Conf. Syst. Man Cybern., External Links: Document, ISBN 0780307208, ISSN 1062922X Cited by: §2.4.
  • A. Creswell and A. A. Bharath (2019) Inverting the Generator of a Generative Adversarial Network. IEEE Trans. Neural Networks Learn. Syst.. External Links: Document, 1611.05644, ISSN 21622388 Cited by: §2.2.
  • M. Eimer (2012) The Face-Sensitive N170 Component of the Event-Related Brain Potential. In Oxford Handb. Face Percept., External Links: Document, ISBN 9780191743672 Cited by: §1.
  • G. Golarai, K. Grill-Spector, and A. L. Reiss (2006) Autism and the development of face processing. Clin. Neurosci. Res.. External Links: Document, ISSN 15662772 Cited by: §4.
  • I. J. Goodfellow, J. Pouget-Abadie, M. Mirza, B. Xu, D. Warde-Farley, S. Ozair, A. Courville, and Y. Bengio (2014) Generative adversarial nets. In Adv. Neural Inf. Process. Syst., External Links: ISSN 10495258 Cited by: §1, §2.1.
  • N. Kanwisher, J. McDermott, and M. M. Chun (1997) The fusiform face area: A module in human extrastriate cortex specialized for face perception. J. Neurosci.. External Links: Document, ISSN 02706474 Cited by: §1.
  • N. Kanwisher and G. Yovel (2006) The fusiform face area: A cortical region specialized for the perception of faces. External Links: Document, ISSN 09628436 Cited by: §1.
  • T. Karras, S. Laine, and T. Aila (2019) A style-based generator architecture for generative adversarial networks. In

    Proc. IEEE Comput. Soc. Conf. Comput. Vis. Pattern Recognit.

    ,
    External Links: Document, 1812.04948, ISBN 9781728132938, ISSN 10636919 Cited by: §1, §2.1.
  • N. Kriegeskorte, E. Formisano, B. Sorger, and R. Goebel (2007) Individual faces elicit distinct response patterns in human anterior temporal cortex. Proc. Natl. Acad. Sci. U. S. A.. External Links: Document, ISSN 00278424 Cited by: §1.
  • R. Lorenz, A. Hampshire, and R. Leech (2017) Neuroadaptive Bayesian Optimization and Hypothesis Testing. External Links: Document, ISSN 1879307X Cited by: §2.4.
  • R. Lorenz, R. P. Monti, I. R. Violante, C. Anagnostopoulos, A. A. Faisal, G. Montana, and R. Leech (2016) The Automatic Neuroscientist: A framework for optimizing experimental design with closed-loop real-time fMRI. Neuroimage. External Links: Document, ISSN 10959572 Cited by: §2.4.
  • R. Lorenz, I. R. Violante, R. P. Monti, G. Montana, A. Hampshire, and R. Leech (2018) Dissociating frontoparietal brain networks with neuroadaptive Bayesian optimization. Nat. Commun.. External Links: Document, ISSN 20411723 Cited by: §2.4.
  • J. Mockus (1994) Application of Bayesian approach to numerical methods of global and stochastic optimization. J. Glob. Optim.. External Links: Document, ISSN 09255001 Cited by: §2.4.
  • O. Pascalis, X. De Martin de Viviés, G. Anzures, P. C. Quinn, A. M. Slater, J. W. Tanaka, and K. Lee (2011) Development of face processing. External Links: Document, ISSN 19395078 Cited by: §1.
  • A. Pumarola, A. Agudo, A. M. Martinez, A. Sanfeliu, and F. Moreno-Noguer (2018) GANimation: Anatomically-aware facial animation from a single image. In Lect. Notes Comput. Sci. (including Subser. Lect. Notes Artif. Intell. Lect. Notes Bioinformatics), External Links: Document, 1807.09251, ISBN 9783030012489, ISSN 16113349 Cited by: §1, §2.3.
  • A. Radford, L. Metz, and S. Chintala (2016) DCGAN. 4th Int. Conf. Learn. Represent. ICLR 2016 - Conf. Track Proc.. External Links: 1511.06434 Cited by: §2.3.
  • C. E. Rasmussen (2004)

    Gaussian Processes in machine learning

    .
    Lect. Notes Comput. Sci. (including Subser. Lect. Notes Artif. Intell. Lect. Notes Bioinformatics). External Links: Document, ISSN 03029743 Cited by: §2.5.
  • K. Simonyan and A. Zisserman (2015) Very deep convolutional networks for large-scale image recognition. In 3rd Int. Conf. Learn. Represent. ICLR 2015 - Conf. Track Proc., Cited by: §2.2.
  • D. Y. Tsao and M. S. Livingstone (2008) Mechanisms of Face Perception. Annu. Rev. Neurosci.. External Links: Document, ISSN 0147-006X Cited by: §1.

Appendix A Latent space encoding and new direction examples

As a demonstration of the reliability of the encoder, we present the results of an encoding from the face space to the latent space in figure 3. The image on the left is a photograph of the author. The image on the right is generated from a multidimensional datapoint in the latent space that was chosen by optimizing the latent values through gradient descent on a perceptual loss (see Section 2.2

) This results were obtained with 500 epochs, which took 7 minutes to run on Google Colab. By learning the latent representation of a figure, we can manipulate it by applying linear transformations in the latent space to transform semantic attributes of the original image. The constructed space is not limited to the semantic directions described in the paper as Figure

4 demonstrates.

1:procedure Burn-in
2:     while  do
3:         randomly sample from .
4:         .
5:         Run .
6:         Observe .
7:         Increment .
8:procedure B.O.
9:     while  do
10:

         Update posterior probability distribution on

using sampled points.
11:         Let be the maximizer of the acquisition function.
12:         .
13:         Run .
14:         Observe .
15:         Increment .
16:     return sampled point with largest posterior mean
Algorithm 1 Framework pseudo-code

Figure 3: Latent Space encoding example.

Figure 4: Examples of axis in the latent space resulting in different semantic transformations of the generated image.

Appendix B Further Analysis of the data

Test-retest analysis indicated that intra-individual participant patterns in different runs correlated more than with the patterns of other individuals. This result seems to sustain the argument that the framework might be able to capture personalized responses on self-perception. To analyse this further, k-means clustering was performed for two clusters on the full space predictions of the participant’s response. The silhouette score was of 0.17. The results are displayed in Figure

5. An analysis of the correlation of the test runs with the re-test runs and a run not using the sampling algorithm (i.e. using a random search algorithm) shows that the correlation between the two former (mean sd.: 0.74 0.14) is higher between the test and the random-search patterns (mean sd.: 0.41 0.13). The results are presented in Figures 6 and 7.

Figure 5: Cluster Analysis using K-means clustering on the full space of the participants’ evaluations. (a) Centroids for the two clusters identified. The first centroid captures a higher dispersion towards positive values of age (younger images) and the second centroid captures a higher dispersion towards negative values of emotion (angrier images). (b) Maximum of each participant labelled according to its cluster.

Figure 6: (a) Similarity matrix between the target space of different runs of the same participant (matrix diagonal) and between different participants. The mean Pearson correlation between trials of the same participant is 0.76, where the correlation between trials of different participants is 0.64. (b) Correlation matrix between the predicted target space of the first run and the second run (first column) and between the first run and a run using random search across the space instead of Bayesian optimization (second column).

Figure 7: Individual response of all participants that performed the algorithm twice (6 participants) and that performed the evaluation with random sampling across the space (6) modelled using Gaussian processes with a fixed kernel.
