# Bayesian Manifold Learning: The Locally Linear Latent Variable Model (LL-LVM)

We introduce the Locally Linear Latent Variable Model (LL-LVM), a probabilistic model for non-linear manifold discovery that describes a joint distribution over observations, their manifold coordinates and locally linear maps conditioned on a set of neighbourhood relationships. The model allows straightforward variational optimisation of the posterior distribution on coordinates and locally linear maps from the latent space to the observation space given the data. Thus, the LL-LVM encapsulates the local-geometry preserving intuitions that underlie non-probabilistic methods such as locally linear embedding (LLE). Its probabilistic semantics make it easy to evaluate the quality of hypothesised neighbourhood relationships, select the intrinsic dimensionality of the manifold, construct out-of-sample extensions and to combine the manifold model with additional probabilistic models that capture the structure of coordinates within the manifold.

## Authors

• 19 publications
• 25 publications
• 1 publication
• 20 publications
• 19 publications
• 10 publications
• ### G-LBM:Generative Low-dimensional Background Model Estimation from Video Sequences

In this paper, we propose a computationally tractable and theoretically ...
03/16/2020 ∙ by Behnaz Rezaei, et al. ∙ 8

• ### Locally Linear Image Structural Embedding for Image Structure Manifold Learning

Most of existing manifold learning methods rely on Mean Squared Error (M...
08/25/2019 ∙ by Benyamin Ghojogh, et al. ∙ 0

• ### A regression approach for explaining manifold embedding coordinates

Manifold embedding algorithms map high dimensional data, down to coordin...
11/29/2018 ∙ by Marina Meila, et al. ∙ 0

• ### LOCA: LOcal Conformal Autoencoder for standardized data coordinates

We propose a deep-learning based method for obtaining standardized data ...
04/15/2020 ∙ by Erez Peterfreund, et al. ∙ 10

• ### Connecting Dots -- from Local Covariance to Empirical Intrinsic Geometry and Locally Linear Embedding

Local covariance structure under the manifold setup has been widely appl...
04/09/2018 ∙ by John Malik, et al. ∙ 0

• ### 3D Morphology Prediction of Progressive Spinal Deformities from Probabilistic Modeling of Discriminant Manifolds

We introduce a novel approach for predicting the progression of adolesce...
01/17/2017 ∙ by Samuel Kadoury, et al. ∙ 0

• ### Manifold Alignment with Feature Correspondence

We propose a novel framework for combining datasets via alignment of the...
09/30/2018 ∙ by Jay S. Stanley III, et al. ∙ 0

##### This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

## 1 Introduction

Many high-dimensional datasets comprise points derived from a smooth, lower-dimensional manifold embedded within the high-dimensional space of measurements and possibly corrupted by noise. For instance, biological or medical imaging data might reflect the interplay of a small number of latent processes that all affect measurements non-linearly. Linear multivariate analyses such as principal component analysis (PCA) or multidimensional scaling (MDS) have long been used to estimate such underlying processes, but cannot always reveal low-dimensional structure when the mapping is non-linear (or, equivalently, the manifold is curved). Thus, there has been substantial recent interest in algorithms to identify non-linear manifolds in data.

Many more-or-less heuristic methods for non-linear manifold discovery are based on the idea of preserving the geometric properties of local neighbourhoods within the data, while embedding, unfolding or otherwise transforming the data to occupy fewer dimensions. Thus, algorithms such as locally-linear embedding (LLE) and Laplacian eigenmap attempt to preserve local linear relationships or to minimise the distortion of local derivatives

[1, 2]

. Others, like Isometric feature mapping (Isomap) or maximum variance unfolding (MVU) preserve local distances, estimating global manifold properties by continuation across neighbourhoods before embedding to lower dimensions by classical methods such as PCA or MDS

[3]. While generally hewing to this same intuitive path, the range of available algorithms has grown very substantially in recent years [4, 5].

However, these approaches do not define distributions over the data or over the manifold properties. Thus, they provide no measures of uncertainty on manifold structure or on the low-dimensional locations of the embedded points; they cannot be combined with a structured probabilistic model within the manifold to define a full likelihood relative to the high-dimensional observations; and they provide only heuristic methods to evaluate the manifold dimensionality. As others have pointed out, they also make it difficult to extend the manifold definition to out-of-sample points in a principled way [6].

An established alternative is to construct an explicit probabilistic model of the functional relationship between low-dimensional manifold coordinates and each measured dimension of the data, assuming that the functions instantiate draws from Gaussian-process priors. The original Gaussian process latent variable model (GP-LVM) required optimisation of the low-dimensional coordinates, and thus still did not provide uncertainties on these locations or allow evaluation of the likelihood of a model over them [7]; however a recent extension exploits an auxiliary variable approach to optimise a more general variational bound, thus retaining approximate probabilistic semantics within the latent space [8]. The stochastic process model for the mapping functions also makes it straightforward to estimate the function at previously unobserved points, thus generalising out-of-sample with ease. However, the GP-LVM gives up on the intuitive preservation of local neighbourhood properties that underpin the non-probabilistic methods reviewed above. Instead, the expected smoothness or other structure of the manifold must be defined by the Gaussian process covariance function, chosen a priori.

Here, we introduce a new probabilistic model over high-dimensional observations, low-dimensional embedded locations and locally-linear mappings between high and low-dimensional linear maps within each neighbourhood, such that each group of variables is Gaussian distributed given the other two. This

locally linear latent variable model (LL-LVM) thus respects the same intuitions as the common non-probabilistic manifold discovery algorithms, while still defining a full-fledged probabilistic model. Indeed, variational inference in this model follows more directly and with fewer separate bounding operations than the sparse auxiliary-variable approach used with the GP-LVM. Thus, uncertainty in the low-dimensional coordinates and in the manifold shape (defined by the local maps) is captured naturally. A lower bound on the marginal likelihood of the model makes it possible to select between different latent dimensionalities and, perhaps most crucially, between different definitions of neighbourhood, thus addressing an important unsolved issue with neighbourhood-defined algorithms. Unlike existing probabilistic frameworks with locally linear models such as mixtures of factor analysers (MFA)-based and local tangent space analysis (LTSA)-based methods [9, 10, 11], LL-LVM does not require an additional step to obtain the globally consistent alignment of low-dimensional local coordinates.111This is also true of one previous MFA-based method [12] which finds model parameters and global coordinates by variational methods similar to our own.

This paper is organised as follows. In section 2, we introduce our generative model, LL-LVM, for which we derive the variational inference method in section 3. We briefly describe out-of-sample extension for LL-LVM and mathematically describe the dissimilarity between LL-LVM and GP-LVM at the end of section 3. In section 4, we demonstrate the approach on several real world problems.

Notation:

In the following, a diagonal matrix with entries taken from the vector

is written . The vector of ones is and the identity matrix is . The Euclidean norm of a vector is , the Frobenius norm of a matrix is . The Kronecker delta is denoted by ( if , and otherwise). The Kronecker product of matrices and is . For a random vector

, we denote the normalisation constant in its probability density function by

. The expectation of a random vector with respect to a density is .

## 2 The model: LL-LVM

Suppose we have data points , and a graph on nodes with edge set

. We assume that there is a low-dimensional (latent) representation of the high-dimensional data, with coordinates

, . It will be helpful to concatenate the vectors to form and .

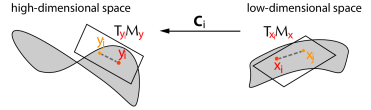

Our key assumption is that the mapping between high-dimensional data and low-dimensional coordinates is locally linear (Fig. 1). The tangent spaces are approximated by and , the pairwise differences between the th point and neighbouring points . The matrix at the th point linearly maps those tangent spaces as
