1 Introduction
The technique of the noise reducing, which is called image restoration in the field of digital image processing, is an important in the meaning of the preprocessing. In order to reduce the noise, we should focus several clues for image property. The classical methods, such like the Gaussian or median filter methods, are focused on the similarity of the neighbor pixels. In these decade, a lot of image restoration procedure were also proposed. Introducing imageblock similarity instead of pixelpair similarity, Dabov et al. proposed a block matching method called BM3D that reduces the noise with less degrading edgelike features[1].
From the theoretical viewpoint of statistical inference, these clues could be considered as knowledge, which is called prior, for the natural images. Thus, it is natural to introduce Bayesian inference into the image restoration. In the framework of Bayesian image restoration, additive white Gaussian noise (AWGN) was mainly discussed as the image corrupting process
[2][3][4] [5][6], since the analytical solution could be derived explicitly for the AWGN. However, in the real world, the noise corruption process often could not be described as such Gaussian observation. For example, we could treat the low contrast object observation, such like night vision, as a Poisson noised observation, since the observation of photons might be expressed as a rare event. The Poisson noised observation also appears in some kinds of medical imaging like positron emission tomography (PET).The Poisson image restoration methods were also proposed in these decades [7][8][9][10][11]. Figueiredo & BioucasDias designed the objective function as the the likelihood function with several penalized term, and optimized the objective function with the alternating directional method of multipliers[9]. Ono & Yamada proposed optimization of the similar objective function by use of hybrid steepest decent method[11]. The other methods also designed the similar objective function for their applications.
These objective functions are defined by the likelihood function of Poisson observation with some penalized term. In the Bayesian manner, regarding such penalty term as a prior, we can consider the penalized method as a maximization of a posteriori (MAP) method. MAP method is a effective strategy for the image restoration, however, the strength balance between the prior and the likelihood is hard to determine in its framework. On the contrary, Bayes inference could determine the strength of the penalized term naturally as the hyperparameter inference[2][4][5][6].
In this study, we treat a Poisson corrupted image restoration problem, and solve it in the manner of the Bayesian approach. The Bayesian approach also requires both likelihood and prior probability. We introduce the observation process as a likelihood, and also introduce Gaussian Markov random field (GMRF) as a prior after the fashion of the several works
[2][4].Assuming the Poisson corruption observation makes difficult to derive the posterior probability in analytic form, since the Poisson variable take discrete and nonnegative value. Thus, we introduce a latent variational approximation in the inference derivation
[12][13][14][15][16] [17][18]. In this study, we transform the Poisson corruption process as the corresponding Bernoulli process, and introduce local latent variables to approximate the observation process as the Gaussian function for the likelihood in the Bayesian approach[15]. Once, we evaluate the observation likelihood as a Gaussian function, we can derive the posterior probability easily[17][18]. In this formulation, we should introduce several latent parameters to describe the observation. In order to infer them, we introduce a expectation maximization (EM) algorithm [19][20], which requires an iterative inference. Our previous work shows the preliminary results[17][18] of this paper. In this paper, we refine the formulation of Bayesian inference of [17], and evaluate the accelerated results of [18] using several images with comapring of other methods.In the following, we formulate the Bayesian image framework in the section 2 at first. After that, we confirm the abilities of our approach with computer simulation in the section 3. At last, we will conclude and summarize our approach in the section 4.
The source code for this paper can be available from the following site: https://github.com/shouno/PoissonNoiseReduction
2 Bayesian Formulation
Our method is based on the Bayesian approach, so that, we explain both image observation process and prior probability in the following. Before the formulation, we define several notations. We consider the 2dimensional image whose size are and , so that the total number of pixels is described as .
2.1 Image Observation process
The digital image is usually defined by the 2dimensional pixel array. In the observation, we assume the observation for each pixel is independent, so that we consider single pixel observation at first. We consider each pixel has Poisson parameter where means the position of the pixel. Denoting the observed pixel value as , which means the number of of photons for the pixel position
, we regard the observation process as the following Poisson distribution:
(1)
Considering the Poisson process, Watanabe et al. treat the corruption process as a Bernoulli process, which counts the number of onoff event in the proper time bins[15]. Thus, we can translate eq.(1
) as the binomial distribution form:
(2)
where , and means the upper limit of the counting. In this formulation, we can confirm the eq.(2) converges to the Poisson distribution eq.(1) under the condition .
The parameter in the eq.(2
) is a nonnegative parameter, which is just hard to treat for us, so that we introduce the logit transform into the parameter
, that is:(3)
and obtain the conditional probability for the condition as
(4)
Hence, the image corruption process can be interpreted as observing the under the condition of .
2.1.1 Evaluation with Local latent variables
The term “” in the eq.(4) looks hard to tract for analysis. Thus, in this study, we introduce a latent variable evaluation [12][15]. Palmer et al. proposed to evaluate the lower bound of superGaussians with multiplied form of the Gaussian distribution and concave parameter function[12], that is, any superGaussian, which is denoted by where is a concave function, could be described as
(5)
(6)
(7)
The function pair and is a convex conjugate relationship which is derived from Legendre’s transform
(8)
(9)
Eq.(6) consists of the Gaussian part for and the nonGaussian part described as the function where is a latentparameter. Introducing the latent parameter form, we obtain the upper bound as:
(10)
where is the latent parameter for the th pixel. Thus, we introduce the latent variational method into the eq.(4), we obtain the lower bound of the likelihood function:
(11)
Assuming the independence for each pixel observation, we can easily evaluate the lower bound of whole image corruption process:
(12)
where
means observation vector
(13)
and means the collection of latent parameter , and matrix means a diagonal matrix whose components are . Thus, we regard the lower bound of the likelihood as the observation process which is denoted as a Gaussian form of .
2.2 Prior probability
Introducing the Bayesian inference requires several prior probability for the image in order to compensate for the loss of information through the observation. In this study, we assume a Gaussian Markov random field (GMRF)[2] for the prior. The GMRF prior is one of the popular one in the field of image restoration, and it is not the stateofart prior in the meaning of the reducing noise performance. However, the GMRF is easy to treat in the analysis, so that we apply it in this study. Usually, we define the GMRF as the sum of neighborhood differential square of parameters where and are neighborhood parameters. The energy function and the prior probability for the GMRF can be described as following:
(14)
(15)
(16)
(17)
where the sumup of means the neighborhood pixel indices, and the matrix and mean the adjacent and identical matrices respectively. In the eq.(14), the first term means the GMRF part and the second means the Gaussian prior for the zerocenter value for stable calculation.
2.3 Image restoration algorithm with Posterior
From the observation (12) and the prior (16), we can derive approximated posterior as
(18)
and the observation is evaluated with the latentvalued form, so that we can derive the approximated posterior as Gaussian distribution:
(19)
(20)
(21)
Considering the inference parameter of as the posterior mean of the , that is , we can obtain the inference parameter explicitly:
(22)
2.4 Inference of Hyperparameters and Latent variables
In order to obtain appropriate restoration with (22), the hyperparameters , and the latent variables should be adjusted properly. Hereafter we introduce the notation for convenience. In order to solve, we applied a expectation maximization (EM) algorithm for inferring these parameters . EM algorithm consists of twostep alternate iterations for the system that has hidden variables [19][20]. Assuming the notation as the each time step, the EM algorithm could be described as the following twosteps:

EStep: Calculate Qfunction that means the average of the likelihood function for the given parameter :
(23)
MStep: Maximize the Qfunction for , and the arguments are set to the next hyperparameters :
(24)
Neglecting the constant term for the parameter , we can derive the Qfunction in the Estep as:
(25)
(26)
(27)
In order to maximize the Qfunction in the Mstep, we solve the saddle point equations , , and for any . Thus, we obtain
(28)
(29)
(30)
where
are eigenvalues of the adjacent matrix
and is the th diagonal component of the matrix .In order to obtain the exact hyper parameters and , we have to solve the eqs.(28) and (29) simultaneously, however, it makes increasing computational cost. Thus, hereafter, we assume the hyperparameter is fixed and given as . Then, we obtain the inference of the hyperparameter as
(31)
since , which are the eigenvalues of the adjacent matrix , only has a zero component and other components are positive values.
2.4.1 Approximating Posterior Mean with Loopy Belief Propagation
In the Algorithm of the previous section[18], each Estep requires the inverse of accuracy matrix to calculate the parameters. In general, the computational cost for inverse of a matrix that size is requires order. In this study, we assume the restoring image size is , so that, in the meaning of calculation scalability, the reduction of the cost is important for the application
, those of variances
, and the correlations :(32)
(33)
(34)
(35)
(36)
In order to reduce the calculation cost, we introduce the loopy belief propagation (LBP) into the Estep in the algorithm. In the manner of the Gaussian graphical model, the efficacy of the LBP were confirmed[4][21][18]. Our approximated posterior, that is eq.(18), is expressed as a kind of Gaussian form, so that we can apply the LBP for the restoration. For applying LBP, we modify the evaluation of restoration value described as (22) to the marginal posterior mean (MPM):
(37)
Obtaining the marginal posterior mean, we apply a local message passing algorithm defined by LBP. Hereafter, for convenience, we introduce the following notations:
(38)
(39)
Then we obtain the observation likelihood (11) for th node as
(40)
The LBP algorithm is a kind of local message passing. Here, we denote the message from the th node to the th node as . In each LBP iteration, this message passing is carried out for each connection. In the GMRF case, the message can be derived as
(41)
where means the collection of the connected units to the th unit, and means the collection except th unit. From the form of the integral in the eq.(41), we can regard the message from the th node to the th node as the following Gaussian
(42)
Substituting the message form eq.(42) into the eq.(41), we can derive the message update rule as
(43)
(44)
The LBP requires iterations for convergence of the message values. After the convergence, the marginal posterior required for the EM algorithm can be evaluated as
(45)
(46)
Thus, the Qfunction for the proposing EM algorithm is
(47)
where means the average over the marginal posterior (MPM) denoted as eqs.(45) and (46). Deriving the eq.(47), we also assume the hyperparameter is enough small .
Let put them all together, the proposing LBP approximated solution is shown as the algorithm 1.
3 Computer Simulation Results
We evaluate the restoration performance with computer simulation. In the following, we compare our latent variational restoration with LBP solution (algorithm 1) with the conventional median filter restoration and the standard Gaussian LBP (GLBP) solution[4].
For the evaluation, we extract several image patches from the standard images, called “cameraman”, “lena”, “barbara”, “fingerprint” and “peppers”.
We resample each image into the halfsize with weak Gaussian blurring in order to increase smoothness since we assume observing object would be smooth. We regard the resampled images as the observing images, and extract several image patches with size of . The Poisson corruption process is influenced with the contrast of the observing images, so that, we control the maximum and minimum of the image in the simulation. Here, we regard the patch image as , where means the position of the pixel. In the simulation, in order to control the contrast of the image, we introduce the pixel value range which mean the minimum and the maximum values of the Poisson parameters image. Assuming the minimum and the maximum values of the patch image as , and respectively, we define the source image of the th pixel
as a linear transform :
(48)
Thus, the difference between and becomes large, the source image becomes high contrast which means low noise case. Hereafter, we fix the , and only control the parameter as the strength of the accuracy of the observation.
3.1 Evaluation of LBP restoration abilities
In the comparison of restoration ability, we apply the peak signal to noise ratio (PSNR). The PSNR is defined as a kind of similarity between the reference image and the test image as:
(49)
(50)
where means the image size .
f
3.2 Comparison with Other Image Restoration Methods
In this section, we compare the restored image quality with the algorithm1 and other image restoration methods, which are conventional median filter, BM3D method[1], and the Gaussian LBP (GLBP) solution[4]. In these restoration methods, we assume restoration of the parameter from the observed values . Thus, we apply the median filter, BM3D and GLBP methods to the observation in order to obtain the restoration result . Especially, in the Gaussian LBP solution, the observation of the image assumes the pixel values are the result of the observation of the corresponding parameters through the Gaussian channel, that is,
(51)
(52)
instead of the eq.(1). In the GLBP solution, we also adopt the GMRF as the prior
(53)
instead of eq.(16), where
(54)
(55)
The hyperparameters , , and are inference parameters which are solved by the EM algorithm using LBP[4].
Corrupted  Median  BM3D  GLBP  Ours

cameraman  20.24  16.76  18.75  20.72  21.92
barbara  19.18  22.10  21.91  22.48  23.89
fingerprint  19.47  13.83  18.75  19.86  21.85
peppers  18.44  21.38  21.63  21.03  22.81

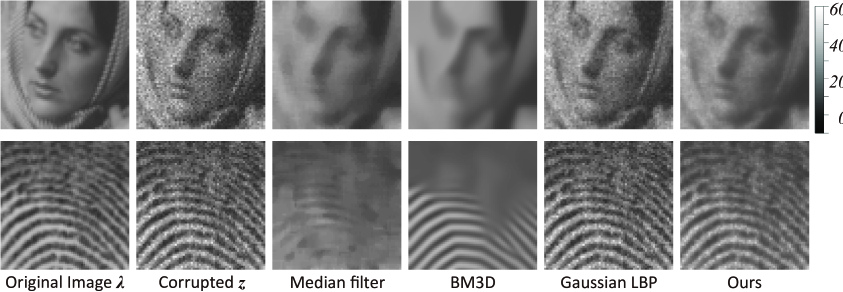

Fig.2 shows the comparison of result examples. In the figure, we show several cropped images with from “cameraman”, “barbara”, “fingerprint”, and “peppers”. In the evaluation, we fix the contrast control parameter that controls the noise strength in the Poisson corruption. The first column shows the original images, and the second one shows the Poisson corrupted images. The third shows the conventional median filter restoration results with the size of filter. The fourth shows the restoration results with BM3D method[1]
. The BM3D method is one of the stateofart method for the AWGN, however, in this case, the variance of noise is not uniform in the image so that the estimation of thresholding parameter looks insufficient. The fifth shows the restoration results with GLBP method, and the sixth shows the one with our LBP method. We can see our result images are more smooth than those of the GLBP results. Table
1 shows the PSNR evaluations for each original image. Our latent variational method shows better restoration results rather than those of the GLBP solutions. We also restoration results with conventional median filter with in the table 1. The median filter restoration make the image too much smooth, so that the PSNR evaluation tends to be the small value.In order to compare the quantitative restoration evaluations, we introduce the following improvement of PSNR (ISNR) index for two type of restoration results and ,
(56)
where means the groundtruth source image. This index shows the improvement of the against the in the meaning of PSNR. The positive index shows the improvement of the method from .
We evaluate ISNR between the noised image and our results that is , and also evaluate the one with other restoration results, that is median filter result , BM3D restoration result , and GLBP result , with our result, that is respectively. In the image preparation, we crop patch images with the size of from random locations of each original image shown in fig.1. Thus, the total number for the evaluation images is image patches. In the evaluation, we apply several contrast parameter cases, that is .
Fig.3 shows the improvement of our results for the corrupted images . The contrast parameter , which denotes the horizontal value of the figure, controls the noise strength of the Poisson noise. In the figure, the boxplot shows the median, which are described as the thick line in the box, with quantiles for each contrast levels. we obtain [dB] improvement from the corrupted image in the meaning of the median. From the range of the control parameter , our method shows good performance, however, the result shows large quantile variance in the . The reason of the large variance comes from the input image property. The low improvement results only come from the “fingerprint” input image, so that, high spatial frequency with low contrast image might prevent restoration.
We also show the comparison results with applying conventional median filter. We apply median filter for the noised image , and evaluate the PSNR with the original Poisson parameters . Fig.4 shows the results. The horizontal axis shows the same range of the fig.3, and the vertical one shows the ISNR with the range of [dB]. In many cases, applying the median filter, the restored image becomes too much smooth, so that, the PSNR evaluation becomes worse.
Fig.5 shows the improvement of our results for the BM3D restoration[1]. The horizontal axis is identical to the fig.3 and 4, and the vertical shows the ISNR with range of
[dB]. In the figure, the white circles show the outliers which differ twice the standard deviation or more from each average. In the
case, the BM3D restoration looks better than that of ours. However, in other cases, our method shows better performance.Fig.6 shows the improvement of our results for the GLBP restoration. This result also shows our method shows better results than that of those of the GLBP in the . In the range of , we obtain [dB] improvement from the GLBP solution in the meaning of the median. On the contrary, in the case, almost all the restoration results of the GLBP are better than those of ours. We consider the results comes from the accuracy of the hyperparameter inference. In the GLBP method, the noise variance, which is the inverse of the accuracy parameter in eq.(51), is a single parameter. In the low case, the variances of each observation might be described as a single value. However, the differences of variances of the observation values would be large when the contrast parameter becomes large. As the result, the Gaussian model that is eq.(51) could not describe the observation value within a single hyperparameter . As the result, in many cases of the large , the inference value of the becomes large, which make low efficacy of the prior.
4 Conclusion
In this study, we propose an image restoration method for Poisson corrupted image. Introducing the latent variable method, we derive the corruption process, which denote the likelihood function, as a Gaussian form. Using Bayesian image restoration framework, we derive the posterior probability for the restoration with introducing GMRF as a prior. The posterior includes several hyperparameters , , and latent variables . In order to solve the restoration problem with determining these parameters, we construct an algorithm in the manner of the EM method.
Thus, our algorithm could determine all the parameters from the observed data . The original EM algorithm requires computational cost. Hence, in order to accelerate the algorithm, we approximate the posterior mean as the marginal posterior mean, and derive LBP method for hyperparameter inference that is described as the algorithm 1. We introduce the twobody marginalized posterior described as eq.(46) in order to infer the correlation between connected two units denoted as in the eq.(34). Without the twobody interactions, the inference ignores the correlations, that is, for any indices. It is identical to the naive mean field approximation. The naive mean field approximation, which only applies the singlebody marginal posterior, occurs the underestimation of the hyperparameter of . The correlation update rule is derived as the eq.(34), which only requires the local message, so that the cost for the inference does not increase so much. Solving exact correlation between two units requires considering not only the connected bodies effect but also all the other bodies effect. This is the reason for the requiring the inverse of the accuracy matrix in the EM algorithm. We only consider the twobodies effect, however, the hyperparameter inference looks work well, and the restoration performance becomes same or more than the that of the exact solution in the previous work. Hence, we propose the LBP method is a good approximation for our Poisson corrupted image restoration framework.
Then, we compare our algorithm with other methods, that is, median filter, BM3D and, GLBP restorations[1][4]. The BM3D and GLBP method regards the obtained variables are observed from the Gaussian noise channel. In these solutions, the very low contrast image () shows slightly better restoration result than that of ours, however, the larger contrast becomes, the lower the performance becomes. From the eq.(40), our method could express the observation accuracy for each pixel value, however, the GLBP solution has only single hyperparameter in eq.(51). The BM3D also assumes the variance of the pixels in a image might be denoted as a single parameter in its algorithm. The variance and the mean of the Poisson observation, however, depends on the single parameter , so that, the assumption of GLBP and BM3D observation might not satisfy. As the result, in the GLBP case, the tends to be overestimation. In the numerical evaluation, our method shows better performance rather than that of the GLBP except . Thus, our results suggests that considering the correct Poisson observation model is important as well as the choosing of the prior.
Our latent variable method evaluate the Poisson likelihood function as the Gaussian form. Thus, in future works, we can easily extend our method into other image restoration framework. For example, when we could express the the parameter values of as the some linear transformation:
(57)
where and are the transformation matrix and the expression vector respectively. Then, we could substitute it into the eq.(11) and consider the prior for the transformed vector such like sparse prior, such like KSVD[22].
