1 Introduction
Recent years, DNNs have achieved remarkable success in a wide spectrum of domains such as computer vision
(Krizhevsky et al., 2012) and language modeling (Collobert & Weston, 2008). The success of DNNs largely relies on the representation capability benefit from the deep structure (Delalleau & Bengio, 2011). However, training a deep network is difficult to converge and batch normalization (BN) has been proposed to solve it (Ioffe & Szegedy, 2015). BN leverages the statistics (mean & variance) of minibatches to standardized the activations.(equation
1). It allows the network to go deeper without significant gradient explosion or vanishing (Santurkar et al., 2018; Ioffe & Szegedy, 2015). Moreover, previous work has demonstrated that BN enables the use of higher learning rate and less awareness on the initialization (Ioffe & Szegedy, 2015), as well as produces mutual information across samples (Morcos et al., 2018) or introduces estimation noises (Bjorck et al., 2018) for better generalization. Despite of BN’s effectiveness, it is observed that BN introduces considerable training overhead due to the costly reduction operations. The use of BN can lower the overall training speed (training samples per second) by 30%, and the deceleration occurs in both the forward and backward passes (Wu et al., 2018).To alleviate this problem, several methods were reported. Range Batch Normalization (RBN) (Banner et al., 2018) accelerated the forward pass by estimating the variance according to the data range of activations within each batch. A similar approach, norm BN (L1BN) (Wu et al., 2018), simplified both the forward and backward passes by replacing the norm variance with its norm version and rederived the gradients for back propagation (BP) training. Different from the above two methods, Selfnormalization (Klambauer et al., 2017)
provided another solution which totally eliminates the need of BN operation with an elaborate activation function called “scaled exponential linear unit” (SELU). SELU can automatically force the activation towards zero mean and unit variance for better convergence. Nevertheless, all of these methods are not sufficiently effective. The strengths of L1BN & RBN are very limited since GPU has sufficient resources to optimize the execution speed of complex arithmetic operations such as root in the vanilla calculation of
norm variance. Since the derivation of SELU is based on the plain convolutional network, currently it cannot handle other modern structures with skip paths like ResNet and DenseNet.In this paper, we provide an alternating solution through statistical sampling. Specifically, We demonstrate that randomly sampling a small fraction of activations for the estimation of means and variances before normalization would consistently reduce the computational cost and effectively maintain the convergence rate. Moreover, we demonstrate that it’s beneficial to select the less correlated data within each batch. We propose two optimized sampling strategies, “Batch Sampling” (BS) & “Feature Sampling” (FS). BS randomly selects several samples from each batch while FS randomly selects a small patch from each feature map. The estimated statistics (mean & variance) from the selected small fraction of data can be used to normalize the overall activations well. Inspired by Salimans et al. (2016)
, we further propose an extremely simple variant of BN to balance the conflict of randomness and regularity, termed as Virtual Dataset Normalization (VDN), that uses few synthetical random samples for statistical estimation. All the methods are evaluated on various datasets and networks with different scale (CIFAR10/CIFAR100/ImageNet, ResNet/DenseNet). Our experiments demonstrate that up to 20% speedup for overall training on GPU can be achieved with little accuracy loss. Note that the support of specialized libraries is not needed in our work, which is not like the network pruning
(Zhu et al., 2018) or quantization (Hubara et al., 2017) requiring extra library for sparse or lowprecision computation, respectively. Most previous acceleration work targeted inference which remained the training inefficiency (Wen et al., 2016; Molchanov et al., 2016; Luo et al., 2017; Zhang et al., 2018b; Hu et al., 2018), and the rest for training acceleration were orthogonal to our work (Lin et al., 2017; Goyal et al., 2017; You et al., 2017). Furthermore, our methods can be extended to the “microbatch normalization” (microBN) problem and yield advanced training performance with tiny batch size.In summary, the major contributions of this work are summarized as follows.

We introduce a novel way to alleviate BN’s computational cost while maintain the accuracy from the perspective of statistical sampling. Two random sampling strategies are proposed, and an extremely simple variant of BN (i.e. VDN with only few synthetical random samples) is further designed. The VDN can be independently used or combined with any sampling strategy for joint optimization.

Various benchmarks are evaluated, on which up to 20% practical acceleration for overall training on GPU with negligible accuracy loss and without specialized library support.

We extend to the microBN scenario and achieve advanced performance.
2 Related Work
BN has been applied in most stateofart models (He et al., 2016; Szegedy et al., 2017) since it was proposed. As aforementioned, BN standardizes the activation distribution to reduce the internal covariate shift. Models with BN have been demonstrated to converge faster and generalize better (Ioffe & Szegedy, 2015; Morcos et al., 2018). Recently, a model called Decorrelated Batch Normalization (DBN) was introduced which not only standardizes but also whitens the activations with ZCA whitening (Huang et al., 2018). Although DBN further improves the normalization performance, it introduces significant extra computational cost.
Simplifying BN has been proposed to reduce BN’s computational complexity. For example, L1BN (Wu et al., 2018) and RBN (Banner et al., 2018) replace the original norm variance with an norm version and the range of activation values, respectively. From another perspective, Selfnormalization uses the customized activation function (SELU) to automatically shift activation’s distribution (Klambauer et al., 2017).
However, as mentioned in Introduction, all of these methods fail to obtain a satisfactory balance between the effective normalization and computational cost, especially on largescale datasets and models. Our work attempts to address this issue.
MicroBN
aims to alleviate the diminishing of BN’s effectiveness when the amount of data in each GPU node is too small to provide a reliable estimation of activation statistics. Previous works can be classified to two categories: (1) SyncBN
(Zhang et al., 2018a) and (2) LocalBN (Ba et al., 2016; Wu & He, 2018; Ioffe, 2017; Wang et al., 2018). The former addresses this problem by synchronizing the estimations from different GPUs at each layer, which induces significant interGPU data dependency and slows down training process. The latter solves this problem by either avoiding the use of batch dimension in the batched activation tensor for statistics or using additional information beyond current layer to calibrate the statistics. Our work can also be extended to tackle with microBN problem and achieve advanced performance.
3 Problem Formation
3.1 Batch Normalization and the Bottleneck Analysis
The activations in one layer for normalization can be described by a dimensional activation feature , where for each feature we have . Note that in convolutional (Conv) layer, is the number of feature maps (FMs) and equals to the number of points in each FM across all the samples in one batch; while in fullyconnected (FC) layer, and
are the neuron number and batch size, respectively. BN uses the statistics (mean
& variance ) of the intrabatch data for each feature to normalize that activation by(1)
where & are trainable parameters introduced to recover the representation capability, is a small constant to avoid numerical error, and & can be calculated by
(2)
The detailed operations of a BN layer in the backward pass can be found in Appendix C.
From Fig. 1(a), we can see that adding BN will significantly slow down the training speed by 32%43% on ImageNet. The reason of why BN is costly is that it contains several ”reduction operations”, i.e. . If the reduction operations are not optimized, it’s computational complexity should be . With the optimized parallel algorithm proposed in Che et al. (2008), the reduction operation is transformed to cascaded adders of depth of as shown in Fig. 1(b). However, the computational cost is still high since we usually have larger than one million. Besides, different data in one batch is often generated in different GPU kernels, and this data dependency naturally degrades the parallel benefits. As shown in Fig. 1(c), the red ””s represent operations that contain summations, which cause the BN inefficiency.
3.2 Proposal of BN Sampling
Motivated by above analysis, decreasing the effective value of at each time for normalization seems a promising way to reduce the BN complexity for achieving acceleration. To this end, we propose BN sampling that samples only a small fraction of data for statistical estimation before normalization at each iteration. In a BN sampling model, Equation (2) can be modified as
(3)
where denotes the sampled data, is the number of data points after sampling, and we usually have . We denote Sampling Ratio as . The computational graph of BN after sampling is illustrated in Fig. 1(d). The key for BN sampling is how to estimate & for each neuron or FM within one batch with much less data.
3.3 Considerations for the Sampling Strategy Design
We consider the BN sampling from both the perspectives of computational cost and model accuracy. In other words, our target is to simplify BN complexity as low as possible while maintain the accuracy as high as possible. We provide more detailed analysis on the computation cost and accuracy maintaining in Appendix C. The major conclusions are summarized here as below.
4 Approaches
In this section, we propose a naive sampling baseline and two random sampling strategies (BS and FS). Furthermore, to balance the conflict of randomness and regularity in BN sampling, we introduce an extremely simple variant of BN (i.e. VDN). Finally, we will describe how we extend our framework to the microBN scenario.
4.1 Sampling Strategies
In order to design an optimal sampling strategy, it’s necessary to jointly consider the aforementioned considerations. In this paper, we propose two sampling strategies: BS and FS. Furthermore, a Naive Sampling (NS) strategy is used for comparison baseline. The sampling strategies are illustrated in Fig. 2(a)(c). Specifically: (1) NS fixedly selects samples to form a reference batch and use its statistics to perform the normalization (Appendix AAlgorithm 1 in Appendix A). (2) BS randomly selects samples to form a reference batch (Appendix AAlgorithm 1). (3) FS randomly selects a small patch from each feature map (FM) across all samples (Appendix AAlgorithm 2).
Data Randomness and Correlation. Here we make two empirical assumptions: within each layer or between layers, (1) data in the same sample are more likely to be correlated; (2) data sharing the same location in FMs are more likely to be correlated. Under these assumptions, BS or FS recovers BN’s effectiveness by randomly selecting sample indexes or patch indexes, respectively, to reduce the data correlation as much as possible. In the statistical sense, they are able to estimate the overall information. Specifically, the variable sample indexes (BS) or patch indexes (FS) across different layers guarantee less correlation in data for normalization. Since FS’s sampled data come from more samples compared with NS and BS, it brings better statistical estimation.
Sampling Pattern and Index. Besides the randomness for statistical estimation, according to the second consideration in Section 3.3
, we expect more regular sampling pattern and more static sampling index for practical acceleration. Therefore, to balance the estimation loss and execution acceleration, we give the following sampling rules: (1) In NS, the sample index for different channels in each layer and different layers are shared; (2) In BS, the selected samples are continuous and the sample index for different channels are shared, while they are independent between different layers; (3) In FS, the patch shape is rectangular and the patch location is shared by different channels and samples within each layer but variable as layer changes. Furthermore, all the random indexes are updated only once for each epoch.
4.2 Virtual Dataset Normalization
In fact, there is an implicit conflict between the last two considerations in Section 3.3. The requirements for more regular sampling pattern and static index would improve the efficiency of memory access and the related computation, however, it will increase the data correlation resulting in degraded normalization quality. To balance this conflict, we propose an extremely simple variant of BN, named VDN that completes the normalization using only one synthetical sample. VDN can be implemented with the following three steps: (1) calculating the statistics of the whole training dataset offline; (2) generating random inputs (virtual samples) at each iteration to concatenate with the original real inputs as the final network inputs; (3) using data from either only virtual samples or the combination of virtual and real samples at each layer for statistical estimation, where the real data can be sampled by any sampling strategies mentioned in Section 4.1. VDN depicted in Fig. 2(d) and the detailed algorithm is given in Appendix AAlgorithm 3. Combining VDN with other sampling strategy can be described as
(4)
where stands for “” or “”, is the virtual data while represents the sampled data. is a controlling variable: (1) when 0 or 1, the statistics come from single method (VDN or any sampling strategy); (2) when , the final statistics are a joint value. An optimal may be obtained through extensive crossvalidation, whereas in this paper, we set for simplicity. VDN shares some similar attributes with previous work named Virtual Batch Normalization (VBN) (Salimans et al., 2016). VBN was proposed to avoid the problem in which an input is highly dependent on some of other inputs within the same minibatch in generative adversarial networks (GANs). In VBN, each sample is normalized based on the statistics collected from a reference batch of samples. The reference batch is as large as the real one so it introduces considerable computation cost, which is the reason why VBN is only used in generator. In our VDN, we extend to general tasks like image recognition and experiments will demonstrate that the randomlygenerated virtual samples are more effective compared to the real ones.
4.3 MicroBN
We further extend our framework to the microBN scenario, which also faces the problem that the amount of data used for statistics is too small. In SyncBN: (1) With FS, each GPU node executes the same patch sampling as normal FS; (2) With BS, we can randomly select the statistics from a fraction of GPUs rather than all nodes; (3) With VDN, the virtual samples can be fed into a single or few GPUs. The first one can just simplify the computational cost within each GPU, while the last two further optimize the interGPU data dependency. In LocalBN, since the available data for each GPU is already tiny, the BN sampling strategy will be invalid. Fortunately, the VDN can still be effective by feeding virtue samples into each node.
5 Experiments
Model  Dataset  Network  Samples/GPU  GPU

A  CIFAR10  ResNet20  128  Titan XP
B  CIFAR10/100  ResNet56  128  Titan XP
C  ImageNet  ResNet18  32  V100
D  ImageNet  ResNet18  128  V100
E  ImageNet  ResNet50  64  V100
F  ImageNet  DenseNet121  64  V100
Experimental Setup. All of our proposed approaches are validated on image classification task using CIFAR10, CIFAR100 and ImageNet datasets from two perspective: (1) Accuracy Evaluation and (2) Acceleration Evaluation. To demonstrate the scalability and generality of our approaches on deep networks, we select ResNet56 on CIFAR10 & CIFAR100 and select ResNet18 and DenseNet121 on ImageNet. The model configuration can be found in Table 1. The means and variances for BN are locally calculated in each GPU without interGPU synchronization as usual. We denote our approaches as the format of “ApproachSampled_size/Original_sizesampling_ratio(%)”. For instance, if we assume batch size is 128, “BS4/1283.1%” denotes only 4 samples are sampled in BS and the sampling ratio equals to . Similarly, “FS1/323.1%” implies a patch is sampled from each FM, and “VDN1/1280.8%” indicates only one virtual sample is added. The traditional BN is denoted as “BN128/128100.0%”. Other experimental configurations can be found in Appendix B.
5.1 Accuracy Evaluation

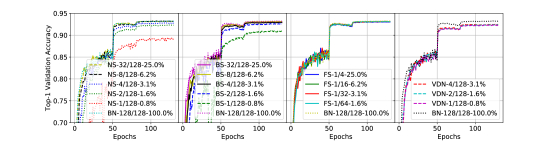

Convergence Analysis. Fig. 3 shows the top1 validation accuracy and confidential interval of ResNet56 on CIFAR10 and CIFAR100. On one side, all of our approaches can well approximate the accuracy of normal BN when the sampling ratio is larger than , which evidence their effectiveness. On the other side, all the proposed approaches perform better than the NS baseline. In particular, FS performs best, which is robust to the sampling ratio with negligible accuracy loss (e.g. at sampling ratio=1.6%, the accuracy change is 0.0871% on CIFAR10 and +0.396% on CIFAR100).

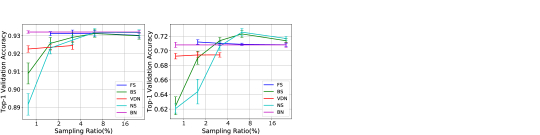

VDN outperforms BS and NS with a large margin in extremely small sampling ratio (e.g. 0.8%), whereas the increase of virtual batch size leads to little improvement on accuracy. BS is constantly better than NS. Furthermore, an interesting observation is that the BN sampling could even achieve better accuracy sometimes, such as NS8/128(72.61.5%), BS8/128(72.31.5%), and FS1/64(71.20.96%) against the baseline (70.81%) on CIFAR100. Fig.4 further shows the training curves of ResNet56 on CIFAR10 under different approaches. It reveals that FS and VDN would not harm the convergence rate, while BS and NS begin to degrade the convergence when the sampling ratio is smaller than 1.6% and 3.1%, respectively.
Model  Approach  Sampling Ratio  Top1 Error(%)  Accuracy Loss(%)

BN  128/128(100%)  29.8  baseline
NS  1/128(0.78%)  N.A.  N.A.
4/128(3.1%)  35.2  5.42
BS  1/128(0.78%)  N.A.  N.A.
4/128(3.1%)  31.7  1.9
VDN  1/128(0.78%)  31.2  1.4
2/128(1.6%)  30.8  1.0
FS  1/64(1.6%)  30.3  0.5
1/32(3.1%)  30.4  0.6
FS+VDN  4/128(3.1%)  30.0  0.2

BN  64/64(100%)  26.1  baseline
FS+VDN  3/64(4.7%)  26.7  0.6
Table 2 shows the top1 validation error on ImageNet under different approaches. With the same sampling ratio, all the proposed approaches significantly outperform NS, and FS surpasses VDN and BS. Under the extreme sampling ratio of 0.78%, NS and BS don’t converge. Due to the limitation of FM size, the smallest sampling ratio of FS is 1.6%, which has only 0.5% accuracy loss. VDN can still achieve relatively low accuracy loss (1.4%) even if the sampling ratio decreases to 0.78%. This implies that VDN is effective for normalization. Moreover, by combining FS1/64 and VDN2/128, we get the lowest accuracy loss (0.2%). This further indicates that VDN can be combined with other sampling strategies to achieve better results. Since training DenseNet121 is timeconsuming, we just report the results with FSVDN mixed approach. Although DenseNet121 is more challenging than ResNet18 due to the much deeper structure, the “FS1/64 + VDN2/64” can still achieve very low accuracy loss (0.6%). In fact, we observed gradient explosion if we just use VDN on very deep network (i.e. DenseNet121), which can be conquered through jointly applying VDN and other proposed sampling strategy (e.g. FS+VDN). Fig. 5 illustrates the training curves for better visualization of the convergence. Except the BS with extremely small sampling ratio (0.8%) and NS, other approaches and configurations can achieve satisfactory convergence. Here, we further evaluate the fully random sampling (FRS) strategy, which samples completely random points in both the batch and FM dimensions. We can see that FRS is less stable compared with our proposed approaches (except the NS baseline) and achieves much lower accuracy. One possible reason is that under low sampling ratio, the sampled data may occasionally fall into the worse points, which lead to inaccurate estimation of the statistics.

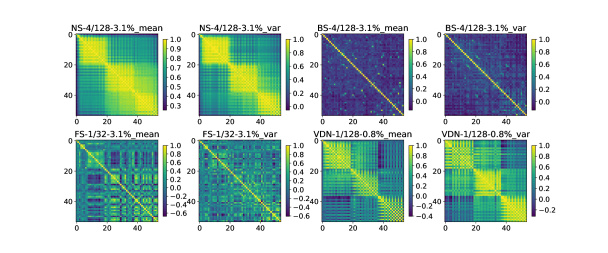

Correlation Analysis. In this section, we bring more empirical analyze on the data correlation that affects the error of statistical estimation. Here we denote the estimation errors as and , where & are the estimated mean & variance from the sampled data while & are the ground truth for the whole batch.
The analysis is conducted on ResNet56 over CIFAR10. The estimation errors of all layers are recorded throughout the first epoch. Fig. 6 and Fig. 7 present the interlayer correlation between estimation errors and the distribution of estimation errors for all layers, respectively. From Fig. 6, we can see that BS presents obviously less interlayer correlation than NS, which is consistent with previous experimental result that BS converges better than NS.
For FS and VDN, although it looks like they have averagely higher correlations, there exists negative corrections which effectively improves the model accuracy. Moreover, FS produces better accuracy than NS and BS since its selected data come from all samples with less correlation (details in Appendix C.2). In Fig. 7, FS also shows the least estimation error which further implies its better convergence. The estimation error of VND seems similar to BS and NS here, but we should note that it uses much lower sampling ratio of 0.8% compared to others (3.1%). Although BS and NS have similar estimation error, BS can converge better since it has less interlayer correlation shown in Fig. 6.
5.2 Acceleration Evaluation
After the accuracy evaluation, we will evaluate the acceleration benefit which is our motivation. Fig. 8 shows the normalization speedup during training and overall training improvement.
In general, BS can gain higher acceleration ratio because it doesn’t incur the finegrained sampling within FMs like in FS and it doesn’t require the additional calculation and concatenation of the virtual samples like in VDN. As for FS, it fails to achieve speedup on CIFAR10 due to the small image size that makes the reduction of operations unable to cover the sampling overhead. The proposed approaches can obtain up to 2x BN acceleration and 20% overall training acceleration. Furthermore, Table 3 gives additional results on DenseNet121 and provides lateral comparisons with other methods for BN simplification. Our approaches perform faster training compared with two recent methods. On very deep networks with more BN layers, such as DenseNet121, the speedup is more significant. It’s worthy noting that, our training speedup is obtained without the support of specialized library that makes it easytouse. Fig. 8 (c) reveals that ”Regular pattern” and ”Static Index” help us achieve practical speedup.
Approach  Model  Sampling Ratio  Iter. per Second  Speedup(%)

BN  128/128  5.21  baseline
L1BN(Wu et al., 2018)  128/128  5.23  +0.38
RBN(Banner et al., 2018)  128/128  5.30  +1.73
FS  1/32(3.1%)  5.77  +10.7
VDN  1/128(0.78%)  5.93  +13.8
BS  4/128(3.1%)  6.07  +16.5

BN  64/64  2.44  baseline
FS+VDN  3/64(4.7%)  2.97  +21.7
5.3 MicroBN Extension
At last we extend our work to the microBN case where the batch size is significantly reduced on each GPU node. The normalization in SyncBN is based on the statistics from multiple nodes through synchronization, which is equivalent to that in Fig. 5 with large batch size for each node. Therefore, to avoid repetition, here we just show the results on LocalBN with VDN optimization. We let the overall batch size of 256 break down to 64 workers (each one has only 4 samples for local normalization). We use “(gradient batch size, statistic batch size)” of (256, 4) to denote the configuration (Wang et al., 2018). A baseline of (256, 32) with BN and one previous work Group Normalization (GN) (Wu & He, 2018) are used for comparison. As shown in Fig. 9, although the reduction of batch size will degrade the model accuracy, our VDN can achieve slightly better result (top1 validation error rate: 30.88%) than GN (top1 validation error rate: 30.96%), an advanced technique for this scenario with tiny batch size. This promises the correct training of very large model so that each single GPU node can only accommodate several samples.
6 Conclusion
Motivated by the importance but high cost of BN layer in modern DNNs, the concept of BN sampling is introduced to simplify the reduction operations. Then two sampling strategies BS and FS are proposed to randomly select a small fraction of data for normalization in the batch dimension and FM dimension, respectively. To balance the requirement for less data correlation and more regular execution graph, an extremely simple variant of BN named VDN is further proposed, which normalizes activations using only one synthetical sample. Experiments on deep networks evidence that the proposed approaches can achieve up to 20% overall training acceleration with negligible accuracy loss. The accuracy differences among these approaches are analyzed through the visualization of estimation error and estimation correlation. Finally, the VDN can be extended to the microBN case with tiny batch size, where it gives comparable accuracy with the stateoftheart result. This paper preliminary proves the effectiveness and efficiency of BN sampling. All the experiments are conducted on standard Tensorflow library, which is easytouse. In the future, developing specialized kernel optimization is promising for more running benefits. For example, the FS pattern at patch grain can be further matched and the padding operation in the backward pass of BN can be removed since our computational graph is fixed during one training epoch.
References
 Ba et al. (2016) Jimmy Lei Ba, Jamie Ryan Kiros, and Geoffrey E Hinton. Layer normalization. arXiv preprint arXiv:1607.06450, 2016.
 Banner et al. (2018) Ron Banner, Itay Hubara, Elad Hoffer, and Daniel Soudry. Scalable methods for 8bit training of neural networks. arXiv preprint arXiv:1805.11046, 2018.
 Bjorck et al. (2018) Johan Bjorck, Carla Gomes, and Bart Selman. Understanding batch normalization. arXiv preprint arXiv:1806.02375, 2018.
 Che et al. (2008) Shuai Che, Jie Li, Jeremy W Sheaffer, Kevin Skadron, and John Lach. Accelerating computeintensive applications with gpus and fpgas. In Application Specific Processors, 2008. SASP 2008. Symposium on, pp. 101–107. IEEE, 2008.

Collobert & Weston (2008)
Ronan Collobert and Jason Weston.
A unified architecture for natural language processing: Deep neural networks with multitask learning.
InProceedings of the 25th international conference on Machine learning
, pp. 160–167. ACM, 2008.  Delalleau & Bengio (2011) Olivier Delalleau and Yoshua Bengio. Shallow vs. deep sumproduct networks. In Advances in Neural Information Processing Systems, pp. 666–674, 2011.
 Girija (2016) Sanjay Surendranath Girija. Tensorflow: Largescale machine learning on heterogeneous distributed systems. 2016.
 Goyal et al. (2017) Priya Goyal, Piotr Dollár, Ross Girshick, Pieter Noordhuis, Lukasz Wesolowski, Aapo Kyrola, Andrew Tulloch, Yangqing Jia, and Kaiming He. Accurate, large minibatch sgd: training imagenet in 1 hour. arXiv preprint arXiv:1706.02677, 2017.

He et al. (2016)
Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun.
Deep residual learning for image recognition.
In
Proceedings of the IEEE conference on computer vision and pattern recognition
, pp. 770–778, 2016.  Hu et al. (2018) Yiming Hu, Siyang Sun, Jianquan Li, Xingang Wang, and Qingyi Gu. A novel channel pruning method for deep neural network compression. arXiv preprint arXiv:1805.11394, 2018.
 Huang et al. (2016) Gao Huang, Zhuang Liu, Van Der Maaten Laurens, and Kilian Q Weinberger. Densely connected convolutional networks. pp. 2261–2269, 2016.
 Huang et al. (2018) Lei Huang, Dawei Yang, Bo Lang, and Jia Deng. Decorrelated Batch Normalization. ArXiv eprints, April 2018.
 Hubara et al. (2017) Itay Hubara, Matthieu Courbariaux, Daniel Soudry, Ran ElYaniv, and Yoshua Bengio. Quantized neural networks: Training neural networks with low precision weights and activations. Journal of Machine Learning Research, 18:187–1, 2017.
 Ioffe (2017) Sergey Ioffe. Batch renormalization: Towards reducing minibatch dependence in batchnormalized models. In Advances in Neural Information Processing Systems, pp. 1945–1953, 2017.
 Ioffe & Szegedy (2015) Sergey Ioffe and Christian Szegedy. Batch normalization: Accelerating deep network training by reducing internal covariate shift. arXiv preprint arXiv:1502.03167, 2015.
 Klambauer et al. (2017) Günter Klambauer, Thomas Unterthiner, Andreas Mayr, and Sepp Hochreiter. Selfnormalizing neural networks. In Advances in Neural Information Processing Systems, pp. 971–980, 2017.

Krizhevsky et al. (2012)
Alex Krizhevsky, Ilya Sutskever, and Geoffrey E Hinton.
Imagenet classification with deep convolutional neural networks.
In Advances in neural information processing systems, pp. 1097–1105, 2012.  Lavin & Gray (2016) Andrew Lavin and Scott Gray. Fast algorithms for convolutional neural networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 4013–4021, 2016.
 Lin et al. (2017) Yujun Lin, Song Han, Huizi Mao, Yu Wang, and William J Dally. Deep gradient compression: Reducing the communication bandwidth for distributed training. arXiv preprint arXiv:1712.01887, 2017.
 Luo et al. (2017) JianHao Luo, Jianxin Wu, and Weiyao Lin. Thinet: A filter level pruning method for deep neural network compression. arXiv preprint arXiv:1707.06342, 2017.
 Molchanov et al. (2016) Pavlo Molchanov, Stephen Tyree, Tero Karras, Timo Aila, and Jan Kautz. Pruning convolutional neural networks for resource efficient inference. arXiv preprint arXiv:1611.06440, 2016.
 Morcos et al. (2018) Ari S Morcos, David GT Barrett, Neil C Rabinowitz, and Matthew Botvinick. On the importance of single directions for generalization. arXiv preprint arXiv:1803.06959, 2018.
 Salimans et al. (2016) Tim Salimans, Ian Goodfellow, Wojciech Zaremba, Vicki Cheung, Alec Radford, and Xi Chen. Improved techniques for training gans. In Advances in Neural Information Processing Systems, pp. 2234–2242, 2016.
 Santurkar et al. (2018) Shibani Santurkar, Dimitris Tsipras, Andrew Ilyas, and Aleksander Madry. How does batch normalization help optimization?(no, it is not about internal covariate shift). arXiv preprint arXiv:1805.11604, 2018.

Szegedy et al. (2017)
Christian Szegedy, Sergey Ioffe, Vincent Vanhoucke, and Alexander A Alemi.
Inceptionv4, inceptionresnet and the impact of residual connections on learning.
In AAAI, volume 4, pp. 12, 2017.  Wang et al. (2018) Guangrun Wang, Jiefeng Peng, Ping Luo, Xinjiang Wang, and Liang Lin. Batch kalman normalization: Towards training deep neural networks with microbatches. arXiv preprint arXiv:1802.03133, 2018.
 Wen et al. (2016) Wei Wen, Chunpeng Wu, Yandan Wang, Yiran Chen, and Hai Li. Learning structured sparsity in deep neural networks. In Advances in Neural Information Processing Systems, pp. 2074–2082, 2016.
 Wu et al. (2018) Shuang Wu, Guoqi Li, Lei Deng, Liu Liu, Yuan Xie, and Luping Shi. L1norm batch normalization for efficient training of deep neural networks. arXiv preprint arXiv:1802.09769, 2018.
 Wu & He (2018) Yuxin Wu and Kaiming He. Group normalization. arXiv preprint arXiv:1803.08494, 2018.
 You et al. (2017) Yang You, Zhao Zhang, C Hsieh, James Demmel, and Kurt Keutzer. Imagenet training in minutes. CoRR, abs/1709.05011, 2017.
 Zhang et al. (2018a) Hang Zhang, Kristin Dana, Jianping Shi, Zhongyue Zhang, Xiaogang Wang, Ambrish Tyagi, and Amit Agrawal. Context encoding for semantic segmentation. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2018a.
 Zhang et al. (2018b) Tianyun Zhang, Kaiqi Zhang, Shaokai Ye, Jiayu Li, Jian Tang, Wujie Wen, Xue Lin, Makan Fardad, and Yanzhi Wang. Adamadmm: A unified, systematic framework of structured weight pruning for dnns. arXiv preprint arXiv:1807.11091, 2018b.
 Zhu et al. (2018) Maohua Zhu, Jason Clemons, Jeff Pool, Minsoo Rhu, Stephen W Keckler, and Yuan Xie. Structurally sparsified backward propagation for faster long shortterm memory training. arXiv preprint arXiv:1806.00512, 2018.
Appendix A Implementation Algorithms
Notations. We use the convolution layer for illustration, which occupies the major part of most modern networks (He et al., 2016; Huang et al., 2016). The features can be viewed as a 4D tensor. We use “” and “” to represent the operations that calculate the means and variances, respectively, where “0, 1, 2” denotes the dimensions for reduction.
Appendix B Experimental Configuration
All the experiments on CIFAR10 & CIFAR100 are conducted on a single Nvidia Titan XP GPU. We use a weight decay of 0.0002 for all weight layers and all models are trained by 130 epochs. The initial learning rate is set to 0.1 and it is decreased by 10x at 50, 80, 110 epochs. During training, we adopt the ”random flip left & right” and all the input images are randomly cropped to . Each model is trained from scratch for 5 times in order to reduce random variation.
For ImageNet, We use 2 Nvidia V100 GPUs on DGX station for ResNet18 and 3 for DenseNet121. We use a weight decay of 0.0001 for all weight layers and all models are trained by 100 epochs. The initial learning rate is set to “” and we decrease the learning rate by 10x at 30, 60, 80, 90 epochs. During training, all the input images are augmented by random flipping and cropped to . We evaluate the top1 validation error on the validation set using the centered crop of each image. To reduce random variation, we use the average of last 5 epochs to represent its final error rate. Besides, Wingrad (Lavin & Gray, 2016) is applied in all models to speedup training.
Appendix C Analysis of Speedup and Estimation Error
c.1 Speedup Analysis
Computational Cycle and Memory Access. Our proposed approaches can effectively speedup forward passes. Under the condition that we sample data for each FM, the total accumulation operations are significantly reduced from to . If using the adder tree optimization illustrated in Section 3.1, the tree’s depth can be reduce from to . Thus, the theoretical speedup for the forward pass can reach times. For instance, if the FM size is with batch size of 128 (), under sampling ratio of 1/32, the speedup will be 36.7%. The total memory access is reduced by times. For example, when the sampling ratio is 1/32, only 3.1% data need to be visited. This also contributes a considerable part in the overall speedup.
Speedup in the Backward Pass. The BN operations in the forward pass have been shown in Equation (1)(3
). Based on the derivative chain rule, we can get the corresponding operations in the backward pass as follows
(5)
After BN sampling, the calculation of can be modified as
(6)
while the others remain the same. Here is the location set for sampled neurons. For neurons outside , they didn’t participate in the estimation of the mean and variance in the forward pass, so and equal to zeros. We should note that although we sampled only data in the forward pass, the reduction operations in the backward pass still have length since the neurons outside also participate in the activation normalization using the estimated statistics from the sampled data. Therefore, there is no theoretical speedup for the backward pass. In our experiments, to assemble a dense and efficient addition operation with for all neurons, the mentioned zeros outside are prepadded. However, it has great potential for memory space and access reduction since the and outside are zeros, which can be leveraged in specialized devices.

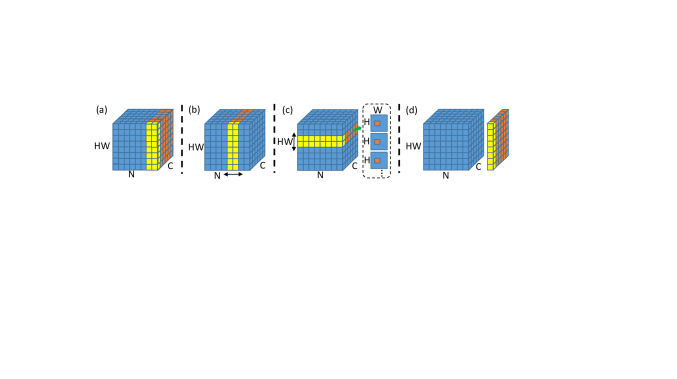

Regular Sampling Pattern and Static Sampling Index. To approach the theoretical speedup, we suggest to use more regular sampling pattern such as the continuous samples in BS and intraFM rectangular shape and interFM shared location in FS. A regular sampling pattern can improve the cache usage by avoiding random access. Moreover, the operation in the backward pass corresponding to the sampling operation in the forward pass is “padding” shown in Fig. 1
(d). Under a regular sampling pattern, the padding is blockwise that becomes much easier. On the other side, intuitively, a static computation graph can be calculated faster and easier deployed on various platforms for (1) the static computing graphs’ pipeline can be optimized once for all before training, (2) popular deep learning frameworks like TensorFlow
(Girija, 2016) are developed as a static computation graph. For these reasons, we expect the random sampling is achieved through a static computational graph, which is obtained by updating the sampling indexes only per epoch.c.2 Estimation Error Analysis
Intralayer Data Correlation. For each layer, the variance of estimated statistics (e.g. mean) is highly related to the correlation between sampled data, which can be described by
(7)
Obviously, less data correlation can reduce the estimation variance, thus bring more accurate estimation, which illustrates why FS produces better accuracy than BS: the selected data come from all samples which are more uncorrelated.
Interlayer Data Correlation. Bjorck et al. (2018)
suggested that BN’s effectiveness is probably because it can prevent the input statistics at each layer from scaling up. Under BN sampling, if positively correlated data are selected at each layer (e.g. sharing the same sampling indexes in each layer), the estimated statistics in different layers are also probably correlated. This may lead to correlated estimation error between layers which would further result in exponentially increasing estimation error throughout the network layer by layer. Oppositely, if we select less correlated data at each layer, the effectiveness of original BN can be preserved better.
Appendix D Influence of Decay Rate for Moving Average
During each validation step after certain training iterations, & are replaced with the recorded moving average, which is governed by
(8)
where stands for “” or “”, denotes the moving average, is the iteration number, and is the decay rate. Based on Equation (8), which the variance of equals to , if we assume that (1) each estimated value shares the same variance and (2) independent with each other while (3) the iteration number goes larger, we will get equation 9.
(9)
The above equation reveals that an appropriately smaller might scales down the estimation error, thus produces better validation accuracy. To verify this prediction, the experiments are conducted on ResNet56 over CIFAR10 and using BS1/128(0.78%) sampling. As shown in Fig. 10, it’s obvious that there exists a best decay rate setting (here is 0.7) whereas the popular decay rate is 0.9. The performance also decays when decay rate is smaller than 0.7, which may because a too small will lose the capability to record the moving estimation, thus degrade the validation accuracy. This is interesting because the decay rate is usually ignored by researchers, but the default value might be not the best setting for BN sampling.
