Future communication systems is expected to be responsive to a plethora of users due to integrating new concepts such as internet of things (IoT) and large-scale sensor networks. Furthermore, the quality of service (QoS) demands of the users is a continuously increasing trend. For improving the QoS, drones also known as unmanned aerial vehicles (UAVs), are proposed to be deployed in communication networks. The authors in  study the integration of UAVs into 5G and beyond 5G (B5G) cellular networks as they enable the possibility of an additional line of sight (LoS) connection.
Involving UAVs in communication networks requires addressing some key challenges that have been identified by  and . They contain air-to-ground channel modeling, resource and trajectory optimization , and spectrum management. Moreover, cellular networks need to be planned  as a new MAC layer design is required  and security issues need to be addressed. In this paper, trajectory and resources are optimized jointly based on the users’ location.
Thereby, UAVs can move at the same time as serving terrestrial users. Due to the possibility of drones for being mobile, they should be guided in directions that help the users’ QoS. The authors in[10, 11] study UAV trajectory in azimuth and altitude for the aim of rate maximization. Interestingly, the coverage area can be controlled by UAV altitude adjustment. This adjustment captures the trade-off between an enlarged coverage area and high power consumption due to high pathloss serving the users . The horizontal placement of a set of UAVs over the ground is optimized in . While moving, the trajectory can be obtimized for either alternating deployment towards multiple users  or for maximizing constant data rates as flying base station (FlyBS) . In this paper, the latter one is considered. Having multiple UAVs, the users’ signals can either be decoded locally at the supporting UAV, or, in case of C-RAN, jointly processed at a central unit. The former requires allocating the users to UAVs, which is addressed in . However, the latter deals with the latency challenge due to joint processing at the central unit. This challenge can be remedied by having very high capacity links in fronthaul between the UAVs and the central unit.

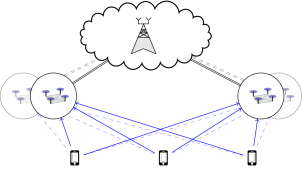

In this paper, we consider a scenario, where multiple users demand connectivity to the ground base station (BS). Due to the large distance of the users to the ground BS, the achievable spectral efficiency (SE) is considerably low. Here, we exploit multiple UAVs forming a C-RAN, for aiding the communication between the users and the ground BS. For simplicity, we assume that the UAVs fully cooperate by considering an unlimited fronthaul capacity between the UAVs and the ground BS, e.g., optical communication for the fronthaul links . Due to the unlimited fronthaul capacity assumption, and given the location of the users, the optimal travel directions of all UAVs are calculated by the ground BS and then provided to all UAVs through the fronthaul links, for controlled trajectory purposes. The optimized trajectory of a UAV is a function of the optimization utility. That means, a power-efficient trajectory differs from the trajectory which maximizes the SE. As the user locations can be highly dynamic, we investigate UAVs travelling in a way that the data rate is maximized in short time intervals in this paper. Thus, all quadcopter UAVs travel in the direction the maximizes the SE of the users, i.e., traveling in the gradient direction. The scenario is illustrated in Fig. 1.
The trajectory of controlled quadcopters is compared with a more abstract gradient method, where the gradient directly determines the flight direction and velocity, i.e., zero gradient represents zero motion. This comparison has less mathematical complexity, but is not suitable for online applications. Since the travel direction is calculated based on the user locations by the ground BS online, a change in the users’ locations results in an instant change in travel direction. The optimization problem is stated in the way that the minimum rate should be maximized in section IV. In section VII, the performance of the control design is compared with an ideal gradient method numerically.
The following notation is used in this paper: Matrices, vectors, and sets are indicated by bold upper-case, bold lower-case, and calligraphy letters, respectively. Determinant, trace, Hermitian and transpose of a matrixare represented by , , and respectively. The cardinally of a set is indicated by . The -norm of a vector is denoted by . The Kronecker and Hadamard products are represented by and , respectively. The function gives the element-wise complex phases of the matrix.
Ii System Model
A set of users intends to transmit data in cellular uplink to a set of UAVs , which are considered as flying base stations. This UAVs have a strong fronthaul connection towards a central base station on the ground and can adjust their positions while providing data rates to the users. The number of users and UAVs are given as and , respectively. In the following, the channel model and a quadcopter UAV system model are described.
Ii-a Channel Model
Each user is equipped with antennas; each UAV has antennas. We consider a single dominant LoS path between the users and the UAVs. The distance between the th UAV and th user is represented by
where and indicate the position coordinates of the th UAV, and the th user, respectively.
Based on the free-space path-loss model, the path loss between each antenna of user and each antenna at UAV can be considered identical and is approximated by
in which, is the path-loss at distance in dB, is the path loss exponent, and represents a reference distance. A shadowing component is represented by the Gaussian variable .
Defining , the channel matrix between user and UAV is approximated as
of dimension . The entries of the normalized channel matrix without path loss have an absolute value of ; the phase is independent and identically distributed (i.i.d.) on for each and . Moreover it is distributed identically on each possible UAV and user location while changing only moderate with small location changes.
Due to C-RAN, all UAVs fully collaborate via the ground BS through the high-capacity fronthaul links. Hence, the aggregate channel matrix from all users to the set of UAVs is given by
Then, the noisy observation vector at the ground BS is given as
where is the transmit symbol vector of user .
represents the additive Gaussian noise at the UAV receivers combined with compression noise in fronthaul. This is an independent Gaussian-distributed variables normalized in a way that. We define the transmit signal covariance matrix as .
Ii-B Quadcopter UAV Model
In control, systems are usually modelled as matrix differential equation with an additional input and a given initial condition
where and refer to state and input vector at a given time . The system model is described by and describing how each element of input and state vector impact the derivatives of the state vector elements.
In case of a quadcopter UAV, the system model uses the squared speeds of the four rotors as input values . The state vector is described by location and orientation at a given point of time, as well as the derivatives of both. The location is described by the Cartesian coordinates ; the orientation is described as , where , , and are the pitch, roll, and yaw angles, respectively. Using a state vector of , a linearized model of a quadcopter can be derived as shown in . It can be phrased as
Here, is a device-specific full-rank-matrix; is the gravity constant. Even though it might not be that all states vector elements are given as output value, their values can be accessed through usage of an observer.
While controlling the input signal , there is a chain of four integrators between the input signals and the horizontal parts of the UAV coordinates.
When the input signal is chosen to be , the system in each horizontal direction can be described as
in which and
Iii Achievable Spectral Efficiency (SE)
in which the right-hand side is the capacity. If the limitations of each upper-bound are divided equally among participating users, the minimum rate is upper-bounded by
Here, the subset actively bounding the optimization problem is given by .
Iv Optimization Problem
The aim is to maximize this fairness rate. It depends on all UAV locations and the users’ transmit signal covariance matrix. For a static placement, the optimization problem equals
in which is the altitude. Due to the change in impact of buildings, there is an optimal UAV altitude for achieving the best coverage as described in . Hence, is chosen to equal this value.
Since UAV motions will require some time, this is transformed into a dynamic optimization problem considering short intervals of time only. Hence, UAVs are only allowed to have moved a small distance from the previous location. Over this time interval, the channels can be assumed to have negligible changes. Hence, the same covariance matrix is assumed to be optimal over this short time interval.
The trajectory and covariance matrices are optimized alternately, but can be updated in sampled time intervals only. Thus, the covariance matrices remain unchanged on each sampled flight interval. The location at the considered point of time of UAV is denoted as ; the optimal covariance matrix of user on this location is given as . Using those, the optimization problem can be divided into two parts
where is an arbitrarily small number such that can be approximated as an affine function in for all . Both problems can be solved in the given order in the interval of the sampling period.
This principle can be illustrated as shown in Algorithm 1, where at each sampling point both optimization problems are solved.
It should be denoted that (13) is a convex problem. However, (14) is non-convex, but since only a small interval is needed, an affine approximation can be used. This is done by calculating a data rate gradient, which is calculated in section V. Algorithm 1 further bases on a UAV direction control, which is explained in section VI.
V Data Rate Gradient
For any arbitrary , the derivative of the sum of rates from the set given by (10) w.r.t. the position coordinate of the th UAV is given as
Defining as the real-valued matrix of phases, the relation holds, since, from (3), the absolute value of each element of the normalized channel matrices is constant one. This means, the added multiplication factor is imaginary solely. Since the same expression appears with the negative sign for the Hermitian matrix with identical absolute values and opposite sign, the sum of the traces of this two derivatives has little impact and vanishes for the SISO case. In the MIMO case, we assume that the phase of the channel does have a random, not-significant impact only. Hence, we ignore this term for the trajectory.
Note that the channel
depends on the location of the UAV at the specific moment of time. Because the transmit signal covariance matrixis constant within the sampling interval, it does not appear in above expression.
Using this, the gradient can be phrased as a three-dimensional vector containing the elements
Vi Quadcopter UAV Control
The UAV locations should remain unchanged when a rate maximum is obtained. Thus, the static end value is supposed to fulfill the expression . While the rate gradient does not equate to zero, the UAV should be navigated into the direction of the gradient.
In order to fulfill this, the input values should be controlled in a way such that the static end values of match for constant rate derivatives their corresponding entries of for all . By using a P-controller, the input signal is chosen to be
in which is the controller gain; refers to the prefilter. In the vector used for feedback, does not occur. This is because the velocity should be controlled to zero, not the location itself. An individual, combined control circuit is shown in Fig. 2 on top of the previous page.
In a final system, the controller matrices depends on aspects such as altitude control and disturbance cancellation, and thus, i.e., they can not be chosen completely freely. In the numeric results given here, they are determined using a linear-quadratic regulator (LQR).
the state vectors are given in (9).
From this, the trajectory of each controlled UAV can be described using the state equation
Since the UAV altitude is supposed to remain constant, the vertical dimension of the gradient is multiplied with zero only in above expression.
Each individual UAV can be described by this equation. Combined, this describes the full system of UAVs, which are used for rate maximization on locations determined by control methods.
Vii Numerical Results
For the numerical results here, the controllers are determined using a LQR. This way, their values are set to . The initial states are set to , where as shown in the corners of Fig. 3. The overall control system is discretized, such that the rate gradients only need to be known in short time intervals.
For comparison, additional simulations are done with a more simple gradient method. There, the velocities are set directly proportional to the rate gradient. The integration of those over time equals the location of the UAV. This system does not contain any feedback paths, and there is no controller to be designed. This is a mathematical idealized model for the trajectory. Thereby, the UAV trajectory can perform fast direction and velocity changes. This comparison system is without practical relevance for real-time applications, but might be relevant in scenarios where full trajectories are planned beforehand. The trajectories and data rates over time are compared for both methods in Fig. 3.
In both simulations, the different UAVs are placed on locations apart from each other leading to having a higher coverage area. The control system adapts slower to gradient changes than the gradient method. This comes with a rather slowly growth of the data rate at the beginning, but leads to a more smooth trajectory with less noise near the optimal points.
Viii Conclusion and Future Work
The presented algorithm optimizes the UAV placements and trajectories online while serving dynamically located users with data rates. For the static case, the UAVs reach a local optimal set of positions and remain there until the user locations change. This has been achieved throug applying control methods on the minimum rate maximization problem. This methods only require information about channels and locations for the given moment of time. Additional Information are not required. The approach presented here is directly suitable for real-time applications, as it can adapt to changes of user locations and channel coefficients instantaneously. There is no exhaustive search in use. Nevertheless, the UAVs find a good location to be placed for a permanent rate transfer. From the numerical results, this location is even more stable with the control model than with the mathematical gradient method.
This concept works for homogeneous areas, such as rural areas or concert places. In future work, this will be extended by considering heterogeneous building maps, where the channel amplitude is variable due to non-constant LoS connections. A combination of statistical approaches basing on user densities and this type of real-time adaption might be useful to achieve further enhancements in dense urban environments.
