BARD: A structured technique for group elicitation of Bayesian networks to support analytic reasoning

by   Ann E. Nicholson, et al.
Monash University

In many complex, real-world situations, problem solving and decision making require effective reasoning about causation and uncertainty. However, human reasoning in these cases is prone to confusion and error. Bayesian networks (BNs) are an artificial intelligence technology that models uncertain situations, supporting probabilistic and causal reasoning and decision making. However, to date, BN methodologies and software require significant upfront training, do not provide much guidance on the model building process, and do not support collaboratively building BNs. BARD (Bayesian ARgumentation via Delphi) is both a methodology and an expert system that utilises (1) BNs as the underlying structured representations for better argument analysis, (2) a multi-user web-based software platform and Delphi-style social processes to assist with collaboration, and (3) short, high-quality e-courses on demand, a highly structured process to guide BN construction, and a variety of helpful tools to assist in building and reasoning with BNs, including an automated explanation tool to assist effective report writing. The result is an end-to-end online platform, with associated online training, for groups without prior BN expertise to understand and analyse a problem, build a model of its underlying probabilistic causal structure, validate and reason with the causal model, and use it to produce a written analytic report. Initial experimental results demonstrate that BARD aids in problem solving, reasoning and collaboration.



There are no comments yet.


page 4

page 9

page 12


A Taxonomy of Explainable Bayesian Networks

Artificial Intelligence (AI), and in particular, the explainability ther...

Learning Causal Bayesian Networks from Text

Causal relationships form the basis for reasoning and decision-making in...

The Cognitive Processing of Causal Knowledge

There is a brief description of the probabilistic causal graph model for...

Exact Reasoning Under Uncertainty

This paper focuses on designing expert systems to support decision makin...

Acceleration of probabilistic reasoning through custom processor architecture

Probabilistic reasoning is an essential tool for robust decision-making ...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

In many complex, real-world situations, problem solving and decision making require effective reasoning about causation and uncertainty. The effectiveness of human reasoning in these cases is limited: it may handle simple, quasi-linear cases well, but in complex or non-linear cases it is notoriously prone to confusion and error (KahnemanEtAl1982; HahnHarris2014; NewelEtAll2015). One way to handle such reasoning more effectively is to employ Bayesian Networks (BNs(Pearl1988; KorbNicholson2011) which are an Artificial Intelligence (AI) technology that models uncertain situations, supporting probabilistic and causal reasoning and decision making.

BNs have been deployed for this purpose in diverse domains such as medicine (SesenEtAl2013; FloresEtAl2011), education (StaceyEtAl2003), engineering (BayraktarEtAl2009; ChoiEtAl2007; MisirliEtAl2014), surveillance (MascaroEtAl2014), the law (FentonEtAl2013; LagnadoGerstenberg2017), and the environment (CheeEtAl2016). Furthermore, BNs have been used to analyse common fallacies in informal logic (Korb2004); analyse and assess a variety of arguments in criminal law, exposing some common errors in evidential reasoning (Lagnado2013; FentonEtAl2013); analyse human difficulties with reasoning under uncertainty (HahnOaksford2006; Hahn2014), and proposed as a general structured method for argument analysis (KorbNyberg2016).

BNs take advantage of the natural ability of humans to reason and build causal models about the world (LagnadoSloman2004; LagnadoSloman2006; SlomanLagnado2015; BramleyEtAl2017). However, for domain experts to construct their own BNs, current software usually requires substantial training, does not provide much guidance on the model building process, and does not provide any support for collaboratively building BNs. Our system addresses these deficiencies. BARD (Bayesian Argumentation via Delphi) combines BNs with a Delphi social process: a systematic method for combining multiple perspectives in a democratic, reasoned, iterative manner (LinstoneTuroff1975). The key novel features of BARD, our structured methodology for group reasoning, are: (1) customised Delphi-style BN elicitation; (2) structured, iterative and incremental BN building; and (3) structured, semi-automated narratives.

Customised Delphi-style BN elicitation

Analysts in small groups, optionally assisted by a facilitator, are guided through a structured Delphi-like elicitation protocol to consider and represent their problem-relevant knowledge in a causal BN augmented by descriptive annotations. BARD provides tools to assist elicitation of BN structure and parameters, review and consensus building within the group, and evaluation of the results. BARD’s Delphi-inspired social process helps groups of analysts avoid common pitfalls. Analysts are required to first develop an answer on their own, in a private phase, and shows other group members’ contributions after the analyst has published his or her initial attempt. This approach supports an analyst’s modification of their initial models, while maximising the diversity of answers from which the group starts its work. The other major features of Delphi utilised by BARD include anonymity and moderated discussion, both of which help groups avoid being unduly influenced by the opinionated rather than the knowledgeable.

Stepwise, iterative and incremental BN building

BARD breaks down a given task into six steps that are performed by the analysts: (1) pre-modelling exploration of the problem to be solved, (2–4) building the components of the BN, (5) exploring the BN’s reasoning on specific scenarios, and (6) report writing with BARD’s support. However, progress needn’t be linear: BARD encourages analysts to incrementally and iteratively build their individual BNs and seek regular feedback through communication with other group members and the facilitator.

Structured, semi-automated narratives

BARD guides verbal reporting with an analytical template, designed to elicit relevant points in a logical and thorough way that is consistent with general good reasoning guidelines (e.g.,  ICD-203-2015). BARD also auto-generates from the BN model many key points, in English, organised according to the same template—such as the diagnosticity of evidence and critical uncertainties—which analysts and the facilitator can easily incorporate into their solutions.

The development of BARD started as part of the CREATE (Crowdsourcing Evidence, Argumentation, Thinking and Evaluation) program funded by IARPA (Intelligence Advanced Research Projects Activity)111 The CREATE program sought to develop, and experimentally test, systems that use crowdsourcing and structured analytic techniques to improve analytical reasoning, including to help people better understand the evidence and assumptions that support or conflict with conclusions. CREATE’s secondary aim was to aid users to improve their communication of their reasoning and conclusions. This included meeting the guidelines for high-quality analytical reports outlined in the Intelligence Community Directive 203 (ICD-203) (ICD-203-2015). Even though BARD aims to improve the quality of analysis using BNs, it is not designed for BN experts. A core purpose of BARD is to make BNs accessible to the uninitiated, so that those outside the BN community can benefit from them.

BARD is based on a novel combination of two techniques: BNs and Delphi (Section 2). The BARD approach presented in Section 3 is the first structured workflow that supports non-BN experts, with a minimal amount of training, to build and reason with BNs, with automated explanations. BARD is also the first BN tool to support a Delphi-style social process that allows participants to collaboratively construct a group BN solution. Section 4 summarises results from empirical studies that provide evidence of BARD’s efficacy as a structured technique for improving group reasoning. Section 5 concludes by summarising the contributions of the paper, and outlines directions for future work.

2 Background

In this section, we provide background about BNs and Delphi elicitation protocols for group decision making.

2.1 Bayesian Networks

BNs are the culmination of a century of research on models formally representing causal relations, beginning with the work of Sewall Wright in the 1920s and 30s on path models (Wright1934). This tradition has given rise to structural equation models, which underwrite much of the formal work in economics, psychology and the social and biological sciences. It also led to work on discovering causal relations from data, including work by Herbert Simon and Hubert Blalock on “non-experimental” causal inference (e.g., Simon1954; Blalock1964)

. In the 1980s, statisticians and AI researchers developed new techniques for modelling probability distributions, which were codified in Judea Pearl’s text

Probabilistic Reasoning in Intelligent Systems (Pearl1988). This work launched Bayesian Networks (BNs) as a modelling tool for reasoning and decision-making under uncertainty, and its theoretical underpinnings as a field of study.

A BN is a directed, acyclic graph whose nodes represent the random variables of a problem, and whose directed links (arrows) represent direct probabilistic dependencies between the nodes they connect

(Pearl1988; KorbNicholson2011); in so-called causal BNs, these dependencies are also supposed to be causal. Each node at the tail of an arrow is a parent of the node at the head of the arrow (it’s child). The relationship between each child and it’s parents is quantified, for discrete variables (i.e., with a finite number of possible states), by a Conditional Probability Table (CPT) associated with the child node. The CPTs of a BN jointly give a compact representation of the full joint probability distribution of the variables in the BN. Users can set the values of any combination of variables in a BN, usually on the basis of observed evidence

. This evidence propagates through the network, producing a posterior probability distribution

for each variable in the network. There are several efficient algorithms for propagating evidence, supporting a powerful combination of predictive, diagnostic and explanatory reasoning.

Variable States
Event {weightlifing, running}
Drug Cheat {true, false}
Testing performed {yes, no}
Sample A result {positive, negative, noResult}
Sample B result {positive, negative, noResult}
Taking M879 {yes, no}
(a) Variables and their states
(b) Structure
(c) CPTs for Drug Cheat and Sample A Result variables
Base scenario
Sample A Result=Positive
Sample B Result=Positive
Taking M879=True
(d) Updated probabilities for base case and after each new piece of evidence
Figure 1: The Drug Cheat Problem: The BN structure, the CPTs together with base scenario (no evidence) and the updated posterior probabilities for the scenario involving Sam the Swimmer after each new piece of evidence.

Figure 1(b) illustrates a simple BN, where the Drug Cheat variable represents whether an athlete has taken performance enhancing drugs, while Sample A Result and Sample B Result represent the results of a test to detect a performance enhancing drug. Note that the variables are all discrete (Figure 1(a)). The arrow from the Event variable (Figure 1(b)) shows that the probability of Drug Cheat=True is influenced by the event, while the arrow from Taking M879 indicates that the medication M879 may lead to a positive test result. The combination of influences on the test result are quantified in the CPT for Sample A Result, while the different drug cheating rates for different events are shown in the CPT for Drug Cheat (Figure 1(c)

). The prior probability for a competitor being a drug cheat,

P(Drug Cheat = True), is computed to be 2.33%, while the sequence of new probabilities computed by the BN software for Sam the Swimmer is 32.41% after a positive result for Sample A, jumping to 95.79% after a positive result for Sample B, and finally decreasing to 49.24% in light of new information about taking M879 medication.

2.1.1 Probabilistic reasoning errors

As shown in many studies, human reasoning under uncertainty is fraught with cognitive biases, which result in an incorrect update or utilisation of probabilistic information. Some examples are: overconfidence—exaggerating the probability of likely events and the improbability of unlikely events (LichtensteinEtAl1982; HealyMoore2007bayesian); base-rate neglect—ignoring objective prior probabilities (TverskyKahneman1982b; WelshNavarro2012seeing); and anchoring— depending too much on an initial piece of information (the anchor) (KahnemanEtAl1982). While many structured representations may assist in the avoidance or mitigation of cognitive biases when analysing problems, causal BNs are particularly suited to biases involving probability or causality. By design, BNs only permit logically consistent probabilistic information to be specified in each model, and they provably compute the probabilistic consequences without error or bias. So, if the correct elementary information can be elicited from humans (the arrows, CPTs, and any observational inputs), all the more complex probabilistic calculations will also be correct. Most of BARD’s other features (including stepwise construction and Delphi, both described in Section 3) are designed to promote accurate elicitation. Accordingly, the process of modelling reasoning under uncertainty via causal BNs has been shown to help avoid several common human reasoning fallacies, such as base-rate neglect (KorbNyberg2016), confusion of the inverse (VillejoubertMandel2002), the conjunction fallacy (JarvstadHahn2011), the jury observation fallacy (FentonNeil2000) and, most recently, the zero sum fallacy (PilditchEtAl2019a).

In addition, people often make reasoning errors in relation to causality. For example, people often mistake correlation between events for direct causation, when a hidden common cause may be more likely (LagnadoSloman2004; PearlDana2018book; kushnirEtAl2010inferring; GopnikEtAl2001causal). Causal BNs discourage such mistakes, partly because analysts are forced to think about and model direct causal relations explicitly. Two examples of causal reasoning phenomena involving indirect causal connections that are difficult for people to handle, but are correctly captured by causal BNs, are: explaining away—when the confirmation of one cause lowers the probability of an alternative cause (LiefgreenEtAl2018); and screening off—when knowledge of the state of a common cause renders two dependent effects independent of each other (Pearl1988).

2.1.2 BN tools

Given these benefits, it is not surprising that BNs have been applied to many application areas, as detailed above, in tandem with the development of BN software tools that allowed technologists to build, edit, evaluate and deploy them. Widely-used commercial BN software tools include Hugin,222 GeNie,333 Netica,444 AgenaRisk555 and BayesiaLab.666 In addition, research software and tools include Elvira,777 R BN libraries,888 BNT,999 SamIam101010 and BayesPy.111111

2.1.3 Elicitation of BNs

In order to overcome the “knowledge-engineering bottleneck”


, machine learning methods for learning BNs from observational datasets were invented, with several of these algorithms (e.g., the PC algorithm

(SpirtesEta;2000), CaMML (ODonnellEtAl2006) and the R libraries) incorporated into BN tools. However, in the absence of adequate datasets, BNs can be built through elicitation of domain-specific knowledge from experts. (Expert elicitation and machine learning can also be combined.) Proposed methodologies for constructing BNs through elicitation are based on concepts such as building BNs iteratively and incrementally (LaskeyMahoney1997; LaskeyMahoney2000; KorbNicholson2011; Boneh2010), breaking down complex models into sub-models or fragments, and building BNs with common structures or elements called “idioms” (FentonNeil2014). However, none of the commercial BN software packages support the structured elicitation of BNs, or these knowledge engineering principles. Instead, they assume that users understand BN technology, and know how to translate their knowledge of a causal process or argument into a BN. The BARD system is designed to fill this gap.

The various BN elements that need to be elicited during BN construction include its variables, arrows, parameters (conditional probabilities) and their combinations in subnetworks and networks. There is active research in the acquisition of these elements, mostly concentrating on elicitation from domain experts; for example, concept mapping is a popular technique for relating concepts in graphs, which can be used as a preliminary step in building BNs (Novak2010).

Korb and Nicholson have advocated an iterative and incremental approach to BN construction (KorbNicholson2011, Part III), suggesting that models should initially be built up from a small local structure around a target variable of interest, rather than by attempting to exhaustively consider every possible factor relevant to the target variable from the start. In this approach, subsequent iterations pick up a few additional factors at a time, with validation (e.g., using expert feedback) in each iteration. BARD supports such an incremental and iterative BN construction approach, where the feedback is provided by a group of analysts solving the same problem, instead of an expert. Overall, BARD’s incremental approach belongs to the “spiral prototyping” or “agile model building” family, which adapts ideas long used in software engineering (Boehm1988-spiral).

Probability elicitation has been attacked from a variety of directions. Since users are sometimes uncomfortable specifying exact probabilities, even when they are informed that they needn’t be treated as precise, probabilities have often been replaced by language equivalents (Elsaesser1987; vanderGaagEtAl1999)—an approach that was also adopted in the ICD-203 mapping of probabilities to English (Table 1). In BARD, we have taken a dual approach, where probabilities may be viewed both numerically or verbally.

Several protocols have been proposed for eliciting probability intervals, such as a 3-pt method (MalcolmEtAl1959; SollKlayman2004), a 4-pt method (Speirs-BridgeEtAl2010) and the IDEA protocol (HemmingEtAl2018a). These interval protocols have also been used to combine the responses of multiple experts—and one study used a form of Delphi for exact CPT elicitation (EtminaniEtAl2013). However, to date, these protocols have not been integrated into any commercial or research BN software tools. Instead, they are applied outside the BN software, and their outcomes are incorporated into BNs by the model builder (NicholsonEtAl2011; GaagEtAl2012; PollinoEtAl2007a; HemmingEtAl2018b).

The elicitation of causal structure is a relatively under-explored area. A generic prototyping approach to address this problem has been proposed in (KorbNicholson2011, Part III). Other approaches propose “idioms” (FentonNeil2000), “templates” (LaskeyMahoney2000) and “network fragments” (LaskeyMahoney1997) to represent common types of causal reasoning to be incorporated into problem-specific models when appropriate. While the BARD training protocol (Section 3.5) introduces these concepts, and describes how BARD can be used to construct models that capture them, there is not yet any explicit functionality to facilitate this in the tool. Serwylo (Serwylo2015) pioneered using online crowdsourcing and automated aggregation for BN structure elicitation, albeit not in the Delphi style, while NicholsonEtAl2016 explored Delphi elicitation and automated amalgamation of structure and parameters. However, BARD is the first tool to apply Delphi to the full BN model building process.

During elicitation, it is an important but often under-appreciated task to document how the model was constructed, e.g., the sources of modelling elements and their reliability. Although as yet there is no accepted standard for this kind of meta-documentation, BARD offers an initial approach for structured recording of this meta-information (see Section 3).

Validating computer models means testing their accuracy in representing a real-world system. In general, computer models are validated using expert feedback, data or a combination of the two (FloresEtAl2011; KorbEtAl2013). The BN software packages listed above support data-driven validation in several ways, but do not support structured expert validation, such as the validation framework proposed by Pitchforth and Mengersen (PITCHFORTH2013162), beyond ad hoc exploration and validation of “what if” scenarios, as does BARD. In the BARD environment, group deliberation offers a further form of validation, i.e., via the social process described in Sections 3.1 and 3.3.

2.1.4 Explaining Bayesian Networks

The automatic generation of explanations from BNs has been investigated since the early 1980s (Boerlage1983; SemberZukerman1989; Suermondt1992), followed by work conducted by authors Korb and Zukerman (korbEtAl1997cogsci; ZukermanEtAlAAAI98; ZukermanEtAlIJCAI99; JitnahEtAl2000-towards), and more recently by other researchers (Vreeswijk2005; Keppens2011). However, automated explanation from BNs has thus far been selective and special purpose, with language tailored to specific variables and subnetworks. The algorithms generated to date have achieved achieving limited success in explaining complex non-monotonic relations. BARD’s explanation-generation component circumvents some of these problems, producing explanations that harness the explicit causal nature of links, as well as common idioms for expressing probabilistic and causal relationships (Section 3.2).

2.2 Delphi protocols for group decision making

There is considerable evidence that decision making by groups (either by reaching consensus or amalgamation) can produce better outcomes than decision making by individuals (SalernoEtAl2017Group; KuglerEtAl2012groups; CharnessSutter2012groups; StrausEtAl2011group). However, there are also well-known problems while working with groups, e.g., anchoring on the earliest responses, groupthink, and the excessive influence of higher-ranking members (KahnemanEtAl1982; StettingerEtAl2015counteracting; MumfordEtAl2006errors; Packer2009avoiding). Several methods have been developed over the years that attempt to harness the positives of groups, while preempting or mitigating the negatives; one of the most well-established is the Delphi technique (LinstoneTuroff1975; RoweEtAl1991).

Delphi is an example of a nominal group technique, where the group members never actually meet face-to-face, but interact remotely. Thus, participants need not be present at the same location or make their contributions at the same time—practical benefits when experts are dispersed, perhaps internationally, with limited time and conflicting or busy diaries. Furthermore, the group members don’t even know who their fellow group members are—a deliberate ploy designed to ameliorate cues related to supposed seniority, experience or expertise, which may be unhelpful (as expertise and advancement can often be related to personality or background characteristics, rather than skill or knowledge). Thus, members can focus on the information provided by others, and the undue influence that powerful or dogmatic individuals can have on group judgments is reduced.

These anonymous participants are first asked to provide their own judgement on the issue at hand, before finding out about the responses of others. This increases the independence and diversity of initial responses, reducing social loafing and the premature conformity seen in anchoring and groupthink. The responses are collated by a facilitator, then fed back to the participants for a second round. The participants consider the information (which may simply be the mean or median of the group response when quantitative values are in question, but may also include rationales/justifications for answers), then provide another response, which could be the same as before, or could be an amended one. This encourages participants to rationally reconsider their response in the light of any new information provided by others. Several rounds may take place, continuing until some stability is achieved (although most changes take place in the second round, and few studies go beyond two or three rounds). This process tends to increase the level of consensus in the group, but the more fundamental aim is to increase the overall quality of the responses. After the final round, the facilitator usually aggregates the responses of the individual members (or collates them, if responses are qualitative in nature), and the resultant answer is taken as the group response. Answers are usually weighted equally, which ensures that the final response reflects fairly the views of all group members. In addition to their benefits for administration and collation, using a facilitator tends to encourage constructive contributions from members and avoid any unproductive, heated arguments.

In summary, the defining characteristics of a Delphi process (RoweEtAl1991) are: anonymity, iteration followed by feedback, and aggregation (or collation) of group responses, which is often completed by a facilitator. A review in RoweEtAl1999 found that, at least for short-term forecasting problems and tasks involving judgements of quantities, Delphi has generally shown improved performance compared to freely inter- acting groups or a statistically aggregated response based on the first-round responses of individual participants. However, Delphi has not previously been tested on complex reasoning problems.

One Delphi variant is a “roundless” version, called Real-time Delphi (GordonPease2006), where the iterative process (providing individual responses, viewing information from other participants, and amending responses) is not controlled by a facilitator, and for each participant the transition between steps occurs immediately, i.e., in real-time. This setup is more flexible than regular Delphi in the timing of participants’ contributions, and has the potential to speed up the Delphi process. However, since participants can see any other available responses directly and asynchronously, rather than after amalgamation or collation by a facilitator, some of the biases associated with direct interaction may re-emerge. The social process in the BARD methodology is a version of Real-time Delphi. We discuss our reasons for trading off speed and ease of use against bias in Section 3.1 below.

3 BARD Approach

In the Delphi-style BARD structured group technique, individual group members (called analysts in BARD) submit their contributions to a problem anonymously. A moderator (called the facilitator in BARD) guides and supports the analysts through the process, and ensures an overall group solution is produced. A BARD group consists of a single facilitator and any number of analysts.

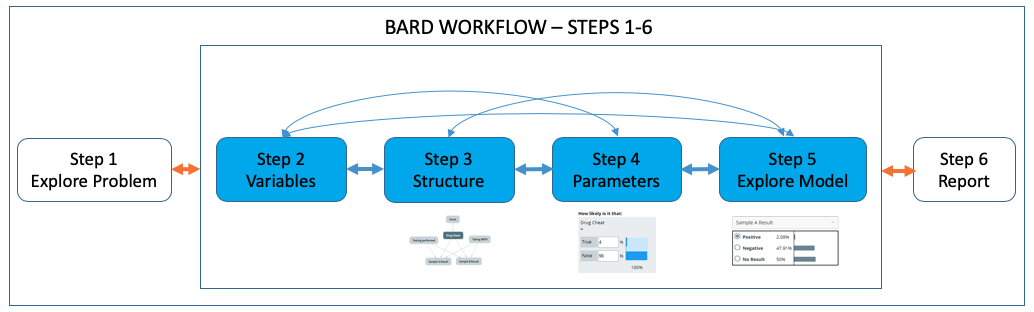

Figure 2: BARD consists of six steps. Analysts and the facilitator can move flexibly backwards and forwards between steps to update their work as necessary.

3.1 BARD Workflow

The BARD workflow consists of six steps, broken down into three phases, as depicted in Figure 2. The first, the pre-modelling preparatory Step 1, focuses on helping the group understand the problem to be solved and the questions to be answered, along with the main hypotheses and pieces of evidence. The second phase consists of Steps 2–5, where the focus in on building a causal BN that models the problem situation and using the causal BN’s reasoning to assist in answering the questions. These steps reflect the natural sequence of tasks in BN construction: selecting the variables (Step 2), determining the network structure (Step 3), parameterising the model by eliciting the CPTs (Step 4), and then exploring the completed model’s reasoning on specific scenarios (Step 5). Step 6 involves production of a structured written report. While there is a natural sequence to the workflow, it is not a one-way street: users can always go back to revise their previous work. This supports building the BN iteratively and incrementally, per best-practice BN construction (Section 2.1.3).

Analysts contribute their individual domain knowledge and problem solving abilities across these six steps of BARD, while the facilitator constructs a Group version for each step, based on the analysts’ work. This is done via a structured workflow within each BARD step. At each step, analysts are required to first work on their own, and then share that initial attempt with the group. After this, they can view other analysts’ work and the current group solution (Figure 3), discuss solutions via the step-specific discussion forum, and move on to the next step whenever they choose (the “real-time” element). Analysts can also move back to an earlier step to revise their work at any time, and then move forward again to any step they previously reached.

The facilitator’s workflow is more flexible than the analysts’, as they can move to any BARD step and can view all analysts’ shared work at any time. It is the facilitator’s role to synthesise the group’s work at each step as necessary to develop a coherent solution that reflects the group’s thoughts. They encourage analysts to resolve any points of disagreement themselves; however, they are empowered to make the final decisions, which may involve either collating different analysts’ work or adopting a single analyst’s work. The facilitator can present the current group solution (for any or all steps) back to the group at any time so that analysts who have shared their work for that step can view it, discuss and provide feedback, and revise their work if they wish.

Figure 3: High-level representation of the BARD workflow within a step for analysts (above) and facilitator (below) working in a BARD group.

The social process within BARD’s structured workflow is a flexible variant of Real-time Delphi, arising from our observations during the interactive design and prototyping approach we used during BARD’s development. The BARD refinements of Delphi elements reflect the needs we identified to keep participants in the CREATE program engaged and actively contributing in a modern, online environment, including: (1) the contribution required of group members by BARD—specifically, building and using a BN for relatively complex problem solving—is much more demanding than the tasks typically considered within a traditional Delphi processes; (2) participants have expectations of significant autonomy (rather than having to wait for others at every step), while still being able to access peer and facilitator support when needed; (3) participants often have a preference for direct engagement with others (rather than having all communications and information come through a moderator/facilitator); (4) the BARD process becomes far too drawn-out with multiple Delphi rounds for each of the six steps, especially when the group is working in a distributed, asynchronous manner and may be spread over different time zones; (5) when one analyst wishes to revise their work from a previous step it is too onerous to require everyone else to return to that step; (6) groups must be allowed to continue operating in the temporary or permanent absence of a facilitator; and (7) not all participants will be equally engaged over the whole problem-solving time period, so to maximise their opportunity to contribute when they are engaged, it is beneficial to allow them to complete and comment on earlier steps others have already passed through and/or later steps others have not yet reached (rather than only accepting contributions to a single, current Delphi round).

A further issue we found is that participants vary in their domain expertise or problem solving ability. Hence, while the workflow must support some form of aggregation or collation, BARD does not enforce traditional Delphi equal weighting of all group member contributions for quantitative judgements. Further, for more qualitative judgements, traditional Delphi allows for further rounds until there is no significant change in opinion. This kind of stopping rule may also be used in BARD, but for our experimentation completion of the workflow was deadline driven, and this is likely to be more applicable to future real-world applications.

Although analysts’ real names are concealed, they are assigned pseudonyms that they keep throughout the problem. This helps to identify the work and comments of each analyst in each step, and also relate it to their work and comments in other steps, which makes discussion and comparison far easier for participants.

Although we have deviated from traditional Delphi processes,121212During BARD’s development, we prototyped and evaluated other versions of Delphi, two of which are still supported and configurable via the administration panel at problem setup time. These are (1) a classic Delphi process, with multiple Delphi rounds for each of the six steps of BARD, analysts all moving to the next step at the same time when the facilitator gives them access, no discussion forums, and where analysts only see the amalgamated group version provided by the facilitator rather than each other’s work directly; (2) a variant Delphi process (sitting between the classic Delphi and the default real-time version) where, in addition to the group solution, analysts can view and discuss other team member’s published work, but with the facilitator controlling access to the next step. BARD retains some of the key features that have made Delphi a successful method—anonymity, individual judgement before sharing, iteration and feedback, use of a facilitator—with some aspects supported and encouraged rather than enforced. Hence, we describe the BARD workflow as Delphi-style, rather than the Delphi method per se.

Finally, throughout the six steps, BARD encourages its users to enter a rationale to explain their analysis, making it easier for other group members to understand the solution. This detailed documentation improves the exchange of ideas and provides a basis for discussion on points of disagreement, and hopefully leads to a better understanding of the problem and the resulting solution.

3.2 The Six Steps of BARD

Here each of the six steps are described in more detail.

Step 1: Explore Problem allows analysts to read and examine the problem, review any questions that have been posted, and encourages them to extract key features by identifying (1) the hypotheses suggested by the problem/questions, and (2) the items of evidence most pertinent to those hypotheses. Analysts are also encouraged to provide rationales for the inclusion of each hypothesis and evidence item. The motivation behind this step, as a precursor to the BN modelling, is to have the group gain and record a shared understanding of the problem they must solve, and reach some level of agreement on the key elements that must be included or addressed in BN construction to answer the questions posed.

Step 2: Variables is where the variables of the BN are specified, with BARD suggesting that analysts consider converting the hypotheses and evidence items from Step 1 into variables. BARD prompts for two kinds of variables: Target variables and Other variables. Target variables are often the hypotheses or further variables closely associated with the questions to be answered. In BN modelling methodologies, these are also described as “query” or “output” variables, and these modelling methodologies suggest identifying them first and then focusing attention on variables that are either causes or effects of those target variables—the “other” variables in BARD. Target variables are distinguished with a different colour in the Structure visualisation, but all variables (Target or Other) may be the output variables of a scenario in Step 5 Explore Network (see below).

BARD variables must be specified together with their discrete states, which BARD currently supports in four categories: Boolean (with just the two states True and False) for propositional variables, e.g., Testing performed in the Drug Cheat example; Binary (any other two-state variables), e.g., Taking M989; Ordered (any multi-state variables with the states in ranked orders), e.g., {High, Medium, Low}; and Unordered (any other discrete variable), e.g., the Event variable has the states {Weightlifting, Running, Swimming}).

Descriptions of the variables and the variable states are solicited, but not required, as are “rationales” for the choice of variables. These meta-data items are intended not only to document the intent and meaning being these modelling elements, but also to stimulate active discussion when other analysts see them and disagree.

Step 3: Structure is where the relationships between the variables are specified. In this step, BARD displays each variable as a draggable node (with its name) on a canvas, and prompts analysts to specify the causal structure by drawing arrows between pairs of variables, i.e., graphically specifying relationships to produce a node-link (or “network”) diagram for the BN. Target variables are differentiated from other variables by colour (Figure 1). Arrows can be readily deleted or redirected to a new variable. Analysts can associate text labels with arrows, as well as create general labels anywhere on the canvas to act as titles or general purpose on-canvas documentation (as standard in most BN software GUIs).

During this step and later steps that display a network view of the BN (e.g., Step 5 as shown in Figure 5), BARD adjusts the layout of the network to enforce a natural causal “flow” (left-to-right and up-to-down) and to prevent graphical elements from overlapping. This is achieved using a technique called constraint-based layout (CoLa) (DwyerEtAl20090-cola).131313Currently, the configuration of these layout constraints is done in the software. In future, we plan to make this configurable by the BARD administrator or by users. As the analyst specifies arrows, CoLa automatically shifts variables around the canvas to maintain distance between them, prevent variable overlaps and minimise overlap between arrows and labels. One advantage of this automation is reduced effort by the user, but also, it’s easier for users to recognise similarities and differences in other models when they are laid out in the same way. CoLa does allow analysts to reorganise the network layout manually, by clicking and dragging variables around the canvas, while still enforcing some layout constraints.

At this point, the analyst may wish to add additional variables or modify the states or names of existing variables. They can do by returning to Step 2, per the flexible BARD workflow across steps (Figure 2).

Step 4: Parameters allows users to specify the conditional probabilities for each child variable given each joint state of its parents, i.e., the child’s CPT. BARD provides two modes for specifying the conditional probabilities: (1) as answers to questions, one question for each combination of the parent node states; or (2) via a table.141414We followed the Netica table layout rather than Hugin/Other software, which reverses the rows and columns, because it makes scrolling vertical rather than horizontal when the table size increases. In either case, BARD provides two ways of entering probabilities: (1) as percentages; or (2) as English language verbal descriptors, each of which has an associated probability range, as given in ICD-203 (ICD-203-2015) (Table 1). In combination, this yields four possible input modes, as depicted in Figure 4. This approach caters for both users who prefer to model with precise parameters and users who prefer to avoid “false precision” by using qualitative verbal descriptors (as described in Section 2.1.3).

No Chance 0%
Almost No Chance %
Almost No Chance %
Unlikely %
Roughly Even Chance %
Likely %
Very Likely %
Almost Certain %
Certain 100%
Table 1: Mapping verbal probability descriptors to probability ranges, taken from ICD-203 (ICD-203-2015)

Where individual probabilities haven’t been specified, the BARD default is a uniform distribution of any unused probability mass. This allows quick specification of CPTs for which only a proper subset of the parameters are known.

Figure 4: Examples of the four input modes available in Step 4 Parameters: percentages above, qualitative descriptors below; table left and question-based right.

Step 5: Explore Network is where the group members can use the BN for reasoning, thus exploring the consequences of steps 2-4. Evidence is added by setting one or more variables to particular states, and the BN reasoning engine computes new probability distributions for the remaining variables. In BARD, each set of evidence is called a “scenario” (following AgenaRisk terminology), and may involve setting values for any number of variables. A scenario may describe a specific situation given in the problem description or just a hypothetical “what-if” scenario that the analyst wants to explore. In BARD, scenarios are named, can be given associated descriptions, and may be shared and discussed. When viewing other analysts’ BNs, a BARD user can’t edit them, but they can explore their consequences by adding new scenarios that are only visible to them. Analysts can always change/extend either their own BN or the associated scenarios, and facilitators can do this for the group’s model. Step 5 always includes a default “base” scenario, which shows the probability distributions for all specified output variables when no evidence has yet been added.

Step 5 is where the group decides whether to continue the spiral prototyping of the BN or,if they are satisfied with it, move on to Step 6 (Report). Scenarios allow an explicit and visual way of investigating the appropriateness of the BN—both its structure and parameters—and determining whether it is giving a reasonable representation of known or hypothetical scenarios. Scenarios can also provide a direct means of answering questions about the confirmatory value of evidence or the final probability of some event given any combination of evidence. More formally, by allowing scenarios to be set up, stored and examined, BARD supports the following validation activities (KorbEtAl2013): face validity—checking whether a model captures the known features of a situation; content validity—checking whether the model’s confirmatory or causal relationships capture known relations; case analysis—seeing whether known cases are modelled correctly; sensitivity analysis

—determining whether variations in target variables are proportionate to variations in evidence, including examining the confirmatory power of different evidence sets. This is obviously useful for testing whether parameters (conditional probabilities) are sensible, but can also reveal missing causal connections, for example. In the future, we anticipate providing more targeted sensitivity analysis tools, such as reporting Bayes Factors (for confirmation) or causal power (e.g., via the measure in


The BARD Step 5 workspace is divided into three panels (Figure 5): the left-most panel contains the scenarios, with the base scenario listed first, and a single active scenario (selected and expanded) at a time; the middle panel shows the BN structure; the right panel shows the output variables (a subset of all the variables in the BN, as selected by the user) together with the computed probability distribution over the states; and a summary explanation is shown below. When a scenario is active, the distribution of non-evidence nodes may be easily examined. If the user wants to compare the outputs of two (or more) scenarios, they can either click back and forth (like AgenaRisk) or open (in another browser window) an additional instance of BARD for the same problem in the same step, to view the two scenarios side-by-side.

BARD Step 5 includes a general-purpose automated BN explanation tool, implementing a mix of traditional and novel natural language generation techniques and taking advantage of the explicitly causal nature of the links and common idioms for expressing probabilistic and causal relationships. The BARD Automated Explanation Tool (AET) can be used by analysts when exploring a complete causal BN, either to critique the model, or to contribute to writing up a report based on the reasoning provided by the BN.

Figure 5: Step 5: Explore Network allows evidence to be added into scenarios in the left panel and the resulting updated probabilities in the right panel. The model in the centre panel provides an overview of the network and highlights the evidence variables in blue. The screenshot above shows the base scenario, along with a scenario after each new piece of evidence is added. Below is summary explanation for the third scenario (with all three pieces of evidence).

The BARD AET generates both a summary explanation, which is re-generated and displayed each time probabilities are updated during the Explore Network step, as well as a detailed explanation that can be accessed by clicking through to a separate dialog box. For both, target variables and states (specified directly in the Explore Network step) are used to focus the explanation. Probabilities are stated both numerically and with verbal descriptors, following the ICD-203 recommendations (Table 1). The BARD summary explanation provides information about what the model probabilities would be if no evidence were entered, specifying only the target variables and states. If the scenario specifies evidence, additional statements are provided about what the evidence is for the given scenario, and how the model’s probabilities change when we take this evidence into account. An example of the summary explanation is given in Figure 5. The BARD detailed explanation includes multiple elements: the causal structure of the model, the probabilities of the target variables without any evidence and how the target probabilities are related to each other, the general reliability and bias of the evidence sources, why the evidence sources are structurally relevant, the probabilistic impact of the evidence items on each hypothesis (which can be presented in several ways and include additional notes to highlight interactions between them), and the final probabilities of the hypotheses given all the evidence (ZukermanEtAl2019).

The AET has been tested on all ten BARD training problems (Section 3.5), as well as the four problems in the BARD empirical experiments described in Section 4, and in three additional problems developed for CREATE. Overall, it has been shown to produce satisfactory English language descriptions. However, we have not yet empirically tested to what extent the provision of automated explanations, or which elements of them, improve analytic solutions.

Step 6: Report

provides an environment in which the group can develop a joint written answer to questions raised in the problem statement. In our preliminary testing, we identified that providing a template to assist users in writing effective reports improved their performance. The template encourages analysts to methodically organise and explain their analysis in detail, and prompts them to include various key elements of good reasoning, such as probability estimates for key hypotheses in any BN developed. The Automated Explanation Tool available in Step 5 also provides its detailed output in sections of text aligned with the template sections, which can be used directly or paraphrased to complete corresponding sections of the template.

Step 6 also allows analysts to rate final reports, which will either decide or inform which report is selected as the solution for that problem. This element was added when preliminary usage indicated that discussion forums did not always generate a clear consensus or guidance for the facilitator on the best BN or final report. Furthermore, in some experiments a few facilitators were no longer active at this stage in the process, so analyst ratings allowed the group report to be selected automatically in these cases. Rating is done on a scale from 1 to 10 using a slider. After they have submitted their ratings, analysts can see the average score for each option and how many ratings have been submitted so far, but cannot see other analysts’ ratings.

BARD has a notion of submission for the final group solution. In Step 6, the facilitator can click a ‘submit’ button, which generates a PDF of the group report, and sends it to a nominated electronic location. This is useful for experiments and for usage when there is a hard deadline, but not required. All group members have access to the final published group solution and can download both the written report in PDF format and the BN.

3.3 The BARD Social Process: roles and communications

A BARD group consists of a single facilitator and any number of analysts. The analysts contribute their individual domain knowledge and problem solving abilities across the six steps of BARD and are tasked with producing the best possible solution to the problem the group has been given.

Like the moderator in traditional Delphi processes, the facilitator provides instructions to the group for each step, signals when work is to begin and when responses are to be submitted, reminds analysts of any internal milestones or overall deadlines, presents collated results and other summaries back to the group, and highlights points of interest in those summaries. The collated results are constructed and shared via the dedicated Group workspace at each step, that only the facilitator can edit, but that all analysts can view once they have shared their own work.

The facilitator should incorporate contributions from the analysts to create the group solution, rather than making unnecessary novel contributions themselves. However, the facilitator will make the final decision on what is included and also have editorial control over how it is expressed in the group’s final report.

BARD provides two main communication channels:

1. Discussion forums. There is a separate Discussion Forum for each BARD step. This is where group members can communicate with each other and discuss the challenges for a particular step, gain a better understanding, provide feedback on others’ work, and discuss each other’s ideas to reach consensus. A new discussion on a particular topic can be started by any analyst or the facilitator. Each topic’s discussion is displayed as a single thread, with participants encouraged in the BARD training to use the @analyst_pseudonym convention to indicate when their comment is a reply to another analyst’s comment.

The provision of a separate Discussion Forum for each step is intended to support the Delphi principle that participants should attempt their own solution before viewing other analysts’ contributions; for example, an analyst may be able to read and contribute to a discussion about the BN Variables (Step 2), but if they have not yet provided their attempt at the BN structure (Step 3), then they can’t see the Step 3 Discussion Forum. Of course, this relies on the analysts following the protocol and not discussing topics in one forum that are related to a different step.

2. Messaging. BARD’s chat message channels provide private, two-way messaging between the facilitator and an analyst, and BARD also allows the facilitator to send a single message to multiple analysts. Messages are not associated with steps. Analysts do not see who else the facilitator may have sent the same message to, and they do not see any messages between the facilitator and other analysts. The message sender may optionally elect to generate an email notification for the recipient(s), which is a useful nudge for someone to login again to BARD when it is being used by the group asynchronously. However, BARD does not allow analyst-analyst direct messaging, to reduce private “side” conversations151515It is difficult to remove all chances of side conversations while enabling public discussion, because analysts could, for example, post their private email addresses onto the forum and set up a conversation outside of BARD. and to encourage a collaborative process where all group members have access to the same information and discussions.

BARD training advocates that the majority of facilitator communication to the group members should be via the Discussion forum. However, the messaging channel is more suitable for contacting individual analysts who have not been contributing either individually or to discussion; for answering private questions from an analyst about using the BARD application (especially where to find help); and for communicating privately to an analyst regarding inappropriate social behaviour (such as showing a lack of respect for others in the discussion forums). The facilitator is supported in these aspects of the role with an administration panel that shows a summary of each group member’s last BARD access, and the stage they have reached.

BARD advocates and supports participants using pseudonyms to maintain their anonymity, a key feature of any Delphi process. However, this aspect is managed by the BARD administrator (see Section 3.4) who may choose to have users identified by real names rather than pseudonyms.

BARD also provides functionality enabling users to automatically incorporate elements of each other’s work into their own solution (if they are analysts) or into the Group solution (if they are the facilitator). This is done in slightly different ways in each step, due to the distinct types of content being incorporated. Copying work can greatly reduce the burden on individual analysts, and make it easier to produce compatible contributions. For example, if one analyst likes some of the variables another analyst has defined in step 2, then they can easily adopt them and proceed to demonstrate a slightly different structure in step 3.

The problem solution arising from the BARD process is either (i) the amalgamated consensus Group version produced by the facilitator, or (ii) the highest rated individual BN or Report; BARD supports both options.

3.4 The BARD platform

BARD is a client-server application comprised of a group of cloud-based servers that provide services and resources to connected clients (Figure 6). The main BARD server provides the BARD login, collaboration, problem solving and report generation services, and connects: (1) a Database server, which provides SQL database services; (2) a Bayesian Network server, which provides the back-end reasoning via commercial BN software;161616BARD currently runs with both Netica and AgenaRisk BN servers; we anticipate extending to other widely used BN software. (3) an Automated Explanation server running the AET (see Step 5 above), which also utilises the BN server; and (4) a Storage server,171717Currently Amazon Simple Storage Service (S3), which stores items such as images uploaded into discussion forums or the report.

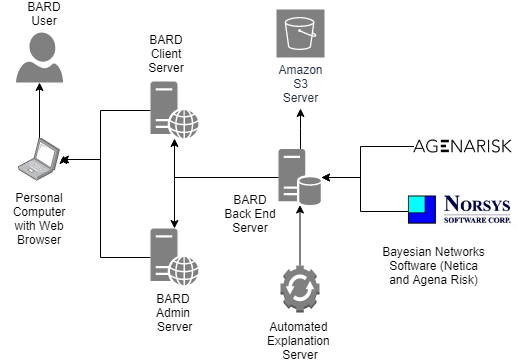

Figure 6: BARD application architecture.
