1 Introduction

The drive to establish software engineering as an evidence-based discipline has been gaining momentum since the seminal article of Kitchenham et al. Kitchenham et al. (2004). In parallel there has been a massive growth in the amount of publicly available software data and sophisticated data analytics methods. This has resulted in a sharp increase in the number and reach of empirically based, data driven studies that are generally termed software analytics.

Typically software analytics studies seek to distill large amounts of low-value data into small chunks of very high-value information. Studies are more data-driven than theory-driven. For example, after examining many software projects, certain coding styles could be seen to be more bug prone. Follow up experimentation, by manipulating the coding styles, could lead us to believe there is causality. Hence we might recommend some coding styles should be avoided (subject to various context-related caveats). However, absence of theory can lead to challenges. In particular, the lack of strong prior beliefs may make it difficult to choose between or evaluate potentially millions of possibilities Courtney and Gustafson (1993); Devanbu et al. (2016).

“Bad smell" Underlying problem Impact Remedy
1 Not interesting The software analytics equivalent of how “many angels can dance on a pinhead”. Research that has negligible software engineering impact Dialogue with practitioners Begel and Zimmermann (2014); Lo et al. (2015); Ivarsson and Gorschek (2011)
2 Not using related work Unawareness of related work on (i) the research question and/or (ii) state of the art in relevant techniques (i) Unwitting duplication (ii) Not using state of the art methods (iii) Using unchallenging / outdated benchmarks Read! Utilize systematic reviews whenever possible. Utilize technical guidance on data analytics methods and statistical analysis. Speak to experts.
3 Using deprecated or suspect data e.g., has been widely used in the past … Using data for convenience rather than for relevance Data driven analysis is undermined Agrawal and Menzies (2018) Justify choice of data sets wrt the research question.
4 Inadequate
reporting
Partial reporting of results e.g., only giving means without measures of dispersion and/or incomplete description of algorithms (i) Study is not reproducible Madeyski and Kitchenham (2017) (ii) meta-analysis is difficult or impossible. Provide scripts / code as well as data. Provide raw results Goodman et al. (2016); Munafò et al. (2017).
5 Under-powered experiments Small effect sizes and little or no underlying theory

Under-powered studies lead to over-estimation of effect sizes and replication problems

Analyse power in advance. Be wary of searching for small effect sizes, avoid Harking and p-hacking Button et al. (2013); Jørgensen et al. (2016); Munafò et al. (2017).
6 and all that!

Over-reliance on, or abuse of, null hypothesis significance testing

A focus on statistical significance rather than effect sizes leading to vulnerability to questionable research practices and selective reporting Jørgensen et al. (2016) Report effect sizes and confidence limits Ellis (2010); Lakens and Evers (2014).
7

Assumptions of normality and equal variances in statistical analysis

Impact of heteroscedasticity and outliers e.g., heavy tails ignored. Assumptions of test ignored.

Under-powered studies lead to over-estimation of effect sizes and replication problems. Use robust statistics / involve statistical experts Kitchenham et al. (2002); Wilcox (2012).
8 Not exploring stability. Only reporting best or averaged results. No sensitivity analysis. p-hacking The impact of small measurement errors and small changes to the input data are unknown but potentially substantial. This is particularly acute for complex models and analyses. Undertake sensitivity analysis or bootstraps/randomisation and minimally report all results and variances Manly (1997); Saltelli et al. (2000).
9 No data visualisation Simple summary statistics e.g., means and medians may hide underlying problems or unusual patterns. Data are misinterpreted and anomalies missed. Explore simple visualisations for the benefit of the analyst and the reader Myatt and Johnson (2009); Healy (2018).
10 Not tuning Biased comparisons e.g., some models / learners tuned and others not. Non-reporting of the tuning effort / expertise required. Under-estimation of the performance of un-tuned predictors. Read and use technical guidance on data analytics methods and statistical analysis Snoek et al. (2012); Fu et al. (2016a). Unless relevant to the research question avoid off-the shelf defaults for sophisticated learners.
11 Not exploring simplicity Excessively complex models, particularly with respect to sample size Dangers of over-fitting Independent validation sets or uncontaminated cross-validation Cawley and Talbot (2010).
12 Not justifying choice of learner Permuting / recombining learners to make ‘new’ learners in a quest for spurious novelty Under / non reporting of “uninteresting results" leading to over-estimates of effect sizes. Principled generation of research questions and analysis techniques. Full reporting.
Table 1: Software Analytics Bad Smells Summary

Thus far, so good. Unfortunately, concerns are being expressed about the reliability of many of these results both from within software engineering (SE) Shepperd et al. (2014); Jørgensen et al. (2016) and more widely from other experimental and data driven disciplines such as the bio-medical sciences Ioannidis (2005); Earp and Trafimow (2015). This has reached the point that in experimental psychology researchers now refer to the “replication crisis”. This in turn raises questions of study validity.

Arguably the situation is not dissimilar in software engineering. In a major systematic review of SE experiments (1993–2002) Kampenes et al. Kampenes et al. (2007) found similar effect sizes being reported to psychology. In 2012 we published an editorial for a Special Issue in the journal Empirical Software Engineering on repeatable results in software engineering prediction Menzies and Shepperd (????) where the principal focus was “conclusion instability". In that editorial, we raised concerns about the numerous occasions where Study 1 concluded X yet Study 2 concluded X. The inability to resolve these seeming contradictions leaves us at an impasse. Clearly, we need better ways to conduct and report our work, as well as to examine the work of others.

In this article we consider what may be learned from other disciplines and what specific lessons should be applied to improving the reporting of software analytics type studies. “Bad smells” is a term that comes from the agile community. According to Fowler Beck et al. (1999), bad smells (a.k.a. code smells) are “a surface indication that usually corresponds to a deeper problem”. See Table 1 for a summary of the bad smells identified in this article.

As per Fowler, we say that the “smells” listed in this article do not necessarily indicate that the conclusions from the underlying study must be rejected. However, we believe they raise three areas of potential concern.

  1. For the author(s) they reduce the likelihood of publication.

  2. For the reader they raise red flags concerning the reliability of the results (i.e., the consistency) and the validity (i.e., the correctness of the analysis or how well it captures those constructs we believe it represents) .

  3. For science, they hinder the opportunities of pooling results via meta-analysis and building bodies of knowledge.

So the goal of this article is to identify “smells” in order to (i) encourage a wide-ranging community debate and (ii) assist in the identification of potential problems and associated remedies.

Software analytics research is relatively new and growing fast, so much of our advice relates to articles discussing induction from software project data. We discuss problems with software data mining via experiments, quasi-experiments and correlation studies Shadish et al. (2002) rather than issues relating to e.g., qualitative studies. Other articles should be consulted for tips and traps relating to qualitative research and experimentation involving human participants, e.g., Stol et al. (2016); Cruzes and Dybå (2011); Ko et al. (2015); Petersen et al. (2015).

The remainder of this article is organized as follows. The rest of this section tackles two frequently asked questions about this work. Section 2 explores historical work on writing ‘good’ articles and methodological guidance, coupled with how other data-driven disciplines have addressed experimental reliability concerns. Next, in Section 3 we describe our approach to identifying “bad smells”. This is followed by Section 4 that lists some key symptoms or ‘smells’ in approximate order of importance. Finally, in Section 5 we consider the implications for the future and how we, the research community, might collectively take ownership of these “smells”, re-prioritise, re-order, add and subtract “smells”.

1.1 But is this article necessary?

Simply put: is this article necessary? Is not everything here just material that “everybody knows”?

In response, we first note that, over some decades, the authors have been members of many conference and journal review panels. Based on that experience, we assert that demonstrably everybody does not know (or at least apply) this material. Each year, numerous research articles are rejected for violating the recommendations of this article, or worse still, some slip through the net. In our view many of those rejections are avoidable. We believe, many of the issues raised by this article can be repaired before submission – some with very little effort.

These difficulties are compounded by the fact that good practice evolves. For example, whilst the statistical education of many engaged in empirical software engineering research is grounded in classical statistics there have been more recent developments such as robust approaches Kitchenham et al. (2017), use of randomisation and bootstrap Carpenter and Bithell (2000) and Bayesian techniques Gelman et al. (2013)

. Likewise, there are significant and recent developments in machine learning which, sometimes, authors overlook. For example, we have had on occasions to review and reject papers that are some very small delta to an article one of us wrote in 2007

Menzies et al. (2007). Since that paper was written, much has changed111For example, improved evaluation techniques and experimental design; new problem areas for SE and machine learning (e.g. Sarkar et al. (2015)); novel and insightful new evaluation measures (see Section 5 of Huang et al. (2017a) or the multi-objective approaches discussed in Nair et al. (2018)

; and challenging new learners that are so slow that it becomes impractical to reproduce prior results (see the discussion on deep learning in

Fu and Menzies (2017a)).
so a mere increment on that 2007 paper is unlikely to be a useful contribution or an acceptable publication.

We also observe that, on occasions, we find some reviewers who have the role of gatekeepers to scientific publication, also seem unaware of some, or much of this material. Thus there exists some research that should not be published, at least in its present form, that is published Kitchenham et al. (2002); Jørgensen et al. (2016). This harms the progress of science and our ability to construct useful bodies of knowledge relevant to software engineering.

A particularly marginalized group are industrial practitioners trying to get their voice heard in the research literature. Unless that group knows the established norms of publication, their articles run the risk of rejection. We note that those norms of publication are rarely recorded – a problem that this article is attempting to solve. Hence, for all the above reasons, we argue that this article is necessary and useful.

1.2 Should papers be rejected if they have bad smells?

It is important to stress that this paper:

  • is primarily intended as guidance for authors;

  • is not intended to be used by reviewers as a mindless checklist of potential reasons-to-reject a paper. Our bad smalls are indicative rather than definitive proof of a potential issue. Hence we stress that their presence alone is not a reason for reviewers to reject a paper. Context is extremely important.

One of the reviewers of this paper was kind enough to expand on this point. They commented (and we agree) that reviewers tend to become overly strict — to the point where they can reject papers with very interesting ideas — just because there was one point that did not satisfy certain guidelines. This is most acute for conferences where there is seldom a revision cycle. Reviewers should not just blindly enforce the adoption of all the points raised by this paper, but need to be sensitive to the context of the study; certain bad smells may not be applicable (or may be less relevant). Additionally, we wish to avoid adopting a perspective, such that the requirement of a perfection prevents useful, pioneering or relevant — but slightly imperfect — research from ever being published.

2 Related Work

Software engineering (SE) researchers have posed the question from time to time: what makes a good article? Examples are the article by Shaw Shaw (2003) back in 2003 and recently revisited by Theisen et al. Theisen et al. (2017). Shaw stated that one difficulty SE researchers and authors face is that there are no well-developed or agreed guidelines as to how research should be conducted and presented. Although in the intervening years there has been increasing emphasis placed upon evidence, it is our view that the situation has not greatly changed. She also remarked on the weakness of many articles in terms of validation and Theisen et al. report that, if anything, reviewer expectations have increased. Potentially, software analytics articles have an advantage here given their empirical basis, however statistical analysis is not always undertaken well, as our article will demonstrate.

There have also been various audits of statistical quality of empirical research Kitchenham et al. (2002) and published guidelines and recommendations regarding analysis Kitchenham et al. (2002); Wohlin et al. (2012). The guidelines are welcome since, by and large, software engineers have limited formal training as statisticians. Note that when researchers do publish methodological guides, those articles tend to have very high citation counts222The citation counts were extracted from Google Scholar, November 2018., for instance:

  • “Preliminary guidelines for empirical research in software engineering", in IEEE Transactions on Software Engineering Kitchenham et al. (2002) (1430 citations since 2002).

  • “Benchmarking Classification Models for Software Defect Prediction: A Proposed Framework and Novel Findings” in IEEE TSE 2008 Lessmann et al. (2008) (765 citations since 2008).

  • “Guidelines for conducting and reporting case study research in software engineering”, in the Empirical Software Engineering journal Runeson and Höst (2009) (2500 citations since 2009).

  • “A practical guide for using statistical tests to assess randomized algorithms in software engineering” at ICSE’11 Arcuri and Briand (2011) (500 citations since 2011).

Of particular concern is our our ability to replicate results (or reliabiity), which many argue is the cornerstone of science. This was investigated systematically in experimental psychology by Nosek et al. Open Science Collaboration (2015) who concluded from a major replication project of 100 experiments in leading psychology journals that “replication effects were half the magnitude of original effects” and that while 97% of the original studies had statistically significant results, only 36% of replications did. Researchers began to talk about the “replication crisis”. Note, however, that there has been little discussion as to exactly what constitutes a confirmation of the original study Spence and Stanley (2016) and that for under-powered studies (as seems to be typical) results may well be dominated by sampling error. Nevertheless, it seems that there is legitimate cause for concern and this has triggered recent how-to type articles such as Munafò et al. Munafò et al. (2017).

Despite this “replication crisis” having sparked considerable soul searching when it was reported, less progress is being made than we would hope e.g., in cognitive neuro-science and experimental psychology study power remains low and essentially unchanged over 50 years Szucs and Ioannidis (2017). Smaldino and McElreath Smaldino and McElreath (2016) make the case that given the incentive structures for researchers — specifically that publication is the principal factor for career advancement — it is unsurprising that low quality research studies are still being conducted, submitted and published. As they put it, although this occurs without “deliberate cheating nor loafing" it helps explain why improvements in scientific practice remain slow.

We believe that whilst incentive structures clearly matter and influence scientific behavior, many of the problems we identify could be remedied with relatively little effort. We also hope that the intrinsic motivation of “doing good science" will be sufficient for the large majority of our research community.

3 Our Approach

Our goal is to assist researchers towards conducting better research and writing better articles. As steps towards that goal, we have a two-part proposal:

  1. A part of this proposal is to run workshops at major software engineering conferences where best, and worst, practices in analysis and writing can be explored and documented. Accordingly, this article aims to recruit colleagues to this goal and thereby increase the number of researchers reflecting and commenting on these issues.

  2. The other part of this plan is this article itself. Whilst we hope that these ideas will prove useful in their own right, we also hope that (a) this article inspires more extensive discussions about best and worst paper writing practices; and (b) subsequent articles extend and improve the guidance we offer below.

In order for this article to be effective we adopt a pragmatic approach. We present, a hopefully useful but not exhaustive, list of problems with software analytics papers. The level of detail is illustrative rather than in depth. In the spirit of brevity we restrict our focus to data driven research so, for example, case studies and experiments involving human participants are excluded.

Research area Kitchenham et al. (2015) Quality instrument question (Dybå and Dingsøyr, 2008, Table 3) Bad smell
Reporting - quality Is the article based on research? Yes, defined by our scope
Is there a clear statement of the research aims? 1
Is there an adequate description of the context? 4
Is there a clear statement of findings? 4, 11
Rigour - details of Was the research design appropriate? 5
the research design Was the recruitment strategy appropriate? No human participants, but more generally: 1, 3
Treatments compared to a control group? 2, 10
Data collected addressed research issue? 3
Was the data analysis sufficiently rigorous? 6, 7, 8, 9, 10
Credibility - are the findings of the study are valid and meaningful? Has the relationship between researcher and participants been adequately considered? No human
participants
Relevance - of the study to practice Is the study of value for research or practice? 1, 11
Table 2: Cross referencing research area to bad smell

Some “smells" are more self-evident and consequently need relatively little explanation. In contrast, others are more subtle and therefore we devote extra space to illustrating them. We use examples to help illustrate the smells and their relationship to actual problems. We do not intend examples as existence proofs, and in any case consider it invidious to single out individual authors as examples of widespread errors.

The list of “smells" has been constructed by discussion and debate between the two authors. We then cross-checked the list (see Table 2) with an empirical study quality instrument, Dybå and Dingsøyr (2008) that has been used when assessing article quality for inclusion within software engineering systematic reviews (Kitchenham et al., 2015, chapter 7). Hence we see our list addresses all four areas of quality identified by the quality instrument and have more confidence in its coverage.

4 “Bad Smells” Unpacked

This section discusses the bad smells listed in Table 1. Before beginning, we note that while some of the following “smells” are specific to software analytics, others are general to many scientific endeavors. We include them altogether since they are all important issues about good science and effective scientific communication.

4.1 Not Interesting

All science studies should strive to be valid and reliable. But it is important that research is also interesting (to a wider audience than just the authors). This is not a clarion call for quirky or quixotic research, however, recall that our discipline is software engineering

. Potentially somebody must be invested in the answers, or potential answers. One rule-of-thumb for increasing the probability that an article will be selected is correctness plus

engagement with some potential audience.

So what do we mean by “interesting”? The article needs a motivation or a message that beyond mundane. More specifically, articles should have a point. Research articles should contribute to a current debate. Or, if no such debate exists, research articles should motivate such a debate. For example, one could inspect the current literature and report a gap in the research that requires investigation. But to be clear, this does not preclude incremental research or even checking the reproducibility of results from other researchers, particularly if those results may have strong practical significance.

Note that problem of not inspiring is particularly acute in this era of massive availability of data and new machine learning algorithms; not all possible research directions are actually interesting. The risk can be particularly high when the work is data-driven which can quickly resemble data-dredging.

An antidote and powerful way to consider practical significance is with effect size Ellis (2010) especially if this can be couched in terms that are meaningful to the target audience. For instance, reducing unit test costs by or is inherently more engaging than the associated value of some statistical test is below an arbitrary threshold. The notion of smallest effect size of interest has also been proposed as a mechanism to maintain focus on interesting empirical results Lakens (2017) a point we shall return to.

4.2 Not Using Related Work

This issue should not exist. Nevertheless, we know of many articles that fail to make adequate use of related work. Typically we see the following specific sub-classes of “bad smell”.

The literature review contains no or almost no articles less than ten years old. Naturally older papers can be very important– but the absence of any recent contribution would generally be surprising. This strongly suggests the research is not state of the art, or is not being compared with state of the art.

The review overlooks relevant, recent systematic literature review(s). This strongly suggests that there will be gaps or misconceptions in the way the state of the art is represented. It may also allow bias to creep in since the authors’ previous work may become unduly influential.

The review is superficial, even perfunctory. Such an approach might be caricatured along the lines of:

“Here is some related work [1, …, 30]. Now to get on with the important task of my describing own work."

This style of writing — where reviewing the work of others is merely a burden — makes it less likely connections will be seen, that the article contributes to a body of knowledge but conversely, increases vulnerability to confirmation biases Nickerson (1998). It is also unhelpful to the reader since there is little or no interpretation of other work. What is useful? What has been superseded?

The review is thorough, relevant and fair, however, it is not used to motivate the new study. In other words there is a disconnect between the review and new research. New results are not related to the current state of the art. The consequence is the reader cannot determine what new contributions have been made. It may also mean appropriate benchmarks are missed.

Methodological aspects of the research are motivated by extremely simplistic or outdated sources e.g., using traditional statistics texts. One of the many dangers from using such sources is to buttress obsolete or inappropriate data analysis techniques or learning algorithms that are no longer competitive.

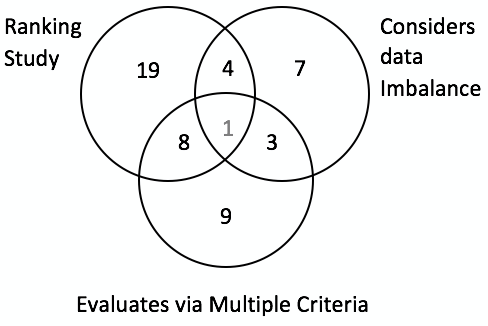

Figure 1: Summary of Table 3.

One constructive suggestion, especially if no relevant systematic literature review exists, is to employ lightweight literature inspections. These need not be as complex as a full systematic literature review (that can take months to complete). However, with the growing number of published systematic literature reviews it is increasingly probable that other researchers will have already addressed at least some part of the literature relevant to the research topic you are exploring.

Reference
Year Cites
Ranked
Classifiers?
Evaluated
using
multiple
criteria?
Considered
Data
Imbalance?
(a) 2007 855 2
(b) 2008 607 1
(c) 2008 298 2
(d) 2010 178 3
(e) 2008 159 1
(f) 2011 153 2
(g) 2013 150 1
(h) 2008 133 1
(i) 2013 115 1
(j) 2009 92 1
(k) 2012 79 2
(l) 2007 73 2
(m) 2007 66 1
(n) 2009 62 3
(o) 2010 60 1
(p) 2015 53 1
(q) 2008 41 1
(r) 2016 31 1
(s) 2015 27 2
(t) 2012 23 1
(u) 2016 15 1
Table 3: 21 highly-cited software defect prediction studies, selected as follows: (a) from Google Scholar, search for “software” and “defect prediction” and “OO” and “CK” in the last decade; (b) delete anything with less than ten cites/year since publication; (c) search the resulting 21 articles for the three research items explored by Agrawal et al., i.e., do they rank multiple classifiers; are the classifiers ranked by multiple criteria; does the study consider class imbalance.

For examples of lightweight literature inspections, see Figure 1 and Table 3 from Agrawal and Menzies Agrawal and Menzies (2018). Here, the researchers found a research gap in two dozen articles of the top-most cited software defect prediction studies that have at least 10 citations per year over the last decade. Specifically, as seen in Figure 1, most articles avoid issues of data imbalance and scoring via multiple criteria. Of course, research gaps need to be interesting (see Bad Smell #1). This finding led Agrawal and Menzies to perform a unique set of experiments that resulted in an ICSE’18 article.

4.3 Using Deprecated or Suspect Data

Researchers adopting a heavily data-driven approach, as is the case for software analytics, need to be vigilant regarding data quality. De Veaux and Hand point out “[e]ven when the statistical procedure and motives are correct, bad data can produce results that have no validity at all” De Veaux and Hand (2005). A series of systematic reviews and mapping studies Liebchen and Shepperd (2008); Bosu and MacDonell (2013); Rosli et al. (2013); Liebchen and Shepperd (2016) all point to problems of data quality not being taken very seriously and problems with how we definitively establish the validity of data sets, particularly when the gap in time and perhaps geography, between the collection and analysis is wide.

In terms of “smells" or warning signs we suggest researchers be concerned by the following:

  • Very old data; e.g., the old PROMISE data from last-century NASA project (JM1, CM1, KC1, KC2, …) or the original COCOMO data sets containing size and effort data from the 1970s.

  • Problematic data; e.g., data sets with known quality issues (which, again, includes the old PROMISE data from last-century NASA project Shepperd et al. (2013)).

  • Data from trivial problems. For example, in the history of software test research, the Siemens test suite was an important early landmark in creating reproducible research problems. Inspired by that early work, other researchers have take to document other, more complex problems333e.g. See the Software-artifact Infrastructure Repository at sir.unl.edu/portal.. Hence, a new paper basing all its conclusions on the triangle inequality problem from the Siemens suite is deprecated. Nevertheless tiny problems occasionally offer certain benefits, e.g., for the purposes of explaining and debugging algorithms, prior to attempting scale up.

That said, our focus is empirical studies in the field of software engineering where scale is generally the issue. In our experience, readers are increasingly interested in results from more realistic sources, rather than results from synthetic or toy problems. Given there now exist many on-line repositories where researchers can access a wide range of data from many projects (e.g. GitHub, GitTorrent444github.com/cjb/GitTorrent; and others 555tiny.cc/seacraft) this should not be problematic. Consequently, it is now normal to publish using data extracted from dozens to hundreds of projects e.g., Krishna et al. (2017); Agrawal et al. (2017).

Finally, we acknowledge there are occasions when one must compromise, otherwise important and interesting software engineering questions may never be tackled. Not all areas have large, well-curated, high quality data sets. In such circumstances research might be seen as more exploratory or to serve some motivational role in the collection of better data. As long as these issues are transparent we see no harm.

4.4 Inadequate Reporting

Here there are two dimensions: completeness and clarity. Problems may be indicated by the following “smells".

  1. The work cannot be reproduced because the descriptions are too incomplete or high level. In addition, not all materials ( data and code) are available Goodman et al. (2016); Munafò et al. (2017).

  2. The work cannot be exactly

    reproduced because some of the algorithms are stochastic and seeds are not provided. Typical examples are the generation of folds for cross-validation in machine learning and heuristic search algorithms.

  3. Non-significant and post hoc “uninteresting" results are not reported. This seemingly innocuous behavior, known as reporting bias, can lead to serious over-estimation of effect sizes and harm our ability to build bodies of knowledge via meta-analysis or similar means Goodman et al. (2016); Szucs and Ioannidis (2017).

  4. The experimental details are full of “magic" numbers or arbitrary values for parameters and the experimental design. It is important to justify choices otherwise there are real dangers of researcher bias and over-fitting, i.e., choosing values that favor their pet algorithms. Standard justifications include “ was selected via the standard Gap statistic procedure” or perform some sensitivity analysis to explore the impact of choosing different values Saltelli et al. (2000).

  5. It’s impossible for the reader to get a sense of what the article is about without reading it in its entirety. Structured abstracts (as per this article) can greatly assist both human readers Budgen et al. (2011); Kitchenham et al. (2008); Booth and O’Rourke (1997) and text mining algorithms which are beginning to be deployed to assist meta-analysis, e.g., Szucs and Ioannidis (2017).

  6. Using highly idiosyncratic section headings or article organization. Typically the following should suffice: introduction, motivation, related work, methods (which divides into data, algorithms, experimental method, and statistical procedures) followed by threats to discussion, threats to validity, conclusion, future work and references. Simple tables summarising algorithm details, hyper-parameters etc can be invaluable.

  7. The article uses too many acronyms. Define terms when they are first used. If there are many, then consider using a glossary.

We conclude this sub-section with some simple and hopefully constructive suggestions.

Strive towards reproducible results: Table 4 defines a continuum of research artifacts and results. Reporting reproducible results (on the right-hand-side of that continuum) is the ideal case – but that can take a great deal of effort. For an excellent pragmatic discussion on how to structure your research artifacts in order to enhance reproducibility, see “Good Enough Practices for Scientific Computing” goo.gl/TD7Cax.

(Aside: Demands for increased reproducibility must be assessed on pragmatic grounds. If a prior study uses tools that are not open source, or tools that are very complex to use, then it is not appropriate to demand that subsequent work exactly reproduces the old work. )

No Artifacts Results
badge Functional Resuable Available Replicated Reproduced
Artifacts documented, consistent, complete, executable, and include appropriate evidence of verification and validation. Functional + very carefully documented and well-structured to the extent that reuse and re-purposing is facilitated. In particular, norms and standards of the research community for artifacts of this type are strictly adhered to. Functional + placed on a publicly accessible archival repository. A DOI (Digital Object Identifier) or link to this repository along with a unique identifier for the object is provided. It is easy to obtain such DOIs: just host your artifact at repositories like SEACRAFT tiny.cc/seacraft. Available + main results of the article have been obtained in a subsequent study by a person or team other than the authors, using, in part, artifacts provided by the author. Available + the main results of the article have been independently obtained in a subsequent study by a person or team other than the authors, without the use of author-supplied artifacts.
Table 4: The artifact continuum flows from left to right. More articles will classified on the right once authors apply more of the methods on the left. This table presents the badges and definitions defined by the ACM (see goo.gl/wVEZGx). These definitions can be applied by the broader community as (1) aspirational goals, or (2) ways to audit past research, or (3) as guidance for organizing an “artifacts track” at a conference or journal.

Consider adding summary text to each table or figure caption, e.g., “Figure X: Statistical results showing that only a few learners succeed at this task”: Quite often, reviewers will first skim a article, glancing only at the figures. For such a reader, the locality of these annotations may prove extremely helpful.

Considering using research questions: Frequently software analytics research articles naturally sub-divide themselves into exploring a small set of research questions. Determining these research questions can require some creativity but is a powerful structuring device. Preferably there should be some progression so for example, here are the research questions from Fu et al. (2016a) (which discussed the merits of tuning the hyper-parameters of data mining algorithms):

  • RQ1: Does tuning improve the performance scores of a predictor?

  • RQ2: Does tuning change conclusions on what learners are better than others?

  • RQ3: Does tuning change conclusions about what factors are most important in software engineering?

  • RQ4: Is tuning impractically slow?

  • RQ5: Is tuning easy?

  • RQ6: Should data miners be used “off-the-shelf” with their default tunings?

A useful typographical device sometimes associated with research questions is the use of results boxes to stress the answers to the questions. Here is an early example from Zimmermann et al. Zimmermann et al. (2004), 2004. Although potentially powerful such summaries need to be carefully constructed to avoid trivial over-simplification.

4.5 Under-powered Studies

The power of an analysis is the probability that a test will reject a false null hypothesis i.e., correctly report a non-zero effect. More generally, it is the ability to find an effect were one to exist. Power is the complement of or the probability of making a Type II (failing to detect a true effect in favour of the null hypothesis, i.e., a false negative) error, hence power =

. However, there is a tradeoff with the probability of making a Type I error (i.e., a false positive). At an extreme we could guard against false positives by setting an extremely high threshold of acceptance but the consequence would be an elevated false negative rate. And of course

vice versa.

So what should be set to? Traditionally, it has been argued that power should be 0.8 Cohen (1988)

indicating that researchers might consider Type I errors (wrongly rejecting the null hypothesis when in reality there is no effect) as being four times more problematic than Type II errors and therefore needing proportionately more checks. Thus, if significance levels are set at

then it follows that hence, as required, our power is . To repeat, the important point is that we must trade off between Type I and Type II errors and our preferences are somewhat arbitrary.

However, what we want the power of a study to be, and what it actually is are two different things. Four factors influence power, namely: (i) sample size, (ii) the unknown, true size of the effect being investigated, (iii) the chosen and (iv) the chosen Cohen (1992); Ellis (2010). In addition, experimental design can improve power, for example by measuring within experimental unit (e.g., via a repeated measures design) rather than between unit variation McClelland (2000).

Many commentators recommend, the power of a proposed experiment or investigation should be determined a priori Dybå et al. (2006). The purpose is to check if an experiment has a reasonable chance of detecting an effect were one to actually exist. One obvious and immediate difficulty is estimating the effect size that is to be investigated Maxwell et al. (2008). This is compounded by the problem that there is compelling evidence that we are systematically over-estimating effect sizes due to reporting and publication bias Button et al. (2013); Jørgensen et al. (2016). However, the problems of power go beyond merely wasting scientific resources in failing to detect effects that actually exist. There are two other serious negative consequences. First is the tendency of over-estimation of the measured effect sizes and second, is the elevated probability of false statistically significant findings Ioannidis (2005); Colquhoun (2014). Indeed, it is no exaggeration to state that low and under-powered studies are the greatest threat to meta-analysis and constructing meaningful bodies of software engineering knowledge Button et al. (2013); Szucs and Ioannidis (2017).

It is ironic that the success of software analytics research in being able to uncover patterns and effects in large, complex and noisy data sets is also its undoing. This, coupled with the lack of guiding theory (which makes it difficult to differentiate between “winner’s curse" and some substantive effect666Huang et al. Huang et al. (2017b) describe a parallel situation in genomics where millions of associations can be potentially discovered but the lack of theory means there is little guidance for researchers.

), agreed methods of analysis and excessive researcher degrees of freedom

Silberzahn et al. (2017); Loken and Gelman (2017) results in low-powered studies and a high probability of over-estimating effect sizes that are hard for other researchers to replicate Ioannidis (2005); Shepperd et al. (2014); Jørgensen et al. (2016). As an antidote, we strongly recommend:

  1. Determining in advance the smallest effect size of interest (SESOI) Lakens (2017). This may entail debate with the problem owners, typically practitioners. It also helps address our “Bad Smell #1" by reducing the likelihood of conducting research that nobody cares about.

  2. Also, undertake power calculations in advance to determine the likelihood of the study finding an effect of the expected size. Where possible, when there are relevant previous studies, use a bias-corrected pooled estimate Schmidt and Hunter (2014) to help address likely exaggerated estimates.

  3. If the power is low either modify the study design McClelland (2000), use a larger sample or investigate a different question.

The “smell" associated with this kind of problem can be surprisingly subtle. However, one clue can be an argument along the lines of:

Despite a small sample size we were able to detect a highly significant effect with a very low . Thus it is concluded that the effect must be even stronger than it first appears given the inherent difficulties in detecting it.

Unfortunately, nothing can be further from the truth. If the study is under-powered, possibly due to a small sample, then it is extremely probable that the effect is a false positive or a Type I error Loken and Gelman (2017). If the study has low power then that is a problem and one that cannot be fixed by hunting for small values777The problem that arises from small samples is that the variability will be high and only the studies that by chance obtain a sufficiently low p-value — and therefore satisfy the acceptance criterion typically — and these will of necessity have exaggerated estimates of the effect. This is sometimes known as the “winner’s curse". The probability that an observed effect that reaches statistical significance actually reflects the true effect can be computed as where is the power, is the Type II error,

is the Type I error and R is the pre-study odds that an investigated effect is truly non-null among all the effects being investigated)

Loken and Gelman (2017); Szucs and Ioannidis (2017). , which leads to the next “bad smell".

4.6 and all that!

Though widely deprecated Carver (1993); Simmons et al. (2011); Colquhoun (2014), null hypothesis significance testing (NHST) persists as the dominant approach to statistical analysis. Hence, the following fictitious888Since problems with the use of p-values are widely agreed to be endemic Simmons et al. (2011); Jørgensen et al. (2016) we consider it invidious to single out individuals. examples “smell bad”:

Our analysis yields a statistically significant correlation .

and

Table X summarizes the 500 results of applying the ABC inferential test and reveals that 40 are statistically significant at the customary threshold of .

In the first instance the low (and under the acceptance threshold for Type I errors) -value should not be conflated with a practical, real world effect. A correlation of is trivial and to all practical purposes indistinguishable from no correlation. It is simply the artifact of the very large sample size () and the logic of NHST which demands that empirical results be dichotomised into true (there is a non-zero effect) and false (the effect size is precisely zero).

Hence, methodologists encourage the notion of the smallest effect size of interest (SESOI). This should be specified before

the research is conducted. It also has the merit of re-engaging the researchers with the software engineering problems they are trying to solve. So for, say software effort prediction, after consultation with the problem owners we may conclude that the SESOI is to be able to reduce the mean inaccuracy by 25%. Generally, although not necessarily, effect sizes are expressed as standardized measures to enable comparisons between settings so the above SESOI could be normalized by the variability (standard deviation) of the observations. For accessible overviews see

Ellis (2010); Cohen (1992). It is useful for practitioners if the article report the effect size with confidence limits. After all, we experience effects not values!

In the second example of a “bad smell”, the problem relates to the practice of performing excessive numbers of statistical tests and only attending to the ones that are “significant". Given that 500 tests are performed and we accept the likelihood of wrongly rejecting the null hypothesis at 1 in 20 we would expect to observe 40 “positive" results just with random data! A range of corrections have been proposed Bender and Lange (2001). Controlling for the false discovery rate using the Benjamini-Hochberg approach Benjamini and Yekutieli (2001) can be appropriate as it corrects the acceptance threshold without being as severe as the traditional Bonferroni correction ( where is the number of tests being undertaken).

One way to avoid excessive statistical tests is to cluster results before performing a statistical analysis. In this approach, instead of saying “what distributions are different?” some grouping operator is applied prior to the application of statistics. For example, consider the Scott-Knott procedure recommended by Mittas and Angelis Mittas and Angelis (2013). This method sorts a list of treatments with measurements by their median score. It then splits into sub-lists in order to maximize the expected value of differences in the observed performances before and after divisions. The Scott-Knott procedure identifies one of these divisions to be ‘best’ as follows. For lists of size where , the ‘best’ division maximizes ; i.e., the difference in the expected mean value before and after the split:

Scott-Knott then checks if the ‘best’ division is actually useful. To determine this the procedure applies some statistical hypothesis test

to check if are significantly different. If so, Scott-Knott then recurses on each half of the ‘best’ division.

For a specific example, consider the results from treatments:

        rx1 = [0.34, 0.49, 0.51, 0.6]
        rx2 = [0.6,  0.7,  0.8,  0.9]
        rx3 = [0.15, 0.25, 0.4,  0.35]
        rx4=  [0.6,  0.7,  0.8,  0.9]
        rx5=  [0.1,  0.2,  0.3,  0.4]

After sorting and division, Scott-Knott determines:

  • Ranked #1 is rx5 with median= 0.25

  • Ranked #1 is rx3 with median= 0.3

  • Ranked #2 is rx1 with median= 0.5

  • Ranked #3 is rx2 with median= 0.75

  • Ranked #3 is rx4 with median= 0.75

Note that Scott-Knott finds little meaningful difference between rx5 and rx3. Hence, they have the same rank, even though their medians differ. For a larger example of this kind of analysis, see Figures 2 & 3.

The Scott-Knott procedure can ameliorate the excessive statistical tests problem. To see this, consider an all-pairs hypothesis test of 10 treatments. These can be compared statistically ways. To substantially reduce the number of pairwise comparisons, Scott-Knott only calls on hypothesis tests after it has found splits that maximize the performance differences. Hence, assuming binary splits of the whole data and all splits proving to be different, Scott-Knott would be called times. A 95% confidence test run for these splits using Scott-Knott would have a confidence threshold of: % assuming no corrections are made for multiple tests..

treatment Results from multiple runs
no-SWReg 174 38 0 32 50 141 34 317 114
no-SLReg 127 73 45 35 47 159 37 272 103
no-CART-On 119 257 425 294 181 98 409 520 16
no-CART-Off 119 257 425 294 181 98 409 520 16
no-PLSR 63 213 338 358 163 44 14 520 44
no-PCR 55 240 392 418 176 45 12 648 65
no-1NN 119 66 81 82 70 110 118 122 92
log-SWReg 109 23 9 7 52 100 12 164 132
log-SLReg 108 61 49 53 55 156 28 183 101
log-CART-On 119 257 425 294 181 98 409 520 16
log-CART-Off 119 257 425 294 181 98 409 520 16
log-PLSR 163 7 60 70 2 152 31 310 175
log-PCR 212 180 145 155 70 68 1 553 293
log-1NN 46 231 246 154 46 23 200 197 158

NOTE: treatments have a pre-processor (‘no’ = no pre-processor; ‘log’ = use a log transform) and a learner (e.g., ‘SWReg’ = stepwise regression; CART = decision tree learner that post-prunes its leaves after building the tree).

Figure 2: How not to present data (in this case, percent error estimations where the treatment in column one was applied to multiple randomly selected stratifications of the data). Note that there is (a) no sort order of the treatments from most to least interesting; (b) no summary of the distributions; (c) no indication to indicate what values are best; and (d) no clustering together of results that are statistically indistinguishable. For a better way to present this data, see Figure 3.
RANK TREATMENT MEDIAN (75-25)TH

1
no-SWReg 50 107 - o --------
1 log-SWReg 52 97 o --
1 log-SLReg 61 55 -o ----
1 log-PLSR 70 132 - o -------
1 no-SLReg 73 82 - o -------
1 no-1NN 92 37 o
2 log-PCR 155 142 --- o ----------------
2 log-1NN 158 154 - o --
2 no-PLSR 163 294 -- o --------
2 no-PCR 176 337 -- o -----------
3 log-CART-Off 257 290 ----- o ------
3 log-CART-On 257 290 ----- o ------
3 no-CART-On 257 290 ----- o ------
3 no-CART-Off 257 290 ----- o ------
Figure 3: Using Scott-Knott, there is a better way to representation the Figure 2 data. Note that, here, it is clear that the “SWReg”,“CART” treatments are performing best and worst (respectively). Results from each treatment sorted by their median (and the first rows with less error are better than the last rows with most error). Results presented numerically and visually (right-hand column marks the 10th, 30th, 50th, 70th, 90th percentile range; and ‘o’ denotes the median value). Results are clustered in column one using a Scott-Knott analysis. Rows have different ranks if Cliff’s Delta reports more than a small effect difference and a bootstrap test reports significant differences. A background gray share is used to make different ranks stand out.

Implementations that use bootstrapping and a non-parametric effect size test (Cliff’s Delta) to control its recursive bi-clustering are available as open source package, see goo.gl/uoj3FL. That package converts data such as Figure 2 into reports like Figure 3.

4.7 Assumptions of normality and equal variances in statistical analysis

A potential warning sign or “bad smell” is when choosing statistical methods, to overlook the distribution of data and variances and focus on the “important" matters of description e.g., using measures of location such as the mean, and the application of inferential statistics such as t-tests.

It is now widely appreciated that applying traditional parametric statistics to data that violates the assumptions of normality, i.e., they deviate strongly from a Gaussian distribution

can lead to highly misleading results Kitchenham et al. (2002). However, four points may be less appreciated within the software engineering community.

  1. Even minor deviations can have major impacts, particularly for small samples Wilcox (2012). These problems are not always easily detected with traditional tests such as Kolmogorov-Smirnov so visualization via qq-plots should be considered.

  2. Differences between variances of the samples or heteroscedasticity, may be a good deal more problematic than non-normality Erceg-Hurn and Mirosevich (2008). Thus the widespread belief that t-tests are robust to departures from normality when sample sizes are approximately equal and is unsafe Erceg-Hurn and Mirosevich (2008); Zimmerman (1998).

  3. Although different transformations, e.g., log and square root can reduce problems of asymmetry and outliers they may well be insufficient to deal with other assumption violations.

  4. Lastly, there have been major developments in the area of robust statistics over the past 30 years that are generally more powerful and preferable to non-parametric statistics. This includes trimming and winsorizing Hoaglin et al. (1983); Kitchenham et al. (2017).

Since SE data sets can be highly skewed, heavy tailed or both, we recommend performing robust tests for statistical inference. Note that we believe they should be preferred (wherever possible), to non-parametric statistics that are based on ranks. The latter, for example the Wilcoxon signed rank procedure can lack power and are problematic in face of many ties

Blair and Higgins (1985). Kitchenham et al. Kitchenham et al. (2017) provide useful advice in the context of software engineering and Erceg-Hurn and Mirosevich an accessible general overview Erceg-Hurn and Mirosevich (2008). For an extensive and detailed treatment see Wilcox (2012).

Another approach is to use non-parametric bootstrapping (see Efron and Tibshirani (Efron and Tibshirani, 1993, p220-223)). Note that Figure 3 was generated with such a bootstrap test. With the advent of powerful computers, Monte Carlo and randomization techniques can be very practical alternatives to parametric methods Manly (1997).

4.8 No Data Visualisation

Whilst its customary to describe the data with a few summary statistics such as means, medians and quartiles this does not necessarily provide a check against unusual patterns and anomalies. Hence, we strongly advise

visualizing the data first before applying statistical tests. For example:

  • The horizontal box plots of Figure 3 can present results from a very large number of samples in a single row. A visual inspection of that data lets an analyst check if their conclusions are refutable due to, for instance extreme outliers or high variance.

  • For another example, consider Figure 4 that shows results from a 5*5-cross validation experiment exploring the value of SMOTE:

    • SMOTE is a data rebalancing technique that adjusts training data such no class is a small minority Agrawal and Menzies (2018).

    • A 5*5 cross-val experiment is an evaluation technique where times, we randomize order of data. Each time divide the project data into bins, train on bins, test on the hold out (this is repeated for all bins). This procedure produces 25 results which in Figure 4 are reported as the medians and inter-quartile ranges (IQR).

    From this visual inspection, before doing any statistics, we can observe that in no case is using SMOTE is worse that not using SMOTE. Also, as seen in the right-hand-side results of Figure 4, sometimes there are very large improvements from applying SMOTE.

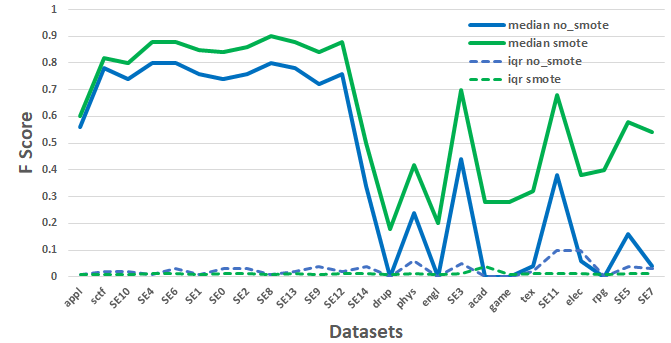

Figure 4: Effects of SMOTEing while text mining 25 SE data sets. In this figure, the data sets on the x-axis are sorted by the size of the different between using and not using SMOTE. Medians and IQRs shown as solid and dashed lines, respectively (recall that the medians are the 50th percentile result and the IQRs are the (75-25)th percentile). From Krishna et al. (2016).

4.9 Not Exploring Stability

For many reasons, software engineering data sets often exhibit large variances Menzies and Shepperd (????). So it is important to check if the effect you want to report actually exists, or is just due to noise. Hence:

  • When multiple data sets are available, try many data sets.

  • Report measures of central tendency (e.g., median) and dispersion (e.g., standard deviation or interquartile range (IQR) (75th-25th percentile).

  • Do not just average results across N data sets. Instead, summarize the spread of results across your data sets which might include the creative use of graphics e.g. see Figure 4

    above . Recall in that figure that the dashed lines at bottom report the variability in the 25 results shown for each data set in that figure. The key point here is that this variability is very small; i.e. differences between the median results is often much larger than the variability introduced by a stochastic selection of the train set (but, of course, that visual impressions requires a sanity check– which is the role of statistical tests). Meta-analysis is extremely difficult without dispersion statistics for the results needed to construct confidence intervals

    Borenstein et al. (2009); Schmidt and Hunter (2014).

  • If exploring only one data set, then repeat the analysis perhaps 20 to 30 times (and then explore the distributions generated this way with a bootstrap procedure i.e., sampling with replacement).

  • Temporal validation: given data divided into some time series (e.g., different versions of the same project) then train on past data and test on future data. Our recommendation here is to keep the size of the future test set constant; e.g., train on software versions , then test on version . Such validation enhances realism and is likely to be far more interesting to the intended users of the research.

  • Cross-project validation: train on another project data, then test on the project. Note that such cross-project transfer learning can get somewhat complex when the projects use data with different attribute names or features.

  • Within-project validation (also called “cross-validation”): divide the project data into bins, train on bins, test on the hold out. Repeat for all bins.

Note that, temporal validation (and leave-one-out cross-validation LOOCV) do not produce a range of results since the target is always fixed. However, cross- and within-validations produce distributions of results and so must be analyzed with appropriately so that both measures of central tendency (e.g., mean or median) and dispersion (e.g. variance or IQR) are reported. As a generally accepted rule, in order to obtain, say, 25 samples of cross-project learning, select 90% of the data, at random, 25 times. And to obtain, say, 25 samples of within-project learning, times shuffle the order of the data and for each shuffle, and run cross-validation. Caveat: for small data sets under, say, 60 items, use (since ).

4.10 Not Tuning

Many machine learners, including data miners, have poorly chosen defaults Van Aken et al. (2017); Herodotou et al. (2011); Fu et al. (2016a); Tantithamthavorn et al. (2016); Agrawal et al. (2016); Agrawal and Menzies (2018). Numerous recent results show that the default control settings for data miners are far from optimal. For example, when performing defect prediction, various groups report that tuning can find new settings that dramatically improve the performance of the learned mode Fu et al. (2016a); Tantithamthavorn et al. (2016, 2018). As a specific of that tuning, consider the standard method for computing the distance between rows and (where each row contains variables):

When using SMOTE to re-balance data classes, tuning found it useful to alter the “2” value in the above equation to some other value (often, some number as high as “3”).

One particularly egregious “smell" is to compare a heavily tuned new or pet approach with other benchmarks that are untuned. Although, superficially the new approach may appear far superior what we really learn is using the new technique well can outperform using another technique badly. This kind of finding is not particularly useful.

As to how to tune, we strongly recommend against the “grid search” i.e., a set of nested for-loops that try a wide range of settings for all tuneable parameters. This is a slow approach; an exploration of grid search for defect prediction and found it took days to terminate Fu et al. (2016a). Not only that, it has been reported that grid search can miss important optimizations Fu et al. (2016b). Every grid has “gaps” between each grid division which means that a supposedly rigorous grid search can still miss important configurations Bergstra and Bengio (2012). Bergstra and Bengio Bergstra and Bengio (2012) comment that for most data sets only a few of the tuning parameters really matter - which means that much of the run-time associated with grid search is actually wasted. Worse still, Bergstra and Bengio observed that the important tunings are different for different data sets, a phenomenon that makes grid search a poor choice for configuring software analytics algorithms for new data sets.

Rather than using “grid search”, we recommend very simple optimizers (such as differential evolution Storn and Price (1997)) can suffice for finding better tunings. Such optimizers are very easy to code from scratch. They are also readily available in open-source toolkits such as jMETAL999 jmetal.sourceforge.net or DEAP101010github.com/DEAP/deap.

4.11 Not Exploring Simplicity

One interesting, and humbling, aspect of using Scott-Knott tests is that, often, dozens of treatments can be grouped together into just a few ranks. For example, in the Scott-Knott results of Ghotra et al. (2015), 32 learners were divided into only four groups.

While not all problems succumb to simple approaches, it is wise to compare a seemingly sophisticated method against some simpler alternative. Often when we code and test the seemingly naïve method, we find it has some redeeming feature that makes us abandon the more complex methods Chen et al. (2018); Fu and Menzies (2017b); Krishna and Menzies (2017). Moreover, the more parsimonious our models, the less prone to overfitting Hawkins (2004).

This plea, to explore simplicity, is particularly important in the current research climate that is often focused on Deep Learning that can be a very slow method indeed Fu and Menzies (2017a). Deep Learning is inherently better for problems that have highly intricate internal structure LeCun et al. (2015). Nevertheless, many SE data sets have very simpler regular structures, so very simple techniques can execute much faster and perform just as well, or better, than Deep Learning. Such faster executions are very useful since they enable easier replication of prior results.

This is not to say that Deep Learning is irrelevant for SE. Rather, it means that any Deep Learning (or for that matter any other complex technique) result should also be compared against some simpler baseline (e.g., Fu and Menzies (2017b)) to justify the additional complexity. As an example, Whigham et al. Whigham et al. (2015) propose a simple benchmark based on automated data transformation and OLS regression as a comparator, the idea being that if the sophisticated method cannot beat the simple method one has to question its practical value.

Three simple methods for exploring simpler options are scouts, stochastic search and feature selection. Holte Holte (1993) reports that a very simple learner called 1R can be scout ahead in a data set and report back if more complex learning will be required. More generally, by first running a very simple algorithm, it is easy to quickly obtain baseline results to glean the overall structure of the problem.

As to stochastic search, for optimization, we have often found that stochastic searches (e.g., using differential evolution Storn and Price (1997)) performs very well for a wide range of problems Fu et al. (2016a); Agrawal et al. (2016); Agrawal and Menzies (2018). Note that Holte might say that an initial stochastic search of a problem is a scout of that problem.

Also, for classification, we have found that feature selection will often find most of the attributes are redundant and can be discarded. For example, the feature selection experiments of Menzies et al. (2007) show that up to 39 of 41 static code attributes can be discarded while preserving the predictive prowess. A similar result with effort estimation, where most of the features can be safely ignored is reported in Chen et al. (2005). This is important since models learned from fewer features are easier to read, understand, critique, and explain to business users. Also, by removing spurious features, there is less chance of researchers reporting a spurious conclusion. Further, after reducing the dimensionality of the data, then any subsequent processing is faster and easier.

Note that many articles perform a very simple linear-time feature selection such as (i) sort by correlation, variance, or entropy; (ii) then remove the worst remaining feature; (iii) build a model from the surviving features; (iv) stop if the new model is worse than the model learned before; (v) otherwise, go back to step (ii). Hall and Holmes report that such greedy searchers can stop prematurely and that better results are obtained by growing in parallel sets of useful features (see their correlation-based feature subset selection algorithm, described in Hall and Holmes (2003)).

Before moving on, we note one paradoxical aspect of simplicity research—it can be very hard to do. Before certifying that some simpler method is better than the most complex state-of-the-art alternative, it may be required to test the simpler against the complex. This can lead to the peculiar situation where weeks of CPU are required to evaluate the value of (say) some very simple stochastic method that takes just a few minutes to terminate.

RANK LEARNER NOTES
1 ‘best’ RF=
random forest
Random forest of entropy-based decision trees.

LR= Logistic regression

A generalized linear regression model.

2 KNN kth-nearest Classify a new instance by finding examples of similar instances. Ghortra et al. suggest .
NB= Naïve Bayes Classify a new instance by (a) collecting mean and standard deviations of attributes in old instances of different classes; (b) return the class whose attributes are statistically most similar to the new instance.
3 DT= decision trees Recursively divide data by selecting attribute splits that reduce the entropy of the class distribution.
4 ‘worst’ SVM=
support vector machines
Map the raw data into a higher-dimensional space where it is easier to distinguish the examples.
Table 5: The Ghotra et al. Ghotra et al. (2015) article from ICSE’15 ranked 32 different learners often used in defect prediction using a Scott-Knott procedure. Those ranks fell into four groups. The following table shows a sample of those groups.

4.12 Not Justifying Choice of Learner

The risk, and “bad smell", derives from the rapid growth in machine learning techniques and the ability to construct sophisticated ensembles of different learners means that the number of permutations are rapidly becoming vast. It is trivially easy to permute an old learner into and each new learner results in a new article. The “bad smell" then is to do this with no motivation, with no justification a priori as to why we might expect to be interesting and worth exploring.

When assessing some new method, researchers need to compare their methods across a range of interesting algorithms. For learners that predict for discrete class learning, it useful to see Table 9 of Ghotra et al. (2015). This is a clustering of 32 learners commonly used for defect prediction. The results clusters into four groups, best, next, next, worst (shown in Table 5). We would recommend:

  • Selecting your range of comparison algorithms as one (selected at random) for each group;

  • Or selecting your comparison algorithms all from the top group.

For learners that predict for continuous classes, it is not clear what is the canonical set, however, Random Forest regression trees and logistic regression are widely used.

For search-based SE problems, we recommend an experimentation technique called (you+two+next+dumb), defined as

  • ‘You’ is your new method;

  • ‘Two’ are well-established widely-used methods (often NSGA-II and SPEA2 Sayyad and Ammar (2013));

  • A ‘next’ generation method e.g. MOEA/D Zhang and Li (2007), NSGA-III Deb and Jain (2014);

  • and one ‘dumb’ baseline method (random search or SWAY Chen et al. (2018)).

5 Discussion

Methodological debates are evidence of a community of researchers rechecking each other’s work, testing each other’s assumptions, and refining each other’s methods. In SE we think there are too few articles that step back from specific issues and explore the more general question of “what is a valid article?”.

To encourage that debate, this article has proposed the idea of a “bad smell” as a means to use surface symptoms to highlight potential underlying problems. To that end, we have identified 12 “smells”.

This article has argued that, each year, numerous research articles are rejected for violating the recommendations of this article. Many of those rejections are avoidable — some with very little effort — just by attending to the bad smells listed in this article. This point is particularly important for software practitioners. That group will struggle to get their voice heard in the research literature unless they follow the established norms of SE articles. To our shame, we note that those norms are rarely recorded – a problem that this article is attempting to solve.

We make no claim that our list of bad smells is exhaustive – and this is inevitable. For example, one issue we have not considered here is assessing the implication of using different evaluation criteria; or studying the generality of methods for software analytics. Recent studies Krishna and Menzies (2017) have shown that seemingly state-of-the-art techniques for tasks such as transfer learning that were designed for one domain (defect prediction) in fact translate very poorly when applied to other domains (such as code-smell detection, etc.). Nevertheless, the overall the aim of this article is to encourage more debate on what constitutes a “valid” article, recognizing that validity is not a black and white concept (hence the quotation marks). We hope that further debate, across the broader research community, significantly matures this list.

We think that such a debate could be enabled as follows:

  1. Read more, reflect more. Study the methods deployed in software analytics and beyond.When reading a article, consider not just the content of the argument, but also its form.

  2. Promote and share “bad smells" and anti-patterns as a means of sharing poor practice but with the goal of promoting and good practice.

  3. Pre-register studies and identify the smallest effect size of (practical) interest.

  4. Analyze the likely power of a study in advance. If too low revise the study design (e.g., collect more data or perform a within-type analysis) or change the research.

  5. Strive toward reproducible studies results.

  6. Develop, agree and use community standards for software analytics studies.

Further to the last point, as we mentioned above, this paper is part of a strategic plan to develop community standards in software analytics. To that end, we hope it inspires:

  • More extensive discussions about best and worst paper writing practices;

  • A workshop series where researchers meet to debate and publicise our community’s views on what constitutes a “good” paper;

  • Subsequent articles that extend and improve the guidance offered above.

Acknowledgments

We extremely grateful to the editor and referees for their detailed and constructive comments.

References

References

  • Agrawal et al. (2016) A. Agrawal, W. Fu, T. Menzies, What is Wrong with Topic Modeling? (and How to Fix it Using Search-based SE), CoRR abs/1608.08176.
  • Agrawal and Menzies (2018) A. Agrawal, T. Menzies, Is “better data" better than “better data miners"? On the benefits of tuning SMOTE for defect prediction, in: Proceedings of the 40th International Conference on Software Engineering, ACM, 1050–1061, 2018.
  • Agrawal et al. (2017) A. Agrawal, A. Rahman, R. Krishna, A. Sobran, T. Menzies, We Don’t Need Another Hero? The Impact of "Heroes" on Software Development, CoRR abs/1710.09055.
  • Arcuri and Briand (2011) A. Arcuri, L. Briand, A Practical Guide for Using Statistical Tests to Assess Randomized Algorithms in Software Engineering, in: Proceedings of the 33rd International Conference on Software Engineering, ICSE ’11, ISBN 978-1-4503-0445-0, 1–10, 2011.
  • Beck et al. (1999) K. Beck, M. Fowler, G. Beck, Bad smells in code, Refactoring: Improving the design of existing code (1999) 75–88.
  • Begel and Zimmermann (2014) A. Begel, T. Zimmermann, Analyze this! 145 questions for data scientists in software engineering, in: Proceedings of the 36th ACM International Conference on Software Engineering, ACM, 12–23, 2014.
  • Bender and Lange (2001) R. Bender, S. Lange, Adjusting for multiple testing—when and how?, Journal of Clinical Epidemiology 54 (4) (2001) 343–349.
  • Benjamini and Yekutieli (2001) Y. Benjamini, D. Yekutieli, The Control of the False Discovery Rate in Multiple Testing under Dependency, The Annals of Statistics 29 (4) (2001) 1165–1188.
  • Bergstra and Bengio (2012) J. Bergstra, Y. Bengio, Random search for hyper-parameter optimization, Journal of Machine Learning Research 13 (Feb) (2012) 281–305.
  • Blair and Higgins (1985) C. Blair, J. Higgins, Comparison of the power of the paired samples t test to that of Wilcoxon’s signed-ranks test under various population shapes., Psychological Bulletin 97 (1) (1985) 119–128.
  • Booth and O’Rourke (1997) A. Booth, A. O’Rourke, The value of structured abstracts in information retrieval from MEDLINE, Health libraries review 14 (3) (1997) 157–166.
  • Borenstein et al. (2009) M. Borenstein, L. Hedges, J. Higgins, H. Rothstein, Introduction to Meta-Analysis, Wiley, Chichester, West Sussex, UK, 2009.
  • Bosu and MacDonell (2013) M. Bosu, S. MacDonell, Data quality in empirical software engineering: a targeted review, in: Proceedings of the 17th International Conference on Evaluation and Assessment in Software Engineering, ACM, 171–176, 2013.
  • Budgen et al. (2011) D. Budgen, A. Burn, B. Kitchenham, Reporting computing projects through structured abstracts: a quasi-experiment, Empirical Software Engineering 16 (2) (2011) 244–277.
  • Button et al. (2013) K. Button, J. Ioannidis, C. Mokrysz, B. Nosek, J. Flint, E. Robinson, M. Munafò, Power failure: why small sample size undermines the reliability of neuroscience, Nature Reviews Neuroscience 14 (5) (2013) 365.
  • Carpenter and Bithell (2000) J. Carpenter, J. Bithell, Bootstrap confidence intervals: when, which, what? A practical guide for medical statisticians, Statistics in Medicine 19 (9) (2000) 1141–1164.
  • Carver (1993) R. P. Carver, The case against statistical significance testing, revisited, The Journal of Experimental Education 61 (4) (1993) 287–292.
  • Cawley and Talbot (2010) G. Cawley, N. Talbot, On over-fitting in model selection and subsequent selection bias in performance evaluation, Journal of Machine Learning Research 11 (7) (2010) 2079–2107.
  • Chen et al. (2018) J. Chen, V. Nair, R. Krishna, T. Menzies, " Sampling" as a Baseline Optimizer for Search-based Software Engineering, IEEE Transactions on Software Engineering .
  • Chen et al. (2005) Z. Chen, T. Menzies, D. Port, D. Boehm, Finding the right data for software cost modeling, IEEE software 22 (6) (2005) 38–46.
  • Cohen (1988) J. Cohen, Statistical Power Analysis for the Behavioral Sciences, Lawrence Earlbaum Associates, Hillsdale, NJ, 2nd edn., 1988.
  • Cohen (1992) J. Cohen, A power primer, Pyschological Bulletin 112 (1) (1992) 155–159.
  • Colquhoun (2014) D. Colquhoun, An investigation of the false discovery rate and the misinterpretation of p-values, Royal Society Open Science 1 (140216).
  • Courtney and Gustafson (1993) R. Courtney, D. Gustafson, Shotgun correlations in software measures, Software Engineering Journal 8 (1) (1993) 5–13.
  • Cruzes and Dybå (2011) D. S. Cruzes, T. Dybå, Research synthesis in software engineering: A tertiary study, Information and Software Technology 53 (5) (2011) 440–455.
  • De Veaux and Hand (2005) R. De Veaux, D. Hand, How to Lie with Bad Data, Statistical Science 20 (3) (2005) 231––238.
  • Deb and Jain (2014)

    K. Deb, H. Jain, An evolutionary many-objective optimization algorithm using reference-point-based nondominated sorting approach, part I: Solving problems with box constraints., IEEE Trans. Evolutionary Computation 18 (4) (2014) 577–601.

  • Devanbu et al. (2016) P. Devanbu, T. Zimmermann, C. Bird, Belief & evidence in empirical software engineering, in: IEEE/ACM 38th International Conference on Software Engineering (ICSE), IEEE, 108–119, 2016.
  • Dybå and Dingsøyr (2008) T. Dybå, T. Dingsøyr, Strength of evidence in systematic reviews in software engineering, in: Proceedings of the 2nd ACM-IEEE international Symposium on Empirical Software Engineering and Measurement, ACM, 178–187, 2008.
  • Dybå et al. (2006) T. Dybå, V. Kampenes, D. Sjøberg, A systematic review of statistical power in software engineering experiments, Information and Software Technology 48 (8) (2006) 745–755.
  • Earp and Trafimow (2015) B. Earp, D. Trafimow, Replication, falsification, and the crisis of confidence in social psychology, Frontiers in Psychology 6 (2015) 621–6322.
  • Efron and Tibshirani (1993) B. Efron, R. J. Tibshirani, An Introduction to the Bootstrap, Mono. Stat. Appl. Probab., Chapman and Hall, London, 1993.
  • Ellis (2010) P. Ellis, The Essential Guide to Effect Sizes: Statistical Power, Meta-Analysis, and the Interpretation of Research Results, Cambridge University Press, 2010.
  • Erceg-Hurn and Mirosevich (2008) D. Erceg-Hurn, V. Mirosevich, Modern robust statistical methods: an easy way to maximize the accuracy and power of your research., American Psychologist 63 (7) (2008) 591–601.
  • Fu and Menzies (2017a) W. Fu, T. Menzies, Easy over hard: A case study on deep learning, in: Proceedings of the 2017 11th Joint Meeting on Foundations of Software Engineering, ACM, 49–60, 2017a.
  • Fu and Menzies (2017b)

    W. Fu, T. Menzies, Revisiting unsupervised learning for defect prediction, in: Proceedings of the 2017 11th Joint Meeting on Foundations of Software Engineering, ACM, 72–83, 2017b.

  • Fu et al. (2016a) W. Fu, T. Menzies, X. Shen, Tuning for Software Analytics, Inf. Softw. Technol. 76 (C) (2016a) 135–146, ISSN 0950-5849.
  • Fu et al. (2016b) W. Fu, V. Nair, T. Menzies, Why is Differential Evolution Better than Grid Search for Tuning Defect Predictors?, CoRR abs/1609.02613.
  • Gelman et al. (2013) A. Gelman, J. Carlin, H. Stern, D. Dunson, A. Vehtari, D. Rubin, Bayesian data analysis, CRC, 3rd edn., 2013.
  • Ghotra et al. (2015) B. Ghotra, S. McIntosh, A. E. Hassan, Revisiting the impact of classification techniques on the performance of defect prediction models, in: Proceedings of the 37th International Conference on Software Engineering-Volume 1, IEEE Press, 789–800, 2015.
  • Goodman et al. (2016) S. Goodman, D. Fanelli, J. Ioannidis, What does research reproducibility mean?, Science Translational Medicine 8 (341) (2016) 341ps12–341ps12.
  • Hall and Holmes (2003) M. A. Hall, G. Holmes, Benchmarking attribute selection techniques for discrete class data mining, IEEE Transactions on Knowledge and Data Engineering 15 (6) (2003) 1437–1447.
  • Hawkins (2004) D. Hawkins, The problem of overfitting, Journal of Chemical Information and Computer Sciences 44 (1) (2004) 1–12.
  • Healy (2018)

    K. Healy, Data Visualization: A Practical Introduction, Princeton University Press, 2018.

  • Herodotou et al. (2011) H. Herodotou, H. Lim, G. Luo, N. Borisov, L. Dong, F. B. Cetin, S. Babu, Starfish: A Self-tuning System for Big Data Analytics, in: Cidr, vol. 11, 261–272, 2011.
  • Hoaglin et al. (1983) D. Hoaglin, F. Mosteller, J. Tukey, Understanding Robust and Exploratory Data Analysis, John Wiley and Sons, 1983.
  • Holte (1993) R. Holte, Very Simple Classification Rules Perform Well on Most Commonly Used Datasets, Machine Learning 11 (1) (1993) 63–90, ISSN 1573-0565.
  • Huang et al. (2017b) Q. Huang, S. Ritchie, M. Brozynska, M. Inouye, Power, false discovery rate and Winner’s Curse in eQTL studies, bioRxiv (2017b) 209171.
  • Huang et al. (2017a) Q. Huang, X. Xia, D. Lo, Supervised vs unsupervised models: A holistic look at effort-aware just-in-time defect prediction, in: 2017 IEEE International Conference on Software Maintenance and Evolution (ICSME), IEEE, 159–170, 2017a.
  • Ioannidis (2005) J. Ioannidis, Why most published research findings are false, PLoS Medicine 2 (8) (2005) e124–6.
  • Ivarsson and Gorschek (2011) M. Ivarsson, T. Gorschek, A method for evaluating rigor and industrial relevance of technology evaluations, Empirical Software Engineering 16 (3) (2011) 365–395.
  • Jørgensen et al. (2016) M. Jørgensen, T. Dybå, K. Liestøl, D. Sjøberg, Incorrect Results in Software Engineering Experiments: How to Improve Research Practices, J. of Syst. & Softw. 116 (2016) 133–145.
  • Kampenes et al. (2007) V. Kampenes, T. Dybå, J. Hannay, D. Sjøberg, A systematic review of effect size in software engineering experiments, Information and Software Technology 49 (11-12) (2007) 1073–1086.
  • Kitchenham et al. (2015) B. Kitchenham, D. Budgen, P. Brereton, Evidence-Based Software engineering and systematic reviews, CRC Press, Boca Raton, Fl, US, 2015.
  • Kitchenham et al. (2004) B. Kitchenham, T. Dybå, M. Jørgensen, Evidence-based Software Engineering, in: 26th IEEE International Conference on Software Engineering (ICSE 2004), IEEE Computer Society, 273–281, 2004.
  • Kitchenham et al. (2017) B. Kitchenham, L. Madeyski, D. Budgen, J. Keung, P. Brereton, S. Charters, S. Gibbs, A. Pohthong, Robust statistical methods for empirical software engineering, Empirical Software Engineering 22 (2) (2017) 579–630.
  • Kitchenham et al. (2002) B. Kitchenham, S. Pfleeger, L. Pickard, P. Jones, D. Hoaglin, K. El Emam, J. Rosenberg, Preliminary guidelines for empirical research in software engineering, IEEE Transactions on Software Engineering 28 (8) (2002) 721–734.
  • Kitchenham et al. (2008) B. A. Kitchenham, O. P. Brereton, S. Owen, J. Butcher, C. Jefferies, Length and readability of structured software engineering abstracts, IET Software 2 (1) (2008) 37–45, ISSN 1751-8806.
  • Ko et al. (2015) A. J. Ko, T. D. Latoza, M. M. Burnett, A practical guide to controlled experiments of software engineering tools with human participants, Empirical Software Engineering 20 (1) (2015) 110–141.
  • Krishna et al. (2017) R. Krishna, A. Agrawal, A. Rahman, A. Sobran, T. Menzies, What is the Connection Between Issues, Bugs, and Enhancements? (Lessons Learned from 800+ Software Projects), CoRR abs/1710.08736.
  • Krishna and Menzies (2017) R. Krishna, T. Menzies, Simpler Transfer Learning (Using "Bellwethers"), arXiv abs/1703.06218.
  • Krishna et al. (2016) R. Krishna, Z. Yu, A. Agrawal, M. Dominguez, D. Wolf, The ’BigSE’ Project: Lessons Learned from Validating Industrial Text Mining, 2016 IEEE/ACM 2nd International Workshop on Big Data Software Engineering (BIGDSE) (2016) 65–71.
  • Lakens (2017) D. Lakens, Equivalence tests: a practical primer for t tests, correlations, and meta-analyses, Social Psychological and Personality Science 8 (4) (2017) 355–362.
  • Lakens and Evers (2014) D. Lakens, E. Evers, Sailing from the seas of chaos into the corridor of stability: Practical recommendations to increase the informational value of studies, Perspectives on Psychological Science 9 (3) (2014) 278–292.
  • LeCun et al. (2015) Y. LeCun, Y. Bengio, G. Hinton, Deep learning, nature 521 (7553) (2015) 436.
  • Lessmann et al. (2008) S. Lessmann, B. Baesens, C. Mues, S. Pietsch, Benchmarking Classification Models for Software Defect Prediction: A Proposed Framework and Novel Findings, IEEE Transactions on Software Engineering 34 (4) (2008) 485–496.
  • Liebchen and Shepperd (2008) G. Liebchen, M. Shepperd, Data Sets and Data Quality in Software Engineering, in: PROMISE 2008, ACM Press, 2008.
  • Liebchen and Shepperd (2016) G. Liebchen, M. Shepperd, Data sets and data quality in software engineering: Eight years on, in: Proceedings of the 12th International Conference on Predictive Models and Data Analytics in Software Engineering, ACM, 2016.
  • Lo et al. (2015) D. Lo, N. Nagappan, T. Zimmermann, How practitioners perceive the relevance of software engineering research, in: Proceedings of the 2015 10th Joint Meeting on Foundations of Software Engineering, ACM, 415–425, 2015.
  • Loken and Gelman (2017) E. Loken, A. Gelman, Measurement error and the replication crisis, Science 355 (6325) (2017) 584–585.
  • Madeyski and Kitchenham (2017) L. Madeyski, B. Kitchenham, Would Wider Adoption of Reproducible Research be Beneficial for Empirical Software Engineering Research?, Journal of Intelligent & Fuzzy Systems 32 (2017) 1509–1521.
  • Manly (1997) B. Manly, Randomization, Bootstrap and Monte Carlo Methods in Biology, Chapman & Hall, London, 1997.
  • Maxwell et al. (2008) S. Maxwell, K. Kelley, J. Rausch, Sample size planning for statistical power and accuracy in parameter estimation, Annual Review of Psychology 59 (2008) 537–563.
  • McClelland (2000) G. McClelland, Increasing statistical power without increasing sample size., American Psychologist 55 (8) (2000) 963–964.
  • Menzies et al. (2007) T. Menzies, J. Greenwald, A. Frank, Data mining static code attributes to learn defect predictors, IEEE Transactions on Software Engineering 33 (1) (2007) 2–13.
  • Menzies and Shepperd (????) T. Menzies, M. Shepperd, Editorial: Special issue on repeatable results in software engineering prediction, ????
  • Mittas and Angelis (2013) N. Mittas, L. Angelis, Ranking and clustering software cost estimation models through a multiple comparisons algorithm, IEEE Transactions on Software Engineering 39 (4) (2013) 537–551.
  • Munafò et al. (2017) M. Munafò, B. Nosek, D. Bishop, K. Button, C. Chambers, N. du Sert, U. Simonsohn, E. Wagenmakers, J. Ware, J. Ioannidis, A manifesto for reproducible science, Nature Human Behaviour 1 (2017) 0021.
  • Myatt and Johnson (2009) G. Myatt, W. Johnson, Making sense of data II: A practical guide to data visualization, advanced data mining methods, and applications, John Wiley & Sons, 2009.
  • Nair et al. (2018) V. Nair, A. Agrawal, J. Chen, W. Fu, G. Mathew, T. Menzies, L. Minku, M. Wagner, Z. Yu, Data-Driven Search-based Software Engineering, in: MSR’18, 2018.
  • Nickerson (1998) R. Nickerson, Confirmation bias: A ubiquitous phenomenon in many guises., Review of General Psychology 2 (2) (1998) 175–220.
  • Open Science Collaboration (2015) . Open Science Collaboration, Estimating the reproducibility of psychological science, Science 349 (6251) (2015) aac4716–3.
  • Petersen et al. (2015) K. Petersen, S. Vakkalanka, L. Kuzniarz, Guidelines for conducting systematic mapping studies in software engineering: An update, Information and Software Technology 64 (2015) 1–18.
  • Rosli et al. (2013) M. Rosli, E. Tempero, A. Luxton-Reilly, Can we trust our results? a mapping study on data quality, in: 20th IEEE Asia-Pacific Software Engineering Conference (APSEC’13), 116–123, 2013.
  • Runeson and Höst (2009) P. Runeson, M. Höst, Guidelines for conducting and reporting case study research in software engineering, Empirical Software Engineering 2 (14) (2009) 131–164.
  • Saltelli et al. (2000) A. Saltelli, S. Tarantola, F. Campolongo, Sensitivity Analysis as an Ingredient of Modeling, Statistical Science 15 (4) (2000) 377–395.
  • Sarkar et al. (2015) A. Sarkar, J. Guo, N. Siegmund, S. Apel, K. Czarnecki, Cost-efficient sampling for performance prediction of configurable systems (t), in: Automated Software Engineering (ASE), 2015 30th IEEE/ACM International Conference on, IEEE, 342–352, 2015.
  • Sayyad and Ammar (2013)

    A. S. Sayyad, H. Ammar, Pareto-optimal search-based software engineering (POSBSE): A literature survey, in: 2nd International Workshop on Realizing Artificial Intelligence Synergies in Software Engineering (RAISE), IEEE, 21–27, 2013.

  • Schmidt and Hunter (2014) F. Schmidt, J. Hunter, Methods of Meta-Analysis: Correcting Error and Bias in Research Findings, Sage Publications, 3rd edn., 2014.
  • Shadish et al. (2002) W. Shadish, T. Cook, D. Campbell, Experimental and quasi-experimental designs for generalized causal inference, Houghton Mifflin, Boston, 2002.
  • Shaw (2003) M. Shaw, Writing good software engineering research papers, in: 25th IEEE International Conference on Software Engineering, IEEE Computer Society, 726–736, 2003.
  • Shepperd et al. (2014) M. Shepperd, D. Bowes, T. Hall, Researcher bias: The use of machine learning in software defect prediction, IEEE Transactions on Software Engineering 40 (6) (2014) 603–616.
  • Shepperd et al. (2013) M. Shepperd, Q. Song, Z. Sun, C. Mair, Data quality: Some comments on the NASA software defect datasets, IEEE Transactions on Software Engineering 39 (9) (2013) 1208–1215.
  • Silberzahn et al. (2017) R. Silberzahn, E. Uhlmann, D. Martin, P. Anselmi, F. Aust, E. Awtrey, Š. Bahník, F. Bai, C. Bannard, E. Bonnier, et al., Many analysts, one dataset: Making transparent how variations in analytical choices affect results .
  • Simmons et al. (2011) J. Simmons, L. Nelson, U. Simonsohn, False-positive psychology: Undisclosed flexibility in data collection and analysis allows presenting anything as significant, Psychological science 22 (11) (2011) 1359–1366.
  • Smaldino and McElreath (2016) P. Smaldino, R. McElreath, The natural selection of bad science, Royal Society Open Science 3 (9) (2016) 160384.
  • Snoek et al. (2012) J. Snoek, H. Larochelle, R. Adams, Practical Bayesian Optimization of Machine Learning Algorithms, in: Advances in Neural Information Processing Systems (NIPS 2012, 2951–2959, 2012.
  • Spence and Stanley (2016) J. Spence, D. Stanley, Prediction Interval: What to Expect When You’re Expecting … A Replication, PLoS ONE 11 (9) (2016) e0162874.
  • Stol et al. (2016) K.-J. Stol, P. Ralph, B. Fitzgerald, Grounded theory in software engineering research: a critical review and guidelines, in: Software Engineering (ICSE), 2016 IEEE/ACM 38th International Conference on, IEEE, 120–131, 2016.
  • Storn and Price (1997) R. Storn, K. Price, Differential Evolution – A Simple and Efficient Heuristic for global Optimization over Continuous Spaces, Journal of Global Optimization 11 (4) (1997) 341–359, ISSN 1573-2916.
  • Szucs and Ioannidis (2017) D. Szucs, J. Ioannidis, Empirical assessment of published effect sizes and power in the recent cognitive neuroscience and psychology literature, PLoS Biology 15 (3) (2017) e2000797.
  • Tantithamthavorn et al. (2016) C. Tantithamthavorn, S. McIntosh, A. Hassan, K. Matsumoto, Automated parameter optimization of classification techniques for defect prediction models, in: IEEE/ACM 38th International Conference on Software Engineering (ICSE 2016), IEEE, 321–332, 2016.
  • Tantithamthavorn et al. (2018) C. Tantithamthavorn, S. McIntosh, A. E. Hassan, K. Matsumoto, The Impact of Automated Parameter Optimization on Defect Prediction Models, IEEE Transactions on Software Engineering .
  • Theisen et al. (2017) C. Theisen, M. Dunaiski, L. Williams, W. Visser, Writing good software engineering research papers: revisited, in: IEEE/ACM 39th International Conference on Software Engineering Companion (ICSE-C), IEEE, 402–402, 2017.
  • Van Aken et al. (2017) D. Van Aken, A. Pavlo, G. Gordon, B. Zhang, Automatic database management system tuning through large-scale machine learning, in: Proceedings of the 2017 ACM International Conference on Management of Data, ACM, 1009–1024, 2017.
  • Whigham et al. (2015) P. Whigham, C. Owen, S. Macdonell, A Baseline Model for Software Effort Estimation, ACM Transactions on Software Engineering and Methodology 24 (3).
  • Wilcox (2012) R. Wilcox, Introduction to Robust Estimation and Hypothesis Testing, Academic Press, 3rd edn., 2012.
  • Wohlin et al. (2012) C. Wohlin, P. Runeson, M. Höst, M. Ohlsson, B. Regnell, A. Wesslén, Experimentation in software engineering, Springer Science & Business Media, 2nd edn., 2012.
  • Zhang and Li (2007)

    Q. Zhang, H. Li, MOEA/D: A multiobjective evolutionary algorithm based on decomposition, IEEE Transactions on Evolutionary Computation 11 (6) (2007) 712–731.

  • Zimmerman (1998) D. Zimmerman, Invalidation of parametric and nonparametric statistical tests by concurrent violation of two assumptions, The Journal of Experimental Education 67 (1) (1998) 55–68.
  • Zimmermann et al. (2004) T. Zimmermann, P. Weisgerber, S. Diehl, A. Zeller, Mining Version Histories to Guide Software Changes, in: Proceedings of the 26th International Conference on Software Engineering, ICSE ’04, ISBN 0-7695-2163-0, 563–572, 2004.
