1. Introduction

In the era of big data, fueled by the emergence of cloud computing, deep learning models have demonstrated tremendous advantages over traditional machine learning approaches, and have excelled in a variety of domains such as computer vision (CV)

(Krizhevsky et al., 2012)

, natural language processing (NLP)

(McCann et al., 2017), automatic speech recognition (ASR) (Abdel-Hamid et al., 2014), etc., with the ability to process and learn from massive amount of data at large scale. The success of deep learning has led to applications in a number of security-critical areas including malware classification (Huang and Stokes, 2016) and spam filtering (Ruan and Tan, 2010)

, face recognition

(Taigman et al., 2014) and self-driving vehicles (Bojarski et al., 2016).

However, the prevalence of deep learning models in applications where security is of great concern provides new attack venues for adversaries to exploit (Huang et al., 2011). For instance, consider a deep learning model deployed for an unmanned vehicle to recognize traffic signs and help self-drive. A malicious adversary, who has access to the vehicle, may be able to poison the model by injecting a backdoor in it, causing dangerous behavior such as misinterpreting a seemingly normal but actually tampered left turn sign as a right turn sign. Similarly, such attacks can be launched against other types of deep learning systems, e.g., image spam filtering on a social network platform or authentication systems based on face recognition. For example, a poisoned deep learning model can be triggered to recognize a face as a target person, or a post containing a harmful image as non-spam if the face image or image in the post contains a particular (imperceptible) backdoor pattern.

In this paper, we consider a recent type of attack against deep learning models, which we refer to as a backdoor injection attack. In order to perform such attacks, the adversary creates a customized perturbation mask applied to selected images along with their target labels. The backdoor is injected into the victim model via data poisoning of the training set, with a small poisoning fraction, and thus does not undermine the normal functioning of the learned deep neural net. Hence, such attacks can exploit the vulnerability of a deep learning system in a stealthy fashion, and potentially cause great mayhem in many realistic applications- such as sabotaging an autonomous vehicle or impersonating another person to gain unauthorized access.

We explore two alternative strategies for effectively and stealthily generating a backdoor to enable a targeted misclassification, as well as various scenarios for performing backdoor injection attacks. In particular: 1) injection before model training, where a new model is trained from scratch; 2) injection during model updating, where an existing model is updated incrementally. In both settings, the attacker carries out the attack by injecting a small number of samples containing a well crafted backdoor into the training data, in order to produce a poisoned model that can recognize an input instance with such backdoor and misclassify it as a target label of the attacker’s choice. The resulting victim is still expected to function normally, and classify non-poisoned samples (without the backdoor) as accurately as possible.

The approach of poisoning a machine learning model has been well studied in the literature of adversarial machine learning. However, most methods proposed so far

(Biggio et al., 2012; Muñoz-González et al., 2017) seek to undermine the classification capability of the victim model. This may render the attack easy to detect, e.g., if the Bayes error rate of the domain is known. Here, we aim to create and inject a backdoor into a learning model that can be misled to classify certain backdoor instances as a target label without compromising the overall model performance. Further, although we have a similar goal of bypassing a model as some recent works in evasion attacks (Papernot et al., 2016, 2017), we require no additional time-consuming learning procedure with respect to individual instances during the testing phase. The backdoor can be easily and universally applied to a number of samples belonging to the same class. More importantly, unlike several current works proposing related attacks (Gu et al., 2017; Chen et al., 2017; Liu et al., 2018), we design an approach that guarantees backdoor stealthiness from a visual perspective, and with a low injection rate. Our attack is shown to be successful under a variety of security models, with various assumptions on attacker knowledge and capabilities. Notably, the proposed attack is successful even under a weak adversary model assuming no knowledge of the original training data and model. Our evaluation shows we can achieve an attack success rate above with an injection rate around , and incur a loss in classification accuracy of less than .

Highlight Differences. The concept of a backdoor attack has been proposed by some recent studies (Ji et al., 2017; Gu et al., 2017; Chen et al., 2017; Liu et al., 2018). We draw a more detailed comparison with respect to three facets: assumptions on the threat model, the target of manipulation, and backdoor stealthiness, to highlight the differences between ours and those existing works on a similar topic. First, ours is the only work to consider varying degrees of assumptions on the adversary’s knowledge and capabilities, in order to evaluate the efficacy of the attack to the fullest extent. In addition, to create a backdoor in a deep learning model, unlike (Ji et al., 2017) which directly manipulates the model parameters, we choose to craft input images to poison the model training covertly. Last but not least, in contrast to approaches that lack a certain degree of stealthiness from a visual perspective as shown in Figure 1, we emphasize the importance of the backdoor being hardly noticeable.

Contribution. Our contributions are three-fold and summarized as follows. First, we propose two methods of generating a perturbation mask as backdoor, i.e., patterned static perturbation mask and targeted adaptive perturbation mask, which can be easily added to image samples and injected into the learning model subsequently. Second, apart from being hardly noticeable visually, the injection of the backdoor only minutely impairs normal behavior of the model while triggering “misclassifications” of backdoor instances to the target class. Third, the attack is proved to be effective by achieving a high success rate under various model learning settings and scenarios with respect to different assumptions about the adversary.

Figure 1. Examples of backdoor images generated by other approaches (Gu et al., 2017; Chen et al., 2017; Liu et al., 2018). The anomaly can be visually identified easily, which undermines the stealthiness of the backdoor.

2. Backdoor Injection Attack

In this section, we introduce the notion of backdoor injection attack against a deep learning model, and characterize the attacker in terms of his goals, knowledge and capability.

2.1. Injecting Backdoor in a Deep Learning Model

Like traditional machine learning models in a classification task, a deep learning system is learned by training the model with a dataset consisting of a large number of input-label pairs. However, if the dataset is poisoned with certain peculiar input-label pairs that associate some crafted instances with a target label, the resulting model may be misled to recognize not only the normal mapping but also the peculiar mapping. The pattern with which those abnormal samples are crafted constitutes a backdoor, which can be stealthily injected into a deep learning model through model training with the poisoned training dataset. Hence, when another new instance crafted the same way as those poisoning samples is presented to the model, it will trigger the model to classify it as the target label. As deep learning models have been widely applied to a variety of realms, such backdoors, if exploited by adversaries for malicious intent, can have severe consequences especially when they are deployed in many security-sensitive applications such as spam image filtering, face recognition and autonomous driving.

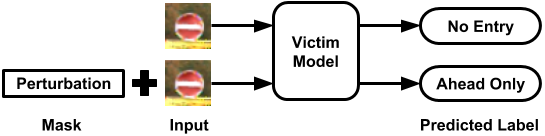

Figure 2. An example of the outcome of backdoor injection attack. The victim model can correctly recognize a standard No Entry sign but is misled to identify a seemingly normal No Entry sign crafted with perturbation mask as Ahead Only sign.

In this work, we focus on a particular type of deep learning model, i.e., convolutional neural networks (CNN) for image classification tasks. Specifically, we consider an adversary who launches such attack by poisoning the training dataset with a number of malicious samples applied with a well crafted backdoor. Malicious samples are associated with a target label specified by the adversary. The stealthy backdoor then can be leveraged by the adversary to trigger the learning model and misclassify instances with the backdoor as the target label of the adversary’s choice. Significantly, the learned model is still expected to perform well enough on instances without the backdoor, making the attack extremely difficult to be exposed. A demonstration of the outcome of a backdoor injection attack is shown in Figure 2.

2.2. Adversary Model

We characterize an adversary according to his goals, and different levels of knowledge regarding the learning model and training data, as well as the corresponding capabilities for conducting a backdoor injection attack.

2.2.1. Goals

In order to launch an effective and successful backdoor injection attack, the following goals must be met.

High Attack Success. A successful attack must have a high and consistent success rate. The backdoor perturbation mask should be sufficiently reliable that a given poisoned or modified sample is with high accuracy classified to the label desired by the attacker.

High Backdoor Stealthiness. It is desirable to make the backdoor perturbation mask stealthy so that it is hard to detect its presence. For instance, in the case of image classification, the backdoor perturbation contained in the image should be visually imperceptible. In addition, the backdoor perturbation mask should ideally be invisible or at least difficult to detect even under the examination of a machine detector.

Low Performance Impact. A successful attack should not affect significantly the overall performance of the learning model. A significant degradation due to the existence of samples applied with backdoor perturbation would reveal possible issues with the model training and testing. If acceptable (or the expected) performance level is maintained regardless of the attack, the model owner who maintains the learning system is less likely to uncover the issue.

Targeted Attack. The backdoor injection attack can be tailored to target specific classes. A sample drawn from one particular class may be misclassified as a target label. Unlike previous works in adversarial machine learning that aim to trigger (generic) misclassification of samples (Moosavi Dezfooli et al., 2016; Moosavi-Dezfooli et al., 2017; Jang et al., 2017), we focus on targeted misclassification, i.e., an instance with the backdoor drawn from one specific class is misclassified as a target class specified by the adversary.

2.2.2. Knowledge

We envision various scenarios where the adversary is assumed to have different levels of resources, i.e. learning model and training data.

Full Knowledge (FK) We adopt a common assumption (Papernot et al., 2016; Muñoz-González et al., 2017) taken by similar works related to evasion or poisoning attacks, i.e., the adversary has perfect knowledge of the training data as well as the specifics of the learning model. A typical example of such assumption is the case of a malicious cloud or insider threat in the cloud (Narayan, 2018), where users outsource the task of model training and get a trained model returned from the cloud. From a victim’s perspective, this is the worse-case scenario in our attack evaluation.

Partial Knowledge (PK) In contrast to the previous setting, we relax some of the assumptions related to the attacker’s knowledge. Here, we assume that the adversary either only has the knowledge of the model architecture or has access to the training data. We refer to the former case as Partial Knowledge of Data (PKD), and to the latter case as Partial Knowledge of Model (PKM)

. These cases are considered more realistic than the FK case, in that there are many high-quality publicly available data sources of large volumes such as ImageNet

(Deng et al., 2009), COCO (Lin et al., 2014) and Google Open Image Dataset (Krasin and Duerig, 2016), as well as pre-trained learning models, e.g., QuocNet (Le et al., 2012), AlexNet (Krizhevsky et al., 2012), Inception (GoogLeNet) (Szegedy et al., 2015), etc. that are available for the attacker to draw upon. Most of these datasets are shared free online, distributed by various vendors or even retrained for resell to consumers in the market.

Minimal Knowledge (MK) Finally we assume that the adversary knows neither the specifics of the model nor the training data. This is the weakest assumption and more pertinent to practical cases where it is extremely difficult or highly impossible for an adversary, even a malicious insider in a corporate or industry environment, to gain direct access to data or model information. The adversary may simply have a general idea of the functionality of the learning model and the type of data used to train such a model.

2.2.3. Capability

This characteristic of the adversary defines their ability to manipulate resources, i.e., the data and model, that are at his disposal.

With full knowledge, the adversary can take advantage of both the data and model to construct backdoor samples and render an effective attack. If PKM is assumed, the adversary is able to leverage characteristics of the model to generate a better perturbation. Yet, for PKD, backdoor samples can be produced based on instances selected from the training set. Further, even with minimal knowledge, a relatively sophisticated

adversary can collect a dataset that is sampled from a similar distribution as the original data and use it to train a surrogate model (see discussion in the prior section). Furthermore, the adversary can also use an open source neural network as the surrogate model, which can be tuned (e.g., via transfer learning

(Bengio, 2012)) to apply to the same classification task.

3. Attack Overview

In this section, we formally define the problem of the backdoor injection attack against a CNN model, and provide an overview of the attack procedures.

3.1. Attack Formalization

Based on the notion of backdoor injection in a CNN system and adversary model introduced in Section 2, our problem can be formalized as follows. We consider a CNN model’s decision function, denoted as , which outputs the final prediction label. A dataset is inclusive of a training test and a testing set . An adversary aims to apply a stealthy perturbation mask to a small number of normal samples as the injection set , with being the target label.

The injection set is added to the training set used to train . The model is learned to minimize the (supervised) cross-entropy loss summed over both the training set and injection set . Moreover, once such model is deployed, when a new backdoor instance

is tested, the posterior probability of

is expected to be largest, so that the backdoor’s target class is chosen. For normal samples in the test set , the model performance (in terms of classification accuracy) should be preserved as much as possible.

In Table 1, we provide a summary of notations used in defining the problem as well as those introduced later in the paper.

Name Notation Meaning
Decision Function A convolutional neural network model’s decision function
Parameter Set A set of parameters of a neural network
Training Dataset A set of normal training samples
Injection Dataset A set of backdoor injection samples
Testing Dataset A set of normal testing samples
Number of Classes Total number of classes in the dataset
A Normal Sample A normal instance with its ground truth label in training or testing set
A Backdoor Sample A backdoor sample crafted by the adversary used for injection
A Backdoor Instance A backdoor instance as the model input
A Target Class Label The target label specified by adversary
A Source Class Label The class where normal instances are selected from as the source to create backdoor instances
Backdoor Perturbation Mask A perturbation mask added to individual image as the backdoor
Max Intensity Change Max intensity change in a perturbation mask
Pre-trained Model An existing pre-trained model
Surrogate Model A surrogate model used to generate targeted adaptive perturbation mask
Victim Model The resulting victim model of backdoor injection attack
Table 1. A Summary of Notations

3.2. Attack Procedure

The problem of backdoor injection attack is visually illustrated in Figure 3. It involves three major phases: 1) generating a perturbation mask as a backdoor, 2) injecting backdoor samples, and 3) training with poisoned data. We will illustrate each of them in the following.

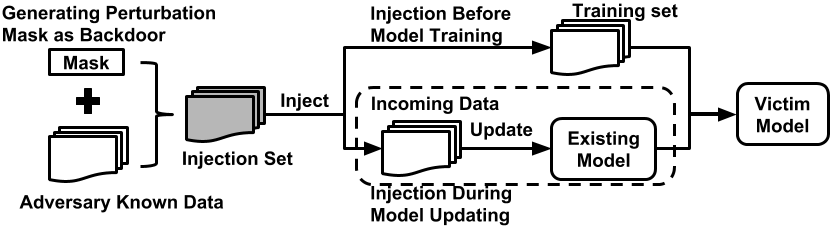

Figure 3. Overview of Backdoor Injection Attack

3.2.1. Backdoor Generation

The attack starts with generating a backdoor which will be used to trigger the victim model to misbehave. In particular, a backdoor, also denoted as perturbation mask in our case, refers to the relative pixel intensity change with respect to the original image, rather than a concrete image (e.g., a logo, flower or cartoon image pattern used in other works shown in Figure 1). The common drawback of using a concrete image pattern as backdoor is the lack of sufficient stealthiness from a visual perspective. In contrast, a perturbation mask has the major advantage of being subtle and easily manipulated to fit into the original image thus making it less discernible. Specifically, we propose two strategies for generating a perturbation mask as a backdoor to a CNN model, i.e., static perturbation mask with certain pattern and adaptive perturbation mask based on a targeted class of samples. Details of the two approaches will be presented in Section 4. Once a perturbation mask is generated, it can be simply applied and added to the original images, in order to create an injection set for the next step. The pixel value of the resulting image is bounded by . Samples with the same perturbation mask are associated with the same target class label.

3.2.2. Backdoor Injection

With regard to injection setting, we consider two distinct cases, i.e., Backdoor Injection Before model training (BIB), and Backdoor Injection During model updating (BID). In the former setting, a new model is trained over the entire training dataset before deployment. Hence, a small number of backdoor samples have to be injected into the original training dataset prior to model training. This setting could be applied to a variety of possible attacks scenarios, including a malicious cloud handling outsourced training tasks or insiders/intruders who carry out injection into trusted data sources in a stealthy manner. In addition, attackers are also motivated to train a model with a poisoned dataset and release it to potential victim users.

In a typical BID setting, a pre-trained model , as the victim model, already exists, and gets updated with data containing new information (backdoor samples in our case). The attacker can either pollute a publicly available pre-trained model offline, or inject crafted samples into newly collected data used to perform online training. For either BID case, backdoor samples are inserted into data batches in a sequential order, and used to update all the parameters of the CNN model. 222Mini-batch gradient descent is a common approach to train and update a CNN. Particularly, for the latter case, the attacker can initiate the injection procedure a few steps before he intends to use the backdoor, and keep injecting backdoor samples until the backdoor is no longer needed. The adversary can therefore adjust the injection rate, amount and timing of injection as necessary. Once the injection stops, the backdoor is gradually removed as the model continues to get updated with pristine data.

3.2.3. Poisoned Training

Typically, a CNN model is trained and updated using mini-batch gradient descent optimization (Cotter et al., 2011; Bottou, 2012)

and backpropagation

(LeCun et al., 1998b). The training procedure is essentially a process of finding the optimal weights of a neural network such that an objective function, commonly the cross entropy loss (Goodfellow et al., 2016) between the ground truth label and prediction output in classification problems, is minimized. To enable a successful backdoor injection attack, the training process of the model is poisoned with backdoor samples. Accordingly, the objective of the model training procedure maximizes the accuracy of the training set and also the attack success rate of backdoor samples being “misclassified” as the target label. This can be mathematically formulated as follows, assuming there is only one type of backdoor:

(1)

where is the th image in the corresponding dataset, is the indicator of belonging to class , is the model’s output probability for class conditioned on the current parameter set and input . The definition of the remaining notations are presented in Table 1. We seek to evaluate the effect of poisoning under different scenarios in terms of adversary’s knowledge and capability. The attacker is assumed to either have access to the original training data or to use a separate non-overlapping dataset.

4. Backdoor Generating Strategies

A perturbation, used as a backdoor, is the key to the success of the proposed backdoor injection attack. On the one hand, it plays an essential role in determining how effective the injection of backdoor samples is. Ideally, the backdoor pattern and its target class should be easily learned and effectively recognized by the model after training. On the other hand, it is equally important that the perturbation mask is able to evade detection. The pixel intensity change introduced by the perturbation mask should be as minimal as possible so that human eyes cannot differentiate between the original image and the perturbed one.

In this regard, we present two alternative approaches to develop a perturbation mask as the backdoor. Our first perturbation mask is one with a simple pattern built upon empirical observations. The second type of perturbation mask is generated based on a principled approach that systematically perturbs samples with small or even minimal intensity changes. We show the heatmap of the two types of perturbation masks in Figure 5 as illustrative examples.

4.1. Patterned Static Perturbation Mask

The first type of backdoor we consider is a static perturbation mask generated based on a naïve approach. The intuition here is that CNN models generally are able to learn imagery pattern features effectively, as Convolutional Neural Network’s filters can quickly learn to exploit the strong spatially local correlations present in the images. Accordingly, we can leverage a patterned static perturbation, which can be treated as a new image pattern, as the backdoor for the CNN model to learn.

The patterned static perturbation mask works as follows. Firstly, given an image of size , we generate a zero-value perturbation mask of equal size into multiple non-overlapping sub-regions of the same size adjacent to each other. Then, within the first sub-region, one particular position , is randomly chosen, where we assign a constant value of intensity change, denoted by . We apply the same value of intensity change to the same position in the next adjacent sub-region, and repeatedly do so for the remaining sub-regions. As a result, we yield the static perturbation mask as:

(2)

where denotes the value of intensity change at th row and th column of perturbation mask . Note that a perturbation is introduced at only the single chosen position, in each sub-region.

To apply the perturbation, we simply add the perturbation mask to the original image to create a backdoor sample , i.e. . To achieve stealthiness, the choice of value of intensity change should minimally perturb the original image, yet be strong enough for the model to learn the backdoor effectively. Empirically, we set different intensity values in our experiments as discussed in Section 5. Here, we show some examples with static perturbation mask with intensity change equal to and , respectively, in Figure 4.

Figure 4. Examples of Images with Patterned Static Perturbation. (First row: original images. Second row: images with static perturbation mask of max intensity change . Third row: images with static perturbation mask of max intensity change .)
Figure 5. Examples of heatmap of the two types of perturbation masks. Left: patterned static perturbation mask where the intensity value increases by 10 at the position (i.e., the top-left light-pink pixel) within each sub-region. Note that all the black pixels in the mask indicate no intensity change to an original image in the corresponding positions. Right: adaptive perturbation mask with intensity change in both positive and negative directions, both with max intensity change .

4.2. Targeted Adaptive Perturbation Mask

One limitation of the patterned static perturbation mask is that it is based on a repeated pattern, regardless of content and classification models. As such, the static perturbation mask may not be optimal backdoor for the model to learn.

To improve, we devise a second type of backdoor, applied through an adaptive perturbation mask, that instead takes both the data and an existing model into consideration when generating the perturbation. The hypothesis is that if the attacker is able to leverage this information, he can create a stronger backdoor specific to the attack scenario at hand.

An intuition behind this approach is the following. As observed in recent studies (Moosavi-Dezfooli et al., 2017) deep learning models generate regions of decision boundaries that are nonlinear and that can be compromised by universal perturbations. Accordingly, we hypothesize that if we can find an adaptive perturbation that can “push” all the data points from a given class toward the decision boundary of the target class, an attack will have high chances of success, even with a small perturbation to the original image.

We implement our targeted adaptive perturbation according to this intuition, extending Moosavi’s work (Moosavi-Dezfooli et al., 2017) on CNN robustness against adversarial perturbations. Moosavi-Dezfooli et. al. proposed a novel approach to compute a single adversarial perturbation that can be universally applied to random images from a given domain, inducing random (non-targeted) misclassifications on most images from the domain. This concept of adversarial perturbations makes it a seemingly ideal candidate as the backdoor perturbation in our case. We have a substantially different goal than (Moosavi-Dezfooli et al., 2017), however, seeking to achieve targeted misclassifications, and only on a niche set of images, and therefore need to apply a different approach 333To achieve targeted misclassification, we can directly rely on our proposed algorithm to generate a perturbation as backdoor without injection in the training data, if we do not consider stealthiness (by setting a very large constraint). We will report the results in Appendix C. Accordingly, we propose a customized way to generate an adaptive perturbation mask, explained in the following.

Let be the set of all data points in the given class from a training set, and let denote the classification function of a neural network model. The algorithm runs in an iterative fashion over all of . At each iteration, it goes through each image in , and computes the minimum perturbation change that pushes the image embedded with the current perturbation toward the decision boundary of target class . In other words, if cannot enable targeted misclassification, we compute an extra perturbation by solving the optimization problem:

(3)

Specifically, following the derivation introduced in the Deepfool algorithm (Moosavi Dezfooli et al., 2016), at each iteration we compute the minimum perturbation matrix that projects the current data point to the boundary of the approximated polyhedron edge between the given class c and the target class . The details are given in Algorithm 1.

Input: Data point from class , classifier , target class , threshold of max iteration
Output: Adaptive perturbation
Initialize ;
;
while  do






end while
Algorithm 1 Targeted DeepFool algorithm

To be stealthy, the magnitude of the adaptive perturbation should be constrained, i.e., . That is, we project the updated perturbation on the ball of radius centered at 0. The projection function is defined as . Solving this problem will result in a perturbation with the max value of .

After reaching the max iteration threshold (we used the default value from (Moosavi Dezfooli et al., 2016)), the process stops and yields our adaptive perturbation. Note that we do not need to generate an adaptive perturbation that directly renders a perturbed image from class to be misclassfied as target class . Rather, it is sufficient to push toward (or close to) the decision boundary of the target class – it is anticipated that the subsequent model learning, using these poisoned samples with their target class, will induce the desired misclassifications. Thus, the amount of perturbation is limited: by setting a low magnitude constraint , we generate an adaptive perturbation that is small enough to be effectively learned by the victim model via data poisoning. The pseudo code of the algorithm is shown in Algorithm 2.

Input: Data points from class , classifier , desired norm of the perturbation , target label , threshold of max iteration
Output: adaptive perturbation v
Initialize ;
;
while  do

       for each data point  do
             if  then
                   Compute the minimal perturbation that sends to decision boundary:
                   Using Algorithm 1:
                   Update the perturbation:

             end if

       end for

end while
Algorithm 2 Compute an adaptive perturbation for class

Similar to the case of the patterned static perturbation, we directly add the perturbation to the original image to produce a backdoor sample. We show various examples of backdoor samples with perturbation generated from different settings in Figure 6.

Figure 6. Examples of Images with Targeted Adaptive Perturbation. (First row: original images. Second row: images with adaptive perturbation of max intensity change . Third row: images with adaptive perturbation of max intensity change .)

5. Experimental Evaluation

In this section, we describe the dataset, model architecture, metrics used for evaluation, methodology and the corresponding experimental results.

5.1. Dataset

We use the following datasets for our experiments.

GTSRB (German Traffic Sign). This dataset is made up of color images of German traffic signs from 43 different classes. It has images for training and images for testing. Particularly, we use the preprocessed version of the original raw dataset, where each image is resized to with three RGB channels. Additionally, we perform data augmentation by applying similarity transformation via random rotation, scaling or translation. As as result, we end up generating times more extra training data based on the original training dataset. We use the augmented GTSRB for the following experiments.

In addition, we validate our algorithm’s generality using the following two datasets:

MNIST (LeCun et al., 1998a). It consists of grayscale handwritten digit images from classes, i.e., digit . It has a training set of instances and a test set of instances.

CIFAR-10 (Krizhevsky, 2009). It has of size color images in classes with images per class. There are training images and test images. The result of these two dataset will be reported on section 5.7.

5.2. Model and Deployment

The victim model we use for the GTSRB dataset is based on the convolutional network architecture proposed in (Sermanet and LeCun, 2011). The surrogate model, if necessary, for the adversary to generate targeted adaptive perturbation is based on the convolutional network architecture proposed in (LeCun et al., 1998a). The details of model architecture and parameter setting are summarized in Appendix B.

The CNN model architecture, training and testing process, as well as injection procedure are implemented in Python based on the Tensorflow framework.

5.3. Metrics

To evaluate the effectiveness of our proposed backdoor injection attack, we rely on the following measures.

  • Attack Success Rate represents the percentage of backdoor instances drawn from test set being classified as the target label. A high attack success rate indicates an effective strategy of backdoor injection attack.

  • Test Accuracy Loss refers to difference of the classification accuracy on the test set between the poisoned model and the unpolluted model. In BIB setting, unpolluted model refer to learning a new model without inject backdoor samples, while in BID setting, it is the pretrained model. The former is expected to perform as close as possible to the latter.

  • Perturbation Stealthiness aims to evaluate the quality of the backdoor perturbation, and yet it is difficult to quantify. Although an image with a static or adaptive perturbation is likely visually imperceptible (see Figure 4 and 6), it is also preferable for the perturbation to evade machine detection. In this regard, we consider two quantitative measurements to evaluate the quality of the perturbations.

5.4. Setup

5.4.1. Summary of Attack Scenarios

For each injection setting, we provide a summary of the attack scenarios to be simulated with respect to different levels of the adversary’s knowledge and capability as described in Section 2.2.

For BIB setting, to make the attack more challenging, we always assume the adversary has no prior knowledge of the original model. However, we still consider the chance of an adversary having access to original training data. Hence, we simulate the following two cases.

  • BIB-PKD: Training Data Known
    With partial knowledge of original training data, samples can be directly drawn from training data to generate the injection set with either static or adaptive perturbation.

  • BIB-MK: Training Data Unknown
    In contrast, a separate (surrogate) data subset, not used for training, is used by the adversary to produce the injection set for both types of perturbation. This data may come from the same (training) database or from a different one.

For both cases described above, a surrogate model is assumed to be used by the adversary in order to generate our proposed targeted adaptive perturbation.

For BID setting, due to the existence of a pre-trained model , we consider the possibilities of an adversary having knowledge of the training data or/and pre-trained model.

  • BID-FK: Training Data Known and Pre-trained Model Known.

  • BID-PKD: Training Data Known and Pre-trained Model Unknown.

  • BID-PKM: Training Data Unknown and Pre-trained Model Known.

  • BID-MK: Training Data Unknown and Pre-trained Model Unknown.

Similarly, the adversary can leverage the knowledge of original training data or model if known. Otherwise, a surrogate dataset or model will be utilized. Note that, we mainly simulate online updating with GTSRB dataset whereas the same attack can also apply to offline updating (see Section 5.7.2).

5.4.2. Splitting Data

We use the augmented version of the GTSRB dataset, which consists of traffic sign images in total. It is split into four non-overlapping parts, i.e., 85.4% as major set (), 9.5% as minor set (), and 5.1% as model testing set (). The major set and minor set have a ratio of roughly.

In the BIB setting, major and minor sets are combined together as the training set, i.e., . Besides, backdoor samples are also drawn from the combined set, i.e., . In contrast, assuming the adversary has no access to the training data, only the major set serves as the training set while minor set is available to the adversary to produce injection set, i.e., . In order to emulate the BID setting, half of the training data is used to pre-train a model and the remaining half is reserved as the new coming data to update the pre-trained model. Table 2 summarizes these settings. Note that, in each attack scenario, only of the corresponding training data are actually used for model training and the remaining serve as the validation set.

Scenario Makeup of Training Set Makeup of Injection Set
BIB-PKD
BIB-MK
BID-FK/PKD
BID-MK/PKM
Table 2. Makeup of Training & Injection Sets in Various Scenarios

5.4.3. Training

When the injection occurs before model training (BIB), the victim model is trained using the poisoned training data. We use the model that yields the highest accuracy on validation set as the resulting model. On the other hand, when injection occurs while the model gets updated (BID), we first pre-train a model using half of the training set. Then, , as the victim model, gets updated with the other half poisoned by the injection set. Specially, for BID setting, the two metrics are computed after incoming batches are reached. The injection is stopped at a comparatively early stage, in order to emulate the case where the adversary would like to limit the amount of injected content - and try to evade detection. This is summarized as follows.

[align=left]

BIB::

BID::


To be noted, the details of and in different cases are presented in Table 2. In addition, to train and update the model, Adam optimizer(Kingma and Ba, 2014) is used for all experiments with an initial learning rate of

. The maximum training epoch is

.

5.4.4. Generating a Targeted Adaptive Perturbation Mask

Unlike the static perturbation that can be generated independently from the data, creating an adaptive perturbation as backdoor for a particular class requires the help of a designated model, as well as samples belonging to the same class drawn from data available to the adversary, according to the assumptions in each attack scenario. We report details on the setup for generating adaptive perturbation masks in Appendix A.

5.4.5. Attack Target

We select pairs of labels out of the dataset classes as shown in Table 3. We include among these five both random pairs and intentionally selected pairs with both similar and contrasting targets in terms of shape and color. For each pair, backdoor samples are drawn from one class and assigned the label of target class .

Class Notation Class Name
Speed limit
(60 km/h)
Yield Stop No entry Keep right
Speed limit
(120 km/h)
Dangerous curve
to the right
Speed limit
(110 km/h)
Ahead only Keep left
Table 3. Five Pairs of Classes

We consider one pair at a time in our experiments. Hence, for each scenario, we repeat the same attack for each of the pairs and record their corresponding results of attack success rate and model accuracy loss with respect to the test set .

5.4.6. Injection Strategy

In the BIB setting, we create a small number of backdoor samples and inject them into pristine training data at once (injection ratio varies from 1.7% to 4.7%). For the BID setting, only a handful of backdoor samples (injection number varies from 4 to 10) are injected into each batch (size of 128) of the incoming data in sequential order.

5.5. Evaluation of Backdoor Injection Attack Under Various Scenarios

In this section, we present our evaluation of backdoor injection attack for both types of backdoor perturbation. Given the setup described in the prior section, we conduct BIB and BID with both strategies (see Section 4) with a fixed max intensity of , while varying the injection number. For each perturbation and its corresponding case, we evaluate the attack with the chosen pairs of classes. For each pair, we calculate the corresponding model accuracy loss and attack success rate based on the test set. Final results are averaged among the pairs and reported in Table 4 and 5 respectively.

5.5.1. Attack Performance

According to Table 4 and 5, given the same scenario in either BIB or BID setting, adaptive perturbation (above mostly) generally outperforms static perturbation (below ) in terms of attack success rate. When it comes to test accuracy loss, it is very small and consistently below or near if adaptive perturbation mask is used. For the static perturbation mask, the accuracy loss on average in each setting is comparatively larger with a highest loss around , and attack is even not success in some scenario. This partially validates our hypothesis that image masks crafted with adaptive perturbation are easier for the model to accommodate because of the construction of the perturbation, which accounts for the data and the model at hand.

Note that for both types of perturbations, the injection attack in the BID setting has a greater impact on test accuracy than that in the BIB setting. This is expected since incremental learning of new data may negatively influence the previously learned information (catastrophic forgetting (French, 1999; McCloskey and Cohen, 1989)). Clearly, attacks in BIB setting have no such problem since the crafted samples are jointly learned with the original data. However, such impact (in the BID case) in general is still considerably limited, especially for adaptive perturbations. Furthermore, the attacks in BID setting achieve similar success rate to corresponding scenarios in BIB setting except for the one with static perturbation in BIB-MK.

Next we will discuss in details the impact of various factors in the following.

Perturbation & Scenario MetricInjection 10000 8000 6000 4000
Adaptive Perturbation Test Accuracy Loss 0.41 0.48 0.28 0.41
BIB-MK Attack Success Rate 91.6 89.13 90.61 88.13
Adaptive Perturbation Test Accuracy Loss 0.26 0.22 0.28 0.20
BIB-PKD Attack Success Rate 97.64 97.15 96.58 94.84
Static Perturbation Test Accuracy Loss 0.36 0.83 0.48 0.84
BIB-MK Attack Success Rate 50.85 54.48 48.02 22.02
Static Perturbation Test Accuracy Loss 0.82 1.0 0.62 0.64
BIB-PKD Attack Success Rate 88.22 93.21 62.86 72.14
Table 4. Average Attack Success Rate (%) and Test Accuracy Loss (%) in BIB setting with adaptive perturbation and static perturbation (Max Intensity Change = 10) w.r.t Total Number of Injected Backdoor Samples
Perturbation & Scenario MetricInjection 10 8 6 4
Adaptive Perturbation Test Accuracy Loss 1.16 0.85 0.67 0.66
BID-MK Attack Success Rate 93.12 92.12 90.03 85.05
Adaptive Perturbation Test Accuracy Loss 0.87 0.87 0.61 0.62
BID-PKM Attack Success Rate 95.19 93.96 93.33 84.88
Adaptive Perturbation Test Accuracy Loss 0.72 0.68 0.4 0.5
BID-PKD Attack Success Rate 91.52 92.82 87.17 86.36
Adaptive Perturbation Test Accuracy Loss 0.35 0.36 0.27 0.32
BID-FK Attack Success Rate 95.96 96.04 95.76 94.01
Static Perturbation Test Accuracy Loss 3.1 2.7 1.97 1.95
BID-MK Attack Success Rate 80.64 70.15 67.27 51.47
Static Perturbation Test Accuracy Loss 3.15 2.7 2.5 1.3
BID-PKD Attack Success Rate 87.73 81.07 64.18 50.67
Table 5. Average Attack Success Rate (%) and Test Accuracy Loss (%) in BID setting with adaptive perturbation and static perturbation (Max Intensity Change = 10) w.r.t Number of Injected Backdoor Samples per Batch

5.5.2. Effect of Injection Intensity

As shown in Table 4 and 5, when the number of injected samples increases, the attack success rate generally increases for both settings. This performance improvement is less drastic for targeted adaptive perturbation than static perturbation. In other words, adaptive perturbation can be equally effective at a relatively low injection rate compared to the static perturbation. For instance, in BIB with the weakest assumption on the adversary knowledge (BIB-MK), we achieve an average attack success rate above by only injecting backdoor samples (injection ratio is ) with adaptive perturbation of max intensity change as 10. Similarly, in BID-MK settings, we can also achieve a comparably decent attack performance with an injection rate of only . In comparison, the best result for static perturbation is in BIB-PKD and in BID-PKD. These performance values are still slightly under assuming the attacker has knowledge of training data as well as having a higher injection ratio. We also note that in general the BID settings required less injection samples than BIB settings.

5.5.3. Effect of Source of Injection Data and Knowledge of Pre-trained Model

In BIB settings, we found that the performance of an attack carried out using a static perturbation mask is greatly affected by the source of injection data. For instance, the attack success rate improves from (BIB-MK) to (BIB-PKD) if the adversary is assumed to have access to the training data. The reason is that it takes a variety of original images crafted with the same static perturbation mask for the model to learn such new pattern effectively instead of simply overfitting the backdoor samples. Such increase is less striking for targeted adaptive perturbation in those cases (from to attack success rate). Because the adaptive perturbation mask, generated via the original model , is implicitly recognized by the model already. A set of less diverse backdoor samples is enough to trigger the victim model to learn such adaptive pattern. To some degree, this confirms our hypothesis that it is easier for the CNN model to learn an adaptive perturbation. While in the BID setting, such effect plays a less important role for both types of perturbation.The difference may be due to the fact that in BID setting, since the attack can succeed with a small number of batch training iterations, injection data drawn from a smaller set can easily satisfy the requirement of data diversity.

Moreover, in the BID setting, for adaptive perturbation, the knowledge of the pre-trained model does not significantly affect the attack success rate. As we can see from Table 5, regardless of the knowledge of training data, the average attack success rate is comparatively close between BID-MK and BID-PKM, as well as BID-PKD and BID-FK. According to the finding in (Moosavi-Dezfooli et al., 2017), the computed perturbation can generalize well across different neural networks. Comparably, the adaptive perturbation generated from a surrogate model can still be effectively learned by the victim model.

5.5.4. Effect of Max Intensity Change

In the previous experiments, we set a fixed value for max intensity of both perturbation approaches. Next, we explore the effect of various perturbation max intensity values. Specifically, we choose a scenario BID-FK where adaptive perturbation achieves the best attack success rate. Comparably, we select BID-PKD for static perturbation with a similar setting and assumptions. For each case, in addition to varying the injection number from to , we also set a perturbation max intensity change ranging from to . We measure the average attack success rate as shown in Figure 7.

Figure 7. Effect of Max Intensity on Average Attack Success Rate with Static and Adaptive Perturbations

As we can see, for the patterned static perturbation, the attack success rate fluctuates for the same injection rate. In contrast, for the targeted adaptive perturbation, as the value of max intensity escalates, the attack success rate increases in a linear fashion.

Targeted adaptive perturbation outperforms the static perturbation given the same setup of max intensity and injection number. Particularly, if the injection number is factored in, adaptive perturbation with a larger max intensity can still be effective at a lower rate of injection. Given a high injection number (e.g., and ), the increase in max intensity only leads to a mild growth of attack success rate for the adaptive perturbation. But for static perturbation, the increased injection rate significantly contributes to improving the attack success rate.

A possible explanation for these trends may be that when creating a mask through adaptive perturbation, a larger intensity change means the instance is much closer to the boundary of target class due to the adaptive nature of the pattern itself, and therefore it is easier for the model to learn such adaptive pattern. Yet, for the static mask, the intensity change does not necessarily push the instance in an optimal direction towards the target class’s decision boundary since the patterned mask is generated independently regardless of characteristics of the images. Hence, a larger change might not contribute to rendering the static pattern easier for the model to learn. Besides, for both types of perturbation masks, it is straightforward that injecting more backdoor samples is helpful for the model to learn the corresponding backdoor.

Summary of main findings Based on the discussion in previous sections, we summarize some of the key findings in the following.

  • Generally, under the same conditions of max intensity and injection number, adaptive perturbation is more effective than static perturbation in producing a high attack success rate and low impact on model accuracy.

  • On one hand, injecting more backdoor samples contributes to the success of the attack for both types of perturbation masks. On the other hand, it is worth noting that increasing the max intensity improves the attack efficacy of adaptive perturbation more evidently than static perturbation. Hence, by adjusting the two parameters properly one can yield a balance between achieving a good attack performance and preserving the stealthiness of the attack.

  • The knowledge of training data has a greater impact on attack efficacy for the static perturbation in BIB setting than for BID setting. In contrast, the advantage of having access to the original model and training data is less striking for adaptive perturbation in both settings.

5.6. Evaluation of Perturbation Stealthiness

We consider two popular metrics to evaluate the stealthiness of our perturbation approaches:

  • Perceptual Hashing (pHash) Similarity: pHash (Klinger and Starkweather, 2008) represents a fingerprint of an image based on its features. Instead of focusing on the abrupt pixel change of an image, it reflects the overall feature representation. Images with similar features will have similar pHash value. We can calculate the similarity between the original image and perturbed image using the equation below to measure how much the original image is changed.

    where is the pHash score of the original image, is the pHash score of the backdoor image, and 64 represent the binary length of the pHash score.

  • High Frequency Changes

    : Fast Fourier transform converts the representation of an image from the spatial domain to its frequency domain, where low frequency contains most basic information of an image while high frequency captures the significant changes. To measure the high frequency change, we first compute the Fourier transform of a given image or perturbation. Then we discard the low frequency part, and calculate the mean and standard deviation (stdev) of the L2 norm difference of the remaining part. This is inspired by the approach proposed in

    (Jang et al., 2017).

pHash High Frequency Change
Similarity Mean Stdev
Original Image
Perturbed Image (Static)
Perturbed Image (Adaptive)
Static Perturbation Mask
Adaptive Perturbation Mask
Table 6. A Summary of Metrics

According to the results shown in Figure 7, the static perturbation with a max intensity change of has a similar performance as the adaptive perturbation with a max intensity change of at a fixed injection number of per batch. Thus, we compare those two perturbations generated for the pairs of in Table 3. For each pair, we select images belonging to class in the testing set to apply the corresponding perturbation, and measure the average pHash similarty, mean and stdev of high frequency distance between original and perturbed images. As to the two perturbation masks generated for a given pair, we only measure the mean and stdev of high frequency distance between them. The final results reported in Table 6 are averaged among the pairs.

The results show that both perturbed images result in a very high pHash similarity score ( and ) compared with the original one. Hence, the content of the original image is largely preserved. We also note that the image with static perturbation has a slightly higher similarity value than that of the adaptive perturbation. This is expected since the static perturbation changes only of all the pixels while adaptive perturbation is bound to change a larger number of pixels. In addition, when it comes to the average mean and stdev of high frequency change, the values for the perturbed image with both static and adaptive perturbation are extremely close to those of the original image. It again demonstrates that adding either perturbation does not significantly affect content of the original image. Furthermore, if we look at the two perturbation masks directly, although they obtain a very similar mean value, the static perturbation has a much greater standard deviation of high frequency changes. It means the static perturbation changes certain image frequencies more drastically, indicating it is relatively less ideal compared to adaptive perturbation.

5.7. Generalization of Backdoor Injection Attack

In this section, we further evaluate our proposed attack on two different datasets, i.e., MNIST and CIFAR-10, to see if our approach is still effective for other image classification tasks.

5.7.1. Evaluation on MNIST dataset

We begin our experiment with static perturbation using a simple CNN as the classifier (here we simply use the architecture introduced in Tensorflow tutorial(Google, 2018)). We start with the smallest value as its max intensity change to see if it is enough to create the backdoor for the model. For the target of attack, we select a pair of digit labels as .

Interestingly, we only need to inject 10 backdoor samples to the training dataset applied with such a static perturbation in the BIB setting to reach nearly attack success rate without undermining the model accuracy at all. In BID setting, injecting 1 backdoor sample with such static perturbation in each batch is sufficient to yield attack success rate as well.

The results indicate the static perturbation alone is extremely effective to achieve a successful targeted attack. We believe this is due to the fact that images in MNIST generally have simple visual features and clean background, which can be easily affected by adding a tiny perturbation. Because of the enormous success of the static perturbation for MNIST, we do not try the adaptive perturbation. However, for images with very complex feature patterns such as those in GTSRB, a customized sophisticated adaptive perturbation can be more effective in rendering a targeted misclassification.

5.7.2. Evaluation on CIFAR-10 dataset

We adopt a state-of-the-art CNN model according to VGG-16 (Simonyan and Zisserman, 2014), which is further adapted to the CIFAR-10 dataset based on (Liu and Deng, 2015). This model is much deeper (and has far more parameters) than the model used for testing the MNIST dataset. We consider the attack setting of injection during model updating (offline BID) where a public pre-trained model is provided and training data is also assumed known to the adversary.

We use an injection of backdoor samples per batch (size of ), and a max intensity change of for static and adaptive perturbation. We randomly choose a pair of class labels as the target of attack. Our results show that both types of perturbation mask can achieve a success rate of over with an accuracy loss of after roughly batches.

In this experiment, we observed an interesting phenomenon during the training process. At first, the backdoor can be successfully learned by the CNN, but after a few rounds of batch updates with backdoor samples, the model accuracy drops significantly (roughly by ). After training with more batches, the model recovers its performance of accuracy and settles around , while the attack success rate drops to . As the training continues, the model maintains similar accuracy while increasing the attack success rate over . We suspect that this may be due to the fact that with a deep structure of weight layers, the model is very sensitive to the original dataset at the beginning, and small weight changes affect performance notably. Yet, after being trained with more crafted samples along with the normal ones, the model can successfully recognize both of them, achieving good model accuracy and attack success rate simultaneously.

The above evaluations demonstrate that our proposed attack strategy generalizes well to different image classification tasks.

6. Possible Defenses

We now discuss several defense strategies against our proposed attack. One straightforward idea to counter backdoor injection is to destroy the perturbation pattern. This can be accomplished according to several methods. For example, one may add some random noise to the test images, or may blur the test images with a Gaussian filter. In our evaluation of these defenses, we consider the BID setting used in Section 5.5.4, and a fixed injection number of instances per batch. For both perturbation approaches, we choose max intensity change of and respectively since they have similar attack performance according to Figure 7. Particularly, the noise added to every pixel has an intensity uniformly chosen from a range of to , and we use a Gaussian filter implemented in OpenCV library (Bradski, 2000). We note that both approaches decrease the test accuracy by (only) roughly . With blurring, for static perturbation with max intensity change of , the attack success rate remains nearly unaffected. By contrast, for adaptive perturbation with max intensity change of , it plummets by . This indicates the non-robustness of adaptive perturbation under blurring. This is because blurring compromises the structure of the adaptive perturbation and induces a failure to push the data points over the decision boundary of a target class. An effective way to counter such defense is to use the blurred version of backdoor samples as the injection set, once the adversary is aware that blurring has been implemented. Notably, adding random noise has a limited effect on the attack success rate for both perturbations.

Another possible defense approach is to carry out a statistical analysis of the class frequencies of the training set given the fact that the attack requires injecting a number of backdoor samples associated with the same target label. However, this approach requires knowledge of the (true) class priors, and may also have only limited success when the training set is not so large. Additionally, in our experiment, we can carefully control the injection ratio to avoid injecting too many samples with the same label. This may help to defeat such a defense.

Another potential defense requires knowledge of ground-truth labels for the test samples (perhaps obtained by detailed human inspection and labeling). Specifically, the victim model will most likely generate a target class decision when an instance with the backdoor perturbation is presented in the testing phase. If human labels for these test instances are available (which will differ from the target class), and if too many such “misclassifications” occur, the attack may be detected. However, this approach is human-laborious as it requires test set labeling (whose avoidance is the main purpose of using a classifier). Moreover, a crafty attacker may only infrequently exploit the backdoor. In such case the percentage of backdoor samples is likely to be extremely small with respect to a likely large volume of normal data. Hence, the target label does not necessarily prevail among other labels in the misclassified data.

A final possible defense could exploit high-dimensional clustering using deep layer feature information. Specifically, if we consider the target class, the backdoor images may induce deep layer feature patterns (in the trained deep network) that are very different from normal instances from the target class. That is, in a deep layer feature space, the target class may consist of two clusters, one associated with the backdoor and another associated with normal patterns. Accurately identifying such clusters could help to identify the backdoor attack. However, this is a sophisticated, speculative defense strategy that is a good subject for future work.

7. Related Work

We highlight some of the most relevant works in the area of adversarial machine learning as follows.

Evasion Attacks are one of the well-studied attacks against machine learning models, where the adversary crafts adversarial samples that can fool the model at test time (Biggio et al., 2013). In the context of deep learning, Szegedy et al. (Szegedy et al., 2013) firstly noticed that applying an imperceptible perturbation to a test image can cause neural networks fail to classify it correctly. Subsequently, a number of studies (Goodfellow et al., 2014; Papernot et al., 2016; Moosavi Dezfooli et al., 2016; Moosavi-Dezfooli et al., 2017; Jang et al., 2017) continue to refine the approach of generating adversarial examples to cause misclassifications given a model. (Papernot et al., 2017) even demonstrated such attack in a black-box manner. Aside from focusing on targeted misclassifications, in this work we aim to create a backdoor that can be easily and universally applied, instead of customizing a unique perturbation for individual input instance.

Another line of research investigates poisoning attacks, whose aim is to poison the training data with malicious samples and degrade the efficacy of the resulting model. Poisoning attacks targeted traditional machine learning models (Biggio et al., 2012), as well as deep learning models (Shen et al., 2016; Muñoz-González et al., 2017). Our attack is a type of data poisoning that can be exploited at test time. However, our objective is to embed the backdoor while not degrading the model’s accuracy on regular data, unlike conventional data poisoning attacks. Also, in contrast to some poisoning methods that assume knowledge of the learning model or training data, our method can still work under weak assumptions where the attacker has quite limited knowledge (some training examples).

Some very recent works (Ji et al., 2017; Liu et al., 2018; Liu et al., 2017) have proposed a similar concept as ours– neural network trojan attacks. (Ji et al., 2017) directly manipulated the neural network parameters to create a backdoor. By contrast, (Liu et al., 2018) considers poisoning a publicly available model using training data generated via reverse engineering while (Liu et al., 2017) provides countermeasures against the trojan triggers in neural networks. Gu et al. (Gu et al., 2017) study backdoor poisoning attacks in an outsourced training scenario where the adversary has full knowledge of the model and training data. Comparably, (Chen et al., 2017) adopts a weak and realistic threat model assuming no knowledge of the training data and model. However, we notice that their generated trojan trigger or backdoor is not visually stealthy enough to not be detected, although various techniques (e.g., blending backdoor with original image (Chen et al., 2017), improving trigger transparency (Liu et al., 2018)) have been applied.

Our work is also related to the field of image steganography (Johnson and Jajodia, 1998; Provos and Honeyman, 2003; Cox et al., 2007; Cheddad et al., 2010; Shih, 2017) in the sense that we bear a similar goal of adding secret information or code to the image. However, the technique and application area is quite different from ours. In the future, it may be worth exploring how to adopt the techniques in steganography for our attack purpose and see if deep learning model can learn such hidden information effectively.

8. Conclusion

In this paper, we propose a novel attack strategy against machine learning models named backdoor injection attack. Specifically, we design two kinds of stealthy perturbation masks as backdoors that can achieve high attack success rate with little influencing on the model’s performance. Several realistic scenarios are considered involving the threat model and when to inject the backdoor samples. Our detailed experiments demonstrate that our attack strategies are both stealthy and successful, and that the choice of perturbation maximum intensity change and the injection rate affect to some limited extent the efficacy of our attacks. A potential refinement of our work includes injecting multiple different perturbation masks into a victim model at the same time, in order to make the attack harder to detect. This could also allow for multiple backdoor targets. We also would like to investigate applying variants of the proposed attack to other domains besides image classification.

References

  • (1)
  • Abdel-Hamid et al. (2014) Ossama Abdel-Hamid, Abdel-rahman Mohamed, Hui Jiang, Li Deng, Gerald Penn, and Dong Yu. 2014. Convolutional neural networks for speech recognition. IEEE/ACM Transactions on audio, speech, and language processing 22, 10 (2014), 1533–1545.
  • Bengio (2012) Yoshua Bengio. 2012. Deep learning of representations for unsupervised and transfer learning. In Proceedings of ICML Workshop on Unsupervised and Transfer Learning. 17–36.
  • Biggio et al. (2013) Battista Biggio, Igino Corona, Davide Maiorca, Blaine Nelson, Nedim Šrndić, Pavel Laskov, Giorgio Giacinto, and Fabio Roli. 2013. Evasion attacks against machine learning at test time. In Joint European Conference on Machine Learning and Knowledge Discovery in Databases. Springer, 387–402.
  • Biggio et al. (2012) Battista Biggio, Blaine Nelson, and Pavel Laskov. 2012.

    Poisoning Attacks against Support Vector Machines. In

    Proceedings of the 29th International Conference on Machine Learning, ICML 2012, Edinburgh, Scotland, UK, June 26 - July 1, 2012.
  • Bojarski et al. (2016) Mariusz Bojarski, Davide Del Testa, Daniel Dworakowski, Bernhard Firner, Beat Flepp, Prasoon Goyal, Lawrence D Jackel, Mathew Monfort, Urs Muller, Jiakai Zhang, et al. 2016. End to end learning for self-driving cars. arXiv preprint arXiv:1604.07316 (2016).
  • Bottou (2012) Léon Bottou. 2012. Stochastic gradient descent tricks. In Neural networks: Tricks of the trade. Springer, 421–436.
  • Bradski (2000) G. Bradski. 2000. The OpenCV Library. Dr. Dobb’s Journal of Software Tools (2000).
  • Cheddad et al. (2010) Abbas Cheddad, Joan Condell, Kevin Curran, and Paul Mc Kevitt. 2010. Digital image steganography: Survey and analysis of current methods. Signal processing 90, 3 (2010), 727–752.
  • Chen et al. (2017) Xinyun Chen, Chang Liu, Bo Li, Kimberly Lu, and Dawn Song. 2017. Targeted Backdoor Attacks on Deep Learning Systems Using Data Poisoning. arXiv preprint arXiv:1712.05526 (2017).
  • Cotter et al. (2011) Andrew Cotter, Ohad Shamir, Nati Srebro, and Karthik Sridharan. 2011. Better mini-batch algorithms via accelerated gradient methods. In Advances in neural information processing systems. 1647–1655.
  • Cox et al. (2007) Ingemar Cox, Matthew Miller, Jeffrey Bloom, Jessica Fridrich, and Ton Kalker. 2007. Digital watermarking and steganography. Morgan Kaufmann.
  • Deng et al. (2009) Jia Deng, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. 2009. Imagenet: A large-scale hierarchical image database. In

    Computer Vision and Pattern Recognition, 2009. CVPR 2009. IEEE Conference on

    . IEEE, 248–255.
  • French (1999) Robert M French. 1999. Catastrophic forgetting in connectionist networks. Trends in cognitive sciences 3, 4 (1999), 128–135.
  • Goodfellow et al. (2016) Ian Goodfellow, Yoshua Bengio, and Aaron Courville. 2016. Deep Learning. MIT Press. 71–73 pages. http://www.deeplearningbook.org.
  • Goodfellow et al. (2014) Ian J Goodfellow, Jonathon Shlens, and Christian Szegedy. 2014. Explaining and harnessing adversarial examples. arXiv preprint arXiv:1412.6572 (2014).
  • Google (2018) Google. 2018. A Guide to TF Layers: Building a Convolutional Neural Network. https://www.tensorflow.org/tutorials/layers. (2018).
  • Gu et al. (2017) Tianyu Gu, Brendan Dolan-Gavitt, and Siddharth Garg. 2017. Badnets: Identifying vulnerabilities in the machine learning model supply chain. arXiv preprint arXiv:1708.06733 (2017).
  • Huang et al. (2011) Ling Huang, Anthony D Joseph, Blaine Nelson, Benjamin IP Rubinstein, and JD Tygar. 2011. Adversarial machine learning. In

    Proceedings of the 4th ACM workshop on Security and artificial intelligence

    . ACM, 43–58.
  • Huang and Stokes (2016) Wenyi Huang and Jack W Stokes. 2016. MtNet: a multi-task neural network for dynamic malware classification. In International Conference on Detection of Intrusions and Malware, and Vulnerability Assessment. Springer, 399–418.
  • Jang et al. (2017) Uyeong Jang, Xi Wu, and Somesh Jha. 2017. Objective Metrics and Gradient Descent Algorithms for Adversarial Examples in Machine Learning. In Proceedings of the 33rd Annual Computer Security Applications Conference. ACM, 262–277.
  • Ji et al. (2017) Yujie Ji, Xinyang Zhang, and Ting Wang. 2017. Backdoor attacks against learning systems. In CNS, 2017 IEEE Conference on. IEEE, 1–9.
  • Johnson and Jajodia (1998) Neil F Johnson and Sushil Jajodia. 1998. Exploring steganography: Seeing the unseen. Computer 31, 2 (1998).
  • Kingma and Ba (2014) Diederik P Kingma and Jimmy Ba. 2014. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980 (2014).
  • Klinger and Starkweather (2008) Evan Klinger and David Starkweather. 2008. pHash. http://www.phash.org/. (2008).
  • Krasin and Duerig (2016) Ivan Krasin and Tom Duerig. 2016. Google Open Images Dataset. https://research.googleblog.com/2016/09/introducing-open-images-dataset.html. (2016).
  • Krizhevsky (2009) Alex Krizhevsky. 2009. Learning multiple layers of features from tiny images. (2009).
  • Krizhevsky et al. (2012) Alex Krizhevsky, Ilya Sutskever, and Geoffrey E Hinton. 2012. Imagenet classification with deep convolutional neural networks. In Advances in neural information processing systems. 1097–1105.
  • Le et al. (2012) Quoc V. Le, Marc’Aurelio Ranzato, Rajat Monga, Matthieu Devin, Greg Corrado, Kai Chen, Jeffrey Dean, and Andrew Y. Ng. 2012.

    Building high-level features using large scale unsupervised learning. In

    Proceedings of the 29th International Conference on Machine Learning, ICML 2012, Edinburgh, Scotland, UK, June 26 - July 1, 2012.
  • LeCun et al. (1998a) Yann LeCun, Léon Bottou, Yoshua Bengio, and Patrick Haffner. 1998a. Gradient-based learning applied to document recognition. Proc. IEEE 86, 11 (1998), 2278–2324.
  • LeCun et al. (1998b) Yann LeCun, Léon Bottou, Genevieve B Orr, and Klaus-Robert Müller. 1998b. Efficient backprop. In Neural networks: Tricks of the trade. Springer, 9–50.
  • Lin et al. (2014) Tsung-Yi Lin, Michael Maire, Serge Belongie, James Hays, Pietro Perona, Deva Ramanan, Piotr Dollár, and C Lawrence Zitnick. 2014. Microsoft coco: Common objects in context. In European conference on computer vision. Springer, 740–755.
  • Liu and Deng (2015) Shuying Liu and Weihong Deng. 2015. Very deep convolutional neural network based image classification using small training sample size. In Pattern Recognition (ACPR), 2015 3rd IAPR Asian Conference on. IEEE, 730–734.
  • Liu et al. (2018) Yingqi Liu, Shiqing Ma, Yousra Aafer, Wen-Chuan Lee, Juan Zhai, Weihang Wang, and Xiangyu Zhang. 2018. Trojaning Attack on Neural Networks. In 25nd Annual Network and Distributed System Security Symposium, NDSS 2018, San Diego, California, USA, February 18-21, 2018. The Internet Society.
  • Liu et al. (2017) Yuntao Liu, Yang Xie, and Ankur Srivastava. 2017. Neural trojans. In Computer Design (ICCD), 2017 IEEE International Conference on. IEEE, 45–48.
  • McCann et al. (2017) Bryan McCann, James Bradbury, Caiming Xiong, and Richard Socher. 2017. Learned in translation: Contextualized word vectors. In Advances in Neural Information Processing Systems. 6297–6308.
  • McCloskey and Cohen (1989) Michael McCloskey and Neal J Cohen. 1989. Catastrophic interference in connectionist networks: The sequential learning problem. In Psychology of learning and motivation. Vol. 24. Elsevier, 109–165.
  • Moosavi-Dezfooli et al. (2017) Seyed-Mohsen Moosavi-Dezfooli, Alhussein Fawzi, Omar Fawzi, and Pascal Frossard. 2017. Universal Adversarial Perturbations. In 2017 IEEE Conference on Computer Vision and Pattern Recognition, CVPR 2017, Honolulu, HI, USA, July 21-26, 2017. 86–94.
  • Moosavi Dezfooli et al. (2016) Seyed Mohsen Moosavi Dezfooli, Alhussein Fawzi, and Pascal Frossard. 2016. Deepfool: a simple and accurate method to fool deep neural networks. In Proceedings of 2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR).
  • Muñoz-González et al. (2017) Luis Muñoz-González, Battista Biggio, Ambra Demontis, Andrea Paudice, Vasin Wongrassamee, Emil C Lupu, and Fabio Roli. 2017. Towards poisoning of deep learning algorithms with back-gradient optimization. In Proceedings of the 10th ACM Workshop on Artificial Intelligence and Security. ACM, 27–38.
  • Narayan (2018) Kaushik Narayan. 2018. Insider Threat in the Cloud. https://www.skyhighnetworks.com/cloud-security-blog/5-devious-instances-insider-threat-cloud/. (2018).
  • Papernot et al. (2017) Nicolas Papernot, Patrick McDaniel, Ian Goodfellow, Somesh Jha, Z Berkay Celik, and Ananthram Swami. 2017. Practical black-box attacks against machine learning. In Proceedings of the 2017 ACM on Asia Conference on Computer and Communications Security. ACM, 506–519.
  • Papernot et al. (2016) Nicolas Papernot, Patrick McDaniel, Somesh Jha, Matt Fredrikson, Z Berkay Celik, and Ananthram Swami. 2016. The limitations of deep learning in adversarial settings. In Security and Privacy (EuroS&P), 2016 IEEE European Symposium on. IEEE, 372–387.
  • Provos and Honeyman (2003) Niels Provos and Peter Honeyman. 2003. Hide and seek: An introduction to steganography. IEEE security & privacy 99, 3 (2003), 32–44.
  • Ruan and Tan (2010) Guangchen Ruan and Ying Tan. 2010. A three-layer back-propagation neural network for spam detection using artificial immune concentration. Soft computing 14, 2 (2010), 139–150.
  • Sermanet and LeCun (2011) Pierre Sermanet and Yann LeCun. 2011. Traffic sign recognition with multi-scale convolutional networks. In Neural Networks (IJCNN), The 2011 International Joint Conference on. IEEE, 2809–2813.
  • Shen et al. (2016) Shiqi Shen, Shruti Tople, and Prateek Saxena. 2016. A uror: defending against poisoning attacks in collaborative deep learning systems. In Proceedings of the 32nd Annual Conference on Computer Security Applications. ACM, 508–519.
  • Shih (2017) Frank Y Shih. 2017. Digital watermarking and steganography: fundamentals and techniques. CRC press.
  • Simonyan and Zisserman (2014) Karen Simonyan and Andrew Zisserman. 2014. Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556 (2014).
  • Szegedy et al. (2015) Christian Szegedy, Wei Liu, Yangqing Jia, Pierre Sermanet, Scott Reed, Dragomir Anguelov, Dumitru Erhan, Vincent Vanhoucke, Andrew Rabinovich, et al. 2015. Going deeper with convolutions. CVPR.
  • Szegedy et al. (2013) Christian Szegedy, Wojciech Zaremba, Ilya Sutskever, Joan Bruna, Dumitru Erhan, Ian Goodfellow, and Rob Fergus. 2013. Intriguing properties of neural networks. arXiv preprint arXiv:1312.6199 (2013).
  • Taigman et al. (2014) Yaniv Taigman, Ming Yang, Marc’Aurelio Ranzato, and Lior Wolf. 2014. Deepface: Closing the gap to human-level performance in face verification. In Proceedings of the IEEE conference on computer vision and pattern recognition. 1701–1708.

Appendix A Setup for Generating a Targeted Adaptive Perturbation Mask

We list the setup of generating adaptive perturbation masks (see Section 5) for the below cases given various assumptions on adversary’s knowledge and capability. varies by case as shown in Table 2.

[align=left]

BIB-PKD::

A surrogate model trained with is used. Samples of class are also drawn from .

BIB-MK::

A surrogate model trained with is used. Samples of class are also drawn from .

BID-FK::

The existing model pre-trained with is used. Samples of class are also drawn from .

BID-PKD::

A surrogate model trained with is used. Samples of class are also drawn from .

BID-PKM::

The existing model pre-trained with is used. Samples of class are drawn from

BID-MK::

A surrogate model trained with is used. Samples of class are also drawn from .

Appendix B Model Structures and Training Setup

We provide a summary of the model structures and parameters used. Notice, for the first three models, we use a dropout layer with keep probability of before the output layer.

b.1. ConvNet for GTSRB

This model is based on the architecture proposed in (Sermanet and LeCun, 2011). It has convolutional layers and fully connected layers as shown in Table 7

. In particular, after the 3rd convolutional layer, its output is further concatenated with the output after the 2nd max pooling layer, which serve as the input of the last fully connected layer.

Layer Configuration
1st Convolutional filters=, kernal size=

, stride=

, activation=
1st Max Pooling kernal size=, stride=
2nd Convolutional filters=, kernel size=, stride=, activation=
2nd Max Pooling kernal size=, stride=
3rd Convolutional filters=, kernal size=, stride=, activation=
Fully Connected filters=
Table 7. Main Architecture of ConvNet for GTSRB

b.2. LeNet-5 for GTSRB

This model, served as the surrogate model, is based on LeNet-5 (LeCun et al., 1998a) with adaptation to GTSRB dataset. It has convolutional layers and fully connected layers as shown in Table 8.

Layer Configuration
1st Convolutional filters=, kernal size=, stride=, activation=
1st Max Pooling kernal size=, stride=
2nd Convolutional filters=, kernel size=, stride=, activation=
2nd Max Pooling kernal size=, stride=
3rd Convolutional filters=, kernal size=, stride=, activation=
Fully Connected filters=, activation=
Fully Connected filters=
Table 8. Main Architecture of LeNet-5 for GTSRB

b.3. LeNet-5 for MNIST

This model is based on LeNet-5 (LeCun et al., 1998a) as shown in Table 9.

Layer Configuration
1st Convolutional filters=, kernal size=, stride=, activation=
1st Max Pooling kernal size=, stride=
2nd Convolutional filters=, kernel size=, stride=, activation=
2nd Max Pooling kernal size=, stride=
Fully Connected filters=, activation=
Output filters=
Table 9. Main Architecture of LeNet-5 for MNIST

b.4. Vgg-Cifar10

This model is based on VGG-16 (Simonyan and Zisserman, 2014) with adaptation to CIFAR-10 dataset based on (Liu and Deng, 2015). It consists of 5 groups of convolution layers and 1 group of fully-connected layers with a total of 13 convolution layers and 2 fully-connected layers as shown in Table 10. We use the same dropout configuration as (Liu and Deng, 2015). Besides, stochastic gradient descent (SGD) is used to optimize the model with an initial learning rate of . We will stop updating the model once accuracy and attack success rate on validation set become steady (about 500 batches).

Layer Configuration
2 Convolutional filters=, kernal size=, stride=, activation=
Max Pooling kernal size=, stride=
2 Convolutional filters=, kernel size=, stride=, activation=
Max Pooling kernal size=, stride=
3 Convolutional filters=, kernal size=, stride=, activation=
Max Pooling kernal size=, stride=
3 Convolutional filters=, kernal size=, stride=, activation=
Max Pooling kernal size=, stride=
3 Convolutional filters=, kernal size=, stride=, activation=
Max Pooling kernal size=, stride=
Fully Connected filters=, activation=
Fully Connected filters=, activation=
Table 10. Main Architecture of VGG-CIFAR10

Appendix C Generating Adaptive Perturbation mask For Direct Targeted Misclassification

As explained in Section 4.2, the problem we tackle in this work is substantially different and difficult than that studied by (Moosavi-Dezfooli et al., 2017) in the sense that we focus on targeted misclassification by means of a small perturbation and its magnitude must be well constrained for the sake of stealthiness. One may wonder why not solve the optimization problem 3 directly to achieve a targeted misclassification but instead generate an adaptive perturbation for poisoned training. Here, we demonstrate that stealthiness cannot be guaranteed if targeted misclassification is enabled directly by the generated adaptive perturbation mask. Specifically, we choose pairs of targets . For each of them, we vary the magnitude constraint from to to see if applying the generated adaptive perturbation mask to instances from class can cause misclassification as target class directly. The instances are drawn from the testing set and we measure the corresponding attack success rate . The results are averaged among the pairs and reported in Table 11.

Magnitude Constraint
Attack Success Rate
Table 11. Attack Success Rate w.r.t. Various Magnitude Constraint on Adaptive Perturbation Mask

Accordingly, an adaptive perturbation mask with max intensity of can rarely succeed to cause targeted misclassification. In particular, to obtain an attack success rate above , we have to apply a perturbation mask with max intensity as large as , which would inevitably fail to achieve stealthiness considered as one of the most important design goals.
