1 Introduction

Learning quickly is the key characteristic of human intelligence, which remains a daunting problem in machine intelligence. The mechanism of meta-learning is widely used to generalize and transfer prior knowledge learned from previous tasks to improve the effectiveness of learning on new tasks, which has benefited various applications, such as computer vision

(Kang et al., 2019; Liu et al., 2019)

, natural language processing

(Gu et al., 2018; Lin et al., 2019) and social good (Zhang et al., 2019; Yao et al., 2019a). Most of existing meta-learning algorithms learn a globally shared meta-learner (e.g., parameter initialization (Finn et al., 2017, 2018), meta-optimizer (Ravi & Larochelle, 2016), metric space (Snell et al., 2017; Garcia & Bruna, 2017; Oreshkin et al., 2018)). However, globally shared meta-learners fail to handle tasks lying in different distributions, which is known as task heterogeneity (Vuorio et al., 2018; Yao et al., 2019b). Task heterogeneity has been regarded as one of the most challenging issues in meta-learning, and thus it is desirable to design meta-learning models that effectively optimize each of the heterogeneous tasks.

The key challenge to deal with task heterogeneity is how to customize globally shared meta-learner by using task-specific information? Recently, a handful of works try to solve the problem by learning a task-specific representation for tailoring the transferred knowledge to each task (Oreshkin et al., 2018; Vuorio et al., 2018; Lee & Choi, 2018). However, the expressiveness of these methods is limited due to the impaired knowledge generalization between highly related tasks. Recently, learning the underlying structure across tasks provides a more effective way for balancing the customization and generalization. Representatively, Yao et al. propose a hierarchically structured meta-learning method to customize the globally shared knowledge to each cluster (Yao et al., 2019b)

. Nonetheless, the hierarchical clustering structure completely relies on the handcrafted design which needs to be tuned carefully and may lack the capability to capture complex relationships.

Hence, we are motivated to propose a framework to automatically extract underlying relational structures from historical tasks and leverage those relational structures to facilitate knowledge customization on a new task. This inspiration comes from the way of structuring knowledge in knowledge bases (i.e., knowledge graphs). In knowledge bases, the underlying relational structures across text entities are automatically constructed and applied to a new query to improve the searching efficiency. In the meta-learning problem, similarly, we aim at automatically establishing the meta-knowledge graph between prior knowledge learned from previous tasks. When a new task arrives, it queries the meta-knowledge graph and quickly attends to the most relevant entities (vertices), and then takes advantage of the relational knowledge structures between them to boost the learning effectiveness with the limited training data.

The proposed meta-learning framework is named as Automated Relational Meta-Learning (ARML). Specifically, the ARML automatically builds the meta-knowledge graph from meta-training tasks to memorize and organize learned knowledge from historical tasks, where each vertex represents one type of meta-knowledge (e.g., the common contour between birds and aircrafts). To learn the meta-knowledge graph at meta-training time, for each task, we construct a prototype-based relational graph for each class, where each vertex represents one prototype. The prototype-based relational graph not only captures the underlying relationship behind samples, but alleviates the potential effects of abnormal samples. The meta-knowledge graph is then learned by summarizing the information from the corresponding prototype-based relational graphs of meta-training tasks. After constructing the meta-knowledge graph, when a new task comes in, the prototype-based relational graph of the new task taps into the meta-knowledge graph for acquiring the most relevant knowledge, which further enhances the task representation and facilitates its training process.

Our major contributions of the proposed ARML are three-fold: (1) it automatically constructs the meta-knowledge graph to facilitate learning a new task; (2) it empirically outperforms the state-of-the-art meta-learning algorithms; (3) the meta-knowledge graph well captures the relationship among tasks and improves the interpretability of meta-learning algorithms.

2 Related Work

Meta-learning designs models to learn new tasks or adapt to new environments quickly with a few training examples. There are mainly three research lines of meta-learning: (1) black-box amortized methods design black-box meta-learners to infer the model parameters (Ravi & Larochelle, 2016; Andrychowicz et al., 2016; Mishra et al., 2018; Gordon et al., 2019); (2) gradient-based methods aim to learn an optimized initialization of model parameters, which can be adapted to new tasks by a few steps of gradient descent (Finn et al., 2017, 2018; Lee & Choi, 2018; Yoon et al., 2018; Grant et al., 2018); (3) non-parametric methods combine parametric meta-learners and non-parametric learners to learn an appropriate distance metric for few-shot classification (Snell et al., 2017; Vinyals et al., 2016; Yang et al., 2018; Oreshkin et al., 2018; Yoon et al., 2019; Garcia & Bruna, 2017).

Our work is built upon the gradient-based meta-learning methods. In the line of gradient-based meta-learning, most algorithms learn a globally shared meta-learners from previous tasks (Finn et al., 2017; Li et al., 2017; Flennerhag et al., 2019), to improve the effectiveness of learning process on new tasks. However, these algorithms typically lack the ability to handle heterogeneous tasks (i.e., tasks sample from sufficient different distributions). To tackle this challenge, recent works tailor the globally shared initialization to different tasks by customizing initialization (Vuorio et al., 2018; Yao et al., 2019b) and using probabilistic models (Yoon et al., 2018; Finn et al., 2018). Representatively, HSML customizes the globally shared initialization with a manually designed hierarchical clustering structure to balance the generalization and customization (Yao et al., 2019b). However, the hand-crafted designed hierarchical structure may not accurately reflect the real structure and the clustering structure constricts the complexity of relationship. Compared with these methods, ARML leverages the most relevant structure from the automatically constructed meta-knowledge graph. Thus, ARML not only discovers more accurate underlying structures to improve the effectiveness of meta-learning algorithms, but also the meta-knowledge graph further enhances the model interpretability.

3 Preliminaries

Few-shot Learning

Considering a task , the goal of few-shot learning is to learn a model with a dataset , where the labeled training set only has a few samples and represents the corresponding test set. A learning model (a.k.a., base model) with parameters are used to evaluate the effectiveness on by minimizing the expected empirical loss on , i.e., , and obtain the optimal parameters

. For the regression problem, the loss function is defined based on the mean square error (i.e.,

) and for the classification problem, the loss function uses the cross entropy loss (i.e., ). Usually, optimizing and learning parameter for the task with a few labeled training samples is difficult. To address this limitation, meta-learning provides us a new perspective to improve the performance by leveraging knowledge from multiple tasks.

Meta-learning and Model-agnostic Meta-learning

In meta-learning, a sequence of tasks

are sampled from a task-level probability distribution

, where each one is a few-shot learning task. To facilitate the adaption for incoming tasks, the meta-learning algorithm aims to find a well-generalized meta-learner on training tasks at meta-learning phase. At meta-testing phase, the optimal meta-learner is applied to adapt the new tasks . In this way, meta-learning algorithms are capable of adapting to new tasks efficiently even with a shortage of training data for a new task.

Model-agnostic meta-learning (MAML) (Finn et al., 2017), one of the representative algorithms in gradient-based meta-learning, regards the meta-learner as the initialization of parameter , i.e., , and learns a well-generalized initialization during the meta-training process. The optimization problem is formulated as (one gradient step as exemplary):

(1)

At the meta-testing phase, to obtain the adaptive parameter for each new task , we finetune the initialization of parameter by performing gradient updates a few steps, i.e., .

4 Methodology

In this section, we introduce the details of the proposed ARML. To better explain how it works, we show its framework in Figure 1. The goal of ARML is to facilitate the learning process of new tasks by leveraging transferable knowledge learned from historical tasks. To achieve this goal, we introduce a meta-knowledge graph, which is automatically constructed at the meta-training time, to organize and memorize historical learned knowledge. Given a task, which is built as a prototype-based relational structure, it taps into the meta-knowledge graph to acquire relevant knowledge for enhancing its own representation. The enhanced prototype representations further aggregate and incorporate with meta-learner for fast and effective adaptions by utilizing a modulating function. In the following subsections, we elaborate three key components: prototype-based sample structuring, automated meta-knowledge graph construction and utilization, and task-specific knowledge fusion and adaptation, respectively.

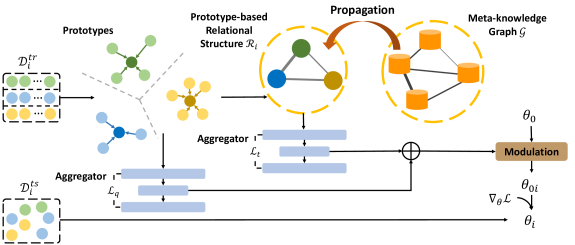

Figure 1: The framework of ARML. For each task , ARML first builds a prototype-based relational structure by mapping the training samples into prototypes, with each prototype represents one class. Then, interacts with the meta-knowledge graph to acquire the most relevant historical knowledge by information propagation. Finally, the task-specific modulation tailors the globally shared initialization by aggregating of raw prototypes and enriched prototypes, which absorbs relevant historical information from the meta-knowledge graph.

4.1 Prototype-based Sample Structuring

Given a task which involves either classifications or regressions regarding a set of samples, we first investigate the relationships among these samples. Such relationship is represented by a graph, called prototype-based relational graph in this work, where the vertices in the graph denote the prototypes of different classes while the edges and the corresponding edge weights are created based on the similarities between prototypes. Constructing the relational graph based on prototypes instead of raw samples allows us to alleviate the issue raised by abnormal samples. As the abnormal samples, which locate far away from normal samples, could pose significant concerns especially when only a limited number of samples are available for training. Specifically, for classification problem, the prototype, denoted by , is defined as:

(2)

where denotes the number of samples in class . is an embedding function, which projects into a hidden space where samples from the same class are located closer to each other while samples from different classes stay apart. For regression problem, it is not straightforward to construct the prototypes explicitly based on class information. Therefore, we cluster samples by learning an assignment matrix . Specifically, we formulate the process as:

(3)

where represents the -th row of . Thus, training samples are clustered to clusters, which serve as the representation of prototypes.

After calculating all prototype representations , which serve as the vertices in the the prototype-based relational graph , we further define the edges and the corresponding edge weights. The edge weight between two prototypes and is gauged by the the similarity between them. Formally:

(4)

where and represents learnable parameters, is a scalar and

is the Sigmoid function, which normalizes the weight between

and . For simplicity, we denote the prototype-based relational graph as , where represent a set of vertices, with each one corresponds to the prototype from a class, while gives the adjacency matrix, which indicates the proximity between prototypes.

4.2 Automated Meta-knowledge Graph Construction and Utilization

In this section, we first discuss how to organize and distill knowledge from historical learning process and then expound how to leverage such knowledge to benefit the training of new tasks. To organize and distill knowledge from historical learning process, we construct and maintain a meta-knowledge graph. The vertices represent different types of meta-knowledge (e.g., the common contour between aircrafts and birds) and the edges are automatically constructed to reflect the relationship between meta-knowledge. When serving a new task, we refer to the meta-knowledge, which allows us to efficiently and automatically identify relational knowledge from previous tasks. In this way, the training of a new task can benefit from related training experience and get optimized much faster than otherwise possible. In this paper, the meta-knowledge graph is automatically constructed at the meta-training phase. The details of the construction are elaborated as follows:

Assuming the representation of an vertex is given by , we define the meta-knowledge graph as , where and denote the vertex feature matrix and vertex adjacency matrix, respectively. To better explain the construction of the meta-knowledge graph, we first discuss the vertex representation . During meta-training, tasks arrive one after another in a sequence and their corresponding vertices representations are expected to be updated dynamically in a timely manner. Therefore, the vertex representation of meta-knowledge graph are defined to get parameterized and learned at the training time. Moreover, to encourage the diversity of meta-knowledge encoded in the meta-knowledge graph, the vertex representations are randomly initialized. Analogous to the definition of weight in the prototype-based relational graph in equation 4, the weight between a pair of vertices and is constructed as:

(5)

where and represent learnable parameters and is a scalar.

To enhance the learning of new tasks with involvement of historical knowledge, we query the prototype-based relational graph in the meta-knowledge graph to obtain the relevant knowledge in history. The ideal query mechanism is expected to optimize both graph representations simultaneously at the meta-training time, with the training of one graph facilitating the training of the other. In light of this, we construct a super-graph by connecting the prototype-based relational graph with the meta-knowledge graph for each task . The union of the vertices in and contributes to the vertices in the super-graph. The edges in and are also reserved in the super-graph. We connect with by creating links between the prototype-based relational graph with the meta-knowledge graph. The link between prototype in prototype-based relational graph and vertex in meta-knowledge graph is weighted by the similarity between them. More precisely, for each prototype , the link weight is calculated by applying softmax over Euclidean distances between and as follows:

(6)

where is a scaling factor. We denote the intra-adjacent matrix as . Thus, for task , the adjacent matrix and feature matrix of super-graph is defined as and , respectively.

After constructing the super-graph , we are able to propagate the most relevant knowledge from meta-knowledge graph to the prototype-based relational graph

by introducing a Graph Neural Networks (GNN). In this work, following the “message-passing” framework

(Gilmer et al., 2017), the GNN is formulated as:

(7)

where is the message passing function and has several possible implementations (Hamilton et al., 2017; Kipf & Welling, 2017; Veličković et al., 2018), is the vertex embedding after layers of GNN and is a learnable weight matrix of layer . The input . After stacking GNN layers, we get the information-propagated feature representation for the prototype-based relational graph as the top- rows of , which is denoted as .

4.3 Task-specific Knowledge Fusion and Adaptation

After propagating information form meta-knowledge graph to prototype-based relational graph, in this section, we discuss how to learn a well-generalized meta-learner for fast and effective adaptions to new tasks with limited training data. To tackle the challenge of task heterogeneity, in this paper, we incorporate task-specific information to customize the globally shared meta-learner (e.g., initialization here) by leveraging a modulating function, which has been proven to be effective to provide customized initialization in previous studies (Wang et al., 2019; Vuorio et al., 2018).

The modulating function relies on well-discriminated task representations, while it is difficult to learn all representations by merely utilizing the loss signal derived from the test set . To encourage such stability, we introduce two reconstructions by utilizing two auto-encoders. There are two collections of parameters, i.e, and , which contribute the most to the creation of the task-specific meta-learner. express the raw prototype information without tapping into the meta-knowledge graph, while give the prototype representations after absorbing the relevant knowledge from the meta-knowledge graph. Therefore, the two reconstructions are built on and . To reconstruct , an aggregator (e.g., recurrent network, fully connected layers) is involved to encode into a dense representation, which is further fed into a decoder to achieve reconstructions. Then, the corresponded task representation of is summarized by applying a mean pooling operator over prototypes on the encoded dense representation. Formally,

(8)

Similarly, we reconstruct and get the corresponded task representation as follows:

(9)

The reconstruction errors in Equations 8 and 9 pose an extra constraint to enhance the training stability, leading to improvement of task representation learning.

After getting the task representation and , the modulating function is then used to tailor the task-specific information to the globally shared initialization , which is formulated as:

(10)

where and is learnable parameters of a fully connected layer. Note that we adopt the Sigmoid gating as exemplary and more discussion about different modulating functions can be found in ablation studies of Section 5.

For each task , we perform the gradient descent process from and reach its optimal parameter . Combining the reconstruction loss and with the meta-learning loss defined in equation 1, the overall objective function of ARML is:

(11)

where and are introduced to balance the importance of these three items. represents all learnable parameters. The algorithm of meta-training process of ARML is shown in Alg. 2. The details of the meta-testing process of ARML are available in Appendix A.

0:  : distribution over tasks; : Number of vertices in meta-knowledge graph; : stepsize for gradient descent of each task (i.e., inner loop stepsize); : stepsize for meta-optimization (i.e., outer loop stepsize); : balancing factors in loss function
1:  Randomly initialize all learnable parameters
2:  while not done do
3:     Sample a batch of tasks from
4:     for all  do
5:        Sample training set and testing set
6:        Construct the prototype-based relational graph by computing prototype in equation 2 and weight in equation 4
7:        Compute the similarity between each prototype and meta-knowledge vertex in equation 6 and construct the super-graph
8:        Apply GNN on super-graph and get the information-propagated representation
9:        Aggregate in equation 8 and in equation 9 to get the representations , and reconstruction loss ,
10:        Compute the task-specific initialization in equation 10 and update parameters
11:     end for
12:     Update
13:  end while
Algorithm 1 Meta-Training Process of ARML

5 Experiments

In this section, we conduct extensive experiments to demonstrate the effectiveness of the ARML on 2D regression and few-shot classification.

5.1 Experimental Settings

Methods for Comparison

We compare our proposed ARML with two types of baselines: (1) Gradient-based meta-learning methods: both globally shared methods (MAML (Finn et al., 2017), Meta-SGD (Li et al., 2017)) and task-specific methods (MT-Net (Lee & Choi, 2018), MUMOMAML (Vuorio et al., 2018), HSML (Yao et al., 2019b), BMAML (Yoon et al., 2018)) are considered for comparison. (2) Other meta-learning methods (non-parametric and black box amortized methods): we select globally shared methods VERSA (Gordon et al., 2019), Prototypical Network (ProtoNet) (Snell et al., 2017), TapNet (Yoon et al., 2019) and task-specific method TADAM (Oreshkin et al., 2018) as baselines. Following the traditional settings, non-parametric baselines are only used in few-shot classification. Detailed implementations of baselines are discussed in Appendix B.3.

Hyperparameter Settings

For the aggregated function in autoencoder structure (

, , ), we use the GRU as the encoder and decoder in this structure. We adopt one layer GCN (Kipf & Welling, 2017) with tanh activation as the implementation of GNN in equation 7. For the modulation network, we test sigmoid, tanh and Film modulation, and find that sigmoid modulation achieves best performance. Thus, in the future experiment, we set the sigmoid modulation as modulating function. More detailed discussion about experiment settings are presented in Appendix B.

5.2 2D Regression

Dataset Description

In 2D regression problem, we adopt the similar regression problem settings as (Finn et al., 2018; Vuorio et al., 2018; Yao et al., 2019b; Rusu et al., 2019), which includes several families of functions. In this paper, to model more complex relational structures, we design a 2D regression problem rather than traditional 1D regression. Input and

are sampled randomly and random Gaussian noisy with standard deviation 0.3 is added to the output. Furthermore, six underlying functions are selected, including (1)

Sinusoids: , where , ; (2) Line: , where , ; (3) Quadratic: , where , , ; (4) Cubic: , where , , , ; (5) Quadratic Surface: , where , ; (6) Ripple: , where , . Note that, function 1-4 are located in the subspace of . Follow (Finn et al., 2017)

, we use two fully connected layers with 40 neurons as the base model. The number of vertices of meta-knowledge graph is set as 6.

Results and Analysis

In Figure 2, we summarize the interpretation of meta-knowledge graph (see top figure, and more cases are provided in Figure 8 of Appendix G.4) and the the qualitative results (see bottom table) of 10-shot 2D regression. In the bottom table, we can observe that ARML achieves the best performance as compared to competitive gradient-based meta-learning methods, i.e., globally shared models and task-specific models. This finding demonstrates that the meta-knowledge graph is necessary to model and capture task-specific information. The superior performance can also be interpreted in the top figure. In the left, we show the heatmap between prototypes and meta-knowledge vertices (darker color means higher similarity). We can see that sinusoids and line activate V1 and V4, which may represent curve and line, respectively. V1 and V4 also contribute to quadratic and quadratic surface, which also show the similarity between these two families of functions. V3 is activated in P0 of all functions and the quadratic surface and ripple further activate V1 in P0, which may show the different between 2D functions and 3D functions (sinusoid, line, quadratic and cubic lie in the subspace). Specifically, in the right figure, we illustrate the meta-knowledge graph, where we set a threshold to filter the link with low similarity score and show the rest. We can see that V3 is the most popular vertice and connected with V1, V5 (represent curve) and V4 (represent line). V1 is further connected with V5, demonstrating the similarity of curve representation.

Model MAML Meta-SGD BMAML MT-Net MUMOMAML HSML ARML
10-shot

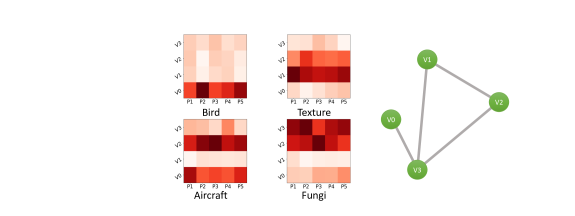

Figure 2: In the top figure, we show the interpretation of meta-knowledge graph. The left heatmap shows the similarity between prototypes (P0, P1) and meta-knowledge vertices (V0-V5). The right part show the meta-knowledge graph. In the bottom table, we show the overall performance (mean square error with 95% confidence) of 10-shot 2D regression.

5.3 Few-shot Classification

Dataset Description and Settings

In the few-shot classification problem, we first use the benchmark proposed in (Yao et al., 2019b), where four fine-grained image classification datasets are included (i.e., CUB-200-2011 (Bird), Describable Textures Dataset (Texture), FGVC of Aircraft (Aircraft), and FGVCx-Fungi (Fungi)). For each few-shot classification task, it samples classes from one of four datasets. In this paper, we call this dataset as Plain-Multi and each fine-grained dataset as subdataset.

Then, to demonstrate the effectiveness of our proposed model for handling more complex underlying structures, in this paper, we increase the difficulty of few-shot classification problem by introducing two image filters: blur filter and pencil filter. Similar as (Jerfel et al., 2019), for each image in Plain-Multi, one artistic filters are applied to simulate a changing distribution of few-shot classification tasks. After applying the filters, the total number of subdatasets is 12 and each tasks is sampled from one of them. This data is named as Art-Multi. More detailed descriptions of the effect of different filters is discussed in Appendix C.

Following the traditional meta-learning settings, all datasets are divided into meta-training, meta-validation and meta-testing classes. The traditional N-way K-shot settings are used to split training and test set for each task. We adopt the standard four-block convolutional layers as the base learner (Finn et al., 2017; Snell et al., 2017) for ARML and all baselines for fair comparison. The number of vertices of meta-knowledge graph for Plain-Multi and Art-Multi datasets are set as 4 and 8, respectively. Additionally, for the miniImagenet and tieredImagenet (Ren et al., 2018), similar as (Finn et al., 2018), which tasks are constructed from a single domain and do not have heterogeneity, we compare our proposed ARML with baseline models and present the results in Appendix D.

Overall Performance

Experimental results for Plain-Multi and Art-Multi are shown in Table 1 and Table 2

, respectively. For each dataset, the performance accuracy with 95% confidence interval is reported. Due to the space limitation, in Art-Multi dataset, we only show the average value of each filter here. The full results are shown in Table

8 of Appendix E. In these two tables, first, we can observe that task-specific gradient-based models (MT-Net, MUMOMAML, HSML, BMAML) significantly outperforms globally shared models (MAML, Meta-SGD). Second, compared ARML with other task-specific gradient-based meta-learning methods, the better performance confirms that ARML can model and extract task-specific information more accurately by leveraging the constructed meta-knowledge graph. Especially, the performance gap between the ARML and HSML verifies the benefits of relational structure compared with hierarchical clustering structure. Third, as a gradient-based meta-learning algorithm, ARML can also outperform methods of other research lines (i.e., ProtoNet, TADAM, TapNet and VERSA). Finally, to show the effectiveness of proposed components in ARML, we conduct comprehensive ablation studies in Appendix F. The results further demonstrate the effectiveness of prototype-based relational graph and meta-knowledge graph.

Settings Algorithms Data: Bird Data: Texture Data: Aircraft Data: Fungi
5-way 1-shot VERSA
ProtoNet
TapNet
TADAM
MAML
MetaSGD
BMAML
MT-Net
MUMOMAML
HSML
ARML %
5-way 5-shot VERSA
ProtoNet
TapNet
TADAM

MAML
MetaSGD
BMAML
MT-Net
MUMOMAML
HSML
ARML %
Table 1: Overall few-shot classification results (accuracy confidence) on Plain-Multi dataset.
Settings Algorithms Avg. Original Avg. Blur Avg. Pencil
5-way, 1-shot VERSA
Protonet
TapNet
TADAM
MAML
MetaSGD
MT-Net
BMAML
MUMOMAML
HSML
ARML
5-way, 5-shot VERSA
Protonet
TapNet
TADAM
MAML
MetaSGD
BMAML
MT-Net
MUMOMAML
HSML
ARML
Table 2: Overall few-shot classification results (accuracy confidence) on Art-Multi dataset.
Analysis of Constructed Meta-knowledge Graph

In this section, we conduct extensive qualitative analysis for the constructed meta-knowledge graph, which is regarded as the key component in ARML. Due to the space limit, we present the results on Art-Multi datasets here and the analysis of Plain-Multi with similar observations are discussed in Appendix G.1. We further analyze the effect of different number of vertices in meta-knowledge graph in Appendix G.2 and conduct a comparison with HSML about the learned structure in Appendix G.3.

To analyze the learned meta-knowledge graph, for each subdataset, we randomly select one task as exemplary (see Figure 9 of Appendix G.4 for more cases). For each task, in the left part of Figure 3

, we show the similarity heatmap between prototypes and vertices in meta-knowledge graph, where deeper color means higher similarity. V0-V8 and P1-P5 denotes the different vertices and prototypes, respectively. The meta-knowledge graph is also illustrated in the right part. Similar as the graph in 2D regression, we set a threshold to filter links with low similarity and illustrate the rest of them. First, we can see that the V1 is mainly activated by bird and aircraft (including all filters), which may reflect the shape similarity between bird and aircraft. Second, V2, V3, V4 are firstly activated by texture and they form a loop in the meta-knowledge graph. Especially, V2 also benefits images with blur and pencil filters. Thus, V2 may represent the main texture and facilitate the training process on other subdatasets. The meta-knowledge graph also shows the importance of V2 since it is connected with almost all other vertices. Third, when we use blur filter, in most cases (bird blur, texture blur, fungi blur), V7 is activated. Thus, V7 may show the similarity of images with blur filter. In addition, the connection between V7 and V2 and V3 show that classify blur images may depend on the texture information. Fourth, V6 (activated by aircraft mostly) connects with V2 and V3, justifying the importance of texture information to classify the aircrafts.

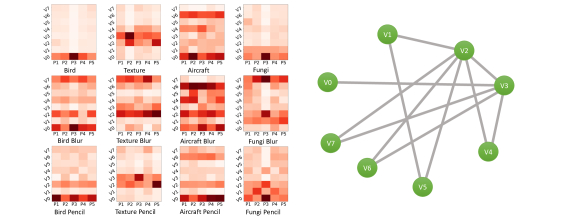

Figure 3: Interpretation of meta-knowledge graph on Art-Multi dataset. For each subdataset, we randomly select one task from them. In the left, we show the similarity heatmap between prototypes (P0-P5) and meta-knowledge vertices (V0-V7). In the right part, we show the meta-knowledge graph.

6 Conclusion

In this paper, to improve the effectiveness of meta-learning for handling heterogeneous task, we propose a new framework called ARML, which automatically extract relation across tasks and construct a meta-knowledge graph. When a new task comes in, it can quickly find the most relevant relations through the meta-knowledge graph and use this knowledge to facilitate its training process. The experiments demonstrate the effectiveness of our proposed algorithm.

In the future, we plan to investigate the problem in the following directions: (1) we are interested to investigate the more explainable semantic meaning in the meta-knowledge graph on this problem; (2) we plan to extend the ARML to the continual learning scenario where the structure of meta-knowledge graph will change over time; (3) our proposed model focuses on tasks where the feature space, the label space are shared. We plan to explore the relational structure on tasks with different feature and label spaces.

Acknowledgments

The work was supported in part by NSF awards #1652525 and #1618448. The views and conclusions contained in this paper are those of the authors and should not be interpreted as representing any funding agencies.

References

  • Andrychowicz et al. (2016) Marcin Andrychowicz, Misha Denil, Sergio Gomez, Matthew W Hoffman, David Pfau, Tom Schaul, Brendan Shillingford, and Nando De Freitas. Learning to learn by gradient descent by gradient descent. In NeurIPS, pp. 3981–3989, 2016.
  • Finn & Levine (2018) Chelsea Finn and Sergey Levine. Meta-learning and universality: Deep representations and gradient descent can approximate any learning algorithm. In ICLR, 2018.
  • Finn et al. (2017) Chelsea Finn, Pieter Abbeel, and Sergey Levine. Model-agnostic meta-learning for fast adaptation of deep networks. In ICML, pp. 1126–1135, 2017.
  • Finn et al. (2018) Chelsea Finn, Kelvin Xu, and Sergey Levine. Probabilistic model-agnostic meta-learning. In NeurIPS, 2018.
  • Flennerhag et al. (2019) Sebastian Flennerhag, Pablo G Moreno, Neil D Lawrence, and Andreas Damianou. Transferring knowledge across learning processes. ICLR, 2019.
  • Garcia & Bruna (2017) Victor Garcia and Joan Bruna. Few-shot learning with graph neural networks. In ICLR, 2017.
  • Gilmer et al. (2017) Justin Gilmer, Samuel S Schoenholz, Patrick F Riley, Oriol Vinyals, and George E Dahl. Neural message passing for quantum chemistry. In ICML, pp. 1263–1272. JMLR. org, 2017.
  • Gordon et al. (2019) Jonathan Gordon, John Bronskill, Matthias Bauer, Sebastian Nowozin, and Richard E Turner. Meta-learning probabilistic inference for prediction. In ICLR, 2019.
  • Grant et al. (2018) Erin Grant, Chelsea Finn, Sergey Levine, Trevor Darrell, and Thomas Griffiths. Recasting gradient-based meta-learning as hierarchical bayes. In ICLR, 2018.
  • Gu et al. (2018) Jiatao Gu, Yong Wang, Yun Chen, Kyunghyun Cho, and Victor OK Li.

    Meta-learning for low-resource neural machine translation.

    In EMNLP, 2018.
  • Hamilton et al. (2017) Will Hamilton, Zhitao Ying, and Jure Leskovec. Inductive representation learning on large graphs. In NeurIPS, pp. 1024–1034, 2017.
  • Jerfel et al. (2019) Ghassen Jerfel, Erin Grant, Thomas L Griffiths, and Katherine Heller. Reconciling meta-learning and continual learning with online mixtures of tasks. NeurIPS, 2019.
  • Kang et al. (2019) Bingyi Kang, Zhuang Liu, Xin Wang, Fisher Yu, Jiashi Feng, and Trevor Darrell. Few-shot object detection via feature reweighting. In ICCV, 2019.
  • Kipf & Welling (2017) Thomas N Kipf and Max Welling. Semi-supervised classification with graph convolutional networks. In ICLR, 2017.
  • Lee & Choi (2018) Yoonho Lee and Seungjin Choi. Gradient-based meta-learning with learned layerwise metric and subspace. In ICML, pp. 2933–2942, 2018.
  • Li et al. (2017) Zhenguo Li, Fengwei Zhou, Fei Chen, and Hang Li. Meta-sgd: Learning to learn quickly for few shot learning. arXiv preprint arXiv:1707.09835, 2017.
  • Lin et al. (2019) Zhaojiang Lin, Andrea Madotto, Chien-Sheng Wu, and Pascale Fung. Personalizing dialogue agents via meta-learning. 2019.
  • Liu et al. (2019) Ming-Yu Liu, Xun Huang, Arun Mallya, Tero Karras, Timo Aila, Jaakko Lehtinen, and Jan Kautz. Few-shot unsupervised image-to-image translation. arXiv preprint arXiv:1905.01723, 2019.
  • Mishra et al. (2018) Nikhil Mishra, Mostafa Rohaninejad, Xi Chen, and Pieter Abbeel. A simple neural attentive meta-learner. ICLR, 2018.
  • Nichol & Schulman (2018) Alex Nichol and John Schulman. Reptile: a scalable metalearning algorithm. arXiv preprint arXiv:1803.02999, 2018.
  • Oreshkin et al. (2018) Boris Oreshkin, Pau Rodríguez López, and Alexandre Lacoste. Tadam: Task dependent adaptive metric for improved few-shot learning. In NeurIPS, pp. 721–731, 2018.
  • Perez et al. (2018) Ethan Perez, Florian Strub, Harm de Vries, Vincent Dumoulin, and Aaron C. Courville. Film: Visual reasoning with a general conditioning layer. In AAAI, 2018.
  • Ravi & Larochelle (2016) Sachin Ravi and Hugo Larochelle. Optimization as a model for few-shot learning. ICLR, 2016.
  • Ren et al. (2018) Mengye Ren, Eleni Triantafillou, Sachin Ravi, Jake Snell, Kevin Swersky, Joshua B. Tenenbaum, Hugo Larochelle, and Richard S. Zemel. Meta-learning for semi-supervised few-shot classification. In ICLR, 2018.
  • Rusu et al. (2019) Andrei A Rusu, Dushyant Rao, Jakub Sygnowski, Oriol Vinyals, Razvan Pascanu, Simon Osindero, and Raia Hadsell. Meta-learning with latent embedding optimization. In ICLR, 2019.
  • Snell et al. (2017) Jake Snell, Kevin Swersky, and Richard Zemel. Prototypical networks for few-shot learning. In NeurIPS, pp. 4077–4087, 2017.
  • Veličković et al. (2018) Petar Veličković, Guillem Cucurull, Arantxa Casanova, Adriana Romero, Pietro Lio, and Yoshua Bengio. Graph attention networks. In ICLR, 2018.
  • Vinyals et al. (2016) Oriol Vinyals, Charles Blundell, Timothy Lillicrap, Daan Wierstra, et al. Matching networks for one shot learning. In NeurIPS, pp. 3630–3638, 2016.
  • Vuorio et al. (2018) Risto Vuorio, Shao-Hua Sun, Hexiang Hu, and Joseph J Lim. Toward multimodal model-agnostic meta-learning. arXiv preprint arXiv:1812.07172, 2018.
  • Wang et al. (2019) Xin Wang, Fisher Yu, Ruth Wang, Trevor Darrell, and Joseph E Gonzalez. Tafe-net: Task-aware feature embeddings for low shot learning. In CVPR, pp. 1831–1840, 2019.
  • Yang et al. (2018) Flood Sung Yongxin Yang, Li Zhang, Tao Xiang, Philip HS Torr, and Timothy M Hospedales. Learning to compare: Relation network for few-shot learning. In CVPR, 2018.
  • Yao et al. (2019a) Huaxiu Yao, Yiding Liu, Ying Wei, Xianfeng Tang, and Zhenhui Li. Learning from multiple cities: A meta-learning approach for spatial-temporal prediction. In WWW. ACM, 2019a.
  • Yao et al. (2019b) Huaxiu Yao, Ying Wei, Junzhou Huang, and Zhenhui Li. Hierarchically structured meta-learning. In ICML, pp. 7045–7054, 2019b.
  • Yoon et al. (2018) Jaesik Yoon, Taesup Kim, Ousmane Dia, Sungwoong Kim, Yoshua Bengio, and Sungjin Ahn. Bayesian model-agnostic meta-learning. In NeurIPS, pp. 7343–7353, 2018.
  • Yoon et al. (2019) Sung Whan Yoon, Jun Seo, and Jaekyun Moon. Tapnet: Neural network augmented with task-adaptive projection for few-shot learning. In ICML, 2019.
  • Zhang et al. (2019) Xi Sheryl Zhang, Fengyi Tang, Hiroko Dodge, Jiayu Zhou, and Fei Wang. Metapred: Meta-learning for clinical risk prediction with limited patient electronic health records. In KDD, 2019.

Appendix A Algorithm in Meta-testing Process

0:  Training data of a new task
1:  Construct the prototype-based relational graph by computing prototype in equation 2 and weight in equation 4
2:  Compute the similarity between each prototype and meta-knowledge vertice in equation 6 and construct the super-graph
3:  Apply GNN on super-graph and get the updated prototype representation
4:  Aggregate in equation 8, in equation 9 and get the representations ,
5:  Compute the task-specific initialization in equation 10
6:  Update parameters
Algorithm 2 Meta-Testing Process of ARML

Appendix B Hyperparameters Settings

b.1 2D Regression

In 2D regression problem, we set the inner-loop stepsize (i.e., ) and outer-loop stepsize (i.e., ) as 0.001 and 0.001, respectively. The embedding function is set as one layer with 40 neurons. The autoencoder aggregator is constructed by the gated recurrent structures. We set the meta-batch size as 25 and the inner loop gradient steps as 5.

b.2 Few-shot Image Classification

In few-shot image classification, for both Plain-Multi and Art-Multi datasets, we set the corresponding inner stepsize (i.e., ) as 0.001 and the outer stepsize (i.e., ) as . For the embedding function , we employ two convolutional layers with

filters. The channel size of these two convolutional layers are 32. After convolutional layers, we use two fully connected layers with 384 and 128 neurons for each layer. Similar as the hyperparameter settings in 2D regression, the autoencoder aggregator is constructed by the gated recurrent structures, i.e.,

, , are all GRUs. The meta-batch size is set as 4. For the inner loop, we use 5 gradient steps.

b.3 Detailed Baseline Settings

For the gradient-based baselines (i.e., MAML, MetaSGD, MT-Net, BMAML. MUMOMAML, HSML), we use the same inner loop stepsize and outer loop stepsize rate as our ARML. As for non-parametric based meta-learning algorithms, both TADAM and Prototypical network, we use the same meta-training and meta-testing process as gradient-based models. Additionally, TADAM uses the same embedding function as ARML for fair comparison (i.e., similar expressive ability).

Appendix C Additional Discussion of Datasets

In this dataset, we use pencil and blur filers to change the task distribution. To investigate the effect of pencil and blur filters, we provide one example in Figure 4. We can observe that different filters result in different data distributions. All used filter are provided by OpenCV111https://opencv.org/.

(a) : Plain Image
(b) : with blur filter
(c) : with pencil filter
Figure 4: Effect of different filters.

Appendix D Results on MiniImagenet and tieredImagenet

For miniimagenet and tieredImagenet, since it do not have the characteristic of task heterogeneity, we show the results in Table 3 and Table 4, respectively. In this table, we compare our model with other gradient-based meta-learning models (the top baselines are globally shared models and the bottom baselines are task-specific models). Similar as (Finn et al., 2018), we also apply the standard 4-block convolutional layers for each baseline. For MT-Net on MiniImagenet, we use the reported results in (Yao et al., 2019b), which control the model with the same expressive power. Most task-specific models including ARML achieve the similar performance on the standard benchmark due to the homogeneity between tasks.

Algorithms 5-way 1-shot Accuracy
MAML (Finn et al., 2017)
LLAMA (Finn & Levine, 2018)
Reptile (Nichol & Schulman, 2018)
MetaSGD (Li et al., 2017)
MT-Net (Lee & Choi, 2018)
MUMOMAML (Vuorio et al., 2018)
HSML (Yao et al., 2019b)
PLATIPUS (Finn et al., 2018)
ARML
Table 3: Performance comparison on the 5-way, 1-shot MiniImagenet dataset.
Algorithms 5-way 1-shot Accuracy
MAML (Finn et al., 2017)
Reptile (Nichol & Schulman, 2018)
MetaSGD (Li et al., 2017)
MT-Net (Lee & Choi, 2018)
MUMOMAML (Vuorio et al., 2018)
HSML (Yao et al., 2019b)
ARML
Table 4: Performance comparison on the 5-way, 1-shot tieredImagenet dataset.

Appendix E Additional Results of Few-shot Image Classification

We provide the full results table of Art-Multi Dataset in Table 8. In this table, we can see our proposed ARML outperforms almost all baselines in every sub-datasets.

Appendix F Ablation Study

In this section, we perform the ablation study of the proposed ARML to demonstrate the effectiveness of each component. The results of ablation study on 5-way, 5-shot scenario for Art-Multi and Plain-Multi datasets are presented in Table 5 and Table 6, respectively. Specifically, to show the effectiveness of prototype-based relational graph, in ablation I, we apply the mean pooling to aggregate each sample and then feed it to interact with meta-knowledge graph. In ablation II, we use all samples to construct the sample-level relational graph without constructing prototype. In ablation III, we remove the links between prototypes. Compared with ablation I, II and III, the better performance of ARML shows that structuring samples can (1) better handling the underlying relations (2) alleviating the effect of potential anomalies by structuring samples as prototypes.

In ablation IV, we remove the meta-knowledge graph and use the prototype-based relational graph with aggregator as the task representation. The better performance of ARML demonstrates the effectiveness of meta-knowledge graph for capturing the relational structure and facilitating the classification performance. We further remove the reconstruction loss in ablation V and replace the encoder/decoder structure as MLP in ablation VI. The results demonstrate that the autoencoder structure benefits the process of task representation learning and selected encoder and decoder.

In ablation VII, we share the gate value within each filter in Convolutional layers. Compared with VII, the better performance of ARML indicates the benefit of customized gate for each parameter. In ablation VIII and IX, we change the modulate function to Film (Perez et al., 2018) and tanh, respectively. We can see that ARML is not very sensitive to the modulating activation, and sigmoid function is slightly better in most cases.

Model B Plain B Blur B Pencil T Plain T Blur T Pencil
I. no prototype-based graph
II. no prototype
III. no prototype links
IV. no meta-knowledge graph
V. no reconstruction loss
VI. replace encoder/decoder as MLP
VII. share the gate within Conv. filter
VIII. tanh
IX. film
ARML
Model A Plain A Blur A Pencil F Plain F Blur F Pencil
I. no prototype-based graph
II. no prototype
III. no prototype links
IV. no meta-knowledge graph
V. no reconstruction loss
VI. replace encoder/decoder as MLP
VII. share the gate within Conv. filter
VIII. tanh
IX. film
ARML
Table 5: Full evaluation results of model ablation study on Art-Multi dataset. B, T, A, F represent bird, texture, aircraft, fungi, respectively. Plain means original image.
Ablation Models Bird Texture Aircraft Fungi
I. no prototype-based graph
II. no prototype
III. no prototype links
IV. no meta-knowledge graph
V. no reconstruction loss
VI. replace encoder/decoder as MLP
VII. share the gate within Conv. filter
VIII. tanh
IX. film
ARML
Table 6: Results of Model Ablation (5-way, 5-shot results) on Plain-Multi dataset.

Appendix G Additional Analysis of Meta-knowledge Graph

g.1 Qualitative Analysis on Plain-Multi Dataset

Then, we analyze the meta-knowledge graph on Plain-Multi dataset by visualizing the learned meta-knowledge graph on Plain-Multi dataset (as shown in Figure 5). In this figure, we can see that different subdatasets activate different vertices. Specifically, V2, which is mainly activated by texture, plays a significantly important role in aircraft and fungi. Thus, V2 connects with V3 and V1 in the meta-knowledge graph, which are mainly activated by fungi and aircraft, respectively. In addition, V0 is also activated by aircraft because of the similar contour between aircraft and bird. Furthermore, in meta-knowledge graph, V0 connects with V3, which shows the similarity of environment between bird images and fungi images.

Figure 5: Interpretation of meta-knowledge graph on Plain-Multi dataset. For each subdataset, one task is randomly selected from them. In the left figure, we show the similarity heatmap between prototypes (P1-P5) and meta-knowledge vertices (denoted as E1-E4), where deeper color means higher similarity. In the right part, we show the meta-knowledge graph, where a threshold is also set to filter low similarity links.

g.2 Performance v.s. Vertice Numbers

We first investigate the impact of vertice numbers in meta-knowledge graph. The results of Art-Multi (5-way, 5-shot) are shown in Table 7. From the results, we can notice that the performance saturates as the number of vertices around 8. One potential reason is that 8 vertices are enough to capture the potential relations. If we have a larger datasets with more complex relations, more vertices may be needed. In addition, if the meta-knowledge graph do not have enough vertices, the worse performance suggests that the graph may not capture enough relations across tasks.

# of Vertices B Plain B Blur B Pencil T Plain T Blur T Pencil
4
8
12
16
20
# of Vertices A Plain A Blur A Pencil F Plain F Blur F Pencil
4
8
12
16
20
Table 7: Full evaluation results of performance v.s. # vertices of meta-knowledge graph on Art-Multi. B, T, A, F represent bird, texture, aircraft, fungi, respectively. Plain means original image.
Settings Algorithms B Plain B Blur B Pencil T Plain T Blur T Pencil A Plain A Blur A Pencil F Plain F Blur F Pencil
5-way 1-shot VERSA
ProtoNet
TapNet
TADAM
MAML
MetaSGD
BMAML
MT-Net
MUMOMAML
HSML
ARML
5-way 5-shot VERSA
ProtoNet
TapNet
TADAM
MAML
MetaSGD
BMAML
MT-Net
MUMOMAML
HSML
ARML
