1 Introduction
Reinforcement Learning (RL) is a learning approach in which no prior knowledge of an environment is necessary. An agent learns the optimal behavior known as policy by interacting with the environment. At each decision step, the agent observes the state of the environment, takes an action and receives a scalar reward value from the environment. Using this reward value, the agent adjusts its policy in order to maximize the long term reward. The long term reward is either the sum of all future rewards or the discounted sum of future rewards in order to reduce the impact of future actions Wiering and Van Otterlo (2012).
RL is a method to solve sequential decision making problems modeled as Markov Decision Process (MDP). Formally speaking, a discrete time finite horizon MDP is a tuple , where is the state space, is the action space, is an instant reward value denoting the benefit of transition from current state to the next state , and is the discount factor Puterman (2014)
. At each decision moment or discrete timestep
, an agent interacts with the environment and its goal is to learn a policythat determines a probability value for each action. Following a greedy,
greedy, softmax or other action selection policies, the agent takes an action according to the probabilities and transitions to the next state. In other words, the agent observes a state and performs an action . Taking an action has two consequences. First the agent receives a reward value . Then, the state of the environment transitions from to a new state based on the transition probability . The agent updates the policy during the learning phase in order to find the optimal policy that yields the maximum total reward. RL provides an interactionbased framework to solve the MDP and learn the policy .MDPs can be continuous time, infinite horizon or partially observable. Infinite horizon MDPs do not have a goal state and the system runs for ever Wiering and Van Otterlo (2012). The agent learns to maximize its total reward without expecting a goal state. In continuous time MDPs, unlike discrete time, the decisions are made at every point in time. The formulation of continuous time MDP is similar to discrete MDP, however, these problems are harder to solve in general Guo and HernándezLerma (2009). Partially Observable MDP (POMDP) is a kind of MDP where the agent has limited information about the environment due to different reasons such as limited sensors or uncertainty in the environment Spaan (2012); Wiering and Van Otterlo (2012). These variants of MDPs could also be modeled and solved by RL, although they need different considerations on defining the states which the agent has a belief about the environment rather than complete observation. In this article, we focus on discrete time fully observable MDPs.
To model a problem in RL framework and solve it accordingly, different components of RL, including MDP modeling, algorithms, and hyperparameters such as the number of training steps, the structure of policy function, etc., should be determined before starting the learning procedure. In common practice, the exact observation from the environment is used as a state representation and the agent’s decision is directly sent to the environment as an action. Although these states and actions might help the agent to find an optimal or near optimal policy for some tasks, they are not necessarily the best representations for the states and the actions. In some other tasks, further processing of the environment is required to find a suitable state representation. As a simple example, normalization is usually necessary for the inputs of Neural Networks (NNs) and using raw observation of the environment may produce undesirable results. Furthermore, the performance of a RL policy is highly dependent on the RL algorithms and its hyperparameters. Selecting algorithms and tuning hyperparameters are normally done by using expert knowledge. However, many iterations are still needed to find the best set of hyperparameters. In addition, there are many optimization problems in different areas with no available expert knowledge on RL, that could be solved by RL. Hence, automating an RL procedure in order to facilitate using this approach for nonexperts is of great importance.
Automated Reinforcement Learning (AutoRL) provides a framework to automatically make appropriate decisions about the settings of an RL procedure before starting the learning. In other words, RL components, including state, action and reward, algorithm selection, and hyperparameters optimization, are determined through AutoRL, and the best configuration for each component is provided for an RL procedure to solve a task. Figure 1

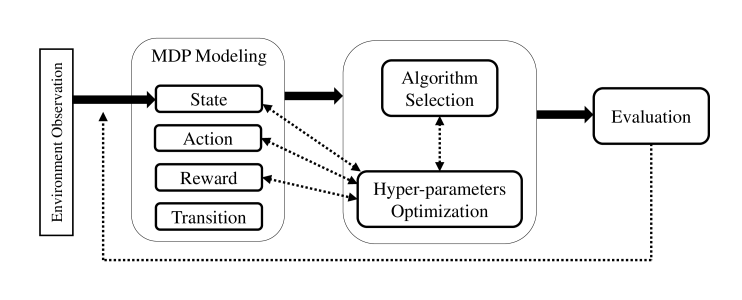

shows an RL pipeline containing the RL components. To model and solve a problem using RL, the steps of this pipeline are followed, starting from MDP modeling. AutoRL aims to automate different steps of this pipeline and reduce the necessity of expert knowledge. We use AutoRL to emphasize the resemblance with Automated Machine Learning (AutoML) as a framework for automating supervised and unsupervised learning procedures. According to
He et al. (2021), an AutoML pipeline consists of the components of Machine Learning frameworks. It starts with data preprocessing that contains data collection and data cleaning. The next step is feature engineering including feature extraction, feature construction and feature selection. After processing the data and defining the features, a model is developed and optimized to perform classification or clustering tasks. Finally, the quality of the model is determined through evaluation. In order to automate this procedure, the output of evaluation is used to configure new settings and follow the steps again. In this way, several iterations might be needed to derive the optimal settings for data preprocessing, feature engineering and model generation. Although some components of AutoML and AutoRL are similar, AutoML methods cannot necessarily be used in AutoRL because the configuration of the problems and the complexity of the evaluation step are different. AutoRL pipeline builds a pipeline for RL to define and select components of RL automatically. In recent years, by combining Deep Learning and RL, the need for automating the components of Deep Reinforcement Learning (DRL) is increased because many modeling decisions are made manually and even RL experts have to test several different configurations related to state, action, reward, algorithm and hyperparameters, to obtain the best definition.
In this article, we review relevant work that can be included in an AutoRL framework and elaborate research challenges and directions in this relatively new research area. For each of the components mentioned above, different approaches in the literature are presented that might be helpful in automating the corresponding component. For example, approaches that modify the initial observations of the environment to define a state representation are candidate methods for using in automating states. AutoRL pipeline consists of modeling a particular problem as a sequential decision making problem and MDP, selecting algorithm and tuning hyperparameters. These three steps are illustrated in Figure 1 followed by evaluation. Evaluating a RL algorithm is normally performed by tracing reward alteration during training and comparing the final total reward with some baselines.
In order to clarify the purpose of AutoRL, assume Traveling Salesman Problems (TSP) as an example. Recently, DRL has been popular for learning heuristics and solving different variants of TSP. The first step in solving TSP with DRL is to model the problem as a sequential decision making and determine MDP components. Vanilla TSP is defined as finding a tour with minimum length in a graph where all the nodes are visited exactly once. In a constructive solution approach, an agent starts from the source and walks through nodes until building a tour. At each timestep, the graph, current node, visited nodes and remained nodes are the observations of an environment. There are several ways like graph neural networks
Scarselli et al. (2008) and structure2vec Dai et al. (2016) to convert the observations to state representation and AutoRL helps to find the best approach among the possible methods for this conversion. The second step is to define a RL algorithm for updating the policy network. Popular RL algorithms such as A2C Mnih et al. (2016), PPO Schulman et al. (2017), ACER Wang et al. (2016b) and DQN Mnih et al. (2015) are available to train the policy network. Each of them is useful for particular problems and it is not easy to determine the best algorithm for a problem. AutoRL aims to provide the opportunity of searching among these possible algorithms to find the suitable one. We focus on modelfree RL algorithms where the transition probabilities between states are unknown. The third step is to set the hyperparameters such as network architecture, learning rate, discount factor, etc. AutoRL employs hyperparameter optimization methods in its framework to derive the optimal hyperparameters for an algorithm and a set of problem instances.This paper is organized as follows. In section 2, previous work related to automating the MDP modeling including the definition of states, actions and rewards are explained. In section 3, the process of RL algorithm selection is reviewed. Since algorithm selection is normally intertwined with hyperparameter optimization, most of the combined work in algorithm selection and hyperparameter optimization together with different hyperparameter optimization work are presented in section 4. Section 5 present recent work in metalearning that can be leveraged in a RL framework. In section 6, previous work in optimizing and learning neural network architecture are reviewed. Finally, section 7 concludes the paper.
2 Markov Decision Process Components
Since Reinforcement Learning aims to solve MDPs, an AutoRL agent needs to define these four components: state, action, reward, transition probability. The transition probability is mostly unknown for modelfree RL problems Sutton and Barto (2018). Hence, we focus only on state, action and reward definition in this section.
2.1 Methods for Automating States
As mentioned before, the original observation that an agent receives from interacting with environment is commonly assumed as a state. This holds for many classical RL problems such as mountain car, cart pole and pendulum Wiering and Van Otterlo (2012). Nevertheless, the original observation is not necessarily an efficient state representation. Moreover, in some applications, especially for those with continuous state space, the state space is extremely large and approximating a good value functions is difficult. Hence, deriving a particular mapping from observations to states that helps the final policy take better actions, attracts much attention in the literature. We categorize the existing work in defining state into two groups. First, the methods that require to be configured using expert knowledge. These methods transform raw observations into state representation, however, the hyperparameters optimization and finding proper settings are left for the experts. Second, the methods that automatically transform the observations to states and reduce the role of expert.
2.1.1 Transferring raw observations to state representation
Manipulating raw observation and constructing new features are widely used for deriving state representation. These methods range from simple approaches such as tile coding applied to linear function approximation methods for problems like nstate random walk Sherstov and Stone (2005); Abdoos et al. (2014), to more complex methods like structure2vec Dai et al. (2016) and Pointer Networks Vinyals et al. (2015)
for graph Combinatorial Optimization Problems (COPs) such as Vertex Cover
Khalil et al. (2017) and TSP Bello et al. (2016). They are mainly employed for expanding the observation to more useful representations with or without taking the final policy into account. For problems like combinatorial optimization Mazyavkina et al. (2020), robot navigation ALTUNTAŞ et al. (2016) and real world business problems like train shunting Peer et al. (2018) and online advertising Refaei Afshar et al. (2019), raw observation of the environment may require processes to derive state representation.Each state consists of a ndimensional observations vector from the environment and each observation is a scalar value called a feature. In other words, the observations in an ndimensional observation space are feature vectors with n entries. In more complex tasks like image classification where the observation is a matrix rather than a vector, they can be flattened to vectors. Exact observations from the environment in some problems are not sufficient for representing states. As an example, assume a task with 2dimensional observation space where the two dimensions are interrelated. In other words, possible actions for the situation that both dimensions are positive or negative are different from when they have different signs. In this case, using a vector with two entries as a state does not take any interaction between the two variables into account. Since, the observations in many environments are represented by numerical values, features can be interpolated to generate new meaningful features. One of the simplest families of features used for interpolation is
Polynomial Features Sutton and Barto (2018). Polynomial features are obtained by modeling the observations as any ordern polynomial. Formally speaking, assume is an observation vector from the environment. The new state corresponding to an observation is defined as:(1)
where, is an integer denoting the degree of term of observation in the definition of the term of state representation. This approach is mainly used for deriving state representation of linear function approximation algorithms when the important interactions between the features are not included in the observations of the environment.
Coarse Coding is another useful approach for generating features especially when the observation of the environment is not informative enough Sutton (1996). For example, assume a task with two dimensional state space where each region of the space has its own characteristics. In order to capture pertinent information about the environment, coarse coding introduces some overlapping circles whose status shows the corresponding state of observation. Each observation lies in one or more circles and circles are called present/absent or active/inactive based on the location of the observation. If the observation lies in circle, its corresponding value in state is 1, otherwise it is 0. Using this method, the feature vector of states extends to binary values. Figure 2 shows an example of coarse coding with .

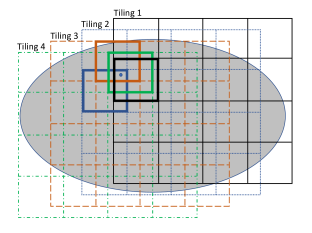

Tile Coding Sutton and Barto (2018) is a widely used approach for converting continuous space to discrete which is easier to manage and reduces the complexity of the problem. In tile coding, tiling that each has a fixed number of tiles are offset from each other by a uniform amount in each direction. Figure 3 shows an example of tile coding.
With the popularity of Deep Neural Networks (DNNs) in past few years, the feature engineering is mainly performed by DNNs and researchers focus more on designing the DNNs. Nevertheless, for some problems like COPs, processing the raw representation of problem instances in order to derive effective state representation improves the quality of the solution. For this reason, many research focus on developing methods for transforming the original observation of the environment to state representation. In Dai et al. (2016), an approach named structure2vec for representing structured data like trees and graphs is introduced. This approach is based on the idea of embedding latent variable models into feature space. A vector for representing graph is obtained by employing probabilistic kernels to find latent variable models and a neural network is trained to output the embedding of a graph based on nodes’ attributes. This idea is used in Khalil et al. (2017) for solving graphbased combinatorial optimization problems such as Minimum Vertex Cover and TSP. The graph embedding network is learned by fitted Qlearning and the output of the network is used as a greedy policy to incrementally create the solution of the problem.
2.1.2 Automatically defining the state representation
There are some approaches in the literature that try to automatically find state representation. Adaptive Tile Coding Whiteson (2010) is one of them where the algorithm starts with a single big tile and two heuristic algorithms determine when and where to split the tiles, respectively. First heuristic keeps tracks of lowest Bellman error and whenever it fails to change, it is the time for splitting. The second heuristic then checks the states in a tile and splits the tile if the number of conflicts in action selection is higher than a threshold. Since the tiles are split evenly, in Lin and Wright (2010)
, genetic algorithm is used for solving this issue and automatically deriving tile coding and state abstraction of large state spaces. This approach also starts from a single tile containing entire state space and genetic algorithm determines when and where to split the tiles while the splits can divide unevenly. In this modeling, the population contains different tilings that are evaluated by an RL algorithm. Each tiling is demonstrated by a binary decision tree and its fitness is the performance of RL algorithm using the tiling for state representation. Mutation either shifts the tiles or divide them. Shift operators move the position of splits and divide operators introduce new splits. This approach is applied on Mountain Car and Pole Balancing as two wellknown continuous control RL problems
Lin and Wright (2010).One approach of handling large state space is to reduce the complexity of the state space by aggregating those states that have similar characteristics. In Baumann and Buning (2011), state aggregation for Q learning algorithm in continuous state space is studied. The proposed method combines Growing Neural Gas (GNG) and Qlearning to automatically learn state aggregation during training. The GNG is an unsupervised method that represents the topology of an environment by a small set of units. It adds units and updates the approximation until deriving a representation. In order to aggregate states, a set of codeword vectors are defined to represent states and a region is assigned to each of them based on nearest neighbor quantizer. Then GNG finds the final codeword vectors for representing states by moving the initial vectors or adding new ones. As another example, an extension of tile coding is introduced in Refaei Afshar et al. (2020) to automatically transform continuous state space to discrete and use the resulting state representation for solving knapsack problem. In this method, a single ndimensional tiling is used to convert numeric item values to discrete. Each item of knapsack problem is considered as a dimension and RL is used to automatically learn the number of tiles in each dimension. In this modeling, states are items and the action is the number of tiles.
Focusing on graphbased state representation leads to other promising works. In Perozzi et al. (2014), a representation named DeepWalk
is introduced that generates a sequence of nodes using random walk. This model is used in natural language processing and trains a model similar to word2vec for representing a graph. In
Zhou et al. (2017), an asymmetric proximity preserving graph embedding based on random walk is developed that can be used to represent a graph for social network problems like link prediction.2.1.3 Challenges
Approaches for transforming observations to state representation have parameters and settings that properly tuning them would significantly increase the total reward. For instance, although tile coding and coarse coding are useful approaches for handling large and continuous state space, the number of tilings, tiles and circles have to be determined by the system designer or expert. Furthermore, promising NNbased methods like Pointer Network require appropriate information about the problem instance which is still the task of RL designer. Therefore, completely replacing expert knowledge with automation levels is a challenging task in defining state representation.
The other main challenge is generalization of proposed methods. An automated method such as structure2vec is a powerful way to represent graphs. This embedding is only useful for graphbased problems, while a large fraction of RL problems are not inherently graphbased. The same issue holds for Adaptive Tile coding which require special adaptations for a particular task. Deriving a generic state representation methods would improve an AutoRL pipeline drastically which is not well studied in the literature.
2.2 Methods for Automating Actions
In many RL tasks, actions are mainly the decisions of the agent that alter the state of the environment. Different types of actions such as continuous, discrete, multidimensional, bounded or unbounded would entail policies with different qualities. For example, a continuous action like prices in a dynamic pricing task can be modeled as either continuous or discrete action space. On one hand, continuous actions might be more precise, however, it is not possible to model them with tabular reinforcement learning or function approximation approaches like DQN that consider an output for each action. On the other hand, although discrete actions are easier to model, modeling a continuous space as discrete might be tricky especially when small changes in the action would have large impact on the total reward. Therefore, deriving a proper action representation is very important as it is difficult to find the best representation for actions that ends up with the best policy. For this reason, automating the definition of action spaces are necessary for many tasks. Action spaces could be a combination of discrete and continuous for multidimensional spaces like robot joints in robot navigation problems. For many continuous control task such as pendulum or BipedalWalker Brockman et al. (2016a), the continuous action space could be discretized to represent discrete actions. In this subsection, we review learning actions and discretizing continuous action space separately.
2.2.1 Learning actions
Action representation learning in order to improve the action values and policy has become popular in recent years. In Tavakoli et al. (2020), the action representation of multidimensional action spaces is learned using hypergraph. Hypergraph is the generalization of graph in which each single hyperedge could contain one or more vertices. In this modeling, the actions are modeled as vertices in hypergraph and the goal is to learn the representation of hyperedges. To achieve this, a parametric function is defined for each hyperedge whose input is a representation of the states and the outputs are separate values for each possible action in the action space. If the action space is multidimensional, the number of outputs is equal to the cardinality of a Cartesian product of action vertices in the hyperedge. After receiving a state representation, each parametric function corresponding to a hyperedge returns a vector for each action and these vectors are mixed up using a nonparametric fixed function. The output of this mixing function is the Q value for RL. In order to find a good hypergraph for this problem, a rank is chosen that defines the set of all hyperedges with the cardinality of at most . The desired hypergraph is the one that is equal to the number of vertices.
An efficient way to represent actions is to model the output of the policy network as a continuous Probability Density Function (PDF). In common practice, Gaussian distribution is used for the policy and mean and standard deviation are learned during the training. Gaussian distribution has been successful in many tasks with continuous action space, however, infinite support of this distribution might introduce bias in policies obtained from policy gradient algorithms. To solve this issue, Gaussian distribution is replaced by Beta distribution in
Chou et al. (2017). The authors show that using Beta PDF for policy reduces bias whilst the performance is not negatively affected.One approach to automatically derive the policy distribution is introduced in Tessler et al. (2019). According to this work, the policy gradient updating rule with parametric distribution functions results in suboptimal policies. This suboptimality is in distribution space and learning the policy distribution is a solution. For this purpose, Distributional Policy Optimization (DPO) as an updating rule is presented that minimizes the distance between the policy and a target distribution. This updating rule is shown in Equation 2.
(2)
where is a projection operator onto the set of distributions, is a distance measure,
is a distribution over all states and actions that their advantage value is positive. In order to minimize the distance between two distributions, Implicit Quantile Network
Dabney et al. (2018) is employed by using Wasserstein distance metric. DPO algorithm is incorporated in Generative Actor Critic that contains four neural networks for policy, delayed policy, value network and actionvalue network.2.2.2 Discretizing continuous actions
Continuous action spaces are challenging in many tasks. As mentioned before, some RL algorithms like DQN do not work well for continuous action spaces because they rely on greedy algorithm and the best action is required at each step. Finding the best action in a continuous space needs an optimization step for each interaction with the environment which is intractable. For discrete action spaces, a separate output is considered in the policy network for each action which is not possible when the action space is continuous as it needs infinite number of outputs. Although discretization Kanervisto et al. (2020) makes the action space discrete and manageable, it is not suitable for tasks that are very sensitive to small alteration of actions.
Sometimes, continuous action spaces could be transformed to discrete while retaining necessary information for action selection as shown in Tang and Agrawal (2020) for onpolicy control RL when the domain of all the continuous actions is between 1 and 1. The set of discrete actions for each dimension is , where,
is the number of discrete actions. The discrete policy is a neural network that outputs a logit
for action in dimension. For each dimension , the logits are combined through a softmax function to compute the probability of choosing each action. This approach is integrated with TRPO and PPO to be evaluated on MuJoCo benchmarks Tang and Agrawal (2020).2.2.3 Challenges
Similar to state representation, approaches for determining action space contains hyperparameters and finding appropriate configurations are important. One way to optimize the parameters is through hyperparameters optimization module as it is depicted by a dashed arrow between actions and hyperparameter optimization in Figure 1. This is challenging because there might be several action spaces and each has some parameters. Hence, the search space is relatively big and the optimization procedure is computationally expensive.
Finding the optimal action space needs many trial and error steps by checking different definitions. Automation level may help to decide the policy distribution or descretization approach for continuous actions is necessary. Designing the structure of the policy output is normally performed using expert knowledge which is not always available. This is an interesting research direction that may influence positively on the output of a RL framework.
2.3 Automated Reward Function
Reward function is the other component of MDP that greatly influences on the quality of the policy. Assume that an agent aims to reach a goal by searching in a 2D grid world. Different reward functions lead to different policies. If all moves have zero reward except the one that takes the agent to the goal state, the obtained policy is totally different with when the reward pertains to the distance to the goal. In the former case, the agent might waste time by wandering in the grid field since there is no penalty for the moves. Therefore, designing a strong reward function is of great importance which is normally the task of RL experts. Even using expert knowledge, sometimes it is necessary to test different reward functions in order to obtain the one yielding the best policy. Hence, automating reward function can largely help the agent toward finding a good policy. Generally, there are three approaches for designing reward function that can be considered in an automation level. An agent may automatically seek among these approaches to find the best representation for the reward function.
2.3.1 Curriculum Learning
Curriculum learning is a useful method for learning sparse reward functions. Many problems like robots navigation have sparse reward function because the search space is extremely large and only goal state produces a positive reward. Curriculum learning gradually increases the difficulty of the problem by starting from the states close to the goal state and progressively increase the distance. A curriculum learning method inspired by dynamic programming methods is introduced in Florensa et al. (2017) for goal oriented tasks like robot navigation. The motivation is to handle the sparsity of the reward function because the reward value is zero for all the moves except the one that takes the agent to the goal state. Based on this work, the robot starts to learn by searching from states that are close to the goal. The process is continued until showing mastery on the current setting. Then, new start states are added to the search space by a random walk from previous start states. This so called reverse learning is helpful to solve the problem of sparsity.
Focusing on the limitation of the reverse learning with random walk, a new approach is presented in Ivanovic et al. (2019) for highly dynamic and unstable systems where previous method breaks down. Similar to Florensa et al. (2017), the backward learning method in Ivanovic et al. (2019) starts from the state in the vicinity of the goal state and increases the distance when the agent demonstrates mastery in solving the problem. Unlike Florensa et al. (2017), where the state space expands by random walk, in Ivanovic et al. (2019) the new states are obtained by computing approximate backward reachable set (BRS). BRS is the set of all points in the state space that the agent is able to reach a certain region in a fixed and short amount of time. The main contribution of this work is to update the state space in the way that only reachable states from goal state are preserved.
Although curriculum learning is helpful in solving sparsity, their main application is in goal searching tasks. Using curriculum learning in COPs is quite challenging. Learning heuristics in these problems might not be adapted with curriculum learning because the optimal solutions are not usually available in advance. Therefore, using curriculum learning in a reinforcement learning pipeline is limited to goalbased problems where the goal state is available.
2.3.2 Bootstrapping
Bootstrapping methods start learning from a predefined policy. This policy could be either for a similar task or designed by human. A typical approach based on bootstrapping is introduced in Smart and Kaelbling (2002) where the learning process is split into two phases. In the first phase, the robot is controlled by a supplied control policy or directly by human. In the latter case the robot is navigated by human in the environment and it updates the value function during this phase without changing the policy. The second phase is a typical reinforcement learning process and the robot updates the policy based on the value function which is initialized in the first phase.
In order to address three main RL challenges including sparsity of the reward function, lack of effective exploration and brittle convergence properties, a hyper algorithm that incorporates evolutionary algorithms (EA) and DRL is introduced in
Khadka and Tumer (2018). Each individual in the evolutionary algorithms represents a DNN and mutation randomly alters the weights of a DNN. These DDNs are the actors in Deep Deterministic Policy Gradient (DDPG) Lillicrap et al. (2016) algorithm. Initially, a population of actors are generated and the fitness for each actor is the cumulative reward of following its policy for a particular episode. Then the actors are perturbed through mutation and crossover to create new set of actors as the next generation. Through crossover, an offspring policy is obtained by randomly exchanging segments of parents’ weights. The mutation is performed by applying random Gaussian noise to the weights. The experiences of actors are stored in a replay memory and these experiences are used by another actor (apart from individuals in EA) to update its weight through DDPG algorithm and this actor is copied to the EA population periodically. The algorithm is similar to DDPG except that the main actor has access to the experiences of individuals. This approach is categorized as bootstrapping as it uses information of other policies for training the target policy.Since DNNs are usually sensitive to small modification of the weights, mutation may cause extent forgetting. To address this issue of Khadka and Tumer (2018), the evolutionary RL algorithm is modified in Bodnar et al. (2020)
by adding personal replay memories and defining a crossover and a mutation operators. A small personal replay memory named genetic memory is defined for each individual to keep their most recent experiences. In the new crossover named Qfiltered distillation, the genetic memory of the child policy is filled with the latest experiences of its parents. The child policy is initialized with the weights of one of its parents and it is trained using the experiences of its genetic memory. The action selection procedure is toward minimizing a loss function that combines the policies of the parents. The new mutation named proximal mutation modifies the Gaussian perturbation of
Khadka and Tumer (2018) by scaling the Gaussian using the sum of gradients over a batch of transitions. This approach is evaluated on MuJoCo environments including Hopper, Ant and HalfCheetah.One challenge in sparse reward tasks with highdimensional state space is deriving a policy for long horizon. On one hand, while planning algorithms work well for task that determining a distance between states and designing local policy is easy, it is problematic when it comes to highdimensional observations. On the other hand, even though RL algorithms work well with highdimensional observations, they fail to solve some tasks in long horizons. To achieve the benefit of planning and RL algorithms, a combined algorithm is presented in Eysenbach et al. (2019). In this approach, the task is decomposed into a series of easier goalreaching tasks and the problem of finding these subgoals is reduced to a shortest path problem using a distance metric. By defining the reward value as 1 for every move until reaching a goal, the Q function and the shortest path would be closely connected. Using the distance between nodes, a directed graph is built on top of the states in a replay buffer in which each node corresponds to an observation. This graphs finds a set of nodes showing the shortest path from the start state to the goal state and the goalbased policy starts to find the goal by reaching intermediate goals one after each other.
2.3.3 Reward Shaping
Reward shaping is the process of learning a proxy reward function that maximizes the expected return. Although rewards in many tasks like video games are straightforward to define, it needs careful considerations in problems like robot navigation and COPs that have multiple objectives. For example, finding a reward function by combining several objectives like avoiding obstacles, reaching the goal, passing minimum distance and the optimal angular velocity in a goal searching task is challenging. As another example, the optimal solution of a TSP with time window and prizes should has the minimum tour length and maximum collected prize while the time window constraints are satisfied Ilavarasi and Joseph (2014). For these kinds of problems, different rewards may lead to completely different solution performance and carefully designed rewards are necessary. In the next paragraphs of this sub section some example and application of reward shaping in different domains are reviewed.
In Judah et al. (2014)
, reward shaping in the context of imitation learning is explored. In imitation learning, the agent faces an MDP without any reward value. States and actions pairs from a target policy are demonstrated to the agent and the goal is to mimic the target policy using these stateaction pairs. In
Judah et al. (2014), a reward value is provided for the agent which is not necessarily aligned with the target policy. The accuracy of the learned policy is a parametric function where the parameters are obtained by maximizing the shaped reward.In Su et al. (2015)
, the benefit of reward shaping in Spoken Dialogue Systems (SDS) as a Partially Observable MDP (POMDP) is studied. In SDS, an agent interacts and converses with the clients and a numerical reward value is received at the end of the conversation. Since there is no intermediate reward, the reward function is sparse. In this work, domain knowledge is used to provide another reward signal. This extra reward value is obtained from an RNN which is trained by supervised learning using previous annotated data. The state (belief in POMDP context) and action pairs are the inputs of the RNN and the scalar return of the dialogue is the target value. The agent uses the extra reward value along with the feedback of the environment to learn its policy.
A wellknown reward shaping approach is potentialbased reward shaping Ng et al. (1999). Let be the instant reward of taking action in state and going to state . Potentialbased reward shaping employs a function where, is discount factor, and and are potential functions of states and , respectively. The new reward function is which is the sum of original reward and the potentialbased reward shaping. In Grześ (2017), potentialbased reward shaping is analyzed in episodic RL. The authors show that temporal credit assignment or reward value could speed up training deep neural networks if a potential based reward function is added to the original reward. An important requirement of this work is that the policy derived by shaped reward should be equivalent to the original policy. Potentialbased Reward shaping preserves the optimal policy when the goal states are predefined terminal states and shaping reward is zero in the goal states Ng et al. (1999). It is shown in Grześ (2017) that policy invariance is violated for finite horizon domains with multiple terminal states and they propose to set the potential value of terminal states as zero to solve this issue.
Learning a potential function using MetaLearning in order to accelerate the learning is studied in Zou et al. (2019). The potential function is defined as a neural network and its parameters are updated using ModelAgnostic MetaLearning (MAML) algorithm Finn et al. (2017). The updating equations of MAML are as follows.
(3)
(4)
where, is a MDP task deriving from a particular task distribution, is the parameters of the value network, is the parameters of potentialbased reward shaping which is taskspecific, and are learning rates, and are the value network and reward shaping network respectively, and is the loss function. The parameters of the networks are trained through running an adapted version of DQN with replay memory.
The term AutoRL is used in Chiang et al. (2019) to address automatically generating a reward function for a robot navigation task. This work defines the learned reward functions for path following and targetbased tasks in robot navigation. The motivation of the proxy reward function is to handle the sparsity of the original reward which is a binary value showing whether the agent reaches its objective. More specifically, the objective of the targetbased task is maximizing the probability of reaching a goal as shown in Equation (5).
(5)
where, shows the peer to peer property of the problem, is the objective function and is the indicator function to determine whether the distance between current state and goal state is less than . Using this objective function, the reward is defined in Equation (6).
(6)
In this formulation, is a constant penalty for each step, is the negative Euclidean distance to the goal, is a binary value showing whether the robot collides an obstacle, is the negative angular velocity, is the distance to the closest obstacle, and is a binary value showing whether the goal is reached. Using this reward function, an actorcritic algorithm is employed to learn the optimal policy. The algorithm consists of two steps: learning the parameters of the reward function and training actorcritic networks. In order to learn the parameters of the reward, they are initialized using previous evaluated parameters according to a blackbox gradientfree optimization algorithm. Then the parameters of the fixedshape actorcritic networks are learned using the reward function. Upon running the algorithm for a certain amount of time, the parameters providing the maximum objective value are selected for reward function and RL trains actorcritic networks.
In Faust et al. (2019) the idea of learning a parametric function is employed for a set of typical continuous control RL problem like Ant, Walker2D, HumanoidStandup and Humanoid. These environments are implemented in OpenAI Gym Brockman et al. (2016b). For each problem, a particular parametric reward function is defined and the same algorithm is used for learning both the parameters of reward and policy network. Actorcritic algorithms including Proximal Policy Optimization Schulman et al. (2017) and Soft Actor Critic Haarnoja et al. (2018) are used with parametric reward function and the method outperforms the same algorithms without parametric reward on the aforementioned tasks.
A reward vector based on limited feedback of environment is presented in Refaei Afshar et al. (2021)
for optimizing reserve prices in real time auctions. In this work, the reserve price of ad slots in online adverting is the action. An agent sets the reserve price using a policy network whose input is the ad slot information and its output is the a probability distribution over reserve prices. The environment returns only a binary value determining whether the ad slot is sold in the auction. This binary feedback is not sufficient for learning a policy for reserve price setting. In order to improve the reward function, the valid interval of reserve prices is divided into some subinterval and a weight is assigned to each subinterval. The reward value in this case is the inner product of the weight vector and a reward vector. The reward vector has a separate entry for each interval and activates each entry only if the reserve price lies in corresponding interval. Using this method on a simulation showed improvement in the revenue.
2.3.4 Challenges
As mentioned before, Curriculum learning is appropriate for goalsearching problems. This method fails for path following problems where the goal state is unknown. Using this method in AutoRL is challenging because the goal state is mainly the solution of the optimization problems. However, the solution of easy instances of a problem might help to solve complex instances, and this generalization is relatively hard but important progress in AutoRL.
Bootstrapping methods require initial policies that are provided either by expert knowledge or by following other learning or optimization methods. Though expert knowledge are helpful, they are not available for most of problems. Besides, using any policy other than optimal policy do not help the learning because that biases the value function and a suboptimal policy is learnedNevertheless, finding the optimal approach is time consuming and a level of automation could be largely beneficial.
Reward shaping methods have some parameters that are tuned before starting the training phase. Similar to parametric state and action representation methods, these hyperparameters settings highly influence the total reward. Tuning the hyperparameters is challenging and timeconsuming which makes it an interesting research direction. Another interesting research direction is about the effects of intrinsic rewards whether they help in solving the problem of sparse rewards Singh et al. (2004). For example giving a reward when the agent has a lot of options available, or when the agent encounters a new situation.
3 Automated Algorithm Selection
When the problem is modeled as a sequential decision making problem and the components of MDP are defined, the next step in solving it with RL is to select an appropriate algorithm. One way to reduce the search space is to filter the algorithms based on the class of the problem. For example, if the states and actions are discrete and finite, tabular RL algorithms like typical QLearning and SARSA Sutton and Barto (2018) are suitable candidates and there is no need to search over the class of sophisticated algorithms in Deep Reinforcement Learning. Moreover, if the model of the environment is known, a wide variety of modelbased algorithm like dynamic programming could be utilized. Despite having different context, algorithm selection approaches in AutoML can provide insights for AutoRL Raschka (2018). Most of work in the domain of RL algorithm selection are intertwined with hyperparameter optimization. For this reason, we explain these combined algorithm selection and hyperparameter optimization in the next section and present few work that merely focus on algorithm selection in this section.
In Degroote et al. (2016), algorithm selection in supervised learning is modeled as a contextual multiarmed bandit problem. This approach is developed for AutoML. The difference with RL is in using a context vector that contains the information of the dataset. Each decision moment starts with observing the dataset and its feature vector which is the context vector in contextual multiarmed bandit. Then Upper Confidence Bound (UCB) and greedy algorithms are used for learning the values of arms on a set of datasets.
The algorithm selection problem in episodic RL tasks is modeled as a multiarmed bandit problem in Laroche and Feraud (2018)
to decide which RL algorithm is in control for each episode. A set of RL algorithms are given and the process of algorithms selection is started with an empty trajectory set. At each time step, an algorithm is selected and it generates a trajectory with discounted reward according to the policy of the selected algorithm. RL algorithms are selected based on Epochal Stochastic Bandit Algorithm Selection in which the timescale is divided into epochs of exponential length. The policies of algorithms are only updated at the start of epochs and they are not changed during the epochs. This way of updating handles nonstationarity induced by the algorithm learning.
3.1 Challenges
Generally speaking, the RL algorithm can be classified according to the type of the policy or value function. Through this categorization, the policy or value function could be either tabular or parametric. One initial challenge in RL algorithm selection is to decide between these two. If the state and action spaces are relatively small, tabular methods are more appropriate, whereas these methods do not work for large and continuous space and action spaces. Discretization is another solution that is discussed in section
2.2.After identifying appropriate class of RL algorithm, selecting an algorithm to learn the policy is another challenge. One way is to treat the algorithm as a hyperparameter and optimize that in the hyperparameters optimization module which is normally followed in AutoML. However, this approach require particular hyperparameters optimization framework because the quality of the algorithm depends on the problem, its MDP modeling and parameters settings. Furthermore, the number of required timesteps varies for different algorithm and this makes comparing the algorithms challenging. In sum, selecting proper RL algorithm for a task is difficult and it highly depends on the problem.
4 HyperParameter Optimization
An optimal RL configuration for solving a sequential decision making problem highly depends on promising hyperparameters settings. Hyperparameters are fixed during the training and they are usually set by RL experts prior to starting the interactions. For example, learning rate in policy gradient or value function updating formula, discount factor, eligibility trace coefficient and parameters of a parametric reward shaping method are hyperparameters. Different tasks require different sets of hyperparameters which make hyperparameters optimization challenging and automating this process would be very useful. Many different approaches are developed for automatically optimizing hyperparameters of supervised learning algorithms that they could be adapted with RL to optimize hyperparameters of RL algorithms. In this section, we first review hyperparameters optimization approaches and then their applications. At last, the main challenges of optimizing hyperparameters are elaborated.
4.1 Methods for tuning hyperparameters
This subsection presents the previous hyperparameters optimization work categorized by their core methodology.
Stochastic Gradient Descent
Backpropagation is a main method for training neural networks in which the gradient of the loss function is computed with respect to the weights. This gradient is propagated backward through the network and the new weights are obtained by a variant of gradient descent algorithm. The hyperparameters of gradient descent with momentum including decay rate and learning rate are included in backpropagation algorithm and they are optimized together with neural network weights in Maclaurin et al. (2015).
Bayesian Optimization
Bayesian Optimization methods including Sequential Modelbased Algorithm Configuration (SMAC) has been very popular in AutoML Hutter et al. (2011). These methods are beneficial for optimizing expensive to evaluate functions such as the performance of supervised learning algorithms. The idea of Bayesian Optimization is extended to RL hyperparameters optimization in Barsce et al. (2017). In this work, RLOpt framework uses Gaussian process regression as surrogate function and integrates Bayesian optimization with RL. The process of hyperparameters optimization is considered as a supervised learning problem where the parameters are the input and the performance is the target. At each step, the selected parameters are given to the agent and it learns a policy and returns the performance. Based on the history of (hyperparameter, performance) tuples, Gaussian Process is used to select the next hyperparameters settings.
MultiArmed Bandit
A banditbased hyperparameter optimization algorithm named Hyperband is proposed in Li et al. (2017). This algorithm is based on SuccessiveHalving Jamieson and Talwalkar (2016), where a space of hyperparameters is searched. At each iteration, all the hyperparameters configurations are evaluated and the worst half are removed from further processing. This continues until only one configuration remains. Unlike SuccessiveHalving, in Hyperband, the value of is not predetermined. This value is set according to the total processing budget and the maximum amount of resources that can be allocated to a particular allocation. In each iteration, is determined and then SuccessiveHalving is invoked to find the best hyperparameters.
Evolutionary Algorithms
In Fernandez and Caarls (2018), the parameters of and as two RL algorithms based on eligibility traces are optimized using Genetic Algorithm (GA). In this method, a vector containing all hyperparameters is considered as a chromosome and the mutation and crossover are performed on this vector. The algorithm is tested on underactuated pendulum swingup and the authors show that the selected parameters maximize the end performance. Another application of GA for optimizing the hyperparameters of RL algorithms is presented in Sehgal et al. (2019), where the parameters of Deep Deterministic Policy Gradient (DDPG) with Hindsight Experience Replay (HER) Andrychowicz et al. (2017) are learned through GA. The target parameters for GA are discount factor, polyakaveraging coefficient which is used for updating target networks in algorithms like DQN with different target and main networks, learning rate of actor and critic networks, percentage of time a random action is taken and Gaussian noise parameters. Concatenation of binary representation of these parameters builds the chromosomes and the fitness is the inverse of number of epochs to reach close to maximum success rate for a particular task.
Normally, there are three challenges in hyperparameters optimization of DRL. First, dynamic environments require dynamic hyperparameters and optimal hyperparameters settings in one stage might poorly work in another stage. Second, the optimization is not sample efficient and needs a full training run to test each selected hyperparameter. Third, dynamic modification of the neural network is not considered in literature. A joint optimization approach based on evolutionary algorithms that optimizes the agent’s network and its hyperparameters simultaneously is presented in Franke et al. (2020). In the evolutionary framework, each individual is a DRL agent consisting of a policy and a value network together with RL algorithm paramteres. Rollouts of each individual is stored in a shared replay memory to be used as experiences for other agents. Each agent is evaluated by running for at least one episode in the environment and the mean reward of the agent is used as its fitness. After crossover and mutation, all the agents in the environment are trained using the experiences in the shared replay memory. This approach is applied on TD3 algorithm in MoJuCo continuous control benchmark. This integration of evolutionary algorithms and neural networks is known as neuroevolution Stanley et al. (2019).
Greedy Algorithms
In order to optimize the decay rate in algorithms based on eligibility trace like , a greedy algorithm is proposed in White and White (2016). This algorithm defines as a function of states for RL algorithms with linear function approximation. In each iteration of policy evaluation algorithm, the agent takes the value of greedily according to the weight vector, observation vector corresponding to the current and the next states, instant reward and importance sampling. The intuition of this greedy algorithm is to minimize the error function which is the difference between the return obtained from the selected and the Monte Carlo return ().
Reinforcement Learning
Hyperparameters optimization is modeled as a sequential decision making problem in Jomaa et al. (2019) and RL is used to find the optimal hyperparameters. In this framework, the agent learns to explore the space of hyperparameters of a supervised learning algorithm and the final parameters minimize error on the validation set. This method is naturally for supervised learning and works based on training and validation datasets. However, the general idea can be extended to RL algorithms. In the MDP modeling of the hyperparameters optimization problem, the state of the environment is defined as the metafeatures of an input dataset plus the history of evaluated hyperparameters together with their performance, the action is a value for each hyperparameter and the reward is the performance of ML algorithm on the input dataset with the selected hyperparameters. Upon modeling the problem as MDP, deep Q network algorithm Mnih et al. (2015) is used for learning the parameters of an LSTM system and the obtained policy works as a decision maker to determine optimal hyperparameters for each dataset.
In common practice, the hyperparameters of an algorithm are optimized once and they are fixed during entire run of the algorithm. However, because most of AI algorithms are iterative, the optimal hyperparameters might change over time. The problem of dynamic algorithm configuration is studied in Biedenkapp et al. (2020) and RL is used to derive a policy for optimal configuration in each step. In this modeling, states are descriptions of an algorithm A and actions are assigning particular values to hyperparameters of A. Reward function depends on the instances drawn from the same contextual MDP. The optimal policy is obtained either by a tabular Qlearning or DQN to select the configuration that has the highest discounted reward. Since instances’ information are part of state, the optimal configuration might be different for different instances.
Neural Networks
One main challenge of using well known hyperparameter optimization in AutoML such as Sequential ModelBased Optimization (SMBO) and SMAC, is the time needed for performing necessary iterations. These iterative algorithms take remarkable amount of time to optimize the hyperparameters and this is highly prohibitive in RL framework. This challenge is the motivation of developing a neural network for finding a mapping between data and hyperparameters Chen et al. (2020)
. The metafeatures of the dataset are the input of a Convolutional Neural Network (CNN) and hyperparameters of the algorithm are the output. Training the CNN is based on supervised learning using subsets of a large dataset as the training data. The target hyperparameters used for supervised learning are obtained by Bayesian Optimization.
4.2 Applications
In Dong et al. (2018), hyperparameters optimization for object tracking algorithms is modeled as RL and Normalized Advantage Functions Gu et al. (2016) is used to learn a policy network that receives a state and returns the optimal hyperparameters settings for a particular object tracking algorithm. Most of these algorithms produce a heat map in the search region showing the probable location of objects. The combination of this heat map, the parameters of the object tracking algorithm and the appearance features like RGBcolor constitute the state, and the reward is the tracking accuracy.
One important research direction in robotics is domain randomization. Domain randomization is a technique to use a simulation model to provide a policy for real environment. In other words, when training in real environment is not practical, domain randomization helps to derive a policy that maximizes the total expected return over a set of MDP obtained from the same distribution. The parameters of this MDP distribution are usually fixed and predefined, however, fixed parameters might not be sufficient for some environments. For this reason, Cross Entropy Method is used to learn these parameters in Vuong et al. (2019). In this method, the policy parameters function is a function of MDP distribution parameters and optimal policy parameters are derived by PPO. The MDP parameters are acquired by maximizing discounted return of following the optimal policy in real environment.
Application of RL in different domains requires special consideration for tuning the hyperparameters. For instance, in Ottoni et al. (2020), RL is leveraged to solve Sequential Ordering Problem (SOP)  a variant of TSP with a precedence constraint. Tuning parameters in this work are performed by testing different RL algorithms including SARSA and Qlearning, different reward definition and some different values for in greedy. This configuration of the algorithm is used to solve SOP.
4.3 Challenges
Although several methods are developed to tune hyperparameters, hyperparameters optimization for RL algorithms may be computationally expensive because the agent needs to interact with an environment and update its policy continuously for a number of timesteps or until reaching convergence. This is usually a timeconsuming and intractable process that needs special considerations. Efficient methods in AutoML such as Bayesian Optimization may work well for RL models with small state, action and trajectories. However, for complex tasks with large state and action space or long trajectories, existing methods require considerable adaptation to provide the best configuration in a reasonable time. This is a big challenge in RL hyperparameters optimization.
One main difference between supervised learning and reinforcement learning is the evaluation criteria. Since, there is no target value like supervised learning datasets to show the desired behavior. Instead, an agent seeks to find a compromise between exploration and exploitation that helps as hints Barsce et al. (2017).
Multifidelity methods Forrester et al. (2007) does not run the ML for the full budget for every hyperparameters but only for a limited budget (low fidelity). Then, only promising hyperparameters are run for longer (high fidelity). Adapting this method to AutoRL is challenging and also interesting because it might reduce the required time budget for optimization.
5 Learning to Learn
Apart from the three main components of a RL framework, levels of automation are also presented in the literature for the procedures that can be placed in more than one components. For example, gradient descent method is used for updating the parameters of parametric functions like policy or reward. In this section, recent works on automating these kinds of procedures are reviewed. Most of these works are inherently developed for supervised learning. However, the same motivation and requirements hold for RL which shows interesting research directions for future works.
In Andrychowicz et al. (2016), the normal gradient descent formula is replaced with a new formula in which a function of gradient value is used rather than the original gradient in the updating rule. The new gradient descent update equation is shown in Equation (7).
(7)
where, is the parameter of the objective function . In this formulation, is a function of the gradient of with parameters

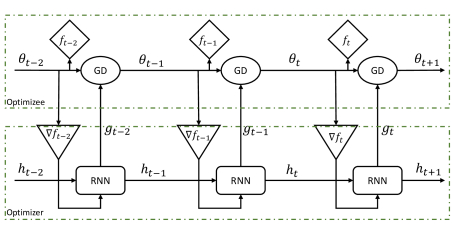

which is obtained by a recurrent neural network (RNN). As shown in Figure
4, the method consists of two neural networks. Function known as optimizeeis represented by a feedforward neural network with parameters
. The gradients of are used in function which is represented by an LSTM recurrent neural network. These gradients plus the hidden states of RNN are the input and is the output which is used in the updating rule shown in Equation (7). The method is tested on a class of 10dimensional quadratic function and also on MNIST and CIFAR10 datasets and the results show the power of using RNN for
.Selecting RL algorithms is normally performed by expert knowledge or using approaches explained in previous sections. Instead of using existing RL algorithms that perhaps each of them works well on certain type of problems, a model is introduced in Wang et al. (2016a) that can learn a RL algorithm. Specifically, a distribution over MDPs is defined and a RL algorithm is learned in the sense that it performs well on the MDPs drawn from . During solving MDP with reinforcement learning, an RNN is trained that its inputs are states, actions and rewards of the MDP and the output is the policy. Therefore, a recurrent neural network works as a RL algorithm.
Neural Networks are mainly trained using a variant of Stochastic Gradient Descent (SGD) such as normal SGD, SGD with momentum or Adam. The performance of these algorithms depends on the selected learning rate which would be different for different context and applications. An automatic framework based on RL for deriving the best learning rate is proposed in
Daniel et al. (2016). In this approach, a set of features are introduced to represent the states in the RL modeling. These features include the variance and the gradient of the loss function. The state representation is used to train a policy using Relative Entropy Policy Search (REPS) algorithm
Peters et al. (2010) for deciding the learning rate of a particular optimizer. REPS ensures the policy updates to be close to each other by constraining the updates through a bound on KullbackLeibler (KL) divergence.A general metalearning approach that can be applied to any model learned by gradient descent, is presented in Finn et al. (2017)
. The goal of this approach is to update the model’s parameters using few training steps in order to produce acceptable results on a new task. For this purpose, a parametric model is defined that aims to work well on tasks drawn from a task distribution. The algorithm starts with random initialization of model parameters. During each iteration, a set of tasks are sampled from the given distribution and the tasks’ adapted parameters are updated using gradient descent on a particular number of examples. At the end of each iteration, the model’s parameters are updated using the adapted parameters. The paper discusses the application of this method in supervised learning and classification, and a possible extension to RL is also explained.
In Eysenbach et al. (2018) a reset policy is considered together with the reinforcement learning policy to reset the environment prior to an expensivetoreset situation. For example, an autonomous car would crash in high speed and resetting the environment would be very costly. After the crash state, the environment should be reset manually. Based on this example, a reset policy is necessary for some tasks to decrease the number of manual resets. In Eysenbach et al. (2018), offpolicy actor critic method is used to learn policies, where the values of the main policy and the reset policy are jointly learned. The reset policy takes over selecting an action to abort the episode if its Q value for a particular action taken by forward policy is lower than a threshold. The safe actions are the reversible sequence of actions where the agent can always undo them.
6 Automating Neural Network Architecture
Combining DNNs and RL introduces several successful algorithms in solving complex problems like COPs and video games. Although using DNNs improves the quality of function approximation, the performance of the DRL algorithms highly depends on proper structure of DNNs. Different methods have been proposed in the literature for automatically defining the best DNN structures. These methods can be categorized as hyperparameters optimization; however, we assign a separate section to emphasize on their importance.
In Zoph and Le (2016), a recurrent neural network  the controller  is trained with reinforcement learning where the outputs of this RNN determine the architecture of another neural network  the child network  that is used for prediction. The child network is configured by the controller and it is trained using a dataset. The obtained performance is used as reward for training the controller. This approach is originally developed for supervised learning, although deriving optimal architecture of a neural network can be helpful for other domains.
According to Zoph et al. (2018), applying the method presented in Zoph and Le (2016) directly on large datasets is computationally expensive. The solution introduced in Zoph et al. (2018) is to search on a proxy dataset which is rather small, and then transfer the learned network architecture to a large dataset. The search process is the same as Zoph and Le (2016) where a RNN provides the architecture of the child network. The search space in this work contains generic convolutional cells that are expressed in terms of repeated motifs in various CNNs like combination of convolutional filter banks. Two types of convolutional cells are introduced with feature maps of the same dimension and half size, respectively. The final CNN architecture is a combination of these cells. The controller receives the output of previous cells and generate the next architecture of the final CNN.
Deriving DNN architecture can be modeled as a sequential decision making problem and RL is a suitable approach for solving that. In Baker et al. (2016), a metamodeling algorithm based on RL named MetaQNN is introduced to generate CNN architecture. The process of CNN architecture selection is automated by a Qlearning agent whose goal is to find the best CNN architecture for a particular machine learning task. The validation accuracy of the given ML dataset is used as the reward value for the agent and the actions are obtained by following greedy algorithm and exploring in a discrete and finite space of layer parameters. This approach shows high performance for image classification tasks.
Optimizing the parameters of NNs is an interesting research area as those parameters greatly influence on the performance. In Xu et al. (2017), a DRL approach is presented for automatically learning the value of the learning rate in stochastic gradient descent. Given the model parameters of the neural network and the training samples, the authors use actorcritic policy gradient method to pick a learning rate through the policy network for the gradient descent algorithm. The state in this modeling is a compact vector of the model parameters to avoid processing all the parameters of large networks. Immediate reward for updating the learning rate generator network is the difference between the loss function of the main model in two consecutive time steps. According to the presented results, automatically deriving the learning rate increases the quality of the prediction model.
In Garcia and Thomas (2019), the authors focused on the problem of lifelong learning and how an agent learns the optimal policy of a particular MDP using the information of a sequence of MDPs from the same distribution. Specifically, the problem in this work is to search for an optimal exploration policy which an agent follows during exploration in the environment. Each agent maintains two policies: an exploitation policy which is taskspecific and an exploration policy which is shared between all the MDPs drawn from the same distribution. At each timestep, each of the two policies provide an action and the selected action is determined by greedy algorithm. The exploration policy receives the same reward as the exploitation policy and a variant of policy gradient algorithm (REINFORCE or PPO) is used to update the policy. This approach is experimented on some typical RL problem classes such as Pole Balancing.
Deep neural networks need huge amount of computation for training and this computational complexity is prohibitive sometimes. One approach to reduce the intensity of computation is through quantization of neural networks. Basically, quantization reduces the bitwith of the operations and it can be used to reduce bitwith of layers in neural networks. As accuracy preserving bitwidth may vary across different layers, the problem of learning optimal bitwidth is explored in Elthakeb et al. (2019). In this work, a DRL approach is proposed to determine the bitwidth of each layer. The states comprises of static information about layers and dynamic information of network structure during RL training. The actions are bitwidth of each layer which are flexible and the agent can change the quantization of each layer from any bitwidth to any other bitwidth. The reward is pertaining to the accuracy and a measure for memory and computation cost. In fact, the two objectives of reward function are preserving accuracy and minimizing bitwidth. Using these definitions of state, action and reward, PPO algorithm is used to learn a policy for deriving the bitwidth of each layer of neural networks.
Components, topologies and hyperparameters of neural network are automatically determined in Miikkulainen et al. (2019)
using a neuroevolutionary algorithm in which the neural networks are trained using evolution rather than gradient descent. This method that is called DeepNEAT, starts with an initial population of DNNs with minimal complexity and new nodes and edges are added to each chromosome through mutation. Each chromosome contains some nodes and each node is a layer of neural network together with its hyperparameters. To obtain the fitness of each chromosome, it is converted to a DNN and the DNN is trained for a fixed number of epochs. DeepNEAT is extended to CoDeepNEAT that decomposes complicated DNN structures into multiple repeated modules. Specifically, in CoDeepNEAT there are two populations of modules and blueprints. Each blueprints chromosome contains pointers to a particular module and each module chromosome represents a small DNN. During fitness evaluation, the small DNNs corresponding to the pointers of blueprints are combined to build a large DNN. This approach is evaluated on an image captioning task.
7 Conclusion
In this paper, we presented recent work in automated reinforcement learning that can be included in an automated RL or DRL pipeline. We introduce the general AutoRL pipeline that can be used for solving sequential decision making problem. This area is becoming very popular and a robust and high quality reinforcement learning pipeline could help in solving many complex tasks and reduce the time and other required resources significantly.
RL framework is split into three main components in this paper and we presented some work related to each component. These three components are MDP modeling, algorithm selection and hyperparameters optimization. Besides these three, learning to learn methods and learning neural network architecture are also explained in separate sections.
By exploring the relevant literature in AutoRL, we conclude that a concrete and complete pipeline for AutoRL similar to the AutoML pipeline has not been developed yet, even though it has many benefit to design and solve sequential decision making problems. Furthermore, AutoRL is a relatively new research area and it is attracting more and more attention. Optimizing hyperparameters with minimum required resources, and automatically modeling a problem as MDP and generalizing the mapping from available information to an RL environment are the most important research questions in AutoRL.
8 Acknowledgement
We would like to thank Fangqin Zhou for helping in writing this manuscript.
References
 Hierarchical control of traffic signals using qlearning with tile coding. Applied intelligence 40 (2), pp. 201–213. Cited by: §2.1.1.
 Reinforcement learningbased mobile robot navigation. Turkish Journal of Electrical Engineering & Computer Sciences 24 (3), pp. 1747–1767. Cited by: §2.1.1.
 Learning to learn by gradient descent by gradient descent. In Advances in neural information processing systems, pp. 3981–3989. Cited by: Figure 4, §5.
 Hindsight experience replay. In Proceedings of the 31st International Conference on Neural Information Processing Systems, pp. 5055–5065. Cited by: §4.1.
 Designing neural network architectures using reinforcement learning. In ICLR (Poster), Cited by: §6.
 Towards autonomous reinforcement learning: automatic setting of hyperparameters using bayesian optimization. In 2017 XLIII Latin American Computer Conference (CLEI), pp. 1–9. Cited by: §4.1, §4.3.
 State aggregation by growing neural gas for reinforcement learning in continuous state spaces. In 2011 10th International Conference on Machine Learning and Applications and Workshops, Vol. 1, pp. 430–435. Cited by: §2.1.2.
 Neural combinatorial optimization with reinforcement learning. arXiv preprint arXiv:1611.09940. Cited by: §2.1.1.

Dynamic algorithm configuration: foundation of a new metaalgorithmic framework.
In
Proceedings of the Twentyfourth European Conference on Artificial Intelligence (ECAI’20)(Jun 2020)
, Cited by: §4.1.  Proximal distilled evolutionary reinforcement learning. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 34, pp. 3283–3290. Cited by: §2.3.2.
 Openai gym. arXiv preprint arXiv:1606.01540. Cited by: §2.2.
 OpenAI gym. External Links: arXiv:1606.01540 Cited by: §2.3.3.
 Automatic hyperparameter optimization based on mapping discovery from data to hyperparameters. arXiv preprint arXiv:2003.01751. Cited by: §4.1.
 Learning navigation behaviors endtoend with autorl. IEEE Robotics and Automation Letters 4 (2), pp. 2007–2014. Cited by: §2.3.3.
 Improving stochastic policy gradients in continuous control with deep reinforcement learning using the beta distribution. In International conference on machine learning, pp. 834–843. Cited by: §2.2.1.
 Implicit quantile networks for distributional reinforcement learning. In International conference on machine learning, pp. 1096–1105. Cited by: §2.2.1.
 Discriminative embeddings of latent variable models for structured data. In International conference on machine learning, pp. 2702–2711. Cited by: §1, §2.1.1, §2.1.1.
 Learning step size controllers for robust neural network training. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 30. Cited by: §5.
 Reinforcement learning for automatic online algorithm selectionan empirical study. ITAT 2016 Proceedings 1649, pp. 93–101. Cited by: §3.

Hyperparameter optimization for tracking with continuous deep qlearning.
In
Proceedings of the IEEE conference on computer vision and pattern recognition
, pp. 518–527. Cited by: §4.2.  Releq: an automatic reinforcement learning approach for deep quantization of neural networks. In NeurIPS ML for Systems workshop, 2018, Cited by: §6.
 Leave no trace: learning to reset for safe and autonomous reinforcement learning. In ICLR 2018 : International Conference on Learning Representations 2018, Cited by: §5.
 Search on the replay buffer: bridging planning and reinforcement learning. In Advances in Neural Information Processing Systems, Vol. 32, pp. 15246–15257. Cited by: §2.3.2.
 Evolving rewards to automate reinforcement learning. arXiv preprint arXiv:1905.07628. Cited by: §2.3.3.

Parameters tuning and optimization for reinforcement learning algorithms using evolutionary computing
. In 2018 International Conference on Information Systems and Computer Science (INCISCOS), pp. 301–305. Cited by: §4.1.  Modelagnostic metalearning for fast adaptation of deep networks. In International Conference on Machine Learning, pp. 1126–1135. Cited by: §2.3.3, §5.
 Reverse curriculum generation for reinforcement learning. Conference on Robot Learning, pp. 482–495. Cited by: §2.3.1, §2.3.1.
 Multifidelity optimization via surrogate modelling. Proceedings of the royal society a: mathematical, physical and engineering sciences 463 (2088), pp. 3251–3269. Cited by: §4.3.
 Sampleefficient automated deep reinforcement learning. arXiv preprint arXiv:2009.01555. Cited by: §4.1.
 A metamdp approach to exploration for lifelong reinforcement learning. In Advances in Neural Information Processing Systems, Vol. 32, pp. 5691–5700. Cited by: §6.
 Reward shaping in episodic reinforcement learning. In AAMAS ’17 Proceedings of the 16th Conference on Autonomous Agents and MultiAgent Systems, pp. 565–573. Cited by: §2.3.3.
 Continuous deep qlearning with modelbased acceleration. In International Conference on Machine Learning, pp. 2829–2838. Cited by: §4.2.
 Continuoustime markov decision processes. In ContinuousTime Markov Decision Processes, pp. 9–18. Cited by: §1.
 Soft actorcritic algorithms and applications. arXiv preprint arXiv:1812.05905. Cited by: §2.3.3.
 AutoML: a survey of the stateoftheart. KnowledgeBased Systems 212, pp. 106622. External Links: ISSN 09507051, Document, Link Cited by: §1.
 Sequential modelbased optimization for general algorithm configuration. In International conference on learning and intelligent optimization, pp. 507–523. Cited by: §4.1.
 Variants of travelling salesman problem: a survey. In International Conference on Information Communication and Embedded Systems (ICICES2014), pp. 1–7. Cited by: §2.3.3.
 Barc: backward reachability curriculum for robotic reinforcement learning. In 2019 International Conference on Robotics and Automation (ICRA), pp. 15–21. Cited by: §2.3.1.
 Nonstochastic best arm identification and hyperparameter optimization. In Artificial Intelligence and Statistics, pp. 240–248. Cited by: §4.1.
 Hyprl: hyperparameter optimization by reinforcement learning. arXiv preprint arXiv:1906.11527. Cited by: §4.1.
 Imitation learning with demonstrations and shaping rewards. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 28. Cited by: §2.3.3.
 Action space shaping in deep reinforcement learning. In 2020 IEEE Conference on Games (CoG), pp. 479–486. Cited by: §2.2.2.
 Evolutionguided policy gradient in reinforcement learning. In Advances in Neural Information Processing Systems, Vol. 31, pp. 1188–1200. Cited by: §2.3.2, §2.3.2.
 Learning combinatorial optimization algorithms over graphs. In Advances in Neural Information Processing Systems, pp. 6348–6358. Cited by: §2.1.1, §2.1.1.
 Reinforcement learning algorithm selection. In ICLR 2018 : International Conference on Learning Representations 2018, Cited by: §3.
 Hyperband: a novel banditbased approach to hyperparameter optimization. The Journal of Machine Learning Research 18 (1), pp. 6765–6816. Cited by: §4.1.
 Continuous control with deep reinforcement learning. In ICLR 2016 : International Conference on Learning Representations 2016, Cited by: §2.3.2.
 Evolutionary tile coding: an automated state abstraction algorithm for reinforcement learning. In Proceedings of the 8th AAAI Conference on Abstraction, Reformulation, and Approximation, pp. 42–47. Cited by: §2.1.2.
 Gradientbased hyperparameter optimization through reversible learning. In International conference on machine learning, pp. 2113–2122. Cited by: §4.1.
 Reinforcement learning for combinatorial optimization: a survey. arXiv preprint arXiv:2003.03600. Cited by: §2.1.1.
 Evolving deep neural networks. In Artificial intelligence in the age of neural networks and brain computing, pp. 293–312. Cited by: §6.
 Asynchronous methods for deep reinforcement learning. In International conference on machine learning, pp. 1928–1937. Cited by: §1.
 Humanlevel control through deep reinforcement learning. Nature 518 (7540), pp. 529–533. Cited by: §1, §4.1.
 Policy invariance under reward transformations: theory and application to reward shaping. In Icml, Vol. 99, pp. 278–287. Cited by: §2.3.3.
 Tuning of reinforcement learning parameters applied to sop using the scott–knott method. Soft Computing 24 (6), pp. 4441–4453. Cited by: §4.2.
 Shunting trains with deep reinforcement learning. In 2018 ieee international conference on systems, man, and cybernetics (smc), pp. 3063–3068. Cited by: §2.1.1.
 Deepwalk: online learning of social representations. In Proceedings of the 20th ACM SIGKDD international conference on Knowledge discovery and data mining, pp. 701–710. Cited by: §2.1.2.
 Relative entropy policy search. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 24. Cited by: §5.
 Markov decision processes: discrete stochastic dynamic programming. John Wiley & Sons. Cited by: §1.
 Model evaluation, model selection, and algorithm selection in machine learning. arXiv preprint arXiv:1811.12808. Cited by: §3.
 A reinforcement learning method to select ad networks in waterfall strategy. In 11th International Conference on Agents and Artificial Intelligence, ICAART 2019, pp. 256–265. Cited by: §2.1.1.
 A reward shaping approach for reserve price optimization using deep reinforcement learning. In The International Joint Conference on Neural Networks (IJCNN2021), Cited by: §2.3.3.
 A state aggregation approach for solving knapsack problem with deep reinforcement learning. arXiv preprint arXiv:2004.12117. Cited by: §2.1.2.
 The graph neural network model. IEEE transactions on neural networks 20 (1), pp. 61–80. Cited by: §1.
 Proximal policy optimization algorithms. arXiv preprint arXiv:1707.06347. Cited by: §1, §2.3.3.
 Deep reinforcement learning using genetic algorithm for parameter optimization. In 2019 Third IEEE International Conference on Robotic Computing (IRC), pp. 596–601. Cited by: §4.1.
 Function approximation via tile coding: automating parameter choice. In International Symposium on Abstraction, Reformulation, and Approximation, pp. 194–205. Cited by: §2.1.1.
 Intrinsically motivated reinforcement learning. In Proceedings of the 17th International Conference on Neural Information Processing Systems, pp. 1281–1288. Cited by: §2.3.4.
 Effective reinforcement learning for mobile robots. In Proceedings 2002 IEEE International Conference on Robotics and Automation (Cat. No. 02CH37292), Vol. 4, pp. 3404–3410. Cited by: §2.3.2.
 Partially observable markov decision processes. In Reinforcement Learning, pp. 387–414. Cited by: §1.
 Designing neural networks through neuroevolution. Nature Machine Intelligence 1 (1), pp. 24–35. Cited by: §4.1.
 Reward shaping with recurrent neural networks for speeding up online policy learning in spoken dialogue systems. In Proceedings of the 16th Annual Meeting of the Special Interest Group on Discourse and Dialogue, pp. 417–421. Cited by: §2.3.3.
 Reinforcement learning: an introduction. MIT press. Cited by: §2.1.1, §2.1.1, §2, §3.
 Generalization in reinforcement learning: successful examples using sparse coarse coding. Advances in neural information processing systems, pp. 1038–1044. Cited by: §2.1.1.
 Discretizing continuous action space for onpolicy optimization. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 34, pp. 5981–5988. Cited by: §2.2.2.
 Learning to represent action values as a hypergraph on the action vertices. In International Conference on Learning Representations, Cited by: §2.2.1.
 Distributional policy optimization: an alternative approach for continuous control. Advances in Neural Information Processing Systems 32, pp. 1352–1362. Cited by: §2.2.1.
 Pointer networks. In Proceedings of the 28th International Conference on Neural Information Processing SystemsVolume 2, pp. 2692–2700. Cited by: §2.1.1.
 How to pick the domain randomization parameters for simtoreal transfer of reinforcement learning policies?. arXiv preprint arXiv:1903.11774. Cited by: §4.2.
 Learning to reinforcement learn. Cognitive Science. Cited by: §5.
 Sample efficient actorcritic with experience replay. arXiv preprint arXiv:1611.01224. Cited by: §1.
 A greedy approach to adapting the trace parameter for temporal difference learning. In Proceedings of the 2016 International Conference on Autonomous Agents & Multiagent Systems, pp. 557–565. Cited by: §4.1.
 Adaptive tile coding. In Adaptive Representations for Reinforcement Learning, pp. 65–76. Cited by: §2.1.2.
 Reinforcement learning. Adaptation, learning, and optimization 12, pp. 3. Cited by: §1, §1, §2.1.
 Reinforcement learning for learning rate control. arXiv preprint arXiv:1705.11159. Cited by: §6.
 Scalable graph embedding for asymmetric proximity. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 31. Cited by: §2.1.2.
 Neural architecture search with reinforcement learning. In ICLR, Cited by: §6, §6.
 Learning transferable architectures for scalable image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 8697–8710. Cited by: §6.
 Reward shaping via metalearning. arXiv preprint arXiv:1901.09330. Cited by: §2.3.3.
Comments
There are no comments yet.
