1 Introduction

Image registration has proven a fundamental part of many processing pipelines in the biomedical imaging field, establishing spatial correspondence between images and enabling subsequent group or cohort analyses. However, when using clinical, low resolution brain data, image registration can be challenging. E.g. in acute ischemic stroke populations, high-resolution image acquisition in the acute disease state is not possible due to clinical time constraints. Nonetheless, such clinical cohorts offer great amounts of untapped information due to the large number of samples available, often in the range of thousands of patients (giese2017; courand2019), which can be utilized to unveil spatial patterns of disease burden (bilello2016; schirmer2019spatial). Importantly, as clinical images have more variability than scans acquired primarily for research, they necessitate quality control steps after registration to ensure that no gross errors occurred in the process. Quantifying the registration quality, utilizing only intensity-based metrics such as mutual information or cross-correlation, is often not enough, and in practice registration quality is assessed using manual ventricle segmentations to evaluate the overlap between the patient data and the registration target, i.e. brain template or atlas (ou2014; dalca2016; ganzetti2018).

Considerable work has been conducted to generate appropriate brain templates for image registration, using data from healthy young adults (dickie2017) or age appropriate cohorts from the general population (schirmer2019spatial). Theses template can consequently be used for segmentation of brain structures, but often yields unsatisfactory results in clinical scans. For instance, outlining of the ventricles in such clinical scans is often done manually, or semi-automatically (hussain2013; xia2004). Manually outlining the ventricles is a time intensive step, and hinders quality assessment in large scale cohorts. Deep learning techniques have been developed to automatically segment structures in clinical quality scans, using for instance U-Net architectures (schirmer2019white; nikolov2018; guerrero2018). Given enough training data, these techniques can reliably generate accurate, fully automated masks of the structures of interest. The use of a U-Net architecture has been proposed to generate automated segmentations of the lateral ventricles alone (ghafoorian2018), and recently of the complete ventricular system (atlason2019; shao2019), showing promising results, which can be utilized in automated assessment of image registration quality.

Automated registration quality assessment methods can also be used to improve the registration results in atlas selection methods. Multi-atlas segmentation has for instance become an increasingly popular segmentation method in neuroimaging pipelines (iglesias2015). One of its simplest implementations is to register several atlases pairwise to an image, propagate the labels of the atlases in image space, and choose the final label for each voxel using majority voting. Probabilistic label fusion strategies have also been proposed, such as wang2013 who proposed to exploit the intensity similarity between atlases and the target image in the neighborhood of each voxel. Instead of using the same set of atlases for multi-atlas segmentation, a most appropriate subset of atlases can also be selected. Recently, antonelli2019 proposed for instance to select subsets of atlases for each target image using a genetic selection algorithm, and evaluated their method in cardiac and prostate data. To decrease the computation time of multi-atlas segmentation, dewey2017 proposed to add an intermediary registration step to a template constructed from the set of the considered atlases, using for instance multivariate template construction algorithm.

In this work, we developed a ventricle segmentation deep learning algorithm based on a 3D U-Net-like architecture to segment the complete ventricular system in each subject’s fluid-attenuated inversion recovery (FLAIR) sequence and validated it in a multi-center, clinical dataset comprising 12 sites. The ventricle segmentation was then used to assess registration quality by comparing it – using the Dice similarity coefficient – to the ventricles of the atlas propagated to the target image space. This automated registration quality assessment method can be used not only to flag or discard erroneous registrations, but also to select the best registration. As an example, we proposed to use this automated registration quality assessment method to improve registration quality by designing a multi-atlas registration (MAR) framework. Instead of directly registering images to a single template (general atlas), each image was additionally registered to five different atlases corresponding to different age categories, which in turn have been registered to the general atlas. The best atlas was then selected using the automated registration quality assessment method, and used as a transitional registration step before warping the subject image to the common space. Contrary to the above-mentioned multi-atlas segmentation methods, the purpose of the proposed MAR method was to improve the results of registration to the common space, and not to improve the results of segmentation of brain regions in the target image. Finally, we used the proposed MAR framework to create voxelwise maps of white matter hyperintensity (WMH) burden in a set of acute ischemic stroke patients, where Dice coefficient thresholds were used to control the quality of registration. In summary, our main contributions are an algorithm for the segmentation of the complete ventricular system in clinical scans, the evaluation of ventricle overlap as registration quality metric, and a multi-atlas registration framework to improve registration of images to a common space.

Figure 1: Architecture of the deep learning ventricle segmentation algorithm. The architecture is similar to that of a shallow 3D U-Net (ronneberger2015) with only 104 feature maps to allow the processing of the full 3D images.

2 Material and Methods

2.1 Data

2.1.1 Onsite clinical data

We utilized data of the Genes Affecting Stroke Risk and Outcomes Study (GASROS) study (zhang2015). Patients ( years old) presenting to the Massachusetts General Hospital Emergency Department (ED) between 2003 and 2011 with symptoms of acute ischemic stroke, were eligible for enrollment. Magnetic resonance images were acquired within 48 hours of admission and only patients with confirmed acute diffusion-weighted imaging lesions on brain MRI scans were included. 1132 patients underwent the standard acute ischemic stroke protocol on a 1.5T Signa scanner (GE Medical Systems), including T2-weighted FLAIR imaging (TR 5000ms, minimum TE of 62 to 116ms, TI 2200ms, FOV 220-240mm). For each patient, WMH were segmented using MRIcro software (University of Nottingham School of Psychology, Nottingham, UK;, based on a previously published semi-automated method with high inter-rater reliability (chen2006). Ventricles were manually segmented by a single rater in a subset of 300 patients’ FLAIR images using 3D Slicer (fedorov2012)

. Of the 300 scans, 100 were chosen to uniformly sample the age range in the GASROS cohort, 100 were chosen to span the range of WMH disease burden, and the remaining 100 were randomly selected. This set was used for network training and validation of the automated ventricle segmentation method. In addition, a test set of 100 patients were selected to approximately represent the range of ventricular volume in the patient population. Scans were selected with a semi-automated method that estimates ventricular volume using nonlinear registration to an atlas. The semi-automated method involved a quality control step to ensure that the range was uniformly sampled. These 100 scans were then segmented by a second rater.

2.1.2 Multi-center clinical data

The MRI-GENetics Interface Exploration (MRI-GENIE) study is a large-scale, international, hospital-based collaborative study of acute ischemic stroke patients (giese2017), including FLAIR data from 12 sites (7 European, 5 US based), acquired as part of each hospital’s clinical acute ischemic stroke protocol. For each acquisition site, 12 patients were selected (schirmer2019white) and underwent manual ventricle segmentations. Two of the patients displayed substantial motion artifacts, and were excluded from our analysis, forming a total set of N=142 scans with manual brain and ventricle segmentation. This set was used as an additional test set for the evaluation of the ventricle segmentation algorithm and the proposed MAR framework.

2.1.3 ADNI data

Part of the data used in the preparation of this article were also obtained from the Alzheimer’s Disease Neuroimaging Initiative (ADNI) database ( The ADNI was launched in 2003 as a public-private partnership, led by Principal Investigator Michael W. Weiner, MD. The primary goal of ADNI has been to test whether serial magnetic resonance imaging (MRI), positron emission tomography (PET), other biological markers, and clinical and neuropsychological assessment can be combined to measure the progression of mild cognitive impairment (MCI) and early Alzheimer’s disease (AD).

2.1.4 Brain atlases

Using 130 healthy controls from ADNI3 dataset (jack2008) (Field strength 3T; 3D FLAIR; TE 119; TR 4800; TI 1650; 1.2x1x1mm3; see B for list of subject IDs), we created five FLAIR atlases, each corresponding to a different age category: under 70 years old (N=6 subjects), between 70 and 75 (N=22), between 75 and 80 (N=31), between 80 and 85 (N=39), and above 85 (N=32). The atlases were created using ANTs multivariate template construction algorithm with default parameters (avants2011). Similarly, a general atlas was created by averaging the five age-specific atlases, also using using ANTs multivariate template construction algorithm with default parameters (avants2011). All atlases were manually skull stripped and registered to MNI space. The resulting image resolution was 1mm3 and the image size 182x218x182 voxels. Ventricles were manually segmented in the general atlas. Each of the five age-specific atlases was diffeomorphically registered to the general atlas, to allow the propagation of the ventricle segmentation to age-specific atlases, and to warp the images to the general atlas space in the MAR framework. To assess which atlases were most similar to the general atlas, we computed the mean squared intensity difference between the age-specific atlases and the general atlas.

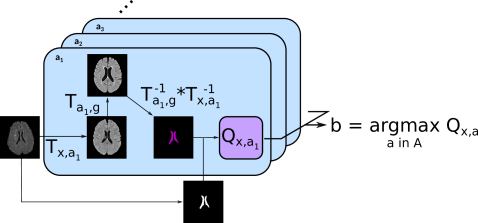

Figure 2: Principle of the proposed MAR framework. For each subject, the input image was first registered to each of the atlases , which had been previously registered to the general atlas. The ventricles segmented on the general atlas are then propagated first to each atlas a, and then to the subject’s image space. The propagated ventricles were subsequently compared to , the subject’s ventricles segmented using the proposed automatic algorithm. Finally, the atlas maximizing the registration quality was selected for the intermediary registration step.

2.2 Automated ventricle segmentation

Image intensities were rescaled so that the 1st percentile of intensity values (without masking) is equal to 0 and the 99th percentile is equal to 1. The full 3D images were passed as input to a deep learning model. Prior to ventricle segmentation, each FLAIR image underwent brain extraction (using a U-Net based deep learning method (schirmer2019white)

) and the resulting brain mask was also given as input to the model. While test data had varying voxel dimensions, training data consisted only of images with image size of 256x256 voxels in axial (inplane) direction, and less than 32 voxels in through plane direction. All images were then padded in z to have 32 slices. During inference, we resized images to 256x256x32 voxels using linear interpolation, predicted the corresponding ventricle maps, and resized these maps to the original image resolution.

We used a 3D U-Net-like architecture (Figure 1

), based on two up-/down-sampling layers. Each convolution layer had a kernel size of 3x3x3 with ReLu activations, and we utilized 2x2x2 Max-Pooling for downsampling. To accelerate convergence without overloading the GPU memory, we added a Batch Normalization layer

(ioffe2015) after the features maps with the lowest resolution (5th convolution layer). Additionally, to improve generalization, we added a Dropout layer (srivastava2014) before the last convolution. The parameters of the network were optimized with the Adadelta optimizer (zeiler2012). To improve generalisation, we also trained the algorithm with online data augmentation using random translations voxels, 3D rotations of maximum 0.2 radian and flipping according to the coronal plane. The intensity of the ventricles and of the sulci were also separately randomized for data augmentation. To artificially increase the intensity of the ventricles, we used the annotations and randomly added to the ventricles intensities a maximum of , with the mean intensity of the FLAIR scans after percentile normalization. To artificially modify the intensity of the sulci, we randomly added between and

to regions of the images with an intensity value lower than 0.25 after percentile normalization. The algorithm was implemented using the publicly available Keras 2.2.0 library


with TensorFlow 1.10 as backend


The network’s outputs were binarized at a threshold of 0.5. To improve the segmentation, in the ventricle binary maps, we removed small connected components with a volume smaller than a manually determined threshold of 5 voxels.

2.3 Registration quality assessment

All pairwise registrations from image to atlas were performed using ANTs SyN nonlinear diffeomorphic registration algorithm with default parameters (avants2011). Inverse registrations were computed to allow the propagation of atlases’ ventricle segmentations to image space. The quality of the registration of an image to an atlas can be assessed by measuring the overlap between the ventricles segmented by the CNN in image space () and the ventricles of the atlas a () propagated to image space . We denote this registration quality metric as , where is the Dice similarity coefficient.

Other more conventional metrics – that measure e.g. image similarity – could be used instead to assess registration quality. We also experimented using cross-correlation (CC)

(avants2008; sarvaiya2009; deGroot2013) between the registered image and each atlas such that , where denotes the cross-correlation operation. Prior to the computation of the cross-correlation, images were rescaled in using their minimum and maximum intensity values.

2.4 Multi-Atlas Registration

Each scan was registered pairwise to each atlas in , where are the age-specific atlases and the is the general atlas. For a given scan, the best atlas was then selected based on the registration quality metric , so that


with, for the ventricle overlap quality metric, , where . If the best atlas was not the general atlas, the scan uses the intermediate registration target and is then warped to the general atlas using the deformation field of the registration of the intermediary atlas to the general atlas (Figure 2).

3 Experiments

3.1 Ventricle Segmentation

The ventricle segmentation algorithm was optimized using the training/validation set, which was randomly split into 240 training scans and 60 validation scans to monitor over-fitting. The algorithm was then evaluated on the test set of 100 scans. The experiments with the MAR framework were conducted using the complete GASROS dataset excluding the 300 scans used to optimized the ventricle segmentation algorithm and 41 scans with strong motion artifacts, but excluding the 100 scans of the test set for ventricle segmentation, hence resulting in 791 scans.

We assessed the automatic segmentation of the ventricular system in the FLAIR sequences based on 11 different metrics. These metrics included the Dice similarity coefficient (Dice), Jaccard index (Jaccard), true positive rate (TPR), mutual information (MI), Cohen’s kappa (KAP), intraclass correlation coefficient (ICC), volumetric similarity (VS), adjusted Rand index (ARI), probabilistic distance (PBD), detection error rate (DER) and outline error rate (OER). VS was computed as the absolute volume difference divided by the sum of both volumes. ARI is Rand index corrected for chance. Rand index measures similarity between clusters. PDB measures the distance between fuzzy segmentations. DER measures the disagreement in detecting the same regions, namely the sum of the volumes of regions detected in only one of both segmentations. OER measures the disagreement in outlining of the regions, namely the difference between union and intersection of regions detected in both segmentations. A detailed description of the metrics is given elsewhere

(taha2015; wack2012).

PBD, DER, and OER are a measure of dissimilarity, where smaller values represent better agreement. As DER and OER are bounded metrics, we rescaled them between 0 and 1, and reported 1-DER and 1-OER. In case of PBD (not bounded), we reported 1/(1+PBD). Subsequently, all similarity metrics are bound between 0 and 1, where 1 indicates a perfect segmentation. Results are visualized as radar plots.222Github link -

3.2 Evaluation of the multi-atlas registration framework

We compared the proposed multi-atlas registration method to a direct registration to the general atlas and quantified the gain in registration performance by the difference , where represents the Dice coefficient of ventricle overlap. We computed Wilcoxon tests on all subjects, in order to evaluate the efficacy of the proposed MAR framework. Additionally, we investigated the effect of utilizing different registration quality assessment metrics and the dependency of age and ventricle volume on the selection of the best atlas.

3.3 Spatial maps of WMH burden

Utilizing the manual WMH segmentations from GASROS, we generated an average voxelwise map of WMH burden in template space. After using the MAR framework, we selected subjects for which registration quality was above a threshold . Using three different thresholds = 0, 0.6, and 0.9, we visually assessed the quality of WMH maps constructed.

4 Results

4.1 Ventricle segmentation

The results of evaluating the automated ventricle segmentation (see Figure 3) show good agreement between the manual and automated ventricle segmentations, with Dice coefficients of 0.89 for the single-site GASROS dataset and 0.83 for the multi-site MRI-GENIE dataset. Results of the ventricle segmentation for the MRI-GENIE data set, stratified by site, are shown in A.

Figure 3: Comparison of automated and manual ventricle segmentations in A) GASROS (N=100; left) and B) MRI-GENIE (N=142; right). The reported metrics are Dice coefficient (Dice), Jaccard index (Jaccard), true positive rate (TPR), volumetric similarity (VS), Mutual information (MI), Adjusted Rand Index (ARI), intraclass correlation coefficient (ICC), probabilistic distance (PBD), Cohen’s kappa (KAP), Detection Error Rate (DER) and Outline Error Rate (OER). The solid line is based on the median of each measure, while the ribbon represents the interquartile range.

4.2 Multi-atlas registration

4.2.1 Atlas creation

Figure 4 shows the age-specific atlases created from the healthy controls from the ADNI dataset. Computing the mean squared intensity difference between the age-specific atlases and the general atlas revealed that atlas 75-80 was the closest to the general atlas, and atlas 80-85 was the most dissimilar.

Figure 4: Age-specific atlases and the general atlas registered to MNI space.

4.2.2 Gain in registration performance

The gain in registration performance is shown for each dataset in Figure 5 and G. We observed age-dependent improvements with increases of ventricle overlap by up to . Wilcoxon tests showed that the proposed MAR method reached a significantly higher registration quality – measured as ventricle overlap – than that of the direct registration to the general atlas (Figure 6) in N=430 GASROS subjects () and 93 MRI-GENIE subjects (). However, when using cross-correlation instead of ventricles overlap for intermediary atlas selection, the proposed MAR method did not reach a significantly higher registration quality than that of the direct registration to the general atlas (Figure 6; C and D). As expected, younger patients with lower ventricle volume were assigned to atlases of younger categories (Figure 7).

Figure 5: Gain in registration performance measured as ventricle overlap by using the proposed MAR method in comparison to a direct pairwise registration to the general atlas g for each dataset (Left: GASROS; Right: MRI-GENIE). A/C: registration quality histograms using either direct registration to the general atlas (pink) or the MAR (green; improvement of registration quality). The overlap of both methods is shown in purple. B/D: Gain in registration quality .
Figure 6: Comparison of the proposed MAR with a direct registration to the general atlas. Instead of the proposed selection strategy for the intermediary atlas (ventricle Dice), we also experimented using the more standard selection criterion: cross-correlation (CC), computed after the elastic registration and normalization of intensity values. **** indicates a p-value lower than 0.0001 for the Wilcoxon test, and n.s. Indicates a non significant difference.
Figure 7: Effect of age and ventricle volume on the selection of the atlases using ventricle overlap as registration quality metric. Violin plots show the distribution of the subjects’ age – and ventricle volume – according to the best atlas the subjects were assigned to in the MAR framework.

4.2.3 Spatial WMH maps of WMH burden

Figure 8 shows that increasing the threshold of registration quality (rejecting more subjects) reduces, e.g., the erroneous extension of the WMH into the CSF compartments of the brain.

Figure 8: White matter hyperintensity (WMH) burden overlayed with the general atlas. Rows correspond to different thresholds T for the quality of the registration measure used to create WMH maps: from top to bottom: (all images = 791 images), (748 images), and (83 images). The columns correspond to two different brain slices in the axial plane. On the left of each column is the full image and on the right a zoomed in version of the region highlighted in pink. Red arrows indicate regions with a visible improvement in WMH maps.

5 Discussion

In this paper, we demonstrated the use of a ventricle segmentation algorithm using clinical FLAIR sequences, for automated registration quality assessment, and validated the proposed quality assessment metric in a multi-atlas registration (MAR) framework.

The registration quality assessment method compared the ventricles of a subject, segmented with a machine learning algorithm, to the ventricles of the atlas, propagated to subject space. A ventricle segmentation algorithm that is robust to variations in scanners, sites and image resolutions is consequently a keypoint of its applicability. Here, we demonstrated that the proposed algorithm performed well in a multi-site scenario, while being trained with data from a single site. While, as expected, the algorithm reached a higher performance for the dataset it was optimized on (GASROS), the performance dropped by less than 6 percentage points of Dice coefficient when used on multi-site data. Using manually or automatically segmented ventricles using the proposed deep learning algorithm, led to similar results with the MAR framework in each dataset (

E and F), with a difference in mean gain in Dice coefficient of 0.001 in GASROS dataset, and 0.004 in the MRI-GENIE dataset. The largest differences were that: (1) when using the automated segmentation, more scans were assigned to atlas of age range 70-75 instead of atlas under 70 or the general atlas, and (2) when using the manual segmentation, more scans were assigned to atlas of age range above 85 instead of the general atlas.

We used the automated registration quality assessment method to design a multi-atlas registration (MAR) framework for improving registration quality. Instead of being directly and only registered to a general atlas, scans were first registered to atlases corresponding to several age categories. The best of these atlases was then chosen using the registration quality assessment method, and registration to the selected atlas was used as an intermediary registration step. In our dataset, using the MAR framework with ventricle overlap significantly improved the registration quality. Patients were often assigned to an intermediate atlas that was closer to their chronological age. However, we observed a shift, where, on average, subjects were matched to age-specific atlases of an old age category than their chronological age. This most probably resulted from the specific cohort in our analyses: all subjects had a prior acute ischemic event, which may reflect brains with increased biological age. This is further supported by studies which suggested that biological age, in contrast to chronological age, can play a key role in susceptibility to disease


We further observed a positive correlation between ventricle volumes and the age category of the atlas the scans were assigned to. This relationship was expected, considering that age is positively correlated with ventricles volume in the general population (walhovd2011), which can also be seen on the age-specific atlases themselves (Figure 4). The age-specific atlases also showed expected behavior of increased WMH volume and cortical atrophy with increasing age (earnest1979). In all experiments, only a few scans were assigned to the atlases of age category 75-80 and 80-85. Computing the mean squared intensity difference between the age-specific atlases and the general atlas revealed that atlas 75-80 was the closest to the general atlas, and atlas 80-85 was the most dissimilar. Consequently, scans most similar to atlas 75-80 were more likely to be assigned to the general atlas instead.

Other researchers have successfully used age-specific atlases (sanchez2012; fillmore2015; liang2015; schirmer2019spatial; schirmer2019white). liang2015 proposed to construct age-specific templates, and observed an improvement for hippocampi segmentation. And Fillmore et al. fillmore2015 observed an improvement in segmentation of white matter, gray matter and cerebrospinal fluid using an age-appropriate brain template. It is often impossible to find a single atlas, which works best for studies across the entire lifespan. Instead, using multiple age-specific atlases allows a more accurate description of the lifespan and can improve registration quality. In this article, we utilized five age groups, which already demonstrated improvement in overall registration quality. By using even more atlases, i.e. additional or smaller spaced age groups, could lead to further improvements. Intermediary registration to a template has also been used to accelerate multi-atlas segmentation (dewey2017), or to improve registration from one image modality to another. For instance, parthasarathy2011 used a full-volume ultrasound image as intermediary image for the registration of live-3D ultrasound to MRI. Later, roy2014 used an synthesized CT image as intermediary image for the registration from MRI to CT. Groupwise registration (joshi2004; fletcher2009) could be another strategy to register all scans of a dataset to the same space. No template image needs to be selected in advance, and transformation fields are estimated simultaneously for all scans. One of the main disadvantages of groupwise registration is that the initial common space is estimated as the mean of all scans in the dataset. This mean image can be fuzzy and not provide enough guidance for the iterative optimization process (wu2010).

The proposed MAR framework using ventricle overlap could be categorized as a feature-based registration method. Segmentations in feature-based registration methods have already been used as initialization (vemuri2003), or have been optimized jointly with an intensity similarity metric for registration (yezzi2003; pohl2006; chen2010). More recently, balakrishnan2019 proposed to use a deep learning registration approach where segmentations of anatomical structures can be used as auxiliary data during the optimization. This would allow to include the ventricle segmentation in the optimization of the registration, instead of the proposed MAR framework. However, to date, utilizing auxiliary data for registration has not been tested in clinical scans, which are known to be substantially more challenging to segment and register. With the presented ventricle segmentation, and the segmentation of other structures and the entire brain, the extension of such approaches to clinical scans becomes more feasible and is of key interest for future studies.

In our application, we demonstrated that it becomes feasible to automatically select only scans with high registration quality, leading to more globally accurate – but also possibly more noisy as computed from a smaller set – maps of WMH burden. While the reduction of erroneous extension of WMH into the ventricles can be assumed to be a direct consequence of the use of ventricle overlap as selection criterion, and might not be related to a global improvement of registration quality, the reduction of erroneous extension of WMH into the sulci is more likely to suggest a global improvement of registration quality, as sulci were never utilized in the optimization. Although selecting random subsets of scans might sometimes locally show similar improvements, the pervasive improvements in the sulci observed in our experiments suggest that using ventricle overlap is also related to global registration quality. Thresholding the WMH map could also reduce such errors, but would simultaneously discard patterns present only in subgroups of the dataset. Using automated assessment of registration quality to compute more accurate spatial patterns of disease could further help to relate spatial information to global phenotypes such as stroke severity or hypertension. For instance research has been done on how WMH distribution differs between patients with lobar intracerebral hemorrhage and healthy elderly (zhu2012), or on differences between deep and periventricular WMH in relation to stroke (buyck2009). However, discarding scans with a lower registration quality might also introduce a bias if the quality of the registration is related to one of the studied determinants or outcomes. Alternatively, a more rigorous quality control procedure might also be triggered for those scans.

There are limitations to this study. The premise of our registration quality assessment lies in ventricles being visible on the clinical images. In particular in stroke cases, mass effects can alter the appearance of the ventricles, sometimes rendering the lateral ventricles invisible in the image. Additionally, the posterior horns of the ventricles may be masked due to the low resolution of the acquired clinical scans. If ventricles cannot be identified on the image, our proposed metrics may indicate insufficient registration quality. However, this assessment can be used to flag this subset of the registered scans as potentially erroneous, which can then be manually assessed by an expert rater rather than being completely rejected from the analysis. If the registration is erroneous, the third and fourth ventricles in particular are less likely to overlap with the atlas, reducing the probability of high dice for incorrect registration. We observed some outliers with low ventricle overlap between the automated and manual ventricle segmentation. The majority of these outliers – for instance 2 out of 100 scans in GASROS dataset – were scans with substantial motion artifacts, where the segmentation of ventricles was challenging even for human raters. Such scans are usually excluded from most neuroimaging pipelines. In addition, in some sites of the MRI-GENIE dataset, sulci were sometimes misclassified as ventricles. Another limitation is that the proposed MAR framework also multiplies the computation time by the number of atlases used: in our case, the registration is six times longer. However, each registration can be run in parallel, and in cases where immediate results are not necessary, this approach can help improve registration quality. Additionally, with the recent development of deep-learning based registration frameworks

(balakrishnan2019), time concerns may become negligible.

Strengths of our work include segmentation of the four ventricles in clinical scans evaluated in multi-center data and more than 1000 scans. We introduced a multi-atlas registration framework based on this segmentation algorithm, and employed it to compute more accurate maps of WMH burden.

No single registration tool, or set of registration parameters, will perform best on all types of image qualities or sequences. By implementing an automated registration assessment step in large scale image analyses, it becomes feasible to test multiple registration pipelines and select the registration with the best performance. This can increase the number successful registrations, and potentially increase the sample size of a study without the need for time intensive manual quality assessment.

In this work, we demonstrated the utility of an automated tool for assessing image registration quality in clinical scans. Importantly, in addition to extracting an additional phenotype from clinical scans – namely the ventricle volume – this image quality assessment step can be implemented in large-scale, automated processing pipelines of clinical MRI data, increasing the utility of such pipelines and offering improved quality of subsequent analysis, ultimately assisting in the translation of such pipelines to the clinic.

6 Acknowledgements

This project has been in part supported by the Foundation “De Drie Lichten” in the Netherlands (F.D.); The Netherlands Organisation for Health Research and Development (ZonMw) Project 104003005 (M. de B.); the European Union’s Horizon 2020 research and innovation programme under the Marie Sklodowska-Curie grant agreement No 753896 (M.D.S.); the NIH-NINDS K23NS064052, R01NS082285, and R01NS086905 (N.S.R.); American Heart Association/Bugher Foundation Centers for Stroke Prevention Research and Deane Institute for Integrative Study of Atrial Fibrillation and Stroke (N.S.R.). We gratefully acknowledge the support of NVIDIA Corporation with the donation of the Titan V GPU used for this research.

Part of the Data collection and sharing for this project was funded by the Alzheimer’s Disease Neuroimaging Initiative (ADNI) (National Institutes of Health Grant U01 AG024904) and DOD ADNI (Department of Defense award number W81XWH-12-2-0012). ADNI is funded by the National Institute on Aging, the National Institute of Biomedical Imaging and Bioengineering, and through generous contributions from the following: AbbVie, Alzheimer’s Association; Alzheimer’s Drug Discovery Foundation; Araclon Biotech; BioClinica, Inc.; Biogen; Bristol-Myers Squibb Company; CereSpir, Inc.; Cogstate; Eisai Inc.; Elan Pharmaceuticals, Inc.; Eli Lilly and Company; EuroImmun; F. Hoffmann-La Roche Ltd and its affiliated company Genentech, Inc.; Fujirebio; GE Healthcare; IXICO Ltd.; Janssen Alzheimer Immunotherapy Research and Development, LLC.; Johnson and Johnson Pharmaceutical Research and Development LLC.; Lumosity; Lundbeck; Merck and Co., Inc.; Meso Scale Diagnostics, LLC.; NeuroRx Research; Neurotrack Technologies; Novartis Pharmaceuticals Corporation; Pfizer Inc.; Piramal Imaging; Servier; Takeda Pharmaceutical Company; and Transition Therapeutics. The Canadian Institutes of Health Research is providing funds to support ADNI clinical sites in Canada. Private sector contributions are facilitated by the Foundation for the National Institutes of Health ( The grantee organization is the Northern California Institute for Research and Education, and the study is coordinated by the Alzheimer’s Therapeutic Research Institute at the University of Southern California. ADNI data are disseminated by the Laboratory for Neuro Imaging at the University of Southern California.

7 References


Appendix A Ventricle segmentation results for the 12 sites of MRI-GENIE. The reported metrics are Dice coefficient (Dice), Jaccard index (Jaccard), true positive rate (TPR), volumetric similarity (VS), Mutual information (MI), Adjusted Rand Index (ARI), intraclass correlation coefficient (ICC), probabilistic distance (PBD), Cohen’s kappa (KAP), Detection Error Rate (DER) and Outline Error Rate (OER).

Appendix B List of ADNI 3 IDs used for the computation of the age-specific atlases.

23_S_4448, 128_S_4607, 141_S_6008, 014_S_6076, 007_S_6120, 029_S_4384

068_S_4340, 031_S_4021, 094_S_4649, 003_S_4644, 019_S_4367, 070_S_4856, 009_S_4388, 100_S_4469, 135_S_4446, 068_S_4424, 116_S_4453, 016_S_4952, 137_S_4520, 127_S_4604, 037_S_4028, 129_S_4369, 014_S_4401, 135_S_6104, 029_S_4585, 037_S_4410, 024_S_4084, 135_S_4598

127_S_4148, 011_S_4105, 002_S_4225, 099_S_6038, 016_S_4951, 099_S_4076, 006_S_4357, 014_S_4576, 037_S_4308, 002_S_6007, 023_S_4164, 032_S_4277, 021_S_4335, 018_S_4400, 041_S_4427, 003_S_4288, 129_S_4422, 098_S_4275, 098_S_4506, 116_S_4483, 007_S_4488, 021_S_4276, 006_S_4485, 082_S_4428, 098_S_4003, 941_S_4292, 013_S_4580, 035_S_4464, 007_S_4637, 141_S_6061, 041_S_4200

041_S_4037, 011_S_4278, 127_S_0259, 068_S_0473, 018_S_4313, 019_S_4835, 002_S_1280, 032_S_0677, 006_S_0498, 067_S_0056, 007_S_4387, 070_S_5040, 068_S_0210, 141_S_0767, 007_S_1222, 123_S_0106 032_S_4429, 005_S_0602, 130_S_0969, 082_S_4224, 009_S_0751, 033_S_0734, 002_S_4213, 068_S_0127 002_S_1261, 027_S_0120, 137_S_4482, 067_S_0059, 006_S_0731, 033_S_1098, 941_S_4100, 123_S_0072 007_S_4620, 032_S_1169, 128_S_0272, 129_S_4396, 018_S_4399, 941_S_4376, 011_S_0021

100_S_1286, 037_S_0303, 033_S_4177, 941_S_1195, 114_S_0416, 023_S_0031, 130_S_4343, 037_S_4071, 036_S_4491, 036_S_4389, 021_S_0337, 116_S_0382, 005_S_0610, 035_S_0156, 137_S_4466, 037_S_0454 123_S_0298, 099_S_4086, 033_S_1016, 941_S_4365, 033_S_4176, 126_S_0605, 002_S_0413, 126_S_0680 035_S_0555, 116_S_4855, 098_S_0896, 116_S_4043, 033_S_4179, 100_S_0069, 023_S_1190, 021_S_4254

Appendix C Gain in registration performance by using the proposed multi-atlas registration method with ventricles overlap instead of the more standard cross-correlation for atlas selection. Left: GASROS. Right: MRI-GENIE. The registration quality with the proposed multi-atlas registration method is in green; the registration quality with the proposed multi-atlas registration method using cross-correlation instead ventricle Dice to select the best atlas is in pink; the overlay of both is purple. , the gain in registration quality by using the proposed multi-atlas registration method with ventricles overlap instead of cross-correlation for the selection of the intermediary atlas is in blue.

Appendix D Gain in registration performance . Sample size is indicated in brackets.

Mean gain dice 0.011 (791) 0.014 (142)
Mean gain dice when improvement 0.018 (468) 0.021 (98)

Appendix E Comparison of multi-atlas registration using automated (blue) and manual (orange) segmentation of the ventricles in subject space. The number of scans assigned to each atlas is indicated on the right of each plot for both automated and manual ventricle segmentations.

Appendix F Gain in registration performance comparing the proposed multi-atlas registration framework using either the manual or automated ventricle segmentations to compute the registration quality.

GASROS 100 manual GASROS 100 automated MRI-GENIE manual MRI-GENIE automated
Mean gain dice 0.01 (100) 0.011 (100) 0.010 (142) 0.014 (142)
Mean gain dice when improvement 0.019 (53) 0.024 (43) 0.016(90) 0.022 (93)
Under70 0.034 (17) 0.04 (15) 0.036 (18) 0.033 (26)
70-75 0.019 (19) 0.019 (28) 0.016 (35) 0.019 (59)
75-80 0.001 (2) ’(0)’ 0.004 (8) 0.0005 (1)
80-85 ’(0)’ 0.001 (1) ’(0)’ ’(0)’
Above 85 0.005 (15) 0.006 (3) 0.006 (29) 0.008 (7)

Appendix G Gain in registration performance . Sample size is indicated in brackets.

Mean gain dice 0.012 (791) 0.014 (142)
Mean gain dice when improvement 0.022 (430) 0.022 (93)
Under70 0.038 (128) 0.033 (26)
70-75 0.014 (275) 0.019 (59)
75-80 0.006 (9) 0.0005 (1)
80-85 0.14 (1) ’(0)’
Above 85 0.019 (17) 0.008 (7)
