AutoKnow: Self-Driving Knowledge Collection for Products of Thousands of Types

06/24/2020 ∙ by Xin Luna Dong, et al. ∙ University of Massachusetts Amherst University of Illinois at Urbana-Champaign Columbia University Carnegie Mellon University University at Buffalo 12

Can one build a knowledge graph (KG) for all products in the world? Knowledge graphs have firmly established themselves as valuable sources of information for search and question answering, and it is natural to wonder if a KG can contain information about products offered at online retail sites. There have been several successful examples of generic KGs, but organizing information about products poses many additional challenges, including sparsity and noise of structured data for products, complexity of the domain with millions of product types and thousands of attributes, heterogeneity across large number of categories, as well as large and constantly growing number of products. We describe AutoKnow, our automatic (self-driving) system that addresses these challenges. The system includes a suite of novel techniques for taxonomy construction, product property identification, knowledge extraction, anomaly detection, and synonym discovery. AutoKnow is (a) automatic, requiring little human intervention, (b) multi-scalable, scalable in multiple dimensions (many domains, many products, and many attributes), and (c) integrative, exploiting rich customer behavior logs. AutoKnow has been operational in collecting product knowledge for over 11K product types.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 10

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

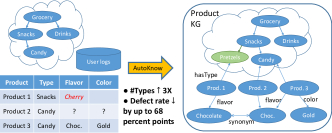

Figure 1. We propose AutoKnow, a pipeline that constructs a product knowledge graph. AutoKnow fixes incorrect values (e.g., “Flavor:Cherry” for Product 1) and imputes missing values (e.g., “Flavor:Choc.” for Product 2); however, it does not impute where it is inapplicable (e.g., Color applies for wrapped candies such as Product 3, but does not apply to pretzel snack Product 1). It also extends taxonomy (e.g., Pretzels) and finds synonyms (e.g., Chocolate vs. Choc.).

A knowledge graph (KG) describes entities and relations between them; for example, between entities Amazon and Seattle, there can be a headquarters_located_at relation. The past decade has witnessed broad applications of KG in search (e.g., by Google and Bing) and question answering (e.g., by Amazon Alexa or Google Home). How to automatically build a knowledge graph with comprehensive and high-quality data has been a hot topic for research and industry practice in recent years. In this paper, we answer this question for the Retail Product domain. Rich product knowledge can significantly improve e-Business shopping experiences through product search, recommendation, and navigation.

Existing industry success for knowledge curation is mainly for popular domains such as Music, Movie, and Sport (Bollacker et al., 2008; Gao et al., 2018). Two common features for such domains make them pioneer domains for knowledge collection. First, there are already rich data in structured form and of decent quality for these domains. Taking Movie as an example, in addition to common knowledge sources such as Wikipedia and WikiData, other authoritative movie data sources include IMDb 111https://www.imdb.com/, and so on. Second, the complexity of the domain schema is manageable. Continuing with the Movie domain, the Freebase knowledge graph (Bollacker et al., 2008) contains 52 entity types and 155 relationships (Zhang et al., 2019) for this domain. An ontology to describe these types and relationships can be manually defined within weeks, especially by leveraging existing data sources.

The retail product domain presents a set of new challenges for knowledge collection.

C1- Structure-sparsity: First, except for a few categories such as electronics, structured data are sparse and noisy across nearly all data sources. This is because the majority of product data reside in catalogs from e-Business websites such as Amazon, Ebay, and Walmart, and they often rely on data contributed by retailers. In contrast to publishers for digital products like movies and books, in the retail business retailers mainly list product features in titles and descriptions instead of providing structured attribute information, and may even abuse those structured attribute fields for convenience in selling products (Zheng et al., 2018; Xu et al., 2019). As a result, structured knowledge needs to be mined from textual product profiles (e.g., titles and descriptions). Thousands of product attributes, billions of existing products, and millions of new products emerging on a daily basis, require fully automatic and efficient knowledge discovery and update mechanisms.

C2- Domain-complexity: Second, the domain is much more complex. The number of product types is towards millions and there are various relationships between the types like sub-types (e.g., swimsuit vs. athletic swimwear), synonyms (e.g., swimsuit vs. bathsuit), and overlapping types (e.g., fashion swimwear vs. two-piece swimwear). Product attributes vastly differ between types (e.g., compare TVs and dog food), and also evolve over time (e.g., older TVs did not have WiFi connectivity). All of these make it hard to design comprehensive ontology and keep it up-to-date, thus calling for automatic solutions.

C3- Product-type-variety: Third, the variety of different product types makes it even harder to train knowledge enrichment and cleaning models. Product attributes, value vocabularies, text patterns in product titles and descriptions often differ for different types. Even neighboring product types can have different attributes; for example, Coffee and Tea, which share the same parent Drink, describe size using different vocabularies and patterns (e.g., “Ground Coffee, 20 Ounce Bag, Rainforest Alliance Certified” vs. “Classic Tea Variety Box, 48 Count (Pack of 1)”). On the one hand, training one single model is inadequate to achieve good results for all different types of products. On the other hand, collecting training data for each of the thousands to millions of product types is extremely expensive, and implausible for less-popular types. Maintaining a huge number of models also brings big system overhead.

With all of these challenges, the solutions in building existing KGs both in industry (e.g., Google Knowledge Graph, Bing Satori Graph (Gao et al., 2018)), and in research literature (e.g., Yago (Fabian et al., 2007), NELL (Carlson et al., 2010), Diadem (Furche et al., 2012), Knowledge Vault (Dong et al., 2014a)), cannot directly apply to the retail product domain, as we will further discuss in Section 7.

In this paper, we present our solution, which we call AutoKnow (Figure 1). AutoKnow starts with building product type taxonomy (i.e., types and hypernym relationships) and deciding applicable product attributes for each type; after that, it imputes structured attributes, cleans up noisy values, and identifies synonym expressions for attribute values. Imagine how an autonomous-driving vehicle perceives and understands the environment using all the signals available with minimized human interventions. AutoKnow is self-driving with the following features.

  • Automatic:

    First, it trains machine learning models and requires very little manual efforts. In addition, we leverage existing Catalog data and customer behavior logs to generate training data, eliminating the need for manual labeling for the majority of the models and allowing extension to new domains without extra efforts.

  • Multi-scalable: Our system is scalable in multiple dimensions. It is extensible to new values and is not constrained to existing vocabularies in the training data. It is extensible to new types, as it trains one-size-fits-all models for thousands of types, and the models behave differently for different product types to achieve the best results.

  • Integrative: Finally, the system applies self-guidance, and uses customer behavior logs to identify important product attributes to focus efforts on.

A few techniques play a critical role to allow us to scale up to the large number of product types we need to generate knowledge for. First, we leverage the graph structure that naturally applies to knowledge graphs (entities can be considered as nodes and relationships can be considered as edges) and taxonomy (types and hypernym relationships form a tree structure), and apply Graph Neural Network (GNN) for learning. Second, we take product categorization as input signals to train our models, and combine our tasks with product categorization for multi-task training to allow better performance. Third, we strive to learn with limited labels to alleviate the burden of manual training data creation, relying heavily on weak supervision (e.g., distant supervision) and on semi-supervised learning. Fourth, we mine both facts and heterogeneous expressions for the same concept (

i.e., type, attribute value) from customer behavior logs, abundant in the retail domain.

More specifically, we make the following contributions.

  1. Operational system: We describe AutoKnow, a comprehensive end-to-end solution for product knowledge collection, covering components from ontology construction and enrichment, to data extraction, cleaning, and normalization. A large part of AutoKnow has been deployed and operational in collecting over 1B product knowledge facts for over 11K distinct product types, and the knowledge has been used for Amazon search and product detail pages.

  2. Technical novelty: We invented a suite of novel techniques that together allow us to scale up knowledge discovery to thousands of product types. The techniques range from NLP and graph mining to anomaly detection, and leverage state-of-the-art techniques in GNN, transformer, and multi-task learning.

  3. Empirical study: We describe our practice on real-world e-Business data from Amazon, showing that we are able to extend the existing ontology by 2.9X, and considerably increase the quality of structured data, on average improving precision by 7.6% and recall by 16.4%.

Whereas our paper focuses on retail domain and our experiments were conducted on Amazon data, the techniques can be easily applied to other e-Commerce datasets, and adapted to other domains with hierarchical taxonomy, rich text profiles, and customer behavior logs, such as finance, phylogenetics, and biomedical studies.

2. Definition and System Overview

2.1. Product Knowledge Graph

A KG is a set of triples in the form of (subject, predicate, object). The subject is an entity with an ID, and this entity belongs to one or multiple types. The object can be an entity or an atomic value, such as a string or a number. The predicate describes the relation between the subject and the object. For example, (prod_id, hasBrand, brand_id) is a triple between two entities, whereas (prod_id, hasSugarsPerServing, “32”) is a triple between an entity and an atomic value. One can consider the entities and atomic values as nodes in the graph, and predicates as edges that connect the nodes.

For simplicity of problem definition, in this paper we focus on a special type of knowledge graph, which we call a broad graph. The broad graph is a bipartite graph , where nodes in represent entities of one particular type, called the topic type, nodes in represent attribute values (that can be entities or atomic values), and edges in connect each entity with its attribute values. The edges are labeled with corresponding attribute names (Figure 1). In other words, a broad graph contains only two layers, and thus contains attribute values only for entities of the topic type. We focus on broad graphs where the topic type is product. Once a broad graph is built, one can imagine stacking broad graphs layer by layer to include knowledge about other types of entities (e.g., brand), and eventually arrive at a rich, comprehensive graph.

Product types form a tree-structured taxonomy, where the root represents all products, each node represents a product type, and each edge represents a sub-type relationship. For example, Coffee is a sub-type of Drink.

We assume two sources of input. First, we assume existence of a product Catalog, including a product taxonomy, a set of product attributes (not necessarily distinguished between different product types), a set of products, and attribute values for each product. We assume that each product has a product profile that includes title, description, and bullet points, and in addition a set of structured values, where title is required and other fields are optional. Second, we assume existence of customer behavior logs, such as the query and purchase log, customer reviews, and Q&A. We next formally define the problem we solve in this paper.

Problem definition: Let be a product Catalog, where (1) denotes a product taxonomy with a set of product types and the hypernym relationships between types in ; (2) denotes a set of product attributes, and (3) contains for each product ( is the ID) a set of product types and a set of attribute-value pairs . Let denote customer behavior logs. Product Knowledge Discovery takes and as input, enriches the product knowledge by adding new types and hypernym relationships to , and new product types and attribute values for each product in .

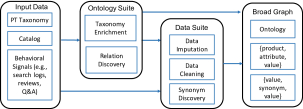

Figure 2. AutoKnow architecture, containing ontology suite to enrich product ontology and data suite to enrich product structured data.

2.2. System Architecture

Figure 2 depicts the architecture of our AutoKnow system. It has five components, categorized into two function suites.

Ontology suite: The ontology suite contains two components: Taxonomy enrichment and Relation discovery. Taxonomy enrichment identifies new product types not existing in input taxonomy and decides the hypernym relationships between the newly discovered types and existing types, using them to enrich . Relation discovery decides for each product type and attribute , whether applies to type and if so, how important is when customers make purchase decisions for these products, captured by an importance score.

Data suite: The data suite contains three components: Data imputation, Data cleaning, and Synonym discovery. Data imputation derives new (attribute, value) pairs for each product in from product profiles and existing structured attributes. Data cleaning identifies anomalies from existing data in and newly imputed values. Synonym discovery associates synonyms between product types and attribute values.

Each component is independent, automatic and multi-scalable; on the other hand, the components are well pieced together. The early components provide guidance and richer data for later components; for example, relation discovery identifies important and meaningful relations for the data suite, and data imputation provides richer data for synonym discovery. The later components fix errors from early parts of the pipeline; for example, data cleaning removes mistakes from data imputation.

Table 1 summarizes how each component of AutoKnow employs the aforementioned techniques. We next describe in Section 3 how we build the ontology and in Section 4 how we improve the data. To facilitate understanding of our design choices, for each component we present comparison of our proposed solution with the state-of-the-arts, show ablation study, and show real examples in Appendix A. Unless otherwise mentioned, we use the Grocery domain in the US market and the flavor attribute to illustrate our results, but we have observed the same trend throughout different domains and attributes. We describe detail of the experimental setup and end-to-end empirical study in Section 5 and lessons we learned in Section 6.

TechniquesComponent

AK-Taxonomy

AK-Relations

AK-Imputation

AK-Cleaning

AK-Synonyms

Graph structure X X
Taxonomy signal X X
Distant supervision X X X
Behavior information X X X
Table 1. Key techniques employed by each component.

3. Enriching the Ontology

3.1. Taxonomy Enrichment

Problem definition: Online catalog taxonomies are often built and maintained manually by human experts (e.g., taxonomists), which is labor-intensive and hard to scale up, leaving out fine-grained product types. How to discover new product types and attach them to the existing taxonomy in a scalable, automated fashion is critical to address the C2- Domain-complexity challenge.

Formally, given an existing product taxonomy , Taxonomy Enrichment extends it with , where is the set of new product types, and is the additional set of hypernym relationships between types in and in .

Key techniques: The product domain proposes its unique challenges for taxonomy construction. A product type and its instances, or a type and its sub-types, are unlikely to be mentioned in the same sentence as in other domains such as “big US cities like Seattle”, so traditional methods like Hearst patterns do not apply. Our key intuition is that since product types are very important, they are frequently mentioned in product titles (see Table 2 for an example) and search queries (i.e., “k-cups dunkin donuts dark”); we thus leverage existing resources such as product profiles in the Catalog or search queries in behavior logs to effectively supervise the taxonomy enrichment process.

We enrich product taxonomy in two steps. We first discover new types from product titles or customer search queries by training a type extractor. Then, we attach candidate types in to the existing taxonomy by solving a hypernym classification problem. We next briefly describe high-level ideas of each step and details can be found in (Mao et al., 2020).

Input Ben & Jerry’s black cherry cheesecake ice cream
Output O O O B-flavor I-flavor E-flavor B-type E-type
Table 2. Example of input(text)/output(BIOE tag) sequences for the type and flavor of an ice cream product.

Type extraction: Type extraction discovers new product types mentioned in product titles or search queries. For the purpose of recognizing new product types from product titles, it is critical that we are able to extract types not included in training data. Thus, we adopt an open-world tagging model and formulate type extraction as a “BIOE” sequential labeling problem. In particular, given the product’s title sequence , the model outputs the sequence of , where , representing ”begin”, ”inside”, ”outside”, ”end” respectively. Table 2 illustrates an example of sequential labels obtained using OpenTag (Zheng et al., 2018): “ice cream” is labeled as product type, and ”black cherry cheesecake” as product flavor.

To train the model, we adopt distant supervision to generate the training labels. For product titles, we look for product types in Catalog provided by retailers (restricted to the existing product types), and generate BIOE tags when types are explicitly and exactly mentioned in their titles. For queries, we look for the type of purchased products in the query to generate BIOE tags. Once the extraction models are trained, we apply them on product titles and queries. New types from titles are taken as , and those from queries, albeit noisier, will be used for type attachment.

Type Attachment:

Type attachment organizes extracted types into the existing taxonomy. We thus solve a binary classification problem, where the classifier determines if the hypernym relationship exists between two types

.

Our key intuition is to capture various signals from customer behaviors with a GNN-based module. In particular, we first construct a graph where the nodes represent types, products, and queries, and the edges represent various relationships including 1) product co-viewing, 2) a query leading to a product purchase, 3) the type mentioned in a query or a product (according to the extraction). The GNN model allows us to refine the node representation using the neighborhood information on the graph. Finally, the type representation for each is combined with semantic features (e.g., word embedding) of the type names and fed to the classifier.

To train the model, we again apply distant supervision. We use the type hypernym pairs in the existing taxonomy as the supervision to generate positive labels, and generate five negative labels by randomly replacing the hyponym type with other product types.

Component Evaluation: For product type extraction in the Grocery domain, we obtained 87.5% precision according to MTurk evaluation; in comparison to state-of-the-art techniques, Noun Phrase (NP) chunking obtains 12.3% precision and AutoPhrase (Shang et al., 2018) obtains 20.9% precision.

For type attachment, we took hypernym relationships from existing taxonomy as ground truth, randomly sampled 80% for model training, 10% as validation set and 10% for testing. We measured both Edge-F1 (F-measure on parent-child relationship) and Ancestor-F1 (F-measure on ancestor-child relationship) (Bansal et al., 2014; Mao et al., 2018). Table 3 shows that our GNN-based model significantly outperforms the state-of-the-art baselines, improving Edge-F1 by 54.3% over HiDir (Wang et al., 2014), and by 17.7% over MSejrKu (Schlichtkrull and Alonso, 2016). Ablation tests show that both the multi-hop GNN and the user behavior increase the performance.

Method Edge-F1 Ancestor-F1
Substr (Bordea et al., 2016) 10.7 52.9
HiDir (Wang et al., 2014) 40.5 66.4
MSejrKu (Schlichtkrull and Alonso, 2016) 53.1 76.7
Type-Attachment 62.5 84.2
   w/o. multi-hop (2) GNN 50.4 (12.1%) 75.9 (8.3%)
   w/o. user behavior (queryproduct) 60.1 (2.4%) 83.0 (1.2%)
Table 3. AK-Taxonomy improves over state-of-the-art by 17.7% on Edge-F1.

3.2. Relation Discovery

Problem definition: In a catalog there are often thousands of product attributes; however, different sets of attributes apply to different product types (e.g., flavor applies to snacks, but not to shampoos), and among them, only a small portion have a big influence on customer shopping decisions (e.g., brand is more likely to affect shopping decisions for snacks, but less for fruits). Understanding applicability and importance will help filter values for non-applicable attributes and prioritize enrichment and cleaning for important attributes. Thus, how to identify applicable and important attributes for thousands of types is another key problem to solve to address the C2- Domain-complexity challenge.

Formally, given a product taxonomy and a set of product attributes , Relation Discovery decides for each , (1) whether attribute applies to products of type , denoted by , and (2) how important is for purchase decisions on products of , denoted by . Here, we do not consider newly extracted types in , since they are often sparse.

Key techniques: Intuitively, important attributes will be frequently mentioned by sellers and buyers, whereas inapplicable attributes will appear rarely. Previous approaches explored this intuition, but either leveraged only one text source at a time (e.g., only customer reviews) or combined sources according to a pre-defined rule (Hopkinson et al., 2018; Sun et al., 2018; Razniewski et al., 2017)

. Here we train a classification model to decide attribute applicability, and a regression model to decide attribute importance. We used Random Forest for both models and employ two types of features reflecting behavior of the customers.

  • Seller behavior, captured by coverage of attribute values for a particular product type, and frequency of mentioning attribute values in product profiles.

  • Buyer behavior, captured by frequency of mentioning attribute values in search queries, reviews, Q&A sessions, etc.

For a given pair, we compute features that correspond to different signals (e.g.

, reviews, search logs, etc.). To this end, we estimate frequencies of mentions of attribute values in the corresponding text sources (see details in Appendix

B). Note that sellers are required to provide certain applicable attributes (e.g., barcode). These attributes have high coverage, but they are not always important for shopping decisions and appear rarely in customer logs. We thus train two different models for applicability and importance to capture such subtle differences.

We collect manual annotations for training, both in-house and using MTurk. In the latter case, for a given pair, we asked six MTurk workers whether the attribute applies to products of type , and how likely will influence shopping decisions for products of type . The applicability is decided by majority voting, and importance is decided by averaging influence likelihood grades. Once we trained the model, we apply it to all pairs to decide applicability and importance.

Component Evaluation: We collected two datasets. The first dataset contains 807 applicability and importance labels for 11 common attributes (e.g., brand, flavor, scent) and 79 randomly sampled product types. The second dataset contains 240 applicability labels for 7 product types (e.g., Shampoo, Coffee, Battery) and 180 attributes for which there are values in the Catalog. We combined the data, used 80% for training and 20% testing, and reported results in Table 4. Our results show that comparing with the strongest signal–coverage, various behavior signals improved F-measure by 4.7% for applicability, and improved Spearman for importance by 1.9X. Ablation tests show that both buyer features and seller features contribute to the final results.

Method Precision Recall F1 Spearman
Coverage features 0.90 0.80 0.85 0.39
Seller features 0.90 0.84 0.87 0.72
Buyer features 0.86 0.83 0.84 0.68
All features 0.94 0.84 0.89 0.74
Table 4. AK-Relations outperforms using only coverage features on both applicability prediction (by 4.7%) and importance prediction (1.9X). Here “Seller features” does not include the “Coverage features”.

4. Enriching and Cleaning Knowledge

4.1. Data Imputation

Problem definition: The Data Imputation component addresses the C1- Structure-sparsity challenge by extracting structured values from product profiles to increase coverage. Formally, given product information , Data imputation extracts new pairs for each product from its profiles (i.e., title, description, and bullets).

State-of-the-art techniques have solved the problem for a type-attribute pair

, obtaining high extraction quality with BIOE sequential labeling combined with active learning

(Zheng et al., 2018). Equation (1) shows sequential labeling with BiLSTM and CRF:

(1)

where is the embedding of , usually initialized with pre-trained word embedding such as GloVe (Pennington et al., 2014), and fine-tuned during model training. As an example, the output sequence tags in Table 2 shows that ”black cherry cheesecake” is a flavor of the product.

However, the technique does not scale up to thousands to millions of product types and tens to hundreds of attributes that apply to each type. How to train an extraction model that acknowledges the differences between different product types is critical to scale up sequential labeling to address the C3- Product-type-variety challenge.

Key techniques: We proposed an innovative taxonomy-aware sequence tagging approach that makes predictions conditioned on the product type. We describe the high-level ideas next and details can be found in (Karamanolakis et al., 2020).

We extended sequence tagging described in Equation (1) in two ways. First, we condition model predictions on product type :

(2)

where is the pre-trained hyperbolic-space embedding (Poincare (Nickel and Kiela, 2017)) of product type , known to preserve the hierarchical relation between taxonomy nodes. is the conditional self attention layer that allows to influence the attention weights.

Second, to better identify tokens that indicate the product type, and address the problem that products can be mis-classified or product type information can be missing in a catalog, we employ multi-task learning: training sequence tagging and product categorization at the same time, with a shared layer.

We again adopt the distant supervision approach to automatically generate the training sequence labels by text matching between product profiles and available attribute values in the Catalog. The trained model is then applied to all pairs for predicting missing values.

Component Evaluation: In Table 5, we show the performance evaluation and ablation studies of flavor extraction across 4000 types of products in the Grocery domain. Compared to the baseline BiLSTM-CRF model adopted by current state-of-the-art (Zheng et al., 2018), both CondSelfAtt and MultiTask learning, when applied alone, improve F1 score by at least 7.0%; combination of the two together improved F1 by 10.1%.

Model Vocab size Precision Recall F1
BiLSTM-CRF (Zheng et al., 2018) 6756 70.3 49.6 57.5
AK-Imputation 13093 70.9 57.8 63.3
     w/o. CondSelfAtt 9528 74.5 53.2 61.5
     w/o. MultiTask 12558 68.8 57.0 61.9
Table 5. AK-Imputation improves over state-of-the-art by 10.1% on F1 for flavor extraction across 4,000 types.

4.2. Data Cleaning

Problem definition: The structured data contributed by retailer are often error-prone because of misunderstanding or intentional abuse of the product attributes. Detecting anomalies and removing them is thus another important aspect to address the C1- Structure-sparsity challenge. Formally, given product information , Data cleaning identifies pairs that are incorrect for the product, such as for a box of chocolate and for a shirt.

Abedjan et al. (Abedjan et al., 2016) have made successes in cleaning values of types like numerical and date/time. We focus our discussion on textual attributes, which are often considered as most challenging in cleaning. Similar to data imputation, the key is to address the C3- Product-type-variety challenge such that we can scale up to nearly millions of types. In particular, we need to answer the question: how to identify anomaly values inconsistent with product profiles for a large number of product types?

Key techniques: Our intuition is that an attribute value shall be consistent with the contexts provided by the product profiles. We propose a transformer-based (Vaswani et al., 2017) neural net model that jointly processes signals from textual product profile () and the product taxonomy via a multi-head attention mechanism to decide if a triple is correct (i.e., whether is the correct value of attribute for product ). The model is capable of learning from raw textual input without extensive feature engineering, making it ideal for scaling to thousands of types.

The raw input of the model is the concatenation of token sequences in , and . For the

-th token in the sequence, a learnable embedding vector

is constructed by summing up three embedding vectors of the same dimension:

(3)

where is the pre-trained FastText embedding (Bojanowski et al., 2017) of token , is a segment embedding vector that indicates to which source sequence (, or ) token belongs, and is a positional embedding (Vaswani et al., 2017) that indicates the relative location of token in the sequence. The sequence of embeddings is propagated through a multi-layer transformer model whose output embedding vector captures the distilled representations of all three input sequences. Finally, passes through a dense layer followed by a sigmoid node to produce a single score between and , indicating the consistency of and ; in other words, the likelihood of the input triple being correct (see Appendix C for details and Figure 7 for the model architecture).

To train the cleaning model, we adopt distant supervision to automatically generate training labels from the input Catalog. We generate positive examples by selecting high-frequency values that appear in multiple brands, then for each positive example we randomly apply one of the following three procedures to generate a negative example: 1) We build a vocabulary for each attribute and replace a catalog value of with a randomly selected value from ; 2) We randomly select -grams from the product title that does not contain the catalog value , where is a random number drawn according to the distribution of lengths of tokens in ; 3) We randomly pick the value of another attribute to replace . At inference time, we apply our model to every triple and consider those with a low confidence as incorrect.

Component Evaluation: As shown in Table 6, evaluation on the flavor attribute for the Grocery domain on 2230 labels across 223 types shows that our model improves PRAUC over state-of-the-art anomaly detection technique (Liu et al., 2008) by 75.3%, and considering the product taxonomy in addition to product profiles improved PRAUC by 6.7%.

Model PRAUC R@.7P R@.8P R@.9P R@.95P
Anomaly Detection (Liu et al., 2008) 32.0 2.4 1.3 1.3 1.3
AK-Cleaning 56.1 59.6 39.8 26.0 20.7
    w/o. Taxonomy 52.6 52.6 36.2 22.4 3.0
Table 6. AK-Cleaning improves over state-of-the-art anomaly detection by 75.3% on PRAUC. R@.7P shows the recall when the precision is 0.7, etc.

4.3. Synonym Finding

We finally very briefly discuss how we identify synonyms with the same semantic meaning, including spelling variants (e.g., Reese’s vs. reese), acronyms or abbreviation (e.g., FTO vs. fair trade organic), and semantic equivalence (e.g., lite vs. low sugar). Aligning synonym values is another important aspect to address the C1- Structure-sparsity challenge, and how to train a domain-specific model to distinguish identical values and highly-similar values is a key question to answer.

Our method has two stages. First, we apply collaborative filtering (Linden et al., 2003)

on customer co-view behavior signals to retain product pairs with high similarity, and take their attribute values as candidate pairs for synonyms. Such a candidate set is very noisy, hence requires heavy filtering. Second, we train a simple logistic regression model to decide if a candidate pair has exactly the same meaning. The features we consider include edit distance, pre-trained MT-DNN model

(Liu et al., 2019) score, and features regarding distinct vs. common words. The features regarding distinct vs. common words play a critical role in the model; they focus on three sets of words: words appearing only in the first candidate but not the second, and vice versa, and words shared by the two candidates. Between every two out of these three sets, edit distance and embedding similarity are computed and used as features.

An experiment on 2500 candidate pairs (143 positive; half used for training) shows a PRAUC of 0.83 on Grocery flavor; removing the distinct-word features will reduce the PRAUC to 0.79.

5. Experimental Results

We now present our product knowledge graph (PG) produced by the AutoKnow pipeline. We show that we built a graph with over 1 billion triples for over 11K product types and significantly improved accuracy and completeness of the data. Note that we have already compared each individual component with state-of-the-art in previous sections, so here we only compare PG with the raw input data.

5.1. Input Data and Resulting Graph

Product Domain Grocery Health Beauty Baby
#types 3,169 1,850 990 697
med. # products/type 1,760 18,320 27,150 28,700
#attributes 1,243 1,824 1,657 1,511
med. #attrs/type 113 195 228 206
Table 7. Statistics for raw data used as input to AutoKnow.

Raw Data: AutoKnow takes Amazon Product Catalog, including the product type taxonomy, as input. We chose products of four domains (i.e., high-level categories): Grocery, Health, Beauty, and Baby. These domains have the commonality that they contain quite sparse structured data; on the other hand, the numbers of types and the sizes vary from domain to domain. We consider products that have at least on page view in a randomly chosen month.

Table 7 shows statistics of the domains. For each domain, there are hundreds to thousands of types in the Catalog taxonomy, and the median number of products per type is thousands to tens of thousands. Amazon Catalog contains thousands of attributes; however, for each individual product most of the attributes do not apply. Thus for each product, there are typically tens to hundreds of populated values. We say an attribute is covered by a type if at least one product of that type has a value in Catalog for the attribute. As shown in the statistics, each domain involves thousands of attributes, and the median number of attributes per product type is 100-250.

Building a Graph: We implemented AutoKnow

in a distributed setting using Apache Spark 2.4 on an Amazon EMR cluster, and Python 3.6 on individual hosts. Deep learning was implemented using TensorFlow and AWS Deep Graph Library

222https://www.dgl.ai/ was used to implement Graph Neural Networks for AK-Taxonomy. AK-Relations component was implemented using Spark ML. AK-Imputation component used an AWS SageMaker instance for training333https://aws.amazon.com/sagemaker/.

Resulting PG: Key characteristics of our PG are shown in Table 8. The table presents aggregated statistics for the four product domains. We highlight that after product type extraction, we increase the size of the taxonomy by 2.9X, from 6.7K to 19K; some types appear in different domains and there are 11K unique types. We show how much we improve the quality of the structured knowledge in the next section.

#Triples #Attributes #Types #Products
¿1B ¿1K ¿19K ¿30M
Table 8. Aggregated statistics describing our PG on four product domains (Grocery, Baby, Beauty, Health).

5.2. Quality Evaluation

Metrics: We report precision, recall, F-metric of the knowledge. To understand how much gap there is in providing correct structured data for each attribute, we also define a new metric, called defect rate, the percentage of (product, attribute) pairs with missing or incorrect values. Specifically, consider an attribute . Let be the number of products with correct values for , be the number of products with a wrong value for , be the number of products where does not apply but there is a value (e.g., flavor for shoes), be the number of products where applies but the value is missing, and be the number of products within the scope. We compute applicability, the percentage of products where applies, as ; coverage as ; precision as ; recall as ; and defect rate as .

We consider three types of triples: triples with product types such as (product-1, hasType, Television), triples with attribute values such as (product-2, hasBrand, Sony), and triples depicting entity relations such as (chocolate, isSynonymOf, choc). We report precision for each type of triples. Computing recall is hard, especially for type triples and relation triples, since it is nearly impossible to find all applicable types and synonyms; we thus only report it for triples with attribute values. For triples involving products, we used product popularity weighted sampling.

Grocery Health Beauty Baby Avg
precision 93.89% 84.60% 82.24% 89.97% 87.68%
MoE 2.71% 4.08% 4.32% 3.40% 3.63%
#types 3368 7276 4102 4368 4778
increase 1.1X 3.9X 4.1X 2.4X 2.9X
Table 9. AutoKnow achieved 87.7% type precision and increased the number of types by 2.9X.

Type triples: Table 9 shows the quality of product-type triples measured by MTurk workers on 300 labels per domain. MoE shows the margin of error with a confidence level of 95%. AutoKnow obtained an average precision of 87.7% and increased the number of types in each domain by 2.9X on average.

Attribute 1 Attribute 2 Attribute 3
Grocery Input PG Input PG Input PG
Applicability 38.51% 7.53% 10.00%
Precision 68.61% 82.59% 49.94% 77.30% 55.10% 55.10%
Recall 37.17% 83.15% 1.43% 80.96% 54.58% 54.59%
F-measure 48.22% 82.87% 2.78% 79.09% 54.84% 54.85%
Defect Rate 62.91% 21.14% 98.58% 30.72% 49.50% 49.49%
Health Input PG Input PG Input PG
Applicability 1.35% 0.59% 57.92%
Precision 70.54% 84.00% 59.11% 70.00% 78.00% 61.75%
Recall 59.69% 49.92% 69.50% 63.45% 47.13% 69.92%
F-measure 64.66% 62.62% 63.89% 66.56% 58.76% 65.58%
Defect Rate 49.69% 52.34% 48.31% 45.45% 55.04% 38.28%
Beauty Input PG Input PG Input PG
Applicability 0.04% 0.54% 4.82%
Precision 18.83% 48.00% 71.98% 76.00% 62.00% 61.68%
Recall 69.44% 69.44% 65.21% 59.95% 53.26% 62.98%
F-measure 29.62% 56.76% 68.43% 67.03% 57.30% 62.32%
Defect Rate 82.35% 59.02% 40.19% 42.76% 48.51% 39.50%
Baby Input PG Input PG Input PG
Applicability 0.0011% 0.09% 55.82%
Precision 1.45% 0.03% 8.22% 10.60% 42.00% 49.54%
Recall 9.79% 9.79% 3.83% 50.92% 44.13% 56.39%
F-measure 2.53% 0.06% 5.23% 17.55% 43.04% 52.74%
Defect Rate 98.72% 99.97% 97.30% 89.63% 60.81% 50.46%
Table 10. PG improves over input data on average by 7.6% (percentage point) on precision, 16.4% on recall, and 14.4% on defect rate, with average MoE of 6.56% on precision/recall.

Attribute triples: We start with choosing three text-valued attributes that are fairly popular to all 4 domains, and evaluated each (domain, attribute) pairs on 200 samples (Table 10). Note that even though they are popular among all text-valued attributes except brand, the applicability is still fairly low (10% most of the cases), showing the big diversity of each domain. We made three observations. First, we significantly increased the quality of the data (precision up by 7.6%, recall up by 16.4%, F-measure up by 14.1%, and defect rate down by 14.4%). Second, the quality of the generated data is often correlated with the precision of the raw data. For example, the precision of the data in the Baby domain is very low; as a result, the PG data also have low precision. On the other hand, recall tends to have less effect; for example, Attribute 2 has a recall of 1.4% for Grocery, but we are able to boost it to 81.0% with reasonable precision (77.3%). Third, there is still huge space for improvement: the defect rate is at best 21.1%, and can be over 90% in certain cases. We also note that production requires high accuracy, so we trade recall with precision in the production system.

Next, we randomly chose 8 (type, attr) pairs for top-5 important attributes to report our results at a finer granularity (Table 18 in Appendix A). The attribute values are categorical (much smaller vocabulary) or binary, leading to higher extraction quality. AutoKnow obtained an average precision of 95.0% and improved the recall by 4.3X.

Grocery Recall@ 90% Recall@ 80% #Removed %Removed
Attribute 1 36.58% 58.20% 1,381,277 55.06%
Attribute 2 9.92% 13.29% 320,960 59.40%
Health Recall@ 90% Recall@ 80% #Removed %Removed
Attribute 1 76.72% 85.93% 30,215 32.63%
Attribute 2 3.18% 21.14% 14,110 20.92%
Beauty Recall@ 90% Recall@ 80% #Removed %Removed
Attribute 1 94.33% 97.16% 10,926 62.31%
Attribute 2 46.05% 69.74% 7,651 11.87%
Baby Recall@ 90% Recall@ 80% #Removed %Removed
Attribute 1 87.24% 95.31% 2,673 66.17%
Attribute 2 52.07% 59.24% 1,956 73.04%
Table 11. AutoKnow cleaned 1.77M incorrect values for two attributes with a precision of 90%.

To highlight how data cleaning improves the data quality, we show in Table 11 the noisy values we have removed for the same two attributes as in Table 10. At a precision of 90% (i.e., 9 out of 10 removed values are indeed incorrect), we achieve a recall of 73.7% for Attribute 1 and 27.8% for Attribute 2. In total we removed 1.3M values for these two attributes, accounting for 21% of Catalog values and 64.6% of AK-Imputation.

Attribute 1 Attribute 2 Product Types
Precision 91.6% 93.7% 88.1%
#Pairs 6,610 1,066 21,900
Table 12. Precision for triples representing relations between entities. Precision for synonym relations is reported on two representative attributes.

Relation triples: Finally, we show precision of relation triples in Table 12, including hypernym relations between product types and synonym relations between attribute values. We observed very high precision for value synonyms (90%) and fairly high for hypernyms (88.1%) when we consider attaching to any ancestor node (not necessarily to the leaf) as correct.

6. Lessons We Learnt

There are many lessons in building the Product KG, pointing to interesting research directions.

Non-tree product hierarchies: First, we may need to fundamentally reconsider the way we model taxonomy and classify products. Common practice is to structure product types into a tree structure for “subtypes”, and classify each product into a single (ideally leaf) type. However, we miss multiple parents; for example, “knife” has subtypes “chef’s knife”, “hunting knife”, which correspondingly is also a subtype of “Cutlery & Knife” and “Hunting kits”. Also, there is often no clear cut for product types: one product can be both fashion swimwear and two-piece swimwear. In general, we need to extend concepts to model broadly subtype, synonym, and overlapping relationships; for each product, we can simply extract the type from its title, and infer other types according to the relationship between product types.

Noisy data: Second, the large volume of noises can deteriorate the performance of the imputation and cleaning models. This can be observed from our lower quality of knowledge in the Baby domain, caused by wrong product types and many inapplicable values in Catalog. We propose aggressive data cleaning before using the data for training, and training a multi-task end-to-end model that imputes missing values and identifies wrong or inapplicable values.

More than text: Third, product profile is not the only source of product knowledge. A study on randomly sampled 22 (type, attribute) pairs shows that 71.3% values can be derived from Amazon product profiles, an additional 3.8% can be derived from Amazon product images, and 24.9% have to be sought from external sources such as manufacturer websites. This observation hints that a promising direction is to enhance AutoKnow with image processing capabilities and web extraction.

7. Related Work

Industry KG systems typically rely on manually defined ontology and curate knowledge from Wikipedia and a number of structured sources (e.g., Freebase(Bollacker et al., 2008), Bing Satori (Gao et al., 2018), YAGO (Fabian et al., 2007), YAGO2 (Hoffart et al., 2013)). Research systems conduct web extraction, but again observing pre-defined ontology and focus on named entities such as people, movies, companies (e.g., NELL (Carlson et al., 2010), Knowledge Vault (Dong et al., 2014a), DeepDive (De Sa et al., 2016)). By comparison, this work extracts product knowledge from product profiles, where the structure, sparsity and noise level are very different from webpages; many attribute values are free texts or numbers instead of named entities. Incorporating taxonomy knowledge into machine learning models and utilizing customer behavior signals for supervision are two themes employed throughout this work to improve model performance.

The product knowledge graph described in (Xu et al., 2020) differs from our work as it focuses on training product embeddings to represent co-view/complement/substitute relationship defined therein, while this work focuses on collecting factual knowledge about products (e.g., product types and attribute values). Recent product property extraction systems (Zheng et al., 2018; Xu et al., 2019) apply tagging on product profiles, but consider a single product type. Web extraction systems (Rezk et al., 2019; Qiu et al., 2015) extract product knowledge from semi-structured websites, and the techniques are orthogonal to ours.

In addition to end-to-end systems, there have been solutions for individual components, including ontology definition (Fabian et al., 2007; Bollacker et al., 2008), entity identification (Fabian et al., 2007), relation extraction (Lockard et al., 2018), hierarchical embedding (Nickel and Kiela, 2017), linkage (Papadakis et al., 2016; Gulhane et al., 2011), and knowledge fusion (Dong et al., 2014a, b). We apply these techniques whenever appropriate, and improve them to address the unique challenges for the product domain.

8. Conclusions

This paper describes our experience in building a broad knowledge graph for products of thousands of types. We applied a suite of ML methods to automate ontology construction, knowledge enrichment and cleaning for a large number of products with frequent changes. With these techniques we built a knowledge graph that significantly improves completeness, accuracy, and consistency of data comparing to Catalog. Our efforts also shed light on how we may further improve by going both broader and deeper in product graph construction.

References

  • (1)
  • Abedjan et al. (2016) Ziawasch Abedjan, Xu Chu, Dong Deng, Raul Castro Fernandez, Ihab F Ilyas, Mourad Ouzzani, Paolo Papotti, Michael Stonebraker, and Nan Tang. 2016. Detecting data errors: Where are we and what needs to be done? Proceedings of the VLDB Endowment 9, 12 (2016), 993–1004.
  • Bansal et al. (2014) Mohit Bansal, David Burkett, Gerard De Melo, and Dan Klein. 2014. Structured Learning for Taxonomy Induction with Belief Propagation.. In ACL.
  • Bojanowski et al. (2017) Piotr Bojanowski, Edouard Grave, Armand Joulin, and Tomas Mikolov. 2017. Enriching word vectors with subword information. TACL 5 (2017), 135–146.
  • Bollacker et al. (2008) Kurt Bollacker, Colin Evans, Praveen Paritosh, Tim Sturge, and Jamie Taylor. 2008. Freebase: a collaboratively created graph database for structuring human knowledge. In Sigmod. AcM, 1247–1250.
  • Bordea et al. (2016) Georgeta Bordea, Els Lefever, and Paul Buitelaar. 2016. Semeval-2016 task 13: Taxonomy extraction evaluation (texeval-2). In SemEval-2016. 1081–1091.
  • Carlson et al. (2010) Andrew Carlson, Justin Betteridge, Bryan Kisiel, Burr Settles, Estevam R Hruschka Jr, and Tom M Mitchell. 2010. Toward an architecture for never-ending language learning.. In AAAI, Vol. 5. Atlanta, 3.
  • De Sa et al. (2016) Christopher De Sa, Alex Ratner, Christopher Ré, Jaeho Shin, Feiran Wang, Sen Wu, and Ce Zhang. 2016. Deepdive: Declarative knowledge base construction. ACM SIGMOD Record 45, 1 (2016), 60–67.
  • Dong et al. (2014a) Xin Dong, Evgeniy Gabrilovich, Geremy Heitz, Wilko Horn, Ni Lao, Kevin Murphy, Thomas Strohmann, Shaohua Sun, and Wei Zhang. 2014a. Knowledge vault: A web-scale approach to probabilistic knowledge fusion. In SigKDD. ACM, 601–610.
  • Dong et al. (2014b) Xin Luna Dong, Evgeniy Gabrilovich, Geremy Heitz, Wilko Horn, Kevin Murphy, Shaohua Sun, and Wei Zhang. 2014b. From Data Fusion to Knowledge Fusion. PVLDB (2014).
  • Fabian et al. (2007) MS Fabian, K Gjergji, Weikum Gerhard, et al. 2007. Yago: A core of semantic knowledge unifying wordnet and wikipedia. In WWW. 697–706.
  • Furche et al. (2012) Tim Furche, Georg Gottlob, Giovanni Grasso, Omer Gunes, Xiaoanan Guo, Andrey Kravchenko, Giorgio Orsi, Christian Schallhart, Andrew Sellers, and Cheng Wang. 2012. DIADEM: domain-centric, intelligent, automated data extraction methodology. In WWW. ACM, 267–270.
  • Gao et al. (2018) Yuqing Gao, Jisheng Liang, Benjamin Han, Mohamed Yakout, and Ahmed Mohamed. 2018. Building a large-scale, accurate and fresh knowledge graph. In SigKDD.
  • Gulhane et al. (2011) Pankaj Gulhane, Amit Madaan, Rupesh Mehta, Jeyashankher Ramamirtham, Rajeev Rastogi, Sandeep Satpal, Srinivasan H Sengamedu, Ashwin Tengli, and Charu Tiwari. 2011. Web-scale information extraction with Vertex. In ICDE. 1209–1220.
  • Hoffart et al. (2013) Johannes Hoffart, Fabian M Suchanek, Klaus Berberich, and Gerhard Weikum. 2013. YAGO2: A spatially and temporally enhanced knowledge base from Wikipedia. Artificial Intelligence 194 (2013), 28–61.
  • Hopkinson et al. (2018) Andrew Hopkinson, Amit Gurdasani, Dave Palfrey, and Arpit Mittal. 2018. Demand-Weighted Completeness Prediction for a Knowledge Base. In NAACL. 200–207.
  • Karamanolakis et al. (2020) Giannis Karamanolakis, Jun Ma, and Xin Luna Dong. 2020. TXtract: Taxonomy-Aware Knowledge Extraction for Thousands of Product Categories. In Proceedings of the 58th Annual Meeting of the Association for Computational Linguistics.
  • Linden et al. (2003) Greg Linden, Brent Smith, and Jeremy York. 2003. Amazon. com recommendations: Item-to-item collaborative filtering. IEEE Internet computing 7, 1 (2003), 76–80.
  • Liu et al. (2008) Fei Tony Liu, Kai Ming Ting, and Zhi-Hua Zhou. 2008. Isolation forest. In 2008 Eighth IEEE International Conference on Data Mining. IEEE, 413–422.
  • Liu et al. (2019) Xiaodong Liu, Pengcheng He, Weizhu Chen, and Jianfeng Gao. 2019. Multi-Task Deep Neural Networks for Natural Language Understanding. In ACL. 4487–4496.
  • Lockard et al. (2018) Colin Lockard, Xin Luna Dong, Arash Einolghozati, and Prashant Shiralkar. 2018. CERES: Distantly Supervised Relation Extraction from the Semi-structured Web. PVLDB (2018), 1084–1096.
  • Mao et al. (2018) Yuning Mao, Xiang Ren, Jiaming Shen, Xiaotao Gu, and Jiawei Han. 2018.

    End-to-End Reinforcement Learning for Automatic Taxonomy Induction. In

    ACL. 2462–2472.
  • Mao et al. (2020) Yuning Mao, Tong Zhao, Andrey Kan, Chenwei Zhang, Xin Luna Dong, Christos Faloutsos, and Jiawei Han. 2020. OCTET: Online Catalog Taxonomy Enrichment with Self-Supervision. In SigKDD.
  • Nickel and Kiela (2017) Maximillian Nickel and Douwe Kiela. 2017. Poincaré embeddings for learning hierarchical representations. In NIPS. 6338–6347.
  • Papadakis et al. (2016) George Papadakis, Jonathan Svirsky, Avigdor Gal, and Themis Palpanas. 2016. Comparative analysis of approximate blocking techniques for entity resolution. Proceedings of the VLDB Endowment 9, 9 (2016), 684–695.
  • Pennington et al. (2014) Jeffrey Pennington, Richard Socher, and Christopher D. Manning. 2014. GloVe: Global Vectors for Word Representation. In EMNLP. 1532–1543.
  • Qiu et al. (2015) Disheng Qiu, Luciano Barbosa, Xin Luna Dong, Yanyan Shen, and Divesh Srivastava. 2015. Dexter: large-scale discovery and extraction of product specifications on the web. Proceedings of the VLDB Endowment 8, 13 (2015), 2194–2205.
  • Razniewski et al. (2017) Simon Razniewski, Vevake Balaraman, and Werner Nutt. 2017. Doctoral advisor or medical condition: Towards entity-specific rankings of knowledge base properties. In International Conference on Advanced Data Mining and Applications.
  • Rezk et al. (2019) Martin Rezk, Laura Alonso Alemany, Lasguido Nio, and Ted Zhang. 2019. Accurate product attribute extraction on the field. In ICDE. 1862–1873.
  • Schlichtkrull and Alonso (2016) Michael Schlichtkrull and Héctor Martínez Alonso. 2016. Msejrku at semeval-2016 task 14: Taxonomy enrichment by evidence ranking. In SemEval.
  • Shang et al. (2018) Jingbo Shang, Jialu Liu, Meng Jiang, Xiang Ren, Clare R Voss, and Jiawei Han. 2018. Automated phrase mining from massive text corpora. IEEE Transactions on Knowledge and Data Engineering 30, 10 (2018), 1825–1837.
  • Sun et al. (2018) Shengjie Sun, Dong Yang, Hongchun Zhang, Yanxu Chen, Chao Wei, Xiaonan Meng, and Yi Hu. 2018. Important Attribute Identification in Knowledge Graph. arXiv preprint arXiv:1810.05320 (2018).
  • Vaswani et al. (2017) Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Łukasz Kaiser, and Illia Polosukhin. 2017. Attention is all you need. In Advances in neural information processing systems. 5998–6008.
  • Wang et al. (2014) Jingjing Wang, Changsung Kang, Yi Chang, and Jiawei Han. 2014. A hierarchical dirichlet model for taxonomy expansion for search engines. In WWW.
  • Xu et al. (2020) Da Xu, Chuanwei Ruan, Evren Korpeoglu, Sushant Kumar, and Kannan Achan. 2020. Product Knowledge Graph Embedding for E-commerce. In Proceedings of the 13th International Conference on Web Search and Data Mining. 672–680.
  • Xu et al. (2019) Huimin Xu, Wenting Wang, Xinnian Mao, Xinyu Jiang, and Man Lan. 2019. Scaling up Open Tagging from Tens to Thousands: Comprehension Empowered Attribute Value Extraction from Product Title. In ACL. 5214–5223.
  • Zhang et al. (2019) Dongxu Zhang, Subhabrata Mukherjee, Colin Lockard, Xin Luna Dong, and Andrew McCallum. 2019. OpenKI: Integrating Open Information Extraction and Knowledge Bases with Relation Inference. arXiv preprint arXiv:1904.12606 (2019).
  • Zheng et al. (2018) Guineng Zheng, Subhabrata Mukherjee, Xin Luna Dong, and Feifei Li. 2018. OpenTag: Open Attribute Value Extraction from Product Profiles. In SigKDD.

Appendix A Examples

Here we provide example outputs produced by each of the five components (Figure 2). Taxonomy enrichment and relation discovery results are shown in Tables 1314 and 15. Next, data imputation, cleaning and synonym finding results are shown in Figure 6 and Tables 16 and 17. Finally, we also show additional evaluation results for the entire pipeline on a sample of type-attribute pairs in Table 18 (see evaluation details in Section 5).

Source Text Product Type
Product 4 Country Pasta Homemade Style Egg Pasta - 16-oz bag Egg Pasta
Product Hamburger Helper Lasagna Pasta, Four Cheese, 10.3 Ounce (Pack of 6) Lasagna Pasta
Product COFFEE MATE The Original Powder Coffee Creamer 35.3 Oz. Canister Non-dairy, Lactose Free, Gluten Free Creamer Coffee Creamer
Query mccormick paprika 8.5 ounce paprika
Query flax seeds raw flax seeds
Table 13. Examples of type extraction results.
Child Type Parent Type
Coconut flour Baking flours & meals
Tilapia Fresh fish
Fresh cut carnations Fresh cut flowers
Bock beers Lager & pilsner beers
Pinto beans Dried beans
Table 14. Examples of detected product type hypernyms.
Cereals Shampoo
brand brand
ingredients hair type
flavor number of items
number of items ingredients
energy content liquid volume
Table 15. Attributes identified as most important for two example types.
(a)
(b)
(c)
Figure 6. Examples of extracted attribute values from OpenTag and TXtract.
Product profile Attrib. Attribute value
Love of Candy Bulk Candy - Pink Mint Chocolate Lentils - 6lb Bag Flavor Pink
Scott’s Cakes Dark Chocolate Fruit & Nut Cream Filling Candies with Burgandy Foils in a 1 Pound Snowflake Box Flavor snowflake box
Lucky Baby - Baby Blanket Envelope Swaddle Winter Wrap Coral Fleece Newborn Blanket Sleeper Infant Stroller Wrap Toddlers Baby Sleeping Bag (color 1) Flavor Color 1
ASUTRA Himalayan Sea Salt Body Scrub Exfoliator + Body Brush (Vitamin C), 12 oz — Ultra Hydrating, Gentle, Moisturizing — All Natural & Organic Jojoba, Sweet Almond, Argan Oils Scent vitamin c body scrub - 12oz & body brush
Folgers Simply Smooth Ground Coffee, 2 Count (Medium Roast), 31.1 Ounce Scent 2Packages (Breakfast Blend, 31.1 oz)
Table 16. Example errors found by the cleaning model.
flavor synonyms
herb and garlic herb & garlic
macadamia nut macadamia
roasted oolong tea roasted oolong
decaffeinated honey lemon decaf honey lemon
zero carb vanilla zero cal vanilla
scent synonyms
basil (sweet) sweet basil
rose flower rose
aloe lubricant aloe lube
unscented uncented
moonlight path moonlit path
Table 17. Examples of discovered flavor and scent synonym pairs.
Scope Prec Recall Recall gain
pair-1 91.05% 70.18% 7.3X
pair-2 97.06% 19.70% 5.2X
pair-3 97.12% 36.13% 1.3X
pair-4 93.87% 37.72% 10.5X
pair-5 95.88% 25.01% 1.2X
pair-6 90.42% 87.46% 2.8X
pair-7 97.97% 55.95% 1.4X
pair-8 96.44% 87.49% 4.5X
Table 18. AutoKnow obtained an average precision of 95.0% and improved the recall by 4.3X for important categorical/binary attributes.

Appendix B Attribute Applicability and Importance

Recall that for each (product type, attribute) pair we need to identify whether the attribute applies and how important the attribute is (e.g., whether color applies to Shoes, and how important is color for Shoes). To this end, we independently train a Random Forest classifier to predict applicability and a Random Forest Regressor to predict importance scores (for applicable attributes). In both cases, we consider each (product type, attribute) pair as an instance, and we label a sample of such pairs with either applicability or importance labels (Section 3.2). Sample prediction results for attribute importance are shown in Table 15

In both models, we use the same set of features that characterize how relevant the attribute is for the given product type. The first feature is coverage, which is the proportion of products that have a non-missing attribute value. Next, a range of features are based on frequency of attribute mentions in different text sources. Consider a text source (e.g., product descriptions, reviews, etc.), and suppose that all products of the required type are indexed from to . Note that a particular product , can have several pieces of text of type (e.g., a product might have several reviews), and let denote the number of such pieces. A feature based on signal is then defined as Here if the -th piece of text of signal associated with product mentions the attribute (e.g., whether the -th review of the -th shoes mentions color), otherwise .

We consider two implementations of , and accordingly, for each we compute two features. First, if text piece contains attribute value of product (e.g., whether the review for product contains color of this product). Second, if text piece contains any common attribute value for this product type (i.e., whether the review for product contains any frequent color values among Shoes). We consider a value to be common if it is among the top 30 most frequent values within the given type. We consider several text signals (e.g., product titles, reviews, search queries, etc.) and compute features as described above. Finally, for each feature we also consider an alternative where products are weighted by popularity, and thus in total we have features.

Appendix C Taxonomy-Aware Semantic Cleaning

The cleaning model detects whether or not a triple is correct (i.e., whether is the correct value of attribute for product ) by attending to its taxonomy node and semantic signals in product profile. Let , and be the token sequences of the product description, product taxonomy, and target attribute value, respectively. We construct the input sequence by concatenating , and and inserting special tokens ”” and ”” as follows.

Figure 7. Cleaning model architecture.
(4)

where . We then map each to an embedding vector as the summation of three embedding vectors of the same dimension :

(5)

where is the pretrained FastText embedding (Vaswani et al., 2017) of , is a segment embedding vector defined as:

(6)

and is the position embedding vector of the location of in the sequence (i.e. ), for which we adopt the same constructions used in  (Vaswani et al., 2017). Here ’s and ’s are frozen (not trainable), and , , are randomly initialized and jointly trained with other model parameters.

The embedding sequence

is propagated through a multi-layer transformer model where number of layers, number of heads and hidden dimension are hyperparameters. The final embedding vector of the special token [CLS], denoted by

, captures the distilled representations of all three input sequences. It is passed through a dense layer followed by a sigmoid node to produce a single score between and , indicating the likelihood of the input triple being correct. See Figure 7 for an illustration of the model architecture.

In Table 16 we give examples of attribute value errors detected by the cleaning model.
