1 Introduction

The recent substantial progress in machine learning (ML) has led to a growing demand for hands-free ML systems that can support developers and ML novices in efficiently creating new ML applications. Since different datasets require different ML pipelines, this demand has given rise to the young area of automated machine learning (AutoML [1]). Popular AutoML systems, such as Auto-WEKA [2], hyperopt-sklearn [3] Auto-sklearn [4], TPOT [5] and



perform a combined optimization across different preprocessors, classifiers, hyperparameter settings, etc., thereby reducing the effort for users substantially.

Our work is motivated by the first and second ChaLearn AutoML challenge [7], which evaluated AutoML tools in a systematic way under rigid time and memory constraints. Concretely, the AutoML tools were required to deliver predictions in up to minutes which demands an efficient AutoML system that can quickly adapt to a dataset at hand. Performing well in such a setting would allow for an efficient development of new ML applications on-the-fly in daily business. We managed to win both challenges with Auto-sklearn [4] and PoSH Auto-sklearn [8], relying mostly on meta-learning and robust resource management.

While AutoML reliefs the user from making low-level design decisions (e.g. which model to use), AutoML itself opens a myriad of high-level design decisions (e.g. which model selection strategy to use [9]). Whereas our submissions to the AutoML challenges were mostly hand-desigend, in this work we go one step further by automating AutoML itself. Specifically, our contributions are:

  1. We explain practical details which allow Auto-sklearn to handle iterative algorithms more efficiently.

  2. We extend Auto-sklearn’s choice of model selection strategies to include ones optimized for high-throughput evaluation of ML pipelines.

  3. We introduce both the practical approach as well as the theory behind building better portfolios for the meta-learning component of Auto-sklearn.

  4. We propose a meta-learning technique based on algorithm selection to automatically choose the best AutoML-pipeline for a given dataset, further robustifying AutoML itself.

  5. We conduct a large experimental evaluation, comparing against Auto-sklearn (1.0) and benchmarking each contribution separately.

The paper is structured as follows: First, we formally describe the AutoML problem in Section 2 and then discuss the background and basis of this work, Auto-sklearn (1.0) and PoSH Auto-sklearn in Section 3. In the following four sections, we describe in detail the improvements we propose for the next generation, Auto-sklearn (2.0). For each improvement, we state the practical and theoretical motivation, mention the most closely related work (with further related work deferred to Appendix A), and discuss the methodological changes we make over Auto-sklearn (1.0). We conclude each improvement section with a preview of empirical results highlighting the benefit of each change; we defer the detailed explanation of the experimental setup to Section 8.1.

In Section 8 we first perform a large-scale ablation study, assessing the contribution of each of our contributions, before comparing our new Auto-sklearn (2.0) against several versions of Auto-sklearn (1.0). We conclude the paper with open questions, limitations and future work in Section 9.

2 Problem Statement:
Automated Machine Learning

Let be a distribution of datasets from which we can sample an individual dataset’s distribution . The AutoML problem is to generate a trained pipeline , hyper-parameterized by that automatically produces predictions for samples from the distribution minimizing the generalization error:


Since a dataset can only be observed through a set of independent observations , we can only empirically approximate the generalization error on sample data:


AutoML systems automatically search for the best :


and estimate GE, e.g., by a

-fold cross validation:


where denotes that was trained on the -th training fold . Assuming that an AutoML system can select via both, the algorithm and its hyperparameter settings, this definition using is equivalent to the definition of the CASH problem [2, 4].

2.1 Time-bounded AutoML

In practice, users are not only interested to obtain an optimal pipeline eventually, but have constraints on how much time and compute resources they are willing to invest. We denote the time it takes to evaluate as and the overall optimization budget by . Our goal is to find


where the sum is over all pipelines evaluated, explicitly honouring the optimization budget .

2.2 Generalization of AutoML

Ultimately, a well performing and robust optimization policy of an AutoML system should not only perform well on a single dataset but on the entire distribution over datasets . Therefore, the meta-problem of AutoML can be formalized as minimizing the generalization error over this distribution of datasets:


which in turn can again only be approximated by a finite set of meta-train datasets (each with a finite set of observations):


Having set up the problem statement, we can use this to further formalize our goals. We will introduce a novel system for designing from data in Section 7 and extend this to a function which automatically suggests an AutoML optimization policy for a new dataset.

3 Background on Auto-sklearn

AutoML systems following the CASH formalism are driven by a sufficiently large and flexible pipeline configuration space and an efficient method to search this space. Additionally, to speed up this procedure, information gained on other datasets can be used to kick-start or guide the search procedure (i.e. meta-learning). Finally, one can also combine the models trained during the search phase in a post-hoc ensembling step. In the following, we give details on the background of these four components, describe how we implemented them in Auto-sklearn (1.0) and how we extended them for the second ChaLearn AutoML challenge.

3.1 Configuration Space

Analogously to Auto-WEKA [2], AutoKeras [6] and


 [10], Auto-sklearn is also built around an existing ML library, namely scikit-learn [11]

, forming the backbone of our system. The configuration space allows ML pipelines consisting of three steps: data preprocessing, feature preprocessing and an estimator. A pipeline can consist of multiple data preprocessing steps (e.g., imputing missing data and normalizing data), one feature preprocessing step (e.g., a principal component analysis) and one estimator (e.g., gradient boosting). Our configuration space is hierarchically organized in a tree-structure and contains continuous (e.g., the learning rate), categorical (e.g., type of estimator) and conditional hyperparameters (e.g., the learning rate of a estimator). For classification, the space of possible ML pipelines currently spans across

classifiers, feature preprocessing methods and numerous data preprocessing methods, adding up to hyperparameters for the latest release.111We used software version , however, we note that the software version does not align with the method version.

3.2 Bayesian Optimization (BO)

BO [12] is the driving force of Auto-sklearn. It is an optimization procedure specially designed toward sample efficiency where the evaluation time of configurations dominates the search procedure. BO is based on two mechanisms: 1) Fitting a probabilistic model mapping hyperparameters to their loss value and 2) optimizing an acquisition function to choose the next hyperparameter setting to evaluate. BO iterates these two steps and evaluates the selected setting. A common choice for the internal model are Gaussian process models [13], which perform best in low-dimensional problems with continuous hyperparameters. For Auto-sklearn

we use random forests

[14], since they have been shown to perform well for high-dimensional and structured optimization problems, like the CASH problem [15, 2].

3.3 Meta-Learning

AutoML systems often solve similar problems over and over again while starting from scratch for every task. Meta-learning techniques can exploit experience gained on previous optimization tasks and equip the optimization process with this knowledge. For Auto-sklearn (1.0), we used a case-based reasoning system [16, 17], dubbed -nearest datasets (KND). For a new dataset, this procedure warmstarts BO with the best known ML pipelines found on the nearest datasets, where the distance between datasets is defined as the distance on meta-features describing these datasets. Meta-learning for efficient AutoML is an active area of research and we refer to a recent literature review [18].

3.4 Ensembles

While searching for the best ML pipeline, AutoML systems train numerous such ML pipelines, but would traditionally only use the single best one. An easy remedy is to combine these post-hoc into an ensemble to further improve performance and reduce overfitting [19, 4]. Auto-sklearn uses ensemble selection [20]

to continuously output ensembles during the training process. Ensemble selection greedily adds ML pipelines to an ensemble to minimize the error and can therefore be used with any loss function without adapting the training procedure of the base models or the hyperparameter optimization.

3.5 Second AutoML Challenge

The goal of the challenge was to design an AutoML system that, without any human intervention, operates under strict time and memory limits on unknown binary classification datasets on the Codalab platform [7]. A submission had between seconds, 2 CPUs and 16GB memory to produce predictions that were evaluated and ranked according to area under the curve and the submission with the best average rank won the competition – a predecessor of Auto-sklearn (2.0) which we dubbed PoSH Auto-sklearn, short for Portfolio and Successive Halving [8]. Our main changes with respect to Auto-sklearn (1.0) were the usage of successive halving instead of regular holdout to evaluate more machine learning pipelines, a reduced search space to complement successive halving by mostly containing iterative models, and a static portfolio instead of the KND technique to avoid the computation of meta-features. Our work picks up on the ideas of PoSH Auto-sklearn, describes them in more detail and provides a thorough evaluation while also presenting a novel approach to AutoML which was motivated by the manual design decisions we had to make for the competition.

4 Improvement 0: Practical Considerations

The performance of an AutoML system not only relies on efficient hyperparameter optimization and model selection strategies, but also on practical considerations. Here, we will describe design decisions we applied for all further experiments since they in general improve performance.

4.1 Early Stopping and Retrieving Intermittent Results

Estimating the generalization error of a pipeline practically requires to restrict the CPU-time per evaluation to prevent that one single, very long algorithm run stalls the optimization procedure [2, 4]

. If an algorithm run exceeds the assigned time limit, it is terminated and the worst possible generalization error is assigned. If the time limit is set too low, a majority of the algorithms do not return a result and thus provide very scarce information for the optimization procedure. A too high time limit, however, might as well not return any meaningful results since all time may be spent on long-running, under-performing pipelines. To mitigate this risk, for algorithms that can be trained iteratively (e.g., gradient boosting and linear models trained with stochastic gradient descent) we implemented two measures. Firstly, we allow a pipeline to stop training based on a heuristic at any time, i.e. early stopping, which prevents overfitting. Secondly, we make use of intermittent results retrieval, e.g., saving the results at checkpoints spaced at geometrically increasing iteration numbers, thereby ensuring that every evaluation returns a performance and thus yields information for the optimizer. With this, our AutoML tool can robustly tackle large datasets without the necessity to finetune the number of iterations dependent on the time limit.

4.2 Search Space

The first search space of Auto-sklearn consisted of hyperparameters, whereas the latest release has grown to even hyperparameters. Current hyperparameter optimization algorithms can cope with such spaces, given enough time, but, in this work, we consider a heavily time-bounded setting. Therefore, we reduced our space to hyperparameters only including iterative models to benefit from the early stopping and intermittent results retrieval.

4.3 Preview of Experimental Results

Fig. 1: Balanced error rate over time. We report aggregated results across datasets and repetitions for different settings of our AutoML system using holdout as the model selection strategy. The solid line aggregates across all datasets and the dotted (dashed) line aggregates across the smallest (largest) datasets. Left: Comparing with intermittent results retrieval (IRR) and without. Right: Comparing different search spaces.

4.3.1 Do we need intermittent results retrieval?

Ideally, we want all iterative algorithms to converge on a dataset, i.e. allow them to run for as many iterations as required until the early-stopping mechanism terminates training. However, on large datasets this might be infeasible, so one would need to carefully set the number of iterations such that the algorithm terminates within the given time-limit or tune the number of iterations as part of the configuration space. The left plot in Figure 1 shows the substantial improvement of intermittent results retrieval. While the impact on small datasets is negligible (dotted line), on large datasets this is crucial (dashed line).

4.3.2 Do we need the full search space?

The larger the search space, the greater the flexibility to adapt a method to a new dataset. However, a strict time-limit might prohibit a thorough search in a large search space. Therefore, we studied two pruned versions of our search space: 1) reducing the classifier space to only contain models that can be fitted iteratively and 2) further reduce the preprocessing space to only contain necessary preprocessing steps, such as imputation of missing values and one-hot-encoding of categorical values.

Focusing on a subset of classifiers that always return a result reduces the chance of wasteful timeouts which motivates the first point. This subset mostly contains tree-based methods, which often inherently contain forms of feature selection which lead us to the second point above. In Figure

1, we compare our AutoML system using different configuration spaces. Again, we see that the impact of this decision is most evident on large datasets. We provide the reduced search space in Appendix C.

5 Improvement 1: Model Selection strategy

A key component of any efficient AutoML system is its model selection strategy, which addresses the two following problems: 1) how to approximate the generalization error of a single ML pipeline and 2) how many resources to allocate for each pipeline evaluation. In this section, we discuss different combinations of these to increase the flexibility of Auto-sklearn (2.0) for different use cases.

5.1 Assessing the Performance of a Model

Given a training set , the goal is to best approximate the generalization error to 1) provide a precise signal for the optimization procedure and 2) based on this to select in the end. We usually compute the validation loss, which is obtained by splitting the training data into into two smaller, disjoint sets and , by following the common train-validation-test protocol [21, 22]. The two most common ways to assess the performance of a model are holdout and the K-fold cross-validation [23, 24, 25, 9, 26, 22]. We expect the holdout strategy to be a better choice for large datasets where the holdout set is representative of the test set, and where it is computationally wasteful to apply cross-validation. Consequently, we expect cross-validation to yield the best results for small datasets, where its computational overhead does not play a role, and where only the use of all available samples can result in a reliable estimate of the generalization error.222Different model selection strategies could be ignored from an optimization point of view, where the goal is to optimize performance given a loss function, as is often done in the research fields of meta-learning and hyperparameter optimization. However, for AutoML systems this is highly relevant as we are not interested in the optimization performance (of some subpart) of these systems, but the final generalization performance when applied to new data.

5.2 Allocating Resources to Choose the Best Model

Considering that the available resources are limited, it is important to trade off the time spent assessing the performance of each ML pipeline versus the number of pipelines to evaluate. Currently, Auto-sklearn (1.0) implements a conceptually simple approach and evaluates each pipeline under the same resource limitations and on the same budget (e.g., number of iterations using iterative algorithms). The recent bandit strategy successive halving (SH) [27, 28] employs the concept of assigning higher budgets

to more promising pipelines when evaluating them; the budgets can, e.g., be the number of iterations in gradient boosting, the number of epochs in neural networks or the number of data points. Given a minimal and maximal budget per ML pipeline, SH starts by training a fixed number of ML pipelines for the smallest budget. Then, it iteratively selects

of the pipelines with lowest generalization error, multiplies their budget by , and re-evaluates. This process is continued until only a single ML pipeline is left or the maximal budget is spent.

While SH itself uses random search to propose new pipelines , we follow recent work combining SH with BO [29]. BO iteratively suggests new ML pipelines , which we evaluate on the lowest budget until a fixed number of pipelines has been evaluated. Then, we run SH as described above. We build the model for BO on the highest available budget where we have observed the performance of pipelines.

SH potentially provides large speedups, but it could also too aggressively cut away good configurations that need a higher budget to perform best. Thus, we expect SH to work best for large datasets, for which there is not enough time to train many ML pipelines for the full budget, but for which training a ML pipeline on a small budget already yields a good indication of the generalization error.

5.3 Preview of Experimental Results

Choosing the correct evaluation strategy not only depends on the characteristics of the dataset at hand, but also on the given time-limit. While there exist general recommendations, we observed in practice that this is a crucial design decision that drastically impacts performance. To highlight this effect, in Figure 2 we show exemplary results comparing holdout, 3CV, 5CV, 10CV with and without SH on different optimization budgets and datasets. We give details on the SH hyperparameters in Appendix C.

The top row shows results obtained using the same optimization budget of 10 minutes on two different datasets. While holdout without SH is best on dataset robert (top left) the same strategy performs worst on dataset fabert (top right). Also, on robert, SH performs slightly worse in contrast to fabert, where SH performs better on average. The bottom rows shows how the given time-limit impacts the performance. Using a quite restrictive optimization budget of 10 minutes (bottom left), SH with holdout, which aggressively cuts ML pipelines on lower budgets, performs best on average. With a higher optimization budget (bottom right), the overall results improve, but holdout is also no longer the best option and 3CV performs best.

Fig. 2: Final performance for BO using different model selection strategies averaged across repetitions. Top row: Results for an optimization budget of minutes on two different datasets. Bottom row: Results for an optimization budget of and minutes on the same dataset.

6 Improvement 2: Portfolio Building

Finding the optimal solution to the optimization problem from Eq. (5) requires to search a large space of possible solutions as efficiently as possible. BO is built to work under exactly these conditions, however, it starts from scratch for every new problem. A better solution would be to warmstart BO with ML pipelines that are expected to work well, such as KND described in Section 3.3. However, we found this solution to introduce new problems: First, it is time consuming since it requires to compute meta-features describing a new dataset, where good meta-features are often quite expensive to compute. Second, it adds complexity to the system as the computation of the meta-features must also be done with a time and memory limit. Third, a lot of meta-features are not defined with respect to categorical data and missing values, making them hard to apply for most datasets. Fourth, it is not immediately clear which meta-features work best for which problem. Fifth, in the KND approach mentioned in Section 3.3, there is no mechanism to guarantee that we do not execute redundant ML pipelines. Therefore, here we propose a meta-feature-free approach which does not warmstart with a set of configurations specific to a new dataset, but which uses a portfolio – a set of complementary configurations that covers as many diverse datasets as possible and minimizes the risk of failure when facing a new task.

Portfolios were introduced for hard combinatorial optimization problems, where the runtime between different algorithms varies drastically and allocating time shares to multiple algorithms instead of allocating all available time to a single one reduces the average cost for solving a problem

[30, 31]. Algorithm portfolios were introduced to ML with the goal of reducing the required time to perform model selection compared to running all ML pipelines under consideration [32, 33, 34]. Portfolios of ML pipelines can be superior to BO for hyperparameter optimization [35] or BO with a model that takes past performance data into account [36]. They can also be applied when there is simply no time to perform full hyperparameter optimization [8] which is our main motivation.

6.1 Approach

To improve the efficiency of Auto-sklearn (2.0) in its early phase and to obtain results if there is no time for thorough hyperparameter optimization, we build a portfolio consisting of high-performing and complementary ML pipelines to perform well on as many datasets as possible. All pipelines in the portfolio are simply evaluated one after the other instead of an initial design or pipelines proposed by a global optimization algorithm.

We outline the proposed process in Algorithm 1, which is motivated by the Hydra algorithm [37, 38]. First, we initialize our portfolio to the empty set (Line 2). Then, we repeat the following procedure until reaches a pre-defined limit: from a set of candidate ML pipelines , we greedily add a candidate to that reduces the estimated generalization error over all meta-train datasets most (Line 4), and then remove the from (Line 5).

We define the estimated generalization error of across all meta-train datasets as


which is the estimated generalization error of selecting the ML pipeline according to the model selection strategy , where is a function which trains different , compares them with respect to their estimated generalization error and returns the best one as described in the previous section, see Appendix B for further details.

1:  Input: Set of candidate ML pipelines , , maximal portfolio size , model selection strategy 2:   3:  while  do 4:      5:      6:  end while 7:  return  Portfolio
Algorithm 1 Greedy Portfolio Building

In contrast to Hydra, we first run BO on each meta-dataset and use the best found solution as a candidate. Then, we evaluate each of these candidates on each meta-train dataset in to obtain a performance matrix which we use as a lookup table to construct the portfolio. To build a portfolio across datasets, we need to take into account that the generalization errors for different datasets live on different scales [39]. Thus, before taking averages, we transform them to the simple regret scaled between zero and one for each dataset [36, 40]. We compute the statistics for zero-one scaling by taking the results of all model selection strategies into account (i.e., we use the lowest observed test loss and the largest observed test loss for each meta-train dataset).

For each meta-train dataset , as mentioned before, we split the training set into two smaller disjoint sets and . We usually train models using , use to choose a ML pipeline from the portfolio by means of the model selection strategy, and judge the portfolio quality by the generalization loss of on . However, if we instead select the ML pipeline on the test set , we obtain a submodular algorithm which we detail in Section 6.2. Therefore, we follow this approach in practice, but we emphasize that this only affects the offline phase; for a new dataset, our algorithm of course does not access the test set.

6.2 Theoretical Properties of the Greedy Algorithm

Besides the already mentioned practical advantages of the proposed greedy algorithm, the worst-case performance of the portfolio is even bounded.

Proposition 1

Minimizing the test loss of a portfolio on a set of datasets , when choosing a ML pipeline from for using holdout or cross-validation based on its performance on , is equivalent to the sensor placement problem for minimizing detection time [41].

We detail this equivalence in Appendix B. Thereby, we can apply existing results for the sensor placement problem to our problem and can conclude that the greedy portfolio building algorithm choosing on proposed in Section 6.1 is submodular and monotone. Using the test set of the meta-train datasets to construct a portfolio is perfectly fine as long as we do not use the meta-test datasets .

This finding has several important implications. First, we can directly apply the proof from Krause et al. [41] that the so-called penalty function (maximum estimated generalization error minus the observed estimated generalization error) is submodular and monotone to our problem setup. Since linear combinations of submodular functions are also submodular [42], the penalty function for all meta-train datasets is also submodular. Second, we know that the problem of finding an optimal portfolio is NP-hard [43, 41]. Third, the reduction of regret achieved by the greedy algorithm is at least , meaning that we reduce our regret to at most 37% of what the best possible portfolio would achieve [43, 42]. A generalization of this result given by Krause and Golovin [42] also allows to reduce the regret to 1% of what the best possible portfolio of size would achieve by extending the portfolio to size . This means that we can find a close-to-optimal portfolio on the meta-train datasets . Under the assumption that we apply the portfolio to datasets from the same distribution of datasets, we have a strong set of default ML pipelines. Fourth, we can apply other strategies for the sensor set placement in our problem setting, such as mixed integer programming strategies; however, these do not scale to portfolio sizes of a dozen ML pipelines [41]. The same proof and consequences apply if we select a ML pipeline based on an intermediate step in a learning curve or use cross-validation instead of holdout. We describe the properties of the greedy algorithm when using SH, and when choosing an algorithm on the validation set in Appendix B.

6.3 Preview of Experimental Results

We introduced the portfolio-based warmstarting to avoid computing meta-features for a new dataset. However, the portfolios work inherently differently. While KND aimed at using only well performing configurations, a portfolio is built such that there is at least one configuration that works well, which also provides a different form of initial design for BO. Here, we study the performance of the learned portfolio and compare it against Auto-sklearn (1.0)’s default meta-learning strategy using configurations. Additionally, we also study how pure BO would perform. We give results in Table I. For the new AutoML-hyperparameter we chose to allow two full iterations of SH with our hyperparameter setting of SH. Unsurprisingly, warmstarting improves the performance on all datasets, often by a large margin. Although the KND approach mostly does not perform statistically worse, the portfolio approach achieves a better average performance while being conceptually simpler and theoretically motivated.

10 minutes 60 minutes
Holdout 4.31 3.40 3.48 2.95 2.84 2.76
SH, Holdout 4.01 3.51 3.43 2.91 2.74 2.66
3CV 6.82 5.87 5.78 5.39 5.17 5.20
SH, 3CV 6.50 6.00 5.76 5.43 5.21 4.97
5CV 9.73 8.66 9.12 7.83 7.46 7.62
SH, 5CV 9.58 8.43 8.93 7.85 7.43 7.41
10CV 17.37 15.82 15.70 16.15 15.07 17.23
SH, 10CV 16.79 15.72 15.65 15.74 14.98 15.25
TABLE I: Averaged normalized balanced error rate. We report the aggregated performance across repetitions and datasets of our AutoML system using only Bayesian optimization (BO), or BO warmstarted with k-nearest-datasets (KND) or a greedy portfolio (Port)). We boldface the best mean value (per model selection strategy and optimization budget, and underline results that are not statistically different according to a Wilcoxon-signed-rank Test ().

7 Improvement 3: Automated Policy Selection

The goal of AutoML is to yield state-of-the-art performance without requiring the user to make low-level decisions, e.g., which model and hyperparameter configurations to apply. However, some high-level design decisions remain and thus AutoML systems suffer from a similar problem as they are trying to solve. We consider the case, where an AutoML system can be run with different optimization policies (e.g., model selection strategies) and study how to further automate AutoML using algorithm selection. In practice, we extend the formulation introduced in Eq. 7 to not contain a fixed policy , but to contain a selector :


In the remainder of this section, we describe how to construct such a selector.

Fig. 3: Schematic overview of the proposed Auto-sklearn (2.0) system with the training phase above and the test phase below the dashed line. Rounded boxes refer to computational steps while rectangular boxes output data.

7.1 Design Decisions in AutoML

Optimization strategies in AutoML itself are often heavily hyper-parameterized. In our case, we deem the model selection strategy (see Section 5) as the most important design decision of an AutoML system. This decision depends on both the given dataset and the available resources. As there is also an interaction between the model selection strategy and the optimal portfolio , we consider here that the optimization policy is parameterized by a combination of model selection strategy and a portfolio optimized for this strategy: .

7.2 Automated Algorithm Selection of AutoML-Policies

We introduce a new layer on top of AutoML systems that automatically selects a policy for a new dataset. We show an overview of this system in Figure 3 which consists of a training (TR1–TR6) and a testing stage (TE1–TE4). In brief, in training steps TR1–TR3, we obtain a performance matrix of size , where is a set of candidate ML pipelines, and is the number of representative meta-train datasets. This matrix is used to build policies in training step TR4, e.g., including portfolios greedily built, see Section 6. In steps TR5 and TR6, we compute meta-features and use them to train a selector which will be used in the online test phase.

For a new dataset , we first compute meta-features describing (TE1) and use the selector from step TR6 to automatically select an appropriate policy for based on the meta-features (TE2). This will relieve users from making this decision on their own. Given a policy, we then apply the AutoML system using this policy to (TE3). Finally, we return the best found pipeline based on the training set of (TE4.1). Optionally, we can then compute the loss of on the test set of (TE4.2); we emphasize that this would be the only time we ever access the test set of .

7.2.1 Meta-Features

To train our selector and to select a policy, we use meta-features [44, 18] describing all meta-train datasets (TR4) and new datasets (TE1). To avoid the problems discussed in Section 6 we only use very simple and robust meta-features, which can be reliably computed in linear time for every dataset: 1) the number of data points, 2) the number of features and 3) the number of classes. In our experiments we will show that even with only these trivial and cheap meta-features we can substantially improve over a static policy.

7.2.2 Constructing the Selector

To construct the meta selection model (TR6), we follow the selector design of HydraMIP [45]: for each pair of AutoML policies, we fit a random forest to predict whether policy outperforms policy given the current dataset’s meta-features. Since the misclassification loss depends on the difference of the losses of the two policies (i.e. the regret when choosing the wrong policy), we weight each meta-observation by their loss difference. To make errors comparable across different datasets [39], we scale the individual error values for each dataset across all policies to be between zero and one wrt the minimal and maximal observed loss. At test time (TE2), we query all pairwise models for the given meta-features, and use voting to choose a policy . We will refer to this strategy as Selector.

To obtain an estimate of the generalization error of a policy on a dataset we run the proposed AutoML system. In order to not overestimate the performance of on a dataset , dataset must not be part of the meta-data for constructing the portfolio. To overcome this issue, we perform an inner 5-fold cross-validation and build each on four fifths of the datasets and evaluate it on the final fifth of training datasets. As we have access to the performance matrix we introduced in the previous section, constructing these additional portfolios for cross-validation comes at little cost.

To improve the performance of the selection system, we applied random search to optimize the selector’s hyperparameters (its random forest’s hyperparameters) [46] to minimize the error of the selector computed on out-of-bag samples [47]. Hyperparameters are shared between all pairwise models to avoid factorial growth of the number of hyperparameters with the number of new model selection strategies.

7.2.3 Backup strategy

Since our selector may not extrapolate well to datasets outside of the meta-datasets, we use a fallback measure to avoid failures due to the fact that random forests struggle to extrapolate well. Such failures can be harmful if a new dataset is much larger than any dataset in the meta-dataset and the selector proposes to use a policy that would time out without any solution. More specifically, if there is no dataset in the meta-train datasets that has higher or equal values for each meta-feature (i.e. dominates the dataset meta-features), our system falls back to use holdout with SH.

7.3 Preview of Experimental Results

To study the performance of the selector, we compare three different selector strategies: 1) a random policy for each dataset and each repetition (Random), 2) the policy that is best on average wrt balanced error rate for each repetition with 5-fold cross-validation on meta-train (Single Best), 3) our trained selector (Selector) and 4) the optimal policy (Oracle), which marks the lowest possible error that can theoretically be achieved by a policy.333Also the oracle performance is not necessarily zero, because even evaluating the best policy on a dataset can exhibit overfitting compared to the single best model we use to normalize data.

In Table II

we report quantitative results for short (10 minutes) and long (60 minutes) optimization budgets. As expected, the random strategy performs worst and also yields the highest variance across repetitions. Choosing the policy that is best on average performs substantially better, but still worse than using a selector.

When turning to the ranking shown in Figure 4, we observe that the random policy is competitive with the single best policy (in contrast to the results shown in Table II). This is due to the fact that some policies, especially cross-validation with a high number of folds, fail to produce results on a few datasets and thus get the worst possible error, but work best on the majority of other, smaller datasets. The random strategy can select these policies and therefore achieves a similar rank as the single best policy. In contrast, our proposed selection approach does not suffer from this issue and outperforms both baseline methods after the first few minutes.

10min 60min
Selector 3.09 2.66
Single Best 4.84
10min 60min

Averaged normalized balanced error rate. We report the aggregated performance and standard deviation across

repetitions and datasets of our AutoML system using different selectors and the optimal Oracle performance. We boldface the best mean value (per optimization budget), and underline results that are not statistically different according to a Wilcoxon-signed-rank test (). We report the average standard deviation across repetitions of the experiment.

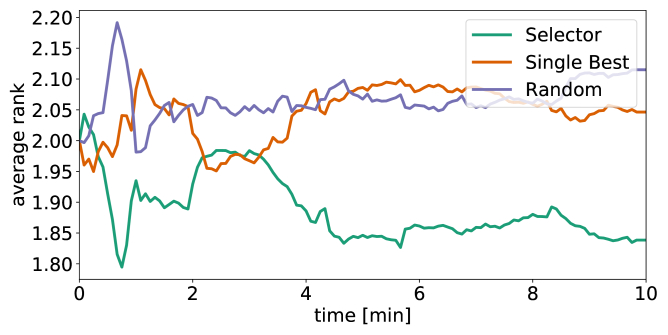

Fig. 4: Average rank over time. We report the averaged rank over time across datasets and repetitions of our AutoML system using three different ways to select an AutoML policy.

8 Evaluation

To thoroughly assess the impact of our proposed improvements, we now study the performance of Auto-sklearn (2.0) and compare it to ablated variants of itself and Auto-sklearn (1.0). We first describe the experimental setup in Section 8.1, conduct a large-scale ablation study in Section 8.2 and then compare Auto-sklearn (2.0) against different versions of Auto-sklearn (1.0) in Section 8.3.

8.1 Experimental Setup

So far, AutoML systems were designed without any optimization budget or with a single, fixed optimization budget in mind (see Equation 5).444The OBOE AutoML system [48] is a potential exception that takes the optimization budget into consideration, but the experiments in [48] were only conducted for a single optimization budget, not demonstrating that the system adapts itself to multiple optimization budgets. Our system takes the optimization budget into account when constructing the portfolio. When choosing an AutoML system using meta-learning, we select a strategy and a portfolio based on both the optimization budget and the dataset meta-features. We will study two optimization budgets: a short, 10 minute optimization budget and a long, 60 minute optimization budget as in the original Auto-sklearn paper. To have a single metric for binary classification, multiclass classification and unbalanced datasets, we report the balanced error rate (), following the 1 AutoML challenge [7]

. As different datasets can live on different scales, we apply a linear transformation to obtain comparable values. Concretely, we obtain the minimal and maximal error obtained by executing

Auto-sklearn (2.0) without portfolios and ensembles, but with all available model selection strategies per dataset, and rescale by subtracting the minimal error and dividing by the difference between the maximal and minimal error [40]. With this transformation, we obtain a normalized error which can be interpreted as the regret of our method.

As discussed in Section 4, we also limit the time and memory for each machine learning pipeline. For the time limit we allow for at most of the optimization budget, while for the memory we allow the pipeline 4GB before forcefully terminating the execution.

8.1.1 Datasets

We require two disjoint sets of datasets for our setup: (i) , on which we build portfolios and our selector and (ii) , on which we evaluate our method. The distribution of both sets ideally spans a wide variety of problem domains and dataset characteristics. For , we rely on datasets selected for the AutoML benchmark proposed in [49], which consists of datasets for comparing classifiers [50] and datasets from the AutoML challenges [7].

We collected the meta-train datasets based on OpenML [51] using the OpenML-Python API [52]. To obtain a representative set, we considered all datasets on OpenML with more than and less than samples with at least two attributes. Next, we dropped all datasets that are sparse, contain time attributes or string type attributes as the does not contain any such datasets. Then, we automatically dropped synthetic datasets and subsampled clusters of highly similar datasets. Finally, we manually checked for overlap with and ended up with a total of training datasets and used them to design our method.

We show the distribution of the datasets in Figure 5. Green points refer to and orange crosses to . We can see that spans the underlying distribution of quite well, but that there are several datasets which are outside of the distribution, which are marked with a black cross and for which our AutoML system selected a backup strategy (see Section 7.2.3). We give the full list of datasets for and in Appendix D.

Fig. 5: Distribution of meta and test datasets. We visualize each dataset w.r.t. its metafeatures and highlight the datasets that lie outside our meta distribution; for these, we apply a backup strategy.

For all datasets we use a single holdout test set of which is defined by the corresponding OpenML task. The remaining are the training data of our AutoML systems, which handle further splits for model selection themselves based on the chosen model selection strategy.

8.1.2 Meta-data Generation

For each optimization budget we created four performance matrices, see Section 6. Each matrix refers to one way of assessing the generalization error of a model: holdout, 3-fold CV, 5-fold CV or 10-fold CV. To obtain each matrix, we did the following. For each dataset in , we used combined algorithm selection and hyperparameter optimization to find a customized ML pipeline. In practice, we ran SMAC [15, 53] three times for the prescribed optimization budget and picked the best resulting ML pipeline on the test split of . Then, we ran the cross-product of all ML pipelines and datasets to obtain the performance matrix.

8.1.3 Other Experimental Details

We always report results averaged across

repetitions to account for randomness and report the mean and standard deviation over these repetitions. To check whether performance differences are significant, where possible, we ran the Wilcoxon signed rank test as a statistical hypothesis test with

 [54]. In addition, we plot the average rank as follows. For each dataset, we draw one run per method (out of 10 repetitions) and rank these draws according to performance, using the average rank in case of ties. We repeat this sampling times to obtain the average rank on a dataset, before averaging these into the total average.

We conducted all previous results without ensemble selection to focus on the individual improvements. From now on, all results include ensemble selection (and we construct ensembles of size with replacement).

All experiments were conducted on a compute cluster with machines equipped with 2 Intel Xeon Gold 6242 CPUs with 2.8GHz (32 cores) and 128 GB RAM, running Ubuntu 18.04.3. We provide scripts for reproducing all our experimental results at and we provide an implementation within Auto-sklearn at

8.2 Ablation Study

Now, we study the contribution of each of our improvements in an ablation study. We iteratively disable one component and compare the performance to the full system. These components are (1) using only a subset of the model selection strategies, (2) warmstarting BO with a portfolio and (3) using a selector to choose a model selection strategy.

8.2.1 Do we need different model selection strategies?

10 Min 60 Min
std std
All selector 2.27 0.16 1.88 0.12
random 6.04 1.93 5.49 1.85
oracle 1.15 0.07 0.92 0.05
Only Holdout selector 2.61 0.12 2.22 0.18
random 2.67 0.12 2.22 0.13
oracle 2.20 0.09 1.83 0.13
Only CV selector 4.76 0.12 4.36 0.06
random 7.08 0.76 6.35 0.88
oracle 3.91 0.03 3.64 0.07
Full budget selector 2.26 0.13 1.85 0.13
random 6.17 1.50 5.59 1.51
oracle 1.52 0.05 1.12 0.07
Only SH selector 2.26 0.15 1.80 0.09
random 5.31 2.01 4.70 1.92
oracle 1.39 0.09 1.11 0.07
TABLE III: Final performance (averaged normalized balanced error rate) for the full system and when not considering all model selection strategies.

We now examine whether we need the different model selection strategies discussed in Section 5. For this, we build selectors on different subsets of the available model selection strategies: Only Holdout consists of holdout with and without SH; Only CV comprises 3-fold CV, 5-fold CV and 10-fold CV, all of them with and without SH; Full budget contains both holdout and cross-validation and assigns each pipeline evaluation the same budget; while Only SH uses successive halving to assign budgets.

In Table III, the performance of the oracle selector shows how good a set of model selection strategies could be if we could build a perfect selector. It turns out that both Only Holdout and Only CV have a much worse oracle performance than All, with the oracle performance of Only CV being even worse than the performance of the learned selector for All. Looking at the two budget allocation strategies, it turns out that using either of them alone (Full budget or Only SH) would be slightly preferable in terms of performance with a selector. However, the oracle performance of both is worse than that of All which shows that there is some complementarity in them which cannot yet be exploited by the selector.

While these results question the usefulness of choosing from all model selection strategies, we believe this points to the research question whether we can learn on the meta-train datasets which model selection strategies to include in the set of strategies to choose from. Also, with an ever-growing availability of meta-train datasets and continued research on robust selectors, we expect this flexibility to eventually yield improved performance.

8.2.2 Do we need portfolios?

Now we study the impact of the portfolio. For this study, we completely remove the portfolio from our AutoML system, meaning that we only run BO and construct ensembles – both for creating the data we train our selector on and for reporting performance. We compare this reduced system against full Auto-sklearn (2.0) in Table IV.

Comparing the performance of the AutoML system with and without portfolios (column 1 and 3), there is a clear drop in performance showing the benefit of using portfolios in our system. To demonstrate that the selector indeed helps and we do not only measure the impact of warmstarting with a portfolio, we also show the performance of the single best selector (columns 2 and 4), which is always worse than our learned selector.

Portfolio No portfolio
min Selector Single best Selector Single best
mean 1.88
TABLE IV: Final performance (averaged normalized balanced error rate) after minutes for the full system on the left-hand side (Auto-sklearn (2.0), including portfolios, BO and ensembles) and without portfolios on the right-hand side (Auto-sklearn (2.0), only including BO and ensembles). We boldface the best mean value (per optimization budget) and underline results that are not statistically different according to a Wilcoxon-signed-rank Test ().

8.2.3 Do we need selection at all?

Next, we examine how much performance we gain by having a selector to decide between different AutoML strategies based on meta-features and how to construct this selector. We compare the performance of the full system using a learned selector to using (1) a single, static learned strategy (single best) and (2) the selector without a fallback mechanism for out-of-distribution datasets. As a baseline, we provide results for a random selector and the oracle selector; we give all results in Table V. All results show the performance of using a portfolio and then running BO and building ensembles for the remaining time.

An important metric in the field of algorithm selection is how much of the gap between the single best and the oracle performance one can close. We see that indeed the selector described in Section 7 is able to close most of this gap, demonstrating that there is value in using three simple meta-features to decide on the model selection strategy.

To study how much resources we need to spend on generating training data for our selector, we consider three approaches: (P) only using the portfolio performance, (P+BO) actually running the portfolio and BO for and minutes, respectively, and (P+BO+E) additionally also constructing ensembles, which yield the most correct meta-data. Running BO on all 209 datasets (P+BO) is by far more expensive than the table lookups (P); building an ensemble (P+BO+E) adds only several seconds to minutes on top compared to (P+BO).

For both optimization budgets using P+BO+E yields the best results using the selector closely followed by P+BO, see Table V. The cheapest method, P, yields the worst results showing that it is worth to invest resources into computing good meta-data. Looking at the single best, surprisingly, performance gets worse when using seemingly better meta-data. This is due to a few selection strategies failing on large datasets: When only looking at portfolios, the robust holdout strategy is selected as the single best model selection strategy. However, when also considering BO, there is a greater risk to overfit and thus a crossvalidation variant performs best on average on the meta-datasets; unfortunately this variant fails on some test datasets due to violating resource limitations. For such cases our fallback mechanism is quite important.

10 Min 60 Min
trained on P P+BO P+BO+E P P+BO P+BO+E
single best
selector 2.27 1.88
selector w/o fallback
TABLE V: Final performance (averaged normalized balanced error rate) for and minutes. We report the theoretical best results (oracle) and results for a random selector as baselines. The second part of the table shows the performance for the single best selector and the learned dynamic selector when trained on different data obtained on (P = Portfolio, BO = Bayesian Optimization, E = Ensemble) as well as the learned selector without the fallback. We boldface the best mean value (per optimization budget) and underline results that are not statistically different according to a Wilcoxon-signed-rank Test ().

Finally, we also take a closer look at the impact of the fallback mechanism to verify that our improvements are not solely due to this component. We observe that the performance drops for five out of six of the selectors when we not include this fallback mechanism, but that the selector still outperforms the single best. The rather stark performance degradation compared to the regular selector can mostly be explained by a few, huge dataset. Based on these observations we suggest research into an adaptive fallback strategy which can change the model selection strategy during the execution of the AutoML system so that a selector can be used on out-of-distribution datasets. We conclude that using a selector is very beneficial, and using a fallback strategy to cope with out-of-distribution datasets can substantially improve performance.

8.3 Auto-sklearn (1.0) vs. Auto-sklearn (2.0)

Fig. 6: Performance over time. We report the normalized BER and the rank over time averaged across repetitions and datasets comparing our system to our previous AutoML systems.
std std
(1) Auto-sklearn (2.0) 2.27 0.16 1.88 0.12
(2) Auto-sklearn (1.0) 11.76 0.09 8.59 0.13
(3) Auto-sklearn (1.0), no KND 7.68 0.72 3.31 0.34
(4) Auto-sklearn (1.0), RS 7.56 1.77 3.79 0.86
(5) Auto-sklearn (1.0), only iterative 11.82 0.10 7.29 0.14
(6) Auto-sklearn (1.0), no KND, only iterative 7.89 0.71 4.04 1.00
(7) Auto-sklearn (1.0), RS, only iterative 8.06 0.93 3.81 0.65
TABLE VI: Final performance of Auto-sklearn (2.0) and Auto-sklearn (1.0). We report the normalized balanced error rate averaged across repetitions on datasets. We compare our final system (1) to the previous version downloaded as is using BO and KND on the full search space (2) (the reduced search space (5)), using only BO and no KND on the full search space (3) (the reduced search space (6)) and using only random search on the full space (4) (the reduced search space (7)). We boldface the best mean value (per optimization budget) and underline results that are not statistically different according to a Wilcoxon-signed-rank Test ()

In this section, we demonstrate the superior performance of Auto-sklearn (2.0) against the previous version, Auto-sklearn (1.0). In Table VI and Figure 6 we compare the performance of Auto-sklearn (2.0) to six different setups of Auto-sklearn (1.0), including the full and the reduced search space, using only BO without KND, and using random search.

Looking at the first two rows in Table VI, we see that Auto-sklearn (2.0) achieves the lowest error for both optimization budgets, being significantly better for the minute setting. Most notably, Auto-sklearn (2.0) reduces the relative error by (10m) and , respectively, which means a reduction by a factor of five. The large difference between Auto-sklearn (1.0) and Auto-sklearn (2.0) is mainly a result of Auto-sklearn (2.0) being very robust by avoiding ML pipelines that cannot be trained within the given time limit while the KND approach in Auto-sklearn (1.0)

does not avoid this failure mode. Thus, using only BO (3 and 6) or random search (4 and 7) results in better performance. It turns out that these results are skewed by three large datasets (task IDs

189873, 189874, 75193) on which the KND initialization of Auto-sklearn (1.0) only suggests ML pipelines that time out or hit the memory limit and thus exhaust the optimization budget for the full search space. Not taking these three datasets into account, Auto-sklearn (1.0) using BO and meta-learning improves over the versions without meta-learning. Our new AutoML system does not suffer from this problem as it a) selects SH to avoid spending too much time on unpromising ML pipelines and b) can return predictions and results even if a ML pipeline was not evaluated for the full budget or converged early.

Figure 6 provides another view on the results, presenting average ranks (where failures obtain less weight compared to the averaged performance). Thus, under this view, Auto-sklearn (1.0) using KND and BO achieves a much better rank than the methods without meta-learning. We emphasize that despite the quite different relative performances of the Auto-sklearn (1.0) variants under this different evaluation setup, Auto-sklearn (2.0) still clearly yields the best results.

9 Discussion and Conclusion

Auto-sklearn (2.0) constitutes the next generation of our AutoML system Auto-sklearn, aiming to provide a truly hands-free system which, given a new task and resource limitations, automatically chooses the best setup. We proposed three improvements for faster and more efficient AutoML: (i) we show the necessity of different model selection strategies to work well on various datasets, (ii) to get strong results quickly we propose to use portfolios, which can be built offline and thus reduce startup costs and (iii) to close the design space we opened up for AutoML we propose to automatically select the best configuration of our system.

We conducted a large-scale study based on meta-datasets and datasets for testing and obtained substantially improved performance compared to Auto-sklearn (1.0), reducing the regret by up to a factor of five and achieving a lower loss after minutes than Auto-sklearn (1.0) after minutes. Our ablation study showed that using a selector to choose the model selection strategy has the greatest impact on performance and allows Auto-sklearn (2.0) to run robustly on new, unseen datasets. In future work, we would like to compare against other AutoML systems, and the AutoML benchmark from Gijsbers et al. [49], from which we already obtained the datasets, would be a natural candidate.555However, running the AutoML benchmark from [49] in a fair way is not trivial, since it only offers a parallel setting. We focused on other research questions first and have not yet engineered our system to exploit parallel resources. Nevertheless, Auto-sklearn (1.0) already performed well on that benchmark and we therefore expect the improvements of Auto-sklearn (2.0) to transfer to this setting as well.

Our system also introduces some shortcomings since it is constructed towards a single optimization budget, a single metric and a single search space. Although all of these, along with the meta-training datasets, could be provided by a user to automatically build a customized version of Auto-sklearn (2.0), it would be interesting to see whether we can learn how to transfer a specific AutoML system to different optimization budgets and metrics. Also, there still remain several hand-picked hyperparameters on the level of the AutoML system, which we would like to automate in future work, too, for example by automatically learning the portfolio size, learning more hyper-hyperparameters of the different model selection strategies (for example of SH) and learning which parts of the search space to use. Finally, building the training data is currently quite expensive. Even though this has to be done only once, it will be interesting to see whether we can take shortcuts here, for example by using a joint ranking model [55].


The authors acknowledge support by the state of Baden-Württemberg through bwHPC and the German Research Foundation (DFG) through grant no INST 39/963-1 FUGG (bwForCluster NEMO). This work has partly been supported by the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme under grant no. 716721. This work was supported by the German Research Foundation (DFG) under Emmy Noether grant HU 1900/2-1. Robert Bosch GmbH is acknowledged for financial support. Katharina Eggensperger acknowledges funding by the State Graduate Funding Program of Baden-Württemberg.


  • [1] F. Hutter, L. Kotthoff, and J. Vanschoren, Eds., Automatic Machine Learning: Methods, Systems, Challenges, ser. SSCML.   Springer, 2019.
  • [2] C. Thornton, F. Hutter, H. Hoos, and K. Leyton-Brown, “Auto-WEKA: combined selection and hyperparameter optimization of classification algorithms,” in Proc. of KDD’13, 2013, pp. 847–855.
  • [3] B. Komer, J. Bergstra, and C. Eliasmith, “Hyperopt-sklearn: Automatic hyperparameter configuration for scikit-learn,” in ICML Workshop on AutoML, 2014.
  • [4] M. Feurer, A. Klein, K. Eggensperger, J. Springenberg, M. Blum, and F. Hutter, “Efficient and robust automated machine learning,” in Proc. of NeurIPS’15, 2015, pp. 2962–2970.
  • [5]

    R. Olson, N. Bartley, R. Urbanowicz, and J. Moore, “Evaluation of a Tree-based Pipeline Optimization Tool for Automating Data Science,” in

    Proc. of GECCO’16, 2016, pp. 485–492.
  • [6] H. Jin, Q. Song, and X. Hu, “Auto-Keras: An efficient neural architecture search system,” in Proc. of KDD’19, 2019, pp. 1946–1956.
  • [7] I. Guyon, L. Sun-Hosoya, M. Boullé, H. Escalante, S. Escalera, Z. Liu, D. Jajetic, B. Ray, M. Saeed, M. Sebag, A. Statnikov, W. Tu, and E. Viegas, “Analysis of the AutoML Challenge Series 2015-2018,” in Automatic Machine Learning: Methods, Systems, Challenges, ser. SSCML, F. Hutter, L. Kotthoff, and J. Vanschoren, Eds.   Springer, 2019, ch. 10, pp. 177–219.
  • [8] M. Feurer, K. Eggensperger, S. Falkner, M. Lindauer, and F. Hutter, “Practical automated machine learning for the automl challenge 2018,” in ICML 2018 AutoML Workshop, 2018.
  • [9] I. Guyon, A. Saffari, G. Dror, and G. Cawley, “Model selection: Beyond the Bayesian/Frequentist divide,” JMLR, vol. 11, pp. 61–87, 2010.
  • [10] H. Mendoza, A. Klein, M. Feurer, J. Springenberg, M. Urban, M. Burkart, M. Dippel, M. Lindauer, and F. Hutter, “Towards automatically-tuned deep neural networks,” in Automatic Machine Learning: Methods, Systems, Challenges, ser. SSCML, F. Hutter, L. Kotthoff, and J. Vanschoren, Eds.   Springer, 2019, pp. 135–149.
  • [11] F. Pedregosa, G. Varoquaux, A. Gramfort, V. Michel, B. Thirion, O. Grisel, M. Blondel, P. Prettenhofer, R. Weiss, V. Dubourg, J. Vanderplas, A. Passos, D. Cournapeau, M. Brucher, M. Perrot, and E. Duchesnay, “Scikit-learn: Machine learning in Python,” JMLR, vol. 12, pp. 2825–2830, 2011.
  • [12] B. Shahriari, K. Swersky, Z. Wang, R. Adams, and N. de Freitas, “Taking the human out of the loop: A review of Bayesian optimization,” Proceedings of the IEEE, vol. 104, no. 1, pp. 148–175, 2016.
  • [13] C. Rasmussen and C. Williams, Gaussian Processes for Machine Learning.   The MIT Press, 2006.
  • [14] L. Breimann, “Random forests,” MLJ, vol. 45, pp. 5–32, 2001.
  • [15] F. Hutter, H. Hoos, and K. Leyton-Brown, “Sequential model-based optimization for general algorithm configuration,” in Proc. of LION’11, 2011, pp. 507–523.
  • [16] M. Reif, F. Shafait, and A. Dengel, “Meta-learning for evolutionary parameter optimization of classifiers,” Machine Learning, vol. 87, pp. 357–380, 2012.
  • [17] M. Feurer, J. Springenberg, and F. Hutter, “Initializing Bayesian hyperparameter optimization via meta-learning,” in Proc. of AAAI’15, 2015, pp. 1128–1135.
  • [18] J. Vanschoren, “Meta-learning,” in Automatic Machine Learning: Methods, Systems, Challenges, ser. SSCML, F. Hutter, L. Kotthoff, and J. Vanschoren, Eds.   Springer, 2019, pp. 35–61.
  • [19] H. Escalante, M. Montes, and E. Sucar, “Particle Swarm Model Selection,” JMLR, vol. 10, pp. 405–440, 2009.
  • [20] R. Caruana, A. Niculescu-Mizil, G. Crew, and A. Ksikes, “Ensemble selection from libraries of models,” in Proc. of ICML’04, 2004.
  • [21] C. M. Bishop,

    Neural Networks for Pattern Recognition

    .   Oxford University Press, Inc., 1995.
  • [22] S. Raschka, “Model evaluation, model selection, and algorithm selection in machine learning,” arXiv:1811.12808 [stat.ML] , 2018.
  • [23] R. J. Henery, “Methods for comparison,” in

    Machine Learning, Neural and Statistical Classification

    .   Ellis Horwood, 1994, ch. 7, pp. 107 – 124.
  • [24] R. Kohavi and G. John, “Automatic Parameter Selection by Minimizing Estimated Error,” in Proc. of ICML’95, 1995, pp. 304–312.
  • [25] T. Hastie, R. Tibshirani, and J. Friedman, The Elements of Statistical Learning.   Springer-Verlag, 2001.
  • [26]

    B. Bischl, O. Mersmann, H. Trautmann, and C. Weihs, “Resampling methods for meta-model validation with recommendations for evolutionary computation,”

    Evolutionary Computation, vol. 20, no. 2, pp. 249–275, 2012.
  • [27] K. Jamieson and A. Talwalkar, “Non-stochastic best arm identification and hyperparameter optimization,” in Proc. of AISTATS’16, 2016.
  • [28] Z. Karnin, T. Koren, and O. Somekh, “Almost optimal exploration in multi-armed bandits,” in Proc. of ICML’13, 2013, pp. 1238–1246.
  • [29] S. Falkner, A. Klein, and F. Hutter, “BOHB: Robust and Efficient Hyperparameter Optimization at Scale,” in Proc. of ICML’18, 2018, pp. 1437–1446.
  • [30] B. Huberman, R. Lukose, and T. Hogg, “An economic approach to hard computational problems,” Science, vol. 275, pp. 51–54, 1997.
  • [31] C. Gomes and B. Selman, “Algorithm portfolios,” AIJ, vol. 126, no. 1-2, pp. 43–62, 2001.
  • [32] P. Brazdil and C. Soares, “A comparison of ranking methods for classification algorithm selection,” in Proc. of ECML’00, 2000, pp. 63–74.
  • [33] C. Soares and P. Brazdil, “Zoomed ranking: Selection of classification algorithms based on relevant performance information,” in Proc. of PKDD’00, 2000, pp. 126–135.
  • [34] P. Brazdil, C. Soares, and R. Pereira, “Reducing rankings of classifiers by eliminating redundant classifiers,” in Proc. of EPAI’01, 2001, pp. 14–21.
  • [35] M. Wistuba, N. Schilling, and L. Schmidt-Thieme, “Sequential Model-Free Hyperparameter Tuning,” in Proc. of ICDM ’15, 2015, pp. 1033–1038.
  • [36] ——, “Learning hyperparameter optimization initializations,” in Proc. of DSAA’15, 2015, pp. 1–10.
  • [37] L. Xu, H. Hoos, and K. Leyton-Brown, “Hydra: Automatically configuring algorithms for portfolio-based selection,” in Proc. of AAAI’10, 2010, pp. 210–216.
  • [38] M. Lindauer, H. Hoos, K. Leyton-Brown, and T. Schaub, “Automatic construction of parallel portfolios via algorithm configuration,” AIJ, vol. 244, pp. 272–290, 2017.
  • [39] R. Bardenet, M. Brendel, B. Kégl, and M. Sebag, “Collaborative hyperparameter tuning,” in Proc. of ICML’13, 2013, pp. 199–207.
  • [40] M. Wistuba, N. Schilling, and L. Schmidt-Thieme, “Scalable Gaussian process-based transfer surrogates for hyperparameter optimization,” Machine Learning, vol. 107, no. 1, pp. 43–78, 2018.
  • [41] A. Krause, J. Leskovec, C. Guestrin, J. VanBriesen, and C. Faloutsos, “Efficient sensor placement optimization for securing large water distribution networks,” JWRPM, vol. 134, pp. 516–526, 2008.
  • [42] A. Krause and D. Golovin, “Submodular function maximization,” in Tractability: Practical Approaches to Hard Problems, L. Bordeaux, Y. Hamadi, and P. Kohli, Eds.   Cambridge University Press, 2014, pp. 71–104.
  • [43] G. Nemhauser, L. Wolsey, and M. Fisher, “An analysis of approximations for maximizing submodular set functions,” Mathematical Programming, vol. 14, no. 1, pp. 265–294, 1978.
  • [44] P. Brazdil, C. Giraud-Carrier, C. Soares, and R. Vilalta, Metalearning: Applications to Data Mining, 1st ed.   Springer Publishing Company, Incorporated, 2008.
  • [45] L. Xu, F. Hutter, H. Hoos, and K. Leyton-Brown, “Hydra-MIP: Automated algorithm configuration and selection for mixed integer programming,” in Proc. of RCRA workshop at IJCAI, 2011.
  • [46] J. Bergstra and Y. Bengio, “Random search for hyper-parameter optimization,” JMLR, vol. 13, pp. 281–305, 2012.
  • [47] P. Probst, M. N. Wright, and A.-L. Boulesteix, “Hyperparameters and tuning strategies for random forest,” WIREs Data Mining and Knowledge Discovery, vol. 9, no. 3, p. e1301, 2019.
  • [48] C. Yang, Y. Akimoto, D. W. Kim, and M. Udell, “OBOE: Collaborative filtering for AutoML initialization,” in Proc. of KDD’19, 2019.
  • [49]

    P. Gijsbers, E. LeDell, S. Poirier, J. Thomas, B. Bischl, and J. Vanschoren, “An open source automl benchmark,” in

    ICML 2019 AutoML Workshop, 2019.
  • [50] B. Bischl, G. Casalicchio, M. Feurer, F. Hutter, M. Lang, R. Mantovani, J. van Rijn, and J. Vanschoren, “Openml benchmarking suites,” arXiv, vol. 1708.0373v2, pp. 1–6, Sep. 2019.
  • [51] J. Vanschoren, J. van Rijn, B. Bischl, and L. Torgo, “OpenML: Networked science in machine learning,” SIGKDD, vol. 15, no. 2, pp. 49–60, 2014.
  • [52] M. Feurer, J. van Rijn, A. Kadra, P. Gijsbers, N. Mallik, S. Ravi, A. Müller, J. Vanschoren, and F. Hutter, “Openml-python: an extensible python api for openml,” arXiv:1911.02490 [cs.LG], 2019.
  • [53] M. Lindauer, K. Eggensperger, M. Feurer, S. Falkner, A. Biedenkapp, and F. Hutter, “Smac v3: Algorithm configuration in python,”, 2017.
  • [54] J. Demšar, “Statistical comparisons of classifiers over multiple data sets,” JMLR, vol. 7, pp. 1–30, 2006.
  • [55] A. Tornede, M. Wever, and E. Hüllermeier, “Extreme algorithm selection with dyadic feature representation,” arXiv:2001.10741 [cs.LG], 2020.
  • [56] I. Guyon, K. Bennett, G. Cawley, H. J. Escalante, S. Escalera, T. K. Ho, N. Macià, B. Ray, M. Saeed, A. Statnikov, and E. Viegas, “Design of the 2015 chalearn automl challenge,” in Proc. of IJCNN’15.   IEEE, 2015, pp. 1–8.
  • [57] A. Kalousis and M. Hilario, “Representational Issues in Meta-Learning,” in Proceedings of the 20th International Conference on Machine Learning, 2003, pp. 313–320.
  • [58] R. Kohavi, “A study of cross-validation and bootstrap for accuracy estimation and model selection,” in Proceedings of the 14th International Joint Conference on Artificial Intelligence - Volume 2, ser. IJCAI’95, 1995, pp. 1137–1143.
  • [59] F. Mohr, M. Wever, and E. Hüllermeier, “ML-Plan: Automated machine learning via hierarchical planning,” Machine Learning, vol. 107, no. 8-10, pp. 1495–1515, 2018.
  • [60] O. Maron and A. Moore, “The racing algorithm: Model selection for lazy learners,” Artificial Intelligence Review, vol. 11, no. 1-5, pp. 193–225, 1997.
  • [61] A. Zheng and M. Bilenko, “Lazy Paired Hyper-Parameter Tuning,” in Proceedings of the 23rd International Joint Conference on Artificial Intelligence, F. Rossi, Ed., 2013, pp. 1924–1931.
  • [62] T. Krueger, D. Panknin, and M. Braun, “Fast cross-validation via sequential testing,” JMLR, 2015.
  • [63] A. Anderson, S. Dubois, A. Cuesta-infante, and K. Veeramachaneni, “Sample, Estimate, Tune: Scaling Bayesian Auto-Tuning of Data Science Pipelines,” in 2017 IEEE International Conference on Data Science and Advanced Analytics (DSAA), 2017, pp. 361–372.
  • [64] L. Li, K. Jamieson, G. DeSalvo, A. Rostamizadeh, and A. Talwalkar, “Hyperband: A novel bandit-based approach to hyperparameter optimization,” JMLR, vol. 18, no. 185, pp. 1–52, 2018.
  • [65] I. Tsamardinos, E. Greasidou, and G. Borboudakis, “Bootstrapping the out-of-sample predictions for efficient and accurate cross-validation,” Machine Learning, vol. 107, no. 12, pp. 1895–1922, 2018.
  • [66] K. Smith-Miles, “Cross-disciplinary perspectives on meta-learning for algorithm selection,” ACM, vol. 41, no. 1, 2008.
  • [67] L. Kotthoff, “Algorithm selection for combinatorial search problems: A survey,” AI Magazine, vol. 35, no. 3, pp. 48–60, 2014.
  • [68] P. Kerschke, H. Hoos, F. Neumann, and H. Trautmann, “Automated algorithm selection: Survey and perspectives,” Evolutionary Computation, vol. 27, no. 1, pp. 3–45, 2019.
  • [69] F. Pfisterer, J. van Rijn, P. Probst, A. Müller, and B. Bischl, “Learning multiple defaults for machine learning algorithms,” arXiv:1811.09409 [stat.ML] , 2018.
  • [70] J. Seipp, S. Sievers, M. Helmert, and F. Hutter, “Automatic configuration of sequential planning portfolios,” in Proc. of AAAI’15, 2015.
  • [71] R. Leite, P. Brazdil, and J. Vanschoren, “Selecting classification algorithms with active testing,” in Proc. of MLDM, 2013, pp. 117–131.
  • [72] N. Fusi, R. Sheth, and M. Elibol, “Probabilistic matrix factorization for automated machine learning,” in Advances in Neural Information Processing Systems 31, S. Bengio, H. Wallach, H. Larochelle, K. Grauman, N. Cesa-Bianchi, and R. Garnett, Eds.   Curran Associates, Inc., 2018, pp. 3348–3357.
  • [73] A. Klein, S. Falkner, J. Springenberg, and F. Hutter, “Learning curve prediction with Bayesian neural networks,” in Proc. of ICLR’17, 2017.
  • [74] M. Lindauer, H. Hoos, F. Hutter, and T. Schaub, “Autofolio: An automatically configured algorithm selector,” JAIR, vol. 53, pp. 745–778, 2015.
  • [75] F. Hutter, H. Hoos, K. Leyton-Brown, and T. Stützle, “ParamILS: An automatic algorithm configuration framework,” JAIR, vol. 36, pp. 267–306, 2009.
  • [76] R. Caruana, A. Munson, and A. Niculescu-Mizil, “Getting the most out of ensemble selection,” in Proc. of ICDM’06, 2006, pp. 828–833.
  • [77] A. Niculescu-Mizil, C. Perlich, G. Swirszcz, V. Sindhwani, Y. Liu, P. Melville, D. Wang, J. Xiao, J. Hu, M. Singh, W. Shang, and Y. Zhu, “Winning the kdd cup orange challenge with ensemble selection,” in Proceedings of KDD-Cup 2009 Competition, G. Dror, M. Boullé, I. Guyon, V. Lemaire, and D. Vogel, Eds., vol. 7, 2009, pp. 23–34.
  • [78] R. Olson and J. Moore, TPOT: A Tree-Based Pipeline Optimization Tool for Automating Machine Learning, ser. SSCML.   Springer, 2019, pp. 151–160.
  • [79] M. Wistuba, N. Schilling, and L. Schmidt-Thieme, “Automatic Frankensteining: Creating Complex Ensembles Autonomously,” in Proceedings of the 2017 SIAM International Conference on Data Mining, 2017, pp. 741–749.
  • [80] B. Chen, H. Wu, W. Mo, I. Chattopadhyay, and H. Lipson, “Autostacker: A Compositional Evolutionary Learning System,” in Proc. of GECCO’18, 2018, pp. 402–409.
  • [81] Y. Zhang, M. Bahadori, H. Su, and J. Sun, “FLASH: Fast Bayesian Optimization for Data Analytic Pipelines,” in Proc. of KDD’16, 2016, pp. 2065–2074.
  • [82] H. Rakotoarison, M. Schoenauer, and M. Sebag, “Automated machine learning with Monte-Carlo tree search,” in Proceedings of the Twenty-Eighth International Joint Conference on Artificial Intelligence, IJCAI-19.   International Joint Conferences on Artificial Intelligence Organization, 2019, pp. 3296–3303.
  • [83] A. Alaa and M. van der Schaar, “AutoPrognosis: Automated Clinical Prognostic Modeling via Bayesian Optimization with Structured Kernel Learning,” in Proc. of ICML’18, 2018, pp. 139–148.
  • [84] L. Parmentier, O. Nicol, L. Jourdan, and M. Kessaci, “Tpot-sh: A faster optimization algorithm to solve the automl problem on large datasets,” in 2019 IEEE 31st International Conference on Tools with Artificial Intelligence (ICTAI), 2019, pp. 471–478.
  • [85] H. Mendoza, A. Klein, M. Feurer, J. Springenberg, and F. Hutter, “Towards automatically-tuned neural networks,” in ICML 2016 AutoML Workshop, 2016.
  • [86] J. Krarup and P. Pruzan, “The simple plant location problem: Survey and synthesis,” European Journal of Operations Research, vol. 12, pp. 36–81, 1983.
  • [87] S. van der Walt, S. C. Colbert, and G. Varoquaux, “The numpy array: A structure for efficient numerical computation,” Computing in Science Engineering, vol. 13, no. 2, pp. 22–30, 2011.
  • [88] P. Virtanen, R. Gommers, T. Oliphant, M. Haberland, T. Reddy, D. Cournapeau, E. Burovski, P. Peterson, W. Weckesser, J. Bright, S. van der Walt, M. Brett, J. Wilson, K. Jarrod Millman, N. Mayorov, A. Nelson, E. Jones, R. Kern, E. Larson, C. Carey, İ. Polat, Y. Feng, E. Moore, J. VanderPlas, D. Laxalde, J. Perktold, R. Cimrman, I. Henriksen, E. A. Quintero, C. Harris, A. Archibald, A. Ribeiro, F. Pedregosa, P. van Mulbregt, and S. . . Contributors, “SciPy 1.0: Fundamental Algorithms for Scientific Computing in Python,” Nature Methods, vol. 17, pp. 261–272, 2020.
  • [89] Wes McKinney, “Data Structures for Statistical Computing in Python,” in Proceedings of the 9th Python in Science Conference, Stéfan van der Walt and Jarrod Millman, Eds., 2010, pp. 56 – 61.
  • [90] J. Hunter, “Matplotlib: A 2d graphics environment,” Computing in Science & Engineering, vol. 9, no. 3, pp. 90–95, 2007.
  • [91] Proc. of KDD’19, 2019.
  • [92] Proc. of ICML’18, 2018.
  • [93] Proc. of ICML’13, 2013.
  • [94] Proc. of AAAI’15, 2015.

Appendix A Related work

In this section we provide additional related work on the improvements we presented in the main paper. First, we will provide further literature on model selection strategies. Second, we give more details on existing work on portfolios of ML pipelines. Third, we give pointers to literature overviews of algorithm selection before discussing other existing AutoML systems in detail.

a.1 Related work on model selection strategies

Automatically choosing a model selection strategy to assess the performance of an ML pipeline for hyperparameter optimization has not previously been tackled, and only Guyon et al. [56] acknowledge the lack of such an approach. The influence of the model selection strategy on the validation and test performance is well known [57] and researchers have studied their impact [58]. Following up on this, the OpenML platform [51] stores which validation strategies were used for an experiment, but so far no work has operationalized this information. Recently, Mohr et al. [59] noted that the choice of the model selection strategy has an effect on the final test performance of an AutoML system but only made a general recommendation, too.

Our method, in general, is not specific to holdout, cross-validation or successive halving and could generalize to any other method assessing the performance of a model [26, 9, 22] or allocating resources to the evaluation of a model [60, 15, 61, 62, 63, 64, 65]. While these are important areas of research, we focus here on the most commonly used methods and leave studying these extensions for future work.

a.2 Related work on Portfolios

Using portfolios has a long history [30, 31] for leveraging the complementary strengths of algorithms (or hyperparameter settings) and had applications in different sub-fields of AI [66, 67, 68].

Algorithm portfolios were introduced to machine learning by the name of algorithm ranking with the goal of reducing the required time to perform model selection compared to running all algorithms under consideration [32, 33], ignoring redundant ones [34]. ML portfolios can be superior to hyperparameter optimization with Bayesian optimization [35], Bayesian optimization with a model which takes past performance data into account [36] or can be applied when there is simply no time to perform full hyperparameter optimization [8]. Furthermore, such a portfolio-based model-free optimization is both easier to implement than regular Bayesian optimization and meta-feature based solutions, and the portfolio can be shared easily across researchers and practitioners without the necessity of sharing meta-data [36, 35, 69] or additional hyperparameter optimization software.

The efficient creation of algorithm portfolios is an active area of research with the Greedy Algorithm being a popular choice [37, 45, 70, 35, 8] due to its simplicity. Wistuba et al. [35] first proposed the use of the Greedy Algorithm for pipelines of machine learning portfolios, minimizing the average rank on meta-datasets for a single machine learning algorithm. Later, they extended their work to update the members of a portfolio in a round-robin fashion, this time using the average normalized misclassification error as a loss function and relying on a Gaussian process model [36]. The loss function of the first method can suffer from irrelevant alternatives, while the second method does not guarantee that well-performing algorithms are executed early on, which could be harmful under time constraints. In work parallel to our submission to the second AutoML challenge, Pfisterer et al. [69] also suggested using a set of default values to simplify hyperparameter optimization. They argued that constructing an optimal portfolio of hyperparameter settings is a generalization of the Maximum coverage problem and propose two solutions based on Mixed Integer Programming and the Greedy Algorithm which we also use as the base of our algorithm. The main difference of our work is that we demonstrate the usefulness of portfolios for high-dimensional configuration spaces of AutoML systems under strict time limits and that we give concrete worst-case performance guarantees.

Extending these portfolio strategies which are learned offline, there are online portfolios which can select from a fixed set of machine learning pipelines, taking previous evaluations into account [71, 35, 35, 72, 48]. However, such methods cannot be directly combined with all resampling strategies as they require the definition of a special model for extrapolating learning curves [73, 29] and also introduce additional complexity into AutoML systems.

There exists other work on building portfolios without prior discretization (which we do for our work and was done for all work mentioned above), which directly optimizes the hyperparameters of ML pipelines to add next to the portfolio [37, 45, 70] and to also build parallel portfolios [38].

a.3 Related Work on Algorithm Selection

Treating the choice of model selection strategy as an algorithm selection problem allows us to apply methods from the field of algorithm selection [66, 67, 68] and we can in future work reuse existing techniques besides pairwise classification [45]. An especially promising candidate is AutoFolio [74], an AutoAI system which automatically constructs a selector for a given algorithm selection problem using algorithm configuration [75].

a.4 Related Work on AutoML systems

AutoML systems have recently gained traction in the research community and there exist a multitude of approaches with many of them being either available as supplementary material or open source software.

To the best of our knowledge, the first AutoML system which tunes both hyperparameters and chooses algorithms was an ensemble method [20]. The system randomly produces 2000 classifiers from a wide range of ML algorithms and constructs a post-hoc ensemble. It was later robustified [76] and employed in a winning KDD challenge [77].

The first AutoML system to jointly optimize the whole pipeline is Particle Swarm Model Selection. Later systems started employing model-based global optimization algorithms, such as Auto-WEKA [2] and Hyperopt-sklearn [3]. We extended this approach using meta-learning and including ensembles in Auto-sklearn [4].

Relieving the limitation of a fixed search space, the tree-based pipeline optimization tool (TPOT [78]) uses a pipeline grammar and grammatical evolution to construct ML pipelines of arbitrary length.

Instead of a single layer of ML algorithms followed by an ensembling mechanism, Wistuba et al. [79] proposed two-layer stacking, applying AutoML to the outputs of an AutoML system. Auto-Stacker went one step further, directly optimizing for a two-layer AutoML system [80].

Another strain of work on AutoML systems aims at more efficient optimization. FLASH [81] proposed a pruning mechanism to reduce the pipeline space to search through, MOSAIC [82] uses Monte-Carlo Tree search to efficiently search the tree-structured space of ML pipelines and ML-PLAN uses hierarchical task-networks and a randomized depth-first search [59]. Auto-Prognosis [83] splits the optimization problem of the full pipeline into smaller optimization problems which can then be tackled by Gaussian process-based BO. TPOT-SH [84], inspired by our submission to the second AutoML challenge, uses successive halving to speed up TPOT on large datasets.

Finally, while the AutoML tools discussed so far focus on ”traditional” machine learning, there is also work on creating AutoML systems that can leverage recent advancements in deep learning. Auto-Net extended the Auto-WEKA approach to deep neural networks

[85] and Auto-Keras employs Neural Architecture Search to find well-performing neural networks [6].

Of course, there are also many techniques related to AutoML which are not used in one of the AutoML systems discussed in this section and we refer to Hutter et al. [1] for an overview of the field of Automated Machine Learning and Brazdil et al. [44] for an overview on meta-learning research which pre-dates the work on AutoML.

Appendix B Details on Greedy Portfolio Construction

b.1 Holdout as a Model Selection Strategy

In the main paper we have only defined , but not how it practically works. For holdout, is defined as:


, while for cross-validation we can plug in the definition for from Section 2 of the main paper. Successive Halving is a bit more involved an cannot be written in a single equation, but would require pseudo-code.

b.2 Theoretical properties of the greedy algorithm

b.2.1 Definitions

Definition 1

(Discrete derivative, from Krause & Golovin [42]) For a set function and let be the discrete derivative of at with respect to .

Definition 2

(Submodularity, from Krause & Golovin [42]): A function is submodular if for every and it holds that .

Definition 3

(Monotonicity, from Krause & Golovin [42]): A function is monotone if for every .

b.2.2 Choosing on the test set

In this section we give a proof of Proposition 1 from the main paper:

Proposition 2

Minimizing the test loss of a portfolio on a set of datasets , when choosing a ML pipeline from for based on performance on , is equivalent to the sensor placement problem for minimizing detection time [41].

Following Krause et al. [41], sensor set placement aims at maximizing a so-called penalty reduction , where

are intrusion scenarios following a probability distribution

with being a specific intrusion. is a sensor placement, a subset of all possible locations where sensors are actually placed. Penalty reduction is defined as the reduction of the penalty when choosing compared to the maximum penalty possible on scenario : . In the simplest case where action is taken upon intrusion detection, the penalty is equal to the detection time (). The detection time of a sensor placement is simply defined as the minimum of the detection times of its individual members: .

In our setting, we need to do the following replacements to find that the problems are equivalent:

  1. Intrusion scenarios : datasets ,

  2. Possible sensor locations : set of candidate ML pipelines of our algorithm , Detection time on intrusion scenario : test performance on dataset ,

  3. Detection time of a sensor placement : test loss of applying portfolio on dataset :

  4. Penalty function : loss function , in our case, the penalty is equal to the loss.

  5. Penalty reduction for an intrusion scenario : the penalty reduction for successfully applying a portfolio to dataset : .

b.2.3 Choosing on the validation set

We demonstrate that choosing an ML pipeline from the portfolio via holdout (i.e. a validation set) and reporting its test performance is neither submodular nor monotone by a simple example. To simplify notation we argue in terms of performance instead of penalty reduction, which is equivalent.

Let and , where each tuple represents the validation and test performance. For we obtain the discrete derivatives and which violates Definition 2. The fact that the discrete derivative is negative violates Definition 3 because .

b.2.4 Successive Halving

As in the previous subsection, we use a simple example to demonstrate that selecting an algorithm via the successive halving model selection strategy is neither submodular nor monotone. To simplify notation we argue in terms of performance instead of penalty reduction, which is equivalent.

Let and , where each tuple is a learning curve of validation-, test performance tuples. For , we eliminate entries 2 and 3 from in the first iteration of successive halving (while we advance entries 1 and 4), and we eliminate entry 1 from . After the second stage, the performances are and , and the discrete derivatives and which violates Definition 2. The fact that the discrete derivative is negative violates Definition 3 because .

b.2.5 Further equalities

In addition, our problem can also be phrased as a facility location problem [86] and statements about the facility location problem can be applied to our problem setup as well.

Appendix C Implementation Details

c.1 Software

We implemented the AutoML systems and experiments in the Python3 programming language, using numpy [87], scipy [88], scikit-learn [11], pandas [89], and matplotlib [90].

c.2 Configuration Space

We give the configuration space we use in Auto-sklearn (2.0) in Table VII.

Name Domain Default Log
Classifier (Extra Trees, Gradient Boosting, Passive Random Forest -
Aggressive, Random Forest, Linear Model (SGD)
Extra Trees: Bootstrap (True, False) False -
Extra Trees: Criterion (Gini, Entropy) Gini -
Extra Trees: Max Features 0.5 No
Extra Trees: Min Samples Leaf 1 No
Extra Trees: Min Samples Split 2 No
Gradient Boosting: Early Stopping (Off, Train, Valid) Off -
Gradient Boosting: Regularization 1e-10 Yes
Gradient Boosting: Learning Rate 0.1 Yes
Gradient Boosting: Max Leaf Nodes 31 Yes
Gradient Boosting: Min Samples Leaf 20 Yes
Gradient Boosting: #Iter No Change 10 No
Gradient Boosting: Validation Fraction 0.1 No
Passive Aggressive: C 1 Yes
Passive Aggressive: Average (False, True) False -
Passive Aggressive: Loss (Hinge, Squared Hinge) Hinge -
Passive Aggressive: Tolerance 0.0001 Yes
Random Forest: Bootstrap (True, False) True -
Random Forest: Criterion (Gini, Entropy) Gini -
Random Forest: Max Features 0.5 No
Random Forest: Min Samples Leaf 1 No
Random Forest: Min Samples Split 2 No
Sgd: 0.0001 Yes
Sgd: Average (False, True) False -
Sgd: 0.0001 Yes
Sgd: 0.01 Yes
Sgd: Ratio 0.15 Yes
Sgd: Learning Rate (Optimal, Invscaling, Constant) Invscaling -
Sgd: Loss

(Hinge, Log, Modified Huber, Squared Hinge, Perceptron)

Log -
Sgd: Penalty (, , Elastic Net) l2 -
Sgd: Power t 0.5 No
Sgd: Tolerance 0.0001 Yes
Balancing (None, Weighting) None -
Categorical Encoding: Choice (None, One Hot Encoding) One Hot Encoding -
Category Coalescence: Choice (Minority Coalescer, No Coalescense) Minority Coalescer -
Minority Coalescer: Minimum percentage samples 0.01 Yes
Imputation (numerical only) (Mean, Median, Most Frequent) Mean -
Rescaling (numerical only)

(Min/Max, None, Normalize, Quantile, Standardize, Robust)

Standardize -
Quantile Transformer: N Quantiles 1000 No
Quantile Transformer: Output Distribution (Uniform, Normal) Uniform -
Robust Scaler: Q Max 0.75 No
Robust Scaler: Q Min 0.25 No
TABLE VII: Configuration space for Auto-sklearn (2.0) using only iterative models and only preprocessing to transform data into a format that can be usefully employed by the different classification algorithms. The final column (log) states whether we actually search .

c.3 Successive Halving hyperparameters

We used the same hyperparameters for all experiments. First, we set to . Next, we had to choose the minimal and maximal budgets assigned to each algorithm. For the tree-based methods we chose to go from to , while for the linear models (SGD and passive aggressive) we chose as the minimal budget and as the maximal budget. Further tuning these hyperparameters would be an interesting, but an expensive way forward.

Appendix D Datasets

We give the name, OpenML dataset ID, OpenML task ID and the size of all datasets we used in Table VIII.

 name tid #obs #feat #cls OVA_O … 75126 1545 10937 2 OVA_C … 75125 1545 10937 2 OVA_P … 75121 1545 10937 2 OVA_E … 75120 1545 10937 2 OVA_K … 75116 1545 10937 2 OVA_L … 75115 1545 10937 2 OVA_B … 75114 1545 10937 2 UMIST … 189859 575 10305 20 amazo … 189878 1500 10001 50 eatin … 189786 945 6374 7 CIFAR … 167204 60000 3073 10 SVHN 189857 99289 3073 10 GTSRB … 190156 51839 2917 43 Biore … 75156 3751 1777 2 hiva_ … 166996 4229 1618 2 GTSRB … 190157 51839 1569 43 GTSRB … 190158 51839 1569 43 Inter … 168791 3279 1559 2 micro … 146597 571 1301 20 Devna … 167203 92000 1025 46 GAMET … 167085 1600 1001 2 Kuzus … 190154 270912 785 49 mnist … 75098 70000 785 10 Kuzus … 190159 70000 785 10 isole … 75169 7797 618 26 har 126030 10299 562 6 madel … 146594 2600 501 2 KDD98 … 211723 82318 478 2 phili … 189864 5832 309 2 madel … 189863 3140 260 2 USPS 189858 9298 257 10 semei … 75236 1593 257 10 GTSRB … 190155 51839 257 43 India … 211720 9144 221 8 dna 167202 3186 181 3 musk 75108 6598 170 2 Speed … 146679 8378 123 2 hill- … 146592 1212 101 2 fri_c … 166866 500 101 2 MiceP … 167205 1080 82 8 meta_ … 2356 45164 75 11 ozone … 75225 2534 73 2 analc … 146576 841 71 4 kdd_i … 166970 10108 69 2 optdi … 258 5620 65 10 one-h … 75154 1600 65 100 synth … 146574 600 62 6 splic … 275 3190 61 3 spamb … 273 4601 58 2 first … 75221 6118 52 6 fri_c … 75180 1000 51 2 fri_c … 166944 500 51 2 fri_c … 166951 500 51 2 Diabe … 189828 101766 50 3 oil_s … 3049 937 50 2 pol 75139 15000 49 2 tokyo … 167100 959 45 2 qsar- … 75232 1055 42 2 textu … 126031 5500 41 11 autoU … 189899 750 41 8 ailer … 75146 13750 41 2 wavef … 288 5000 41 3 cylin … 146600 540 40 2 water … 166953 527 39 2 annea … 232 898 39 5 mc1 75133 9466 39 2 pc4 75092 1458 38 2 pc3 75129 1563 38 2 porto … 211722 595212 38 2 pc2 75100 5589 37 2 satim … 2120 6430 37 6 Satel … 189844 5100 37 2 soybe … 271 683 36 19 cardi … 75217 2126 36 10 cjs 146601 2796 35 6 colle … 75212 1302 35 2 puma3 … 75153 8192 33 2 Gestu … 75109 9873 33 5 kick 189870 72983 33 2 bank3 … 75179 8192 33 2 wdbc 146596 569 31 2 Phish … 75215 11055 31 2 fars 189840 100968 30 8  name tid # obs # feat # class hypot … 3044 3772 30 4 steel … 168785 1941 28 7 eye_m … 189779 10936 28 3 fri_c … 75136 1000 26 2 fri_c … 75199 1000 26 2 wall- … 75235 5456 25 4 led24 … 189841 3200 25 10 colli … 189845 1000 24 30 rl 189869 31406 23 2 mushr … 254 8124 23 2 meta 166875 528 22 2 jm1 75093 10885 22 2 pc1 75159 1109 22 2 kc2 146583 522 22 2 cpu_a … 75233 8192 22 2 autoU … 75089 1000 21 2 GAMET … 167086 1600 21 2 GAMET … 167087 1600 21 2 bosto … 166905 506 21 2 GAMET … 167088 1600 21 2 GAMET … 167089 1600 21 2 churn … 167097 5000 21 2 clima … 167106 540 21 2 micro … 189875 20000 21 5 GAMET … 167090 1600 21 2 Traff … 211724 70340 21 3 ringn … 75234 7400 21 2 twono … 75187 7400 21 2 eucal … 2125 736 20 5 eleva … 75184 16599 19 2 pbcse … 166897 1945 19 2 baseb … 2123 1340 18 3 house … 75174 22784 17 2 colle … 75196 1161 17 2 BachC … 189829 5665 17 102 pendi … 262 10992 17 10 lette … 236 20000 17 26 spoke … 75178 263256 15 10 eeg-e … 75219 14980 15 2 wind 75185 6574 15 2 Japan … 126021 9961 15 9 compa … 211721 5278 14 2 vowel … 3047 990 13 11 cpu_s … 75147 8192 13 2 autoU … 189900 700 13 3 autoU … 75118 1100 13 5 dress … 146602 500 13 2 senso … 166906 576 12 2 wine- … 189836 4898 12 7 wine- … 189843 1599 12 6 Magic … 75112 19020 12 2 mv 75195 40768 11 2 parit … 167101 1124 11 2 mofn- … 167094 1324 11 2 fri_c … 75149 1000 11 2 poker … 340 829201 11 10 fri_c … 166950 500 11 2 page- … 260 5473 11 5 ilpd 146593 583 11 2 2dpla … 75142 40768 11 2 fried … 75161 40768 11 2 rmfts … 166859 508 11 2 stock … 166915 950 10 2 tic-t … 279 958 10 2 breas … 245 699 10 2 xd6 167096 973 10 2 cmc 253 1473 10 3 profb … 146578 672 10 2 diabe … 267 768 9 2 abalo … 2121 4177 9 28 bank8 … 75141 8192 9 2 elect … 336 45312 9 2 kdd_e … 166913 782 9 2 house … 75176 20640 9 2 nurse … 256 12960 9 5 kin8n … 75166 8192 9 2 yeast … 2119 1484 9 10 puma8 … 75171 8192 9 2 analc … 75143 4052 8 2 ldpa 75134 164860 8 11 pm10 166872 500 8 2 no2 166932 500 8 2 LED-d … 146603 500 8 10  name tid #obs #feat #cls artif … 126028 10218 8 10 monks … 3055 554 7 2 space … 75148 3107 7 2 kr-vs … 75223 28056 7 18 monks … 3054 601 7 2 Run_o … 167103 88588 7 2 delta … 75173 9517 7 2 strik … 166882 625 7 2 mammo … 3048 11183 7 2 monks … 3053 556 7 2 kropt … 2122 28056 7 18 delta … 75163 7129 6 2 wilt 167105 4839 6 2 fri_c … 75131 1000 6 2 mozil … 126024 15545 6 2 polle … 75192 3848 6 2 socmo … 75213 1156 6 2 irish … 146575 500 6 2 fri_c … 166931 500 6 2 arsen … 166957 559 5 2 arsen … 166956 559 5 2 walki … 75250 149332 5 22 analc … 146577 797 5 6 bankn … 146586 1372 5 2 arsen … 166959 559 5 2 visua … 75210 8641 5 2 balan … 241 625 5 3 arsen … 166958 559 5 2 volca … 189902 10130 4 5 skin- … 75237 245057 4 2 tamil … 189846 45781 4 20 quake … 75157 2178 4 2 volca … 189893 8654 4 5 volca … 189890 8753 4 5 volca … 189887 9989 4 5 volca … 189884 10668 4 5 volca … 189883 10176 4 5 volca … 189882 1515 4 5 volca … 189881 1521 4 5 volca … 189880 1623 4 5 Titan … 167099 2201 4 2 volca … 189894 1183 4 5  name tid #obs #feat #cls rober … 168794 10000 7201 10 ricca … 168797 20000 4297 2 guill … 168796 20000 4297 2 dilbe … 189871 10000 2001 5 chris … 189861 5418 1637 2 cnae- … 167185 1080 857 9 faber … 189872 8237 801 7 Fashi … 189908 70000 785 10 KDDCu … 75105 50000 231 2 mfeat … 167152 2000 217 10 volke … 168793 58310 181 10 APSFa … 189860 76000 171 2 jasmi … 189862 2984 145 2 nomao … 126026 34465 119 2 alber … 189866 425240 79 2 dioni … 189873 416188 61 355 janni … 168792 83733 55 4 cover … 75193 581012 55 7 MiniB … 168798 130064 51 2 conne … 167201 67557 43 3 kr-vs … 167149 3196 37 2 higgs … 167200 98050 29 2 helen … 189874 65196 28 100 kc1 167181 2109 22 2 numer … 167083 96320 22 2 credi … 167161 1000 21 2 sylvi … 189865 5124 21 2 segme … 189906 2310 20 7 vehic … 167168 846 19 4 bank- … 126029 45211 17 2 Austr … 167104 690 15 2 adult … 126025 48842 15 2 Amazo … 75097 32769 10 2 shutt … 168795 58000 10 7 airli … 75127 539383 8 2 car 189905 1728 7 4 jungl … 189909 44819 7 3 phone … 167190 5404 6 2 blood … 167184 748 5 2
TABLE VIII: Characteristics of the datasets in (first part) and the datasets in (second part) sorted by number of features. We report for each dataset the task id and dataset id as used on, the number of observations, the number of features and the number of classes.
