I Introduction

Due to its use in a majority of activities of daily living (ADL), the upper limb is one of the most essential body parts [1]. Amputation results in the loss of both motor and sensory perceptions and with over 60% of the amputees aging between 21 to 64 years [2], it is pivotal that the loss of limb should not become an impediment in ones ability to perform simple daily tasks. From simple prosthesis control training to repetitive drills for skill improvement, functional assessment during occupational therapy (OT) is an essential step prior to the fitting of an actual myoelectric prosthesis [3]. The goal of OT is to assist amputees, through a series of training regimes, to strengthen muscle sites, improve endurance, and generally build confidence with a prosthesis. Post-surgery training has been known to maintain the overall health of the muscles in the residual limb [4], and also affect the long term success of prosthesis use [5]. At the cortical level, there is evidence to suggest continued unfavorable sensory reorganization, immediately after amputation [6]. Therefore it is desirable that the prosthetic training stage starts as early as possible.

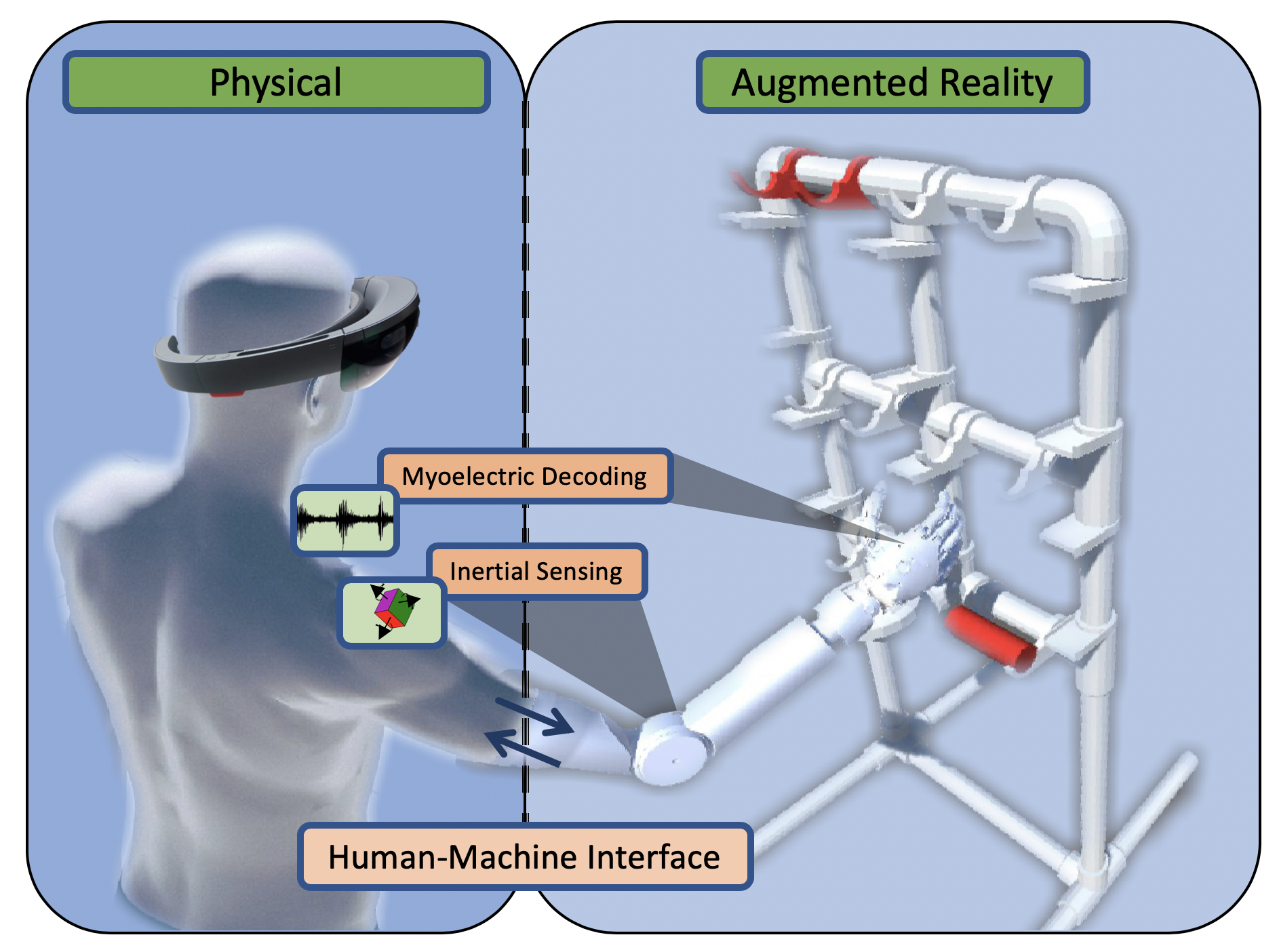

Figure 1: Our human-machine interaction system for upper limb myoelectric prosthesis control and training. Interface with the virtual modular prosthetic limb (vMPL) is through inertial sensing and myoelectric decoding that controls the kinematic dynamics and grip patterns of the limb respectively. The AR environment is projected through the Microsoft HoloLens™ where the subject receives both visual and tactile feedback during interaction with the virtual objects.

While currently used functional outcome measures suffer from several drawbacks ranging from unrealistic training tasks to subjective scores [7] and limited target amputee population [8], one of the major problem is the lack of consideration of practical issues that affect prosthesis use (e.g. loading and limb position effect in myoelectric decoding [9]). Previous research has shown that while subjective assessment and speed of tasks are essential [10], other measures, like limb kinematics and gaze, can provide deeper insights into the understanding of skill level [11, 12, 13, 14]. Major et al. [12] showed that kinematic variability was negatively associated with prosthesis experience and emphasized the importance of complementing motion information with existing functional clinical outcomes. Kinematic variability, specifically referring to joint kinematic trajectories, has been shown to be higher amongst prosthesis users, in comparison to able-bodied subjects [13]. This difference, is likely due to the compensatory movements that amputees develop over time [14]. That being said, there is little to no research investigating the effect that prosthesis training has on kinematic variability. To overcome some of the issues mentioned, our group designed the PHAM, an objective assessment setup allowing amputees to train over a 3-dimensional space [15]. However, the PHAM, like most physical outcome measures, requires a large spatial and economic investment, and is restricted to clinical settings [16].

Prosthesis training often requires repetition of certain well defined tasks [17]. Such repetitions can be made engaging and motivating for the subjects through immersive technologies. Virtual reality (VR) systems create an artificial environment which has a broad range of applications ranging from gaming to medicine. In upper limb prosthesis training, a range of VR systems have been developed, ranging from simplified adaptation of existing physical outcomes[18] to myoelectric control training through posture matching[19] and even virtual avatar control in custom-designed games[20, 21]. In a meta-analysis study, Howard et al. showed that VR rehabilitation programs are more effective than traditional rehabilitation programs for physical outcome development [22]. The authors suggested that user excitement and physical and cognitive fidelity could account for the increased effectiveness of virtual training programs. Our group previously showed that myoelectric training in a virtual environment improves both consistency and distinguishability of phantom limb pattern recognition movement classes [23]. Furthermore, Hargrove et al. recently showed that improvements gained in a physical task completions correlate linearly with improvements found in VR rehabilitation tasks[24]. Dijk et al. showed that virtual training can show improvements in actual prosthesis using proportional myoelectric control [21].

While VR systems have been shown to be useful, they are not without their disadvantages. For example, VR systems require the user to sit in front of a computer or put on a head-mounted display (occluding the natural physical space), while also posing several issues like a restricted field-of-view [25], motion sickness [26] and other health issues [27]. An emerging technology, that overcomes some of these shortcomings, while also creating an engaging interaction is augmented reality (AR). AR systems blend virtual objects in the physical space, while enabling interaction with these virtual objects, creating a much richer experience in comparison to VR. Several studies have used AR in stroke rehabilitation [28, 29, 30], however, use in upper limb prosthesis rehabilitation has primarily been restricted to treating phantom limb pain [31, 32]. Our previous preliminary work has shown that incorporating sensory feedback in AR environment for upper limb prosthesis training resulted in improvements in myoelectric control and muscular effort for able-bodied subjects [33].

The objective of this study was to observe the effect of HoloPHAM (AR version of PHAM) training on standardized physical outcome measures. For the physical outcomes, the clothespin relocation test (CRT) and PHAM were used. Training was conducted using the proposed AR system (HoloPHAM) over a period of 10 days and standard metrics for comparison such as completion time and kinematic variability were studied.

Figure 2:

[Top] Augmented Reality scene with the vMPL and the virtual model of the PHAM (for clarity we show the scene on a dark background). (Inset) The vMPL appeared to be attached to the shoulder of the subject and move with the them in realtime using the built-in inertial sensors on the Microsoft HoloLens™. Additional inertial sensors placed on the upper limb of the subject were used to control the motion of the vMPL which involved the vMPL reaching for a target object (red cylinder), grasp to pick and move target object, and finally drop the target object on the goal position (red tray). During pick and drop, the hand was required to be oriented to the surface normal of the objects. [Bottom] Four grip patterns (rest included, but not shown here) were integrated in our pattern recognition system. As the goal of the study was to show the effect of AR training, only a minimum number of classes were chosen, just enough to allow basic object manipulation. [Inlet] Wave out (WO) and wave in (WI) corresponded to wrist pronation (WP) and wrist supination (WS) respectively on the vMPL. In our tests, we observed that LDA could more effectively classify WO and WI, while WP and WS were often misclassified with other classes.

Ii Methods & Experiment

Three able-bodied volunteers served as subjects and the experiments were conducted with their informed consent. The experiment protocol was approved by the Johns Hopkins Medicine Institutional Review Board.

Ii-a Functional Outcome Measures

To account for reach and grasp motions that are involved in several ADL, measures that evaluate the aspects of hand, wrist and elbow functions were used. The CRT has been an established outcome measure that accounts for precise myoelectric control as well as the coordinated movement of the upper limb joints [34]. The PHAM has been shown to incorporate a range of motions over a 3-dimensional space, accounting for several DOFs and grasping patterns [15]. Since the goal of our study was to show training in AR can show improvement in performance for such movements, an AR version of the PHAM setup was developed.

The AR version of the PHAM — HoloPHAM, allows subjects to perform the same set of tasks as they could with the physical version. The PHAM consists of a windowpane structure, with horizontal and vertical pipes where objects of different types are required to be moved around a large activity envelope [15]. While involving subtle, orientation-dependent control, the PHAM also requires reach and grasp motion. With a greater range of activity, while also preserving the fundamental aspects of existing physical prosthesis assessments, the PHAM provides a technique for evaluating both quantitative and qualitative prosthesis functionality [15].

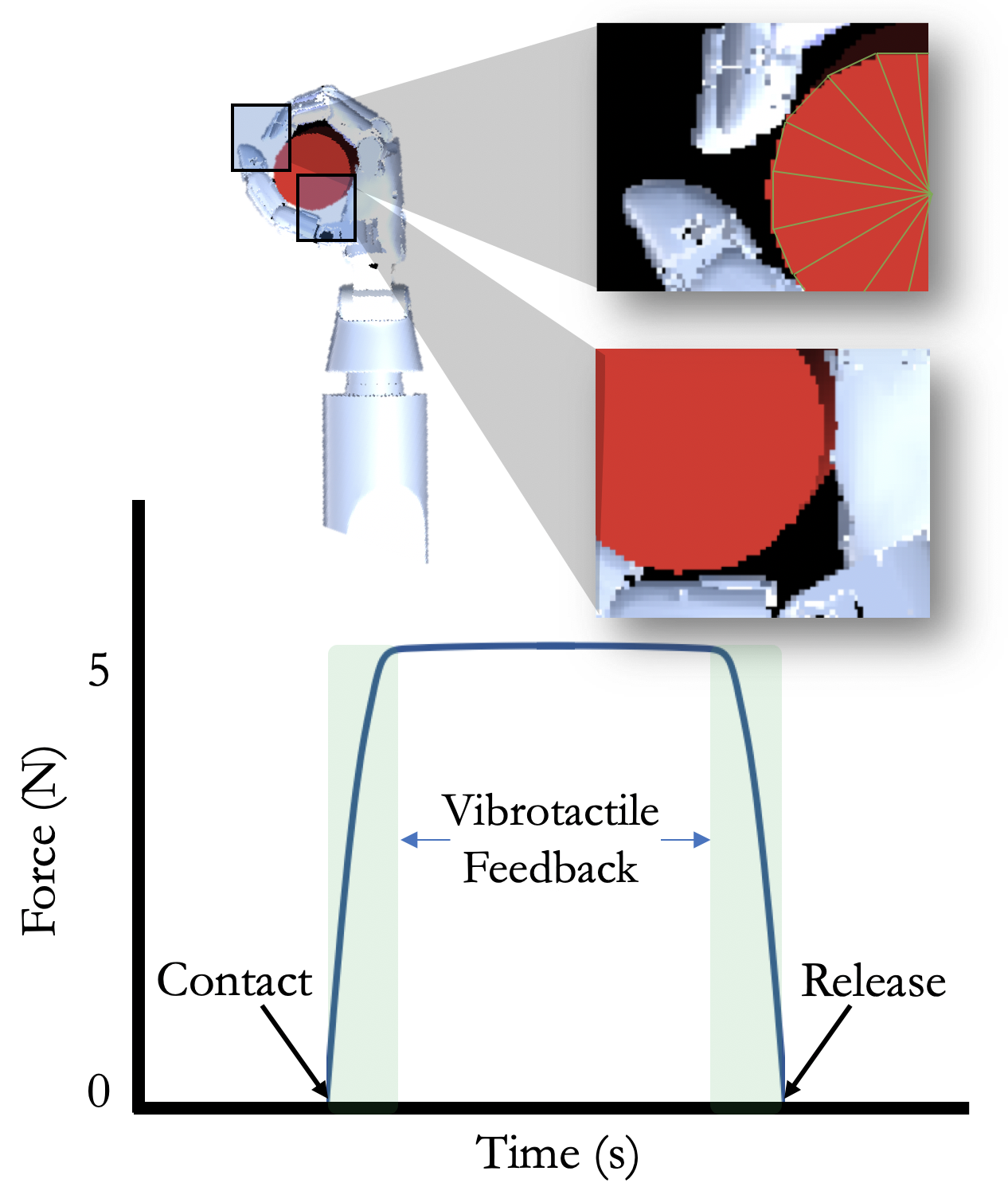

Figure 3: [Top] Interaction between virtual objects were defined as rigid body collisions with a dense mesh collider (denoted as green lines inside the cylinder) to prevent penetration of colliding objects. We show a zoomed in image of the contact to illustrate the same. [Bottom] To validate this, force values () were calculated from the impulse () during contact and release. The impulse values () were recorded from the fingertips of the vMPL and were differentiated with time to get force values (, here represents the frame rate in Unity3D). Touch information was provided to the subject through a vibrotactile feedback with a gentle vibration provided by the Myo ™ armband.

The HoloPHAM setup comprised of a virtual model of the PHAM, viewed through the Microsoft HoloLens™. The virtual model could be placed at any convenient location within the room for subjects to train with. Subjects interacted with the virtual objects on the HoloPHAM using a virtual version of the Modular Prosthetic Limb (vMPL, Applied Physics Laboratory, Laurel, MD). The vMPL was also projected through the HoloLens™. All AR assets were developed in Unity3D (Unity Technologies, San Francisco) (see Fig. 2) using the Mixed Reality Toolkit (Microsoft, Redmond, WA). The HoloLens™asset was imported into the scene and the vMPL asset was attached to the main camera, in a configuration, so as to allow subjects to freely move around the room while also allowing a first person view of the vMPL. All objects in the scene were defined as rigid bodies with the mass of the geometric primitive objects set to of the mass of the vMPL. Mass of the HoloPHAM frame and the vMPL were set to be equal. These properties were set to enable rigid body collision between the interacting objects (see Fig. 3).

To provide a sense of touch in the AR space, vibrotactile feedback was provided to the subjects through the Myo™ armband (Thalmic Labs, Canada) when any contact of the vMPL was made with the other virtual objects in the scene. To control the vMPL, inertial sensors (see Section II-B) were placed on the upper arm and forearm to capture kinematic information. A total of 6 degrees of freedom (DOF) (3 for shoulder, 1 for elbow flexion/extension, 1 for wrist supination/pronation and 1 for hand open/close) of the vMPL could be controlled. While shoulder and elbow DOF were controlled using the inertial tracking, the wrist DOF was driven using pattern recognition on the subject’s surface electromyogram (EMG) signals. EMG data was recorded and streamed through the Myo™armband and pattern movements were decoded using linear discriminant analysis (LDA). As loading has shown to have an effect on pattern recognition systems, a dummy weight, with a mass equal to the physical Modular Prosthetic Limb, was wrapped around the upper limb while training on the HoloPHAM

[35][36].

Ii-B Inertial Sensing & Kinematic Assessment

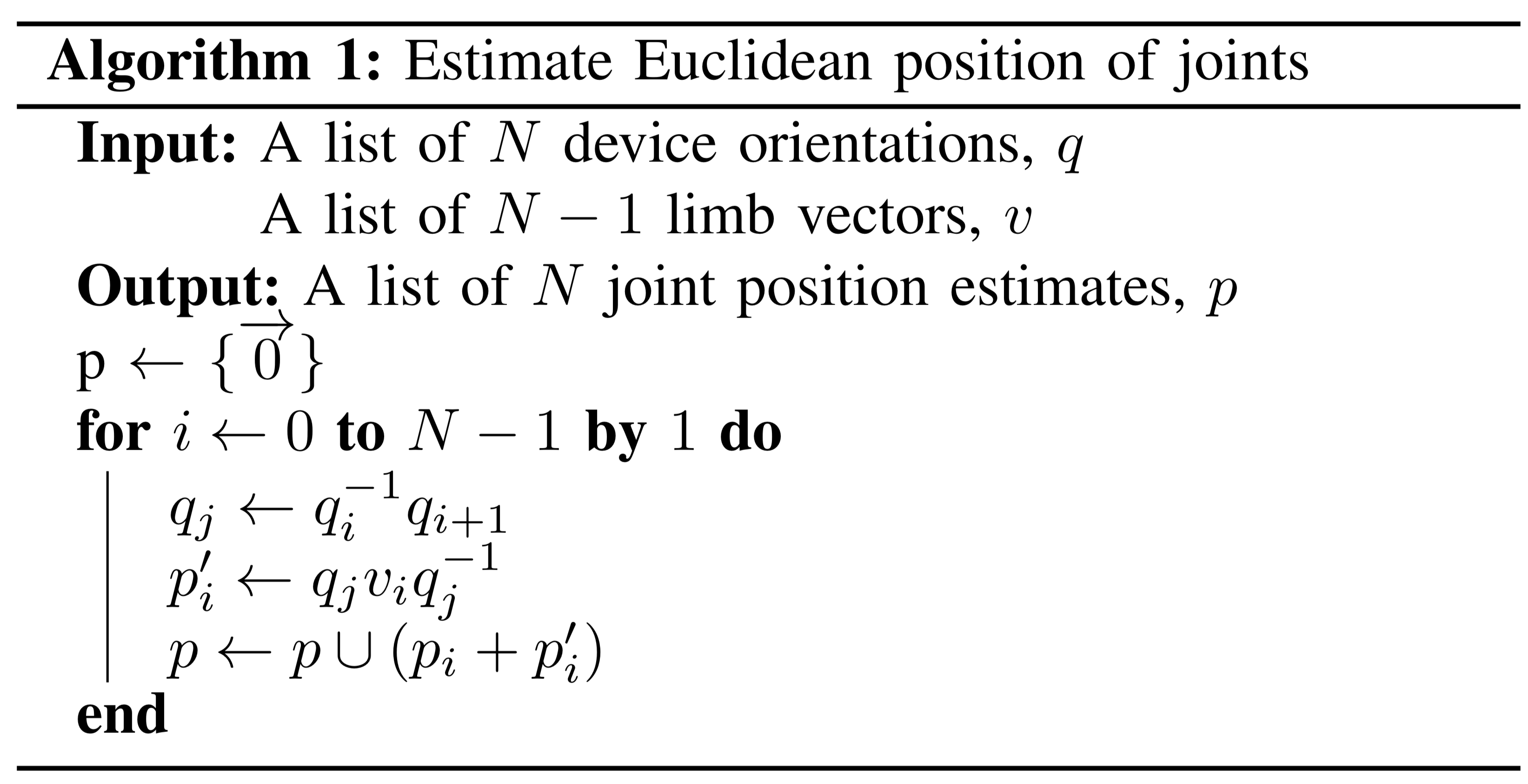

In order to both control the vMPL and track joint trajectories, a network of 9-axis MPU9250 (InvenSense, San Jose, CA) inertial measurement units (IMUs) were used (see Fig. 2). The three IMUs (on forearm, upperarm and chest) streamed absolute orientation values as quaternions, at 20 Hz, to a Bluetooth Low Energy (BLE) adapter, connected to a computer which computed Euler joint angles of the shoulder and the elbow. A Madgwick filter was used to efficiently filter and fuse raw sensor data based on the algorithm described here [37].

Besides controlling the vMPL, inertial sensing was used for kinematic comparison. Comparisons were made based on the rotational joint angle dynamics of the shoulder and elbow during a task. A baseline kinematic profile for each subject was used for comparison. The joint dynamics while performing the tasks on the PHAM at the beginning of the study was used as the baseline kinematic profile. For rotational joint angle dynamics, time series quaternions were compared using the dynamic time warping (DTW) algorithm. DTW is a popular mechanism for calculating similarity between two signals that may be independent of certain non-linear variations in the time dimension. DTW aligns the signals by warping the time dimension iteratively until an optimal warped path () is found. The detailed algorithm has been described here [38]. DTW has been shown to be a valid method for quantifying movement quality in upper limb prosthesis use [13]. For two quaternion time series and , of lengths and respectively, an optimal warp path is constructed, with the distance of the warp path estimated by:

(1)

where is the Euclidean distance of the warp path , and is the distance between the two quaternion point indexes (one from and one from ) in the element of the warp path. A lower distance value represents a greater similarity between two joint dynamics. Since the standard DTW algorithm runs in , we adopted a slightly optimized version known as FastDTW, which provides optimal alignments in time and memory complexity [39].

To account for the metabolic cost involved during reaching tasks, energy expenditure, as an estimate of metabolic effort during reaching was computed [40]. The formulation estimates the energy expended to reach a distance and is given by:

(2)

where metabolic energy expenditure () is given as a function of the reach duration, , reach distance, , effective limb mass, and the parametric constants . For reaching motor tasks, = 15, = 77, = 1.1, = 3. These values are adopted from previous research and have been estimated based on simulations of reaching movements at different distances and duration [40]. Reach distance d is the Euclidean distance traversed by a joint in time T. Estimation of Euclidean position of joints has been described here [41]. Algorithm 1 describes the three dimensional joint position estimation based on compounding iteration.

Task No. () 1 2 3 4
1 1 -1 0
0 1 0 0
Table I: Feature parameters of tasks

Ii-C Experiment

Figure 4: [Top] The four tasks on the PHAM and HoloPHAM involve reach and grasp movements which account for three dimensional kinematics and different grasp patterns. To ensure consistency, subjects stood at an arms length from the frame. The subjects were required to start and return from a default position (limbs fully extended to the sides of the trunk) during each task. The two dimensional relocation of primitive objects share feature parameters (see Table I) similar to the CRT. The target (in blue) location represents location from where the object has to be picked and the goal (in green) location represents the position where it has to be released. The order of the tasks were randomized during the experiment to prevent cognitive bias. [Bottom] Average metabolic cost for each of these tasks were computed based on equation 2. A baseline metabolic cost ( 965 J) for reach and return has been represented by the black dashed line. The error bars represent the stand error of mean.

Ii-C1 Study Protocol

The study was divided into three phases: 1) initial evaluation phase, 2) training phase, 3) testing phase and 4) washout phase. In the initial evaluation phase, the subjects were asked to perform a set of outcome measures that included the CRT, PHAM and HoloPHAM. For the purposes of analysis, task completion time, EMG and kinematic information were recorded. The training phase involved the subjects visiting a local clinic multiple times over 10 days, with no more than a 2-day gap between the sessions. In each visit, the subjects trained on the HoloPHAM, through a set of three repetitions of four tasks that were randomized during training. After the training phase was over, in the testing phase, the subjects were asked to repeat the set of outcomes that were used in the initial evaluation phase. Post-training, a washout period of 5 days was involved were the subjects did not receive any training.

Ii-C2 Reach Tasks

For depth perception in AR a series of reaching tasks with the vMPL was conducted, where the subjects (N=3) had to guide the vMPL towards a goal endpoint position from a starting point in the AR space (see Fig. 6a). In Fig. 6a,

(in meters) denotes this distance value, where the starting point refers to the position where the vMPL is closest to the subject’s chest and the endpoint refers to the position of a virtual cylinder in AR space. The cylinder was placed at the subject’s chest level. Inertial trackers were used to estimate the endpoint of the physical hand (using Algorithm 1) and its reach distance was computed. For five set of trials, mean and standard deviation of the physical reach distance (

and ) was calculated. This experiment was conducted with three values of 0.2 m, 0.25 m and 0.3 m, respectively. To ensure that only visual feedback is used to perceive depth, no additional vibrotactile feedback for touch was provided during this experiment.

Ii-C3 PHAM & HoloPHAM Tasks

All tasks involved reach and grasp movements in a three dimensional space. While both the PHAM and HoloPHAM are capable of a diverse range of object manipulations, subjects were asked to complete a subset of tasks that resembled those of the CRT. Since tasks on these outcomes account for 2-dimensional movement and wrist rotation, a task was parameterized by two features - 1) relative 2-D position and 2) relative angular position of the target location with respect to the initial location. Relative 2-D position determines whether the object has to be moved vertically , diagonally or along the same level from the initial position while the relative angular position describes the orientation of the target location with respect to the initial location and whether the subject would be required to rotate the end effector of the vMPL or not . Table I shows the feature parametrization of all the tasks on the PHAM and HoloPHAM while Fig.4 shows a visualization of the required manipulations. For all three outcome measures, there were three repetitions for each task. The sequence of tasks were randomized and subjects were allowed to complete them at their own pace in order to prevent cognitive bias and muscle fatigue, respectively.

Iii Results

Iii-a Inertial Sensing Validation

To enable efficient wireless kinematic tracking, IMUs and rigid body constraints were used to accurately estimate joint positions, up to the centimeter range. Wireless tracking through inertial sensors are known to be low cost, low weight and high accuracy solutions over optical and depth trackers. IMUs have become a popular kinematic tracker for human machine interfaces, especially for devices that require arm tracking capabilities [42].

Iii-A1 Rotation

In our previous work we studied the angular (polar and azimuthal) accuracy of our kinematic tracking system [41]. In our study we achieved a mean estimate accuracy of 2.81° with 1.06° precision, with a maximum endpoint hand tracking error of 7.06 cm (see Fig.5) due to angular perturbation.

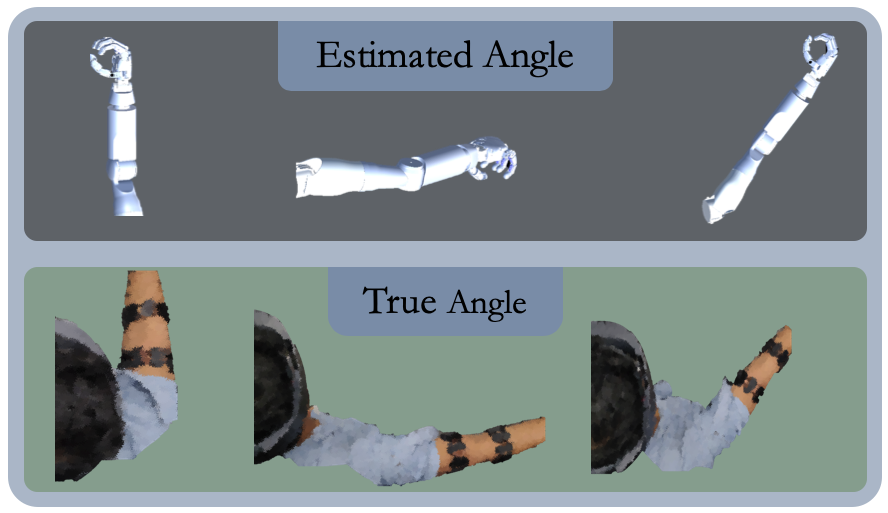

Figure 5: Top view showing the estimated and true angles of the vMPL and actual physical limb rotation. Sensory accuracies were 3.38° (1.34°precision) and 2.24° (0.77°precision) for polar and azimuthal configurations, respectively. Inertial sensors were validated with a stepper motor as described here [41]. A visual latency of the actual movement of the vMPL was observed to be between 500-800 ms.

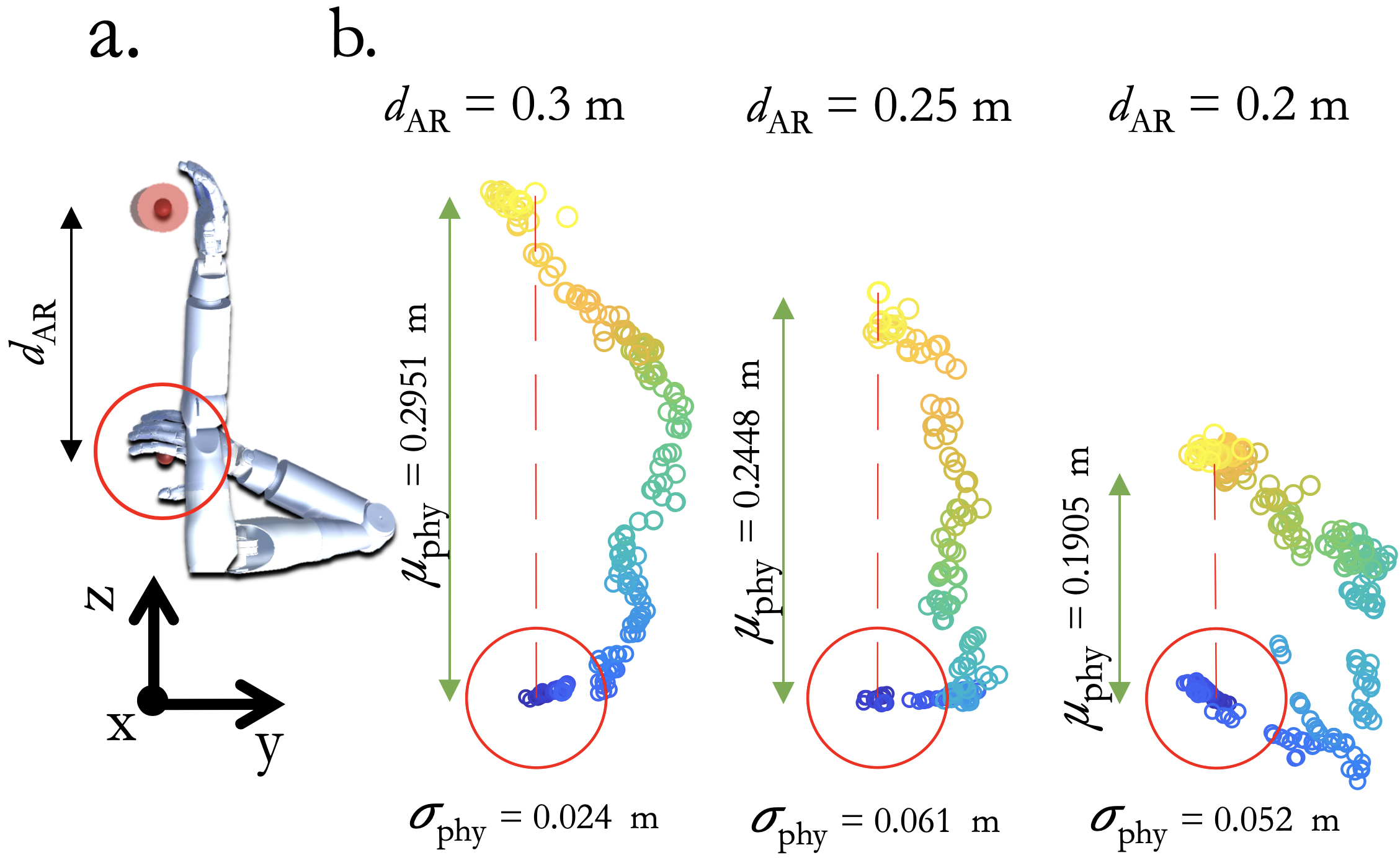

Figure 6: a. The configuration of the vMPL in the starting and end position during the target reach movement. Subjects were instructed to start from the same starting position (represented by the red circle) and reach towards the end point ( represented by the virtual red cylinder) with no time constraints. No vibrotactile feedback was provided during this experiment. denotes the distance or depth of the cylinder from the starting position in the AR scene. b. Trajectory of the physical hand end-point, along the zy plane, is shown for multiple virtual depth values (). The color spectrum changes from blue to yellow from the starting till the end point. denotes the mean distance traversed by the physical hand end-point for the corresponding , while denotes the standard deviation.

Iii-A2 Translation

To further validate inertial tracking, depth perception experiment was conducted (see Section II-C-2) where the virtual depth was compared with the physical hand displacement. In Fig. 6 we show the configuration of the experiment for the reach task and the trajectory of the physical endpoint along the zy plane, where the depth distance is along the x direction. With five set of trials with three subjects, a mean error in depth perception was 5.27 cm.

Iii-A3 Kinematics

Ensuring that HoloPHAM accurately resembles reaching task of the PHAM, kinematic joint dynamics were compared in the two modalities. Since the HoloLens™ uses built-in optical and inertial sensors for position and orientation tracking, calibration errors can result in mismatch between the physical and virtual space dynamics [43]. A similarity cost based on the DTW algorithm (see Eqn. 1) was used to compare the joint angle dynamics of the tasks performed on the PHAM and HoloPHAM (see Fig.7).

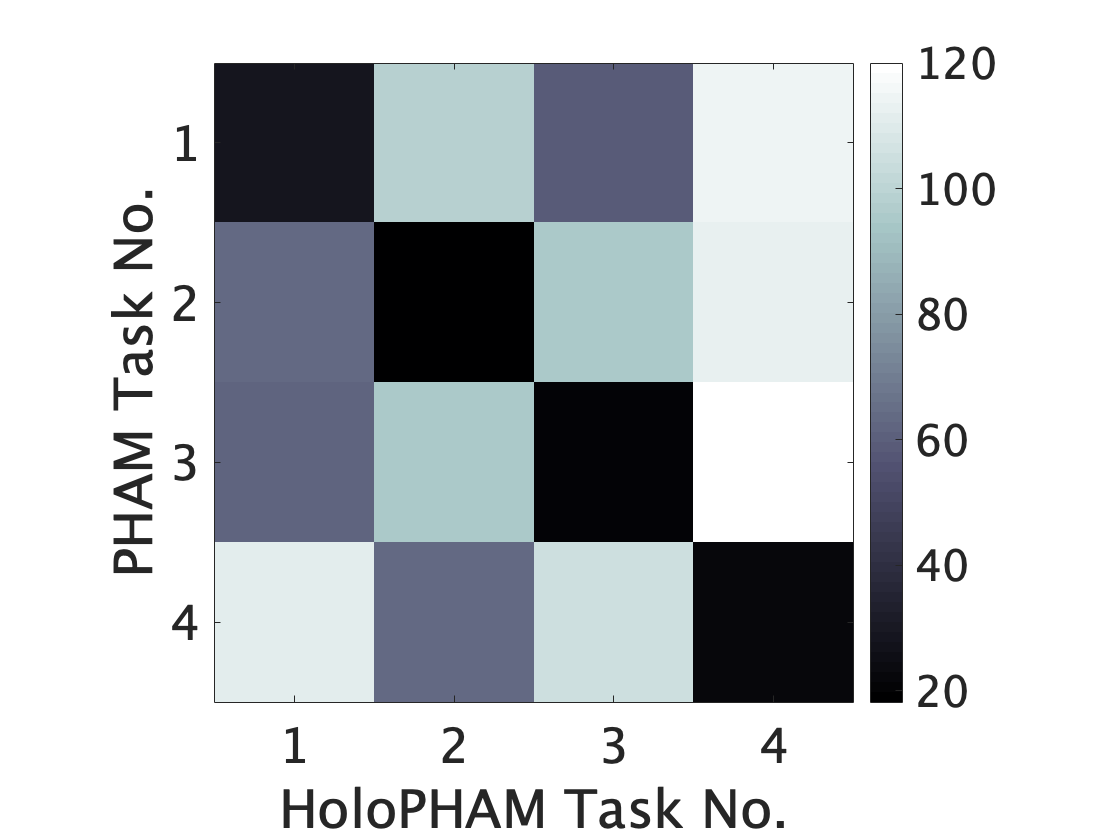

Figure 7: Confusion matrix showing the distances of the warped path () between the tasks on our physical (PHAM, along y axis, ) and augmented reality (HoloPHAM, along x axis, ) setup based on the DTW algorithm. Cost () represents the mean (over five trials) measured using equation 1. A lower cost represents greater similarity between the joint dynamics in the two tasks.

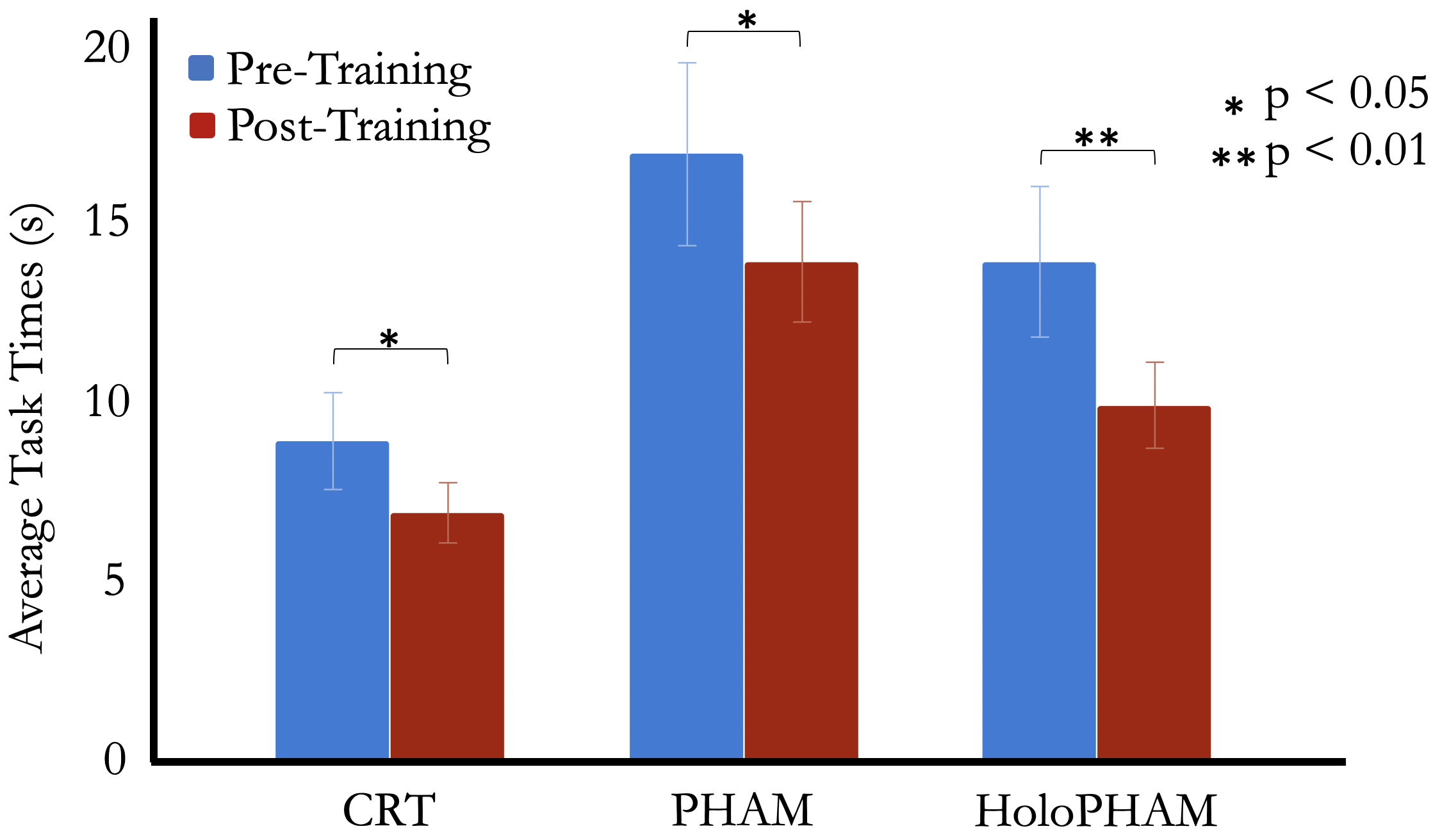

Figure 8: Task completion times for subjects (N=3, able-bodied) in the pre- and post-training phases are reported. * denotes the statistical significance at p <0.05 and ** at p <0.01.

Iii-B Effect of HoloPHAM Training

After a training phase of 10 days, we observed the effects of performance during tasks on the CRT, PHAM and HoloPHAM, where we looked at the average completion times (see Fig.8). Statistically significant improvements were observed in both physical and virtual outcomes, with percentage reduction in completion times of 22.22%, 23.5% and 28.5% in CRT, PHAM and HoloPHAM respectively.

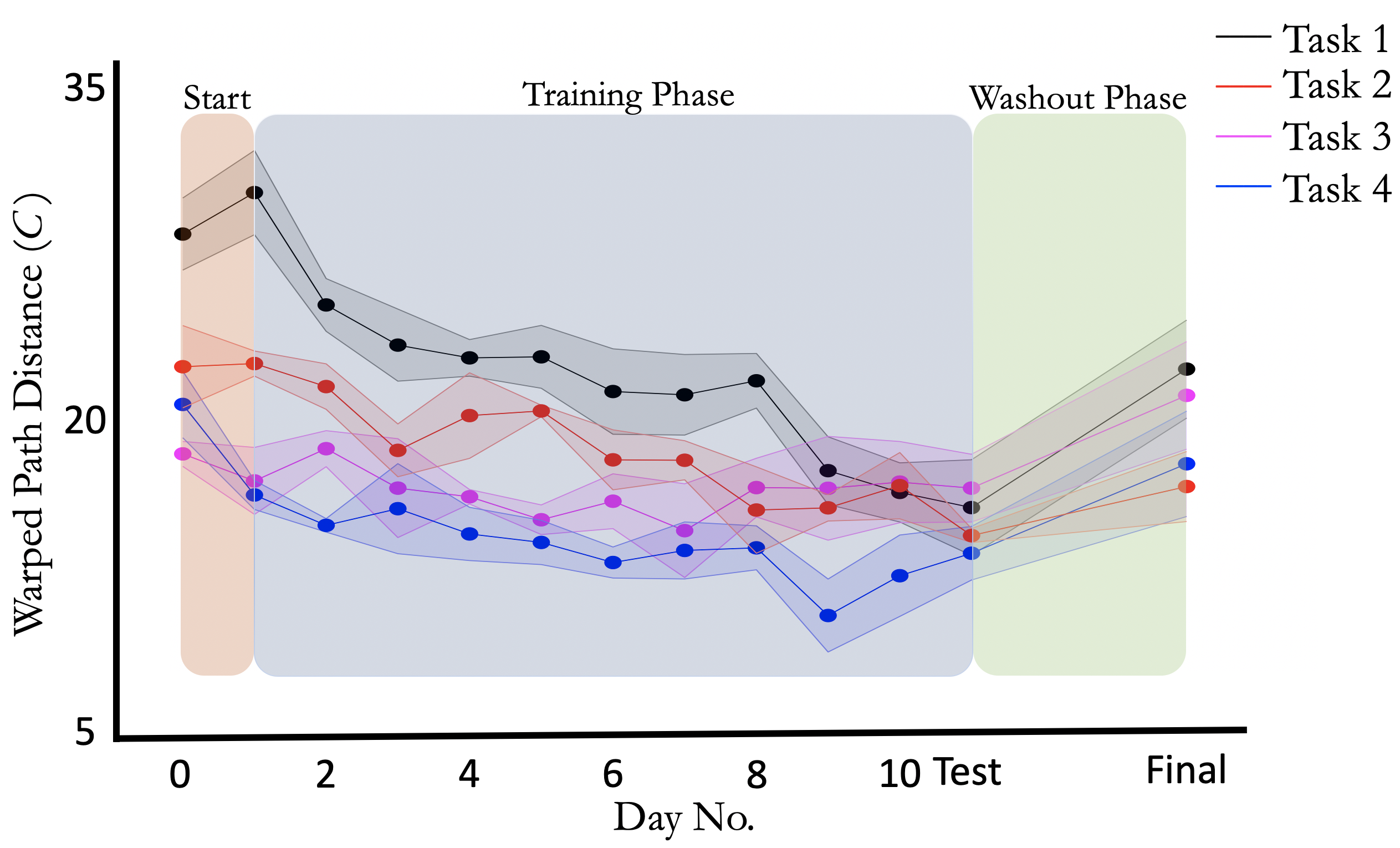

Figure 9: Progression of the warped path distance (similarity cost, ) of joint dynamics over the training phase across the four tasks on the HoloPHAM. The references (baselines) are the joint dynamics for each tasks measured on Day 0 with the tasks on the PHAM. Similarity cost after a washout period of 5 days, post test day, has also been reported. A lower warped path distance signifies greater similarity between the PHAM and HoloPHAM joint dynamics, for the same tasks (

= 0 for two exactly same time series signals). The solid lines represent the average across all subjects (N=3), with the variance in data represented as shaded patches.

During the training phase with the HoloPHAM, the joint dynamics during each task was recorded. In Fig. 9, we show the mean and variance in similarity cost of the joint dynamics of HoloPHAM tasks with the corresponding baseline tasks on the PHAM. Comparison score was measured as the cost of the warped path using the DTW algorithm (see Eqn. 1). Cost from all sessions between the pre- and post-training phases are reported. There was a general reduction in the cost between pre- and post-training phase. After the washout phase, there was however, an increase in the cost across all tasks.

Iv Discussion

Upper limb prosthesis training involves repetition of reach and grasp movements that are designed to assist motor skill learning [17]. Current state-of-the-art VR and AR prosthesis systems are limited as they focus only on a specific aspect of prosthesis control. In this work, we developed a multi-dimensional human-machine interaction system which offers several DOF control (both kinematic and myoelectric) of a virtual prosthesis. Prior to using our AR system for training, we conducted a series of validation experiments. These experiments were performed to understand the transfer of physical information into the AR space through our interface. To begin with, rotational and translational error in the interface were looked at (see Fig.5 and 6). To study how these variables affect the 3-dimensional reaching and grasp kinematics, joint dynamics were compared (see Fig.7) Corresponding reaching tasks on the PHAM and HoloPHAM showed greater similarity, suggesting that there is a linear correlation between the physical and AR space, in terms of kinematics. We then conducted a long-term study to investigate the effects of training with our AR system on standardized functional outcome measures. While completion times improved in all three measures between pre- and post-training (see Fig. 8), the quality of motion in the HoloPHAM, in terms of joint dynamics, was also observed to converge towards the PHAM (see Fig.9). Improvements in task completion times suggests that training with our AR setup, by in itself, can enhance motor skill performance, with the effects, also translating to the physical outcome measures. Subsequent reduction in joint kinematic cost, while training with the HoloPHAM, suggests that subjects are able to develop a more intuitive control of the vMPL with time (see Fig.9). Our results show both quantitative and qualitative improvements in skill performance with AR training.

While motor learning processes are an internal phenomenon and cannot be directly observed, performance of subjects during skill experiments can be used an indicator for inferring these effects of training [44]. Such an internal model, believed to be based primarily in the cerebellar region of the brain, has been known to have synaptic plasticity, which can be trained and re-trained in a supervised manner [45]. Motor learning requires immense amount of sensation and perception [46]. To facilitate learning, our AR system incorporated several aspects of these paradigms. The HoloPHAM enabled subjects to see virtual objects that are blended into the physical space, while also allowing them to maintain visual contact of the vMPL (see Fig. 2). Visual contact of the hand and target objects has been known to provide assistive feedback for motor planning and control, allowing proper execution of the movement [47]. Vibrotactile feedback allowed subjects to know when they made contact of virtual objects with the vMPL (see Fig. 3) . Previous research has shown that a non-invasive mechanical vibration on the upper limb stump, when coupled with a visual feedback of the virtual limb, stimulates the sensory-motor centers in the cortex [48]. Interpretation of sensory information and feedback enables the perception of the objects and visual cues in an environment. Accurate perception of virtual objects, within a range of few centimeters, was accomplished in our AR setup (see Fig. 6). Lack of depth perception has been shown to negatively impact reaching performance, quality of movement as well grasping actions [49]. Joint kinematic comparison of a physical limb with the virtual limb (vMPL in our case) throws light on motor coordination and the aspect of embodiment of virtual objects in AR (see Fig. 9). The increase in joint kinematic cost, after the washout phase (see Fig.9), suggests that our system facilitated motor learning and illustrated the effect of practise for motor retention.

In our current system, a visual latency of the 3-dimensional movement of virtual limb was in the range of 500-800 ms. While larger than the real-time limit of 250 ms, our results suggest this system latency is still within the limits to facilitate motor learning. While a longer time study would be useful to see how the similarity between physical and virtual joint dynamics evolved, it essential to note that an exact similarity can be hard to achieve with the current technological limitations of current AR systems [50]. Future research in this space is directed towards observing the effects AR training has on amputee population’s pattern recognition and kinematic performance.

V Conclusion

In this work we presented an AR based human-machine interaction system for prosthesis control. The system provided both visual and vibrotactile feedback to the subjects during interaction. Our AR setup, based upon an exisiting physical functional ouctome measure, allowed both myoelectric and kinematic control of a virtual prosthesis, with several degrees of freedom. Kinematic relationship between the physical and AR space were studied. Furthermore, the effects of training with our AR setup over a period of 10 days were investigated. Both quantitative and qualitative aspects of reach and object manipulation performance showed improvements. These effects depreciated, but were still retained, after a washout phase without training, suggesting that our AR setup facilitated motor skill learning. Future work will investigate the effects on a broader subject population (both amputee and able-bodied) over a longer study duration.

Vi Acknowledgment

We wish to acknowledge Johns Hopkins Applied Physics Laboratory (JHU/APL) for developing and making available the Virtual Integration Environment (VIE), which the virtual Modular Prosthesis Limb (vMPL) is a part of. The VIE was developed under the Revolutionizing Prosthetics program. The authors would like to thank the human subjects who participated in this study and Johns Hopkins University Applied Physics Laboratory for providing the Microsoft HoloLens™.
