Audio-Visual Understanding of Passenger Intents for In-Cabin Conversational Agents

07/08/2020 ∙ by Eda Okur, et al. ∙ Intel 0

Building multimodal dialogue understanding capabilities situated in the in-cabin context is crucial to enhance passenger comfort in autonomous vehicle (AV) interaction systems. To this end, understanding passenger intents from spoken interactions and vehicle vision systems is a crucial component for developing contextual and visually grounded conversational agents for AV. Towards this goal, we explore AMIE (Automated-vehicle Multimodal In-cabin Experience), the in-cabin agent responsible for handling multimodal passenger-vehicle interactions. In this work, we discuss the benefits of a multimodal understanding of in-cabin utterances by incorporating verbal/language input together with the non-verbal/acoustic and visual clues from inside and outside the vehicle. Our experimental results outperformed text-only baselines as we achieved improved performances for intent detection with a multimodal approach.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Understanding passenger intents from spoken interactions and visual cues (both from inside and outside the vehicle) is an important building block towards developing contextual and scene-aware dialogue systems for autonomous vehicles. When the passengers give instructions to the in-cabin agent AMIE, the agent should parse commands properly considering three modalities (i.e., verbal/language/text, vocal/audio, visual/video) and trigger the appropriate functionality of the AV system.

For in-cabin dialogue between car assistants and driver/passengers, recent studies explore creating a public dataset using a WoZ approach Eric et al. (2017) and improving ASR for passenger speech recognition Fukui et al. (2018). Another recent work Zheng et al. (2017)

attempts to classify sentences as navigation-related or not using the CU-Move in-vehicle speech corpus

Hansen et al. (2001), a relatively old and large corpus focusing on route navigation.

We collected a multimodal in-cabin dataset with multi-turn dialogues between the passengers and AMIE using a Wizard-of-Oz (WoZ) scheme via realistic scavenger hunt game. In previous work Okur et al. (2019), we experimented with various RNN-based models to detect the utterance-level intents (i.e., set-destination, change-route, go-faster, go-slower, stop, park, pull-over, drop-off, open-door, other) along with the intent keywords and relevant slots (i.e., location, position/direction, object, gesture/gaze, time-guidance, person) associated with these intents.

In this work, we discuss the benefits of a multimodal understanding of in-cabin utterances by incorporating verbal/language input together with the non-verbal/acoustic and visual cues, both from inside and outside the vehicle (e.g., passenger gestures and gaze from the in-cabin video stream, referred objects outside of the vehicle from the road view camera stream).

2 Data

Our AMIE in-cabin dataset includes 30 hours of multimodal data collected from 30 passengers (15 female, 15 male) in a total of 20 sessions. In 10 sessions, a single passenger was present, whereas the remaining 10 sessions include two passengers interacting with the vehicle. Participants sit in the back of the vehicle, separated from the driver and the human acting as an agent at the front. The vehicle is modified to hide the operator and the WoZ AMIE agent from the passengers, using a variation of the WoZ approach Wang et al. (2017). In each ride/session, which lasted about 1 hour or more, the participants were playing a realistic scavenger hunt game on the streets of Richmond, BC, Canada. Passengers treat the vehicle as AV and communicate with the WoZ AMIE agent mainly via speech commands. Game objectives require passengers to interact naturally with the agent to go to certain destinations, update routes, give specific directions regarding where to pull over or park (sometimes with gestures), find landmarks (refer to outside objects), stop the vehicle, change speed, get in and out of the vehicle, etc. Further details of the data collection protocol and dataset statistics can be found in Sherry et al. (2018); Okur et al. (2019). See Fig. 1 for the vehicle instrumentation to enable multimodal data collection setup.

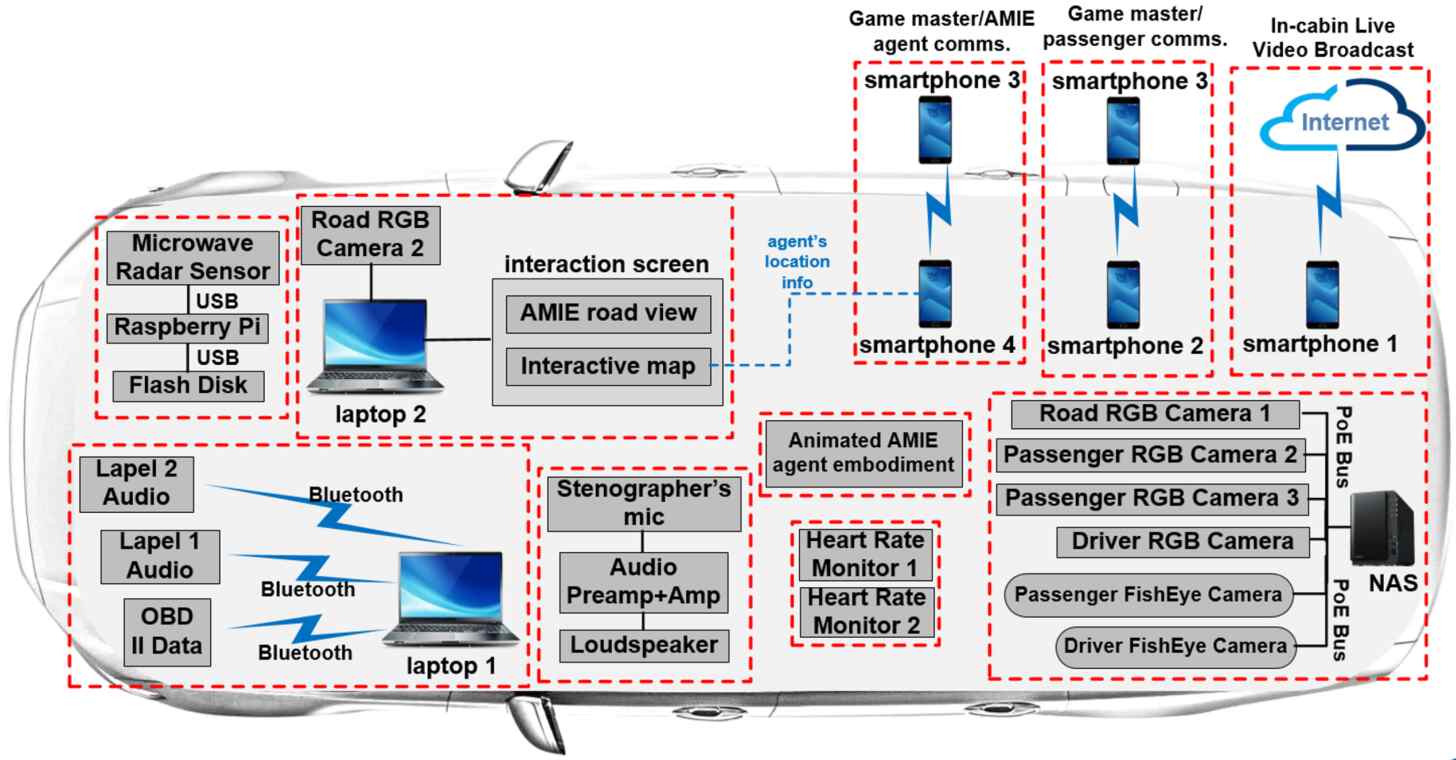

Figure 1: AMIE In-cabin Data Collection Setup
