1 Introduction

As humans, we experience our world through a number of simultaneous sensory streams. When we bite into an apple, not only do we taste it, but — as Smith and Gasser [1] point out — we also hear it crunch, see its red skin, and feel the coolness of its core. The coincidence of sensations gives us strong evidence that they were generated by a common, underlying event [2]

, since it is unlikely that they co-occurred across multiple modalities merely by chance. These cross-modal, temporal co-occurrences therefore provide a useful learning signal: a model that is trained to detect them ought to discover multi-modal structures that are useful for other tasks. In much of traditional computer vision research, however, we have been avoiding the use of other, non-visual modalities, arguably making the perception problem harder, not easier.

In this paper, we learn a temporal, multisensory representation that fuses the visual and audio components of a video signal. We propose to train this model without using any manually labeled data. That is, rather than explicitly telling the model that, e.g., it should associate moving lips with speech or a thud with a bouncing ball, we have it discover these audio-visual associations through self-supervised training [3]. Specifically, we train a neural network on a “pretext” task of detecting misalignment between audio and visual streams in synthetically-shifted videos. The network observes raw audio and video streams — some of which are aligned, and some that have been randomly shifted by a few seconds — and we task it with distinguishing between the two. This turns out to be a challenging training task that forces the network to fuse visual motion with audio information and, in the process, learn a useful audio-visual feature representation.

We demonstrate the usefulness of our multisensory representation in three audio-visual applications: (a) sound source localization, (b) audio-visual action recognition; and (c) on/off-screen sound source separation. Figure 1 shows examples of these applications. In Fig. 1(a), we visualize the sources of sound in a video using our network’s learned attention map, i.e. the impact of an axe, the opening of a mouth, and moving hands of a musician. In Fig. 1

(b), we show an application of our learned features to audio-visual action recognition, i.e. classifying a video of a chef chopping an onion. In Fig.

1(c), we demonstrate our novel on/off-screen sound source separation model’s ability to separate the speakers’ voices by visually masking them from the video.

The main contributions of this paper are: 1) learning a general video representation that fuses audio and visual information; 2) evaluating the usefulness of this representation qualitatively (by sound source visualization) and quantitatively (on an action recognition task); and 3) proposing a novel video-conditional source separation method that uses our representation to separate on- and off-screen sounds, and is the first method to work successfully on real-world video footage, e.g. television broadcasts. Our feature representation, as well as code and models for all applications are available online.

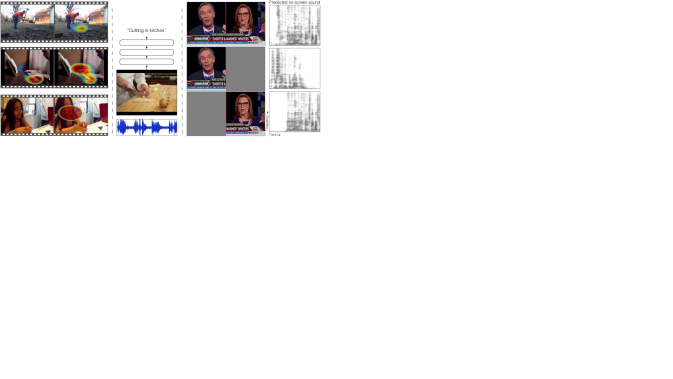

(a) Sound localization (b) Action recognition (c) On/off-screen audio separation
Figure 1: Applications. We use self-supervision to learn an audio-visual representation that: (a) can be used to visualize the locations of sound sources in video; (b) is useful for visual and audio-visual action recognition; (c) can be applied to the task of separating on- and off-screen sounds. In (c), we demonstrate our source-separation model by visually masking each speaker and asking it to predict the on-screen audio. The predicted sound contains only the voice of the visible speaker. Please see our webpage for video results: http://andrewowens.com/multisensory.

2 Related work

Evidence from psychophysics

While we often think of vision and hearing as being distinct systems, in humans they are closely intertwined [4] through a process known as multisensory integration. Perhaps the most compelling demonstration of this phenomenon is the McGurk effect [5], an illusion in which visual motion of a mouth changes one’s interpretation of a spoken sound111For a particularly vivid demonstration, please see: https://www.youtube.com/watch?v=G-lN8vWm3m0 [6].. Hearing can also influence vision: the timing of a sound, for instance, affects whether we perceive two moving objects to be colliding or overlapping [2]. Moreover, psychologists have suggested that humans fuse audio and visual signals at a fairly early stage of processing [7, 8], and that the two modalities are used jointly in perceptual grouping. For example, the McGurk effect is less effective when the viewer first watches a video where audio and visuals in a video are unrelated, as this causes the signals to become “unbound” (i.e. not grouped together) [9, 10]. This multi-modal perceptual grouping process is often referred to as audio-visual scene analysis [11, 7, 12, 10]. In this paper, we take inspiration from psychology and propose a self-supervised multisensory feature representation as a computational model of audio-visual scene analysis.

Self-supervised learning

Self-supervised methods learn features by training a model to solve a task derived from the input data itself, without human labeling. Starting with the early work of de Sa [3], there have been many self-supervised methods that learn to find correlations between sight and sound  [13, 14, 15, 16]. These methods, however, have either learned the correspondence between static images and ambient sound [15, 16], or have analyzed motion in very limited domains [14, 13] (e.g. [14] only modeled drumstick impacts). Our learning task resembles Arandjelović and Zisserman [16], which predicts whether an image and an audio track are sampled from the same (or different) videos. Their task, however, is solvable from a single frame by recognizing semantics (e.g. indoor vs. outdoor scenes). Our inputs, by contrast, always come from the same video, and we predict whether they are aligned; hence our task requires motion analysis to solve. Time has also been used as supervisory signal, e.g. predicting the temporal ordering in a video [17, 18, 19]. In contrast, our network learns to analyze audio-visual actions, which are likely to correspond to salient physical processes.

Audio-visual alignment

While we study alignment for self-supervised learning, it has also been studied as an end in itself

[20, 21, 22] e.g. in lip-reading applications [23]. Chung and Zisserman [22], the most closely related approach, train a two-stream network with an embedding loss. Since aligning speech videos is their end goal, they use a face detector (trained with labels) and a tracking system to crop the speaker’s face. This allows them to address the problem with a 2D CNN that takes 5 channel-wise concatenated frames cropped around a mouth as input (they also propose using their image features for self-supervision; while promising, these results are very preliminary).

Sound localization

The goal of visually locating the source of sounds in a video has a long history. The seminal work of Hershey et al. [24] localized sound sources by measuring mutual information between visual motion and audio using a Gaussian process model. Subsequent work also considered subspace methods [25], canonical correlations [26], and keypoints [27]. Our model learns to associate motions with sounds via self-supervision, without us having to explicitly model them.

Audio-Visual Source Separation

Blind source separation (BSS), i.e. separating the individual sound sources in an audio stream — also known as the cocktail party problem [28] — is a classic audio-understanding task [29]. Researchers have proposed many successful probabilistic approaches to this problem [30, 31, 32, 33]

. More recent deep learning approaches involve predicting an embedding that encodes the audio clustering

[34, 35], or optimizing a permutation invariant loss [36]. It is natural to also want to include the visual signal to solve this problem, often referred to as Audio-Visual Source Separation. For example, [37, 25] masked frequencies based on their correlation with optical flow; [12] used graphical models; [27] used priors on harmonics; [38] used a sparsity-based factorization method; and [39]

used a clustering method. Other methods use face detection and multi-microphone beamforming

[40]. These methods make strong assumptions about the relationship between sound and motion, and have mostly been applied to lab-recorded video. Researchers have proposed learning-based methods that address these limitations, e.g.  [41] use mixture models to predict separation masks. Recently, [42] proposed a convolutional network that isolates on-screen speech, although this model is relatively small-scale (tested on videos from one speaker). We do on/off-screen source separation on more challenging internet and broadcast videos by combining our representation with a -net [43] regression model.

Concurrent work

Concurrently and independently from us, a number of groups have proposed closely related methods for source separation and sound localization. Gabbay et al. [44, 45] use a vision-to-sound method to separate speech, and propose a convolutional separation model. Unlike our work, they assume speaker identities are known. Ephrat et al. [46] and Afouras et al. [47] separate the speech of a user-chosen speaker from videos containing multiple speakers, using face detection and tracking systems to group the different speakers. Work by Zhao et al. [48] and Gao et al. [49] separate sound for multiple visible objects (e.g. musical instruments). This task involves associating objects with the sounds they typically make based on their appearance, while ours involves the “fine-grained” motion-analysis task of separating multiple speakers. There has also been recent work on localizing sound sources using a network’s attention map [50, 51, 52]. These methods are similar to ours, but they largely localize objects and ambient sound in static images, while ours responds to actions in videos.

3 Learning a self-supervised multisensory representation

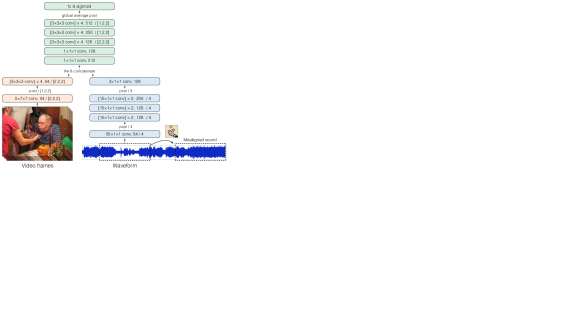

Figure 2:

Fused audio-visual network. We train an early-fusion, multisensory network to predict whether video frames and audio are temporally aligned. We include residual connections between pairs of convolutions

[53]. We represent the input as a

volume, and denote a stride by “/2”. To generate misaligned samples, we synthetically shift the audio by a few seconds.

We propose to learn a representation using self-supervision, by training a model to predict whether a video’s audio and visual streams are temporally synchronized.

Aligning sight with sound

During training, we feed a neural network video clips. In half of them, the vision and sound streams are synchronized; in the others, we shift the audio by a few seconds. We train a network to distinguish between these examples. More specifically, we learn a model that predicts whether the image stream and audio stream are synchronized, by maximizing the log-likelihood:

(1)

where is the audio track shifted by secs., is a random temporal shift, are the model parameters, and

is the event that the streams are synchronized. This learning problem is similar to noise-contrastive estimation

[54], which trains a model to distinguish between real examples and noise; here, the noisy examples are misaligned videos.

Fused audio-visual network design

Solving this task requires the integration of low-level information across modalities. In order to detect misalignment in a video of human speech, for instance, the model must associate the subtle motion of lips with the timing of utterances in the sound. We hypothesize that early fusion of audio and visual streams is important for modeling actions that produce a signal in both modalities. We therefore propose to solve our task using a 3D multisensory convolutional network (CNN) with an early-fusion design (Figure 2).

Before fusion, we apply a small number of 3D convolution and pooling operations to the video stream, reducing its temporal sampling rate by a factor of 4. We also apply a series of strided 1D convolutions to the input waveform, until its sampling rate matches that of the video network. We fuse the two subnetworks by concatenating their activations channel-wise, after spatially tiling the audio activations. The fused network then undergoes a series of 3D convolutions, followed by global average pooling [55]. We add residual connections between pairs of convolutions. We note that the network architecture resembles ResNet-18 [53] but with the extra audio subnetwork, and 3D convolutions instead of 2D ones (following work on inflated convolutions [56]).

Training

We train our model with 4.2-sec. videos, randomly shifting the audio by 2.0 to 5.8 seconds. We train our model on a dataset of approximately 750,000 videos randomly sampled from AudioSet [57]. We use full frame-rate videos (29.97 Hz), resulting in 125 frames per example. We select random crops from resized video frames, apply random left-right flipping, and use 21 kHz stereo sound. We sample these video clips from longer (10 sec.) videos. Optimization details can be found in Section A1.

Task performance

We found that the model obtained 59.9% accuracy on held-out videos for its alignment task (chance ). While at first glance this may seem low, we note that in many videos the sounds occur off-screen [15]. Moreover, we found that this task is also challenging for humans. To get a better understanding of human ability, we showed 30 participants from Amazon Mechanical Turk 60 aligned/shifted video pairs, and asked them to identify the one with out-of-sync sound. We gave them 15 secs. of video (so they have significant temporal context) and used large, 5-sec. shifts. They solved the task with accuracy.

To help understand what actions the model can predict synchronization for, we also evaluated its accuracy on categories from the Kinetics dataset [58] (Figure A1). It was most successful for classes involving human speech: e.g., news anchoring, answering questions, and testifying. Of course, the most important question is whether the learned audio-visual representation is useful for downstream tasks. We therefore turn out attention to applications.

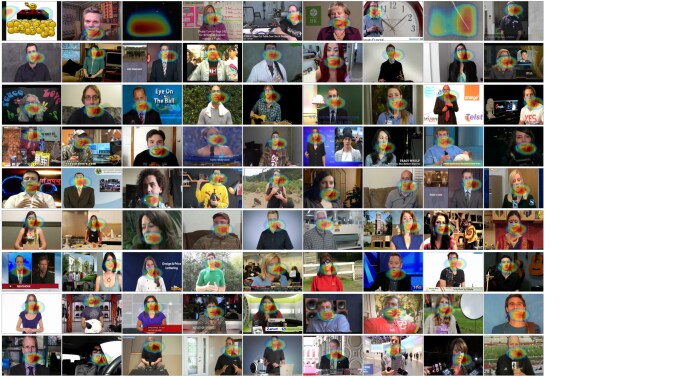

Figure 3: Visualizing sound sources. We show the video frames in held-out AudioSet videos with the strongest class activation map (CAM) response (we scale its range per image to compensate for the wide range of values).

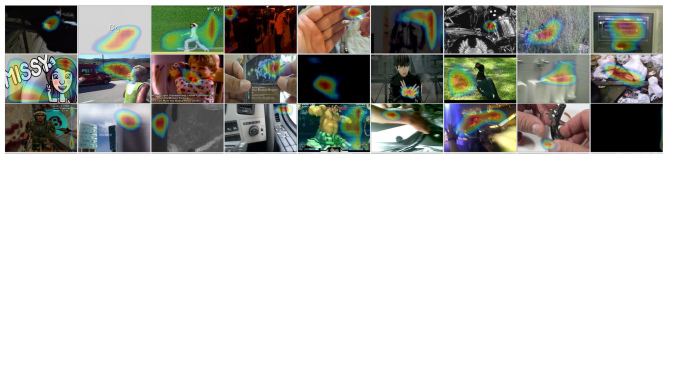

Figure 4: Examples with the weakest class activation map response (c.f. Figure 3).

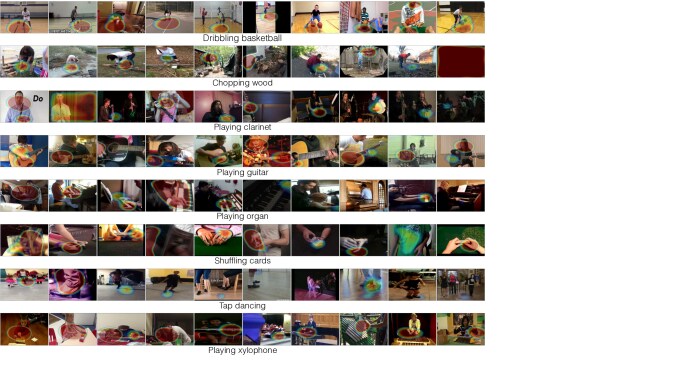

Figure 5: Strongest CAM responses for classes in the Kinetics-Sounds dataset [16], after manually removing frames in which the activation was only to a face (which appear in almost all categories). We note that no labeled data was used for training. We do not rescale the heat maps per image (i.e. the range used in this visualization is consistent across examples).

4 Visualizing the locations of sound sources

One way of evaluating our representation is to visualize the audio-visual structures that it detects. A good audio-visual representation, we hypothesize, will pay special attention to visual sound sources — on-screen actions that make a sound, or whose motion is highly correlated with the onset of sound. We note that there is ambiguity in the notion of a sound source for in-the-wild videos. For example, a musician’s lips, their larynx, and their tuba could all potentially be called the source of a sound. Hence we use this term to refer to motions that are correlated with production of a sound, and study it through network visualizations.

To do this, we apply the class activation map (CAM) method of Zhou et al. [59], which has been used for localizing ambient sounds [52]. Given a space-time video patch , its corresponding audio , and the features assigned to them by the last convolutional layer of our model,

, we can estimate the probability of alignment with:

(2)

where is the binary alignment label,

the sigmoid function, and

is the model’s final affine layer. We can therefore measure the information content of a patch — and, by our hypothesis, the likelihood that it is a sound source — by the magnitude of the prediction

.

One might ask how this self-supervised approach to localization relates to generative approaches, such as classic mutual information methods [24, 25]. To help understand this, we can view our audio-visual observations as having been produced by a generative process (using an analysis similar to [60]): we sample the label , which determines the alignment, and then conditionally sample and . Rather than computing mutual information between the two modalities (which requires a generative model that self-supervised approaches do not have), we find the patch/sound that provides the most information about the latent variable , based on our learned model .

Visualizations

What actions does our network respond to? First, we asked which space-time patches in our test set were most informative, according to Equation 2. We show the top-ranked patches in Figure 3, with the class activation map displayed as a heatmap and overlaid on its corresponding video frame. From this visualization, we can see that the network is selective to faces and moving mouths. The strongest responses that are not faces tend to be unusual but salient audio-visual stimuli (e.g. two top-ranking videos contain strobe lights and music). For comparison, we show the videos with the weakest response in Figure 4; these contain relatively few faces.

Next, we asked how the model responds to videos that do not contain speech, and applied our method to the Kinetics-Sounds dataset [16] — a subset of Kinetics [58] classes that tend to contain a distinctive sound. We show the examples with the highest response for a variety of categories, after removing examples in which the response was solely to a face (which appear in almost every category). We show results in Figure 5.

Finally, we asked how the model’s attention varies with motion. To study this, we computed our CAM-based visualizations for videos, which we have included in the supplementary video (we also show some hand-chosen examples in Figure 1(a)). These results qualitatively suggest that the model’s attention varies with on-screen motion. This is in contrast to single-frame methods models [50, 52, 16], which largely attend to sound-making objects rather than actions.

5 Action recognition

Model Acc. Multisensory (full) 82.1% Multisensory (spectrogram) 81.1% Multisensory (random pairing [16]) 78.7% Multisensory (vision only) 77.6% Multisensory (scratch) 68.1% I3D-RGB (scratch) [56] 68.1% O3N [19]* 60.3% Purushwalkam et al. [61]* 55.4% C3D [62, 56]* 51.6% Shuffle [17]* 50.9% Wang et al. [63, 61]* 41.5%

I3D-RGB + ImageNet

[56]
84.2%
I3D-RGB + ImageNet + Kinetics [56] 94.5%
Table 1: Action recognition on UCF-101 (split 1). We compared methods pretrained without labels (top), and with semantic labels (bottom). Our model, trained both with and without sound, significantly outperforms other self-supervised methods. Numbers annotated with “*” were obtained from their corresponding publications; we retrained/evaluated the other models.

We have seen through visualizations that our representation conveys information about sound sources. We now ask whether it is useful for recognition tasks. To study this, we fine-tuned our model for action recognition using the UCF-101 dataset [64], initializing the weights with those learned from our alignment task. We provide the results in Table 1

, and compare our model to other unsupervised learning and 3D CNN methods.

We train with 2.56-second subsequences, following [56], which we augment with random flipping and cropping, and small (up to one frame) audio shifts. At test time, we follow [65] and average the model’s outputs over 25 clips from each video, and use a center crop. Please see Section A1 for optimization details.

Analysis

We see, first, that our model significantly outperforms self-supervised approaches that have previously been applied to this task, including Shuffle-and-Learn [17] (82.1% vs. 50.9% accuracy) and O3N [19] (60.3%). We suspect this is in part due to the fact that these methods either process a single frame or a short sequence, and they solve tasks that do not require extensive motion analysis. We then compared our model to methods that use supervised pretraining, focusing on the state-of-the-art I3D [56] model. While there is a large gap between our self-supervised model and a version of I3D that has been pretrained on the closely-related Kinetics dataset (94.5%), the performance of our model (with both sound and vision) is close to the (visual-only) I3D pretrained with ImageNet [66] (84.2%).

Next, we trained our multisensory network with the self-supervision task of [16] rather than our own, i.e. creating negative examples by randomly pairing the audio and visual streams from different videos, rather than by introducing misalignment. We found that this model performed significantly worse than ours (78.7%), perhaps due to the fact that its task can largely be solved without analyzing motion.

Finally, we asked how components of our model contribute to its performance. To test whether the model is obtaining its predictive power from audio, we trained a variation of the model in which the audio subnetwork was ablated (activations set to zero), finding that this results in a 5% drop in performance. This suggests both that sound is important for our results, and that our visual features are useful in isolation. We also tried training a variation of the model that operated on spectrograms, rather than raw waveforms, finding that this yielded similar performance (Section A2). To measure the importance of our self-supervised pretraining, we compared our model to a randomly initialized network (i.e. trained from scratch), finding that there was a significant (14%) drop in performance — similar in magnitude to removing ImageNet pretraining from I3D. These results suggest that the model has learned a representation that is useful both for vision-only and audio-visual action recognition.

6 On/off-screen audio-visual source separation

Figure 6: Adapting our audio-visual network to a source separation task. Our model separates an input spectrogram into on- and off-screen audio streams. After each temporal downsampling layer, our multisensory features are concatenated with those of a -net computed over spectrograms. We invert the spectrograms to obtain waveforms. The model operates on raw video, without any preprocessing (e.g. no face detection).

We now apply our representation to a classic audio-visual understanding task: separating on- and off-screen sound. To do this, we propose a source separation model that uses our learned features. Our formulation of the problem resembles recent audio-visual and audio-only separation work [34, 36, 67, 42]. We create synthetic sound mixtures by summing an input video’s (“on-screen”) audio track with a randomly chosen (“off-screen”) track from a random video. Our model is then tasked with separating these sounds.

Task

We consider models that take a spectrogram for the mixed audio as input and recover spectrogram for the two mixture components. Our simplest on/off-screen separation model learns to minimize:

(3)

where is the mixture sound, and are the spectrograms of the on- and off-screen sounds that comprise it (i.e. foreground and background), and and are our model’s predictions of them conditional on the (audio-visual) video .

We also consider models that segment the two sounds without regard for their on- or off-screen provenance, using the permutation invariant loss (PIT) of Yu et al. [36]. This loss is similar to Equation 3, but it allows for the on- and off-screen sounds to be swapped without penalty:

(4)

where and and are the predictions.

6.1 Source separation model

Method All Mixed sex Same sex GRID transfer
On/off SDR SIR SAR On/off SDR On/off SDR On/off SDR
On/off + PIT 11.2 7.6 12.1 10.2 10.6 8.8 11.8 6.5 13.0 7.8
Full on/off 11.4 7.0 11.5 9.8 10.7 8.4 11.9 5.7 13.1 7.3
Mono 11.4 6.9 11.4 9.8 10.8 8.4 11.9 5.7 13.1 7.3
Single frame 14.8 5.0 7.8 10.3 13.2 7.2 16.2 3.1 17.8 5.7
No early fusion 11.6 7.0 11.0 10.1 11.0 8.4 12.1 5.7 13.5 6.9
Scratch 12.9 5.8 9.7 9.4 11.8 7.6 13.9 4.2 15.2 6.3
I3D + Kinetics 12.3 6.6 10.7 9.7 11.6 8.2 12.9 5.1 14.4 6.6
-net PIT [36] 7.3 11.4 10.3 8.8 5.9 8.1
Deep Sep. [67] 1.3 3.0 8.7 1.9 0.8 2.2
Table 2: Source separation results on speech mixtures from the VoxCeleb (broken down by gender of speakers in mixture) and transfer to the simple GRID dataset. We evaluate the on/off-screen sound prediction error (On/off) using distance to the true log-spectrograms (lower is better). We also use blind source separation metrics (higher is better) [68].
VoxCeleb short videos (200ms) On-SDR SDR SIR SAR Ours (on/off) 7.6 5.3 7.8 10.8 Hou et al. [42] 4.5 Gabbay et al. [44] 3.5 PIT-CNN [36] 7.0 10.1 11.2 -net PIT [36] 7.0 10.3 11.0 Deep Sep. [67] 2.7 4.2 10.3
Table 3: Comparison of audio-visual and audio-only separation methods on short (200ms) videos. We compare SDR of the on-screen audio prediction (On-SDR) with audio resampled to 2 kHz.

We augment our audio-visual network with a -net encoder-decoder [43, 69, 70] that maps the mixture sound to its on- and off-screen components (Figure 6). To provide the

-net with video information, we include our multisensory network’s features at three temporal scales: we concatenate the last layer of each temporal scale with the layer of the encoder that has the closest temporal sampling rate. Prior to concatenation, we use linear interpolation to make the video features match the audio sampling rate; we then mean-pool them spatially, and tile them over the frequency domain, thereby reshaping our 3D CNN’s time/height/width shape to match the 2D encoder’s time/frequency shape. We use parameters for

-net similar to [69], adding one pair of convolution layers to compensate for the large number of frequency channels in our spectrograms. We predict both the magnitude of the log-spectrogram and its phase (we scale the phase loss by 0.01 since it is less perceptually important). To obtain waveforms, we invert the predicted spectrogram. We emphasize that our model uses raw video, with no preprocessing or labels (e.g. no face detection or pretrained supervised features).

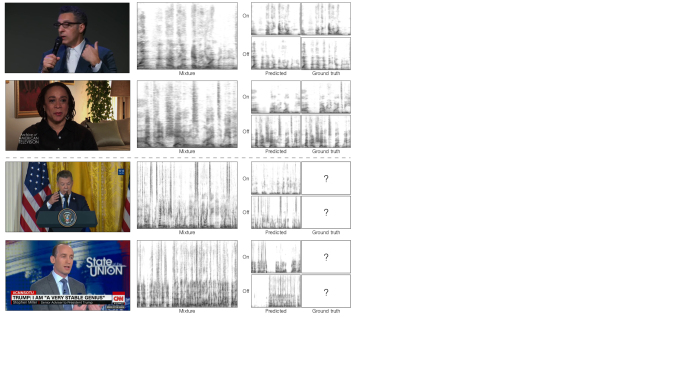

Figure 7: Qualitative results from our on/off-screen separation model. We show an input frame and spectrogram for two synthetic mixtures from our test set, and two in-the-wild internet videos containing multiple speakers. The first (a male/male mixture) contains more artifacts than the second (a female/male mixture). The third video is a real-world mixture in which a female speaker (simultaneously) translates a male Spanish speaker into English. Finally, we separate the speech of two (male) speakers on a television news show. Although there is no ground truth for these real-world examples, the source separation method qualitatively separates the two voices. Please refer to our webpage (http://andrewowens.com/multisensory) for video source separation results.

Training

We evaluated our model on the task of separating speech sounds using the VoxCeleb dataset [71]. We split the training/test to have disjoint speaker identities (72%, 8%, and 20% for training, validation, and test). During training, we sampled 2.1-sec. clips from longer 5-sec. clips, and normalized each waveform’s mean squared amplitude to a constant value. We used spectrograms with a 64 ms frame length and a 16 ms step size, producing spectrograms. In each mini-batch of the optimization, we randomly paired video clips, making one the off-screen sound for the other. We jointly optimized our multisensory network and the -net model, initializing the weights using our self-supervised representation (see supplementary material for details).

6.2 Evaluation

We compared our model to a variety of separation methods: 1) we replaced our self-supervised video representation with other features, 2) compared to audio-only methods using blind separation methods, 3) and compared to other audio-visual models.

Ablations

Since one of our main goals is to evaluate the quality of the learned features, we compared several variations of our model (Table 2). First, we replaced the multisensory features with the I3D network [56] pretrained on the Kinetics dataset — a 3D CNN-based representation that was very effective for action recognition (Section 5). This model performed significantly worse (11.4 vs. 12.3 spectrogram loss for Equation 3). One possible explanation is that our pretraining task requires extensive motion analysis, whereas even single-frame action recognition can still perform well [65, 72].

We then asked how much of our representation’s performance comes from motion features, rather than from recognizing properties of the speaker (e.g. gender). To test this, we trained the model with only a single frame (replicated temporally to make a video). We found a significant drop in performance (11.4 vs. 14.8 loss). The drop was particularly large for mixtures in which two speakers had the same gender — a case where lip motion is an important cue.

One might also ask whether early audio-visual fusion is helpful — the network, after all, fuses the modalities in the spectrogram encoder-decoder as well. To test this, we ablated the audio stream of our multisensory network and retrained the separation model. This model obtained worse performance, suggesting the fused audio is helpful even when it is available elsewhere. Finally, while the encoder-decoder uses only monaural audio, our representation uses stereo. To test whether it uses binaural cues, we converted all the audio to mono and re-evaluated it. We found that this did not significantly affect performance, which is perhaps due to the difficulty of using stereo cues in in-the-wild internet videos (e.g. 39% of the audio tracks were mono). Finally, we also transferred (without retraining) our learned models to the GRID dataset [73], a lab-recorded dataset in which people speak simple phrases in front of a plain background, finding a similar relative ordering of the methods.

Audio-only separation

To get a better understanding of our model’s effectiveness, we compared it to audio-only separation methods. While these methods are not applicable to on/off-screen separation, we modified our model to have it separate audio using an extra permutation invariant loss (Equation 4) and then compared the methods using blind separation metrics [68]: signal-to-distortion ratio (SDR), signal-to-interference ratio (SIR), and signal-to-artifacts ratio (SAR). For consistency across methods, we resampled predicted waveforms to 16 kHz (the minimum used by all methods), and used the mixture phase to invert our model’s spectrogram, rather than the predicted phase (which none of the others predict).

We compared our model to PIT-CNN [36]. This model uses a VGG-style [74] CNN to predict two soft separation masks via a fully connected layer. These maps are multiplied by the input mixture to obtain the segmented streams. While this method worked well on short clips, we found it failed on longer inputs (e.g. obtaining 1.8 SDR in the experiment shown in Table 2). To create a stronger PIT baseline, we therefore created an audio-only version of our -net model, optimizing the PIT loss instead of our on/off-screen loss, i.e. replacing the VGG-style network and masks with -net. We confirmed that this model obtains similar performance on short sequences (Table 3), and found it successfully trained on longer videos. Finally, we compared with a pretrained separation model [67], which is based on recurrent networks and trained on the TSP dataset [75].

We found that our audio-visual model, when trained with a PIT loss, outperformed all of these methods, except for on the SAR metric, where the -net PIT model was slightly better (which largely measures the presence of artifacts in the generated waveform). In particular, our model did significantly better than the audio-only methods when the genders of the two speakers in the mixture were the same (Table 2). Interestingly, we found that the audio-only methods still performed better on blind separation metrics when transferring to the lab-recorded GRID dataset, which we hypothesize is due to the significant domain shift.

Audio-visual separation

We compared to the audio-visual separation model of Hou et al. [42]. This model was designed for enhancing the speech of a previously known speaker, but we apply it to our task since it is the most closely related prior method. We also evaluated the network of Gabbay et al. [45] (a concurrent approach to ours). We trained these models using the same procedure as ours ([45] used speaker identities to create hard mixtures; we instead assumed speaker identities are unknown and mix randomly). Both models take very short (5-frame) video inputs. Therefore, following [45] we evaluated 200ms videos (Table 3). For these baselines, we cropped the video around the speaker’s mouth using the Viola-Jones [76] lip detector of [45] (we do not use face detection for our own model). These methods use a small number of frequency bands in their (Mel-) STFT representations, which limits their quantitative performance. To address these limitations, we evaluated only the on-screen audio, and downsampled the audio to a low, common rate (2 kHz) before computing SDR. Our model significantly outperforms these methods. Qualitatively, we observed that [45] often smooths the input spectrogram, and we suspect its performance on source separation metrics may be affected by the relatively small number of frequency bands in its audio representation.

6.3 Qualitative results

Our quantitative results suggest that our model can successfully separate on- and off-screen sounds. However, these metrics are limited in their ability to convey the quality of the predicted sound (and are sensitive to factors that may not be perceptually important, such as the frequency representation). Therefore, we also provide qualitative examples.

Real mixtures

In Figure 7, we show results for two synthetic mixtures from our test set, and two real-world mixtures: a simultaneous Spanish-to-English translation and a television interview with concurrent speech. We exploit the fact that our model is fully convolutional to apply it to these 8.3-sec. videos ( longer than training videos). We include additional source separation examples in the videos on our webpage. This includes a random sample of (synthetically mixed) test videos, as well as results on in-the-wild videos that contain both on- and off-screen sound.

Multiple on-screen sound sources

To demonstrate our model’s ability to vary its prediction based on the speaker, we took a video in which two people are speaking on a TV debate show, visually masked one side of the screen (similar to [25]), and ran our source separation model. As shown in Figure 1, when the speaker on the left is hidden, we hear the speaker on the right, and vice versa. Please see our video for results.

Large-scale training

We trained a larger variation of our model on significantly more data. For this, we combined the VoxCeleb and VoxCeleb2 [77] datasets (approx. 8 as manys videos), as in [47], and modeled ambient sounds by sampling background audio tracks from AudioSet approximately 8% of the time. To provide more temporal context, we trained with 4.1-sec. videos (approx. 256 STFT time samples). We also simplified the model by decreasing the spectrogram frame length to 40 ms (513 frequency samples) and increased the weight of the phase loss to 0.2. Please see our webpage for results.

7 Discussion

In this paper, we presented a method for learning a temporal multisensory representation, and we showed through experiments that it was useful for three downstream tasks: (a) pretraining action recognition systems, (b) visualizing the locations of sound sources, and (c) on/off-screen source separation. We see this work as opening two potential directions for future research. The first is developing new methods for learning fused multisensory representations. We presented one method — detecting temporal misalignment — but one could also incorporate other learning signals, such as the information provided by ambient sound [15]. The other direction is to use our representation for additional audio-visual tasks. We presented several applications here, but there are other audio-understanding tasks could potentially benefit from visual information and, likewise, visual applications that could benefit from fused audio information.

Acknowledgements

This work was supported, in part, by DARPA grant FA8750-16-C-0166, U.C. Berkeley Center for Long-Term Cybersecurity, and Berkeley DeepDrive. We thank Allan Jabri, David Fouhey, Andrew Liu, Morten Kolbæk, Xiaolong Wang, and Jitendra Malik for the helpful discussions.

References

A1 Optimization

We use the following optimization procedures in our experiments:

Temporal alignment

We trained the network from scratch with a batch size of 15 (spread over 3 GPUs) for 650,000 iterations (approximately 17 days). We used SGD with momentum, and decreased the learning rate from its initial value of 0.01 by a factor of 2 every 200,000 iterations. In each mini-batch, we included both the video’s authentic and shifted audio, reusing the feature activations from the video subnetwork between these examples for efficiency. To make training easier, we pretrained the network at a lower video frame-rate. For the first 30,000 iterations of training, we used a 7.5 Hz (a quarter the normal rate) and used a correspondingly larger batch size of 45. We randomly initialized the network’s weights using [78].

Action recognition

We fine-tuned the networks using a batch size of 24 (spread over on 3 GPUs) for 30,000 iterations, dropping the learning rate by a factor of 10 every 12,000 iterations. We used Adam [79] with an initial learning rate of . We used data augmentation: cropping, left/right flipping, and shifting the audio by a small amount (up to 1 frame).

Source separation

We fine-tuned the networks for 160,000 iterations with a batch size of 18 videos (spread over 3 GPUs), dropping the learning rate by a factor of 10 after 120,000 iterations. We used Adam [79] with an initial learning rate of , and used cropping and left/right flipping visual augmentations. We trained the model that operated on shorter (200ms) sequences for 250,000 iterations total, and dropped the learning rate after 150,000 iterations.

A2 Baseline model details

For the variation of our model that uses a spectrogram instead of a waveform, we replaced the audio subnetwork with a 2D CNN. For this, we adapted the ResNet-18 of [53], truncating it after the conv3_1 layer. We performed temporal subsampling after the conv2_2 layers and frequency subsampling after the conv1 and conv2_2 and conv3_1 layers. We used log-spectrograms with a step size of 8 ms, a window length of 24 ms (corresponding to a 257 frequency bins). Before fusion, we applied a convolution with 512 channels, where is the number of frequency channels. The subsequent layers of the network are the same as in Figure 2.

Figure A1: Accuracy of our model in predicting audio-visual synchronization for the classes in the Kinetics dataset. Chance is 50%.
