1 Introduction

Studies in neurobiology suggest that the perceptual benefits of integrating visual and auditory information are extensive [1]. For computational models, they reflect in lip reading [2, 3], where correlations between speech and lip movements provide a strong cue for linguistic understanding; in music performance [4], where vibrato articulations and hand motions enable the association between sound tracks and the performers; and in sound synthesis [5]

, where physical interactions with different types of material give rise to plausible sound patterns. Albeit these advances, these models are limited in their constrained domains. Indeed, our community has begun to explore marrying computer vision with audition

in-the-wild for learning a good representation [6, 7, 8]. For example, a sound network is learned in [6] by a visual teacher network with a large amount of unlabeled videos, which shows better performance than learning in a single modality. However, they have all assumed that the audio and visual contents in a video are matched (which is often not the case as we will show) and they are yet to explore whether the joint audio-visual representations can facilitate understanding unconstrained videos. In this paper, we study a family of audio-visual event temporal localization tasks (see Fig. 1

) as a proxy to the broader audio-visual scene understanding problem for unconstrained videos. We pose and seek to answer the following questions: (Q1) Does inference jointly over auditory and visual modalities outperform inference over them independently? (Q2) How does the result vary under noisy training conditions? (Q3) How does knowing one modality help model the other modality? (Q4) How do we best fuse information over both modalities? (Q5) Can we locate the content in one modality given its observation in the other modality? Notice that the individual questions might be studied in the literature, but we are not aware of any work that conducts a systematic study to answer these collective questions as a whole. In particular, we define an

audio-visual event as an event that is both visible and audible in a video segment, and we establish three tasks to explore aforementioned research questions: 1) supervised audio-visual event localization, 2) weakly-supervised audio-visual event localization, and 3) event-agnostic cross-modality localization. The first two tasks aim to predict which temporal segment of an input video has an audio-visual event and what category the event belongs to. The weakly-supervised setting assumes that we have no access to the temporal event boundary but an event tag at video-level for training. Q1-Q4 will be explored within these two tasks. In the third task, we aim to locate the corresponding visual sound source temporally within a video from a given sound segment and vice versa, which will answer Q5.

Figure 1: (a) illustrates audio-visual event localization. The first two rows show a 5s video sequence with both audio and visual tracks for an audio-visual event chainsaw (event is temporally labeled in yellow boxes). The third row shows our localization results (in red boxes) and the generated audio-guided visual attention maps. (The first frame does not contain the chainsaw event, hence the attention focuses on background regions.) (b) illustrates cross-modality localization for V2A and A2V

We propose both baselines and novel algorithms to solve the above three tasks. For the first two tasks, we start with a baseline model treating them as a sequence labeling problem. We utilize CNN [9] to encode audio and visual inputs, adapt LSTM [10]

to capture temporal dependencies, and apply Fully Connected (FC) network to make the final predictions. Upon this baseline model, we introduce an audio-guided visual attention mechanism to verify whether audio can help attend visual features; it also implies spatial locations for sounding objects as a side output. Furthermore, we investigate several audio-visual feature fusion methods and propose a novel dual multimodal residual fusion network that achieves the best fusion results. For weakly-supervised learning, we formulate it as a Multiple Instance Learning (MIL)

[11] task, and modify our network structure via adding a MIL pooling layer to handle the problem. To address the harder cross-modality localization task, we propose an audio-visual distance learning network that measures the relativeness of any given pair of audio and visual content. It projects audio and visual features into subspaces with the same dimension. Contrastive loss [12] is introduced to learn the network. Observing that there is no publicly available dataset directly suitable for our tasks, we collect a large video dataset that consists of 4143 10-second videos with both audio and video tracks for 28 audio-visual events and annotate their temporal boundaries. Videos in our dataset are originated from YouTube, thus they are unconstrained. Our extensive experiments support the following findings: modeling jointly over auditory and visual modalities outperforms modeling independently over them, audio-visual event localization in a noisy condition can still achieve promising results, the audio-guided visual attention can well capture semantic regions covering sounding objects and can even distinguish audio-visual unrelated videos, temporal alignment is important for audio-visual fusion, the proposed dual multimodal residual network is effective in addressing the fusion task, and strong correlations between the two modalities enable cross-modality localization. These findings have paved a way for our community to solve harder, high-level understanding problems in the future, such as video captioning [13] and movieQA [14]

, where the auditory modality plays an important role in understanding video but lacks effective modeling. Our work makes the following contributions: (1) a family of three audio-visual event localization tasks; (2) an audio-guided visual attention model to adaptively explore the audio-visual correlations; (3) a novel dual multimodal residual network to fuse audio-visual features; (4) an effective audio-visual distance learning network to address cross-modality localization; (5) a large audio-visual event dataset containing more than 4K unconstrained and annotated videos, which to the best of our knowledge, is the largest dataset for sound event detection. We will release our dataset along with implementations of various methods.

2 Related Work

In this section, we first describe how our work differs from three closely-related topics: sound event detection, temporal action localization and multimodal machine learning, then discuss relations to various recent works in modeling vision-and-sound. Sound event detection considered in the audio signal processing community aims to detect and temporally locate sound events in an acoustic scene. Approaches based on Hidden Markov Models (HMM), Gaussian Mixture Models (GMM), feed-forward Deep Neural Networks (DNN), and Bidirectional Long Short-Term Memory (BLSTM)

[15] are developed in [16, 17, 18, 19]. These methods focus on audio signals, and visual signals have not been explored. Corresponding datasets, e.g., TUT Acoustic Scenes [20], for sound event detection only contain sound tracks, and are not suitable for audio-visual scene understanding. Temporal action localization aims to detect and locate actions in videos. Most works cast it as a classification problem and utilize a temporal sliding window approach, where each window is considered as an action candidate subject to classification [21]. Escorcia et al. [22] present a deep action proposal network that is effective in generating temporal action proposals for long videos and can speed up temporal action localization. Recently, Shou et al. [23] propose an end-to-end Segment-based 3D CNN method (S-CNN), and Lea et al. [24] develop an Encoder-Decoder Temporal Convolutional Network (ED-TCN) to hierarchically model actions. Different from these works, an audio-visual event in our consideration may contain multiple actions or motionless sounding objects, and we model over both audio and visual domains. Nevertheless, we extend the ED-TCN method to address our supervised audio-visual event localization task and compare it in Sec. 6.3. Multimodal machine learning aims to learn joint representations over multiple input modalities, e.g., speech and video, image and text. Feature fusion is one of the most important part for multimodal learning [25], and many different fusion models have been developed, such as statistical models [26], Multiple Kernel Learning (MKL) [27, 28], Graphical models [29, 30]. Although some mutimodal deep networks have been studied in [30, 31, 32, 33, 34, 35, 36]

, which mainly focus on joint audio-visual representation learning based on Autoencoder or deep Boltzmann machines

[31], we are interested in investigating the best models to fuse learned audio and visual features for localization purpose. Recently, some inspiring works are developed for modeling vision-and-sound [8, 6, 7, 5, 37]. Aytar et al. [6] use a visual teacher network to learn powerful sound representations from unlabeled videos. Owens et al. [7] leverage ambient sounds as supervision to learn visual representations. Arandjelovic and Zisserman [8] learn both visual and audio representations in an unsupervised manner through an audio-visual correspondence task, and in [38], they further locate sound source spatially in an image based on an extended correspondence network. Aside from works in representation learning, audio-visual cross-modal synthesis is studied in [7, 39, 40], and associations between natural image scenes and accompanying free-form spoken audio captions are explored in [37]. Unlike the previous works, in this paper, we systematically investigate audio-visual event localization tasks.

3 Dataset and Problems

3.1 AVE: The Audio-Visual Event Dataset

To the best of our knowledge, there is no publicly available dataset directly suitable for our purpose. Therefore, we introduce the Audio-Visual Event (AVE) dataset111The supplementary material contains the detail of gathering the dataset., a subset of AudioSet [41], that contains 4143 videos covering 28 event categories and videos in AVE are temporally labeled with audio-visual event boundaries. Each video contains at least one 2s long audio-visual event. The dataset covers a wide range of audio-visual events (e.g., man speaking, woman speaking, dog barking, playing guitar, and frying food etc.) from different domains, e.g., human activities, animal activities, music performances, and vehicle sounds. We provide examples from different categories and show the statistics in Fig. 2. Each event category contains a minimum of 60 videos and a maximum of 188 videos, and 66.4 videos in the AVE contain audio-visual events that span over the full 10 seconds. Next, we introduce three different tasks based on the AVE to explore the interactions between auditory and visual modalities.

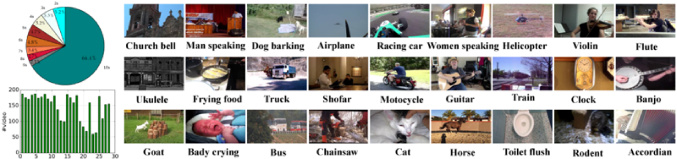

Figure 2: The AVE dataset. Some examples in the dataset are shown. The distribution of videos in different categories and the distribution of event lengths are illustrated

3.2 Fully and Weakly-Supervised Event Localization

The goal of event localization is to predict the event label for each video segment, which contains both audio and visual tracks, for an input video sequence. Concretely, for a video sequence, we split it into non-overlapping segments , where each segment is 1s long (since our event boundary is labeled at second-level), and and denote the visual content and its corresponding audio counterpart in a video segment, respectively. Let be the event label for that video segment. Here, is the total number of AVE events plus one background label. For the supervised event localization task, the event label of each visual segment or audio segment is known during training. We are interested in event localization in audio space alone, visual space alone and the joint audio-visual space. This task explores whether or not audio and visual information can help each other improve event localization. Different than the supervised setting, in the weakly-supervised manner we have only access to a video-level event tag, and we still aim to predict segment-level labels during testing. The weakly-supervised task allows us to alleviate the reliance on well-annotated data for modelings of audio, visual and audio-visual.

3.3 Cross-Modality Localization

In the cross-modality localization task, given a segment of one modality (auditory/visual), we would like to find the position of its synchronized content in the other modality (visual/auditory). Concretely, for visual localization from audio (A2V), given a -second audio segment from , where , we want to find its synchronized -second visual segment within . Similarly, for audio localization from visual content (V2A), given a -second video segment from , we would like to find its -second audio segment within . This task is conducted in the event-agnostic setting such that the models developed for this task are expected to work for general videos where the event labels are not available. For evaluation, we only use short-event videos, in where the lengths of audio-visual event are all shorter than 10s.

4 Methods for Audio-Visual Event Localization

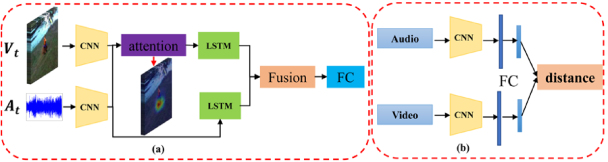

Figure 3: (a) Audio-visual event localization framework with audio-guided visual attention and multimodal fusion. One timestep is illustrated, and note that the fusion network and FC are shared for all timesteps. (b) Audio-visual distance learning network

First, we present the overall framework that treats the audio-visual event localization (defined in Sec. 3.2) as a sequence labeling problem in Sec. 4.1. Upon this framework, we propose our audio-guided visual attention in Sec. 4.2 and a novel dual multimodal residual fusion network in Sec. 4.3. Finally, we extend this framework to work in weakly-supervised setting in Sec. 4.4.

4.1 Audio-Visual Event Localization Network

Our network mainly consists of five modules: feature extraction, audio-guided visual attention, temporal modeling, multimodal fusion and temporal labeling (see Fig.

3(a)). The feature extraction module utilizes pre-trained CNNs to extract visual features and audio features from each and , respectively. Here, denotes the number of CNN visual feature maps,

is the vectorized spatial dimension of each feature map, and

denotes the dimension of audio features. We use an audio-guided visual attention model to generate a context vector (see details in Sec. 4.2). Two separate LSTMs take and as inputs to model temporal dependencies in the two modalities respectively. For an input feature vector at time step , the LSTM updates a hidden state vector and a memory cell state vector :

(1)

where refers to or in our model. For evaluating the performance of the proposed attention mechanism, we compare to models that do not use attention; we directly feed global average pooling visual features and audio features into LSTMs as baselines. To better incorporate the two modalities, we introduce a multimodal fusion network (see details in Sec. 4.3). The audio-visual representation is learned by a multimodal fusion network with audio and visual hidden state output vectors and

as inputs. This joint audio-visual representation is used to output event category for each video segment. For this, we use a shared FC layer with the Softmax activation function to predict probability distribution over

event categories for the input segment and the whole network can be trained with a multi-class cross-entropy loss.

Figure 4: (a) Audio-guided visual attention mechanism. (b) Dual multimodal residual network for audio-visual feature fusion

4.2 Audio-Guided Visual Attention

Psychophysical and physiological evidence shows that sound is not only informative about its source but also its location [42]. Based on this, Hershey and Movellan [43] introduce an exploratory work on localizing sound sources utilizing audio-visual synchrony. It shows that the strong correlations between the two modalities can be used to find image regions that are highly correlated to the audio signal. Recently, [7, 38]

show that sound indicates object properties even in unconstrained images or videos. These works inspire us to use audio signal as a means of guidance for visual modeling. Given that attention mechanism has shown superior performance in many applications such as neural machine translation

[44] and image captioning [45, 46], we use it to implement our audio-guided visual attention (see Fig. 3(a) and Fig. 4(a)). The attention network will adaptively learn which visual regions in each segment of a video to look for the corresponding sounding object or activity. Concretely, we define the attention function and it can be adaptively learned from the visual feature map and audio feature vector . At each time step , the visual context vector is computed by:

(2)

where is an attention weight vector corresponding to the probability distribution over visual regions that are attended by its audio counterpart. The attention weights can be computed based on MLP with a Softmax activation function:

(3)
(4)

where and , implemented by a dense layer with nonlinearity, are two transformation functions that project audio and visual features to the same dimension , , , are parameters, the entries in are all 1, is the hyperbolic tangent function, and is the computed attention map. The attention map visualization results show that the audio-guided attention mechanism can adaptively capture the location information of sound source (see Fig. 5), and it can also improve temporal localization accuracy (see Tab. 6).

4.3 Audio-Visual Feature Fusion

Our fusion method is designed based on the philosophy in [31], which processes multiple features separately and then learns a joint representation using a middle layer. To combine features coming from visual and audio modalities, inspired by the Mutimodal Residual Network (MRN) in [47] (which works for text-and-image), we introduce a Dual Multimodal Residual Network (DMRN). The MRN adopts a textual residual branch and feeds transformed visual features into different textual residual blocks, where only textual features are updated. In contrary, the proposed DMRN shown in Fig. 4(b) updates both audio and visual features simultaneously. Given audio and visual features and from LSTMs, the DMRN will compute the updated audio and visual features:

(5)
(6)

where is an additive fusion function, and the average of and is used as the joint representation for labeling the video segment. Here, the update strategy in DMRN can both preserve useful information in the original modality and add complimentary information from the other modality. Simply, we can stack multiple residual blocks to learn a deep fusion network with updated and as inputs of new residual blocks. However, we empirically find that it does not improve performance by stacking many blocks for both MRN and DMRN. We argue that the network becomes harder to train with increasing parameters and one block is enough to handle this simple fusion task well. We would like to underline the importance of fusing audio-visual features after LSTMs for our task. We empirically find that late fusion (fusion after temporal modeling) is much better than early fusion (fusion before temporal modeling). We suspect that the auditory and visual modalities are not temporally aligned. Temporal modeling by LSTMs can implicitly learn certain alignments which can help make better audio-visual fusion. The empirical evidences will be shown in Tab. 2.

4.4 Weakly-Supervised Event Localization

To address the weakly-supervised event localization, we formulate it as a MIL problem and extend our framework to handle noisy training condition. Since only video-level labels are available, we infer label of each audio-visual segment pair in the training phase, and aggregate these individual predictions into a video-level prediction by MIL pooling as in [48]:

(7)

where are predictions from the last FC layer of our audio-visual event localization network, and averages over all predictions. The probability distribution of event category for the video sequence can be computed using over the Softmax. During testing, we can predict the event category for each segment according to computed .

5 Method for Cross-Modality Localization

To address the cross-modality localization problem (defined in Sec. 3.3), we propose an audio-visual distance learning network (AVDLN) as illustrated in Fig. 3(b); we notice similar networks are studied in concurrent works [38, 49]. Our network can measure the distance for a given pair of and . At test time, for visual localization from audio (A2V), we use a sliding window method and optimize the following objective:

(8)

where denotes the start time when visual and audio content synchronize, is the total length of a testing video sequence, and is the length of the audio query . This objective function computes an optimal matching by minimizing the cumulative distance between the audio segments and the visual segments. Therefore, is the matched visual content. Similarly, we can define audio localization from visual content (V2A); we omit it here for a concise writing. Next, we describe the network used to implement the matching function. Let be training samples and be their labels, where and are a pair of 1s visual and audio segments, . Here, means that and are synchronized. The AVDLN will learn to measure distances between these pairs. The network encodes them using pre-trained CNNs, and then performs dimensionality reduction for encoded audio and visual representations using two different two-layer FC networks. The outputs of final FC layers are . The distance between and is measured by the Euclidean distance between and :

(9)

To optimize the parameters of the distance metric , we introduce the contrastive loss proposed by Hadsell et al. [12]

. The contrastive loss function is:

(10)

where is a margin. If a dissimilar pair’s distance is less than , the loss will make the distance bigger; if their distance is bigger than the margin, it will not contribute to the loss.

6 Experiments

First, we introduce the used visual and audio representations in Sec. 6.1

. Then, we describe the compared baseline models and evaluation metrics in Sec

6.2. Finally, we show and analyze experimental results222 The supplementary material contains additional results on audio-visual event localization with C3D features, visual-guided audio attention and co-attention, and implementation details of our models. of different models in Sec. 6.3.

6.1 Visual and Audio Representations

It has been suggested that CNN features learned from a large-scale dataset (e.g.ImageNet [50], AudioSet [41]) are highly generic and powerful for other vision or audition tasks. So, we adopt pre-trained CNN models to extract features for visual segments and their corresponding audio segments. Visual Representation. For each 1s visual segment, we extract feature maps from sampled RGB video frames by VGG-19 network [51], which is pre-trained on ImageNet [52], and then utilize global average pooling [53] over the 16 frames to generate one -D feature map. We also explore the temporal visual features extracted by C3D [54], which is capable of learning spatio-temporal visual features. But we do not observe significant improvements when combining C3D features. Audio Representation. We extract a 128-D audio representation for each 1s audio segment via a VGG-like network [55] pre-trained on AudioSet [41].

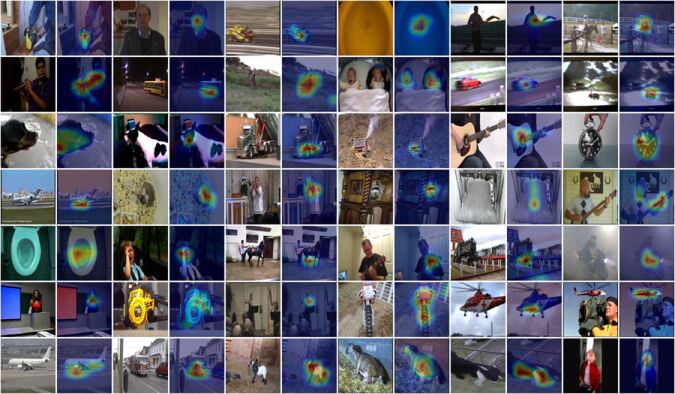

Figure 5: Qualitative visualization of audio-guided visual attention on AVE test dataset. The semantic regions containing many different sound sources, such as barking dog, crying boy/babies, speaking woman, horning bus, guitar etc, can be adaptively captured by our attention model
Figure 6: Visualization of visual attention maps on two challenging examples. The first and third rows are 10 video frames uniformly extracted from two 10s videos, and the second and fourth rows are generated attention maps. The yellow box (groundtruth label) denotes that the frame contain audio-visual event in which sounding object is visible and sound is audible. If there is no audio-visual event in a frame, random background regions that do not focus on objects will be attended (see 2rd frame of first example and 5th frame of the second example); otherwise, the attention will focus on sounding sources

6.2 Baselines and Evaluation Metrics

To validate the effectiveness of the joint audio-visual modeling, we use single-modality models as baselines, which only use audio-alone or visual-alone features and share the same structure with our audio-visual models. To evaluate the audio-guided visual attention, we compare our V-att and A+V-att models with V and A+V models in fully and weakly supervised settings. Here, V-att models adopt audio-guided visual attention to pool visual feature maps, and the other V models use global average pooling to compute visual feature vectors. We visualize generated attention maps for subjective evaluation. To further demonstrate the effectiveness of the proposed networks, we also compare them with a state-of-the-art temporal labeling network: ED-TCN [24]. We compare our fusion method: DMRN with several network-based multimodal fusion methods: Additive, Maxpooling (MP), Gated, Multimodal Bilinear (MB), and Gated Multimodal Bilinear (GMB) in [36], Gated Multimodal Unit (GMU) in [56], Concatenation (Concat), and MRN [47]

. Three different fusion strategies: early, late and decision fusions are explored. Here, early fusion methods directly fuse audio features from pre-trained CNNs and attended visual features; late fusion methods fuse audio and visual features from outputs of two LSTMs; and decision fusion methods fuse the two modalities before Softmax layer. In addition, to further enhance the performance of DMRN, we also introduce a variant model of DMRN called dual multimodal residual fusion ensemble (DMRFE) method, which feed audio and visual features into two separated blocks and then use average ensemble to combine the two predicted probabilities. For supervised and weakly-supervised event localization, we use overall accuracy as an evaluation metric. For cross-modality localization, e.g., V2A and A2V, if a matched audio/visual segment is exactly the same as its groundtruth, we regard it as a good matching; otherwise, it will be a bad matching. We compute the percentage of good matchings over all testing samples as prediction accuracy to evaluate the performance of cross-modality localization. To validate the effectiveness of the proposed model, we also compare it with deep canonical correlation analysis (DCCA) method

[57].

Models A V V-att A+V A+V-att W-A W-V W-V-att W-A+V W-A+V-att
Accuracy 59.5 55.3 58.6 71.4 72.7 53.4 52.9 55.6 63.7 66.7
Table 1: Event localization prediction accuracy () on AVE dataset. A, V, V-att, A+V, A+V-att denote that these models use audio, visual, attended visual, audio-visual and attended audio-visual features, respectively. W-models are trained in a weakly-supervised manner. Note that audio-visual models all fuse features by concatenating the outputs of LSTMs

6.3 Experimental Comparisons

Table 6 compares different variations of our proposed models on supervised and weakly-supervised audio-visual event localization tasks. Table 2 shows event localization performance of different fusion methods. Figures 5 and 6 illustrate generated audio-guided visual attention maps. To benchmark our models with state-of-the-art temporal action labeling methods, we extend the ED-TCN [24] to address the supervised audio-visual event localization, and train it on AVE. The ED-TCN achieves 46.9% overall accuracy. For comparison, our V model with the same features achieves 55.3%. Audio and Visual. From Tab. 6, we observe that A outperforms V and W-A is also better than W-V. It demonstrates that audio features are more powerful to address audio-visual event localization task on the AVE dataset. However, when we look at each individual event, using audio is not always better than using visual. We observe that V is better than A for some events (e.g. car, motocycle, train, bus). Actually, most of these events are outdoor. Audios in these videos can be very noisy: several different sounds may be mixed together (e.g. people cheers with a racing car), and may have very low intensity (e.g. horse sound from far distance). For these conditions, visual information will give us more discriminative and accurate information to understand events in videos. A is much better than V for some events (e.g. dog, man and woman speaking, baby crying). Sounds will provide clear cues for us to recognize these events. For example, if we hear barking sound, we know that there may be a dog. We also observe that A+V is better than both A and V, and W-A+V is better than W-A and W-V, which validates that combining audio and visual modalities significantly improve the event localization performance. From the above results and analysis, we can conclude that auditory and visual modalities will provide complementary information for us to understand events in videos. The results also demonstrate that our AVE dataset is suitable for studying audio-visual scene understanding tasks. Audio-Guided Visual Attention. The quantitative results (see Tab. 6) show that V-att is much better than V (a 3.3 absolute improvement) and A+V-att outperforms A+V by 1.3, which demonstrates the effectiveness of proposed audio-guided visual attention mechanism. We show qualitative results of our attention method in Fig. 5. We observe that a range of semantic regions in many different categories and examples can be attended by audio, which validates that our attention network can learn which visual regions to look at for sounding objects (even for some challenging cases: two babies crying, playing flute surrounding by crowd, rat with weak sound). An interesting observation is that the audio-guided visual attention tends to focus on sounding regions, such as man’s mouth, head of crying boy etc, rather than whole objects in some examples. Figure 6 illustrates two challenging cases. For the first example, the sounding helicopter is quite small in the first several frames but our attention model can still capture its locations. For the second example, the first five frames do not contain an audio-visual event which means that either the sound source is not visible or sound is not audible; in this case, attentions are spread on different background regions. When the rat appears in the 5th frame but is not making any sound, the attention does not focus on the rat. When the rat sound becomes audible, the attention focuses on the sounding rat. This observation validates that the audio-guided attention mechanism is helpful to distinguish audio-visual unrelated videos, and is not just to capture a saliency map with objects.

Methods Additive MP Gated MB GMU GMB Concat MRN DMRN DMRFE
Early Fusion 59.9 67.9 67.9 69.2 70.5 70.2 61.0 69.8 68.0 -
Late Fusion 71.3 71.4 70.5 70.5 71.6 71.0 72.7 70.8 73.1 73.3
Decision Fusion 70.5 64.5 65.2 64.6 67.6 67.3 69.7 63.8 70.4 -
Table 2: Event localization prediction accuracy () of different feature fusion methods on AVE dataset. These methods all use same audio and visual features as inputs. Top-2 results in each line are highlighted

Audio-Visual Fusion. Table 2 shows audio-visual event localization prediction accuracy of different multimodal feature fusion methods on AVE dataset. Our DMRN model in the late fusion setting can achieve better performance than all compared methods, and our DMRFE model can further improve performance. We also observe that late fusion is better than early fusion and decision fusion. The superiority of late fusion over early fusion demonstrates that temporal modeling before audio-visual fusion is useful. We know that auditory and visual modalities are not completely aligned, and the temporal modeling can implicitly learn certain alignments between the two modalities, which is helpful for the audio-visual feature fusion task. The decision fusion can be regard as a type of late fusion but using lower dimension (same as the category number) features. The late fusion outperforms the decision fusion, which validates that processing multiple features separately and then learning joint representation using a middle layer rather than the bottom layer is an efficient fusion way. Full and Weak Supervision. Obviously, supervised event localization models are better than weakly supervised ones, but quantitative comparisons show that weakly-supervised approaches achieve promising event localization performance, which demonstrates the effectiveness of the MIL networks on address this task, and validates that the audio-visual event localization task can be addressed even in a noisy condition.

Models
A2V 44.8 34.8
V2A 35.6 34.1
Table 3: Accuracy on cross-modality localization. A2V: visual localization from audio segment query; V2A: audio localization from visual segment query

Cross-Modality Localization. Table 3 reports the prediction accuracy of our method and DCCA [57] on cross-modality localization task. Our AVDL outperforms DCCA over a large margin both on A2V and V2A tasks. Even using the strict evaluation metric (which counts only the exact matches), our models on both subtasks: A2V and V2A, show promising results, which further demonstrates that there are strong correlations between audio and visual modalities, and it is possible to address the cross-modality localization for unconstrained videos.

7 Conclusion

In this work, we study a suit of five research questions in the context of three audio-visual event localization tasks. We propose both baselines and novel algorithms to address each of the three tasks. Our systematic study well supports our findings: modeling jointly over auditory and visual modalities outperforms independent modeling, audio-visual event localization in a noisy condition is still tractable, the audio-guided visual attention is able to capture semantic regions of sound sources and can even distinguish audio-visual unrelated videos, temporal alignments are important for audio-visual feature fusion, the proposed dual residual network is capable of audio-visual fusion, and strong correlations existing between the two modalities enable cross-modality localization.

8 Acknowledgement

This work was supported by NSF BIGDATA 1741472. We gratefully acknowledge the gift donations of Markable, Inc., Tencent and the support of NVIDIA Corporation with the donation of the GPUs used for this research. This article solely reflects the opinions and conclusions of its authors and neither NSF, Markable, Tencent nor NVIDIA.

References

  • [1] Bulkin, D.A., Groh, J.M.: Seeing sounds: visual and auditory interactions in the brain. Current opinion in neurobiology 16(4) (2006) 415–419
  • [2] Assael, Y.M., Shillingford, B., Whiteson, S., de Freitas, N.: Lipnet: Sentence-level lipreading. CoRR abs/1611.01599 (2016)
  • [3] Chung, J.S., Senior, A., Vinyals, O., Zisserman, A.: Lip reading sentences in the wild.

    In: IEEE Conference on Computer Vision and Pattern Recognition. (2017)

  • [4] Li, B., Xu, C., Duan, Z.: Audio-visual source association for string ensembles through multi-modal vibrato analysis. In: Sound and Music Computing. (2017)
  • [5] Owens, A., Isola, P., McDermott, J., Torralba, A., Adelson, E.H., Freeman, W.T.: Visually indicated sounds. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2016) 2405–2413
  • [6] Aytar, Y., Vondrick, C., Torralba, A.: Soundnet: Learning sound representations from unlabeled video. In: Advances in Neural Information Processing Systems. (2016) 892–900
  • [7] Owens, A., Wu, J., McDermott, J.H., Freeman, W.T., Torralba, A.: Ambient sound provides supervision for visual learning. In: European Conference on Computer Vision. (2016) 801–816
  • [8] Arandjelovic, R., Zisserman, A.: Look, listen and learn. In: ICCV. (2017)
  • [9] LeCun, Y., Bottou, L., Bengio, Y., Haffner, P.: Gradient-based learning applied to document recognition. Proceedings of the IEEE 86(11) (1998) 2278–2324
  • [10] Hochreiter, S., Schmidhuber, J.: Long short-term memory. Neural computation 9(8) (1997) 1735–1780
  • [11] Maron, O., Lozano-Pérez, T.: A framework for multiple-instance learning. In: Advances in neural information processing systems. (1998) 570–576
  • [12] Hadsell, R., Chopra, S., LeCun, Y.: Dimensionality reduction by learning an invariant mapping. In: Proc. CVPR. (2006)
  • [13] Xu, J., Mei, T., Yao, T., Rui, Y.: Msr-vtt: A large video description dataset for bridging video and language. In: IEEE Conference on Computer Vision and Pattern Recognition. (2016)
  • [14] Tapaswi, M., Zhu, Y., Stiefelhagen, R., Torralba, A., Urtasun, R., Fidler, S.: Movieqa: Understanding stories in movies through question-answering. In: IEEE Conference on Computer Vision and Pattern Recognition. (2016)
  • [15] Schuster, M., Paliwal, K.K.: Bidirectional recurrent neural networks. IEEE Transactions on Signal Processing 45(11) (1997) 2673–2681
  • [16] Heittola, T., Mesaros, A., Eronen, A., Virtanen, T.: Context-dependent sound event detection. EURASIP Journal on Audio, Speech, and Music Processing 2013(1) (2013)  1
  • [17] Mesaros, A., Heittola, T., Virtanen, T.: Tut database for acoustic scene classification and sound event detection. In: Signal Processing Conference (EUSIPCO), 2016 24th European, IEEE (2016) 1128–1132
  • [18] Cakir, E., Heittola, T., Huttunen, H., Virtanen, T.: Polyphonic sound event detection using multi label deep neural networks. In: Neural Networks (IJCNN), 2015 International Joint Conference on, IEEE (2015) 1–7
  • [19] Parascandolo, G., Huttunen, H., Virtanen, T.: Recurrent neural networks for polyphonic sound event detection in real life recordings. In: Acoustics, Speech and Signal Processing (ICASSP), 2016 IEEE International Conference on, IEEE (2016) 6440–6444
  • [20] Mesaros, A., Heittola, T., Virtanen, T.: Tut database for acoustic scene classification and sound event detection. In: EUSIPCO. (Aug 2016)
  • [21] Oneata, D., Verbeek, J., Schmid, C.: Action and event recognition with fisher vectors on a compact feature set. In: Proceedings of the IEEE international conference on computer vision. (2013) 1817–1824
  • [22] Escorcia, V., Heilbron, F.C., Niebles, J.C., Ghanem, B.: Daps: Deep action proposals for action understanding. In: European Conference on Computer Vision, Springer (2016) 768–784
  • [23] Shou, Z., Wang, D., Chang, S.F.: Temporal action localization in untrimmed videos via multi-stage cnns. In: The IEEE Conference on Computer Vision and Pattern Recognition (CVPR). (June 2016)
  • [24] Lea et al., C.: Temporal convolutional networks for action segmentation and detection. In: CVPR. (2017)
  • [25] Baltrušaitis, T., Ahuja, C., Morency, L.P.: Multimodal machine learning: A survey and taxonomy. IEEE Transactions on Pattern Analysis and Machine Intelligence (2018)
  • [26] Fisher III, J.W., Darrell, T., Freeman, W.T., Viola, P.A.: Learning joint statistical models for audio-visual fusion and segregation. In: Advances in neural information processing systems. (2001) 772–778
  • [27] Gönen, M., Alpaydın, E.: Multiple kernel learning algorithms. Journal of machine learning research 12(Jul) (2011) 2211–2268
  • [28] Poria, S., Cambria, E., Gelbukh, A.:

    Deep convolutional neural network textual features and multiple kernel learning for utterance-level multimodal sentiment analysis.

    In: Proceedings of the 2015 conference on empirical methods in natural language processing. (2015) 2539–2544

  • [29] Gurban, M., Thiran, J.P., Drugman, T., Dutoit, T.: Dynamic modality weighting for multi-stream hmms inaudio-visual speech recognition. In: Proceedings of the 10th international conference on Multimodal interfaces, ACM (2008) 237–240
  • [30] Ngiam, J., Khosla, A., Kim, M., Nam, J., Lee, H., Ng, A.Y.:

    Multimodal deep learning.

    In: ICML. (2011)
  • [31] Srivastava, N., Salakhutdinov, R.R.: Multimodal learning with deep boltzmann machines. In: Advances in neural information processing systems. (2012) 2222–2230
  • [32] Srivastava, N., Salakhutdinov, R.: Learning representations for multimodal data with deep belief nets. In: International conference on machine learning workshop. (2012)
  • [33] Mroueh, Y., Marcheret, E., Goel, V.: Deep multimodal learning for audio-visual speech recognition. In: ICASSP, IEEE (2015)
  • [34] Hu, D., Li, X., et al.: Temporal multimodal learning in audiovisual speech recognition. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2016) 3574–3582
  • [35] Yang, X., Ramesh, P., Chitta, R., Madhvanath, S., Bernal, E.A., Luo, J.: Deep multimodal representation learning from temporal data. In: CVPR. (July 2017)
  • [36] Kiela, D., Grave, E., Joulin, A., Mikolov, T.: Efficient large-scale multi-modal classification. In: AAAI. (2018)
  • [37] Harwath, D., Torralba, A., Glass, J.: Unsupervised learning of spoken language with visual context. In: Advances in Neural Information Processing Systems. (2016) 1858–1866
  • [38] Arandjelović, R., Zisserman, A.: Objects that sound. arXiv preprint arXiv:1712.06651 (2017)
  • [39] Yipin Zhou, Zhaowen Wang, C.F.T.B., Berg, T.L.: Visual to sound: Generating natural sound for videos in the wild. In: CVPR. (2018)
  • [40] Chen, L., Srivastava, S., Duan, Z., Xu, C.: Deep cross-modal audio-visual generation. In: Proceedings of the on Thematic Workshops of ACM Multimedia. (2017)
  • [41] Gemmeke, J.F., Ellis, D.P., Freedman, D., Jansen, A., Lawrence, W., Moore, R.C., Plakal, M., Ritter, M.: Audio set: An ontology and human-labeled dataset for audio events. In: ICASSP. (2017)
  • [42] Gaver, W.W.: What in the world do we hear?: An ecological approach to auditory event perception. Ecological psychology 5(1) (1993) 1–29
  • [43] Hershey, J.R., Movellan, J.R.: Audio vision: Using audio-visual synchrony to locate sounds. In: Advances in neural information processing systems. (2000) 813–819
  • [44] Bahdanau, D., Cho, K., Bengio, Y.: Neural machine translation by jointly learning to align and translate. In: ICLR. (2015)
  • [45] Xu, K., Ba, J., Kiros, R., Cho, K., Courville, A., Salakhudinov, R., Zemel, R., Bengio, Y.: Show, attend and tell: Neural image caption generation with visual attention. In: ICLR. (2015)
  • [46] Lu, J., Xiong, C., Parikh, D., Socher, R.: Knowing when to look: Adaptive attention via a visual sentinel for image captioning. In: CVPR. (2017)
  • [47] Kim, J.H., Lee, S.W., Kwak, D., Heo, M.O., Kim, J., Ha, J.W., Zhang, B.T.: Multimodal residual learning for visual qa. In: NIPS. (2016) 361–369
  • [48] Wu, J., Yu, Y., Huang, C., Yu, K.: Deep multiple instance learning for image classification and auto-annotation. In: Proc. CVPR. (2015) 3460–3469
  • [49] Surís, D., Duarte, A., Salvador, A., Torres, J., Giró-i Nieto, X.: Cross-modal embeddings for video and audio retrieval. arXiv preprint arXiv:1801.02200 (2018)
  • [50] Deng, J., Dong, W., Socher, R., Li, L.J., Li, K., Fei-Fei, L.: Imagenet: A large-scale hierarchical image database. In: CVPR. (June 2009)
  • [51] Simonyan, K., Zisserman, A.: Very deep convolutional networks for large-scale image recognition. In: ICLR. (2015)
  • [52] Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S., Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein, M., et al.: Imagenet large scale visual recognition challenge. International Journal of Computer Vision 115(3) (2015) 211–252
  • [53] Lin, M., Chen, Q., Yan, S.: Network in network. arXiv preprint arXiv:1312.4400 (2013)
  • [54] Tran, D., Bourdev, L., Fergus, R., Torresani, L., Paluri, M.: Learning spatiotemporal features with 3d convolutional networks. In: Proceedings of the IEEE international conference on computer vision. (2015) 4489–4497
  • [55] Hershey, S., Chaudhuri, S., Ellis, D.P., Gemmeke, J.F., Jansen, A., Moore, R.C., Plakal, M., Platt, D., Saurous, R.A., Seybold, B., et al.: Cnn architectures for large-scale audio classification. In: ICASSP. (2017) 131–135
  • [56] Arevalo, J., Solorio, T., Montes-y Gómez, M., González, F.A.: Gated multimodal units for information fusion. In: ICLR workshop. (2017)
  • [57] Andrew, G., Arora, R., Bilmes, J., Livescu, K.: Deep canonical correlation analysis. In: International Conference on Machine Learning. (2013) 1247–1255
  • [58] http://pytorch.org
  • [59] Chollet, F., et al.: Keras. https://github.com/fchollet/keras (2015)
  • [60] Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z., Citro, C., Corrado, G.S., Davis, A., Dean, J., Devin, M., Ghemawat, S., Goodfellow, I., Harp, A., Irving, G., Isard, M., Jia, Y., Jozefowicz, R., Kaiser, L., Kudlur, M., Levenberg, J., Mané, D., Monga, R., Moore, S., Murray, D., Olah, C., Schuster, M., Shlens, J., Steiner, B., Sutskever, I., Talwar, K., Tucker, P., Vanhoucke, V., Vasudevan, V., Viégas, F., Vinyals, O., Warden, P., Wattenberg, M., Wicke, M., Yu, Y., Zheng, X.: TensorFlow: Large-scale machine learning on heterogeneous systems (2015) Software available from tensorflow.org.
  • [61] Kingma, D., Ba, J.: Adam: A method for stochastic optimization. In: Proc. ICLR. (2015)
  • [62] Karpathy, A., Toderici, G., Shetty, S., Leung, T., Sukthankar, R., Fei-Fei, L.: Large-scale video classification with convolutional neural networks. In: Proceedings of the IEEE conference on Computer Vision and Pattern Recognition. (2014) 1725–1732

9 AVE: The Audio-Visual Event Dataset

Our Audio-Visual Event (AVE) dataset contains 4143 videos covering 28 event categories. The video data is a subset of AudioSet [41] with the given event categories, based on which the temporal boundaries of the audio-visual events are manually annotated.

9.1 Gathering and Preparing Dataset

With the proliferation of video content, YouTube becomes a good resource for finding unconstrained videos. The AudioSet [41] released by Google is a large-scale audio-visual dataset that contains 2M 10-second video clips from Youtube. Each video clip corresponds to one of the total 632 event labels that is manually-annotated to describe the audio event. In general, the events cover a variety of category types such as human and animal sounds, musical instruments and genres, and common everyday environmental sounds. Although the videos in AudioSet contain both audio and visual tracks, a lot of them are not suitable for the audio-visual event localization task. For example, visual and audio content can be completely unrelated (e.g., train horn but no train appears, wind sound but no corresponding visual signals, the absence of audible sound, etc). To prepare our dataset, we select 34 categories including around videos from the AudioSet. Then we hire trained in-house annotators to select a subset of them as the desired videos, and further mark the start and end time at a resolution of 1 second as the temporal boundaries of each audio-visual event. We set a criterion that all annotators followed in the annotation process: a desired video should contain the given event category for at least a two-seconds-long segment from the whole video, in which the sound source is visible and the sound is audible. This results in total 4143 desired videos covering a wide range of audio-visual events (e.g., woman speaking, dog barking, playing guitar, and frying food, etc.) from different domains e.g., human activities, animal activities, music performances, and vehicle sounds.

10 Implementation Details

Videos in AVE dataset are divided into training (3339), validation (402), and testing (402) sets. For supervised and weakly-supervised audio-visual event localization tasks, we randomly sample videos from each event category to build the train/val/test datasets. For evaluating the cross-modality localization performance, we only sample testing videos from short-event videos (events in these videos are all strictly smaller than the total 10s duration). We implement our models using Pytorch

[58] and Keras [59] with Tensorflow [60] as backend. Networks are optimized by Adam [61]. The LSTM hidden state size and contrastive loss margin are set to and , respectively.

11 Additional Experiments

Here, we compare different supervised audio-visual event localization models with different features in Sec. 11.1. The audio-visual event localization results with different attention mechanisms are shown in Sec. 11.2.


Models
bell man dog plane car woman copt. violin flute ukul. frying truck shofar moto.

A
83.9 54.1 49.4 51.1 40.0 36.5 44.1 66.1 81.8 78.1 77.8 20.0 61.0 34.4
76.7 40.6 44.1 68.3 60.6 24.7 50.6 44.4 44.7 17.5 70.6 69.2 40.0 66.7
61.7 33.5 38.2 77.2 57.2 36.4 55.3 40.0 23.5 14.4 53.3 42.3 48.0 70.0
76.7 41.2 38.8 77.2 60.0 51.2 57.1 58.3 40.0 42.5 75.6 80.0 60.0 72.2
84.4 57.6 55.3 77.2 56.7 72.4 53.5 80.6 87.6 80.0 80.0 75.4 60.0 68.9
83.3 62.9 53.5 72.8 49.4 81.8 61.2 72.2 88.2 73.8 80.0 40.0 62.0 74.4
85.0 50.6 57.1 76.1 66.7 71.2 67.1 71.2 90.6 75.6 85.6 78.5 62.0 73.3
Models guitar train clock banjo goat baby bus chain. cat horse toilet rodent acco. mand.
A 70.6 65.3 81.3 84.4 53.0 61.3 8.3 68.1 30.0 8.3 70.6 49.0 60.7 64.7
57.8 73.5 79.4 45.6 62.0 51.3 60.0 73.1 23.3 35.0 60.6 42.0 66.0 41.3
57.8 77.1 78.1 40.6 57.0 17.5 43.3 43.1 11.7 13.3 72.8 9.0 34.0 22.7
48.9 68.8 66.3 61.7 72.0 20.0 56.7 73.8 21.7 20.0 71.1 48.0 64.0 39.3
63.9 88.8 81.3 76.1 75.0 57.5 41.7 83.1 61.7 33.3 83.9 57.0 74.7 63.3
69.4 82.4 88.8 79.4 44.0 68.8 40.0 76.9 38.3 20.0 76.1 53.0 64.7 72.7
70.0 85.3 88.1 67.8 60.0 67.5 5.0 82.5 33.3 18.3 88.3 70.0 81.3 66.7
Table 4: Supervised audio-visual event localization prediction accuracy () of each event category on AVE test dataset. A, , , , A, A, and A refer to supervised audio, spatial, C3D, spatial + C3D, audio + spatial, audio + C3D, audio + spatial + C3D features-based models, respectively. Notice that the model denotes the V model in our main paper. With additional C3D features, the model does not show noticeable improvements than the model over all event categories. So, we only utilize spatial visual features in our main paper. The top-2 results are highlighted in bold
Models A A
Accuracy 59.5 55.3 46.4 57.9 71.4 68.7 71.6
Table 5: Overall accuracy (%) of supervised audio-visual event localization with different features on AVE test dataset
Models A A-att V V-att A+V A+V-co-att
Accuracy 54.3 54.1 55.3 58.5 70.2 69.9
Table 6: Audio-visual event localization overall accuracy () on AVE dataset. A, A-att, V, V-att, A+V, A+V-co-att denote that these models use audio, attended audio, visual, attended visual, audio-visual, and attended audio and attended visual features, respectively. Note that V represents that the model only use spatial visual features extracted from VGGNet, and the models without attention use global average to produce feature vectors; A models use audio features extracted from the last pooling layer of pre-trained VGG-like model in [55] (for details, please see Sec. 11.2)
Figure 7: Visual results of visual-guided audio attention and audio-guided visual attention mechanisms. Each row represents one example. From left to right, images are log-mel spectrum patch, visual-guided audio attention map, a reference video frame, and audio-guided visual attention map, respectively.

11.1 Spatio-Temporal Feature for Audio-Visual Event Localization

Although 2D CNNs pre-trained on ImageNet are effective in extracting high-level visual representations for static images, they fail to capture dynamic features modeling motion information in videos. To analyze whether temporal information is useful for the audio-visual event localization task, we utilize deep 3D convolutional neural network (C3D) [54] to extract spatio-temporal visual features. In our experiments, we extract C3D feature maps from layer of C3D network pre-trained on Sport1M [62], and obtain feature vectors by global average pooling operation. Tables 4 and 5 show supervised audio-visual event localization results of different features on AVE dataset. Table 5 shows the the overall accuracy on the AVE dataset. we see that A outperforms , both of them are better than by large margins, and A is only slightly better than A. It demonstrates that audio and spatial visual features are more useful to address the audio-visual event localization task than C3D features on the AVE dataset. From Table 4, we can find that related models can obtain good results, only when videos have rich action and motion information (e.g. plane, motocycle, and train etc).

11.2 Different Attention Mechanisms

In our paper, we propose an audio-guided visual attention mechanism to adaptively learn which visual regions in each segment of a video to look for the corresponding sounding object or activity. Here, we further explore visual-guided audio attention mechanism and audio-visual co-attention mechanism, where the latter integrates audio-guided visual attention and visual-guided audio attention. These attention mechanisms serve as a weighted global pooling method to generate audio or visual feature vectors. The visual-guided audio attention function is similar to that in the audio-guided visual attention model, and the co-attention model uses both attended audio and attended visual feature vectors. To implement visual-guided audio attention mechanism, we extract audio features from the last pooling layer of pre-trained VGG-like model in [55]. Note that the network uses a log-mel spectrogram patch with 96 64 bins to represent a 1s waveform signal, so its pool5 layer will produce feature maps with spatial resolution; this is different than audio features of A models in our main paper and in Tabs. 4 and 5 of this supplementary file. The reason is that the audio features in A models are 128-D vectors extracted from the last fully-connected layer. We denote a model using audio features in this section as A to differentiate it from the model A used in our main paper and in Tabs. 4 and 5. Table 6 illustrates supervised audio-visual event localization results of different attention models. We can see that the the A model in Tab. 6 is worse than the A model in Tab. 5, which demonstrates that the audio features extracted from the last FC layer of [55] is more powerful. Similar to results in our main paper, V-att outperforms V. However, A-att is not better than A, and A+V-co-att is slightly worse than A+V, which validate that visual-guided audio attention and audio-visual co-attention can not effectively improve audio-visual event localization performance. Figure 6 illustrates visual results of audio attention and visual attention mechanisms. Clearly, we can find that audio-guided visual attention can locate semantic regions with sounding objects. We also observe that the visual-guided audio attention tends to capture certain frequency patterns, but it is pretty hard to interpret the results of visual-guided audio attention, which we leave to explore in the future work.

References

  • [1] Bulkin, D.A., Groh, J.M.: Seeing sounds: visual and auditory interactions in the brain. Current opinion in neurobiology 16(4) (2006) 415–419
  • [2] Assael, Y.M., Shillingford, B., Whiteson, S., de Freitas, N.: Lipnet: Sentence-level lipreading. CoRR abs/1611.01599 (2016)
  • [3] Chung, J.S., Senior, A., Vinyals, O., Zisserman, A.: Lip reading sentences in the wild. In: IEEE Conference on Computer Vision and Pattern Recognition. (2017)
  • [4] Li, B., Xu, C., Duan, Z.: Audio-visual source association for string ensembles through multi-modal vibrato analysis. In: Sound and Music Computing. (2017)
  • [5] Owens, A., Isola, P., McDermott, J., Torralba, A., Adelson, E.H., Freeman, W.T.: Visually indicated sounds. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2016) 2405–2413
  • [6] Aytar, Y., Vondrick, C., Torralba, A.: Soundnet: Learning sound representations from unlabeled video. In: Advances in Neural Information Processing Systems. (2016) 892–900
  • [7] Owens, A., Wu, J., McDermott, J.H., Freeman, W.T., Torralba, A.: Ambient sound provides supervision for visual learning. In: European Conference on Computer Vision. (2016) 801–816
  • [8] Arandjelovic, R., Zisserman, A.: Look, listen and learn. In: ICCV. (2017)
  • [9] LeCun, Y., Bottou, L., Bengio, Y., Haffner, P.: Gradient-based learning applied to document recognition. Proceedings of the IEEE 86(11) (1998) 2278–2324
  • [10] Hochreiter, S., Schmidhuber, J.: Long short-term memory. Neural computation 9(8) (1997) 1735–1780
  • [11] Maron, O., Lozano-Pérez, T.: A framework for multiple-instance learning. In: Advances in neural information processing systems. (1998) 570–576
  • [12] Hadsell, R., Chopra, S., LeCun, Y.: Dimensionality reduction by learning an invariant mapping. In: Proc. CVPR. (2006)
  • [13] Xu, J., Mei, T., Yao, T., Rui, Y.: Msr-vtt: A large video description dataset for bridging video and language. In: IEEE Conference on Computer Vision and Pattern Recognition. (2016)
  • [14] Tapaswi, M., Zhu, Y., Stiefelhagen, R., Torralba, A., Urtasun, R., Fidler, S.: Movieqa: Understanding stories in movies through question-answering. In: IEEE Conference on Computer Vision and Pattern Recognition. (2016)
  • [15] Schuster, M., Paliwal, K.K.: Bidirectional recurrent neural networks. IEEE Transactions on Signal Processing 45(11) (1997) 2673–2681
  • [16] Heittola, T., Mesaros, A., Eronen, A., Virtanen, T.: Context-dependent sound event detection. EURASIP Journal on Audio, Speech, and Music Processing 2013(1) (2013)  1
  • [17] Mesaros, A., Heittola, T., Virtanen, T.: Tut database for acoustic scene classification and sound event detection. In: Signal Processing Conference (EUSIPCO), 2016 24th European, IEEE (2016) 1128–1132
  • [18] Cakir, E., Heittola, T., Huttunen, H., Virtanen, T.: Polyphonic sound event detection using multi label deep neural networks. In: Neural Networks (IJCNN), 2015 International Joint Conference on, IEEE (2015) 1–7
  • [19] Parascandolo, G., Huttunen, H., Virtanen, T.: Recurrent neural networks for polyphonic sound event detection in real life recordings. In: Acoustics, Speech and Signal Processing (ICASSP), 2016 IEEE International Conference on, IEEE (2016) 6440–6444
  • [20] Mesaros, A., Heittola, T., Virtanen, T.: Tut database for acoustic scene classification and sound event detection. In: EUSIPCO. (Aug 2016)
  • [21] Oneata, D., Verbeek, J., Schmid, C.: Action and event recognition with fisher vectors on a compact feature set. In: Proceedings of the IEEE international conference on computer vision. (2013) 1817–1824
  • [22] Escorcia, V., Heilbron, F.C., Niebles, J.C., Ghanem, B.: Daps: Deep action proposals for action understanding. In: European Conference on Computer Vision, Springer (2016) 768–784
  • [23] Shou, Z., Wang, D., Chang, S.F.: Temporal action localization in untrimmed videos via multi-stage cnns. In: The IEEE Conference on Computer Vision and Pattern Recognition (CVPR). (June 2016)
  • [24] Lea et al., C.: Temporal convolutional networks for action segmentation and detection. In: CVPR. (2017)
  • [25] Baltrušaitis, T., Ahuja, C., Morency, L.P.: Multimodal machine learning: A survey and taxonomy. IEEE Transactions on Pattern Analysis and Machine Intelligence (2018)
  • [26] Fisher III, J.W., Darrell, T., Freeman, W.T., Viola, P.A.: Learning joint statistical models for audio-visual fusion and segregation. In: Advances in neural information processing systems. (2001) 772–778
  • [27] Gönen, M., Alpaydın, E.: Multiple kernel learning algorithms. Journal of machine learning research 12(Jul) (2011) 2211–2268
  • [28] Poria, S., Cambria, E., Gelbukh, A.: Deep convolutional neural network textual features and multiple kernel learning for utterance-level multimodal sentiment analysis. In: Proceedings of the 2015 conference on empirical methods in natural language processing. (2015) 2539–2544
  • [29] Gurban, M., Thiran, J.P., Drugman, T., Dutoit, T.: Dynamic modality weighting for multi-stream hmms inaudio-visual speech recognition. In: Proceedings of the 10th international conference on Multimodal interfaces, ACM (2008) 237–240
  • [30] Ngiam, J., Khosla, A., Kim, M., Nam, J., Lee, H., Ng, A.Y.: Multimodal deep learning. In: ICML. (2011)
  • [31] Srivastava, N., Salakhutdinov, R.R.: Multimodal learning with deep boltzmann machines. In: Advances in neural information processing systems. (2012) 2222–2230
  • [32] Srivastava, N., Salakhutdinov, R.: Learning representations for multimodal data with deep belief nets. In: International conference on machine learning workshop. (2012)
  • [33] Mroueh, Y., Marcheret, E., Goel, V.: Deep multimodal learning for audio-visual speech recognition. In: ICASSP, IEEE (2015)
  • [34] Hu, D., Li, X., et al.: Temporal multimodal learning in audiovisual speech recognition. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2016) 3574–3582
  • [35] Yang, X., Ramesh, P., Chitta, R., Madhvanath, S., Bernal, E.A., Luo, J.: Deep multimodal representation learning from temporal data. In: CVPR. (July 2017)
  • [36] Kiela, D., Grave, E., Joulin, A., Mikolov, T.: Efficient large-scale multi-modal classification. In: AAAI. (2018)
  • [37] Harwath, D., Torralba, A., Glass, J.: Unsupervised learning of spoken language with visual context. In: Advances in Neural Information Processing Systems. (2016) 1858–1866
  • [38] Arandjelović, R., Zisserman, A.: Objects that sound. arXiv preprint arXiv:1712.06651 (2017)
  • [39] Yipin Zhou, Zhaowen Wang, C.F.T.B., Berg, T.L.: Visual to sound: Generating natural sound for videos in the wild. In: CVPR. (2018)
  • [40] Chen, L., Srivastava, S., Duan, Z., Xu, C.: Deep cross-modal audio-visual generation. In: Proceedings of the on Thematic Workshops of ACM Multimedia. (2017)
  • [41] Gemmeke, J.F., Ellis, D.P., Freedman, D., Jansen, A., Lawrence, W., Moore, R.C., Plakal, M., Ritter, M.: Audio set: An ontology and human-labeled dataset for audio events. In: ICASSP. (2017)
  • [42] Gaver, W.W.: What in the world do we hear?: An ecological approach to auditory event perception. Ecological psychology 5(1) (1993) 1–29
  • [43] Hershey, J.R., Movellan, J.R.: Audio vision: Using audio-visual synchrony to locate sounds. In: Advances in neural information processing systems. (2000) 813–819
  • [44] Bahdanau, D., Cho, K., Bengio, Y.: Neural machine translation by jointly learning to align and translate. In: ICLR. (2015)
  • [45] Xu, K., Ba, J., Kiros, R., Cho, K., Courville, A., Salakhudinov, R., Zemel, R., Bengio, Y.: Show, attend and tell: Neural image caption generation with visual attention. In: ICLR. (2015)
  • [46] Lu, J., Xiong, C., Parikh, D., Socher, R.: Knowing when to look: Adaptive attention via a visual sentinel for image captioning. In: CVPR. (2017)
  • [47] Kim, J.H., Lee, S.W., Kwak, D., Heo, M.O., Kim, J., Ha, J.W., Zhang, B.T.: Multimodal residual learning for visual qa. In: NIPS. (2016) 361–369
  • [48] Wu, J., Yu, Y., Huang, C., Yu, K.: Deep multiple instance learning for image classification and auto-annotation. In: Proc. CVPR. (2015) 3460–3469
  • [49] Surís, D., Duarte, A., Salvador, A., Torres, J., Giró-i Nieto, X.: Cross-modal embeddings for video and audio retrieval. arXiv preprint arXiv:1801.02200 (2018)
  • [50] Deng, J., Dong, W., Socher, R., Li, L.J., Li, K., Fei-Fei, L.: Imagenet: A large-scale hierarchical image database. In: CVPR. (June 2009)
  • [51] Simonyan, K., Zisserman, A.: Very deep convolutional networks for large-scale image recognition. In: ICLR. (2015)
  • [52] Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S., Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein, M., et al.: Imagenet large scale visual recognition challenge. International Journal of Computer Vision 115(3) (2015) 211–252
  • [53] Lin, M., Chen, Q., Yan, S.: Network in network. arXiv preprint arXiv:1312.4400 (2013)
  • [54] Tran, D., Bourdev, L., Fergus, R., Torresani, L., Paluri, M.: Learning spatiotemporal features with 3d convolutional networks. In: Proceedings of the IEEE international conference on computer vision. (2015) 4489–4497
  • [55] Hershey, S., Chaudhuri, S., Ellis, D.P., Gemmeke, J.F., Jansen, A., Moore, R.C., Plakal, M., Platt, D., Saurous, R.A., Seybold, B., et al.: Cnn architectures for large-scale audio classification. In: ICASSP. (2017) 131–135
  • [56] Arevalo, J., Solorio, T., Montes-y Gómez, M., González, F.A.: Gated multimodal units for information fusion. In: ICLR workshop. (2017)
  • [57] Andrew, G., Arora, R., Bilmes, J., Livescu, K.: Deep canonical correlation analysis. In: International Conference on Machine Learning. (2013) 1247–1255
  • [58] http://pytorch.org
  • [59] Chollet, F., et al.: Keras. https://github.com/fchollet/keras (2015)
  • [60] Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z., Citro, C., Corrado, G.S., Davis, A., Dean, J., Devin, M., Ghemawat, S., Goodfellow, I., Harp, A., Irving, G., Isard, M., Jia, Y., Jozefowicz, R., Kaiser, L., Kudlur, M., Levenberg, J., Mané, D., Monga, R., Moore, S., Murray, D., Olah, C., Schuster, M., Shlens, J., Steiner, B., Sutskever, I., Talwar, K., Tucker, P., Vanhoucke, V., Vasudevan, V., Viégas, F., Vinyals, O., Warden, P., Wattenberg, M., Wicke, M., Yu, Y., Zheng, X.: TensorFlow: Large-scale machine learning on heterogeneous systems (2015) Software available from tensorflow.org.
  • [61] Kingma, D., Ba, J.: Adam: A method for stochastic optimization. In: Proc. ICLR. (2015)
  • [62] Karpathy, A., Toderici, G., Shetty, S., Leung, T., Sukthankar, R., Fei-Fei, L.: Large-scale video classification with convolutional neural networks. In: Proceedings of the IEEE conference on Computer Vision and Pattern Recognition. (2014) 1725–1732
