1 Introduction

Figure 1: Demonstration of our raindrop removal method. Left: input images degraded by raindrops. Right: our results, where most raindrops are removed and structural details are restored. Zooming-in the figure will provide a better look at the restoration quality.

Raindrops attached to a glass window or windscreen or lens can hamper the visibility of a background scene, and degrade an image. Principally, the degradation is because raindrop regions contain different imageries from those that have no raindrops. Due to the shape, a raindrop transmits the rays of reflected light from a wider environment, similar to a fish-eye lens. Moreover, in most cases, the focus of the camera is on the background scene, making the appearance of raindrops in an image blur.

In this paper, we address the visibility degradation problem caused by raindrops. Our goal is given an image impaired by raindrops, we intend to remove the raindrops, so that the image looks like there is no raindrop, like shown in Fig. 1

. Our method is fully automatic. We consider it will benefit image processing and computer vision applications, particularly for those suffering from raindrops, dirt, or similar artifacts.

A few methods have been proposed to tackle the raindrop detection and removal problems. Methods such as [17, 18, 12] are dedicated to detecting raindrops but not removing them. Other methods are introduced to detect and remove raindrops using stereo [20], video [22, 25], or specifically designed optical shutter [6], and thus are not applicable for a single input image taken by a normal camera. A method by Eigen et al. [1]

has a similar setup to ours. It attempts to remove raindrops or dirt using a single image using deep learning. However, it can only handle small raindrops, and produce blurry outputs

[25]. In our experimental results (Sec. 6), we will find that it fails to handle relatively large and dense raindrops.

In contrast to [1], we intend to deal with substantial presence of raindrops, like the ones shown in Fig. 1. Generally, the raindrop-removal problem is intractable, since first which regions are occluded by raindrops are not given. Second, the information about the background scene of the occluded regions for most part is completely lost. The problem gets worse, when the raindrops are relatively large and distributed densely across the input image. To resolve the problem, we use a generative adversarial network, where our generated outputs will be assessed by our discriminative network to ensure that our outputs look like real images. To deal with the complexity of raindrop degraded image problem, first our generative network attempts to produce an attention map. This attention map is the most critical part of our network, since it will guide the next process in the generative network to focus on raindrop regions. This map is produced by using a recurrent network consisting of deep residual networks (ResNets) [8] combined with a convolutional LSTM [21] and a few standard convolutional layers. We call this attentive-recurrent network.

The second part of our generative network is an autoencoder, which takes both the input image and the attention map as the input. To obtain wider contextual information, in the decoder side of the autoencoder, we apply multi-scale losses. Each of these losses compares the difference between the output of the convolutional layers and the attention map that has been downscaled accordingly. The input of the convolutional layers is the features from a decoder layer. Besides these losses, in the final output of the autoencoder, we apply a perceptual loss, to obtain a more global, image-wide error. This final output is also the output of our generative network.

Having obtained the generative image output, our discriminative network will check if it is real enough. Like in a few inpainting methods (e.g. [9, 13]), our discriminative network validates the image both globally and locally. However, unlike in the inpainting problem, in our problem, particularly in the testing stage, the target raindrop regions are not given. Thus, there is no information on the local regions that the discriminative network can focus on. To address this problem, we utilize our attention map to guide the discriminative network toward local target regions.

Overall, aside from introducing a novel method of raindrop removal, our other main contribution is the injection of the attention map into both generative and discriminative networks, which is novel and works considerably well on removing raindrops, according to our experiments shown in Sec. 6. We intend to release our code and dataset.

The rest of the paper is organized as follows. Section 2

discusses the related work in the fields of raindrop detection and removal, and in the fields of the CNN-based image inpainting. Section

3 explains the raindrop model in an image, which is the basis of our method. Section 4 describes our method, which is based on the generative adversarial network. Section 5 discusses how we obtain our synthetic and real images used for training our network. Section 6 shows our evaluations quantitatively and qualitatively. Finally, Section 7 concludes our paper.

2 Related Work

There are a few papers dealing with bad weather visibility enhancement, which mostly deal with haze or fog (e.g. [19, 7, 16]), and rain streaks (e.g. [3, 2, 14, 24]). Unfortunately, we cannot apply these methods directly to raindrop removal, since the image formation and thus the constraints of raindrops attached to a glass window or lens are different from haze, fog, or rain streaks.

A number of methods have been proposed to detect raindrops. Kurihata et al.’s [12] learns the shape of raindrops using PCA, and attempts to match a region in the test image, with those of the learned raindrops. However, since raindrops are transparent and have various shapes, it is unclear how large the number of raindrops needs to be learned, how to guarantee that PCA can model the various appearance of raindrops, and how to prevent other regions locally similar to raindrops to be detected as raindrops. Roser and Geiger’s [17] proposes a method that compares a synthetically generated raindrop with a patch that potentially has a raindrop. The synthetic raindrops are assumed to be a sphere section, and later assumed to be inclined sphere sections [18]. These assumptions might work in some cases, yet cannot be generalized to handle all raindrops, since raindrops can have various shapes and sizes.

Yamashita et al.’s [23] uses a stereo system to detect and remove raindrops. It detects raindrops by comparing the disparities measured by the stereo with the distance between the stereo cameras and glass surface. It then removes raindrops by replacing the raindrop regions with the textures of the corresponding image regions, assuming the other image does not have raindrops that occlude the same background scene. A similar method using an image sequence, instead of stereo, is proposed in Yamashita et al.’s [22]. Recently, You et al.’s [25] introduces a motion based method for detecting raindrops, and video completion to remove detected raindrops. While these methods work in removing raindrops to some extent, they cannot be applied directly to a single image.

Eigen et al.’s [1]

tackles single-image raindrop removal, which to our knowledge, is the only method in the literature dedicated to the problem. The basic idea of the method is to train a convolutional neural network with pairs of raindrop-degraded images and the corresponding raindrop-free images. Its CNN consists of 3 layers, where each has 512 neurons. While the method works, particularly for relatively sparse and small droplets as well as dirt, it cannot produce clean results for large and dense raindrops. Moreover, the output images are somehow blur. We suspect that all these are due to the limited capacity of the network and the deficiency in providing enough constraints through its losses. Sec.

6 shows the comparison between our results with this method’s.

In our method, we utilize a GAN [4] as the backbone of our network, which is recently popular in dealing with the image inpainting or completion problem (e.g. [9, 13]). Like in our method, [9]

uses global and local assessment in its discriminative network. However, in contrast to our method, in the image inpainting, the target regions are given, so that the local assessment (whether local regions are sufficiently real) can be carried out. Hence, we cannot apply the existing image inpainting methods directly to our problem. Another similar architecture is Pix2Pix

[10]

, which translates one image (e.g. a sketch of a bag) to another image (e.g., a real-looking bag). It proposes a conditional GAN that not only learns the mapping from input image to output image, but also learns a loss function to the train the mapping. This method is a general mapping, and not proposed specifically to handle raindrop removal. In Sec.

6, we will show some evaluations between our method and Pix2Pix.

3 Raindrop Image Formation

We model a raindrop degraded image as a linear combination of a background image and raindrop layer:

(1)

where is the colored input image, and indicates the pixel image location. is the background image, and is the raindrop layer, representing the light reflected by the environment and passing through the raindrops adhered to a lens or windscreen.

Raindrops are in fact transparent. However, due to their shapes and refractive index, a pixel in a raindrop region is not only influenced by one point in the real world but by the whole environment [25], making most part of raindrops seem to have their own imagery different from the background scene. Moreover, since our camera is assumed to focus on the background scene, this imagery inside a raindrop region is mostly blur. Although some part of a raindrop, particularly at the periphery, which conveys some information about the background, are disregard in our model, we notice that the information can be revealed automatically and used by our network.

Based on the model (Eq. (1)), our goal is to obtain the background image, , from a given input, . To accomplish this, we create an attention map guided by a binary mask, . In the mask, means the pixel is part of a raindrop region, and otherwise means it is part of background regions. Note that, for our training data, to obtain the mask we simply subtract the image degraded by raindrops, with its corresponding clean image, . We use a threshold to determine whether a pixel is part of a raindrop region. In practice, we set the threshold to 30 for all images in our training dataset. This may seems noisy and inaccurate, however later we will find that it is actually sufficient for our purpose of generating the attention map.

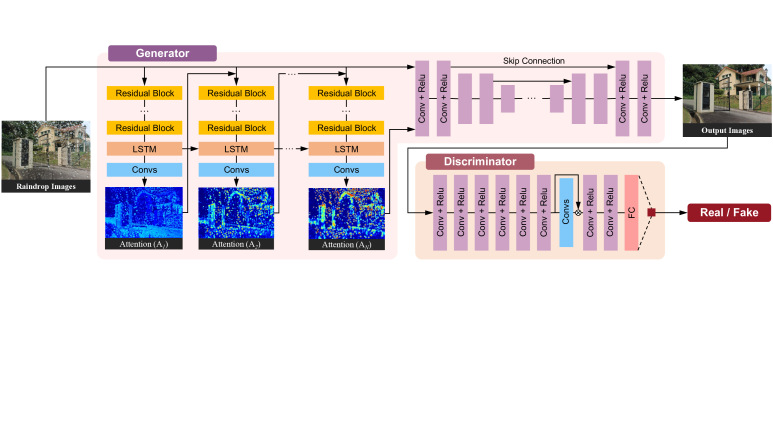

Figure 2: The architecture of our proposed attentive GAN.The generator consists of an attentive-recurrent network and a contextual autoencoder with skip connections. The discriminator is formed by a series of convolution layers and guided by the attention map. Best viewed in color.

4 Raindrop Removal using Attentive GAN

Fig. 2 shows the overall architecture of our proposed network. Following the idea of generative adversarial networks [4], there are two main parts in our network: the generative and discriminative networks. Given an input image degraded by raindrops, our generative network attempts to produce an image as real as possible and free from raindrops. The discriminative network will validate whether the image produced by the generative network looks real.

Our generative adversarial loss can be expressed as:

(2)

where represents the generative network, and represents the discriminative network. is a sample drawn from our pool of images degraded by raindrops, which is the input of our generative network. is a sample from a pool of clean natural images.

4.1 Generative Network

As shown in Fig. 2, we design our generative network to have two sub-networks: an attentive-recursive network and a contextual autoencoder. The purpose of the recurrent-attentive network is to find regions in the input image that need to get attention. These regions are mainly the raindrop regions and their surrounding structures that are necessary for the contextual autoencoder to focus on, in order to generate better local image restoration, as well as for the discriminative network to focus the assessment.

Attentive-Recurrent Network.

Visual attention models have been applied to localizing targeted regions in an image to capture features of the regions. The idea has been utilized for visual recognition and classification (e.g.

[26, 15, 5]). In a similar way, we consider visual attention to be important for generating raindrop-free background images, since it allows the network to know where the removal/restoration should be focused on. As shown in our architecture in Fig. 2, we employ a recurrent network to generate our visual attention. Each block (of each time step) in our recurrent network comprises of five layers of ResNet [8] that help extract features from the input image and the mask of the previous block, a convolutional LSTM unit [21] and convolutional layers for generating the 2D attention maps.

Our attention map learnt at each time step is a matrix ranging from 0 to 1, where the greater the value, the greater attention it suggests, as shown in the visualization in Fig. 3. Unlike the binary mask, , the attention map is non-binary map, representing the increasing attention from non-raindrop regions to raindrop regions, and the values vary even inside raindrop regions. It makes sense since the surrounding regions of raindrops also needs attention, and the transparency of a raindrop area can vary (some parts do not totally occlude the background, and thus convey some background information).

Our convolution LSTM unit consists of an input gate , a forget gate , an output gate as well as a cell state . The interaction between states and gates along time dimension is defined as follows:

(3)

where is the features generated by ResNet. encodes the cell state that will be fed to the next LSTM. represents the output features of the LSTM unit. And represents the Hadamard multiplication and represents the convolution operation. The LSTM’s output feature is then fed into the convolutional layers, which generate a 2D attention map. In the training process, we initialize the values of the attention map to 0.5. In each time step, we concatenate the current attention map with the input image and then feed them into the next block of our recurrent network.

In training the generative network, we use pairs of images with and without raindrops that contain exactly the same background scene. The loss function in each recurrent block is defined as the mean squared error (MSE) between the output attention map at time step , or , and the binary mask, . We apply this process time steps. The earlier attention maps have smaller values and get larger when approaching the time step indicating the increase in confidence. The loss function is expressed as:

(4)

where is the attention map produced by the attentive-recurrent network at time step . , with is the concatenation of the input image and the attention map from the previous time step. When , is the input image concatenated with an initial attention map with values of 0.5. Function represents the attentive-recurrent network at time step . We set to 4 and to 0.8. We expect a higher will produce a better attention map, but it also requires larger memory.

Fig. 3 shows some examples of attention maps generated by our network. As can be seen, our network attempts to find not only the raindrop regions but also some structures surrounding the regions.

(a) Input
(b) epoch = 3
(c) epoch = 6
(d) epoch = 9
(e) epoch = 12
(f) epoch = 15
Figure 3: Visualization of the attention map learning process. This visualization is for the final attention map, . Our attentive-recurrent network shows a greater focus on raindrop regions and the relevant structures during the training process.

Contextual Autoencoder.

The purpose of our contextual autoencoder is to generate an image that is free from raindrops. The input of the autoencoder is the concatenation of the input image and the final attention map from the attentive-recurrent network. Our deep autoencoder has 16 conv-relu blocks, and skip connections are added to prevent blurred outputs. Fig.

4 illustrates the architecture of our contextual autoencoder.

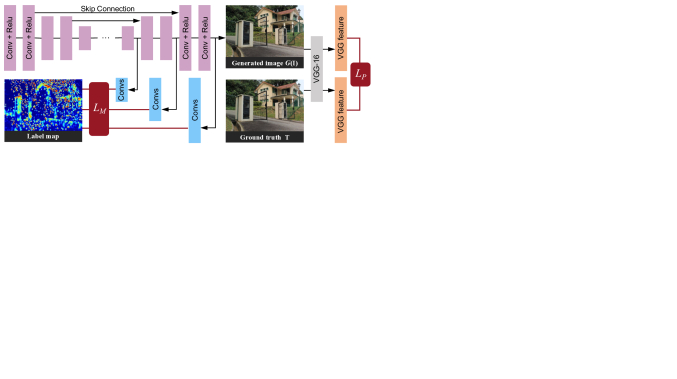

Figure 4: The architecture of our contextual autoencoder. Multi-scale loss and perceptual loss are used to help train the autoencoder.

As shown in the figure, there are two loss functions in our autoencoder: multi-scale losses and perceptual loss. For the multi-scale losses, we extract features from different decoder layers to form maps in different sizes. By adopting this, we intend to capture more contextual information from different scales. This is also the reason why we call it contextual autoencoder. We define the loss function as:

(5)

where indicates the th output extracted from the decoder layers, and indicates the final attention map that has the same scale as that of . are the weights for different scales. We put more weight at the larger scale. To be more specific, the outputs of last , and layers are used, which is , and of the original size. Smaller layers are not used since the information is too little and the attention mask will be inaccurate. And we set s to 0.6, 0.8, 1.0.

Aside from the multi-scale losses, which are based on a pixel-by-pixel operation, we also add a perceptual loss [11] that measures the global discrepancy between the features of the autoencoder’s output and those of the corresponding ground-truth clean image. These features can be extracted from a well-trained CNN, e.g

. VGG16 pretrained on ImageNet dataset. Our perceptual loss function is expressed as:

(6)

where is a pretrained CNN, and produces features from a given input image. is the output image of the autoencoder or, in fact, of the whole generative network: . is the ground-truth image that is free from raindrops.

Overall, the loss of our generative can be written as:

(7)

where .

4.2 Discriminative Network

To differentiate fake images from real ones, a few GAN-based methods adopt global and local image-content consistency in the discriminative part (e.g. [9, 13]) . The global discriminator looks at the whole image to check if there is any inconsistency, while the local discriminator looks at small specific regions. The strategy of a local discriminator is particularly useful if we know the regions that are likely to be fake (like in the case of image inpainting, where the regions to be restored are given). Unfortunately, in our problem, particularly in our testing stage, we do not know where the regions degraded by raindrops and the information is not given. Hence, the local discriminator must try to find those regions by itself.

To resolve this problem, our idea is to use an attentive discriminator. For this, we employ the attention map generated by our attentive-recurrent network. Specifically, we extract the features from the interior layers of the discriminator, and feed them to a CNN. We define a loss function based on the CNN’s output and the attention map. Moreover, we use the CNN’s output and multiply it with the original features from the discriminative network, before feeding them into the next layers. Our underlying idea of doing this is to guide our discriminator to focus on regions indicated by the attention map. Finally, at the end layers we use a fully connected layer to decide whether the input image is fake or real. The right part of Fig. 2 illustrates our discriminative architecture.

The whole loss function of the discriminator can be expressed as:

(8)

where

is the loss between the features extracted from interior layers of the discriminator and the final attention map:

(9)

where represents the process of producing a 2D map by the discriminative network. is set to 0.05. is a sample image drawn from a pool of real and clean images. represents a map containing only 0 values. Thus, the second term of Eq. (9) implies that for , there is no specific region necessary to focus on.

Our discriminative network contains 7 convolution layers with the kernel of (3, 3), a fully connected layer of 1024 and a single neuron with a sigmoid activation function. We extract the features from the last third convolution layers and multiply back in element-wise.

5 Raindrop Dataset

Similar to current deep learning methods, our method requires relatively a large amount of training data with groundtruths for training. However, since there is no such dataset for raindrops attached to a glass window or lens, we create our own. For our case, we need a set of image pairs, where each pair contains exactly the same background scene, yet one is degraded by raindrops and the other one is free from raindrops. To obtain this kind of image pairs, we use two pieces of exactly the same glass: one sprayed with water, and the other is left clean. We use the two pieces of glass, instead of one, since we try to avoid misalignment (glass has a refractive index that is different from air, and thus refracts light rays). In general, we also need to manage any other causes of misalignment, such as camera motion, when taking the two images. Besides, we should ensure that the atmospheric conditions (e.g., sunlight, clouds, etc.) and the background objects should be static during the acquisition process of the image pair.

In total, we captured 1119 pairs of images, with various background scenes and raindrops. We used Sony A6000 and Cannon EOS 60 for the image acquisition. Our glass slabs have the thickness of 3 mm and attached to the camera lens. We set the distance between the glass and the camera varying from 2 to 5 cm to generate diverse raindrop images as well as minimizing the reflection effect of the glass. Fig. 5 shows some samples of our data. The dataset will be available publicly.

Figure 5: Samples of our dataset. Top: The images degraded with raindrops. Bottom: The corresponding ground-truth images.

6 Experimental Results

Quantitative Evaluation.

Table 1 shows the quantitative comparisons between our method and other existing methods: Eigen13 [1], Pix2Pix [10]. As shown in the table, compared to these two, our PSNR and SSIM values are higher. This indicates that our method can generate results more similar to the groundtruths.

We also compare our whole attentive GAN with parts of our own network: A (autoencoder alone without the attention map), A+D (non-attentive autoencoder plus non-attentive discriminator), A+AD (non-attentive autoencoder plus attentive discriminator). Note that, our whole attentive GAN can be written as AA+AD (attentive autoencoder plus attentive discriminator). As shown in the evaluation table, AA+AD performs better than the other possible configurations. This is the quantitative evidence that the attentive map is needed by both the generative and discriminative networks.

Method Metric
PSNR SSIM
Eigen13 [1] 28.59 0.6726
Pix2Pix [10] 30.14 0.8299
A 29.25 0.7853
A + D 30.88 0.8670
A + AD 30.60 0.8710
Ours (AA+AD) 31.57 0.9023
Table 1: Quantitative evaluation results. A is our contextual autoencoder alone. A+D is autoencoder plus discriminator. A+AD is autoencoder plus attentive discriminator. AA+ AD is our complete architecture: Attentive autoencoder plus attentive discriminator.

Qualitative Evaluation.

() Ground truth
() Raindrop image
() Eigen[1]
() Pix2pix-cGAN[10]
() Our method
Figure 6: Results of comparing a few different methods. From left to right: ground truth, raindrop image (input), Eigen13 [1], Pix2Pix [10] and our method. Nearly all raindrops are removed by our method despite the diversity of their colors, shapes and transparency.
() Input
() A
() A+D
() A+AD
() AA+AD
Figure 7: Comparing some parts of our network architecture. From left to right: Input, A, A+D, A+AD, our complete architecture (AA+AD).
() Input
() Pix2pix-cGAN
() Our method
Figure 8: A closer look at the comparison between our outputs and Pix2Pix’s outputs. Our outputs have less artifacts and better restored structures.

Fig. 6 shows the results of Eigen13 [1] and Pix2Pix [10] in comparison to our results. As can be seen, our method is considerably more effective in removing raindrops compared to Eigen13 and Pix2Pix. In Fig. 7, we also compare our whole network (AA+AD) with other possible configurations from our architectures (A, A+D, A+AD). Although A+D is qualitatively better than A, and A+AD is better than A+D, our overall network is more effective than A+AD. This is the qualitative evidence that, again, the attentive map is needed by both the generative and discriminative networks.

Fig. 8 provides another comparison between our results and Pix2Pix’s results. As can be observed, our outputs have less artifacts and have better restored structures.

Application.

To provide further evidence that our visibility enhancement could be useful for computer vision applications, we employ Google Vision API (https://cloud.google.com/vision/) to test whether using our outputs can improve the recognition performance. The results are shown in Fig. 9. As can be seen, using our output, the general recognition is better than without our visibility enhancement process. Furthermore, we perform evaluation on our test dataset, and Fig. 10 shows statistically that using our visibility enhancement outputs significantly outperform those without visibility enhancement, both in terms of the average score of identifying the main object in the input image, and the number of object labels recognized.

(a) Recognizing result of original image
(b) Recognizing result of our removal result
Figure 9: A sample of improving the result of Google Vision API. Our method increases the scores of main object detection as well as the number of the objects recognized.
(a) Score
(b) Number
Figure 10: Summary of improvement based on Google Vision API: (a) the average score of identifying the main object in the input image. (b) the number of object labels recognized. Our method improves the recognization score by 10 and benefit the recall by 100 extra object identification.

7 Conclusion

We have proposed a single-image based raindrop removal method. The method utilizes a generative adversarial network, where the generative network produces the attention map via an attentive-recurrent network, and applies this map along with the input image to generating a raindrop-free image through a contextual autoencoder. Our discriminative network, then, assesses the validity of the generated output globally and locally. To be able to validate locally, we inject the attention map into the network. Our novelty lies on the use of the attention map in both generative and discriminative network. We also consider that our method is the first method that can handle relatively severe presence of raindrops, which the state of the art methods in raindrop removal fail to handle.
