1 Introduction

Protecting a network is always a difficult task because attackers constantly explore new ways to penetrate security systems by exploiting their vulnerabilities. These vulnerabilities often go unpatched, due to lack of resources, negligence, or a variety of other reasons.
Although network professionals have offered various versions of the attack process over the years, today the general anatomy of the attack process is thought to be comprised of five steps murphy2010application :

  1. Reconnaissance

  2. Scanning

  3. Gaining access

  4. Maintaining access

  5. Covering tracks

Some networking professionals estimate that an adversary routinely spends up to 95% of its time planning an attack, while only spending the remaining 5% on execution

kewley2001dynamic . During the reconnaissance step, the attacker attempts to gather as much information about the designated network as possible, including network topology, operating systems and applications, and unpatched vulnerabilities. While doing so, the adversary generates traffic on the network, making itself more vulnerable for detectionhuber2011host .
In this research, we try to sabotage the reconnaissance and scanning steps of the attack process by obfuscating the information acquired by the adversary. While making the attacker repeat steps 1 and 2 repeatedly, after failing to achieve step 3.

It is well known, that attackers rely upon the ability to accurately identify the operating system and services running on the network in order to plan and execute successful attacks murphy2010application .
The desire to mislead a possible attacker underlies this research aiming to explore the possibilities of obfuscating the information acquired by an adversary. This has been achieved by adding fake vulnerabilities that distract the attacker and contribute to the erroneous construction of an attack path. Misleading the attacker with false information can set the attacker on a path that will deplete its resources, increase the likelihood of detection due to the increased activity, and keep the attacker away from essential targets. We hypothesize that adding fake vulnerabilities will cause the attackers to perform additional activities while attempting to achieve their goals.
In this study we assume that the attacker will choose the path with the lowest total cost of the resulting attack graph. In addition, the attack graph is constructed from the information known to the adversary. Furthermore, we assume that the attacker knows the structure of the given network, and the vulnerabilities in each host.
In this research, we make the following contributions:

  • We present a new defense strategy for protecting enterprise networks. This method utilizes attack graphs for modeling all possible attack plans in a given network. Fake vulnerabilities are then added to hosts in the network in order to make it harder for an adversary to reach its goal in the target network.

  • In contrast to other studies that use small synthetic networks, this study examines the impact of our algorithm on a real enterprise network, and demonstrate the solution of the above challenge for a real organization.

  • We gathered a collection of guidelines for fake vulnerabilities placement.
    This study considered the fact that when a layer of deception is added to a host in a network, it inhibits the network’s routine activity. Therefore, the user, i.e., the enterprise aiming to protect its network, should decide about the desired level of security it wishes to apply and the resources it can and will provide for the task of protecting its network.
    Another consideration pertains to the fake information provided to attackers. If the fake information is naive or poorly chosen, the attacker may immediately become suspicious and assume that the responses obtained are deceptive rowe2007defending . In our research, we add the deceptive information carefully and sensibly, in such a way that it cannot be easily detected by an attacker. While applying deceptive information to a specific host, we assure that it is consistent with the environment and with other information that can be concluded.
    Further more, we provide an efficient and effective algorithm for assignment of fake vulnerabilities in the network.

  • We formulate our problem as an AI challenge. We are looking for a group of assignments which maximizes the adversary’s attack total cost, while it tries to find the path with minimal cost. Actually, the attacker is trying to solve a planning (AI) problem while our method searches for a hard instance of this planning problem. In a general saying, we formulate a search problem whose goal is to find a hard instance for an AI algorithm.

  • We present an admissible but still feasible heuristic solution for the defined problem. The admissibility property assures the optimal solution to our problem.

2 Background on attack graphs

Attack graphs are data structures used to model the possible paths an attacker could use to achieve its goal within a specific target network. The earliest attack graphs sheyner2002automated ; sheyner2004scenario were constructed manually by Red Teams and could not scale to large networks. Later, technological advancement and the introduction of logical attack graphs ou2006scalable made attack graph generation more scalable and comprehensible to the human user. In general, attack graph generation requires the complete network connectivity map and the list of existing vulnerabilities in the network hosts khaitan2011finding .

The task of collecting the necessary data about the vulnerabilities and the network structure must be automated. The former can be collected using either one of the existing vulnerability scanners, for example Nessus nessus or openVAS OpenVAS . Various tools, such as NMAP lyon2009nmap , can aid in the network topology assessment. However, accurate assessment of connectivity within large organizations is still an open problem due to firewall rules, intrusion detection systems (IDS), lack of documented switch and router configurations, etc.

2.1 Attacker model

In this study we assume that the adversary’s goal is to obtain designated privileges in the victim’s network, while minimizing attack cost. The adversary also tries to minimize its footprint in the attacked network and to avoid redundant / superfluous actions that create additional noise. The more noise the adversary generates, the higher are the chances that the malicious activity will be detected by an IDS. Reducing the consumption of resources is an objective shared by both defenders and attackers alike.

This led us to conclude that the best approach for modeling the attacker would follow the following assumptions:

  • The attacker considers, on every step, the resources it will need to spend, during the attack. This describes the cost of each vertex in the attack graph.

  • The attacker aims to choose the path to its goal in the targeted network with the lowest cost.

We will construct the attack graph considering the above, while using the information the attacker can get. In this research we assume the attacker has all the information about the network - topology and vulnerabilities at each host.

2.2 Logical attack graphs

We adopted the definition of logical attack graphs proposed by Ou et al. ou2006scalable .

Definition 1 (Logical Attack Graph).

A logical attack graph is a five-tupple , where , , and are disjoint sets of privilege nodes, exploit nodes, and configuration nodes respectively. is the set of directed graph edges . is the attacker’s goal.

Privilege nodes represent the various assets and privileges that can be acquired on the host machines (by using an exploit). Configuration nodes mainly represent vulnerabilities but can also include various configurations such as the operating system and services installed on the host.

Consider for example the attack graph depicted in Figure 1. Consider the exploit node . It can only be activated if configuration is in place and the privileges and were acquired by the attacker. Once activated, grants the privilege . Alternatively, privilege can be acquired using the exploit .

Figure 1: Example of logical attack graph. Green diamonds are privilege nodes, Blue ovals are exploit nodes, Orange rectangles are configuration nodes. Arrows point to the logical requirement of each node.

2.3 Attack graph generation tools:

There are multiple tools for generating logical attack graphs. The most notable are Network Security Planning Architecture (NetSPA) artz2002netspa ; ingols2006practical , Graphical Attack Graph and Reachability Network Evaluation Tool (GARNET)  williams2008garnet , and multi-host, multi-stage Vulnerability Analysis Language (MulVAL)  and framework ou2005mulval which enables automatic and relatively easy generation of attack graphs.

We use MulVAL for generating the attack graphs. MulVAL is a framework for modeling the interaction of the attacker with vulnerabilities and network configurations. The inputs to MulVAL are:

  • Known exploits and their effects.

  • Hosts configurations - including installed software.

  • Network configurations - including VLANs and firewall tables.

  • Principals - including users and their permissions.

  • Interaction rules for the different parts of the system.

  • Policy - what accesses does the system wants to permit.

Most of the configurations required for running MulVAL can be imported from automatic tools or public sources. For example, known exploits could be imported from NVD (National Vulnerability Database)NVD . Host configurations can be imported from automatic network scanners such as Nessus nessus . Once the configurations are present, they are converted to facts, and rules - the basic building blocks of MulVAL’s reasoning system. From this point, the facts and rules can be directly loaded into a Prolog environment and executed. MulVAL uses XSB Prolog dialect sagonas1994xsb because it averts from re-computation of formerly calculated facts. This results in a polynomial run time complexity for the attack simulation phase.

Empirical tests show that in practice, MulVAL is very efficient in computing attack simulation, even in scenarios including thousands of hosts. In a typical MulVAL run, it will check if there is a trace that will result in a policy violation using the facts and rules defined earlier. The result of such run is an attack graph, containing all the possible paths from the initial configuration to the goal privileges. MulVAL is a popular tool in recent studies related to attack graphs. Its advantages are noticeable, and therefore we use it in the current study.

2.4 Exploitation cost

Common vulnerabilities have been compiled and listed in a system operated by the MITRE Corporation and the U.S. National Vulnerability Database NVD . Each vulnerability is tagged with a unique CVE (Common Vulnerabilities and Exposures) identifier and has a CVSS (Common Vulnerabilities Scoring System) score, which is an open industry standard for assessing the severity of computer system security vulnerabilities. CVSS scores are based on two subscores:

  • Impact Subscore - reflects the direct consequence of a successful exploit and represents the consequence to the impacted component.

  • Exploitability Subscore - reflects the ease and technical means by which the vulnerability can be exploited.

In this study we use the exploitability subscore as a cost weight on configuration nodes that represent vulnerabilities.

Definition 2 (Vulnerability exploit cost).

Let be a vulnerability node, then denotes the normalized cost of exploiting .

The normalized cost of vulnerability exploit can be obtained by dividing the exploitability subscore by 10 (CVSS v2.0) or by 3.9 (CVSS v3.0).Future enhancements using alternative cost functions are discussed in Section 6.

3 Obfuscating the Attack Graph

In this section we describe the idea of obfuscating an attack graph by adding fake vulnerabilties and approaches for solving it. First we formulate the attack graph obfuscation as a search problem and discuss the random assignment of fake vulnerabilties polad2017attack as a baseline approach. Then we employ Depth First Brand and Bound algorithm to find the optimal solution. In order to speed up the search process we define a few admissible heuristics and a node ordering function to guide the search.

3.1 Problem definition

Assume an attack graph according to Definition 1. All the following notations are defined with respect to an attack graph unless specified otherwise. An attack plan consists of series of exploits along with the relevant vulnerabilities and obtained privileges that would lead the attack to obtain the goal privilege . In the rest of this paper we will use the terms plan and attack path interchangeably referring to the following definition:

Definition 3 (Attack path).

Attack path is a collection of nodes such that

  • – the goal node is in .

  • – every privilege in is obtained by executing an exploit.

  • includes all prerequisites for all its exploits.

In order to execute the attack plan, an adversary should invest effort in executing all the relevant exploits. We define the cost of an attack plan as the sum of the normalized costs of exploiting all the relevant vulnerabilities.

Definition 4 (Attack cost).

The total cost of executing the attack path is defined as the sum of the exploit costs of all the vulnerabilities included in the path .

We discuss alternative definitions of attack cost in Section 6.

According to Definition 6, an attack path may include exploits and vulnerabilities that are not necessary to obtain the goal privilege. Assuming that the attacker will avoid unnecessary actions within the target network we define an optimal attack plan as follows.

Definition 5.

An optimal attack path in an attack graph is an attack path having the minimum attack cost:

Note that, there might be multiple optimal attack paths in a given attack graph. We assume that the attack has the data, knowledge, and capabilities to find the optimal attack plan.

Next we introduce fake vulnerabilities into the attack graph observed by the attacker in order to manipulate his/her planning decisions. Let vulnerability be fake, for example if it is simulated by the Deception Toolkit DTK . The binary function will be used to discriminate fake configuration nodes from real configuration nodes. Any exploit that depends on the fake vulnerability , i.e. , will fail. Note that this approach for modeling fake vulnerabilities is different from honeypots used to deceive the attacker albanese2016deceiving , where an exploit will typically succeed but will not provide the attacker with useful privileges. Please refer to Section LABEL:sec:honeypots for pros and cons of honeypots based deception.

In this study we assume that the attacker cannot identify fake vulnerabilities before attempting to exploit them. An attacker trying to exploit a fake vulnerability and failing to do so, will realize that this vulnerability is fake and will cease executing the attack plan in order to avoid unnecessary expenses. Given the new observation () the attacker may discard previous attack plans that rely on fake vulnerabilities and re-plan the attack to find alternative paths. We assume that all privileges obtained by the attacker due to partial execution of the attack plan remain at his possession and that the attacker will try optimizing the remainder of the attack plan. We assume that the attacker will continue doing so until the attack goal is reached. Please refer to Section 6 for a discussion on alternative attacker models that can be used in this framework. We will use the term real attack path to denote a successful attack path that does not rely on fake vulnerabilities to reach the goal:

Definition 6 (Real attack path).

Let be an attack path according to Definition 6. is real attack path if and only if is an attack path as well.

In this paper we optimize the assignments of fake vulnerabilities such that the overall cost of constructing a real attack path is maximized.

Definition 7 (Attack Graph Obfuscation Problem).

Given an attack graph and a number of fake vulnerabilities to install find an assignment of fake vulnerabilities such that: and

Definition 8.

PTC(AG)

PTC(AG) is the minimal, perceived by the attacker, total cost of the optimal path in attack graph AG (OPT(AG)). Actually, this is the total cost, the attacker estimates it needs to pay, under the assumption that all the appeared vulnerabilities in the attack graph are valid, and not fake.
In other words, where s and t are the first and last nodes in OPT(AG) respectively.
In practice, we compute PTC(AG) as the cost of the output of a planner which produces an optimal attack plan, given attack graph AG.

Definition 9.

The output is an attack graph AG’, constructed from assigning the group of assignments: .

Definition 10.

APTC(AG) The actual cost the attacker will pay when trying to reach its target in attack graph AG. Calculating APTC(AG) is as follows (also described in Algorithm 1):
step 1: We initialize the aptc variable (that accumulates the cost) to zero.
step 2: If the optimal attack path in AG consists of vertexes that were created due to fake vulnerability assignments (fake vertexes), we add to aptc the cost from the initial vertex to the first fake vertex in the attack plan.
step 2.1 Now we modify the attack graph AG as follows:

  1. We remove the fake assignment, which removes all the vertexes created due to that.

  2. We set to zero the weights of the vertexes the attacker visited on the path to the first fake vertex.

Then, we iterate to step 2 with the new attack graph AG.
The algorithm stops when the optimal attack path from the source to the target has no more fake vulnerabilities. The algorithm returns the accumulated aptc.

1:AG
2:APTC(AG)
3:aptc 0
4:
5:Let all the fake assignments of fake vulnerabilities to IPs.
6:AG’ AG
7:
8:flag = True
9:while flag do
10:     flag = False
11:     if , such that is a vertex created from some fake assignment  then
12:         Let be the first node which maintains the above.
13:         flag = True
14:         aptc = aptc +
15:         for vertex OPT(AG’) do
16:              if vertex !=  then
17:                  cost() = 0
18:              else
19:                  break
20:              end if
21:         end for
22:         AG’ removeNodeFromAttackGraph(AG’,a)
23:
24:     end if
25:
26:end while
Algorithm 1 APTC(AG)
Lemma 11.

If attack graph AG has no fake vulnerabilities, then
PTC(AG) = APTC(AG).

Proof.

If attack graph AG has no fake vulnerabilities, there are no re-calculation of attack plans. Due to the fact that the attack plan produced from attack graph AG, it does not include vertexes that were added due to fake vulnerabilities addition. From definition 10, steps 1 and 2 does not accrue at all. So actually APTC(AG) is the total cost of the attack plan produced to AG. In other words - APTC(AG) = PTC(AG). ∎

3.1.1 Random based approach

For the random baseline approach we obfuscate the attack graph by choosing the deceptive IPs and the vulnerabilities randomly.
In order to achieve the condition state in equation (1) above, we generate the following algorithm (see also algorithm 2 and Figure 2):

Figure 2: Random approach: create AG’
1:AttackGraph AG, numofChanges
2:AG’
3:AG’ = AG
4: list of random chosen IPs from
5:for each IP  do
6:      list of all vulnerabilities exist in
7:      getOSVersion
8:      list of all vulnerabilities associate with
9:
10:
11:
12:
13:
14:end forreturn AG’
Algorithm 2 Create AG’

Given an attack graph AG and N number of desired changes,
step 1: We randomly choose x [=(Number of IPs in original network) (Portion of desired changes in the graph)] IPs that will be designated as deceptive hosts.
step 2: We eliminate incompatible vulnerabilities, by filtering vulnerabilities that create conflicts with other information known about the given IP address. This is done by filtering vulnerabilities that do not match the operating system that exists on the targeted computer. The information gathered about the IP address was collected earlier by the Nessus scanner nessus .
step 3: We randomly choose how many vulnerabilities to add to each IP address. This is done because we want to be as unpredictable as possible, in order to be invisible and avoid detection by the attacker.
In step 4: we choose x vulnerabilities for each IP address chosen as deceptive. These vulnerabilities are randomly selected, with preference to low-cost vulnerabilities. This is done based on the assumption that adding the same vulnerabilities can lead to discovery of the defender’s deception by the attacker.
step 5: We create new nodes in the attack graph. For every chosen IP address, we add the new chosen vulnerabilities to the Nessus file. Then, we regenerate the attack graph with MulVAL, using the same connectivity as in the original graph. As a result, new paths to the target are created, some of them consists only of fake vulnerabilities, and some are combined from fake and real vulnerabilities.

3.1.2 AI search based approach

In this approach we obfuscate the attack graph AG into attack graph AG’, by using heuristics.
Given an attack graph AG and a number of changes K, we need to find the best K assignments of fake vulnerabilities in the given network. The best K assignments are the K assignments that will maximize the adversary’s total attack cost. Thus, we need to find the AG’ ,that is generated by K fake vulnerabilities assignments to AG, which maximize APTC(AG’).
We model the problem as a search problem and apply the heuristics described in puzis2007finding , adapting them into our problem, and add new heuristic and elements ordering.

First, we model the problem of vulnerabilities assignments into a search problem, as we search the group of best k assignments, by adapting the search space described in puzis2007finding :

Search space


The search space is constructed as a decision tree. In the following discussions we will use the terms nodes and transitions to refer the graph elements of the

search space and the terms vertex and edges to refer to the graph elements of the input attack graph. Every node (denoted by V) maintains two collections:

  1. Assignments (denoted by A(V)) - group of vulnerability assignments to an IP address. for example:

  2. Candidate assignments (denoted by AC(V)) - an ordered list of possible vulnerability assignments to an IP address. for example:

The order of assignments candidate in AC(V) may vary between different assignments in A(V) group. The methods of ordering the assignments in AC(V) will be described in Section 3.1.2 we will refer to the first assignment in the ordered list AC(V) as . We will refer to the search space as a decision tree. Thus, at every node we decide whether is included in the final k assignments. According to this decision we branch to either of the two sub-trees, one containing all the groups that include and the other containing all the groups that do not include it. Thus we assure that all possible solutions can be found during the search.
Every node has two children:

  • Left child (denoted by ).

    • Has assignments group as :
      A() = A(V)

    • Has candidate list which contain all the assignments from the candidates list of excluding :
      AC() = AC(V)

  • Right child (denoted by ).

    • Has all the assignments of , additionally including :
      A() = A(V)

    • Has candidates list which contain all the assignments from the candidates list of excluding :
      AC() = AC(V)

The root node of the tree represents an empty group of assignments. Its candidates list contains all the possible assignments to the graph, under the assumption that if the cost of vulnerability x and vulnerability y equals and they have the same pre and post conditions, assignment of vulnerability x to a specific IP is the same as assigning y to the same IP. Every child of the root node holds a candidate list that is missing one assignment and a group that includes one assignment or none. All nodes at the second level hold a candidates list that is missing two assignments and a group that includes zero, one, or two assignments, etc.
Since we are looking for a group of size K, we will refer to nodes with as possible solutions to our problem. We exclude from the search space all sub-trees that do not contain a possible solution. These can be either sub-trees rooted at nodes with or sub-trees rooted at nodes with .

Figure 3: Example of a tree representing the search space

Figure 3 presents an example of a tree representing the search space of the vulnerabilities assignment problem with K=2 and l=3. Dashed lines represent sub-trees that do not contain a possible solution, and therefore will be pruned. The set in curly braces represents A(V) and the list in parenthesis (…) represents AC(V).

The search should start at the root node R whose assignment group is empty and the candidates list is and = . We consider all groups where is a member by moving to the right child (following the ”+” transition).
maintains the group and a candidates list that includes all possible assignments, excluding the assignment . It is possible that the order of the assignments in is different from the order of assignments in (See section 3.1.2). We consider all groups where is not a member by following the transition ”-” from the root node. maintains an empty group and candidates list that is identical to the candidates list of .

Heuristics Search Algorithm


The input to this algorithm is:

  1. AG - the attack graph produced from the given network.

  2. P - attack planner.

We investigated the effect of two search algorithms on this problem - DF-BnB and A*.

A*:
We use the A* algorithm to search for a quicker solution to our problem. A* is a best-first search algorithm, meaning that it solves problems by searching among all possible paths to the solution while considering first the paths that appear to lead most quickly to the solution.

DF-BnB:
We use the Depth First Branch and Bound (DF-BnB) algorithm zhang1995performance to search the tree for the group of assignments which produce an attack plan with maximal attacker’s cost.
DFBnB is known to be effective when the depth of the search tree is known, as in our case. DFBnB is similar to DFS but it prunes nodes according to a global bound. Under the assumption that the given planner (P) finds the optimal solution, we begin the search with a bound equal to PTC(). Which is the cost of the optimal path in attack graph AG. During the search, the bound is equal to the maximal utility found so far.

In contrast to the traditional search that is aimed at finding the node with minimal cost, we are using a utility based approach. We define the utility of the node V (denoted by U(V)) as APTC(AA(AG,A(V))).
A heuristic function h(V) estimates the maximal utility that can be gained by exploring the sub-tree rooted at V. f(V) = g(V)+h(V) is a function that estimates the maximal utility of nodes in V’s sub-tree.
The utility of the root node R is equal to (see lemma 11), because A(R) = and adding zero assignments to the attack graph produce an attack plan with optimal cost. h(R) is an upper bound on the optimal solution. While searching down the tree, g(V) will grow and h(V) will decrease. When the algorithm finds a possible solution, h(V) is equal to zero and f(V) is equal to APTC(AA(AG,A(V))). While necessarily .
Pruning decisions made during the search are based on the value of f(V) and the maximal APTC found so far. We can guarantee that the heuristic search will find the optimal solution only if the function f(V) is an upper bound on the maximal APTC that can be found within the sub-tree rooted at V. If this upper bound is below the maximal APTC found so far, the sub-tree is pruned, otherwise it is explored in hope of finding a group with a higher APTC. Heuristic functions used for pruning nodes in the search tree are described in section 3.1.2.
When visiting a node, beside the decision whether to prune the current sub-tree, the algorithm should also determine . The following section describes two methods of ordering assignments in AC(V) and determining .

Assignments ordering in the candidates list


Admissible heuristic functions guarantee that during the search we will find the optimal solution (note that the search may take an exponential time). The order of the assignments in AC(V) is important for choosing and for computing admissible pruning heuristics. The order of assignments in AC(V) can be determined by either their individual utility or their contribution to the given chosen assignments:

High utility first ordering


We can sort the assignments in AC(V) by their individual utility (the utility of an assignment is APTC(AA(AG,a))). That means that the first assignment in A(V) will be the assignment with the highest individual utility. The computation of APTC(AA(AG,a)) needs to be done in the pre-processing phase, for each assignment. But, it can be done once for the entire search. Sorting assignments by their individual utility will impose the same order on all candidates lists in the tree.
The ideal placement of a fake vulnerability will be by making each assignment create a new path to the goal with a lower cost than the optimal path in the given attack graph AG (, when ). If this situation is impossible, we will need couple of assignments in order to create new path. But, after the attacker will reveal the first fake vulnerability, the other assignments that created the new path, are now redundant. Dur to that, this solution is inferior to the previews one, due to it’s wastefulness.
By ordering the assignments list by the assignment with the highest utility first, we can find paths that created due to one fake vulnerability assignment.

Shortest path first ordering


We can sort the assignments in AC(V) by considering the assignments selected so far.
If the solution described in the previous paragraph is uncommon, we need to find the shortest paths we can produce to the goal. That means, we need to find the smallest group of fake assignments that can give us a new path to the goal with a lower cost than the optimal path in the given attack graph AG. Thereby we are using our budget carefully.
Due to that, the contribution of the assignments in CA(V) should be recalculated each time the search algorithm moves to the right child (by adding to A(V)). In pre-processing phase we calculate all the possible paths from the source to the target in the given attack graph AG, and ordering them from the shortest path to the longest. According to the assignments in A(V), we need to find the smallest group of Ips that can create a path to the goal. We used the inverted index data structure in order to that efficiently.
In Figure 4 we show an example of extracting the best candidates when given a node V in the search tree. By finding for every , where , the paths it is part of. Then finding the smallest group of best candidates.

Figure 4: Example of extracting the best IP addresses candidates using inverted index
Heuristic evaluation functions


In this problem, we need to find the assignment which produces the maximum utility, it is a maximum problem. A heuristic function in a maximum problem is admissible, if in every node v, in the search space, it holds that h(v), which is an upper bound on the remaining reward of an optimal solution from the start to a goal via v (denoted as ) stern2014max .
The proposed functions differ in their computation time and precision.

(utility upper bound)

Where AC(V) is the i’th place in the candidate list AC(V).


In , we sum the APTC of the graph constructed from applying each assignment from the K - assignments in the ordered candidates list AC(V).
Admissibility:
is not admissible. We will show an example in order to show that:

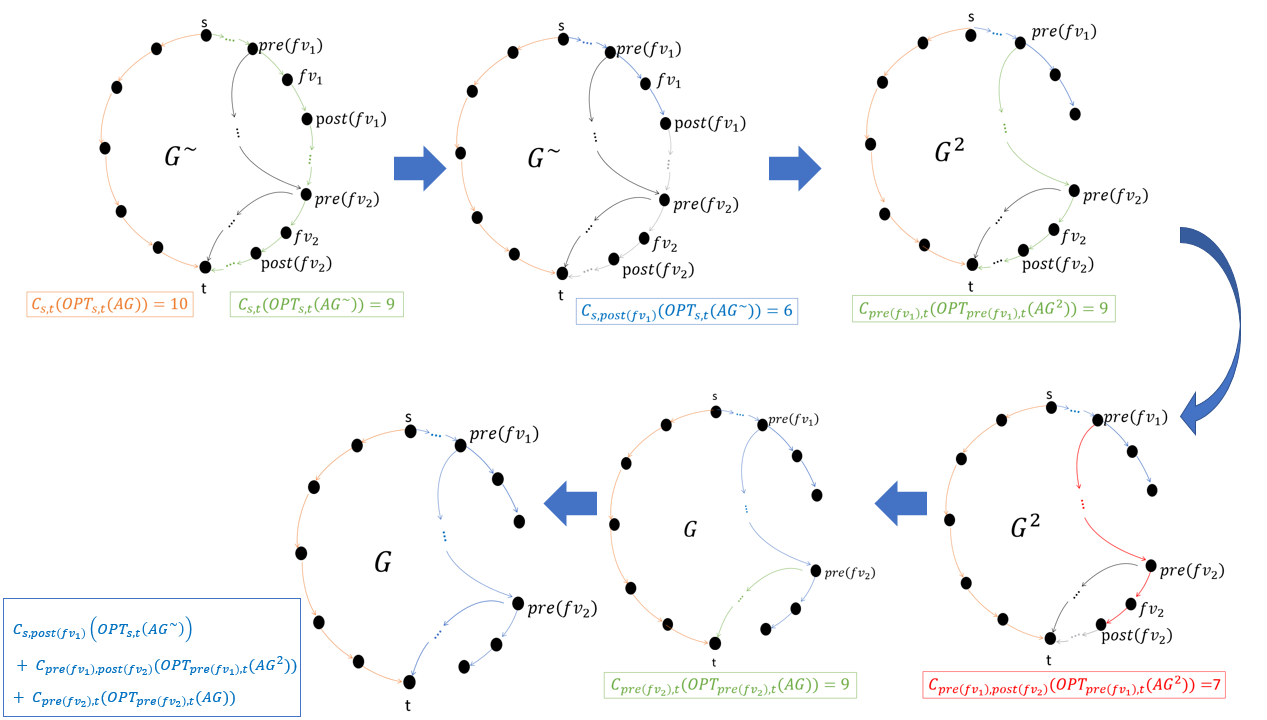

Figure 5: Example of non-admissibility of heuristic

We denote as the previous vertex of vertex i in path p.
We denote as the next vertex of vertex i in path p.
Let AG be the given original graph. Let the root node in the search tree be R, where A(R) = and AC(R) = , where and and .
We denote the attack graph, produced from assigning the fake assignments and , as . .
Assume that applying both and creates a new path to the target vertex (denoted as ) and PTC()¡PTC(AG).
Furthermore, let’s assume that applying only or doesn’t create a new path to the goal such that APTC()=APTC(AG) and APTC()=APTC(AG), when and are the graph constructed from adding assignment or assignment to attack graph AG, accordingly.
Let’s assume that the new path is as follows: Where and be the fact vertexes added due to adding and assignments accordingly.
For simplicity, let’s assign the following costs:

, , ,

, ,


We describe the case of applying both and :

First, the adversary’s attack plan is equal to path (because
). When it tries to preform the attack plan, it starts at vertex s, and continue until it tries to exploit - the action vertex enabled due to applying vulnerability to IP . The attacker will fail when trying to exploit this vertex, due to the fact that the vulnerability is fake. The adversary now removes the fake vulnerability from IP , and constructs a new attack graph which is similar to , but does not loose the privileges he already gained. Thus, The attacker will try to find the best path from s or to t. Since the attacker will choose the optimal path from to t.
It will continue to exploit vulnerabilities until it reaches – tries to exploit it and fails, again. The adversary now constructs AG again, while not loosing all the privileges it gained so far. Now, so the adversary will choose the path from to t.
So, to sum up the total cost for the adversary during its path:

But,

(admissible utility upper bound)


is similar to , but with an addition:

Where AC(V) is the i’th place in the candidate list AC(V).


In , we sum PTC(AG) to the APTC of the graph constructed from applying each assignment from the K - assignments in the ordered candidates list AC(V)
Admissibility:
The heuristic is admissible, in order to prove it, we need to prove that for all the following is true:

We used the following lemma in order to prove it:

Lemma 12.

Let AG be an attack graph with no fake vulnerabilities, then:

Proof.

We will prove it using induction:
Basis: k=0

Let Let’s assume that for k-1 the following is true:

We add another assignment to the attack graph , so . The best case is that the new assignment constructs a new path to the goal such that and of course . The attacker will try to execute , then after trying to exploit the fake vulnerability, it fails and tries to find a new path in (let’s assume that in the best case, the privileges gained so far did not help). So, in the best case:
* - lemma 11

Lemma 13.

Let AG be an attack graph with no fake vulnerabilities, and is a possible assignment, then:

Proof.

If the assignment of in , creates a new optimal path to the goal (that means ), so will be equal to the sum of the following paths:

  • First, the attacker will construct an attack plan from the attack graph . The adversary will try to exploit all the exploit vertexes to the goal, until it will try to exploit and fails. Until then, it will pay - the cost of the path from source (s) to the action vertex added due to the existence of the fake vulnerability .

  • Now, after the adversary realizes that the vulnerability it tries to exploit () is fake, it will remove the fake information from the attack graph and re-plans its path to the goal. The new attack graph considers the fact that the attacker does not loose privileges. So x= is added to path cost of the previous step.

If then


If then

otherwise, let the path from the source s to the target t via the previous vertex to , then in contrast to the Optimality of OPT(AG). So, necessarily .


Using the above lemma we prove the admissibility of .
We can see that
Where is the i’th element in .
Because it is the remaining reward of an optimal solution from the start to a goal via V

We can see that and as result is admissible.

Assignments cost

- under the constrain that we have K assignments to add to the given attack graph, the cost of every assignment is 1. Hence, if the budget is x, we can choose x assignments to add, and that is exactly what we want.

Pre-Processing


During the pre-processing step, we calculate the , for each potential .
Further more, we eliminate incompatible vulnerabilities for each IP, by filtering vulnerabilities that create conflicts with other information known about the given IP address. This is done by filtering vulnerabilities that do not match the operating system that exists on the targeted computer.
To enable the filtering, information about the IP address is collected using the Nessus scanner nessus . The information about each vulnerability is gathered from the National Vulnerability Database NVD .

4 Evaluation

We need to produce an attack graph in order to model all the possible paths from the adversary’s source (usually the Internet) to its target in the network. Two types of input are required to create an attack graph: a list of existing vulnerabilities in the network hosts (Data collection), which can be gathered using Nessus scan nessus , and the topology of the network.

4.1 Data

In order to measure the effectiveness of our method we needed real data that represent a real network. We collected data using a Nessus nessus scan of an organization. This network consists of 150 hosts and had 394 vulnerabilities. We used an automatic tool, called MulVAL, for constructing the attack graph from the real network. ¡ltx:note¿RP¡/ltx:note¿Cite our previous papers for the data.

The organizational network exhibited a standard topology of a small enterprise:

  • DMZ - the network accessible from the Internet.

  • Internal network.

  • Secured network - the network in which all the important assets were located.

4.2 Attack graph generation tool

Due to all the strengths we mention in section 2.2, we chose logical attack graph as a model for our problem. In order to produce a logical attack graph, we used a state of the art attack graph generation tool called MulVAL ou2005mulval .

Attack planner

In order to obtain the optimal attack plan, with minimal cost, we use Jorg Huffman’s converter sarraute2013penetration sarraute2013pomdps in order to convert our problem to PDDL (Planning Domain Definition Language) file.
We solve the PDDL file obtained in the previous step using the fast-downward planner helmert2006fast which we executed with the A* search algorithm using the landmark-cut heuristic function. The landmark-cut function is admissible, so the algorithm would eventually find an optimal solution to the goal.

Figure 6: Evaluation process

4.3 Proof of concept

We used Fred Cohen’s Deception ToolKit (DTK) DTK in order to generate deceptive information about a host (runs Linux OS). We used the guidelines detailed in DTKGuide . Applying the DTK on a system causes it to appear to attackers as having a large number of widely known vulnerabilities. When the attacker issues a command or request the DTK results with a pre-defined response, in order to encourage the attacker to continue its exploration of the host. The Deception tool kit is a set of C programs, Perl scripts, and additions/modifications to host configuration files.

4.4 Defining evaluation measures

We evaluated our method using four evaluation measures:

  1. Number of recalculation - this number counts the number of times the attacker needs to recalculate its plan due to fake vulnerability. It is increased each time the adversary’s attack plan includes of fake vulnerabilities and re-planning is needed.

  2. Total time - total planning time (the time it took for the attacker to plan its path to reach the goal).

  3. Relative increase of the attacker’s cost - calculated as .
    The total cost, is the total cost the attacker invest during the attack of the network after the obfuscation, and the original cost is the total cost the attacker invest during the attack of the original network, with no obfuscation.

  4. Precision - The number of fake assignments the attacker encounters in its path to the goal, relative to the number of fake assignments placed in the attack graph. More accurate the precision =

The procedure of calculating these measures is presented in Algorithm 3.

1:AG, numOfFakeAssignments number of fake assignments placed in the attack graph, originalCost
2:reCalculation, relativeIncreaseOfCost, totalTime, precision
3:reCalculation, totalPlanCost, totalTime 0
4:
5:Let all the assignment of fake vulnerabilities to IPs.
6:timeStart = now()
7:AG’ AA(AG,assignments)
8:
9:timeEnd = now()
10:flag = True
11:while flag do
12:     flag = False
13:     if , such that is a vertex created from some fake assignment  then
14:         flag = True
15:         totalPlanCost = totalPlanCost +
16:         totalTime = totalTime + (timeEnd - timeStart)
17:         currExpNodes expanded nodes during the current planning
18:         for vertex OPT(AG’) do
19:              if vertex !=  then
20:                  cost() = 0
21:              else
22:                  break
23:              end if
24:         end for
25:         timeStart = now()
26:         AG’ removeVertexFromAttackGraph(AG’,a)
27:
28:         timeEnd = now()
29:     end if
30:
31:     reCalculation = reCalculation +1
32:end while
33:precision
34:relativeIncreaseOfCost
35:return reCalculation, relativeIncreaseOfCost, totalTime, precision
Algorithm 3 Evaluating success measures

Correctness: Due to the monotonic assumption ammann2002scalable (mentioned in section 3.1), we assume that if an attacker gains some privileges in the network, it does not loose them. The evaluation measures are calculated considering this assumption.
For calculating the evaluation measures we identified two cases:

  1. If the attacker tries to exploit a fake vulnerability, it invests the associated cost and then replans a path to the goal, taking into account the achievements made thus far. The parameters are calculated as follows, in each iteration:

    • Total time is calculated as the sum of all the time it took to produce all the attack plans so far.

    • Expected cost is calculated as the sum of:

      • The costs of all of the vertexes in the attack plan that preceded the vertex which contains the fake vulnerability (including the vertex itself).

      • The total cost the attacker spent until this point (in all of its previous iterations).

    • Number of recalculations is computed as the number of attack plans that include fake vulnerabilities, so far, plus 1 (current).

  2. If the attacker successfully reaches the goal, it means that the attack plan was devoid of fake vulnerabilities. In this case, the measures are calculated as follows:

    • Total time is calculated as the sum of the time it took to plan the path to the target and the total time the attacker spent during all the attack plans so far.

    • Expected cost is calculated as the sum of the costs of all of the vertexes in the attack plan and the total cost the attacker spent spent during all the attack plans so far.

    • Number of recalculations is calculated as the number of recalculations so far plus 1.

The relative increase of the attacker’s cost calculated as the total cost (the total cost the attacker invest during the attack of the network after the obfuscation) encountered out of the original cost (the total cost the attacker invest during the attack of the original network, with no obfuscation). And mathematically, .

The precision is calculated as the fraction of the number of fake vulnerabilities the attacker encountered out of the total number of fake vulnerabilities added to the attack graph ().

We compute the , taking into account the fact that the adversary stops carrying out its attack plan when it is interrupted by a fake vulnerability. Therefore, the cost of the attack plan is the sum of all of the exploitable vulnerabilities, including the cost of trying to exploit the fake vulnerability.

In order to follow the monotonic assumption, in each iteration, we nullify the cost of all of the vertexes in the attack plan until the first fake vertex. From this vertex on, the attacker cannot execute the attack as planned or gain additional privileges.

4.5 Results

In this section we present the results of the two approaches: the random and the AI search approach. First, we evaluate each of the two approaches separately, and then we compare the two.

Platform. In all the experiments presented in this section we used a virtual machine who runs an Ubuntu 12.04.5 with a Linux kernel 3.13.0-95. System with a 4 Virtual CPU, 2Tb Disk and 8G RAM.
The resources were fully dedicated to our experiments.
On each experiment, we followed the steps described in section 3 to generate an attack graph and assign fake vulnerabilities.

4.5.1 Random approach

Implementation:


The purpose of this experiments were as follows:

  1. Check the feasibility of the attack graph obfuscation.

  2. Check the precision and scalability of the random approach.

  • Data set:
    This experiments conducted to a sub-network () of the network described in section 4.1 that consists of 80 hosts (see the attack graph in Figure 7).

    Figure 7: Attack graph of
  • Parameters:

    • Budget:

      1. 10% of the network (8 hosts) chosen as deceptive.

      2. 30% of the network (24 hosts) chosen as deceptive.

      3. 50% of the network (40 hosts) chosen as deceptive.

For each budget amount, we repeated the experiments five times. At each trial, the number of chosen fake vulnerabilities for each host is randomly chosen. At each trial, a new obfuscated attack graph is constructed. The results in the following section present the average for all the trials conducted for each evaluated budget amount including zero (no deception). Table 1 provides the attack graphs’ data, which includes the attack graphs’ average number of vertexes, edges, and vulnerabilities relative to the budget.

Deceptive IPs Vertexes Edges Vulnerabilities
0% 10147 16591 140
10% 10815 18421 164.2
30% 12392.8 22591 220.6
50% 13936.8 26734.4 257.2
Table 1: Attack graph data
Results:


We present results for the attacker cost during the planning and attack phases. The results are presented in Figure 8 and Figure 9 followed with further explanations.

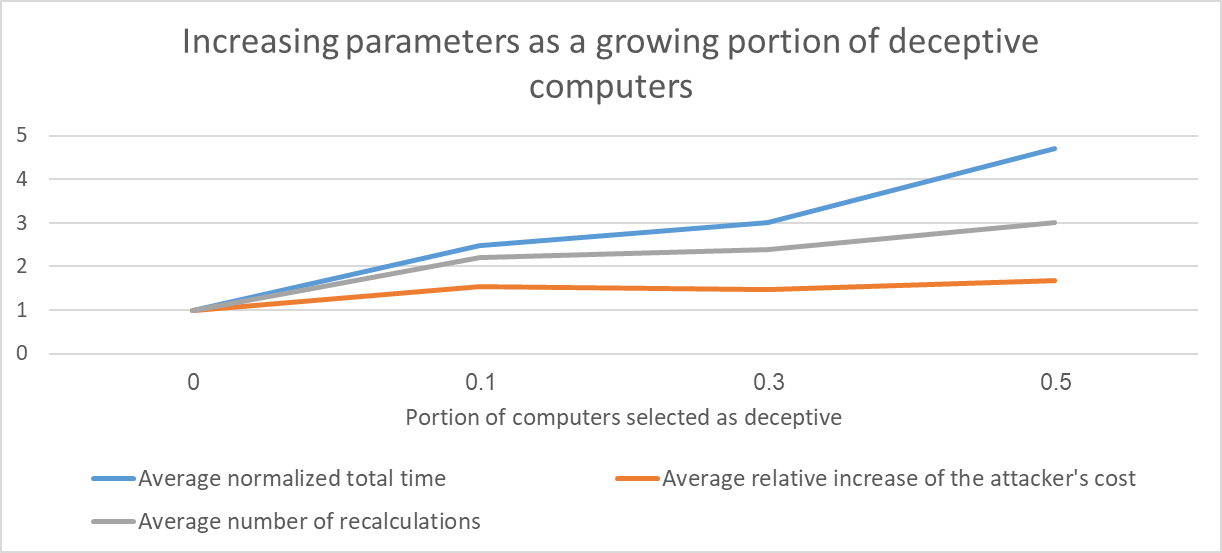

Figure 8: Random approach results

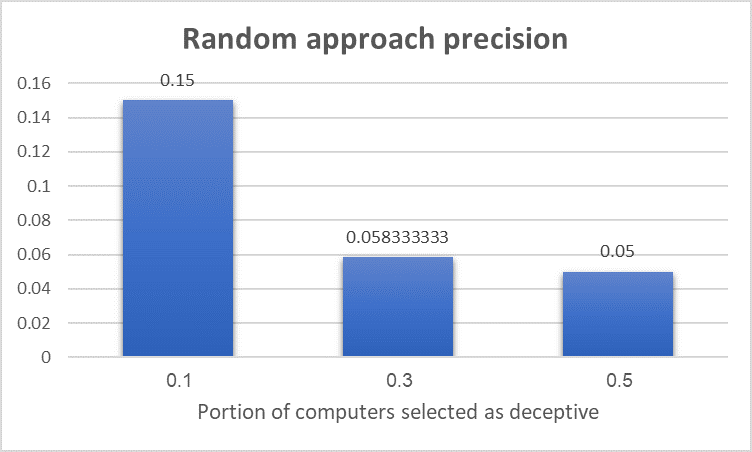

Figure 9: Random approach precision

In Figure 9, we can see the precision of the random approach. We can see that as the budget increase, the total cost increase, but not in the same proportion as the number of computers defined as deceptive. Thus, we can see that even by choosing 10% of the computers as deceptive, we can get a result close to the result obtained from the choice of 50% of the computers as deceptive.

In Figure 8, we can see the values of the attacker’s total time invested, relative increase of the attacker’s cost and the number of recalculation, relative to the portion of computers chosen as deceptive. We can see that as the portion of deceptive computers increased, the attacker’s effort increased. Next we discuss the results depicted in Figure 8.

  • We measure the attacker’s effort during the planning phase (). Table 2 shows the increase in planning time relative to the baseline.

    % of deceptive computers total time
    10% 2.5
    30% 3
    50% 4.7
    Table 2: Planing time relative to baseline

    It can be observed that even for only 10% deceptive computers the planning time is more than double, and it grows with the number of deceptive computers.

  • We evaluate the attacker’s effort during the attack phase through the relative increase of the attacker’s cost ().
    Table 3 presents the relative increase of the attacker’s cost.

    % of deceptive computers relative increase of the attacker’s cost
    10% 1.46
    30% 1.53
    50% 1.6
    Table 3: Total attack path cost relative to baseline

    As observed from Table 1 and Table 3 it can be seen that just a small amount of fake vulnerabilities is needed to effectively waste the adversary’s resources, and more specifically that by randomly adding vulnerabilities to less than 30% of the computers in the network can cost the adversary almost 1.5 times more.

  • We evaluate the number of recalculations, which is the number of times the attacker needs to recalculate its plan due to fake vulnerabilities. Table 4 presents the number of recalculation relative to the number of deceptive computers chosen.

    % of deceptive computers Number of recalculations
    10% 2.2
    30% 2.4
    50% 3
    Table 4: Number of recalculations

    As observed from Table 4 it can be seen that just a small amount of fake vulnerabilities is needed to effectively duplicate the needed recalculations. More specifically that by randomly adding vulnerabilities to less than 10% of the computers in the network the number of recalculations duplicates.

4.5.2 AI search approach

Implementation:
This experiment conducted in order to:

  1. Examine which algorithm parameters provide better results in terms of run-time and precision.

  2. Determine whether the AI search approach has better precision than the random approach.

  3. Determine whether the AI search approach is feasible for large networks.

  • Data set:
    For evaluation needs, and in order to test our approach on challenging and interesting networks, we created four sub-networks from the network described in section 4.1, using the same topology:

    1. - a subset network which created with 4 hosts.
      You can see Figure 10 the constructed attack graph (AG).
      Number of vertexes: 96
      Number of edges: 136

    2. - a subset network which created with 10 hosts
      You can see Figure 11 the constructed attack graph (AG).
      Number of vertexes: 486
      Number of edges: 728

    3. - a subset network which created with 20 hosts.
      You can see Figure 12 the constructed attack graph (AG).
      Number of vertexes: 2179
      Number of edges: 3685

    Figure 10: Attack graph of
    Figure 11: Attack graph of
    Figure 12: Attack graph of
  • Parameters:
    For the AI search approach we compared numerous configurations of the parameters (described in section 3.1.2):

    • Two search algorithms:

      1. A*

      2. DF-BnB

    • Three assignments ordering of the candidates list:

      1. High utility first ordering

      2. Shortest path first ordering

      3. Random ordering

    • Two heuristic evaluation functions:

      1. (utility upper bound)

      2. (admissible utility upper bound)

    • Budgets:

      1. Budget of 3 assignments

      2. Budget of 5 assignments

Results
  1. Heuristic evaluation functions - the heuristics evaluation functions differ in the number of expanded nodes during the search, which effect the total time and the achieved total cost (which reflect the amount of effort the adversary is putting into it’s attack).

    • Precision - which is the number of fake vulnerabilities the attacker try to exploit during the attack, relative to the budget. In other words, the precision is equal to , due to the fact that the number of recalculations is the number of attack plan consists fake vulnerabilities + 1 (the attack plan which consists valid path to the goal).
      The precision is 1, for each of the heuristics. Which means that all the assignments chosen by the search algorithm were deceptive to the attacker. In practice, each fake assignment, was tested by the attacker. This maximizes the adversary’s setback while trying to reach its goal in the targeted network. But, if the budget is greater than the assignments needed, our algorithm choose the minimum number of assignments which can optimally increase the attacker’s efforts (see Figure 13). For example, in , when the budget was 5, the best fake vulnerability assignment were the same as the optimal assignment for a budget of 4 (), so there was no need for 5 assignments.

      Figure 13: Budget Usage
    • Relative increase of the attacker’s cost = .
      The total cost, is the total cost the attacker invest during the attack of the network after the obfuscation, and the original cost is the total cost the attacker invest during the attack of the original network, with no obfuscation.
      We can see that the non-admissible heuristic can give a non-optimal solution, which is shown in the results presented in Figure 14. In network, the AI search, using the non-admissible heuristic precision was 1 but the chosen hosts did not gave an optimal solution.

      Figure 14: Relative increase of the attacker’s cost for each heuristic
    • Expanded nodes - The difference between the expanded nodes, for each of the heuristics is negligible. For the networks and there were no difference in the number of expanded nodes, the only difference were for the network .
      We omitted the assignments random ordering, due to the fact that the random selection can not provide valid information in this subject. Figure 15, present the number of expanded nodes for network .
      The expanded nodes where higher in the case of using the admissible heuristic with DFBnB search algorithm, for budget of five hosts, by using the high utility first ordering.
      The actual difference is in 7% more, for the admissible heuristic, which is negligible.

      Figure 15: Heuristics expanded nodes, in network
    • Search total time - the search total time, is a direct result of the number of the search expanded nodes. Same here, the differences in the total time between the admissible heuristic to the non-admissible is negligible. For the networks and there were no difference in the total time, the only difference were for network .
      Figure 16, present the total search time for the network .

      Figure 16: Heuristics total time, in network
  2. Assignments ordering - the purpose of the various heuristics for candidates ordering (in the ordered assignment candidates list AC(V)) is to reduce the number of nodes created during the search. As a result, the total time of the search will be reduced.
    From the results (see Figure 17) we can see that usually the random approach performs worse than the proposed ordering heuristics - shortest path first and high utility first. whose results are usually similar.

    Figure 17: Expanded nodes by candidate assignments ordering type
  3. Search algorithms comparison -

    • Expanded nodes - we can see that A* is a better search algorithm for solving this problem, because the number of expanded nodes is larger for the DFBnB algorithm, than the A* algorithm (as shown in Figure 18). We can see that for all network sizes (4, 10 and 20 hosts) and for all the tested budgets (3 or 5), the number of expanded nodes using the A* is smaller than the number of expanded nodes using DFBnB search algorithm.

      Figure 18: Expanded nodes for each search algorithm
    • Total search time - we can see that as a result of the number of expanded nodes, the total time it took to find the optimal solution in A* is better than in DFBnB (as shown in Figure 19).

      Figure 19: Total search time for each search algorithm

    From the results it can be concluded that in order to solve this problem, A* preform better than DFBnB.

4.5.3 Random approach vs. AI search approach

Implementation:


In this section we demonstrate that the AI approach is preferable to the random approach in utilizing the budget in the most efficient way.

  • Data set: For evaluation needs, and in order to test our approach on challenging and interesting networks, we created four sub-networks from the network described in section 3, using the same topology:

    1. - as shown in Figure 11 (page 1b).

    2. - as shown in Figure 12 (page 1c).

    3. - a subset network which created with 50 hosts.
      You can see in Figure 20 the constructed attack graph (AG).
      Number of vertexes: 10,203
      Number of edges: 16,621

      Figure 20: Attack graph of the sub network with 50 hosts
    4. - as shown in Figure 7 (page 7). The attack graph consists of 10,147 vertexes and 16,591 edges.

  • Parameters:

    • AI approach parameters:

      1. Budget - We started the trials on the AI approach with small budgets in order to demonstrate that the impact on the attacker (relative increase of the attacker’s cost) can be significant, even with a small budget. Then, we examine what should be the provided budget as input to the random algorithm, in order to reach the same results. This enables us to show the significant differences between the two different algorithms, even for low budgets.

      2. Search algorithm - We chose the A* search algorithm, due to its effectiveness in terms of runtime, as seen in the results presented in section 4.5.2.

      3. Assignments ordering of the candidates list - We chose the high utility first ordering, due to its effectiveness in terms of runtime, as seen in the results presented in section 4.5.2.

      4. Heuristic evaluation function - We chose the admissible utility upper bound evaluation function, due to the fact it provides an optimal solution and is not poor in terms of running time, as shown in the results presented in section 4.5.2.

    • Random approach parameters:

      1. Budget - We examine all the possible budgets from 1 deceptive computer to , where n is number of hosts in the network. Then we matched the results to the results given by the AI approach.

      2. Trials - For each budget, we repeated the experiments five times. The results in the following section present the average for all the trials conducted for each budget. Therefore, at each trial, a new obfuscated attack graph is constructed.
        At each trial, the number of chosen fake vulnerabilities for each host is randomly chosen.

Results


In this section we demonstrate that the AI approach is preferable to random approach in terms of optimal results.
The two approaches has clear trade offs:

  • Total search time - As in all cases and since the random approach have no ”smart” choices, the random approach is much faster than the AI search algorithm.

  • Relative increase of the attacker’s cost - The effect on the attacker described and explained in page 1b as the relative increase of the attacker’s cost.
    Unlike the random approach, by using the AI search approach we can maximize the given budget for hardening the given network.
    We can see from Table 5, that in order to get the same effect on the attacker, the AI search can provide a solution with much less deceptive computers and much less fake vulnerabilities.
    We can see that the number of computers chosen as deceptive in the random approach is constantly very high in comparison to the number of computers needed to be deceptive in the AI search approach.
    Furthermore, as expected when the number of hosts in the network increase, ”guessing” the right deceptive computers is much harder.
    The number of computers chosen as deceptive is at least 1.6 times higher in the random approach, and as the network grows it gets up to 7.3 times more.
    The number of fake vulnerabilities assignments is at least 14 times higher in the random approach, and as the network grows it gets up to 73 times more.

Approach Network Relative increase of the attacker’s cost Number of deceptive IPs Number of fake vulnerabilities added Attackers total planning time (S)
AI search 1.8 3 3 0.22
Random 1.8 5 42 0.196
AI search 2.3 5 5 0.3
Random 2.3 9 103 0.26
AI search 1.7 2 2 2.58
Random 1.7 7 60 2.527
AI search 2.1 3 3 4.22
Random 2.1 10 94 2.86
AI search 1.6 2 2 55.8
Random 1.6 14 148 43.544
AI search 2.1 4 4 164.5
Random 2.1 22 238 156.33
AI search 1.7 2 2 37.58
Random 1.7 12 122 34.492
AI search 2.1 3 3 110.7
Random 2.1 22 219 100.58
Table 5: AI search approach VS. Random approach

5 Related work

The approach presented in this research utilizes a defense strategy that provides false information to attackers. The falsified information is optimized based on the attack graph representation of the protected network. Next we discuss the major topics related to this strategy including: deception, attack graph games, obfuscation, and others.

5.1 Attack Graph Analysis

Simulating an attacker can be done by multiple ways: using a heuristic search, planner, greedy algorithm and more. Planning an attack can be online or offline. When the environment is known, planning can be done offline, meaning that solutions can be found and evaluated prior to execution. But, in the real world the attacker can’t always know the target’s network topology, configurations and more information. Thus, an online approach is more suitable for attack situations.

Nirnay Ghosh et al. ghosh2009quantitative

proposed a methodology for generating an optimal attack path in wireless networks, which allows the network administrator to detect the most risk-prone attack path, i.e., the path that is most likely to be chosen by the attacker in order to gain a critical resource in the network. By achieving that, the security administrator can prioritize the security mechanism. In this article, they used PSO (particle swarm optimization) in order to find the optimal attack path using attack vector metrics. Each wireless node considers as a PSO particle and the motion of each particle replicate the mobility of the wireless nodes. Like the particles in PSO, the attacker’s aim is always directed towards the target. Unlike the classic PSO, every node in the wireless have been assigned with weight that represent a severity measures obtained from customized risk parameters, also, the position of the node is immaterial. An artificial case study was presented, which modeled network with 100 hosts. After a pair of source and destination is given, the execution time grows exponentially as the number of visited nodes (=n) increases. Which means the time complexity is

. It is important to mention that this is the first time such technique where the warm optimization concept is used to generate an attack path.

Another work of Nirnay Ghosh et al. is netsecuritas which ghosh2015netsecuritas presents a heuristic-based attack graph generation algorithm which takes into consideration both attack graph properties and predefined security budget of any organization. The attack graph type represented is an exploit dependency graph – an acyclic directed graph which constructed from two types of nodes - exploit and security condition and two types of edges – one represents a relation of require (condition to exploit) and the second is an imply relation (from exploit to condition node). It takes a list of exploits and a list of hosts as input, and generates attack graph in the form of an adjacency list. They use a backward chaining approach in order to find paths that terminate at the initial conditions. The algorithm starts from the goal state and then finds a list of exploits that can yield the desired condition. From this list of exploits, the algorithm makes a decision to choose the easiest one. The easiest one is choose based on the assumption that when multiple vulnerabilities exist in a host, the attackers choose the one easiest to exploit. The other exploits pushed into a stack. Now the algorithm finds a list of hosts through which that exploit can be executed, from this list it chooses the easiest to exploit and the others push into the stack. The easiest host is selected under the assumption that the host with the higher number of vulnerabilities is more likely to be detected and used by the attacker to execute the exploit. When the exploration is completed, successfully (reaches the initial condition) or in the dead end, the algorithm backtracks and evaluates other hosts or exploits from the stack. The presented algorithm is working at when n is the number of hosts and e is the total number of exploits.

Penetration testing is a common methodology for identifying security risks, by running friendly attackssarraute2013pomdps . Simulated penetration testing automates this process, by designing a model of the system in question, and using model-based attack planning to generate the attacks. Basic methods from this domain were discussed in previous parts of this literature survey, and include, among others, the automatic generation of attack graphs by MulVAL, or model checking methods. Those models require complete knowledge of the network, hosts configuration, connectivity, and more for them to work. This level of knowledge of the system attacked is rarely available in the process of hacking a system. Ideally, a simulated penetration testing would conduct its attacks in a way similar to that of a real attacker, including the information gathering phase, and reasoning. Hence the goal of simulated penetration testing is much more ambitious: to realistically simulate a human hacker. In a more functional view, the simulated penetration testing model space spans a broad range of sequential decision making problems. In his work, Jorg Hoffmann sarraute2013penetration has analyzed prior work in AI and other relevant areas, and conducted a systematization of this model space, highlighting a multitude of interesting challenges to AI sequential decision making research.

Jorg sarraute2013penetration Identified two major dimensions characterizing this space:

  1. How to handle the uncertainty from the point of view of the attacker.

  2. The degree of interaction between individual attack components

To illustrate the point of (A), we need to remember that in many cases, exploits can fail, depending on the specific configuration needed for the exploit to run successfully, or protection measures taken by the target. To illustrate the point of (B) we should consider the implications of an attacker’s action on the environment, such as crashing a machine after a failed exploitation attempt, or the ability to change network configuration. In the realm of uncertainty, there are 3 main models:

  1. No uncertainty - each action succeeds

  2. POMDP - Partially Observable Markov Decision Process

MDP in the context of attack graphs is a model in which each action has a number of possible outcomes, depending on a probability assigned to this action. Many models take the simplifying assumption that there are only two possible outcomes to each action (exploitation) which are success / failure. Of course in practice, this is not always the case. POMDP could be seen as an abstraction of MDP, in the sense that in POMDP, along with the basic actions of an MDP, there are sensing actions, which can alter the probability of the basic actions.


Until this day, modeling attack graphs in MDP or POMDP has been mainly theoretical and suffered from severe scalability issues. Very similar to the problem the academic world has encountered trying to solve attack graphs using model checkers. Relevant research done in this area could be seen in Jorg’s previous research sarraute2013penetration about POMDP in penetration testing, and Durkota’s research durkota2014computing work about modeling attack graph as MDP. Although both approaches shown above seem very interesting, they still suffer from scalability problems, and require a significant amount of simplifying assumptions that are not always possible. One of the reoccurring simplifying assumption is the knowledge of the network connectivity yuen2015automated . The actions an attacker would take to discover the network could be used in various scenarios to detect an attacker in the network.

Durkota et al. durkota2014computing describes a method for representing an attack graph as an MDP. In this representation, each state in the MDP is a set of performed actions (exploits) and labels whether the action was successful or not. Each action is assigned a cost and a probability. Then, an optimized MDP solver is being used to narrow down the search space of the optimal policy. Some of the optimization techniques described are branch and bounds, which is used to prune unfavorable branches of the tree. Another optimization technique Durkota is offering is sibling-class theorem, which is used to identify multiple actions which results in the same effect. In these cases, only the lowest cost action is investigated further. Compared to basic MDP solvers, Durkota’s algorithm performed faster, and used less memory. Although, even with the optimization, the algorithm often ran out of memory, and it is assumed it will not scale well to large enterprise networks.

Malte Helmert helmert2006fast published the Fast Downward planner, which is a classical planning system based on heuristic search. It can deal with general deterministic planning problems encoded in the propositional fragment of PDDL2.2, including advanced features like ADL conditions and effects and derived predicates (axioms). Like other well-known planners such as HSP and FF, Fast Downward is a progression planner, searching the space of world states of a planning task in the forward direction. This planner can be used in the cyber field by converting any attack problem to pddl problem and solve it using this planner.
We used this tool combined with the Jork Huffman POMDP converter sarraute2013penetration and some guidelines from Durkota et al work durkota2014computing in order to achieve ”a worthy opponent” to our method.

5.2 Deception

In cyber security, deception is often used to create a controlled path for attackers to follow starting from the the initial reconnaissance phase. For example, Cohen and Koike cohen2003leading ; cohen2004misleading showed how deception can control the path of an attack using red teams in experiments attacking a computer network. Repik repik2008defeating makes a strong argument in favor of planned actions taken to mislead hackers. If the deception is obvious to the adversary, even unintentionally, the attacker can avoid, bypass, and even overcome the deceptive traps. We aim to avoid this situation and make the deception hard to identify by an adversary. ¡ltx:note¿RP¡/ltx:note¿Move to intro

The recognition that deception could be an integral part of the network defense field, resulted in the need for a tool for deception, and Fred Cohen designed the Deception ToolKit (DTK) DTK , a tool which makes it appear to attackers as though the system running the DTK has a large number of widely known vulnerabilities. When the attacker issues a command or request, the DTK generates a predefined response, in order to encourage the attacker to continue its exploration of the host, or results in a shutdown of the service.

5.2.1 Honeypots

Honeypots were first used in computer security in the late 1990s. Honeypots tempt the attackers to believe that they are valuable assets. However, being thoroughly monitored and usually isolated, honeypots give the defender the ability to detect and deflect the attack attempts almeshekah2015using :

Detection – Honeypots result in a low false positive rate, because they are not intended to be used as part of the user’s routine tasks in a system; thus any interaction with the honeypots is illegitimate.

Prevention – Honeypots slow down attackers or discourage them from carrying on the attacks. For example, the LaBrea’s ”sticky” honeypots StickyHoneypot which answer connection attempts in a way that causes the machine on the other end to get ”stuck”, sometimes for a very long time.

Intelligence – Honeypots are also used for gathering information about attacks. The Honeynet Project Honeynet is an international security research organization, which invests its resources in the investigation of the latest attacks and the development of open source security tools to improve Internet security.

Naturally adversaries try to avoid honeypots.Rowe et al. rowe2007defending suggest the idea of fake honeypots, in which a system might pretend to be a honeypot in order to scare away attackers, reducing the number of attacks and their severity.

Fake vulnerabilities employed in current work for attack graph obfuscation transform a regular operational machine into a kind of high-interaction honeypot. However, there are several significant differences between fake vulnerabilties and honeypots. First, fake vulnerabilities must not allow exploitation of the vulnerability because they are installed on real operational systems. In contrast, exploitation is desirable in case of honeypots. Second, ¡ltx:note¿RP¡/ltx:note¿TBD Our approach does not alter the system while honeypotbased solutions introduce vulnerable machines in order to either capture the attacker or collect information for forensic purposes. Instead, we aim at deceiving attackers by manipulating their view of the target system and forcing them to plan attacks based on inaccurate knowledge, so that the attacks will likely fail.

5.2.2 Virtual Attack Surface

In albanese2016deceiving , the authors propose algorithmic solutions to two classes of problems:

  1. Inducing an external view that is at a minimum distance from the internal view, while minimizing the cost for the defender.

  2. Inducing an external view that maximizes the distance from the internal view, given an upper bound on the cost for the defender.

In their solution they build a manipulation graph - a graph that gathered ¡ltx:note¿RP¡/ltx:note¿reflects? all the possible manipulations to the current system. Then they present two heuristics in order to solve the problems described above:

  1. TopKDistance - which recursively traverses the subgraph to find a solution.

  2. TopKBudget - answer the same problems as TopKDistance but improve time efficiency in the resolution.

Furthermore, they present deception-based techniques for defeating an attacker’s effort to fingerprint operating systems and services on the target system. They do it by modifying the outgoing traffic.

In contrast to considering only the impact of the manipulations on the defender, we consider both, the impact on the defender and on the attacker. Formulating the problem as an attack graph, enables to model the effect on the attacker’s efforts for all possible paths to reach its goal in the network. In addition, the impact of the fake vulnerabilities on the defender network is modeled as well.

In our work, the main role of deception is to make the attacker believe that the information obtained is real. When this is successfully accomplished, the defender can gain a significant advantage over the adversary.

5.3 Attack Graph games

Recently there has been significant interest in applying game theory approaches to security. Durkota et al. introduced the term, ”attack graph game”

durkota2015optimal , and presented a new leader-follower game-theory model of the interaction between a network administrator and an attacker who follows a multistage plan to attack the network. In order to determine the best strategy for the defender, they used the Stackelberg game (a two phase game), in which the defender, (the leader of the game), takes actions in order to strengthen the network by adding honeypots. Then, the attacker selects an optimal attack plan based on knowledge about the defender’s strategy. The Stackelberg equilibrium is found by selecting the pure action of the defender that minimizes the expected loss under the assumption that the attacker will respond with an optimal attack.
The researchers presented the problem by using a type of logical attack graph that they refer to as dependency attack graphs which are generated by MulVAL. They model the problem as an MDP problem and assign random costs and rewards for solving it.

In contrast to our research, there is a choice of how much decoys to put in the network in order to minimize the expected loss of the defender by increasing the probability that the attacker will be caught. Our main goal is to make it more difficult for the attacker, causing attrition and a waste of the adversary’s valuable resources until the adversary is detected or waste its resources.
The results of this paper were based on an experiment conducted on a small business network (20 hosts) with 14 honeypots. They reported on performance of less than 10 seconds, but did not demonstrate it or analyzed the scalability for a larger network. Our method was tested on a real enterprise network and can scale for large networks as well.

5.4 Active Defense

Cohen and Koike presented a set of experiments where they successfully induced skilled red-team attackers to attack the targeted system in a particular sequence cohen2003leading . Their main goal was to mimic physical attack tactics where such techniques can be used to lure the adversaries into specific zones by influencing their decisions, that means taking a specific path desired by the defenders.

Another approach was presented by Trassare trassare2013technique . He presented a technique to deceive attackers by giving them a fake internal network topology of the defender’s choice. His strategy is to place the deceptive functionality on the border routers of an AS, because any designated device within the AS or the whole network is protected by the deception. Lastly, he presents a prototype implementation showing positive results.

Two Israeli startups: Cymmetria Cymmetria and TRAPX security TRAPX proposed practical ideas for integrating deception in the industry.

TRAPX developed the DeceptionGrid Platform, each activity from the “lightest” reconnaissance to advanced breach attempts is contained, recorded and alerted enabling immediate remediation. It deploys automatic an array of decoys (Traps) and breadcrumbs (tokens) that provides visibility into ongoing attacks while luring attackers away from valuable assets.

Cymmetria developed the MazeRunner, which creates breadcrumbs and decoys in order to lead attackers to believe that they have successfully gained access to a target machine. Having gained a false sense of security, attackers reveal their attack tools and methods, which defenders are then able to document and analyze.

The above tools are using dedicated decoys, which are virtual machines (servers or other devices). These decoys are used to identify an interaction with the adversary based on the intuition that legitimate users are not expected to interact with these decoys. These decoys are reached by following breadcrumbs, found on an endpoint. Breadcrumbs are passive elements of data that can be found by the attacker in the reconnaissance phase (e.g. browser cookies, RDP and SSH credentials, shared folder mappings, OpenVPN scripts).

Our approach is different because we are not focusing on luring the attacker into specific points in the network, but focusing on causing the adversary significant loss of resources and significant increase in the attack execution time.

5.5 Obfuscation

In order to perform a successful attack, one key piece of information that attackers need is the identity of the target system’s running services and operating system. Operating systems have unique characteristics that can help an attacker to identify the operating system being used in the target system. Examples of these characteristics include the TCP/IP packet, response messages to queries, response messages to errors, predictability of sequence numbers, and banner information.
Murphy et al. murphy2010application investigated the efficacy of using a host-based operating system (OS) obfuscation as an integral part of Air Force computer defenses. They used the OSfuscate tool, by Crenshaw crenshaw2008osfuscate , and concluded that it is effective in continuously obfuscating the host OS. OS obfuscation is a hard task! Making enough changes to normal OS functions that trick an attacker while maintaining a stable system that functions, is not a simple task.

If the defenders use deception techniques, attackers can’t make worry-free actions in the network. Instead, they are now forced to invest more resources, time, and effort in their attack attempts, and are under constant fear to perform a wrong move and get caught. It is clear that deception creates a hostile environment for attackers.

Unlike many studies in this field, our approach is not focusing on luring the attacker through specific paths. Our approach will focus on wasting the attacker’s time and resources.

5.6 Moving Target Defense

A cyber moving target technique, is the presentation of a dynamic attack surface, increasing an adversary’s work factor necessary to probe, attack, or maintain presence in a cyber target definedterm . Moving target defense (MTD) has been shown to be effective in cyber defense zhuang2012simulation and may become a game changer in the cyber security arena. In the following paragraphs, we will discuss some key examples from the MTD research field that is related to our research:

Proactive Obfuscation :
In roeder2010proactive

the authors create server replicas that are likely to have fewer shared vulnerabilities. They do this by applying semantic-preserving code transformations which result diverse set of executables. In each period, they restart the servers with fresh images, these replicas will react differently to identical attacks. Thus, there are less opportunities for the attacker to compromise too many of the replicas that a service consists of. For example, the success of a buffer overflow attack typically will depend on stack layout details, so replicas using different obfuscated executables based on address reordering or stack padding are likely to crash instead of cave in to the attacker control.


Dynamic Network Address Translation :
In 1999, as part of the DARPA Information Assurance Program, a dynamic approach for active network defense was presented. This approach tried to verify the assumption that ”Dynamic modification of defensive structures improves system assurance” kewley2001darpa . The goal of this research was to prevent the attacker’s ability to scan and map the network, which will make the attack more challenging. What they did is to change dynamically the addresses and port numbers used by the network’s computers. The tool they used called Dynamic Network Translation (DYNAT), which camouflage the host identity information in TCP/IP packets. In their experiments they showed that their approach made it almost impossible to map the network while significantly increasing the attacker’s effort. Beating DYNAT is difficult because in order to attack directly the target, the attacker needs to know the address hopping mechanism. However, there are number of drawbacks when using DYNAT: It requires that trusted computers computers on both sides of the communication be within the protection of DYNAT processes.

Mutable Network :
A Mutable Network (MUTE) al2011toward is a method that composed changing network configurations such as: IP addresses, port numbers and routes between two points on the network. This method creates kind of virtual overlay above the existing network, which all the traffic is routed in this virtual overlay. That means, that the original IP address and information on the systems never changes. This method uses encrypted channels in order to synchronize the IP address information.

N-Variant Systems :
The N-Variant systems framework cox2006n executes a set of automatically diversified variants on the same inputs, and monitors their behavior to detect divergences. This platform based on the fact that an attacker requires to simultaneously compromise all system variants with the same input. The proof-of-concept was built into the Linux kernel.

Changing computer configurations using genetic algorithms :
Crouse & Fulp crouse2011moving

try to find more secure configurations of systems by using genetic algorithms. They use three ideas from genetics:

  • Selection - selecting the best configurations based on their security score.

  • Crossover - taking two configurations and combining elements of each one to create a new configuration.

  • Mutation - randomly changing parts of a configuration to make it different from configurations on other systems.

The goal of this method is to create diverse configurations, temporally and spatially. Temporal diversity refers to the difference of configuration in a single computer over time and Spatial diversity refers to the difference of configuration between computers at any point in time.

The solution presented in the MTD field tends to reconfigure a system in order to modify the network, according to the adversary’s perception. On the other hand, the view of the system is usually inferred by attackers based on the results of probing and scanning tools. Starting from this observation, we do not modify the network but rather provide fake responses to probing. thus, the produced attack graph will be significantly different from the actual attack graph constructed from the network, without altering the system itself.

After a thorough review of studies that are directly related to our approach, we can say that to the best of our knowledge, there is no approach that adds false vulnerabilities and considers that the act of adding these ”lies” has consequences to the routine operation of the network. Therefore, we were unable to find a method that carefully selects which fake vulnerabilities to add and indicates where to add them, optimally, in the network’s PCs (without adding dedicated decoys), with the aims of making it harder for the attacker, forcing the attacker to use a significant amount of resources, and increasing the attack execution time dramatically.

6 Conclusion and future work

6.1 Discussion

In this thesis, we gathered several guidelines for fake vulnerabilities assignments, which prevent detection of the applied deception by the adversary and also suggest how to assign fake vulnerabilities in an optimal manner.
When applying a deception mechanism it is important to mask the deception. If the deception mechanism is consistent and free from contradictions, it will be difficult to identify by the adversary and therefore its effect will be greater.
We present new way to defend networks by assigning fake vulnerabilities in an optimal way.
First, we model all the possible paths of an attack in the network using a state of the art model, called logical attack graph. Then, we find the optimal assignment of fake vulnerabilities in the given network, using the attack graph model. As initial results, we proposed a random assignment of fake vulnerabilities. In order to find an optimal assignment, that maximize the adversary’s effort, we model this problem as an AI search problem. Where each node represents the fake assignments chosen so far, and the fake assignments left to choose.
We have proposed an admissible heuristic and a non-admissible heuristic, in order to examine the impact on the running time. We can see from the results that there was no significant difference in running time between the admissible heuristic and the non-admissible heuristic. Thus, in this case, an optimal assignment of fake vulnerabilities is preferable.
In order to reduce the algorithm’s run time, besides examine an admissible and non-admissible heuristics, we offered a two more improvements:

  • Different search algorithms - We examine both A* and DFBnB search algorithms. From the results, we can see that in all tested cases, A* finds the optimal assignment of fake vulnerabilities and confirm it faster than the DFBnB search algorithm.

  • Sorting the list of assignment candidates - We examine two different list sorting - shortest path first and high utility first. Although there was no significant difference in run time between the two, but they were significantly better than a random sorting. Thus, the two suggested list ordering approaches improve the run time of the algorithm.

From the results described in the previous section, we can conclude that solving the problem of fake vulnerabilities assignment is applicable for enterprise networks, when using the appropriate parameters for search:
We can see that A* search algorithm can find and assert the optimal solution quickly, by using good ordering of the candidates list. For example, finding an optimal solution using A* search algorithm with shortest path first (or high utility first) candidate list sorting, can decreased up to 43 times less the run time factor, compared to find an optimal solution using DFBnB search algorithm with random ordering of the candidate list.
We found a good admissible heuristic, which does not dramatically increase running time, relative to the non-admissible one, and produce optimal results.
As described in this thesis, the input to this algorithm, besides the given enterprise network, is the budget. In a real functioning network, attackers may prefer to attack the network during the night, when the amount of communication passing through the network is lower. Furthermore, a defender may want, in order to not overload the network in a day time, to increase the amount of deception in the network. All of the above reinforces the choice of adjusting the amount of budget as input in the system.
Not less important, we confirm that our method is applicable in an enterprise network and adding fake vulnerabilities is feasible. We examine our approach on a real enterprise network with 80 hosts on a virtual machine with average capabilities at a reasonable time.

6.2 Future work

Our goal is to produce optimal deployment of fake vulnerabilities to an enterprise network. The study can be continued in several directions: First, we can and should shorten the running time. We can do it by reducing the size of the attack graph. We can use gonda2017scalable , noel2004managing , homer2008improving or zhang2011effective works in order to reduce the given attack graph, and apply our AI search approach on it.
This will help us reduce the run time in two critical phases in our algorithm:

  1. Minimize the number of potential deceptive computers.

  2. We can reduce the time of finding the optimal path to the goal, at each fake vulnerabilities assignment, during the search algorithm. From the results we can see that this phase can repeat more than 10,000 times (see Figure 18).

Another direction we can take, is to collect a real attacks data sets and model the attacker by using this knowledge. Our method can also fit after modifying the attacker’s modeling.

References

References

  • (1) S. Murphy, T. McDonald, R. Mills, An application of deception in cyberspace: Operating system obfuscation1, in: International Conference on Information Warfare and Security, Academic Conferences International Limited, 2010, p. 241.
  • (2) D. Kewley, R. Fink, J. Lowry, M. Dean, Dynamic approaches to thwart adversary intelligence gathering, in: DARPA Information Survivability Conference & Exposition II, 2001. DISCEX’01. Proceedings, Vol. 1, IEEE, 2001, pp. 176–185.
  • (3) K. E. Huber, Host-based systemic network obfuscation system for windows, Tech. rep., DTIC Document (2011).
  • (4) N. C. Rowe, E. J. Custy, B. T. Duong, Defending cyberspace with fake honeypots, Journal of Computers 2 (2) (2007) 25–36.
  • (5) O. Sheyner, J. Haines, S. Jha, R. Lippmann, J. M. Wing, Automated generation and analysis of attack graphs, in: Security and privacy, 2002. Proceedings. 2002 IEEE Symposium on, IEEE, 2002, pp. 273–284.
  • (6) O. M. Sheyner, Scenario graphs and attack graphs, Ph.D. thesis, US Air Force Research Laboratory (2004).
  • (7) X. Ou, W. F. Boyer, M. A. McQueen, A scalable approach to attack graph generation, in: Proceedings of the 13th ACM conference on Computer and communications security, ACM, 2006, pp. 336–345.
  • (8) S. Khaitan, S. Raheja, Finding optimal attack path using attack graphs: a survey, International Journal of Soft Computing and Engineering 1 (3) (2011) 2231–2307.
  • (9) R. Deraison, ”the nessus project”, http://www.nessus.org.
  • (10) OpenVAS, http://www.openvas.org/.
  • (11) G. F. Lyon, Nmap network scanning: The official Nmap project guide to network discovery and security scanning, Insecure, 2009.
  • (12) M. L. Artz, Netspa: A network security planning architecture, Ph.D. thesis, Massachusetts Institute of Technology (2002).
  • (13) K. Ingols, R. Lippmann, K. Piwowarski, Practical attack graph generation for network defense, in: Computer Security Applications Conference, 2006. ACSAC’06. 22nd Annual, IEEE, 2006, pp. 121–130.
  • (14) L. Williams, R. Lippmann, K. Ingols, GARNET: A graphical attack graph and reachability network evaluation tool, Springer, 2008.
  • (15) X. Ou, S. Govindavajhala, A. W. Appel, Mulval: A logic-based network security analyzer, in: USENIX Security Symposium, Vol. 8, Baltimore, MD, 2005.
  • (16) National vulnerability database, https://nvd.nist.gov/.
  • (17) K. Sagonas, T. Swift, D. S. Warren, Xsb as an efficient deductive database engine, in: ACM SIGMOD Record, Vol. 23, ACM, 1994, pp. 442–453.
  • (18)

    H. Polad, R. Puzis, B. Shapira, Attack graph obfuscation, in: International Conference on Cyber Security Cryptography and Machine Learning, Springer, 2017, pp. 269–287.

  • (19) F. Cohen, Deception Tool Kit , http://all.net/dtk/.
  • (20) M. Albanese, E. Battista, S. Jajodia, Deceiving attackers by creating a virtual attack surface, in: Cyber Deception, Springer, 2016, pp. 169–201.
  • (21) R. Puzis, Y. Elovici, S. Dolev, Finding the most prominent group in complex networks, AI communications 20 (4) (2007) 287–296.
  • (22)

    W. Zhang, R. E. Korf, Performance of linear-space search algorithms, Artificial Intelligence 79 (2) (1995) 241–292.

  • (23) R. T. Stern, S. Kiesel, R. Puzis, A. Felner, W. Ruml, Max is more than min: Solving maximization problems with heuristic search, in: Seventh Annual Symposium on Combinatorial Search, 2014.
  • (24) C. Sarraute, O. Buffet, J. Hoffmann, Penetration testing== pomdp solving?, arXiv preprint arXiv:1306.4714.
  • (25) C. Sarraute, O. Buffet, J. Hoffmann, Pomdps make better hackers: Accounting for uncertainty in penetration testing, arXiv preprint arXiv:1307.8182.
  • (26) M. Helmert, The fast downward planning system, Journal of Artificial Intelligence Research 26 (2006) 191–246.
  • (27) S. I. I. R. Room, Installing, Configuring, and Testing The Deception Tool Kit on Mac OS X , https://www.sans.org/reading-room/whitepapers/detection/installing-configuring-testing-deception-tool-kit-mac-os-1056 (2006).
  • (28) P. Ammann, D. Wijesekera, S. Kaushik, Scalable, graph-based network vulnerability analysis, in: Proceedings of the 9th ACM Conference on Computer and Communications Security, ACM, 2002, pp. 217–224.
  • (29) N. Ghosh, S. Nanda, S. Ghosh, A quantitative approach towards detection of an optimal attack path in a wireless network using modified pso technique, in: Communication Systems and Networks and Workshops, 2009. COMSNETS 2009. First International, IEEE, 2009, pp. 1–10.
  • (30) N. Ghosh, I. Chokshi, M. Sarkar, S. K. Ghosh, A. K. Kaushik, S. K. Das, Netsecuritas: An integrated attack graph-based security assessment tool for enterprise networks, in: Proceedings of the 2015 International Conference on Distributed Computing and Networking, ACM, 2015, p. 30.
  • (31) K. Durkota, Computing optimal policies for attack graphs with action failures and costs, in: STAIRS 2014: Proceedings of the 7th European Starting AI Researcher Symposium, Vol. 264, IOS Press, 2014, p. 101.
  • (32) J. Yuen, Automated cyber red teaming, Tech. rep., DTIC Document (2015).
  • (33) F. Cohen, D. Koike, Leading attackers through attack graphs with deceptions, Computers & Security 22 (5) (2003) 402–411.
  • (34) F. Cohen, D. Koike, Misleading attackers with deception, in: information assurance workshop, 2004. Proceedings from the fifth annual IEEE SMC, IEEE, 2004, pp. 30–37.
  • (35) K. A. Repik, Defeating adversary network intelligence efforts with active cyber defense techniques, Tech. rep., DTIC Document (2008).
  • (36) M. H. Almeshekah, Using deception to enhance security: A taxonomy, model, and novel uses, Ph.D. thesis, PURDUE UNIVERSITY (2015).
  • (37) LaBrea: ”Sticky” Honeypot and IDS, http://labrea.sourceforge.net/labrea-info.html.
  • (38) Honeynet Project, https://www.honeynet.org/.
  • (39) K. Durkota, V. Lisỳ, B. Bošanskỳ, C. Kiekintveld, Optimal network security hardening using attack graph games, in: Proceedings of IJCAI, 2015, pp. 7–14.
  • (40) S. T. Trassare, A technique for presenting a deceptive dynamic network topology, Tech. rep., NAVAL POSTGRADUATE SCHOOL MONTEREY CA (2013).
  • (41) Cymmetria , https://www.cymmetria.com/.
  • (42) TRAPX security , https://trapx.com/product/.
  • (43) A. Crenshaw, Osfuscate: change your windows os tcp/ip fingerprint to confuse p0f, networkminer, ettercap, nmap and other os detection tools, Retrieved Mar 12 (2008) 2009.
  • (44) https://definedterm.com/moving_target_defense/.
  • (45) R. Zhuang, S. Zhang, S. A. DeLoach, X. Ou, A. Singhal, Simulation-based approaches to studying effectiveness of moving-target network defense, in: National symposium on moving target research, 2012, pp. 1–12.
  • (46) T. Roeder, F. B. Schneider, Proactive obfuscation, ACM Transactions on Computer Systems (TOCS) 28 (2) (2010) 4.
  • (47) D. L. Kewley, J. F. Bouchard, Darpa information assurance program dynamic defense experiment summary, Systems, Man and Cybernetics, Part A: Systems and Humans, IEEE Transactions on 31 (4) (2001) 331–336.
  • (48) E. Al-Shaer, Toward network configuration randomization for moving target defense, in: Moving Target Defense, Springer, 2011, pp. 153–159.
  • (49) B. Cox, D. Evans, A. Filipi, J. Rowanhill, W. Hu, J. Davidson, J. Knight, A. Nguyen-Tuong, J. Hiser, N-variant systems: a secretless framework for security through diversity, in: Usenix Security, Vol. 6, 2006, pp. 105–120.
  • (50) M. Crouse, E. W. Fulp, A moving target environment for computer configurations using genetic algorithms, in: Configuration Analytics and Automation (SAFECONFIG), 2011 4th Symposium on, IEEE, 2011, pp. 1–7.
  • (51) T. Gonda, R. Puzis, B. Shapira, Scalable attack path finding for increased security, in: International Conference on Cyber Security Cryptography and Machine Learning, Springer, 2017, pp. 234–249.
  • (52) S. Noel, S. Jajodia, Managing attack graph complexity through visual hierarchical aggregation, in: Proceedings of the 2004 ACM workshop on Visualization and data mining for computer security, ACM, 2004, pp. 109–118.
  • (53) J. Homer, A. Varikuti, X. Ou, M. A. McQueen, Improving attack graph visualization through data reduction and attack grouping, in: Visualization for computer security, Springer, 2008, pp. 68–79.
  • (54) S. Zhang, X. Ou, J. Homer, Effective network vulnerability assessment through model abstraction, in: International Conference on Detection of Intrusions and Malware, and Vulnerability Assessment, Springer, 2011, pp. 17–34.
