Are Architectural Smells Independent from Code Smells? An Empirical Study

04/26/2019 ∙ by Francesca Arcelli Fontanaa, et al. ∙ ALTEN Italia Tampere Universities 0

Background. Architectural smells and code smells are symptoms of bad code or design that can cause different quality problems, such as faults, technical debt, or difficulties with maintenance and evolution. Some studies show that code smells and architectural smells often appear together in the same file. The correlation between code smells and architectural smells, however, is not clear yet; some studies on a limited set of projects have claimed that architectural smells can be derived from code smells, while other studies claim the opposite. Objective. The goal of this work is to understand whether architectural smells are independent from code smells or can be derived from a code smell or from one category of them. Method. We conducted a case study analyzing the correlations among 19 code smells, six categories of code smells, and four architectural smells. Results. The results show that architectural smells are correlated with code smells only in a very low number of occurrences and therefore cannot be derived from code smells. Conclusion. Architectural smells are independent from code smells, and therefore deserve special attention by researchers, who should investigate their actual harmfulness, and practitioners, who should consider whether and when to remove them.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Architectural smells, as introduced by Garcia et al. Garcia et al. (2009), are ”Architectural decisions that negatively impact system internal quality. Architectural smells may be caused by applying a design solution in an inappropriate context, mixing design fragments that have undesirable emergent behaviors, or applying design abstractions at the wrong level of granularity.” Several studies claim that architectural smells lead to architectural erosion and that architectural issues are the greatest source of technical debt Ernst et al. (2015), Nord et al. (2012). Hence, they have to be considered as one of the primary sources of investigation for mitigating the problem of architecture degradation Nord et al. (2012). The code infected by an architectural smell is a natural candidate for refactoring in order to prevent the occurrence of critical quality issues.

Code smells were introduced by Fowler Fowler and Back (1999) to describe a code structure that is likely to cause problems and that can be removed through refactoring. They commonly increase the software’s defectiveness Palomba et al. (2018), Hall et al. (2014) and change proneness Palomba et al. (2018), Olbrich et al. (2009) and increase maintenance effort Sjoberg et al. (2013), Lozano and Wermellinger (2008). Unlike architectural smells, they are defined at a lower level of granularity and do not take into account the software architecture of the system under development, commonly focusing on class or method levels.

Several studies have investigated the interrelations between code smells, e.g., whether a code smell leads to another code smell, or whether some code smells tend to go together Pietrzak and Walter (2006), Walter et al. (2018), Liu et al. (2012), Yamashita et al. (2015). Other studies have considered the possible correlations and the impact of code smells on various software qualities such as defects, bugs, changes, and code understandability (Li and Shatnawi (2007)Palomba et al. (2019),  Deligiannis et al. (2003),  Bois et al. (2006),  Olbrich et al. (2009)).

To the best of our knowledge, only few studies have been published that analyze the correlations between code smells and architectural smells. Among them, one work Macia et al. (2012a) identified correlations between code smells and architectural smells, while another work Macia et al. (2012b) claims that they are not correlated. In any case, no extended empirical evaluations have been carried out and no code smell stands out as the best indicator of harmfulness with respect to architecture degradation.

The goal of this work is to understand whether architectural smells can be derived from a code smell, or from one category of code smells (we considered the categories proposed by Mantyla  Mäntylä and Lassenius (2006)). For this purpose, we designed and conducted a large empirical study on possible correlations existing between four architectural smells, 19 code smells, and six categories of code smells, analyzing 111 Java projects taken from the Qualitas Corpus Repository Tempero et al. (2010). We considered a large set of code smells defined in the literature and four architectural smells based on dependency issues that can have a critical impact on the software quality of a project and its progressive architecture degradation Arcelli Fontana et al. (2016).

Hence, this study aims to assess the existence of any correlation between code smells and higher-level architectural smells. We did not consider correlations between defects and code smells, which have already been studied to a large extent in the literature, but only possible correlations between code smells and architectural smells. The results of this work will support researchers and practitioners in understanding whether they should detect both architectural smells and code smells or whether the detection of code smells alone is enough to highlight the same anomalies that could be highlighted by an architectural smell. If we could find some kind of correlation between architectural smells and lower-level code smells, we could mark architecturally problematic parts of software systems for extra attention by using existing code smell detectors. More importantly, this might enable us to solve some of the higher-level problems using smaller refactorings, which would be more desirable for maintainers. The results we obtained do not reveal any significant correlation, suggesting that architectural smells cannot be derived from code smells and practitioners should take extra care to deal with architectural smells. They cannot focus only on the refactoring of code smells, but need to pay particular attention to the more dangerous architectural smells as well. Hence, in most of cases, code smells will infect different classes than those infected by architectural smells, which not only highlights different problems but also different candidate classes for refactoring.

The main contributions of our work can be summarized as follows:

  • We investigated whether architectural smells are correlated with code smells or with a specific category of code smells. Other studies have considered correlations with more general architectural problems (Macia et al. (2012a)Macia et al. (2012b)).

  • We considered a huge number of analyzed projects (111). To the best of our knowledge, previous studies investigated smaller sets of Java projects (see Related Work section).

  • Possible correlations between code and architectural issues have not been widely explored. Existing results are contradictory - evidence that this topic deserves careful attention. Hence, through our study we further emphasize how important it is for developers and maintainers to take into account both code and architectural smells during their refactoring activities.

Structure of the paper. This paper is structured as follows: Section 2 describes some related work done by researchers in the last years, while Section 3 describes the background on which our paper is based. In Section 4, we present the case study, where we define the research questions, the metrics, the hypothesis and the study context with our Research Questions as well as the data collection and data analysis procedure. In Section 5, we show the results obtained and discuss them in Section 6. Section 7 focuses on threats to the validity of our study. In Section 8, we draw conclusions and outline some possible future work.

2 Related Work

Many studies on code smells can be found in the literature; they consider different aspects such as the relationships among code smells and their impact on different features such as faults Li and Shatnawi (2007) Hall et al. (2014), maintainability Deligiannis et al. (2003) Kapser and Godfrey (2008), comprehensibility Bois et al. (2006), change frequency Olbrich et al. (2009) Schumacher et al. (2010), change size Olbrich et al. (2009) Olbrich et al. (2010), and maintenance effort Lozano and Wermellinger (2008) Sjoberg et al. (2013). Moreover, several commercial and research tools for code smell detection have been developed Arcelli Fontana et al. (2011) (e.g., HIST Palomba et al. (2015), JCodeodor Arcelli Fontana et al. (2015), Wekanose Azadi et al. (2018), JDeodorant Fokaefs et al. (2007)). Less work is available on architectural smells. Hence, in this section we will describe some work found in the literature on architectural smell definitions, on code smell correlations, as well as studies considering both code smells and architectural smells.

We need to point out that in the literature, different terms are often used to describe the same concept: e.g., in some cases code smells are also called code anomalies, design flaws, design smells, design disharmonies, or antipatterns. This is the case, for example, for the God Class design disharmony Lanza and Marinescu (2006), which is similar to the Large Class code smell defined by Fowler Fowler and Back (1999) or to the Blob antipattern Brown et al. (1998). Cyclic Dependency is called an architectural smell Lippert and Roock (2006), but corresponds to the Tangle antipattern Arcelli Fontana and Maggioni (2011) and to the Cyclically-Dependent Modularization design smell  Suryanarayana et al. (2015), or is considered an architectural violation hello2morrow (2015).

Our paper focuses particularly on possible correlations existing between code smells and architectural smells.

2.1 Code Smell Correlations

Pietrzak and Walter Pietrzak and Walter (2006) describe several types of inter-smell correlations to support more accurate code smell detection and to better understand the effects caused by interactions between smells. They found different kinds of correlations among six different code smells by analyzing the Apache Tomcat project.

Arcelli Fontana et al. Fontana et al. (2015) analyzed 74 projects of the Qualitas Corpus, detecting six smells, some correlations among smells, and possible co-occurrence of smells. They found a high number of correlations among God Class and Data Class, as well as among other code smells that tend to go together, and a high number of co-occurrences of the Brain Method smell with Dispersed Coupling and Message Chains.

Liu et al. Liu et al. (2012) propose a detection and resolution sequence for different smells by analyzing certain code smell correlations given by commonly occurring bad smells. They analyzed whether it is better to first identify smell A than smell B, e.g., Large Class versus Feature Envy or versus Primitive Obsession, or Useless Class versus other smells. They considered nine code smells and identified fifteen correlations of this kind.

Yamashita et al. Yamashita et al. (2015) studied possible correlations among smells. They incorporated dependency analysis in order to identify a wider range of inter-smell correlations, and analyzed one industrial and two open-source projects. They found the following correlations: collocated smells among God Class, Feature Envy, and Intensive Coupling, and coupled smells between Data Class and Feature Envy.

Moreover, various authors provide code smell classifications or taxonomies that are useful for capturing possible correlations among smells.

Mäntylä et al. Mantyla et al. (2003) categorized all of Fowler’s code smells except for Incomplete Library Class and Comments smells into five categories: Bloaters, Object Orientation Abusers, Change Preventers, Dispensables, Encapsulators, and Couplers. The study outlines the existence of several correlations among smells belonging to the same category.

Moha et al. Moha and Guéhéneuc (2007) propose a taxonomy of smells and describe some correlations among design smells, such as Blob and (many) Data Class, or Blob and (Large Class and Low Cohesion).

Lanza and Marinescu Lanza and Marinescu (2006) propose a classification of twelve smells, called ”design disharmonies”, into three categories: Identity, Collaboration, and Classification disharmonies. They describe the most common correlations between the disharmonies in a type of diagram called a correlation web. However, these correlations were not empirically validated.

2.2 Architectural Smells

In this section, we provide a description of some of the architectural smells (AS) defined in the literature. In most studies, they are actually called architectural smells, but in a few cases they are called design smells Suryanarayana et al. (2014) or antipatterns Brown et al. (1998).

Garcia et al. Garcia et al. (2009) define the Connector Envy, Scattered Functionality, Ambiguous Interface, and Extraneous Connector AS. They provide a description of each AS, outlining the quality impact and the trade-offs and providing a generic schematic view of each smell captured in one or more UML diagrams. They assert that architects can manually use such diagrams to inspect their own designs to look for architectural smells.

Macia Macía Bertrán (2013) analyzed different architectural smells related to dependency and interface issues: Ambiguous Interface, Redundant Interface, Overused Interface, Extraneous Connector, Connector Envy, Cyclic Dependency, Scattered Parasitic Functionality, and Component Concern Overload (Component Responsibility Overload).

Mo et al. Mo et al. (2015) and Kazman et al. Kazman et al. (2015) defined five AS, four at the file level and one at the package level, which they call Hotspot Patterns: Unstable Interface, Implicit Cross-Module Dependency, Unhealthy Inheritance Hierarchy, Cross-Module Cycle, and Cross-Package Cycle. These AS were defined in the context of the authors’ research on Design Rule Spaces (DRSpaces) Xiao et al. (2014). The authors also developed a tool called Hotspot Detector, which is able to detect the five AS mentioned above. The detector takes as input several files produced by another tool called Titan Xiao et al. (2014). Currently, Hotspot Detector is being evolved into a new commercial tool.

Marinescu Marinescu (2012) defined three AS: Cyclic Dependency, Stable Abstraction Breaker, and Unstable Dependency. They developed a tool called inFusion, which was able to detect these architectural smells and a large number of code smells. However, this tool is no longer available.

Lippert and Rook Lippert and Roock (2006) defined different AS at different levels by essentially considering dependency and inheritance issues and aspects related to small/large size in terms of number of packages, subsystems, and layers. In particular, they defined AS in dependency graphs, inheritance hierarchies, packages, subsystems, and layers.

Le et al. Le et al. (2015) developed a tool for the detection of some AS and proposed a classification of the AS based on four categories: Interface, Change, Dependency and Concern-based smells.

Suryanarayana et al. Ganesh et al. (2013); Suryanarayana et al. (2015)

adopted an approach for classifying and cataloging a number of recurring structural design smells based on how they violate key object-oriented design principles. Their definition of design smells is similar to the one of architectural smells, but many of their design smells correspond to the code smells of Fowler. They identified the following design smell categories: Abstraction, Encapsulation, Modularization, and Hierarchy. They developed a tool, called Designite, to detect different design smells in C

projects.

As we can see, different AS definitions have been proposed, but few detection tools are freely available Azadi et al. (2019).

2.3 Code Smells and Architectural Degradation

There is little knowledge, as outlined by Macia Macía Bertrán (2013), about the extent to which code anomalies are related to architectural degradation. In the following, we report on some studies where the term code anomalies is sometimes used instead of the term code smells and architectural anomalies correspond to architectural smells.

Macia et al. Macia et al. (2012b)

analyzed code anomaly occurrences in 38 versions of five applications using existing detection strategies. The outcome of their evaluation suggests that many of the code anomalies detected were not related to architectural problems. Even worse, over 50% of the anomalies not observed by the employed techniques (false negatives) were found to be correlated with architectural problems.

In another work, Macia et al. Macia et al. (2012a) studied the correlations between code anomalies and architectural smells in six software projects (40 versions). They considered five architectural smells and nine code smells. They empirically found that each architectural problem represented by each AS is often refined by multiple code anomalies. More than 80% of architectural problems were found to be correlated with code anomalies. They also found 1) that certain types of code smells, such as Long Method or God Class, were consistently correlated with architectural problems; 2) that the highest percentages of code smells that introduce architectural problems occurred for God Class, Long Method, and Inappropriate Intimacy instances, and 3) that the occurrence of both God Class and Divergent Change smells in the same code element was a strong indicator of architectural problems, such as Scattered Functionalities violating the Separation of Concerns design principle. However, the study revealed that no type of code smell stands out as the best indicator of harmfulness with respect to architecture degradation.

Oizumi et al. Oizumi et al. (2016) propose studying and assessing the extent to which code smell agglomerations help developers to locate and prioritize design problems. They propose considering not only the syntactic relations among code smells, but also the semantic relations to find more powerful smell agglomerations in order to identify design problems. Their findings show that 50% of syntactic agglomerations and 80% of semantic agglomerations are related to design problems.

Oizumi et al. Oizumi et al. (2014) analyzed seven projects and demonstrated that agglomerations are better than single anomaly instances to indicate the presence of an architectural problem. They considered six code smells detected using the rules of Lanza-Marinescu Lanza and Marinescu (2006) and seven architectural smells detected using the rules defined by Macia Macía Bertrán (2013).

Guimaraes et al Guimaraes et al. (2014) conducted a controlled experiment utilizing architecture blueprints to prioritize various types of code smells and provide an analysis of whether and to what extent the use of blueprints impacts the time required for revealing architecturally relevant code anomalies.

Unlike the previous studies, we 1) analyzed a total of 111 Java projects, 2) employed two available and validated tools to detect code and architectural smells; 3) analyzed 19 code smells and four architectural smells, and 4) applied different correlation analyses. Moreover, as previous papers did not make it clear, respectively provided not much empirical validation, whether some kind of correlation exists between code smells and architectural smells, our study is intended to provide a further investigation in this direction.

3 Background

In this Section, we present the code smells together with their proposed classification and the architectural smells adopted in this work.

3.1 Code Smells

In this work, we consider code smells detected by SonarQube 111SonarQube https://www.sonarqube.org/ using the ”Antipatterns-CodeSmell” plugin 222SonarQube https://github.com/davidetaibi/sonarqube-anti-patterns-code-smells. All the code smells, except for Duplicated Code, are detected by the ”Antipatterns-CodeSmell” plugin, while Duplicated Code is detected natively by SonarQube. Here is the list of code smells considered in this work:

  • Anti-Singleton (ASG): A class that provides mutable class variables exhibiting the properties of global variables Khomh et al. (2012).

  • Base Class Knows Derived Class (BCKD)

    : A class that does not respect the heuristic defined by Riel

    Riel (1996), which says that ”Derived classes must have knowledge of their base class by definition, but base classes should not know anything about their derived classes.” Kpodjedo et al. (2011).

  • Base Class Should Be Abstract (BCSA): An inheritance tree contains roots that are not abstract - only the leaves should be concrete Moha et al. (2010).

  • Blob (BL): The majority of the responsibilities are allocated to a single class that monopolizes the processing. A Blob class is characterized by a class diagram composed of a single complex controller class surrounded by simple data classes.  Brown et al. (1998).

  • Class Data Should Be Private (DsP): A class that publicly exposes its variables Taba et al. (2013).

  • Complex Class (CC): A class with high MC-Cabe’s cyclomatic complexity Marinescu (2004).

  • Duplicated Code (DC): A class or method that contains an identical piece of code of another class or method. Note that we only consider internal project duplication and not cross-project duplication.

  • Functional Decomposition (FD): Non-object-oriented design (possibly from legacy) is coded in an object-oriented language and notation Brown et al. (1998).

  • Large Class (LC): A class with too many lines of code, methods, or variables Fowler and Back (1999).

  • Lazy Class (LzC): ”A class that is not doing enough to pay for itself.”  Fowler and Back (1999).

  • Long Method (LM): A method with too many lines of code Fowler and Back (1999).

  • Long Parameter List (LPL): A method having too many parameters Fowler and Back (1999).

  • Many Field Attributes But Not Complex (MFnC): A class that is not complex but has many public fields Moha et al. (2010).

  • Message Chains (MC): A chain of methods that ask for an object, which asks for another one, which asks for yet another, and so on Fowler and Back (1999).

  • Refused Parent Bequest (RPB): The subclass uses only a few features of the parent class Fowler and Back (1999).

  • Spaghetti Code (SC): An ad-hoc software structure that makes it difficult to extend and optimize the code Brown et al. (1998).

  • Speculative Generality (SG): Hooks and special cases in the code that handle things that are not required, but are speculated to be required someday Fowler and Back (1999).

  • Swiss Army Knife (SAK): Over-design of interfaces results in objects with numerous methods that attempt to anticipate every possible need. This leads to designs that are difficult to comprehend, utilize, and debug, as well as to implementation dependencies Brown et al. (1998).

  • Tradition Breaker (TB): An inherited class provides a large set of new services that are unrelated to those provided by the base class Marinescu (2004).

3.2 Categories of Code Smells

The categories of code smells we considered are based on the classification proposed by Mäntylä and Lassenius Mäntylä and Lassenius (2006), where the smells are classified according to some of the common concepts shared by the smells within one category. Below, we provide a description of each category and the smells included by the authors that we were able to detect with the Antipatterns-CodeSmell tool, as well as the new smells we included in the categories, if any.

  • The Bloaters (Bloat.): Objects that have grown too much and can become hard to manage. This category includes the code smells Blob, Long Method, Large Class, and Long Parameter List. We additionally included Complex Class and Swiss Army Knife.

  • The Dispensables (Disp.): Unnecessary code fragments that should be removed. This includes the code smells Lazy Class, Duplicated Code, and Speculative Generality. We also included Many Field Attributes But Not Complex.

  • The Encapsulators (Enc.): Objects that present high coupling (this category is also called Couplers). This category includes the code smell Message Chain.

  • The Object-Orientation Abusers (OOA): Classes that do not comply with object-oriented design. For example, a Switch Statement, even if applicable in procedural programming, is highly deprecated in object-oriented programming. This category includes the code smells Anti-Singleton and Refused Parent Bequest. We also included Base Class Knows Derived Class, Base Class Should Be Abstract, Class Data Should Be Private, and Tradition Breaker.

  • The Change Preventers: This category includes smells that hinder further changes in the source code. This category includes a set of code smells such as Divergent Change, Shotgun Surgery, and Parallel Inheritance Hierarchies, which are not detected by the Antipatterns-CodeSmell tool. We also included Spaghetti Code.

Moreover, since we believe that some code smells considered in this work could be grouped together, we defined a new category:

  • The Object-Oriented Avoiders: This category is in contrast to the Object-Orientation Abusers, since code smells belonging to this category do not (intentionally or unintentionally) apply any object-oriented practice. We here included the code smell Functional Decomposition.

Since three categories (Change Preventers, Encapsulators, Object-Orientation Avoiders are based on only one code smell, we did not analyze them independently since they will provide the same results as those of the code smells belonging to them. In Table 1, we propose a summary of the new revisited classification of the smells with all the categories we considered and the smells included in each category. In the table, we outline in italics the new smells we introduced in the categories of Mäntylä according to our evaluation and the new category we defined.

Category Name Code Smells
The Bloaters Blob
Large Class
Long Method
Long Parameter List
Complex Class
Swiss Army Knife
The Change Preventers Spaghetti Code
The Dispensables Lazy Class
Speculative Generality
Many Field Attributes But Not Complex
Duplicated Code
The Encapsulators Message Chain
The Object-Orientation Abusers Anti-Singleton
Refused Parent Bequest
Base Class Knows Derived Class
Base Class Should Be Abstract
Class Data Should Be Private
Tradition Breaker
The Object-Orientation Avoiders Functional Decomposition
Table 1: Code Smell Taxonomy

3.3 Architectural Smells

The architectural smells we considered in our study are those described below, where a subsystem (component) refers to a set of packages and classes identifying an independent unit of the system responsible for a certain functionality:

  1. Unstable Dependency (UD): describes a subsystem (component) that depends on other subsystems that are less stable than itself Martin (2007). This may cause a ripple effect of changes in the system Arcelli Fontana et al. (2016). Detected in packages.

  2. Hub-Like Dependency (HD): arises when an abstraction has (outgoing and incoming) dependencies on a large number of other abstractions Suryanarayana et al. (2015). Detected in classes and packages.

  3. Cyclic Dependency (CD): refers to a subsystem (component) that is involved in a chain of relations that break the desirable acyclic nature of a subsystem’s dependency structure. The subsystems involved in a dependency cycle are hard to release, maintain, or reuse in isolation. Detected in classes and packages. The Cyclic Dependency AS is detected according to different shapes Al-Mutawa et al. (2014) as described in Arcelli Fontana et al. (2017).

  4. Multiple Architectural Smell (MAS): identifies a subsystem (component) that is affected by more than one architectural smell and provides the number of the architectural smells involved.

We decided to consider these AS in the study since they represent relevant problems related to dependency issues: Components with high coupling and a large number of dependencies cost more to maintain and hence can be considered more critical, leading to a progressive architectural degradation Ernst et al. (2015). In particular, Cyclic Dependency is one of the most common architectural smells that is dangerous and difficult to remove Martini et al. (2018). Moreover, a tool called Arcan that can detect these smells is available. As outlined in Section 2.2, few tools for AS detection are currently freely available. Other AS impacting different issues will be considered in the future as their automatic detection will become possible.

4 Case Study Design

The goal of our work is to understand whether architectural smells could be derived and obtained from code smells or whether they are independent from them. For this purpose, we conducted a case study to investigate the interdependency between architectural smells and code smells by analyzing 111 open-source Java projects. For the design and conduction of the case study, we followed the guidelines proposed by Runeson Runeson and Höst (2009).

In this section, we will present the goal, the research questions, the metrics, and the hypotheses for the case study. Based on them, we will outline the study context, the data collection, and the data analysis.

4.1 Goal, Research Questions, Metrics, and Hypotheses

We formulated our goal according to the GQM approach Basili et al. (1994)
Analyze code smells and architectural smells
for the purpose of evaluating them
with respect to their interdependency
from the point of view of developers
in the context of open-source Java projects.

Based on our goal, we derived the following Research Questions (RQ), Metrics (M), and Hypotheses (H) Basili et al. (1994), Shull et al. (2007).

RQ1: Is the presence of an architectural smell independent from the presence of code smells?

  • M1: correlation coefficient between architectural smells and code smells

    • H0: The presence of an architectural smell is independent from the presence of code smells.

    • H1: The presence of an architectural smell depends on the presence of code smells.

RQ1.1: Is the presence of a Multiple Architectural Smell (MAS) independent from the presence of code smells?

  • M1.1: correlation coefficient between Multiple Architectural Smell and code smells.

    • H0: The presence of a Multiple Architectural Smell (MAS) is independent from the presence of code smells.

    • H1: The presence of a Multiple Architectural Smell (MAS) depends on the presence of code smells.

RQ2: Is the presence of an architectural smell independent from the presence of a category of code smells?

  • M2: correlation coefficient between architectural smells and categories of code smells.

    • H0: The presence of an architectural smell is independent from the presence of a category of code smells.

    • H1: The presence of an architectural smell depends on the presence of a category of code smells.

RQ2.1: Is the presence of a Multiple Architectural Smell independent (MAS) from the presence of a category of code smells?

  • M2.1: correlation coefficient between Multiple Architectural Smell and categories of code smells.

    • H0: The presence of a Multiple Architectural Smell (MAS) is independent from the presence of a category of code smells.

    • H1: The presence of a Multiple Architectural Smell (MAS) depends on the presence of a category of code smells.

With our RQs, we aim to understand whether a single architectural smell (RQ1) or a Multiple Architectural Smell (RQ1.1) can be independent from code smells or from a category that groups code smells as described in Section 3.2 (RQ2 and RQ2.1).

4.2 Study Context

We selected projects contained in the Qualitas Corpus collection of software projects  Tempero et al. (2010). In particular, we used the compiled version of the Qualitas Corpus  Terra et al. (2013). 111 Java projects are available and already compiled with more than 18 million LOCs, 16,000 packages, and 200,000 classes analyzed. The data set includes projects from different contexts such as IDEs, SDKs, databases, 3D/graphics/media, diagram/visualization libraries and tools, games, middlewares, parsers/generators/make tools, programming language compilers, testing libraries and tools, and other tools not belonging to the previous categories. Terra et al. Terra et al. (2013) provide more information on the context and types of these projects.

4.3 Data Collection

We detected architectural smells in 111 Java projects and code smells in 103 Java projects of the Qualitas Corpus Terra et al. (2013), as depicted in Figure 1.

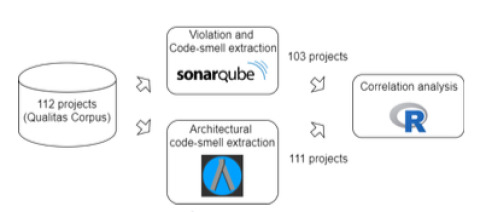

Figure 1: Data Collection Process and Data Analysis

Architectural smells were detected in these projects through the Arcan tool  Arcelli Fontana et al. (2017), while the analysis of code smells was carried out with SonarQube using the ”Antipatterns-CodeSmell” plugin. The results of this step are lists of the architectural smells and code smells present in each analyzed project. The raw data is available in the replication package Taibi (2017).

4.3.1 Code smell detection data

The SonarQube ”Antipatterns-CodeSmell” plugin is a code smell detection tool that integrates DECOR (Defect dEtection for CORrection)  Moha et al. (2010) into SonarQube, detecting the 19 code smells reported in Section 3.1. DECOR can be applied to any object-oriented language; however, the SonarQube plugin is only configured to detect code smells in Java. Moreover, SonarQube also calculates several other static code metrics such as the number of lines of code and cyclomatic complexity, but also reports code violations.

It is important to note that in SonarQube (up to the version 6.5), the term ”Code Smells” is used to report coding style violations (also known as Issues in SonarQube), such as brackets closed on the wrong line, or redundant throw declarations. To avoid misunderstandings with coding style violations, the SonarQube ”Antipatterns-CodeSmell” plugin tags all the code smells of Section 3.1 as ”Antipatterns/CodeSmells”. Regarding detection accuracy, we relied on the DECOR detection tool since it ensures 100% recall for the detection of code smells Moha et al. (2010). Moreover, since the definition of code smells is based on several metrics and thresholds, we relied on the standard metrics proposed by Moha et al. Moha et al. (2010) so as to ensure a precision average of 80%.

The detection of code smells in the Qualitas Corpus data set was carried out on a Linux virtual machine with 4 cores and 16GB of RAM. The first 103 projects were analyzed within 35 days. Due to time constraints, we skipped the analysis of the remaining eight projects such as Eclipse and JBoss, which would have taken more than three months. The reason for this dramatic increase in analysis time is due to the project structure. These eight projects are composed of several sub-projects with sizes similar to the other 103 projects already analyzed. Therefore, in this work we only consider the results of the 103 projects listed in A.

4.3.2 Architectural smell detection data

The Arcan tool focuses on the identification of architectural smells whose generation was caused by instability issues. By software instability we mean the inability to make changes without impacting the entire project or a large part of it. To accomplish its aim, the tool computes the metrics proposed by Martin Martin (1995) and exploits them during the analysis. The detection techniques exploit graph databases to perform graph queries, which allows higher scalability in the detection and management of a large number of different kinds of dependencies.

The detection techniques for AS and the validation of the tool results have been described in previous studies  Arcelli Fontana et al. (2016), Arcelli Fontana et al. (2017). The results of the tool were validated on ten open-source projects and two industrial projects based on feedback from the developers with a high precision value of 100% and a recall value of 66%. The developers also reported five architectural smells that were false negatives, but these cases were related to external components beyond the scope of the analysis performed by the tool. Moreover, the results of Arcan were evaluated using the feedback of practitioners in four industrial projects Martini et al. (2018).

In this study, the detection of the architectural smells was performed on a Windows machine with 4 cores and 24 GB of RAM. The entire Qualitas Corpus data set was analyzed using Arcan within less than 24 hours. The tool is freely available and easy to install and use 333http://essere.disco.unimib.it/wiki/arcan).

4.4 Data Analysis

In this section, we will describe the procedure we followed to analyze the collected data in order to answer our research questions.

We analyzed the classes infected both by an architectural smell and one or more code smells at the class and package levels.

Architectural smells involve more than one Java class, while the 19 code smells considered in this work involve only one class. Therefore, for each architectural smell, we could have one or more code smells infecting the same set of classes. In the analysis, we only calculated correlations between code smells infecting those classes (and packages) that were also infected by architectural smells.

To give an example: Classes A, B, and C may be infected by Cyclic Dependency, while classes A and C may be infected by God Class and class D may be infected by Speculative Generality. In this case, we would calculate the correlation only for the architectural smell Cyclic Dependency and the code smell God Class, since they affect the same set of classes, whereas we would not consider the code smell Speculative Generality, since it infects a class that is not infected by Cyclic Dependency.

Before answering our RQs, we analyzed the distribution of the code smells and the architectural smells in our data set. We performed a descriptive analysis of the collected data, analyzing the number of code smells and architectural smells per project and per package.

We analyzed the frequency of occurrence of the code smells and architectural smells, considering:

  • (CS+AS): Classes infected by code smells AND architectural smells;

  • (CS): Classes infected only by code smells;

  • (AS): Classes infected only by architectural smells;

  • (HC): Healthy Classes – classes neither infected by code smells nor by architectural smells.

We analyzed the 103 projects independently, then considered the data of all the projects globally, as though all the classes belonged to one single project. Projects without code smells or architectural smells were not considered for the analysis.

In order to answer our research questions, we applied the following analysis procedure, as summarized in Figure 2. We considered as our dependent variable the number of each type of architectural smell infecting the same classes and as independent variable the number of code smells infecting the same classes. We investigated the correlation for every pair of (code smell and architectural smell or categories of code smells and architectural smell), since considering all types of smells at the same time might hide possible correlations among smells, making it impossible to discover them.

  • For each Architectural Smell

    • Data-Normality Test: We tested the data for normality by means of the Shapiro-Wilk test.

    • Correlation Analysis: We calculated the correlation between code smells or a category of smells (independent variable) and architectural smells or Multiple Architectural Smells (dependent variable).

      • If the data were normally distributed, we calculated the Pearson correlation coefficient

      • If the data were not normally distributed, we calculated the Kendall rank correlation coefficient.

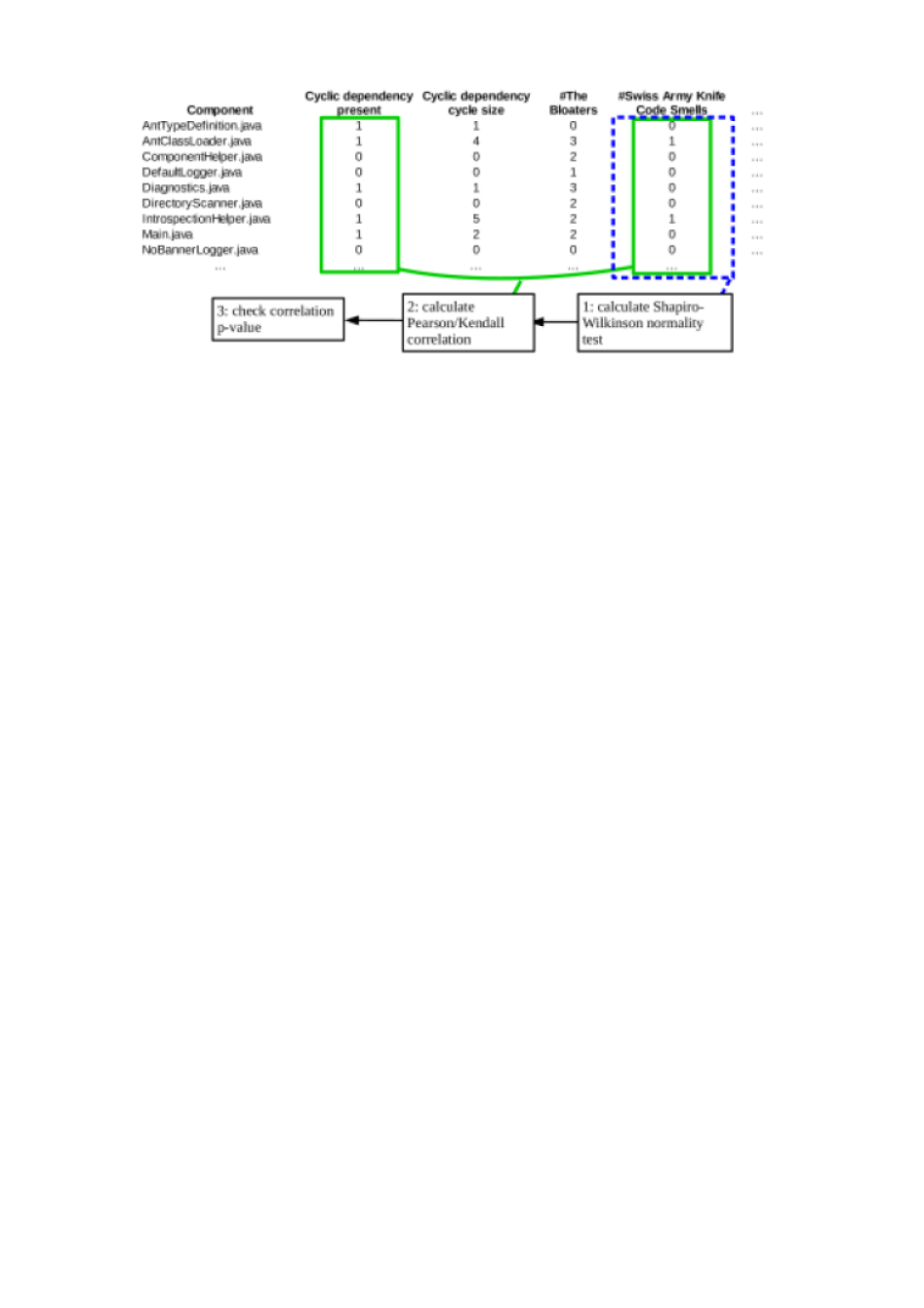

Figure 2: The Data Analysis Process

Correlation is a bi-variate analysis that measures the association strength between two variables and the direction of the relationship. The value of the correlation coefficient varies between +1 and -1, where a value of ± 1 means a perfect degree of association between the two variables.

Usually, in statistics, different types of correlations are applied. Pearson correlation is the one used most frequently to measure the relationship degree between linearly related variables. Kendall rank correlation is one of the non-parametric tests commonly used to measure the strength of dependency between two variables. We selected Kendall rank correlation because compared with other non-parametric tests, it has less gross error sensitivity (GES), meaning more robustness, and a smaller asymptotic variance (AV), meaning more efficiency

Croux and Dehon (2010).

We only show those results with a p-value smaller than 0.05 as a statistical significance threshold. This is customary in Empirical Software Engineering studies Shull et al. (2007).

5 Results

In this section, we will first describe the data we analyzed and then answer our research questions by reporting the results of the analysis described in Section 4.4.

All the projects contain classes infected by both architectural smells and code smells.

Considering the presence of code smells in the 103 projects, only 15 of the 19 code smells detectable by the SonarQube plugin were found. The 103 projects were not infected by Blob Class, Functional Decomposition, Base Class Knows Derived, and Tradition Breaker. This also impacted the categories of code smells containing code smells not found in the projects, since two categories (Change Preventers and Object Orientation Avoiders) were based on two code smells not detected in the 111 projects. Therefore, only the remaining four categories of code smells are considered in the analysis.

Regarding the architectural smells, Arcan detected them in 102 projects (Jasml contains no architectural smell). Therefore, we considered this set of 102 projects for the analysis. Note that, for the sake of completeness, we also report data for the code smell categories containing only one code smell. However, these categories will not be considered in the next analysis to avoid duplication of the results.

Table 2

shows the number of projects infected by code smells, categories of code smells, and architectural smells (Column #Inf.prj.), while the remaining columns report descriptive statistics. Regarding code smells, Complex Class, Long Method, and Long Parameter List were the most commonly detected ones in the projects (more than 100 projects). Swiss Army Knife, Message Chains, and Large Class were code smells infecting fewer projects (less than 11), while Base class Knows Derived Class, Blob Class, Functional Decomposition, and Tradition Breaker were not present in any of the analyzed projects.

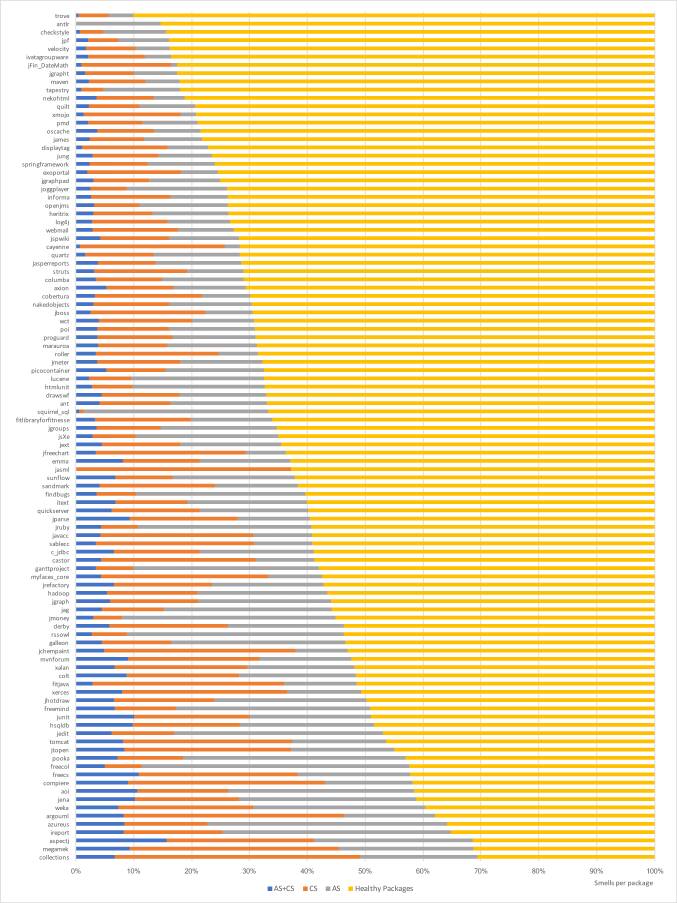

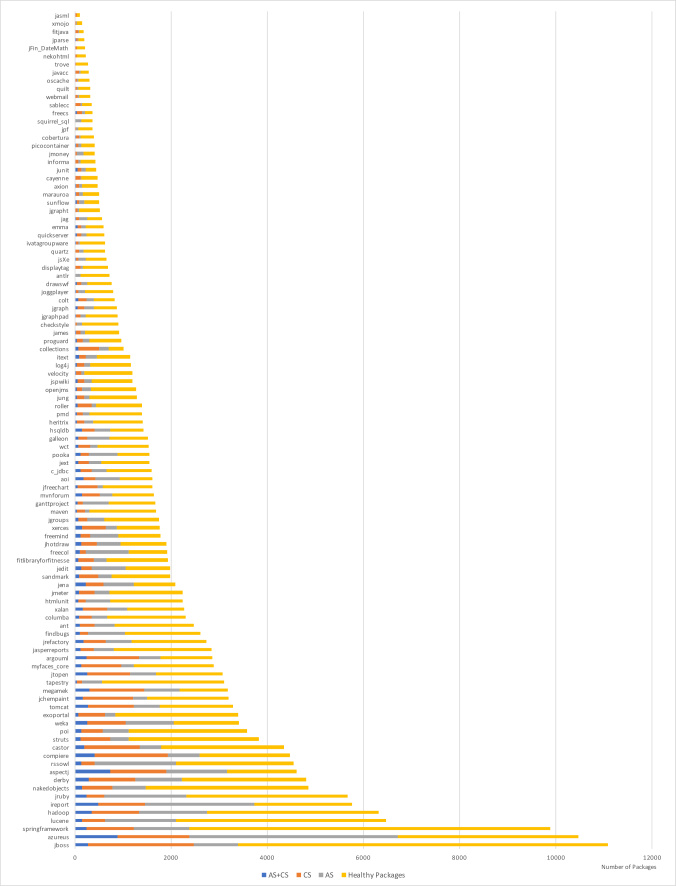

Figure 3 shows the number of classes infected by code smells and architectural smells (CS+AS), classes infected only by code smells (CS), classes infected only by architectural smells (AS), and healthy classes, i.e., classes without any smells (HC) in our data set. Moreover, Figure 4 shows the distribution of the same data per package.

Regarding the architectural smells, all the projects were infected by at least two architectural smells. The analysis revealed that 101 projects were infected by Cyclic Dependency, 100 were infected by Hub-Like Dependency, 95 were infected by Unstable Dependency, and 102 were infected by a Multiple Architectural Smell.

Table 10 (A) reports the details on the number of code smells and architectural smells detected in each project.

In Table 3, Table 4, Table 5, and Table 6, we report the results obtained from analyzing the AS-CS pairs, while in Table 7 we present the results for the AS-CS category pairs. These tables report the number of infected projects for each pair (column “#Inf. Prj.”), the number of infected projects where the results are statistically significant and their percentage up to the total number of infected projects (column “#Prj.(p0.05)”). Moreover, we also list the projects that reported a Kendall correlation higher than 0.5 (column “#Prj.(tau0.5)”).

As an example (Table 5), the pair composed of the architectural smell Unstable Dependency (UD) and the code smell Base Class Should be Abstract (BCSA) was detected in 54 projects (column ”#Inf.prj”), with 30 of them (55% of projects) having a significant statistical correlation with a p-value 0.05 (column ”#Prj.(p-value0.05”). However, only two projects have a correlation higher than 0.5 (column “#Prj. (tau 0.5)”) while the remaining ones (28 projects), which are not listed in the table, had a statistically significant result with a low correlation (tau 0.5). The column “Project” indicates the two projects with a correlation higher than 0.5.

We also performed the same analysis (AS-CS pairs and AS-CS category pairs) at the project level, trying to analyze all the classes together as belonged to a single project. The results did not change, as illustrated in Table 8 and Table 9. We report the correlation value (column ”tau

”) and the relative statistical hypothesis testing value (column ”

p-value”).

Name #Inf. per Project
prj. AVG Max Min StD
Code Smells
     Complex Class 103 147.90 914 1 163.23
     Duplicated Code 103 237.28 1830 0 357.67
     Long Method 102 178.88 1,251 0 197.58
     Long Parameter List 100 94.09 1,197 0 157.51
     Anti-Singleton 92 31.96 7.34 0 81.86
     Class Data should be Private 90 28.93 3.53 0 50.07
     Lazy Class 86 26.96 210 0 43.65
     Spaghetti Code 58 2.97 40 0 5.23
     Baseclass Abstract 54 3.84 65 0 8.49
     Refused Parent Bequest 42 6.38 139 0 19.33
     Speculative Generality 36 2.68 35 0 5
     Many Field Attr. not Complex 32 0.76 20 0 2.23
     Swiss Army Knife 11 1.39 76 0 8.22
     Message Chains 8 1.27 62 0 7.19
     Large Class 5 0.07 2 0 0.32
     Baseclass Knows Derived 0 - - - -
     Blob Class 0 - - - -
     Functional Decomposition 0 - - - -
     Tradition Breaker 0 - - - -
Category of Code Smells
The Bloaters 103 421.70 3,364 1 496.13
     The Dispensables 102 264.24 1,849 0 379.22
     The Obj.-Orientation Abusers 92 31.96 734 0 81.86
     The Change Preventers 58 2.97 40 0 5.23
     The Encapsulators 8 1.27 62 0 7.19
     The Obj.-Orientation Avoiders 0 - - - -
Architectural Smells
     Multiple Architectural Smell 102 6,148.02 162,531 0 22,176.7
     Cyclic Dependency 101 6,122.24 162,357 0 22,162.1
     Hub-Like Dependency 100 21.35 168 0 25.43
     Unstable Dependency 95 4.43 15 0 3.16
Table 2: Projects infected by code smells, a category of code smells, or architectural smells

In Table 10 (A), we report the number of architectural smells, categories of code smells, and code smells infecting each analyzed project.

In order to better understand the cases of positive correlations, we manually inspected all the 23 projects where we found pairs with a correlation higher than 0.5 with a p-value lower than 0.05. The result of the manual inspection did not yield any useful feedback. As an example, Anti-Singleton (ASG) is positively correlated with Cyclic Dependency only in the project xmojo. Manually inspecting its classes, we confirmed the presence of the four cyclic dependencies, where two cycles included one class per cycle also affected by ASG and one of the four cycles was also affected by a Spaghetti Code smell. The same class affected by Spaghetti Code was also affected by Hub-Like Dependency (HD). Other projects, such as Checkstyle, JParse, and Log4J reported a relatively higher number of AS and CS but their manual examination did not reveal any noticeable information.

AS CS #Inf.prj Prj.(p-value0.05) Prj.(tau0.5)
# % # prj. name
CD ASG 92 70 76 1 xmojo
BCSA 54 45 83 0 -
CC 102 92 90 1 freecs
DC 102 87 85 0 -
DsP 90 60 67 0 -
LC 5 1 20 0 -
LM 102 87 85 0 -
LPL 100 80 80 1 jparse
LzC 86 28 32 0 -
MFnC 32 10 31 0 -
MC 8 7 87 0 -
RPB 42 26 62 0 -
SC 58 40 69 1 xmojo
SG 36 22 61 0 -
SAK 11 6 54 0 -
Table 3: Projects infected by the Cyclic Dependency architectural smell (CD) and code smells (RQ1)
AS CS #Inf.prj Prj.(p-value0.05) Prj.(tau0.5)
# % # prj. name
HD ASG 92 80 89 1 jmoney
BCSA 54 50 92 2 checkstyle, jparse
CC 102 95 90 0 -
DC 102 91 89 0 -
DSP 90 80 89 2 checkstyle, jparse
LC 5 5 100 0 -
LM 102 94 94 0 -
LPL 100 93 93 0 -
LzC 86 78 91 0 -
MfNC 32 26 81 1 checkstyle
MC 8 7 87 0 -
RBP 42 37 88 1 checkstyle
SC 58 50 69 1 xmojo
SG 36 31 86 0 -
SAK 11 9 82 0 -
Table 4: Projects infected by the Hub-like Dependency architectural smell (HD) and code smells (RQ1)
AS CS #Inf.prj Prj.(p-value0.05) Prj.(tau0.5)
# % # prj. name
UD ASG 92 60 65 1 nekohtml
BCSA 54 30 55 2 log4j, picocontainer
CC 102 92 90 0 -
DC 102 84 82 0 -
DsP 90 63 70 0 -
LC 5 4 80 0 -
LM 102 82 80 0 -
LPL 100 68 68 0 -
LzC 86 36 42 0 -
MFnC 32 9 28 0 -
MC 8 5 62 0 -
RBP 42 23 55 0 -
SC 58 30 52 1 oscache
SG 36 17 2 log4j, picocontainer
SAK 11 8 72 0 -
Table 5: Projects infected by the Unstable Dependency architectural smell (UD) and code smells (RQ1)
AS CS #Inf.prj Prj.(p-value0.05) Prj.(tau0.5)
# % # prj. name
MAS ASG 92 66 72 0 -
BCSA 54 32 60 0 -
CC 102 90 88 0 -
DC 102 64 63 0 -
DsP 90 56 62 0 -
LC 5 0 0 0 -
LM 102 83 81 0 -
LPL 100 80 80 1 jparse
LzC 86 33 38 0 -
MFnC 32 7 22 0 -
MC 8 7 87 0
RBP 42 21 50 0 -
SC 58 36 62 1 xmojo
SG 36 21 58 0 -
SAK 11 7 63 0 -
Table 6: Projects infected by a Multiple Architectural Smell (MAS) and code smells (RQ1.1)
AS CS cat. #Inf.prj Prj.(p-value0.05) Prj.(tau0.5)
# % # prj. name
CD Bloat. 103 91 88 0 -
Disp. 102 74 72 0 -
OOA 98 73 75 0 -
HD Bloat. 103 95 92 0 -
Disp. 102 90 88 0 -
OOA 92 87 94 1 jmoney
UD Bloat. 102 87 85 0 -
Disp. 102 68 67 0 -
OAA 98 69 70 1 nekohtml
MAS Bloat. 102 88 86 1 jparse
Disp. 102 68 67 0 -
OOA 98 66 67 0 -
Table 7: Projects infected by architectural smells (RQ2) or Multiple Architectural Smells (RQ2.1) and by categories of code smells
Figure 3: Number of packages infected by code smells or architectural smells
Figure 4: Number of code smells and architectural smells per package
CS CD HD UD MAS
p-value tau p-value tau p-value tau p-value tau
ASG 0.03 0.04 0.03 0.32 0.04 0.14 0.00 0.19
BCSA 0.02 0.08 0.02 0.20 0.01 0.13 0.12 0.09
CC 0.01 0.13 0.04 0.31 0.01 0.03 0.00 0.23
DC 0.00 0.02 0.03 0.27 0.00 0.26 0.00 0.16
DsP 0.03 0.06 0.04 0.33 0.03 0.28 0.00 0.15
LC 0.72 0.35 0.03 0.36 0.00 0.08 0.23 0.04
LM 0.01 0.14 0.03 0.27 0.00 0.23 0.92 0.25
LPL 0.03 0.19 0.03 0.21 0.09 0.00 0.05 0.09
LzC 0.07 0.32 0.04 0.27 0.08 0.42 0.00 0.15
MFnC 0.60 0.23 0.04 0.27 0.08 -0.05 0.00 0.14
MC 0.01 0.10 0.04 0.19 0.00 0.12 0.00 0.33
RPB 0.05 0.06 0.04 0.31 0.08 -0.30 0.91 0.01
SC 0.05 0.18 0.03 0.36 0.06 0.18 0.11 0.04
SG 0.25 0.22 0.04 0.19 0.09 0.04 0.01 0.14
SAK 0.06 0.15 0.02 0.20 0.04 0.29 1.11 0.13
Table 8: Correlation between AS and CS. All projects merged as a single project (RQ1 and RQ1.1)
AS Bloat. Disp. OAA Encap. Change prev.
p-value tau p-value tau p-value tau p-value tau p-value tau
CD 0.02 0.32 0.03 0.17 0.03 0.16 0.64 0.10 0.17 0.11
HD 0.00 0.24 0.00 0.28 0.08 0.03 0.07 0.36 0.75 0.29
UD 0.03 0.12 0.03 0.14 0.05 0.19 0.21 0.05 0.87 0.26
MAS 0.06 0.23 0.11 0.13 0.16 0.17 0.33 0.00 0.28 0.05
Table 9: Correlation between AS and categories of CS. All projects merged as a single project (RQ2 and RQ2.1)

6 Discussion

In this Section, we will answer our Research Questions (RQs) based on the results obtained and described in Section 5 and derive the main lessons learned of this work.

6.1 RQ1:Is the presence of an architectural smell independent from the presence of code smells?

The results for RQ1 are presented in Table 3, Table 4, Table 5, and Table 8. We analyzed 45 combinations (AS-CS pairs composed of three architectural smells and 15 code smells ) for each of the 102 projects for a total of 4,590 analyses and for the data of all the projects merged together as a single project.

Regarding the analysis performed separately on 111 projects, we decided not to consider the combinations (CD-LC, CD-MC, CD-SAK), (HD-LC, HD-MC and HD-SAK), and (UD-LC, UD-MC and UD-SAK), due to the low number of infected projects (less than twelve). We found statistically significant results (p-value 0.05) for all the other combinations.

However, only 14 combinations in nine projects showed a correlation higher than 0.5. Moreover, the same combination of code smells and architectural smells was found in a maximum of two projects. For the other 40 combinations, we found low correlations (tau0.5) in a considerable number of projects (at least 32).

According to our results, the most interesting low correlations we found are related to SC (Spaghetti Code) CS with all the four AS considered, and ASG (Anti-Singleton) CS with three AS (CD, HD and UD).

Considering all the projects merged together, the results did not change and we found for the majority of the cases that the results were not statistically significant.

The results confirm our Hypothesis 0 since, based on the results of the 102 analyzed projects and the analysis of all the projects merged together as a single project, we were unable to identify any dependencies between architectural smells and code smells.

6.2 RQ1.1:Is the presence of a Multiple Architectural Smell independent from the presence of code smells?

The results for RQ1.1 are presented in Table 6 and Table 8. We analyzed 15 combinations (CS-MAS pairs composed of 15 code smells and a Multiple Architectural Smell) for each of the 102 projects (1,530 analyses) and for the data from all the projects merged together as a single project.

Regarding the analysis performed with 111 projects separately, we decided not to consider the combinations (MAS-LC), (MAS-MC), and (MAS-SAK), due to the low number of infected projects (less than twelve). We found statistically significant results (p-value 0.05) for the remaining 13 combinations. However, only two combinations in two different projects showed a correlation higher than 0.5. For the other eleven combinations we found low correlations (tau 0.5) in a considerable number of projects (at least 32).

According to our results, we found that only SC (Spaghetti Code) and LPL (Long Parameter List) have a low correlation with MAS.

Considering all the projects merged together, the results did not change and we found for the majority of the cases that the results were not statistically significant.

The results confirm our Hypothesis 0, since the presence of a Multiple Architectural Smell does not depend on the presence of code smells in the 102 analyzed projects.

6.3 RQ2:Is the presence of an architectural smell independent from the presence of a category of code smells?

In order to answer this RQ, we considered the three categories of code smells reported in Section 3.2: Bloaters (Bloat.), Dispensables (Disp), and Object Orientation Abusers (OOA). In this case, we considered all the code smells belonging to the same category as a single code smell.

The results obtained for RQ2 are shown in Table 7 and Table 9. We analyzed nine combinations of AS-CS (pairs composed of three categories of code smells and three architectural smells) for each of the 102 projects (918 analyses) and for the data from all the projects merged together as a single project.

Regarding the analysis performed with 111 projects separately, we found statistically significant results (p-value 0.05) for all the combinations. However, only two combinations with the same category of code smells (OOA) showed a correlation higher than 0.5 in two different projects, as shown in Table 7. For the other seven combinations, we found low correlations (tau 0.5) in a huge number of projects (at least 92). The results are similar to the one reported for the analysis of the non-categorized code smells in (Table 3, Table 4, and Table 5).

According to our results, the most interesting low correlations we found are between the category of Object-Oriented Abuser (OOA) smells and the two HD and UD architectural smells.

Considering all the projects merged together, the results did not change and we found for the majority of the cases that the results were not statistically significant.

We can accept our Hypothesis 0, since the presence of an architectural smell does not depend on the presence of a category of code smells. Even though three projects were infected by the same category of code smells, we were unable to consider the results since the sample was too small.

6.4 RQ2.1:Is the presence of a Multiple Architectural Smell independent from the presence of a category of code smells?

In order to answer this RQ, we considered the same category of code smells adopted in RQ2. The results obtained for RQ2.1 are shown in Table 7 and Table 9. We analyzed three combinations (CS-AS pairs composed of three categories of code smells and one Multiple Architectural Smell) for each of the 102 projects (306 analyses) and for the data from all the projects merged together as a single project.

Regarding the analysis performed with 111 projects separately, we found statistically significant results (p-value 0.05) for all the combinations. However, only one combination showed a correlation higher than 0.5, and only in one project. For the other three combinations, we found low correlations (tau 0.5) in a huge number of projects (at least 98).

According to our results, the most interesting low correlations we found are between the category the Bloater category and the MAS architectural smell.

We can accept Hypothesis 0, since the presence of a Multiple Architectural Smell does not depend on the presence of a category of code smells.

Considering all the projects merged together, the results did not change and we found for the majority of the cases that the results were not statistically significant. In conclusion we found very low correlations. Correlations in all the projects are very low, and merging the data did not help to increase the number of correlations.

6.5 Lessons Learned

Lesson Learned 1: An architectural smell or Multiple Architectural Smells do not depend on code smells. As we can see from the analysis, statistically significant results were found in all projects for all cases of AS-CS pairs, and for MAS-LPL (Multiple Architectural Smell-Long Parameters List) or MAS-SC (Spaghetti Code). However, some code smells were found to infect projects more frequently than others and therefore the results of the analyses are more reliable for them. Considering all the analyses (4,590 for RQ1 and 1,530 for RQ1.1), 58.8% of them provided statistically significant results and only 0.03% of them showed a correlation higher than 0.5.

Therefore, the main lesson learned from the analysis of these RQs is that architectural smells do not depend on code smells and therefore the refactoring of code smells does not decrease the chances of removing architectural smells. Moreover, the removal of an architectural smell does not imply the removal or reduction of code smells, either. Hence, developers can focus their attention on the refactoring of the more dangerous architectural smells.

Lesson Learned 2: An architectural smell or Multiple Architectural Smells do not depend on categories of code smells. In this case, too, 78% of them provided statistically significant results (918 for RQ2 and 306 for RQ 2.1), and only 0.3% of them showed a correlation higher than 0.5.

Even if we considered categories of code smells or some smells together, the results do not change, which confirms the need to analyze and remove smells at both levels, i.e., both code and architectural smells.

Oizumi et alOizumi et al. (2016) outlined that design problems, structures that violates fundamental design principles, can be located by not considering only syntactical agglomeration of code smells, but also the semantically ones. We have not considered semantically relations, but we considered categories of smells that can be viewed as a kind of semantically agglomeration. According to the categories we found correlations between the category of Object-Oriented Abuser (OOA) smells and the two HD and UD architectural smells and between the Bloater category of smells and the MAS architectural smell. Among the design problems considered in the study of Oizumi et al and our AS, only Cyclic Dependency problem is in common and according to the code smells only Long Method and Long Parameter List is in common, hence the results obtained in the two study are quite different and a next future development is related to consider the detection of other smells, that could be more relevant according to their impact on architectural problems . Moreover, we could remove from the code smells list of Section 3.1 those that could be seen more as design/architectural problems than problems at the code level, such as for example Swiss Army Knife and Spaghetti Code smells. Moreover, in the Oizumi paper the design problems have been identified through the developers feedbacks by creating a “ground truth” of design problems for the set of considered projects. We detected the architectural problems/smells through the Arcan tool. In conclusion, with respect to the results obtained we can observe that the relation between Spaghetti Code and all the other AS can be an expected relation. In any case all the correlations have been found in few projects.

The independence between issues at the code level detected using the Technical Debt Index provided by SonarQube and those at the architectural level detected using the Architectural Debt Index computed by Arcan has been evaluated in a previous study Roveda et al. (2018). Developers have to take care of both possible sources of debt, as removing code debt does not necessarily imply the reduction/removal of architectural debt and vice versa. The results described in this paper are in line with this previous result.

Lesson Learned 3: Code smells and architectural smells correlations have to be further investigated as we will outline in future developments. According to the results we found, we could expect to find a correlation between Spaghetti Code and all the AS, as well as Spaghetti Code and Long Parameter List with MAS. We have not find correlations between some code smells and architectural smells previously found in the literature, since the tools we used were not able to detect some of these smells, such as for example Feature Envy and Divergent Change CS and Scattered Functionality AS. Hence, it’s difficult to compare our results with previous results of the literature. For example in the work of Oizumi Oizumi et al. (2016) other AS (design problems) have been considered with the exception of Cyclic Dependency. They found that some code anomalies often flock together in order to embody a design problem. They analyzed not only syntactic agglomerations of code anomalies, but also the semantic ones, as possible indicators of design problems. We have not considered in our work these kinds of agglomerations, but we considered some categories of code smells. Moreover, in their work design problems have been identified through the developers feedbacks by creating a “ground truth” of design problems for the set of considered projects. While we detected the architectural problems/smells through an automated support . Hence, further investigations have to be done and this study can also be used to better design future analysis.

7 Threats to Validity

In this Section, we introduce the threats to validity, following the structure suggested by Yin Yin (2009), reporting construct validity, internal validity, external validity, and reliability. Moreover, we will also discuss the different tactics adopted to mitigate them.

7.1 Construct Validity

Construct Validity concerns the identification of the measures adopted for the concepts studied in this work. We used two widely accepted tools to measure code and architectural smells, but we are aware that other tools could have reported different results or could have detected other types of smells. To reduce the threat related to the data analysis technique adopted, we used Kendall rank correlation, since it has less gross error sensitivity enabling a more robust analysis with a smaller asymptotic variance Croux and Dehon (2010).

7.2 Internal Validity

Threats to Internal Validity concern factors that might have influenced the results obtained. Regarding this threat, the main issue is related to the detection accuracy of the adopted tools. For this purpose, we relied on existing detection tools already adopted in previous research studies. Regarding code smell detection, we relied on the DECOR rules. We would like to point out that the SonarQube ”Antipatterns-CodeSmell” plugin adopts the exact rules defined by Moha et al. Moha and Guéhéneuc (2007). We are aware that the results could be influenced by the presence of false negatives and positives. For this reason, Moha et al. reported a precision higher than 60% for DECOR and a recall of 100% on a selected set of projects. Moreover, in our previous work Taibi et al. (2017), two authors independently manually validated a subset of smell instances, reporting a mean precision of 78%. The results of the validation analyzed in Taibi et al. (2017) are also available in its replication package Taibi (2017).

The evaluation of Arcan’s detection performance in two industrial case studies based on the feedback of the developers is described in Arcelli Fontana et al. (2017), where the authors report a precision of 100%, since Arcan found only correct instances of architectural smells, and a recall of 66%. The developers reported five more architectural smells, which were false negatives related to 180 external components outside the tool’s scope of analysis. According to the recall value, some AS can be missed and therefore, we might have failed to detect some correlations. Moreover, the manual validation of the Arcan’s detection results has been done on ten open source projects d Arcelli Fontana et al. (2016) and a multiple case study on several architectural smells detected by Arcan has been conducted on four industrial projects  Martini et al. (2018), with the aim to evaluate the negative impact of the architectural smells based on the feedbacks from practitioners. According to this study practitioners appreciated the support of the automatic detection of AS provided by Arcan Martini et al. (2018).

Based on the previous assumptions, the presence of possible false positives and false negatives is mitigated also by the large sample of analyzed projects and by the high precision and recall values of the results of the two detection tools.

7.3 External Validity

Threats to External Validity concern the generalization of the results obtained. We cannot claim that our results fully represent every Java project. In order to mitigate this issue, we considered a large set of projects with different characteristics, in particular a set of 102 well-known Java projects included in the Qualitas Corpus data set. This data set includes projects from different domains, of different sizes, and with different architectures. Hence, this data set is representative and useful for reducing the possibility that the results might not be generalizable. As for the selection of the projects for this study, the adoption of Open Source projects instead of commercial ones, should not have influenced the results of this work. Open source projects are now considered at the same level of quality of closed source projects Lenarduzzi et al. (2019). Therefore, we hypothesized that commercial projects, in similar domains, would have reported a similar result. We have analyzed only Java projects, hence we can not generalize our results to projects in different programming languages.

We used two available tools to measure code and architectural smells. Not all of the defined code smells and architectural smells in the literature are detected by these tools. Hence, we cannot claim that our results will hold for any code smell or architectural smell. In order to mitigate this issue, we considered a large number of code smells, but other code smells can be considered in future work, such as for example the Feature Envy smell Fowler and Back (1999). The detection of this smell could have a significant impact on the results: when envying classes, or in the case of classes that are being envied and very scattered in a software project, this might actually represent an indicator of a design or architecture-level problem. While for architectural smells, we have considered only four architectural smells, since the availability of tools able to detect several architectural smells 444at least at the time when we performed this study. is reduced with respect to code smells Hence, we have to extend this study by considering other architectural smells and, in particular, other smells not focused only on dependency issues. To accomplish this task, we have to extend Arcan with the ability to detect such new architectural smells or use another available tool.

Moreover, to enable the replicability of this work, we provided a complete replication package Taibi (2017).

7.4 Reliability

Threats to Reliability refer to the correctness of the conclusions reached in the study. We applied non-parametric tests and rank-based correlation methods, as software metrics often do not have normal distributions. We used a standard R package to perform all statistical analyses since it allows simple replications and gives good confidence on the quality of the results.

8 Conclusion and Future Development

In this work, we conducted a large-scale empirical study investigating the correlations between code smells and architectural smells. We detected code smells and architectural smells in 102 Java projects of the Qualitas Corpus data set Terra et al. (2013) by means of two smell detection tools, the SonarQube ”Antipatterns-CodeSmells plugin” for code smells and Arcan for architectural smells.

We found empirical evidence on the independence between code smells and architectural smells. Therefore, we can assume that the presence of code smells does not imply the presence of architectural smells and vice versa. This result can be useful for developers, since they cannot focus only on the refactoring of code smells, but also need to pay particular attention to the more dangerous architectural smells. Moreover, this result can stimulate research in this direction to enhance the detection of architectural issues such as architectural smells. Also, it may provide an incentive for studying and providing support for the automated refactoring of AS.

Future work will include the replication of this work considering different projects and their historical evolution. In particular, we would like to consider projects in different categories and evaluate whether the domain of the project might have an impact on this study. We have to extend our study by considering other code and architectural smells. Regarding code smells, we have to consider at least the Feature Envy and Divergent Change smells, not detected by the tool we used. Hence, we could revisit the classification of CS in the different categories according to the new introduced CS. Regarding architectural smells, we have to consider a larger set of smells not focused only on dependency issues, such as those identified, for example, by Macia et al.Macia et al. (2012a) and Garcia et al.Garcia et al. (2009). To accomplish this task, we could extend Arcan to detect these new architectural smells or exploit any other tool available in the future. We are also working on the extension of Arcan to detect architectural smells in microservice architectures Taibi and Lenarduzzi (2018).

Research interest on architectural smells is increasing, and this will certainly lead to the development of new tools or the extension of the existing ones.

Therefore, we believe there is a need for more empirical investigations in this domain, so as to understand whether (a) the presence of other code smells implies the presence of one or more architectural smells; (b) the independence between architectural smells and code smells is still true when considering other architectural smells not currently detected by Arcan or by other available tools; (c) the results obtained are valid for other projects in different domains.

Moreover, as outlined by Kouroshfar et al. Kouroshfar et al. (2015), to improve the accuracy of bug prediction one should also take the software architecture of the project into consideration. Hence, in the near future we would like to study potential correlations between architectural smells and bugs as well as potential correlations with other issues detected through SonarQube Saarimäki et al. (2019).

References

References

  • Garcia et al. (2009) J. Garcia, D. Popescu, G. Edwards, N. Medvidovic, Identifying architectural bad smells, in: CSMR 2009, IEEE, Germany, 2009, pp. 255–258.
  • Ernst et al. (2015) N. A. Ernst, S. Bellomo, I. Ozkaya, R. L. Nord, I. Gorton, Measure it? manage it? ignore it? software practitioners and technical debt, in: Proceedings of the 2015 10th Joint Meeting on Foundations of Software Engineering, ESEC/FSE 2015, Bergamo, Italy, August 30 - September 4, 2015, pp. 50–60.
  • Nord et al. (2012) R. Nord, I. Ozkaya, P. Kruchten, M. Gonzalez-Rojas, In search of a metric for managing architectural technical debt, in: Proceedings of the 2012 Joint Working IEEE/IFIP Conference on Software Architecture (WICSA) and European Conference on Software Architecture (ECSA), IEEE, Helsinki, Finland, 2012, pp. 91–100.
  • Fowler and Back (1999) M. Fowler, K. Back, Refactoring: Improving the Design of Existing Code, Addison-Wesley Longman Publishing Co., Inc., Boston, MA, USA, 1999.
  • Palomba et al. (2018) F. Palomba, G. Bavota, M. D. Penta, F. Fasano, R. Oliveto, A. D. Lucia, On the diffuseness and the impact on maintainability of code smells: a large scale empirical investigation, Empirical Software Engineering 23 (2018) 1188–1221.
  • Hall et al. (2014) T. Hall, M. Zhang, D. Bowes, Y. Sun, Some code smells have a significant but small effect on faults, ACM Trans. Softw. Eng. Methodol. 23 (2014) 33:1–33:39.
  • Olbrich et al. (2009) S. Olbrich, D. S. Cruzes, V. Basili, N. Zazworka, The evolution and impact of code smells: A case study of two open source systems, in: Proceedings of the 2009 3rd International Symposium on Empirical Software Engineering and Measurement, ESEM ’09, IEEE Computer Society, Washington, DC, USA, 2009, pp. 390–400.
  • Sjoberg et al. (2013) D. I. K. Sjoberg, A. Yamashita, B. Anda, A. Mockus, T. Dyba, Quantifying the effect of code smells on maintenance effort, IEEE Trans. Softw. Eng. 39 (2013) 1144–1156.
  • Lozano and Wermellinger (2008) A. Lozano, M. Wermellinger, Assessing the effect of clones on changeability, in: IEEE International Conference on Software Maintenance, ICSM ’08, IEEE Computer Society, Washington, DC, USA, 2008, pp. 227–236.
  • Pietrzak and Walter (2006) B. Pietrzak, B. Walter, Leveraging code smell detection with inter-smell relations, in: P. Abrahamsson, M. Marchesi, G. Succi (Eds.), Extreme Programming and Agile Processes in Software Engineering, volume 4044 of Lecture Notes in Computer Science, Springer Berlin / Heidelberg, 2006, pp. 75–84.
  • Walter et al. (2018) B. Walter, F. A. Fontana, V. Ferme, Code smells and their collocations: A large-scale experiment on open-source systems, Journal of Systems and Software 144 (2018) 1–21.
  • Liu et al. (2012) H. Liu, Z. Ma, W. Shao, Z. Niu, Schedule of bad smell detection and resolution: A new way to save effort, IEEE Transactions on Software Engineering 38 (2012) 220–235.
  • Yamashita et al. (2015) A. Yamashita, M. Zanoni, F. Arcelli Fontana, B. Walter, Inter-smell relations in industrial and open source systems: A replication and comparative analysis, in: Proceedings of the 31st International Conference on Software Maintenance and Evolution (ICSME2015), IEEE, Bremen, Germany, 2015, pp. 121–130.
  • Li and Shatnawi (2007) W. Li, R. Shatnawi,

    An empirical study of the bad smells and class error probability in the post-release object-oriented system evolution,

    J. Syst. Softw. 80 (2007) 1120–1128.
  • Palomba et al. (2019) F. Palomba, M. Zanoni, F. A. Fontana, A. D. Lucia, R. Oliveto, Toward a smell-aware bug prediction model, IEEE Trans. Software Eng. 45 (2019) 194–218.
  • Deligiannis et al. (2003) I. Deligiannis, M. Shepperd, M. Roumeliotis, I. Stamelos, An empirical investigation of an object-oriented design heuristic for maintainability, Journal of Systems and Software 65 (2003) 127 – 139.
  • Bois et al. (2006) B. D. Bois, S. Demeyer, J. Verelst, T. Mens, M. Temmerman, Does god class decomposition affect comprehensibility?, in: IASTED Conf. on Software Engineering.
  • Macia et al. (2012a) I. Macia, R. Arcoverde, A. Garcia, C. Chavez, A. von Staa, On the relevance of code anomalies for identifying architecture degradation symptoms, in: Proceedings of the 15th European Conference on Software Maintenance and Reengineering (CSMR 2012), IEEE Computer Society, Szeged, Hungary, 2012a, pp. 277–286.
  • Macia et al. (2012b) I. Macia, J. Garcia, D. Popescu, A. Garcia, N. Medvidovic, A. von Staa, Are automatically-detected code anomalies relevant to architectural modularity?: An exploratory analysis of evolving systems, in: Proceedings of the 11th Annual International Conference on Aspect-oriented Software Development (AOSD ’12), ACM, Potsdam, Germany, 2012b, pp. 167–178.
  • Mäntylä and Lassenius (2006) M. V. Mäntylä, C. Lassenius, Subjective evaluation of software evolvability using code smells: An empirical study, Empirical Software Engineering 11 (2006) 395–431.
  • Tempero et al. (2010) E. Tempero, C. Anslow, J. Dietrich, T. Han, J. Li, M. Lumpe, H. Melton, J. Noble, The qualitas corpus: A curated collection of java code for empirical studies, in: Proc. 17th Asia Pacific Software Engineering Conference (APSEC 2010), IEEE, Sydney, Australia, 2010, pp. 336–345.
  • Arcelli Fontana et al. (2016) F. Arcelli Fontana, I. Pigazzini, R. Roveda, M. Zanoni, Automatic detection of instability architectural smells, in: Proc. 32nd Intern. Conf. on Software Maintenance and Evolution (ICSME 2016), IEEE, Raleigh, North Carolina, USA, 2016.
  • Kapser and Godfrey (2008) C. J. Kapser, M. W. Godfrey, ”cloning considered harmful” considered harmful: Patterns of cloning in software, Empirical Softw. Engg. 13 (2008) 645–692.
  • Schumacher et al. (2010) J. Schumacher, N. Zazworka, F. Shull, C. Seaman, M. Shaw, Building empirical support for automated code smell detection, in: Proceedings of the 2010 ACM-IEEE International Symposium on Empirical Software Engineering and Measurement, ESEM ’10, ACM, New York, NY, USA, 2010, pp. 8:1–8:10.
  • Olbrich et al. (2010) S. Olbrich, D. Cruzes, D. I. K. Sjoberg, Are all code smells harmful? a study of god classes and brain classes in the evolution of three open source systems, in: IEEE International Conference on Software Maintenance (ICSM 2010), p. 10.
  • Arcelli Fontana et al. (2011) F. Arcelli Fontana, E. Mariani, A. Morniroli, R. Sormani, A. Tonello, An experience report on using code smells detection tools, in: IEEE Fourth International Conference on Software Testing, Verification and Validation Workshops, RefTest 2011, IEEE, Berlin, 2011, pp. 450–457.
  • Palomba et al. (2015) F. Palomba, G. Bavota, M. D. Penta, R. Oliveto, D. Poshyvanyk, A. D. Lucia, Mining version histories for detecting code smells, IEEE Transactions on Software Engineering 41 (2015) 462–489.
  • Arcelli Fontana et al. (2015) F. Arcelli Fontana, V. Ferme, M. Zanoni, R. Roveda, Towards a prioritization of code debt: A code smell intensity index, in: Proc. Seventh International Workshop on Managing Technical Debt (MTD 2015), IEEE, Bremen, Germany, 2015, pp. 16–24. In conjunction with ICSME 2015.
  • Azadi et al. (2018) U. Azadi, F. A. Fontana, M. Zanoni, Machine learning based code smell detection through wekanose, in: Proceedings of the 40th International Conference on Software Engineering: Companion Proceeedings, ICSE 2018, Gothenburg, Sweden, May 27 - June 03, 2018, pp. 288–289.
  • Fokaefs et al. (2007) M. Fokaefs, N. Tsantalis, A. Chatzigeorgiou, Jdeodorant: Identification and removal of feature envy bad smells, in: 23rd IEEE International Conference on Software Maintenance (ICSM 2007), October 2-5, 2007, Paris, France, pp. 519–520.
  • Lanza and Marinescu (2006) M. Lanza, R. Marinescu, Object-Oriented Metrics in Practice, Springer, 2006.
  • Brown et al. (1998) W. Brown, R. C. Malveau, H. W. McCormick III, T. J. Mowbray, AntiPatterns: Refactoring Software, Architectures, and Projects in Crisis, John Wiley, 1998.
  • Lippert and Roock (2006) M. Lippert, S. Roock, Refactoring in Large Software Projects: Performing Complex Restructurings Successfully, Wiley, 2006.
  • Arcelli Fontana and Maggioni (2011) F. Arcelli Fontana, S. Maggioni, Metrics and antipatterns for software quality evaluation, in: Proceedings of the 34th IEEE Software Engineering Workshop (SEW 2011), IEEE, Limerick, Ireland, 2011, pp. 48–56.
  • Suryanarayana et al. (2015) G. Suryanarayana, G. Samarthyam, T. Sharma, Refactoring for Software Design Smells, Morgan Kaufmann, 1 edition, 2015.
  • hello2morrow (2015) hello2morrow, Sonargraph Product Family, 2015. https://www.hello2morrow.com/products/sonargraph.
  • Fontana et al. (2015) F. A. Fontana, V. Ferme, M. Zanoni, Towards assessing software architecture quality by exploiting code smell relations, in: Proceedings of the 2nd IEEE/ACM International Workshop on Software Architecture and Metrics (SAM 2015), Florence, Italy, pp. 1–7.
  • Mantyla et al. (2003) M. Mantyla, J. Vanhanen, C. Lassenius, A taxonomy and an initial empirical study of bad smells in code, in: Software Maintenance, 2003. ICSM 2003. Proceedings. International Conference on, pp. 381–384.
  • Moha and Guéhéneuc (2007) N. Moha, Y.-G. Guéhéneuc, Decor: a tool for the detection of design defects, in: Proc. 22nd IEEE/ACM international conference on Automated software engineering (ASE ’07), ACM, Atlanta, Georgia, USA, 2007, pp. 527–528.
  • Suryanarayana et al. (2014) G. Suryanarayana, G. Samarthyam, T. Sharma, Refactoring for Software Design Smells: Managing Technical Debt, Morgan Kaufmann Publishers Inc., San Francisco, CA, USA, 1st edition, 2014.
  • Macía Bertrán (2013) I. Macía Bertrán, On the Detection of Architecturally-Relevant Code Anomalies in Software Systems, Ph.D. thesis, PUC-Rio, Departamento de Informática, Rio de Janeiro, 2013.
  • Mo et al. (2015) R. Mo, Y. Cai, R. Kazman, L. Xiao, Hotspot patterns: The formal definition and automatic detection of architecture smells, in: Proceedings of the 12th Working IEEE/IFIP Conference on Software Architecture (WICSA 2015), IEEE, Montreal, QC, Canada, 2015, pp. 51–60.
  • Kazman et al. (2015) R. Kazman, Y. Cai, R. Mo, Q. Feng, L. Xiao, S. Haziyev, V. Fedak, A. Shapochka, A case study in locating the architectural roots of technical debt, in: Software Engineering (ICSE), 2015 IEEE/ACM 37th IEEE International Conference on, volume 2, pp. 179–188.
  • Xiao et al. (2014) L. Xiao, Y. Cai, R. Kazman, Titan: A toolset that connects software architecture with quality analysis, in: Proceedings of the 22Nd ACM SIGSOFT International Symposium on Foundations of Software Engineering (FSE 2014), ACM, Hong Kong, China, 2014, pp. 763–766.
  • Marinescu (2012) R. Marinescu, Assessing technical debt by identifying design flaws in software systems, IBM Journal of Research and Development 56 (2012) 9:1–9:13.
  • Le et al. (2015) D. M. Le, P. Behnamghader, J. Garcia, D. Link, A. Shahbazian, N. Medvidovic, An empirical study of architectural change in open-source software systems, in: 2015 IEEE/ACM 12th Working Conference on Mining Software Repositories, pp. 235–245.
  • Ganesh et al. (2013) S. Ganesh, T. Sharma, G. Suryanarayana, Towards a principle-based classification of structural design smells, Journal of Object Technology 12 (2013) 1:1–29.
  • Azadi et al. (2019) U. Azadi, F. Arcelli Fontana, D. Taibi, Architectural smells detected by tools: a catalogue proposal, in: Proceedings of International Conference on Technical Debt, TechDebt ’19.
  • Oizumi et al. (2016) W. N. Oizumi, A. F. Garcia, L. da Silva Sousa, B. B. P. Cafeo, Y. Zhao, Code anomalies flock together: exploring code anomaly agglomerations for locating design problems, in: Proceedings of the 38th International Conference on Software Engineering, ICSE 2016, Austin, TX, USA, May 14-22, 2016, pp. 440–451.
  • Oizumi et al. (2014) W. Oizumi, A. Garcia, M. Ferreira, A. von Staa, T. Colanzi, When code-anomaly agglomerations represent architectural problems? an exploratory study, in: Software Engineering (SBES), 2014 Brazilian Symposium on, pp. 91–100.
  • Guimaraes et al. (2014) E. Guimaraes, A. Garcia, Y. Cai, Exploring blueprints on the prioritization of architecturally relevant code anomalies – a controlled experiment, in: 2014 IEEE 38th Annual Computer Software and Applications Conference, pp. 344–353.
  • Khomh et al. (2012) F. Khomh, M. D. Penta, Y.-G. Guéhéneuc, G. Antoniol, An exploratory study of the impact of antipatterns on class change- and fault-proneness, Empirical Softw. Engg. 17 (2012) 243–275.
  • Riel (1996) A. J. Riel, Object-Oriented Design Heuristics, Addison-Wesley Longman Publishing Co., Inc., Boston, MA, USA, 1st edition, 1996.
  • Kpodjedo et al. (2011) S. Kpodjedo, F. Ricca, P. Galinier, Y.-G. Guéhéneuc, G. Antoniol, Design evolution metrics for defect prediction in object oriented systems, Empirical Software Engineering 16 (2011) 141–175.
  • Moha et al. (2010) N. Moha, Y. G. Gueheneuc, L. Duchien, A. F. L. Meur, DECOR: A method for the specification and detection of code and design smells, IEEE Transactions on Software Engineering 36 (2010) 20–36.
  • Taba et al. (2013) S. E. S. Taba, F. Khomh, Y. Zou, A. E. Hassan, M. Nagappan, Predicting bugs using antipatterns, in: Proceedings of the 2013 IEEE International Conference on Software Maintenance, ICSM ’13, IEEE Computer Society, Washington, DC, USA, 2013, pp. 270–279.
  • Marinescu (2004) R. Marinescu, Detection strategies: Metrics-based rules for detecting design flaws, in: Proceedings of the 20th IEEE International Conference on Software Maintenance, ICSM ’04, IEEE Computer Society, Washington, DC, USA, 2004, pp. 350–359.
  • Martin (2007) R. C. Martin, Agile Software Development: Principles, Patterns, and Practices, Prentice Hall, 2007.
  • Al-Mutawa et al. (2014) H. A. Al-Mutawa, J. Dietrich, S. Marsland, C. McCartin, On the shape of circular dependencies in java programs, in: Proc. 23rd Australian Software Engineering Conference (ASWEC 2014), IEEE, Sydney, Australia, 2014, pp. 48–57.
  • Arcelli Fontana et al. (2017) F. Arcelli Fontana, I. Pigazzini, R. Roveda, D. A. Tamburri, M. Zanoni, E. D. Nitto, Arcan: A tool for architectural smells detection, in: 2017 IEEE International Conference on Software Architecture Workshops, ICSA Workshops 2017, Gothenburg, Sweden, April 5-7, 2017, pp. 282–285.
  • Martini et al. (2018) A. Martini, F. Arcelli Fontana, A. Biaggi, R. Roveda, Identifying and prioritizing architectural debt through architectural smells: a case study in a large software company, in: Proc. of the European Conf. on Software Architecture (ECSA), Springer, Madrid, Spain, 2018.
  • Runeson and Höst (2009) P. Runeson, M. Höst, Guidelines for conducting and reporting case study research in software engineering, Empirical Softw. Engg. 14 (2009) 131–164.
  • Basili et al. (1994) V. R. Basili, G. Caldiera, H. D. Rombach, The goal question metric approach, Encyclopedia of Software Engineering (1994).
  • Shull et al. (2007) F. Shull, J. Singer, D. I. Sjøberg, Guide to Advanced Empirical Software Engineering, Springer-Verlag, Berlin, Heidelberg, 2007.
  • Terra et al. (2013) R. Terra, L. F. Miranda, M. T. Valente, R. S. Bigonha, Qualitas.class Corpus: A compiled version of the Qualitas Corpus, Software Engineering Notes 38 (2013) 1–4.
  • Taibi (2017) D. Taibi, Raw data: Are architectural smells independent from code smells? an empirical study, https://data.mendeley.com/datasets/tnhk383zvz/, 2017.
  • Martin (1995) R. C. Martin, Object oriented design quality metrics: An analysis of dependencies, ROAD 2 (1995).
  • Croux and Dehon (2010) C. Croux, C. Dehon, Influence functions of the spearman and kendall correlation measures, Statistical Methods & Applications 19 (2010) 497–515.
  • Roveda et al. (2018) R. Roveda, F. Arcelli Fontana, I. Pigazzini, M. Zanoni, Towards an architectural debt index, in: Proceedings of the Euromicro Conference on Software Engineering and Advanced Applications (SEAA), Technical Debt track, IEEE, Prague, Czech Republic, 2018.
  • Yin (2009) R. K. Yin, Case Study Research: Design and Methods, 4th Edition (Applied Social Research Methods, Vol. 5), SAGE Publications, Inc, 4th edition, 2009.
  • Taibi et al. (2017) D. Taibi, A. Janes, V. Lenarduzzi, How developers perceive smells in source code: A replicated study, Information and Software Technology 92 (2017) 223 – 235.
  • Lenarduzzi et al. (2019) V. Lenarduzzi, , D. Tosi, L. Lavazza, S. Morasca, Why do developers adopt open source software? past, present and future, in: 15th International Conference on Open Source Systems (OSS2019).
  • Terra et al. (2013) R. Terra, L. F. Miranda, M. T. Valente, R. S. Bigonha, Qualitas.class Corpus: A compiled version of the Qualitas Corpus, Software Engineering Notes 38 (2013) 1–4.
  • Taibi and Lenarduzzi (2018) D. Taibi, V. Lenarduzzi, On the definition of microservice bad smells, IEEE Software 35 (2018) 56–62.
  • Kouroshfar et al. (2015) E. Kouroshfar, M. Mirakhorli, H. Bagheri, L. Xiao, S. Malek, Y. Cai, A study on the role of software architecture in the evolution and quality of software, in: Proceedings of the 12th Working Conference on Mining Software Repositories, MSR ’15, IEEE Press, Piscataway, NJ, USA, 2015, pp. 246–257.
  • Saarimäki et al. (2019) N. Saarimäki, V. Lenarduzzi, D. Taibi, On the diffuseness of code technical debt in open source projects, International Conference on Technical Debt (TechDebt 2019) (2019).

Appendix A The analyzed projects

Project Architectural Smells Category of Code Smells Code Smells

UD

HL

CD

MAS

Bloat.

Disp.

Enc.

OOA

AS

BCSA

DsP

CC

DC

LC

LzC

LM

LPL

MFnC

MC

RPB

SC

SG

aoi 6 7 11110 11123 225 191 42 31 31 0 42 78 188 0 3 108 39 0 0 0 3 0
argouml 3 25 1833 1861 854 1344 62 17 17 3 61 333 1294 0 50 429 89 3 1 0 6 2
aspectj 8 52 48064 48124 974 1564 353 93 93 5 353 437 1501 0 63 352 183 2 0 6 10 2
axion 1 5 158 164 85 40 8 3 3 0 8 31 39 0 1 46 7 1 0 0 0 0
azureus 6 168 162357 162531 1193 704 173 139 139 65 111 428 494 0 210 462 303 0 62 139 19 25
cjdbc 7 35 1632 1674 365 136 21 54 54 0 21 140 132 0 4 165 60 0 0 0 6 0
castor 9 58 1510 1577 1511 1017 32 11 11 4 32 511 956 0 61 573 427 0 0 4 4 1
cayenne 2 1 12 15 1241 552 18 25 25 4 18 479 343 0 209 655 106 1 0 32 0 25
checkstyle 4 3 253 260 446 50 10 5 5 2 10 186 50 0 0 158 100 2 0 2 0 0
cobertura 6 4 38 48 78 49 26 3 3 2 26 30 48 0 1 31 17 0 0 0 0 0
collections 4 5 360 369 241 411 2 2 2 1 2 77 409 0 2 107 57 0 0 0 0 4
colt 6 9 885 900 85 109 6 22 22 1 6 17 95 0 14 50 18 0 0 2 5 0
columba 5 60 2294 2359 623 146 24 29 29 0 24 169 134 0 12 253 201 0 0 0 0 0
compiere 9 19 8282 8310 1351 1292 81 734 734 2 81 412 1265 2 27 516 415 6 0 1 5 1
derby 4 51 9648 9703 1455 739 163 98 98 11 163 542 581 0 158 604 303 6 0 9 16 6
displaytag 1 5 117 123 197 81 0 2 2 2 0 61 81 0 0 79 57 0 0 1 0 0
drawswf 2 14 364 380 102 57 7 12 12 10 7 40 55 0 2 53 9 0 0 10 0 1
emma 3 8 187 198 79 41 19 0 0 0 19 21 39 0 2 28 30 0 0 0 0 3
exoportal 0 49 370 419 998 269 44 77 77 11 44 263 228 0 41 357 377 1 0 8 7 3
findbugs 10 13 9111 9134 449 97 14 34 34 0 14 174 72 0 25 202 72 1 0 0 6 0
fitjava 2 0 32 34 32 77 31 15 15 1 31 9 75 0 2 15 8 0 0 0 0 1
fitlibraryforfitnesse 6 38 2436 2480 607 161 75 27 27 11 75 152 102 0 59 229 224 2 0 4 3 0
freecol 15 20 41088 41123 323 86 6 6 6 0 6 123 81 0 5 159 41 0 0 0 0 0
freecs 4 6 742 752 78 66 26 13 13 0 26 27 66 0 0 29 21 1 0 0 0 0
freemind 9 16 4350 4375 181 54 48 27 27 10 11 64 43 0 11 89 28 0 37 34 6 3
galleon 8 6 1788 1802 153 125 18 20 20 0 18 66 125 0 0 50 37 0 0 0 3 0
ganttproject 5 20 1852 1877 222 51 16 13 13 0 16 79 39 0 12 103 39 1 0 0 3 0
hadoop 9 48 6865 6922 994 789 46 103 103 11 46 326 753 0 36 550 117 1 0 10 11 6
heritrix 6 16 996 1018 261 63 20 37 37 0 20 89 61 0 2 138 34 0 0 0 1 0
hsqldb 9 11 10606 10626 257 193 44 42 42 3 44 112 162 1 31 109 35 0 0 1 8 0
htmlunit 2 7 10408 10417 357 118 0 0 0 0 0 176 117 0 1 178 3 0 0 0 0 0
informa 3 3 49 55 65 42 0 8 8 4 0 24 42 0 0 31 10 0 0 3 0 0
ireport 9 44 14344 14397 893 838 36 39 39 1 36 303 829 2 9 270 318 0 0 1 8 0
itext 6 6 3519 3531 215 89 18 17 17 0 18 113 63 1 26 73 28 0 0 0 3 0
ivatagroupware 3 20 14 37 105 25 2 1 1 0 2 38 19 0 6 44 23 0 0 0 0 0
jag 1 7 422 430 72 29 13 11 11 0 13 19 20 0 9 30 23 0 0 0 4 0
james 3 6 100 109 144 67 2 1 1 0 2 56 60 0 7 81 7 0 0 1 0 1
jasml 0 0 0 0 21 5 27 3 3 0 27 10 3 0 2 4 5 2 0 0 0 0
jasperreports 7 21 1829 1857 820 306 0 3 3 1 0 285 300 0 6 282 253 0 0 0 1 0
javacc 4 2 47 53 70 57 38 23 23 2 38 30 54 0 3 28 11 1 0 0 9 0
jboss 9 93 2658 2760 3364 1501 305 358 358 17 305 914 1330 0 171 1251 1197 2 0 11 40 3
jchempaint 5 37 1737 1779 914 823 38 44 44 4 38 386 693 0 130 426 102 0 0 1 8 0
jedit 8 14 11509 11531 257 138 47 22 22 1 47 104 89 0 49 131 20 2 0 1 0 0
jena 6 21 6257 6284 324 117 71 115 115 28 66 134 73 0 44 153 36 1 5 71 13 7
jext 6 13 1255 1274 277 153 27 16 16 1 27 124 150 0 3 123 29 1 0 1 2 0
jFin DateMath 0 2 0 2 48 20 3 3 3 0 3 19 18 0 2 25 4 0 0 0 0 0
jfreechart 9 15 245 269 440 331 5 29 29 0 5 134 326 0 5 214 92 0 0 0 1 0
jgraph 6 8 908 922 81 67 37 44 44 0 37 26 56 0 11 44 11 0 0 0 0 0
jgraphpad 4 4 186 194 166 35 21 32 32 0 21 56 35 0 0 64 46 0 0 1 3 1
jgrapht 1 6 58 65 96 19 8 2 2 0 8 33 16 0 3 58 5 0 0 0 0 0
jgroups 4 7 859 870 301 144 13 24 24 1 13 113 135 1 9 169 18 0 0 1 1 0
jhotdraw 8 22 827 857 356 274 9 8 8 4 9 140 241 0 33 146 70 0 0 0 0 0
jmeter 7 35 4464 4506 498 222 1 0 0 0 1 117 170 0 52 196 185 0 0 0 0 0
jmoney 0 3 302 305 34 14 0 4 4 1 0 10 7 0 7 14 10 0 0 0 0 0
joggplayer 3 3 212 218 122 18 13 16 16 1 13 41 16 0 2 44 37 0 0 0 5 0
jparse 1 1 122 124 41 21 7 3 3 1 1 14 21 0 0 15 12 0 6 0 1 0
jpf 1 2 42 45 35 8 0 4 4 0 0 11 7 0 1 19 5 0 0 0 0 0
jrefactory 4 37 2901 2942 805 309 33 23 23 29 27 260 309 0 0 310 233 2 6 74 6 5
jruby 12 46 147592 147650 636 208 68 45 45 9 68 304 179 0 29 272 58 2 0 4 9 6
jspwiki 6 17 1610 1633 317 61 9 26 26 0 9 80 60 0 1 139 98 0 0 0 0 0
jsXe 6 7 368 381 72 29 6 2 2 0 6 24 14 0 15 34 12 2 0 0 0 1
jtopen 1 3 3690 3694 982 748 10 50 50 0 10 461 655 0 93 311 209 1 0 0 6 0
jung 2 14 200 216 173 112 6 10 10 0 6 48 112 0 0 92 33 0 0 0 2 0
junit 2 11 183 196 79 49 3 3 3 7 3 15 46 0 3 35 29 0 0 17 1 6
log4j 3 13 411 427 190 91 3 11 11 2 3 61 89 0 2 107 22 0 0 0 2 1
lucene 2 66 3786 3854 608 364 44 26 26 3 44 190 353 0 11 284 134 0 0 0 2 4
marauroa 5 12 264 281 94 30 6 0 0 0 6 26 28 0 2 57 11 0 0 0 0 0
maven 6 27 691 724 331 99 1 0 0 5 1 115 80 0 19 149 67 0 0 5 0 1
megamek 4 20 11532 11556 581 1076 61 24 24 1 61 387 1076 0 0 182 7 5 0 1 6 0
mvnforum 3 26 1071 1100 331 294 10 18 18 1 10 118 240 0 54 128 85 0 0 1 2 0
myfaces core 7 41 1267 1315 924 1849 5 5 5 16 5 294 1830 0 19 299 331 0 0 53 0 35
nakedobjects 2 99 2578 2679 1082 322 44 34 34 0 44 398 223 0 99 557 127 0 0 0 2 1
nekohtml 1 2 15 18 13 15 0 1 1 0 0 6 6 0 9 7 0 0 0 0 0 0
openjms 2 19 301 322 230 60 0 3 3 0 0 64 46 0 14 127 39 0 0 0 0 0
oscache 1 4 45 50 63 8 5 9 9 0 5 16 8 0 0 25 22 0 0 0 1 0
picocontainer 1 4 129 134 53 11 0 0 0 1 0 21 7 0 4 32 0 0 0 18 0 1
pmd 2 17 310 329 379 77 18 5 5 4 18 120 52 0 25 167 92 0 0 2 0 2
poi 13 43 3491 3547 956 306 25 20 20 7 25 408 270 0 36 432 113 3 0 0 1 2
pooka 7 8 10070 10085 113 93 64 48 48 22 53 29 75 0 18 74 10 0 11 12 5 1
proguard 2 15 287 304 278 34 73 1 1 0 73 118 34 0 0 124 35 1 0 0 1 0
quartz 1 8 198 207 93 48 0 0 0 0 0 31 44 0 4 45 17 0 0 0 0 0
quickserver 1 6 288 295 89 57 13 9 9 0 13 29 57 0 0 38 22 0 0 0 1 0
quilt 0 3 70 73 48 10 7 6 6 0 7 8 10 0 0 23 17 0 0 0 0 0
roller 6 23 371 400 402 190 45 54 54 0 45 96 189 0 1 165 141 0 0 0 5 0
rssowl 10 51 17009 17070 254 192 37 39 39 0 37 95 111 0 81 110 29 20 0 0 2 0
sablecc 1 1 44 46 92 80 11 4 4 0 11 25 49 0 31 30 37 0 0 0 3 0
sandmark 2 23 760 785 403 185 76 37 37 14 76 149 168 0 17 185 69 0 0 24 2 2
springframework 7 100 3604 3711 2075 815 36 27 27 2 36 614 719 0 96 777 683 1 0 1 0 0
squirrelsql 0 2 231 233 19 1 0 0 0 0 0 6 0 0 1 12 1 0 0 0 0 0
struts 5 43 1241 1289 790 431 30 30 30 4 30 331 397 0 34 433 26 0 0 3 7 1
sunflow 3 7 850 860 94 33 4 0 0 0 4 35 33 0 0 37 22 0 0 0 0 0
tapestry 7 29 971 1007 745 49 5 5 5 0 5 245 49 0 0 395 105 0 0 0 0 0
tomcat 5 35 1891 1931 612 909 22 68 68 3 22 229 795 0 114 263 119 1 0 3 10 1
trove 0 0 17 17 22 8 0 0 0 0 0 8 5 0 3 9 5 0 0 0 0 0
velocity 2 14 287 303 172 53 11 4 4 0 11 64 52 0 1 92 15 1 0 0 0 0
wct 4 35 685 724 259 162 8 7 7 0 8 99 126 0 36 141 19 0 0 0 0 0
webmail 4 7 117 128 50 29 2 4 4 1 2 17 27 0 2 29 4 0 0 2 0 0
weka 4 32 5179 5215 654 639 56 85 85 0 56 206 578 0 61 334 114 0 0 0 4 0
xalan 4 21 8027 8052 567 439 33 7 7 10 33 223 313 0 126 228 115 1 0 8 1 5
xerces 2 12 1130 1144 367 439 31 13 13 5 31 116 409 0 30 104 146 1 0 0 2 0
xmojo 0 1 4 5 10 16 3 2 2 0 3 3 14 0 2 6 1 0 0 0 1 0
antlr 4 8 601 613 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
ant 5 13 2511 2529 551 152 11 3 3 24 8 135 102 0 50 213 203 0 3 74 1 3
Table 10: Number of Architectural Smells, Category of Code Smells, and Code Smells infecting the analyzed projects
