Temporal data has an intrinsic time component that is present in most real-world applications (i.e., sensor measurements, the stock-market etc). A time series is a sequence of time-ordered data values that measures some process. Time-dependent data-center traffic is an example of a time-series.
Forecasting is an important task in time-series application. Forecasting can be for several years in advance for organizational planning or a few seconds ahead for operational automation. To have an accurate forecast, we have to understand whether there are any factors that influence the process, and whether the process can influence itself. We set the scope of this paper to fully auto-regressive time-series and focus on medium to large volume data.
While many advanced forecasting methods have previously been developed, we focus on the more fundamental and most commonly used auto-regression (AR) based time-series models. Auto-regressive models are remarkably flexible at handling a wide range of different time series patterns [hyndman2014forecasting] and have been widely used in practice. Statistical models exploit the inherent characteristics of a time series, leading to a concise model. This is possible because the model makes strong assumptions about the data, such as the true order of the AR-process. The order of an AR() process is defined as the number of previous values of the time-series (lags) upon which the next value is dependent. AR processes with a high -order are important for monitoring fine granularity data (e.g., minutes, seconds, milliseconds), and for long-range dependencies, where values long past still influence future outcomes. Prevalent operational use-cases are data centers, wireless networks or Internet of Things (IoT) applications [Ma_2017, wireless_neural]. The parameters of an AR model are traditionally fitted using least squares (Classic-AR). Unfortunately, when modelling long-range dependencies the fitting procedure of Classic-AR models with a large -order can become impractically slow, as we will demonstrate in this paper.
To overcome the scalability challenges, the time-series community has started to adopt deep learning methods such as Recurrent Neural Networks (RNN) and Convolutional Neural Networks (CNN). However, in their current form, RNNs and CNNs are designed for rich natural language processing or imaging data, making them too complex for most time-series applications. Their adoption has been further limited by the difficulty to make the models explainable to decision stakeholders.
However, there are two attributes which make general neural networks attractive for time-series modeling. First, neural networks have general nonlinear function mapping capability which can approximate any continuous function. Hence, it is capable of solving many complex problems, given adequate data. Second, a neural network is a non-parametric data-driven model and it does not require restrictive assumptions on the underlying process from which data are generated. Because of this feature, it is less susceptible to model mis-specification problems compared to most parametric nonlinear methods [Hornik:1989:MFN:70405.70408, Cybenko1989]
. This is an important advantage since time-series modeling does not show a specific nonlinear pattern. Different time-series may have unique behavior not captured by a parametric model.
In this paper
We discuss the parallels between Feed-Forward Neural Networks (FF-NN) and Classic-AR models to overcome scalability issues, while ensuring interpretability and model simplicity. We use auto-regression to explain the system dynamics and learn the parameters with a neural network, termed AR-Net. While designing AR-Net we focused on model simplicity and interpretability. Our goal was to re-introduce the time-series community to deep learning by providing an interpretable, fast and easy to use alternative to Classic-AR. Specifically, in this paper we show that:
AR-Net in its basic form is as interpretable as Classic-AR, as they learn near identical parameters.
AR-Net scales well to large
-orders, making it possible to estimate long-range dependencies (important in high resolution monitoring applications).
AR-Net automatically selects and estimates the important coefficients of a sparse AR process, thus eliminating the need to know the true order of the AR process.
In section 2, we review relevant previous work. Next, we describe how we introduced AR dynamics and sparsity into the model in section 3. In section 4, we compare AR-Net and Classic-AR model performance and behavior on time series data. Finally, we summarize our work and vision for future work in section 5. We include a review of neural networks and fitting procedures as an appendix in section 6.
2 Related Work
Models such as (S)ARIMA(X) and Prophet[prophetarticle], exploit the inherent characteristics of a time series, leading to a more concise model. This is possible because the model makes strong assumptions about the data, such as the true order of the AR-process, the trend or the seasonality. These models, however, do not scale well for a large volume of training data and are hard to extend, particularly if there are long-range dependencies or complex interactions [Sutskever:2014:SSL:2969033.2969173].
To overcome the scalability challenges, ‘sequence-to-sequence’ deep learning methods based on recurrence or convolution, have been successfully developed in natural language processing. The most prominent examples being recurrent neural networks (RNN), such as the long short term memory cell (LSTM)[LSTM], attention [attention] or convolution based approaches such as Wavenet [wavenet]. Recently, they have also become popular in the time-series community, as they allow for a more expressive model without the need to engineer elaborate features ([NIPS2014_5346], [cond_wavenet], [DBLP:journals/corr/CuiCC16], [DBLP:journals/corr/abs-1903-02540]).
While these models scale well to applications with rich data, they can be overly complex for typical time-series data. Another reason why RNNs have not been widely adopted for time-series applications is that they are generally regarded as “black boxes” by practitioners. Though their complex parameter interactions are interpretable to some extent (e.g., LIME[LIME], SHAP[SHAP]), they are difficult to interpret compared to AR-based models, restricting their adoption in practice where model explainability is key.
It has become increasingly accessible for practitioners to train deep learning models with a framework like Keras[chollet2015keras] without actually understanding the model dynamics. As a consequence, some research papers blindly apply a popular model to a time-series problem, without evaluating whether it is suited for the application. The resulting conclusions have little to no meaning, often mis-leading other practitioners to a wrong understanding of deep-learning. An example is [badexample], where the authors compare a host of models, among which an LSTM, evaluated on time-series with ten to one hundred entries. With standard Keras parameters, the LSTM is over-parametrized by multiple magnitudes, leading to a meaningless comparison with simpler statistical models. The authors conclude that statistical models are better for time-series modelling. Other similar work [10.1371/journal.pone.0194889, 10.1371/journal.pone.0211057, DBLP:journals/corr/ChePCSL16] point to the need of adequate and easy-to-understand deep learning method for time-series modelling.
The closest work to ours is that of [Tang93feed-forwardneural], where the authors have compared neural networks as models for time series forecasting with those of the Box-Jenkins methods for long and short term memory series. The experiments indicate that for time series with long memory, both methods produced comparable results. However, for series with short memory, neural networks outperformed the Box-Jenkins model. Because neural networks can be easily built for multiple-step-ahead forecasting, they may present a better long term forecast model than the Box-Jenkins method. We add to their work by explicitly drawing the parallels between while focusing on concrete benefits of a neural network, targeting scalability and ease of use.
The majority of the time-series related literature focuses on complex models. Our research, however, makes a more fundamental observation about the differences between neural networks and the simplest classical auto-regressive (AR) model. We focus on simple feed forward neural networks to promote explainability and simplicity that parallels classical time-series models with the added benefits of scalability. We intentionally did not use more powerful methods, such as modeling latent states with recurrent networks or convolution because our goal was to bridge, not widen, the gap between traditional time-series and deep learning methods. We hope to show with AR-Net that deep learning models can be simple, interpretable, fast and easy to use, so that the time-series community may consider deep learning a viable option.
We formulate a simple neural network that mimics the Classic-AR model, with the only difference being how they are fitted to data. Our model termed AR-NetAR-Net is identically interpretable as a Classic-AR model and scales to large -orders. As we discuss in the future work section, our vision is to leverage more powerful temporal modeling techniques of deep learning without sacrificing interpretability via explicit modeling of time-series components.
As we need knowledge of the true underlying AR coefficients in order to quantitatively evaluate the quality of the fitted weights, we use synthetic data. We generate the data with a noisy AR-process. For each run, random AR coefficients are sampled and a new time-series is generated with random normal noise of one standard deviation. The sampled weights are scaled to. Unless otherwise specified, the generated time-series is 125,000 samples long, split into 100,000 samples for training and the last 25,000 samples for testing.
In the sparse AR experiments, we fix the AR-parameters to in order to reduce randomness introduced by possibly unstable AR-parameter combinations. We still generate each time-series with new random noise. As most neural-network based methods are known to need large datasets, we further do some special experiments on a time-series with only 1000 samples for training and 1000 samples for testing to demonstrate that our method is also suited for medium sized datasets.
3.2 Classic-AR Model
In an auto-regressive model, we forecast the variable of interest using a linear combination of past values of the variable. The term “auto” in Auto-Regression (AR) indicates that the variable is regressed against itself [hyndman2014forecasting]. This is like a multiple regression but with lagged values of the time-series as predictors. We refer to this as an AR model, an auto-regressive model of order . An AR model of order can be written as:
Where are the lag terms used to predict and
is white noise. Theweights , by which each of the lags is multiplied, are also referred to as the AR-coefficients. As baseline, we use a traditional implementation of the auto-regressive model, fitted with least squares. We will refer to this model as Classic-AR.
3.3 AR-Net Model
We propose AR-Net which mimics the traditional AR process with a neural network. It is designed such that that the parameters of its first layer are equivalent to the AR-coefficients (see figure 0(a)). AR-Net can optionally be extended with hidden layers to achieve greater forecasting accuracy, at the cost of direct interpretability (see figure 0(b)). In this paper, we will only evaluate the AR-Net model structure without hidden layers.
In order to fit the AR-Net model to the same objective as Classic-AR optimized by least squares, we define the loss term to be Mean Squared Error (MSE). We could use any other loss here, such as the Hinge-loss, but for the sake of comparability with Classic-AR, we use MSE:
3.3.1 Sparse AR-Net
In order to relax the constraint of knowing the true AR order, we can fit a larger model with sparse AR coefficients. This will also do away with the assumption that the AR-coefficients must consist of consecutive lags. We achieve this by adding a regularization term to the loss being minimized.
For normalized data, the only parameter to be set is the estimated or desired sparsity of the AR-coefficients. The regularization strength can be set manually or simply as a function of the estimated noise standard deviation . We experimented with different regularization functions , including the known -regularization (“Lasso”). However, our regularization objective is different from most applications. We do not want to discourage large weights, like an -norm or -norm would. Instead we want to encourage the optimizer to set small weights to zero while keeping the other weights untouched. For us it is important that the actual weights are not regularized to be smaller than their unregularized optima, as they actually represent the AR coefficients. Our regularization function achieves this by having a large gradient close to zero and then quickly decreasing closer to one. Like this, the gradients of regularized weights further from zero basically vanish. We achieve this behavior by using a modified combination of a root and sigmoid transform of the absolute weight values:
The regularization curve parameters , depend on the AR-coefficients range. For normalized data, with AR-coefficients in range , and work ideally. For unnormalized data, we found a regularization function composed of a simple square root transform to work well. However, it does penalize larger weights unnecessarily. We include it here for completeness, though we did not use it in the presented results:
We compared the models based on two metrics. Primarily, we evaluated the precision of the fitted AR-coefficients compared to the true AR-coefficients of the AR-process used to generate the data. Secondarily, we evaluated their one-step-ahead forecast performance.
The precision of the fitted AR-coefficients is measured by their symmetrical Total Percentage Error (sTPE), defined as:
where depicts the fitted AR-coefficients by the model and the true AR-coefficients.
The Mean Squared Error (MSE) of the one-step ahead forecast is given by:
where depicts the predicted next value by the model and the true next value of the time-series.
In our experiments, we compared AR-Net and Classic-AR based on precision of their fitted AR-coefficients (sTPE). We made sure, that their on forecasting performance (MSE) remained close to ideal. Due to computational time constraints, experiments for Classic-AR with could not be conducted.
4.1 Learning AR-Coefficients
The first set of experiments examined whether AR-Net can accurately learn the dynamics of an AR-process. For each experiment, we produced ten noisy AR-process time series for each order of . We then estimated the AR-parameters via classic least squares and via SGD on the same time-series. Note that here we assume to have knowledge of the true p-order of the AR-process.
Figure 1(a) shows that the precision of weights learned by AR-Net is identical to AR. In terms of forecasting performance (MSE), we found no difference between the Classic-AR and AR-Net results. Though the fitting mechanisms were different, both algorithms were fitted to minimize the squared error of a one-step-ahead forecast. In figure 1(b) we can see that the mean squared errors of both models were near 1.0, same as the amount of noise in the time-series.

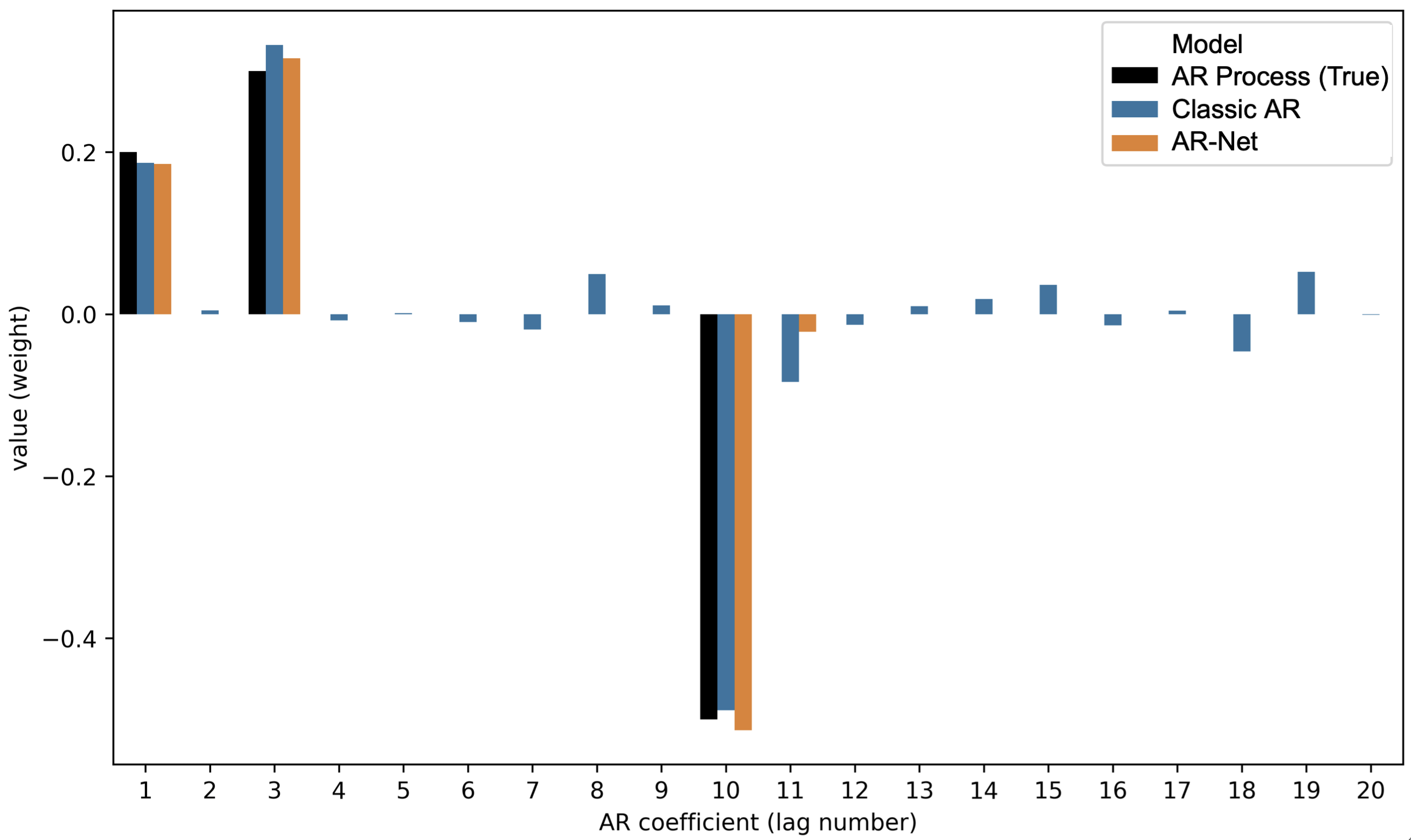

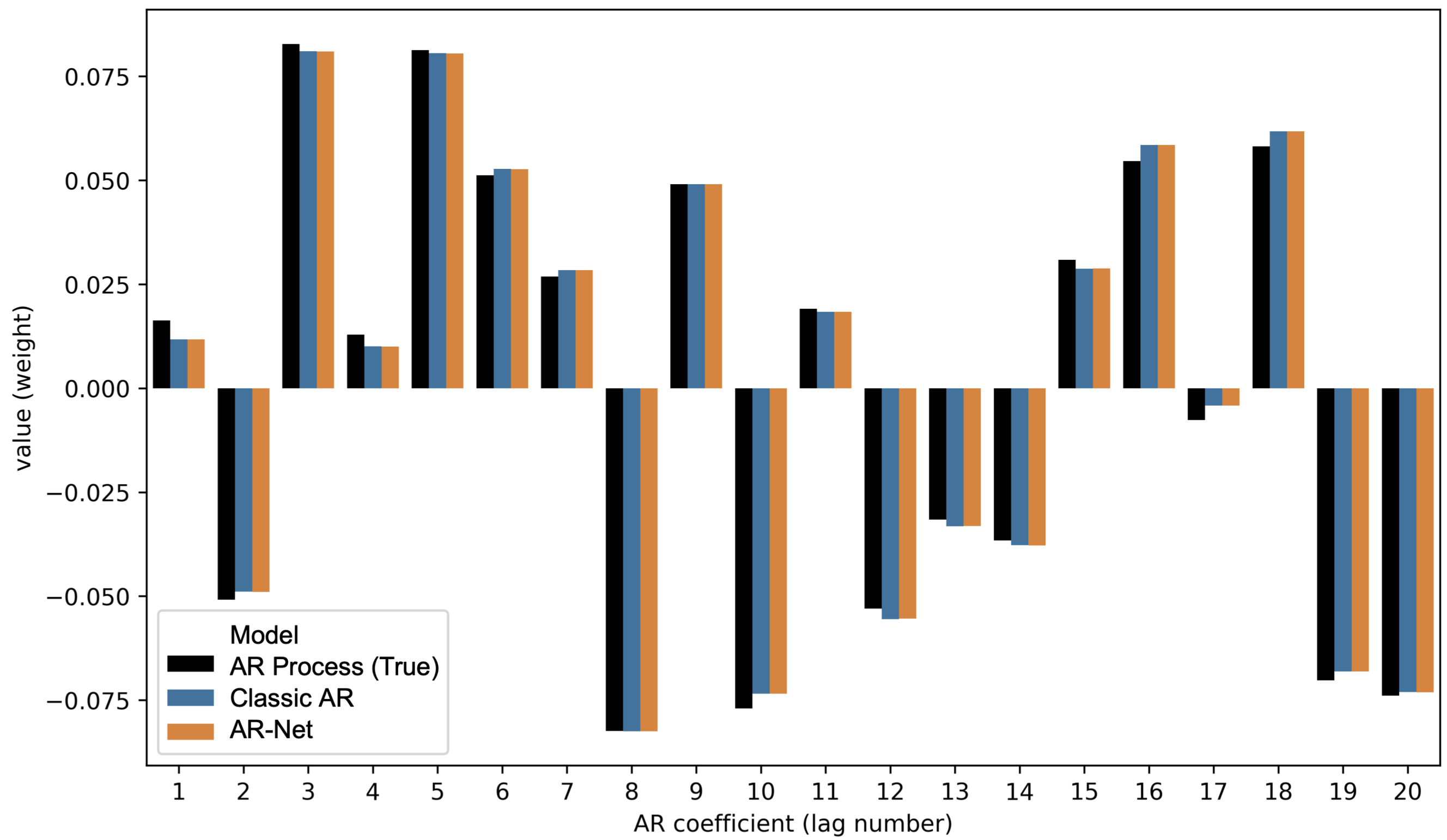

An example of the AR coefficients learned via SGD (AR-Net) and least squares estimation (Classic-AR) is shown in figure 3. A qualitative analysis of the residuals by plotting the errors against their underlying value showed a similar near-Gaussian fit for both models (not shown).
4.1.1 Sparse AR coefficients for unknown p-order
The regularized AR-Net model of -order works for any smaller order AR-process without the need to know the real order precisely (up to one and a half magnitudes). In our experimental setups we used a non-sparse but smaller order AR-process to demonstrate the ability to fit sparse AR-coefficients. Both Classic-AR and AR-Net models were trained on data generated by an AR-3 process with noise of one standard deviation. We vary the model size () when fitting the model from 3 to 1000, while keeping the underlying AR-3 process the same. For each model size, ten time series were created with the same AR coefficients but with new random noise and both models are fitted to the same time-series. Our experiments showed that AR-Net can fit to any sparse AR-process where the AR-coefficients are arbitrarily distributed over the lags. In the experiments, we have successfully fitted AR-Net with sparsity of up to .

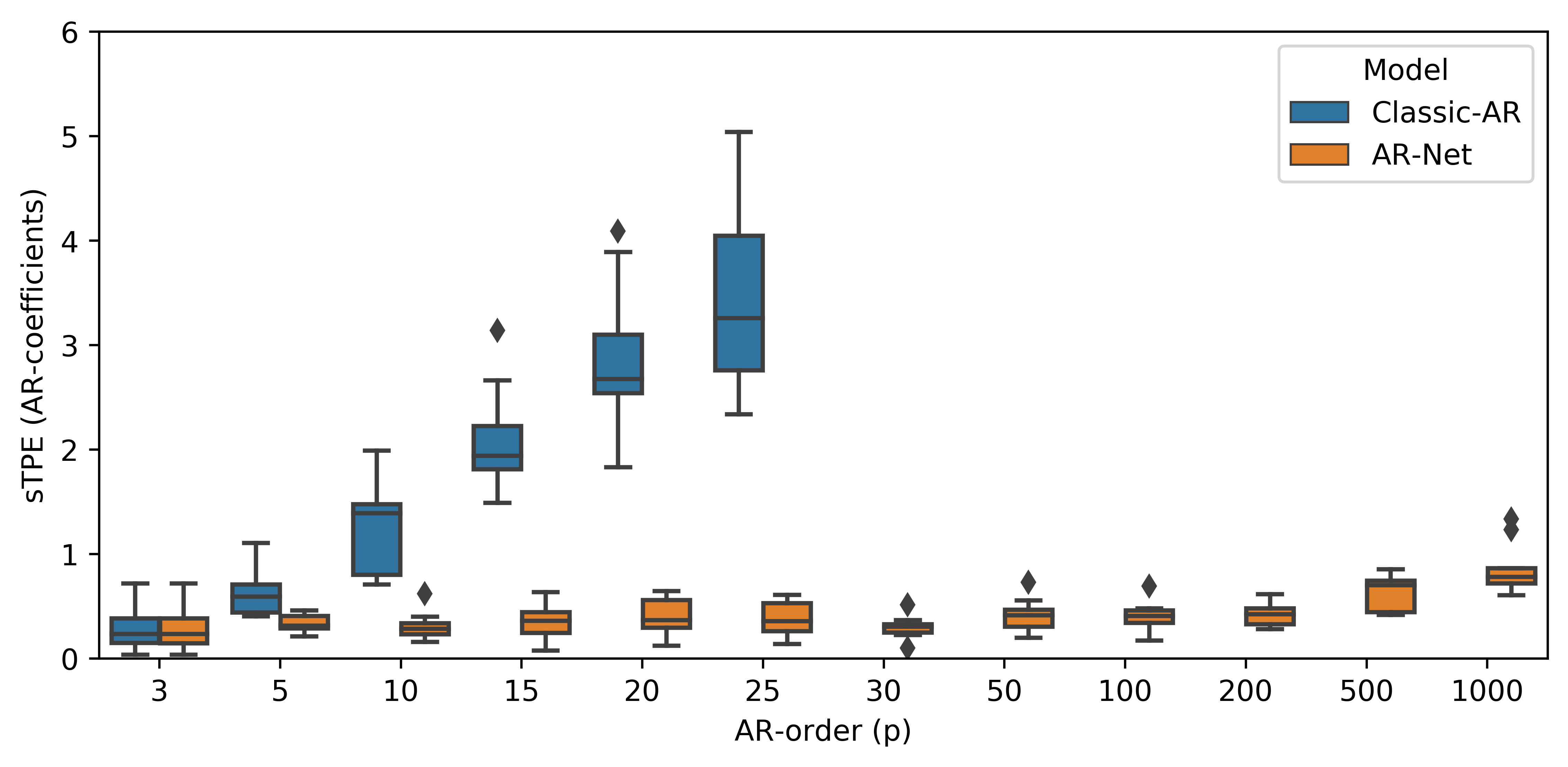

From figure 4 we see that the precision of learned weights of AR-Net was superior to those of classic AR in all sparse scenarios. The sTPE of Classic-AR monotonically increased with , while AR-Net remained precise up to a sparsity of . While the Classic-AR model overfit to the noise in the dataset, the AR-Net model effectively learned the significant AR coefficients with little to no noise. Nevertheless, both models achieved near identical forecasting performance (see figure 5). Figure 6 shows an example of the weights learned by AR-Net and Classic-AR on a sparse AR-process.
We acknowledge that this comparison was not entirely fair, as sparse implementation of Classic-AR exist. However, popular implementations of automatic sparsity, such as the addition of a spike and slab prior on the AR-coefficients, have an even greater computational complexity than the Classic-ARmodel evaluated here. Thus, they are not computationally tractable for AR processes with long range dependencies, which are the primary application of AR-Net.
are where statistics-based methods usually perform better than neural-network-based methods. We demonstrate that this is not the case for AR-Netwith an experiment on a time-series with only 1000 samples with strong noise (std of 1.0). While both models achieved a similar MSE on the forecast, their sTPE of the learned AR-cofficients are vastly different, with 3.2 for AR-Net and 18.3 for Classic-AR. Figure 6 shows the results of fitting an AR(20) model on a sparse AR(3) process. Figure 7 shows an example of said model’s predictions on the test dataset.
4.1.2 Computational Performance
The run time complexity of least squares (used in Classic-AR) is where is the number of features and is the training size. Here, is the order of the AR-process. For SGD (used in AR-Net), the complexity is roughly (only considering the forward pass) where
is the number of epochs,is the batch size and is the number of parameters. is equivalent to number of input nodes times the number of output nodes, in our case . Therefore, keeping batch size and number of epochs equivalent, we can see that as the AR-order increases, the SGD complexity remains linear with respect to , while the fitting of least squares grows quadratically more complex as increases. Thus, for high orders of , AR-Net is clearly favorable compared to least squares.

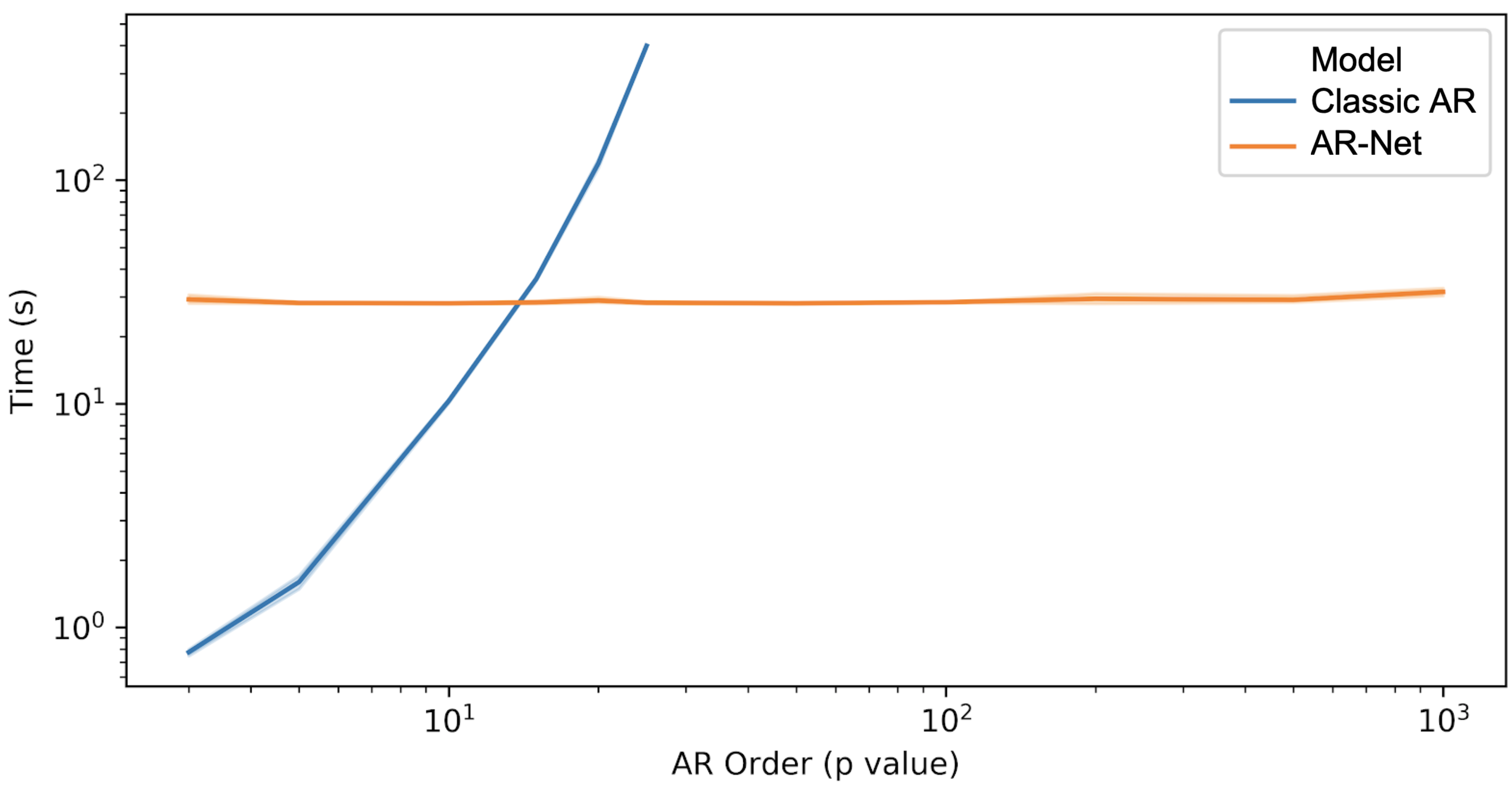

We measure the actual training time in seconds for varying AR order in figure 8. AR-Net training was terminated after a fixed number of epochs, but it could have been sped up further by shortening the training time. We found that for situations where both and are large, such as those prevalent in datacenter monitoring, AR-Net becomes the only computationally viable option, thanks to its linear computation time with respect to .
In this paper, we propose a AR-Net model, which uses stochastic gradient descent to estimate dynamics imposed by auto-regression. AR-Net makes it possible to learn a high order model orders of magnitude faster than using least squares. We show that the resulting weights are as interpretable as those of AR. Further, by adding regularization, AR-Net reliably selects and learns sparse weights, even up to a sparsity of . This eliminates the need to know the exact order of the AR-process and makes it possible to learn long-range dependencies on granular data without overfitting.
We found the sparse model to be insensitive to the estimated sparsity
for estimates up to one magnitude off. However, as the model is trained with SGD, it is sensitive to learning rate and related hyperparameters. We hope to ease this sensitivity with a smart learning rate schedule such as the 1cycle-policy[1cycle].
In future work, we will demonstrate how AR-Net makes it possible to seamlessly include co-variate time-series and to expand the forecast horizon, all with the same model. This makes it far simpler for the practitioner to expand their analysis from univariate one-step forecasting to multivariate multi-step forecasting. Another part of our future work will be to extend AR-Net to have an MA component and eventually include further temporal components (e.g., custom trend or seasonality). Our long-term vision is to enable the practitioner with a simple but powerful time-series tool powered by neural networks.
The work presented herein was funded in part by Total S.A in a research agreement with Stanford University. The views and opinions of authors expressed herein do not necessarily state or reflect those of the funding source.
6.1 Neural Networks Review
Neural Networks (NN) in their simplest form are composed of alternated layers of linear and non-linear functions, fitted to a target with stochastic gradient descent on a loss term [hyndman2014forecasting]
. Stacking several layers in a "deep" neural network configuration allows to model complex nonlinear relationships between the response variable and its predictors[hyndman2014forecasting]
. A neural network can be thought of as a network of ‘neurons’ which are organised in layers. The predictors (or inputs) form the bottom layer, and the forecasts (or outputs) form the top layer. There may also be intermediate layers containing ‘hidden neurons’[hyndman2014forecasting]. NNs have been widely used in economic, operational and financial fields [kour2014real, ffvsts].
The simplest neural networks contain no hidden layers, making it equal to a linear regression. Figure 8(a) [hyndman2014forecasting] shows the neural network with four predictors. The coefficients attached to these predictors are called “weights" and are used to obtain forecasts by a linear combination of the inputs. The weights are learned in the neural network framework using gradient descent that minimizes a cost function such as the MSE [hyndman2014forecasting].
Once we add an intermediate layer with hidden neurons, the neural network becomes non-linear. A simple example is shown in Figure 8(b). This is known as a multilayer feed-forward network, where each layer of nodes receives inputs from the previous layers. The inputs to each node are combined using a weighted linear combination. The result is then modified by a non-linear function, such as Sigmoid,
, or ReLU,, before becoming the input to the next layer.
The weights of the neural network are “learned" from the data. The parameter that restricts the weights is known as the “regularizer", which is also often used to induce sparsity and to prevent the weights from becoming too large.
The weights are initialized with random values from some distribution, and are then updated with SGD using the training data. Consequently, there is an element of randomness in the weights learned by a neural network, which is the result of each fitted model finding a different suboptima.
Recurrent Neural Networks
RNN-based networks have loops that feed an output of the network as an input in the next time-stamp. By unfolding an RNN through time it is possible to train it using standard back-propagation. Unfolding a long network however may result in a vanishing gradient problem, causing the neural network to ‘forget’ what happened a few steps behind, which is one of the reasons for developing LSTMs. A hidden layer is replaced by a complex block of computing units composed of gates that manage forgetting and remembering of historical data[DBLP:journals/corr/Gamboa17].
6.2 ARMA Review
The Auto-Regressive Moving-Average (ARMA) model [boxjen76] is one of the most widely used time-series forecasting methods in practice [boxjen76]. An ARMA model is derived from an AR process, with an added moving average component. An ARMA process, is parameterized by the orders and of the AR and MA components and their respective weights and :
6.3 Fitting Procedures Review
The error back propagation algorithm and its variations have been successfully used to train multilayer neural networks [ffvsts]. The error back propagation consists of two processes through different layers of the neural network: a forward pass and a backward pass. In the forward pass the predicted model outputs are computed and then the errors, the difference between the measured outputs and the predicted outputs, are obtained. In the backward pass the error signals are used to update the weight/parameter estimates. Finally, each parameter is adjusted a step (of size learning rate) towards their respective impact on the minimized loss term. Gradient descent is guaranteed to converge to some optima, though not necessarily the global optima (see [DBLP:journals/corr/abs-1810-02281] for more details, as the full proof is outside the scope of this paper).
Least squares is a mathematical procedure for finding the best-fitting curve to a given set of points by minimizing the sum of the squares of the offsets (‘the residuals’) of the points from the curve. The sum of the squares of the offsets is used instead of the offset absolute values because this allows the residuals to be treated as a continuous differentiable quantity. However, because squares of the offsets are used, outlying points can have a disproportionate effect on the fit, a property which may or may not be desirable depending on the problem at hand. Estimating the least squares fit involves computation of a matrix inverse.
