Introduction
NP (nondeterministic polynomial time) hard problems are the mainstay of some fields, from problems in graph theory (routing/scheduling, etc.) to mathematical programming (knapsack, 3dmatching, etc.). A widely studied NPhard problem is the Travelling Salesman Problem (TSP) and its derivatives that include finding the shortest routes between two nodes of a graph. Apart from mixedinteger programming (MIP), solutions of such problems are well approximated by metaheuristic formulations such as tabu search, simulated annealing, genetic algorithms and evolutionary optimisations. Of notable mention are the DantzigFulkersonJohnson algorithm
[Dantzig, Fulkerson, and Johnson1954], branchandcut algorithms [Naddef and Rinaldi2001], neural networks [Ali and Kamoun1993], etc.The shortestpath problem is central to many reallife scenarios, from inventory delivery (courier, food, vehicles, etc.) to laying out circuitry on a printed circuit board. This problem has evolved from a discrete integer programming (bottomup) problem to a databased continuous optimisation problem (topdown). Some studies have used specialised reinforcement learning (RL) algorithms – such as qlearning – to approximate the optimal solutions for the shortest path problem [Boyan and Littman1994]
. Along with the resurgence of deep neural networks (DNN), techniques that merge the scalability of deep neural networks and the theoretical framework of Markov Decision Processes (MDP) have emerged (
aka. deep reinforcement learning (DRL)) [Bello et al.2016, Dai et al.2017]. The intrinsic nonconvexity of the loss function means both DRL and DNN struggle to find the global optimisers of the loss function. This becomes more of a problem as the graph size increases.
For a deep neural network, finding the shortest routes between two points can be framed as a sequence learning problem. Indeed, in this paper, we show how synthetic routes generated by an
algorithm can be approximated using recurrent neural networks. With the rise of the Seq2Seq (sequence to sequence) architecture, recurrent neural networks based on Long Short Term Memory (LSTMs), Gated Recurrent Units (GRUs) and others can be readily used as a submodule. In this paper, we concentrate on three shortest path finding algorithms on a reasonably sized graph of more than 300 nodes. We use – (a) metaheuristics based
algorithm [Hart, Nilsson, and Raphael1968], (b) qlearning based Qrouting algorithm [Boyan and Littman1994] and (c) a Seq2Seq recurrent neural network [Sutskever, Vinyals, and Le2014], amongst other vanilla recurrent architectures. Moving on, we argue that the value of extremums generated by the RNN could be further improved via the homotopic continuation of the neural network’s loss function.Methods
Datasets
The graph is based on the road network of Minnesota^{1}^{1}1https://www.cs.purdue.edu/homes/dgleich/packages/matlab_bgl. Each node represents the intersections of roads while the edges represent the road that connects the two points of intersection. Specifically, the graph we considered has 376 nodes and 455 edges, as we constrained the coordinates of the nodes to be in the range for the longitude and for the latitude, instead of the full extent of the graph, i.e., a longitude of and a latitude of , with a total number of 2,642 nodes.
Algorithms
The metaheuristics
The algorithm is a bestfirst search algorithm wherein it searches amongst all of the possible paths that yield the smallest cost. This cost function is made up of two parts – particularly, each iteration of the algorithm consists of first evaluating the distance travelled or time expended from the start node to the current node. The second part of the cost function is a heuristic that estimates the cost of the cheapest path from the current node to the goal. Without the heuristic part, this algorithm operationalises the Dijkstra’s algorithm [Dijkstra1959]. There are many variants of ; in our experiments, we use the vanilla with a heuristic based on the Euclidean distance. Other variants such as Anytime Repairing has been shown to give superior performance [Likhachev, Gordon, and Thrun2004]. generated paths between two randomly selected nodes are calculated. On an average, the paths are 19 hops long and follow the distribution represented by histograms in Figure 1.
Decentralised Qrouting
QLearning is an OffPolicy algorithm for temporal difference learning. Boyan1994 (Boyan1994) have formulated the Qrouting algorithm by building a routing table based on node distance/time (qvalues). This algorithm utilises qlearning wherein the nodes that are in the neighbourhood of the current node communicate the expected future waiting time. In Qrouting, every source node has to choose the interim node that leads it to the destination node . Qlearning enables us to learn the expected travel time to for each of the possible interim node . A qtable is created for each node that is updated at discrete intervals as,
(1)
Here, is the learning rate and is the time spent at node before being sent off at time . Qlearning can thus estimate the value/cost (for Qrouting it is the estimated transit time from the current node to destination via node ) function for being in state as . A greedy policy is then executed to transact optimally.
Recurrent deep networks
We utilised a variety of recurrent neural networks for shortest route path predictions:

A vanilla RNN [Goodfellow, Bengio, and Courville2016]:
(2) with weights , which takes as input the current node, described by a onehot representation, and estimates the following one. The function can be a softmax
, since we expect a probability distribution on the following node, or a
log softmax, that gives more numerical stability during training. During the test phase, we use the predicted node as input for the next time step and compute two paths, one starting from the source and one from the destination, that form an intersection to obtain the shortest path.

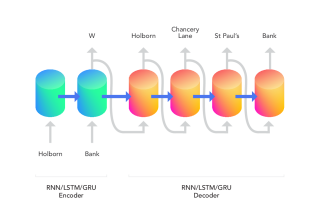

A Seq2Seqbased model [Sutskever, Vinyals, and Le2014]: We start with the tuple [source, destination] as an input sequence, which is encoded by a vanilla RNN (Figure 2
). The context vector, i.e., the encoding, is then decoded by another RNN, LSTM or a GRU
[Cho et al.2014] to obtain the shortest path connecting the source to the destination.
A Seq2Seqbased model with attention [Bahdanau, Cho, and Bengio2014] enables us to focus on the encoded states with varying extent.

A vanilla RNN, trained with homotopy continuation [Vese1999] – convolution of the loss with a Gaussian kernel, as explained in the following section.
Homotopy continuation
In algebraic topology, two continuous functions in topological space that can be transformed (deformed) from one to another are known as homotopies. In the context of neural networks, such homotopies enable us to pose different instantiations of the loss function with the aim of obtaining a global minimum. Deep neural networks always have a nonconvex loss with no convergence guarantees; this makes learning optimal parameters a numerical exercise. A homotopy continuation allows us to gradually deform the loss function to a nonconvex one from another that has a welldefined minimiser. The minimisers from the th subproblem are the starting points for the subsequent th subproblem.
Assume that represents a problem with global optimizers whilst is another function where we have no a priori knowledge of the optimizers. Then the homotopy function becomes . The path traced out by the states are governed by . If the Jacobian
is of fullrank, one can guarantee that the path between the two functions are continuously differentiable. In our treatise, we use a continuation path defined by the heat equation. In a similar vein to Mobahi2016 (Mobahi2016), we convolve the loss function with an isotropic Gaussian (the Weierstrass transform) of standard deviation
; this enables us to obtain objective functions with varying smoothness. then becomes the continuation parameter for the diffused cost function. We illustrate the basic methodology using a single dimensional function, followed by the diffusion of the RNN’s loss function.(3)
As an illustration, we construct a cost function that has both a local and global minima as well as a saddle point, i.e., , constrained to the interval . This function is shown in Figure 3 as a solid black line, along with its diffused forms, obtained by the convolution with the Gaussian kernel (Eqn. 3) with standard deviation . As one can see, for higher values of (dashed red line), the smoothed function has only one minimum, which can be easily attained via an arbitrary optimisation method. Then, starting from this solution, we can avoid falling into the local minimum and eventually reach the global extremiser for smaller values of (other dashed lines). Repeating this until attains low values allows the diffused function to match the original, thereby obtaining the global minimum.
Diffused cost function
In this section, we illustrate the equations leading to the diffused loss function for the RNN. Notably, given a set of shortest sequences, each of length , and a loss function , we can state the minimisation problem, of the cost function w.r.t. the weights in a vanilla RNN (Eqn. 2) as,
(4)
s.t.
where is the initial hidden state.
Moreover, if we consider and as independent variables, we can write the following unconstrained Lagrangian,
(5)
where all the vectors and are collected in the columns of the matrices and , respectively, is a regularization parameter (we will use ), and is a penalty function.
Since we consider , then the natural choice for the loss is the negative loglikelihood, while for the penality function , we choose the squared Euclidean norm. Therefore, Eqn. Diffused cost function now becomes
(6)
Finally, defining the convolution of the nonlinear functions and with the Gaussian kernel (Eqn. 3) as
respectively, we can derive the constrained diffused cost w.r.t. the weights of the RNN, as
(7)
s.t.
where denotes a diagonal matrix with the vector on the diagonal, is the Frobenius norm of a matrix, and stateDim and outDim
represent the number of neurons in the hidden state and of the output, respectively. Notice that we have also used the identities that convolution of
with is equal to and [Mobahi2016].Approximation of activation functions
Another crucial component of this method is the computation of the diffused nonlinearities for the considered RNN. Following [Mobahi2016] convolving with , we obtain
(8)
However, the output nonlinearity that we use is the log softmax, which cannot be analytically convolved. To address this problem, our first attempt was the numerical computation of the convolved function, but in this case, we obtained numerical errors, especially on the boundaries. This makes the approximation less accurate. To sidestep this phenomenon, we consider a linear interpolation
of the central interval, obtaining the following slope, which depends on the standard deviation :(9)
and the shift is simply the constant .
As we can see in Figure 4, some errors affect the numerical convolution, especially on the boundaries (dashdotted lines). Thus, a linear equation with slope as in Eqn. 9 is more accurate and converges to the original logsoftmax function (solid black line) as becomes smaller (in Figure 4 we illustrate the results for ).
Table 1
illustrates the diffused forms of the most popular activation functions.
function  original  diffused

error
tanh
sign
relu
logsoftmax
Results
For the graph of Minnesota with 376 nodes and 455 edges, we generated 3,000 shortest routes between two randomly picked nodes using the algorithm. We used these routes as the training set for the Qrouting and the RNN algorithms using a 6733% trainingtest splits.
For the Qrouting algorithm, we set the learning coefficient and use 1,000 iterations for each path to update the qtable and enable the algorithm to converge. We obtain an accuracy on the shortest paths of 70% for the test dataset, and 97% of the test paths reach the destination, albeit they are not necessarily the shortest ones.
On the other hand, we choose a hidden state with 256 units for the RNNbased methods and run the training for 200 epochs updating the parameters with an Adam optimisation scheme
[Kingma and Ba2014] with parameters and , starting from a learning rate equal to 1e3.method  shortest  successful

Qrouting
RNNvanilla
RNNintersect
RNNwithDiff  99%
Seq2SeqnoAttn
Seq2SeqwithAttn
Seq2SeqintersectnoAttn
Seq2SeqintersectwithAttn  78%
The prediction accuracy on the test dataset is shown in Table 2. A vanilla RNN predicting the next node gives poor results; especially we notice that most of the time it cannot even predict a path from the source to the destination node. Nevertheless, on occasions when it reaches the destination, the path is always the shortest. A first attempt to improve its performance was simply to compute two paths – one from the source to the destination node and another one from the destination to the source, and intersecting the two paths to obtain a route between the source and the destination. Such a scheme improved the performance to an accuracy equal to 98% for paths linking source and destination and to 60% for shortest ones. Then, we train a vanilla RNN through an homotopy continuation method (see Eqn. Diffused cost function) varying , which gives a further improvement (i.e., 63% and 99%) and converges after only 80 epochs (instead of 200 epochs).
Alternatively, we can also alter the architecture of the RNN, getting inspiration from the recent success of the sequencetosequence model [Sutskever, Vinyals, and Le2014]. We involve it, encoding the [source, destination] tuple via a vanilla RNN and then decoding the context vector into the shortest path sequence. We implemented the decoder in two different ways: it can be either a vanilla RNN or a GRU, or a vanilla RNN or a GRU with attention [Bahdanau, Cho, and Bengio2014]. In particular, by embedding attention, we can outperform the accuracy of the Qrouting algorithm on the shortest paths (73%), especially if we compute two paths and intersect them (78%).
Therefore, the most accurate algorithm for finding the shortest path is the Seq2Seq model with attention, where during the test phase we evaluate the intersection between two paths: one from the source to the destination node and another from the destination to the source node. On the other hand, a vanilla RNN, when trained with diffusion, computes successful paths from source to destination, albeit they are not necessarily the shortest ones. This suggests that further improvements can be obtained by training a Seq2Seq model with diffusion.
Discussion
In this paper, we illustrate that recurrent neural networks have the fidelity in approximating routes generated from an algorithm. As the node size increases, Seq2Seq models have increased fidelity compared to vanilla recurrent neural networks or for that matter a vanilla qlearning based routing algorithm. Our work is yet another testament to the utility that deep recurrent networks have in approximating solutions of NP hard problems.
When parameter evolution is constrained to evolve according to a heat equation, it has resulted in superior posterior estimates when utilised in a Bayesian belief updating scheme [Cooray et al.2017]. Similarly, combining annealed importance sampling with Riemannian samplers have also shown promise in producing better posterior distributions [Penny and Sengupta2016]
. Homotopy continuation provides a rigorous theoretical foundation for the afore mentioned results. It is wellknown that the convex envelope of a nonconvex loss function can be obtained using an evolution equation, i.e., a (nonlinear) partial differential equation (PDE)
[Vese1999]. The heat equation simply provides an affine solution to this nonlinear PDE. One important direction for future work is, therefore, tackling the original nonlinear PDE with computationally efficient algebraic or geometric multigrid methods [Heroux and Willenbring2012, Sundar et al.2012].We have used Qrouting as a benchmark to learn the actionvalue pair that gives us the expected utility of taking a prescribed action; in the last few years, many other architectures have evolved such as the deepQnetwork [Mnih et al.2015], duelling architecture [Wang et al.2015], etc. – it remains to be seen how such deep reinforcement learning architectures cope with the problem at hand. Another vital direction to pursue is the scalability of inverse reinforcement learning algorithms [Ziebart et al.2008] wherein given the policy and the system dynamics the aim is to recover the reward function.
An important issue arising from using recurrent neural networks for computing shortest path is to memorise long sequences, such as routes that range hundreds of nodes. LSTM [Hochreiter and Schmidhuber1997] alleviated some of the problems; the other proposition has been to use the secondorder geometry as has been long proposed [LeCun et al.2012]. Other efforts have gone towards using evolutionary optimisation algorithms such as CoDeepNEAT for finessing the neural network architecture [Miikkulainen et al.2017]
. Similarly, Neural Turing Machines
[Graves, Wayne, and Danihelka2014] are augmented RNNs that have a (differentiable) external memory that they can selectively read/write, enable the network to store the latent structure of the sequence. Attention networks, as has been used here, enable the RNNs to attend to snippets of their inputs (cf. in conversational modelling [Vinyals and Le2015]). Nevertheless, for the longterm dependencies that shortest paths in large graphs have, these methods are steps towards alleviating the central problem of controlling spectral radius in recurrent neural networks.The Qrouting algorithm reduces the searchspace by constraining the search to the connected neighbours of the current node. Whereas, the RNN variants have a large statespace to explore. The Seq2Seq architecture, therefore, has at least two orders of magnitude increase in its exploration space. In future, the accuracy of the RNN variants can be increased by constraining the search space to the neighbourhood of the current node.
In a realworld scenario, computing the shortest path between two nodes of a graph is also constrained by the computational time of the algorithm. Thus, the deep recurrent networks, as utilised here, are faced with two objectives – first, to reduce the prediction error and second to reduce the computational effort. In general, it is quite uncommon that an obtained solution can be obtained that minimises both objectives. In lieu, one can concentrate effort on achieving solutions on the Pareto front. Utilising, Bayesian optimisation [Brochu, Cora, and De Freitas2010] for such multiobjective optimisation problem is a path forward for research that is not only theoretically illuminating but also commercially useful.
