In recent years, the performance of autonomous systems has been greatly improved. Multicore CPUs, bigger RAMs, new sensors and faster data flow have made many applications possible which seemed to be unrealistic in the past. However, the performance of such systems tends to become quite limited, as soon as they leave their carefully engineered operating environments. On the other hand, people may ask, why we humans can handle highly complex problems. Maybe the exact answer to this question still remains unclear, however, it is obvious that abstraction and knowledge together play an important role. We humans understand the world in abstract terms and have the necessary knowledge, based on which we can make inference given only partial information. As a human, if we see a desk in an office room, instead of memorizing the world coordinates of all the surface points of the desk, we will only notice that there is an object “desk” at a certain position, and even this position is probably described in abstract terms like “beside the window” or “near the door”. Based on prior knowledge, we can make some reasonable assumptions, such as there could be some “books” in the “drawer” of the desk, instead of some “shoes” being inside, without opening the drawer. In our work, we aim to deploy such abilities (abstraction and inference) in the area of semantic robot mapping.
Ii Related Work
In general, related work on semantic robot mapping can be classified into several groups. A big body of literature focuses on semantic place labelling which divides the environment into several regions and assigns each region a semantic label, such as “office room” or “corridor”. Park and Song proposed a hybrid semantic mapping system for home environments, explicitly using information about doors as a key feature. Combining image segmentation and object recognition, Jebari et. al.
extended semantic place labelling with object detection. Based on human augmented mapping, rooms and hallways are represented as Gaussian distributions to help robot navigate in. Pronobis and Jensfelt  integrated multi-modal sensory information and human intervention to classify places with semantic types. Other examples on semantic place labelling can be found in ,  and .
Different from place labelling, another group of work concentrates on labelling different parts of the perceived environments with semantic tags, such as walls, floors, ceilings of indoor environments, or buildings, roads, vegetations of outdoor environments. In , a logic-based constraint network describing the relations between different parts is used for labelling indoor environments. Persson and Duckett  combined range data and omni-directional images to detect outlines of buildings and natural objects in an outdoor setting. Other examples in this category can be found in ,  and .
Another category consists of object-based semantic mapping systems which use object as basic representation unit of the perceived environment. Such systems usually adopt point cloud processing and image processing techniques to model or detect objects. Object features like appearance, shape and 3D locations are used to represent the objects. Examples of object-based semantic mapping can be found in , ,  and .
In this paper, we extend our previous work  using rule-based context knowledge. The work as a whole demonstrates a probabilistic method for building abstract semantic maps for indoor environments, which systematically combines data driven MCMC  and inference using rule-based context knowledge. Unlike semantic labelling processes, whose typical output is a map data set with semantic tags, our mapping system outputs a parametric abstract model of the perceived environment, which not only accurately represents the geometry of the environment but also provides valuable abstract information.
Iii An Abstract Model for Semantic Indoor Maps
Our semantic mapping system takes a grid map (a typical result of 2D SLAM processes, e.g.

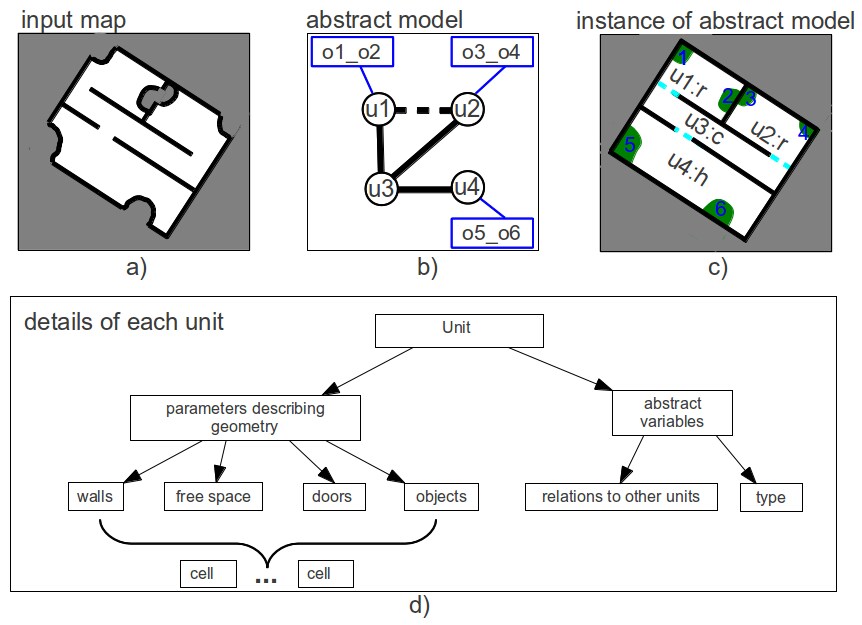

) of the perceived environment as input and returns a parametric abstract model of this environment which provides semantic level explanation (such as “type” and “relation”) and geometrical estimation of the environment. Explanation of our model is given in Fig.1.
Our abstract model explains indoor environments in terms of basic indoor space types, such as “room”, “corridor”, “hall” and so on, and we denote it as :
where represents the set of all units. Each unit has a rectangle shape, and its geometry (size, position and orientation) is represented by its four vertices. The four edges of a unit are its walls. Doors are small line segments of free cells that are located in walls and connect to another unit. Unknown cells of the input map that are located within a unit are considered as object cells. All cells within a unit that do not belong to object cells are considered as free space of the unit. is the set of type of each individual unit, with . Here “other” indicates unit types that are not “room”, “corridor” or “hall”. is a matrix, whose element describes the relation between the unit and the unit , with . If two units share a wall, we define their relation as “adjacent”, otherwise “adjacent”. By default, we define a unit is not adjacent to itself, i.e. . In the following, we call each instance of the abstract model a “semantic world” or “world”.
A main criterion for evaluating how well a semantic world matches with the input grid map
is the posterior probability, and it is computed as:

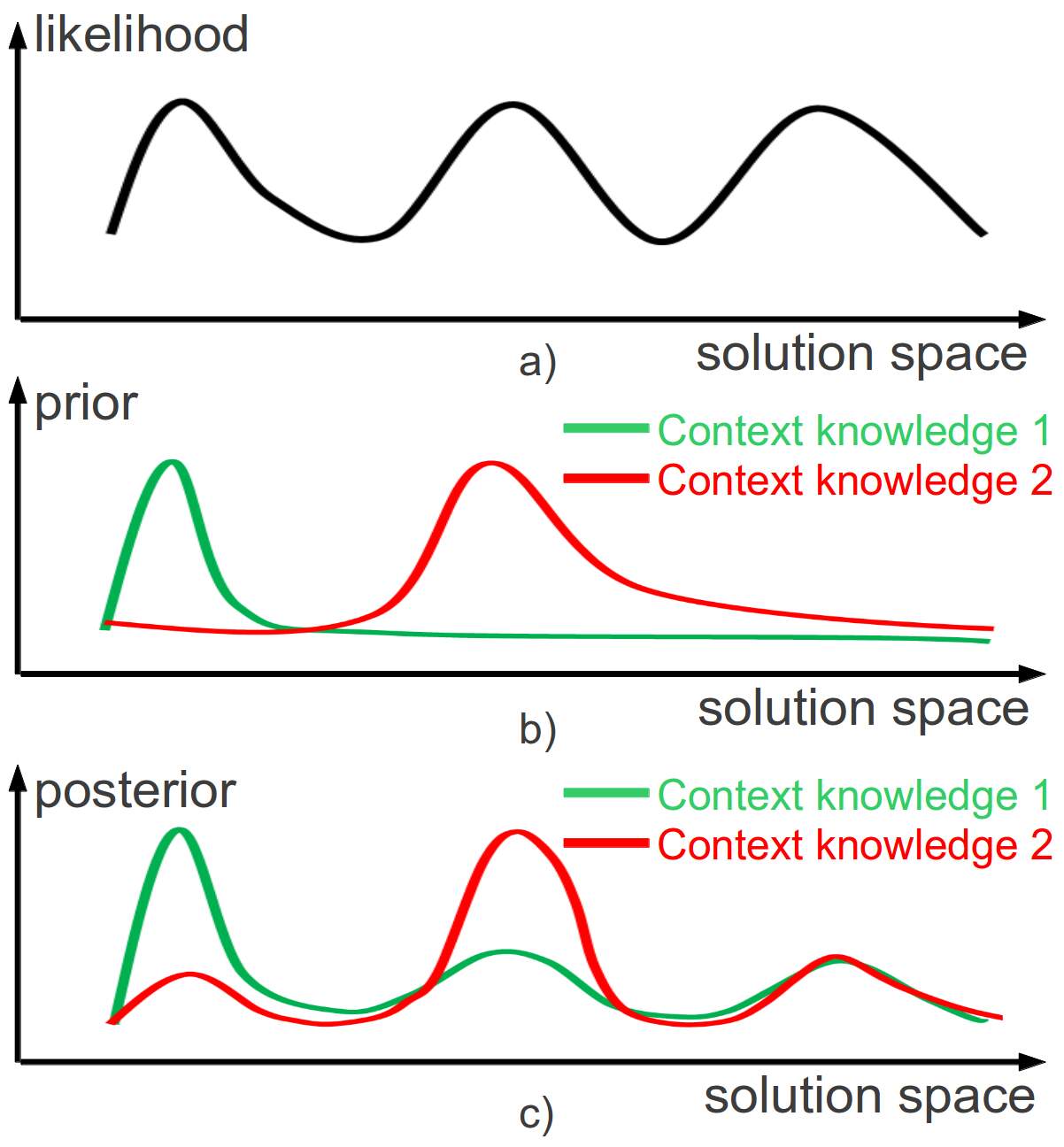

Here, the term is usually called likelihood and indicates how probable the input is for different worlds. The term is called prior and describes the belief on which worlds are possible at all. In the following, we formulate task-specific context knowledge as descriptive rules in Markov Logic Networks (MLNs)  and show how to define the likelihood and the prior using the inference results of MLNs in a systematic way. For details on MLNs, we refer to .
Iii-a Inference using rule-based context knowledge
In general, context knowledge describes our prior belief for a certain domain, such as that the ground becomes wet after it has rained. Rather than exact quantitative information, context knowledge provides advisory qualitative information for our judgements. Such information is very valuable in handling problems of high dimensionality where computation suffers due to the huge state space. In the domain of robot indoor mapping, we formulate following context knowledge:
There are four types of space units: room, corridor, hall and other.
Two units are either adjacent (neighbours) or not adjacent.
The type of a unit is dependent on its geometry and size.
In contrast to rooms, corridors have multiple doors.
Connecting walls of two adjacent rooms have the same length.
With the help of MLNs, we formulate our context knowledge as descriptive rules in Table III. Based on these rules, query defined in Table II can be made given evidence shown in Table I. Using these rules, we try to formulate the features of certain indoor environments with rectangular space units. The choice of the rules is a problem-oriented engineering step, and the rules given in this paper serve as a good example.
|Unit has a room-like geometry.|
|Unit has a corridor-like geometry.|
|Unit has a hall-like geometry.|
|Unit has multiple doors.|
|Unit and are adjacent.|
|Unit has the type of room.|
|Unit has the type of corridor.|
|Unit has the type of hall.|
|Unit has the type of other.|
|Unit and have each a|
|wall with the same length.|
|reasoning on type:|
|reasoning on :|
Before we can make inference in MLNs, the evidence defined in Table I need be provided as input for MLNs, which includes geometry evidence, relation evidence and evidence on doors. To provide the first, we use a classifier that categorizes the geometry of a unit into “room-like”, “corridor-like” or “hall-like” according to its size and length/width ratio. The general idea of this classifier is shown in Table IV.

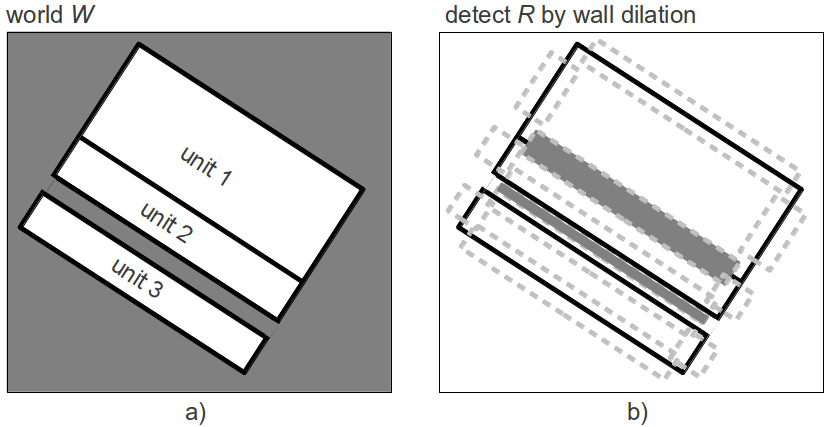

Relation evidence is detected based on image processing techniques: we first dilate all four walls of each unit, and then relation between the unit and is decided according to connected-components analysis . An example of relation detection is depicted in Fig. 2, where is given by
Similar to relation detection, doors are detected as small open line segments which are located on the connecting walls of two neighbour space units. Details on door detection can be found in .
Given necessary evidence, we can make inference in MLNs and use the inference results to calculate the prior and likelihood. In this work, we have used the ProbCog Toolbox  to perform MLN inference. Currently, we use hard evidences for knowledge processing, however, our system is also able to process soft evidences, as long as the evidences are provided in the soft form.
Iii-B Inference-based prior and likelihood design
According to the model definition in equation (1), the prior is given by

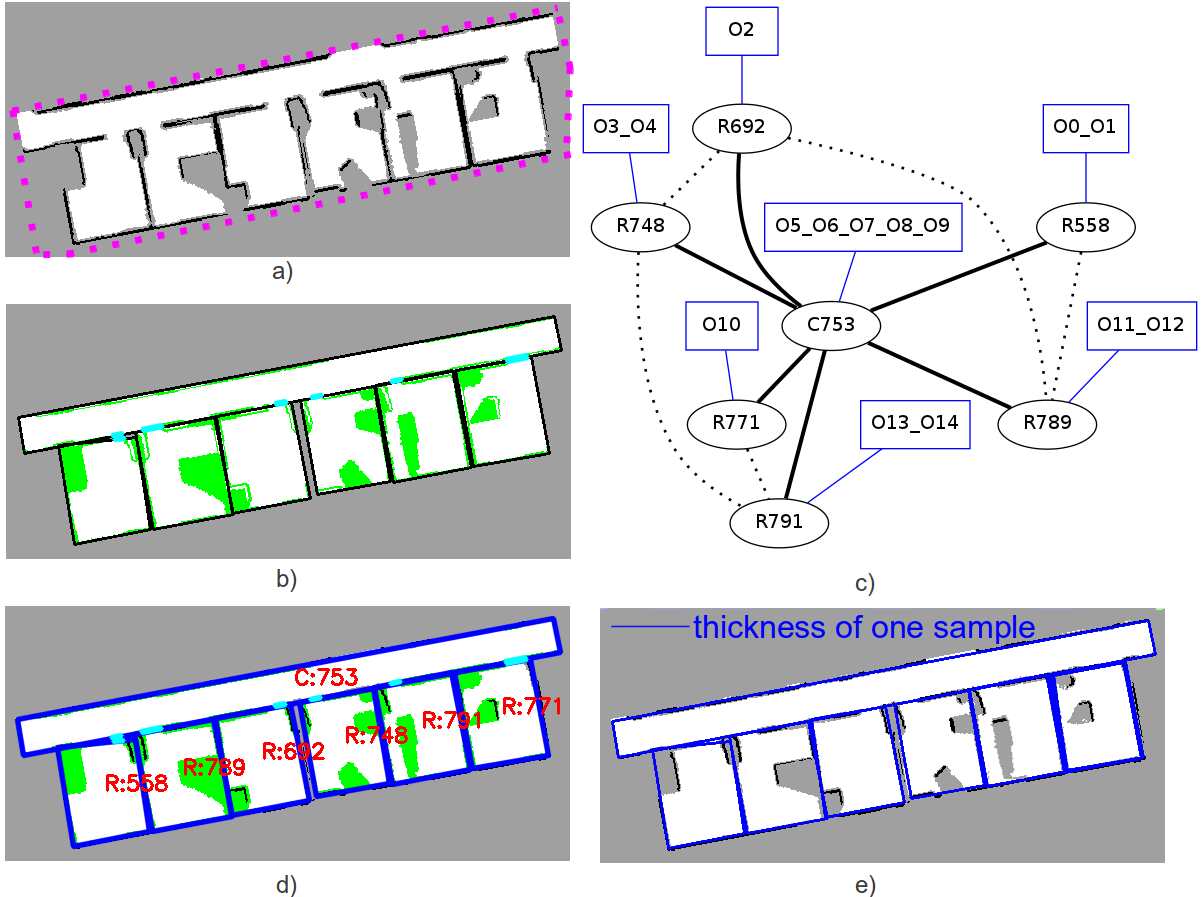

Here, can be seen as a factor expressing the dependency of the geometry parameters of the underlying units (see Fig. 1-d) on the abstract terms in the MLNs. In our case, the geometry (size, position and orientation) of a unit is described by its four vertices. Furthermore, we define
where is the total number of units, and represents the length difference of the connecting walls of two adjacent units. indicates a Gaussian function with mean at zero. is one of the inferences that we can make in MLNs. is the normalization factor which ensures that integrates to one. At the current stage, we assume that
follows a uniform distribution. However, it is possible to learn this distribution given proper training data.
So far, the prior
is defined based on the inference results of MLNs, which enforces that the semantic worlds that comply with the context knowledge have high prior probability. Note that the worlds that contradict the context knowledge are not given a zero prior probability, instead, they become less probable. The general idea of inference-based prior design is explained in Fig.3, using a one-dimensional example.
Let be the grid cell with the coordinate in the input map , then we define the likelihood as follows:
Here penalizes overlap between units and is given by
where is a penalization factor with . indicates the number of units, to which belongs.

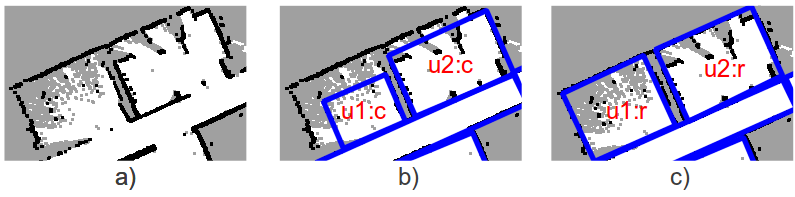

In equation (7), the term is a semantic sensor model and evaluates the match between the world and input map . Essentially, captures the quality of the original mapping algorithm producing the grid map which is used as input in our system. For calculating , we discretize the cell state of the input map into three classes “occupied”, “unknown” and “free”, by thresholding its occupancy values. Our semantic world contains four types of cell states, which are
“wall”: cells on the four edges of each unit.
“object”: cells that are located within a unit and are considered as non-free. These cells are detected using connected-components analysis .
“free”: cells that are located within a unit and do not belong to the class “object”.
“unknown”: cells that are located outside all units.
In this way, our semantic sensor model is realized as a “34” look-up table.
In the real world, it is more likely that rooms and halls contain objects than corridors do, because the functionality of corridors is connecting other units, rather than placing objects. Thus, we propose to make the values of our semantic sensor model dependent on the type (decided based on the inference results in MLNs) of the underlying unit. The fundamental idea is to set the values of the semantic sensor model for the units of non-corridor types in such a way that it does not strongly penalize the mismatch between the input and the semantic world, and thus allows the existence of false positives (potential object cells). The effect of our semantic sensor model is depicted in Fig. 4.
Iv Stochastic Generation of Semantic Worlds
Given the posterior probability defined in equation (2), we aim to obtain the maximum a posteriori solution :
where indicates the solution space of semantic worlds. In order to find , we use a data driven MCMC sampling technique

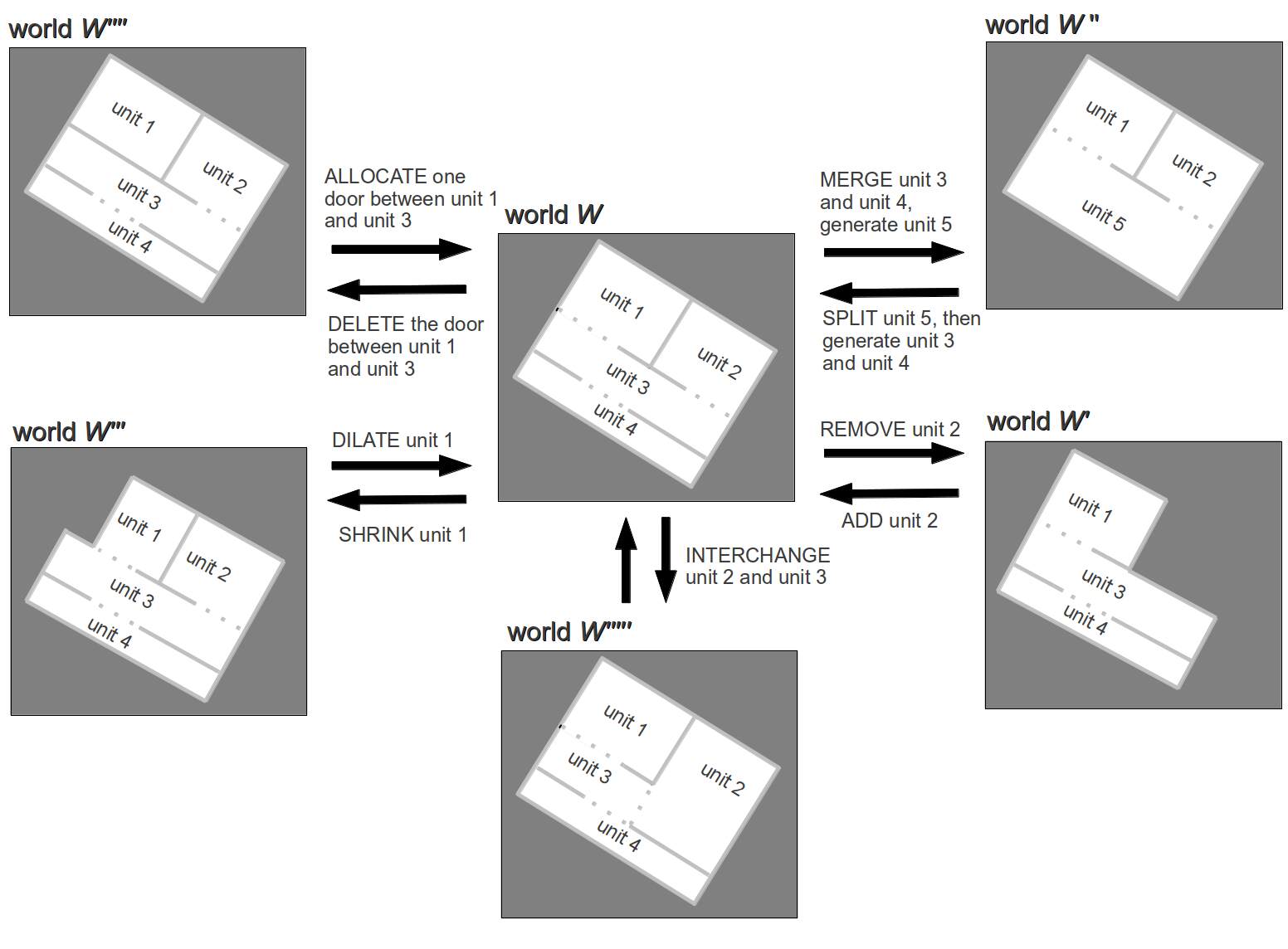

. This technique constructs a Markov chain, and each state of this Markov chain represents a semantic world. By sequentially applying transition kernels to the current world (Fig.5) and accepting this transition by certain probability, this technique is able to efficiently draw samples from the corresponding posterior distribution. In addition to the four reversible kernel pairs that are defined in our previous work , we propose here a new reversible kernel “INTERCHANGE” that changes the structure of two adjacent units at the same time, without changing the total size. These structural changes are proposals that allow our system to escape local optima. Fig. 5 shows an example of the reversible MCMC kernels. More details on the realization of the used data driven MCMC process can be found in .
V Experiments and Discussion

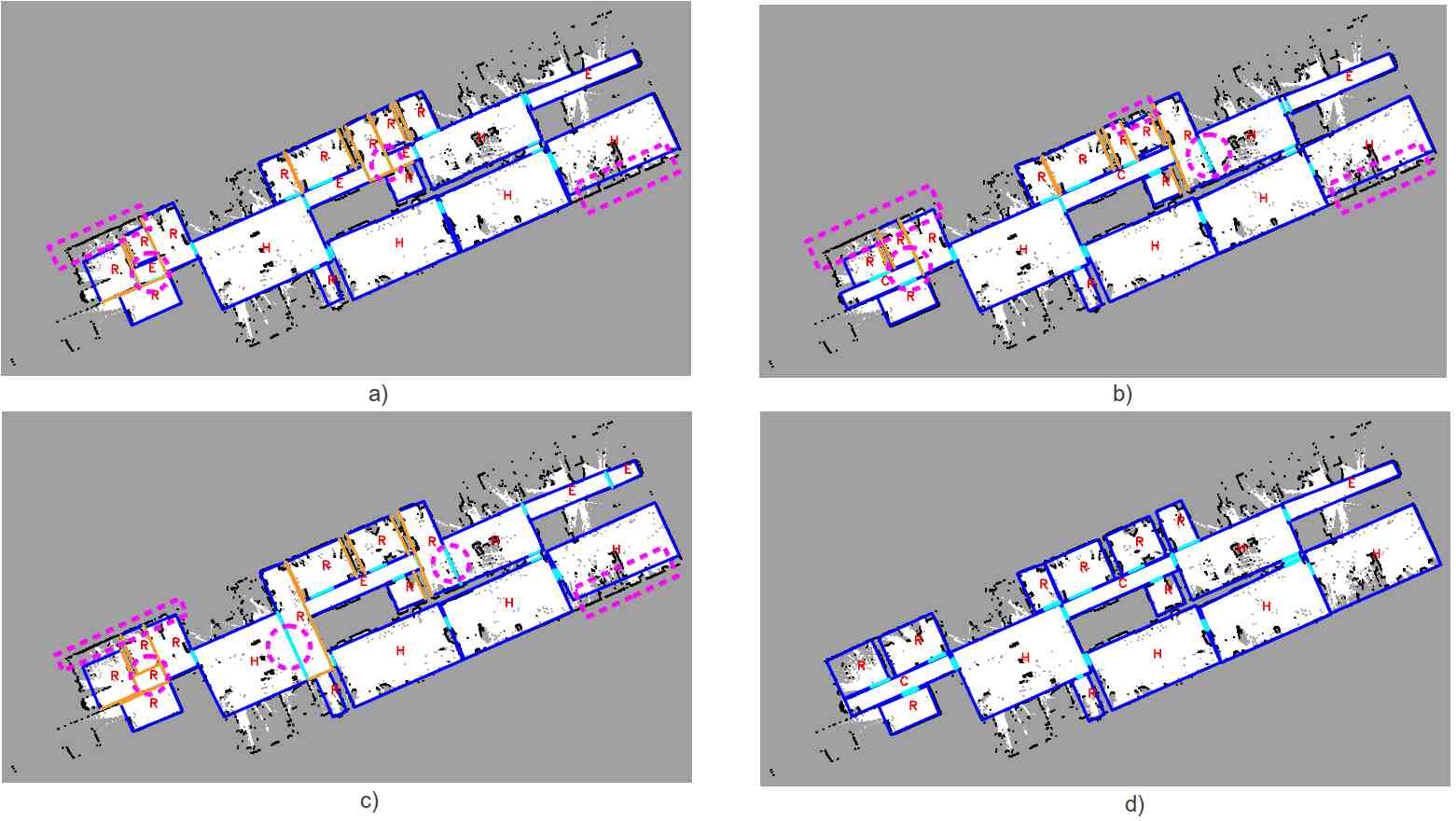

In this paper, we extend our previous work  with inference using rule-based context knowledge, and the performance of our current system is shown in Fig. 6. As input, a big occupancy grid map (“ubremen-cartesium” dataset ) of an entire floor of a building is used. This map is a big matrix (“1237672”) containing occupancy values. We classify these values as so as to generate the classified input map (Fig. 6-a). Starting from a random initial guess, the semantic world is adapted to better match the input map by stochastically applying the kernels shown in Fig. 5. After certain burn-in time, we get the most likely semantic world comprised of 17 units (each of which is represented by a rectangle) as shown in Fig. 6-c. Not only does accurately represent the geometry of the input map, but also is a parametric abstract model (Fig. 6-b) of the input map that provides valuable abstract information, such as adjacency, existence of objects and connectivity by doors. In addition, unexplored areas are also captured by our abstract model (marked by magenta “N”). These areas are too small to be recognized as space units but are evidence for physically existing space.
Compared with our previous work , our current system employs context knowledge in a systematic way, so that the input map is explained according to the underlying model structure. A performance comparison between our previous work and our current system is depicted in Fig. 7. Three high likelihood samples obtained from our previous work are shown in Fig. 7-a,b,c. They essentially represent the local maxima of the likelihood shown in Fig. 3. Although all these three results provide good match to the input map (in terms of high likelihood), they have topological defects (highlighted by magenta circles), which contradict our knowledge (low prior). In this case, all pairs of connecting walls of adjacent rooms that should have the same length are drawn in orange in Fig. 7-a,b,c. The length difference of each pair of these connecting walls results in a penalization in prior probability (equation (6)). By applying our rule based context knowledge, local maxima of the likelihood with topological defects are suppressed so that they have a low posterior probability. In this way a semantic world that has high likelihood and high prior, i.e. high posterior (Fig. 7-d), is easily obtained by stochastic sampling. In addition, various poor local matches (highlighted by magenta rectangles in Fig. 7-a,b,c) are corrected by the semantic sensor model used in our current system.

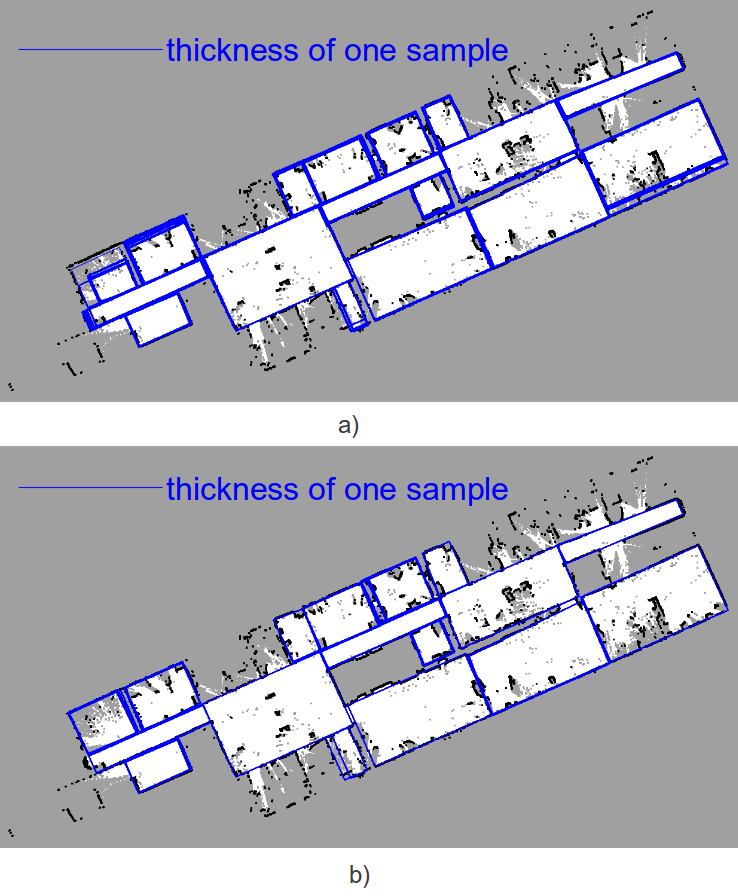

-b) by plotting 1000 accepted samples together. Here we purposefully plot each sample (world) using very thin line. It is obvious that the underlying Markov chain obtained from our current system is more stable and converges better (smaller variance).

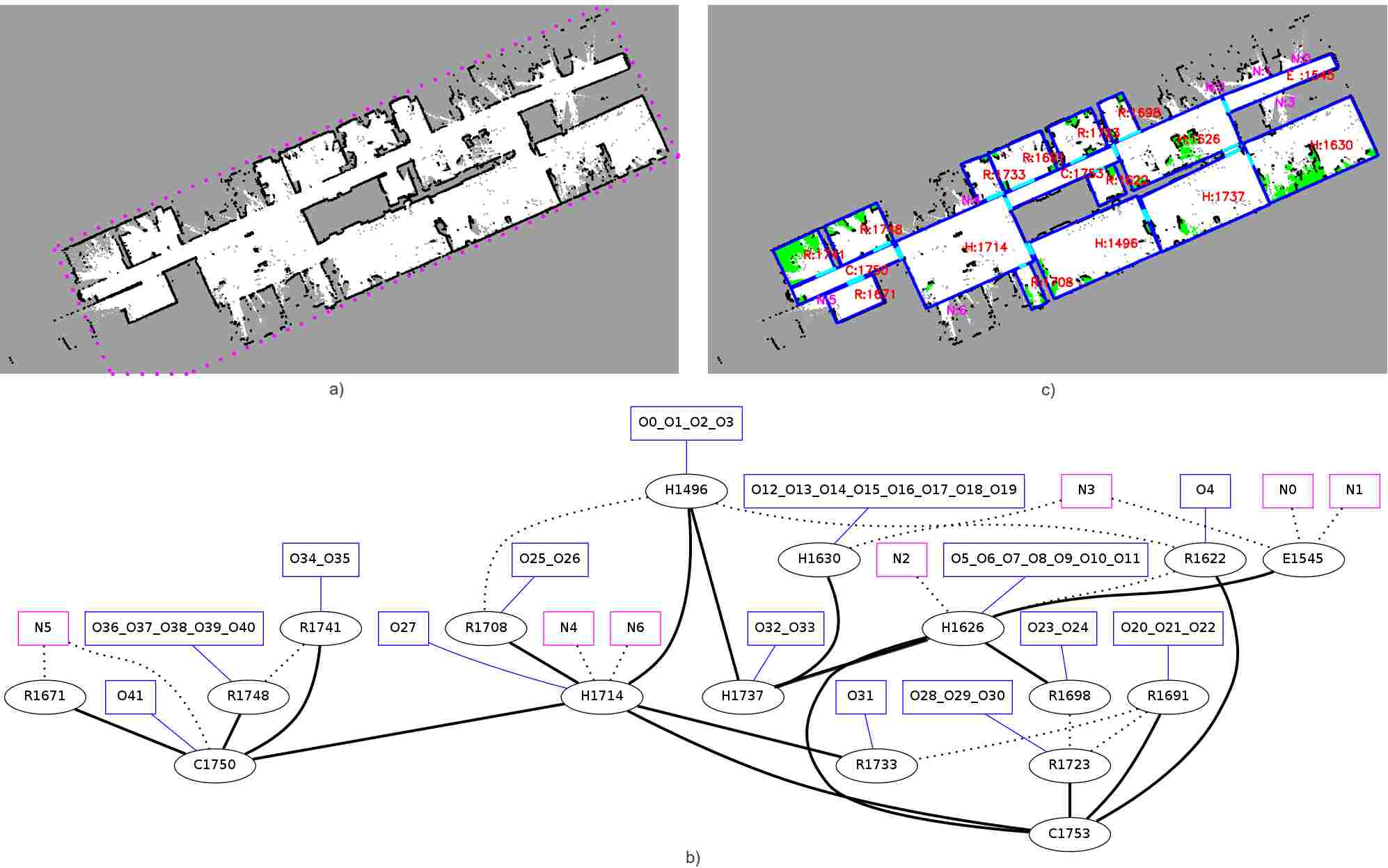

Fig. 9 shows the performance of our current system on another data set. As can be seen, our system accurately represents the geometry of the environments captured in the input maps and provides a semantic world that explains the perceived environments with the correct topology. We evaluate our system quantitatively using the measure “cell prediction rate” (CPR), which denotes the percentage of the correctly explained cells in the manually defined region of interest (see Fig. 6-a and 9-a). The CPR of Fig. 6-c is 86.8%, and that of Fig. 9-d is 91.4%.
By modelling context knowledge in MLNs, we can assign semantic information, e.g. the type, to the data. This allows us to use a semantically informed sensor model to better explain the observations. Moreover, the used context knowledge, given by the rules, shape our prior so that unlikely configurations can be ruled out, as shown in Fig. 7.
The computational cost is strongly dependent on the size of the input map and consists of two parts, which are MCMC operations and knowledge processing in MLNs. With a single-threaded implementation on an Intel i7 CPU, the speed of MCMC operations is around 30 iterations per second for the map shown in Fig. 6. The speed of knowledge processing in MLNs depends on one hand on the tool (the software implementation of MLNs) that one uses. On the other hand, it depends on the number of optimization iterations set in the tool. In our case, we could get a satisfactory result in 5-8 seconds using the tool in  per processing. To analyze a grid map, we first start our system without activating knowledge processing, only after enough context is available (e.g. coverage of the input map greater than 80%), knowledge processing is enabled to help better explain the input map. In this way, we could obtain a good result within a reasonable processing time, which is, 20 minutes for the map shown in Fig. 6.
In this paper, we extended our previous work  with inference using rule-based context knowledge. Our current system demonstrates an advanced stochastic sampling process supervised by the context knowledge which is defined as descriptive rules in Markov Logic Networks. As output, our system returns a parametric abstract model of the perceived environment that not only accurately represents the environment geometry, but also provides valuable abstract information, which serves as a basis for higher level reasoning processes. By constructing the prior distribution of the semantic maps using inference results, high likelihood results with topological defects (contradiction with context knowledge) are suppressed. Furthermore, by applying a semantically annotated sensor model for likelihood calculation, we explicitly use the extracted semantic information to improve the performance of our system.
This work is accomplished with the support of the Technische Universität München - Institute for Advanced Study, funded by the German Excellence Initiative.
The work of one of the authors (Georg von Wichert) was partially made possible by funding from the ARTEMIS Joint Undertaking as part of the project R3-COP and from the German Federal Ministry of Education and Research (BMBF) under grant no. 01IS10004E.
