Anticipation in collaborative music performance using fuzzy systems: a case study

06/05/2019 ∙ by Oscar Thörn, et al. ∙ Telia Company 0

In order to collaborate and co-create with humans, an AI system must be capable of both reactive and anticipatory behavior. We present a case study of such a system in the domain of musical improvisation. We consider a duo consisting of a human pianist accompained by an off-the-shelf virtual drummer, and we design an AI system to control the perfomance parameters of the drummer (e.g., patterns, intensity, or complexity) as a function of what the human pianist is playing. The AI system utilizes a model elicited from the musicians and encoded through fuzzy logic. This paper outlines the methodology, design, and development process of this system. An evaluation in public concerts is upcoming. This case study is seen as a step in the broader investigation of anticipation and creative processes in mixed human-robot, or "anthrobotic" systems.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The creation and performance of music has inspired AI researchers since the very early times of artificial intelligence

[8, 13, 10], and there is today a rich literature of computational approaches to music [11], including AI systems for music composition [3] and improvisation [2]. As pointed out by Thom [15], however, these systems rarely focus on the spontanous interaction between the human and the artificial musicians. We claim that such interaction demands a combination of reactivity and anticipation, that is, the ability to act now based on a predictive model of the companion player [12].

This paper reports our initial steps in the generation of collaborative human-machine music performance, as a special case of the more general problem of anticipation and creative processes in mixed human-robot, or anthrobotic systems [4]

. We consider a simple case study of a duo consisting of a human pianist accompained by an off-the-shelf virtual drummer, and we design an AI system to control the key perfomance parameters of the virtual drummer (patterns, intensity, complexity, fills, and so on) as a function of what the human pianist is playing. The AI system is knowledge-based: it relies on an internal model represented by means of fuzzy logic. This model encodes the expertise of musicians about joint music performance, elicited through a process of user-centered design. Musicians have provided heuristic rules using vague linguistic terms, which are suitably encoded using the tools of fuzzy logic. Note that, while rule-based systems have been often used for music composition and improvisation

[14], the use of fuzzy logic in this field is much less explored [9].

The knowledge model in our system includes both reactive responses to the current parameters of the pianist performance, like intensity or rhythmic complexity, and anticipatory responses to forecasted events, like the coming climax of a crescendo. We take input from the piano player in real time via a MIDI interface, extract meaningful musical parameters like intensity, rythmic complexity, or crescendo. The model is used to generate as output musical parameters that control the execution of a Strike 2 virtual drummer.

The rest of this paper is organized as follows. The next section summarizes the general methodology adopted in our work, and the specific case study reported in this paper. Section 3 gives some technicalities on the implmented system, while Section 4 focuses on the development and testing process. Section 5 discusses the results and concludes.

2 Methodology

As mentioned above, in this paper we are not interested in fully automated music composition. Rather, we are interested in the collaborative execution between a human musician and a robotic performer. We assume that the robotic performer is capable of autonomous artistic execution, and that the modalities of this execution are controlled by a fixed number of parameters. This paper addresses the problem of controlling the parameter of execution in order to obtain a harmonious joint performance.

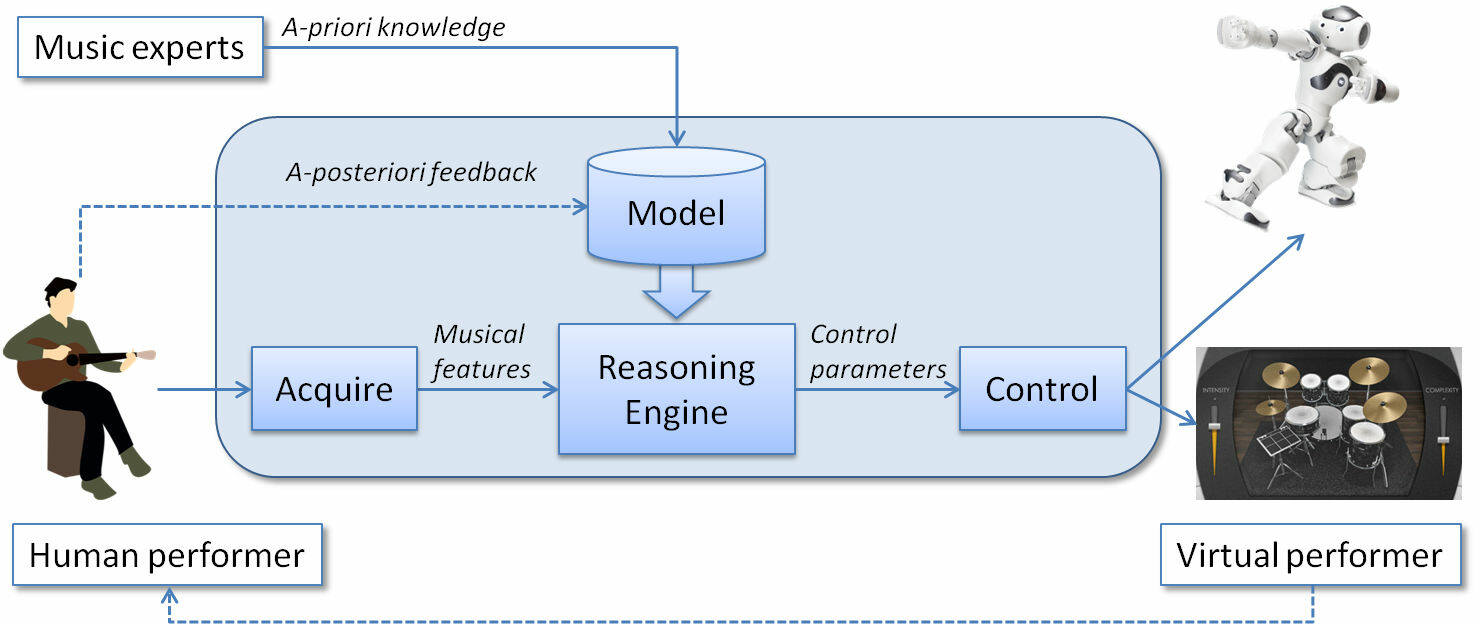

Figure 1: The proposed methodology to control a virtual music partner

Figure 1

illustrates the concept used in this paper. A human musician plays freely, and an AI system controls the parameters of a robotic performer accordingly. We use “robotic” here in a broad sense to mean any agent that generates physical actions. This could be, for instance, a dancing robot, a virtual drummer, or a sound processing agent that spatializes in the hall the music produced by the human musician. The dependencies of the parameters of the robotic performer on the features of the human’s execution are encoded into an explicit model. This is initially obtained by eliciting knowledge from the musicians: later on, it can be refined and adapted through machine learning techniques.

In the specific case addressed in this paper, the musician is a jazz pianist and the artificial artist is a Strike 2 virtual drummer.111AIR Music Technology, https://www.airmusictech.com/product/strike-2/.

The drums parameters controlled by the AI system include patterns, intensity, complexity, fills, instruments used, and enter or exit sequences. Acquisition is done through a MIDI interface and a feature extraction algorithm; controlling the drums parameters is done through MIDI. Upon discussions with the musicians, it turns out that part of the knowledge of how the drummer’s parameters depend on the pianist’s play is conscious, and the musicians can easily expressed it in terms of approximate rules using vague linguistic terms, like:

If the rhythmic complexity on the lower part of the keyboard is high,
then the rhythmic complexity of the drums should increase.

Fuzzy logic offer suitable tools to encode this type of knowledge, and therefore we use it in our system. The next section outlines the technical choices made in our design.

3 System Design

The core of our system is a multiple-input multiple-output Fuzzy Inference System (FIS) [6], which implements the “Reasoning engine” block in Figure 1. The system runs at a fixed clock cycle, and it therefore resembles the structure of a classical fuzzy controller. It takes as input a set of music parameters extracted in real time that describe the human execution, and it produces as output a set of control parameters for the virtual drummer. Differently from most conventional fuzzy controllers, the rules’ conditions are not simply conjunctions of positive literals, but general formulas in (fuzzy) propositional logic. This gives us greater expressive power in representing the musician’s knowledge. Because of this, the system has been implemented from scratch rather than relying on existing toolboxes.

3.1 Input features

The interface between the software and the live or prerecorded piano is implemented using the Python MIDO library. MIDI uses ports as interfaces between producers and consumers of MIDI messages and the system will continually poll the input port for MIDI messages. Form this the system extracts features both explicit and implicit. The features extracted are:

  • Velocity. The velocity is extracted from the velocity field of each received MIDI messages and the sum of velocities extracted at each clock cycle is given as input to the FIS.

  • Rhythmic density. The rhythmic density is extracted for low, high and full range of notes by subdividing a musical bar into a number of slots and determining in which proportion of those slots a note has been played during the last bar.

  • Status of pedal. In MIDI the changing the pedal of a piano generates a control change message, our system keeps track of the current state of the pedal and changes it when receiving such a message.

  • Time since last piano note. Is calculated at each iteration of computation from the recorded time of the last note.

  • Current musical bar, beat and position in 32 bar sequence. Current musical bar and current beat is calculated by recording the time each note arrives and the time the first note (which should arrive on the first beat) arrived respectively.

  • Velocity averages. A window of length t is created where each arriving velocity is recorded. At each computational cycle the window is dived into two part and an average is calculated for each part. This gives a newer and an older average

3.2 Filtering the past

Some of the knowledge expressed by the musicians implicitly refers to a temporal aspect, e.g., considering the “average” intensity rather than the instantaneous one, or considering that the intensity is “increasing”. These aspects could be captured in the feature extraction part by adding ad-hoc temporal filters. We opted instead for using a second FIS to extract relevant temporal features. This is a recurrent fuzzy system [1] that takes as input the current features at time plus its own output at time . This solution allows us to better capture the specific knowledge of the musician, e.g., on what counts as a “sudden drop in intensity”, in a way that is more explicit and easier to modify. This FIS takes the following variables as input:

  • Velocity Difference. The difference between the instantaneous velocity and the previous average velocity. U: (-127, 127) Member functions shape: Triangular. Terms: ’Neg-Max’ (-127, -127, -95.25), ’Neg-High’ (-127, -95.25, -63.5), ’Neg-Middle’ (-95.25, -63.5, -31.75), ’Neg-Low’ (-63.5, -31.75, 0.0), ’None’ (-31.75, 0.0, 31.75), ’Low’ (0.0, 31.75, 63.5), ’Middle’ (31.75, 63.5, 95.25), ’High’ (63.5, 95.25, 127), ’Max’ (95.25, 127.0, 127).

  • Density Difference. The difference between the current rhythmic density and the previous rhythmic density, calculated for the high, low and full registers of notes. U: (-127, 127) Member functions shape: Triangular. Terms: ’Neg-Max’ (-127, -127, -95.25), ’Neg-High’ (-127, -95.25, -63.5), ’Neg-Middle’ (-95.25, -63.5, -31.75), ’Neg-Low’ (-63.5, -31.75, 0.0), ’None’ (-31.75, 0.0, 31.75), ’Low’ (0.0, 31.75, 63.5), ’Middle’ (31.75, 63.5, 95.25), ’High’ (63.5, 95.25, 127), ’Max’ (95.25, 127.0, 127).

  • Newer and older velocity average. Referees to the two averages described in Input Features. U: (0, 127). Member functions shape: Triangular. Terms: ’Low’ (0, 0, 25.4) ’Mid-Low’ (0, 25.4, 50.8), ’Middle’ (25.4, 50.8, 76.2), ’Mid-High’ (50.8, 76.2, 101.6), ’High’ (76.2, 101.6, 127), ’Max’ (101.6, 127, 127).

  • Complexity. The current complexity level of the piano as inferred by the control FIS. U: (0, 127). Member functions shape: Triangular. Terms: ’Low’ (0, 0, 25.4) ’Mid-Low’ (0, 25.4, 50.8), ’Middle’ (25.4, 50.8, 76.2), ’Mid-High’ (50.8, 76.2, 101.6), ’High’ (76.2, 101.6, 127), ’Max’ (101.6, 127, 127).

  • Intensity. The current intensity level of the piano as inferred by the control FIS. U: (0, 127). Member functions shape: Triangular. Terms: ’Low’ (0, 0, 25.4) ’Mid-Low’ (0, 25.4, 50.8), ’Middle’ (25.4, 50.8, 76.2), ’Mid-High’ (50.8, 76.2, 101.6), ’High’ (76.2, 101.6, 127), ’Max’ (101.6, 127, 127).

  • Intensity Slope.

    Considers if the intensity is increasing or decreasing (i.e. the slope is positive or negative). The slope is calculated by linear regression over k measured points of intensity. U: (-

    , ). Member functions shape: Trapezoid. Terms: ’Increasing’ (1, 10, , ), ’Decreasing’ (-1, -10, , ).

  • Complexity Slope. Considers if the complexity is increasing or decreasing (i.e. the slope is positive or negative). The slope is calculated by linear regression over k measured points of complexity. U: (-, ). Member functions shape: Trapezoid. Terms: ’Increasing’ (1, 10, , ), ’Decreasing’ (-1, -10, , ).

These antecedent variables are then used to infer the consequent variables that are given as input to the control FIS.

  • Change Velocity. Depends on Velocity Difference and gives a scalar value as output that is used to calculate the new average. This consequent is inferred multiple times with different universe (-0.3 to 0.3 and -0.1 to 0.1) which makes it possible to calculate averages that change at different paces. U: (-0.3, 0.3). Member functions shape: Triangular. Terms: ’Max-Down’ (-0.3, -0.3, -0.2249), ’High-Down’ (-0.3, -0.2249, -0.149), ’Middle-Down’ (-0.2249, -0.1499, -0.0749), ’Low-Down’ (-0.1499, -0.0749, 0), ’None’ (-0.0749, 0, 0.0750), ’Low-Up’ (0, 0.0750, 0.1500), ’Middle-Up’ (0.07500, 0.1500, 0.2250), ’High-Up’ (0.1500, 0.2250, 0.3), ’Max-Up’ (0.2250, 0.3, 0.3).

  • Change Density. Depends on Complexity Difference and gives a scalar value as output that is used to calculate the new average. This consequent is inferred multiple times for different parts of the register of notes. U: (-0.5, 0.5). Member functions shape: Triangular. Terms: ’Max-Down’ (-0.5, -0.5, -0.375), ’High-Down’ (-0.5, -0.375, -0.25), ’Middle-Down’ (-0.375, -0.25, -0.125), ’Low-Down’ (-0.25, -0.125, 0.0), ’None’ (-0.125, 0.0, 0.125), ’Low-Up’ (0.0, 0.125, 0.25), ’Middle-Up’ (0.125, 0.25, 0.375), ’High-Up’ (0.25, 0.375, 0.5), ’Max-Up’ (0.375, 0.5, 0.5).

  • Sudden shift. Depends on newer and older average, determines if there has been a sudden shift in the intensity of the piano playing, the time of a sudden shift is also recorded. U: (-1, 1). Member functions shape: Triangular. Terms: ’Up’ (1, 1, 0), ’None’(1, 0, -1), ’Down’ (0, -1, -1).

  • Hype. Depends on current Intensity and Complexity as well as their slopes. Anticipates the arrival of a crescendo. U: (0, 1). Member functions shape: Triangular. Terms: Coming’ (0, 1, 1).

3.3 Anticipating the future

Another important element that we want to address is musical anticipation. We have encoded a simple predictive model in the above temporal FIS to infer a coming climax or anti-climax from a change in intensity and complexity. The main FIS includes anticipatory rules that react to these forecasted features, e.g., anticipate a climax by starting a drums fill-in; or anticipate an anti-climax by muting the kick first, and then the snare once the change occurs.

3.4 Output parameters

The virtual drummer is controlled by the software Strike 2 by Air Music Technology. Strike allows us to control the behaviour and settings of the drummer by the use of MIDI messages outputted from our software. Currently our software controls the intensity and complexity of the drummer as well as starting, stopping and changing the pattern (e.g., verse, bridge, chorus, fills, intros and outros) of the drummer and muting of individual parts of the kit.

3.5 Fuzzy inference

Our FIS is based on the usual fuzzify-inference-defuzzify pipeline. But we use two fuzzy inference systems, one to infer temporal aspects of the piano playing and one to infer the control parameters passed to the drummer.

3.6 Inferring the drum parameters

The control FIS infers the commands that controls the behaviour of the drum-machine based on both the output of the temporal FIS and features extracted from the piano.

  • Time since last note. Refers to the time since the last piano note. U:(0, ). Member functions shape: Triangular. Term: Short (0, 4, 6)

  • Current Mode. Refers to the current inferred mode of the piano. U:(0, 1). Member functions shape: Singular. Terms: ’Stop’ (0), ’Play’ (1).

  • Historic Mode. Refers to the previous inferred mode of the piano. U:(0, 1). Member functions shape: Singular. Terms: ’Stop’ (0), ’Play’ (1).

  • Historic Pattern Refers to the current state of the drums. U:(0,15). Member functions shape: Singular. Terms: ’Intro To Chorus 1’ (0), ’Fill To Chorus 1’ (1), ’Fill To Chorus 2’ (2), ’Fill To Chorus 3’ (3), ’Fill To Chorus 4’ (4), ’Fill To Chorus 5’ (5), ’Fill To Chorus 6’ (6), ’Fill To Chorus 7’ (7), ’Chorus 1’ (8), ’Outro’ (10), ’None’ (11).

  • Historic Mute. Refers to which, if any, of the parts of the kit has been muted. U:(0, 2). Member functions shape: Singular. Terms: ’None’ (0), ’Kick’ (1), ’Kick and Snare’ (2).

  • Intensity. Refers the inferred intensity. This is determined first by the FIS and given as input to another part of the FIS in the same cycle. U:(0, 127). Member functions shape: Triangular. Terms: ’Low’ (0, 0, 25.4) ’Mid-Low’ (0, 25.4, 50.8), ’Middle’ (25.4, 50.8, 76.2), ’Mid-High’ (50.8, 76.2, 101.6), ’High’ (76.2, 101.6, 127), ’Max’ (101.6, 127, 127).

  • Complexity. Refers the inferred complexity. This is determined first by the FIS and given as input to another part of the FIS in the same cycle. U:(0, 127). Member functions shape: Triangular. Terms: ’Low’ (0, 0, 25.4) ’Mid-Low’ (0, 25.4, 50.8), ’Middle’ (25.4, 50.8, 76.2), ’Mid-High’ (50.8, 76.2, 101.6), ’High’ (76.2, 101.6, 127), ’Max’ (101.6, 127, 127).

  • Bar. Refers to the current position in a repeating 32 bar sequence (i.e. modulo 32). The member functions depend on the length of a bar, which in turn depend on the BPM and the number of notes per bar. Generally for the beginning and end of a bar respectively, where T is the time per bar and K is the bar number:

    U:(0, 32 * T). Member functions shape: Trapetziod. Terms: ’8th’, ’16th’, ’24th’, ’32th’, ’End 4th’, ’End 12th’, ’End 20th’, ’End 28th’.

  • Change Velocity. Refers to if the velocity has been increasing or decreasing over the past 8 bars. U:(0, 1). Member functions shape: Singular. Terms: ’Down’ (0), ’Up’ (1).

  • Hype. Refers to the output variable given by the temporal FIS. U:(0, 1). Member functions shape: Triangular. Terms: ’Coming’ (0, 1, 1).

  • Time in bar. Refers to the current position within a single bar. U:(0, T). Only a single term exist ’Last Quarter’ which has the general membership function of the trapezoid shape:

  • Average Velocity. Refers to the average velocity inferred by the temporal filter FIS. U: (0, 127). Member functions shape: Triangular. Terms: ’Low’ (0, 0, 25.4) ’Mid-Low’ (0, 25.4, 50.8), ’Middle’ (25.4, 50.8, 76.2), ’Mid-High’ (50.8, 76.2, 101.6), ’High’ (76.2, 101.6, 127), ’Max’ (101.6, 127, 127).

  • Intensity shift. Refers to sudden shifts in intensity inferred by the temporal filter FIS. U:(-1, 1) . Member function shape: Triangular. Terms: ’Down’ (-1, -1, 0), ’Up’ (0, 1, 1).

  • Time since sudden shift up/down. Refers to the amount of time passed since a sudden shift up and down respectively. U:(0, ). Member functions shape: Trapezoid. Terms: ’Short’ (0, 0, 0.5, 3.5)

  • Full range density. Refers to the full range density extracted from the piano input. U:(0, 127). Member functions shape: Triangular. Terms: ’Low’ (0, 0, 25.4) ’Mid-Low’ (0, 25.4, 50.8), ’Middle’ (25.4, 50.8, 76.2), ’Mid-High’ (50.8, 76.2, 101.6), ’High’ (76.2, 101.6, 127), ’Max’ (101.6, 127, 127).

  • Low/High Range Density. Refers to the low/high range density extracted from the piano input. U:(0, 127). Member functions shape: Triangular. Terms: ’Low’ (0, 0, 42.3), ’Middle’ (0, 42.3, 84.6), ’High’ (42.3, 84.6, 127), ’Max’ (84.6, 127, 127).

  • Pedal status. Refers to the status of the pedal. U:(0, 1). Member functions shape: Singular. Terms: ’Down’ (0), ’Up’ (1).

  • Time since pedal. Refers to the amount of time since the sustain pedal was pressed down. U:(0, ). Membership functions shape: Triangular. Terms: ’Very Short’ (0, 0, 1).

As output the FIS has the following variables: Intensity, Complexity, Pattern and Mute/Unmute.

  • Intensity. Depends on Average Velocity, Intensity Shift and Time since sudden shift up/down. Controls the intensity parameter of the virtual drummer. U:(0, 127). Member functions shape: Triangular. Terms: ’Low’ (0, 0, 25.4) ’Mid-Low’ (0, 25.4, 50.8), ’Middle’ (25.4, 50.8, 76.2), ’Mid-High’ (50.8, 76.2, 101.6), ’High’ (76.2, 101.6, 127), ’Max’ (101.6, 127, 127).

  • Complexity. Depends on Full range density, Low range density, High range density, Pedal and Intensity. Controls the intensity parameter of the virtual drummer. U:(0, 127). Member functions shape: Triangular. Terms: ’Low’ (0, 0, 25.4) ’Mid-Low’ (0, 25.4, 50.8), ’Middle’ (25.4, 50.8, 76.2), ’Mid-High’ (50.8, 76.2, 101.6), ’High’ (76.2, 101.6, 127), ’Max’ (101.6, 127, 127).

  • Pattern. Depends on Current Mode, Historic Mode, Historic Pattern, Historic Mute, Complexity, Intensity, Bar, Velocity Change, Hype, Time in bar, High range density, Low range density and Time since pedal. Controls the patterns played by the drummer. U:(0,14) Member functions shape: Singular. Terms: ’Intro To Chorus 1’ (0), ’Fill To Chorus 1’ (1), ’Fill To Chorus 2’ (2), ’Fill To Chorus 3’ (3), ’Fill To Chorus 4’ (4), ’Fill To Chorus 5’ (5), ’Fill To Chorus 6’ (6), ’Fill To Chorus 7’ (7), ’Chorus 1’ (8), ’Fill 1’ (9), ’Outro’ (10), ’None’ (11), ’No change’ (12), ’Fill 4’ (13), ’Fill 3’ (14).

  • Mute. Depends on High range density, Time since pedal, Intensity, Bar, Velocity Change and Historic Mute. Controls which parts of the kit should be muted. U:(0, 2). Member functions shape: Singular. Terms: ’None’ (0), ’Kick’ (1), ’Kick and Snare’ (2).

  • Unmute. Depends on Intensity, Bar, Velocity Change and Historic Mute. U:(0, 2). Member functions shape: Singular. Terms: ’None’ (0), ’Kick’ (1), ’Kick and Snare’ (2).

As for rule evaluation, we use standard Mamdani implication and composition-based inference, and the Center-of-Area defuzzification method [6].

4 Development and Testing

4.1 System development

The system is implemented using Python (version 3.6.8). For parsing the MIDI messages received as input and for sending MIDI messages to the virtual drummer, the Python library MIDO (version 1.2.9) is used. The virtual drummer used is Strike 2 (version 2.0.7) developed by AIR Music Technology. As input the system takes the output of a MIDI capable piano, either being performed live and connected to the system via a MIDI capable sound-card or prerecorded and saved as a MIDI file.

4.2 Knowledge elicitation

The project includes people from computer science, music performance, audio engineering and philosophy. This highly inter-disciplinary nature requiree a careful process for the conceptual and practical development. Throughout the project, participants have kept journals on their thoughts, and various interaction means have been used — discussions, workshops, shared documents, examples of piano performance, and system demos. In the initial phases, piano recordings were analyzed by the performer himself through a process of open coding, where different features of the playing were identified and described; e.g. “phrase with high intensity”, “build up in velocity”, etc. These indications then provided a basis for identifying the relevant musical parameters and fuzzy rules in the AI system.

As it appears from the individual journals, the interaction has led to cross fertilization and mutual enrichment of all the participants. For example, the need to describe music performance in logical terms led to the development of a new analytical perspective on how, when and why different styles are being chosen and used. On the other hand, the fuzzy models had to be enriched to meet the complexity of human musical performance, e.g., to change the feeling of intensity in the music using density of notes, change of notes registries, sustain pedal, or dynamics. Each representative of their field of science has also been interfacing between the other two. For example, in discussion between music performer and computer scientist the audio engineer has been able to fill in with details on MIDI protocol and a possible different approach, and in discussions between computer scientist and audio engineer about technical aspects, the music performer has been able to expand the discussion towards the above mentioned complexity in human musical performance.

By building the design of the project on Strike as a auditive engine, there could be more focus at the development of interaction between human performer and the AI responsiveness and anticipation. Instead of studying the basics of drum performance in terms of how and when to hit the different part of the drumkit, the project could leave that to Strike and focus on how to change the expressiveness of the virtual drummer in accordance with the piano performance. More time has in this way been put to interpret and interact to the piano (human) performance instead of how to sound like a drummer.

4.3 Testing

The project was done from the start in a tight loop between the musicians and the software developers. To allow this, we have first developed a simple but fully usable system, and then modified the system and the model incrementally in collaboration with the musicians. At the time of this writing, the system has not been evaluated by an external audience yet. This will happen soon in three public concerts, two on May 28 and one on June 12, 2019.

5 Conclusions

The presented case study is the first step in a more general and ambitious study on anticipation and creative processes in anthrobotic systems [5]. The work is at a preliminary stage, and the treatment of anticipation is extremely simple and limited to a naive prediction of a coming climax. Despite this simplicity, the resulting behavior of the virtual drummer was deemed sufficiently collaborative and “human like” by the musicians in our initial tests. The system will be used for three live performances in the next month (June 2019), and we will update this article to reflect the outcomes of this.

Anticipation needs a predictive model. In the current system, this model was elicited from the musicians and encoded in the form of fuzzy predicates and fuzzy rules. The use of a pure knowledge-based approach in this initial phase allowed us to go through a modular and incremental development in a continuous dialogue with the music experts. Our next step will be to integrate this approach with a data-driven approach, e.g., by tuning, completing or adapting the rules from samples as done in [7]. We also plan to investigate the use of our framork to control different robot performers, e.g., a dancing robot.

Acknowledgements

This work was partially supported by a grant from Vetenskapsrådet. Additional support was provided by Örebro University through its Internationalization program as well as its 20-year jubileum program. The collaboration that led to this work is framed within the CREA (Cross-disciplinary Research on Effectual Anticipation) research network [5], which is part of Örebro University’s larger effort to promote multidisciplinary research in AI.

References

  • [1] Jürgen Adamy and Roland Kempf. Regularity and chaos in recurrent fuzzy systems. Fuzzy Sets and Systems, 140(2):259–284, 2003.
  • [2] John A Biles. Genjam in perspective: a tentative taxonomy for ga music and art systems. Leonardo, 36(1):43–45, 2003.
  • [3] David Cope. Computer models of musical creativity. MIT Press Cambridge, 2005.
  • [4] L De Miranda, M Rovatsos, and S Ramamoorthy. We, Anthrobot: Learning from human forms of interaction and esprit de corps to develop more plural social robotics. In Proceedings of Robo-Philosophy: What social robots can and should do:, pages 48–59, 2016.
  • [5] Luis De Miranda and Alessandro Saffiotti. Cross-disciplinary research on effectual anticipation. http://aass.oru.se/Agora/CREA, 2019.
  • [6] Dimiter Driankov. A reminder on fuzzy logic. In D Driankov and A Saffiotti, editors, Fuzzy Logic Techniques for Autonomous Vehicle Navigation, chapter 2. Springer, 2001.
  • [7] Anders Friberg, Roberto Bresin, and Johan Sundberg. Overview of the kth rule system for musical performance. Advances in Cognitive Psychology, 2(2-3):145–161, 2006.
  • [8] Lejaren A Hiller Jr and Leonard M Isaacson. Musical composition with a high-speed digital computer. Journal of the Audio Engineering Society, 6(3):154–160, 1958.
  • [9] Chien-Hung Liu and Chuan-Kang Ting. Computational intelligence in music composition: A survey. IEEE Transactions on Emerging Topics in Computational Intelligence, 1(1):2–15, 2017.
  • [10] Marvin Minsky. Music, mind, and meaning. Computer Music Journal, 3(4):28–44, 1982.
  • [11] Bhavya Mor, Sunita Garhwal, and Ajay Kumar. A systematic literature review on computational musicology. Archives of Computational Methods in Engineering, pages 1–15, 2019.
  • [12] Robert Rosen. Anticipatory systems. In Anticipatory systems, pages 313–370. Springer, 2012.
  • [13] Herbert A Simon and Richard K Sumner. Patterns in music (1968). pages 83–110, 1993. Reprinted.
  • [14] Kıvanç Tatar and Philippe Pasquier. Musical agents: A typology and state of the art towards musical metacreation. Journal of New Music Research, 48(1):56–105, 2019.
  • [15] Belinda Thom. Interactive improvisational music companionship: A user-modeling approach. User Modeling and User-Adapted Interaction, 13(1-2):133–177, 2003.
