1 Introduction

“The face is the mirror of the mind, and eyes without speaking confess the secrets of the heart.” - Letter 54, St. Jerome.

Face analysis has been an area of interest for several decades in which researchers have attempted to answer important questions ranging from identity prediction [Zhou et al.2018], to emotion recognition [Li et al.2016], and attribute prediction [Abdulnabi et al.2015], [Sethi et al.2018]

. Focused research efforts and use of deep learning models have led to a high performance for tasks involved in face analysis. For instance, state-of-the-art results on YouTube Faces

[Wolf et al.2011] and Point and Shoot Challenge [Beveridge et al.2013] databases are over 95%, and 97% [Goswami et al.2017], and attribute recognition on the Celeb-A database is more than 90% [Sethi et al.2018]. While there are several advantages of these high accuracies, they also pose a threat to the privacy of individuals. As shown in Figure 1, several facial attributes such as age, gender, and race can be predicted from one’s profile or social media images. In a recent research, Wang and Kosinksi predicted the “secrets of the heart”, such as predicting sexual orientation from face images [Wang and Kosinski2017]. They reported 81% accuracy for differentiating between gay and heterosexual men with a single image and 74% accuracy is achieved for women. Similarly, targeted advertisements by predicting the gender and age from the profile and social media photographs have been a topic of research for the last few years.

Figure 1: Profiling of a person using his face image in ID card for malicious purpose.
Author Method
No. of Attributes
Othman and Ross, 2014
Face Morphing
and fusion
One MUCT No Partially Preserved
Mirjalili and Ross, 2017
Delaunay Triangulation
and fusion
One MUCT, LFW No Partially Preserved
Mirjalili et al., 2017
Fusion using

Convolutional Autoencoder

Celeb-A, AR-Face
No Preserved
Rozsa et al., 2016, 2017
Fast Flipping Attribute Multiple CelebA No Preserved
MUCT, LFWcrop,
Yes Preserved
Table 1: Summarizing the attribute suppression/anonymization algorithms in the literature.

Motivated by these observations, in this research, we raise an important question: “Can we anonymize certain attributes for privacy preservation and fool automated methods for attribute predictions?” The answer to this question relates to -anonymity literature where information of each individual cannot be differentiated from the individuals [Sweeney2002]. It differs from the fact that in attribute anonymization, certain attributes are to be suppressed/anonymized while remaining ones are retained. For instance, if the images are uploaded to the driving license database to ascertain identity, it should not be used for any other facial analysis, except identity matching.

1.1 Literature Review

In the literature, privacy preservation in face images has been studied from two perspectives. Researchers have studied this problem in terms of privacy-preserving biometrics while others have termed it as attribute suppression. As mentioned above, face images reveal a lot of ancillary information for which the user may not have consented. In order to protect such ancillary information (soft biometrics), researchers have proposed several different methodologies. [Boyle et al.2000] developed an algorithm to blur and pixelate the images in the video. [Newton et al.2005]

have developed an algorithm for face de-identification in video surveillance such that the face recognition fails while preserving other facial details.

[Gross et al.2006] have shown that distorting image via blurring and pixelation method gives poor results. To improve the results, they proposed model based face de-identification method for privacy protection.

Figure 2: Demonstrating the attribute anonymized images generated by existing algorithms. First and third column images are original images while second and fourth column images are gender anonymized images [Sim and Zhang2015], [Suo et al.2011], [Othman and Ross2014], [Mirjalili and Ross2017].

Some researchers have also worked on the privacy of soft biometrics. [Othman and Ross2014] have proposed attribute privacy preserving technique, in which the soft biometrics attribute such as gender is “flipped” while preserving the identity for face recognition. In order to flip the gender, face morphing scheme is used in which the face of other opposite gender is morphed with the input image. As an extension of this work, [Mirjalili and Ross2017] and [Mirjalili et al.2017] have proposed Delaunay triangulation, and convolutional autoencoders based methods to flip gender information while preserving face identity. [Suo et al.2011] have presented an image fusion framework in which the template of opposite gender face image is taken for fusion with the candidate image while preserving face identity. [Jourabloo et al.2015] have developed an algorithm for de-identification of face image while preserving other attributes. For attribute preservation, it uses images (motivated by -Same) which shares the same attributes for fusion. [Sim and Zhang2015] have proposed a method which independently controls the identity alteration and preserves the other facial attributes. It decomposes the facial attribute information into different subspaces to independently control these attributes.

To anonymize the facial attributes, [Rozsa et al.2017]

have proposed deep learning based model for facial attribute prediction. A deep convolutional neural network is trained for each attribute separately and in order to test the robustness of the trained model, adversarial images are generated using fast flipping attribute (FFA) technique. As an extension of their work

[Rozsa et al.2016] have used FFA and adversarial images are generated in which a facial attribute is flipped. They have observed that the few attributes are effected while flipping the targeted attribute. For instance, while changing the ‘wearing lipstick’ attribute, other attributes such as ‘attractive’ and ‘heavy makeup’ are also flipped.

Based on the literature review, we observe that there are algorithms for single attribute anonymization. However, there are three major challenges in anonymizing multiple attributes.

  1. While anonymizing facial attributes, there should be no visual difference between original and anonymized images.

  2. Selectively anonymizing few and retaining some attributes require a “control” mechanism. For example, gender and expression can be anonymized while retaining race and eye color and other attributes such as attractiveness and hair color may be in “do not care” condition.

  3. In applications involving matching faces for recognition, identity should be preserved while anonymizing attributes.

The major limitation of these methods is that they do not address the first two challenges mentioned above. Existing algorithms primarily depend on a candidate image which is fused with the original image. This privacy preserving fusion leads to major transform and loss in visual appearance. [Rozsa et al.2016] have addressed this issue but due to lack of any control mechanism, the other attributes are also suppressed, while suppressing one attribute.

1.2 Research Contributions

This research proposes a novel algorithm for privacy-preserving -attribute anonymization using adversarial perturbation. The proposed algorithm jointly anonymizes and preserves multiple facial attributes without affecting the visual appearance of the image. The proposed algorithm is also extended for identity preserving -attributes anonymization. Experiments on three databases and comparison with existing techniques showcase the efficacy of the proposed algorithm.

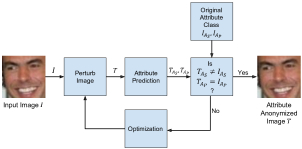

Figure 3: Illustrating the steps involved in the proposed algorithm.

2 Proposed Approach

The problem statement can formally be defined as: “create an image such that a set of pre-defined attributes are preserved while another set of pre-defined attributes are suppressed”. As shown in Figure 3, the proposed algorithm can change the prediction output of certain attributes from the true class to a different target class. The detailed description of the proposed algorithm is given below:

Let be the original face image with number of attributes in the attribute set . For each attribute , there are number of classes. For instance, in attribute ‘Gender’, two classes are {Male, Female} and ‘Expression’ attribute has five classes, namely {Happy, Sad, Smiling, Anger, Fearful}. Mathematically, it is written as:


Let be the attribute anonymized image generated by adding perturbation in the original image where range of is between to . Mathematically, it is written as:


To satisfy the above constraint, function is applied on as follows:


In an attribute suppressing/preserving application, let and be the sets of attributes to be suppressed and preserved where, and . In attribute anonymization task, it has to be ensured that the class of attributes in changes to some other class while preserving attributes in image .


In order to suppress and preserve the sets of attributes and respectively, the distance between attributes of in and is minimized, while the distance between attributes is maximized. The objective function is thus represented as:


where, is the distance metric. To preserve the visual appearance of the image, the distance between and is also minimized. Experimentally, we found that the distance metric is most suitable for preserving the visual appearance of the image. Equation 5 is updated as:


The first two constraints i.e. and the term in the above Equation is non linear. Therefore, to solve the same, an alternative function , inspired from [Carlini and Wagner2017], is used. The above Equation is thus written as:


Here, attempts to preserve the attributes and suppress attributes . There can be multiple cases for facial attribute anonymization, the objective function for each case is discussed as follows:

Case I - Single Attribute Anonymization:

This case formulates the scenario pertaining to changing the class of a single attribute i.e., the set contains only one attribute, . In order to change the class of a single attribute with class to any other class where , the objective function is formulated as:



denotes a function giving the probability value of

. For our case, we have used the Softmax output score (discussed in Section 4). The term used in Equation 8 outputs the maximum class score of attribute and term outputs the score of each class of attribute except the class. It is important to note that Equation 8 can also provide the target attribute class by giving a class label to the variable .

Case II - Multiple Attribute Preservation and Suppression:

This case formulates the scenario when the prediction output of multiple attributes, e.g. ‘Gender’ and ‘Attractiveness’ are suppressed while preserving other attributes e.g. ‘Ethnicity’, ‘Wearing glasses’, and ‘Heavy makeup’. In this specific example, the set contains a list of three attributes whereas, contains list of two attributes. For such scenarios of multiple attributes, the function will be the summation of Equation 8 for each attribute. Mathematically, it is expressed as:


In order to preserve the attributes, the target attribute class will be same as input attribute class. The optimization method in Equation 9 can control the separation between target class score and next maximum class score by providing value ‘’ in place of where , i.e.


Case III - Identity Preservation:

The third and the most relevant case with respect to face recognition applications, is preserving the identity of a person while suppressing an attribute. The objective function in this case can be written as:


Here, and is the identity of the face images , and respectively obtained from any face recognition algorithm, and is the distance metric to match two face features.

Experiment Dataset # Attributes Anonymized Attribute Anonymized
Suppressed Preserved
1 Gender -
Celeb-A 3, 5
Heavy makeup,
High cheekbones
1+1 Gender Identity
Table 2: The experiments are performed pertaining to three cases to showcase the effectiveness of the proposed algorithm.

The proposed formulation of -anonymizing attributes can be viewed as adding adversarial noise such that some attributes are suppressed while preserving selected attributes and identity information. Figure 4, shows some examples of attribute anonymization using the proposed algorithm.

3 Datasets and Experimental Details

Ground Truth Male Not Male Smiling
Not Smiling
Not Attractive
Before Anonymization Male 87.70 12.30 Smiling 64.59 35.41 Attractive 89.31 10.69
Not Male 19.64 80.36
Not Smiling
24.66 75.34
Not Attractive
28.41 71.59
After Anonymization Male 3.89 96.11 Smiling 0.02 99.98 Attractive 0.28 99.72
Not Male 100 0
Not Smiling
99.90 0.10
Not Attractive
99.59 0.41
Table 3: Confusion matrix displaying classification accuracies (%) of before and after suppression of three attributes together on the CelebA dataset

The proposed algorithm is evaluated on three datasets: MUCT [Milborrow et al.2010], LFWcrop [Huang et al.2007], and CelabA[Liu et al.2015]. Comparison has been performed with the algorithm proposed by [Mirjalili and Ross2017]. The details of the databases are described as follows:

MUCT dataset contains 3,755 images of 276 subjects out of which 131 are male and 146 are female captured under varying illuminations using five webcams. Viola-Jones [Viola et al.2005] face detector is applied to all images and the detector fails to detect 49 face images. Therefore, only 3,706 images are used for further processing. LFWcrop dataset contains 13,233 face images of 5,749 subjects. In order to evaluate the performance, view 2 of the dataset which consist of 6,000 pairs of images, has been considered. Out of these 6,000 pairs of images, only one image from each pair has been selected for anonymization. CelebA dataset contains 202,599 face images of celebrities. From this dataset, only the test set of 19,962 images has been considered for attribute anonymization. The results of anonymizing a single attribute are shown on all three databases while the results of anonymizing multiple attributes are shown on CelebA dataset.

As shown in Table 2, three experiments are performed, one corresponding to each case discussed in Section 2. For attribute anonymization task, white box attacks are performed whereas for identity preservation, black box attack is performed. The attributes are anonymized corresponding to the attribute classification model while the identities are preserved according to face recognition algorithm. For attribute classification, we have selected fine-tuned VGGFace [Parkhi et al.2015] and for identity preservation, OpenFace [Amos et al.2016] model is used. The distance metrics used with both the models is Euclidean distance. The performance of face recognition is evaluated on both OpenFace [Amos et al.2016] and VGGFace (black box model) [Parkhi et al.2015].

Implementation details:

The proposed algorithm is implemented in Tensorflow with 1080 Ti GPU. For learning the perturbation, L2 attack has been performed with Adam optimizer. The learning rate is set 0.01 and number of iterations used is 10000.

Figure 4: This figure shows the images before and after anonymizing attributes of Celeb-A dataset. First column represents the original images while second, third, and fourth columns show one, three, and five attributes anonymized images.

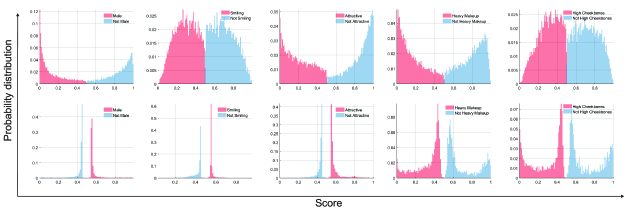

Figure 5: Comparing the attribute class score distributions of images before and after anonymization of 5 attributes together on the CelebA dataset. The first row distributions pertain to the original images whereas, second row distributions corresponds to the anonymized images.

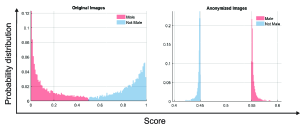

Figure 6: Comparing score distributions before and after anonymizing ’Gender’ attribute on the CelebA dataset.

4 Performance Evaluation

The proposed model is evaluated for single and multiple attribute anonymization. For multiple attribute anonymization, two types of experiments are performed: attribute suppression, and attribute suppression

preservation. In case of single attribute anonymization, the performance of the proposed algorithm has been analyzed for the tasks of attribute suppression as well as identity preservation. To generate the attribute anonymized images, only those samples have been considered which are correctly classified by the attribute classification model.

4.1 Multiple Attribute Anonymization

The proposed algorithm for multiple attribute anonymization is evaluated on the CelebA dataset. Three attributes are considered for the task of attribute suppression, while attribute suppression and preservation is performed with five attributes.

Attribute Suppression:

Experiments have been performed with three attributes i.e. ‘Gender’, ‘Smiling’, ‘Attractive’. The confusion matrix in Table 3 shows that in over 96% of the images, attributes are correctly suppressed. After applying the proposed algorithm for the attribute ‘Attractive’, the classification accuracy dropped from 89.31% to 0.28%; thereby showcasing the efficacy of the proposed technique for the task of attribute suppression.

Attribute Suppression and Preservation:

The results for five attributes ‘Gender’, ‘Attractive’, ‘Smiling’, ‘Heavy Makeup’ and ‘High Cheekbones’ are shown in Figure 5. Three attributes are suppressed i.e. ‘Gender’, ‘Attractive’ and ‘Smiling’, while remaining two are preserved. The confidence value (‘c’ value as defined in Equation 10) is set to 0.1. In Figure 5, the first and second row histograms show the attribute class score distributions before and after anonymization of images. It is observed that the attribute class score distributions of first three attributes ‘Gender’, ‘Attractive’ and ‘Smiling’ are flipped while the class score distributions of ‘Heavy Makeup’ and ‘High Cheekbones’ are preserved. This illustrates the utility of the proposed algorithm for multiple attributes suppression and preservation. Figure 4 presents the original and anonymized images for one, three, and five attributes. The similarity of visual appearance between original and modified images further strengthens the usage of the proposed algorithm.

4.2 Attribute Suppression with Identity Preservation

To evaluate the performance of single attribute suppression with identity preservation, experiments are performed on MUCT, CelebA and LFWcrop datasets. The results of single attribute suppression and attribute suppression along with identity preservation are discussed below.

Single Attribute Suppression:

Figure 6 shows the result of the ‘Gender’ attribute suppression on CelebA dataset. It can be observed that the score distribution of attributes are completely flipped before and after anonymization. The confusion matrix for MUCT dataset before and after anonymization is shown in Table 4. On comparing the results with the algorithm proposed by [Mirjalili and Ross2017], it can be observed that after anonymization, all samples are misclassified by the proposed method. It is important to note that the method proposed by [Mirjalili and Ross2017] is dependent on the fusion of the other candidate images which embeds visual distortion in the image. On the other hand, in the proposed method, the anonymization of attribute is independent of another candidate image, thus resulting in limited visual distortions. Some example images of a suppressed attribute on MUCT and LFWcrop datasets are demonstrated in Figure 7. These samples show that there are minimal effect on visual appearance of the image after attribute anonymization.

Identity Preservation:

To evaluate identity preservation performance, while anonymizing an attribute, experiments are performed on both MUCT and LFWcrop datasets. For MUCT dataset, a single image gallery and two probe sets are used. The first probe set consist of original images while the second probe set contains the corresponding ‘Gender’ suppressed images of probe set 1. Two widely use face recognition models i.e. OpenFace [Amos et al.2016] and VGGFace [Parkhi et al.2015] are used for (i) original to original face matching (i.e., gallery to probe set 1) and (ii) original to anonymized face matching (i.e., gallery to probe set 2). The Cumulative Match Characteristic (CMC) curves summarizing the performance of face recognition before and after suppressing the attributes are show in Figure 9. The low variation observed in accuracy for recognition before and after anonymization motivates the applicability of the proposed algorithm for identity preservation as well.

[Mirjalili and Ross2017]
Male Female Male Female
Before Male 1762 17 1741 87
Female 521 1300 252 1626
After Male 276 1503 0 1828
Female 1255 566 1878 0
Table 4: Comparison of confusion matrix of the proposed algorithm with [Mirjalili and Ross2017] on the MUCT dataset.
Figure 7: Examples of before and after anonymization of ‘Gender’ attribute on MUCT and LFWcrop datasets. First row images are original images, second row images are ‘gender’ anonymized images.
Figure 8: CMC curve showing original to original face matching vs original to anonymized face matching on the MUCT dataset.
Figure 9: ROC curve showing face recognition performance on the LFWcrop Dataset
Figure 8: CMC curve showing original to original face matching vs original to anonymized face matching on the MUCT dataset.

Figure 9 shows the Receiver Operating Characteristic (ROC) curves for face verification on LFWcrop dataset. Experiments are performed on (i) 6000 original pair images, and (ii) 6000 original-anonymized pairs. Face verification is performed using OpenFace [Amos et al.2016] and VGGFace model [Parkhi et al.2015]. The results show minimal effect on the face verification performance before and after attribute anonymization.

5 Conclusion

Attribute anonymization while preserving identity has several privacy preserving applications. This paper presents a novel algorithm based on adversarial noise addition concept such that selected attributes (or features) are anonymized and selected attributes (including identity information) are preserved for automated processing. Experiments are performed on CelebA, LFWcrop and MUCT databases with three different application scenarios. The results demonstrate that the proposed algorithm can handle multiple attribute anonymization process without affecting visual appearance and face recognition performance.


Vatsa and Singh are partially supported through Infosys Center for AI at IIIT-Delhi.


  • [Abdulnabi et al.2015] Abrar H Abdulnabi, Gang Wang, Jiwen Lu, and Kui Jia. Multi-task cnn model for attribute prediction. IEEE TM, 17(11):1949–1959, 2015.
  • [Amos et al.2016] Brandon Amos, Bartosz Ludwiczuk, and Mahadev Satyanarayanan. Openface: A general-purpose face recognition library with mobile applications. Technical report, CMU-CS-16-118, 2016.
  • [Beveridge et al.2013] J Ross Beveridge, P Jonathon Phillips, David S Bolme, Bruce A Draper, Geof H Givens, Yui Man Lui, Mohammad Nayeem Teli, Hao Zhang, W Todd Scruggs, Kevin W Bowyer, et al. The challenge of face recognition from digital point-and-shoot cameras. In IEEE BTAS, pages 1–8, 2013.
  • [Boyle et al.2000] Michael Boyle, Christopher Edwards, and Saul Greenberg. The effects of filtered video on awareness and privacy. In CSCW, pages 1–10. ACM, 2000.
  • [Carlini and Wagner2017] Nicholas Carlini and David Wagner. Towards evaluating the robustness of neural networks. In IEEE SP, pages 39–57, 2017.
  • [Goswami et al.2017] Gaurav Goswami, Mayank Vatsa, and Richa Singh. Face verification via learned representation on feature-rich video frames. IEEE TIFS, 12(7):1686–1698, 2017.
  • [Gross et al.2006] Ralph Gross, Latanya Sweeney, Fernando De la Torre, and Simon Baker. Model-based face de-identification. In IEEE CVPRW, pages 161–161, 2006.
  • [Huang et al.2007] Gary B. Huang, Manu Ramesh, Tamara Berg, and Erik Learned-Miller. Labeled faces in the wild: A database for studying face recognition in unconstrained environments. Technical Report 07-49, University of Massachusetts, Amherst, October 2007.
  • [Jourabloo et al.2015] Amin Jourabloo, Xi Yin, and Xiaoming Liu. Attribute preserved face de-identification. In IEEE ICB, 2015.
  • [Li et al.2016] Chao Li, Chao Xu, and Zhiyong Feng. Analysis of physiological for emotion recognition with the irs model. Neurocomputing, 178:103–111, 2016.
  • [Liu et al.2015] Ziwei Liu, Ping Luo, Xiaogang Wang, and Xiaoou Tang. Deep learning face attributes in the wild. In ICCV, 2015.
  • [Milborrow et al.2010] Stephen Milborrow, John Morkel, and Fred Nicolls. The MUCT Landmarked Face Database. PRASA, 2010.
  • [Mirjalili and Ross2017] Vahid Mirjalili and Arun Ross. Soft biometric privacy: Retaining biometric utility of face images while perturbing gender. IEEE IJCB, 2017.
  • [Mirjalili et al.2017] Vahid Mirjalili, Sebastian Raschka, Anoop Namboodiri, and Arun Ross. Semi-adversarial networks: Convolutional autoencoders for imparting privacy to face images. arXiv preprint arXiv:1712.00321, 2017.
  • [Newton et al.2005] Elaine M Newton, Latanya Sweeney, and Bradley Malin. Preserving privacy by de-identifying face images. IEEE TKDE, 17(2):232–243, 2005.
  • [Othman and Ross2014] Asem A Othman and Arun Ross. Privacy of facial soft biometrics: Suppressing gender but retaining identity. In ECCV Workshops (2), pages 682–696, 2014.
  • [Parkhi et al.2015] Omkar M Parkhi, Andrea Vedaldi, Andrew Zisserman, et al. Deep face recognition. In BMVC, volume 1, page 6, 2015.
  • [Rozsa et al.2016] Andras Rozsa, Manuel Günther, Ethan M Rudd, and Terrance E Boult. Are facial attributes adversarially robust? In IEEE ICPR, pages 3121–3127, 2016.
  • [Rozsa et al.2017] Andras Rozsa, Manuel Günther, Ethan M Rudd, and Terrance E Boult. Facial attributes: Accuracy and adversarial robustness. PRL, 2017.
  • [Sethi et al.2018] Akshay Sethi, Maneet Singh, Richa Singh, and Mayank Vatsa. Residual codean autoencoder for facial attribute analysis. PRL, 2018.
  • [Sim and Zhang2015] Terence Sim and Li Zhang. Controllable face privacy. In IEEE AFGR, volume 4, pages 1–8, 2015.
  • [Suo et al.2011] Jinli Suo, Liang Lin, Shiguang Shan, Xilin Chen, and Wen Gao. High-resolution face fusion for gender conversion. IEEE TSMC, 41(2):226–237, 2011.
  • [Sweeney2002] Latanya Sweeney. k-anonymity: A model for protecting privacy. IJUFKS, 10(05):557–570, 2002.
  • [Viola et al.2005] Paul Viola, Michael J Jones, and Daniel Snow. Detecting pedestrians using patterns of motion and appearance. IJCV, 63(2):153–161, 2005.
  • [Wang and Kosinski2017] Yilun Wang and Michal Kosinski. Deep neural networks are more accurate than humans at detecting sexual orientation from facial images. PsyArXiv preprint arXiv: 10.17605/OSF.IO/HV28A, 2017.
  • [Wolf et al.2011] Lior Wolf, Tal Hassner, and Itay Maoz. Face recognition in unconstrained videos with matched background similarity. In IEEE CVPR, pages 529–534, 2011.
  • [Zhou et al.2018] Xiuzhuang Zhou, Kai Jin, Qian Chen, Min Xu, and Yuanyuan Shang. Multiple face tracking and recognition with identity-specific localized metric learning. PR, 75:41–50, 2018.
