1 Introduction

Answer-set programming (ASP) [Gelfond and Lifschitz (1988), Gelfond and Lifschitz (1991), Baral (2003)]

is an established approach for declarative problem solving and non-monotonic reasoning. So far, research in ASP can basically be classified into three categories: (i) theoretical foundations of ASP including language extensions, (ii) performance and capabilities of ASP solvers, and (iii) case studies and applications involving ASP. More recently, methods and methodologies to support an ASP programmer are increasingly becoming a focus of research interest

[De Vos and Schaub (2007), De Vos and Schaub (2009), Oetsch et al. (2010)].

In this paper, we propose to augment programs with additional meta-information to facilitate the ASP development process. To this end, we devised a dedicated annotation language, Lana, standing for “Language for ANnotating Answer-set programs”, that specifies specially formatted program comments. This meta-information is invisible to an ASP solver—therefore not altering the semantics of the program—but different tools may interpret and use the annotated information to various ends like documentation, testing, verification, code completion, or other development support.

One particular and quite central feature of Lana is grouping rules that are related in meaning into coherent blocks. Although different notions of modularity have already been proposed for ASP in the literature [Bugliesi et al. (1994), Eiter et al. (1997), Gelfond and Gabaldon (1999), Balduccini (2007), Janhunen et al. (2009)], a strict concept of a program module can sometimes be a too tight corset. In particular, notions of modularity in ASP often come with their own semantics and different kinds of constraints need to be satisfied. For example, DLP-functions [Janhunen et al. (2009)] require that their input and output signatures are disjoint and two DLP-functions need to satisfy certain syntactic constraints in order to be composable. On the other hand, -functions are a modular approach to build a logic program from its specification [Gelfond and Gabaldon (1999)]. That is, an -function is used to realise some functional specification that relates input and output relations for some domain by means of a logic program. The kind of grouping that we are proposing has, however, no semantical ramifications other than documenting that some rules belong together in a certain sense. Nevertheless, the benefit is that we add some extra structure to a program, improving the clarity and coherence of the program parts, which in turn can be used by other tools for, e.g., unit testing [Beck (2003)]. While unit testing is an integral element in software development using common languages like Java or C, it has been addressed in ASP only quite recently [Febbraro et al. (2011)]. We provide means to formulate unit tests for single blocks using Lana, allowing for easy regression testing. After rules are grouped into blocks, we may use further annotations to declare respective input and output signatures, which are also useful for testing and verification. Furthermore, we can declare the names and arities of predicates that are used within a block. This information can be exploited by, e.g., an integrated development environment (IDE) for syntax checking and code completion features while a user is writing a program. Besides names, description, and arities of predicates, one can also specify the domains of term arguments of a predicate using respective language features for declaring types. This information can be used for automated detection of type violations. These declarations have the potential to eliminate the source for quite common programmer errors with only little extra cost. For verification purposes, our annotation language can be used to specify assertions like pre- and postconditions for blocks. Preconditions are expected to hold for any input of a block, while postconditions have to hold for any output. Together, they can be used to verify correctness of an ASP encoding with respect to such assertions.

Our main contributions are thus as follows:

  • We introduce an annotation language for ASP that offers various ways to express meta-information for rules and other language elements. This information can be used to support and ease the development process, test and verify programs, and to eliminate many sources for common programmer errors.

  • We describe ASPDoc, a JavaDoc 222http://www.oracle.com/technetwork/java/javase/documentation/index-jsp-135444.html. inspired tool, which takes an answer-set program, interprets the meta-comments, and automatically generates an HTML file documenting the program.

  • We introduce ASPUnit, an implementation of a unit-testing framework in the spirit of JUnit 333http://www.junit.org. based on the structural annotations found in a program. This framework allows to formulate unit tests for individual program blocks, to execute them, and to monitor test runs.

The paper is organised as follows. In Section 2, we provide some background on ASP. Then, in Section 3, we introduce Lana, explain the basic language features, and illustrate them using a running example. Section 4 describes the basic features of ASPDoc while Section 5 does the same for ASPUnit. Finally, we review related work in Section 6 and conclude in Section 7 with pointers for future work.

2 Background

Answer-set programming (ASP) [Gelfond and Lifschitz (1988), Gelfond and Lifschitz (1991), Baral (2003)] is a declarative programming paradigm in which a logic program is used to describe the requirements that must be fulfilled by the solutions of a certain problem. The solutions of the problem can be obtained through the interpretation of the answer sets of the program, usually defined through a variant or extension of the stable-model semantics [Gelfond and Lifschitz (1988)]. This technique has been successfully applied in various domains such as planning [Eiter et al. (2002), Lifschitz (2002)], configuration and verification [Soininen and Niemelä (1998)], music composition [Boenn et al. (2011)], or reasoning about biological networks [Dworschak et al. (2008)] to just name a few. In the following, we briefly cover the essential concepts of ASP; for in-depth coverage, we refer to the well-known textbook by baral03.

The basic components of the language are atoms, elements that can be assigned a truth value. An atom can be negated using negation as failure. A literal is an atom or a negated atom . We say that is true if we cannot find evidence supporting the truth of . Atoms and literals are used to create rules of the general form

where , , and are atoms. Intuitively, this means if all atoms are known/true and no atom is known/true, then must be known/true. We refer to as the head and as the body of the rule. Rules with empty body are called facts. Rules with empty head are referred to as constraints, indicating that no solution satisfies the body. A (normal) program is a set of rules. The semantics is defined in terms of answer sets, i.e., assignments of true and false to all atoms in the program that satisfy the rules in a minimal and consistent fashion. A program has zero or more answer sets, each corresponding to a solution.

Different extensions to the language have been proposed. On the one hand, we have syntactic extensions, providing mere, but very useful, syntactic sugar. On the other hand, we have semantic extensions where the formalism itself is generalised.

From a programmer’s perspective, choice rules [Niemelä et al. (1999)]

are probably the most commonly used extension. Many problems require choices between a set of atoms to be made. Although this can be modelled in the basic formalism, it tends to increase to the number of rules and increases the possibility of errors. To avoid this, choices are introduced. Choices, written

, are a convenient construct to indicate that at least and at most literals from the set must be true in order to satisfy the construct. Bound defaults to 0 while defaults to . Choice rules are often used with a grounding predicate: represents the choice of a number of atoms where is grounded with all values of for which is true.

One of the major extensions to the language was the introduction of disjunction in the head of rules [Gelfond and Lifschitz (1991)]. When the body of the rule is true, we need to have at least one head atom that is true. Although at first it may seem that disjunctive programs can easily be translated to non-disjunctive programs, this is not the case. Both types of programs are in different complexity classes (under the usual complexity-theoretic proviso that the polynomial hierarchy does not collapse).

Algorithms and implementations for obtaining answer sets of logic programs are referred to as answer-set solvers. The most popular and widely used solvers are DLV [Eiter et al. (1998)], providing solver capabilities for disjunctive programs, and the SAT inspired clasp [Gebser et al. (2007)]. Alternatives are Smodels [Niemelä and Simons (1997)] and Cmodels [Giunchiglia et al. (2004)], a solver based on translating the program to SAT.

3 An Annotation Language for ASP

Figure 1: Solved instance of a Battleship puzzle.

In this section, we describe our annotation language Lana. An overview of most language elements of Lana appears in Table 1; Table 2 gives a summary of the remaining language elements related to testing in Lana. We make use of a simple answer-set program to illustrate all the language features in a step-by-step fashion. In particular, we use an encoding of the Battleship puzzle. A solved instance of Battleship appears in Fig. 1. In Battleship, a group of ships is hidden on a grid and one has to find the positions of each. The fleet consists of one four-squares long battleship, two three-squares long cruisers, three two-squares long destroyers, and four one-square long submarines—each ship is placed horizontally or vertically on the grid such that no ship is touching any other ship (not even diagonally). To provide hints, some squares may show parts of a ship or water. Moreover, a number besides each row and each column indicates how many squares in that row or column are occupied by ship parts. A solution of a puzzle is a configuration of all the ships that is consistent with the initially given hints.

Element Definition Informal Description
block block atom term input Lana elements related to blocks.
element signature output signature
precondition postcondition
block @blockname{ Groups ASP rules into coherent parts.
[description] {block element}
[ASP code] “}
atom @atomname(termList) Defines a predicate; termList are the
[description] predicate’s arguments.
term @termname Declares a term from some atom term
[description] [type] list, its meaning, and type information.
type @fromgroundTerms Type of a term is defined by a list of
@withruleBdy ground terms, the terms satisfying
@samerangeasterm ruleBdy, or as the type of another term.
input @inputinputPredicates Declares input predicates of a block as a
signature @requiresinputPredicates list of name/arity pairs.
output @outputoutputPredicates Declares output predicates of a block as a
signature @definesoutputPredicates list of name/arity pairs.
assertion @assertname{ A logical condition for answer sets.
[description] assertspec}
pre- @preconname{ A logical condition for the inputs of a
condition [description] assertSpec} block.
post- @postconname{ A logical condition for the answer sets
condition [description] assertspec} of a block.
assertspec (“@always@never”) atmList The testmode for assertions, preconditions
[embASPcode] and postconditions; embASPcode is code
within the Lana comment environment.
Table 1: Overview of Lana based on BNF.
Element Definition Informal Description
test case @testcasename A test case for the blocks from blocks
[description] “@scopeblocks passes if the blocks joined with ASP code
testcond [ASP code] satisfy all specified test conditions.
testcond @testhasanswerset A test condition holds if one, resp., no,
@testnoanswerset answer set is found, or all ground atoms
@testatomsatmList mode in atmList are entailed according to mode.
mode @trueinall Mode of entailment of a test condition,
@trueinatleast i.e., if test atoms are true, resp., false, in
@trueinatmost all, at most , or at least answer-sets.
@falseinall
@falseinatleast
@falseinatmost
Table 2: Test case specification in Lana.

Assume that a puzzle instance is defined in terms of facts water/2 and ship/2 for specifying which squares contain water or parts of a ship, respectively. The facts rowHint/2 and colHint/2 determine the numbers associated with each row and each column. Problem solutions are represented by facts ship(W,X,Y,Z) expressing that a ship is occupying the squares from position (W,X) to (Y,Z).

3.1 Blocks

In general, all keywords of our annotation language start with the symbol @. A central feature of Lana is to group rules together. This is done using the @block keyword. To specify that we are going to define a couple of rules that encode solutions to the Battleship puzzle, we declare a block with the name Battleship as follows:

%** @block Battleship { *%

 % encoding of the Battleship puzzle

%** } *%

The annotation @block is followed by an optional name of the block and the opening bracket “{”. Everything between “{” and the closing bracket “}” now belongs to the block Battleship. Blocks can be nested but they must not overlap.

Note that every annotation has the form of an ASP comment. ASP block-comments can be used instead of starting every single line with “%” when an ASP solver, in particular its grounding component, supports this feature. To distinguish annotations from ordinary (block-)comments, an additional star “*” is always placed after “%*” at the beginning.

3.2 Predicate Signatures

Lana allows to declare the names and arities of used predicates. Often, predicates play different roles in an encoding, and it can make sense to explicitly distinguish between these roles. In particular, it can make sense to document which are the relations that are defined by the rules of a block (those will usually appear in the heads of some rules) and which are the relations that are expected to be already defined by some other rules (the required predicates will usually appear in some rule bodies). This distinction is closely related to intensional and extensional predicates in a database setting. If a block is regarded as a declarative problem-solving module, the predicates that are required will usually encode problem instances, and respective predicates form the input signature of a block. Accordingly, the relations that are defined form the output signature of a block. We note, however, that input and output signatures might overlap in a declarative setting.

We proceed by declaring the predicate names as well as the input and output signatures of our encoding as described above. Within block Battleship, we add the following:

%**
 @atom water(X,Y)
 there is no ship at position (X,Y)

 @atom ship(X,Y)
 a ship is occupying position (X,Y)

 @atom rowHint(X,H)
 in row X, H squares are occupied

 @atom colHint(Y,H)
 in column Y, H squares are occupied

 @atom ship(X1,Y1,X2,Y2)
 a ship is occupying the squares from (X1,Y1) to (X2,Y2)

 @input water/2, ship/2, rowHint/2, colHint/2

 @output ship/4
*%

We use @atom to introduce the name of a predicate along with its arity and some information describing its intended use, and we use @input and @output to determine which predicates symbols are used to represent input for the block and which ones correspond to output. For input and output signatures, we also have to explicitly give the arity of the involved predicates. This is needed to disambiguate between predicates having the same name but a different number of arguments, as ship in our running example. Note that annotations are optional, declarations are not enforced. We stress that declaring input and output signatures should be done only if this is beneficial for the development process and is consistent with the declarative reading of a program. Input and output are terms that are quite commonly used in declarative programming—e.g., all problem specifications for the benchmark problems used for the ASP competitions explicitly define input and output signatures. However, if rules are seen as more general definitions of relations of some problem domain, it might be more appropriate to use @defines to declare the relations that are defined by a block of rules and @requires to declare the input signature of a block. Again, such annotations are not mandatory. The more information is made explicit, the more it can be used by tools that interpret such information to the benefit of the developer.

3.3 Types

Regarding the declaration of predicates, we can provide information about the types of its term arguments. Assume that row and column positions are specified by ascending integers starting from . To make this assumption explicit, we add the following lines to the block:

%**
 @term X, Y
 @from 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
 X (Y) is a row (column) index ranging from 1 to 10
*%

Here, we use @term to declare variable names and @from to specify the type of a variable by means of a non-empty comma-separated list of admissible ground terms. As an alternative to @from, we can use @with followed by a rule body:

%** @with integer(#V), #V>1, #V<10 *%
integer(1..1000).

The type of X and Y is now determined by the ground substitutions for the reserved symbol #V that satisfy the rule body given after @with. Here, “integer(1..1000).” is regular ASP code for defining facts that encode the integer range that we are considering. Furthermore, to express that variables are of the same type as ones already known, we can use @samerangeas, as illustrated next:

%**
 @term X1, Y1, X2, Y2
 further row and column indices
 @samerangeas X
*%

Thus, any of X1, Y1, X2, and Y2 is of the same type as X. For future work, we also plan to extend Lana so that predefined names for at least basic types like strings or integers can directly be used to specify the types of variables.

As mentioned previously, blocks can be nested. To proceed with our Battleship encoding, we add a block of rules within block Battleship for guessing solution candidates according to the usual guess-and-check paradigm:

%**
 @block Guess {
 guess a configuration of battleships on the grid
*%
r(1..10). c(1..10).
{ship(X1,Y1,X2,Y2):r(X1):c(Y1):r(X2):c(Y2):X2>=X1:Y2>=Y1}.
:- ship(X1,Y1,X2,Y2), X1!=X2, Y1!=Y2.
%** } *%

Note that in block Guess, all declarations for predicates and terms are inherited from the enclosing block Battleship. One can proceed in a similar way to define blocks for constraints (along with auxiliary definitions) to prune away unwanted solution candidates to complete the encoding.

3.4 Assertions

Towards testing and the verification of programs, Lana allows the formulation of general assertions, as well as pre- and postconditions for blocks. A precondition is a logical condition that is assumed to hold for any input while a postcondition has to hold on any output of a block. Together, pre- and postconditions can be regarded as a contract: it is the responsibility of any input provider that a block’s preconditions are satisfied, and it is the responsibility of the rules in the respective block that its postconditions are satisfied. Both pre- and postconditions are formulated in ASP itself; they are placed within the block they belong to. As an illustration, we formulate as a precondition of our Battleship encoding that no square shows both water and parts of a ship jointly as follows:

%**
 @precon Excl {
 no square shows both water and a part of a ship
 @never clash
 clash :- water(X,Y), ship(X,Y).
 }
*%

In general, a precondition is introduced with the keyword @precon followed by a name for the condition. The actual content is then written enclosed between “{” and “}”, similar to the definition of blocks. An optional description follows. Then, we have to specify a non-empty list of ground atoms after the keyword @never or @always. After that, we add some ASP rules that define the before-mentioned ground atoms. The intended semantics is as follows. Some input, i.e., a set of facts over a block’s input signature, passes a precondition if that input combined with the rules of the precondition cautiously entails all the ground atoms after @always and the negation of the atoms after @never.

Postconditions are expressed analogously to preconditions. To say that battleships must not be longer than four squares, we add the following code to our Battleship block:

%**
 @postcon Overlength {
 battleships are never longer than four squares
 @never ov
 ov :- ship(X1,Y1,X2,Y2),L=X2-X1,L>4.
 ov :- ship(X1,Y1,X2,Y2),L=Y2-Y1,L>4.
 }
*%

A block and an input for a block satisfy a postcondition if the block joined with the input and the rules of the postcondition cautiously entails all the ground atoms after @always and the negation of the atoms after @never.

Having pre- and postconditions explicitly formalised offers various ways to support the development process. For one thing, they can be used to automatically generate input instances for testing purposes. This can be automated for systematic testing of a block, including random testing and structure-based testing [Janhunen et al. (2010), Janhunen et al. (2011)]. Towards program verification, one can check whether a block passes its postconditions for any admissible input, at least from some fixed small scope, i.e., involving only a bounded number of constant symbols. Exhaustive testing with respect to a small scope showed to be quite effective in ASP [Oetsch et al. (2012)]. Though they are formulated in ASP itself and thus tend to duplicate some code from within a block, pre- and postconditions are especially of great value if the rules in a block are changed, e.g., to optimise an encoding, and one wants to be sure that the changes did not render the program incorrect. This can be done, e.g., by searching for inputs within some small scope that violate some postcondition of the optimised program, provided respective tool support is available.

We note that pre- and postconditions make only sense in a setting where we can also distinguish between input and output relations. If this is not the case and one wants to formulate general assertions on the answer sets of a program, Lana allows to define them using @assert. Semantically, an assert statement is a postcondition of the whole program.

3.5 Unit Tests

Though pre- and postconditions allow to partially verify program correctness, Lana also supports a light-weight form of program verification that is inspired by unit testing. A unit test in procedural languages is commonly a test for an individual function or procedure. While in a related approach for unit testing answer-set programs [Febbraro et al. (2011)], the scope of a test is defined in terms of sets of rules, unit tests are formulated for blocks or sets of blocks in our setting. To check whether the guessing part of our running example generates solution candidates where one ship occupies precisely the first four horizontal squares of the field, we could formulate a unit test as follows:

%**
 @testcase ShipTopLeftCorner
 a ship is horizontally placed at the top-left corner
 @scope Guess
 @testatoms goalShip @trueinatleast 1
*%
goalShip :- ship(1,1,1,4).

A unit test starts with the reserved word @testcase followed by a name. Then, a short description of the purpose of the unit test may be given as a comment. After @scope, a list of block names is expected. In the above example, we used @testatoms to declare that goalShip is an atom that has to be true in at least one answer set (@trueinatleast 1) of block Guess joined with the subsequent rule that defines goalShip. Instead of or additional to @trueinatleast , a tester might use @trueinatmost , trueinall, falseinatleast , falseinatmost , and falseinall, where , , , and are positive integers. Also, instead of @testatoms, one may use @testhasanswerset or @testnoanswerset to express that at least one or no answer set is expected, respectively.

The semantics of a unit test is as follows. A test case passes iff the answer sets of the rules of the test case combined with all the blocks specified after @scope satisfy the testing conditions expressed using any of @testatoms, @testhasanswerset, and @testhasnoanswerset. For example, to additionally test that a ship is never placed diagonally on the field, one could formulate a further test case:

%**
 @testcase NoDiagonalShips
 ships are never placed diagonally on the field
 @scope Guess
 @testatoms forbiddenShip @falseinall
*%
forbiddenShip :- ship(1,1,3,3).

Of course, this test case can only guarantee that one particular ship is not placed diagonally at some particular position. However, this distinguishes test cases from more general assertions like postconditions. To generalise the above test case to arbitrary ships, we would rather use a postcondition. Typically, test cases represent concrete situations by means of facts that can be easily verified by a user and document individual situations that are allowed or forbidden. They cannot, however, guarantee correctness of an encoding but only increase our confidence regarding its functionality.

Unit testing is a convenient way to test properties of individual blocks of an ASP encoding. Furthermore, they can be used to iteratively develop programs in a test-driven fashion. In test-driven development, unit tests are formulated before the code is written. First, a unit test for a single property of the block that we want to develop is specified. Then, it is checked whether the test case fails for the program under development. If this is the case, the block is extended by the necessary rules to make the failed test case pass. After the code is refactored towards efficiency, readability, etc., and after it is verified that all test cases still pass, the next property is addressed by formulating a respective unit test. This continues until the program is complete. For illustration, the unit tests ShipTopLeftCorner and NoDiagonalShips will pass for the current state of the Battleship program. However, if we want to implement the property that ships must not touch each other, we could specify the following test case (which will currently fail):

%**
 @testcase TouchingShips
 two ships must not touch each other
 @scope Guess,Touch
 @testatoms forbiddenShip @falseinall
*%
forbiddenShip :- ship(1,1,1,2), ship(1,2,1,4).

Then, we would proceed to implement a block Touch with a constraint that forbids answer sets with ships that are touching each other and check whether the new test case and the old ones pass.

4 ASPDoc

ASPDoc is a command-line tool that interprets meta-information given in an answer-set program and generates a corresponding HTML documentation file similar to, e.g., JavaDoc for Java programs. Information regarding block structure, input and output signatures, used predicate symbols, etc. is clearly arranged so that the answer-set program can easily be understood, used, or extended by other developers. Such documentation features are especially useful to make ASP problem-solving libraries, i.e., collections of ASP encodings that can be used as building blocks for larger programs, accessible to developers.

The tool is developed in Java; an executable JAR file is available on the web.444http://students.sabanciuniv.edu/dgkisa/aspdoc-aspunit. Assume that the source code of our running example is stored in a file, say battleship.gr. A corresponding HTML documentation can be created as follows:

   java -jar aspdoc.jar -p battleship.gr

Different HTML documents are created with index.html as the usual entry point. Here, option -p, or -potassco, is used to tell ASPDoc that the answer-set program is written using syntax. For , option -d or -dlv can be used instead. Furthermore, an output directory can be specified with option -o=, and help on available options can be obtained with the option -h. A summary of ASPDoc options is given in Table 3.

Option Description
-o=path set output directory to path
-HA show hidden atoms
-ha do not show hidden atoms
-S include ASP code in the HTML document
-s do not include ASP code in the HTML document
-A include Lana code in generated ASP code
-a do not include Lana code in generated ASP code
-potassco, -p input language is that of
-dlv, -d input language is that of
-help, -h print usage information
Table 3: Command-line options for ASPDoc.

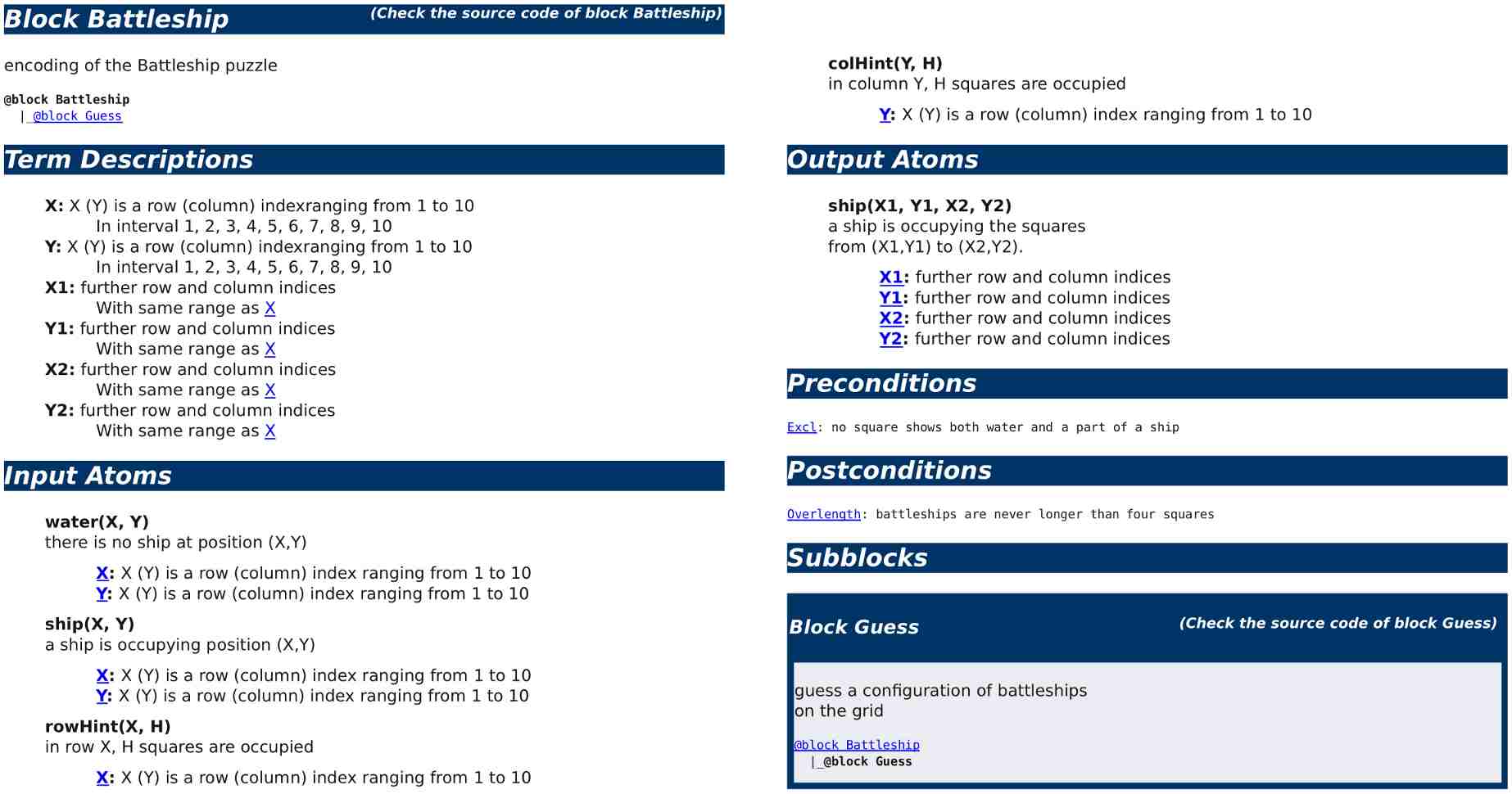

A screenshot of the documentation for the Battleship example presented above is given in Fig. 2. The documentation of the complete encoding can be found online.555http://www.kr.tuwien.ac.at/research/projects/mmdasp/battleship. The document contains descriptions of all the blocks of the answer-set program, where sub blocks are indented relative to their parent blocks. To provide an overview, a summary of the block structure of the entire answer-set program is presented at the beginning of the documentation. We note that programmers are not forced to declare blocks at all. If no block is specified in a file, all rules in that file belong to a dedicated default block. For each block, descriptions of the used predicates and types of involved terms, as well as pre- and postconditions are given. By default, hidden atoms, i.e., atoms mentioned neither in a block’s input nor in its output signature, are displayed as well in a dedicated section entitled “Hidden Atoms”. To hide them, option -ha can be used. The document also contains a link to the actual rules inside a block, unless this is suppressed using option -s. These rules are, by default, displayed together with the meta-comments of Lana. If option -a is used, such comments are not shown. Likewise, the rules for defining pre- and postconditions can be inspected by using the respective links. To enhance navigability between different parts of the document, predicates used in the source code view or in signature declarations are, if available, linked to their respective descriptions. For instance, to find out the range of a variable in the output atoms section, say , the user can simply follow the link and thereby navigate to the description of (and ) in the term description section. Further options to customise the appearance of the documentation are planned for future work.

Figure 2: HTML documentation of the Battleship program.

5 ASPUnit

ASPUnit is a tool to execute test cases that are formulated in Lana. Like ASPDoc, it is a command-line tool. An executable JAR file can be downloaded from the same web page as ASPDoc. For ASPUnit, each unit test has to be stored in a separate file. Although test cases are required to have a name, we allow that a user may omit an explicit name, in which case the file name is used by default. The tool takes as input a test-suite specification file, i.e., a file that contains the relevant information regarding locations of the answer-set program, the files containing individual test cases, and the ASP solver that is needed to execute them. The syntax of a test-suite specification file is closely related to our annotation language itself. In particular, the specification of a test-suite has the following form:

@testsuite name
 description
@program    ASPfiles
@programdir pathToASPfile
@test       testCaseFile1
@test       testCaseFile2
 ...
@testdir    pathToTestFiles
@solvertype ASPsolver
@solver     solverFile
@grounder   grounderFile

Hence, a test-suite specification starts with @testsuite followed by a name. Then, a short description may be given. A list of file names that together contain the answer-set program under test is expected after @program. These file names are relative to a path specified after @programdir. For each test case that we want to execute, we have to provide the file name that contains that test case specified by @test. The path to these files appears after @testdir. Then, information regarding the ASP solver has to be given. For this, @solvertype is used; the solver type is one of , , or . After @solver, an absolute file name of the ASP solver is expected. This file name may include additional parameters for that solver. If a separate grounder is needed, like for , an absolute file name including command-line parameters have to be specified after @grounder.

Now, to run a bunch of test cases specified within a test-suite file, say testsuite, ASPUnit is invoked as follows:

   java -jar aspunit.jar testsuite

The tool will run all the unit tests on the answer-set program using the solver settings according to specifications in testsuite. A test report is printed to standard-output. This report contains information regarding success or failure for each test case. If a test case fails, a counterexample may be included, depending whether option -CE is set when ASPUnit is executed. Furthermore, if option -D is used, the test report will contain a short description of each test case that fails, obtained from the specification of the test cases themselves. For illustration, assume we run the test cases presented in Section 3 on the partial encoding of Battleship. Recall that the first and second test case pass while the third one fails. The resulting test report, including a description of each test case and counterexamples for the failing test case, is given in Fig. 3. A summary of ASPUnit command-line options is given in Table 4.

Test Case ShipTopLeftCorner: Successful

Test Case NoDiagonalShips  : Successful

Test Case TouchingShips    : Failed
    two ships must not touch each other

  Failed Test : @falseinall forbiddenShip
    Counterexample:
      Answer set:
        c(1).c(10).c(2).c(3).c(4).c(5).
        c(6).c(7).c(8).c(9).forbiddenShip.
        r(1).r(10).r(2).r(3).r(4).
        r(5).r(6).r(7).r(8).r(9).
        ship(1, 1, 1, 2).ship(1, 2, 1, 4).
Figure 3: A test report for the Battleship program.

6 Related Work

As mentioned earlier, there are many notions of modularity for ASP in existence [Bugliesi et al. (1994), Eiter et al. (1997), Gelfond and Gabaldon (1999), Balduccini (2007), Janhunen et al. (2009)]. The advantage of the light-weight approach of Lana for grouping rules together by means of declaring blocks is that we do not change the semantics of programs and they can be directly parsed by ASP solvers. However, there are also disadvantages compared to other approaches to modularise logic programs. For example, related to our approach for annotating type information is RSig [Balduccini (2007)]. RSig is an language extension for specifying simple type information for programs and modules and thus requires its own parser. However, this type information simplifies the program rules as information about the type of variables is not required to be provided. On the other hand, DLP-functions [Janhunen et al. (2009)] allow to compute the semantics of a logic program based on the semantics of its separate DLP-functions which opens up new paths for potentially more efficient answer-set computation. To support the incremental development of logic programs, -functions can be used to structure a program and to develop it along with its specification by using specification constructors and their realisation theorems [Gelfond and Gabaldon (1999)]. Blocks in Lana are not designed to serve one particular purpose, different interpretations are conceivable and are eventually determined by respective tool support like ASPUnit for unit testing blocks of rules.

In general, developing and debugging a declarative language is quite different from software engineering in a more traditional procedural or object-oriented programming language. With larger programs for real-world applications being written, it is vital to support the programmer with the right tools. In recent years, some work has been done to provide the ASP programmer with dedicated tools. The integrated development environments  [Sureshkumar et al. (2007)] and [Oetsch et al. (2011)] provide, among other features, syntax colouring and syntax checking for ASP programs and run as an Eclipse front-end to solvers. IDEs for the solver and its extensions are discussed by peritecive07 and aspide. Debugging in ASP is supported by spock [Brain et al. (2007)], which makes use of ASP to explain and handle unexpected outcomes like missing atoms in an answer set or the absence of an answer set. aspviz and kara provide mechanisms to visualise answer sets of a given program to support code debugging.

Option Description
-CE show counterexample if a test case fails
-ce do not show counterexample if a test case fails
-D show description of a test case if it fails
-d do not show description of a test case if it fails
-help, -h print usage information
Table 4: Command-line options for ASPUnit.

To support large application developments, traditional languages offer programming tools that automatically generate searchable documentation, like e.g., JavaDoc. Methodologies like test-driven development provide a mechanism to incrementally unit test code and to support regression testing; JUnit is an example of this for Java. Lana provides the support for both, incorporating the annotation of tests directly into the documentation of the program. The use of assertions in Lana is inspired by the Java Modelling Language [Leavens and Cheon (2006)] and annotations as used in Prolog [Kulas (2000)].

Similar to our unit testing approach, Prolog offers unit-testing functionality called PLUnit.666http://www.swi-prolog.org/pldoc/package/plunit.html. As in our approach, where tests are expressed using ASP itself and only a Java wrapper is used to call all tests within a given test-suite, tests in PLUnit are formulated as Prolog clauses.

febbraro11 provide a mechanism for unit testing in ASP, which is incorporated in their IDE . They base unit tests on clusters on the dependency graphs or rule labelling, while we allow the user to decide which rules belong to a test by defining blocks.

7 Conclusion and Future Work

In this paper, we presented Lana, an annotation language for ASP. This language can be used to structure a program into blocks and to declare language elements like predicates with type information, input and output signatures, pre- and postconditions, test cases, etc. Annotations do not interfere with the languages of answer-set solvers as they have the form of program comments. The main advantage of such annotations is that they can be interpreted by tools to support the development process, to automatically test and verify programs, and to increase maintainability by enhancing program documentation. In fact, we implemented and described two such tools, namely ASPDoc for generating an HTML documentation for a program, and ASPUnit for running and monitoring unit tests. The former tool is especially useful for maintaining and using larger collections of program modules; the latter tool is used for managing a test corpus when a program is developed and to enable test-driven development methods, a methodology popular in industry, e.g., as in extreme and agile programming.

While many interesting features of Lana for development support can be realised by stand-alone tools like ASPDoc and ASPUnit, things become more interesting when the respective functionalities are available within an IDE for ASP. The two most actively developed IDEs for ASP at present are  [Oetsch et al. (2011)] and  [Febbraro et al. (2011)]. Then, the proposed language can be used as a basis to realise intelligent syntax highlighting, static or dynamic type checking, code completion, and so on. Indeed, Lana can already be parsed by and the features of ASPDOC are already available from within the IDE. Further integration is planned with the goal that all features sketched in this paper are supported in .

Furthermore, we want to empirically evaluate to what extent additional meta-information is beneficial for program development within courses on declarative problem solving at our universities. In general, program annotations provide a wealth of information. One of the main issues with debugging ASP programs is the difficulty of working out the program’s interpretation of the problem (resp., solution), and the programmer’s view of the problem (resp., solution). Using the meta-data, it would be possible to automatically generate a semi-natural language reading of the program, allowing programmers to cross-check their interpretation of the program with that of the program itself. This is only possible if developers use a specific grammar to annotate the various components of the program.

In traditional software engineering, coding standards including documentation are imposed, especially in case of developing large software projects. In this paper, we propose Lana as part of coding standards for ASP. Future work will look into other best-practices for writing and maintaining ASP programs. The growing number of applications of ASP can provide a wealth of information for this.

References

  • Balduccini (2007) Balduccini, M. 2007. Modules and signature declarations for A-Prolog: Progress report. See De Vos and Schaub (2007), 41–55.
  • Baral (2003) Baral, C. 2003. Knowledge Representation, Reasoning, and Declarative Problem Solving. Cambridge University Press, Cambridge, England.
  • Beck (2003) Beck, K. 2003. Test-Driven Development: By Example. Addison-Wesley Professional.
  • Boenn et al. (2011) Boenn, G., Brain, M., De Vos, M., and Fitch, J. 2011. Automatic music composition using answer set programming. Theory and Practice of Logic Programming 11, 2–3, 397–427.
  • Brain et al. (2007) Brain, M., Gebser, M., Pührer, J., Schaub, T., Tompits, H., and Woltran, S. 2007. “That is illogical captain!” – The debugging support tool spock for answer-set programs: System description. See De Vos and Schaub (2007), 71–85.
  • Bugliesi et al. (1994) Bugliesi, M., Lamma, E., and Mello, P. 1994. Modularity in logic programming. The Journal of Logic Programming 19 & 20, 443–502.
  • Cliffe et al. (2008) Cliffe, O., De Vos, M., Brain, M., and Padget, J. 2008. ASPVIZ: Declarative visualisation and animation using answer set programming. In Proc. ICLP 2008. Lecture Notes in Computer Science, vol. 5366. Springer, 724–728.
  • De Vos and Schaub (2007) De Vos, M. and Schaub, T., Eds. 2007. First International Workshop on Software Engineering for Answer Set Programming (SEA 2007).
  • De Vos and Schaub (2009) De Vos, M. and Schaub, T., Eds. 2009. Second International Workshop on Software Engineering for Answer Set Programming (SEA 2009).
  • Dworschak et al. (2008) Dworschak, S., Grell, S., Nikiforova, V. J., Schaub, T., and Selbig, J. 2008. Modelling biological networks by action languages via answer set programming. Constraints 12, 1, 21–65.
  • Eiter et al. (2002) Eiter, T., Faber, W., Leone, N., Pfeifer, G., and Polleres, A. 2002. The DLV planning system: Progress report. In Proc. JELIA 2002. Lecture Notes in Computer Science, vol. 2424. Springer, 541–544.
  • Eiter et al. (1997) Eiter, T., Gottlob, G., and Veith, H. 1997. Modular logic programming and generalized quantifiers. In Proc. LPNMR’97. Lecture Notes in Computer Science, vol. 1265. Springer, 290–309.
  • Eiter et al. (1998) Eiter, T., Leone, N., Mateis, C., Pfeifer, G., and Scarcello, F. 1998. The KR system DLV: Progress report, comparisons and benchmarks. In Proc. KR’98. Morgan Kaufmann, 406–417.
  • Febbraro et al. (2011) Febbraro, O., Leone, N., Reale, K., and Ricca, F. 2011. Unit testing in ASPIDE. In Proc. INAP/WLP 2011. INFSYS Research Report 1843-11-06, 165–176.
  • Febbraro et al. (2011) Febbraro, O., Reale, K., and Ricca, F. 2011. ASPIDE: Integrated development environment for answer set programming. In Proc. LPNMR 2011. Lecture Notes in Computer Science, vol. 6645. Springer, 317–330.
  • Gebser et al. (2007) Gebser, M., Kaufmann, B., Neumann, A., and Schaub, T. 2007. Conflict-driven answer set solving. In Proc. IJCAI 2007. AAAI Press/The MIT Press, 386–392.
  • Gelfond and Gabaldon (1999) Gelfond, M. and Gabaldon, A. 1999. Building a knowledge base: An example.

    Annals of Mathematics and Artificial Intelligence

     25, 3-4, 165–199.
  • Gelfond and Lifschitz (1988) Gelfond, M. and Lifschitz, V. 1988. The stable model semantics for logic programming. In Proceedings of the 5th International Conference and Symposium on Logic Programming. MIT Press, 1070–1080.
  • Gelfond and Lifschitz (1991) Gelfond, M. and Lifschitz, V. 1991. Classical Negation in Logic Programs and Disjunctive Databases. New Generation Computing 9, 3-4, 365–386.
  • Giunchiglia et al. (2004) Giunchiglia, E., Lierler, Y., and Maratea, M. 2004. SAT-based answer set programming. In Proc. AAAI 2004. AAAI Press / The MIT Press, 61–66.
  • Janhunen et al. (2010) Janhunen, T., Niemelä, I., Oetsch, J., Pührer, J., and Tompits, H. 2010. On testing answer-set programs. In Proc. ECAI 2010. Frontiers in Artificial Intelligence and Applications, vol. 215. IOS Press, 951–956.
  • Janhunen et al. (2011) Janhunen, T., Niemelä, I., Oetsch, J., Pührer, J., and Tompits, H. 2011. Random vs. structure-based testing of answer-set programs: An experimental comparison. In Proc. LPNMR 2011. Lecture Notes in Computer Science, vol. 6645. Springer, 242–247.
  • Janhunen et al. (2009) Janhunen, T., Oikarinen, E., Tompits, H., and Woltran, S. 2009. Modularity aspects of disjunctive stable models. Journal Artificial Intelligence Research 35, 813–857.
  • Kloimüllner et al. (2011) Kloimüllner, C., Oetsch, J., Pührer, J., and Tompits, H. 2011. Kara: A system for visualising and visual editing of interpretations for answer-set programs. In Proc. INAP/WLP 2011. INFSYS Research Report 1843-11-06, 152–164.
  • Kulas (2000) Kulas, M. 2000. Annotations for Prolog - A concept and runtime handling. In Selected Papers of the 9th International Workshop on Logic-Based Program Synthesis and Transformation (LOPSTR 1999). Lecture Notes in Computer Science, vol. 1817. Springer-Verlag, 234–254.
  • Leavens and Cheon (2006) Leavens, G. T. and Cheon, Y. 2006. Design by contract with JML. ftp://ftp.cs.iastate.edu/pub/leavens/JML/jmldbc.pdf.
  • Lifschitz (2002) Lifschitz, V. 2002. Answer set programming and plan generation. Journal of Artificial Intelligence 138, 1-2, 39–54.
  • Niemelä and Simons (1997) Niemelä, I. and Simons, P. 1997. Smodels – an implementation of the stable model and well-founded semantics for normal logic programs. In Proc. LPNMR’97. Lecture Notes in Computer Science, vol. 1265. Springer, 420–429.
  • Niemelä et al. (1999) Niemelä, I., Simons, P., and Soininen, T. 1999. Stable model semantics of weight constraint rules. In Proc. LPNMR’99. Lecture Notes in Computer Science, vol. 1730. Springer, 317–331.
  • Oetsch et al. (2012) Oetsch, J., Prischink, M., Pührer, J., Schwengerer, M., and Tompits, H. 2012. On the small-scope hypothesis for testing answer-set programs. In Proc. KR 2012.
  • Oetsch et al. (2010) Oetsch, J., Pührer, J., and Tompits, H. 2010. Methods and methodologies for developing answer-set programs—project description. In Technical Communications of the 26th International Conference on Logic Programming (ICLP 2010). LIPIcs, vol. 7. Schloss Dagstuhl - Leibniz-Zentrum für Informatik, 154–161.
  • Oetsch et al. (2011) Oetsch, J., Pührer, J., and Tompits, H. 2011. The SeaLion has landed: An IDE for answer-set programming—preliminary report. In Proc. INAP/WLP 2011. INFSYS Research Report 1843-11-06, 141–151.
  • Perri et al. (2007) Perri, S., Ricca, F., Terracina, G., Cianni, D., and Veltri, P. 2007. An integrated graphic tool for developing and testing DLV programs. See De Vos and Schaub (2007), 86–100.
  • Soininen and Niemelä (1998) Soininen, T. and Niemelä, I. 1998. Developing a declarative rule language for applications in product configuration. In Proc. PADL’98. Lecture Notes in Computer Science, vol. 1551. Springer, 305–319.
  • Sureshkumar et al. (2007) Sureshkumar, A., De Vos, M., Brain, M., and Fitch, J. 2007. APE: An AnsProlog* environment. See De Vos and Schaub (2007), 101–115.
