There is an increasing interest in applying deep learning to visual arts, and neural image style transfer techniques pioneered by Gatys and coworkers Gatys et al. (2016)
have revolutionized this area with compelling AI-driven artwork synthesis results. The simple idea of generating images by matching the convolutional features and their Gram matrices from one image to another has yield eye-catching results not only for artistic style transfer but also for producing photorealistic results from synthetic data. Numerous follow-up work have improved the visual fidelity of the output, the speed of image generation, and the handling of multiple styles. Another line of research was image-to-image translationIsola et al. (2017), of which style transfer can be though of as a special case of Generative Adversarial Networks.
While the visual quality of style transfer results keep improving, there has been relatively few research on understanding what really is a style in the context of neural synthesis. It seems to be a consensus that “style” loosely equals to “texture”. We feel that this decision may feel a bit arbitrary, and lacking a formal understanding of the underlying mechanism. Furthermore, while in existing studies, the representations of style is effective for neural networks, they are not intelligible to humans.
We present a different definition and representation for artistic styles in the context of deep learning for visual arts. We aim at a definition that is learned from artworks and not limited to textures, as well as a representation for images that separates style and content effectively, where the style can be interpreted by humans. Furthermore, we train a Generative Adversarial Networks conditioned on both style and content. Being an image generator, for which style and content can be independently controlled, it serves as a practical tool for style space visualization, as well as an alternative solution to style transfer.
Our method consists of these main steps:
We train a style encoder with metric learning techniques. The goal is to encode images into a style space, such that artworks by the same artist are closer, while artworks by different artists are further apart.
We then train a content encoder using a Variational Autoencoder. It should in particular not encode information already described by the style encoder.
Finally a Generative Adversarial Network is trained conditioned on both, style and content.
To demonstrate the effectiveness our method, we explore the style space of anime portrait illustrations from a custom dataset. This level of control is not possible using existing neural synthesis approaches.
2 Related Works
While researches of style transfer has long existed, of particular interest concerning the topic of this research are the deep neural network methods based on Gatys et al. (2016), in which the idea of representing style by the Gram matrices of convolutional features played a central role. Buiding on top of this, people have made improvements by replacing the costly optimization process with a feedforward network (e.g. in Johnson et al. (2016)), by having more control over target location, color and scale of style Gatys et al. (2017), etc. However, these improvements did not change the central idea of representing style by the Gram matrices.
Alternatively, style transfer can be considered as a special case of the more general problem of image-to-image translation. First considered for paired training images Isola et al. (2017), the method has been developed for unpaired training images Zhu et al. (2017). To ensure that the translation result does have the desired style, usually a adversarial discriminator is employed to decide if an image (is real and) has the same result as the target group of images. Here, the definition of style is learned from the training images, but the representation is implicit: by a discriminating process.
Generative Adversarial Networks and conditional GANs
Generative Adversarial Networks (GAN) Goodfellow et al. (2014)
has been a very successful unsupervised learning model, especially for generating realistic looking images. Numerous conditional GAN models exist. Typically, part of the code carries some predefined meaning, and some loss term is added to the discriminator loss that encourages the network to preserve these information in the generated image. One example is conditioning on class label and adding classification lossMirza and Osindero (2014). In our case, we condition the GAN on style and content codes.
3 Metric Learning for Style
As discussed above, in typical neural style transfer approaches, the style is explicitly represent by a set of numbers but the definition of style is from an arbitrary human decision that tries to capture the texture information, while in image-to-image type of approaches, the definition of style is learned from training image but the representation is implicit.
We want a definition of style that is explicitly learned to represent style, and the representation has to be a set of numbers that can be interpreted and manipulated. Specifically, we want a style encoder which encodes images into a style space, such that image with similar styles are encoded to points closer to each other while images with dissimilar styles are encoded to points further away.
Such a formulation suits well in the framework of metric learning. To avoid subjective human judgment of style, we make the assumption that artworks made by the same artist always have similar styles while artworks made by different artists always have dissimilar styles. This may not be exactly true, but it is a cost-effective approximation. Now given some artworks labeled according to their author, we want to train a style encoder network that minimizes
Where is the set of artworks from artist , and
are loss functions (of distance) for pairs of similar styles and pairs of dissimilar styles, respectively. We takeand .
In practice, we found that knowing only whether the two input images are of the same style is too weak a supervision for the network. After about 50 epochs of training, the network failed to make a significant progress. So we sought to give it a stronger supervision.
We assume that for each artist, there is one point in style space that is “representative” of their style and all his artworks should be encoded to close to this point while far from other artists. Now in addition to the style encoder , we learn such presumed representative styles . Together they minimize
One of our goal is to interpret the style representation. Naturally, we would want the representation to be as simple as possible, that is to say, we want the dimension of the style space to be small, and the dimensions should ideally be ordered by importance, with the first dimensions accounting for style variations that most effectively differentiate between artists. To achieve this, we use a technique called nested dropout Rippel et al. (2014)
. The method is proposed for autoencoders but the same idea work for discriminative problems as well. For a vector, denote its projection onto the first dimensions by . Now we define a nested dropout version of :
Where is a scale factor learned for each dimension to account for different feature scaling under different number of dimensions, is the total number of style dimensions, andis defined similarly with the same value for and . In the training, and are used in place of and in equation 2.
After training, we select an appropriate number of dimensions for the style space such that it is reasonably small and using only the first dimensions performs nearly as good as if all dimensions are used. The remaining dimensions are pruned in subsequent steps.
4 Style-conditioned Generative Adversarial Network
For the second step, we want a content encoder. Variational Autoencoder Kingma and Welling (2013) is a natural choice. Due to the requirement that the encoder does not encode any information already encoded by the style encoder, we made some changes: along with the output from the VAE encoder, the output from the style encoder is provided to the decoder. In addition, similar to the training of the style encoder, we use nested dropout: after performing reparametrization, a prefix of random length of the output of VAE encoder is kept and the suffix is set to all zero. Then, this is concatenated with the output from style encoder and sent to the VAE decoder.
Let be the reconstruction loss on input , then
The KL-divergence part of the VAE loss remains unchanged.
Intuitively, since later dimensions has a higher chance to be dropped, the earlier dimensions must try to learn the most import modes of variation in the image. Since the style information is provided “for free”, they would try to learn information not encoded in the style. Similar to the training of style encoder above, after training the VAE, the content encoder is pruned by testing reconstruction loss. This ensures that we only keep the earlier dimensions that encode the content, with later dimensions that may encode redundant information about style being discarded.
Now that we have both the style encoder and the content encoder ready, we can proceed to the final step: a conditional Generative Adversarial Network. Let part of the input code to the generator represent the style and let another part represent the content. In addition to minimizing the adversarial loss, the generator tries to generate images such that on these images the style encoder and the content encoder will give the style code and the content code back, respectively.
The discriminator is the standard GAN discriminator:
While the objective of the generator is:
where is the discriminator, is the generator, is the style encoder,
is the content encoder (the mean of the output distribution of VAE encoder, with variance discarded),, and are length of the parts of GAN code that is conditioned on style, on content, and unconditioned, respectively, and and are weighting factors. For this part, the output of is normalized to have zero mean and unit variance with style statistics from the training set.
We conducted our experiments on a custom dataset of anime portrait illustrations.
The dataset contains about thousand anime portraits of size , drawn by artists, obtained from the anime imageboard Danbooru111danbooru.donmai.us. The faces in the images are detected using AnimeFace 2009 nagadomi (2017)
. The faces are cropped out, rotated to upright position, padded with black pixels if the bounding box extends beyond the border of the image, then resized to
. Artist information is obtained from tags on the website. After extracting the face patches and classifying by artist tag, we manually removed false positives of face detection and discarded artists whose number of works is woo few (less than 50), obtaining our dataset.
For the metric learning part, we took of total images or images, whichever is larger, from each artist as the test set and use the remaining for training. For the VAE and GAN part, we use all images for training.
|Network||Levels||Number of features||Number of blocks|
|Training step||Algorithm||Learning rate||Batch size||Dropout|
. We did not use the stride-2 pooling layer after the initial convolution layer, and our networks could have a variable number of levels instead of a fixedlevels in He et al. (2016). In addition, all networks operate in the Lab color space.
The structures of all the networks used in the experiment are listed in table 1. For VAE, in addition to the listed residue blocks, we added an extra fully connected layer between the decoder input/encoder output and the highest level convolutional layer, with features.
The style encoder and content encoder were both trained with output features. After pruning, we kept the first style dimensions and the first content dimensions for conditional GAN training. The total number of dimensions of the GAN was also , out of which dimensions were not conditioned.
The GAN discriminator operates a bit differently. We used a consortium of networks with identical structure but operating on different scales. The networks accept input images of size : the first network sees the training images and generated images downscaled to ; the second network sees random patches from images downscaled to and computes the average loss on the patches; the third network sees random patches from the original images and computes the average loss on the patches. Finally, the discriminator loss is the average loss from the three networks.
The training parameters are listed in table 2. In GAN training, the different part of the generator’s loss were weighted as and .
6.1 Metric Learning
We evaluate the effectiveness of our metric learning method by considering the classification accuracy when the style encoder is used for classification, and by measuring the ratio of distance between images from the same artist to the distance between images from different artists. As a reference, we compare the results with the same network trained on the same dataset for classification of artist.
Remember that along with the style encoder, we learned a presumed style for every artist. So, given a style encoder trained with metric learning, we can compare the style code of an image to the presumed styles of each artist. The image is classified to the nearest artist.
We trained both networks to the point when classification ceases improving. The left graph in figure 1 shows the classification accuracy with different values of . Note that x-axis is in log-scale. We can see that with a sufficient number of dimensions, the usual classification method gives better accuracy than distance based classification on top of metric learning which is unsurprising since in metric learning we do not directly optimize for classification accuracy. But interestingly, when the number of dimension is very small, the metric learning method gives better results, which shows that it uses the first dimensions to encode style information more efficiently. We can also see that for metric learning, using the first dimensions is almost as good as using all dimensions. Thus we decided on keeping only the first style dimensions for subsequent steps.
As a more direct measure of whether we have achieved the goal of encoding images with the same style to closer points in the style space, lets consider the ratio of average variance of style of all artists to average squared distance between images from different artists. In particular, we compute
and consider their ratio, where is the set of images made by artist and is the true average style of artist , in contrast to , the learned presumed style. This ratio would ideally be small. The right graph in figure 1 shows the ratio with different values of . As we can see, the metric learning method improves upon the classification method significantly, reducing the ratio by about a half.
6.2 Separation of Style and Content
As a first test of our method, we would like to see whether the style dimensions and content dimensions in the code space are actually separated. Figure 2 shows the combination of style and content. In each group, images from each row share the content part of the code while images from each column share the style part of the code. We can see that in each row the images depict the same character while in each column the style of the illustration is consistent.
6.3 Exploring the Style Space
We show the multitude of styles that can be generated in figure 3
. On the left are samples generated from a fixed content code and random style codes. On the right, the content code is also fixed, but the style code of the samples in the middle are bilinear interpolated from the four images on the corner.
We would also like to know which aspects of style are each of the dimensions controlling. For this, for each style dimension we take random codes, fix all other dimensions and vary this style dimension and compare the generated samples. We set the value to , and . In addition, we rank all training images along this dimension and select from lowest and highest to see if we can observe the same variation in style.
The meanings of each dimension were not as clear as we want them to be, but we were able to explain some of them. As an example, here we show two of the dimensions to which we can give a resonable interpretation. Figure 4 shows the effect of the 10th style dimension. In top two rows, the three samples in each group are generated by setting the 10th style dimension of a random code to , and while leaving other parts of the code unchanged. In the last row, we select images ranked lowest and highest by 10th style dimension and show them on the left side and right side respectively.

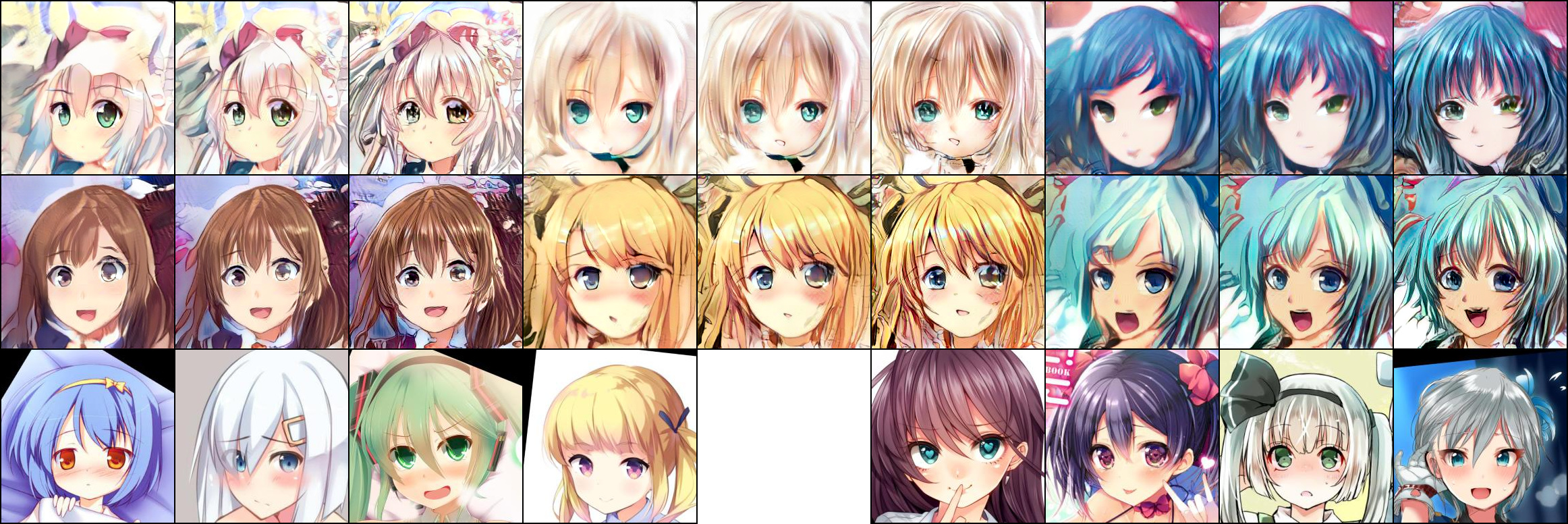

We found that increasing dimension 10 causes the generated samples to have finer locks of hair and with more value contrast in the hair. Conversely, decreasing dimension 10 causes the generated samples to have coarser locks of hair and less value contrast. The samples from the training set agrees with this trend.

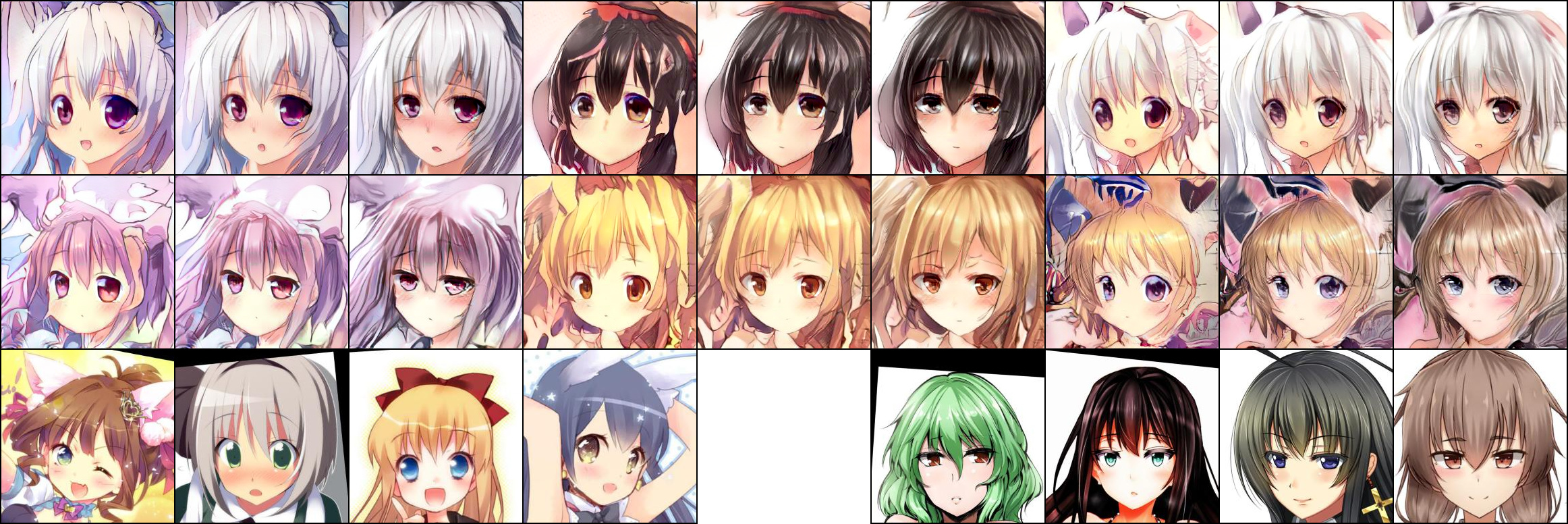

Figure 5 shows the same experiment with the 6th style dimension. Decreasing this dimension causes the character to look younger while increasing this dimension causes the character to look more mature. Among other subtleties, increasing this dimension gives the character a less round cheek, more enlongated and sharper jaw, smaller eyes and more flatterned upper eyelids.
6.4 Reconstruction and Style Transfer

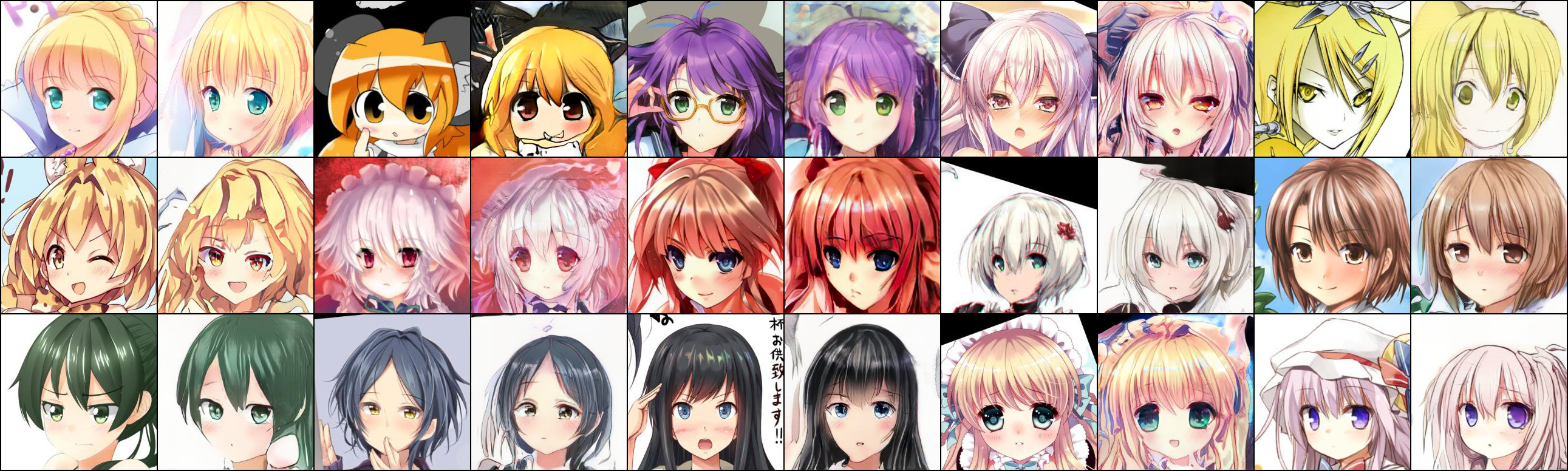

Although not trained for such a purpose, since we have a style encoder, a content encoder and a generator conditioned on style and content, we can use these networks to reconstruct an image by combing the output from style encoder and content encoder and sending it to the generator, or perform style transfer between images by combining content code from one image with style code from another image. Figure 6 shows some reconstruction results. In each pair, the image on the left is from the training images and the one on the right is the reconstruction. We can see that the network captures lighting variations along the horizontal direction better than along the verticle direction. In particular, as the second pair shows, the network fails to reconstruct the horizontal stripe of hightlight on the hair. Such styles are also noticeably absent from the random styles in figure 3.
Figure 7 shows some style transfer results. In each group of three images, the left one and the right one are from the training set and the middle one is generated by combining the content from the left image and the style from the right image.
In this paper, we presented a different view on artistic styles in deep learning. With metric learning techniques, we obtained a style encoder that could effectively encode images into a style space in which the distance corresponds to the similarity of style. We further demonstrated the effectiveness of our method by visualizing and analyzing the structure of the style space with a conditional Generative Adversarial Network. As an application of this method, we gave an alternative solution to the problem of style transfer.
