Analyzing the Context of Bug-Fixing Changes in the OpenStack Cloud Computing Platform

08/29/2019 ∙ by Domenico Cotroneo, et al. ∙ University of Luxembourg University of Naples Federico II 0

Many research areas in software engineering, such as mutation testing, automatic repair, fault localization, and fault injection, rely on empirical knowledge about recurring bug-fixing code changes. Previous studies in this field focus on what has been changed due to bug-fixes, such as in terms of code edit actions. However, such studies did not consider where the bug-fix change was made (i.e., the context of the change), but knowing about the context can potentially narrow the search space for many software engineering techniques (e.g., by focusing mutation only on specific parts of the software). Furthermore, most previous work on bug-fixing changes focused on C and Java projects, but there is little empirical evidence about Python software. Therefore, in this paper we perform a thorough empirical analysis of bug-fixing changes in three OpenStack projects, focusing on both the what and the where of the changes. We observed that all the recurring change patterns are not oblivious with respect to the surrounding code, but tend to occur in specific code contexts.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Studying bug-fixing changes is an important field of software engineering research [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16]. It consists in empirically analyzing the changes made by developers to software in real complex projects, with the aim to identify (possibly, in automated ways) patterns for the most common changes, and to create profiles for these changes. This analysis is useful for many software engineering tasks, such as software testing (in particular, mutation testing [1, 2]), fault localization [3], automatic code repair [3, 5], and fault injection for testing fault-tolerance [12, 13]. Analyzing bug-fixing changes can be challenging since change patterns can be numerous and heterogeneous, and they can differ across different application domains, programming languages, and even software projects.

In this paper, we analyze bug-fixing changes in the context of the OpenStack cloud computing platform [17]. OpenStack is a widespread software, as it is adopted in many private and public cloud infrastructures [18] and forms the basis of more than 30 commercial products (i.e., distributions and appliances) [19]. One reason that makes the OpenStack platform a relevant investigation subject is that it consists in several, diverse systems that focus on different cloud computing functions (sub-systems like Nova for managing instances, Neutron for managing virtual networks, and Cinder for managing volumes). These systems are developed under independent projects by separate development teams, follow rigorous development and QA processes, and have nowadays achieved a high degree of maturity [20]. Another motivation is that OpenStack is among the largest and most sophisticated software written in Python, which is a popular programming language that has not been investigated in depth by previous research on bug-fixing changes.

We first analyze in this study what

syntactic changes characterize bug-fixes in the OpenStack platform. This analysis advances the existing body of knowledge in the field of bug-fixing changes since it provides empirical insights on large Python projects. Moreover, this study explores the variability of bug-fixing changes across different projects and development teams, and discusses their variability with respect to other programming languages analyzed by previous studies (mostly on C and Java). Our approach performs a clustering analysis of bug-fixing changes, using numerical features from the Abstract Syntax Tree (AST) of the fixed code.

In addition to syntactic changes, we also study the code context where bug-fixing changes were made, that is, the source code that surrounds the change. Most research on code changes neglects the code context, but this aspect can potentially narrow the search space for many software engineering tasks. For example, in mutation testing and in fault injection, mutants are generated by introducing changes throughout the whole source code (for example, in the case of “assignment omissions”, by mutating every assignment statement). However, the number of generated mutants grows very quickly or too easy to kill [21], with many mutants that are unkillable [22]. Moreover, the size of the search space is a challenging aspect also for fault localization and for automatic code repair [23]. Therefore, we analyze the code context surrounding the bug-fixes, to a more detailed “fingerprint” of the bug-fixing patterns. Our approach collects additional features to represent the context of every cluster, and points out statistical deviations that characterize the clusters.

The main findings of the study include:

  • [leftmargin=4mm]

  • Commits that are supposedly bug-fixes also contain many of changes that are not strictly bug-fixes. In some cases, the changes are refactorings for supporting the bug-fix (e.g., importing a package, changing the signature and the invocations of a method, changing the layout of a data structure). In other cases, the commits are not limited to bug-fixes, but also include many changes for improving the internal quality of the software (e.g., readability and maintainability of the source code). The high number of non-bug-fixing changes points out that empirical research must take into account refactorings when analyzing bug-fixing changes for testing and repair purposes.

  • Bug-fixing patterns exhibit relevant differences across programming languages, and across projects. While some of the bug-fixing patterns match the ones found in previous studies on C and Java software (in particular, the changes that fix the structure and the checking conditions of the control flow), we found several specific patterns that are induced by the features of the Python language, such as dict data structures and the rules for passing parameters. Moreover, we found several patterns that are specific for a project, such as, bugs influenced by API calling conventions.

  • The bug-fixing changes tend indeed to occur in specific code contexts. For example, several change patterns were located mostly in the largest classes and methods, or were located in loops or conditional constructs. Moreover, specific traits were found for the blocks and statements impacted by the change: for example, input parameters were omitted for methods which at least 2-3 arguments, and several bug-fix patterns involved statement blocks with large numbers of data containers and function calls.

In summary, the contributions of the paper are:

  • [leftmargin=4mm]

  • An approach for characterizing bug-fixing changes not only with respect to what a bug-fix changes, but also with respect to where the change has been made.

  • A dataset of bug-fixing changes in three systems of the OpenStack platform, which represents the largest Python software ever analyzed by studies on bug-fixing changes to the best of our knowledge.

  • A detailed empirical analysis of recurring patterns in bug-fixing changes in the three OpenStack projects of the dataset.

In the following of this paper, Section II discusses related work by exploring the various applications of bug-fix analysis; Section III presents the proposed methodology for analyzing code changes; Section IV and Section V analyze respectively what is changed by bug-fixes, and where the change was made, with a discussion on findings and implications. Section VI discusses the threats to validity of this study. Section VII concludes the paper.

Ii Related work

Several studies have been investigating bug characteristics for various software engineering tasks, by analyzing problem reports, commits, revisions, and other information. Our intention is to give a broad view of how researchers have been using bug information in a different context, and their main findings. In Appendix A, we summarize the surveyed studies, highlighting the specific purpose, the programming language used in the software under study, the dataset (e.g., number of code changes, revisions, commits, bug-fixes), and a brief description of the findings related to bug-fix patterns.

In most of these studies, the authors analyze code changes by using an Abstraction Syntax Tree (AST) (i.e., a data structure representation of entities in the source code and their relations), and a generate edit actions that reflect the differences between the ASTs before and after a change of the source code.

Mutation testing. Mutation testing is a fault-based technique for the creation and the assessment of test suites. Recently, Tufano et al. [1]

developed an AST-based differencing technique for analyzing bug-fixes and to abstract them. Their approach trains an artificial neural network with the bug-fixes, and then use the neural network to introduce new mutants that reflect the learned ones. Brown et al.

[2] introduced the concept of wild-caught-mutants, to address the issues that mutation operators do not necessarily emulate the types of changes made to source code by human programmers. Thus, their idea is to analyze bug-fixes from bug reports to define mutation operators that more closely reflect faults occurred in a specific project. For example, the authors found new mutation operators like missing call to a one-argument function whose return type is equal to its argument’s type, direct access of field, and specific literal replacements.

Automatic program repair. Automatic program repair is a branch of research on lowering the costs of bug-fixing. The general approach is to locate and mutate a faulty source location with a set of change operators, using search-based techniques, until the program passes a test suite. The quality of the test suite and of the program under fixing are preconditions for generating patches with a reasonable chance of success. Zhong et al. [3] performed an empirical study on fixes of real bugs in open-source projects in order to reuse change patterns for automatic repairing and understand to what extent bugs are localized. Similarly, Koyuncy et al. [5] implemented repair strategies based on fix patterns or templates. They provide a tool for mining semantically-relevant patterns in a scalable, accurate and actionable way, by using a clustering strategy.

Refactoring. Bug characterization studies analyzed whether an issue marked as a bug is actually a bug. As a matter of fact, in a recent study Herzig et al. [24] found that a high number of non-bug issue reports are misclassified as bugs, such as refactorings, requests for new features, documentation, and test cases. In particular, previous studies on refactoring use source code changes history to detect and study refactoring changes. The approach by Silva et al. [15] consists in 2 phases: (i) parse and analyze the history of source code changes to obtain a high level abstraction (i.e., a multiset of tokens); (ii) perform a relationship analysis, i.e., the procedure to find similarities between source code abstractions before and after the changes. The method was able to find 12 well-known refactoring templates (as defined by Prete et al. [25]) with a Precision of 1.00 and a Recall of 0.88. Hora et al. [16] analyzed refactorings due to so-called untracked changes, e.g., a method rename or move. That change can be misinterpreted as the disappearance of a method and the appearance of a brand new one, splitting its history, and could have a negative impact on the accuracy of mining software repository techniques if not properly handled. In our work, we observe that refactoring-related changes after often mixed with bug-fixing changes, and we discriminate between these two categories to focus on bug-fixing ones.

Fault injection. Fault injection is a technique for experimental evaluation of fault tolerance mechanisms, such as for quantifying their coverage and latency [26]. One research branch in this area has been focusing on the injection of software faults using code mutations, to emulate the most common bug patterns [27]. To ensure the representativeness of the injected bugs with respect to actual bugs, these approaches have been relying on the analysis of bug-fixing patterns. For example, previous studies [12, 13] manually analyzed bug fixes in C and Java projects, with respect to an extended version of the Orthogonal Defect Classification (ODC) schema [28], by including in the classification the specific kind of omitted or wrong construct (assignment, control flow checking, etc.), and an early notion of “context” (e.g., number of statements inside an IF block, presence of an assignment before a function call, etc.). These studies identified consistent patterns across these languages, such as missing function calls and missing IF blocks; moreover, they found that one recurring bug patterns (i.e., Assignment) are common across projects and cover 21.4% of the total bugs, but the remaining share of bugs follows project specific patterns. Our study of bug-fixing patterns can be leveraged for injecting bugs into Python software and enriches the classification of bugs with broader and quantitative information about the context of bugs.

Bug characterization. Numerous other studies have been investigating bug-fixing patterns, beyond the specific tasks above. Pan et al. [9] found that the most common categories of bug-fix patterns in Java projects are Method Call (21.9-33.1%) and If-Related (19.7-33.9%). In particular, within the Method Call category, most of the bug fixes to method calls are changes to the actual parameter expressions (14.9–25.5%), and within If-Related category the change in if conditional is the more frequent (5.6–18.6%). They also provided evidence of similarities of bug-fix patterns across different projects (i.e., Pearson similarity measures exceed with p-value less than ), and pointed out that developers can introduce the same kind of bugs independently from the specific program domain. Osman et al. [8] presented another analysis of Java projects, and found that 53% of the fixes involve only one line of code, and that 73% of fixes consist in less than 4 lines of code. Moreover, they found that 40% of bug-fixes are recurrent patterns. The most frequent fix pattern (48%) involves the addition of null checks on Java object references. Other fix patterns involve missing method invocations and wrong names for objects, methods, or parameters. Other studies [11, 10], pointed out similar findings.

Only a minority of studies focused on the Python language. Lin et al. [6]

analyzed 10 Python projects. They developed a tool for analyzing Python source code, and classifying changes according to edit actions on ASTs. They analyzed the distribution of edit actions across 8 gross categories, including

Class edits, Function edits, Statement edits, etc.. In most of the projects, they found that Function and Statement edits are the most common change types, whereas Loop Structure edits are the least common ones. Furthermore, the authors found that the majority of bug-fix edit actions are Conditional Expression Update and If Insert. Musavi et al. [7] conducted an empirical study to understand API failures in OpenStack, by analyzing the code change history. The authors manually evaluate the bug reports and bug fixes of API failures during 2014, and classified them into 7 categories. More than half (56%) causes of API failures are “small programming faults”, which were fixed with simple edits such as inverting logical conditions, correcting variable names, or adding exception handling.

The main points of difference between our work and these studies can be summarized as follows:

  • [leftmargin=4mm]

  • Most of the previous studies focused on software projects written in Java, for which there exist more various and mature tools for analyzing source code characteristics. Instead, our work concentrated on the less-explored, but much relevant Python language. We provided new insights about recurrent fix patterns found in large projects written in Python. Compared to the few previous studies on Python, we performed a more fine-grained analysis of bug-fixing patterns, not limited to distributions of changes with respect to fixed categories (e.g., type of edit actions or small-vs-large programming faults) but using clustering to discover patterns in an unsupervised way.

  • Recent research on bug patterns did not focus on the context in which code changes were made. Almost all previous studies have discovered that some bug patterns are more frequent than others, but do not give enough information about “where” in the code the bug occurred. Therefore, our analysis provides more detailed insights on the context of bug-fixes.

Iii Methodology

The proposed approach consists of the following phases, which are summarized in Fig. 1. First, we harvest data from the OpenStack public repository (subsection III-A), by collecting code changes. Then, we extract hunks (see TABLE I about the terminology used by the OpenStack project) for the source files involved in the change (subsection III-B), generate features from these hunks (subsection III-C), and we perform clustering of these hunk according to their features (subsection III-D). The clusters will represent recurring patterns for bug-fixes. Once the clusters are defined, we investigate the code context surrounding the hunks, by means of an inter-cluster analysis on an additional set features (subsection III-E

). The resulting dataset, which include the code-change and the context features extracted from Openstack public repository, the results of both bug-fix clustering and the context analysis, is publicly available online at

https://figshare.com/s/7ae9d7dade9e8df62683.

Fig. 1: The proposed approach.
Name Definition Description
Change A set of patches with comments and code review rating When developers want to fix a new bug or add new functionality, they push a commit with a new id (Change-Id) and Gerrit create a change.
Revision A newer version of the change A change has an initial version and possible multiple following versions. When developers want to modify their change, they push a new commit with the same Change-Id of the initial commit, and Gerrit creates a new revision to the change by adding the new set of patches and allowing new comments and rating.
Merged Change A change which has been accepted by reviewers When a change is accepted by reviewers, Gerrit cherry-pick the last revision’s patches into the repository’s master branch and mark the change as merged.
Hunk A group of consecutive lines that were modified by a patch A hunk includes both the lines of the source code before the change and the lines of the source code after the change.
TABLE I: Definitions.

Iii-a Data collection

The source of data that we analyze in this study comes from Gerrit, the code review system used by the OpenStack project [29], which is openly accessible. We query the repository to collect the latest revisions of each merged changes and the list of files modified by the revision’s commit. Then, we filter the query results to focus on bug-related changes. We analyze the description of the change, and we only retain the changes that include at least one of the following keywords: bug, fix, fault, fail, patch. A similar approach has been already adopted in other studies [30, 31, 7]. Revisions of changes that do not contain any of these keywords are discarded. We also discard those files that only contain test cases because they represent unnecessary information for our analysis, as we are only interested in the specific patches needed to fix the bugs.

Our analysis focuses on the data related to the OpenStack Nova, Neutron, and Cinder sub-projects, respectively the compute, network, and storage managers of the OpenStack platform. Furthermore, we focus on the last four versions of OpenStack, i.e., Ocata, Pike, Queens, Rocket releases. In total, we collected 22,418 unique revisions, which touch 45,428 files. The time span of the revisions is from February 2017 to May 2018.

Iii-B Hunks Extraction

We iteratively analyze the collected files to extract hunks. First of all, the data from Gerrit contain only the git references to the actual files and they are retrieved automatically during this step of the analysis. Furthermore, they are converted to an Abstract Syntax Tree (AST) for convenience of manipulation and analysis of source code.

For each file, we parse the two versions (before and after the fix) of the source code to their respective ASTs. Then, we join the two trees to create an enhanced AST (AST of differences). In such a tree, a node can be labeled as minus node, i.e., a node removed to fix the bug, or plus node, i.e., a node added to fix the bug. The nodes that are not labeled represent the parts of the source file that were not modified by the change. The plus and minus nodes are grouped in hunks, such that nodes in the same hunk are within three lines of the source code, as bug-fixing changes tend to focus on localized portions of source code [8, 7].

Since the hunk includes a subset of nodes, it represents a sub-tree of the enhanced AST. The hunk can be a single node (e.g., when the bug-fix just changes the name of a variable) or a whole sub-tree (e.g., the bug-fix changes an if block that contains several statements). A hunk is also characterized by all the ancestors of its plus and minus nodes. These ancestors are unlabeled nodes, which we define as context nodes. These nodes tell us which are the source code that envelops the change. For example, context nodes give information whether the changed lines are inside constructs like if, for, with, while, function definition, class definition, or a combination of them.

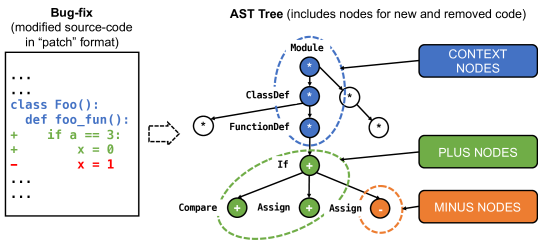

Fig. 2 shows an example of an enhanced AST tree for a change. Specifically, the enhanced AST tree represents a change made within a function named foo_fun defined inside the class Foo, by adding an if construct whose body has been replaced the initialization of a variable (i.e., x = 0).

Fig. 2: Example of enhanced AST.

We designed and developed a tool for fully automate this step of the analysis, namely PySA (Python Source-code Analyzer) (publicly available at https://github.com/dessertlab/PySA2). PySA is able to: (i) create a AST of differences from two versions of a file and (ii) extract the hunks from an AST of differences. We remark that we do not consider other existing AST differencing tools (e.g., ChangeDistiller [32], GumTree [33]) because they are either designed to work with Java or C source code, or they are not publicly available. Furthermore, such tools do not provide any information about the context, which is fundamental for our analysis.

In total, we extracted 16,081 unique hunks, where 5,890 are from Nova, 4,261 from Neutron, and 5,930 from Cinder.

Iii-C Code-Change Features Extraction

From each hunk, we generate a feature vector

that describes the hunk as a flat series of numerical attributes. The feature vector still takes into account the relationship between statements (

e.g., whether a statement is inside another block of code) by using weights. The features are built by traversing the AST sub-tree for the hunk and inspecting the attributes of its nodes.

The Python Abstract Grammar consists of 89 AST node types (e.g., an If node, a Call node, etc.). Moreover, an AST node can take over one of the 96 AST roles, depending on the type of AST node. For example, a Python expression (represented by the Expr AST node type) can appear inside an If block, thus taking the role If-Body; or, a Python expression can appear as an input parameter of a method call, thus taking the role Call-Args.

We define a feature vector in which each element specifies (i) whether a node was added (i.e., plus nodes) or removed (i.e., minus nodes) within the fix, and (ii) counts how many times a node belongs to a specific type or role. In particular, the feature vector consists of two parts:

  • [leftmargin=4mm]

  • Node type features: For each AST node type (e.g., Assign, Call, etc.), we have a feature that keeps track of how many times that node type appears in the bug-fix. In total, there are 178 node type features, defined as ¡add—rem¿_¡node_type¿;

  • Role type features: For each AST node type, we have 96 potential role types, which specifies the relationship between a AST node and its parent. Thus, these features keep track how many times an AST node type has a specific role. In total, there are 17,088 role type features, defined as ¡add—rem¿_¡role¿_¡node_type¿.

Starting from the enhanced AST, we check the type and role of each node, then we increase accordingly the corresponding element in the feature vector. Each type/role element is increased for every occurrence of that type/role in the AST. Specifically, the element is increased by a weighted value, which takes into account the depth in which the type/role appears in the AST tree. This allows us to preserve part of the information about the structure of the code in the hunk. In particular, the node type feature for a node type is increased by:

(1)

for each node of that type in the hunk, where:

  • [leftmargin=4mm]

  • is a weight that represents the relative importance between AST node types;

  • is the relative importance between a node and its parent;

  • is the distance of the node from the root of the hunk AST tree.

In our approach, we give the same importance to all node types. In particular, we set because 15 is the maximum height a hunk AST tree have in our datasets. Thus, we force the feature to be integers. We set , so that nodes at different depths are differentiated by different orders of magnitude of the counter.

In a similar way, the role type feature for a node role is increased by:

(2)

for each node of that role type in the hunk, where:

  • [leftmargin=4mm]

  • is a weight that represents the relative importance between AST role types;

  • is the relative importance between a node and its parent;

  • is the distance of the node from the root of the hunk AST tree;

  • is the relative importance between the node type and role type features.

In our approach, we give the same importance to all role types. Again, we set because 15 is the maximum height a hunk AST tree have in our datasets. Thus, we force the feature to be integers. Again, we set . Furthermore, we set so that the features related to roles have a lower weight compared to node types. This choice is made in order to give greater importance to the outer code in a block of bug-fix statements.

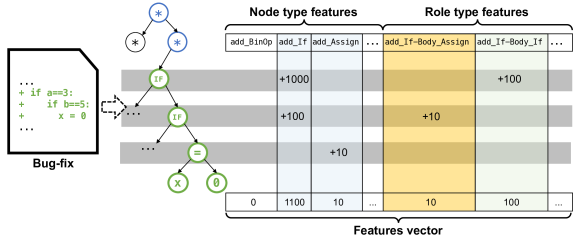

Fig. 3 shows an example of a feature vector. The initial if node (represented by the type add_If) is increased by a score with the highest weight (), and the corresponding role (add_If-Body_If) is also increased (). The inner if node increases the type feature add_If with a lower weight than the previous if node () since it is a nested node. In this way, we give greater importance to the fact that the bug-fix is changing the outer if, and we give less emphasis to the contents of the if (e.g., the content may be another if, or other kind of Python statements).

Fig. 3: Example of hunk features vector.

We extended PySA to automatically compute the features from the hunks. The resulting dataset consists of 5,890 (Nova), 4,261 (Neutron), and 5,930 (Cinder) hunks (dataset rows); and 948 (Nova), 996 (Neutron), and 1,019 (Cinder) features (dataset columns). We are only considering features for programming constructs that actually occurred in the source code changes of our dataset (as features for unused constructs result in a series of zero values).

We extracted a set of additional features for representing also the code surrounding the bug-fix: outer and inner context features.

Outer context features are extracted from the list of context nodes of the hunk, which includes all the ancestors of the plus and minus nodes (cfr. subsection III-B). There are two kinds of outer features:

  • [leftmargin=4mm]

  • Features of the including scoped node. These features are related to, and computed from, the hunk’s closest ancestor node with FunctionDef, ClassDef, or Module as type. The module, class, or function definition opens a new local scope in the language definition. These context features describe the including scoped node in terms of size (i.e.,, number of children). In total, there are 6 numeric features defined as ctx_¡block_type¿_size, where block_type can be any of ClassDef, FunctionDef_args, FunctionDef_body, or Module, plus the boolean feature ctx_FunctionDef_private (a feature that indicates whether the function is intended for private use only, i.e., its name begins with an underscore).

  • Features of the closest ancestor. These features reflect the type of AST node that is closest to the hunk. The possible ancestors are nodes for iteration (For and While), selection (If), assignment statements (Assign), definitions (ClassDef, FunctionDef, and Module), exception handling nodes (TryExcept and TryFinally), and other kinds of expression statements, including Attribute, BinOp, BoolOp, Call, Return, Subscript. There are 15 boolean features defined as ctx_including_¡node_type¿, which are all 0s except for the type of the statement that includes the bug-fix. Furthermore, we have a numeric feature, defined as ctx_including_node_size, which indicates the number of children of the ancestor node.

Inner context features are extracted from the AST nodes below the hunk, in order to provide information on the types of elements (function calls, assignments, arithmetic operations, etc.) that appear in bug-fixed code (e.g., the block of statements that is surrounded by a new if). In total, there are 370 features for the inner context, defined as ctx_inner_¡add—rem¿_¡node_type¿_count, and ctx_inner_¡add—rem¿_¡role¿_count, where node_type is one of the 89 AST node types in the Python language grammar, and role is one of the 98 AST roles in the grammar. In total, we computed 232 context features across Nova, Neutron, and Cinder.

Iii-D Hunks Clusterization

In this section, we describe all the choices made for categorizing the hunks found after the Hunks Extraction and Feature Extraction phases. Our main objective is to find categories that reflect what has been changed by bug-fixes. We adopt clustering to discover categories with respect to the programming constructs and entities that appear in the hunks (represented by the features discussed in the previous subsection).

In particular, we applied a hierarchical clustering algorithm, in order to scale to such large datasets, which consists of thousands of samples. We configured the clustering algorithm to use the Euclidean distance and single linkage. To validate the quality of this configuration, we computed the

cophenetic correlation coefficient [34], which is a measure of how faithfully a dendrogram preserves the pairwise distances between the original unmodeled data point. Hierarchical clustering is an iterative process, in which the closest pair of clusters are merged into one cluster, which replaces the previous pair. Then, the distance matrix is updated by removing the rows/columns of the deleted pair and adding a new row/column for the merged cluster. In some degenerate cases, the new distances in the new row/column may not faithfully be representative of the distances of the previous pair of clusters. The cophenetic coefficient computes the correlation between the new and the previous distances in order to detect such cases. The closer to 1 is the cophenetic coefficient, the more the clustering algorithm preserves correctly the distances between clusters.

The resulting cophenetic coefficients for the datasets are 0.87 (Nova), 0.86 (Neutron), and 0.9 (Cinder), which are leading to consider the configuration good enough for obtaining accurate clustering.

To determine the natural divisions of the dataset into clusters, we further analyzed the inconsistency coefficient [35] of the dendrogram links. These coefficients compare the height of the link with the average height of other links at the same level of the hierarchy. A large coefficient denotes that two “diverse” clusters were forcefully merged by the hierarchical clustering algorithms. Thus, the links with a higher inconsistency coefficient are good candidates for identifying a division of the data into clusters. Clusters are formed when a node and all of its sub-nodes have an inconsistency value less than a cut-off threshold . All leaves at or below the node are grouped into the same cluster.

To identify the cut-off threshold , we first analyze the distribution of the inconsistency coefficients across all links in the dendrogram. We obtain such distribution by using the automatic binning algorithm provided by Matlab [36]

. The binning algorithm divides the distribution among bins of fixed size. The algorithm chooses the bin width by adopting a mix of heuristics and well-known algorithms, such as Scott and Freedman-Diaconis rules. Our aim is to have a clusterization such that the clusters are not too specialized but they catch the coarse-grained pattern in the code change. The binning algorithm provides us with intervals (bins) that discretize the values of inconsistency, giving us a hint on how many nodes we preserve if cutting at a certain inconsistency. Then, since we want to consider only the greatest differences, we chose

as the lower edge of the last bin. Thus, only the highest inconsistency values are preserved, aggregating the other nodes of the dendrogram in large clusters. In our dataset, we obtain both for Nova and Cinder, and for Neutron. Since we want to focus on recurring bug patterns, we only consider the largest clusters, by considering the ones with a number of elements greater than a threshold on the cluster distribution (respectively 15, 10, and 15 elements for Nova, Neutron, and Cinder). We obtained clusters for Nova, clusters for Neutron, and clusters for Cinder.

Finally, every cluster has been manually analyzed by two authors (or more, in the case of disagreement) to assess whether the cluster actually represents a bug-fix. For every cluster, we manually inspect a sample of changes in the clusters (in our empirical analysis, we consider ), and divide the clusters into three categories:

  • [leftmargin=4mm]

  • BUG-FIX changes, which represent fixes to bugs. We classify a cluster for that category if a majority of changes in the sample actually fixes the behavior of the software, according to the description of the bug and to the nature of the change.

  • FIX-INDUCED changes, which represent code changes that are required to support a bug-fixing change, but do not represent themselves the actual bug-fix. For example, if the bug-fixing code uses a new input parameter to a method, the signature of the method and the call sites to the method must be also changed as a consequence of the bug-fix.

  • REFACTORING, in which code changes were made for purposes that do not modify the behavior of the software (e.g., better readability or modularization).

Finally, once the manual analysis confirms that a cluster represents a bug-fixing change, we attribute a label and a brief description of the cluster, and we consider the cluster for the next analysis of the context.

Iii-E Context Features Analysis

The objective of this analysis is to investigate the hypothesis that bug-fixing changes tend to occur in specific code contexts. In particular, we want to study what are the context features that are representative of a bug-fix change pattern in order to answer the following research question: Is the context relevant in the characterization of bug-fix changes?

To answer this question, we compare the mean of each context feature within a bug-fix cluster with the mean of a control group, represented by the whole dataset (including both changes due to bugs, and other changes). To achieve this, we tested the null hypothesis that there is no difference between the bug fix pattern group and the control group, by means of the Dunn’s statistical test

[37]. We used the Dunn’s test as it is robust with respect to groups of uneven size and it is a non-parametric test [38]. Then, we selected all the context features that have a mean statistically different from the control group with a confidence level of 95%. If, as a result of this process, we find that there is at least one relevant context feature for every cluster, then we can answer affirmatively to the research question.

Moreover, we quantitatively analyzed the context features which resulted relevant by means of summary indicators, i.e., the average, the coefficient of variation (which is defined as the ratio of the standard deviation to the mean), and the distribution quantiles, in order to gain insights on the context conditions that are common to the majority of the bugs included in each bug pattern.

Iv Analysis of what is changed by a bug-fix

In this section, we analyze the bug-fixing patterns obtained by means of clustering. We first consider the classification of the clusters between bug-fixes and non-bug-fixes (i.e., FIX-INDUCED and REFACTORING). Fig. 4 shows the distribution of the clusters found for the Nova, Neutron, and Cinder projects. The portion of BUG-FIX clusters across the three projects is similar. We found a high number of patterns that were either FIX-INDUCED or REFACTORING changes, with differences across the projects. These changes were included in the same commits for bug-fixes, in which developers took code reviews of bug-fixes as opportunities for also improving the internal quality (e.g., readability and maintainability) of the source code. Thus, both the bug-fixes and the refactoring changes end up in the same commit and get merged in the same revision. Since these non-bug-fixes patterns come in a high number, we needed to identify and remove them from our analysis in order to focus on bugs. Therefore, we caution other researchers interested in bug-fixing changes to carefully discriminate between bug- and refactoring- related changes, in order to provide more meaningful results for software testing and repair purposes.

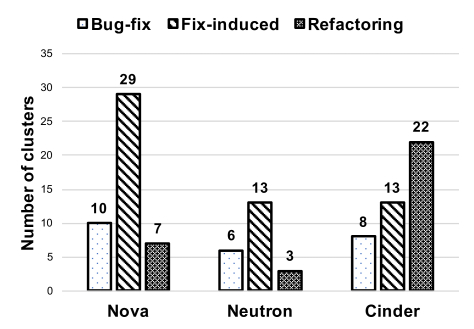

Fig. 4: Types of clusters found in Nova, Neutron, and Cinder.

We focus our analysis on better understanding the BUG-FIX clusters. TABLE II provides the detailed list of clusters, along with a brief description. We also present (Fig. 5) the BUG-FIX clusters by dividing them into 8 categories, according to the syntactic changes introduced by the bug-fix. Almost half of the bug clusters are related to function calls (e.g., adding new function calls, or new arguments to a function call); the other clusters involve changes to the control flow, data structure initialization, exception handling, etc..

In the following, we first describe more in detail these categories with representative examples of recurrent patterns. Then, we summarize the main findings at the end of this section.

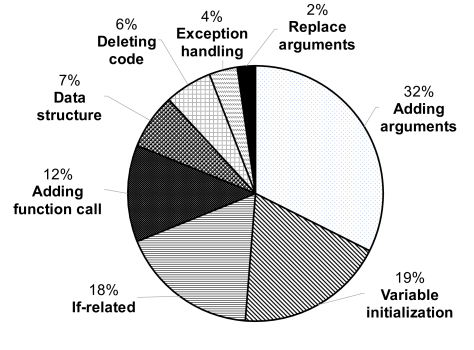

Fig. 5: BUG-FIX categories distribution.
Cluster ID Size Category Description
Nova
nova_228 148 Variable initialization Add variable initialized to a constant value
nova_131 61 Adding arguments Add one variable as keyword parameter to function call
nova_128 45 Adding arguments Add object attribute as keyword parameter to function call
nova_132 26 Adding function call Remove variable as keyword parameter from function call
nova_474 22 If-related Surround expression with If
nova_1099 21 Adding function call Remove object attribute variable
nova_1097 19 Adding arguments Add one variable as keywords parameters to multiple function calls
nova_597 16 If-related Surround instructions with If
nova_629 16 If-related Add boolean operator in condition
nova_197 15 If-related Add If and its body
Neutron
neutron_119 61 Adding arguments Add boolean as keyword parameter in function call
neutron_13 45 Adding function call Add function call with 1 parameter
neutron_14 17 Adding function call Add function call with no parameters
neutron_132 15 Data structure Add new (key, value) to a dictionary
neutron_23 14 Adding function call Add function call with 2 parameters
neutron_20 10 If-related Add If with return statement in body
Cinder
cinder_115 48 Adding arguments Add variable as keyword parameter to function call
cinder_621 40 Data structure Add new (key, value) to a dictionary
cinder_438 35 If-related Add assign and add If with its body
cinder_583 28 Exception handling Surround function call with Try-Except block
cinder_627 24 If-related Replace boolean expression with function call in If condition
cinder_14 20 Adding function call Add function call
cinder_542 20 Move function call Move function call with in a new position
cinder_1168 18 Replace arguments Modify constant string parameter in function call
TABLE II: Bug-fix patterns clusters in Nova, Neutron, and Cinder.

Adding arguments to function calls. Several clusters from Nova (e.g., nova_131, nova_128, nova_1097), Neutron (e.g., neutron_119), and Cinder (e.g., cinder_115) are related to fixes that add a new parameter of a function call. In these cases, the developers accidentally forgot to add a variable or an expression as parameter of a function call. An example of this kind of bug-fix is showed in Listing 1, in which the developer adds a variable as input parameter:

- instance_domains = self._host.list_instance_domains()
+ instance_domains = self._host.list_instance_domains(only_running=False)
Listing 1: Add simple variable as parameter of a function call. Change No.: 468269. URL: https://review.openstack.org/c/468269/6/nova/virt/libvirt/driver.py, line 7174

Another example (Listing 2) shows a bug-fix in which the developer added a more elaborated expression (an attribute of an object) as parameter of a function call.

- r = self.post(’/allocations’, payload, version=POST_ALLOCATIONS_API_VERSION)
+ r = self.post(’/allocations’, payload, version=POST_ALLOCATIONS_API_VERSION, global_request_id=context.global_id)
Listing 2: Add an attribute of an object as parameter of a function call. Change No.: 526823. URL: https://review.openstack.org/c/526823/18/nova/scheduler/client/report.py, line 1624

These examples emphasize that the omissions occurred in functions with optional parameters (such as, optional objects representing a “context” for the method and for the resource), and with boolean flags for enabling special behaviors in the function. This relaxed parameter passing is syntactically valid in the Python language, and is extensively used in all OpenStack projects.

Variable initialization. The highest number of recurring bug-fixes belong to the cluster nova_228, which includes fixes that add the initialization of a variable, e.g., using a boolean, a null object, or a constant string. For example, Listing 3 shows that the developer forgot to add the attribute RUN_ON_REBUILT to the class DiskFilter. In this case, the bug description points out that the change fixed an issue that occurred when a new image was provided and the instance had to be rebuilt, but Nova omitted to validate the existing pool of hosts excluding them from being scheduled.

 class DiskFilter(filters.BaseHostFilter):
     """DiskFilterwithoversubscriptionflag."""
+    RUN_ON_REBUILD = False
Listing 3: Add global variable to the class definition. Change No.: 523212. URL: https://review.openstack.org/c/523212/2/nova/scheduler/filters/disk_filter.py, line 31

In general, variable initialization has been a recurring bug pattern in previous studies on C and Java [12]. In our analysis, we found that these issues were recurring specifically for the Neutron project, where developers often adopted global and class-level variables for controlling the configuration of the Neutron server.

If-related fixes. These changes fix the code by modify the control flow, such as: by surrounding an existing statement, or block of statements, with an if construct; by adding a new statement or block of statements together with an if construct; and by adding a new boolean condition to an existing one. We found clusters of this kind of changes among Nova (nova_474, nova_597, nova_629, and nova_197), Neutron (neutron_20), and Cinder (cinder_438, cinder_627). These bug-fixes handle corner cases in the user inputs and configuration, such as in the examples of Listing 4 and Listing 5.

+ if not CONF.workarounds.disable_group_policy_check_upcall:
    _do_validation(context, instance, group_hint)
Listing 4: Surround single statement with if construct. Change No.: 442736. URL: https://review.openstack.org/c/442736/27/nova/compute/manager.py, line 1307
- if spec_obj.image else None
+ if spec_obj.image and ’id’ in spec_obj.image else None
Listing 5: Add new condition to an existing one. Change No. 543595. URL: https://review.openstack.org/c/543595/1/nova/scheduler/filters/isolated_hosts_filter.py, line 64

Adding function calls. The clusters neutron_13, neutron_14, neutron_23, and cinder_14 include fixes that add function calls. In these bugs, developers missed a function call, which caused omissions in the workflow of resource management. These issues mostly affected Neutron and Cinder, due to the nature of APIs in these projects. These projects have APIs for propagating across nodes a global view of the state of the data center (such as, the topology of virtual networks), which should be called whereas the state of resources is updated (such as, a network node is added or removed). However, these API calls can be easily omitted since they do not return data that are used afterward; for example, in Listing 6, a function call was missing after the update of a subnet.

if cidr == default_ipv6_lla:
+   cidrs.discard(cidr)
    continue
Listing 6: Add a function call. Change No.: 491409. URL: https://review.openstack.org/c/491409/11/neutron/agent/linux/interface.py, line 125

Data structure-related fixes. The clusters neutron_132 and cinder_621 include fixes that add a new pair (key,value) to a Python dictionary (i.e., the Python data type for associative arrays), in order to fix the layout of the data structure. The OpenStack projects make extensive use of complex data structures to represent the several attributes of virtual resources, such as instances, images, and so on. For example, Listing 7 shows a bug-fix that adds a new entry in a dictionary that represents an ARP table in a Neutron component.

    arp_table = {’ip_address’: ip_address,
                        ’mac_address’: mac_address,
                        ’subnet_id’: subnet,
+                       ’nud_state’: nud_state}
Listing 7: Add new key value to a dictionary. Change No.: 554729. URL: https://review.openstack.org/c/554729/3/neutron/db/l3_dvr_db.py, line 918

Exception handling fixes. The bug-fixes in the cluster cinder_583 address missing exceptions, by adding try-except blocks around existing code. Listing 8 shows an example of bug-fix that addresses the case of an exception raised by NetApp (one of the several backend drivers supported by Cinder) when the callers try to delete a volume that does not exist.

+   try:
        self.zapi_client.destroy_lun(metadata[’Path’])
+   except netapp_api.NaApiError as e:
+       if e.code == netapp_api.EOBJECTNOTFOUND:
+           LOG.warning(_LW("FailuredeletingLUN%(name)s." "%(message)s"), {’name’: lun_name, ’message’: e})
+       else:
+           error_message = (_(’ANetAppApiErroroccurred:%s’) % e)
+           raise exception.NetAppDriverException(error_message)
Listing 8: Surround function call with Try-Except block. Change No.: 491962. URL: https://review.openstack.org/c/491962/1/cinder/volume/drivers/netapp/dataontap/block_base.py, line 284

Replace string arguments in function call. The cluster cinder_1168 includes bug-fixes that modify a string argument in a function call. Listing 9 shows an example in which the string parameter is used to represent a path in the filesystem. These issues were recurrent due to the frequent use of external Linux commands in OpenStack. For example, Cinder uses administration utilities for handling storage volumes (e.g., tgtadm for SCSI, ietadm for iSCSI, etc.), and basic Linux commands for handling files (e.g., touch, tee, etc.).

-   (out, err) = self.gpfs_execute(’mmlsconfig’, ’clusterId’, ’-Y’)
+   (out, err) = self.gpfs_execute(self.GPFS_PATH + ’mmlsconfig’, ’clusterId’, ’-Y’)
Listing 9: Incorrect string parameter. Change No.: 491962. URL: https://review.opendev.org/c/465961/2/cinder/volume/drivers/ibm/gpfs.py, line 211

Deleting code bug-fixes. The clusters nova_132 and nova_1099 include bug-fixes that remove surplus code. For example, in Listing 10, the fix removed a parameter in excess (retry_on_request) from an API call since that argument become deprecated after an update of the class wrap_db_retry (where retry on request is always enabled). In general, surplus code occurred because of regressions, such as, APIs that are deprecated or that adopt new calling conventions, or changes in third-party software that is included in the project, or incorrect new code that is reversed to a previously-working version.

@require_context
-   @oslo_db_api.wrap_db_retry(max_retries=5, retry_on_deadlock=True, retry_on_request=True)
+   @oslo_db_api.wrap_db_retry(max_retries=5, retry_on_deadlock=True)
Listing 10: Remove keyword parameter from function call. Change No. 501073. URL: https://review.openstack.org/c/501073/1/nova/db/sqlalchemy/api.py, line 64

From our analysis of the clusters, we make the following observations on the general trends that we observed in bug-fixing changes.

Observation 1. A minority of bug-fix patterns matches the ones found in previous studies on Java and C software. In particular, this group of bug-fix patterns includes the ones in the If-related category, which is one of the larges category found in our analysis (18% in Fig. 5). These patterns are consistent with other studies on bug analysis [4, 6, 8, 9, 10, 11, 12, 13], which found recurring issues that were fixed in the control flow (e.g.,the checking and algorithm categories in the ODC classification). These patterns were also consistently found across all of the Python projects. There were other bug-fix patterns that were similar to the ones found in previous studies, which include bug-fix that added a function call and the replace arguments in a function call (e.g., the interface category in the ODC classification). However, these patterns were not consistent across the projects, as they were only found in Neutron and Cinder, as discussed in the Observation 3.

Observation 2. Several patterns are related to the data structures and rules of the Python language, and are common across projects.

There were bug-fix patterns dependent on the Python language used for the projects. In particular, the bug-fixes involving data structures affected Python dicts, which are a common way to represent data in this language. Therefore, it is reasonable to expect that a noticeable share of bug-fixes affect these constructs, such as in their layout or in the contents of the data structures. Moreover, the adding arguments bug-fix patterns (32% in Fig. 5) seem also favored by the rules of the Python language. Differing from C and Java, the Python language makes easier for developer to have optional parameters in function calls, where a default value is assumed by the function if no parameter is passed at the call site. Therefore, while previous studies [12, 13] found bugs in C and Java software where wrong parameters were passed (e.g., using a wrong variable or an incomplete arithmetic expression), in our analysis the parameters were mostly missing. These bugs were recurrent across the OpenStack projects.

Observation 3. Most bug-fix patterns are project-specific, as they are induced by API conventions, by the QA and testing process of the project, and the programming idioms used by developers.

We found several bug-fix patterns that were specific to only some of the OpenStack projects. One of the causes was the design of APIs in the Neutron and Cinder projects, which developers had to call throughout many different places of the codebase in order to keep updated the global state view; these calls were often omitted, and were later added by bug-fixing changes. In the case of the Cinder project, bugs with wrong string parameters were related to invocations of external Linux commands, as these utility programs are often used for system administration purposes. Another cause of project-specific patterns were regressions in Nova, which were fixed by deleting surplus code, going back to a working version of the code. The occurrence of regressions can be related to the testing and QA process of the projects since a less effective process can lead to more regressions that are later addressed by bug-fixing changes. Finally, project-specific patterns were related to the programming idioms adopted in the project. For example, in the Nova project, many bug-fixes initialize a variable with a constant since such variables are often used in the projects for global or class-level configurations.

These observations provide information on which bug-fixing patterns apply to Python software. While some of these patterns are consistent across programming languages and projects, other ones are either influenced by the language or by the nature of the project. When pursuing tasks based on code mutations, such as automated program repair or fault injection, this finding motivates the calibration of code change patterns according to the specific project at hand. In the following section, we focus on the context in which these code changes should be performed.

V Analysis of where bug-fix changes are made

In this analysis, we consider the features about the code surrounding the bug-fixing change. Since we have a large number of context features, we simplify the presentation of results, by grouping context features in 17 categories with descriptive names. The first two sets of categories constitute the outer context, while the last set of category forms the inner context. In particular, we considered:

  • [leftmargin=4mm]

  • 3 categories to group the feature of the including scoped node: Class Size, Function Size, Module Size (cfr. subsection III-C);

  • 8 categories to group the features representing the closest ancestor that includes the bug-fix: Closest Definition, Closest Exception, Closest Iteration, Closest Selection, Closest Access, Closest Call, Closest Assign, and Closest Size (subsection III-C);

  • 6 categories to group the inner context features: Assign Operators, Control Flow, Data Containers, Functions, Globals and Special Operators (i.e., Python operators such as print, raise, return, with, etc.).

TABLE III(a), TABLE III(b), and TABLE III(c) show an overview on what context exists for a bug-fix cluster. Each table presents the cluster ID on the columns (see section IV for detailed descriptions of the clusters), and the 17 context feature categories on the rows. In the table cells, the checkmark symbol () points out that a given context feature is statistically relevant for the cluster according to the Dunn test (i.e., the bug-fixes in the cluster show a significant deviation of the metric compared to the norm of the other changes; see subsection III-E).

Every cluster exhibits several context features with relevant deviations. Consequently, the context in which a bug-fix was made should not be overlooked, as it provides characterizing information for the bug-fix pattern. Moreover, all of the feature categories for both the outer context and inner context exhibit a statistically-significant relevance for at least one project. Therefore, the answer to the research question in section III-E is positive: the context is relevant in the characterization of bug-fix changes.

For example, by focusing on the outer context features, we can notice that almost in all clusters for Nova and Cinder, the context of a bug is characterized by the Function Size. This feature includes the number of function arguments, the size of the function body, and whether the function definition is marked as private. This implies that testing and repair algorithms should seek for functions with large functions in order to apply these code change patterns.

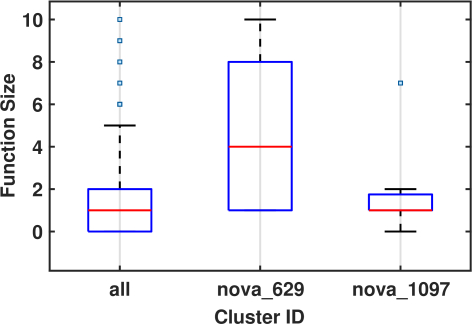

Figure 6 shows a visual example for two clusters where the Function Size is respectively relevant, and not relevant, for the cluster. The three box plots show the variation of the Function Size feature across the whole dataset (first box), the nova_629 bug-fix pattern (second box) and the nova_1097 bug-fix pattern (third box). There are no relevant differences between the bug-fix pattern nova_1097 and the control group (all), while the cluster nova_629 has a mean which is significantly greater than the control group. Therefore, we consider the Function Size feature as statistically relevant to describe the context of the bug fix pattern nova_629, as confirmed in the Table III(a) by means of the Dunn test results.

Fig. 6: Comparison of the Function Size context feature in two clusters against the control group (i.e., the all group).

Across the OpenStack projects, some context feature classes are more frequent than others. For example, the inner context feature category Function describes 6 out of 11 bug patterns in Nova, 6 out of 8 bug patterns in Neutron, and 7 out of 8 bug patterns in Cinder. The metrics in the Function category include the number of arguments and keywords were added/removed in a function call, or newly added function calls, and how many function calls appeared in a block inside the bug-fix (e.g., a block of statements that was surrounded by a new if). Regardless of the bug-fix pattern (e.g., If-related, Data structure, etc.), in the majority of the cases, the context of bug-fix is characterized by the presence of function calls. Another important category of inner context features is Data Containers. These features keep track of the presence of special Python data structures (e.g., dicts, lists, tuples) within the statements that were changed by a bug-fix. For example, the context feature for dicts counts how many keys and values appeared in expressions that were added or removed by the bug-fix. Therefore, these bug-fixing patterns tend to occur in the context of complex expressions and data-structure layouts.

Features Bug Cluster (Nova Project)
128 131 132 197 228 238 474 597 629 1097 1099
Module Size
Class Size
Function Size
Closest Definition
Closest Exception
Closest Iteration
Closest Selection
Closest Attribute
Closest Call
Closest Assign
Closest Size
Assign Operators
Control Flow
Data Containers
Function
Globals
Special Operators
(a) Nova
Features Bug Cluster (Neutron Project)
13 14 20 23 74 119 132 209
Module Size
Class Size
Function Size
Closest Definition
Closest Exception
Closest Iteration
Closest Selection
Closest Attribute
Closest Call
Closest Assign
Closest Size
Assign Operators
Control Flow
Data Containers
Function
Globals
Special Operators
(b) Neutron
Features Bug Cluster (Cinder Project)
14 115 438 542 583 621 627 1168
Module Size
Class Size
Function Size
Closest Definition
Closest Exception
Closest Iteration
Closest Selection
Closest Attribute
Closest Call
Closest Assign
Closest Size
Assign Operators
Control Flow
Data Containers
Function
Globals
Special Operators
(c) Cinder
TABLE III: Context features class and BUG-FIX clusters for Nova, Cinder and Neutron.

Similarly, the Closest Call and the Closest Attribute categories are relevant context features for all of the clusters of the type Adding arguments (Table II), where the bug-fix adds parameters to a function call. These categories bring useful information to characterize the change patterns in these clusters. In particular, the Closest Call category includes features for counting the number of arguments in the fixed function call (beyond the argument that is added by the bug-fix). A closer analysis of this feature tells us that the Adding arguments bug-fix applies mostly to function calls that already have some parameters. Figure 7 shows the distribution of the number of arguments of the function call fixed by the changes. On average, the number of arguments settles between 2-3 for the bug-fixing patterns; only in a few cases the fixed function call had 1 or no parameters. This observation improves the characterization of bug-fixing changes that add parameters: it points out that these bug-fixing changes do not uniformly apply to all function calls, and that new parameters tend to be added on function calls that already take several input parameters.

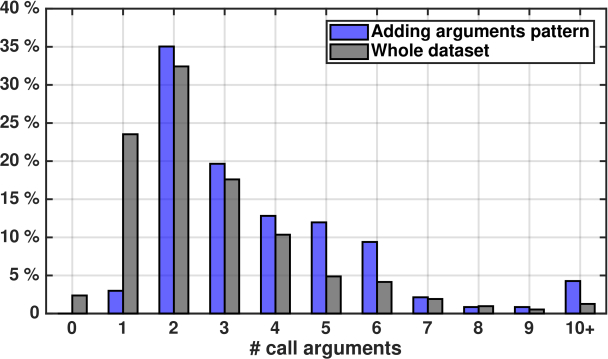

Fig. 7: Distribution of the number of arguments for the Closest call context feature.

Finally, we can notice differences across the Nova, Neutron, and Cinder projects. For example, if we focus on the features on the scoped nodes that include the change (i.e., module size, class size, and function size), the results show some similarities between Nova and Cinder, and differences between them and the Neutron project. In the Neutron project, it seems that the size of modules, classes and functions, and the number of their arguments, is less relevant than for the Nova and Cinder projects. This result points out that the context for applying code changes needs to be calibrated with respect to the specific project.

Vi Threats to validity

We here review the main potential threats that can affect the validity of results, and how we mitigated them.

Construct validity refers to the relationship between the theory and the observation. A threat is that OpenStack revisions include code changes not related to bug-fixes (e.g., new features, documentation, refactoring, etc.). To avoid this threat we selected only revisions having a description with specific keywords (e.g., fix, see section III). Since this text is filled out by humans, it is possible to wrongly include in the analysis also non bug-fix changes (e.g., the expression “fix code programming style” refers to refactoring changes but includes the term fix). To avoid these cases, we classified and excluded these changes by manual inspection during the post-hoc analysis of the clusters.

Internal validity relates to any confounding factor that could influence the results of the study. In this work, internal validity threats can be due to the manual classification step of the bug-fix clusters. A first threat is that we inspect a sample of items in each cluster (i.e., we select five elements) to decide if the cluster is a bug-fix pattern or if it is another kind of code change (e.g., refactoring, bug-fix induced, etc.). To mitigate this threat, we select the group of bug-fix to inspect randomly to avoid any correlation with time. A second threat is due to the manual classification that could potentially bias the results. To reduce the risk of this threat, each bug-fix pattern is independently classified by three authors, and combined through majority voting.

External validity relates to the possibility of generalizing the results of the study. This study focused on the three major OpenStack projects (i.e., Nova, Neutron, and Cinder). Even if our methodology is applicable to other projects, the bug-fixing patterns we found do not necessarily apply to other projects. However, the three projects we consider are large and diverse enough to get interesting insights on the similarity of bug-fixing patterns across different projects and across different languages (e.g., Python versus C and Java), and on the relevance of the context features. The diversity of the projects was reflected by differences in terms of project-specific patterns, due to the programming idioms, API conventions, and QA process of the projects, and in terms of the different context features that are relevant for the bug-fix patterns. This diversity allowed us to draw observations on the variability of patterns and on the relevance of context features in three large Python projects.

Reliability validity relates to the possibility of replicating this study. To ease replication of this study, we published the whole dataset with all of the features (code change and context), along with the PySA tool. Moreover, in section III we provided detailed information on the methodological steps, algorithms and software involved, and choice of parameters.

Vii Conclusion

In this paper, we propose an approach for analyzing bug-fixing changes, not limiting to what has been changed, but also considering where the change was made. We analyze bug-fixing changes by using a clustering approach on a set of features on the code change, in order to identify recurrent patterns. Furthermore, we investigate the context of the bug-fix by analyzing an additional set of features derived from the code that surrounds the code change.

We applied the methodology to analyze bug-fixing changes in the OpenStack cloud computing platform, which is one of the most complex and widespread Python project, as it is the basis for several commercial products and services. We found that in some cases the bug-fix patterns are consistent with previous studies made on Java and C software, but in many other cases the bug-fix patterns are influenced by the Python language. Additionally, some recurrent patterns are strictly related to the nature of the specific project. The analysis of where the change occurred pointed out that bug-fixes are in all cases located in specific source-code contexts.

The results of this study are valuable for several software engineering tasks that rely on knowledge of recurrent characteristics of software bugs. For example, mutation and fault injection testing will benefit in terms of decreasing the search space for mutants and the number of potential locations for injecting faults. A future direction for this work is to leverage these results by incorporating them into software engineering techniques and tools, such as in the context of fault injection and mutation testing.

Acknowledgments

This work has been partially supported by the PRIN project “GAUSS” funded by MIUR (n. 2015KWREMX_002) and by UniNA and Compagnia di San Paolo in the frame of Programme STAR.

References

  • [1] M. Tufano, C. Watson, G. Bavota, M. Di Penta, M. White, and D. Poshyvanyk, “Learning How to Mutate Source Code from Bug-Fixes,” arXiv preprint arXiv:1812.10772, 2018.
  • [2] D. B. Brown, M. Vaughn, B. Liblit, and T. Reps, “The care and feeding of wild-caught mutants,” in Proc. ESEC/FSE.   ACM, 2017, pp. 511–522.
  • [3] H. Zhong and Z. Su, “An empirical study on real bug fixes,” in Proc. ICSE.   IEEE, 2015, pp. 913–923.
  • [4] M. Soto, F. Thung, C.-P. Wong, C. Le Goues, and D. Lo, “A deeper look into bug fixes: patterns, replacements, deletions, and additions,” in Proc. Intl. Conf. MSR.   ACM, 2016, pp. 512–515.
  • [5] A. Koyuncu, K. Liu, T. F. Bissyandé, D. Kim, J. Klein, M. Monperrus, and Y. L. Traon, “Fixminer: Mining relevant fix patterns for automated program repair,” arXiv preprint arXiv:1810.01791, 2018.
  • [6] W. Lin, Z. Chen, W. Ma, L. Chen, L. Xu, and B. Xu, “An empirical study on the characteristics of Python fine-grained source code change types,” in Proc. ICSME.   IEEE, 2016, pp. 188–199.
  • [7] P. Musavi, B. Adams, and F. Khomh, “Experience report: An empirical study of API failures in OpenStack cloud environments,” in Proc. ISSRE.   IEEE, 2016, pp. 424–434.
  • [8] H. Osman, M. Lungu, and O. Nierstrasz, “Mining frequent bug-fix code changes,” in Proc. CSMR-WCRE.   IEEE, 2014, pp. 343–347.
  • [9] K. Pan, S. Kim, and E. J. Whitehead, “Toward an understanding of bug fix patterns,” Springer Empirical Software Engineering, vol. 14, no. 3, pp. 286–315, 2009.
  • [10] M. Martinez, L. Duchien, and M. Monperrus, “Automatically extracting instances of code change patterns with ast analysis,” in Proc. ICSM.   IEEE, 2013, pp. 388–391.
  • [11] B. Fluri, E. Giger, and H. C. Gall, “Discovering patterns of change types,” in Proc. Intl. Conf. ASE.   IEEE Computer Society, 2008, pp. 463–466.
  • [12] J. A. Duraes and H. S. Madeira, “Emulation of software faults: A field data study and a practical approach,” IEEE Transactions on Software Engineering, vol. 32, no. 11, pp. 849–867, 2006.
  • [13] T. Basso, R. Moraes, B. P. Sanches, and M. Jino, “An investigation of java faults operators derived from a field data study on java software faults,” in Workshop de Testes e Tolerância a Falhas, 2009, pp. 1–13.
  • [14] I. Neamtiu, J. S. Foster, and M. Hicks, “Understanding source code evolution using abstract syntax tree matching,” ACM SIGSOFT Software Engineering Notes, vol. 30, no. 4, pp. 1–5, 2005.
  • [15] D. Silva and M. T. Valente, “RefDiff: detecting refactorings in version histories,” in Proc. Intl. Conf. MSR.   IEEE Press, 2017, pp. 269–279.
  • [16] A. Hora, D. Silva, M. T. Valente, and R. Robbes, “Assessing the threat of untracked changes in software evolution,” in Proc. ICSE.   IEEE, 2018, pp. 1102–1113.
  • [17] OpenStack project, “OpenStack Homepage,” 2018. [Online]. Available: https://www.openstack.org/
  • [18] ——, “The OpenStack marketplace,” 2018. [Online]. Available: https://www.openstack.org/marketplace/distros/
  • [19] ——, “User stories showing how the world #RunsOnOpenStack,” 2018. [Online]. Available: https://www.openstack.org/user-stories/
  • [20] The OpenStack Foundation, “OPENSTACK USER SURVEY: A snapshot of OpenStack users’ attitudes and deployments,” 2015. [Online]. Available: {https://www.openstack.org/assets/survey/Public-User-Survey-Report.pdf}
  • [21] Y. Jia and M. Harman, “An analysis and survey of the development of mutation testing,” IEEE Transactions on Software Engineering, vol. 37, no. 5, pp. 649–678, 2011.
  • [22] X. Yao, M. Harman, and Y. Jia, “A study of equivalent and stubborn mutation operators using human analysis of equivalence,” in Proc. ICSE.   ACM, 2014, pp. 919–930.
  • [23] M. Martinez and M. Monperrus, “Mining software repair models for reasoning on the search space of automated program fixing,” Springer Empirical Software Engineering, vol. 20, no. 1, pp. 176–205, 2015.
  • [24] K. Herzig, S. Just, and A. Zeller, “It’s not a bug, it’s a feature: how misclassification impacts bug prediction,” in Proc. ICSE.   IEEE Press, 2013, pp. 392–401.
  • [25] K. Prete, N. Rachatasumrit, N. Sudan, and M. Kim, “Template-based reconstruction of complex refactorings,” in Proc. ICSM.   IEEE, 2010, pp. 1–10.
  • [26] D. Cotroneo, L. De Simone, and R. Natella, “NFV-Bench: A Dependability Benchmark for Network Function Virtualization Systems,” IEEE Transactions on Network and Service Management, vol. 14, no. 4, pp. 934–948, Dec 2017.
  • [27] R. Natella, D. Cotroneo, J. A. Duraes, and H. S. Madeira, “On fault representativeness of software fault injection,” IEEE Transactions on Software Engineering, vol. 39, no. 1, pp. 80–96, 2013.
  • [28] R. Chillarege et al., “Orthogonal defect classification,” Handbook of Software Reliability Engineering, pp. 359–399, 1996.
  • [29] Openstack. review.openstack Code Review. [Online]. Available: {https://review.openstack.org}
  • [30] S. Kim, E. J. Whitehead Jr, and Y. Zhang, “Classifying software changes: Clean or buggy?” IEEE Transactions on Software Engineering, vol. 34, no. 2, pp. 181–196, 2008.
  • [31] Y. Kamei, E. Shihab, B. Adams, A. E. Hassan, A. Mockus, A. Sinha, and N. Ubayashi, “A large-scale empirical study of just-in-time quality assurance,” IEEE Transactions on Software Engineering, vol. 39, no. 6, pp. 757–773, 2013.
  • [32] B. Fluri, M. Wuersch, M. PInzger, and H. Gall, “Change distilling: Tree differencing for fine-grained source code change extraction,” IEEE Transactions on software engineering, vol. 33, no. 11, pp. 725–743, 2007.
  • [33] J.-R. Falleri, F. Morandat, X. Blanc, M. Martinez, and M. Monperrus, “Fine-grained and accurate source code differencing,” in Proc. Intl. Conf. ASE.   ACM, 2014, pp. 313–324.
  • [34] R. R. Sokal and F. J. Rohlf, “The comparison of dendrograms by objective methods,” Wiley Taxon, pp. 33–40, 1962.
  • [35] A. K. Jain and R. C. Dubes, “Algorithms for clustering data,” 1988.
  • [36] Matlab. Histogram plot. [Online]. Available: {https://www.mathworks.com/help/matlab/ref/matlab.graphics.chart.primitive.histogram.html}
  • [37] O. J. Dunn, “Multiple comparisons using rank sums,” Technometrics, vol. 6, no. 3, pp. 241–252, 1964.
  • [38] Statistics How To. Dunn’s test. [Online]. Available: {https://www.statisticshowto.datasciencecentral.com/dunns-test/}
  • [39] X. B. D. Le, D. Lo, and C. Le Goues, “History driven program repair,” in Proc. Intl. Conf. SANER, vol. 1.   IEEE, 2016, pp. 213–224.
  • [40] J. Jiang, Y. Xiong, H. Zhang, Q. Gao, and X. Chen, “Shaping program repair space with existing patches and similar code,” in Proc. ISSTA.   ACM, 2018, pp. 298–309.
