1 Introduction

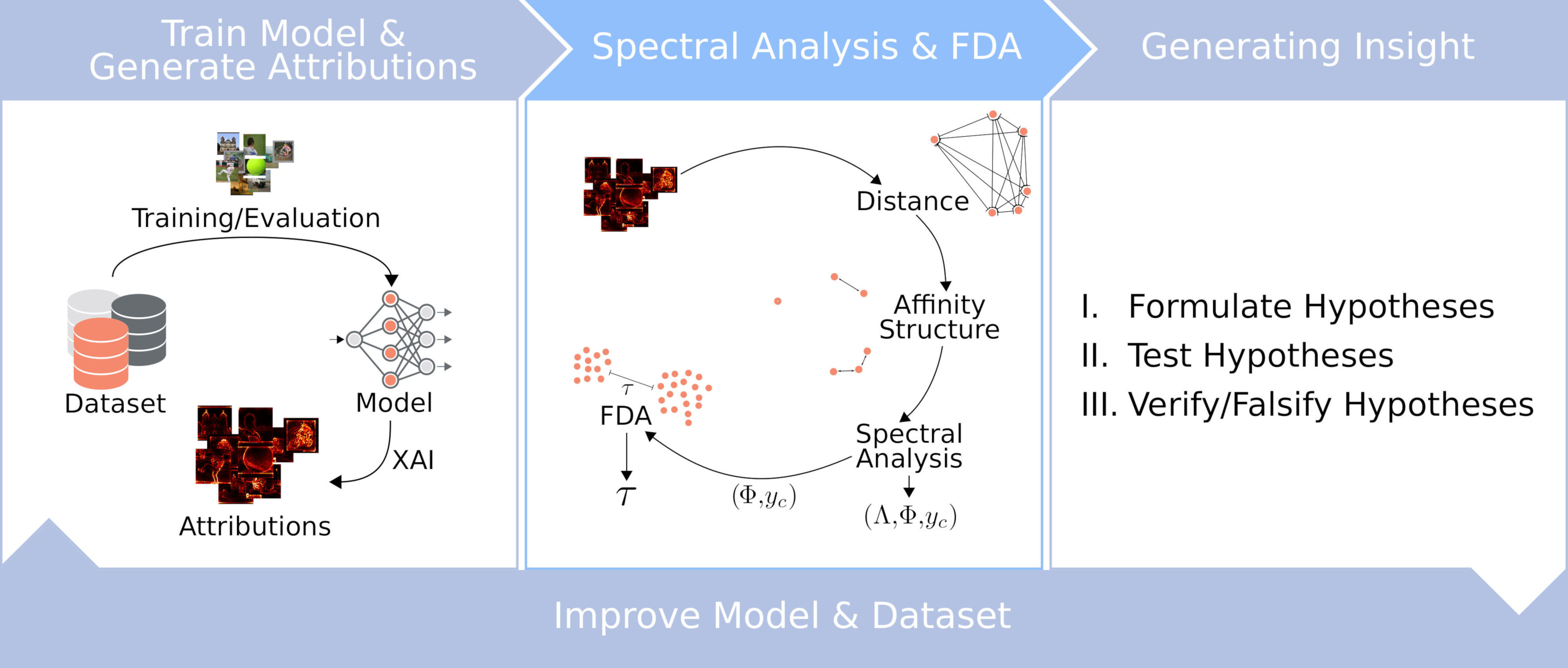

Figure 1: Overview of the SpRAy approach. Left: Large corpora of data can be used to train models for specific tasks. To gain insights into local model behavior, explanation methods can be employed. Middle: Using SpRAy, one can deduce global model behavior from a set of local explanations (see Algorithm 1). Right: Based on this analysis, striking classification strategies can be identified and further investigated. Obtained insights can be used to improve the model and/or the dataset.

Throughout the last decade, (black box) machine learning (ML) techniques have made impressive performance leaps on even the most complex tasks [1, 2, 3, 4]

, especially in the form of Deep Neural Networks (DNN)

[5]. These models are typically trained (or pretrained) on very large datasets, e.g., ImageNet [6], with millions of samples. Recently, it was discovered that biases, spurious correlations, as well as errors in the training dataset may have a detrimental effect on the training resulting in “Clever Hans” predictors [7], which only superficially solve the task they have been trained for. Unfortunately, due to the immense size of today’s datasets, a direct manual inspection and removal of artifactual samples can be regarded hopeless. However, analyzing the biases and artifacts in the model instead, may provide insights about the biases and artifacts in the training data indirectly. For that purpose we would, however, need to inspect the learning models and operate them beyond black box mode.

Only recently methods of explainable AI (XAI) (c.f[8]

for an overview) were developed. They provide deeper insights into how an ML classifier arrives at its decisions and potentially help to unmask Clever Hans predictors. XAI methods can be roughly categorized into two groups: methods providing

local explanations and those providing global explanations [9]. Here, local explanations increase transparency on individual predictions of the model and assess the importance of input features w.r.t. specific samples. Local explanations are commonly presented in the form of attribution or heatmaps aligned to the input space, which can be computed e.g. from propagation-based (e.g[10, 11, 12, 13]) or surrogate-based techniques (e.g[14, 15, 16]). Global methods on the other hand aim at obtaining model understanding by assessing the general importance of features a model relies on. These features often are high-level concepts and are either chosen/designed manually, or directly and discretely are accessible in input space [17, 18, 19].

Both the local and global approaches suffer from a (human) investigator bias during analysis, thus are of limited use when searching for biases, spurious correlations, and errors in the training dataset. Global methods can only measure the impact of pre-determined, and expected or known features (c.f[18, 19]), which limits the applicability when aiming to discover all behavioral facets of a model (including specifically the ones unknown beforehand). Local methods, on the other hand, have the potential to provide much more detailed information per sample, but compiling information about model behavior over thousands or millions of samples and explanations is a tiring and laborious process. Furthermore, the success of such an analysis depends on the examiner’s keen perception and domain knowledge, at times limiting the potential for knowledge discovery.

Our current contribution aims at bridging the vast gap between the discussed two extremes in an objective and automated manner making use of scalable statistical inference on millions of heatmaps, specifically employing the Spectral Relevance Analysis (SpRAy) [7] technique. SpRAy constitutes a semi-automated statistical analysis of large numbers of locally explaining attribution maps, with the intent of automated summarization and clustering of model strategies via local attribution maps. Thus, SpRAy is aligned with the assumption that an ML model might base its predictions on multiple sub-strategies (instead of only globally effective ones) for recognizing a target class and distinguishing it from others. Early applications of SpRAy [7] demonstrate its utility for knowledge discovery via strategy summarization on gameplay sequences of Atari-2600 playing DNN agents [2], and the detection of multiple flaws in dataset composition and model architecture design in the context of the formerly widely used Pascal VOC image recognition benchmark [20, 7].

In this paper, we extend SpRAy to make it better applicable for large-scale analyses on datasets with hundreds of classes and millions of samples, such as ImageNet [6]. Our technical contributions are: (a) a new Wasserstein-based similarity metric for scale, translational, and rotational invariant comparisons of attributions, (b) the identification of artifactual and biased samples in the ImageNet corpus, and a quantitative analysis of their impact on the Clever Hans’ness of the classifier, (c) a systematic cleaning procedure for the artifacts and biases to reduce Clever-Hans behavior, i.e. we un-Hans the ImageNet dataset. These allow interesting findings that are illuminating beyond our specific technical approach.

2 Methods

We will first briefly summarize SpRAy from [7] (see Figure 1 for a procedural overview), emphasizing and motivating where and how we go beyond [7]. An algorithmic summary of the technique can be found in Algorithm 1.

2.1 Spectral Relevance Analysis brought to scale

The SpRAy technique is a meta-analysis tool for finding patterns in model behavior, given sets of instance-based explanatory attribution maps. The algorithm is based on Spectral Clustering (SC)

[21, 22] and performs the following sequence of computations.

Computing attributions SpRAy analyzes the (spatial) structure described by a set of heat/attribution maps, each locally explaining single model decisions w.r.t. to a model prediction the user is interested in. Following [7], we provide attributions computed with Layer-wise Relevance Propagation (LRP) [10] according to the recommended composite (or layer-dependent) strategy [23, 24]. Specifically, since our analyses are based on a pre-trained VGG-16 [25] type DNN we follow [24] and apply LRP to the model’s dense layers, LRP in the lowest convolutional layer and LRP (=1) in all other convolutional layers, using the pre-configured LRP-analyzers of the iNNvestigate [26] toolbox. We sum attribution scores along the color channel axis to obtain a single attribution value per pixel coordinate.

Preprocessing of attributions The work of [7] analyzes the behavior of DNN predictors, as well as a former state-of-the-art model from the bag-of-words family, the improved Fisher Kernel SVM [27]. Other than the DNN, the latter predictor does not expect inputs of a fixed size and therefore LRP computes non-uniformly sized attribution maps over the analyzed data. The authors of [7] resort to sum-pooling attribution scores from arbitrarily sized explanation maps onto a 2020 sized grid, resulting in a 400-dimensional representation per attribution map for further processing. The authors justify the often extreme size or dimensionality reduction with an increased (regional) stability of the analysis and a decrease in computational cost. They also point out that this step – albeit useful – is no practical necessity.

Since in this paper we only process uniformly sized attribution maps of 224224 pixels as output of LRP and the VGG-16 model, we omit the optional preprocessing and rather preserve the complete and unaltered structural information within the LRP heatmap attributions. We show that albeit absent this preprocessing step, we can discover class-specific and consistent clever-hans strategies on ImageNet.

Computing distances and affinities An ingredient of SpRAy as performed in [7] is a comparison of heatmaps based on the euclidean distance, which focuses on the task of finding regional consistencies between attribution maps. In order to further expand the scope of SpRAy, we consider the Gromov-Wasserstein distance (GWD) [28] as an additional distance measure.

As [7], we compute pair-wise (binary) affinity scores between all samples using the

-nearest-neighbor (KNN) algorithm

[29] on the previously computed distance measures and store them in a matrix . We visualize this step of the procedure, along with all following steps, in Figure 2, intuitively demonstrating of the spectral Clustering (SC) process.

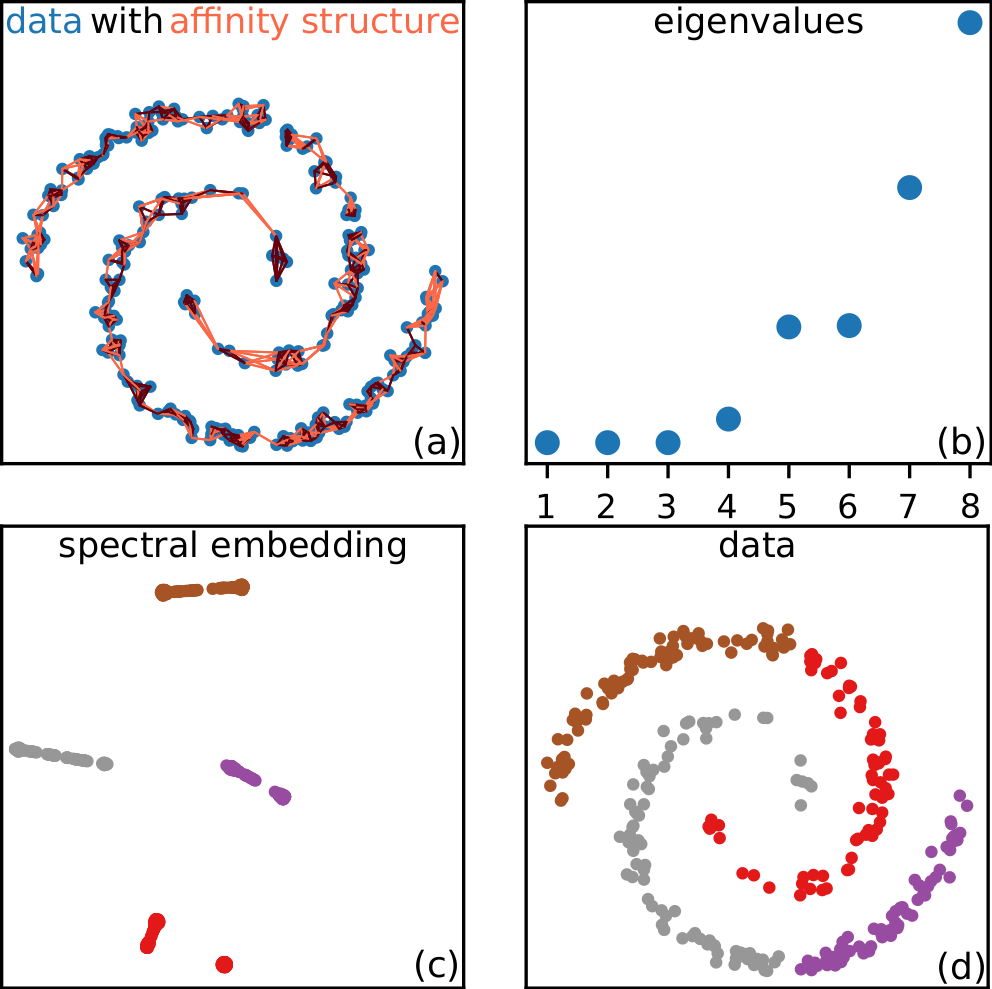

Figure 2: Toy example on spectral clustering. (a) Data with affinity structure based on KNN. (b)Eigenvalues computed from the graph laplacian. Note the large gap after the fourth eigenvalue, indicating four clusters. (c) Spectral embedding of the input data, labelled using -means clustering with =4, with the choice of depending on the eigenvalue spectrum. (d) Embedding labels assigned to the corresponding original data.

We find that for ImageNet classes, choosing a fixed =10 instead of == (c.f[30, 7]. =1,300 is the number of samples per ImageNet object category) yields the most consistent and robust groupings throughout the spectral analysis. Values for

larger than 10 seem to have no, or only little effect, while smaller values lead to an overly-fractured affinity structure. The affinity matrix

is then symmetrized with


which leads to and if and already have been mutually connected prior to the symmetrization, and otherwise.

Computing the spectral embedding The computation of the spectral embedding is the analytic core of the SpRAy method. Given a matrix describing the affinity structure of the data, following [7] we first compute the symmetrized and normalized p.s.d. graph laplacian [22, 30]


where is the diagonal degree matrix of the connectivity graph described by , and the un-normalized graph laplacian [30]. The entries of the diagonal matrix are computed as


Then, an eigenvalue decomposition of is performed, which yields eigenvalues

and eigenvectors as

columns of .

The set of returned eigenvalues informs about the cluster structure discovered in the data [30], where completely separated clusters are indicated by the number of eigenvalues =0, which is rarely the case with real world data. Figure 2(b) demonstrates that the structure and number of embedded clusters can also be inferred from the eigengap, a sudden increase in difference of neighboring eigenvalues. The first eigengap in the toy example identifies four almost completely disjunct groups of points.

The rows in constitute the spectral embedding of the data in , reflecting the affinity structure encoded in and . Cluster labels can be assigned to the embedding by using e.g. -means-clustering on the spectral embedding. In the toy example in Figure 2(c) we choose =4 according to the eigenvalue spectrum and show the assigned labels using color coding on the spectral embedding projected to . Due to the correspondence of the input data to the rows of , we can directly assign the computed labels in input space aswell (Figure 2(d)).

On ImageNet, where =1,300, we restrict =32 for the computation of the eigen-decomposition. Specifically, we use the computationally efficient and iterative Lanczos algorithm111via the sparse.linalg.eigsh function provided by the SciPy [31] package for Python [32], which has in general a computational complexity of , which reduces to when only the most discriminative eigenvectors are to be computed.

2.2 Alternative distance measures

SpRAy has originally used euclidean distances to compute the neighborhood graph [7]

. In the application of images, this means that image similarity is identified by spatial properties,


. having the same attribution intensities at the same pixel renders high similarity. This is a reasonable approach, especially if one would like to focus on spatial properties such as watermarks or padding. However, when the domain of interest are spatially unrelated shapes or color distributions, other measures of similarity may be needed.

A recently very popular distance metric is the Optimal Transport, or Wasserstein-Distance. In the context of computer vision, it is also known as the Earth-Mover’s Distance [33]. Its benefit is that it “feels” like a very natural distance metric [34].

Wasserstein distances use distances between spatially fixed points over the same identical image grid. Gromov-Wasserstein [28] distances matches points by their pairwise distances, instead of using a fixed image grid with a fixed amount of points. This means that however points are spatially distributed, if in both sets there are points whose pairwise relations are similar, then their Gromov-Wasserstein distance will be small. A somewhat intuitive visualization of euclidean distance, Wasserstein distance, and Gromov-Wasserstein distances is shown in Figure 3. We show 4 samples of hand-written digits [35] in 4 corners, translated and rotated. All images that lie on the line between the corners are barycenters [36] of the corner images, weighted by the Chebyshev distance to all samples. The metrics used to compute the barycenters are the 3 previously mentioned metrics. Wasserstein barycenters are computed as in [34]. For the Gromov-Wasserstein distance, we need to compute pairwise distances between points in the image. Points are extracted from the images by choosing each pixel one after another, starting with the largest, until percent of the total sum of all pixel values is reached. We can nicely see that the Wasserstein distance seems translation invariant, but fails with different rotations. Gromov-Wasserstein distance shows to be invariant to rotation, translation, and mirroring, since all the information is contained in only the pairwise relations. Thus, to enable invariant comparison and in this manner maximally match regionally independent shapes in our analysis, we use the Gromov-Wasserstein distance measure.

Figure 3: Barycenters of four rotated and translated MNIST digits. The original images are in the four corners. Used distance metrics are euclidean (left), Wasserstein distance (middle) and Gromov-Wasserstein distance (right).

2.3 Fisher Discriminant Analysis for Clever Hans identification

A critical decision in clustering approaches is the number of desired clusters. Since [7] analysed the comparatively small Pascal VOC dataset [20] with classes and almost samples, going over each class individually and exploring the eigenvalues for a possibly significant eigengap is a straight-forward task. For ImageNet [6] with its classes and million samples, looking at each and every class eigengap manually is a time-consuming and exhausting venture. We would therefore like to establish some score to measure how interesting a class is in terms of classification strategies that separate themselves significantly from all other possible strategies, as they are good candidates for Clever Hans behaviors. Such a score could furthermore be used to rank all classes, so that only those which produce a high cluster separability score , can be selected for thorough investigation. Fisher Discriminant Analysis (FDA) [37, 38] is a widely popular method for classification as well as class- (or cluster-) structure preserving dimensionality reduction. FDA finds an embedding space by maximizing between-class scatter and minimizing within-class scatter . It can be understood as finding the direction(s) of maximal separability between classes. The criterion as chosen by [38] for multiple classes is given as


where is the projection matrix that minimizes within-class scatter


while maximizing between-class scatter


Here, is the set of clusters and its cardinality, the mean of cluster and the mean over all samples. The projection matrix can be found by solving the generalized eigenvalue problem


with where are the generalized eigenvectors corresponding to the eigenvalues  . By reducing the projection matrix to only use the eigenvectors corresponding to the largest eigenvalues and inserting into (4), we obtain a score of separability. In our application, since we already act on embedded data, we found that using only the eigenvector corresponding to the largest eigenvalue, e.g. the direction of largest separability, gives a reasonable score for ranking the classes. We compute -means clusterings for each class individually with ranging from to , and compute the separability score for each. Then, we compute the mean separability over all clusterings of each class as . Classes with a high mean separability score are Clever Hans candidates since then the strategies to classify exhibit highly variable behavior. Table 1 in Section 3 lists the ImageNet classes with the highest and lowest values.

2.4 Cluster structure visualization

Following  [7] t-distributed Stochastic Neighborhood Embedding (t-SNE) [39] is used to visualize the cluster structure described by the analyzed heatmaps. To preserve a strong connection between the cluster assignments from SC and the 2D-embeddings visualized with t-SNE, the authors re-use the affinity structure in as input to t-SNE.

We extend this approach by using the spectral embedding as input to compute visualizable point clouds in . We observe significantly less overlap among differently labelled clusters in the visualized point clouds when embedding the from SC instead of computing embeddings from . See Figure 2(c) for projections of the spectral embedding into , computed with t-SNE for in context of a toy example.

Alternatively to t-SNE, we consider the recent UMAP [40]. The qualitative difference between t-SNE- and UMAP-embeddings are minimal yet result in reduced intra-cluster scatter and increased inter-cluster scatter for UMAP. This is however to be expected, as we merely aim to embed for visualization, and representative spectral embeddings have already been computed with SC.

Data: Input samples , a model operating on .
Result: eigenvalues ,
spectral embeddings ,
cluster labels ,
cluster seperability score ,
visualization embeddings
/* compute attributions for */
1 ;
2 for  do
3       ;
4       ;
6 end for
/* (optionally preprocess ) */
7 for  do
8       ;
10 end for
/* compute affinity and laplacian */
11 ;
12 ;
/* compute analytic quantities and visualization */
13 ;
14 ;
15 ;
Algorithm 1 Spectral Relevance Analysis

3 Experiments and Evaluations

We apply our extended SpRAy pipeline to the ImageNet dataset as described in Section 2 and Algorithm 1. That is, per class, we compute relevance attribution heatmaps for the training data of ImageNet using LRP w.r.t. to the true label. Note, that the proposed procedure is also readily applicable to all members of the XAI zoo (cf. [8]).

3.1 Identifying clusters and classes with FDA

From the separability scores computed with FDA on the spectral embeddings we can now readily identify those classes with concentrated and isolated clusters of attribution maps. Some example scores for classes with high and low separability scores are shown in Table 1. The highest separability score is achieved by class “laptop”, of which the UMAP of its spectral embedding with a significant cluster is depicted in Figure 4 (top). Clearly the visualized cluster is extremely well separated from all the other samples. For this clustering in particular, we see that a cluster of highly similar examples results in a high separability score: The “laptop” class of the ImageNet corpus contains a set of samples showing rendered instances of laptop computers in (on pixel-level) identical poses. In contrast, class “sliding door” achieves the lowest separability score of all classes. Figure 4 (bottom) shows an exemplary cluster for this class. Its UMAP shows a distribution of attributions that seems to be hard to separate, i.e. there is no decision strategy that can be clearly categorized, e.g. by importance of region.

top classes bottom classes
laptop 4.77 0.44 fountain
stethoscope 1.28 0.44 home_theater
book_jacket 1.14 0.43 wallet
bottlecap 1.13 0.43 thresher
tennis_ball 1.13 0.43 pencil_sharpener
clumber 1.12 0.42 bannister
stole 1.06 0.41 sliding_door
Table 1: Mean attribution spectral clustering separability based on Fisher Discriminant Analysis. A high separability score means there are significantly different decision strategies being used, potentially of Clever Hans type.
Figure 4: Top: The UMAP (left) shows a highly separated clusters for class “laptop”. Bottom: For class “sliding door”, the UMAP (left) shows no sign of separability. Red dots in the UMAPs identify the clusters the samples to the right have been grouped into. Relenvance maps to the right are color coded to identify relevant image regions supporting the classifier decision in hot colors (red to yellow) irrelevant regions in black color and relevant regions contradicting the final prediction in cold (blue to cyan) hues. The text above the sample images shows the classifier’s top-1 predicted class, and the prediction rank of the true label.

3.2 Model understanding and hypothesis testing

By closely inspecting the clusters identified using FDA, we can formulate hypotheses about the model’s decision strategies. We can recognize groupings of complicated shapes, invariant of scale, location or translation on clusters found with Gromov-Wasserstein distance at the base of SpRAy. Examples for two distilled clusters from classes “ring-neck snake” — where the snake’s head and its brightly colored neck appear to be the relevant features — and “great grey owl” — where the patterns highlighting the face (eyes and beak) and shape of the head seem to be the common denomiator — can be seen in Figure 5. However, despite the favorable invariance properties, deducting distinct hypotheses for these strategies turns out to be a nontrivial task, since clusters are semantically much harder to interpret compared to groupings found with a euclidean distance at the root. As expected, euclidean distance-based results exhibit tight groupings of attribution maps with shared regional concentrations of attribution scores, which is rather intuitive to interpret, even without much domain knowledge. We thus continue with a euclidean-based analysis.

Figure 5: Top: Significant Gromov-Wasserstein distance based SpRAy cluster of class ”great grey owl“ with the corresponding attribution maps below the samples. Bottom: Significant clusters for class ”ring-neck snake“.

We have discovered various interesting Clever-Hans’ moments in ImageNet. In the following we will go into detail for four examples of such strategies, which are depicted in Figure

6. Two significant clusters can be found in the class “stole”: One which contains samples where all four corners are digitally rounded, apparently created by the same author (photographer). Heatmaps for those samples show very high relevance for this rounded corner property (pointed at by a red marker). It is worth to note that for the leftmost example shown in the figure, which was in contrast to all others incorrectly classified, the bottom-left corner of the image is not deemed relevant by the model (pointed at by a blue marker). The second, densely packed cluster for class “stole” shows a wooden mannequin “head” consistently used by the model for predicting the true class. Another intriguing cluster is found in the class “garbage truck”. In the identified cluster, we can see a significant number of images with a characteristic watermark placed in the bottom left corner, which is consistently picked up by the model as a relevant feature. The class “stethoscope”, which received the second highest score, shows padding added to the top and bottom of the image, which has not been introduced during a model-specific preprocessing step, but rather are part of the images themselves. The class “jigsaw puzzle” shows a presumably digitally pasted identical patterns on top several the source images. At least three distinct variants of this puzzle pattern have been discovered using SpRAy. The consistency of this pattern across multiple samples allows the model to overfit to this data artefact. Finally, a series of samples from class “mountain bike” shows a near-identical gray border padding picked up by the model.

Figure 6: UMAP with samples and heatmaps of significant clusters for classes classes “stole“ (top), “garbage truck” and “stethoscope” (mid) and “jigsaw puzzle” and “mountain bike” (bottom). All significant clusters are highly separated from the rest of the samples. For each class, some images and their respective attributions from the identified cluster are shown.

For each of these observations, we can formulate the hypothesis that the model is biased on the via heatmaps highlighted properties towards their respective class. To investigate whether this is true, we construct an ablation study by isolating the artifact source and adding it to samples of other classes. That is, for class “stole” we create a digital mask of rounded corners from the affected original images and extract one of the shown wooden “mannequin heads” as a freely placable image layer. For class “mountain bike” we replicate the gray border and for “jigsaw puzzle” we extract all three discovered digital puzzle patterns. If the model then shifts its decision from the the ground truth label of the samples from the “other classes“ towards the class of the artifact, we can safely deduce that the model is biased with respect to this artifact. We summarized the results for a quantitative verification of selected hypotheses in Table 3, with mean prediction rank difference and mean prediction difference . A significant increase in prediction rank is clearly visible towards the shown artefact classes, except for class “mountain bike”. A possible explanation of this deviation of class “mountain bike” from the expected trend is revealed upon closer inspection of additional data artefacts. Several other classes, such as (e.g. classes “expresso maker” and “guillotine”), show similar border padding effects in some of the images. Furthermore, we expect to also see increased relevance on the artifact in the attribution for the modified image. Examples demonstrating isolated artifacts added onto different class samples, and the models’ reaction to the artefact when computing heatmaps for the artefact’s class of origin, are visualized in Figure 7.

By adding a discovered data artifact to samples of other classes we are able to quantify its importance to the detection of the labelled concept. By removing

an artefact, we can estimate to what degree a model has learned to (solely) base its decision on the artefactual feature. If the model reacts strongly to the removal of the artefactual image feature, it has (with high probability) resorted to the artefact as a main source of information for the respective target class. If the model does only show a weak reaction or none at all, it may have learned (several) backup strategies for detecting the concept of the target label. We measure the model’s sensitivity to the artefacts discussed in this section, by using digital inpainting techniques on the affected samples in the validation set. Table

4 compiles measurements and for artefact removals on classes “stole”, “jigsaw puzzle” and “mountain bike”. While the prediction for class “mountain bike” is almost completely unaffected again, and the classifier seems to have developed backup plans for predicting class “stole” in the absence of rounded image corners and wooden mannequin heads, the “jigsaw puzzle” classifier catastrophically fails in two out of three cases when a discovered digitally pasted jigsaw puzzle pattern is removed from the affected samples. The model has thus, for the class “jigsaw puzzle”, strongly overfitted to the discovered dataset bias.

As an additional interesting observation, we have also found classes with examples in the validation set that show the same type of artifacts as used in some of the discovered Clever Hans prediction strategies (e.g. see Figure 8), putting the model’s performance on the validation set for any of the affected classes in question.

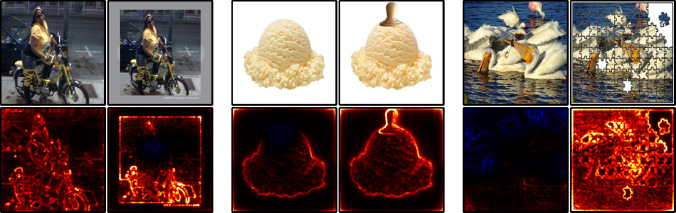

Figure 7: Addition of discoverd artefacts to samples of other classes. Relevance maps are computed w.r.t. the class of origin of the artefact. Left: Addition of a border which transforms a “moped” into “mountain bike”. Mid: The addition of the “mannequin head” increases the classifier output for class “stole”. Note how the model interprets the lack of a “mannequin head” on top of the ball of ice cream in the left heatmap as contradictory feature. Right: Further note how the model considers the white color in the image corners as features for “stole”. Adding a digital puzzle pattern pattern to any image forces a high probability “jigsaw puzzle” prediction.

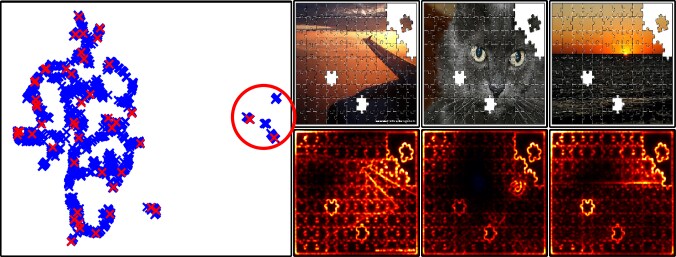

Figure 8: Left: UMAP of Spectral Embedding on union of training (red) and validation set (blue) for class ”jigsaw puzzle“. Right: Images of the validation set in the previously identified “jigsaw puzzle” bias (top) with attributions (bottom).

3.3 Un-Hans’ing the model by fixing the data

A range of the prediction biases of Clever Hans type identified within our study exhibits variations of highly systematic artifactual patterns. The yellow watermark used to predict class “garbage truck”, e.g., always occurs in the bottom left corner of the affected images in Figure 6 and Figures 9 and 10. It should thus now be possible to use this understanding of the biased decision strategy for the purpose of model rectification, with the intent of making the model forget its association of the yellow watermark artefact to class “garbage truck”.

For this purpose, we design an experiment on a reduced set of ImageNet classes, including the affected class “garbage truck”, as well as four other randomly chosen classes. This subset (henceforth called subset A) consists of training samples and validation samples and shall serve as a baseline. We then create a copy B of subset A, and isolate the watermark (see Figure 9 Mid) supposedly causing the prediction bias in class “garbage truck” from the affected training images. Within the training partition of the subset B, the isolated watermark is then added to the bottom left corner of all (yet unaffected) training samples in order to disable the watermark as a source of information which can be associated to one specific class, i.e. “garbage truck”. Starting from the original (pre-trained) VGG-16 model, we fine-tune two neural networks, one on the sets A and B each. We compare the prediction performance on the unaltered validation partition of subset A, as well as the model’s behavior via LRP heatmaps. First of all, it is to be expected that both fine-tuned models perform well on this reduced (and thus simpler) problem set. However, it is interesting to note that the model trained on subset B significantly outperforms model A with vs. top-1 accuracy on the validation set of the ImageNet subset A fine-tuning.

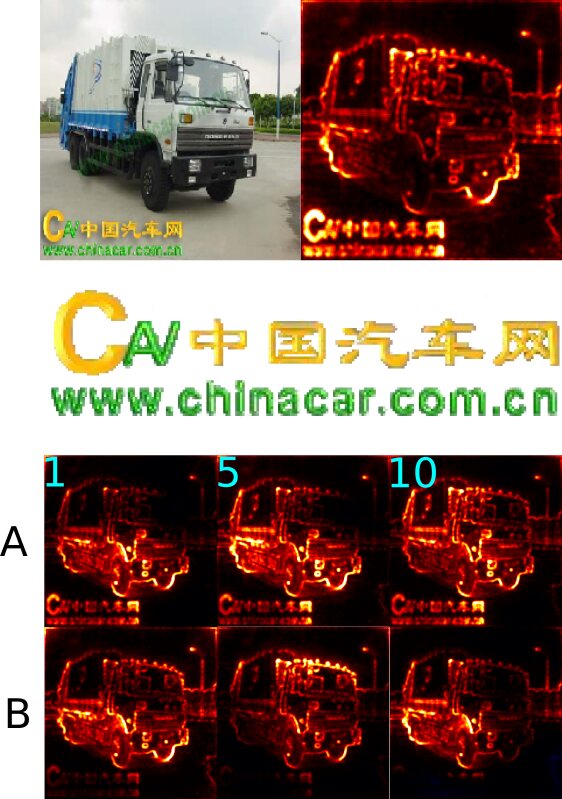

Figure 9: Top: Input sample with heatmap from the pre-trained model. Mid: The isolated artefactual watermark. Bottom:

Heatmaps after 1, 5 and 10 epochs (numbers in cyan color) of training w.r.t. to ImageNet subsets

A and B respectively.

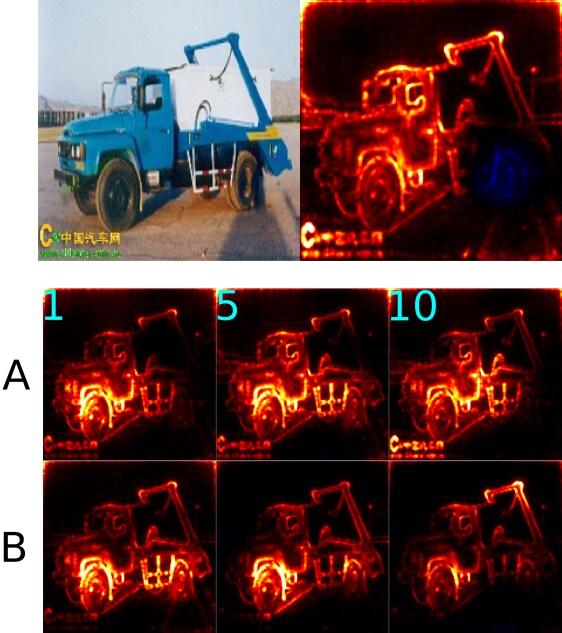

Figure 10: Top: Input sample with heatmap from the pre-trained model. Bottom: Heatmaps after 1, 5 and 10 epochs (numbers in cyan color) of training w.r.t. to ImageNet subsets A and B respectively.

Observing the relevance attribution maps for both fine-tuned models shown in Figures 9 and Figures 10 reveals that the model trained on subset variant B has consistently ceased to rely on the watermark for decision making after only 10 epochs, (already starting from the first epoch), while gradually shifting the base of its decision-making to the storage container of the vehicle. The model trained on A, however, retains the copyright watermark as part of its prediction strategy. The absence of the watermark within the unaltered validation set A explains the lower performance of model A, which obviously relies on the watermark to “generalize” on unseen data. We investigate this finding by exposing both fine-tuned models to a validation set which has seen the treatment of ImageNet subset B, i.e., where all validation samples show an artificially added copyright tag. In this case, the accuracy of the model trained on A drops to , while the model trained on B retains its original performance, further verifying that model A still associates the watermark to a higher degree to class “garbage truck”, while model B has largely disassociated class and artefactual feature. The reported accuracy ratings are summarized in Table 2. We have thus – albeit in a toy scenario – for the first time successfully unlearned a Clever-Hans strategy discovered with attributions and SpRAy, resulting in an improved model B above its baseline A. This marks an excellent starting point to un-Hans data corpora.

validation on A validation on B
training on A 98.2% 96.4%
training on B 99.8% 99.8%
Table 2: Prediction performance of the VGG-16 models fine-tuned (and evaluated) on the ImageNet subsets A and B for the “garbage truck” un-Hans’ing experiment.
class bias samples
stole rounded corners 2000 58.14 0.0004
stole mannequin “head” 10 106.10 0.0081
jigsaw puzzle jigsaw pattern 1 2000 220.98 0.0160
jigsaw puzzle jigsaw pattern 2 2000 355.60 0.8415
jigsaw puzzle jigsaw pattern 3 2000 356.42 0.9540
mountain bike watermark 2000 -101.02 0.0001
Table 3: The effect of adding a class-related artefact to samples of other classes, towards the prediction of the artefact’s class of origin. For all artefacts except the freely placable “mannequin head”, we randomly selected 2000 samples from other classes and measured the effect of the artefact addition. The measures the mean change in prediction rank due to the artefact addition and measure the mean change in the artefact’s class probability. High(er) values mean that the model is (strongly) affected by the artefact in its decision for the artefact’s class of origin.
class bias samples
stole rounded corners 10 -0.70 -0.1756
stole mannequin “head” 13 -0.62 -0.3713
jigsaw puzzle jigsaw pattern 1 44 -0.11 -0.0146
jigsaw puzzle jigsaw pattern 2 44 -112.52 -0.9160
jigsaw puzzle jigsaw pattern 3 44 -208.41 -0.9305
mountain bike watermark 17 0.00 0.0206
Table 4: The effect of removing a class-related artefact from image samples, towards the prediction of the artefact’s class of origin. The measures the mean change in prediction rank due to the artefact addition and measure the mean change in the artefact’s class probability. Low(er) values mean that the model is (strongly) affected by the artefact removal in its decision for the artefact’s class of origin.

4 Conclusion

Deep Learning models have gained high practical usability by pre-training on large corpora and then reusing the learned representation for transferring to novel related data. A prerequisite for this practice is the availability of large corpora of rather standardized and, most importantly, representative data. If artifacts or biases are present in data corpora, then the representations formed are prone to inherit these flaws. This is clearly to be avoided, however, it requires either clean data or detection and subsequent removal of artifacts, biases etc. of data bases that would cause dysfunctional representation learning.

In this paper we have used explanation methods (LRP attributions [10], for an overview see [8, 41]) and specifically extended SpRAy, a technique that has been successfully used to unmask Clever Hans behavior, for automatically and scalably detecting subtle and less subtle flaws in the ImageNet corpus. One strand of our analysis was devoted to the question of how to properly reflect scaling, translations and rotations when comparing attributions in the clustering step of SpRAy. Here we found the Wasserstein distance to be a versatile candidate for achieving a metric encompassing the mentioned crucial invariances. Furthermore, our comprehensive qualitative and quantitative analysis based on the scalable technique proposed above reveals for different classes in ImageNet rather unexpected Clever Hans-type strategies [7] of the popular VGG-16 deep learning model (to which also other architectures are sensitive to; see Appendix). These are caused by a zoo of artifacts and biases isolated by our framework in the corpus; these encompass: copyright tags, unusual image formatting, specific co-occurrences of unrelated objects, cropping artifacts, just to name a few. Detecting this zoo gives not only insight but also the possibility for relieving ImageNet from its Clever Hans moments, i.e. we are now able to un-Hans the ImageNet corpus and provide a more consistent basis for pretrained models. We demonstrated this in an unlearning experiment for class “garbage truck” (see above and Figures 9 and 10), and further ImageNet classes in the Appendix. Note that without removing such data artifacts, learning models are prone to adopt Clever Hans strategies [7], thus, giving the correct prediction for an artifactual/wrong reason. This makes them especially vulnerable to adversarial attacks that can harvest all such artifactual issues in a data corpus [42]. Future work will therefore focus on the important intersection between security and functional cleaning of data corpora, e.g., to lower the attack risk when building on top of pretrained models.


This work was supported by the Brain Korea 21 Plus Program through the National Research Foundation of Korea; the Institute for Information & Communications Technology Promotion (IITP) grant funded by the Korea government [No. 2017-0-00451]; the Deutsche Forschungsgemeinschaft (DFG) [grant Math+, EXC 2046/1, Project ID 390685689]; and the German Ministry for Education and Research (BMBF) as Berlin Big Data Center (BBDC) [01IS14013A], Berlin Center for Machine Learning (BZML) [01IS18037I] and TraMeExCo [01IS18056A].
