Analysis of Length Normalization in End-to-End Speaker Verification System

by   Weicheng Cai, et al.
Duke Kunshan University

The classical i-vectors and the latest end-to-end deep speaker embeddings are the two representative categories of utterance-level representations in automatic speaker verification systems. Traditionally, once i-vectors or deep speaker embeddings are extracted, we rely on an extra length normalization step to normalize the representations into unit-length hyperspace before back-end modeling. In this paper, we explore how the neural network learn length-normalized deep speaker embeddings in an end-to-end manner. To this end, we add a length normalization layer followed by a scale layer before the output layer of the common classification network. We conducted experiments on the verification task of the Voxceleb1 dataset. The results show that integrating this simple step in the end-to-end training pipeline significantly boosts the performance of speaker verification. In the testing stage of our L2-normalized end-to-end system, a simple inner-product can achieve the state-of-the-art.


page 1

page 2

page 3

page 4


Pairwise Discriminative Neural PLDA for Speaker Verification

The state-of-art approach to speaker verification involves the extractio...

Exploring the Encoding Layer and Loss Function in End-to-End Speaker and Language Recognition System

In this paper, we explore the encoding/pooling layer and loss function i...

Self-Attentive Multi-Layer Aggregation with Feature Recalibration and Normalization for End-to-End Speaker Verification System

One of the most important parts of an end-to-end speaker verification sy...

Gaussian meta-embeddings for efficient scoring of a heavy-tailed PLDA model

Embeddings in machine learning are low-dimensional representations of co...

RawNet: Advanced end-to-end deep neural network using raw waveforms for text-independent speaker verification

Recently, direct modeling of raw waveforms using deep neural networks ha...

Spatial Pyramid Encoding with Convex Length Normalization for Text-Independent Speaker Verification

In this paper, we propose a new pooling method called spatial pyramid en...

Siamese Capsule Network for End-to-End Speaker Recognition In The Wild

We propose an end-to-end deep model for speaker verification in the wild...

1 Introduction

Speaker recognition (SR) task can be defined as an utterance-level “sequence-to-one” learning problem. It is problem in that we are trying to retrieve information about an entire utterance rather than specific word content [1]

. Moreover, there is no constraint on the lexicon words thus training utterances and testing segments may have completely different contents

[2]. Therefore, given the input speech data, the goal may boil down to transform them into utterance-level representations, among them the inter-class variability is maximized and simultaneously the intra-class variability is minimized [3].

Typically, SR can be categorized as speaker identification (SID) task and speaker verification (SV) task [4]

. The former classifies a speaker to a specific identity, while the latter determines whether a pair of utterances belongs to the same person. For the open-set protocol, speaker identities in the testing set are usually disjoint from the ones in training set, which makes the SV more challenging yet closer to practice. Since it is impossible to classify testing utterances to known identities in training set, we need to map speakers to a discriminative feature space. In this scenario, open-set SV is essentially a metric learning problem, where the key is to learn discriminative large-margin speaker embeddings.

There are generally two categories commonly used to obtain utterance-level speaker representations. The first consists of series of separated statistical models. The represent is the classical i-vector approach [5]

. Firstly, frame-level feature sequences are extracted from raw audio signals. Then, selected feature frames in training dataset are grouped together to estimate a Gaussian Mixture Model (GMM) based universal background model (UBM)

[6]. Sufficient statistics of each utterance on the UBM is accumulated, and a factor analysis based i-vector extractor is trained to project the statistics into a low-rank total variability subspace [5].

The other category relies on a model trained by a downstream procedure through end-to-end deep neural network [7, 8, 9, 10]

. First, in the same way as the i-vector approach, frame-level feature sequences are extracted as well. Then an automatic frame-level feature extractor such as convolution neural network (CNN)

[8, 11], time-delay neural network (TDNN) [9]

or Long Short Term Memory (LSTM) network

[7, 12] is designated to get high-level abstract representation. Afterward, a statistic pooling [9] or encoding layer [13]

is built on top to extract the fixed-dimensional utterance-level representation. This utterance-level representation can be further processed by fully-connected (FC) layer, and finally connected with an output layer. All the components in the end-to-end pipeline are jointly learned with a unified loss function.

In classical i-vector approach, an extra length normalization step is necessary to normalize the representations into unit-length hyperspace before back-end modeling [14]. When it turns into end-to-end system, once we have extracted deep speaker embeddings from theneural network, such as x-vector [15], this length normalization step is also required when calculating pairwise scores.

Figure 1: Length normalization in conventional i-vector system
Figure 2: Length normalization in common deep speaker embedding system.

In this paper, we explore end-to-end SV system where length normalization step is built-in inherently within the deep neural network. Therefore, the neural network can learn speaker embeddings being length-normalized in an end-to-end manner.

2 Related works

2.1 Length normalization in i-vector approach

Length normalization has been analyzed and proved to be an effective strategy for SR, but limited in conventional i-vector approach [14]. As demonstrated in Fig. 1

, this simple non-linear transformation on i-vector has been the de facto standard before back-end modeling

[16, 17].

For closed-set SID task, length normalization followed by logistic regression or support vector machine is commonly adopted to get the posterior probabilities for the speaker categories. For open-set SV task, cosine similarity or length normalization followed by probabilistic linear discriminant analysis (PLDA) scoring

[18, 19] modeling is widely used to get the final pairwise scores. The cosine similarity is a similarity measure which is independent of magnitude, it can be seen as the length-normalized version of inner-product of two vectors. In these above systems, front-end i-vector modeling, length normalization step, and back-end modeling are all independent of each other and performed separately.

2.2 Length normalization in end-to-end system with triplet loss

Some previous works in [8, 12, 20] introduced triplet loss [21] and successfully trained models with the features being normalized in an end-to-end fashion. They all explicitly treat the open-set SV task as a metric learning problem. This kind of triplet loss approach naturally requires length normalization step to compute the distance of normalized unit vectors.

However, a neural network trained with triplet loss requires carefully designed triplet mining procedure. This procedure is non-trivial, both time-consuming and performance-sensitive [22]. Besides, many closed-set tasks like SID are equal to classification problem, it is intuitively not necessary to implement triplets mining procedure and explicitly treat them as metric learning problem. Therefore, we concentrate our attention on general scenario with common classification network. This means the units in the output layer are equal to the pre-collected speaker categories in training set.

2.3 Length normalization in common end-to-end deep speaker embedding system

For open-set SV task, since it is impossible to classify testing utterances to known identities in training set, the end-to-end classification network plays role as an automatic speaker embedding extractor, as demonstrated in Fig. 2. Once deep speaker embeddings (e.g. x-vectors) are extracted, just the same as in i-vector approach, cosine similarity or length normalization followed by PLDA is commonly required to get the final pairwise scores. It’s noticed that no matter in cosine similarity or PLDA modeling, the length normalization is an extra step performed on the extracted speaker embeddings, and out of end-to-end manner.

3 Deep length normalization

As described in section 2.1, back-end modeling in conventional i-vector approach usually performs on the unit-length hyperspace. When it turns into end-to-end deep neural network, however, in practice the back-end softmax classifier commonly adopts the inner-product based FC layer without normalization. It means that if we want to perform cosine similarity or PLDA on the extracted deep speaker embeddings, such as the representative x-vectors, we should manually normalize them with unit-length first.

It motivates us that whether it is possible to learn the deep speaker embeddings being length-normalized in an end-to-end manner within common classification network. One might wonder the substantial difference between length normalization in an end-to-end manner or out of end-to-end manner. This issue has been studied by [23, 24]

in computer vision community. The effect of deep length normalization is equivalent to adding an

-constraint on the original loss function. With deep speaker embeddings being length-normalized inherently in an end-to-end manner, our optimization object requires not only the speaker embeddings being separated, but also constrained on a small unit hyperspace. This makes it more difficult to train the network, but in the other side, could greatly enhance its generalization capability.

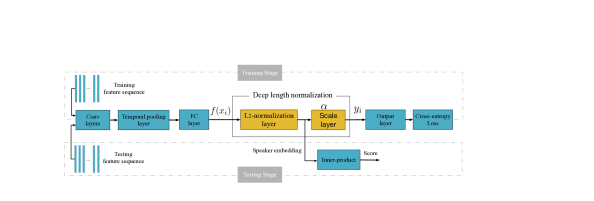

Figure 3: Deep length normalization in end-to-end speaker verification system: before the final output layer, an -normalization layer followed by a scale layer is added. Therefore, deep speaker embeddings can be inherently length-normalized in an end-to-end manner


To this end, a naive practice is just to add an -normalization layer before the output layer. However, we find that the training process may not converge and lead to rather poor performance, especially when the number of output categories is very large. The reason might be that the surface area of the unit-length hypersphere would have not enough room to not only accommodate so many speaker embeddings, but also allow each category of them to be separable.

As done in [23, 24], we introduce a scale parameter to shape the length-normalized speaker embeddings into suitable radius. The scale layer can scale the unit-length speaker embeddings into a fixed radius given by the parameter . Therefore, the complete formula of our introduced deep length normalization can be expressed as


where is the input data sequence in the batch, is the corresponding output of the penultimate layer of the network, and is the deep normalized embedding.

Our end-to-end system architecture with deep feature normalization is demonstrated in Fig.

3. The length-normalized speaker embedding can be directly fed into the output layer, and all the components in the network are optimized jointly with a unified cross-entropy loss function:


where is the training batch size, is the output categories, is the deep normalized embedding, is the corresponding ground truth label, and and are the weights and bias for the last layer of the network which acts as a back-end classifier.

In total, only a single scalar parameter is introduced, and it can be inherently trained with other components of the network together. This scale parameter has a crucial impact on the performance since it determines the radius of the length-normalized hyperspace. The network could have stronger -constraint on the small radius hyperspace with smaller , but faces the risk of not convergent.

Therefore, it is vital to choose appropriate and normalize the feature into hyperspace with suitable radius. For elegance, we may prefer to make the parameter automatically learned by back-propagation. However, because the cross-entropy loss function only takes into account whether it the speaker embeddings are separated correctly, it is apt to increases the value of to meet the demand. Therefore, the value of learned by the network might always be high, which results in a relaxed -constraint [23].

A better practice considers as a hype-parameter, and fix it with a low-value constant in order to enlarge the -constraint. However, too small for large number of categories may lead to the unconverged case. Hence, we should find an optimal balance point for .

Given the number of categories for a training dataset, in order to achieve a classification probability score of , the authors in [23] give the formulation of theoretical lower bound on by


At the testing stage, speaker embeddings are extracted after the -normalization layer. Since the embeddings have already been normalized to unit length, a simple inner-product or PLDA can be adopted to get the final similarity scores.

4 Experiments

4.1 Data description

Voxceleb1 is a large scale text-independent SR dataset collected “in the wild”, which contains over 100,000 utterances from 1251 celebrities [25]. We focus on its open-set verification task.

There are totally 1211 celebrities in the development dataset. The testing dataset contains 4715 utterances from the rest 40 celebrities. There are totally 37720 pairs of trials including 18860 pairs of true trials. To evaluate the system performance, we report results in terms of equal error-rate (EER) and the minimum of the normalized detection cost function (minDCF) at = 0.01 and = 0.001, as shown in Table 2 and Table 3.

4.2 Referenced i-vector system

We build a referenced i-vector system based on the Kaldi toolkit [26]. Firstly, 20-dimensional mel-frequency cepstral coefficients (MFCC) is augmented with their delta and double delta coefficients, making 60-dimensional MFCC feature vectors. Then, a frame-level energy-based voice activity detection (VAD) selects features corresponding to speech frames. A 2048-components full covariance GMM UBM is trained, along with a 400-dimensional i-vector extractor and full rank PLDA.

Layer Output size Downsample Channels Blocks
Conv1 64 False 16 -
Res1 64 False 16 3
Res2 32 True 32 4
Res3 16 True 64 6
Res4 8 True 128 3
Average pool 128 - - -
FC (embedding) 128 - - -
Output speaker categories - - -
Table 1: Baseline end-to-end system architecture

System Description Deep -norm Traditional -norm Similarity Metric minDCF minDCF i-vector + inner-product N/A inner-product 0.736 0.800 13.80 i-vector + cosine N/A inner-product 0.681 0.771 13.80 i-vector + PLDA N/A PLDA 0.488 0.639 5.48 i-vector + -norm + PLDA N/A PLDA 0.484 0.627 5.41 Deep embedding + inner-product inner-product 0.758 0.888 7.42 Deep embedding+ cosine inner-product 0.553 0.713 5.48 Deep embedding+ PLDA PLDA 0.524 0.739 5.90 Deep embedding + -norm + PLDA PLDA 0.545 0.733 5.21 -normalized deep embedding + inner-product inner-product 0.475 0.586 5.01 -normalized deep embedding + PLDA PLDA 0.525 0.694 4.74

Table 2: Voxceleb1 open-set verification task performance, in comparing the effect of our introduced deep length normalization strategy and traditional extra length normalization step (lower is better)

4.3 End-to-end system

Audio is converted to 64-dimensional log mel-filterbank energies with a frame-length of 25 ms, mean-normalized over a sliding window of up to 3 seconds. A frame-level energy-based voice activity detection (VAD) selects features corresponding to speech frames. In order to get higher level abstract representation, we design a deep convolutional neural network (CNN) based on the well-known ResNet-34 architecture [27], as described in Table 1. Followed by the front-end deep CNN, we adopt the simplest average pooling layer to extract the utterance-level mean statistics. Therefore, given input data sequence of shape , where denotes variable-length data frames, we finally get 128-dimensional utterance-level representation.

The model is trained with a mini-batch size of 128, using typical stochastic gradient descent with momentum 0.9 and weight decay 1e-4. The learning rate is set to 0.1, 0.01, 0.001 and is switched when the training loss plateaus. For each training step, an integer

within interval is randomly generated, and each data in the mini-batch is cropped or extended to frames. After model training finished, the 128-dimensional speaker embeddings are extracted after the penultimate layer of neural network.

System Description minDCF minDCF Deep embedding baseline 0.553 0.713 5.48 fixed 0.922 0.967 10.18 fixed 0.601 0.828 6.36 fixed 0.515 0.687 5.49 fixed 0.475 0.586 5.01 fixed 0.499 0.596 5.32 fixed 0.503 0.637 5.46 fixed 0.502 0.638 5.54 fixed 0.497 0.640 5.52 trained 0.486 0.599 5.60

Table 3: Verification performance on VoxCeleb1 for various scale parameter (lower is better)
(a) Performance in terms of minDCF
(b) Performance in terms of minDCF
Figure 4: Performance tendency curve considering various

4.4 Evaluation

We first investigate the setting of scale parameter . For those systems in Table 3 and Fig. 4, the cosine similarity or equivalently -normalized inner-product is adopted to measure the similarities between speaker embeddings. From Fig. 4, we can observe the proposed -normalized deep embedding system achieves the best minDCF of 0.475, 0.586 and EER of 5.01%, which outperforms the baseline system significantly. According to Equation (3), for speaker categories of 1211 and probability score of 0.9, the theoretical lower bound of is 9. The performance is poor when is below the lower bound and stable with higher than the lower bound. The best in our experiment is 12, which is slightly larger than the lower bound.

We further compare the effect of deep length normalization strategy and traditional extra length normalization in the whole SV pipeline. The results are shown in Table 2. No matter in i-vector or baseline deep speaker embedding systems, extra length normalization step followed by PLDA scoring achieves the best performance. When it turns into -normalized deep speaker embedding systems, since the speaker embeddings extracted from the neural network have already been normalized to unit length, we need no more extra length normalization step. In the testing stage, a simple inner-product achieves the best performance, even slightly better than the PLDA scoring result. It might be the reason that our -normalized speaker embeddings are highly optimized, which could be incompatible with the objective function introduced by PLDA.

5 Conclusions

In this paper, we explore a deep length normalization strategy in end-to-end SV system. We add an -normalization layer followed by a scale layer before the output layer of the deep neural network. This simple yet efficient strategy makes the learned deep speaker embeddings being normalized in an end-to-end manner. The value of scale parameter is crucial to the system performance especially when the number of output categories is large. Experiments show that system performance could be significantly improved by setting a proper value of . In the testing stage of an -normalized deep embedding system, a simple inner-product can achieve the state-of-the-art.
