Analysis of Interference between RDMA and Local Access on Hybrid Memory System

08/28/2020 ∙ by Kazuichi Oe, et al. ∙ 0

We can use a hybrid memory system consisting of DRAM and Intel Optane DC Persistent Memory (We call it DCPM in this paper) as DCPM is now commercially available since April 2019. Even if the latency for DCPM is several times higher than that for DRAM, the capacity for DCPM is several times higher than that for DRAM and the cost of DCPM is also several times lower than that for DRAM. In addition, DCPM is non-volatile. A Server with this hybrid memory system could improve the performance for in-memory database systems and virtual machine (VM) systems because these systems often consume a large amount of memory. Moreover, a high-speed shared storage system can be implemented by accessing DCPM via remote direct memory access (RDMA). I assume that some of the DCPM is often assigned as a shared area among other remote servers because applications executed on a server with a hybrid memory system often cannot use the entire capacity of DCPM. This paper evaluates the interference between local memory access and RDMA from a remote server. As a result, I indicate that the interference on this hybrid memory system is significantly different from that on a conventional DRAM-only memory system. I also believe that some kind of throttling implementation is needed when this interference occures.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

page 5

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

In recent years, many kinds of persistent memory (PM) [DataTiering-EuroSys2016] have been under research and development, and some achievements have been merged into products for solid state drives (SSDs) and dual inline memory modules (DIMMs). Intel was commercially available for Intel®Optane™DC Persistent Memory (We call it “DCPM” in this paper) [INTEL_DCPM] in April of last year. DCPM is connected to a computer system via a DIMM slot and is available not only for memory but also for storage [INTEL_DCPM2, INTEL_DCPM3]. DCPM also has a byte-addressable feature, its latency is two to five times higher than that of DRAM’s latency [SWANSON-REPORT, DAMON-19], and its capacity is up to 3 TB per CPU socket. For example, a server system that has a two-socket CPU can implement a capacity of up to 6 TB for DCPM.

DCPM must be mounted with DRAM. Its capacity is larger than that of DRAM and it is non-volatile. A server with DCPM is often used in the operation of an in-memory database system or virtual machine (VM) because these applications need to use a large amount of memory capacity. In particular, there has been much research [VLDB-17, SIGMOD-15, SIGMOD-18] on in-memory database systems using this hybrid memory system. In the VM field, a server can operate a higher number of VMs by using the hybrid memory system. However, I think that there are many use cases in which a server with this hybrid storage system does not consume the entire DCPM capacity when executing applications on the server. In these cases, we can operate the unused DCPM capacity as shared memory or storage among non-DCPM servers. A non-DCPM server can execute high-throughput and low-latency communication by using remote direct memory access (RDMA), which is supported by InfiniBand™etc. In a word, this hybrid memory system might be accessed from local applications and remote applications simultaneously.

By the way, Imamura et al.[IXPUG-20] reported that the interference on this hybrid memory system is significantly different from that on a conventional DRAM-only memory system when several applications were executed on same server simultaneously. Therefore, I assume that similar interference will occur when the hybrid memory system is accessed from local applications and remote applications simultaneously.

In this paper, I evaluated interference in case that DRAM access from a local server and DCPM access from a remote non-DCPM server were executed simultaneously. I used the Intel®Memory Latency Checker ( We call it “MLC” in this paper) [INTEL_MLC] as the DRAM access application and the ib_write_bw, which is one of the InfiniBand Verbs Performance Tests[IB_PERFTEST], extended tool as the DCPM access application. I called this ib_write_bw extended tool “ib_write_bw+”. Then, I indicate that the interference on this hybrid memory system is significantly different from that on a conventional DRAM-only memory system. I moreover propose that some kind of throttling technique for DCPM access from remote non-DCPM server is needed when this interference occurs.

2 Background

2.1 What is persistent memory (PM)

Much research has been done in the persistent memory (PM) field. Compared with DRAM, its strong points are that it is low in cost and has a large capacity, and its weak point is that its write latency is high. Its write latency is about two to five times higher than that of DRAM [DataTiering-EuroSys2016] . Consumers can currently use PM because Intel released Intel®Optane™DC Persistent Memory (DCPM) in April 2019. Compared with DRAM, DCPM’s features are byte-addressable, non-volatile, 4 times larger capacity, 2 to 5 times higher write latency, and several times lower giga byte costs[IXPUG-20]. Consumers can use larger capacity DCPM in the near future because Intel®plans to update the current DCPM.

2.2 Hybrid memory system using DCPM and DRAM

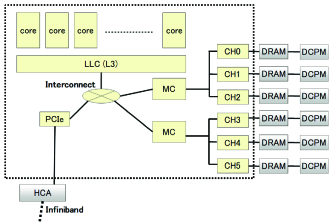

Figure 1 shows the configuration of a CPU with DCPM. The CPU cores, memory controller (MC), and PCI Express (PCIe) are connected by an interconnect. The MC has multiple channels (CHs), and each CH is connected to both DRAM and DCPM. DCPM must be connected to a CH with DRAM. When an application accesses the DCPM area by InfiniBand RDMA, the access path for RDMA is from PCIe to MC via the interconnect. The path does not include the CPU’s last level cache (LLC).

Figure 1: Intel CPU configuration with DCPM

2.3 How to access DCPM from application

A hybrid memory system consisting of DRAM and DCPM needs to set either memory mode or app direct mode[INTEL_DCPM2]. Memory mode treats DCPM as volatile memory, and DRAM is the cache area of DCPM. The cache control mechanism is installed on MC.

App direct mode treats DCPM as non-volatile memory. Linux supports three access methods for DCPM : block device, filesystem dax, and device dax[COMSYS-19]. When using the block device access method, the traditional filesystems can be executed on DCPM. But, these filesystems cannot use the maximum performance of DCPM because of block unit access. Filesystem dax maps the DCPM area to an application’s address space directly by using dax supported filesystems. Device dax maps the DCPM area to an application’s address space directly by using a device dax driver. The device dax is the best method for getting the most out of a DCPM’s performance.

Linux also has a patch that treats DCPM as normal RAM [DCPM-NUMA]. The patch can be used to mount the entire DCPM area on a NUMA node by using the device dax method, and an application can allocate the memory area from the DCPM area by using the Linux numactl command.

3 Evaluation

3.1 Overview

I wanted to clarify the interference when DRAM or DCPM access from a local server and DCPM access from a remote non-DCPM server are executed simultaneously. The application for the local server was the Intel®Memory Latency Checker (Intel MLC), and the application for remote non-DCPM server was the extended ib_write_bw. As mentioned the extended ib_write_bw is called “ib_write_bw+”. The evaluation considerd MLC-only performance, ib_write_bw+-only performance, and the performance when executing MLC and ib_write_bw+ simultaneously. The evaluation also used the Platform Profiler feature of Intel®VTune Amplifier 2019[INTEL-VTUNE] to clarify the internal throughput and latency for both DCPM and DRAM.

3.2 Environment

3.2.1 System configuration

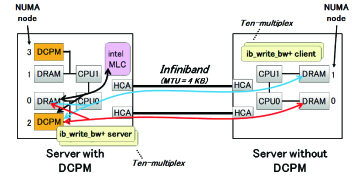

Figure 2 shows the evaluation system. A server with DCPM and a server without DCPM were connected by two InfiniBand paths. The server with DCPM consisted of a 16-core Xeon Gold 5218 (Cascade Lake) x2, 192 GB of DRAM, and 812 GB of DCPM (256 GB x 6). I also set six DCPM DIMMs as one DCPM area by using interleaved app direct mode. The server was also installed with the NUMA node patch described in Section 2.3. Then, NUMA node 0 and 1 were mounted to DRAM, and NUMA 2 and 3 were mounted to DCPM. SUSE Linux Enterprise 15 (5.0.0-rc1-25.25) was also installed on the server.

The server without DCPM consisted of a 16-core Xeon E5-2650L (Sandy Bridge) x2 and 32 GB of DRAM. Fedora30 (5.1.12-300.fc30) was also installed.

Two InfiniBand Host Channel Adapters (HCA) were also installed on both servers, and these servers were connected directly by using the InfiniBand. The HCA’s bandwidth is 100 Gbps per direction, and teh total bandwidth is 200 Gbps per direction.

Figure 2: Evaluation system

3.2.2 Intel MLC

In this paper, MLC version 3.7 was used, and the hybrid memory system was evaluated by using loaded_latency mode. Its read/write option was R (Read only), W2 (2:1 read-write ratio), and W5 (1:1 read-write ratio). Its memory size was 4 GB, so the effect of CPU cache can be ignored. Its offset setting was random (rand) and sequential (seq), and its NUMA node was 0 (DRAM) or 2 (DCPM).

3.2.3 ib_write_bw+

I downloaded and investigated the source code for InfiniBand Verbs Performance Tests 3.0 (March 2015). In particular, I carefully investigated the ib_write_bw source code which included the RDMA test. Then, the ib_write_bw repeatedly executed RDMA with the same source and destination address, and no tool existed for the read/write mixed RDMA test. Most real applications using RDMA often access various source/destination addresses, and their operations were mostly read-write mixed. Then, I added the following features to the ib_write_bw.

  • Setting any size for RDMA buffer (in this evaluation, 10 MB was set).

  • Choosing three operations [Read only, Write only, Read/Write mixed (1:1)].

  • Choosing two RDMA offset updates (random, sequential). The offset is updated in the RDMA buffer.

In the evaluation, ten-multiplex ib_write_bw+ was used (See Figure 2). I decided on this in a preliminary experiment to create sufficient memory access for DCPM.

3.3 How to evaluate hybrid memory system

To understand the performance without interference, both ib_write_bw+-only and MLC-only were evaluated. Then, the interference performance when co-executing ib_write_bw+ and MLC was evaluated. I can understand the performance degradation by comparing its interference performance and its unit performance. Moreover, to find which conditions increased the interference, both ib_write_bw+ and MLC were executed simultaneously while changing their parameters.

3.4 Results

3.4.1 ib_write_bw+ only

The ib_write_bw+ server was executed on the server with DCPM and the ib_write_bw+ client was executed on the server without DCPM. The RDMA buffer for the server was set on both DRAM and DCPM. In order to generate enough IO traffic, ten-multiplex execution was done. Figure 3 shows the results for a random RDMA offset, and Figure 4 shows those for a sequential RDMA offset. The RDMA size was changed from 2 KB to 64 KB, and the RDMA operation was Read, Write, and Read/Write mixed.

First, the results for the random RDMA offset are discussed. When executing RDMA Read, there was near throughput even when the server’s RDMA buffer was changed from DRAM to DCPM. In particular, there was almost the same throughput when the RDMA size was more than 8 KB. When executing RDMA Write and RDMA Read/Write mixed, the throughput setting the server’s RDMA buffer to DRAM was three times higher than that setting the server’s RDMA buffer to DCPM. This is because of the higher write latency for DCPM.

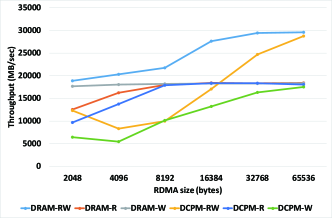

Second, the results for the sequential RDMA offset are discuessed. The results for RDMA Read were similar to the results for the random RDMA offset. However, the results for RDMA Write and Read/Write mixed were different from those for the random offset. Executing RDMA Write, the difference between the DRAM and DCPM throughput decreased when a bigger RDMA size was used. Both throughputs matched at an RDMA size if 64 KB. These results may have an effect on write buffer of MC. Executing RDMA Read/Write mixed, both throughputs reached 30 GB/sec when the RDMA size 64 KB. This is because the total bidirectional bandwidth reached 400 Gbps.

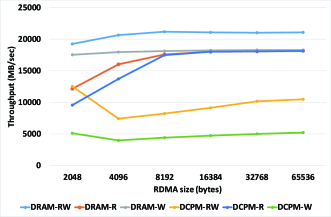

Figure 3: RDMA random throughput (MB/sec)
Figure 4: RDMA sequential throughput (MB/sec)

3.4.2 MLC only

Table 1 shows the results described in Section 3.2.2. Thers was one thread execution for MLC. The results indicate that the MLC throughputs with DRAM were three to four times higher than those with DCPM.

R W2 W5
rand+DCPM 2632 2592 2326
seq+DCPM 4042 5247 5715
rand+DRAM 6733 8576 7758
seq+DRAM 12414 17213 19943
Table 1: Throughput for MLC only (MB/sec)

3.4.3 Interference between ib_write_bw+ and MLC

MLC performance

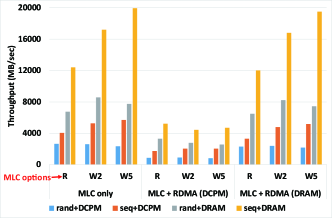

Figure 5 shows the MLC throughput when ib_write_bw+ and MLC were co-executed. The X-axis indicates the conditions for these evaluations. R, W2, and W5 are the MLC options described in Section 3.2.2. The server’s memory area for ib_write_bw+ was both DRAM and DCPM, and its other options were 4-KB RDMA size, random offset, Read/Write mixed operation, and ten-multiplex execution because these options are the condition that generates the most IO accesses on DCPM. The Y-axis is the MLC throughput, and the usage guide shows the remaining MLC options described in Section 3.2.2.

The results shows that the interference performances were less than half of the non-interference performances even when the MLC was executed with DRAM (See the portion of “MLC + RDMA(DCPM)”). In particular, when the MLC options were W5+seq+DCPM, the MLC throughput became 24% of the MLC only throughput. I guess that the MLC throughput of DRAM became drastically slow down because both DRAM and DCPM were connected to the same CH. If many IO accesses are concentrated to DCPM, IO accesses for DRAM may be waited till the completion of DCPM accesses (See figure 1).

However, when the server’s memory area for ib_write_bw+ was DRAM, small throughput falls occurred (lowered less than 20%) (See the portion of “MLC + RDMA(DRAM)”).

Figure 5: MLC results when executing ib_write_bw+ 4KB, random offset, RW mixed (MB/sec)
ib_write_bw+ performance

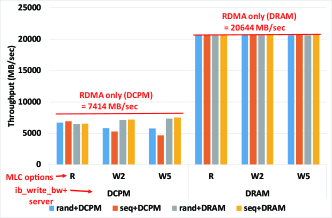

Figure 6 shows the ib_write_bw+ throughput when
ib_write_bw+ and MLC were co-executed. Both the X-axis and the usage guide are almost the same as Figure 5. The Y-axis is the throughput for ten-multiplex ib_write_bw+ executions.

The results shows less than 20% degradation when the server’s memory area for ib_write_bw+ was DCPM. Moreover, tiny throughput falls occurred when the server’s memory area for ib_write_bw+ was DRAM.

The previous paragraph showed that the MLC performance was drastically slow down when the ib_write_bw+ was executed to DCPM. However, the ib_write_bw+ performance was tiny slow down even if the MLC target was DCPM. I guess that the implementation for Intel’s MC brings this phenomenon.

Figure 6: ib_write_bw+ results when executing MLC (MB/sec)
MLC performance when traffic for ib_write_bw+ was changed

From the results so far, this paper has indidated that MLC throughput is drastically changed when ib_write_bw+ using DCPM and MLC are co-executed. I also investigated the MLC throughput when both the amount of RDMA access for DCPM and the RDMA access patterns were changed. Both can be adjusted by changing the parameters for
ib_write_bw+. In particular, the RDMA operations were not only RDMA Read/Write mixed but also Read-only and Write-only. The multiplex values for ib_write_bw+ ranged from 2 to 12 so as to change the amount of RDMA access. The MLC operations were R, W2, and W5 when the offset was sequential to DRAM.

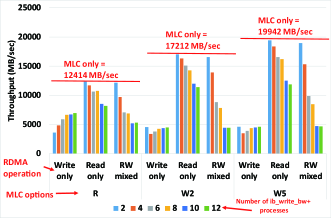

Figure 7 shows the results. The usage guide indicates the multiplex value for ib_write_bw+. All of the results (R, W2, and W5) indicate that RDMA Write only caused the interference to be big even when the multiplex value was small. However, both RDMA Read-only and RDMA Read/Write mixed increased the interference as the multiplex value increased. Figure 8 indicates the rate for each result when the result of MLC-only was 1.00. It can be seen that interference was big for RDMA Write-only. In particular, the MLC throughput co-executing with ib_write_bw+ was 18% of MLC-only when the ib_write_bw+ options were four multiplexes and RDMA Write-only and the MLC option was W5.

Figure 7: MLC results with various RDMA settings (MB/sec)

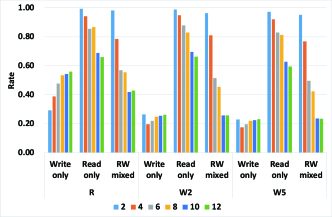

Figure 8: MLC results with various RDMA settings (rate)

To determine the reason for Figure 7 and 8, the read and write latency were also investigated by using the Platform Profiler feature of Intel®VTune Amplifier 2019. Figure 9 shows the results for read latency, and Figure 10 shows those for write latency.

First, RDMA Write-only is discussed. Both read and write latencies were higher when the multiplex value was smaller as can be seen from the results of both figures. The MLC throughput slowed down when these latencies increased.

Next is RDMA Read-only. The read latencies were stable when the MLC was executed with the R option, and the read latencies became a little lower when the multiplex value was bigger with the W2 and W5 options. The amount of RDMA read accesses was bigger when the multiplex value was bigger. Then, the increases for RDMA read accesses afforded the large interference.

Last is RDMA Read/Write mixed. Both read and write latencies were higher when the multiplex value was bigger, and the amount of RDMA read/write accesses was bigger when the multiplex value was bigger. This is why the large interference for MLC throughput.

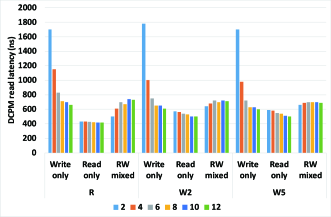

Figure 9: DCPM read latency when using Intel VTune (ns)

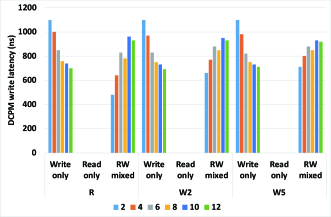

Figure 10: DCPM write latency when using Intel VTune (ns)

4 Discussion

From the results of Section 3.4, the MLC throughput drastically changed when both ib_write_bw+ for the DCPM area and MLC for the DRAM/DCPM area were executed simultaneously. However, the ib_write_bw+ throughput changed a little (up to 20%). Then, I proposed that some kind of throttling technique for the DCPM access from remote non-DCPM server (ib_write_bw+ in this paper) was needed when this interference occurred. For example, when a program executes many RDMA requests for DCPM, it checks the amount of MC accesses by using the CPU’s statistical function. If the amount of MC access is bigger, the program should reduce the number of RDMA requests until the interference is not occurred. Figure 8 indicated that the interferences for Read-only and Read/Write mixed RDMA were not occurred when the number of ib_write_bw+ process was smaller. When Write-only RDMA, I confirmed that the interference was not occurred when the ib_write_bw+ was executed by using one HCA pair only. I will study the throttling technique in the future work.

Imamura et al.[IXPUG-20] reported that the interference on this hybrid memory system is significantly different from that on a conventional DRAM-only memory system when several applications were executed on same server simultaneously. He also indicated that DRAM access may be changed because the write queue in MC keeps a large number of write requests. Moreover, DRAM access starts to be changed when the write latency for DCPM reaches 1.5 micro seconds. The results for this paper also indicated the interference between DCPM accessing application when useing RDMA and DRAM accessing application when using MLC. However, from this paper’s results, the DRAM access started to be changed when the write latency for DCPM was from 0.7 to 0.9 micro seconds. Both the MLC and RDMA execution shared the resources from MC to DRAM or DCPM. Therefore, the MLC throughput changed because some resource competition for MC occurred. The resource competition points may include a new point other than Imamura’s report because of the difference in the write latency for DCPM.

5 Related work

Many research papers already have evaluated DCPM. Izraelevitz et al.[SWANSON-REPORT] evaluated each DCPM function exhaustively. Renon et al.[DAMON-19] executed a basic evaluation for applying database logging. Hirofuchi et al.[HIROFUCHI] executed an evaluation for applying virtual machines (VMs). Weiland et al. [DCPM-SC19] executed an evaluation for high-performance scientific applications. These pieces of research indicated that the latency for DCPM changed between 100 ns and 800 ns according to their access pattern for DCPM.

6 Conclusion

This paper evaluated interference for when DRAM access from a local server and DCPM access from a remote non-DCPM server was executed simultaneously. An Intel®Memory Latency Checker (Intel MLC) was used as the DRAM access application, and the the ib_write_bw, an InfiniBand Verbs Performance Test, extended tool was used as the DCPM access application, called “ib_write_bw+”.

This paper showed the interference on this hybrid memory system is significantly different from that on a conventional DRAM-only memory system. I moreover propose that some kind of throttling technique for DCPM access from remote non-DCPM server is needed when this interference occurs. I would like to study the throttling technique in the future.
