Analysing Temporal Evolution of Interlingual Wikipedia Article Pairs

02/02/2017 ∙ by Simon Gottschalk, et al. ∙ University of Southampton L3S Research Center 0

Wikipedia articles representing an entity or a topic in different language editions evolve independently within the scope of the language-specific user communities. This can lead to different points of views reflected in the articles, as well as complementary and inconsistent information. An analysis of how the information is propagated across the Wikipedia language editions can provide important insights in the article evolution along the temporal and cultural dimensions and support quality control. To facilitate such analysis, we present MultiWiki - a novel web-based user interface that provides an overview of the similarities and differences across the article pairs originating from different language editions on a timeline. MultiWiki enables users to observe the changes in the interlingual article similarity over time and to perform a detailed visual comparison of the article snapshots at a particular time point.



There are no comments yet.


page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Wikipedia is a rich interlingual information source that often reflects cultural differences: Wikipedia articles describing real-world entities, topics, events and concepts evolve independently in different language editions, as there is no sophisticated support for multilingual collaboration when writing articles. Moreover, there is a social impact on multilingual article creation, as different communities of Wikipedia editors vary in their perception of the topics they are describing. As a result, there is a distributed evolution of Wikipedia articles that leads to semantic differences representing linguistic points of view on particular topics [3], as well as complementary or sometimes contradictory information between articles.

The temporal evolution of Wikipedia articles plays an important role when analysing the interlingual development of articles: For example, multilingual users actively transfer information from one language edition to others [4] and articles may be translated to complement missing information. Likewise, information on events impacting both language editions at a time could originate from one of the language editions and be adapted from the other article with some delay.

Our methods aim at supporting Wikipedia editors and readers in better understanding of how such changes propagate across the language editions. To this extent, we measure the similarity of the interlingual article snapshots at different time points and visualise them on a timeline.

Figure 1: Timeline of the German/English article pair “Codex Aureus of St. Emmeram”. The number of edits per article and the similarity of the article snapshots are plotted over time.

Figure 1 gives an example of such a timeline generated by our tool, MultiWiki, for the English/German article pair “Codex Aureus of St. Emmeram”, which visualises the following process: The English article was created in October 2003, nearly five years before the German one and consisted of a very few sentences for a long time. Then, in 2008, the German article was created and became immediately much longer than the English one. Hence, the timeline shows a very small similarity within the first two years after the creation of the German article. Then, parts of the German texts were adapted to enlarge the English article, which lead to a significant increase of their interlingual similarity. Finally, the texts evolved independently from each other and their similarity slightly decreased.

For each particular pair of snapshots derived from the timeline, our interface also provides a detailed comparison. This comparison clearly goes beyond existing tools (e.g. [1], [3]), in particular through visualising a detailed comparison of the similarities and differences of the article texts.

MultiWiki presented in this demonstration is a web-based tool111The demo is publicly available at: including the following functionalities:

  • Computation of the interlingual similarity between the articles in an interlingual article pair. The features for this similarity computation include the similarity of the article texts, their media elements, entities and links, as well as Wikipedia editors and their locations;

  • Tracking the changes of the interlingual similarity over time and visualisation of the similarity and its features on a timeline, tables and maps; and

  • Visualisation of the textual similarities of an interlingual article pair given their snapshots.

These functions enable MultiWiki to: 1) Present an overview of the evolution of the interlingual article similarity over time; and 2) Enable users to perform a detailed article comparison at a certain time point.

2 Features & Interface

MultiWiki provides users with an overview of how the relation between two articles that describe the same topic in different languages changes over time. To this extent, MultiWiki automatically generates a timeline that visualises the evolution of the semantic similarity of the articles over time and the corresponding number of edits for both articles.

In order to visualise this timeline and to enable a more fine-grained analysis of an article pair at a particular time point, we compute a semantic similarity score for two article snapshots and from different Wikipedia language editions. This score is composed of several similarity functions that are applied on different features .

We differentiate between the text-based features () and features using meta information like images and links (. The textual similarity between two article snapshots and is computed as follows, where denotes the weight assigned to one of the similarity functions:

Name Description
Images Overlap of images in the articles
Wikipedia annotations Overlap of Wikipedia annotations extracted from the articles
External links Overlap of footnote links
External links (Hosts) Overlap of the host names of footnote links
Editors Overlap of editors
Editors (Locations) Overlap of the editors’ countries
Table 1: Similarity Measures based on Meta Features

, the similarity of the article snapshots computed using meta information, is defined analogously. We consider different feature categories, such as images, Wikipedia annotations (i.e. references to other Wikipedia articles in the text), external links and editors to be equally important. Therefore, we equally distribute the weights across these feature categories. Tables 1 and 2 provide an overview of the MultiWiki features and their weights.

The overall similarity of a snapshot pair is the weighted sum of and , where we set to balance the influence of both factor types:

Name Description
Text length Proportion of the number of characters
Text overlap Jaccard overlap of the English texts
Text passage coverage Percentage of characters that have been aligned with the other article
Table 2: Textual Similarity Measures
(a) Images
(b) Links (Host Names)
(c) Editor Locations
Figure 2: Selected Feature Similarities for the English/German article pair on “Lawrence Eagleburger”
Figure 3: Processing Pipeline for a Wikipedia Article

In the following, we describe the features, the similarity functions based on them and how we present the results to the user: Our interface does not only show the numeric similarity scores, but also visualises the similarities based on particular features as illustrated in Figures 2 and 4.


When comparing two Wikipedia articles, one of the main visual impressions is given by the images placed in them. Therefore, we compute the fraction of images used in both articles. In the interface, we oppose them in a table like the one shown in Figure 2(a).

External Links

Motivated by the findings in [4], MultiWiki aligns external links mentioned in the footnotes of the articles and their hosts. As illustrated in Figure 2(b), the host names of the external links are shown to the user ranked by their overlap frequency. Those at the top are frequently mentioned in both articles and are therefore good indicators for the topical overlap of the articles.

Wikipedia Links and Annotations

Two articles are similar if they refer to the same entities, concepts and topics [3]. To extract this kind of annotations, we rely on two sources: (1) Wikipedia links manually added to articles by Wikipedia editors; and (2) Wikipedia links automatically created by applying an entity annotation tool (DBpedia Spotlight). While the user-defined links are precise, but rather sparse and without repetitions, the automatic annotation raises the recall of the Wikipedia references. These references are aligned across languages by using interlingual article links provided by Wikipedia.

Wikipedia Editors

Wikipedia articles are thoroughly based on the input of the Wikipedia editors. Some multilingual editors tend to edit articles describing the same entity in different languages, such that similar content is spread across languages [4]. MultiWiki computes the overlap of the editors that contributed to the articles under comparison. Furthermore, the linguistic point of view (as defined in [3]) emphasises the cultural differences between language communities. Therefore, we determine the countries where anonymous editors come from and compute the similarity of the country distribution per article. As this location similarity ought to measure the similarity of the distribution, but should not be biased by differences in the number of anonymous editors, it is computed by Equation 2 (where is the set of locations and each article is assigned a set of editors ): Before computing the overlap, the number of editors is matched by multiplying by .

In the MultiWiki interface, two world maps like the one presented in Figure 2(c) are showing the editors’ origins for a pair of article snapshots.

Textual Overlap

MultiWiki provides a fine-grained comparison of the article texts by aligning semantically similar text passages in an article pair as illustrated in Figure 4.

This alignment is facilitated by an bottom-up approach: At first, sentences with overlapping information are aligned using the following features: (1) Cosine similarity of the vectors representing text passages using terms (automatically translated to English); (2) Similarity of the Wikipedia entities metioned in the sentences; (3) Time similarity using temporal expressions automatically extracted from the sentences. Consequently, sentence pairs whose similarity score exceeds a pre-determined threshold value are merged in a bottom-up manner: As long as the similarity of an aligned text passage pair increases, the text passage is expanded by adding neighboured sentences from one of the articles or by merging two text passage pairs in a close neighbourhood. Given the aligned text passages, they are presented to the user by showing both articles side by side and connecting them as illustrated in Figure

4. With this visualisation approach, the user immediately obtaines an overview of the similarities and differences in the articles.

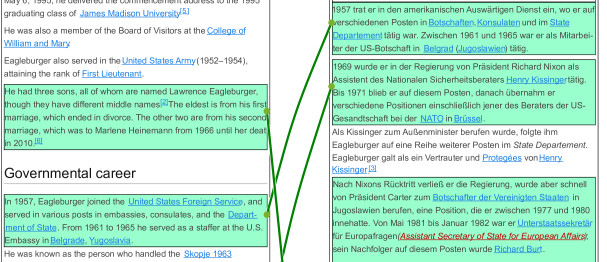

Figure 4: Text Comparison. The English article on “Lawrence Eagleburger” is on the left, the German one on the right. Aligned passages are marked green and connected with matching passages in the other article.

Textual Similarity

Regarding the textual similarity score of an article pair , three measures are derived from the article texts: 1) Text passage coverage is the percentage of text aligned as part of text passage pairs; 2) Text length similarity compares the length of the articles; and 3) Text overlap similarity is the Jaccard similarity of the English (machine-translated) texts.

3 System Architecture & Pipeline

In order to facilitate the comparison of articles based on the proposed features and to analyse their temporal evolution, each article pair runs through a preprocessing pipeline. In a first step, we need to inspect the revision history in both languages to create a set of article snapshots pairs that fulfils the following condition: Both snapshots in an article pair must have been on-line at the same time. This ensures that dissimilarities between the articles are not based on temporal shifts. Besides, the selected article pairs should be evenly distributed over time to provide a better overview.

For each article snapshot, we collect meta information, extract the sentences and annotate them with the features presented in Section 2 using state-of-the-art methods. The pipeline for extraction and annotation is depicted in Figure 3. At first, we fetch the texts of each article and collect its contributing editors from the revision history. For each of the unregistered, anonymous editors, the IP address is provided, which makes it possible to determine their country. To allow for the text passage alignment, the text is split into sentences; then the features needed for the sentence alignment are collected. The results of the preprocessing pipeline are stored in a database. Additionally, the complete set of interlingual Wikipedia links is stored, such that the final comparison of the article pair including the computation of similarity values and the text passage alignment can be performed at run time.

4 Dataset

To facilitate the demonstration of our methods, we extracted a set of 79 randomly selected article pairs to be investigated using MultiWiki. For each article pair, we collected eight snapshot pairs on average. The majority of 54 article pairs is German/English, 14 are Dutch/English and the remaining 11 pairs are Portuguese/English. As we extract multiple snapshots of each article to construct the timelines, a total of 637 snapshot pairs has been extracted and annotated. Among these article pairs, there is the politician “Lawrence Eagleburger”, the German film “Der Stern von Afrika” (movie) and the “General Post Office”.

5 Related Work

The multilingual Wikipedia has been a research target for different disciplines. One area of interest in this context is the study of differences in the language points of view in Wikipedia [3]. In [4], Rogers conducts an intensive case study where he compares the highly controversial articles on the Srebrenica massacre in several Wikipedia language editions. In his work, all of the investigations like image alignment and a comparison of the table of contents are made manually. To simplify such tasks in future, some of the features mentioned in [4] have been implemented in MultiWiki.

Two of the few existing tools to support cross-lingual analytics in Wikipedia are Manypedia [3] that provides an automatic translation to English, article statistics and overlap of Wikipedia links, and Omnipedia [1], which can be used to compare the given Wikipedia links for up to 25 language editions simultaneously. Another tool that helps to explore the temporal development of a single article is Contropedia [2] that focusses on the interaction of Wikipedia editors. Unlike existing tools, MultiWiki excibits unique features such as temporal analysis of interlingual article similarity and detailed textual comparison of article snapshots.

6 Conclusions

In this paper we presented MultiWiki – a novel user interface to conduct a detailed visual analysis of the similarities and the differences across the Wikipedia articles on the same topic written in different languages. MultiWiki provides means to explore how information is propagated across the language editions by observing how the similarity of an article pair evolves over time. Moreover, it enables a detailed visual comparison of the article snapshots based on users, media elements, entities, and links as well as a detailed analysis of textual similarities.

7 Acknowledgments

This work was partially funded by the ERC under ALEXANDRIA (ERC 339233) and H2020-MSCA-ITN-2014 WDAqua (64279).


  • [1] P. Bao, B. Hecht, S. Carton, et al. Omnipedia: Bridging the Wikipedia Language Gap. In Proceedings of CHI ’12.
  • [2] E. Borra, D. Laniado, E. Weltevrede, et al. A Platform for Visually Exploring the Development of Wikipedia Articles. Proc. ICWSM, 2015.
  • [3] P. Massa and F. Scrinzi. Manypedia: Comparing Language Points of View of Wikipedia Communities. In Proceedings of the WikiSym ’12.
  • [4] R. Rogers. Digital Methods, chapter Wikipedia as Cultural Reference. The MIT Press, 2013.
