## I Introduction

Massive multiple-input multiple-output (MIMO) has attracted increasing attention as a key technology in the fifth-generation (5G) network [1]. With its advantages for inter-user interference cancellation and noise supression, massive MIMO can achieve near-optimal performance with simple linear precoding schemes, such as maximal-ratio transmission (MRT) and zero forcing (ZF) [2]. These fully-digital precoding schemes need each antenna to be driven by one dedicated radio-frequency (RF) chain, which imposes prohibitively high cost and power consumption [3]. To address this issue, two kinds of designs have been introduced, i.e., pure analog precoding and hybrid analog-and-digital precoding [4] [5].

Although the hybrid precoding has been widely considered in research, evidence has shown that it may not be the best choice for all cases compared with the pure analog precoding, especially when considering that analog precoding consumes less power than the hybrid precoding due to some implementation facts [4] [6]. In [7] [8], the analog precoding approximately transformed the effective channel into a diagonal matrix, which implies that digital processing is no longer needed for further multiuser interference cancellation. Specifically in [9], the authors found that pure analog processing could surpass the hybrid processing with maximal-ratio combination (MRC) or ZF in an uplink channel under the assumption of perfect channel state information (CSI). For the downlink channel, however, this compromise is still unclear. Moreover in practice, only quantized CSI, instead of perfect one, is available through limited feedback [10]-[13].

Against the above background, this letter investigates the performance of a downlink massive MIMO system with low-cost sub-connected architecture and quantized CSI feedback. Tight rate approximations are derived for the ZF/MRT-based hybrid precodings and the analog precoding in the large base station (BS) antenna regime. With the derived results, we explicitly characterize the performance comparison between the hybrid precoding and the analog precoding. In particular, we show that for all SNRs analog precoding outperforms the ZF-based hybrid precoding when where denotes the number of feedback bits in digital precoding and is a constant in closed-form with respect to system parameters. Similar observation has also been obtained for the comparison of MRT-based hybrid precoding and pure analog precoding. For other cases, the superiority of different precoding schemes would be complicated and it depends on specific values of SNR, which has also been derived in closed forms.

The remainder of this paper is organized as follows. System model is introduced in Section II. In Section III, we derive the achievable rates of the system using various precoding schemes. In Section IV, we present the conditions under which the pure analog precoding can beat the hybrid precoding. Simulation results and conclusions are given in Section V and Section VI, respectively.

## Ii System Model

We consider a multiuser massive MIMO downlink channel with sub-connected architecture. Multiple users are simultaneously served by a BS which is equipped with antennas and RF chains. Each RF chain is connected to a subset of antennas through dedicated phase shifters where . Considering that the number of transmit streams should not exceed the number of RF chains, we assume that single-antenna users are scheduled from the user pool. Assuming flat Rayleigh fading, the received signal at the th user can be expressed by

 yk=βkhHkAWs+nk,k=1,2,⋯,K, (1)

where denotes the downlink channel from the BS to the th user, and

is the data vector with

where is the total transmit power at the BS, is the additive Gaussian noise, denotes the path loss of the th user, and and respectively stand for the analog precoder and the digital precoder. Due to the hardware dissipation caused by the power dividers [14], the analog precoder is written as where denotes the equivalent analog precoding implemented by the phase shifter network. To conduct equal power allocation for users, it holds that for .

In the current design of hybrid precoding for massive MIMO, the design of analog precoder can be accomplished in two ways, that is, by either utilizing a quantized CSI feedback from users, e.g., precoding matrix indicator (PMI) feedback, or by using uplink channel estimates, e.g., the sounding reference signal (SRS), as specified in the 5G New Radio (NR) specifications [15]. Based on this, the BS designs the analog precoder in terms of discretized phase shifters. Then, an analogly beamformed pilot will be sent by the BS for further equivalent channel estimation to compensate for the performance degradation caused by quantization error of the analog precoder. Each user estimates its own effective channel and feeds back a quantized version of the precoded CSI which is used by the BS to design the digital precoder. In this paper, phases of the

entries of are quantized up to bits, i.e., the codebook is designed as . Based on the minimum Euclidean distance criterion, a common way of analog precoder design in the sub-connected structure follows [9] [10]

 ak,i=⎧⎪⎨⎪⎩1Nargmaxej^φk,i∈AR[h∗k,iej^φk,i],N(k−1)+1≤i≤Nk0,otherwise (2)

where and are respectively the th element of and , and returns the real part of . For the th user, we define its effective channel as Then, the ergodic rate of the th user can be written as

 Rk=E⎡⎢ ⎢ ⎢⎣log2⎛⎜ ⎜ ⎜⎝1+γβkK∣∣gHkwk∣∣21+γK∑j≠kβj∣∣gHkwj∣∣2⎞⎟ ⎟ ⎟⎠⎤⎥ ⎥ ⎥⎦, (3)

where is the SNR.

The digital part of the system is based on the effective channel. Since the effective channel is always correlated even for independent and identically distributed (i.i.d.) channels of , we adopt a channel statistics-based codebook [10]-[12]. The th user quantizes its effective channel according to , in which is defined as

 ^gik=R12kvi∥R12kvi∥, (4)

where denotes the correlation matrix of user ’s effective channel and , is an i.i.d. complex Gaussian vector randomly chosen from random vector quantization (RVQ) codebook of size . With the limited feedback of bits, the BS calculates the digital precoder by using the quantized CSI feedback .

## Iii Achievable Rate Analysis

### Iii-a MRT/ZF-based Hybrid Precoding with Limited Feedback

For the MRT-based hybrid precoding, the digital precoder of user is determined as

 wk=^gk. (5)

With the design above, we derive the downlink rate in the following theorem.

Theorem 1: Tight rate approximation of MRT-based hybrid precoding in the large BS antenna regime is obtained as

 RMRTH,k=log2⎛⎜ ⎜ ⎜ ⎜⎝1+γβkK(πsinc2(δ)4+KN−2−B2K−1N)(πNsinc2(δ)4+K)πNsinc2(δ)4+K+γK¯¯¯βk(KN+πsinc2(δ)2)⎞⎟ ⎟ ⎟ ⎟⎠, (6)

where , sinc and .

###### Proof.

See Appendix A.∎

From the above theorem, we can also get the achievable rate of the MRT-based hybrid system with perfect CSI as a special case by letting and in (6). It yields

 RMRTpH,k=log2⎛⎜ ⎜⎝1+γβkNK(π4+KN)2πN4+K+γ¯¯¯βkK(π2+KN)⎞⎟ ⎟⎠. (7)

Note that this result coincides with the result in [9, Eq. (15)] except for that the signal term and the interference term calculated in [9] have an additional factor of if we let , which is because we consider the effect of the divider network.

For the ZF-based precoding, the digital precoder equals

 WZF=^G(^GH^G)−1, (8)

where and . The digital precoder is then normalized as . A tractable and tight bound of its achievable rate is given in the following proposition.

Proposition 1: The ergodic rate of the ZF-based hybrid precoding is asymptotically lower bounded by

 RZFH,k⩾log2⎛⎜ ⎜⎝4KN+πNγβksinc2(δ)4KN+4γ¯¯¯βk2−B2K−1⎞⎟ ⎟⎠. (9)

See Appendix B.∎

### Iii-B Pure Analog Precoding

When the pure analog precoding is applied, the digital precoding matrix reduces to an identity matrix, i.e.,

. Then we can easily get the following proposition.

Proposition 2: Tight rate approximation of the pure analog precoding in the large BS antenna regime is characterized as

 RA,k=log2⎛⎜⎝1+γβk(πNsinc2(δ)4+1)KN+γ¯¯¯βk⎞⎟⎠. (10)
###### Proof.

With the pure analog precoding, and . By applying [16, Lemma 1], and substituting these two expressions into (3) and using similar manipulations as that in the last step of (A), the proof completes.∎

As a special case, we have the achievable rate of the system with perfect CSI by letting , which gives

 RpA,k=log2⎛⎜⎝1+πNγβk4KN+γ¯¯¯βk⎞⎟⎠, (11)

which consists with the existing result in [9, Eq. (13)].

## Iv Pure Analog vs Hybrid Precoding

To compare the performance of the pure analog precoding and the hybrid precoding, we evaluate the rate gap as

 ΔR=RXH,k−RA,k, (12)

where represents the strategy of the digital precoding in the hybrid precoding.

### Iv-a MRT-based Hybrid Precoding

By letting , and substituting (6) and (10) into (12), we get

 γ¯¯¯βkK⎛⎜⎝K−2−2−B2K−1N−πsinc2(δ)4⎞⎟⎠>2−B2K−1−K+1. (13)

It implies that the MRT-based hybrid precoding outperforms the pure analog precoding if (13) holds. It is obvious that the right hand side of (13) is negative when . Checking that , we can rewrite (13) as

 K≥πNsinc2(δ)4+2−B2K−1+2, (14)

under which the MRT-bsed hybrid precoding outperforms the pure analog precoding for all SNR values. This is due to the fact that multiuser interference becomes a dominant factor when becomes large, and the hybrid precoding which utilizes digital processing to eliminate interference enjoys a better performance than the pure analog precoding.

Moreover from (14), it is revealed that has a marginal impact on the performance of the MRT-based hybrid precoding since . Therefore we can focus on the impact of on system performance. By applying Taylor’s expansion to with , we get , and (14) is further equivalent to

 B1≤12log2⎛⎜ ⎜ ⎜ ⎜⎝π3N3πN−12(K−2−2−B2K−1)⎞⎟ ⎟ ⎟ ⎟⎠Δ=B01. (15)

Otherwise, when , it is not difficult to get

 ΔR{>0,γ<γ0≤0,γ≥γ0 (16)

where .

Remark 1: When , the MRT-bsed hybrid precoding always outperforms the pure analog precoding in terms of the ergodic achievable rate for all SNRs. Otherwise the MRT-bsed hybrid precoding can beat the pure analog precoding only for low SNRs satisfying .

### Iv-B ZF-based Hybrid Precoding

Similarly by letting for in (12) and using (9) and (10), we obtain

 B2>(K−1)log2⎛⎝1+4(βk+¯¯¯βk)πNβksinc2(δ)⎞⎠Δ=B02, (17)

which uses the fact that . When , it holds true that

 ΔR{>0,γ>γ1≤0,γ≤γ1 (18)

where .

Otherwise, when , the pure analog precoding always outperforms the ZF-based hybrid precoding for all SNRs. This is because the precoding vector of the th user is supposed to lie in the null space of channels of other users and thus the ZF-based hybrid precoding is more dependent on the accuracy of channel estimation to cancel out interference.

Remark 2: If , the pure analog precoding beats the ZF-based hybrid precoding for all SNRs. Otherwise the ZF-based hybrid precoding takes over for high SNRs satisfying .

## V Simulation Results

In this section, we compare the downlink performance of the analog precoding and hybrid precoding based on different linear processing schemes. The path loss factor is chosen uniformly in [0.5, 1.5].

In Fig. 1(a) we illustrate the spectral efficiency achieved by pure analog precoding and the MRT-based hybrid precoding. It is observed that when , the MRT-based hybrid precoding outperforms pure analog precoding for all SNRs, while when the pure analog precoding performs better at high SNRs, confirming the conclusions in Section IV. This is because for small , the system performance is severely affected by the quantization error, i.e., the interference becomes dominant, thus the hybrid precoding using digital processing to eliminate interference outperforms the pure analog precoding. In addition, the corresponding threshold calculated from (14) is 17 for , so for , the pure analog precoding outperforms the MRT-based hybrid precoding at high SNRs.

Similar trends can be found when comparing pure analog precoding and the ZF-based hybrid precoding in Fig. 1(b). When the effective channel is roughly quantized, i.e., , the pure analog precoding performs better for all SNRs since the accuracy of channel estimation is insufficient to support effective beamforming for ZF, while the ZF-based hybrid precoding takes over at high SNRs when , which verifies our observations in Section IV.

### V-B Large mmWave Multiuser Channels

Apart from Rayleigh fading channels, hybrid/analog precoding can also be applied to mmWave communications. To capture the nature of high-frequency propagations, we adopt the widely-used geometric channel model [7] [9]

 hHk=√MNpNp∑l=1αklaH(ϕkl), (19)

where is the number of propagation paths from BS to user and denotes the complex gain of the -th path.

is the azimuth angle of departure drawn independently from the uniform distribution over [

]. is the array response vector of BS. Here we consider a uniform linear array (ULA) whose array response vector is given by [9, eq. (29)].

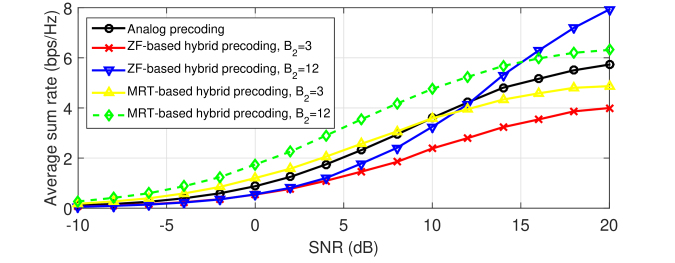

Fig. 2 shows that conclusions on the superiority of the pure analog precoding over hybrid precodings also hold for the mm-Wave channels. Specifically, when is small, i.e., , the analog precoding outperforms the ZF-based hybrid precoding for all SNRs, while for large , i.e., , the ZF-based hybrid precoding takes over at high SNRs, which verifies Remark 2.

## Vi Conclusion

In this paper, we derive tight rate approximations of a massive MIMO system using pure analog precoding and hybrid precoding with limited feedback in the large BS antenna regime. The effect of quantized analog and digital precodings are characterized in the obtained expressions. Furthermore, it is revealed that pure analog precoding outperforms hybrid precoding in terms of the ergodic achievable rate under certain conditions, which have been derived in closed forms with respect to the SNR, the number of users and the number of feedback bits. Numerical results verify the observed.

## Appendix A Proof Of Theorem 1

To evaluate (3), we calculate the terms and . Let where is the normalized , then we have .

From the definition of , its th element equals

 gk,k=1NNk∑l=N(k−1)+1hk,le−j^φk,l(a)=1NNk∑l=N(k−1)+1λl, (20)

where (a) uses . Defining , it yields . Recall , where

’s are i.i.d. complex Gaussian variables with zero mean and unit variance. It implies that

follows the Rayleigh distribution with mean and variance . The quantization error is a uniform distribution with . Then we have

 E[R[λl]]=E[R[|hk,l|ejεk,l]]=E[|hk,l|cos(εk,l)](a)=E[|hk,l|]E[cos(εk,l)](b)=√πsinc(δ)2, (21)

where (a) utilizes the independence between and , and (b) is due to and because of the given distributions of and . Analogously, we can also get . Then,

 V[R[λl]]=E[(R[λl])2]−(E[R[λl]])2=w1, (22)

where

. Applying the Central Limit Theorem to (

20) and using (21) and (22), we get

 R[gk,k]∼N(√πsinc(δ)2,w1N). (23)

Following similar reasons, it can be readily proved that

 I[gk,k]∼N(0,w2N), R[gk,i]∼N(0,12N), I[gk,i]∼N(0,12N), (24)

where and returns the imaginary part of . Now we have

 E[|gk,k|2] =E[|R[gk,k]|2]+E[|I[gk,k]|2]=πsinc2(δ)4+w1+w2N. (25) E[|gk,i|2] =E[|R[gk,i]|2]+E[|I[gk,i]|2]=1N. (26)

According (25) and (26), it gives

 E[∥gk∥2F]=E[|gk,k|2]+K∑i=1,i≠kE[|gk,i|2]=πsinc2(δ)4+KN−πsinc2(δ)4N. (27)

From [10, Lemma 2], can be asymptotically written as where

 ri,i=⎧⎨⎩πsinc2(δ)4+1N−πsinc2(δ)4N,i=k1N,i≠k (28)

and diag[] returns a diagonal matrix with the input as its elements. Then we follow the result in [11] and get

 E[∣∣~gHk^gk∣∣2]≈1−σ2k,2σ2k,12−B2K−1=1−2−B2K−1πNsinc2(δ)4+1−πsinc2(δ)4, (29)

where and

respectively stand for the largest and the second largest singular value of

.

Combining (27) and (29), it yields

 E[∣∣gHkwk∣∣2](a)=E[∥gk∥2F]E[∣∣~gHk^gk∣∣2](b)→πsinc2(δ)4+KN−2−B2K−1N,

where (a) utilizes and in (b) we consider the fact that and hold in massive MIMO with large and fixed .

From (4), we get , where and are respectively the th element of and , and denotes the index of the quantization vector of . Then we have

 E[^gj,j]=E⎡⎢ ⎢ ⎢⎣(R12j)j,jvi,j∥R12jvi∥⎤⎥ ⎥ ⎥⎦(a)=E[vi,j]E⎡⎢ ⎢ ⎢⎣(R12j)j,j∥R12jvi∥⎤⎥ ⎥ ⎥⎦(b)=0, (30)

where (a) uses the independence between and , and (b) results from . Analogously,

 E[|^gj,j|2]=E⎡⎢ ⎢⎣(Rj)j,j|vi,j|2∥R12jvi∥2⎤⎥ ⎥⎦=E[|vi,j|2](Rj)j,jE[∥R12jvi∥2](a)=πsinc2(δ)4+1N−πsinc2(δ)4Nπsinc2(δ)4+KN−πsinc2(δ)4N, (31)

where (a) uses and according to the distribution of and (28). Following trivially the above steps, we get , and . Providing that ’s are i.i.d. complex Gaussian variables with zero mean and unit variance, then and are independent for any , which implies and . Then can be calculated as

 =E[∣∣gHk^gj∣∣2]=E⎡⎣∣∣ ∣∣K∑i=1g∗k,i^gj,i∣∣ ∣∣2⎤⎦(a)=K∑1≤i≤l≤KE[g∗k,igk,l]E[^gj,i^g∗j,l] (b)=K∑i=1E[∣∣^gj,i∣∣2]E[|gk,i|2](c)→πsinc2(δ)2+KNπNsinc2(δ)4+K, (32)

where (a) is due to the independence between and , (b) holds because for any , and (c) is obtained by using similar manipulations as that in the last step of (A). Finally, by applying [16, Lemma 1] and substituting (A) and (A) into (3), the theorem is proved.

## Appendix B Proof Of Proposition 1

From the distributions of and in (23) – (24), we get and since and for the massive MIMO with large , thus . Now the asymptotic rate of the ZF-based hybrid system with perfect CSI can be represented as

 RZFpH,ka.s.→log2(1+γβkπsinc2(δ)4K). (33)

On the other hand, it is known from [12] that the rate loss caused by the imperfect CSI can be upper bounded by . Thanks to the orthogonality between and in the ZF precoding, we further have

 (34)

Therefore, we have

 Rloss≤log2(1+γ¯¯¯βk2−B2K−
