1  Introduction

Human free-hand sketch111In the following paper, we use ‘sketch’ for short. has been adopted as an expression and communication method since pre-historic times. It is highly expressive: although a sketch only consists of strokes, it is amazingly recognizable by human beings. On the other hand, sketching is intuitive and is easy to deliver. Without resorting to other complicated tools, a pen and a piece of paper allow a person to express the ideas in his/her mind. Thanks to the popularization of touch-screen devices, sketching has become even easier than before as people can directly create an image with their fingers. Given the above natures, sketch has been applied in many application scenarios, such as education and designing.

With sketch playing a more critical role in people’s lives, sketch understanding attracts increasing attention from the computer vision community. Researchers have investigated this problem from various aspects and have achieved impressive progress, e.g., sketch recognition, sketch parsing/grouping, and sketch-based image/video retrieval. Now the most advanced recognition model can achieve nearly 80% classification accuracy on a sketch benchmark dataset; while an SBIR model knows how to match a sketch with photos having similar content(s). Recall the reaction when we see a sketch image, as we identify the object it represents, we also

picture its original appearance. Here we want to ask, can a machine imagine the real look of an object represented by a sketch? In other words, given a specific sketch, is it possible for a model to synthesize a corresponding photo?

We call the task of generating a photo given a sketch as Sketch-Based Image Synthesis (SBIS)222In practice, the synthesized image can be with various visual formats, e.g., photo, cartoon, and so on. In this work, we focus on synthesizing photos.

. It is a very challenging task. First of all, sketches are drawn by amateurs; therefore, they generally deform in shape. Besides, since people have various drawing styles, sketches could appear differently even they are corresponding to the same object. Second, sketches lack visual cues as they do not contain colors and most texture information. So translating a sketch to photo involves changes in two aspects, shape and color. However, existing image-to-image translation methods mostly focus on one of them. Works like

[Isola et al.2017, Zhu et al.2017] have shown impressive performance in style transfer or object transfiguration among photo images. Works like [Isola et al.2017, Zhu et al.2017, Huang et al.2018] can derive high-quality photo images from edge maps. Nevertheless, edge maps do not have the shape deformation problem as they are extracted from photos. The most relevant work is [Chen and Hays2018]. It focuses on synthesizing natural photos of multiple classes based on sketches. Unfortunately, the quality of synthesized photos is far from satisfactory, and the method relies on paired sketch/photo images and class labels.

In this work, we propose a sketch-to-photo translation model which, for the first time, can synthesize photos according to sketches without paired data. The key idea of our approach lies in disentangling shape and color translation, allowing the model to handle the task step by step. Specifically, given a sketch, the model first translates it to a grayscale photo, resolving shape distortion problem; then the generated grayscale photo is enriched with other visual information like colors. This idea is verified to be surprisingly effective. In addition, during shape translation, we notice that specific drawing styles have a significant impact on generated results, sometimes even leading to failed translations. For this problem, we adopt a data augmentation strategy and integrate an attention module into our model. To be specific, different from previous works which use attention module to emphasize particular regions in the original image, our proposed model is guided by the learned attention mask to ignore (or pay less attention to) distracted regions. Furthermore, we apply a conditional module in color translation step, aiming to give users more control over final synthesized photos.

We focus on single-category generation and choose shoe class for our task. Shoes is a representative fashion class; therefore, it has been used in many computer vision tasks, and there exists many shoes datasets [Yu et al.2016, Parikh and Grauman2011]. Note that our model does not rely on sketch/photo pairs during training. Thus any sketch datasets containing shoe class can be used for our task.

In summary, our contribution is four-fold: 1. to our best knowledge, it is the first unsupervised sketch-to-photo translation model which can derive a photo from a human free-hand sketch; 2. we propose a simple but effective approach to tackle this task, where the key idea is decomposing the SBIS task into a sequential translations of shape and color; 3. We also introduce two data augmentation strategies and re-purpose an attention module to handle drawing style problem; 4. as a side benefit, the proposed model can also synthesize realistic sketches. Extensive experiments show the superiority of our approach against other baselines; we also demonstrate how the generated photos and sketches can benefit other sketch-related applications.

2  Related Works

Sketch-based Image Synthesis

 In recent years, sketches have attracted increasing attention from the computer vision community. Thanks to machine learning, especially deep learning, people have achieved compelling progress in various sketch-related tasks, such as sketch recognition

[Eitz, Hays, and Alexa2012, Yu et al.2015, Yu et al.2017] and sketch-based image retrieval [Eitz et al.2011, Hu, Barnard, and Collomosse2010, Li et al.2014, Yu et al.2016, Sangkloy et al.2016, Liu et al.2017]. However, sketch-based image synthesis is still underexplored. Before the popularization of deep learning, Sketch2Photo [Chen et al.2009] and PhotoSketcher [Eitz et al.2011] synthesize a photo image by composing objects of photos which are retrieved based on a given sketch. In recent image editing works [Bau et al.2019, Portenier et al.2018, Sangkloy et al.2017, Yu et al.2018], sketch is used to edit on a photo image. The most relevant work is sketchyGAN, which is the first deep-learning-based image synthesis work based on the free-hand sketch. It uses an encoder-decoder structure. During training, it requires paired sketch and photo images.

Beyond synthesizing a photo image based on a sketch, people have also investigated the inverse task of generating a sketch from a photo, like [Pang et al.2018, Song et al.2018]. In this work, our proposed model shows the capability of translating between sketches and photos in both directions.

Generative Adversarial Networks (GANs)  The GAN model [Goodfellow et al.2014] has achieved impressive performance on various image generation[Mirza and Osindero2014, Karras et al.2017] and translation[Isola et al.2017, Huang et al.2018] tasks. The key of this model lies in the adversarial training between generator and discriminator. Each GAN model has a generator and a discriminator; the goal of the generator is to fool the discriminator by generating data indistinguishable from the real data, while the discriminator is trained to distinguish between real and fake data. In this work, we employ a GAN model to map an image from sketch domain to photo domain.

Image-to-Image Translation  With the popularization of GAN models, image-to-image translation task has been widely explored in recent years. In Pix2Pix [Isola et al.2017], a conditional GAN model is adopted to learn a mapping function from the source domain to the target. As a limitation, it requires paired data during training. To overcome this shortcoming, the cycleGAN model proposes a cycle consistency loss, allowing the model to get rid of the dependency on paired data. Based on the idea of cycle consistency, several models are proposed for the task of unpaired image-to-image translation, such as UNIT[Huang et al.2018] and MUNIT[Huang et al.2018]. While these methods achieve impressive results, they are limited to the scenarios where the source and target data are well-aligned. In our case, a sketch image and a photo image are misaligned in shape and are also different in color distribution. We take the models mentioned above (i.e., Pix2Pix, cycleGAN, UNIT, and MUNIT) as baselines and show their performance in our task.

Besides, we also include a recent model UGATIT [Kim et al.2019] as a baseline since it employs an attention module to emphasize domain-discriminative regions and intensively translate such regions. Similarly, the proposed model also has an attention module, but it serves the opposite goal. We will detail this in Section 3.2.

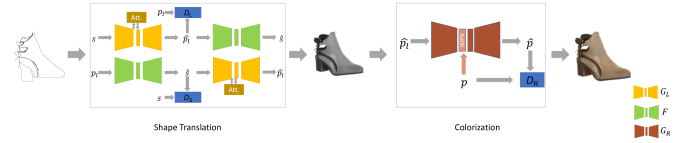

Figure 1: Our two step based sketch-to-photo translation model architecture.

3  Our Approach

Our goal is to learn mapping functions between two domains and , i.e., sketches and RGB photos, given training samples where and where , assuming no existence of paired images. Mapping a sketch to a photo image involves changes in two aspects: shape and color; therefore, the proposed model consists of two sub-networks, each tackling the translation in one aspect. We explain the architecture of the model in Section 3.1. In Section 3.2, we discuss the strategies proposed to handle a problem encountered in shape translation, namely that the basic shape translation network may fail when an input sketch exhibits specific drawing styles. Thus, we improve the model by integrating an attention module and introducing two data augmentation strategies.

3.1  Disentangle Shape and Color Translation

3.1.1  Shape Translation

Shape translation is to translate a sketch image to a grayscale image whose shape is faithful to a real object. The key to this step is removing the factor of color and forcing the network to focus on shape. Given a sketch image and a photo image , we first convert from RGB color space to Lab space and obtain its grayscale version , and then learn mapping functions between and . Our shape translation network is developed based on CycleGAN [Zhu et al.2017]. It learns two mapping functions, and , and two domain discriminators and . The discriminator aims to distinguish between and , while aims to distinguish between and . The output of this step, , will be fed into the color translation network for further processing.

3.1.2  Colorization

Next, the proposed colorization network will map the generated grayscale image to RGB photo domain. We first introduce a basic version to synthesize photos as real as possible and then explain an improved version which targets for generating images with more diversity.

Basic Network  The basic colorization network adopts an encoder-decoder structure. We modify the network by adding an adversarial loss. A mapping function will be learned in this step. Specifically, given an input image , the model needs to output an image satisfying the following conditions: it should be (1) indistinguishable with a real photo , and (2) as similar as possible to the input image in the Lab color space. A discriminator is learned to distinguish between a fake image and a real image .

Improved Network  For a specific grayscale image, there are many colorization options. To make use of this flexibility, we treat the colorization task as a style transfer problem. It has been verified in [Huang and Belongie2017] that the style of an image can be modified by changing the channel-wise statistics of its feature maps. Therefore, we keep the same structure of our basic model and modify it to accept a reference image based on which the output is generated. In this improved version, the generated grayscale image serves as a content image, and the reference image as a style image. Following the Eq. 1

, the mean and variance of the content image

will be adjusted to match those of .

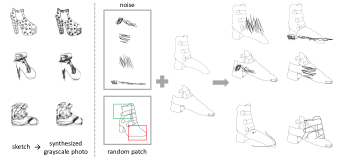

Figure 2: Left: failed examples. The first column shows the input sketches, the second column lists the generated grayscale photos. Right: examples of noise stroke masks and random patches, and input sketches with data augmentation.

3.1.3  Model Training

During training, the shape translation network and colorization network are trained one by one. Similar to [Zhu et al.2017], our full training objective of our shape translation network is,


where the three terms are adversarial loss, reconstruction loss, and identity loss as follows (here we list the loss for S → PL only),


When training the colorization network, apart from the adversarial loss and reconstruction loss, a style loss is used to facilitate training and improve generation quality. For the improved network, the style loss is replaced with a perceptual loss

. Therefore, an additional loss function of step 2 is


where the reconstruction loss and the perceptual style loss is shown below. and is encoder and decoder of , and . denotes a layer of a pre-trained model, e.g., VGG19


3.2  Deal with Drawing Style Problem

Due to their free-hand nature, sketches could show different drawing styles. Although the shape translation network proposed in Section 3.1 can successfully translate sketch images in most cases, we noticed that it might fail to translate sketches with specific drawing styles. As shown in Fig.2, the network directly ‘copy’ the input as an output or modify it slightly. We can see these failure cases share a common characteristic that they contain dense and irregular strokes (we name such sketches as complex sketch). We presume that the network confuses a complex sketch with a grayscale image due to the dense strokes, thus doing little work on the input.

Motivated by our observation, we tackle this problem by introducing two data augmentation strategies and incorporating an attention module. We will explain the details next and demonstrate their effectiveness in Section 4.2.2.

Data Augmentation  From the data point of view, increasing the diversity of training data allows the model to ‘see’ more possibilities. As a result, the model can be more robust when dealing with drawing style variations. Therefore, we synthesize complex sketches by randomly applying noise strokes on original sketches (as indicated in Fig.2). The noise stroke masks are obtained from training samples333The original dataset provides data in SVG format, so we can manually extract particular stroke(s).. We formed a noise set consisting of 42 stroke noise masks. They will be randomly sampled and applied to the input sketch during training.

The second data augmentation strategy shares a similar idea with the first one but generalizes to broader cases. Mainly, when feeding a sketch image into the network, a random patch is extracted from another sketch and then applied on it to form a new one. Note that the reconstruction loss is computed between the reconstructed and the original sketch. Therefore, our model is trained to ignore the distracting noise and extract useful information from a composed sketch.

Re-purposed Attention Module  As explained before, complex sketches with dense strokes may confuse the network and lead to a failed translation. Hence, activation of such regions should be suppressed. We introduce an attention module and use it as a detector to locate the dense stroke region(s). During training, the attention module will generate an attention mask , then this mask is used to re-weight the feature map. Different from existing works, we compute the final feature map as . In our implementation, the attention module consists of two convolutional layers and is inserted after the final down-sampling layer of the encoder.

Figure 3: Comparison of the results generated by different methods. Upper: sketch to photo. Bottom: photo to sketch. From the left to right: input sketch/photo images, ours, Pix2Pix, cycleGAN, UNIT, MUNIT, UGATIT trained on ShoeV2 dataset.
Model FID Quality Diversity
Pix2Pix 65.09 40.0 0.071
CycleGAN 74.60 27.15 0
UNIT 117.34 26.67 0
MUNIT 98.67 20.94 0.246
UGATIT 76.37 34.30 0.116
Ours (w/o ref.) 50.56 50.0 0
Ours (with ref.) - - 0.180
Table 1: Qualitative comparison on ShoeV2 dataset. ‘’ represents using paired data during training.
Figure 4: Generated photos with different reference images as condition.
Figure 5: Effects of attention module and data augmentation strategies. Our attention module successfully highlights the dense and complex part of the input sketch.

4  Experiments

4.1  Implementation

Dataset  We use the ShoeV2 dataset [Yu et al.2016] for training and evaluation. It contains 6,648 sketches and 2,000 photos, and each photo has three or more corresponding sketches drawn by different individuals. Note that although paired data are available, we do not use them during training. Compared with other existing sketch datasets, like QuickDraw [Ha and Eck2017], Sketchy [Sangkloy et al.2016], and TU-Berlin [Eitz, Hays, and Alexa2012], this dataset not only contains both sketch and photo images, but its sketches include sufficient fine-grained details. That means the synthesized photos should reflect these details, which is a more challenging setting than synthesizing photos from coarser sketches. We use 5982/1800 sketch/photo images for training, while the rest are used for testing.

Baselines  We choose several image-to-image translation models as baselines and provide quantitative and qualitative comparisons in Section 4.2.

  • CycleGAN CycleGAN [Zhu et al.2017] is a bidirectional unsupervised image-to-image translation model. In our approach, it serves the primary network for shape translation (as explained in Section 3.1). We take it as a baseline by training it to translate a sketch to an RGB photo image directly.

  • UNIT The UNIT [Liu, Breuel, and Kautz2017] model consists of two VAE-GANs with a shared latent space. Different from cycleGAN, it uses a multi-scale discriminator and shares the weights of high-level layers between two encoders and decoders respectively.

  • MUNIT MUNIT [Huang et al.2018] is an unsupervised model which can generate multiple outputs given an input image. It assumes that the image representation can be decomposed into a content code and a style code. Our approach shares a similar idea with MUNIT model. However, our disentangle strategy is proposed considering the unique characteristics of sketches, thus is more specific and suitable for sketch-to-photo translation task.

  • UGATIT UGATIT [Kim et al.2019] is a model incorporating an attention module and a learnable normalization function. The attention module is designed to help the model focus on the domain-discriminative regions which distinguish the source and target domain, such that the generated results quality can be improved.

  • Pix2Pix Pix2Pix [Isola et al.2017] is a directional generative model which requires paired images of two domains during training. We include this model as a baseline as we want to see how is the performance when paired data are used during training.

Training Details

 We train our shape translation network for 700 epochs and colorization network for 200 epochs. The initial learning rate is set to be 0.0002, and the input image size is 128*128. We use Adam optimizer with a batch size of 1. Following the practice suggested in cycleGAN, we train the first 100 epochs at the same learning rate and then linearly decrease the rate to zero until the maximum epoch. For data augmentation, we add noise stroke masks and random patches to the input sketches at the rate of 20% and 30% respectively. The random patch size is 50*50.

We train the baseline models with their default settings. During our experiments, we find that cycleGAN is very sensitive to the initialization and easy to collapse. Thus we train the model six444Among the six trials, this model collapsed within 150 epochs for five times while only one time it can be trained over 150 epochs without collapse. times and report its average performance.

Evaluation Metrics  We use three metrics to evaluate the performance of the proposed approach and baselines: user study, FID, and LPIPS distance.

  • Human Preference We perform a human perceptual study to evaluate the similarity and realism of results produced by different methods. As introduced in the beginning, a human can picture the real appearance of an object represented by a sketch. So we can evaluate which method can generate photos that are more consistent with the human imagination. Thus we adopt the approach introduced in [Wang et al.2018]. For each comparison, an input sketch and its corresponding generated photos from two methods (one is the proposed method, and the other is a baseline method) are shown to a user at the same time, and then the user needs to choose which one is closer to his/her expectation. We sample 200 pairs for each comparison and ask five individuals to answer each question.

  • Fréchet Inception Distance Fréchet Inception Distance measures the distance between generated samples and real samples by their statistics of activation distributions in a pre-trained Inception-v3 pool3 layer. It could evaluate quality and the diversity simultaneously. Lower FID value indicates more similar generated and real samples.

  • Learned Perceptual Image Patch Similarity LPIPS evaluates the distance between two images. Similar to [Huang et al.2018] and [Zhu et al.2017], we utilize this metric to evaluate the diversity of the outputs generated by different methods.

4.2  Results

4.2.1  Experimental Results

Quantitative Results  Table 1 compares the quantitative results of our model with baseline models. We can have the following observations: (1) the proposed model achieves the best results among all methods in FID and user study. Compared with baselines, the proposed model can produce photos with higher fidelity, reflecting the fine-grained details indicated in original sketches; additionally, they are more aligned with human perception. (2) Comparing with CycleGAN, our model performs more stably and can generate results with more diversity. Also, it outperforms MUNIT by a large margin, demonstrating the superiority of our disentanglement strategy.

Qualitative Results  Figure 3 compares the outputs generated by different methods. Aligned with quantitative results showed in Table 2, our proposed model significantly outperforms other baselines. Precisely, our model can generate not only realistic photos but also high-quality sketches. Apart from being realistic, the generated photos of our method can keep the fine-grained details indicated in input sketches. In contrast, outputs of the baseline models fail to keep such details.

Qualitative Results with Conditions  In Fig. 4, we show examples of the generated results when reference images are available. The first and second column displays the input sketches and the synthesized grayscale images after shape translation; the first row shows four reference images. It is clear to see that our improved colorization network can translate a sketch to various RGB photos with different images as guidance. In addition, considering the styles present in the training set is limited, and there is a correlation between shoe style and colors/textures, the synthesized results may become unrealistic when the color/texture of the reference image is not typical.

4.2.2  Deal with Complex Sketch

In Section 3.2, we discuss the problem encountered during shape translation and further introduce two data augmentation strategies and an attention module to handle the problem. In Fig. 5, we display three examples. Each of them has compact strokes which we presume may cause translation failure of the basic shape translation network. We compare the translation results of the two variants, i.e., basic and improved version. The last column shows the attention mask learned by the newly introduced attention module. It is clear to see that after applying the data augmentation strategies and incorporating the attention module, our final shape translation network can handle complex sketches better.

It would be useful for us to understand why the basic model fails to translate complex sketches. Inspired from [Zhou et al.2016]

, we train an auxiliary domain classifier and obtain Class Activation Maps (CAM) for analysis. To be specific, given the basic shape translation network, a binary classifier is added after the last downsampling layer. The classifier consists of two fully-connected layers, and its gradients do not back-propagate to the generator during training. We visualize domain-specific CAM of three examples: a typical sketch, a

complex sketch, and a grayscale photo. Through comparing their CAM images in Fig. 7, we can see that the CAM_sketch and CAM_photo of a complex sketch are similar, and the background of CAM_photo of the complex sketch is more activated than that of the normal sketch. This observation verifies our assumption that it is these compact strokes that confuse the generator and lead to translation failure.

Figure 6: Generated photos based on sketches from different datasets.

4.2.3  Test on sketches from other datasets

To measure the generalization ability of the trained model, we test it on sketches from other datasets. Compared with sketches in ShoeV2 dataset, shoe sketches in Sketchy and TU-Berlin are coarser than ShoeV2 due to different data collection pipelines. We directly test our trained model on sketches randomly sampled from these two datasets. The results are shown in Fig. 6.

4.3  Application: Sketch-based Image Retrieval

As a side benefit, the proposed model can generate realistic sketches. To the best of our knowledge, it is the first model which can handle photo and sketch generation at the same time. Because sketch-generation is not the focus of this work, we did not compare them with other existing works.

Here we demonstrate how generated photos or sketches can further benefit sketch-based image retrieval (SBIR). In SBIR, a sketch image is used as a query to search for photos which represent same or similar contents. The biggest challenge of this task lies in the large domain gap. We assume that translating the query and gallery to the same domain should help. Therefore, we do two experiments: (1)translate a sketch to a photo and then find its nearest neighbour(s) in the gallery; (2) translate gallery photos to sketches, and then find the nearest sketches for the query sketch. We use an ImageNet pre-trained ResNet18 as a feature extractor for photo-to-photo retrieval; while we further fine-tune this network on TU-Berlin dataset and use it to extract features from (synthesized) sketches.

Figure 8 shows the retrieval results. It is clear to see that even without using any supervision, the retrieved results are still acceptable. In the second experiment, we achieve the accuracy of 37.2%/65.2% at top5/top20 respectively. These results are higher than the results of sketch to edge map, which are 34.5%/57.7%.

Figure 7: Examples of CAM visualizations.
Figure 8: Examples of retrieval results using generated photo and sketch. Top: using the generated photo as a proxy of the query sketch for retrieval, i.e., fake photo real photo; Bottom: using the generated sketches as proxy of candidate photos for retrieval, i.e., real sketch fake sketch.


In this work, we focus on the task of sketch-to-photo image translation. For the first time, an unsupervised model is proposed for this task, which can generate photos with high-fidelity and diversity. The key idea of our proposed method is disentangling the task into shape and color translation. This is motivated by the fact that sketches are generally sparse in visual cues and often exhibit deformation. In the future, we will further investigate the reason(s) why the generative model fails to translate some sketches. As the first step, we introduced an attention module which processes all sketches. However, it is expected to distinguish complex sketches with normal ones, and use different strategies to process them. Beyond the single-class setting, we will explore the multi-class setting in our future work.
