1 Introduction

Self-describing semi-structured data formats like JSON have become the de facto format for storing and sharing information as developers moving away from the rigidity of schemas in the relational model. Consequently, NoSQL Database Management Systems (DBMSs) have emerged as popular solutions for storing, indexing, and querying self-describing semi-structured data. In document store systems such as MongoDB [mongodb] and Couchbase [couchbase], users are not required to define a schema before loading or ingesting their data since each data instance is self-describing (i.e., each record embeds metadata that describes its structure and values). The flexibility of the self-describing data model provided by NoSQL systems attracts applications where the schema can change in the future by adding, removing, or even changing the type of one or more values without taking the system offline or slowing down the running queries.

The flexibility provided in document store systems over the rigidity of the schemas in Relational Database Management Systems (RDBMSs) does not come without a cost. For instance, storing a boolean value for a field named hasChildren, which takes roughly one byte to store in an RDBMS, can take a NoSQL DBMS an order of magnitude more bytes to store. Defining a schema prior to ingesting the data can alleviate the storage overhead, as the schema is then stored in the system’s catalog and not in each record. However, defining a schema defies the purpose of schema-less DBMSs, which allow adding, removing or changing the types of the fields without manually altering the schema [asterix-overview-vldb2015, asterixdb-midflight]. From a user perspective, declaring a schema requires thorough a priori understanding of the dataset’s fields and their types.

Let us consider a scenario where a data scientist wants to ingest and analyze a large volume of semi-structured data from a new external data source without prior knowledge of its structure. Our data scientist starts by acquiring a few instances from the data source and tries to analyze their structures; she then builds a schema according to the acquired sample. After ingesting a few data instances, our data scientist discovers that some fields can have more than one type, which was not captured in her initial sample. As a result, she stops the ingestion process, alters the schema to accommodate the irregularities in the types of those fields, and then reinitiates the data ingestion process. In this case, our data scientist has to continuously monitor the system and alter the schema if necessary, which may result in taking the system offline or stopping the ingestion of new records. Having an automated mechanism to infer and consolidate the schema information for the ingested records without losing the flexibility and the experience of schema-less stores would clearly be desirable.

In this work, we address the problem of the storage overhead in document stores by introducing a framework that infers and compacts the schema information for semi-structured data during the ingestion process. Our design utilizes the lifecycle events of Log Structured Merge (LSM) tree [lsm] based storage engines, which are used in many prominent document store systems [couchbase, mongodb] including Apache AsterixDB [storage]. In LSM-backed engines, records are first accumulated in memory (LSM in-memory component) and then subsequently written sequentially to disk (flush operation) in a single batch (LSM on-disk component). Our framework takes the opportunity provided by LSM flush operations to extract and strip the metadata from each record and construct a schema for each flushed LSM component. We have implemented and empirically evaluated our framework to measure its impact on the storage overhead, data ingestion rate and query performance in the context of AsterixDB. Our main contributions could be summarized as follows:

  • We propose a mechanism that utilizes the LSM workflow to infer and compact the schema for NoSQL systems records during flush operations. Moreover, we detail the steps required for distributed query processing using the inferred schema.

  • We introduce a non-recursive physical data layout that separates data values from their metadata, which allows us to infer and compact the schema efficiently for nested data.

  • We introduce page-level compression in AsterixDB. This is a similar solution to these adopted by other NoSQL DBMSs to reduce the storage overhead of self-describing records.

  • We evaluate the feasibility of our design, prototyped using AsterixDB, to ingest and query a variety of large semi-structured datasets. We compare our “semantic” approach of reducing the storage overhead to the “syntactic” approach of compression.

The remainder of this paper is structured as follows: Section 2.1 provides a preliminary review of the AsterixDB architecture and our implementation for page-level compression. Section 3.1 details the design and implementation of our tuple compaction framework in AsterixDB. Section 4 presents an experimental evaluation of the proposed framework. Section 5 discusses related work on utilizing the LSM lifecycle and on schema inference for semi-structured data. Finally, Section 6 presents our conclusions and discusses potential future directions for our work.

2 Apache AsterixDB Overview

In this paper, we use Apache AsterixDB to prototype our tuple compactor framework. AsterixDB is a parallel semi-structured Big Data Management System (BDMS) which runs on large, shared-nothing, commodity computing clusters. To prepare the reader, we give a brief overview of AsterixDB [asterix-overview-vldb2015, asterixdb-midflight] and its query execution engine Hyracks [hyracks]. Finally, we present our design and implementation of page-level compression in AsterixDB.

2.1 User Model

The AsterixDB Data Model (ADM) extends the JSON data model to include types such as temporal and spatial types as well as data modeling constructs (e.g., bag or multiset). Defining an ADM datatype (akin to a schema in an RDBMS) that describes at least the primary key(s) is required to create a dataset (akin to a table in an RDBMS).

There are two options when defining a datatype in AsterixDB: open and closed. Figure 1 shows an example of defining a dataset of employee information. In this example, we first define DependentType, which declares two fields name and age of types string and int, respectively. Then, we define EmployeeType, which declares id, name and dependents of types int, string and a multiset of DependentType, respectively. The symbol “” indicates that a field is optional. Note that we defined the type EmployeeType as open, where data instances of this type can have additional undeclared fields. On the other hand, we define the DependentType as closed, where data instances can only have declared fields. In both the open and closed datatypes, AsterixDB does not permit data instances that do not have values for the specified non-optional fields. Finally, in this example, we create a dataset Employee of the type EmployeeType and specify its id field as the primary key.

CREATE TYPE DependentType
AS CLOSED {
   name: string,
   age: int
};
CREATE TYPE EmployeeType
AS OPEN {
   id: int,
   name: string,
   dependents:{{DependentType}}?
};
CREATE DATASET Employee(EmployeeType) PRIMARY KEY id;
Figure 1: Defining Employee type and dataset in ADM

To query the data stored in AsterixDB, users can submit their queries written in SQL++ [sql++_book, sql++], a SQL-inspired declarative query language for semi-structured data. Figure 2 shows an example of a SQL++ aggregate query posed against the dataset declared in Figure 1.

SELECT VALUE nameGroup FROM Employee AS emp
GROUP BY emp.name GROUP AS nameGroup
Figure 2: An example of a SQL++ query

2.2 Storage and Data Ingestion

In an AsterixDB cluster, each worker node (Node Controller, or NC for short) is controlled by a Cluster Controller (CC) that manages the cluster’s topology and performs routine checks on the NCs. Figure 3 shows an AsterixDB cluster of three NCs, each of which has two data partitions that hold data on two separate storage devices. Data partitions in the same NC (e.g., Partition 0 and Partition 1 in NC0) share the same buffer cache and memory budget for LSM in-memory components; however, each partition manages the data stored in its storage device independently. In this example, NC0 also acts as a metadata node, which stores and provides access to AsterixDB metadata such as the defined datatypes and datasets.

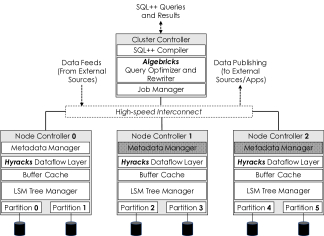

Figure 3: Apache AsterixDB cluster configured with two partitions in each of the three NCs

AsterixDB stores the records of its datasets, spread across the data partitions in all NCs, in primary LSM B-tree indexes. During data ingestion, each new record is hash-partitioned using the primary key(s) into one of the configured partitions (Partition 0 to Partition 5 in Figure 3) and inserted into the dataset’s LSM in-memory component. AsterixDB implements a no-steal/no-force buffer management policy with write-ahead-logging (WAL) to ensure the durability and atomicity of ingested data. When the in-memory component is full and cannot accommodate new records, the LSM Tree Manager (called the “tree manager” hereafter) schedules a flush operation. Once the flush operation is triggered, the tree manager writes the in-memory component’s records into a new LSM on-disk component on the partition’s storage device, Figure 3(a). On-disk components during their flush operation are considered INVALID components. Once it is completed, the tree manager marks the flushed component as VALID by setting a validity bit in the component’s metadata page. After this point, the tree manager can safely delete the logs for the flushed component. During crash recovery, any disk component with an unset validity bit is considered invalid and removed. The recovery manager can then replay the logs to restore the state of the in-memory component before the crash.

Once flushed, LSM on-disk components are immutable and, hence, updates and deletes are handled by inserting new entries. A delete operation adds an ”anti-matter” entry [storage] to indicate that a record with a specified key has been deleted. An upsert is simply a delete followed by an insert with the same key. For example, in Figure 3(a), we delete the record with . Since the target record is stored in , we insert an ”anti-matter” entry to indicate that the record with is deleted. As on-disk components accumulate, the tree manager periodically merges them into larger components according to a merge policy [storage, luo2019efficient] that determines when and what to merge. Deleted and updated records are garbage-collected during the merge operation. In Figure 3(b), after merging and into , we do not write the record with as the record and the anti-matter entry annihilate each other. As in the flush operation, on-disk components created by a merge operation are considered INVALID until their operation is completed. After completing the merge, older on-disk components ( and ) can be safely deleted.

On-disk components in AsterixDB are identified by their component IDs, where flushed components have monotonically increasing component IDs (e.g., and ) and merged components have components IDs that represent the range of component IDs that were merged (e.g., ). AsterixDB infers the recency ordering of components by inspecting the component ID, which can be useful for maintenance [luo2019efficient]. In this work, we explain how to use this property later in Section 3.2.

Datasets’ records (of both open and closed types) in the LSM primary index are stored in a binary-encoded physical ADM format [asterixdb-serialization]. Records of open types that have undeclared fields are self-describing, i.e., the records contain additional information about the undeclared fields such as their types and their names. For our example in Figure 4, AsterixDB stores the information about the field age as it is not declared. For declared fields (id and name in this example), their type and name information are stored separately in the metadata node (NC0).

(a)
(b)
Figure 4: (a) Flushing component (b) Merging the two components and into a new component

2.3 Runtime Engine and Query Execution

To run a query, the user submits an SQL++ query to the CC, which optimizes and compiles it into a Hyracks job. Next, the CC distributes the compiled Hyracks job to the query executors in all partitions where each executor runs the submitted job in parallel 111The default number of query executors is equal to the number of data partitions in AsterixDB..

Hyracks jobs consist of operators and connectors, where data flows between operators over connectors as a batch of records (or a frame of records in Hyracks terminology). Figure 5 depicts the compiled Hyracks job for the query in Figure 2. As shown in Figure 5, records can flow within an executor’s operators through Local-Exchange connectors or they can be repartitioned or broadcast to other executors’ operators through non-local exchange connectors such as the Hash-Partition-Exchange connector in this example.

Operators in a Hyracks job process the ADM records in a received frame using AsterixDB-provided functions. For instance, a field access expression in a SQL++ query is translated into AsterixDB’s internal function . AsterixDB’s compiler Algebricks [algebricks] may rewrite the translated function when necessary. As an example, the field access expression e.name in the query shown in Figure 2 is first translated into a function call where the argument is a record and “name” is the name of the requested field. Since name is a declared field, Algebricks can rewrite the field access function to where the second argument 1 corresponds to the field’s index in the schema provided by the Metadata Node.

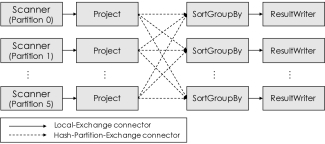

Figure 5: A compiled Hyracks job for the query in Figure 2

2.4 Page-level Compression

As shown in Figure 4, the information of the undeclared field age is stored within each record. This could incur an unnecessary higher storage overhead if all or most records of the Employee dataset have the same undeclared field, as records store redundant information. MongoDB and Couchbase have introduced compression to reduce the impact of storing redundant information in self-describing records. In AsterixDB, we introduce page-level compression, which compresses leaf pages of the B-tree of the primary index.

AsterixDB’s new page-level compression is designed to operate at the buffer-cache level. On write, pages are compressed and then persisted to disk. On read, pages are decompressed to their original configured fixed-size and stored in memory in AsterixDB’s buffer cache. Compressed pages can be of any arbitrary size. However, the AsterixDB storage engine was initially designed to work with fixed-size data pages where the size is a configurable parameter. Larger data pages can be stored as multiple fixed-size pages, but there is no mechanism to store smaller compressed pages. Any proposed solution to support variable-size pages must not change the current storage physical layout of AsterixDB.

Figure 6: Compressed file with its Look-Aside File (LAF)

To address this issue, we use Look-aside Files (LAFs) to store offset-length entry pairs for the stored compressed data pages. When a page is compressed, we store both the page’s offset and its length in the LAF before writing it to disk. Figure 6 shows a data file consists of compressed pages and its corresponding LAF. The number of entries in the LAF equals the number of pages in the data file, where each entry (e.g., ) stores the size and the offset of its corresponding compressed data page (e.g., ). LAF entries can occupy more than one page, depending on the number of pages in the data file. Therefore, to access a data page, we need first to read the LAF page that contains the required data page’s size and offset and then use them to access the compressed data page. This may require AsterixDB to perform an extra IO operation to read a data page. However, the number of LAF pages is usually small due to the fact that the entry size is small (12-bytes in our implementation). For instance, a 128KB LAF page can store up to 10,922 entries. Thus, LAF pages can be easily cached and read multiple times.

In addition to this “syntactic” approach based on compression, the next section introduces a “semantic” approach to reducing the storage overhead by inferring and stripping the schema out of self-describing records in AsterixDB. In Section 4, we evaluate both approaches (syntactic and semantic) when they are applied separately and when they are combined and show their impact on storage size, data ingestion rate, and query performance.

3 LSM-based Schema Inference and Tuple Compaction Framework

The flexibility of schema-less NoSQL systems attracts applications where the schema can change without declaring those changes. However, this flexibility is not free. In the context of AsterixDB, Pirzadeh et al. [bigFUN] explored query execution performance when all the fields are declared (closed type) and when they are left undeclared (open type). One conclusion from their findings, summarized in Figure 7, is that queries with non-selective predicates (using secondary indexes) and scan queries took twice as much time to execute against open type records compared to closed type records due to their storage overhead.

(a) On-disk storage size
(b) Query execution time
Figure 7: Summary of the findings in [bigFUN]

In this section, we present a tuple compactor framework (called the “tuple compactor” hereafter) that addresses the storage overhead of storing self-describing semi-structured records in the context of AsterixDB. The tuple compactor automatically infers the schema of such records and stores them in a compacted form without sacrificing the user experience of schema-less document stores. Throughout this section, we run an example of ingesting and querying data in the dataset declared as shown in Figure 8. The Employee dataset here is declared with a configuration parameter — {"tuple-compactor-enabled”: true} — which enables the tuple compactor.

  CREATE TYPE EmployeeType AS OPEN { id: int };
  CREATE DATASET Employee(EmployeeType)
  PRIMARY KEY id WITH {"tuple-compactor-enabled”: true};
Figure 8: Enabling the tuple compactor for a dataset

We present our implementation of the tuple compactor by first showing the workflow of inferring schema and compacting records during data ingestion and the implications of crash recovery in Section 3.1. In Section 3.2, we show the structure of an inferred schema and a way of maintaining it on update and delete operations. Then, in Section 3.3, we introduce a physical format for self-describing records that is optimized for the tuple compactor operations (schema inference and record compaction). Finally, in Section 3.4, we address the challenges of querying compacted records stored in distributed partitions of an AsterixDB cluster.

3.1 Tuple Compactor Workflow

We first discuss the tuple compactor workflow during normal operation of data ingestion and during crash recovery.

3.1.1 Data Ingestion

When creating the dataset (shown in Figure 8) in the AsterixDB cluster illustrated in Figure 3, each partition in every NC starts with an empty dataset and an empty schema. During data ingestion, newly incoming records are hash-partitioned on the primary keys ( in our example) across all the configured partitions (Partition 0 to Partition 5 in our example). Each partition inserts the received records into the dataset’s in-memory component until it cannot hold any new record. Then, the tree manager schedules a flush operation on the full in-memory component. During the flush operation, the tuple compactor, as shown in the example in Figure 8(a), factors the schema information out of each record and builds a traversable in-memory structure that holds the schema (described in Section 3.2). At the same time, the flushed records are written into the on-disk component in a compacted form where their schema information (such as field names) are stripped out and stored in the schema structure. After inserting the last record into the on-disk component , the inferred schema in our example describes two fields and with their associated types denoted as pairs. Note that we do not store the schema information of any explicitly declared fields (field in this example) as they are stored in the Metadata Node (Section 2.2). At the end of the flush operation, the component’s inferred in-memory schema is persisted in the component’s Metadata Page before setting the component as (Section 2.2). Once persisted, on-disk schemas are immutable.

(a)
(b)
(c)
Figure 9: (a) Flushing the first component (b) Flushing the second component (c) Merging the two components and into the new component

As more records are ingested by the system, new fields may appear or fields may change, and the newly inferred schema has to incorporate the new changes. The newly inferred schema will be a super-set (or union) of all the previously inferred schemas. To illustrate, during the second flush of the in-memory component to the on-disk component in Figure 8(b), the records of the new in-memory component, with id 2 and 3, have their age values as missing and string, respectively. As a result, the tuple compactor changes the type of the inferred age field in the in-memory schema from to , which describes the records’ fields for both components and . Finally, persists the latest in-memory schema into its metadata page.

Given that the newest schema is always a super-set of the previous schemas, during a merge operation, we only need to store the most recent schema of all the mergeable components as it covers the fields of all the previously flushed components. For instance, Figure 8(c) shows that the resulting on-disk component of the merged components and needs only to store the schema as it is the most recent schema of . Note that the merge operation does not need to access the in-memory schema and, hence, merge and flush operations can be performed concurrently without synchronization.

We chose to ignore compacting records of the in-memory component because (i) the in-memory component size is relatively small compared to the total size of the on-disk components, so any storage savings will be negligible, and (ii) maintaining the schema for in-memory component, which permits concurrent modifications (inserts, deletes and updates), would complicate the tuple compactor’s workflow and slow down the ingestion rate.

3.1.2 Crash Recovery Implications

Apache AsterixDB’s LSM-based engine guarantees that (i) records of in-memory components during the flush operation are immutable and (ii) flush operations of in-memory components are atomic (no half-flushed components are allowed). Those guarantees make the flush operation suitable for applying transformations on the flushed records before writing them to disk. The tuple compactor takes this opportunity to infer the schema during the flush operation as (i) guarantees that records cannot be modified. At the same time, the tuple compactor transforms the flushed records into a compacted form and ensures that the compaction process is guaranteed to be atomic as in (ii).

Now, let us consider the case where a system crash occurs during the second flush shown in Figure 8(b). When the system restarts, the recovery manager will start by activating the dataset and then inspecting the validity of the on-disk components by checking their validity bits. The recovery manager will discover that is not valid and remove it. As is the “newest” valid flushed component, the recovery manager will read and load the schema into memory. Then, the recovery manager will replay the log records to restore the state of the in-memory component before the crash. Finally, the recovery manager will flush the restored in-memory component to disk as , during which time the tuple compactor operates normally.

3.2 Schema Structure

Previously, we showed the flow of inferring the schema and compacting the tuples during data ingestion. In this section, we focus on the inferred schema and present its structure. We also address the issue of maintaining the schema in case of delete and update operations, which may result in removing inferred fields or changing their types.

3.2.1 Schema Structure Components

Semi-structured records in document store systems are represented as a tree where the inner nodes of the tree represent nested values (e.g., JSON objects or arrays) and the leaf nodes represent scalar values (e.g., strings). ADM records in AsterixDB also are represented similarly. Let us consider the example where the tuple compactor first receives the ADM record shown in Figure 9(a) during a flush operation followed by five other records that have the structure {"id”: int, "name”: string}. The tuple compactor traverses the six records and constructs: (i) a tree-structure that summarizes the records structure, shown in Figure 9(b), and (ii) a dictionary that encodes the inferred field names strings into FieldNameIDs, as shown in Figure 9(c). The Counter in the schema tree-structure represents the number of occurrences of a value, which we further explain in Section 3.2.2.

The schema tree structure starts with the root object node which has the fields at the first level of the record (name, dependents, employment_date, branch_location, and working_shifts). We do not store any information here about the dataset’s declared field as explained in previously in Section 3.1. Each inner node (e.g., dependents) represents a nested value (object, array, or multiset) and the leaf nodes (e.g., name) represent the scalar (or primitive) values. Union nodes are for object fields or collection (array and multiset) items if their values can be of different types. In this example, the tuple compactor infers the array item type of the field working_shifts as a union type of an array of integers and a string.

The edges between the nodes in the schema tree structure represent the nested structure of an ADM record. Each inner node of a nested value in the schema tree structure can have one or more children depending on the type of the inner node. Children of object nodes (e.g., fields of the Root object) are accessed by FieldNameIDs (shown as integers on the edges of object nodes in Figure 9(b)) that reference the stored field names in the dictionary shown in Figure 9(c). Each field name (or in the schema tree structure) of an object is unique, i.e., no two children of an object node share the same field name. However, children of different object nodes can share the same field name. Therefore, storing field names in a dictionary allows us to canonicalize repeated field names such as the field name name, which has appeared twice in the ADM record shown in Figure 9(a). A collection node (e.g., dependents) have only one child, which represents the items’ type. An object field or a collection item can be of heterogeneous value types. So, their types may be inferred as a union of different value types. In a schema tree structure, the number of children a union node can have depends on the number of supported value types in the system. For instance, AsterixDB has 27 different value types [asterix-doc]. Hence, a union node could have up to 27 children.

(a)
(b)
(c)
Figure 10: (a) An ADM record (b) Inferred schema tree structure (c) Dictionary-encoded field names

3.2.2 Schema Structure Maintenance

In Section 3.1 we described the flow involved in inferring the schema of newly ingested records, where we “add” more information to the schema structure. However, when deleting or updating records, the schema structure might need to be changed by “removing” information. For example, the record with id 3 shown in Figure 9 is the only record that has an field of type . Therefore, deleting this record should result in changing the type of the field from to as the dataset no longer has the field as a string. From this example, we see that on delete operations, we need to (i) know the number of appearances of each value, and (ii) acquire the old schema of a deleted or updated record.

During the schema inference process, the tuple compactor counts the number of appearances of each value and stores it in the schema tree structure’s nodes. In Figure 9(b), each node has a value that represents the number of times the tuple compactor has seen this node during the schema inference process. From the schema tree structure in Figure 9(b), we can see that there are six records that have the field name, including the record shown in Figure 9(a). Also, we can infer from the schema structure that all fields other than name belong to the record shown in Figure 9(a). Therefore, after deleting this record, the schema structure should only have the field as shown in Figure 11.

On delete, AsterixDB performs a point lookup to get the old record from which the tuple compactor extracts its schema (we call the schema of a deleted record the “anti-schema”). Then, it constructs an anti-matter entry that includes the primary key of the deleted record and its anti-schema and then inserts it into the in-memory component. During the flush operation, the tuple compactor processes the anti-schema by traversing it and decrementing the of each node of the schema tree structure. When the counter’s value of a node in the schema tree structure reaches zero, we know that there is no record that still has this value (whether it is nested or a primitive value). Then, the tuple compactor can safely delete the node from the schema structure. As shown in Figure 11, after deleting the record in Figure 9(a), the counter value corresponding to the field is decremented from 6 to 5 whereas the other nodes of the schema structure (shown in Figure 9(a)) have been deleted as they were unique to the deleted record. After processing the anti-schema, the tuple compactors discard it before writing the anti-matter entry to disk. Upserts can be performed as deletes followed by inserts.

Figure 11: After deleting the record shown in Figure9(a)

It is important to note that performing point lookups for maintenance purposes is not unique to the schema structure. For instance, AsterixDB performs point lookups to maintain secondary indexes [storage] and LSM filters [lsm-filter]. Luo et al. [luo2018lsm, luo2019efficient] showed that performing point lookups for every upsert operation can degrade data ingestion performance. More specifically, checking for key-existence for every upserted record is expensive, especially in cases where the keys are mostly new. As a solution, a primary key index, which stores primary keys only, can be used to check for key-existence instead of using the larger primary index. In the context of retrieving the anti-schema on upsert, one can first check if a key exists by performing a point lookup using the primary key index. Only if the key exists, an additional point lookup is performed on the primary index to get the anti-schema of the upserted record. If the key does not yet exist (new key), the record can be inserted as a new record. In Section 4, we evaluate the data ingestion performance of our tuple compactor under heavy updates using the suggested primary key index.

3.3 Compacted Record Format

Since the tuple compactor operates during data ingestion, the process of inferring the schema and compacting the records needs to be efficient and should not degrade the ingestion rate. As the schema can change significantly over time, previously ingested records must not be affected or require updates. Additionally, sparse records should not need to store additional information about missing values such as null bitmaps in RDBMSs’ records. For example, storing the record {"id": 5, "name": "Will"} with the schema shown in Figure 9(b)

should not include any information about other fields (e.g., dependents). To address those issues, we introduce a compaction-friendly physical record data format into AsterixDB, called the vector-based format.

3.3.1 Vector-based Physical Data Format

The main idea of the vector-based format is that it separates the metadata and values of self-describing records into vectors that allow us to manipulate the record’s metadata efficiently during the schema inference and record compaction processes. Figure 12 depicts the structure of a record in the vector-based format. First comes the record’s header, which contains information about the record such its length. Next comes the values’ tags vector, which enumerates the types of the stored primitive and nested values. Fixed-length primitive (or scalar) values such as integers are stored in the fixed-length values vector. The next vector is split into two sub-vectors, where the first stores lengths and the second stores the actual values of variable-length values. Lastly, the field names sub-vectors (lengths and values) store field name information for all objects’ fields in the record.

Figure 13 shows an example of a record in the vector-based format. The record has four fields: id, name, salaries, and age with the types integer, string, array of integers and integer, respectively. Starting with the header, we see that the record’s total size is 73-bytes and there are nine tags in the values’ type tags vector. Lengths for variable-length values and field names are stored using the minimum amount of bytes. In our example, the maximum lengths of the variable-length values and field names are 3 (Ann) and 8 (salaries), respectively. Thus, we need at most 3-bits and 5-bits to store the length of each variable-length value or field name, respectively. We only actually need 4-bits for field name lengths; however, the extra bit is used to distinguish inferred fields (e.g., name) from declared ones (e.g., id) as we explain next.

After the header, we store the values’ type tags. The values’ type tags encode the tree structure of the record in a Depth-First-Search order. In this example, the record starts with an object type to indicate the root’s type. The first value of the root object is of type integer, and it is stored in the first four bytes of the fixed-length values. Since an object tag precedes the integer tag, this value is a child of that object (root) and, hence, the first field name corresponds to it. Since the field id is a declared field, we only store its index (as provided by the metadata node) in the lengths sub-vector. We distinguish index values from length values by inspecting the first bit. If set, we know the length value is an index value of a declared field. The next value in the example record is of type string, which is the first variable-length value in the record. The string value is stored in the variable-length values’ vector with its length. Similar to the previous integer value, this string value is also a child of the root and its field name (name) is next in the field names’ vector. As the field name is not declared, the record stores both the name of the field and its length. After the string value, we have the array tag of the field salaries. The subsequent integers’ tags indicate the array items’ types. The array items do not correspond to any field name, and their integer values are stored in the fixed-length values’ vector. After the last item of the array, we store a control tag to indicate the end of the array as the current nesting type and a return to the parent nesting type (object type in this example). Hence, the subsequent integer value (age) is again a child of the root object type. At the end of the value’s tags, we store a control tag to mark the end of the values of the record.

Figure 12: The structure of the vector-based format.

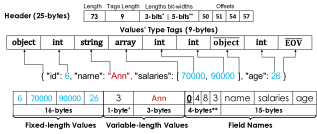

Figure 13: An example record in the vector-based format

As can be inferred from the previous example, the complexity of accessing a value in the vector-based format is linear in the number of tags, which is inferior to the logarithmic time provided by some traditional formats [asterixdb-serialization, bson]. We address this issue in more detail in Section 3.4.2.

3.3.2 Schema Inference and Tuple Compaction

Records in vector-based format separate values from metadata. The example shown in Figure 13 illustrates how that the fixed-length and variable-length values are separated from the record’s nested structure (values’ types tags) and field names. When inferring the schema, the tuple compactor needs only to scan the values’ type tags and the field names vectors to build the schema structure.

Compacting vector-based records is a straightforward process. Figure 14 shows the compacted structure of the record in Figure 13 along with its schema structure after the compaction process. The compaction process simply replaces the field names string values with their corresponding FieldNameIDs after inferring the schema. It then sets the fourth offset to the field names’ values sub-vector in the header (Figure 12) to zero to indicate that field names were removed and stored in the schema structure. As shown in the example in Figure 14, the record after the compaction needs just two bytes to store the field names’ information, where each FieldNameID takes three bits (one bit for distinguishing declared fields and two for field name IDs), as compared to the 19 (4+15) bytes in the uncompacted form in Figure 13.

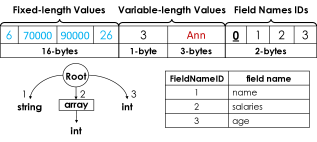

Figure 14: The record in Figure 13 after compaction

3.4 Query Processing

In this section, we explain our approach of querying compacted records in the vector-based format. We, first, show the challenges of having distributed schemas in different partitions and propose a solution that addresses this issue. Next, we zoom in into each query executor and show the optimizations needed to process compacted records.

3.4.1 Handling Heterogeneous Schemas

As a scalability requirement, the tuple compaction framework operates in each partition without any coordination with other partitions. Therefore, the schema in each partition can be different from other schemas in other partitions. When a query is submitted, each distributed partition executes the same job. Having different schemas becomes an issue when the requested query needs to repartition the data to perform a join or group-by. To illustrate, suppose we have two partitions for the same dataset but with two different inferred schemas, as shown in Figure 15. We see that the schemas in both partitions have the field name of type string. However, the second field is age in partition 0 and salary in partition 1. After hash-partitioning the records by the name value, the resulting records are shuffled between the two query executors and the last field can be either age or salary. Recall that partitions can be in different machines within the AsterixDB cluster and have no runtime access to the schema information of other partitions. Consequently, query executors cannot readily determine whether the last field corresponds to age or salary.

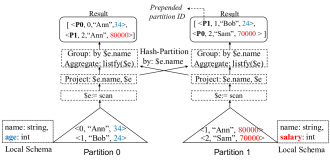

Figure 15: Two partitions with two different schemas

To solve the schema heterogeneity issue, we added functionality to broadcast the schema information of each partition to all nodes in the cluster at the beginning of a query’s execution. Each node receives each partition’s schema information along with its partition ID and serves the schemas to each executor in the same node. Then, we prepend each record resulting from the scan operator with source the partition ID. When an operator accesses a field, the operator uses both the prepended partition ID of the record and the distributed schema to perform the field access. Broadcasting the partitions’ schemas can be expensive, especially in clusters with a large number of nodes. Therefore, we only broadcast the schemas when the query plan contains a non-local exchange operator such as the hash-partition-exchange in our example in Figure 15.

3.4.2 Processing Compacted Records

One notable difference between the vector-based format and the ADM physical format is the time complexity of accessing a value (as discussed in Section 3.3.1). The AsterixDB query optimizer can move field access expressions within the plan when doing so is advantageous. For instance, AsterixDB’s query optimizer inlines field access expressions with WHERE clause conjunct expressions as in:

The inlined field access expression is evaluated only if the expression is true. However, in the vector-based format, each field access requires a linear scan on the record’s vectors, which could be expensive. To minimize the cost of scanning the record’s vectors, we added one rewrite rule to the AsterixDB query optimizer to consolidate field access expressions into a single function expression. Therefore, the two field access expressions in our example will be written as follows:

The function takes a record and path expressions as inputs and outputs the requested values of the provided path expressions. The two output values are assigned to two variables and and the final conjunct expression of our WHERE clause example is transformed as:

The function is also used for accessing array items by providing the item’s index. For example, the expression is translated as follows:

Additionally, we allow “wildcard” index to access nested values of all items of an array. For instance, the output of the expression is an array of all s’ values in the array of objects .

4 Experiments

In this section, we experimentally evaluate the implementation of our tuple compactor in AsterixDB. In our experiments, we compare our compacted record approach with AsterixDB’s current closed and open records in terms of (i) on-disk storage size after data ingestion, (ii) data ingestion rate, and (iii) the performance of analytical queries.

We also conduct additional experiments to evaluate:

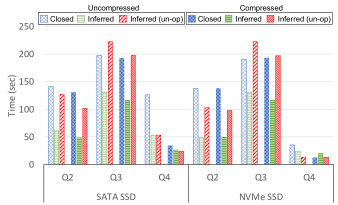

  1. The performance accessing values in records in vector-based format (Section 3.3.1) with and without the optimization techniques explained in Section 3.4.2.

  2. The impact of our approach on query performance using secondary indexes.

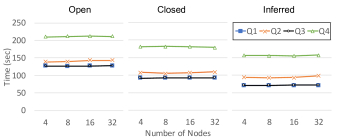

  3. The scalability of our framework using computing clusters with different number Amazon EC2 instances.

Experiment Setup We conducted our initial experiments using a single machine with an 8-core (Intel i9-9900K) processor and 32GB of main memory. The machine is equipped with two storage drive technologies SATA SSD and NVMe SSD, both of which have 1TB of capacity. The SATA SSD drive can deliver up to 550 MB/s for sequential read and 520 MB/s for sequential write, and the NVMe SSD drive can deliver up to 3400 MB/s for sequential read and 2500 MB/s for sequential write. Section 4.5 details the setup for our additional scale-out experiments.

We used AsterixDB v9.5.0 after extending it with our tuple compaction framework. We configured AsterixDB with 15GB of total memory, where we allocated 10GB for the buffer cache and 2GB for the in-memory component budget. The remaining 3GB is allocated as temporary buffers for operations such as sort and join.

In Section 2.4, we introduced our implementation of the page-level compression in AsterixDB. Throughout our experiments, we also evaluate the impact of compression (using Snappy [snappy] compression scheme) on the storage size, data ingestion rate, and query performance.

Schema Configuration. In our experiments, we evaluated the storage size, data ingestion rate, and query performance when defining a dataset as (i) open, (ii) closed, and (iii) inferred using our tuple compactor. For the open and inferred datasets, we only declare the primary key field, whereas in closed datasets, we pre-declare all the fields. The records of open and closed datasets are stored using the ADM physical format, whereas the inferred datasets are using the new vector-based format. Note that the AsterixDB open case is similar to what schema-less NoSQL systems, like MongoDB and Couchbase, do for storage.

4.1 Datasets

In our experiments, we used three datasets (summarized in Table 1) which have different characteristics in terms of their record’s structure, size, and value types.

Using the first dataset, we want to evaluate ingesting and querying social network data. We obtained a sample of tweets using the Twitter API [twitter-api]. Due to the daily limit of the number of tweets that one can collect from the Twitter API, we replicated the collected tweets ten times to have 200GB worth of tweets in total.

The second dataset we used is the Web of Science (WoS) [cadre] publication dataset222We obtained the dataset from Thomson Reuters. Currently, Clarivate Analytics maintains it [clarivate-wos].. The WoS dataset encompasses meta information about scientific publications (such as authors, fundings and abstracts) from 1980 to 2016 with a total dataset size of 253GB. We transformed the dataset’s record format from its XML original structure to a JSON one using an existing XML-to-JSON converter [xml-to-json]. The resulting JSON documents contain some fields with heterogeneous types, specifically a union of object and array of objects. The reason behind using such a converter is to mimic the challenges a data scientist can experience when resorting to existing solutions. (Due to a lack of support for declared union types in AsterixDB, we could only pre-declare the fields with homogeneous types in the closed schema case.)

To evaluate more numeric Internet of Things (IoT)-like workloads, we generated a third synthetic dataset that mimics data generated by sensors. Each record in the sensors’ dataset contains captured readings and their timestamps along with other information that monitors the health status of the sensor. The sensor data contains mostly numerical values and has a larger field-name-size to value-size ratio. The total size of the raw Sensors data is 122GB.

Twitter WoS Sensors
Source Scaled Real-world Synthetic
Total Size 200GB 253GB 122GB
# of Records 77.6M 39.4M 25M
Record Size 2.7KB 6.2KB 5.1KB
Max. Depth 8 7 3
Dominant Type String String Double
Union Type? No Yes No
Table 1: Datasets summary

4.2 Storage Size

In this experiment, we evaluate the on-disk storage size after ingesting the Twitter, WoS and Sensors datasets into AsterixDB using the three formats (open, closed and inferred) and we compare it with MongoDB’s storage size. Our goal of comparing with MongoDB’s size is simply to show that the compressed open case is comparable to what other NoSQL systems take for storage using the same compression scheme (Snappy). (It is not the focus of this paper to compare both systems’ data ingestion and query performance.)

We first evaluate the total on-disk sizes after ingesting the data into the open, closed and inferred datasets. We begin with the Twitter dataset. Figure 15(a) shows its total on-disk sizes. We see that the inferred and closed schema datasets have lower storage footprints compared to the open schema dataset, as both avoid storing field names in each record. When compression is enabled, both formats still have smaller size compared to the open format and to MongoDB’s compressed collection size. The size of the inferred dataset is slightly smaller than the closed schema dataset since the vector-based format does not store offsets for every nested value (as opposed to the ADM physical format in the closed schema dataset).

For the WoS dataset, Figure 15(b) shows that the inferred dataset again has the lowest storage overhead. Even after compression, the open dataset (and the compressed MongoDB collection) had about the same size as the uncompressed inferred dataset. The reason is that WoS dataset structure has more nested values compared with the Twitter dataset. The vector-based format has less overhead for such data, as it does not store the 4-byte offsets for each nested value.

The Sensors dataset contains only numerical values that describe the sensors’ status along with their captured readings, so this dataset’s field name size to value size ratio is higher compared to the previous datasets. Figure 15(c) shows that, in the uncompressed dataset, the closed and inferred datasets have about 2x and 4.3x less storage overhead, respectively, than the open dataset. The additional savings for the inferred dataset results from eliminating the offsets for readings objects, which contain reading values along with their timestamps — {"value”: double, "timestamp”: bigint}. Compression reduced the sizes of the open and closed datasets by a factor of 6.2 and 3.8, respectively, as compared to their uncompressed counterparts. For the inferred dataset, compression reduced its size only by a factor of 2.1. This indicates that both the open and closed dataset records incurred higher storage overhead from storing redundant offsets for nested fixed-length values (readings objects). As in the Twitter and WoS datasets, the sizes of both the compressed open dataset in AsterixDB and the compressed collection in MongoDB were comparable in the Sensors dataset.

To summarize our size findings, both the syntactic (page-level compression) and semantic (tuple compactor) approaches alleviated the storage overhead as shown in Figure 16. The syntactic approach was more effective than the semantic approach for the Twitter dataset and the two were comparable for the WoS dataset. For the Sensors dataset, the semantic approach (with our vector-based format) was more effective for the reasons explained earlier. When combined, the approaches were able to reduce the overall storage sizes by 5x, 3.7x and 9.8x for the Twitter, WoS and Sensors datasets, respectively, compared to the open schema case in AsterixDB.

(a) Twitter dataset
(b) WoS dataset
(c) Sensors dataset
Figure 16: On-disk sizes

4.3 Ingestion Performance

We evaluated the performance of continuous data ingestion for the different formats using AsterixDB’s data feeds for the Twitter dataset. We first evaluate the insert-only ingestion performance, without updates. In the second experiment, we evaluate the ingestion performance for an update-intensive workload, where previously ingested records are updated by either adding or removing fields or changing the types of existing data values. The latter experiment measures the overhead caused by performing point lookups to get the anti-schemas of previously ingested records. The Sensor dataset was also ingested through a data feed and showed similar behavior to the Twitter dataset; we omit these results here to conserve space.

Continuous data ingestion from a data feed is sensitive to LSM configurations such as the merge-policy and the memory budget. For instance, when cutting the memory budget by half, the size of flushed components would become 50% smaller. AsterixDB’s default ”prefix-merge policy” [storage] could then suffer from higher write-amplification by repeatedly merging smaller on-disk components until their combined size reaches a certain threshold. To eliminate those factors, we also evaluated the performance of bulk-loading, which builds a single on-disk component for the loaded dataset. (We evaluated the performance of bulk-loading into open, closed and inferred datasets using the WoS dataset.)

(a) Twitter dataset — feed
(b) Twitter with 50% updates
(c) WoS dataset — bulkload
Figure 17: Data ingestion time

Data Feed (Insert-only). To evaluate the performance of continuous data ingestion, we measured the time to ingest the Twitter dataset using a data-feed to emulate Twitter’s firehose. We set the maximum mergeable component size to 1GB and the maximum tolerable number of components to 5, after which the tree manager triggers a merge operation.

Figure 16(a) shows the time needed to complete the data ingestion for the 200GB Twitter dataset. Ingesting records into the inferred dataset took less time than ingesting into the open and closed datasets. Two factors played a role in the data ingestion rate. First, we observed that the record construction cost of the system’s current ADM physical format was higher than the vector-based format by 40%. Due to its recursive nature, the ADM physical format requires copying the values of the child to the parent from the leaf to the root of the record, which means multiple memory copy operations for the same value. Closed records took even more time to enforce the integrity constraints such as the presence and types of none-nullable fields. The second factor was the IO cost of the flush operation. We noticed that the inferred dataset’s flushed on-disk components are 50% and 25% smaller than the open and closed datasets, respectively. This is due to the fact that compacted records in the vector-based format were smaller in size than the closed and open records in ADM format (see Figure 15(a)). Thus, the cost of writing larger LSM components of both open and closed datasets was higher.

The ingestion rate for the SATA SSD and the NVMe SSD were comparable, as both were actually bottlenecked by flushing transaction log records to the disk. Enabling compression had a slight negative impact on the ingestion rate for each format due to the additional CPU cost.

Data Feed (50% Updates) As explained in Section 3.2.2

, updates require point lookups to maintain the schema, which can negatively impact the data ingestion rate. We evaluated the ingestion performance for update-intensive workload when the tuple compactor is enabled. In this experiment, we randomly updated 50% of the previously ingested records by either adding or removing fields or changing existing value types. The updates followed a uniform distribution, where all records are updated equally. We created a primary key index, as suggested in

[luo2018lsm, luo2019efficient], to reduce the cost of point lookups of non-existent (new) keys. Figure 16(b) shows the ingestion time of Twitter dataset, using the NVMe SSD drive, for the open, closed and inferred dataset with updates. The ingestion times for both open and closed datasets were about the same as t with no updates (Figure 16(a)). For the inferred dataset, the ingestion time with updates took 27% and 23% more time for the uncompressed and compressed datasets, respectively, compared to one with no updates. The ingestion times of the inferred and open datasets were comparable and both took less time than the closed dataset.

Bulk-load. As mention earlier, continuous data ingestion is sensitive to LSM configurations such as the allocated memory budget for in-memory components. Additionally, the sizes of flushed on-disk components are smaller for the inferred and closed datasets as they have smaller storage overhead than the open dataset (as we saw while ingesting the Twitter dataset). Smaller on-disk components may trigger more merge operations to reach the maximum mergeable component size. To eliminate those factors, we also evaluated the time it takes AsterixDB to bulk-load the WoS dataset. When loading a dataset, AsterixDB sorts the records and then builds a single on-disk component of the B-tree in a bottom-up fashion. The tuple compactor infers the schema and compacts the records during this process. When loading finishes, the single on-disk component will have a single inferred schema for the entire set of records.

Figure 16(c) shows the time needed to load the WoS dataset into open, closed, and inferred datasets. As for continuous data ingestion, the lower per-record construction cost of the vector-based format was the main contributor to the performance gain for the inferred dataset. We observed that the cost of the sort was relatively the same for the three schema datasets. However, the cost of building the B-tree was higher for both the open and closed schema datasets due to their higher storage overheads (Figure 15(b)).

As loading a dataset in AsterixDB does not involve maintaining transaction logs, the higher throughput of the NVMe SSD was noticeable here compared to continuous data ingestion. When compression is enabled, the SATA SSD slightly benefited from the lower IO cost; however, the faster NVMe SSD was negatively impacted by the compression due to its CPU cost.

4.4 Query Performance

We next evaluated the impact of our work on query performance by running analytical queries against the ingested Twitter, WoS, and Sensor datasets. The objective of our experiments is to evaluate the IO cost of querying against open, closed, and inferred datasets. Each executed query was repeated six times and we report the average execution time of the last five.

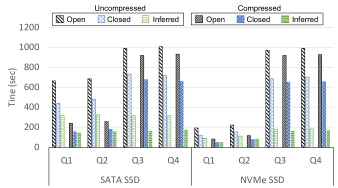

Figure 18: Query execution the Twitter dataset

4.4.1 Twitter Dataset

We ran four queries (listed in Appendix A.1) against the Twitter dataset which retrieve:

  1. The number of records in the dataset — COUNT(*).

  2. The top ten users whose tweets’ average length are the largest — GROUP BY/ORDER BY.

  3. The top ten users who have the largest number of tweets that contain a popular hashtag — EXISTS/GROUP BY ORDER BY.

  4. All records of the dataset ordered by the tweets’ posting timestamps —  SELECT */ORDER BY333In Q4, we only report the time for executing the query, excluding the time for actually retrieving the final formatted query result..

Figure 18 shows the execution time for the four queries in the three datasets (open, closed, and inferred) when the data is on the SATA SSD drive and the NVMe SSD drive. On the SATA SSD, the execution times of the four queries, with and without compression, correlated with their on-disk sizes from Figure 15(a). This correlation indicates that the IO cost dominates the execution time. However, on the NVMe SSD drive, the CPU cost becomes more evident, especially when page-level compression is enabled. For Q2 and Q4, the 2X reduction in storage after compression reduced their execution times in the SATA case in all three datasets. However, the execution times for Q2 and Q4 in the closed and inferred datasets did not improve as much after compression in the NVMe case, as the CPU became the bottleneck here. Q3, which filters out all records that do not contain the required hashtag, took less time to execute in the inferred dataset. This is due to way that nested values of records in the vector-based format are accessed. In the Twitter dataset, hashtags are modeled as an array of objects; each object contains the hashtag text and its position in the tweet’s text. We consolidate field access expressions for records in the vector-based format (as discussed in Section 3.4.2), and the query optimizer was able to push the consolidated field access through the unnest operation and extract only the hashtag text instead of the hashtag objects. Consequently, Q3’s intermediate result size was smaller in the inferred dataset compared to the other two datasets, and executing Q3 against the inferred dataset was faster. This experiment shows that our schema inference and tuple compaction approach can match (or even improve in some cases) the performance of querying datasets with fully declared schemas — without a need for pre-declaration.

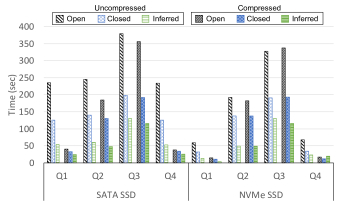

Figure 19: Query execution time for the WoS dataset

4.4.2 WoS Dataset

We also ran four queries (listed in Appendix A.2) against the WoS dataset:

  1. The number of records in the dataset — COUNT(*).

  2. The top ten scientific fields with the highest number of publications — GROUP BY/ORDER BY.

  3. The top ten countries that co-published the most with US-based institutes— UNNEST/EXISTS/ GROUP BY/ORDER BY.

  4. The top ten pairs of countries with the largest number of co-published articles — UNNEST/GROUP BY/ORDER BY

As Figure 19 illustrates, the execution times for Q1 and Q2 are correlated with the storage sizes of the three datasets (Figure 15(b)). For Q3 and Q4, the execution times were substantially higher in the open and closed datasets as compared to the inferred dataset. Similar to Q3 in the Twitter dataset, field access expression consolidation and pushdown were beneficial. Even after enabling compression, the open and closed schema execution times for Q3 and Q4 remained about the same despite the storage savings. (We will evaluate that behavior in more detail in Section 4.4.4).

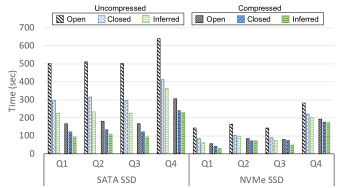

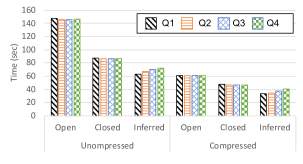

Figure 20: Query execution time for the Sensors dataset.

4.4.3 Sensors Dataset

We again ran four queries (listed in Appendix A.3):

  1. The number of records in the dataset — COUNT(*).

  2. The minimum and maximum reading values that were ever recorded across all sensors — UNNEST/GROUP BY.

  3. The IDs of the top ten sensors that have recorded the highest average reading value — UNNEST/GROUP BY/ORDER BY

  4. Similar to Q4, but look for the recorded readings in a given day — WHERE/UNNEST/GROUP BY/ORDER BY

The execution times are shown in Figure 20. The execution times for Q1 on both uncompressed and compressed datasets correlate with the storage sizes of the datasets from Figure 15(c). Q2 and Q3 exhibit the effect of consolidating and pushing down field value accesses of vector-based format, where both queries took significantly less time to execute in the inferred dataset. However, pushing the field access down is not always advantageous. When compression is enabled, the execution time of Q4 for the inferred dataset using NVMe SSD was the slowest. This is because the consolidated field accesses (of sensor ID, reading and reporting timestamp) are evaluated before filtering using a highly selective predicate (0.001%). In the open and closed datasets, delaying the evaluation of field accesses until after the filter for Q4 was beneficial. However, the execution times for the inferred dataset was comparable to the open case.

4.4.4 Vector-based Format Evaluation

Linear-time field access. Accessing values in the vector-based format is sensitive to the position of the requested value. For instance, accessing a value that appears first in a record is faster than accessing a value that resides at the end. To measure the impact of linear access in the vector-based format, we ran four queries against the Twitter dataset (using the NVMe SSD drive) where each counts the number of appearances of a value. The positions (or indexes) of those values in the vector-based format are 1, 34, 68, and 136 for Q1, Q2, Q3 and Q4, respectively, where position 1 means the first value in the record and the position 136 is the last. Figure 21 shows the time needed to execute the queries. In the inferred datasets, the position of the requested value affected the query times, where Q1 was the fastest and Q4 was the slowest. For the open and closed datasets, the execution times for all queries were about the same. However, all four queries took less time to execute in the inferred cases, due to the storage savings.

Figure 21: Impact of a value’s position

Field-access consolidation and pushdown. In our experiments, we showed that our optimizations of consolidating and pushing down field access expressions can tremendously improve query execution time. To isolate the factors that contributed to the performance gains, we reevaluated the execution times for Q2-Q4 of the Sensors dataset with and without these optimizations.

The execution times of the queries are shown in Figure 22. We refer to Inferred (un-op) as querying the inferred dataset without our optimization of consolidating and pushing down field access expressions. When we disable our optimizations, the linear-time field accesses of the vector-based format are performed as many times as there are field access expressions in the query. For instance, Q3 has three field access expressions to get the (i) sensor ID, (ii) readings array, and (iii) reporting timestamp. Each field access requires scanning the record’s vectors, which is expensive. Additionally, the size of the intermediate results of Q2 and Q3 were then larger (array of objects vs. array of doubles). As a result, Q2 and Q3 took twice as much time to finish for Inferred (un-op). Q2 is still faster to execute in the Inferred (un-op) case than in the closed case whereas Q3 took slightly more time to execute. Finally, disabling our optimizations improved the execution time for Q4 on the NVMe SSD, as delaying the evaluation of field accesses can be beneficial for queries with highly selective predicates.

Figure 22: Impact of consolidating and pushing down field access expressions

4.4.5 Secondary Index Query Performance

Pirzadeh et al. [bigFUN] previously showed that predeclaring the schema in AsterixDB did not improve (notably) the performance of range-queries with highly selective predicates in the presence of a secondary index. In this experiment, we evaluated the impact of having a secondary index using the Twitter dataset.

We modified the scaled Twitter dataset by generating monotonically increasing values for the attribute timestamp to mimic the time at which users post their tweets. We created a secondary index on this generated timestamp attribute and ran multiple range-queries with different selectivities. For each query selectivity, we executed queries with different range predicates to warm up the system’s cache and report the average stable execution time. Figures 22(a) and 22(b) show the execution times for queries, with both low and high selectivity predicates, using the NVMe SSD, for uncompressed datasets. The execution times for all queries correlated with the storage sizes (Figure 15(a)), where the closed and inferred datasets have lower storage overhead compared to the open dataset. The execution times for compressed datasets (Figures 22(c) and 22(d)) showed similar relative behavior.

(a) Low selectivity
(b) High selectivity
(c) Low selectivity
(d) High selectivity
Figure 23: Query with secondary index (NVMe)

4.5 Scale-out Experiment

Finally, to evaluate the scalability our approach, we conducted a scale-out experiment using a cluster of Amazon EC2 instances of type c5d.2xlarge (each with 16GB of memory and 8 virtual cores). We evaluate the ingestion and query performance of the Twitter dataset using clusters with 4, 8, 16 and 32 nodes. We configure each node with 10GB of total memory, with 6GB for the buffer cache and 1GB for the in-memory component budget. The remaining 3GB is allocated for working buffers. We used the instance ephemeral storage to store the ingested data. Due to the lack of storage space in a c5d.2xlarge instance (200GB), we only evaluate the performance on compressed datasets.

Figure 23(a) shows the total on-disk size after ingesting the Twitter data into the open, closed and inferred datasets. The raw sizes of the ingested data were 400, 800, 1600 and 3200 GB for the 4, 8, 16 and 32 node clusters, respectively. Figure 23(b) shows the time taken to ingest the Twitter data into the three datasets. As expected, we observe the same trends seen for the single node cluster (see Figure 15(a) and Figure 16(a)), where the inferred dataset has the lowest storage overhead with the highest data ingestion rate.

To evaluate query performance, we ran the same four Twitter queries as in Section 4.4.1. Figure 25 shows the execution times for the queries against the open, closed and inferred datasets. All four queries scaled linearly, as expected, and all four queries were faster in the inferred dataset. Since the data is shuffled in Q2 and Q3 to perform the parallel aggregation, each partition broadcasts its schema to the other nodes in the cluster (Section 3.4.1) at the start of a query. However, the performance of the queries was essentially unaffected and was still faster to execute in the inferred dataset.

(a) On-disk size
(b) Ingestion time
Figure 24: Storage and ingestion performance (scale-out)
Figure 25: Query performance (scale-out)

5 Related Work

Schema inference for self-describing, semi-structured data has appeared in early work for Object Exchange Model (OEM) and later for XML and JSON documents. For OEM (and later for XML444Adopted later for XML as Lore project changed from OEM to the XML data-model.), [dataguides] presented the concept of a dataguide, which is a summary structure for schema-less semi-structured documents. A dataguide could be accompanied with values’ summaries and samples (annotations) about the data, which we also use in our schema structure to keep the number of occurrences in each value. In [wang2015schema], Wang et al. present an efficient framework for extracting, managing and querying schema-view of JSON datasets. Their work targeted data exploration, where showing a frequently appearing structure can be good enough. However, in our work, the purpose of inferring the schema is to use it for compacting and querying the records, so, we infer the exact schema of the ingested dataset. In another work [json-schema-relational], the authors detail an approach for automatically inferring and generating a normalized (flat) schema for JSON-like datasets, which then can be utilized in an RDBMS to store the data. Our work here is orthogonal; we target document store systems with LSM-based storage engines.

Creating secondary indexes is related to declaring attributes in a schema-less document store. Systems such as Azure DocumentDB [azure_documentdb] and MongoDB support indexing all fields at once without declaring the indexed fields explicitly. For instance, MongoDB allows users to create an index on all fields using a wildcard index that was initially introduced in v4.2. Doing so requires the system to “infer” the fields of a collection a priori. Despite the similarities, our objective is different. In our work, we infer the schema to reduce storage overhead by compacting self-describing records residing in the primary index.

Semantically compacting self-describing, semi-structured records using schemas appears in popular big data systems such as Apache Spark [spark] and Apache Drill [drill]. For instance, Apache Drill uses schemas of JSON datasets (provided by the user or inferred by scanning the data) to transform records into a compacted in-memory columnar format (Apache Arrow [arrow]). File formats such as Apache Parquet [parquet] (or Google Dremel [dremel]) use the provided schema to store nested data in a columnar format to achieve higher compressibility. An earlier effort to semantically compact and compress XML data is presented in [xml-compressed, xmill]. Our work is different in targeting more “row”-oriented document stores with LSM-based storage engines. Also, we support data values with heterogeneous types, in contrast to Spark and Parquet.

Exploiting LSM lifecycle events to piggyback other operations to improve the query execution time is not new by itself and has been proposed in several contexts [lsm-stats, lsm-filter, c-store]. LSM-backed operations can be categorized as either non-transformative operations, such as computing information about the ingested data, or transformative operations, e.g., in which the records are transformed into a read-optimized format. An example of a non-transformative operation is [lsm-filter], which shows how to utilize LSM flush and merge operations to compute range-filters that can accelerate time-correlated queries by skipping on-disk components that do not satisfy the filter predicate. [lsm-stats]

proposes a lightweight statistics collection framework that utilizes LSM lifecycle events to compute statistical summaries of ingested data that the query optimizer can use for cardinality estimation. An example of a transformative operation is

[c-store], which utilizes LSM-like operations to transform records in the writeable-store into a read-optimized format for the readable-store.

6 Conclusion and Future work

In this paper, we introduced a tuple compaction framework that addresses the overhead of storing self-describing records in LSM-based document store systems. Our framework utilizes the flush operations of LSM-based engines to infer the schema and compact the ingested records without sacrificing the flexibility of schema-less document store systems. We also addressed the complexities of adopting such a framework in a distributed setting, where multiple nodes run independently, without requiring synchronization. We further introduced the vector-based record format, a compaction-friendly format for semi-structured data. Experiments showed that our tuple compactor is able to reduce the storage overhead significantly and improve the query performance of AsterixDB. Moreover, it achieves this without impacting data ingestion performance. In fact, the tuple compactor and vector-based record format can actually improve data ingestion performance of insert-heavy workloads. In addition to the semantic approach, we also added the support for a syntactic approach using page-level compression to AsterixDB. With both approaches combined, we were able to reduce the total storage size by up to 9.8x and improve query performance by the same factor.

Our tuple compactor framework targets LSM-backed row-oriented document-store systems. We plan to extend this work to introduce a schema-adaptive columnar-oriented document store. First, we plan to explore the viability of adopting the PAX [pax] page format, which could potentially eliminate the CPU cost of the linear access time of the vector-based format. In a second direction, we want to explore ideas from popular static columnar file formats (such as Apache Parquet and Apache CarbonData [apache-carbo-data]) to build an LSM-ified version of columnar indexes for self-describing, semi-structured data.

Acknowledgements This work was supported by a graduate fellowship from KACST. It was also supported by NSF awards IIS-1838248 and CNS-1925610, industrial support from Amazon, Google, Microsoft and Couchbase, and the Donald Bren Foundation (via a Bren Chair).

=0mu plus 1mu

References

Appendix A Queries

In this section, we show the queries we ran in our experiments against the Twitter, WoS and Sensors datasets.

a.1 Twitter Dataset’s Queries

SELECT VALUE count(*)
FROM Tweets

Q1

SELECT VALUE uname,a
FROM Tweets t
GROUP BY t.users.name AS uname
WITH a AS avg(length(t.text))
ORDER BY a DESC
LIMIT 10

Q2

SELECT uname, count(*) as c
FROM Tweets t
WHERE (
  SOME ht IN t.entities.hashtags
  SATISFIES lowercase(ht.text) = "jobs”
)
GROUP BY user.name as uname
ORDER BY c DESC
LIMIT 10

Q3

SELECT *
FROM Tweets
ORDER BY timestamp_ms

Q4

a.2 WoS Dataset’s Queries

SELECT VALUE count(*)
FROM Publications as t

Q1

SELECT v, count(*) as cnt
FROM Publications as t,
   t.static_data.fullrecord_metadata
   .category_info.subjects.subject
           AS subject
WHERE subject.ascatype = "extended”
GROUP BY subject.‘value as v
ORDER BY cnt DESC

Q2

SELECT country, count(*) as cnt
FROM (
  SELECT value distinct_countries
  FROM Publications as t
  LET address = t.static_data
                .fullrecord_metadata
                .addresses.address_name,
  countries = (
      SELECT DISTINCT VALUE
         a.address_spec.country
      FROM address as a
  )
  WHERE is_array(address)
  AND array_count(countries) > 1
  AND array_contains(countries, "USA”)
) as collaborators
UNNEST collaborators as country
WHERE country != "USA”
GROUP BY country
ORDER BY cnt DESC
LIMIT 10

Q3

SELECT pair, count(*) as cnt
FROM (
    SELECT value country_pairs
    FROM Publications as t
    LET address = t.static_data
                 .fullrecord_metadata
                 .addresses.address_name,
    countries = (
        SELECT DISTINCT VALUE
            a.address_spec.country
        FROM address as a
        ORDER by a.address_spec.country
    ),
    country_pairs = (
        SELECT VALUE [countries[x], countries[y]]
        FROM range(0,
                     array_count(countries) - 1) as x,
             range(x + 1,
                     array_count(countries) - 1) as y
        )
        WHERE is_array(address)
        AND array_count(countries) > 1
) as country_pairs
UNNEST country_pairs as pair
GROUP BY pair
ORDER BY cnt DESC
LIMIT 10

Q4

a.3 Sensors Dataset’s Queries

SELECT count(*)
FROM Sensors s, s.readings r

Q1

Q2:
SELECT max(r.temp), min(r.temp)
FROM Sensors s, s.readings r

Q2

Q3:
SELECT sid, avg_temp
FROM Sensors s, s.readings as r
GROUP BY s.sensor_id as sid
WITH avg_temp as AVG(r.temp)
ORDER BY t DESC
LIMIT 10

Q3

Q4:
SELECT sid, avg_temp
FROM Sensors s, s.readings as r
WHERE s.report_time > 1556496000000
AND s.report_time < 1556496000000
                    + 24 * 60 * 60 * 1000
GROUP BY s.sensor_id as sid
WITH avg_temp as AVG(r.temp)
ORDER BY avg_temp DESC
LIMIT 10
