1 Introduction
Causal inference analysis leverages observational data to estimate the effect of an intervention on some outcome (Pearl, 2009). In healthcare, it uses observed outcomes and observed treatment assignments to help predict how those outcomes might have changed, on average, had each individual been assigned some treatment of interest (which may differ from the one they were observed to receive). When possible, such treatment questions are answered on a sample of the population level using randomized controlled trials (RCTs), in which individuals are randomly assigned an intervention. However, causal inference analyses using realworld evidence (RWE) data are essential when RCTs are infeasible due to time, expense, or ethics (Deaton and Cartwright, 2018).
In recent years large RWE data has become more readily available, allowing a resurgence of interest in causal inference (Pearl and Mackenzie, 2018; Hernán et al., 2018), leading to its application in decision making within healthcare as well as in other industries (Pearl, 2009; Hernán and Robins, 2006; Morgan and Winship, 2015; Gassen, 2014). It was also noticed recently that in order to determine the best therapy for an individual (in the context of personalized medicine) accurate and reliable causal inference models that were trained on large datasets are required (Shalit et al., 2016). Thus, RWE combined with causal inference are essential for decision making in healthcare at all scopes.
While RWE allows asking healthrelated questions that cannot be addressed by RCTs, observational data are known to contain biases related to treatment assignment (Cochran and Rubin, 1973). Therefore, machine learning models are often used within causal inference methods to correct for biases and help estimate causal effects (Peters et al., 2017).
Another problem concerning RWE data, stated by ”the fundamental problem of causal inference” (Holland, 1986), is that the effect of a treatment (unlike the outcome) is never observable and requires estimation of what would have been the outcome had each person received a treatment other than the one that was observed (counterfactual outcomes). Consequently, effect estimation cannot be evaluated using standard machine learning evaluation approaches.
One common solution is to evaluate causal inference performance using a synthetic benchmarking dataset (Guyon et al., 2011; McCann et al., 2010; Shimoni et al., 2018; Mooij et al., 2016; Dorie et al., 2017). This allows all potential outcomes to be simulated under each possible treatment rendering the effect of each treatment observable, thereby allowing estimation of the method’s performance. However, as the nofreelunch theorem for optimization (Wolpert and Macready, 1997) implies, the generalizability of the performance to real data cannot be assumed. It is therefore necessary to evaluate the performance of each method on each individual dataset (Johnson et al., 2009). Moreover, the effect of the treatment is often estimated using the same data on which the model was trained (Hernan and Robins, 2018). While these two practices (benchmarking and effect estimation on the training data) have proved to be useful in finding good causal inference methods, they can detract from the generalizability of both the models and their conclusions, which can lead to barriers in model and method adoption.
While there have been several efforts to address this issue in the past (Van der Laan et al., 2007)
, this problem has been recognized recently by the observational health data science and informatics (OHDSI) consortium
(Hripcsak et al., 2015), as a critical and timely one that requires additional research. The consortium provides R libraries for training causal inference methods and several evaluations of model performance (Vashisht et al., 2018; Reps et al., 2018; Schuemie et al., 2018). We provide here an evaluation toolkit, written in Python, that includes both similar evaluations and several novel ones, and furthermore extends the availability of such tools to the popular Python programming language. Moreover, our toolkit focuses more on the causalspecific aspect of model evaluation. Detailed explanations of the evaluations and their application to a specific example are provided below.Clinical Relevance
Most decisions in healthcare involve asking how some clinical, safety, cost, or utilization outcome might change if things are done differently. Causal inference analysis is designed to answer such questions in a way that emulates a random control trial from observational data. However, a combination of two issues have hindered the acceptance of such analyses into decision making in healthcare. The first is that such methods are eventually based on machine learning models, and thus require evaluations. The second is that the predictions of causal inference analysis are inherently impossible to evaluate directly. To address this we developed a method that evaluates the machine learning part of the causal inference analysis and can provide good indication of the performance of the method, and can therefore allow introduction of such methods into decision making. We provide here an example for the analysis of the risk of anemia in rheumatoid arthritis patients when treated with TNFalpha blockers, compared to other biological treatments. The example shows that using the Marketscan^{®}data we can create reliable causal inference models that can predict the risk of anemia on the whole population, as well as within subpopulations of interest.
Technical Significance
Causal inference analysis is a field that is gaining renewed interest with the increase in availability of large databases, and allows emulating randomized controlled trials. However, the fact that neither the counterfactual outcome (the outcome that would have been observed if given another treatment) nor the propensity to treat are observed leads to the fact that causal inference predictions cannot be directly evaluated. This creates a barrier in the acceptance of such models into practice. We propose here to evaluate the performance of the underlying machine learning models on properties that can be observed and evaluated, namely the observed outcomes, and the observed treatment assignments. We adjust known machine learning evaluation tools to fit the context of causal inference. While these evaluations cannot prove that the models are predicting effect well, they can detect bad performance and provide a level of confidence in the provided results. We present here a toolkit of evaluation tools, aimed at identifying various causal inference related problems, and show through an example how these evaluations can help adjust the models, the analyses, and the causal questions that can be answered on a given dataset.
2 Methods
Most approaches to estimate the causal effect of treatment on an outcome can be categorized as either balancing the treatment groups (e.g. using propensity score for weighting or matching) (Horvitz and Thompson, 1952) and/or modeling the outcome response surface directly (Gelman and Hill, 2006). Both cases predict some value based on the individual patient characteristics, and therefore require employing an underlying machine learning model, which in turn requires performance evaluation.
Let us first consider outcome prediction models. As mentioned above, the effect of an intervention can never be observed, and therefore effect estimation performance is impossible to fully evaluate. Nevertheless, for a causal inference model to be correct it must at least be correct on the predictions of the factual (i.e., observed) outcomes, and the performance for this task can be evaluated. Thus, reformulating the performance evaluation in such a way allows applying established evaluation methods from statistics and machine learning to the field of causal inference. Specifically, under the assumptions of causal inference we can assume that , where represent the outcome, the treatment, and the covariates, respectively, and the notation is as defined in Appendix A: Detailed Methods.
For propensity models, while the propensity is not directly observed, the treatment assignment is observed, and therefore average propensity can be estimated. We can therefore evaluate how well the model predicts the propensity itself, and additionally, how well the model predicts the observed assignment directly. For weighting models, we can estimate how well they allow emulating RCTs from the observed data by removing treatment bias. In this context, it is important to note that matching algorithms can be considered as integer weighting algorithms, and therefore any further reference to weighting algorithms applies to matching as well.
Using these insights, we implemented a toolkit of methods to evaluate the performance of the underlying machinelearning models, whether they predict propensity, sample weights, or outcome, and suggest an iterative flow for applying these methods. This flow consists of repeating the following steps, as depicted in Figure 1: a) Define the causal question and extract the data accordingly; b) Choose the causal inference method; c) Choose the machine learning model to be used within the causal inference method; d) Train the model in crossvalidation form and evaluate the performance on both training and heldout set; e) If the performance is not satisfactory, repeat the pipeline, adjusting steps ac. If the performance is satisfactory, apply the causal inference to extract the desired insights.
Whether using a propensity model, a weight model, or an outcome model, our evaluations help determine the best underlying machinelearning models for any specific prediction task by providing multiple metrics and summary visualizations. These evaluations are derived from standard machine learning evaluations, but many are tailored specifically for causal inference evaluation, as described individually below.
In the results section we apply our evaluation toolkit method to an example of a rheumatoid arthritis (RA) patient cohort extracted from the IBM Marketscan^{®}Research Databases. In this example we applied a doublyrobust method that combines both a propensity model and an outcome model (using the inverse of the propensity as an additional feature for the outcome model), as an example of its use. We stress, however, that the toolkit can be used for any causal method that provides predictions of either propensity scores, weights, or counterfactual outcomes. Similarly, in the example we utilized simple, out of the box, well known causal methods and machine learning models solely for the purpose of exemplifying the use of the evaluation toolkit. Any other causal method or machine learning model can be used instead.
2.1 Metrics and Plots
We developed our causal inference evaluation toolkit in Python 3.6, with an interface compatible with scikitlearn (Pedregosa et al., 2011). In the course of this work we adapted statistical and machine learning approaches and developed several novel visualizations. Our toolkit includes applying receiver operator characteristic (ROC) curves showing the true positive rate vs. false positive rates; balancing plots displaying the absolute standardized mean difference between the treated and untreated for each covariate (Love, 2002); calibration plots to check accuracy (Zadrozny and Elkan, 2002); plots comparing the distribution of predicted propensity in each treatment group; accuracy plots showing the predicted outcome vs. the observed outcome; and counterfactual scatter plots comparing the predicted outcome in each treatment group. Since most of the evaluations utilize tools that are standard in machine learning, the technical details for how these plots are created can be found in Appendix A: Detailed Methods.
2.2 Data Source
The example data used here was extracted from two IBM MarketScan^{®}Research Databases, Commercial Claims and Medicare Supplemental, which contain individuallevel, deidentified, healthcare claims information from employers, health plans, hospitals, as well as Medicare supplemental programs, for the period of January 1st, 2010 to April 30th, 2017. Specifically: a) IBM MarketScan^{®}Commercial Database contains health insurance claims across the continuum of care (e.g. inpatient, outpatient, and outpatient pharmacy) as well as enrollment data from large employers and health plans across the United States which provide private healthcare coverage for more than 100 million employees, their spouses, and dependents; and b) IBM MarketScan^{®}Medicare Supplemental Database is created for Medicareeligible retirees with employersponsored Medicare Supplemental plans.
The data for individual patients is integrated from all care providers, maintaining all healthcare utilization and cost record connections at the patient level.
3 Results
Instead of listing all the evaluation options in our evaluation toolkit we use a specific cohort and a specific causal question, as described below, as an example throughout this section. Using this example, we demonstrate the use of the evaluation toolkit in a pipeline to guide both the model selection and the data definition as described in Figure 1. Using this pipeline, we highlight both bad practices and good ones. We do not focus on the details of the clinical question that is addressed here or on the clinical implications of the results.

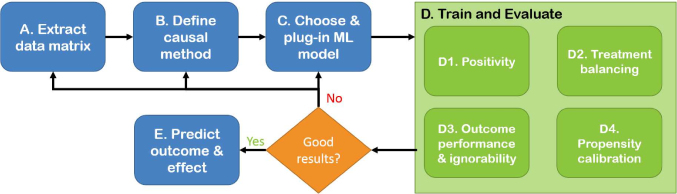

Step A in Figure 1
requires defining the causal question and extracting the data. To demonstrate the use of our toolkit, consider estimating the effect of treatment with a TNFalpha antagonist (TNFA) compared to treatment with other biologic or conventional disease modifying antirheumatic drugs (DMARD), for recentlydiagnosed rheumatoid arthritis (RA) patients. The outcome of interest is the probability of being diagnosed with anemia within one year of RA diagnosis (also known as risk of anemia), and estimation is required in various subpopulations (e.g. individuals over the age of 65). The models must be accurate, and additionally, causal inference assumptions should be met. We show how application of our evaluation toolkit can assist in model selection and data refinement as demonstrated below. We identified 121,915 individuals diagnosed with RA between 2012 and 2016. 11 treatment groups were identified in the data, with 5 of them belonging to the TNFA family. 263 covariates were extracted from the 6 months prior to diagnosis. The date of first DMARD prescription following RA diagnosis was defined as the reference date (indexdate), and an indicator for the diagnosis of anemia in the year following the index date was extracted as the binary outcome.
In step B of Figure 1
, to allow showcasing both propensity and outcome estimation we chose to apply a doublyrobust method where the weights provided by the propensity model are used as additional features to the standardization model for outcome prediction, using inverse probability weighting (IPW) as the weight estimation method for simplicity. In step C we start with the simplest models of logistic regression and proceed to more complex models only as indicated by the evaluations as described below. Note that the examples below are not intended as a recommendation for which methods and models should be used in general. Instead, they are an example for a process to choose the best models for a given dataset.
3.1 Evaluation of Propensity Models
We next turn to step D in the pipeline in Figure 1. Propensity models learn the likelihood of being treated and are used to emulate randomized controlled trial (RCT) by reweighting, matching, or stratifying (Rosenbaum and Rubin, 1985). To judge the success of the propensity model, several evaluations can be performed, as described below. We will first focus on covariate balancing. To emulate an RCT, all covariates must be equally distributed (i.e., balanced) across the treatment groups. This is often evaluated marginally using a covariate balancing plot, in which the difference in distribution between treatment groups is quantified using the absolute standard mean difference (SMD) (Love, 2002). A small SMD value indicates good balancing, while a value larger than some threshold is considered unbalanced (or imbalanced).

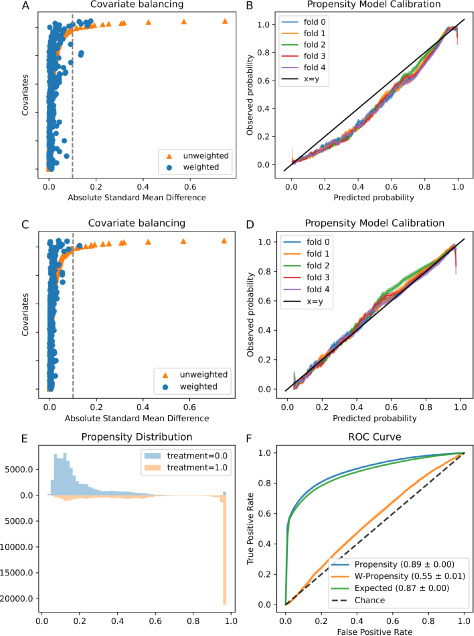

The first evaluation tool we therefore introduce is the covariate balancing plot, exhibited in Figure 2
A, where the SMD is displayed as the averaged over the validation folds in a 5fold cross validation of the data (namely, the RA cohort for treatment with a TNFA, as evaluated using IPW with a logistic regression model). The blue dots represent the SMD after reweighting according to the model, while the orange triangles represent the SMD in the original data. Many covariates exhibit high imbalance in the original data. While most of the covariates exhibit low SMD after reweighting, there are several covariates that exhibit SMD values above the 0.1 threshold (which is a customary arbitrary threshold that assumes Gaussian distributions). This indicates that the estimated average outcome from this model may be inaccurate, and that another model should be used.
The use of the estimated propensity is to capture the true probability that an individual is treated. When this assumption is not met, the subsequent use of propensity for weighting or matching becomes suspect. The next evaluation tool we introduce is the calibration plot, exhibited in Figure 2B, showing the average predicted propensity on the x axis vs. the observed proportion of treated individuals (empirical probability) in the yaxis. The plot shows that the predicted propensity values differ significantly from the observed propensity to treat for most of the value range. Therefore, average outcomes based on these values may be biased. Furthermore, even if despite the lack of calibration good balancing is observed, since the model does not reliably reflect the propensity, it is unlikely to continue balancing for subsets of the data.
Since the evaluations above are not satisfactory, we will reiterate steps AC of Figure 1, modifying the machine learning model and replacing the logistic regression by a calibrated logistic regression model (Zadrozny and Elkan, 2002). Repeating step D in the pipeline of Figure 1 as above, Figure 2C and Figure 2D show that this approach improves the SMD for most of the covariates while also exhibiting good calibration. Thus, the model provides more reliable weight estimations, including those for subpopulations.
An additional evaluation tool for the propensity model, which is causally oriented, assesses whether the data exhibits positivity violations. Positivity is a property of the data where every individual has a probability of being assigned any treatment. Violation of the positivity invalidates the causal question, since it is no longer relevant to ask what might happen to individuals if they change treatment when that treatment can never be given to these individuals (Hernán and Robins, 2006)
. Beside this philosophical issue, on a practical level, if there is a group of patients that can be characterized in some way for which one treatment assignment was not observed, then the machine learning model must extrapolate (rather than interpolate) what might happen to this subpopulation under treatment change, and so its predictions may not be as reliable.
Figure 2E shows the propensity distribution plot for the analysis. We see that many of the treated patients are predicted to have a propensity of 1. This is an indication that the model was consistently able to identify a volume in covariate space where virtually all patients receive the same treatment assignment, violating the positivity assumption. In general, violation of positivity is seen in this plot when there is an area in which a single treatment value is predicted, as is the case in the far right of the graph. In most cases, the way to solve this problem is to identify the defining characteristic for this subpopulation so that they can be excluded from the analysis.
In our example, the covariate describing this subpopulation was found to be treatment with TNFA before RA diagnosis. We then discovered that patients who received any DMARD prior to RA diagnosis were almost never given another treatment upon diagnosis. Almost no examples exist in the data to allow learning what might happen if these patients received another treatment upon diagnosis; therefore, no prediction can be made for what might happen under other treatment conditions. Thus, we return to step A in the pipeline of Figure 1 to redefine the causal question and the data. Specifically, we excluded any RAdiagnosed patient who received any DMARD in the year prior to RA diagnosis, reducing the cohort to 92,496 patients. The causal question was accordingly updated to estimating the effect of treatment with a TNFalpha antagonist (TNFA) compared to treatment with other DMARD, for recentlydiagnosed rheumatoid arthritis (RA) DMARDnaïve patients.
Note that observing apparent violations of positivity only in the training data (i.e. not in the validation data) may indicate an artifact of overfitting. It should also be noted that violation of positivity can cause a model to calibrate poorly and/or fail to provide good balancing. Consequently, violations of positivity should be addressed prior to attempts to improve balancing or calibration.

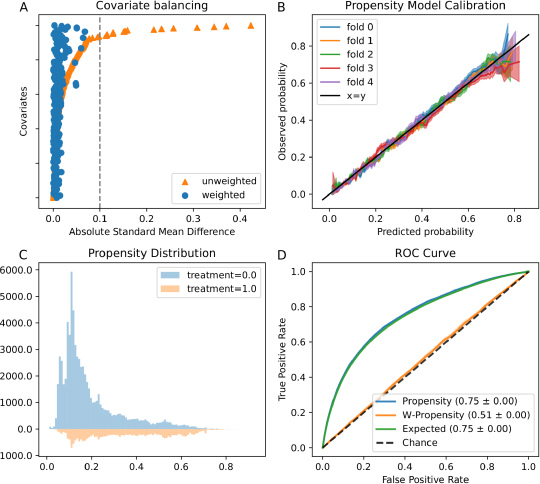

Leaving steps B and C in the pipeline of Figure 1 unchanged, Figure 3 presents the covariate balancing plot (A), the calibration plot (B) and the propensity distribution (C) for the same model as above after limiting to treatmentnaïvepatients. By correcting the positivity problem, the model now achieves better balancing, better calibration, and a propensity distribution that does not hint at violations of positivity.
A final evaluation tool for the performance of the propensity model is obtained using ROC curves, which are a standard way of estimating the performance of categorical predictions. Usually, a desired result is the steepest curve possible (maximum TPR for minimal FPR). However, this is not the case for propensity models. Either vertical or horizontal lines (as seen in Figure 2F) suggest that there are one or more covariates that are highly discriminative between the treated and untreated groups, indicating a potential violation of positivity. Conversely, AUC values close to 0.5 do not necessarily indicate an inaccurate model. For example, modeling the treatment assignment for a proper RCT should have an AUC of 0.5. Empirically, AUC values between 0.7 and 0.8, like the values observed in Figure 3D, exhibited the best downstream performance for reliable effect and outcome estimation.
A novel use for ROC curves, which is only relevant in the context of propensity estimation, is as a test for the consistency of the propensity model. This curve is obtained by reweighting the standard ROC curve using the weights drawn from the propensity model (i.e., the same weights used for the covariate balancing plots above). A model that accurately predicts the propensity to treat should be very close to the curve that would arise by a chance assignment (i.e., with an AUC of 0.5). This curve is termed the ”weighted” ROC. Figure 3D shows the weighted ROC curve for the model above, exhibiting a weighted AUC of 0.47 with an error that includes 0.5, as required.
The analyses above indicate that the propensity model that was derived provides reliable and reproducible results, and that these results should also be reliable for various subpopulations of the data.
Evaluation of Outcome Models
In many contexts, such as in precision medicine, prediction of average outcomes and average effects may be insufficient. In this case, it is necessary to construct a model that predicts the outcome directly, which is a more standard problem in machine learning. It is therefore important to evaluate the performance of outcome models as well. In the context of causal inference, when the standard assumptions of exchangeability and consistency hold we can assume that .
Evaluating the performance of outcome models is more straightforward than evaluating the performance of propensity and weighting models, and some of the evaluations below are also available using other tools (Reps et al., 2018). As mentioned, to evaluate the causal performance of a model we suffice by examining how well the model can predict the observed outcomes given the observed treatment. This can be justified by the assumptions of exchangeability and consistency, namely, that the probability of the outcome for each treatment is independent of the observed treatment assignment. Under these assumptions, the expected value of the outcome given treatment is a good estimator of the counterfactual outcome. Still, we stress that these evaluations can only detect problems with the model and can never directly evaluate the model’s performance on effect estimation.
It was shown that doubly robust methods that estimate both the propensity and the outcome can have tighter bounds on their biases compared to each individual estimation (Funk et al., 2011). We therefore continue the example using a doublyrobust method where the inverse of the propensity is added as an additional feature to the machine learning method (at step D in the pipeline of Figure 1
). Since the observed outcome of a patient being diagnosed with anemia is binary, some of the evaluation plots that were used for propensity can be used, namely, the calibration plot and the ROC curves. Unlike for propensity, however, it is desirable to have an AUC as large as possible. As in usual prediction modeling, large differences in the curves between folds may uncover unequal data distribution among folds. This, in turn, can skew performance assessment and model selection. Additionally, precisionrecall curves may be used instead of ROC curves when classes are imbalanced (e.g., rare outcomes, like heart failure), since rare events tend to lead to high rates of truenegatives, using them, as a ROC curve does, may lead to an overlyoptimistic view of the model
(Fawcett, 2006).For continuous outcomes, where ROC curves and calibration plots are not applicable, accuracy plots are a standard method to evaluate the accuracy of the model’s predictions. They compare the observed outcome vs. the predicted outcome given the observed treatment (i.e., the predicted factual value), where an rsquared estimation can be made. Alternatively, a residual plot showing the difference between the predicted and the observed value can be used. While there may be multiple reasons why a model fails to provide accurate predictions (e.g., insufficient covariates, underspecified model, overfitted model, etc.), this plot, especially when applied to both training and validation parts of the crossvalidation, can help distinguish some of these issues. The separation over treatment groups can also allow recognition of class imbalance in the training data.

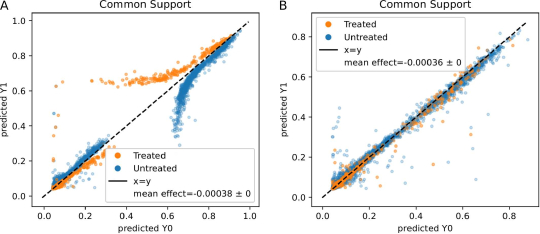

We now turn to an outcome evaluation tool that is specific to causal inference, namely ignorability evaluation. Ignorability states that the potential outcome of any treatment is conditionally independent of the observed treatment assignment given the covariates. This requires that the joint distribution of the potential outcomes are identical in both treatment groups (and hence independent of treatment assignment). Ideally, if the true counterfactual outcomes were known, they could be plotted to help identify violations of ignorability. Since all potential outcomes cannot be observed, we plot the
predictions of the potential outcomes against each other. Violations of ignorability may seem counterintuitive because they imply that the choice of treatment assignment itself changes the potential outcome, which is not possible. However, a lack of overlap in the predicted counterfactual outcome distributions may indicate: a) that the model is not internally consistent as a causal inference model; or b) that there are unmeasured confounders, or that the model disregarded a measured confounder. In either case, such a violation of ignorability indicates that outcome predictions from the model are not reliable.Figure 4A shows the predicted counterfactual plot for predicting the risk of anemia in the RA cohort when the patients are treated with TNFA for the training folds of the same 5fold cross validation as above, when the outcome is predicted using a random forest classifier with 500 trees. The plot pattern shows many areas where a single treatment group is evident. This indicates that the model predicts some violation of ignorability (or model inconsistency). Hence, this model cannot be used to predict the causal effect of treatment and is not reliable for individual outcome prediction. Note that this evaluation must be performed on the training folds in order to observe this behavior.
A likely reason for this behavior can be derived by noting that the distributions of the two treatment groups are almost inverted along the
line. Since random forest models are notorious for overestimating training performance, the factual predictions on the training data are done using outofbag estimation. However, outofbag estimation cannot be used when predicting the counterfactual outcomes, since the counterfactual vector was not in the training data. On the other hand, since the only thing that changes between the factual and counterfactual prediction is the treatment, the input vector to the prediction model is extremely similar to the vector that was given during training. As a result, the counterfactual predictions are overfitted to the observed factual outcomes. A more detailed derivation of this conclusion appears in
Appendix B: Counterfactual Overfitting in Random Forest Models.This analysis is a general one and shows that without outofbag predictions for the counterfactual treatments, models with inherent high overfitting and small effect for change of a single covariate (such as random forests) cannot be used to obtain consistent causal effects models. As a result, the current implementation of random forests in scikitlearn cannot be used without significant modifications to predict the effect or outcome on the training data. Figure 4B shows the same plot for the validation folds, where no violation in ignorability is detected. However, since changing a single covariate causes little change to the model, such models usually predict very small effects.
Besides ignorability, the predicted counterfactual outcome plots can help evaluate the overall structure of the predicted effect and help identify populations of interest. Specifically, this visualization allows us to see if any predicted effect exists, whether the predicted effect is consistent across the population, or if there are specific subsets of the data for which the effect is predicted to be significantly larger or smaller than the rest of the data. Additional insights can be gained from this visualization depending on the structure of the distribution. For example, a very narrow distribution along some function hints at lowdimensionality of the problem because only a few covariates (or summary functions) influence the outcome prediction, while a wider and more complex distribution indicates multiple covariates affecting the problem.
3.2 Performance on Subsets of the Data
An additional use for evaluation toolkit is for understanding model performance on subsets of the data. In crossvalidation schemes, the model is trained on a training fold and then tested on a validation fold; however, for subsets of the data the model can be trained on the whole data and then tested on a subset. A model that performed well on all evaluation tasks may still fail on specific subsets of the data, especially when the distributions of covariates within the subset differ from the complete dataset.

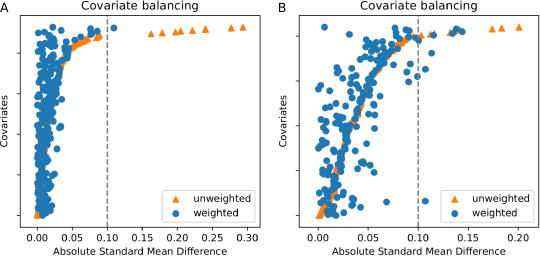

As an example to how the evaluation may change when evaluating on subsets of the data, Figure 5A shows the balancing plot for the same analysis as above using the same models (trained on the complete data), but applied to a subset of patients above the age of 65 (25,480 patients, approximately 28% of the population). Calibration is somewhat worse than was observed for the complete data (Figure 3A), and a few covariates exhibit larger SMD than before, with one covariate exhibiting SMD slightly above the threshold of 0.1. Significant degradation in performance is only observed when further restricting the analysis to patients over the age of 75 with a history of cardiovascular disease (4,111 patients, 4%). This is shown in the balancing plot in Figure 5B, where multiple covariates are above the 0.1 threshold. Still, in many contexts even these results are considered acceptable.
Once significant degradation in performance is discovered in a subpopulation, the action to be followed depends on the context. In some contexts, the degradation in performance will only be reported, while in others the models can be retrained for the subpopulation (with a risk for overfitting). In other cases, the models for the complete dataset may be revised.
For completeness we report the resulting predicted effect, and how it changes in these subpopulations. Since this is only an example we will not discuss the implications of these results. The provided models predict a mild decrease of 0.84% in the risk of anemia for RA patients with TNFA compared to other DMARDS. In the population over the age of 65 the effect was slightly more pronounced for a decrease of 1.1%, while in the population over the age of 75 with history of CVD the effect was even larger with a decrease of 1.5%. While these effects are relatively small, they are larger than the standard deviation that was observed in crossvalidation, which was less than 0.1%.
4 Discussion
We propose a causal inference evaluation toolkit to assess the performance of causal algorithms by evaluating their machine learning core. We do this by evaluating performance against the factual data, since for casual models to be truly correct they must at least be correct on the observed data. We stress that the logic is unidirectional: good model performance on the factual data does not guarantee good counterfactual modeling, especially when there are unmeasured confounders. However, poor model performance on the factual data does imply poor model performance of the entire causal model.
This paradigm shift  from predicting effect to predicting propensity and outcome  may be more onerous. However, it allows moving from predictions of unknowable quantities (effect) to predictions of verifiable and testable quantities. It allows evaluating the model for generalizability and its performance on the available data, guiding the choice of the most appropriate methods and models for the data being analyzed. Furthermore, it also suggests an iterative process of refining the data extraction pipeline (i.e. changing the inclusion and exclusion criteria, and modifying the covariates available for the models ), and at the least provides insight into which questions can be reliably answered and which cannot. A proposed guideline is provided below for how such a process can be performed.
Evaluating propensity models can be highly informative for understanding biases in the data and helping discover positivity violations. It may therefore be useful to construct a propensity model and evaluate how well it performs, even when the main task is to evaluate an outcome directly and there is no plan to use the propensity in outcome estimation. Specifically, the propensity model evaluation can be used to detect that a change in the causal question is required, or that additional covariates are needed, as explained below.
Violations of positivity indicate that inclusion and exclusion criteria need to be changed in the data, or that a covariate that holds information about the outcome was erroneously introduced. Similarly, issues with covariate balancing may indicate that more covariates or a more expressive model is needed. Increasing the complexity of the model in this way may lead to overfitting, which can be detected by comparing performance between training and validation. Lack of calibration may indicate insufficient sample size. However, it may also indicate that the model is unable of capturing the underlying structure in the data; or the existence of model overfitting. If the covariate balancing and AUC are sufficiently good, then calibration only reflects on the reusability of the model for other tasks (e.g., comparing to different models or applying the results on a subset of the data). If a propensity model cannot be reliably constructed, it may be illadvised to use a doublyrobust method, since it inherently utilizes the propensity estimations.
When evaluating outcome models, the precision evaluations should be used for model selection and covariate selection while evaluating how this affects performance on both training and validation folds to avoid overfitting. To evaluate the effect and ignorability, however, it is normally relevant to examine training performance, since effect predictions are traditionally reported on the same data on which models were constructed. Finally, if a reliable outcome model cannot be constructed while a good propensity model is available, then it is still possible to use the propensity model to evaluate the effect of treatment in various subsets of the data.
As with all machine learning evaluations, when applying the above guidelines, it is important to remember that making decisions based on the validation folds leads to training contamination of the validation samples and may therefore lead to overly optimistic results. Similarly, good generalizability on a crossvalidation toolkit does not guarantee generalizability in other datasets due to batch effects, specific data biases, etc. The evaluations and plots described here are only a handful of the evaluations and summaries that can be performed, but we believe they are the most important.
While not mentioned explicitly, our evaluation toolkit is also useful for evaluating matching methods (Stuart, 2010). Matching allows the estimation of counterfactual outcomes and is therefore applicable for outcome evaluation. It can also be considered an integerweighting algorithm and can therefore be evaluated using the weighting evaluations. Furthermore, specifically, propensity matching requires a propensity model and therefore lends itself to propensity evaluation.
Our evaluation toolkit may be of particular importance for personalized medicine, where generalizability, accuracy, and robustness are imperative, but where individual effect is unobservable (Shalit et al., 2016). Prediction evaluations for personalized models can only be performed on a populationbasis, as described here for subpopulation. Only when a model displays sufficient accuracy for a specific subpopulation can it be used for precision medicine.
We firmly believe that causal inference analysis can be used to estimate unbiased measures and help guide evidencebased decision making in healthcare. However, for both caregivers and caretakers to trust the models in such sensitive matters, there’s a strong need to validate, understand and judge their robustness and biases. We hope this work is another step in that important direction.
References
 Ali et al. (2015) M Sanni Ali, Rolf HH Groenwold, Svetlana V Belitser, Wiebe R Pestman, Arno W Hoes, Kit CB Roes, Anthonius de Boer, and Olaf H Klungel. Reporting of covariate selection and balance assessment in propensity score analysis is suboptimal: a systematic review. Journal of clinical epidemiology, 68(2):122–131, 2015.
 Cochran and Rubin (1973) William G Cochran and Donald B Rubin. Controlling bias in observational studies: A review. Sankhyā: The Indian Journal of Statistics, Series A, pages 417–446, 1973.
 Deaton and Cartwright (2018) Angus Deaton and Nancy Cartwright. Understanding and misunderstanding randomized controlled trials. Social Science & Medicine, 210:2–21, 2018.
 Dorie et al. (2017) Vincent Dorie, Jennifer Hill, Uri Shalit, Marc Scott, and Dan Cervone. Automated versus doityourself methods for causal inference: Lessons learned from a data analysis competition. arXiv preprint arXiv:1707.02641, 2017.
 Fawcett (2006) Tom Fawcett. An introduction to roc analysis. Pattern recognition letters, 27(8):861–874, 2006.
 Friedman et al. (2001) Jerome Friedman, Trevor Hastie, and Robert Tibshirani. The elements of statistical learning, volume 1. Springer series in statistics New York, NY, USA:, 2001.
 Funk et al. (2011) Michele Jonsson Funk, Daniel Westreich, Chris Wiesen, Til Stürmer, M Alan Brookhart, and Marie Davidian. Doubly robust estimation of causal effects. American journal of epidemiology, 173(7):761–767, 2011.
 Gassen (2014) Joachim Gassen. Causal inference in empirical archival financial accounting research. Accounting, Organizations and Society, 39(7):535–544, 2014.
 Gelman and Hill (2006) Andrew Gelman and Jennifer Hill. Data analysis using regression and multilevel/hierarchical models. Cambridge university press, 2006.
 Guyon et al. (2011) Isabelle Guyon, Constantin Aliferis, Gregory Cooper, André Elisseeff, Jean Philippe Pellet, Peter Spirtes, and Alexander Statnikov. Causality workbench. In Causality in the sciences. Oxford University Press, 2011.
 Hernán and Robins (2006) Miguel A Hernán and James M Robins. Estimating causal effects from epidemiological data. Journal of Epidemiology & Community Health, 60(7):578–586, 2006.
 Hernan and Robins (2018) Miguel A Hernan and James M Robins. Causal inference. Chapman & Hall/CRC, forthcoming, 2018.
 Hernán et al. (2018) Miguel A Hernán, John Hsu, and Brian Healy. Data science is science’s second chance to get causal inference right: A classification of data science tasks. arXiv preprint arXiv:1804.10846, 2018.
 Hill and Su (2013) Jennifer Hill and YuSung Su. Assessing lack of common support in causal inference using bayesian nonparametrics: Implications for evaluating the effect of breastfeeding on children’s cognitive outcomes. The Annals of Applied Statistics, pages 1386–1420, 2013.
 Holland (1986) Paul W Holland. Statistics and causal inference. Journal of the American statistical Association, 81(396):945–960, 1986.
 Horvitz and Thompson (1952) Daniel G Horvitz and Donovan J Thompson. A generalization of sampling without replacement from a finite universe. Journal of the American statistical Association, 47(260):663–685, 1952.
 Hripcsak et al. (2015) George Hripcsak, Jon D Duke, Nigam H Shah, Christian G Reich, Vojtech Huser, Martijn J Schuemie, Marc A Suchard, Rae Woong Park, Ian Chi Kei Wong, Peter R Rijnbeek, et al. Observational health data sciences and informatics (ohdsi): opportunities for observational researchers. Studies in health technology and informatics, 216:574, 2015.
 Hunter (2007) J. D. Hunter. Matplotlib: A 2d graphics environment. Computing In Science & Engineering, 9(3):90–95, 2007. doi: 10.1109/MCSE.2007.55.
 Johnson et al. (2009) Michael L Johnson, William Crown, Bradley C Martin, Colin R Dormuth, and Uwe Siebert. Good research practices for comparative effectiveness research: analytic methods to improve causal inference from nonrandomized studies of treatment effects using secondary data sources: the ispor good research practices for retrospective database analysis task force report—part iii. Value in Health, 12(8):1062–1073, 2009.
 Liaw et al. (2002) Andy Liaw, Matthew Wiener, et al. Classification and regression by randomforest. R news, 2(3):18–22, 2002.
 Linden (2015) Ariel Linden. Graphical displays for assessing covariate balance in matching studies. Journal of evaluation in clinical practice, 21(2):242–247, 2015.
 Love (2002) Thomas E Love. Displaying covariate balance after adjustment for selection bias. In Section on Health Policy Statistics, Joint Statistical Meetings, New York, volume 11, 2002.
 McCann et al. (2010) Michael McCann, Yuhua Li, Liam Maguire, and Adrian Johnston. Causality challenge: benchmarking relevant signal components for effective monitoring and process control. In Causality: Objectives and Assessment, pages 277–288, 2010.
 Mooij et al. (2016) Joris M Mooij, Jonas Peters, Dominik Janzing, Jakob Zscheischler, and Bernhard Schölkopf. Distinguishing cause from effect using observational data: methods and benchmarks. The Journal of Machine Learning Research, 17(1):1103–1204, 2016.
 Morgan and Winship (2015) Stephen L Morgan and Christopher Winship. Counterfactuals and causal inference. Cambridge University Press, 2015.
 Pearl (2009) Judea Pearl. Causal inference in statistics: An overview. Statistics surveys, 3:96–146, 2009.
 Pearl and Mackenzie (2018) Judea Pearl and Dana Mackenzie. The Book of Why: The New Science of Cause and Effect. Basic Books, Inc., New York, NY, USA, 1st edition, 2018. ISBN 046509760X, 9780465097609.
 Pedregosa et al. (2011) F. Pedregosa, G. Varoquaux, A. Gramfort, V. Michel, B. Thirion, O. Grisel, M. Blondel, P. Prettenhofer, R. Weiss, V. Dubourg, J. Vanderplas, A. Passos, D. Cournapeau, M. Brucher, M. Perrot, and E. Duchesnay. Scikitlearn: Machine learning in Python. Journal of Machine Learning Research, 12:2825–2830, 2011.
 Peters et al. (2017) Jonas Peters, Dominik Janzing, and Bernhard Schölkopf. Elements of causal inference: foundations and learning algorithms. MIT press, 2017.
 Reps et al. (2018) Jenna M Reps, Martijn J Schuemie, Marc A Suchard, Patrick B Ryan, and Peter R Rijnbeek. Design and implementation of a standardized framework to generate and evaluate patientlevel prediction models using observational healthcare data. Journal of the American Medical Informatics Association, 25(8):969–975, 2018.
 Rosenbaum and Rubin (1983) Paul R Rosenbaum and Donald B Rubin. Assessing sensitivity to an unobserved binary covariate in an observational study with binary outcome. Journal of the Royal Statistical Society: Series B (Methodological), 45(2):212–218, 1983.
 Rosenbaum and Rubin (1985) Paul R Rosenbaum and Donald B Rubin. Constructing a control group using multivariate matched sampling methods that incorporate the propensity score. The American Statistician, 39(1):33–38, 1985.
 Schuemie et al. (2018) Martijn J Schuemie, Marc A Suchard, and Patrick B Ryan. CohortMethod: Newuser cohort method with large scale propensity and outcome models, 2018. R package version 3.0.0.
 Shalit et al. (2016) Uri Shalit, Fredrik D Johansson, and David Sontag. Estimating individual treatment effect: generalization bounds and algorithms. arXiv preprint arXiv:1606.03976, 2016.
 Shimoni et al. (2018) Yishai Shimoni, Chen Yanover, Ehud Karavani, and Yaara Goldschmnidt. Benchmarking framework for performanceevaluation of causal inference analysis. arXiv preprint arXiv:1802.05046, 2018.
 Stuart (2010) Elizabeth A Stuart. Matching methods for causal inference: A review and a look forward. Statistical science: a review journal of the Institute of Mathematical Statistics, 25(1):1, 2010.
 Van der Laan et al. (2007) Mark J Van der Laan, Eric C Polley, and Alan E Hubbard. Super learner. Statistical applications in genetics and molecular biology, 6(1), 2007.
 Vashisht et al. (2018) Rohit Vashisht, Kenneth Jung, Alejandro Schuler, Juan M Banda, Rae Woong Park, Sanghyung Jin, Li Li, Joel T Dudley, Kipp W Johnson, Mark M Shervey, et al. Association of hemoglobin a1c levels with use of sulfonylureas, dipeptidyl peptidase 4 inhibitors, and thiazolidinediones in patients with type 2 diabetes treated with metformin: analysis from the observational health data sciences and informatics initiative. JAMA network open, 1(4):e181755–e181755, 2018.
 Waskom et al. (2014) Michael Waskom, Olga Botvinnik, Paul Hobson, John B Cole, Yaroslav Halchenko, Stephan Hoyer, Alistair Miles, T Augspurger, T Yarkoni, T Megies, et al. seaborn: v0. 5.0 (november 2014). Zenodo, doi, 10, 2014.

Wolpert and Macready (1997)
David H Wolpert and William G Macready.
No free lunch theorems for optimization.
IEEE transactions on evolutionary computation
, 1(1):67–82, 1997.  Zadrozny and Elkan (2002) Bianca Zadrozny and Charles Elkan. Transforming classifier scores into accurate multiclass probability estimates. In Proceedings of the eighth ACM SIGKDD international conference on Knowledge discovery and data mining, pages 694–699. ACM, 2002.
Appendix A: Detailed Methods
This section presents our evaluation framework using numerical performance metrics and plots. The calculations are done using crossvalidation to identify over and underfitting, reduce optimism bias and evaluate the model’s generalizability to other similar patient cohorts (Friedman et al., 2001). Evaluations can also be stratified by treatment type, allowing assessment of each potential outcome model separately. The following describes our framework methodology.
Code Availability
The code for our evaluation framework was written in Python 3.6 and is designed as a wrapper for models in a format compliant with scikitlearn (Pedregosa et al., 2011). The evaluation plots were created using matplotlib (Hunter, 2007) and seaborn (Waskom et al., 2014)
, and most of the evaluation metrics are as defined by scikitlearn. To request usage of the code please contact the authors.
Covariate Balancing Plot
Many studies report the mean and standard deviation of covariates in each treatment group, as well as the standardized mean difference (SMD) of each covariate between the groups. The SMD is used as a measure of the marginal similarity between the covariate distributions in each of the groups. Unlike other measures of similarity, the SMD is independent of the covariate’s scale, thus allowing similarity judgments possible across all covariates. To allow easy interpretation of the SMD, a plot, commonly known as a Love plot (Love, 2002), is provided that shows the SMD of each covariate with and without weighting. The covariates are ordered along the yaxis, sorted by the SMD in the original (uncorrected) data, and a threshold value is plotted using a dotted line (by default at SMD=0.1, as is common in the literature). Good balancing is exhibited when the weighted SMD for all covariates is smaller than the threshold, as observed in Figure 3A.
Other measures of similarity between the distributions can also be displayed, including the symmetrized KullbackLeibler divergence, the pvalue of a KolmogorovSmirnov test, or the earthmover distance. These measures, however, share assumptions that may not be relevant in the context of causal inference
(Ali et al., 2015; Linden, 2015), or are scale dependent.Probability Calibration
In machine learning, calibration is relevant in classification problems to assess model fit. It is especially relevant when comparing multiple models against each other. Here we apply it to assess the fitness of causal inference models, where it can be applied to either propensity or outcome modeling. Specifically, calibration is used to estimate whether model scores (i.e., the continuous output from the classification model prior to deciding on the predicted class assignment) can be used as probabilities. The predicted scores are evaluated either using a running average, also known as a sliding window, or by binning. The plot, also called a reliability diagram, displays the observed frequency of the event in the bin on the yaxis vs. the mean predicted probability on the xaxis within the sliding window or bin (Zadrozny and Elkan, 2002) (see Figures 2B, 2D, 3
B). When using crossvalidation, each fold of the data is represented by a different color line with the a shaded area surrounding it, representing the approximate 95% confidence interval. This interval is calculated as the values,
, for whichplus/minus the standard deviation of the bin (using binomial distribution) would equal the observed proportion,
, namely , where is the number of samples in the bin. In order to compare to the desired result, the line for is also provided.Propensity Distribution by Treatment Assignment
Positivity in causal inference is the assumption that there is some likelihood for any patient to receive or not receive treatment. A violation of this assumption negates causal analysis, since it means that for some set of covariates the treatment is known and that other treatment options are never observed. This suggests that there is probably a reason (either regulatory or practical) that disallows the unobserved treatment assignment. Regardless, since one of the treatment groups is not observed, a model trained on such data is unlikely to be able to reliably predict the values for that treatment assignment over that subspace.
The positivity assumption must be met in the multidimensional space of all the covariates, which is not feasible to visualize. However, it was shown (Rosenbaum and Rubin, 1983) that it is theoretically sufficient to check that the positivity is met in the propensity space. Therefore, to evaluate whether the positivity assumption is violated a plot is provided that displays the distribution of propensity scores (or weights) for the different treatment groups. Each treatment assignment is represented by a different color (see Figures 2E, 3
C). Violations of positivity are exhibited by areas for which a single treatment assignment is observed. The distribution can be plotted using a histogram, the probability density function (PDF) or the cumulative density function (CDF). The tradeoff is that histograms and PDFs are more easily interpretable but plotting them requires some approximation  either by assigning to bins (histogram) or by using kernel density estimations (PDF), both can lead to some artifacts depending on the parameters used. In contrast, empirical CDFs can be plotted with no artifacts at all but can be less intuitive to interpret. Ideally, the support of all distributions should coincide between the groups. To improve clarity of overlap between groups, when the treatment is binary and PDF is used, the PDF for the treated samples is reflected around the xaxis.
Note that propensity estimation can be viewed as a dimensionality reduction (to a single dimension). This may lead to different subspaces being mapped to similar propensity values, thus obscuring a violation in positivity in one of them. We therefore stress that no observed violation of positivity in the propensity space does not guarantee no violation of positivity in the multidimensional space, while an observed violation in positivity in the propensity space does indicate a real violation of the positivity assumption.
Prediction Accuracy Plots
To judge the accuracy of a model, whether for propensity or outcome, we apply several standard metrics with visualizations. The choice of metric and visualization is determined by the type of variable being modeled, dichotomous or continuous. We discuss each of these options below.
For dichotomous outcomes, the ROC curve is commonly used in statistics to plot a model’s prediction against a known truth as the discrimination threshold is varied. The true positive rate (TPR, aka sensitivity or recall) is plotted on the yaxis vs. the false positive rate (FPR, aka 1specificity) on the xaxis (see Figure 3D). When using crossvalidation, the TPRs are first linearly interpolated over the range of zero to one. This allows to align the various folds as a function of the FPR in order to calculate average and standard deviation across the different folds at each point along the xaxis. The average is then plotted as the curve, and the standard deviation surrounds it. Optionally, a dedicated fainter curve for each fold can be plotted instead of the shaded area, but this may lead to clutter. Finally, the area under the ROC curve (AUC) is calculated for each fold separately and the average AUC is presented in the legend 1 standard deviation (the AUC for the average plot is not calculated since it is not a good statistical measure).
In general, curves are drawn, where is the number of possible treatments. For each treatment , we evaluate the predicted against the true and each such comparison has its own curve in the plot.
All curves, including the propensity and outcome model (when relevant, e.g. for doubly robust models), can be displayed on the same plot. A line for , depicting chance prediction, is provided for comparison.
For propensity models, two additional novel curves can be drawn: a) propensity balancing; and b) the expected propensity ROC: a) To estimate that the propensity value are balanced across treatment groups, the ROC curve can be drawn using the assigned sample weights. Similar to a randomized controlled trial (RCT), the weighted distribution of propensities in each treatment group should be identical, and so this plot should be as close as possible to the random assignment. This is similar to a twosample discrimination test on the weighted samples. Significant deviation from the diagonal indicate a deviation from the assumption that the weighting can emulate an RCT. b) The consistency of the propensity model can be evaluated by considering the expected ROC curve assuming that the individual propensity predictions are correct. In this scenario, the probability of to be treated is their propensity. Therefore, each patient contributes their propensity to the truepositives and the complement of their propensity to the false positives. This curve can be used as a comparison for the observed propensity ROC curve. Significant deviations from this curve indicate that the model provides values that are not consistent with its interpretation as propensity.
For continuous outcomes, ROC curves cannot be utilized to estimate prediction accuracy, therefore, a scatter plot of the predicted values vs. the true values is used instead. Dots in the plot are colored by treatment to visualize if the goodness of prediction is similar across groups. In order to compare to the desired result, the line for is provided. The rsquared for each of the treatment groups is provided in the legend 1 standard deviation. Since these are standard plots no examples are provided in the manuscript.
To evaluate bias, a residual plot can be used instead showing the residual (i.e., the difference between the predicted and observed values) can be plotted in the yaxis.
Common Support Proxy
The ignorability assumption is key in causal inference methods because it is related to the underlying strength of clinical trial design. Random assignment in clinical trials ensures that all measured and unmeasured confounders are equally distributed between treatment groups. Therefore, any difference in outcome can be attributed to the treatment. The strong ignorability assumption in causal inference states that if all measured confounders are equally distributed between the treatment groups then we can ignore any unmeasured confounders and attribute any difference in outcome to treatment.
To test the ignorability assumption, we again draw from machine learning methods and created a plot inspired by (Hill and Su, 2013). In this plot the predicted outcome of an intervention (say, control group) on the xaxis vs. the predicted outcome of another intervention (say, the treatment group) on the yaxis (see Figures 4A, 4B). The line for is added for reference. In this scatter plot samples that were treated are displayed in a different color than points representing samples that were not treated. Violation of ignorability are observed when areas of the plot contain points from a single treatment group.
Note that ignorability requires an identical distribution between treatment groups in the hyperdimensional space of all the covariates, while this plot projects these distributions into a twodimensional space. This plot therefore does not guarantee that ignorability is not violated.
Detailed Metrics Files
In addition to the visualizations described above, we also recommend creating a comprehensive table with scores in csv format to allow usecase specific evaluations and visualizations. More importantly, the summary evaluations allow to automatically select models based on their performance on a large scale, e.g. when there are many outcomes and many possible treatment assignments.
Each line in the csv file corresponds to the metric evaluation for a treatment (TX) vs. outcome (O) pair in a specific fold and a specific train or validation phase (phase) and for a specific treatment group (stratum). Therefore, each line will have the format: TX, O, phase, fold number, and stratum, followed by the relevant metrics (e.g. root mean squared error (RMSE) for regression, area under ROC curve (AUC) for classification, etc.). For completeness, an additional special ’stratum’ of the overall population pooling of the treatment groups is also evaluated. For propensity models the outcome column is omitted.
The metrics we recommend to be evaluated (when relevant) are: accuracy, precision, recall, f1 score, ROC AUC, hinge loss, Matthews correlation coefficient, 0/1 loss, Brier score loss, the confusion matrix, explained variance, mean absolute error, mean squared error, mean squared log error, median absolute error, and
score. All these scores are as defined by the scikitlearn.metrics package.An additional csv file details the SMD for each covariate in each of the folds with and without weights. Each line in this file includes the TX, O, phase, the covariate name, the SMD values in all training phases, and all the SMD values in all the validation phases.
Appendix B: Counterfactual Overfitting in Random Forest Models
This section explains in more details the observed behavior seen in Figure 4A, where the predicted outcomes for the two treatment groups present a mirror image along the line. Below we explaing why we believe this can be explained by overfitting of the counterfactual predictions in the context of random forests.
Outofbag predictions apply only the random trees in the random forest that did not use a specific sample in order to predict the outcome for that sample, and were shown to be essential in reducing overfitting in random forest models (Liaw et al., 2002). However, by the nature of this definition this prediction can be easily be constructed during training, and very difficult to maintain for prediction.
Consider an example of two samples, and , with almost identical covariates and , respectively, where was treated and untreated. Let us denote the outofbag predictions by and the regular predictions by . For sample the prediction under treatment will be outofbag, while the prediction under no treatment will be the regular one. It will therefore appear in the plot at . Similarly, for sample the prediction under no treatment will be outofbag and so it will appear in the plot at . Since for random forests the change in a single variable is inherently small, the point for and are approximately equal to and , respectively, which are mirror images of each other.
In addition to this general analysis, in the detailed metric files that are produced during the analysis it was indeed apparent that the counterfactual predicted values with no treatment provided almost perfect performance when compared to the observed outcome on the treated population, and viceversa. This performance was much better than the one exhibited by the factual predictions (e.g. predicting outcome with treatment for the treated population).
